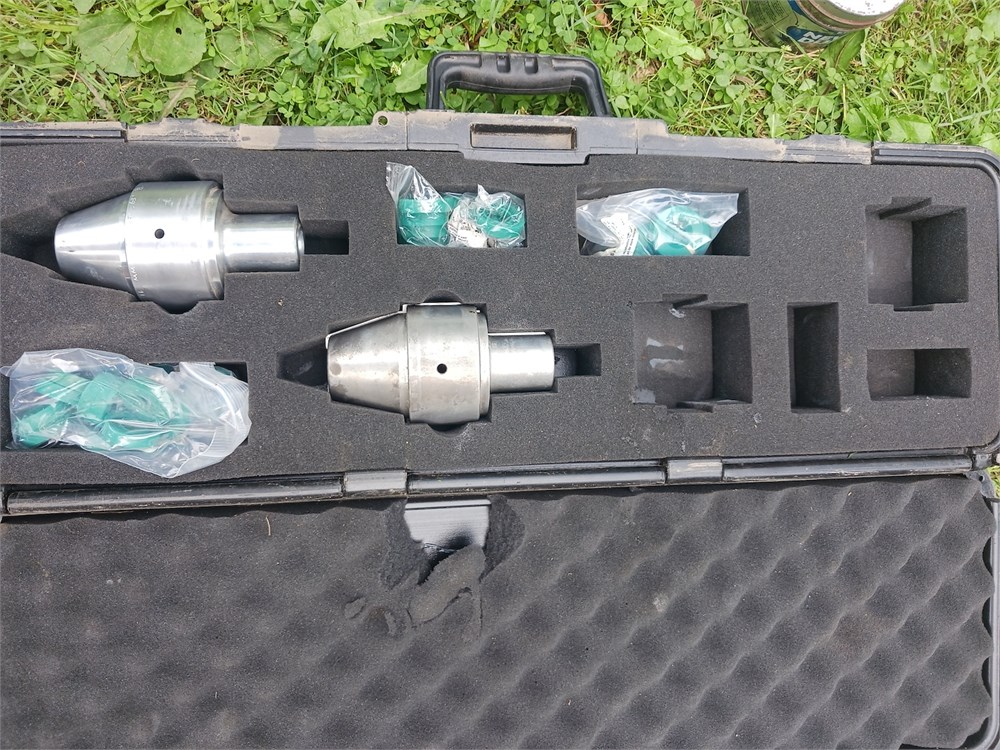

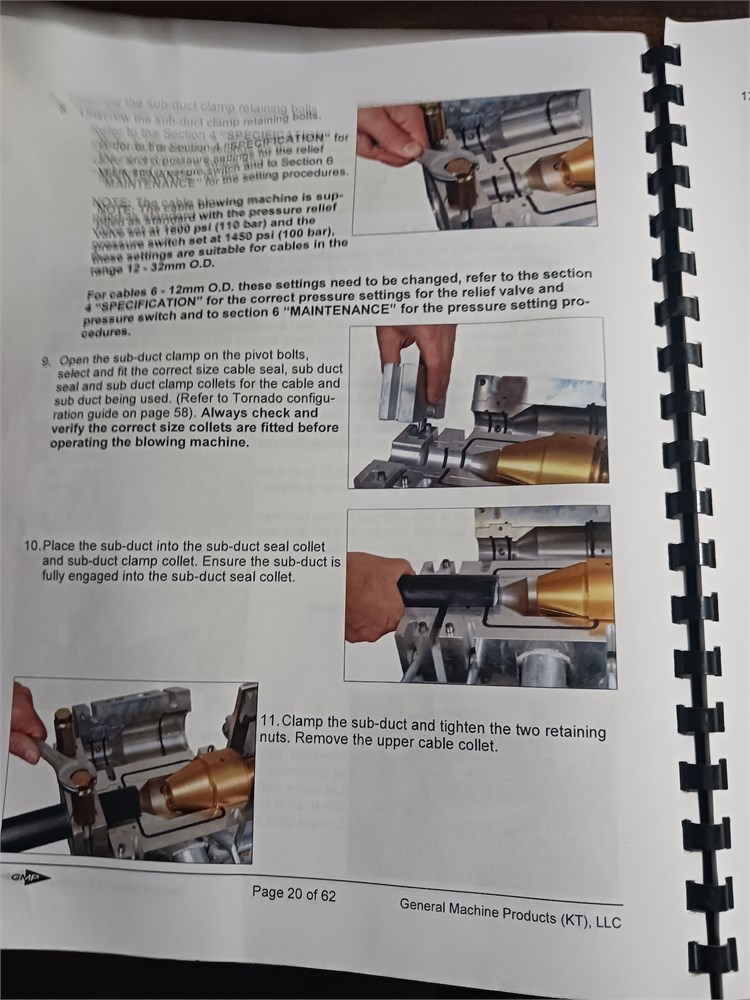

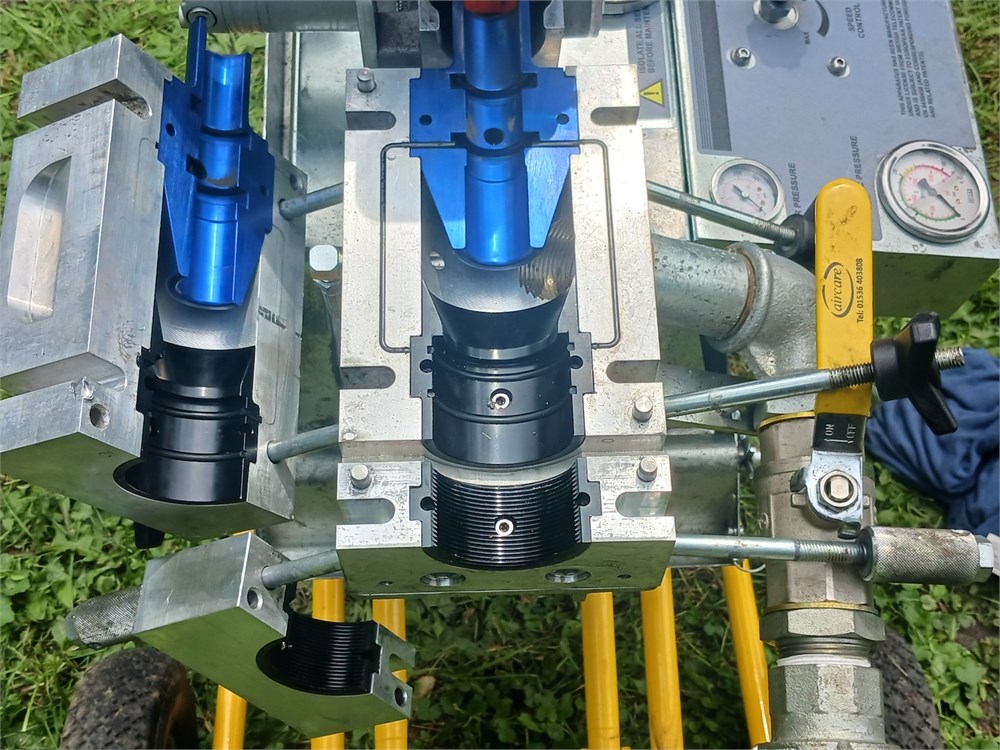

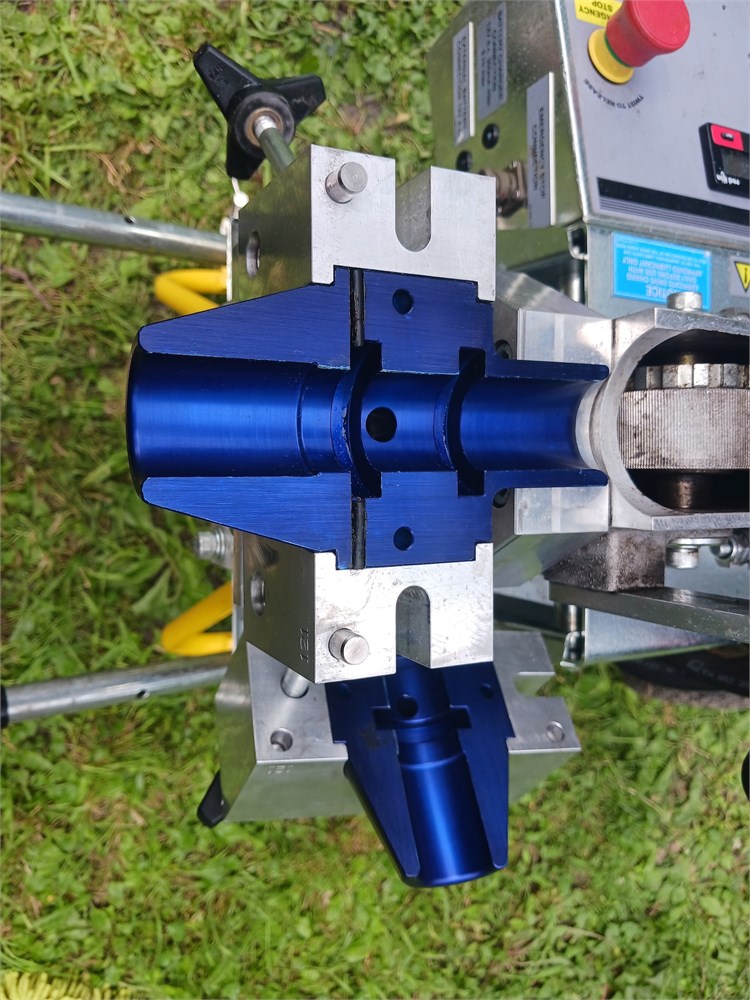

Installs Fiber from 12-24MM and 1.25,1.5,2” Duct Clamps and Seals

Hydraulic Power Pack

Condition: Like New

Operating Capacities

Pushing Force: 0-220 lbs. (0-100kg)
Pushing Speed: 0-300 ft/min (0-90m/min)
Cable Size: .24-1.34″ (6-34mm) O.D.
Sub – Duct Size: 1/2-2 1/2″ SDR (12-63mm) O.D.

Pneumatic System

Air Hose Bore (min): 1 1/4″ (32mm)
Operating Pressure: 175 psi (12 bar)
Flow: The air supply should be filtered, cooled and dry
For Ducts with an Inner Diameter of: Minimum Flow Acceptable @175 psi (12 bar)
0 up to 1″ (0 up to 25mm) : 150 CFM (4m³/min)
1 up to 1 1/8″ (26 up to 30mm) : 185 CFM (5m³/min)
1 1/8 up to 1 3/8″ (31 up to 35mm) : 250 CFM (7m³/min)
1 3/8 up to 1 5/8″ (36 up to 40mm) : 375 CFM (10m³/min)
1 5/8 up to 1 3/4″ (41 up to 44mm) : 450 CFM (12m³/min)
1 3/4 up to 2″ (44 up to 51mm): 700 CFM 19m³/min

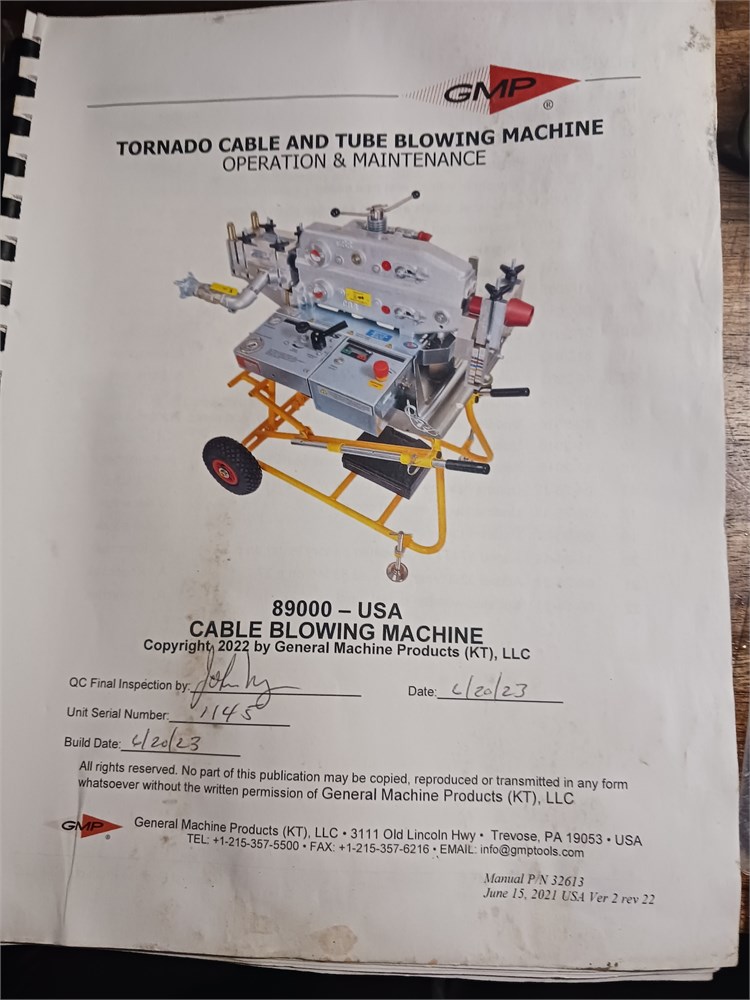

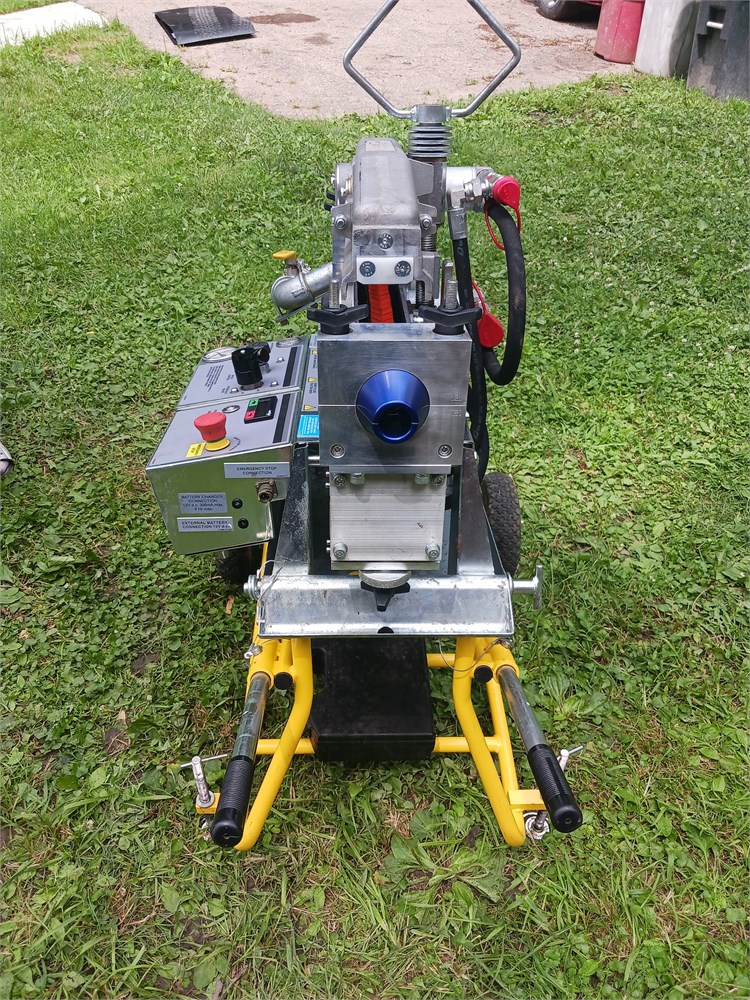

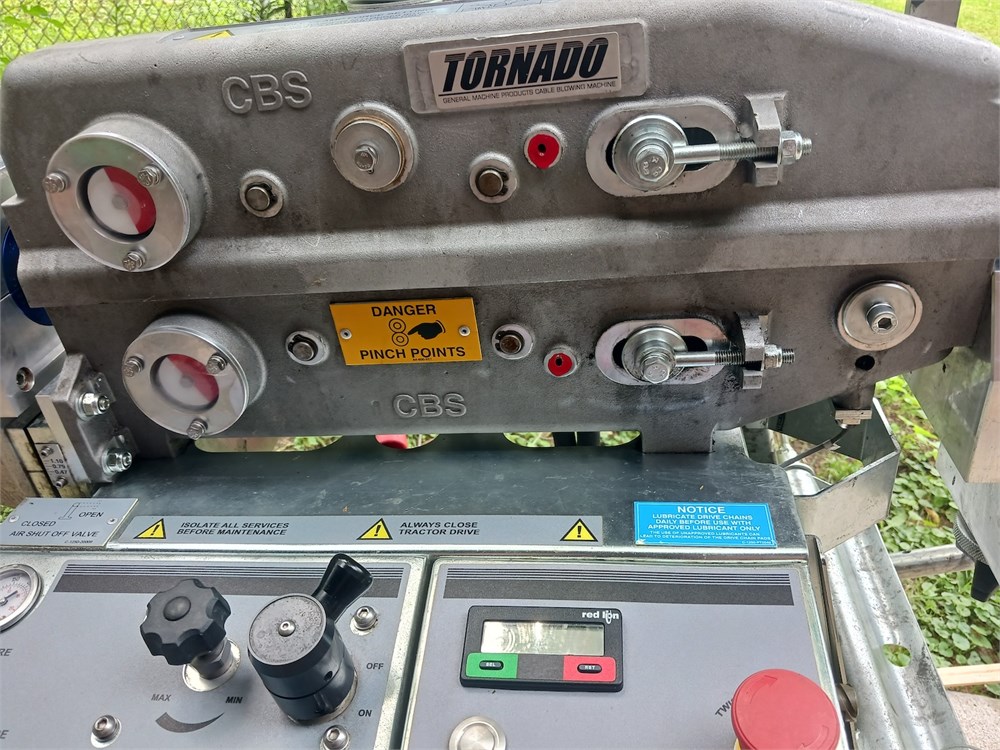

The Tornado Cable Blowing Machine is designed to be safe, fast and effective, even on tough terrain, the Tornado cable blowing machine will move fiber optic cable of 0.23 to 1.34 in. (5.84-34mm) diameter at speeds to 300 ft./min. (90 m/min.) into pre-installed innerduct or direct-buried duct.  Tornado PLUS includes everything you need in one part number for most fiber/duct options.

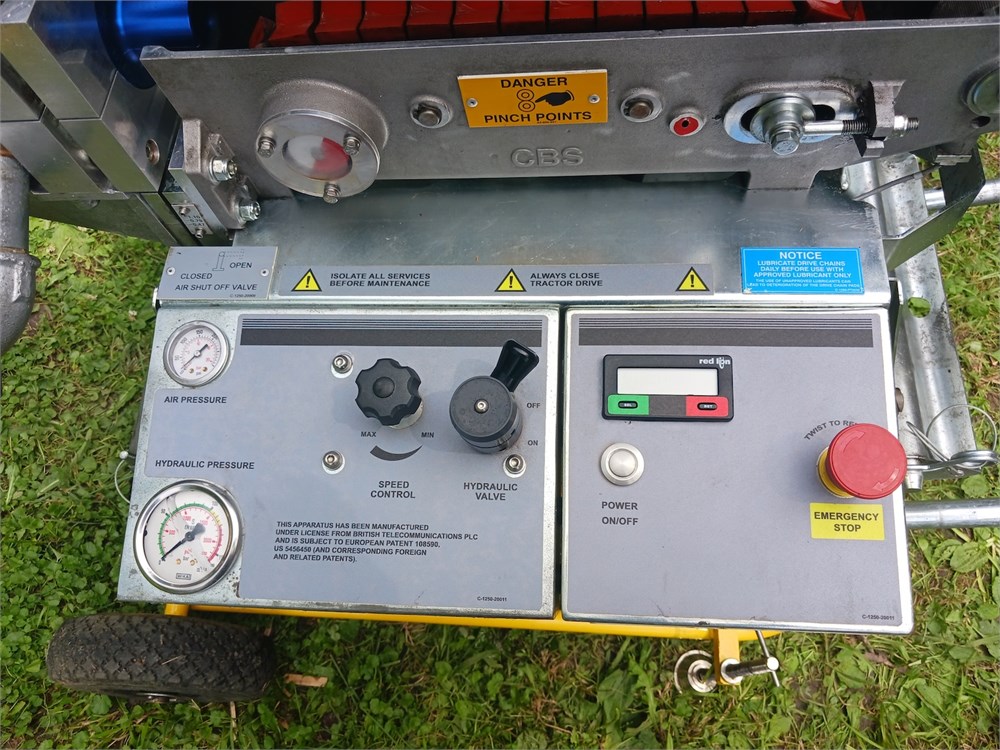

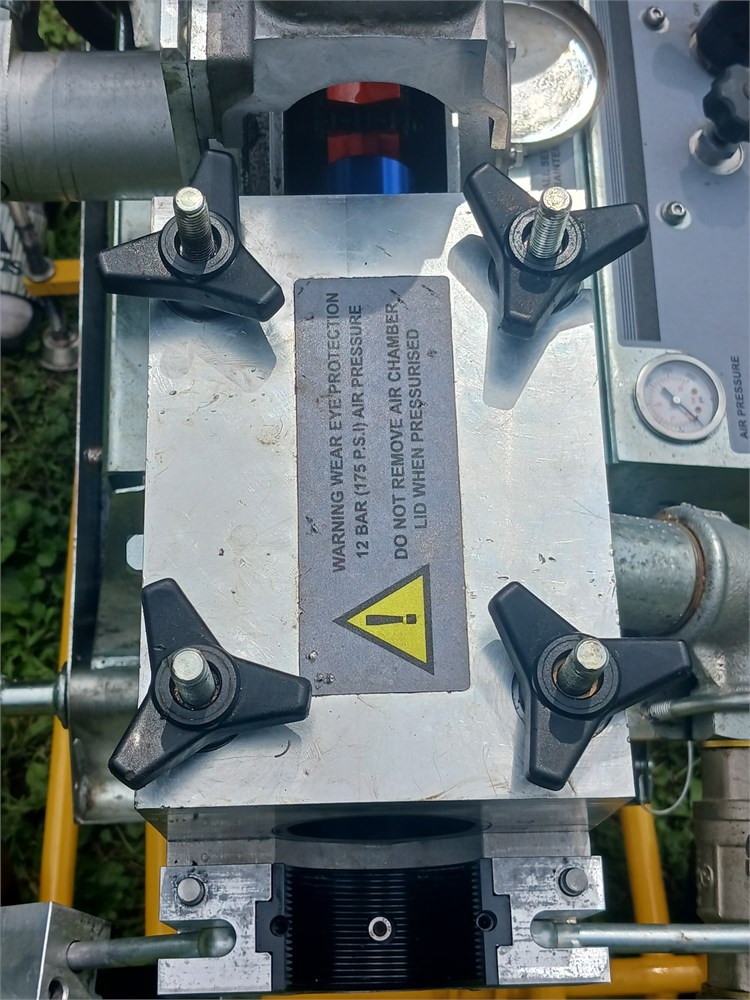

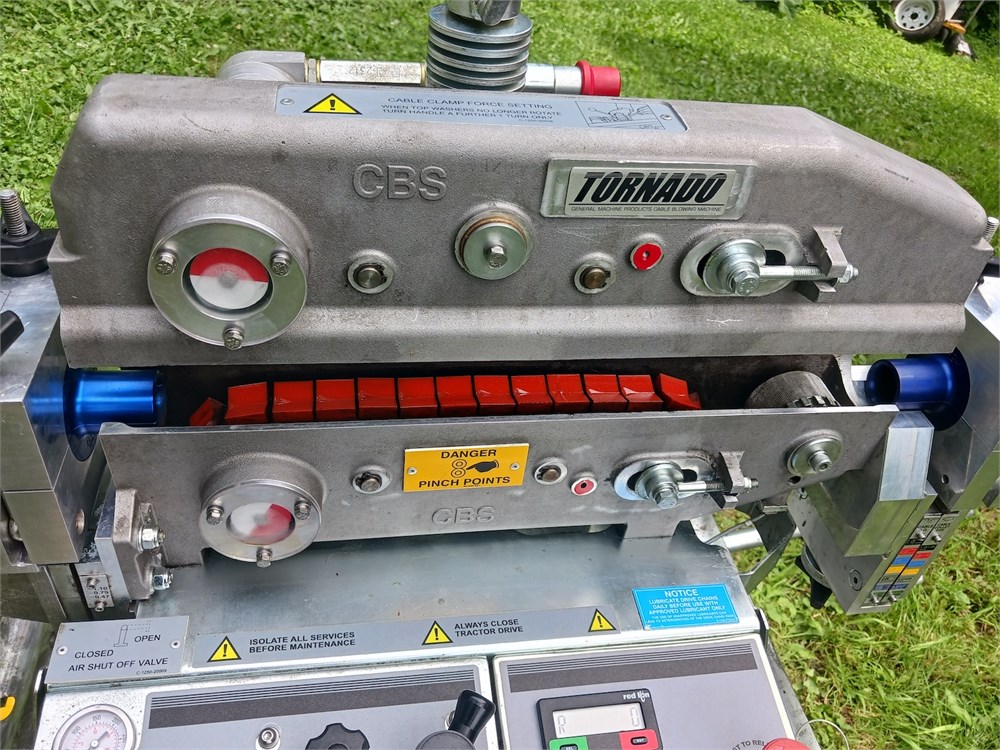

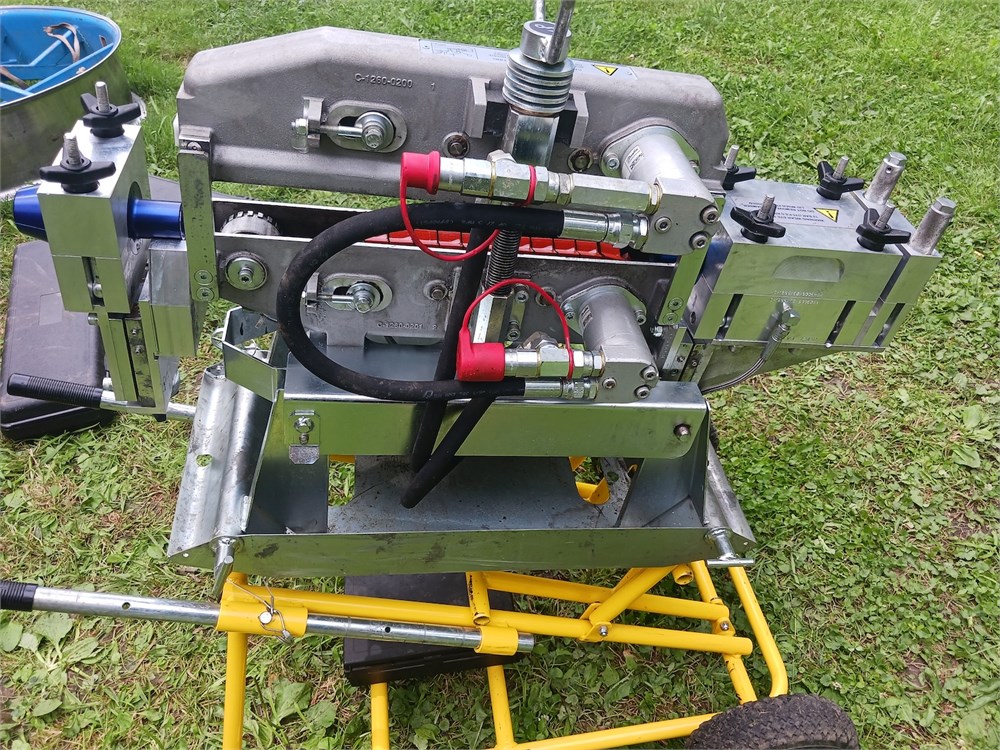

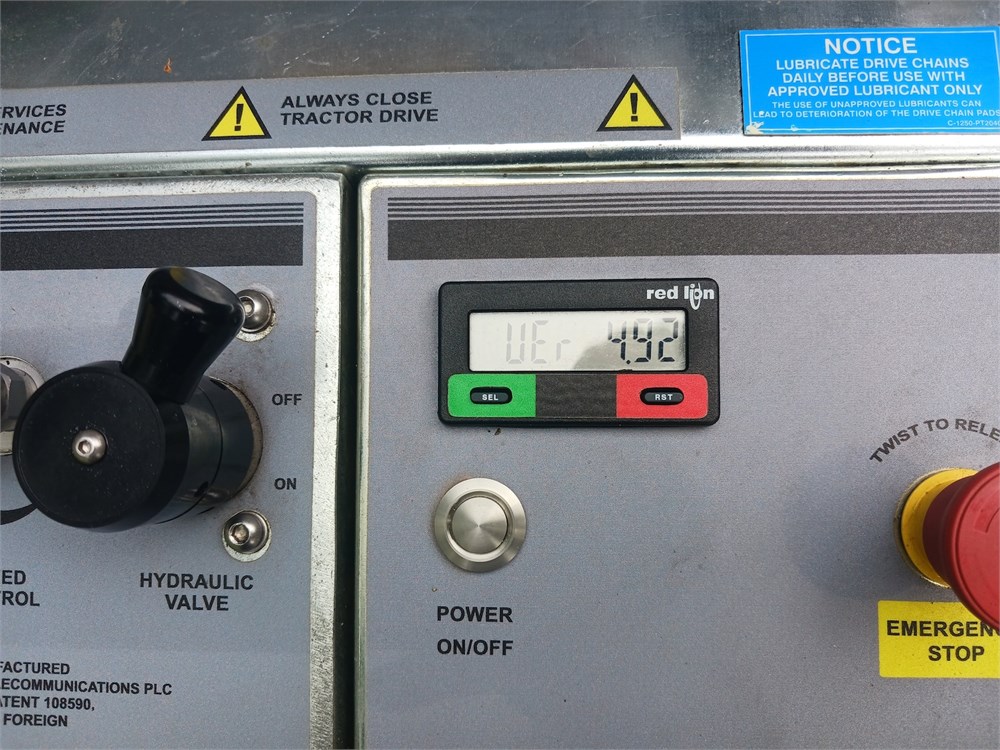

Comprised of an aluminum air box and cable pusher, the Tornado uses compressed air to install the cable with or without a missile. In operation, the hydraulically powered, caterpillar belt drive system controls the fiber optic cable as it is propelled by compressed air into the duct. An electronic monitoring system provides read-outs of speed and distance, protects cable against duct obstructions, and includes an emergency stop facility.
