Casadei (SCM) "AXO 300/3800" Beam Saw
Active
Casadei (SCM) "AXO 300/3800" Beam Saw - Brighton, MI
Brighton, MI
- Starting Bid : $1,000.00 USD ( ) No Reserve
- 0 Bid(s)
Casadei (SCM) "AXO 300/3800" Beam Saw - Brighton, MI ( Active #79997324 )
Machinery distributor in the Detroit, MI area is auctioning a Casadei (SCM) "AXO 300/3800" Beam Saw from their showroom. The machine has been dismantled and ready for loading. Call with any questions.
-
Pick Up Location
7795 Lochlin Dr. Brighton, MI 48116
-
Make
Casadei (SCM)
-
Model
AXO 300/3800
-
Serial Number
-
Year
2014
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
May 1 - May 8, 2026 (by appointment)
-
Estimated Dimensions
146" L x 213" W x 72" H (as setup in photos, shipping dimensions TBD)
-
Estimated Weight
10,000 Lbs
-
Seller Comment
Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
-
Load Fee
1000.00
-
Lot Notes
-
page views
12

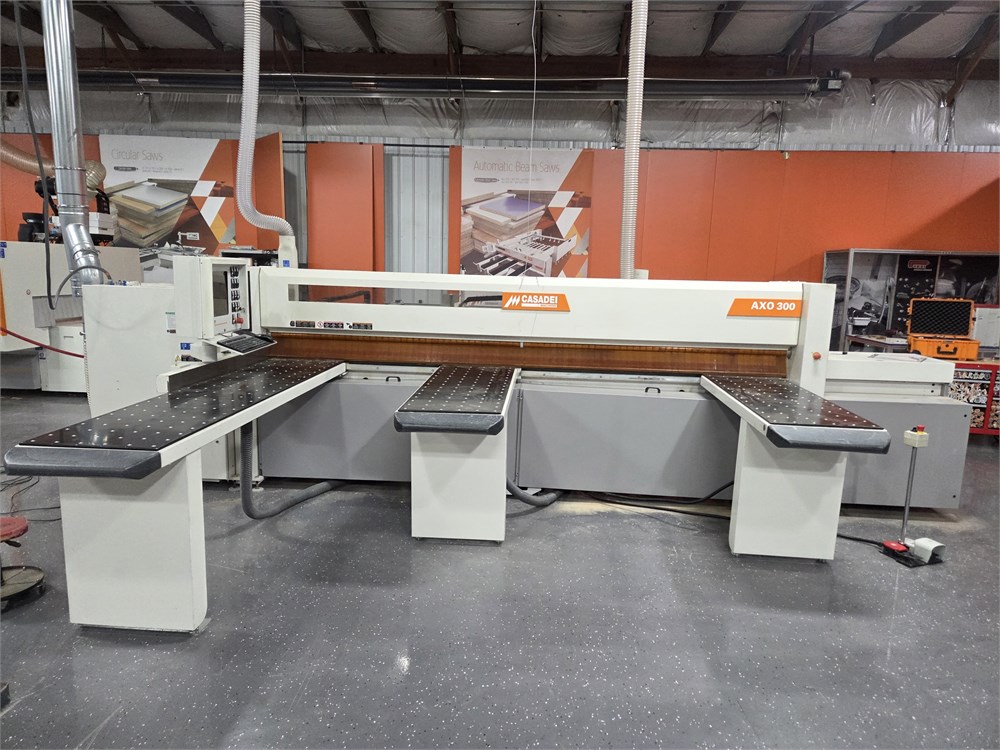

Casadei (SCM) "AXO 300/3800" Beam Saw
See attached original quote (for reference only, not all options necessarily apply)
Original new price was $91,500
Machine has been disassembled and ready for loading
3,800 mm (149") ripping capacity
3,800 mm (149") crosscutting capacity
87 mm (3.4") blade projection
19 - 200 FPM saw carriage speed
(3) air floatation tables
- LH table fixed, 24" x 98"
- Middle and RH tables moveable, 24" x 59"
- Centralized fan
Scoring saw
- 3 HP
- 160 mm (6.3") blade diameter
- 55 mm (2.2") arbor
- Pneumatic locking
- Automatic exclusion
Main saw
- 23 HP
- 350 mm (13.8") blade diameter
- 80 mm (3.2") arbor
- Pneumatic locking
Top pressure beam
- Slotted for clamps
- Double top dust collection ports
Bottom dust collection port
Rear pusher beam with (6) pneumatic clamps
- 90 FPM maximum speed
- Rack and pinion
- AC brushless servo motor
- Inverter control for variable speed
- Linear magnetic measurement system
Pneumatic side aligner
- 60 mm (2.4") - 1,200 mm (47.2") capacity
Electrical cabinet
PC control
- Windows operating system
- Standard keyboard and mouse
- 17" color monitor
- WINNCC software
- Label printing software (printer NOT included)
- 3D simulator
- Graphic editor
- Panel editor
- Run time and diagnostics
- CUT I optimization system
Foot pedal for cycle start/stop
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
