Holz-Her "Arcus 1334" Edgebander W/Pre-mill - Servo Controlled
Active
Woodworking Machinery Auction - Farr West, UT
Farr West, UT
- Starting Bid : $750.00 USD ( ) No Reserve
- 0 Bid(s)
Holz-Her "Arcus 1334" Edgebander W/Pre-mill - Servo Controlled - Farr West, UT ( Active #79819631 )

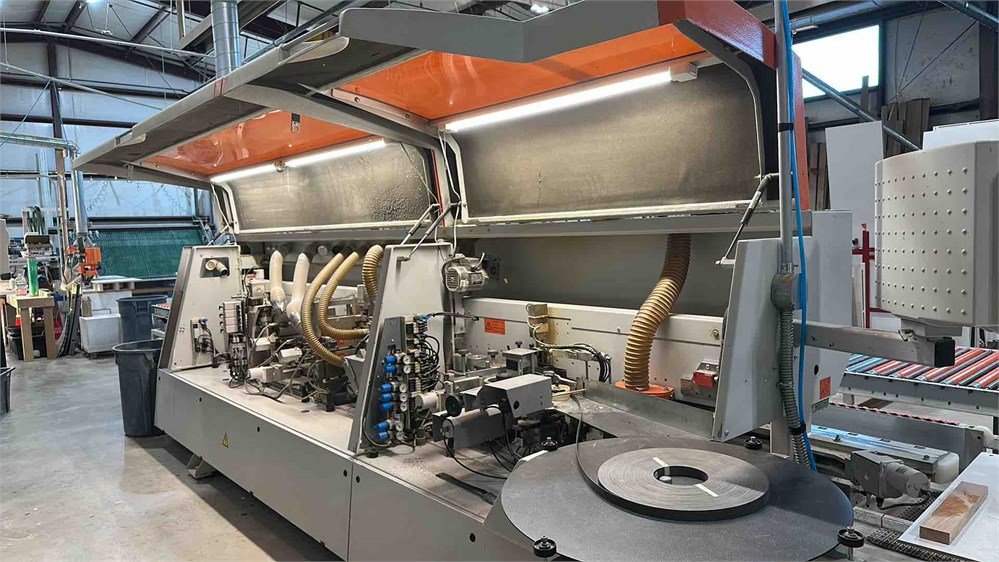

A Cabinet maker in the greater Salt Lake City, UT area is making room for a new incoming machine, and offering this Holz-her "Arcus 1334" Edgebander. Please call or email me directly with any questions.
-
Pick Up Location
3660 N. Higley Rd.Faar West, UT 84404
-
Make
Holz-Her
-
Model
"Arcus 1334"
-

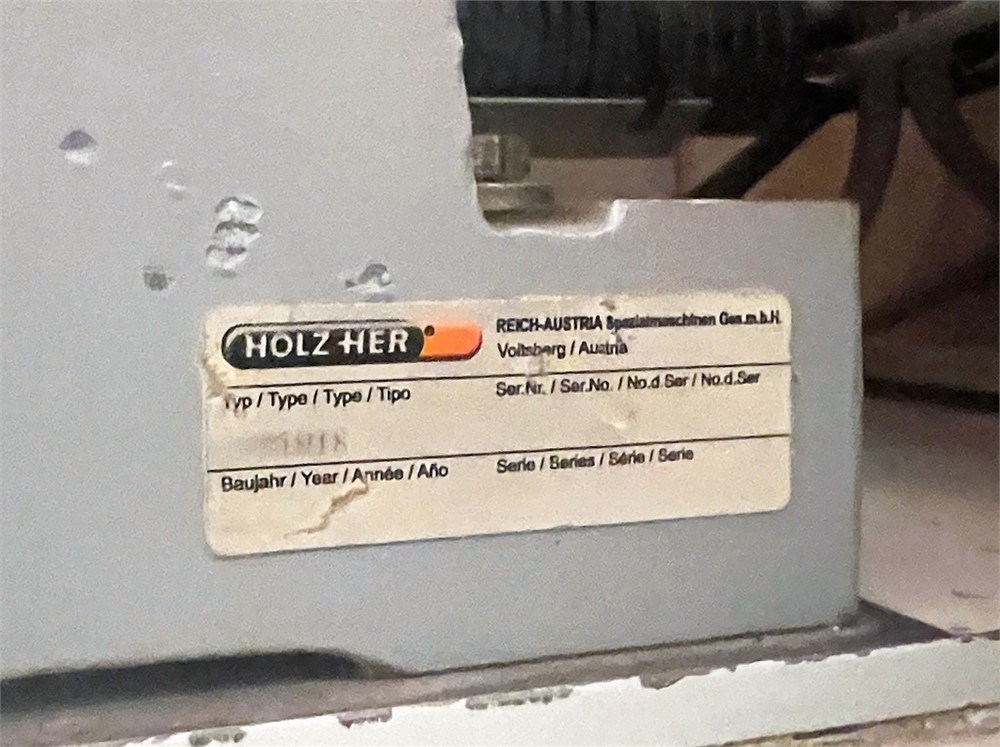

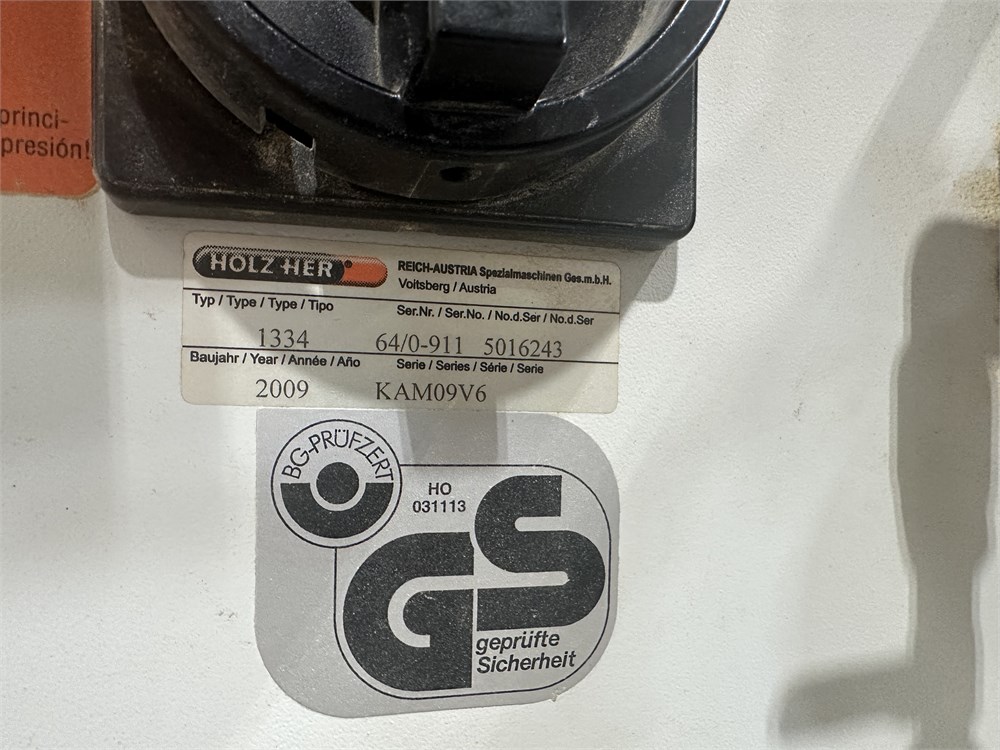

Serial Number
64/0-911 5016243
-
Year
2009
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
April 10th - April 22nd, 2026 (By appointment only)
-
Load Out Period
April 22nd - April 28th, 2026 (by appointment only)
-
Estimated Dimensions
208"L x 48"W x 64"H
-
Estimated Weight
4,000 Pounds
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.
-
Load Fee
395.00
-
Lot Notes
-
page views
5

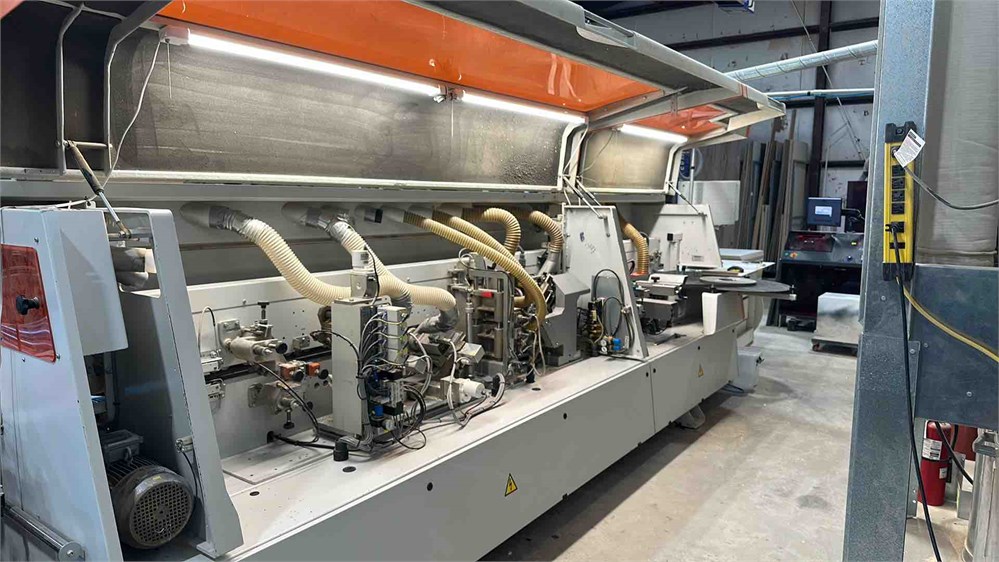

Holz-Her "Arcus 1334" Edgebander W/Pre-mill - Servo Controlled
SEE VIDEO OF MACHINE
- All tooling was replaced 500hrs ago - Holz_Her Can Confirm
Edgebanding Capacity: Edge thickness min./max. 0.4 - 15 mm (0.016 - 0.59"), coiled material 0.4 - 3 mm (0.016 - 0.157"); Panel thickness 6 - 60 mm (0.236 - 2.362"),
Work piece width min. of 60 mm (2.36"); work piece length min. 140 mm (5.5"); Variable feed speed from 10 - 18 MPM (33 - 59 FPM).
Servo controlled infeed fence
3 MM Guillotine "1921": For up to 3 mm coiled & strip materials.
Pre-Milling Station "1802": Servo Controlled Pre-Milling In-Feed Fence, (2) 2.0 KW (2.68 HP) - 12,000 RPM motors; Equipped with "ProLock" quick-change flange including height adjustment for optimum utilization of cutters.
Edge Feeder Magazine "1901": Servo Controlled "SYNCRO" drive control. The new magazine with its synchronous adaptation to the feed rate guarantees short intervals between work pieces & simultaneously optimizes edging protrusions.
Small 3° feed angle thanks to nozzle design with easy feeding of coils, strips up to 3 mm & solid wood edging up to 15 mm (5/8").
Exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety.

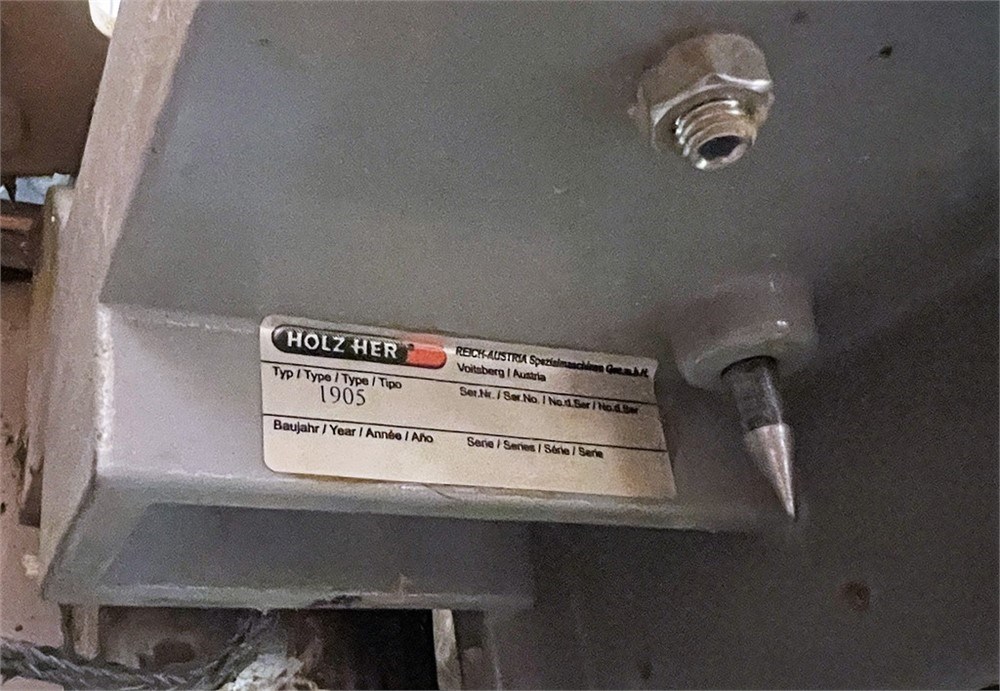

The patented HOLZ-HER cartridge system is a practical solution for processing EVA & PUR glue types. To use PUR glue just replace the EVA cartridge with a PUR cartridge that includes a separate melt-on unit "1905"

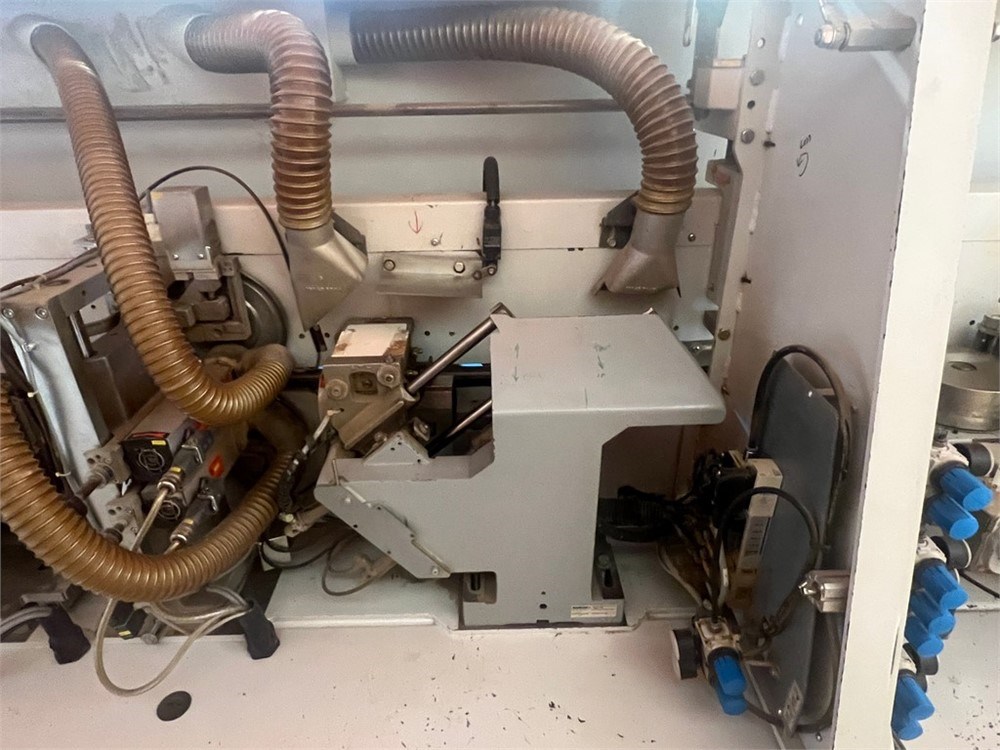

Pressure Section "1914": (1) Large & (3) cantered driven pressure rollers for perfect glued joints, servo adjust

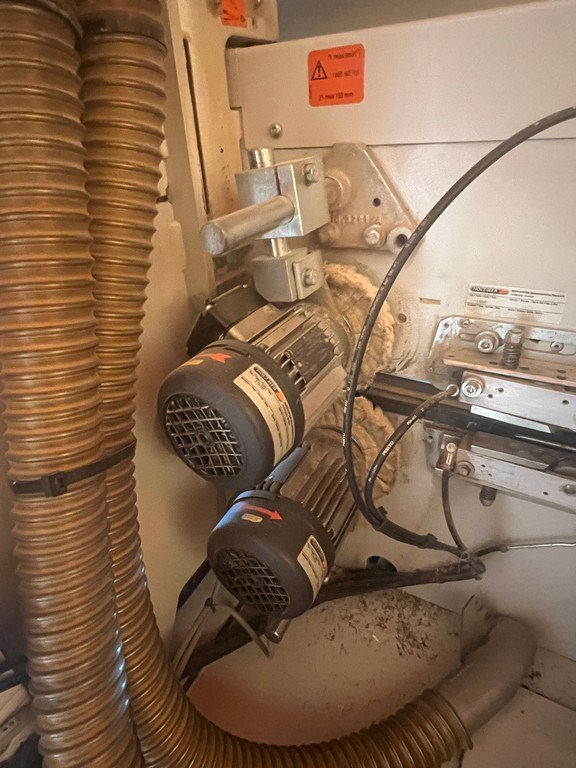

Front & Rear End Trimming Unit "1918" 2 x 0.35 KW (0.5 HP) - 9,000 RPM each motor for edge thicknesses up to 20 mm.

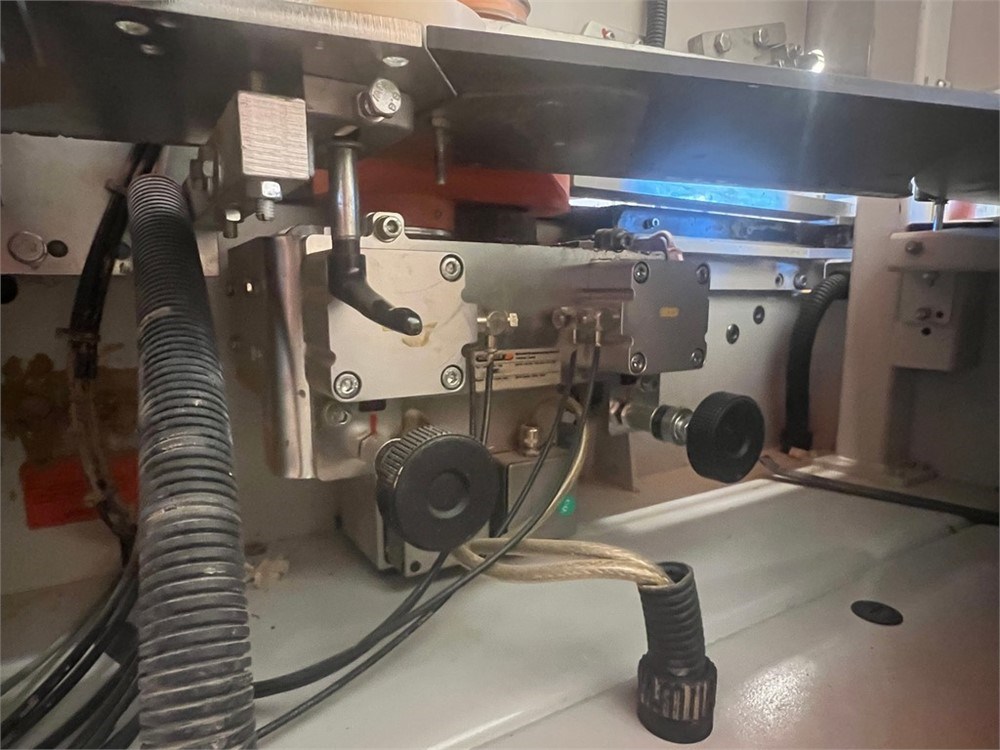

Multi-function Top & Bottom Trimming Unit "1828": Servo Controlled, 2 x 0.65 KW (0.87 HP) - 12,000 each motor.
Profile Corner Rounding Unit "1833": Servo Controlled vertical corner rounding, (2) Motors 0.22 KW (0.30 HP) - 9000 RPM for up to 3 mm edge thickness and work-piece thickness min./max. 8 - 60 mm (0.31 - 2.36").

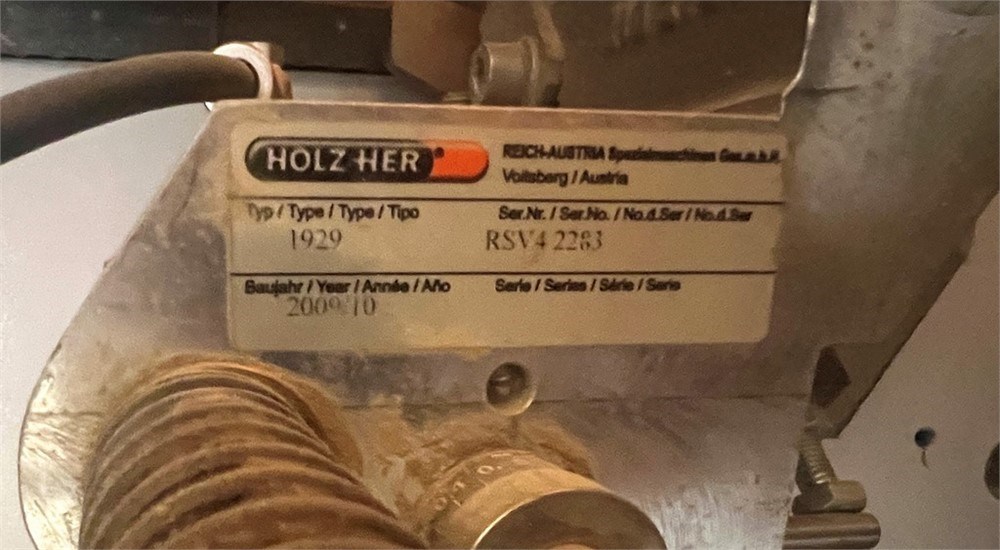

Top & Bottom Profile Scraping Unit "1929".

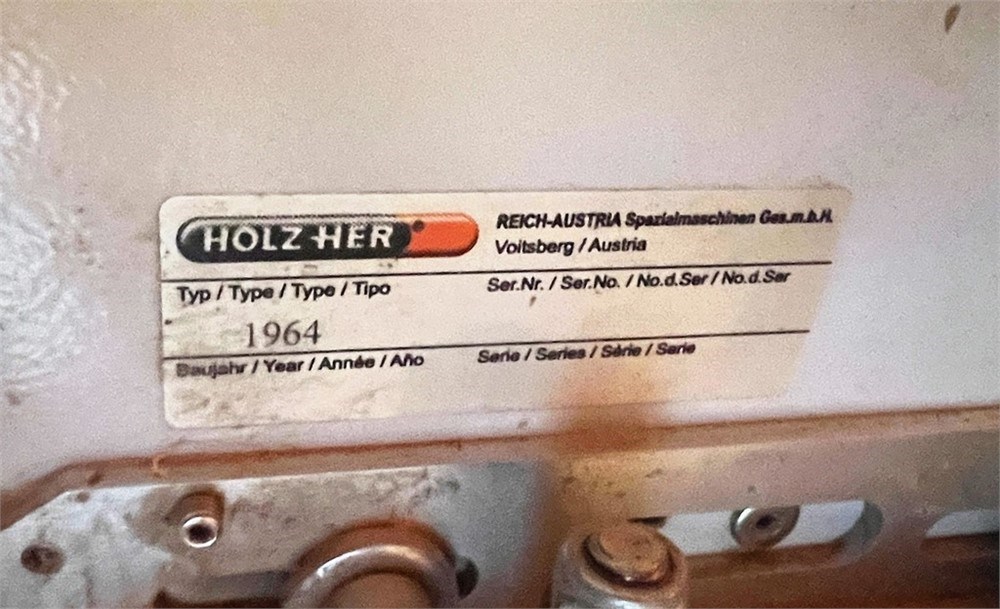

Top & Bottom Glue Scraping Unit "1964".

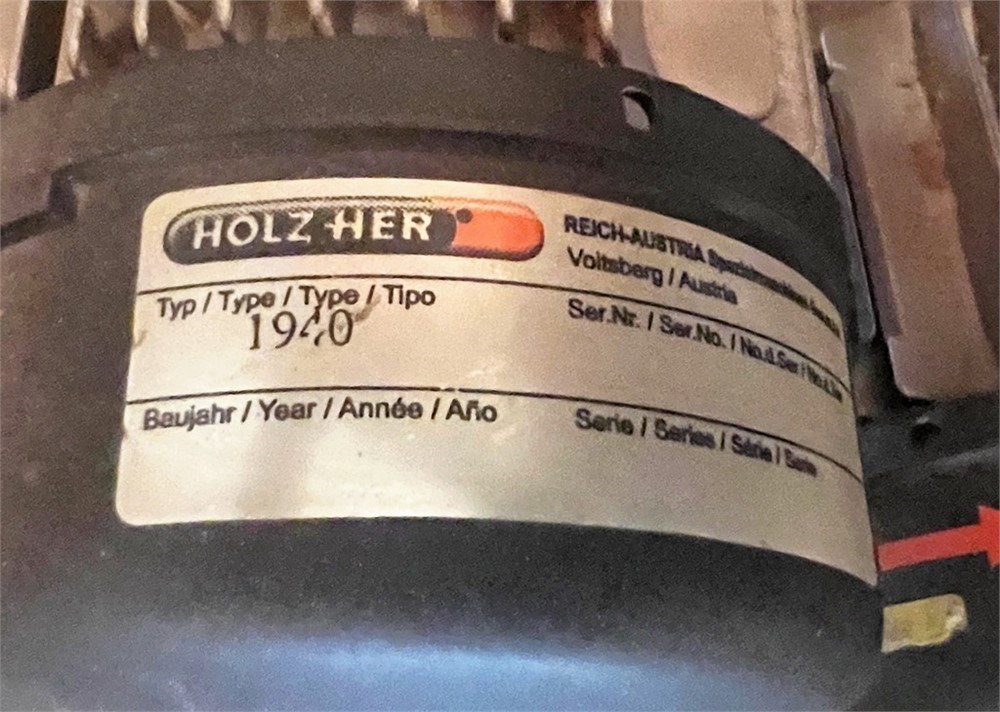

Top & Bottom Buffing Station "1940".
Max. feed speed 18 MPM (60 FMP) up to 25 mm panel thickness, 16 MPM at 38 mm thickness, 12 MPM at 60 mm thickness.

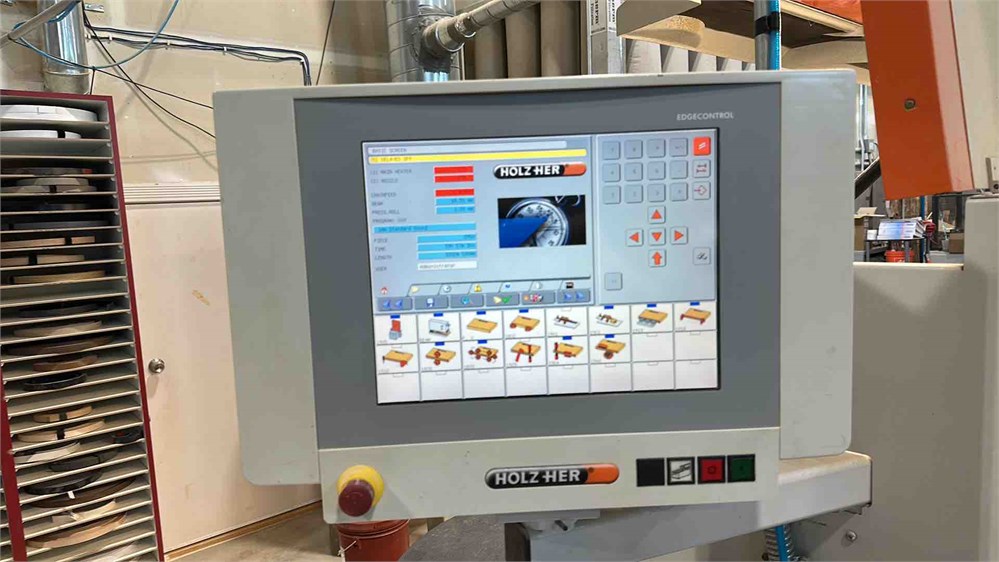

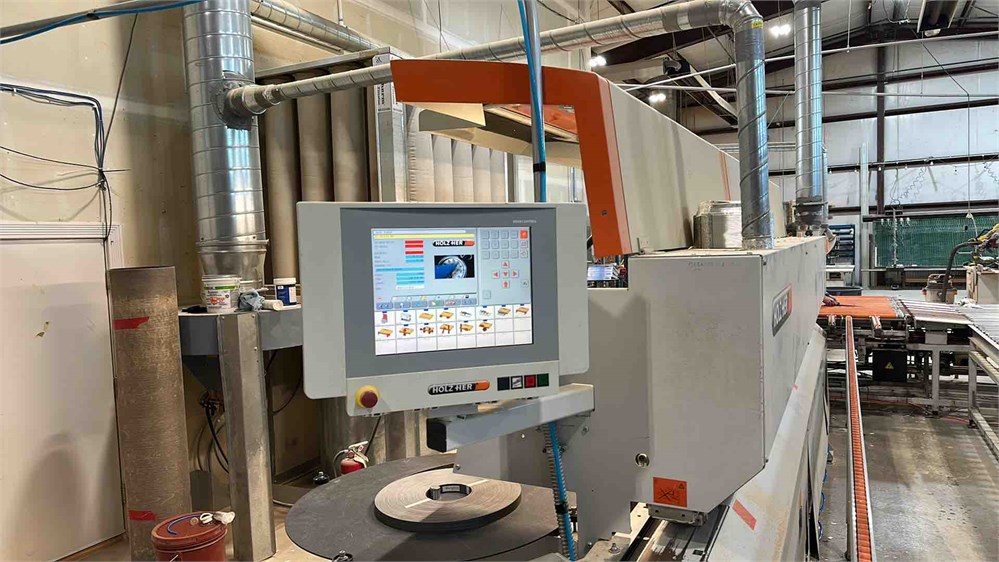

HOLZ-HER "PPC 221 EDGE CONTROL TOUCH" Electronically controlled set-up processes with 100% repetition accuracy.
15" VGA color Flat Touch Screen with Brilliant graphic display of machining process. Simple operation – rotating and swiveling control panel at eye height.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
