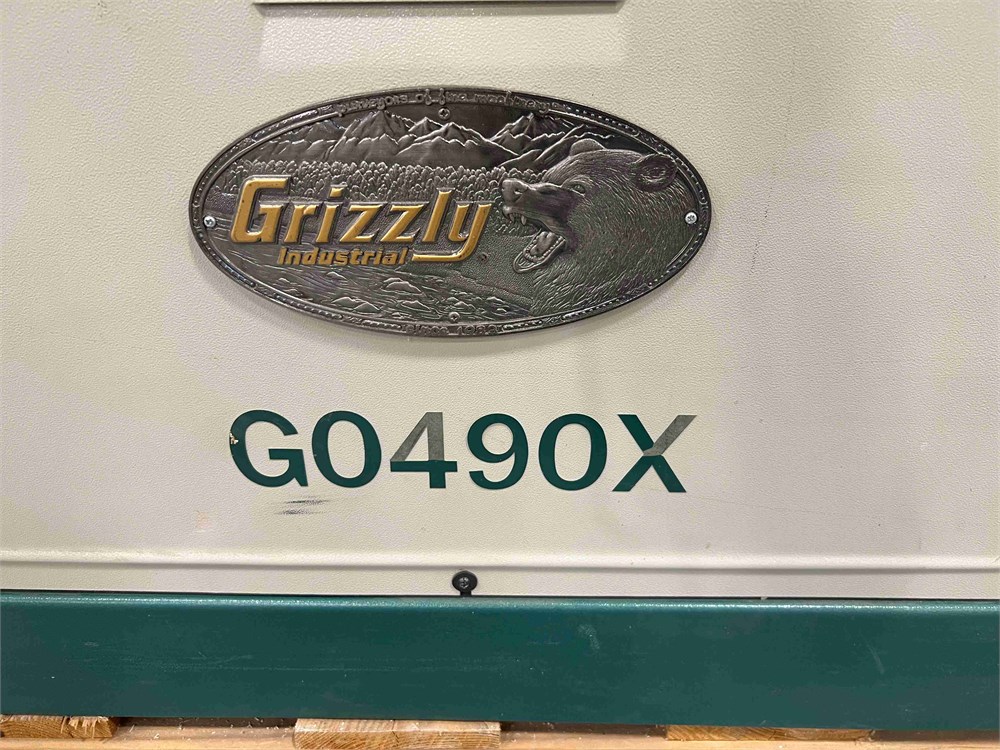

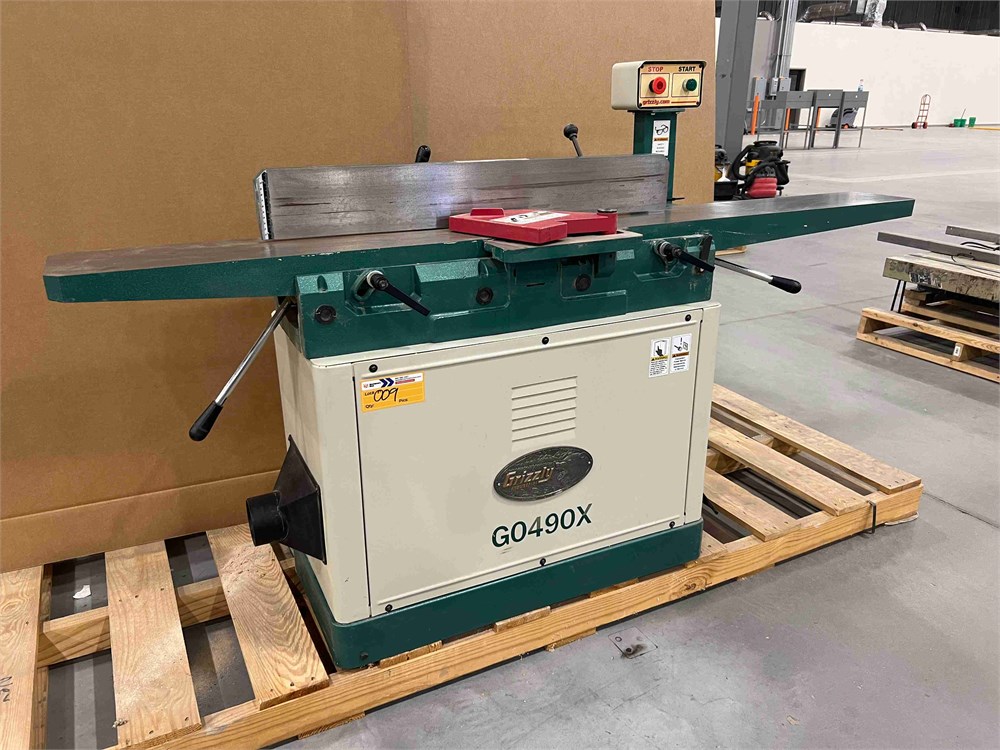

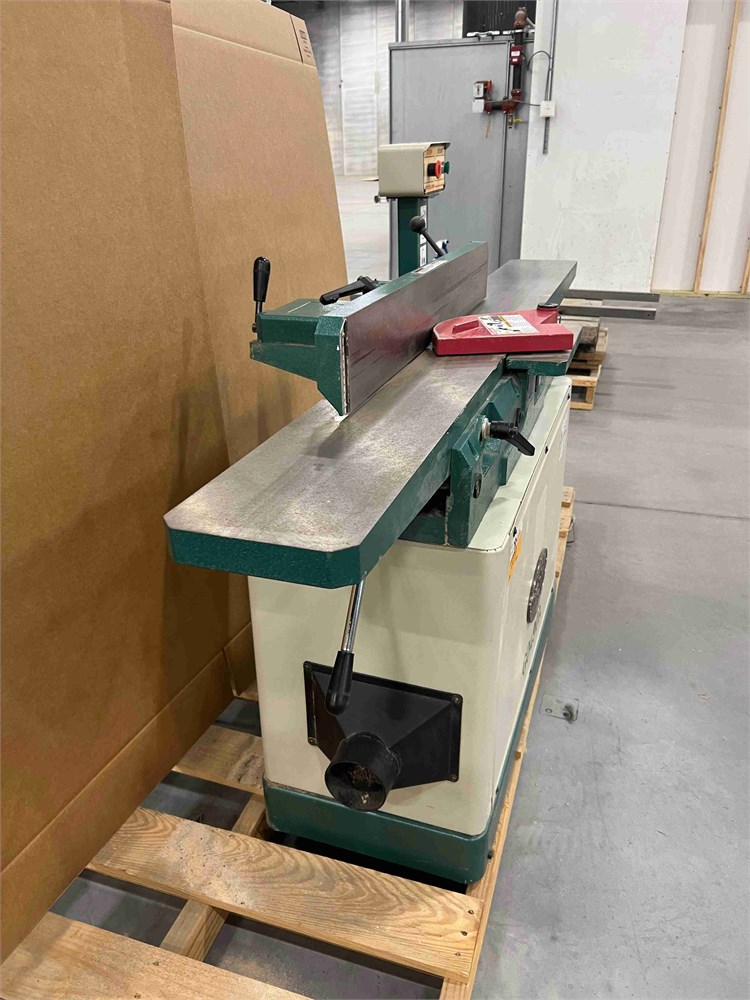

Grizzly "G0490X" Jointer - 8" - Spiral Insert Cutterhead
Active
Late Model Machinery located in Newport, MN
Newport, MN
- Current Price : $150.00 USD ( ) No Reserve
- 1 Bid(s)
- High Bidder: Z****S
Vollrath Company is offering the assets of their Newport, MN Location ( Active #79777560 )
In their continuing operations Vollrath Company is offering excess machinery.
-
Pick Up Location
910 Hastings Ave. Suite 150, Newport, MN 55055
-
Make
Grizzly
-
Model
"G0490X"
-
Serial Number
-
Year
-
Phase
1 PHASE
-
Voltage
220 VOLT
-
Buyer Inspection Period
By appointment. Please contact: Eric Beach - [email protected] - 704-608-9830 (text preferred)
-
Load Out Period
April 28 - 30, 2026 By appt. Only
-
Estimated Dimensions
77" x 24" x 45"
-
Estimated Weight
600 Lbs
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer, by appt. only!
-
Load Fee
35
-
Lot Notes
Pallatized and ready to ship for convenience of Buyer.
-
page views
24
Grizzly "G0490X" Jointer - 8" - Spiral Insert Cutterhead
Professionals and hobbyist woodworkers alike, you can't go wrong with the exceptional value of the G0490X 8" x 76" Jointer with parallelogram tables and 4-row spiral cutterhead.

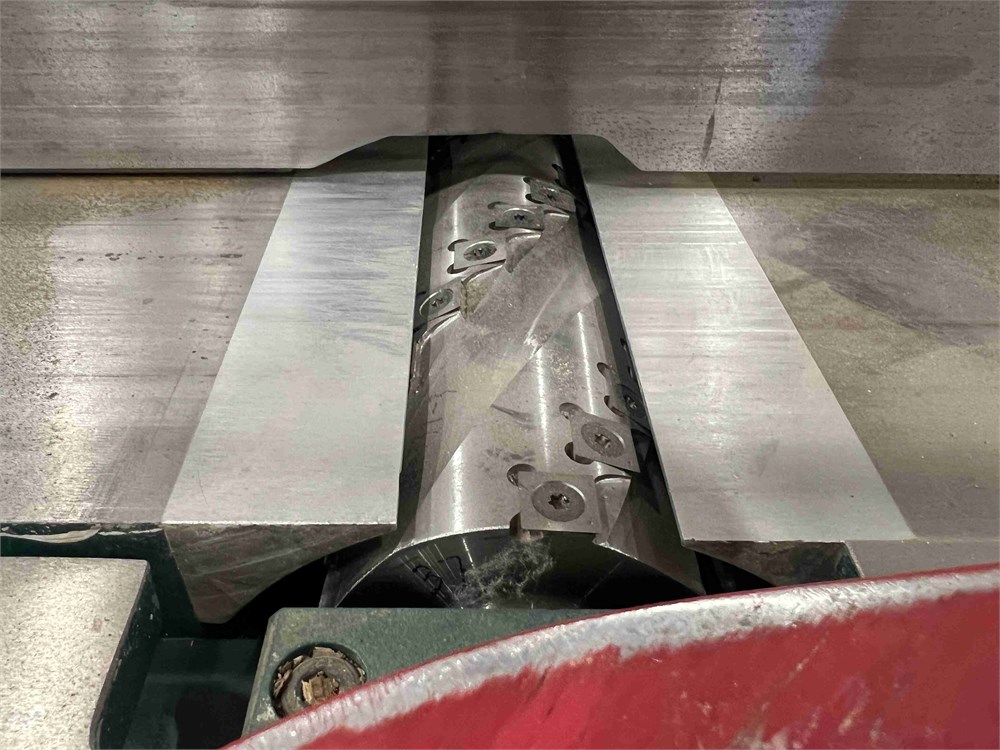

With the spiral cutterhead, dealing with dull or nicked edges is as easy as loosening screws and turning any of the 40 carbide inserts to a fresh edge. This process will reduce tearout and save you time over sharpening and resetting straight knives like a traditional jointer cutterhead requires.
This parallelogram jointer features an infeed table over 43" that is helpful for surfacing longer stock. With the parallelogram table setup, the four points of contact allow for easy adjustment of each table for perfect alignment.
The easy-to-use lever-controlled table elevation quickly adjusts the table height. The 5" tall, center-mounted fence is amazing for edge-jointing wide stock. The built-in mobile base allows you to easily move this beast around the shop as needed.
CSA certified
SPECIFICATIONS:
- Motor: 3 HP, 240V, single-phase, 15A
- Maximum width of cut: 8"
- Maximum depth of cut: 1/8"
- Maximum rabbeting depth: 1/2"
- Cutterhead diameter: 3-3/8"
- Cutterhead type: 4-row spiral
- Insert size, type: 14 x 14 x 2mm, indexable carbide
- Cutterhead speed: 4800 RPM
- Table size: 8" x 76-3/8"
- Fence size: 36" L x 5" H
- Minimum stock length: 10"
- Minimum stock thickness: 1/2"
- Dust port size: 4"
- Overall dimensions: 76-3/8" W x 24" D x 45-1/2" D
- Approximate shipping weight: 556 lbs.
FEATURES:
- Precision-ground cast-iron tables
- Parallelogram table adjustment
- Rabbeting table

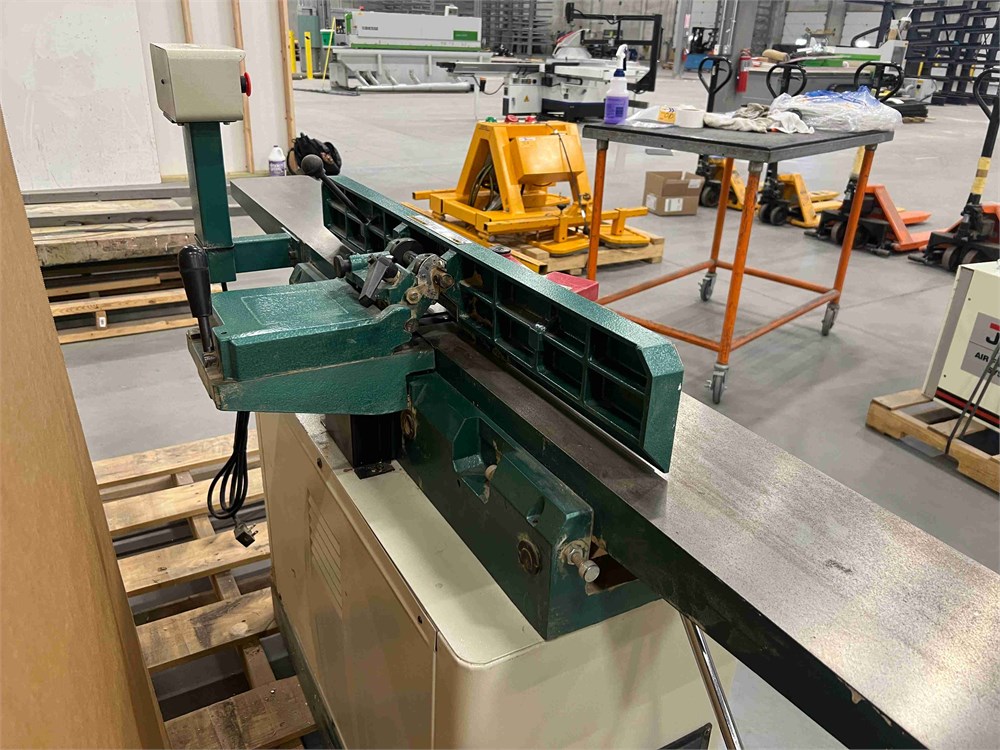

- 5" Tall center-mounted fence with angle gauge
- Fence stops at 45°, 90°, and 135°

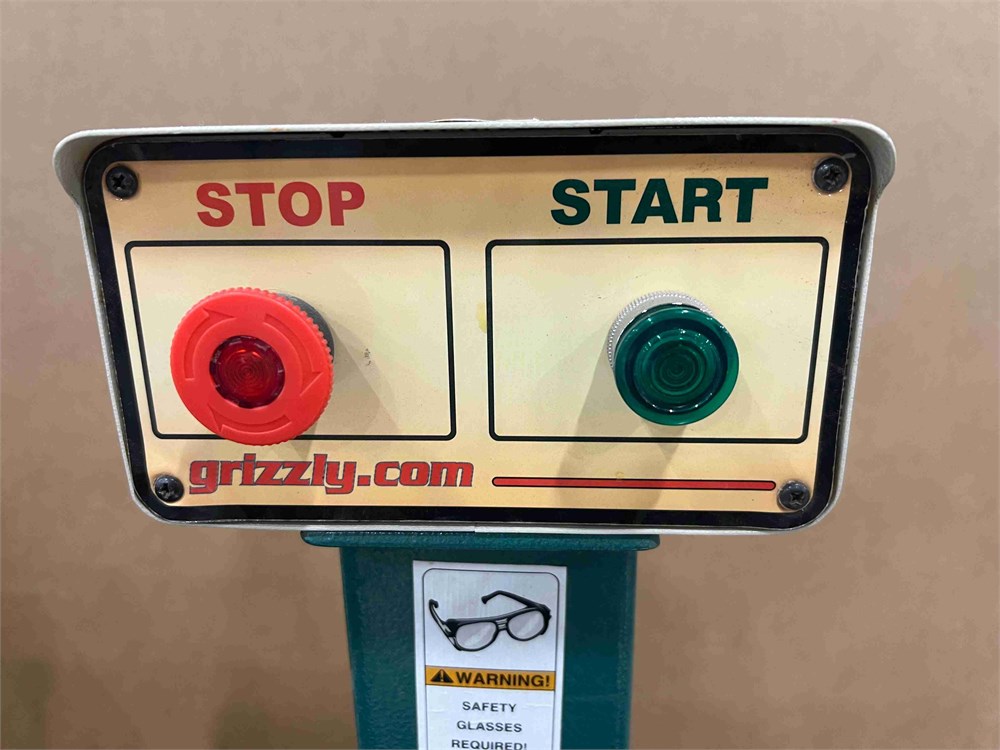

- Pedestal-mounted switch for easy access
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
