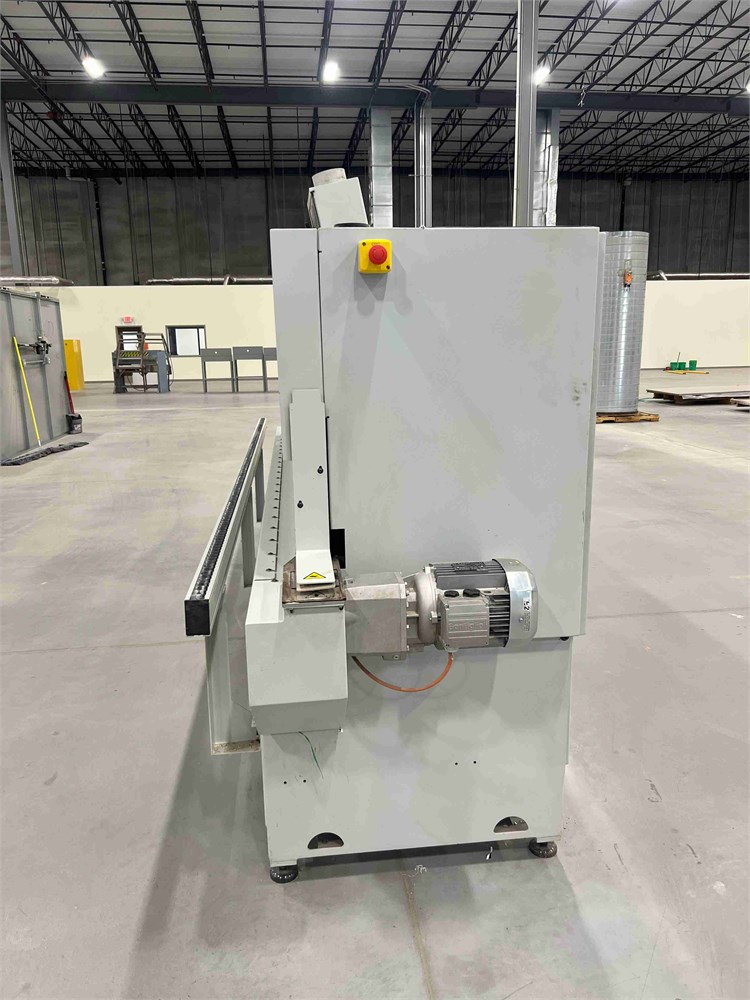

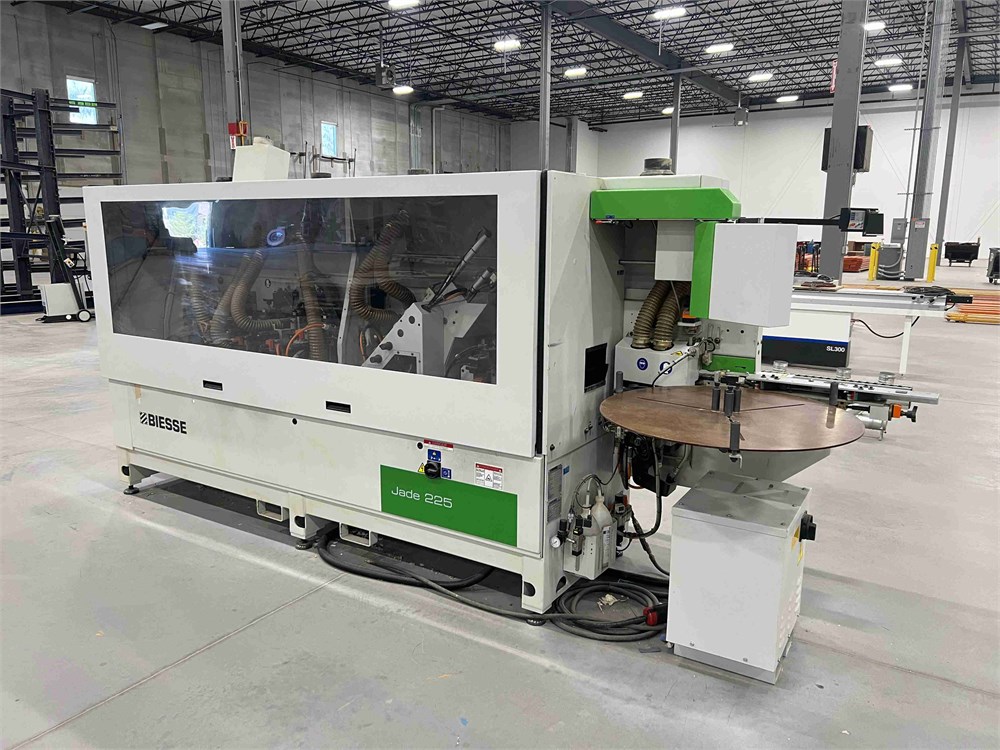

Biesse "Jade 225" Edgebander - Pre-Mill
Active
Late Model Machinery located in Newport, MN
Newport, MN
- Current Price : $2,500.00 USD ( ) No Reserve
- 1 Bid(s)
- High Bidder: Z****S
Vollrath Company is offering the assets of their Newport, MN Location ( Active #79777560 )
In their continuing operations Vollrath Company is offering excess machinery.
-
Pick Up Location
910 Hastings Ave. Suite 150, Newport, MN 55055
-
Make
Biesse
-
Model
"Jade 225"
-

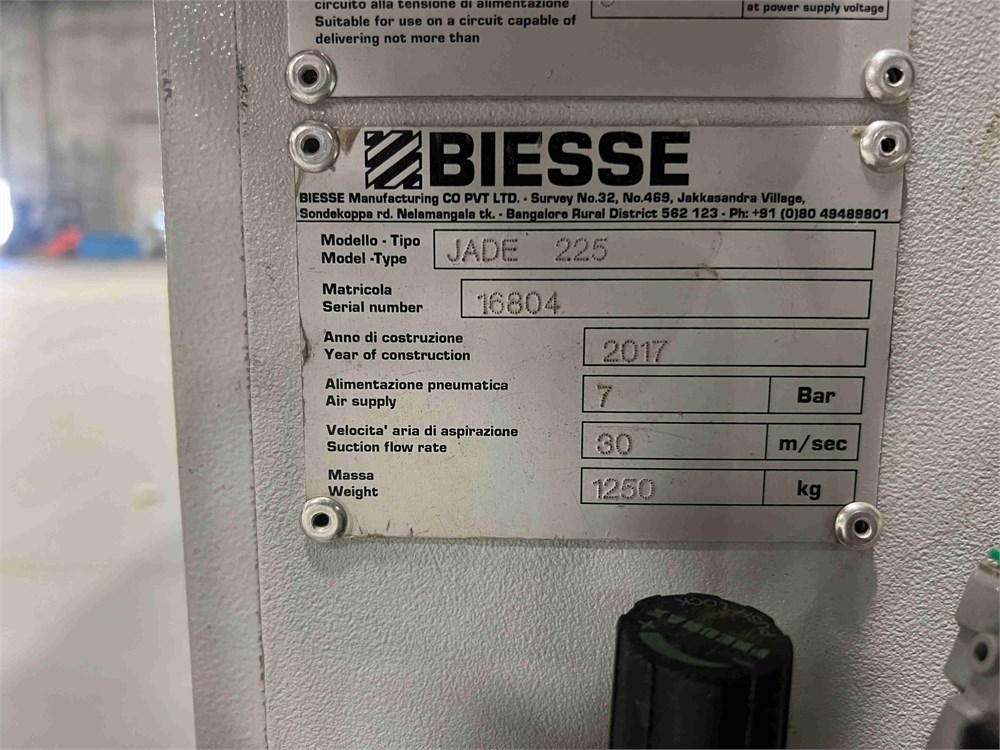

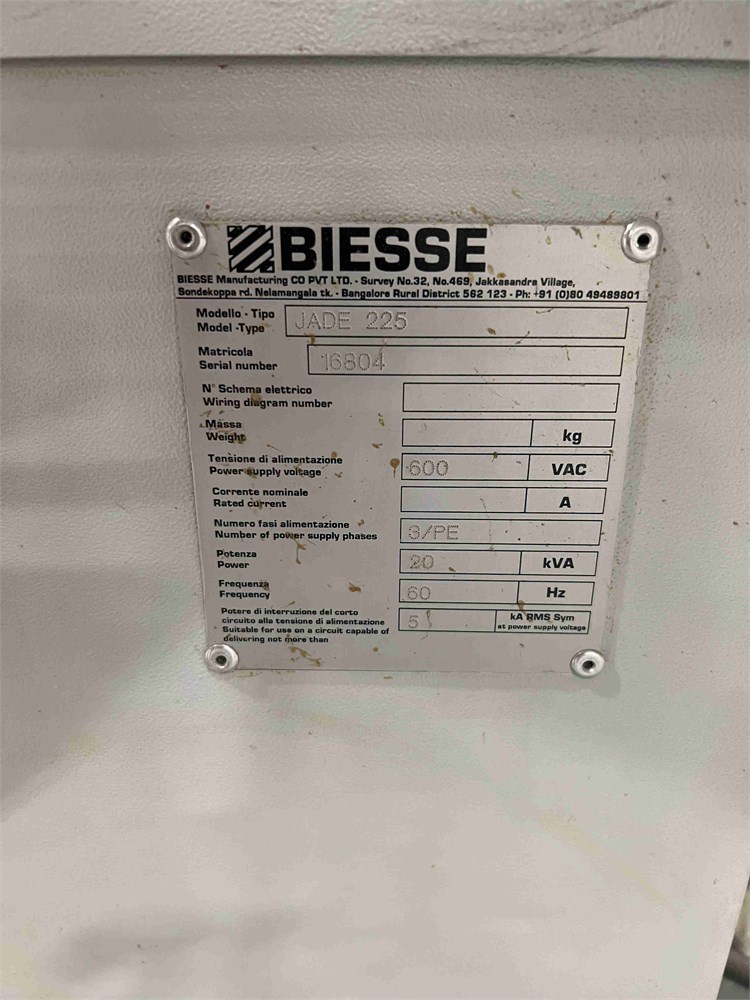

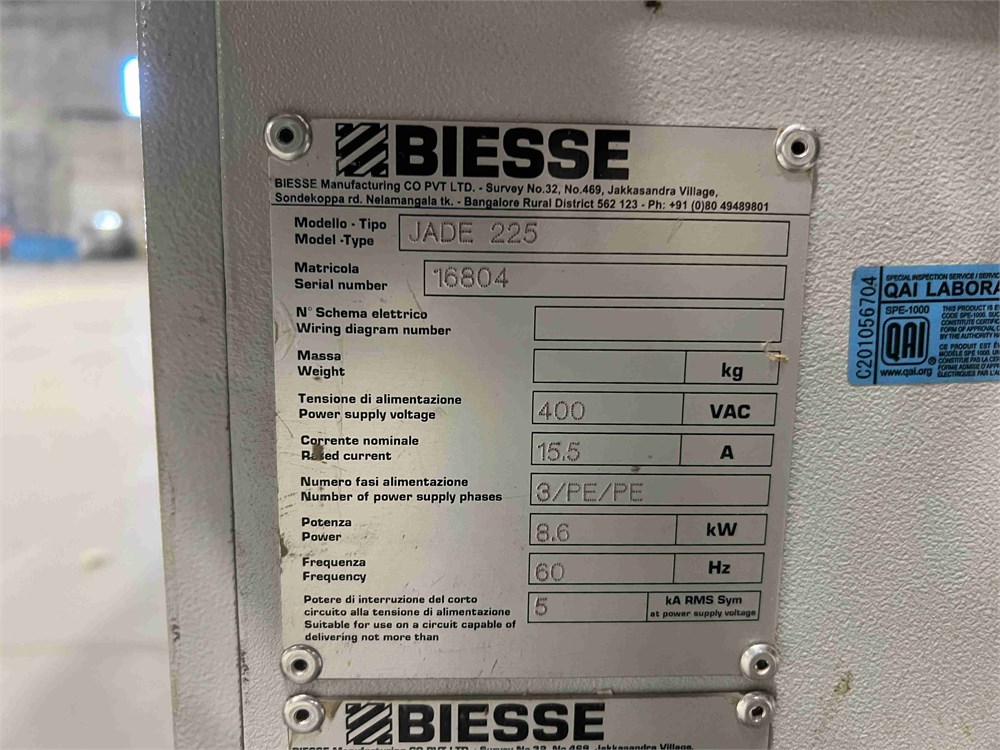

Serial Number
16804
-
Year
2017
-
Phase
3 PHASE
-
Voltage
400
-
Buyer Inspection Period
By appointment. Please contact: Eric Beach - [email protected] - 704-608-9830 (text preferred)
-
Load Out Period
April 28 - 30, 2026 By appt. Only
-
Estimated Dimensions
14' x 4' x 6'
-
Estimated Weight
3,000 LBS
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer, by appt. only!
-
Load Fee
495
-
Lot Notes

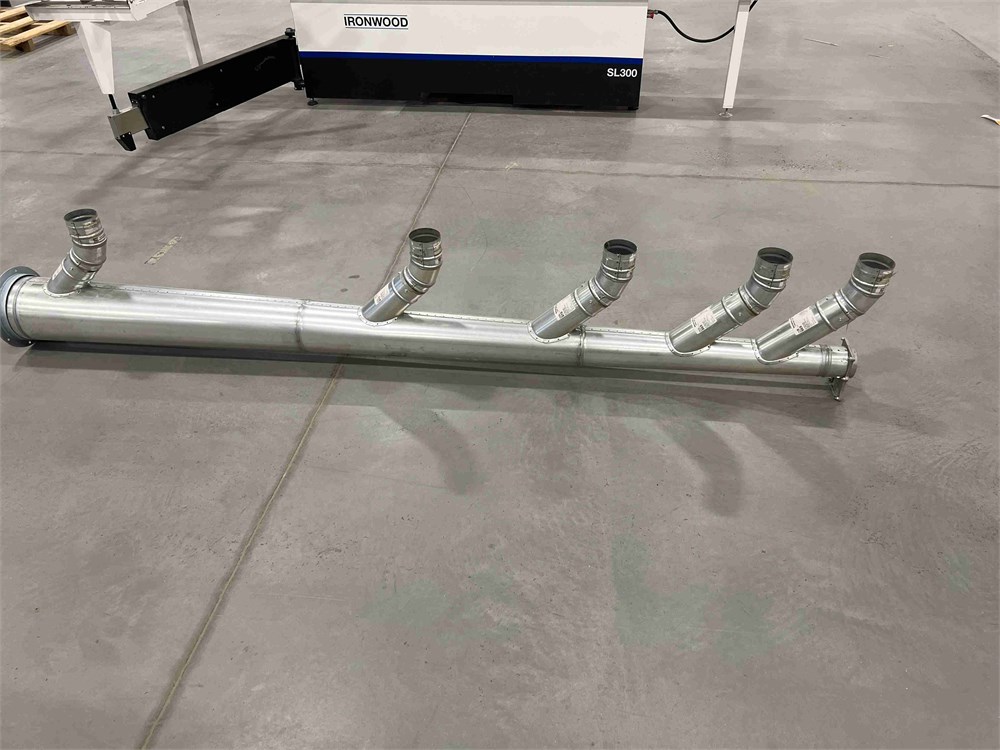

Transformer & Manifold included
-
page views
39

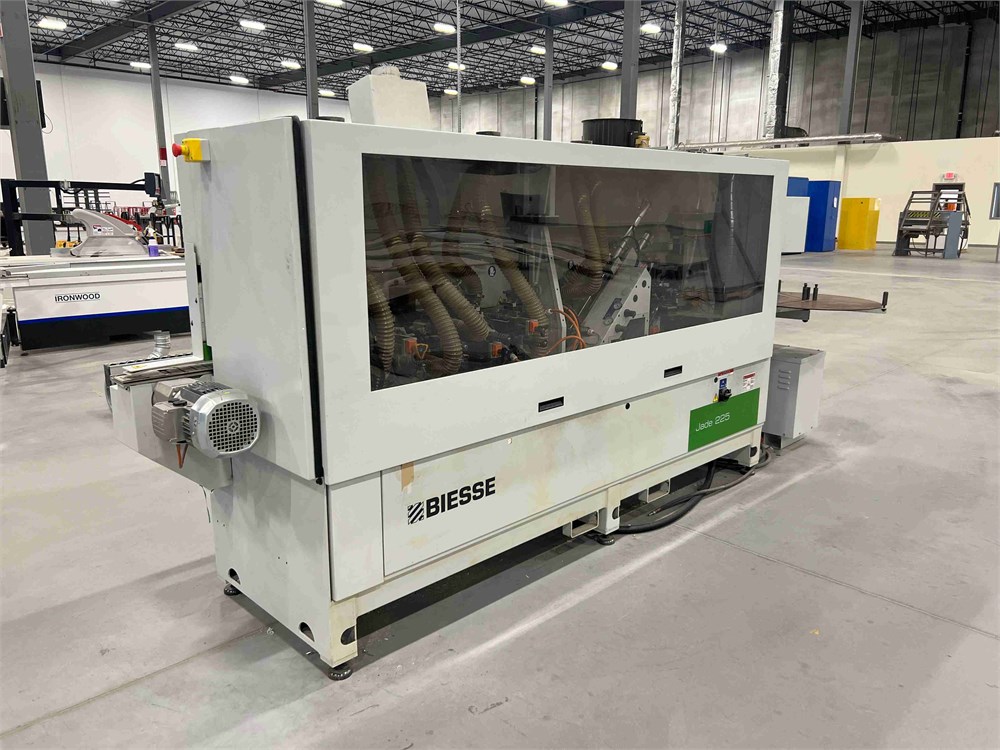

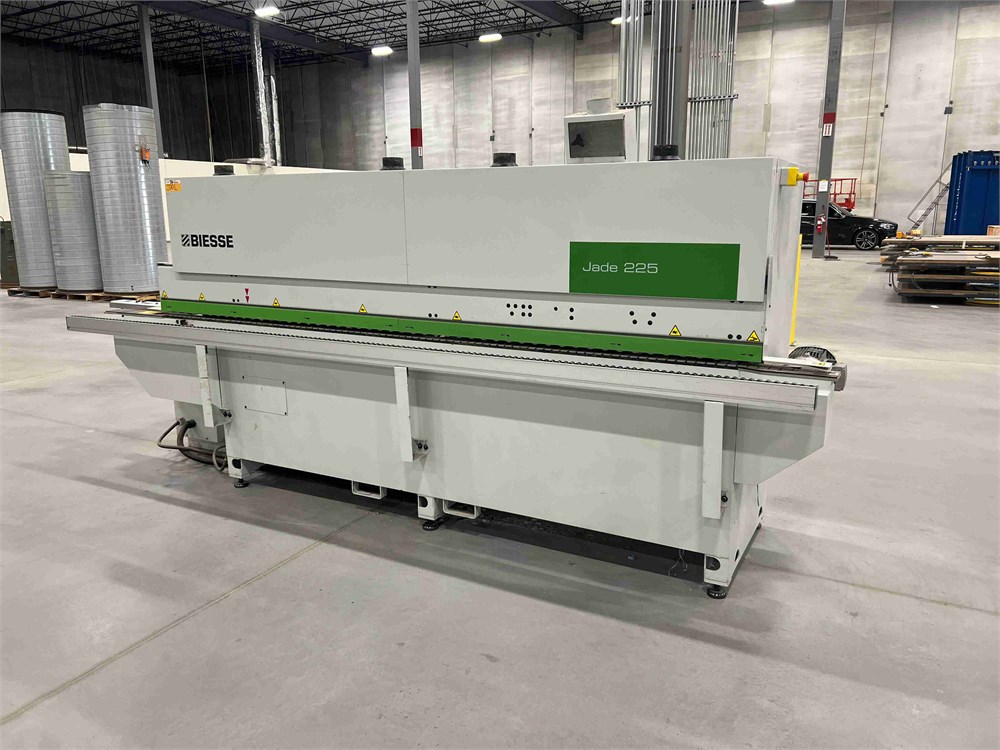

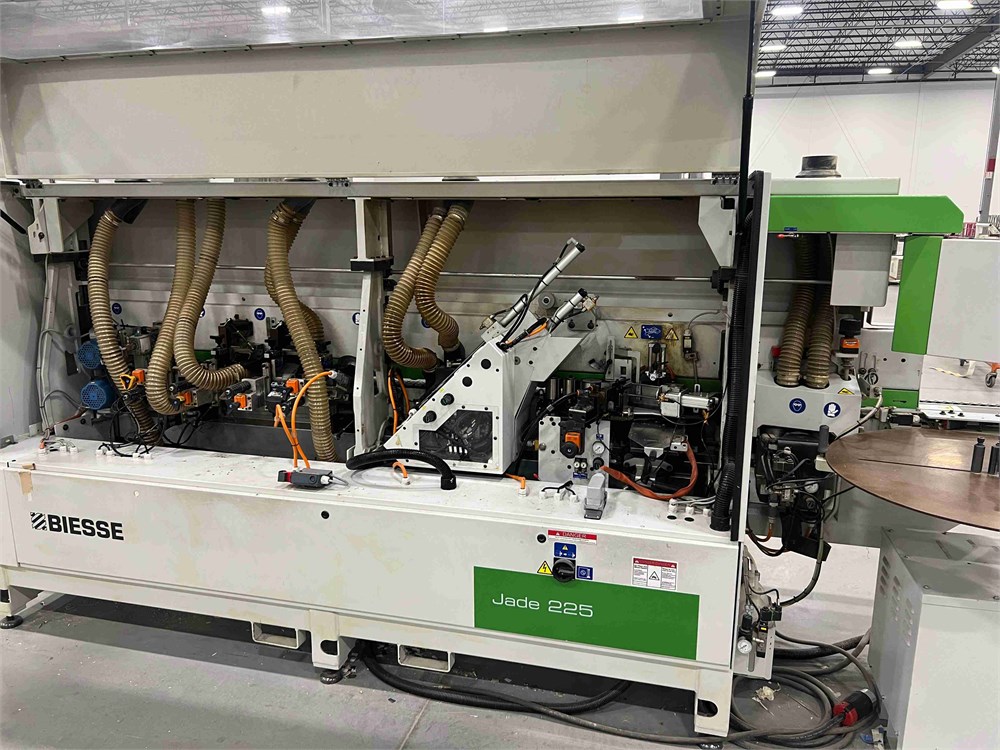

Biesse "Jade 225" Edgebander - Pre-Mill
Edge and Workpiece Capacity: Edgebanding thickness 0.4 -8 mm (0.01" - 0.31"), min. panel width 85 mm (3.5"),min. length 150 mm (5.9"), max. panel thickness 10 -60 mm (0.39 - 2.36").

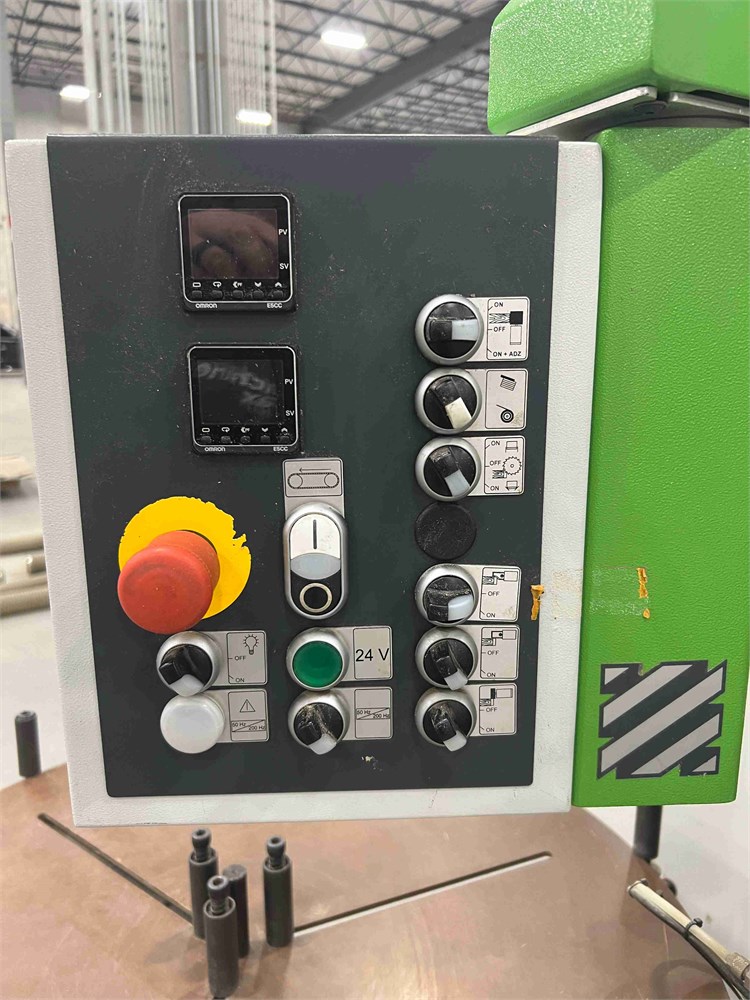

Touch screen PLC, rotating control panel

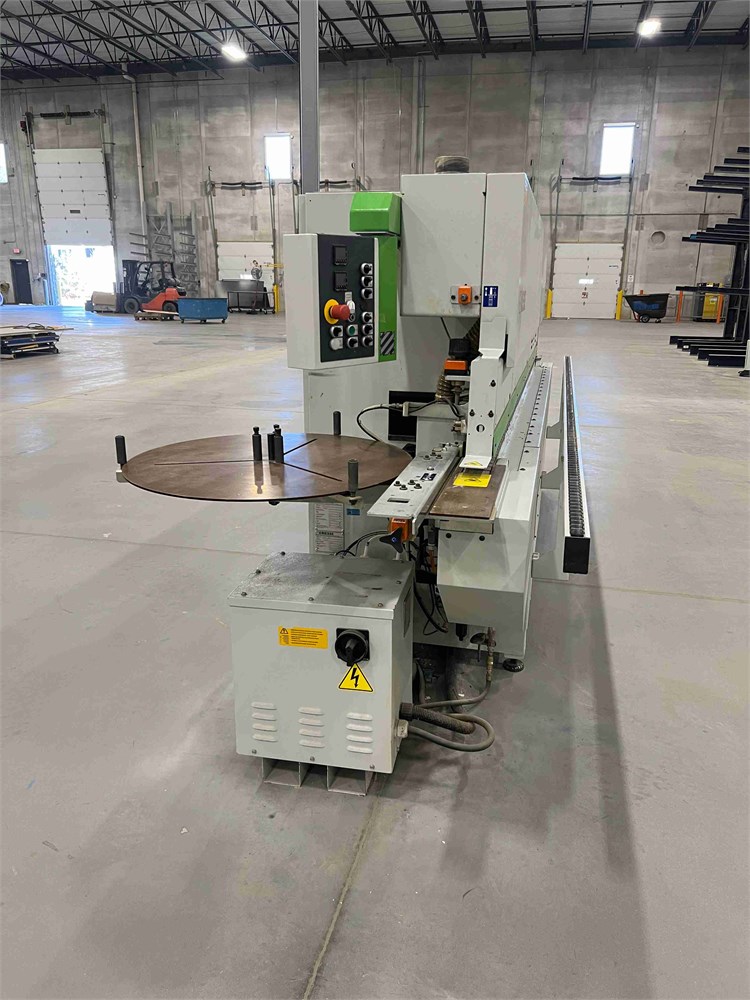

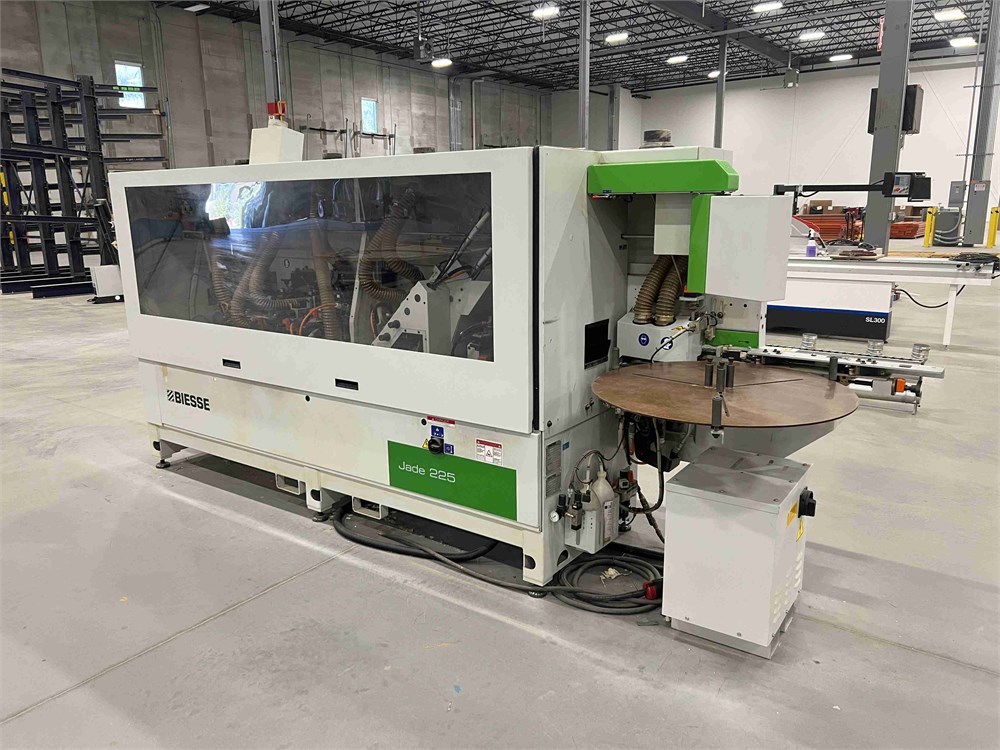

Edgebanding infeed table, 32" diameter
Automatic strip and coil feed magazine with "HD" shear type 3 mm PVC guillotine.
Infeed fence
Anti-Adhesive Unit: The unit applies an anti-adhesive liquid on the top and bottom surface of the panel.It is positioned before the pre-milling unit. The anti-adhesive liquid is applied with precision by means of injectors controlled by the machine control.

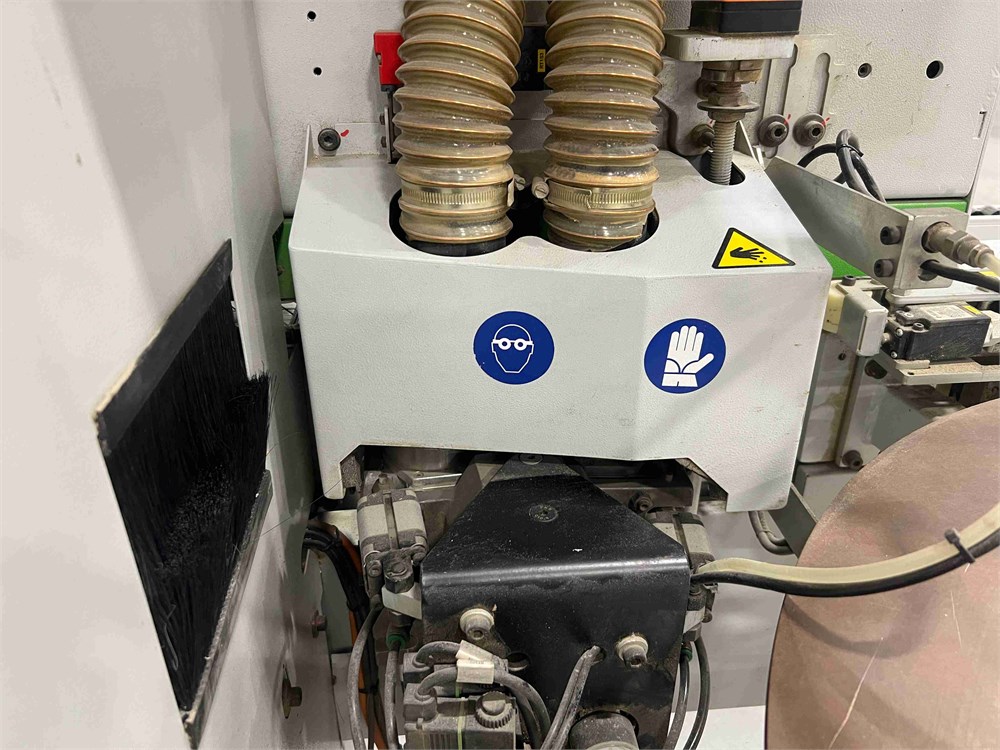

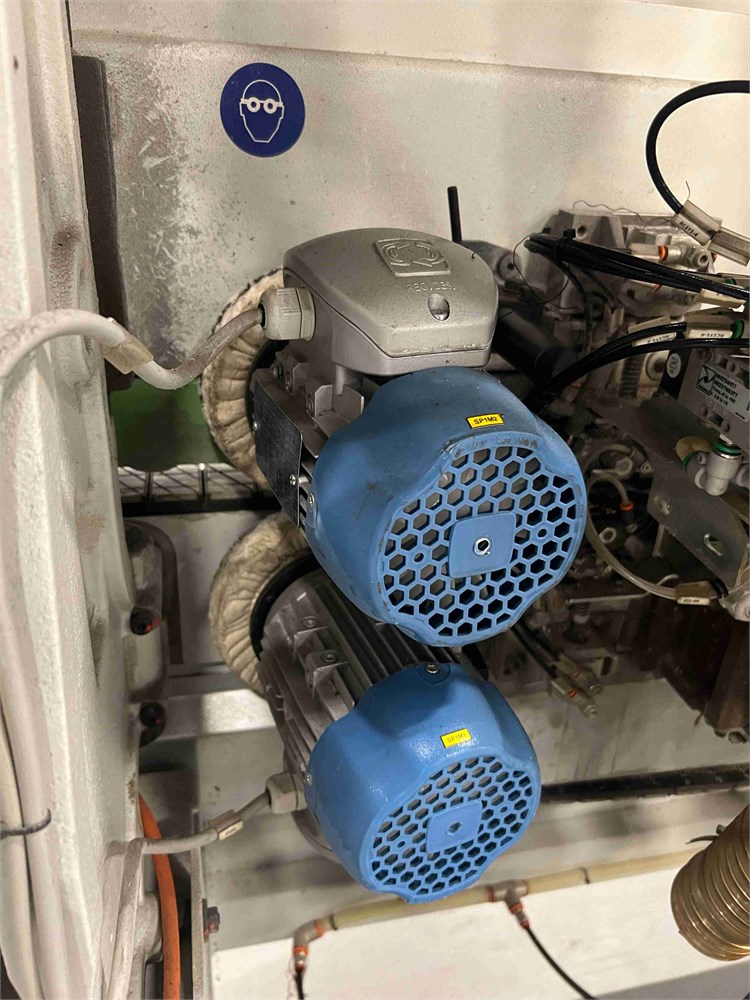

Pre-Milling Unit: (2) 2.4 HP motors operating at 12,000 RPM;"AUTO-SET" device ensures optimum positioning of the cutters according to the thickness of the panel being machined; numerical readouts, pneumatic exclusion when not needed.
Glue Unit: Teflon coated Hot Melt glue pot, digital thermostats with automatic kick down when machine is in idle mode.4.4 pounds capacity; "QMS" (quick melt - approx. 10 - 12 minute heat up time)
Pressure Section: (1) Large dia. "non-stick" coated drive roller and two (2) chrome plated pneumatic inclined pressure controlled idle rollers; horizontal adjustment w/ digital indicator.

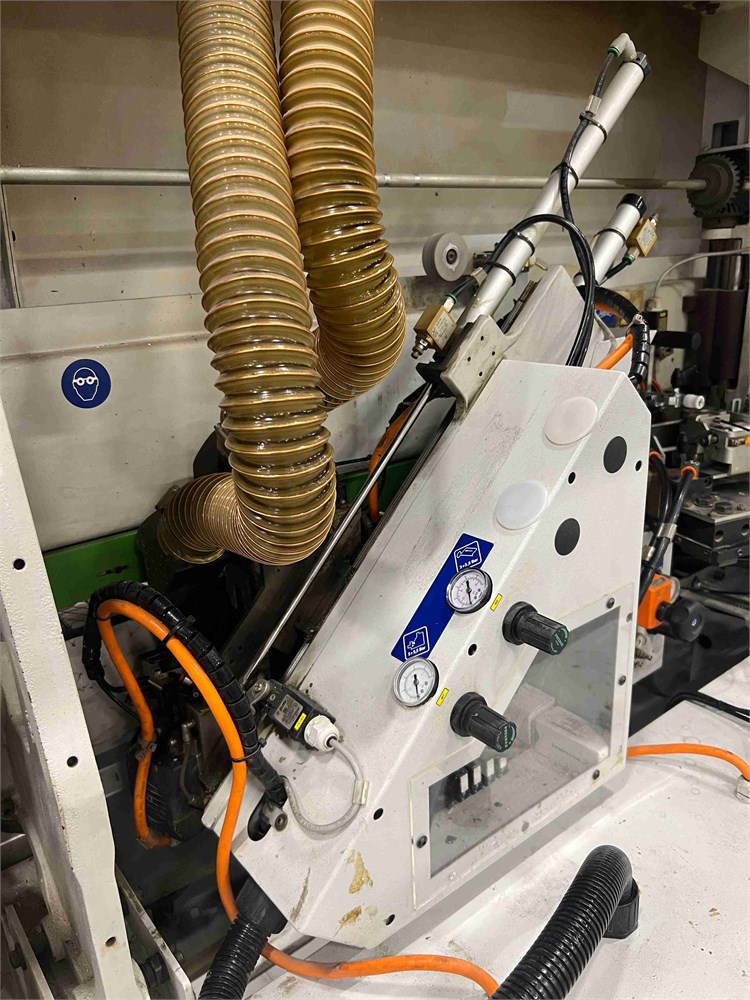

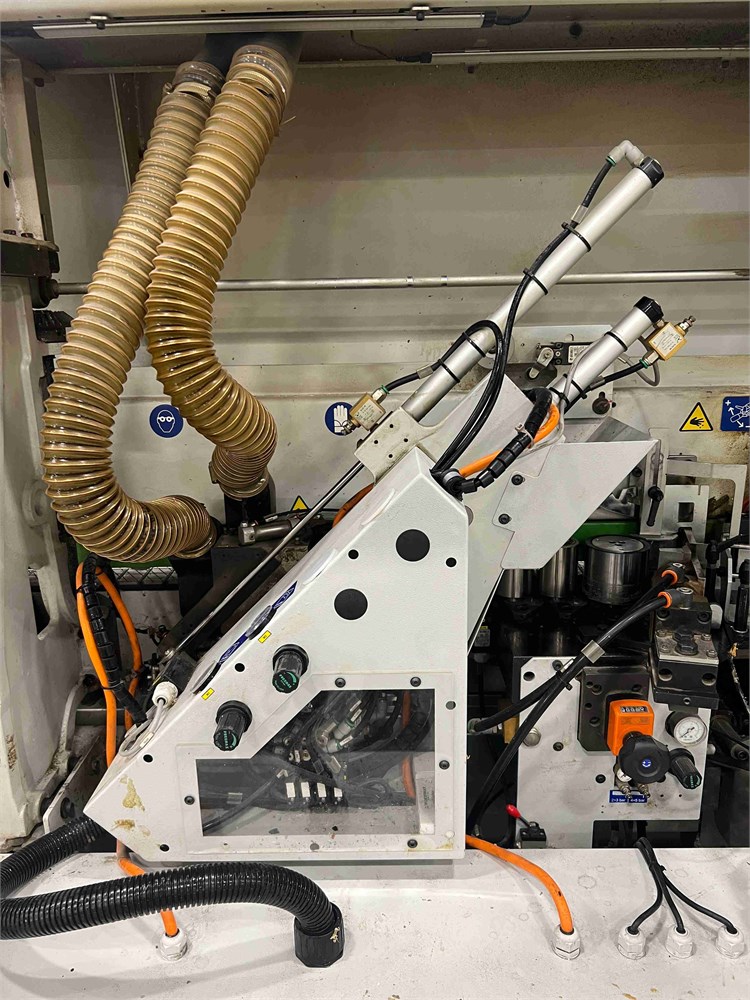

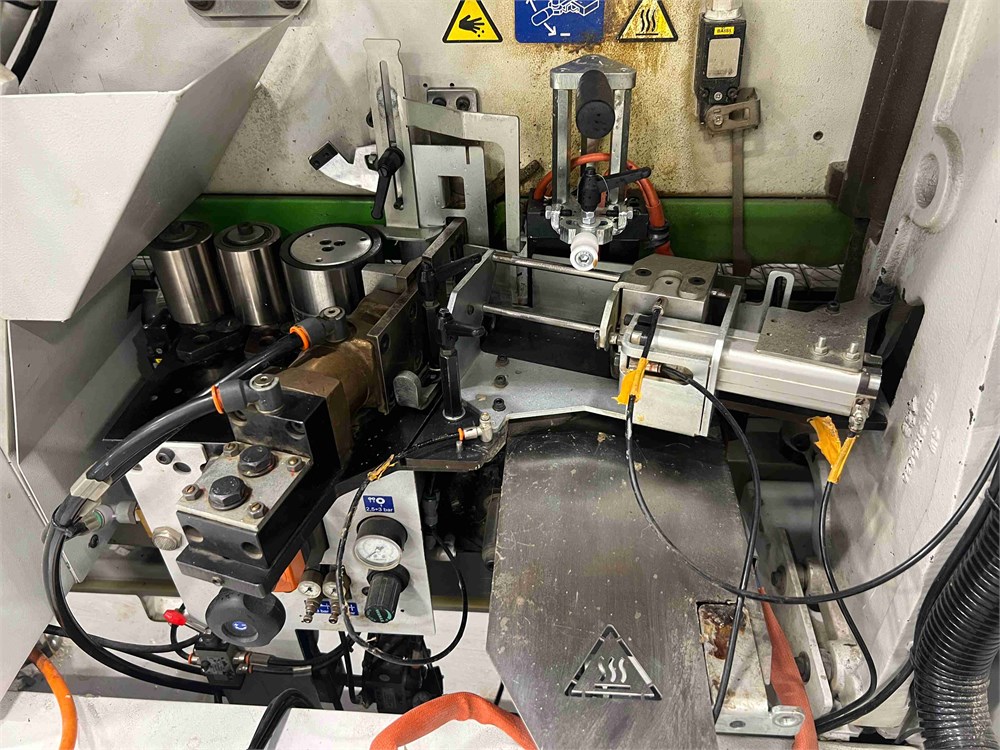

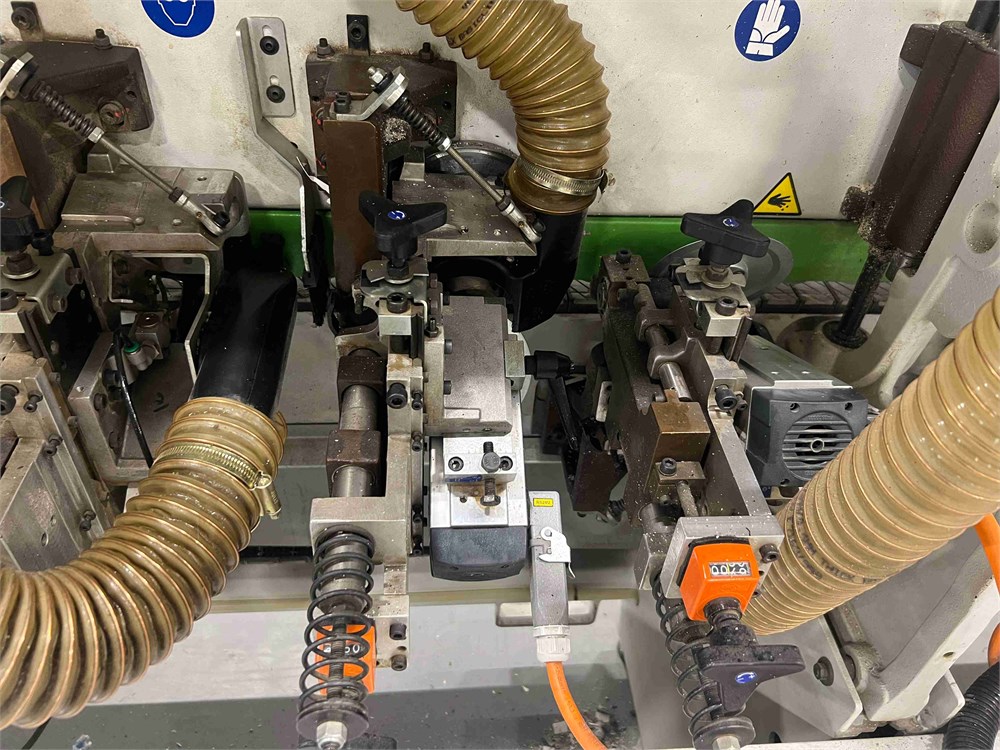

End Trimming Unit: Front & rear end trim motors, 1.0 HP,12,000 RPM, motors travel on 45° slides and pneumatic tilt 0° - 15° form the control panel.

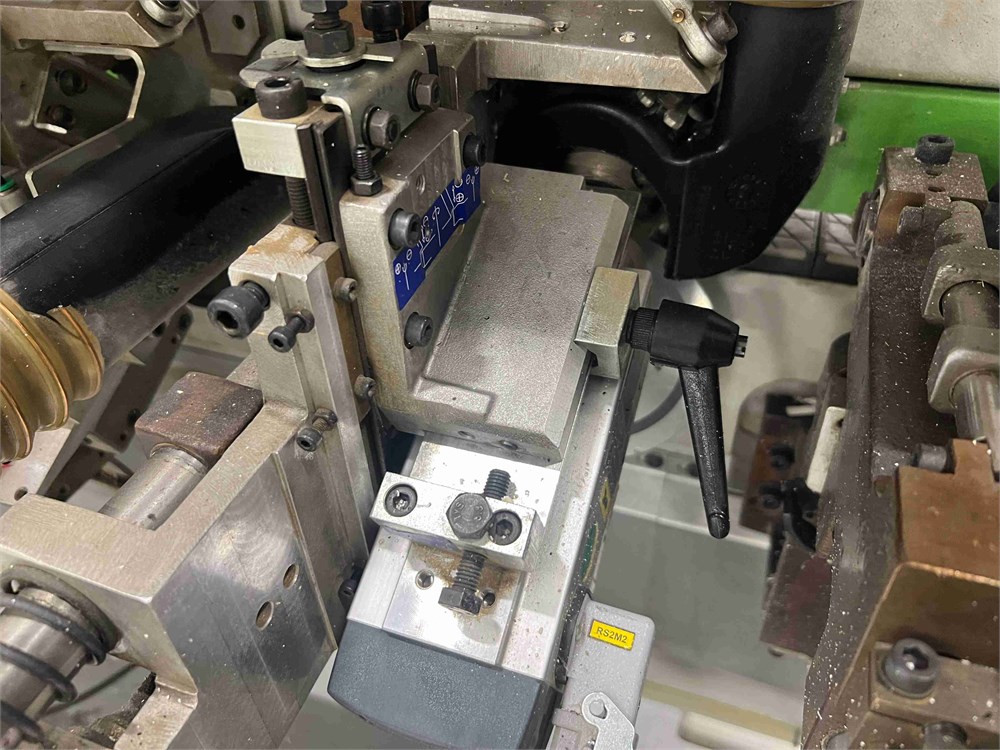

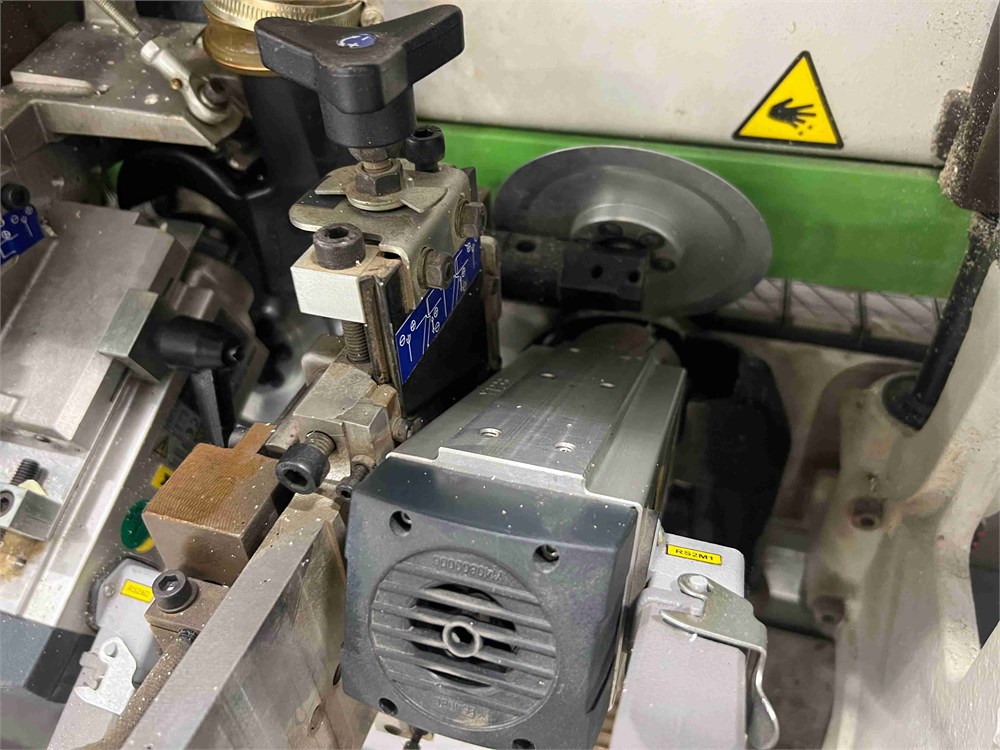

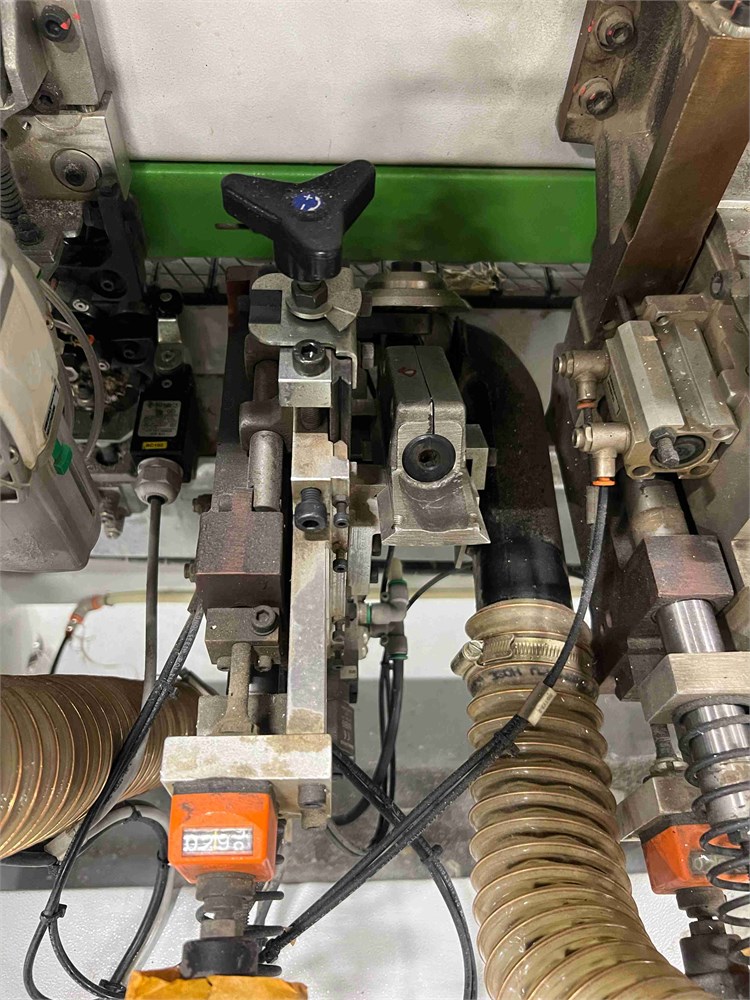

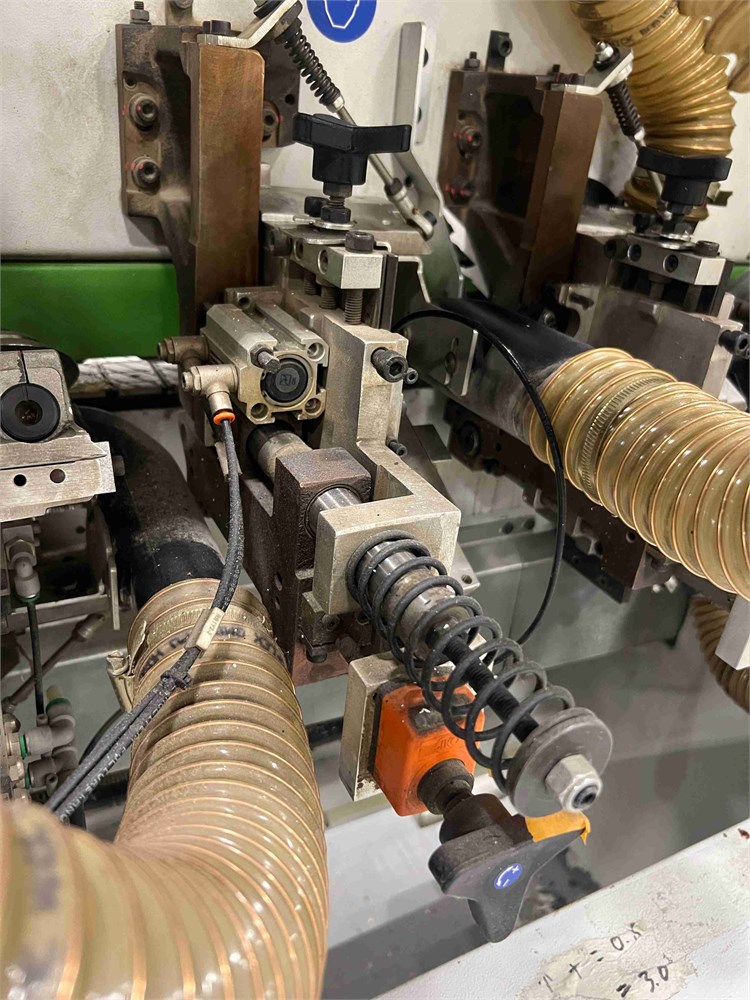

Top/bottom Trimming Unit: Top and bottom flush or bevel trims with "Quick Change" motors 0.8 HP, 12,000 RPM, digital readouts for easy setup.

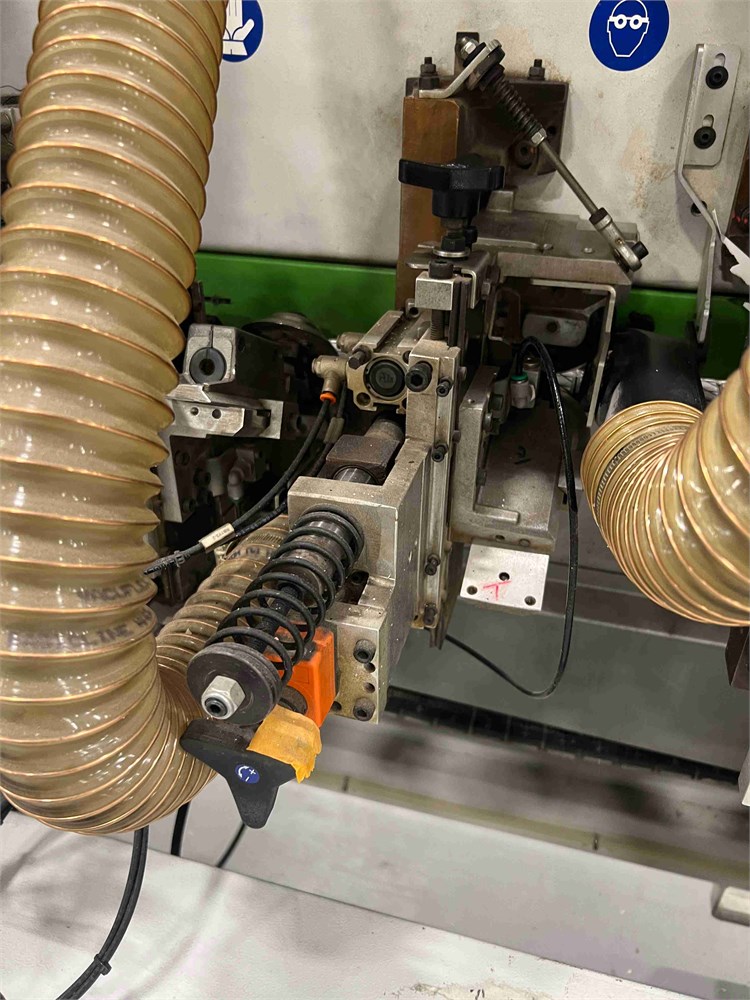

Top/bottom Profile Scraping Unit: Finishing unit to eliminate previous machining imperfections; pneumatic exclusion from the machine control; external collection box.
Top/bottom Flat Scraping Unit: Top and bottom scrapers for 3 mm thick PVC banding.
Top/bottom Buffing Station: 0.5 HP, 2,800 RPM, units tilt 0° - 30°.
Top pressure beam & motorized feed track with "anti-slip" "Quick Change" snap on 80 mm wide x 60 mm long rubber pads, low friction nylon-graphite self-lubrication chain pads.
Lighted Sound Enclosure and Outboard Panel Support, over all trimming stations, industrial lights and viewing windows,extendible side panel support rail.
Fixed Feed Speed,39 FPM, 2 HP feed drive

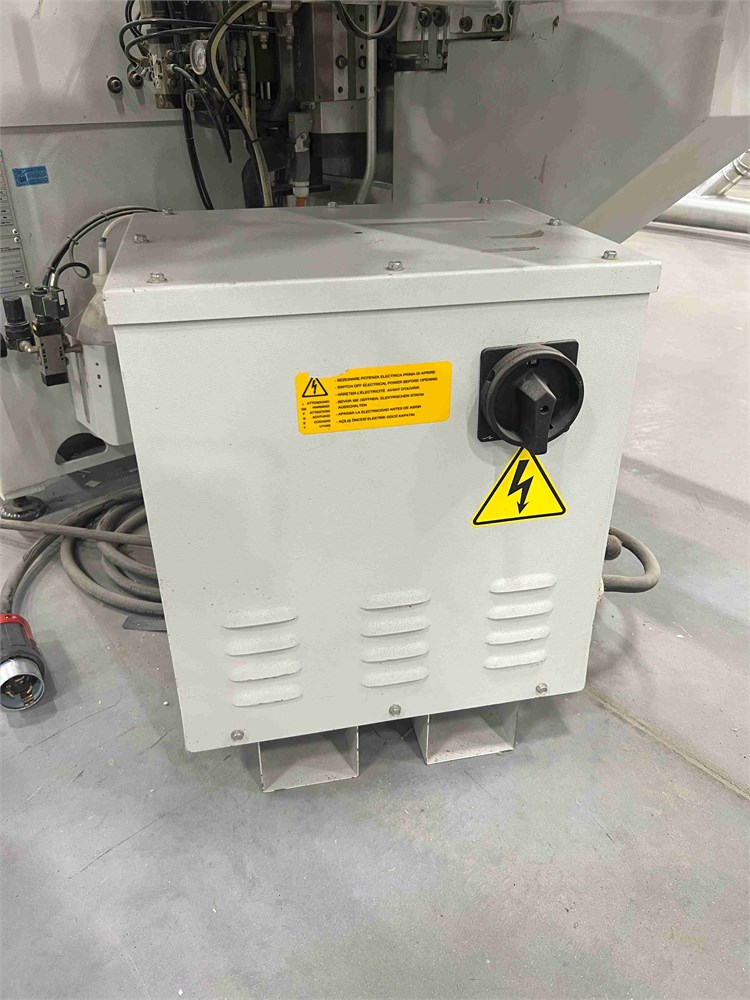

External electrical transformer
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
