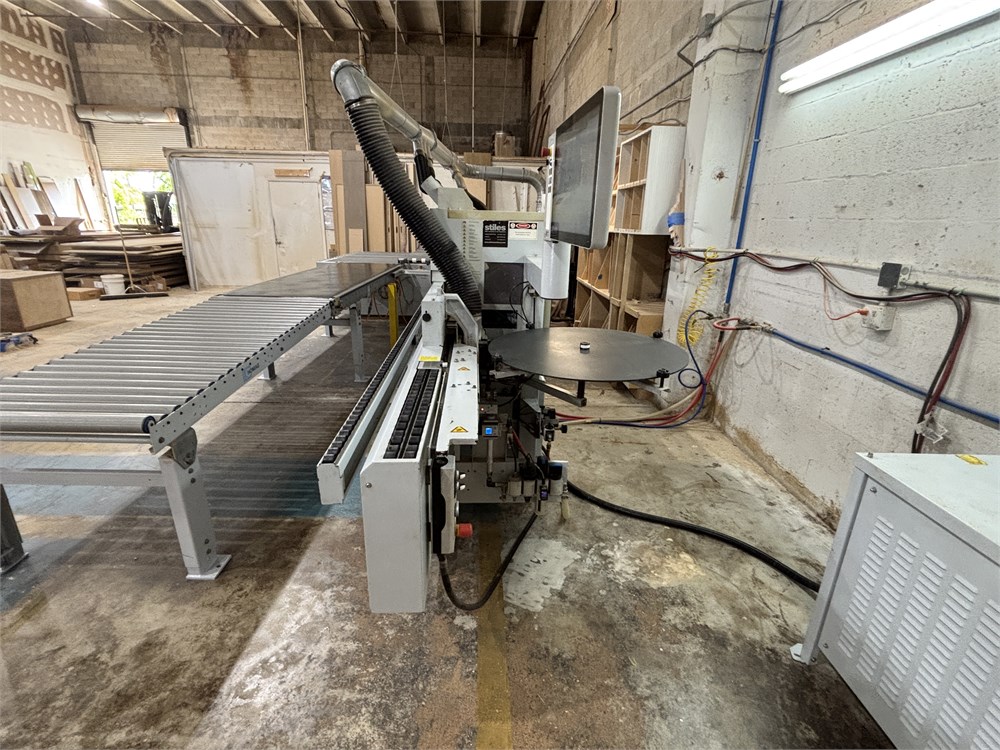

Homag "KDF 440 C" Edgebander W/Air Tec, Return Conveyor, and Dust Collector
Active
Homag Edgebander Complete Line - West Palm Beach, FL
West Palm Beach, FL
- Starting Bid : $5,000.00 USD ( ) No Reserve
- 0 Bid(s)

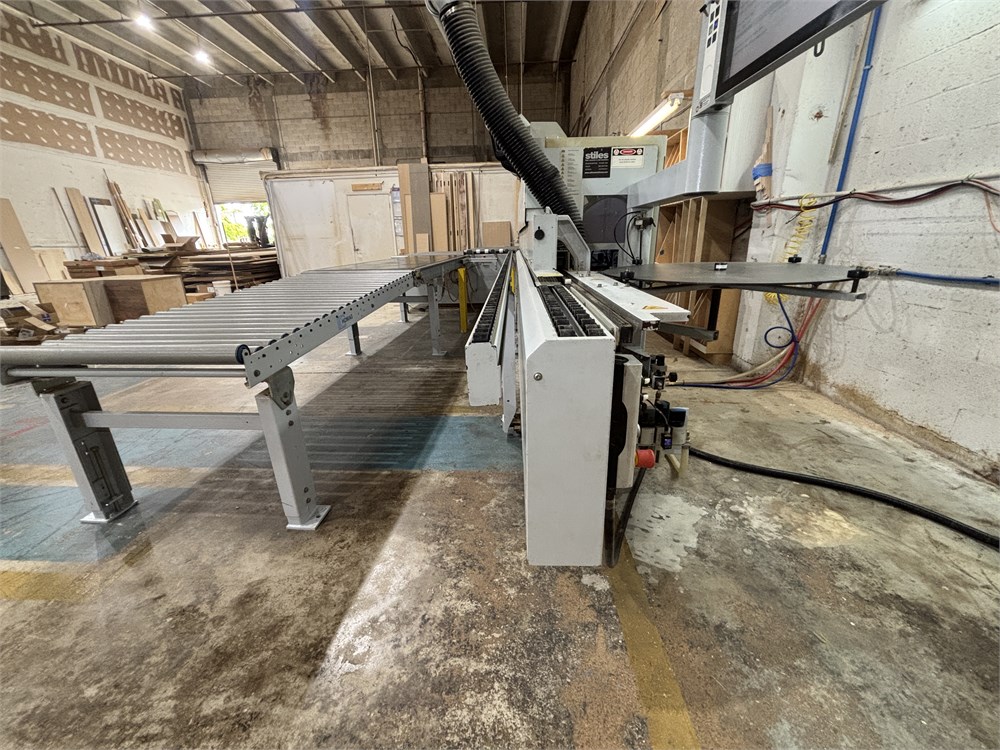

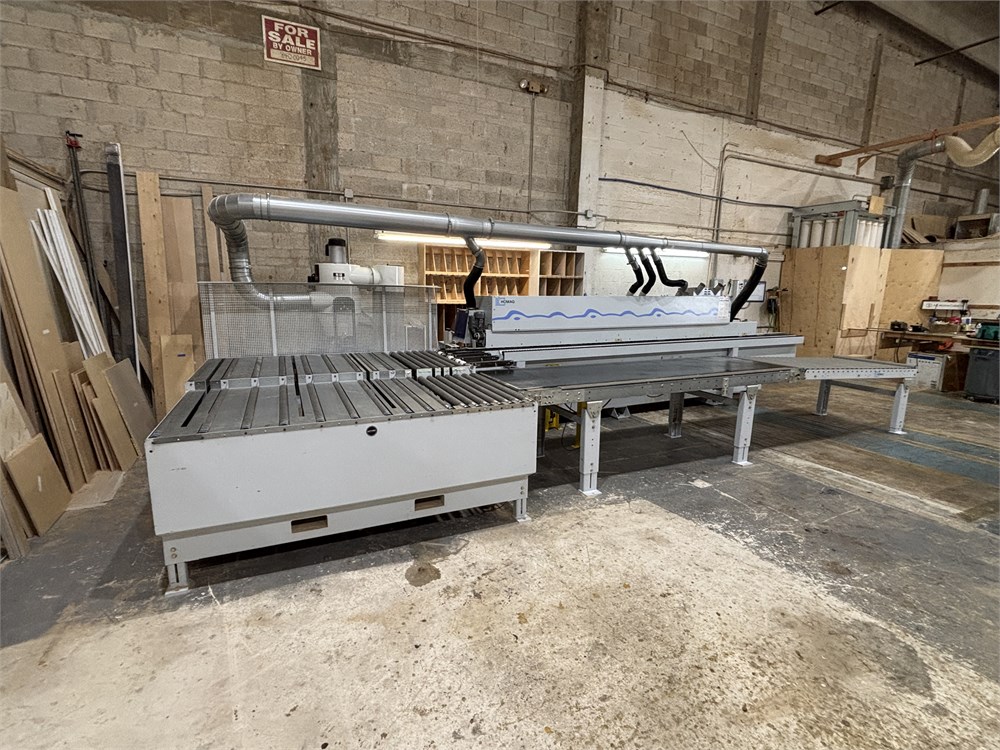

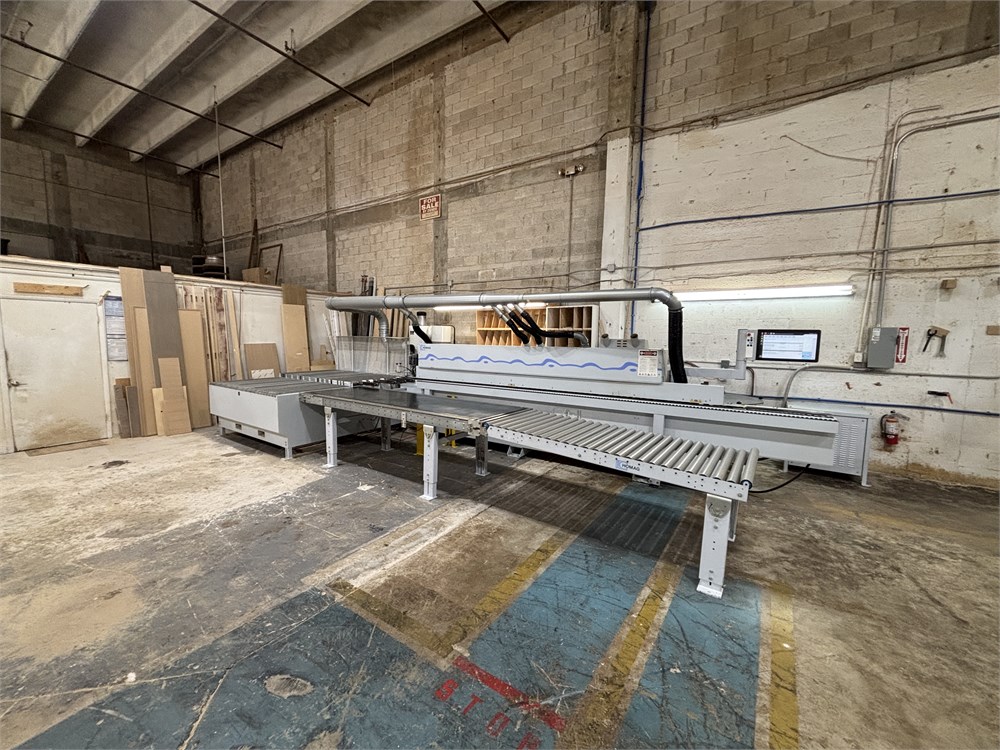

Homag "KDF 440 C" Edgebander with Air Tec, Return Conveyor, and Dust Collector ( Active #79756299 )

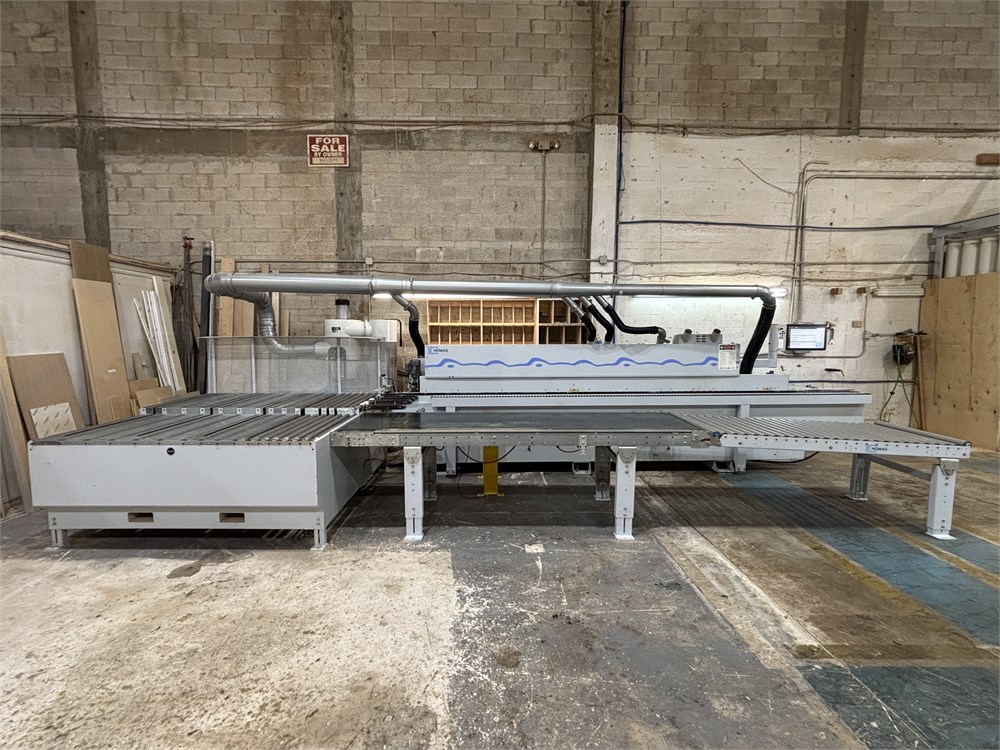

A Innovative cabinet company based in the greater Miami, FL area is auctioning a complete three piece system including, Homag "KDF 440 C" Edgebander with Air Tec, Return Conveyor, and Dust Collector! These machines were installed by Stiles, as a complete line. Rare opportunity. Seller is able to Load all machinery for buyer. Please call me directly with any questions.
-
Pick Up Location
3612 Reese Ave. West Palm Beach, FL 33404
-
Make
Homag
-
Model
KDF 440 C
-

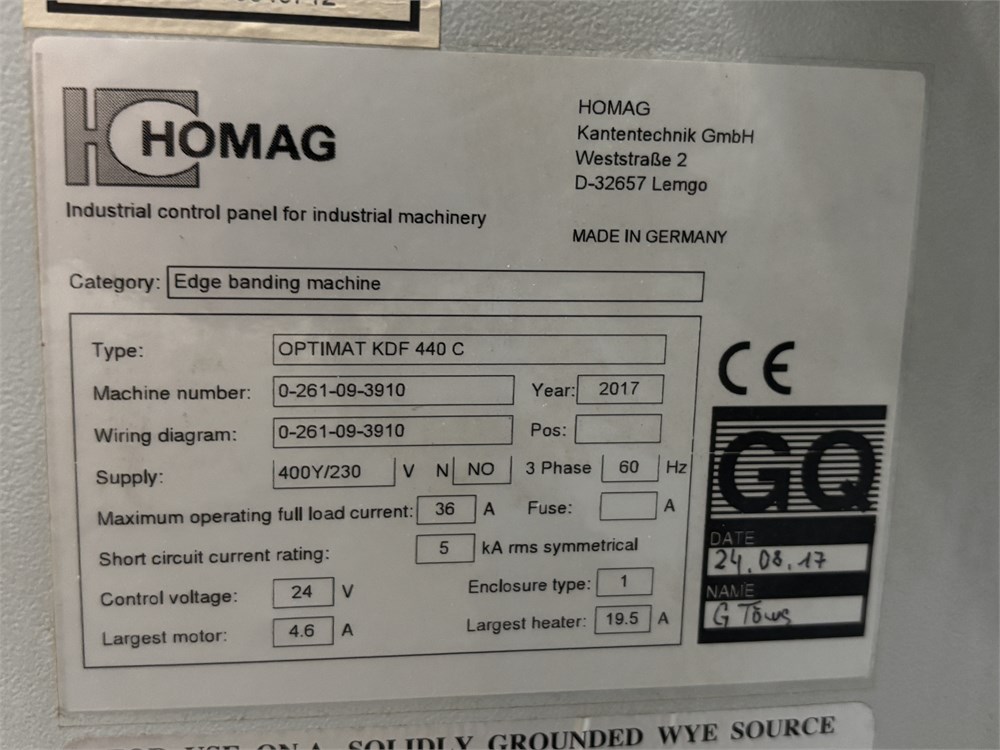

Serial Number
0-261-09-3910 (Edgebander) 0-284-13-1920 (Return Conveyor) 20094941 (Dust Collector)
-
Year
2017 (Edgebander) 2017 (Return Conveyor) 2021 (Dust Collector)
-
Phase
3 PHASE
-
Voltage
208-230/460
-
Buyer Inspection Period
April 8th - April 16th, 2026 (by appointment only)
-
Load Out Period
April 16th - April 22nd, 2026 (by appointment only)
-
Estimated Dimensions
216" L x 60" W x 68" H (machine), 29" L x 21" W x 28" H (transformer)
-
Estimated Weight
4,500 Pounds
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.
-
Load Fee
500.00
-
Lot Notes
-
page views
55

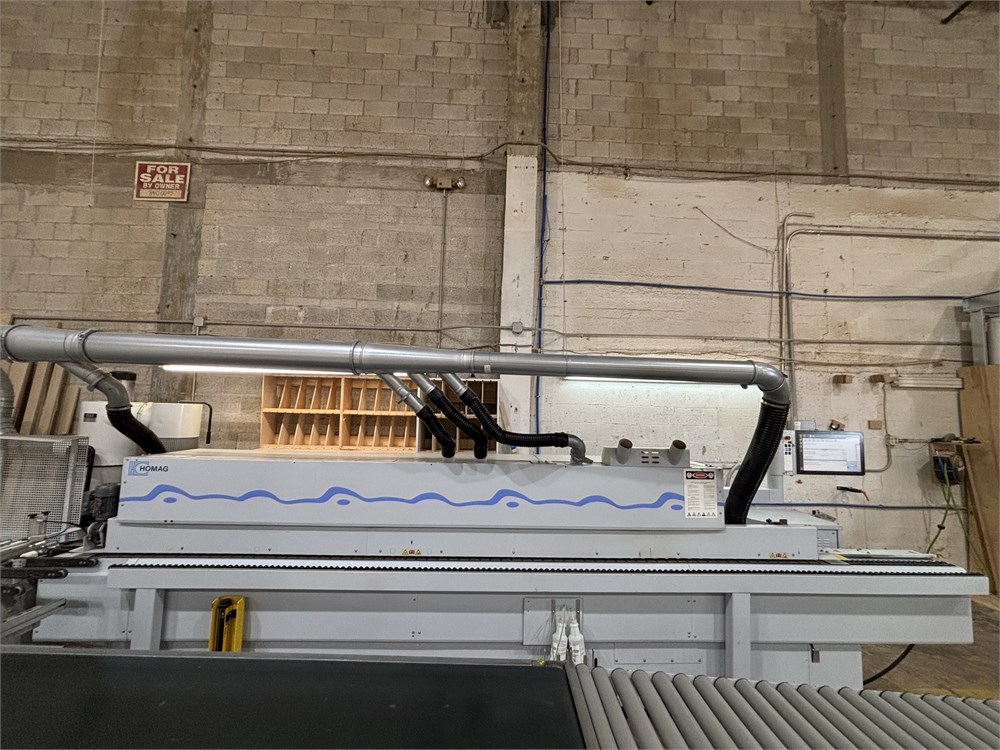

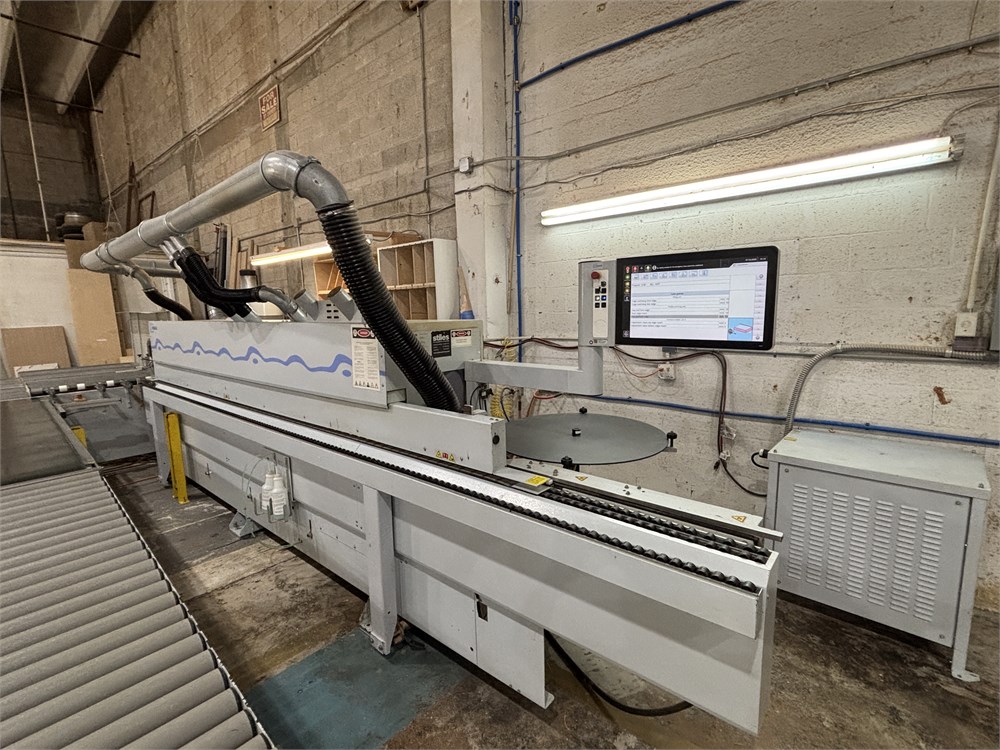

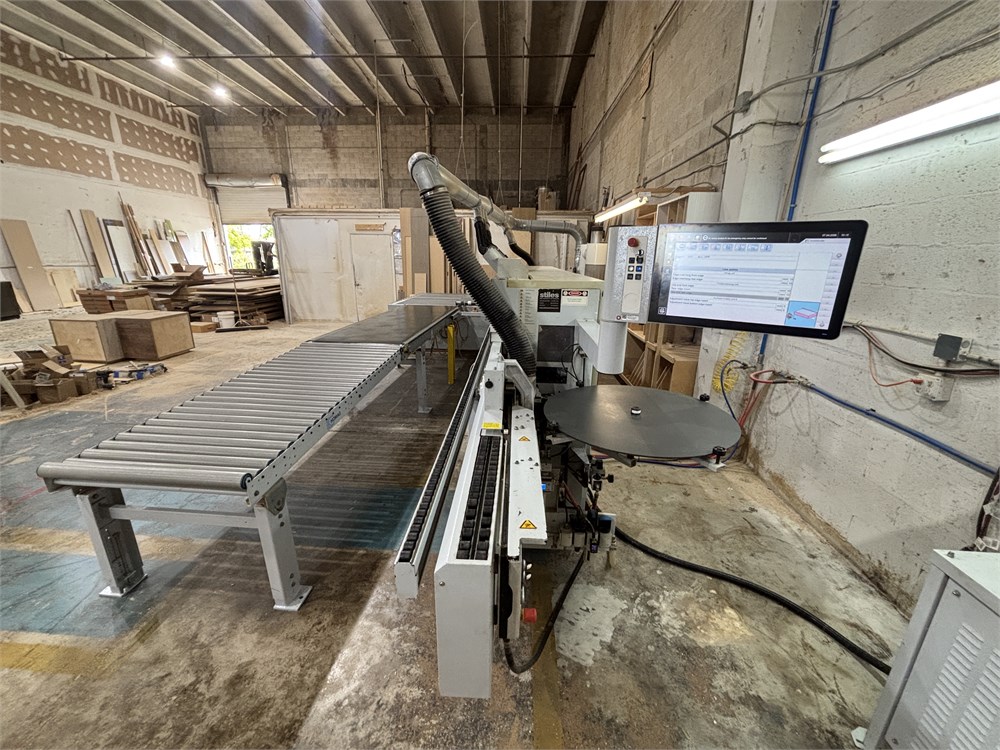

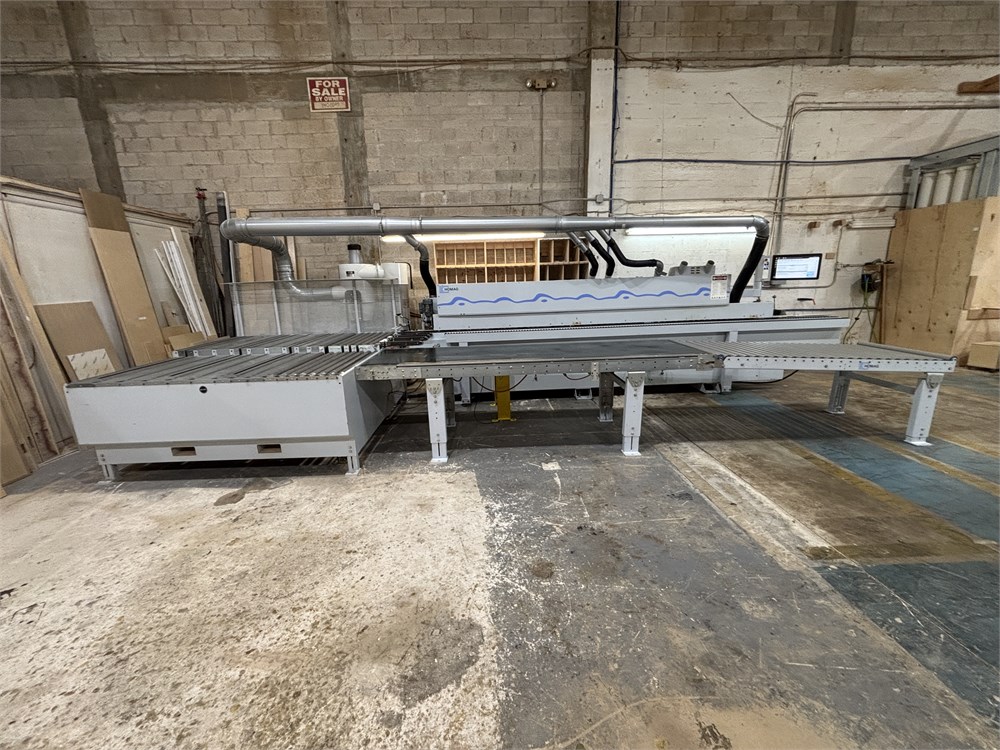

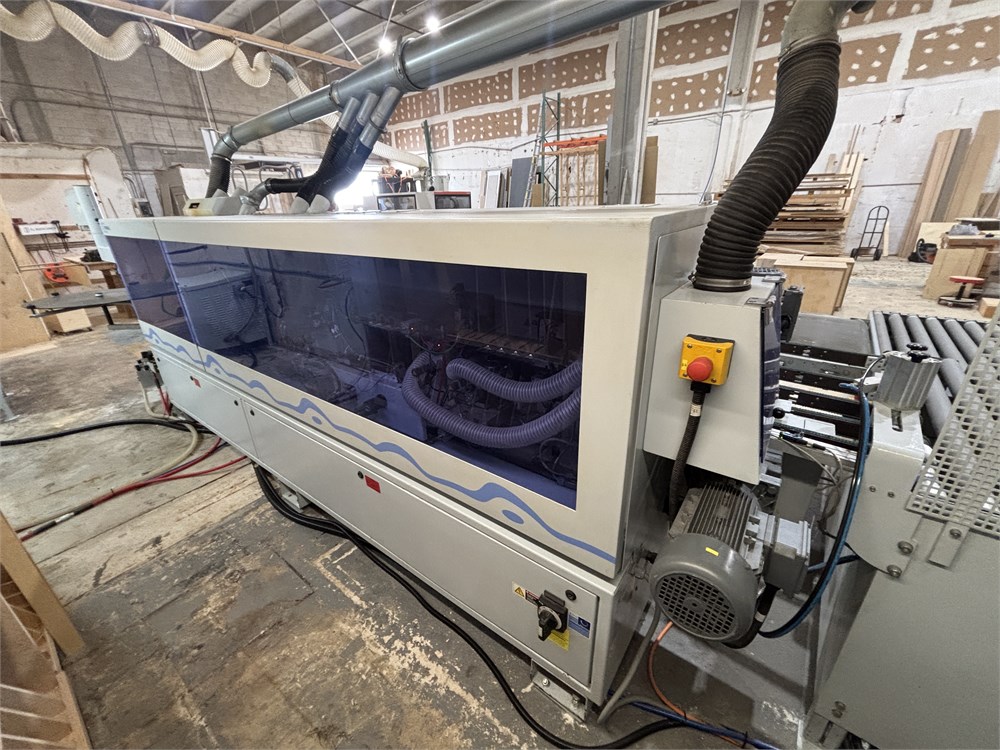

Homag "KDF 440 C" Edgebander with Air Tec, Return Conveyor, and Dust Collector
SEE VIDEOS OF MACHINE

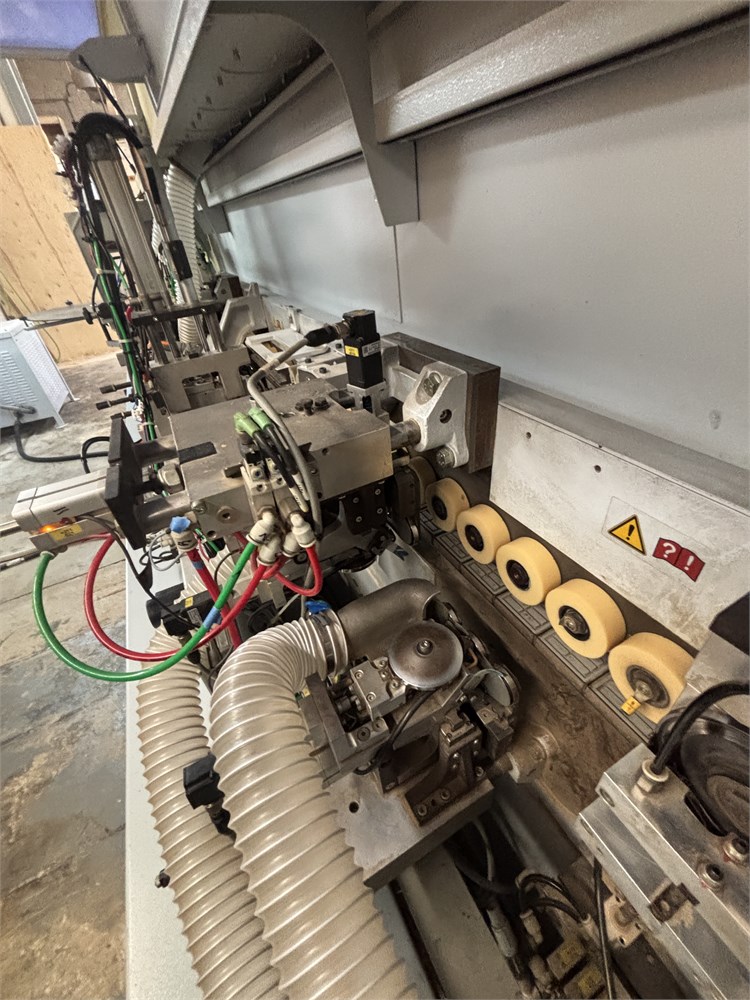

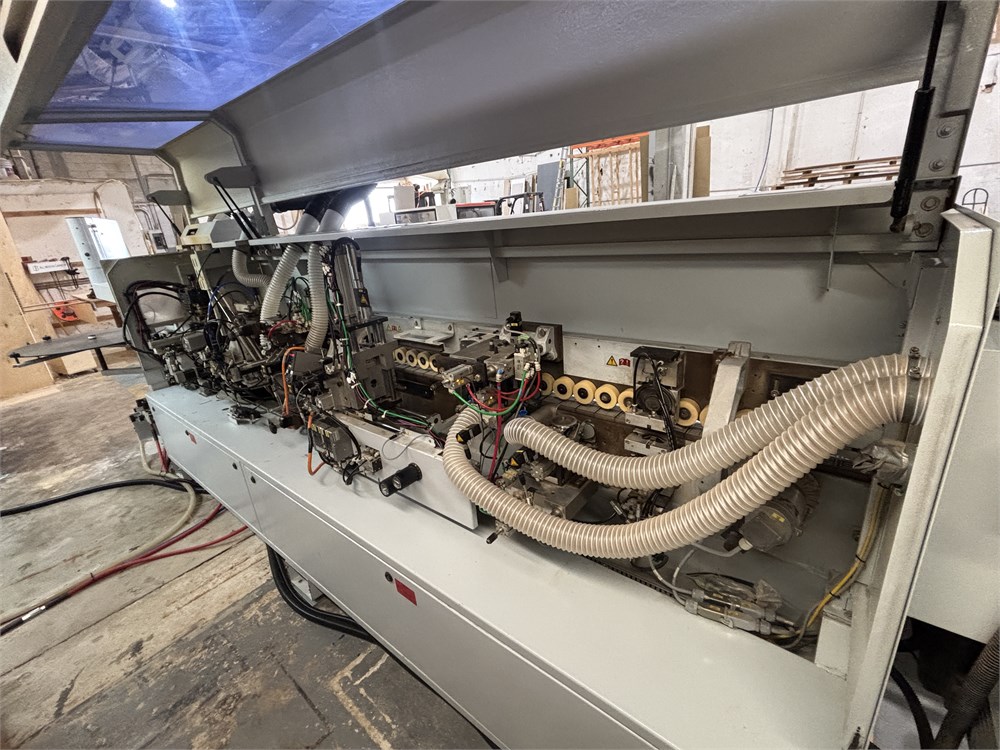

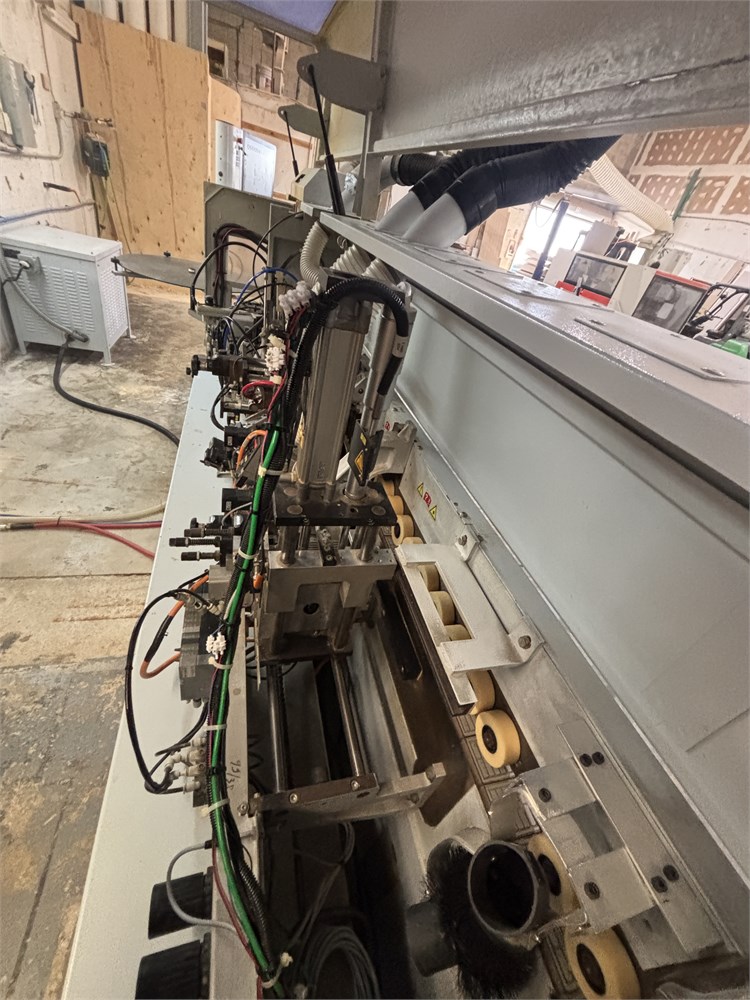

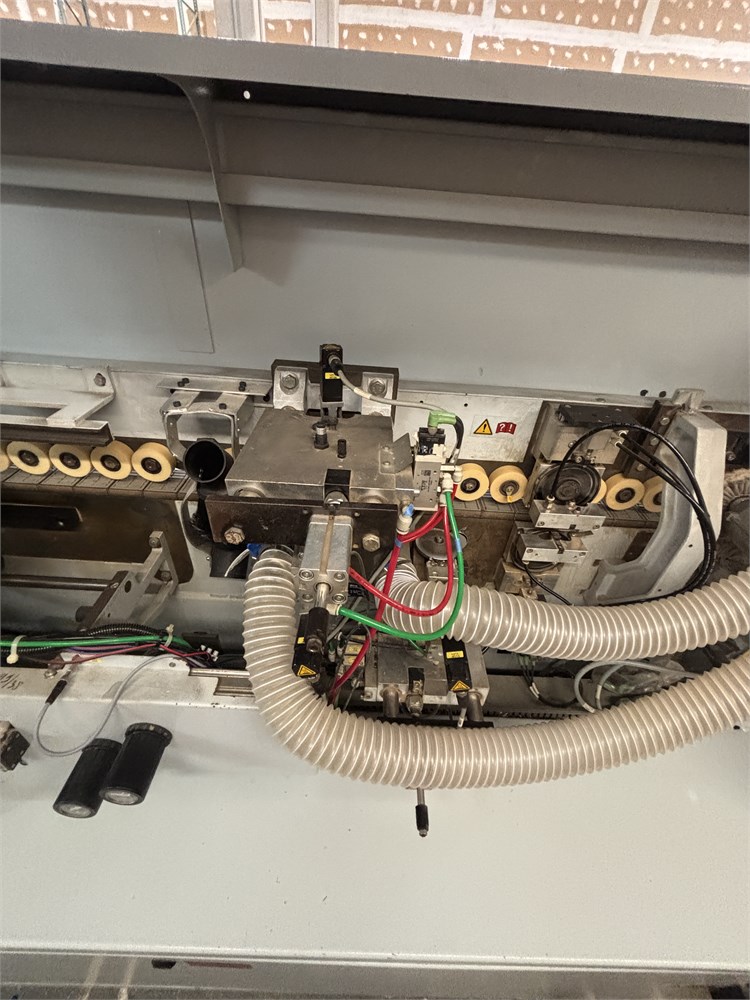

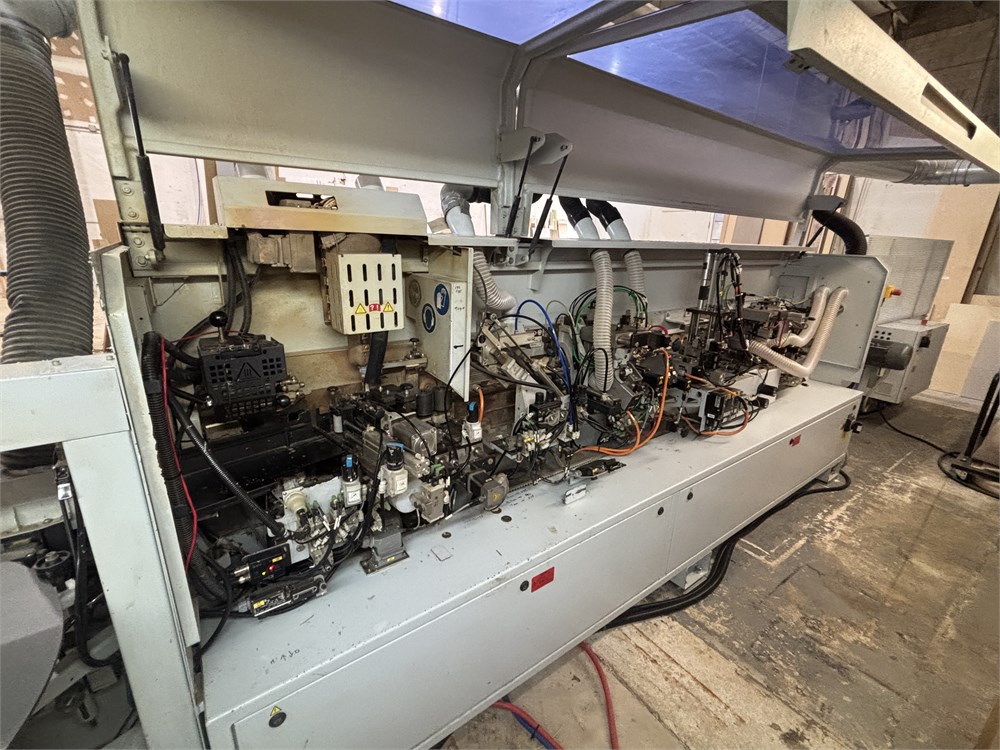

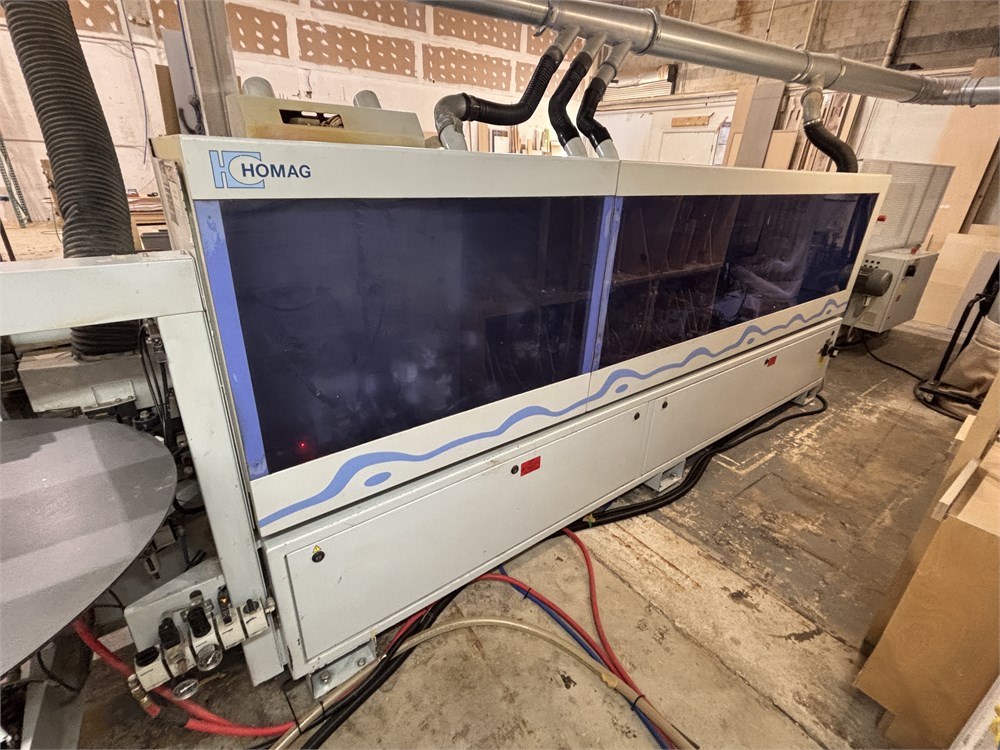

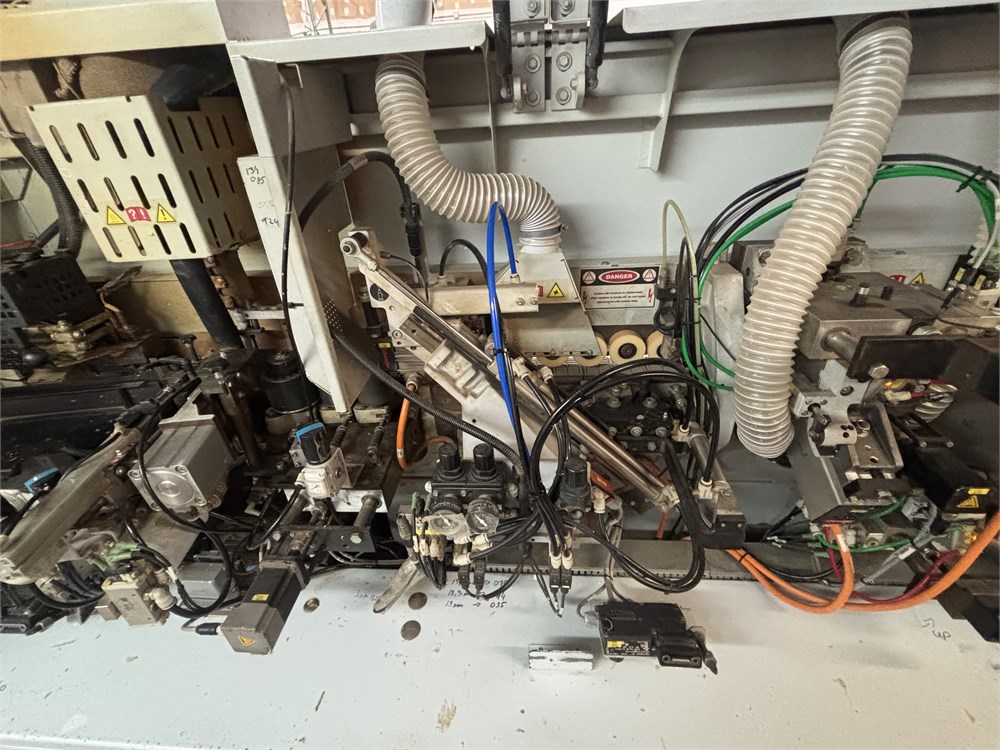

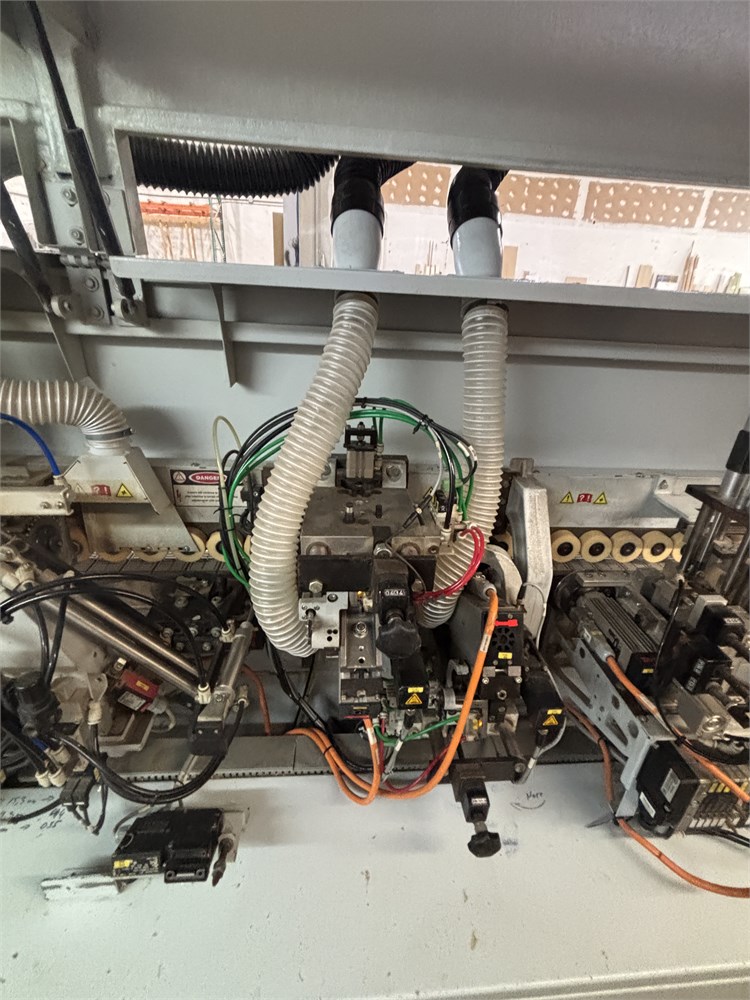

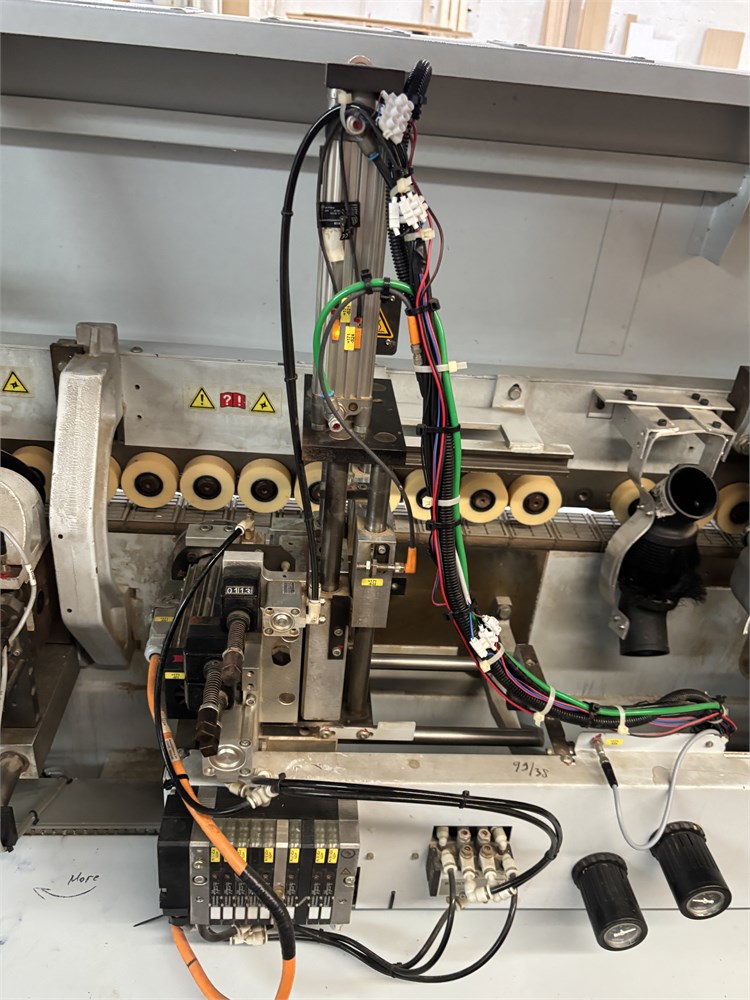

Edgebander -
Minimum panel length, 160 mm/6.375"
Minimum panel width, 70 mm/2.75"
Panel thickness, 8 mm/0.3" - 60 mm/2.375"

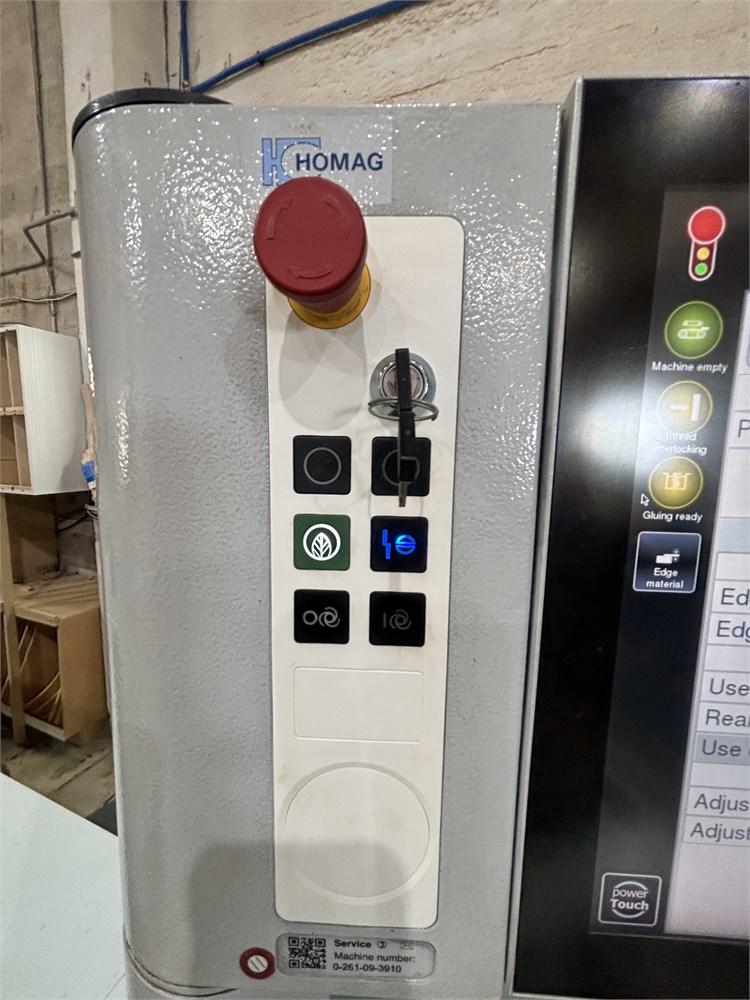

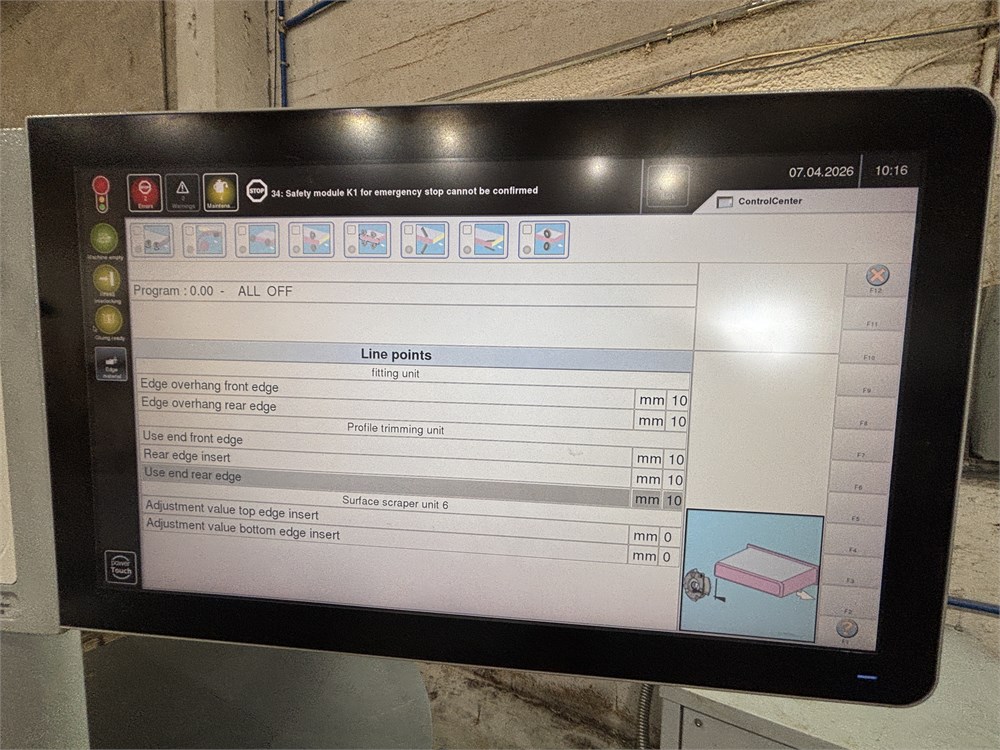

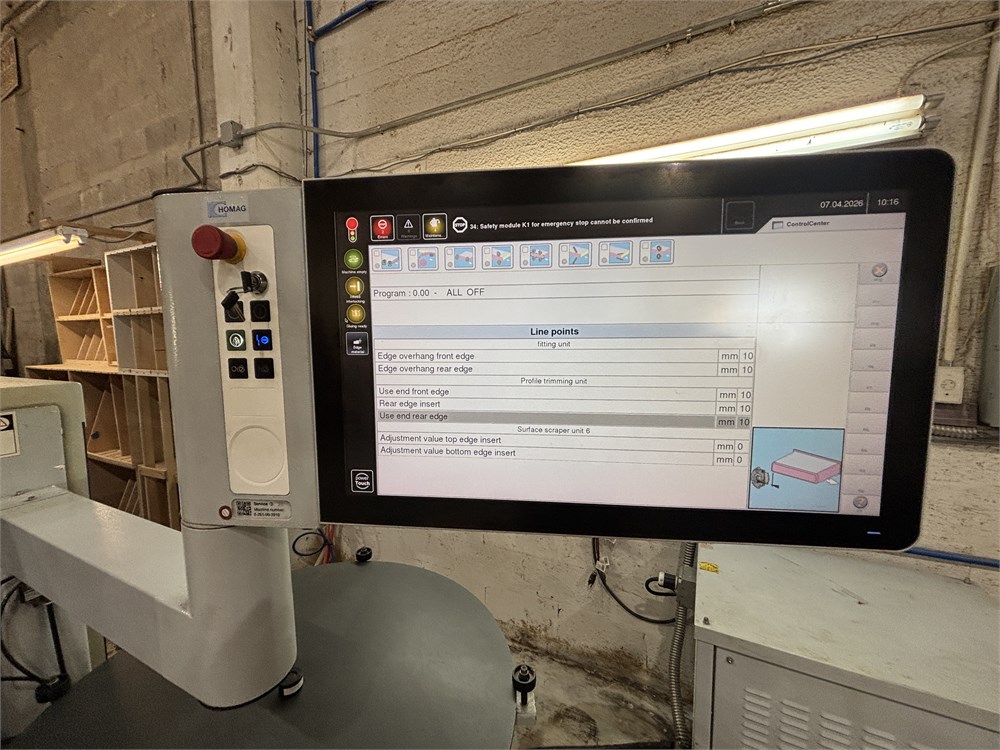

Power Touch 2 program control
Full HD multi-touch 22" display in widescreen
Homag Group operating surface
Motorized top pressure beam for panel thickness adjustment
Variable track speed up to 46 FPM
3 HP feed motor

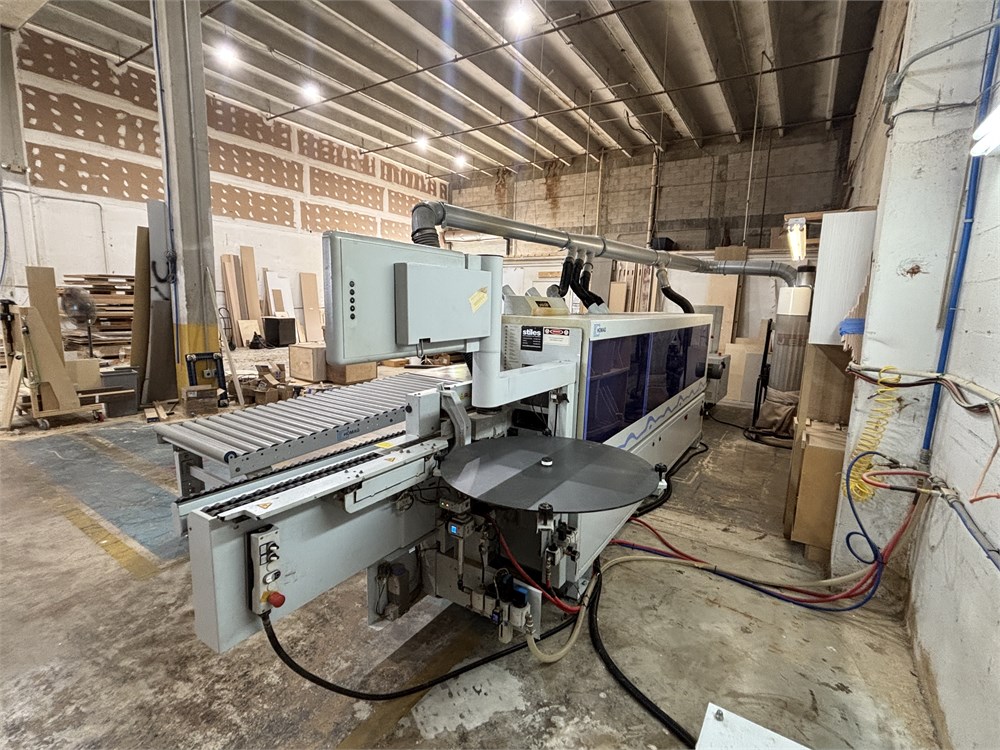

31" diameter coil table
Built in rollers to allow for 3 mm PVC rolls
Edge strip capacity, 0.4 - 8 mm
Coil capacity, 3 mm x 45 mm (H)
Panel pre-heating

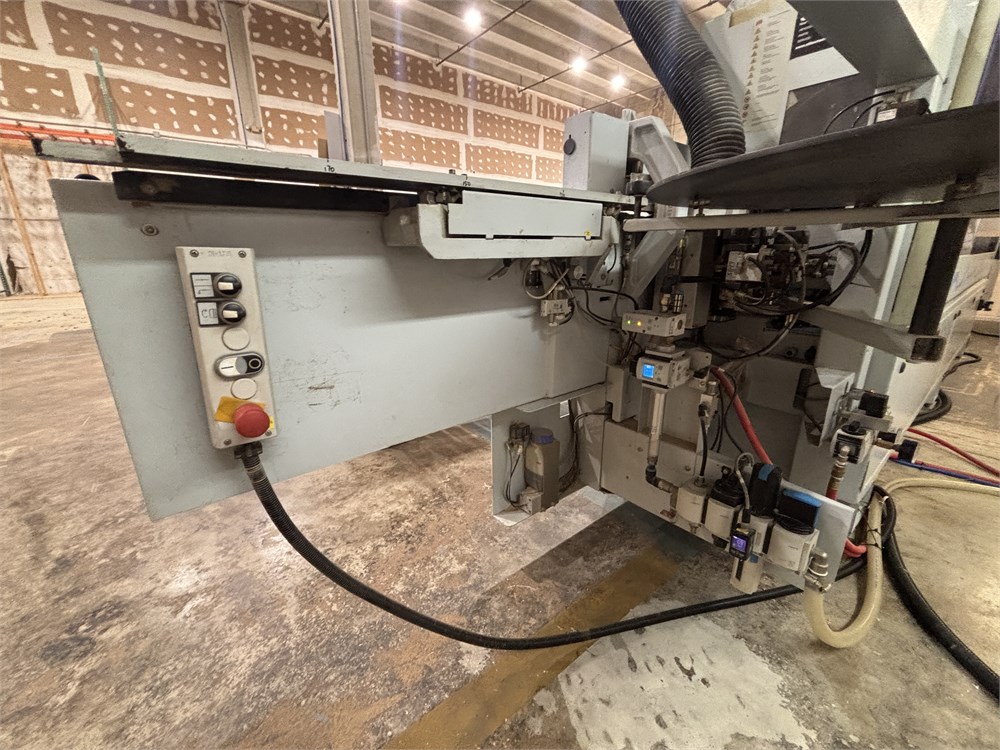

Adjustable infeed fence with servo motor control
Pneumatically-controlled hard stop on infeed to prevent premature panel feeding

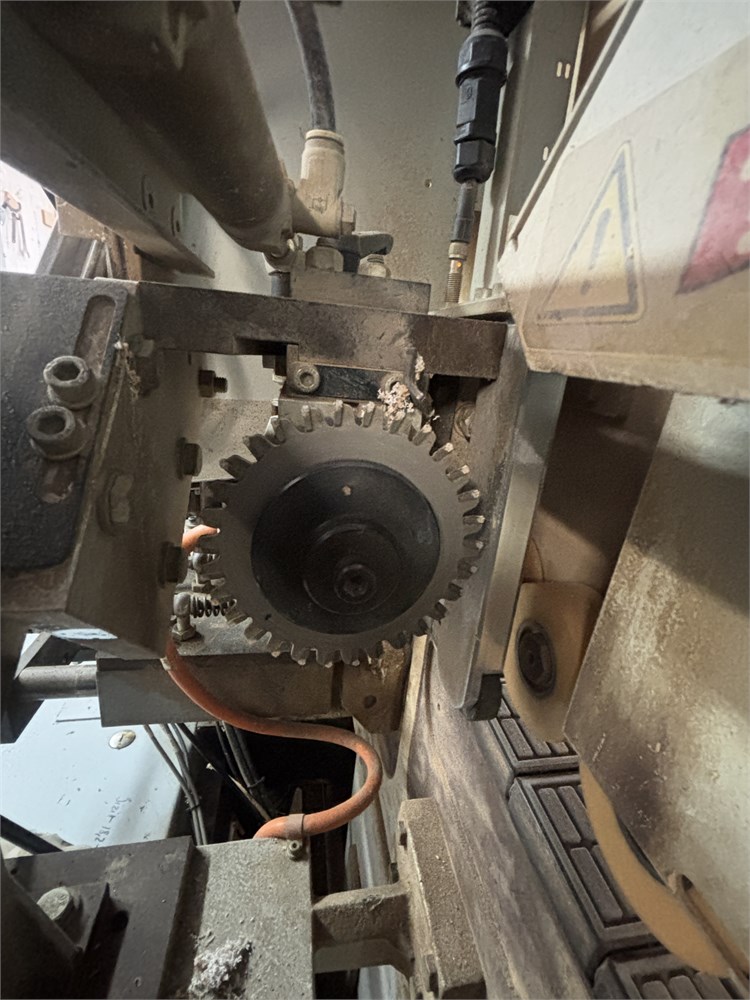

Two (2) motor premill unit
3 HP motors operating at 12,000 RPM (one CW and one CCW rotation)
Vertical spindle adjustment via digital settings
Horizontal positioning via electro-pneumatic control
Machine can run EVA OR PUR Glue

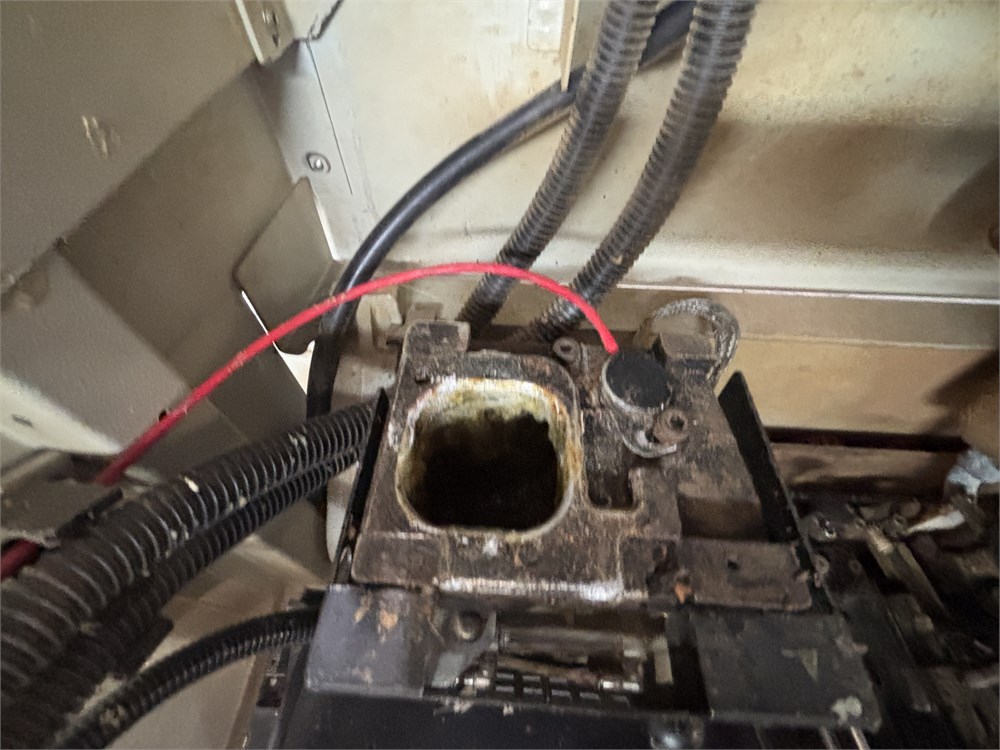

Quick-change tank
Reversible glue roller rotation
Glue temperature indication of glue roller via LED display
Infrared radiant glue heat zone control
Automatic temperature reduction if machine is idle for 15 minutes
Air Tec AT-15 reactivation unit for use with laser edgebanding to provide zero glueline results
Adjustable temperature and pressure via program control
40 mm maximum part thickness when using Air Tec
15 m/min. (49 FPM) maximum feed speed when using Air Tec

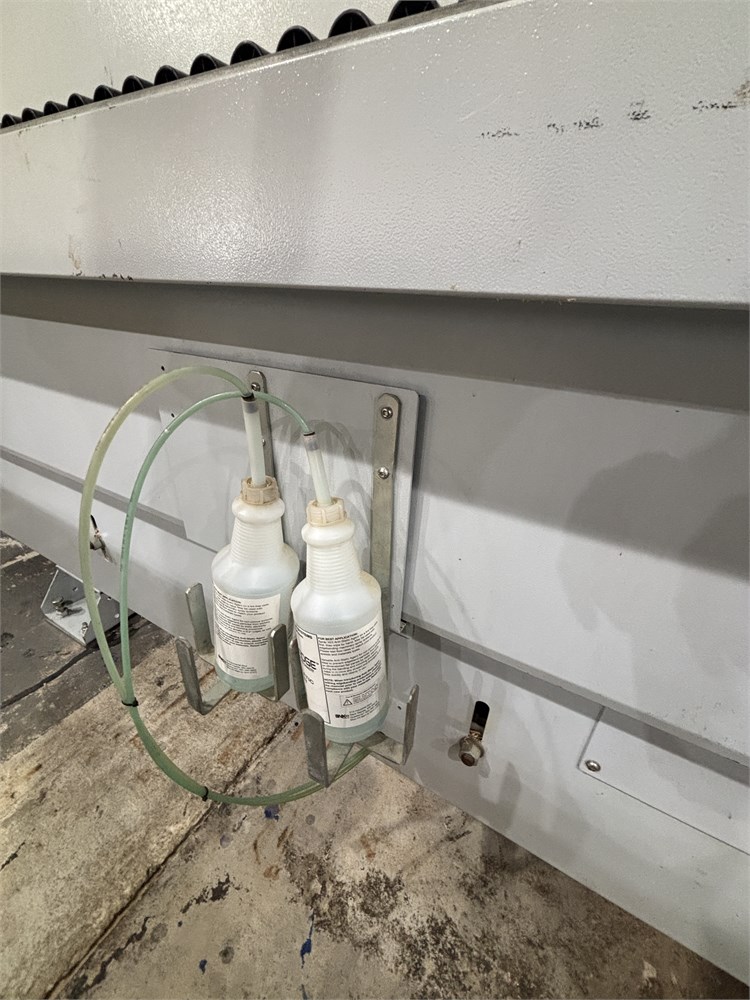

Spray mist lubrication system for delicate surfaces (such as high-gloss)
Anti-static spray mist unit

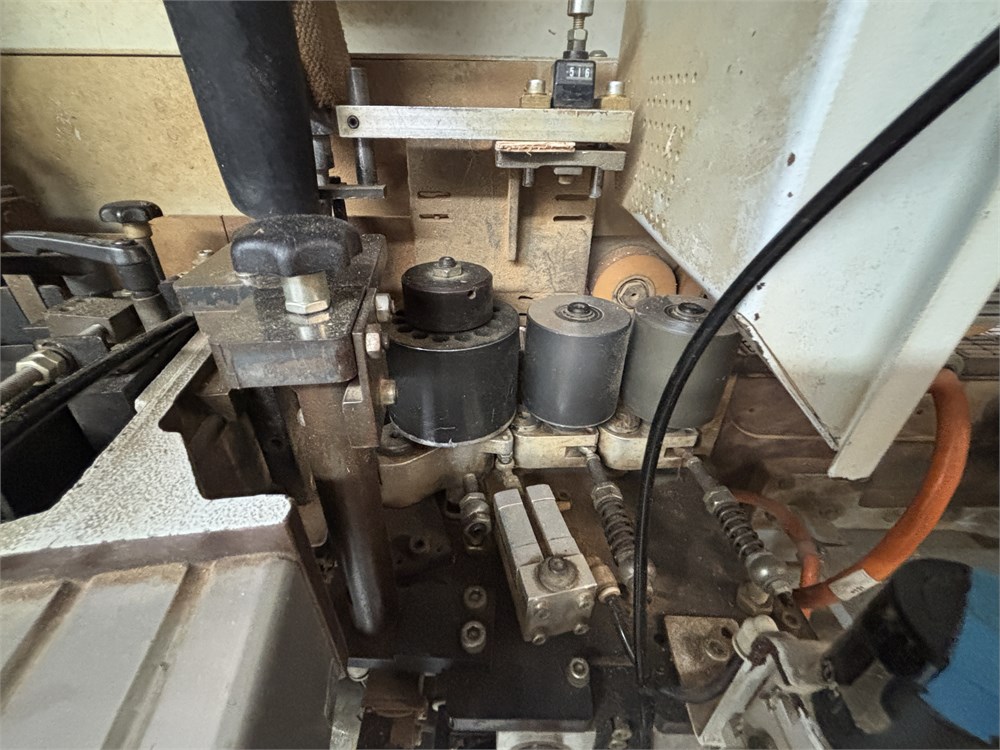

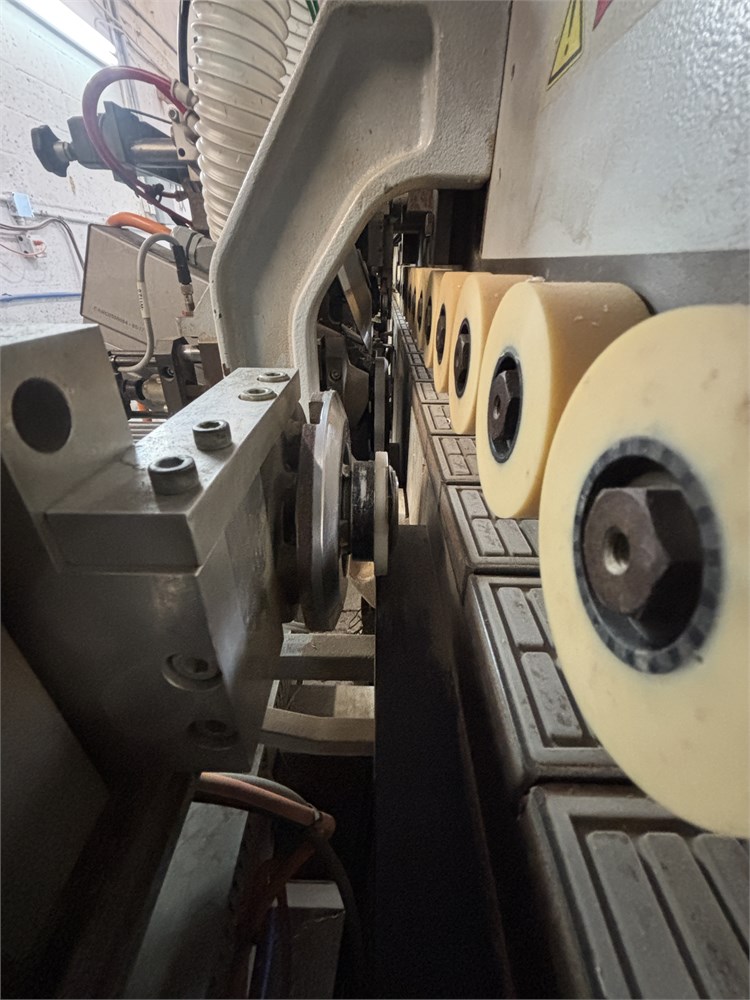

Pressure zone
Motorized positioning
One (1) driven roller
Two (2) idle rollers
Two (2) motor end trimming unit
0.5 HP motors, 12000 RPM
Chamfer up to 15 degrees
Program controlled indexing from straight to bevel end trimming
Motor brake

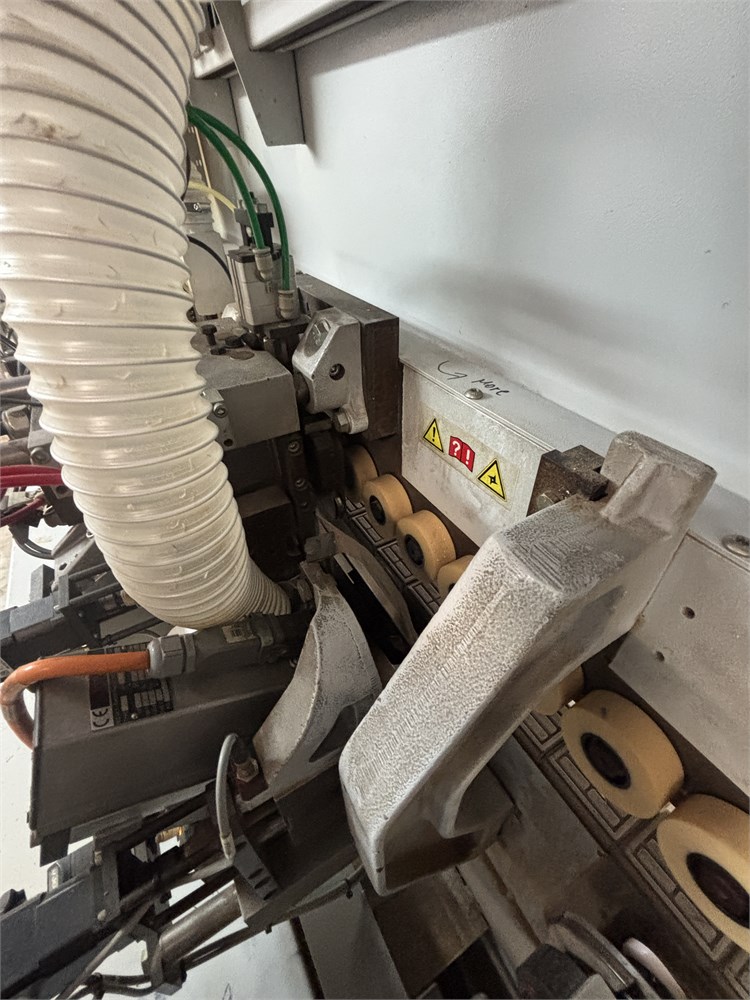

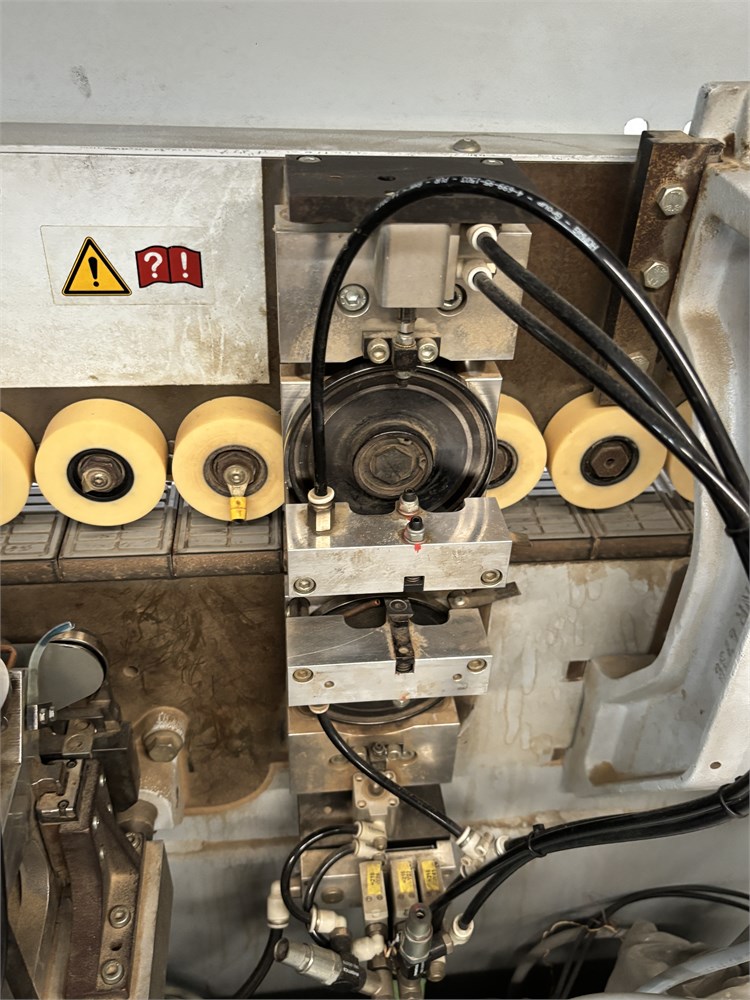

Multi-stage, top/bottom fine trimming unit
0.75 HP motors, 12000 RPM
Three (3) positions: profile 1, profile 2, flush
Auto-tilt and servo controlled horizontal tracing rollers
Servo motor controlled positioning to edge thickness
Motor brake
Two (2) motor multi function contour trimming unit
Corner rounding and/or continuous trimming of top/bottom edge
0.5 HP motors, 12000 RPM
Magnetic linear drive system with soft touch feature
Motor brake
12 - 60 mm panel thickness
3 mm maximum edge thickness

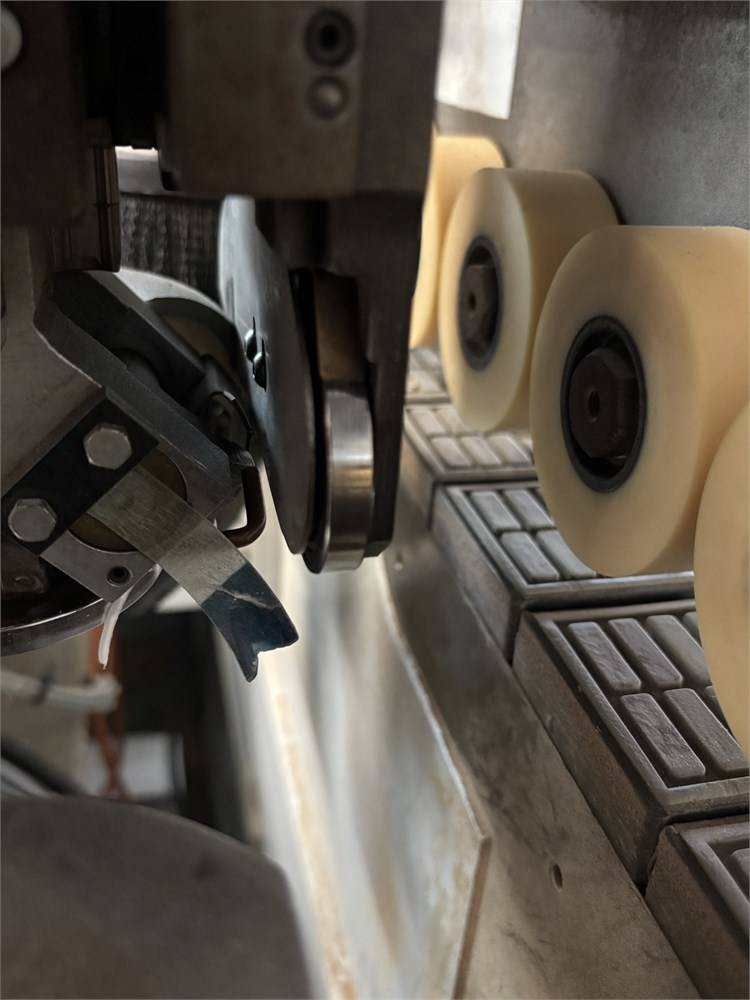

Quick-change scraping unit
Program-controlled pneumatic indexing
Vertical and horizontal tracing wheels
External collection box
Finish scraping unit

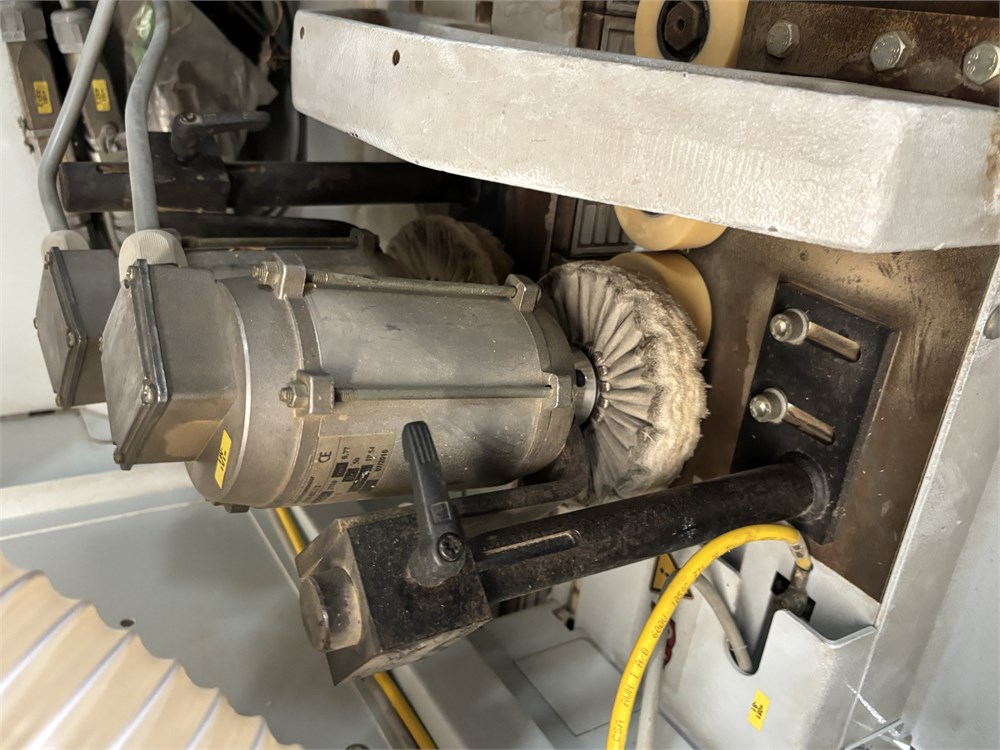

Top/bottom buffing unit
0.25 HP motors, 2800 RPM
20 mm x 150 mm cloth discs
Inclinable
Outboard roller support
Lighted sound enclosure
Two (2) doors
Safety interlock
Automatic feed track lubrication system

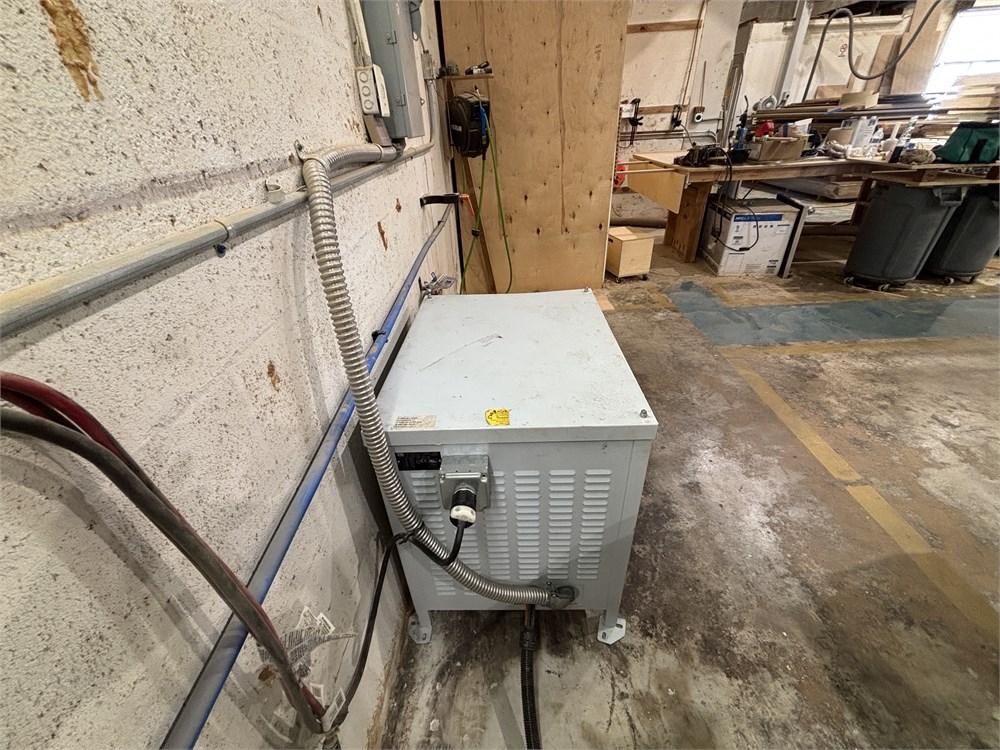

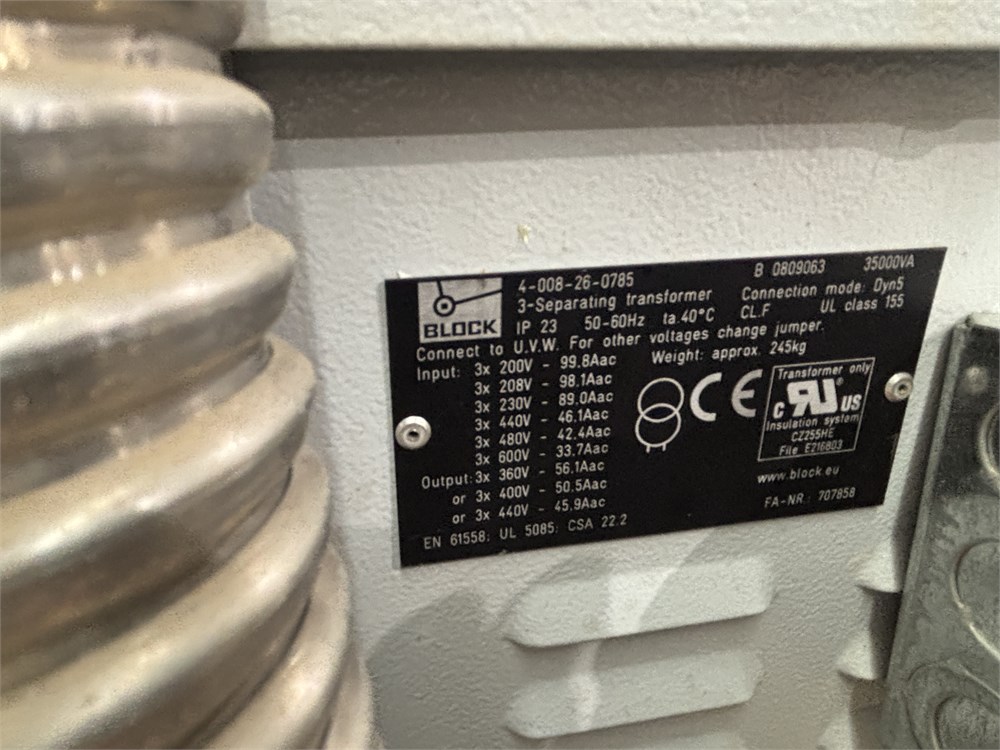

External electrical transformer

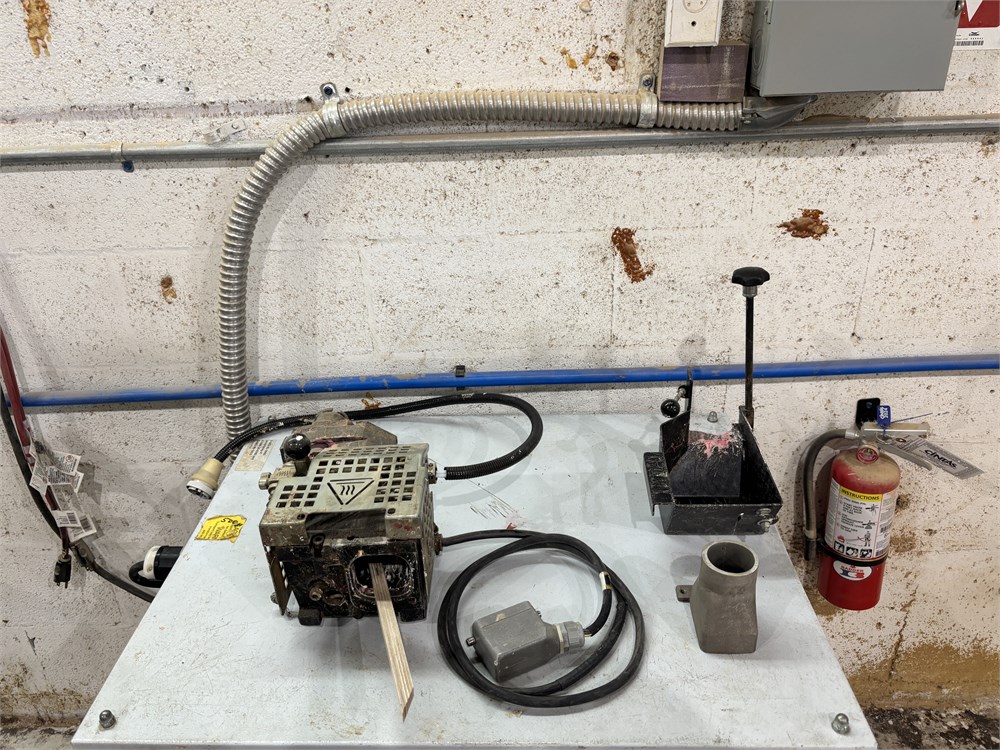

Spare Glue Pots (Shown)
Manuals and tools

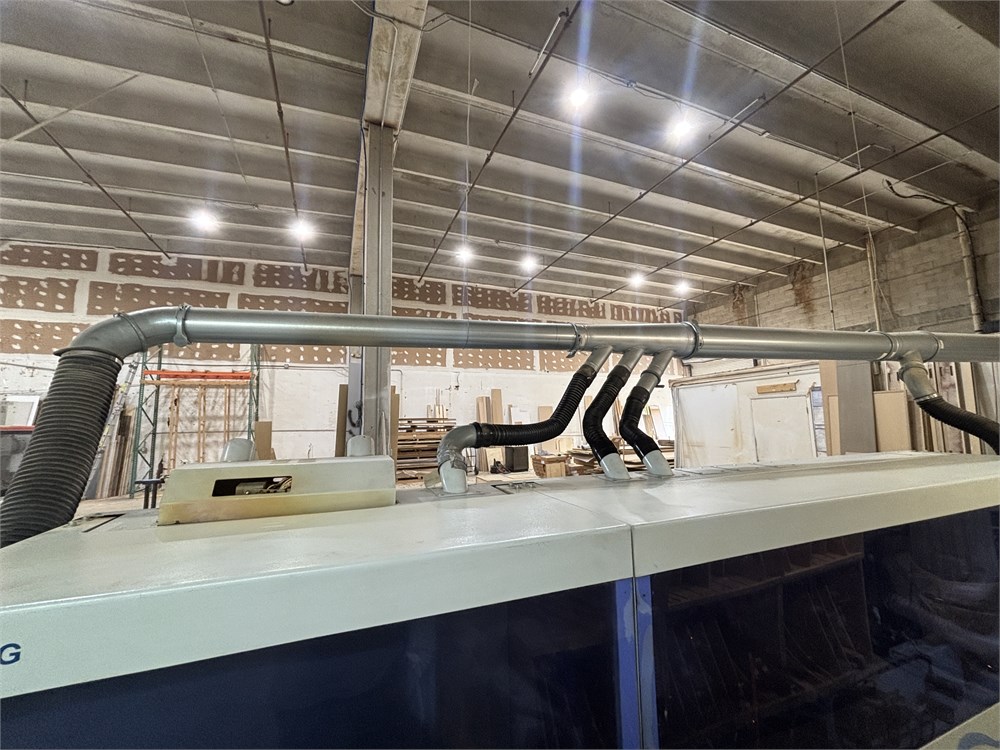

All Flex Hose, and Nordfab Quick Connect Dust Pipe Included

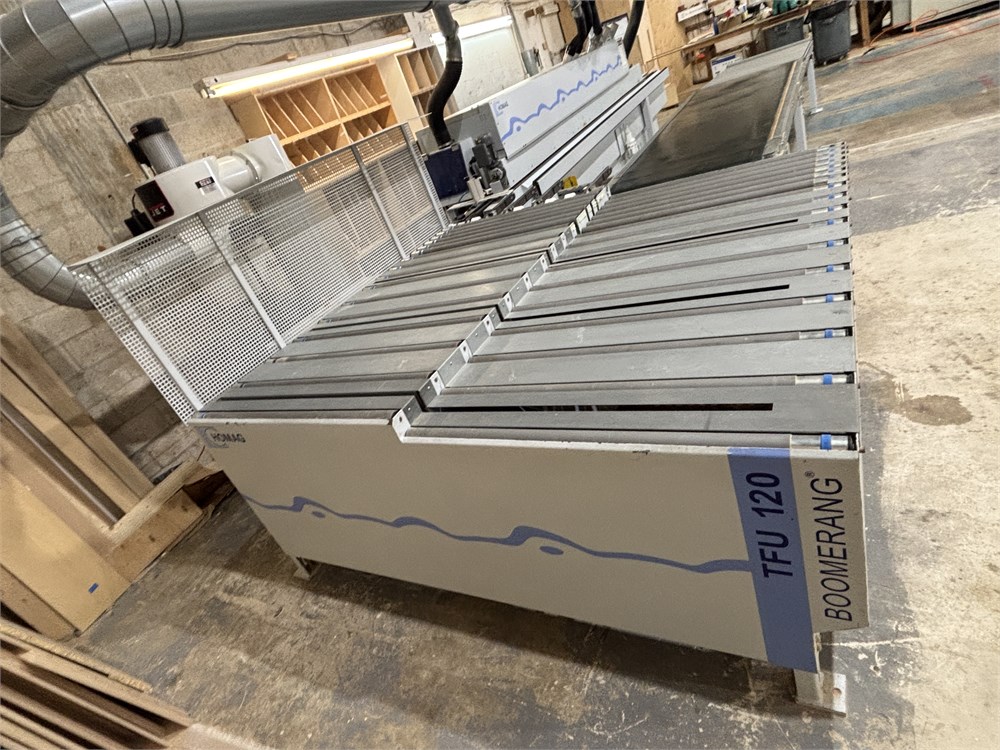

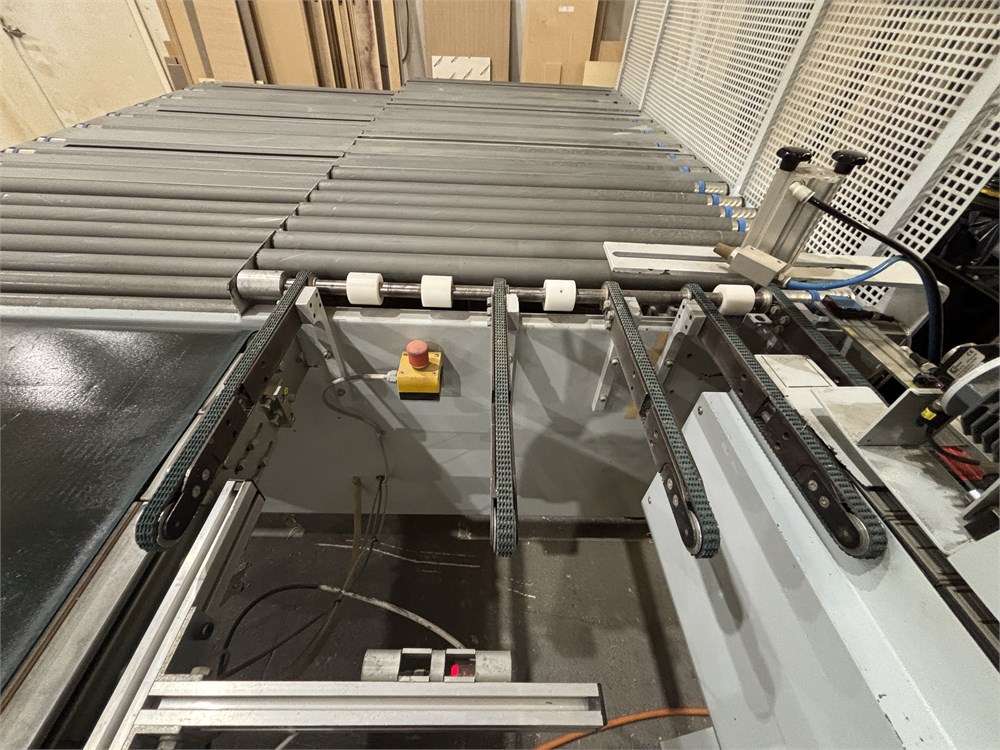

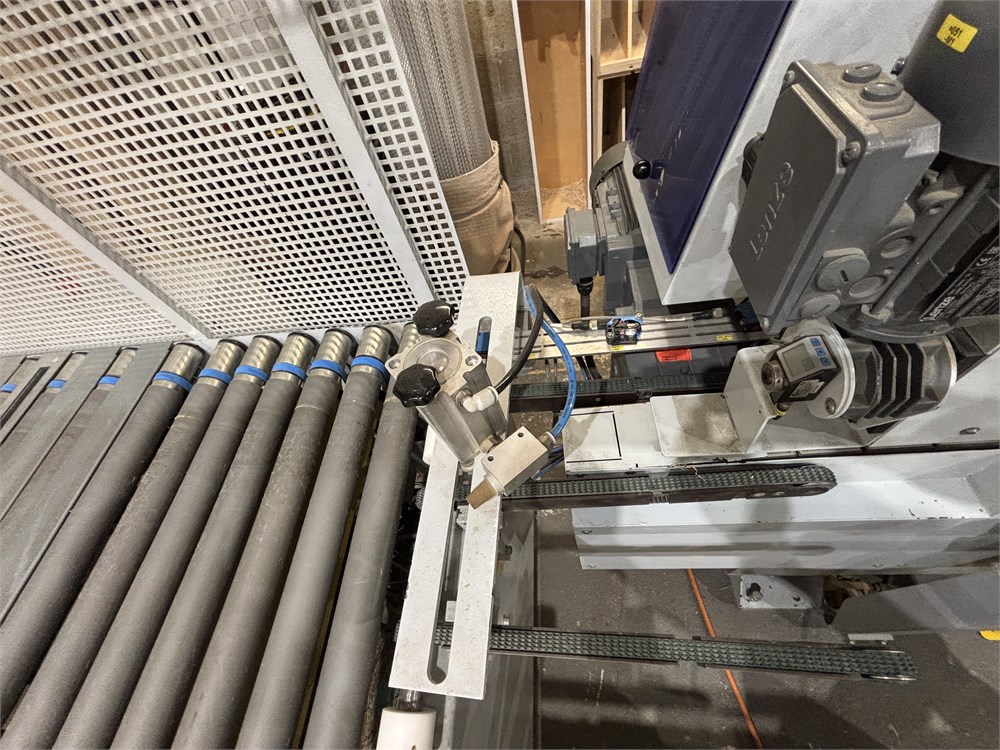

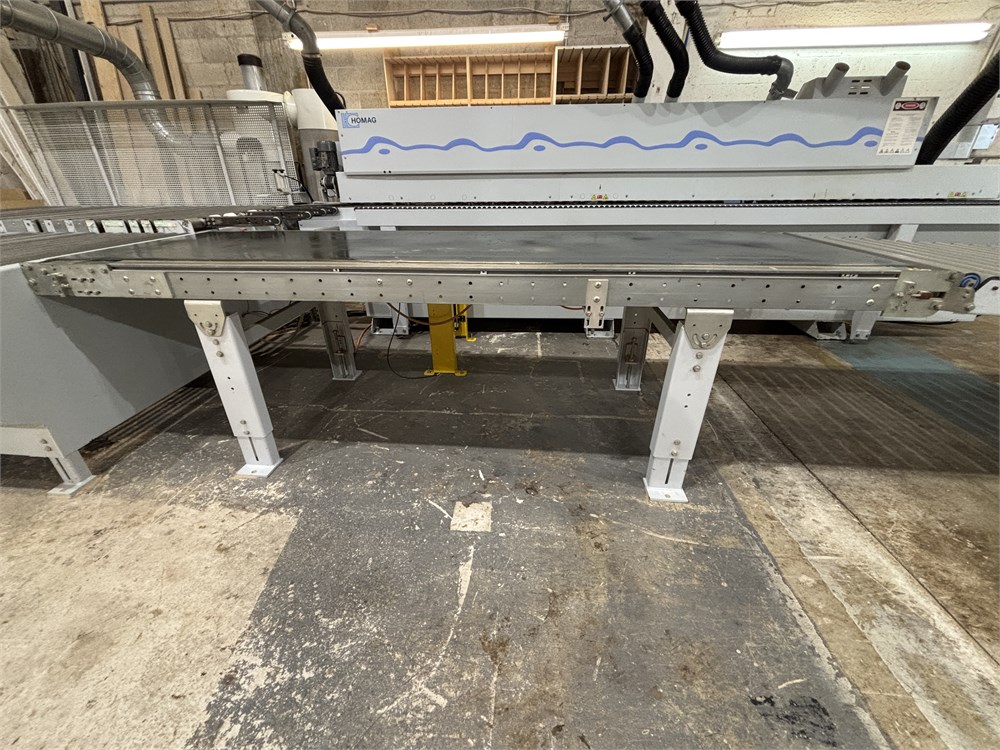

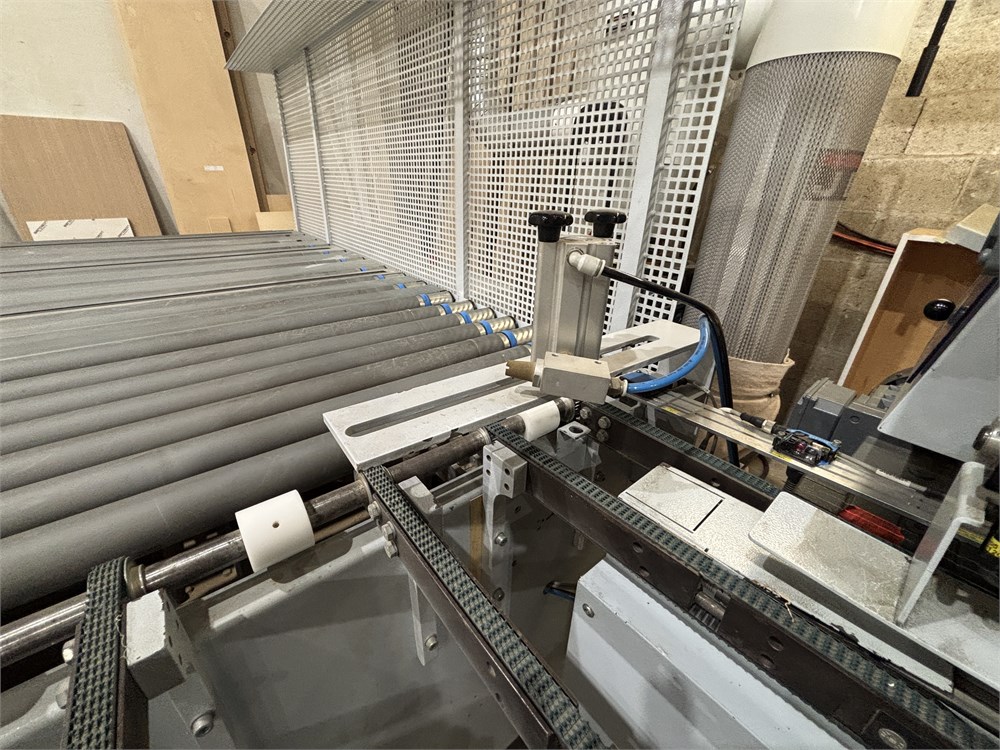

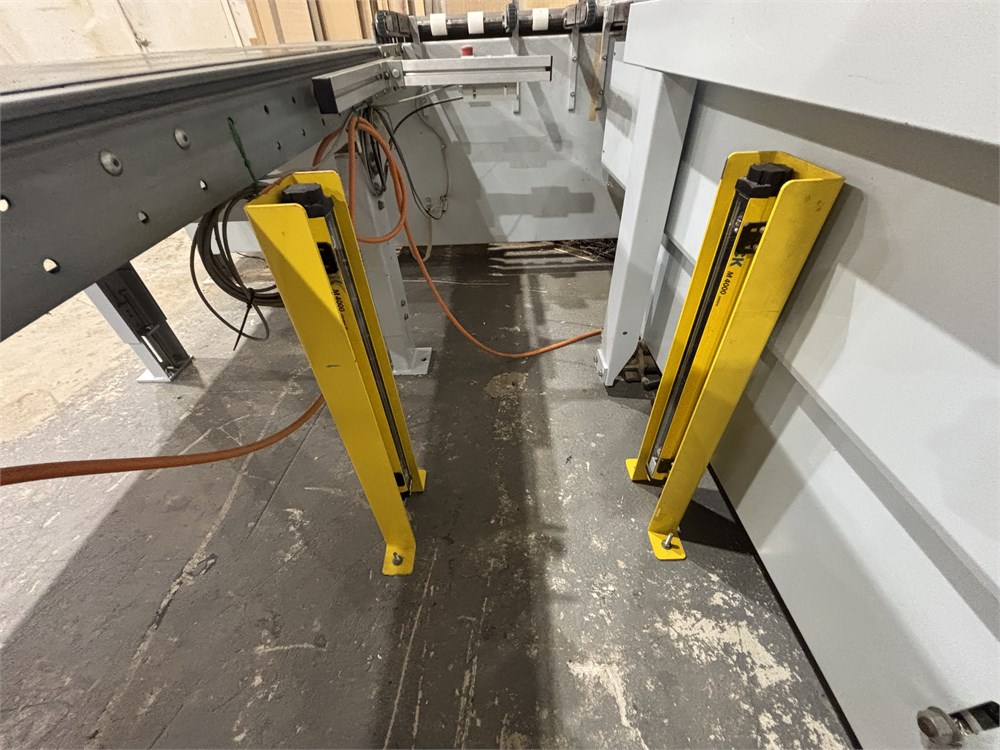

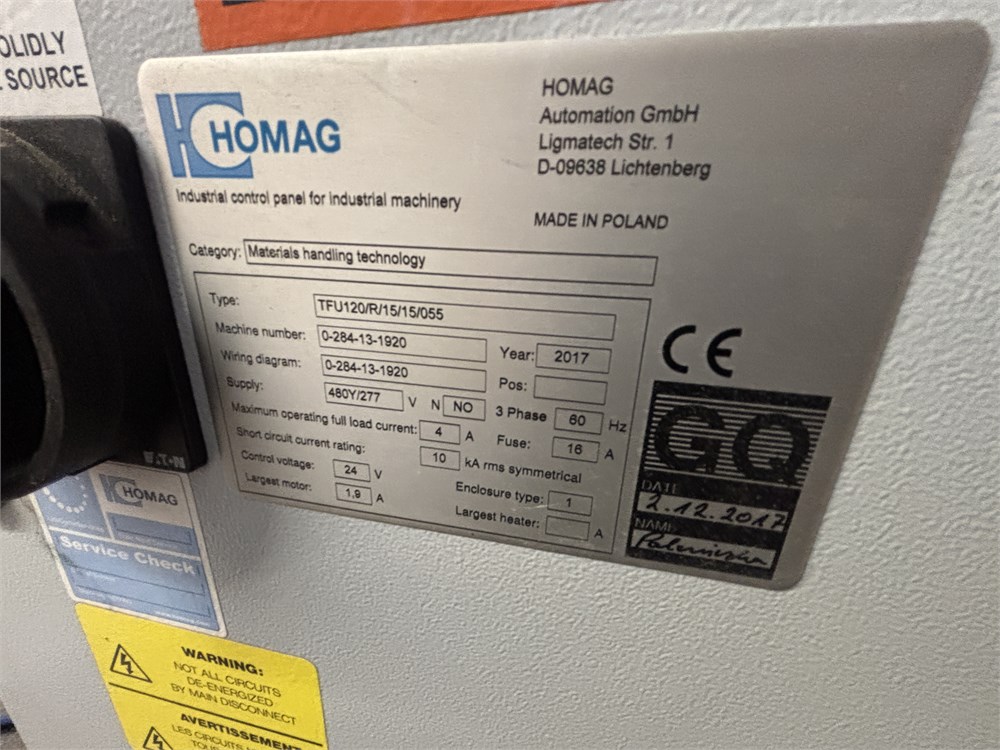

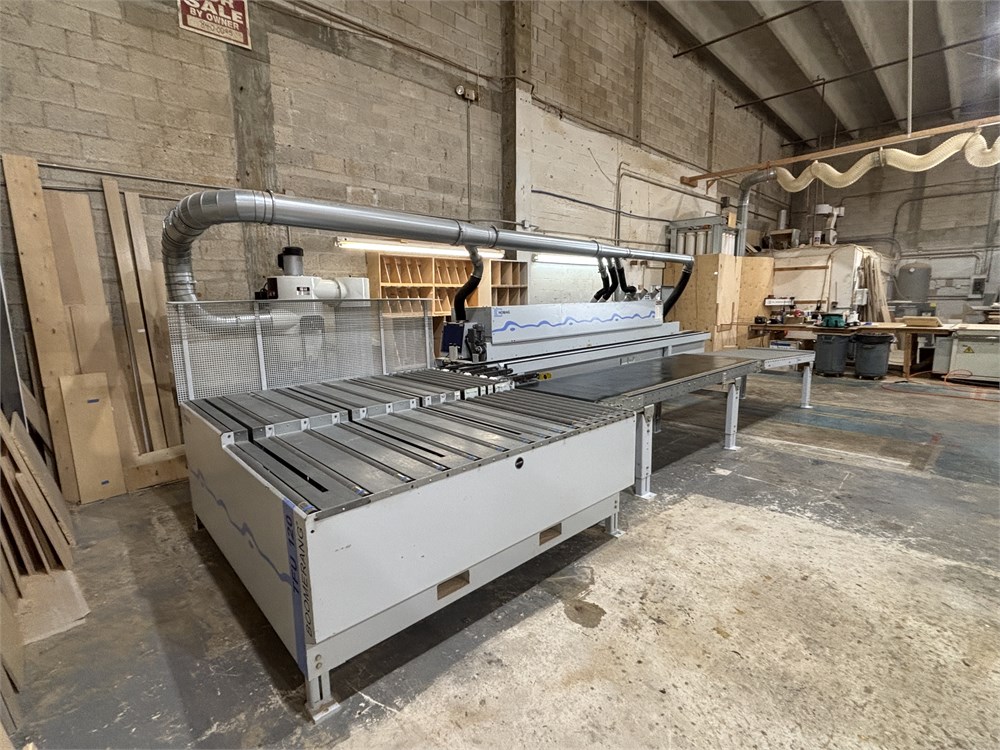

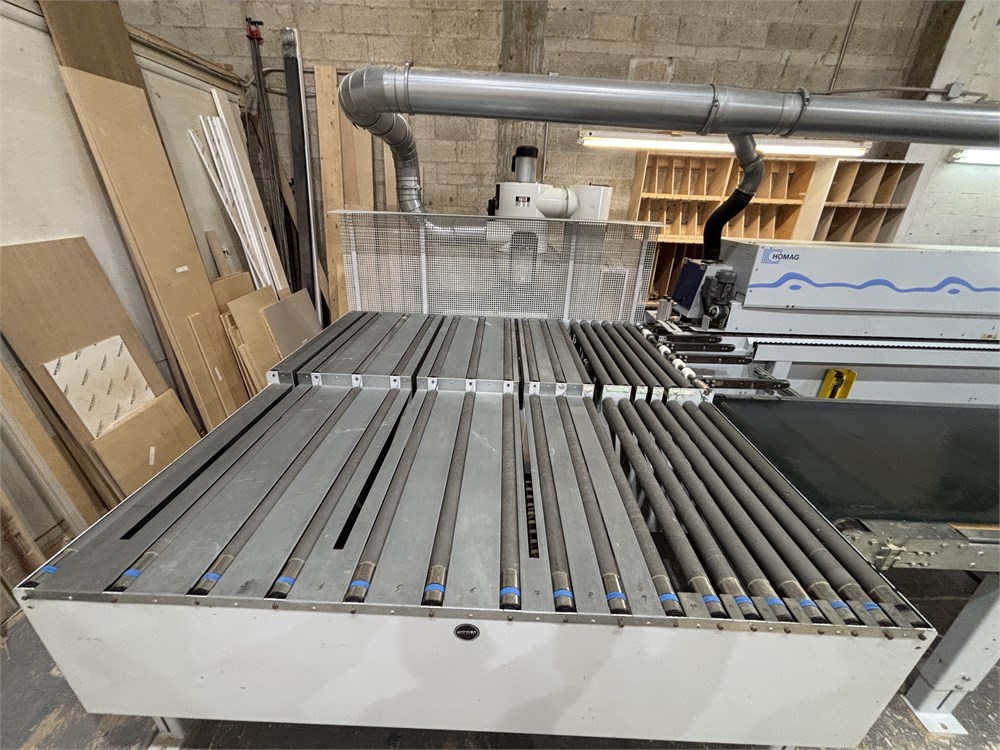

Homag "Boomerang TFU 120/R/15/055" Return Conveyor
Left hand configuration.
After panels come off a through-feed machine feed-track, they are transported via (6) powered take-up belt onto a 90° transfer section and returned back to the operator.
Working Length, 12" - 98" (300 - 2,500 mm), working width 2" - 57" (50 - 1,450 mm), panel thickness 0.3" - 2.3" (8 - 60 mm) & and 100 Lbs (45 kG) max. weight.
Variable Feed-Speed 26 - 131 FPM (8 - 40 MPM); (4) 18" pickup arms, take product from the edgebander and transport it to cross transfer conveyor section.

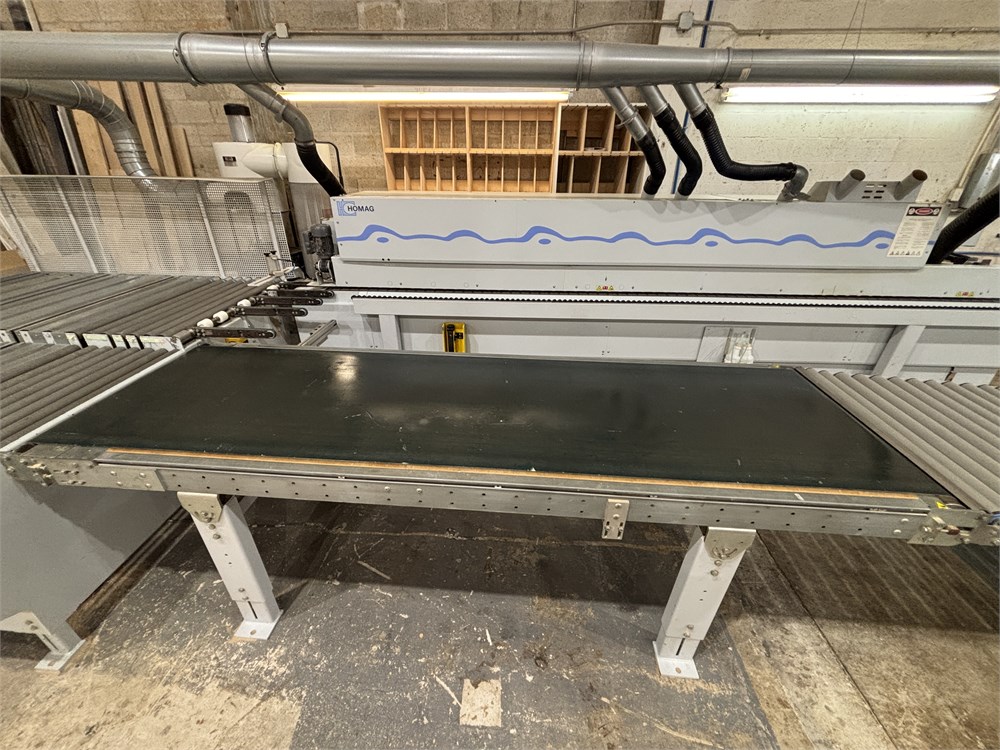

42" x 83" Receiving section transfers material and drops it 2.5" onto roller transfer section, 42" x 83" return section which transfers material to a powered 36" x 138" flat-belt conveyor.

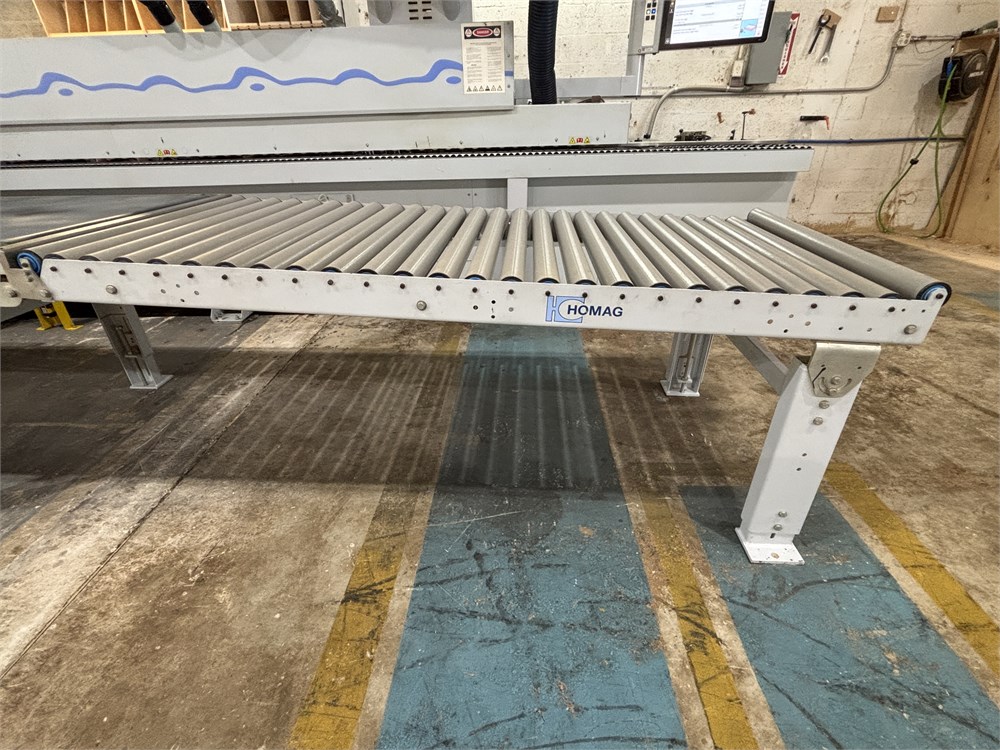

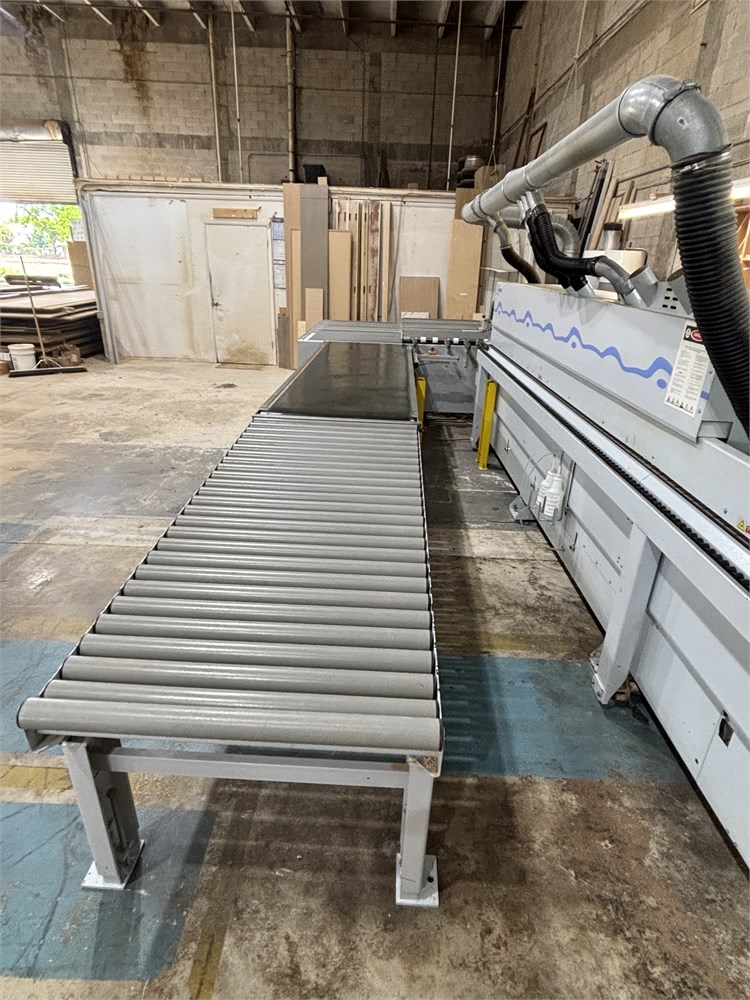

36" x 84" Gravity roller section.

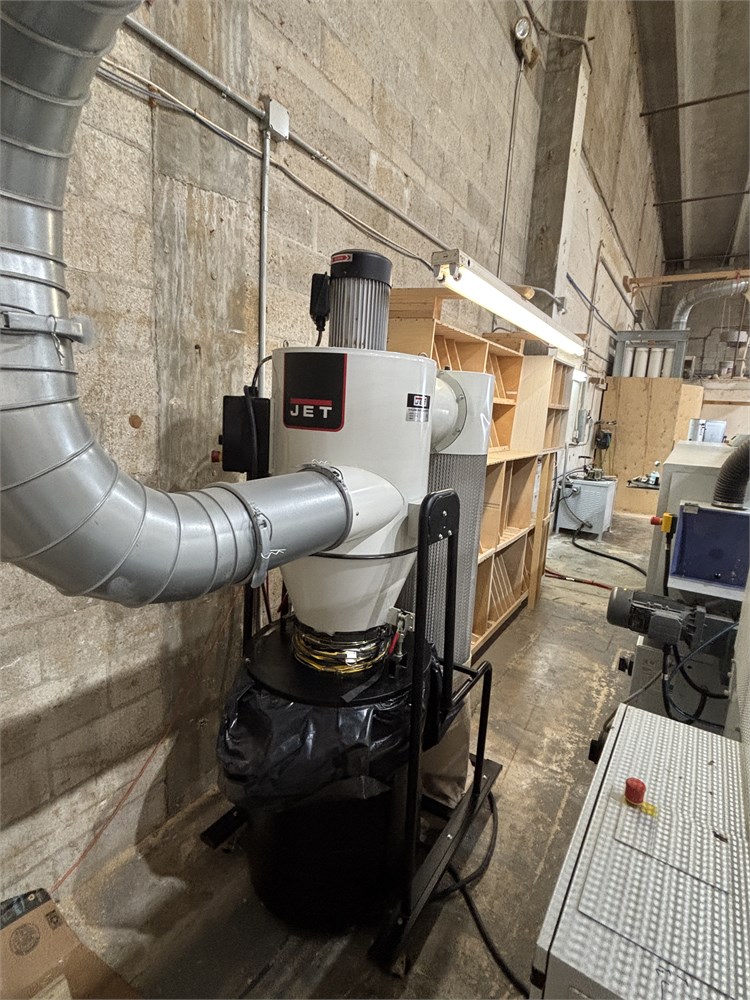

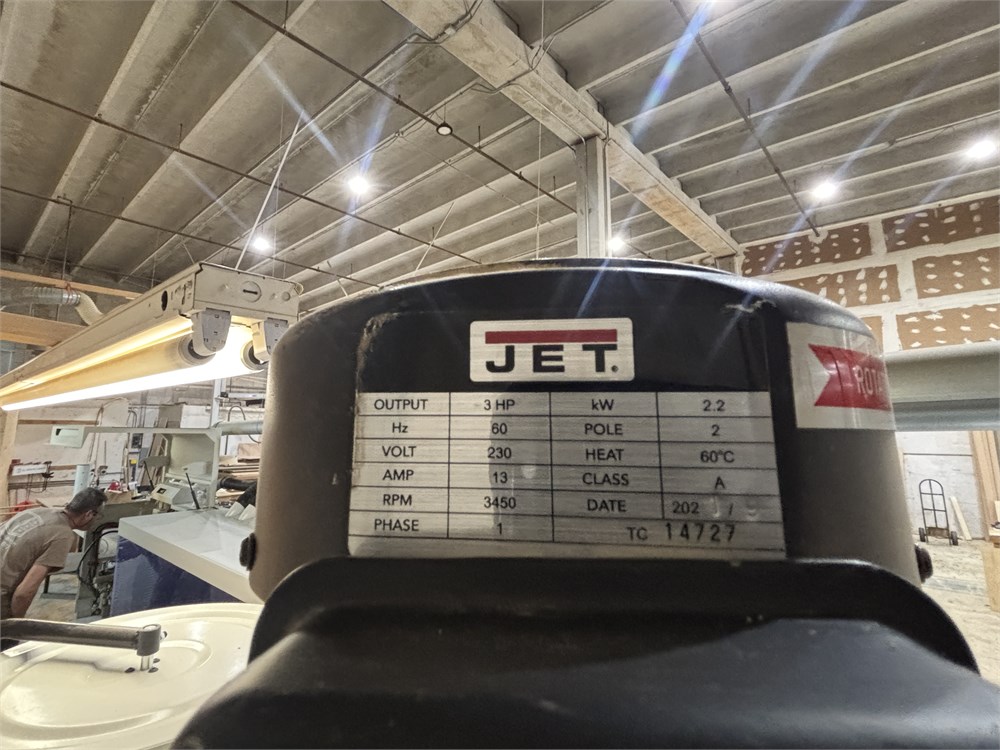

Jet "JCDC-3 Dust Collector -
3HP Motor @ 3,450 RPM
66 Gallon Drum Canister Capacity
Canister Filter length 38 3/8"
1-Hose Connection 8" Diameter
3-Hose Connection 4" Diameter
Steel Impeller
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
