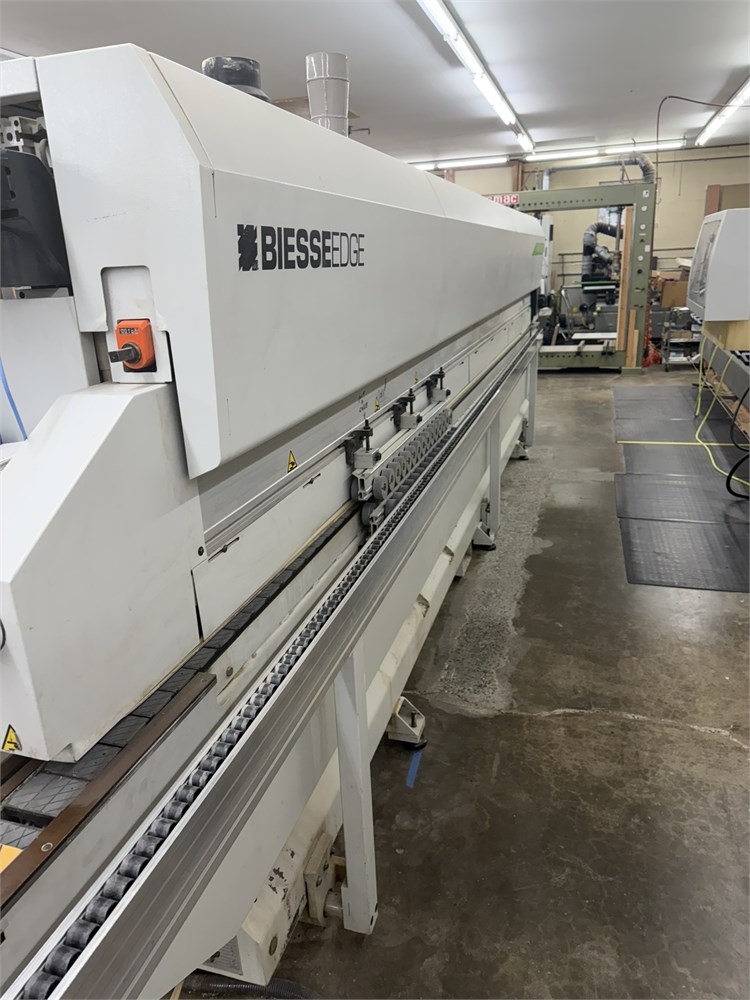

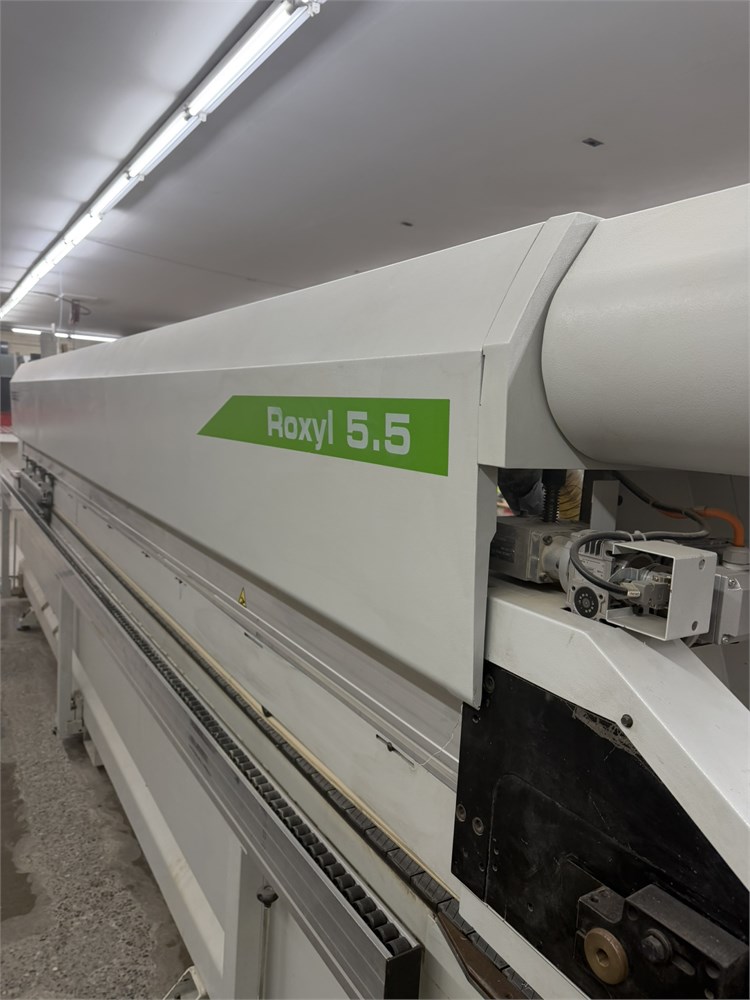

Biesse "Roxyl 5.5" Edgebander

Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"), coiled material from 0.4 - 3 mm (0.02 - 0.12")

Panel thickness from 10 - 60 mm (0.39 - 2.36")

Work piece width min. of 85 mm (3.34"

Work piece length min. 140 mm (5.51")

Feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM)

"Roxyl-Matic" automated machine setup, MS/Windows XP Operating System, floppy drive, and 4 GB HD; USB port, keyboard, and mouse interface.  Remote control pendant.

Flat Screen (17") with color graphics interface: Programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.

Edge Magazine: Automatic for processing coiled and strip edge banding material.

Adjustable infeed fence

EVA (Hot Melt) "QM-705": Quick pre-melting granulate with glue roller applicator to cover conventional edge banding material.

Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.

End Trimming Unit "IN-801": Front & rear trimming motors, uni-point swivel 0° - 15° bevel, programmable pneumatic change-over from flush to bevel.

Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors.

Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled, (2) Servo motors (one for horizontal tool position, one for tool up/down position); using combination bevel/radius/flush insert knives; pre-positioning of motors by pneumatic air cylinders.

Corner Rounding Unit "CR-202": (2) Motors for front/back corner and upper & lower edge profiling.

Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC programmable knife positioning (i.e. 2 - 3 mm radius) for PVC edges.  External collection box.

Glue Scraping Unit "RCC-701": Flat, top/bottom, digital positioning indicators, pneumatic controlled for in/out position.

Buffing Station "SP-501": Top & Bottom buffing motors with 150 mm (6") cloth buffing wheel diameter; adjusts in multiple directions.

Hot air blowers

Motorized top beam positioning

Overhead belt hold down

Lighted sound enclosure

Outboard roller support

Centralized lubrication system

External electrical transformer
