Gannomat "410" Horizontal Drill and Dowel Machine
Active
Complete Shop Closure - Arlington, WA
Arlington, WA
- Starting Bid : $150.00 USD ( ) No Reserve
- 0 Bid(s)
-
Pick Up Location
19010 66th Ave. NE Arlington, WA 98223
-
Make
Gannomat
-
Model
410
-

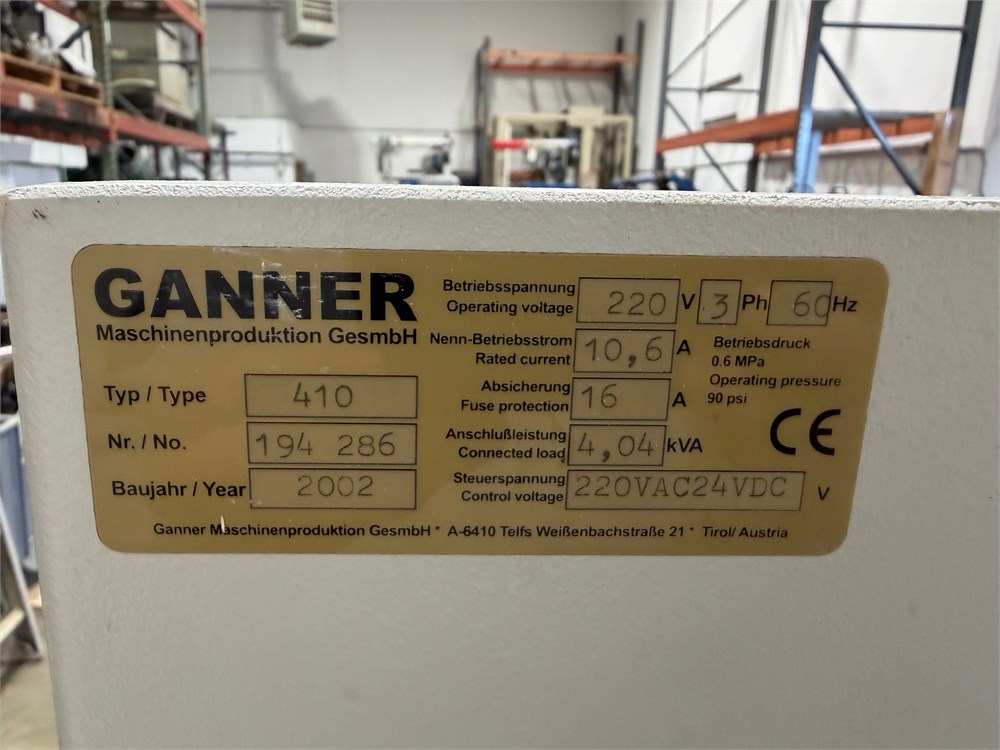

Serial Number
194 286
-
Year
2002
-
Phase
3 PHASE
-
Voltage
220 VOLT
-
Buyer Inspection Period
By Appointment Only Contact [email protected] (Text Preferred) (209) 704-4305
-
Load Out Period
March 26th - April 3rd, 2026 (By Appointment Only)
-
Estimated Dimensions
60" Lx 50" W x 72" H
-
Estimated Weight
1,500 Lbs
-
Seller Comment
Non Negotiable Load fee includes loading onto buyers flat bed truck
-
Load Fee
50.00
-
Lot Notes
-
page views
6
Gannomat "410" Horizontal Drill and Dowel Machine
Designed for drilling, gluing, dowelling or any combination
Dowel capacity, 8 mm diameter
Dowel length capacity, 25 mm - 50 mm (0.98" - 1.96")
Vertical adjustment of horizontal boring head 0 mm - 40 mm
Boring depth (using 77 mm long bits) 0 mm - 45 mm
Workpiece thickness capacity, 70 mm (2.75")
Max working width capacity, 800 mm (31.4")
Twenty-three (23) horizontal spindles
Eight (8) dowel inserters

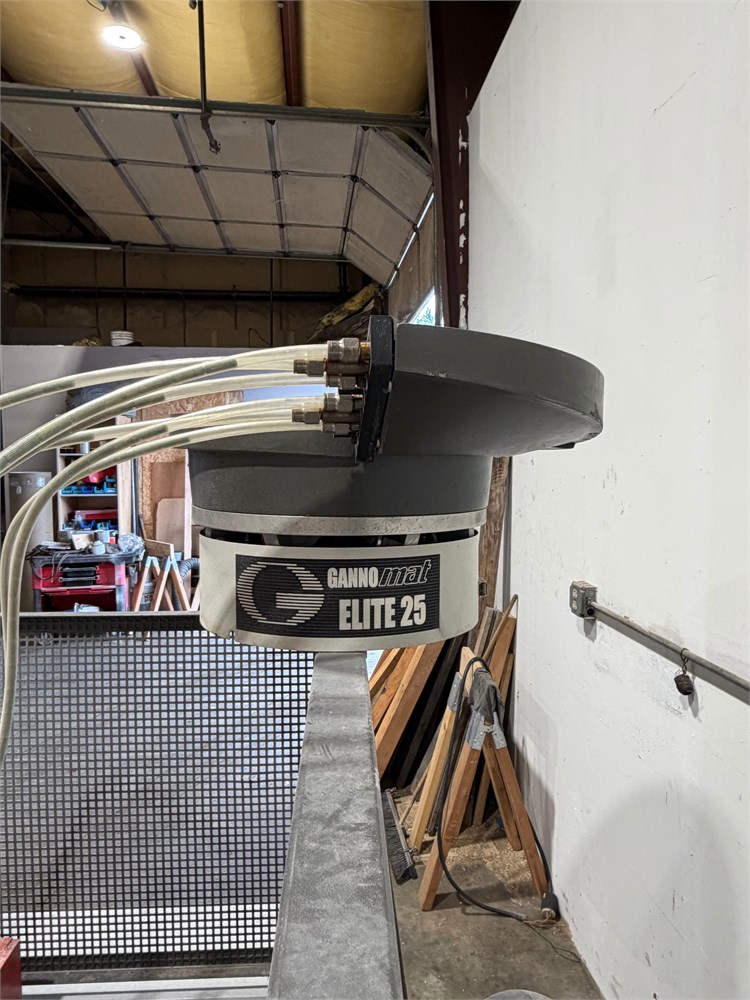

One (1) dowel hopper
One (1) glue tank
One (1) water tank
Back stops
Left and right adjustable fences
Standard and mirror image machining

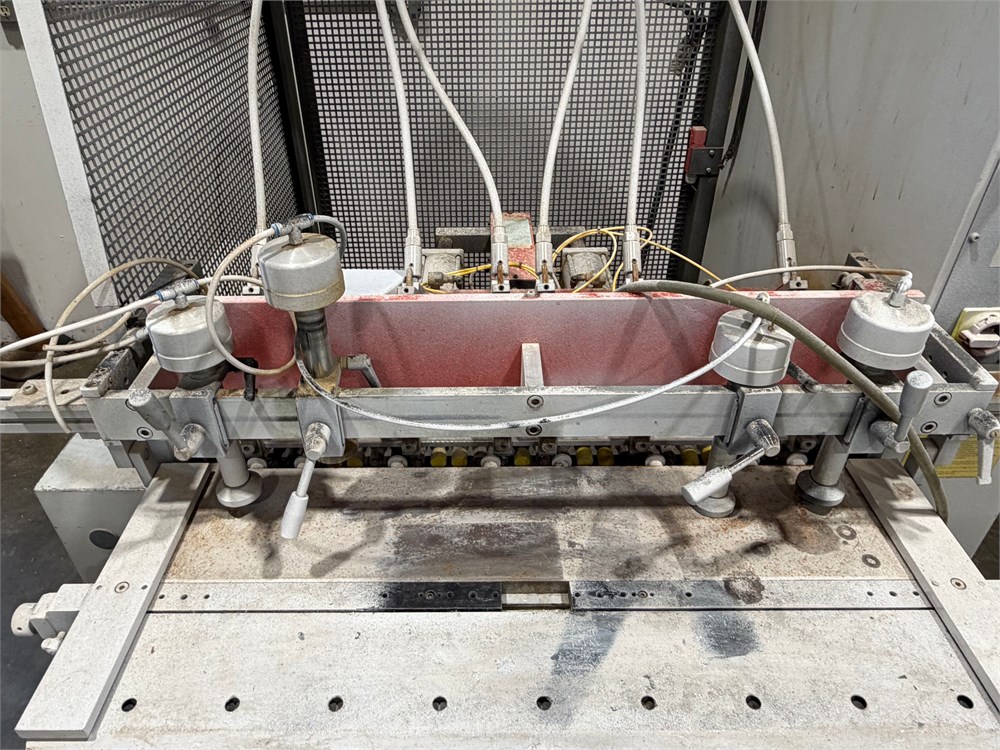

Four (4) dual action pneumatic clamps
For horizontal or vertical part positioning and clamping

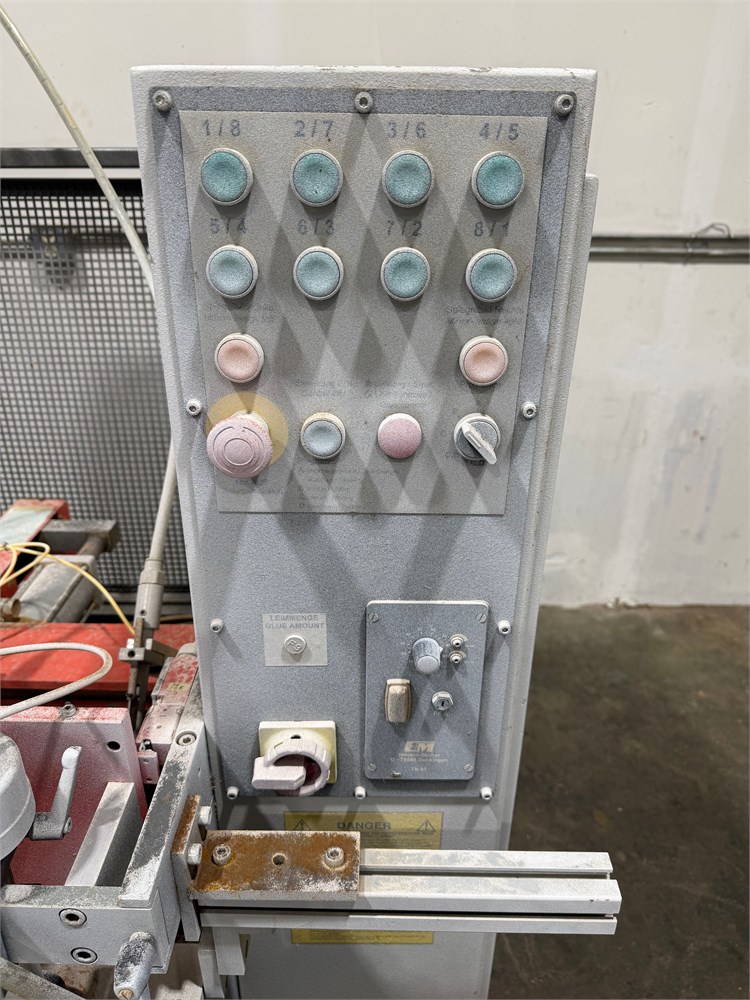

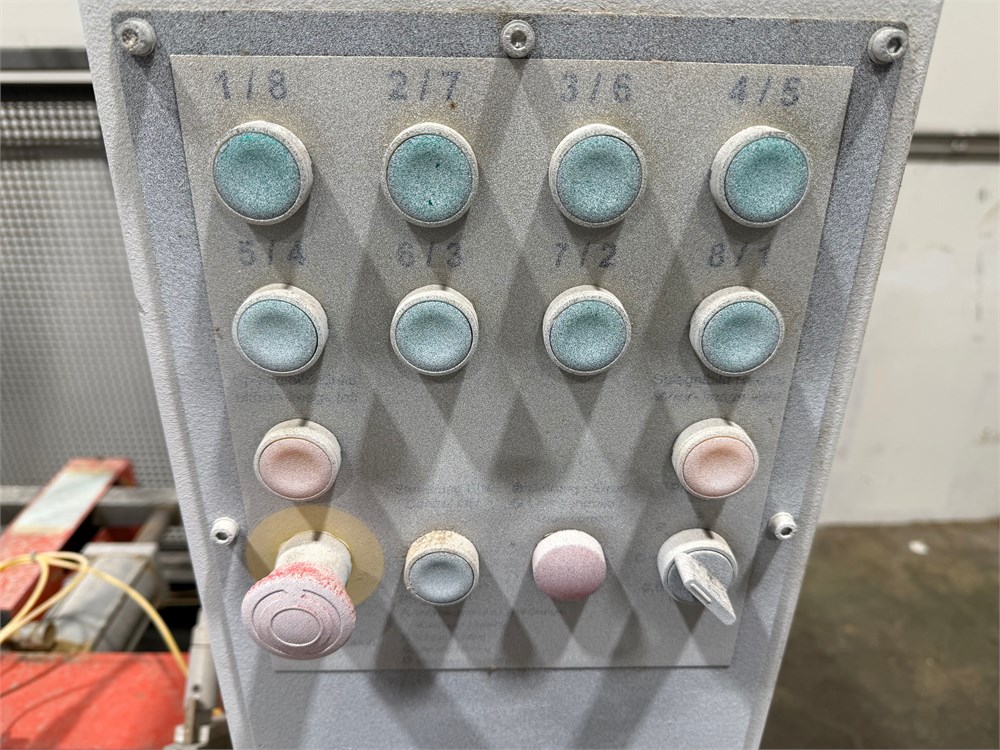

Control panel
Vibration control of dowel hoppers
Foot pedal operation
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
