Holz-Her "Dynestic 7516" CNC Machining Center w/ Load and Unload Active

Woodworking Machinery Auction - Las Vegas, NV

Las Vegas, NV


Days

Hours

Min

Sec

Lot Closes:

3/26/2026 11:10:00 AM PT
0 Watching
Add to Watchlist

Minimum Bid:

$1,000.00 USD

Number of Bids:

0

Current Bid:

$1,000.00 USD ( ) No Reserve
Your Maximum Bid Is $0.00 USD
$USD
Quick Bid $1,000.00 USD
Or
Or
  • Starting Bid : $1,000.00 USD ( ) No Reserve
  • 0 Bid(s)
Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
0.00% Sales Tax

Woodworking Machinery Auction - Las Vegas, NV ( Active #78883933 )

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    9 Sunset Way Suite 190 Las Vegas, NV 89014

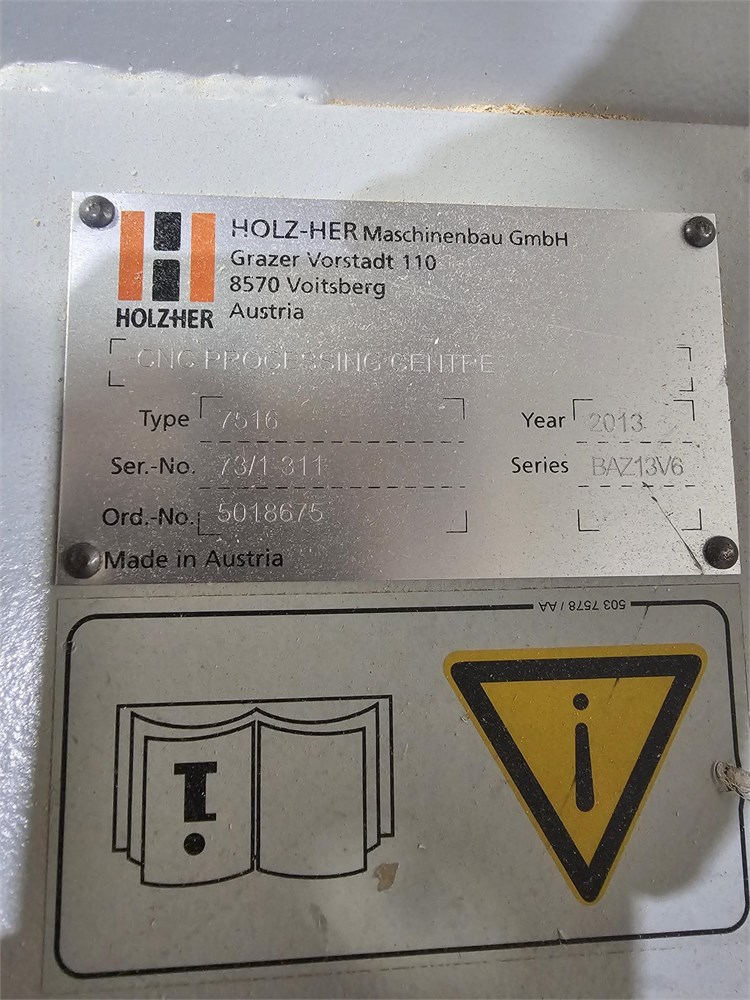

  • Make

    Holz-Her

  • Model

    Dynestic 7516

  • Serial Number

    72/1-311

  • Year

    2013

  • Phase

    3 PHASE

  • Voltage

    230 VOLT

  • Buyer Inspection Period

    By appointment Only Contact [email protected] or Text @ (209) 704-4305

  • Load Out Period

    March 31st - April 6th, 2026 (By Appointment Only)

  • Estimated Dimensions

  • Estimated Weight

    13,000 Lbs

  • Seller Comment

    A rigger is required. Buyer's Responsibility for Break-down, loading and removal. By appointment ONLY!

  • Load Fee

  • Lot Notes

  • page views

    11

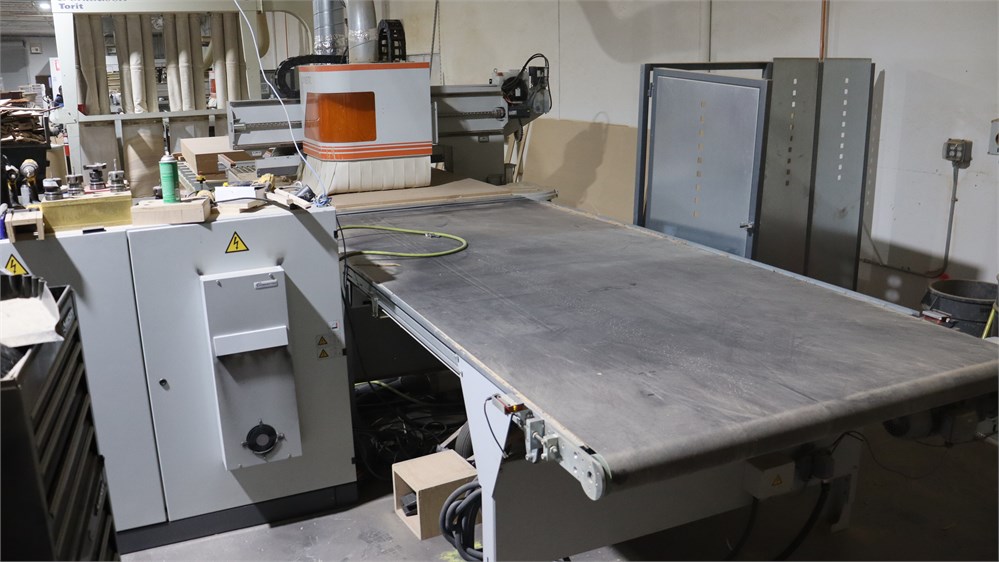

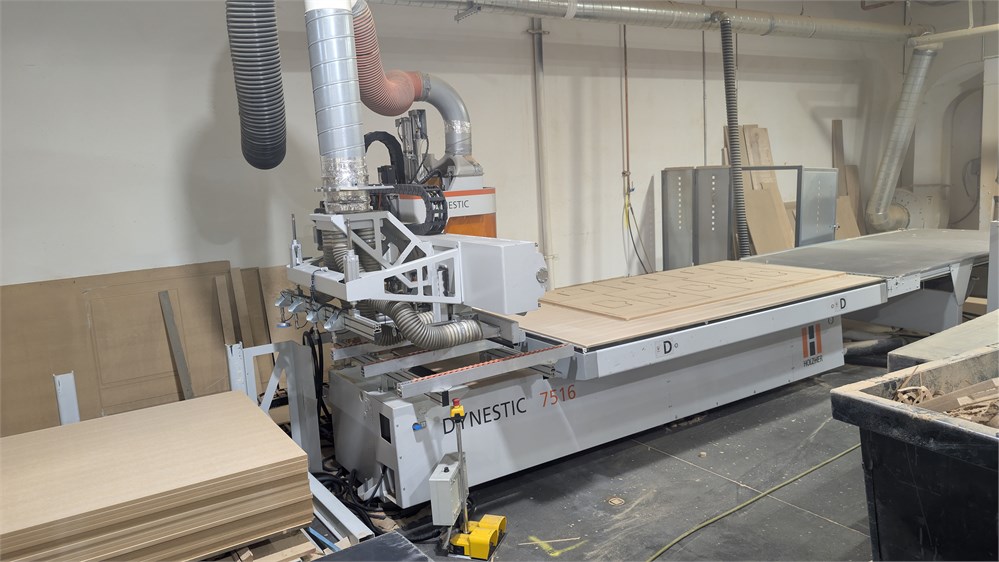

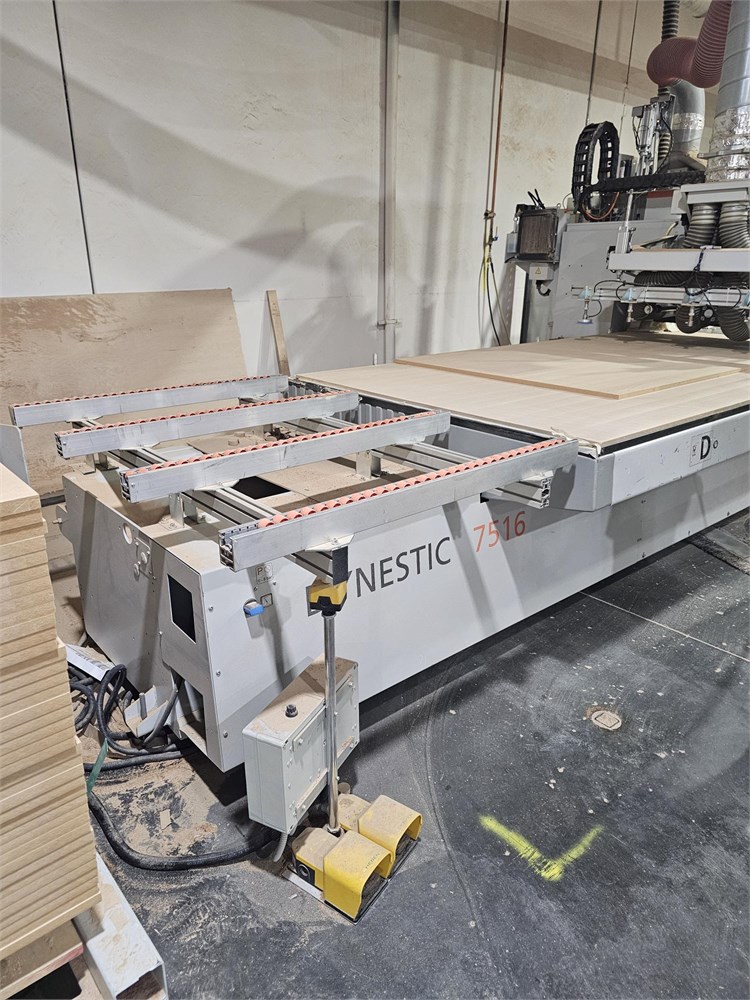

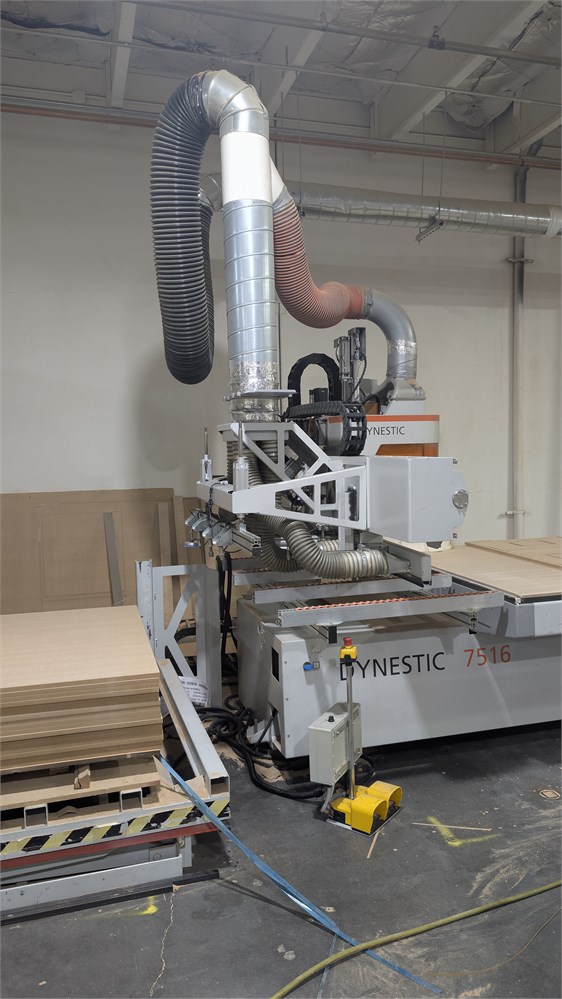

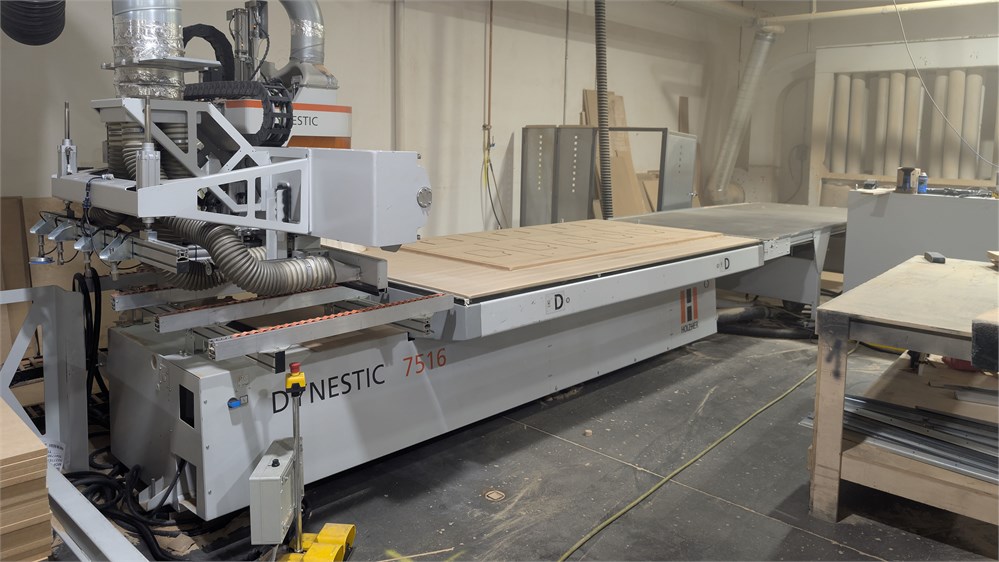

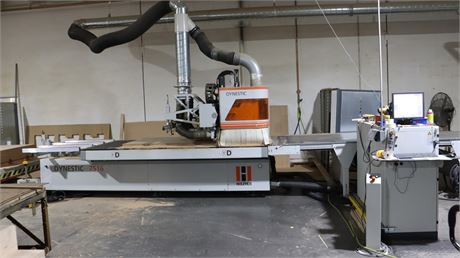

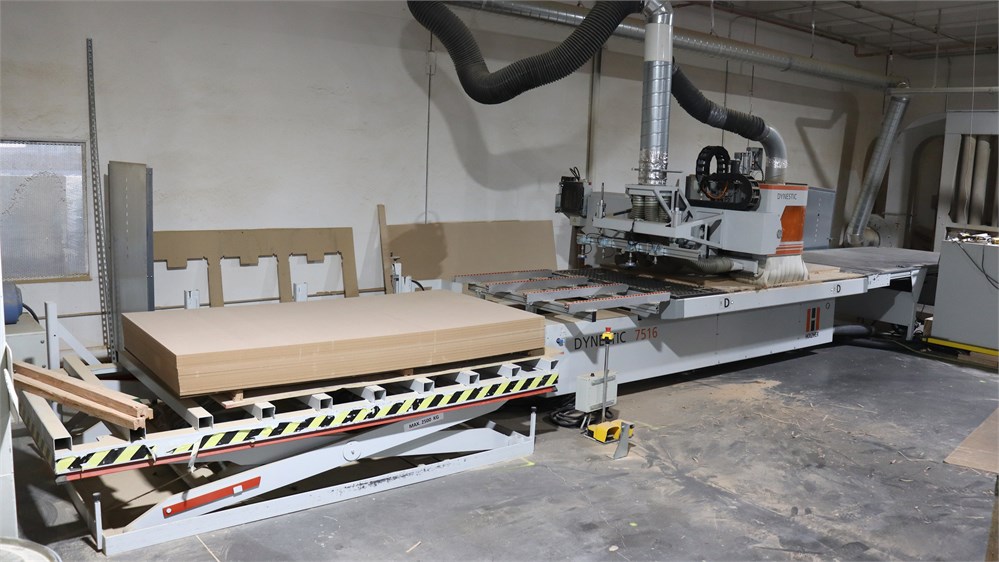

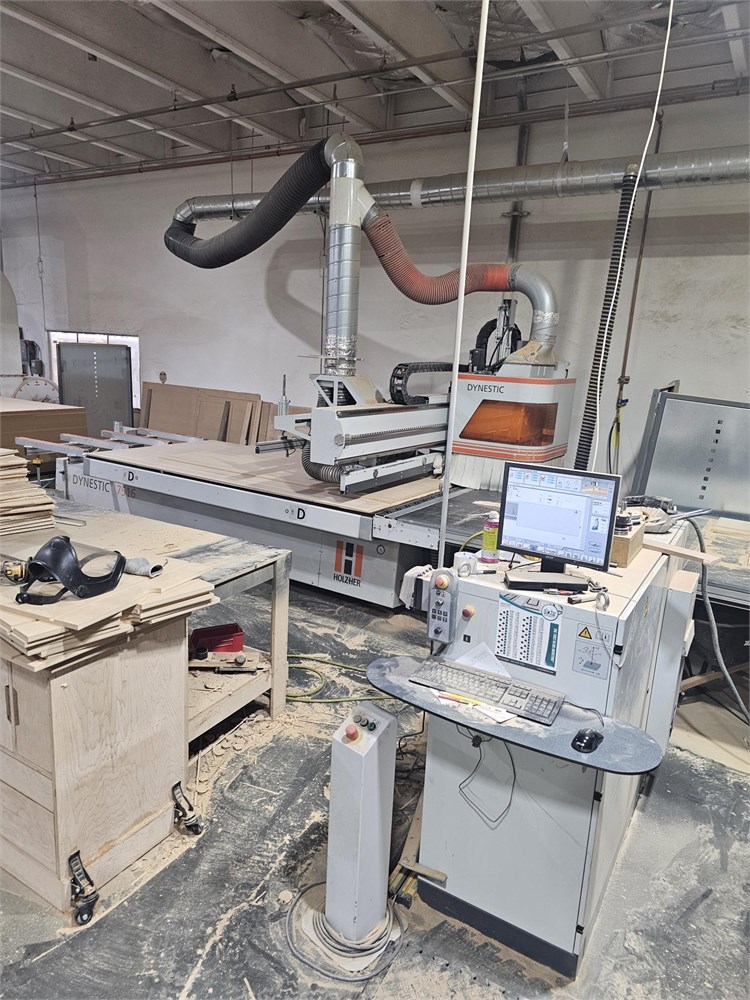

Holz-Her "Dynestic 7516" CNC Machining Center w/ Load and Unload

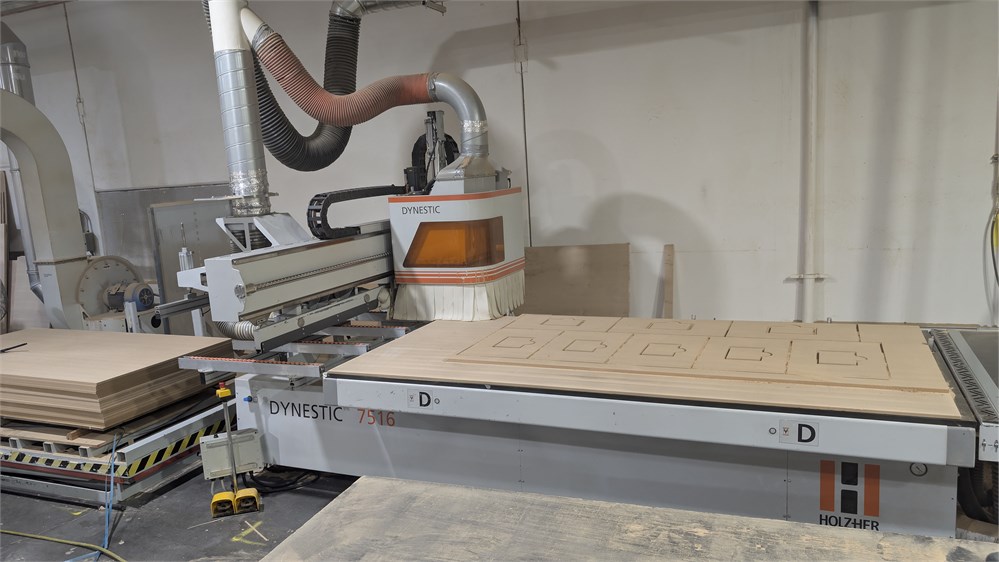

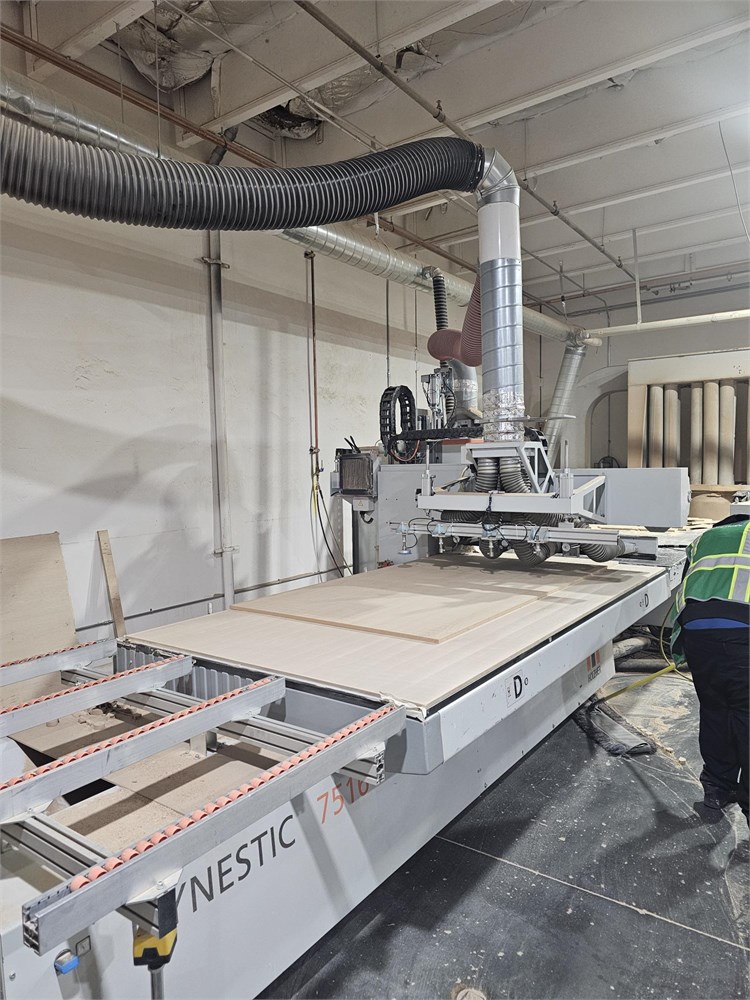

5' x 12.5' Phenolic MATRIX Table for "Nested Base" Manufacturing.

"X" Axis 145.8" (3,705 mm), "Y" axis 61.45" (1,561 mm), "Z" axis stroke is 12.9" (330 mm).

"X" & "Y" Axis 230 FPM (70 MPM), "Z" axis is 65 FPM (20 MPM).

(4) Pneumatically controlled referrence stop pins with (3) in "Y" axis & (1) in "X" axis.

2 HP (1.7 kW) motor for spindle speed from 1,000 to 6,000 RPM; (10) independent vertical boring spindles with (6) spindles in the "X" axis & (4) spindles in the "Y" axis.

(1) 15 HP (11 kW) Electro-spindle Router with HSK F63 adaptor, 1,000 - 24,000 RPM.

(1) 8-position ATC tool plate for "on the fly" ATC.

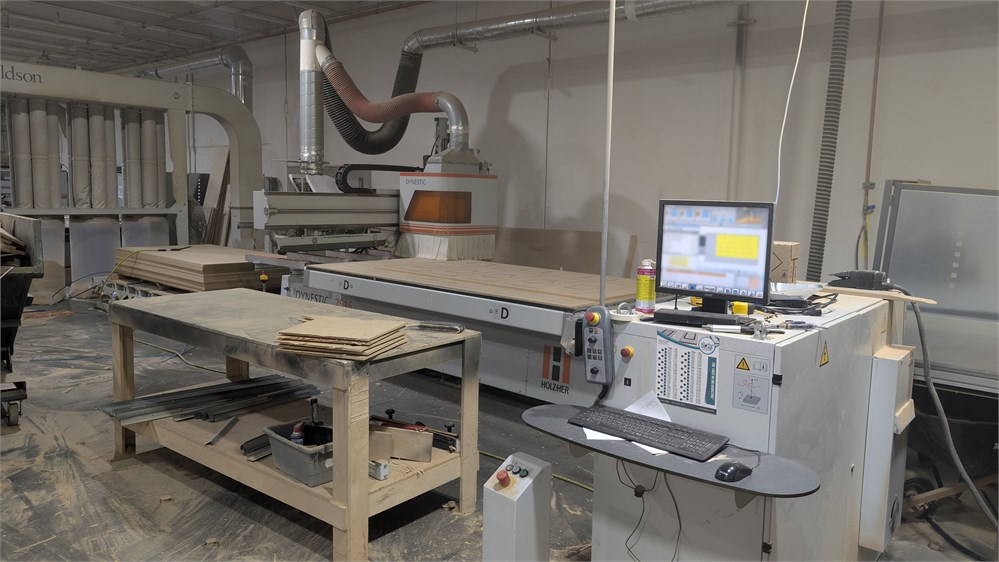

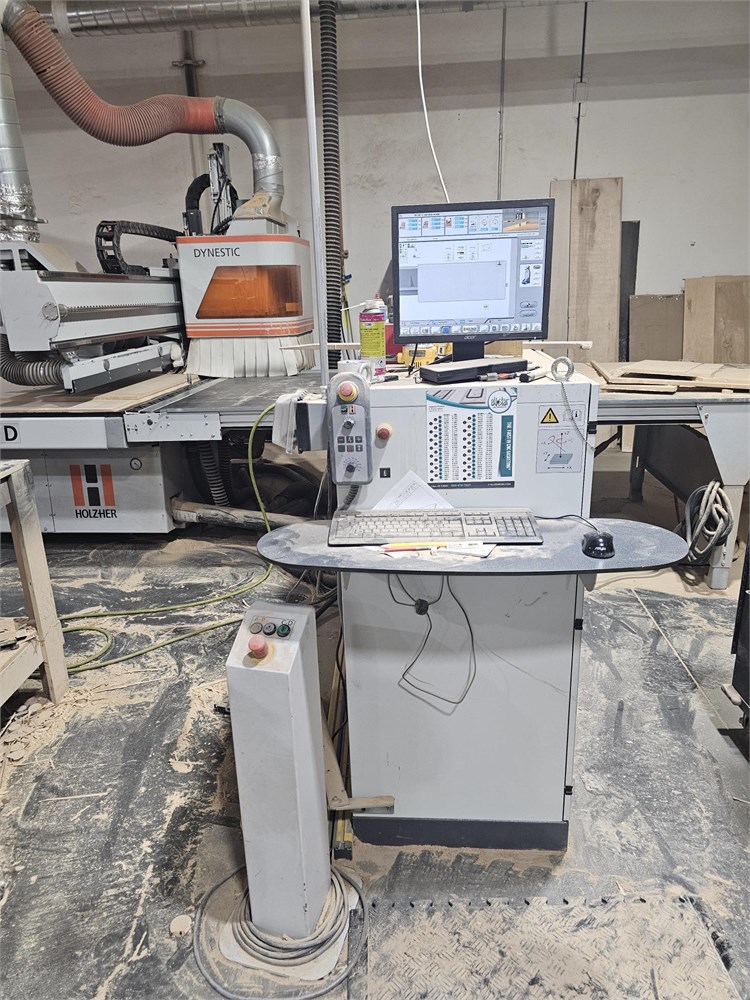

PC Front-End with Holz-Her "CAMPUS" Basic Bundle + Windows "XP" operating system; 17" Color monitor; standard keyboard, mouse & CD ROM for data entry; (3) axes simultaneous control; feed rate and spindle speed override & axis movement.

Powerful router unit with an output of 8.7 HP with tool-receiving socket

■ Drilling head with six vertical drills in the X-direction, four drills in the Y-direction

■ Two horizontal drills each in X- and the Y-direction

VACUUM PUMP NOT INCLUDED

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
