Homag "KAL 210/Ambition 2262" Edgebander

See video of machine in operation

Working Capacity

     Coiled stock min/max edge thickness 0.3 - 3 mm (0.016. - 0.118")

     Strip material min/max edge thickness 0.4 - 20 mm (0.16 - 0.787")

     Panel stock min/max thickness 12 - 60 mm (0.472" - 2.375")

     Panel Over-Hang 30 mm (1.18")

Variable feed speed

Top pressure belt

Motorized top beam positioning

Controller

     Color touch screen

     Remote control pendant

Adjustable Infeed fence

Two (2) motor premilling station

     4 HP motors operating at 12,000 RPM

Anti-adhesive spray unit

Panel Pre-Heater: Pre-heating the panel brings the panel to an appropriate temperature for better adhesion.This is especially beneficial in cooler temperatures. Quartz lamp for heating substrate edge before glue application improved edge quality and optimum bonding.

Guillotine

Gluing station

     Pre-melt hopper

     Glue pot with application roller

Pressure station

     Servo controlled) with seven (7) pressure rollers

     One (1) large 160 mm dia. driven

     Six (6) 70 mm dia. idle rollers

     Pneumatic pressure control depending on edgebanding material used

Two (2) motor end trimming station

     1 HP motors operating at 12,000 RPM

     Automatic pneumatic adjusting from chamfer 30° to straight cut

Top/bottom flush trimming station

     0.75 HP motors operating at 12,000 RPM

     Electronic speed control

     Braking Control

     Pneumatic adjustment

     Height adjustment with the top pressure-beam and tilting range +/- 1°

Four (4) motor corner rounding station

     0.6 HP motors operating at 12,000 RPM

Top/bottom profile scraping station

Top/bottom flat scraping station

Top/bottom buffing station

Lighted sound enclosure

Outboard roller support

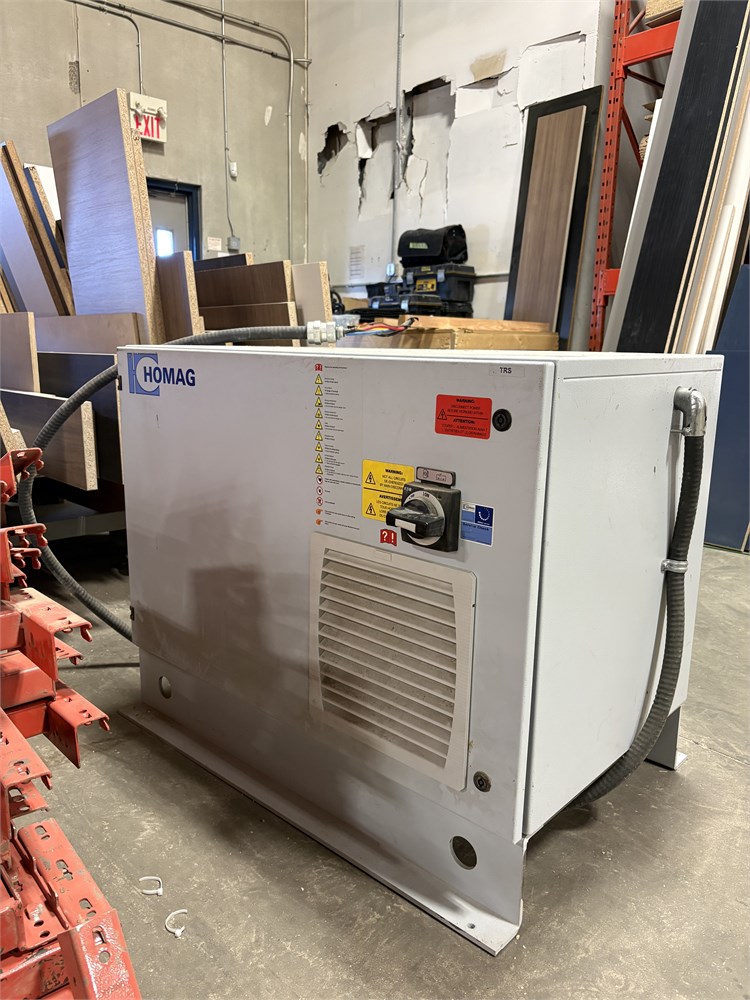

External electrical transformer

Return conveyor and ducting NOT included
