Biesse "Rover S FT 1224" CNC Router Cell
Active
Greda "Mitika VL3500" & Biesse "Rover S FT 1224" Routers - Rancho Cordova, CA
Rancho Cordova, CA
- Starting Bid : $5,000.00 USD ( ) No Reserve
- 0 Bid(s)
Greda "Mitika VL3500" & Biesse "Rover S FT 1224" Routers - Rancho Cordova, CA ( Active #78702582 )
Furniture manufacturer in the Sacramento, CA area is reorganizing their plant and auctioning (2) machines no longer for continuing operations. Both machines are still under power and available for inspection.
-
Pick Up Location
2561 Mercantile Dr. Rancho Cordova, CA 95742
-

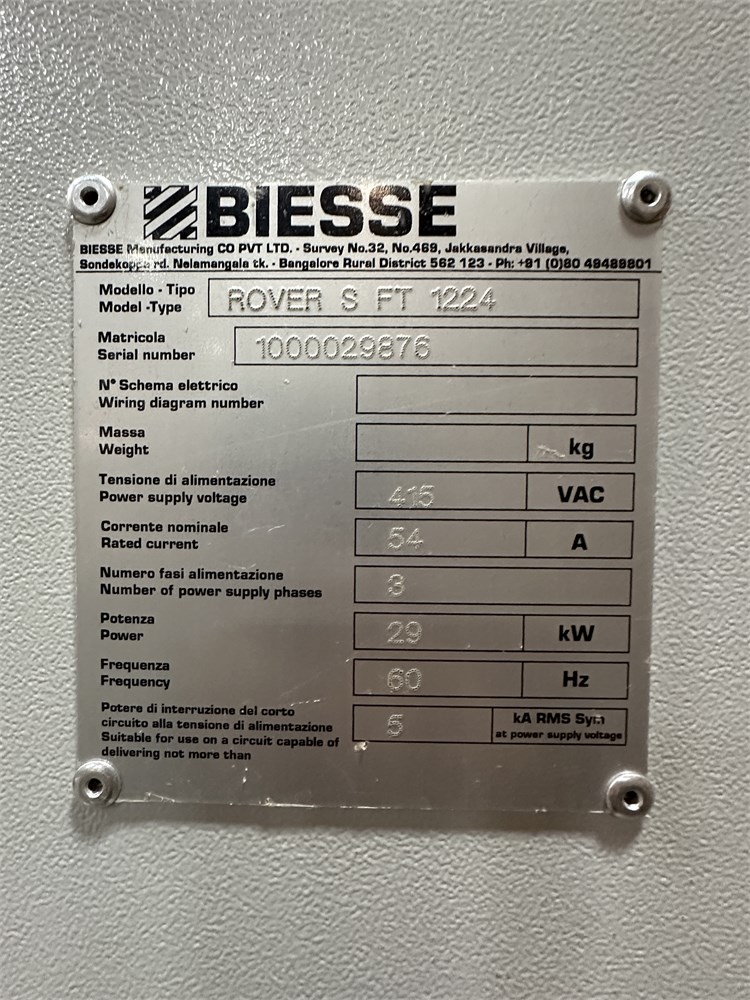

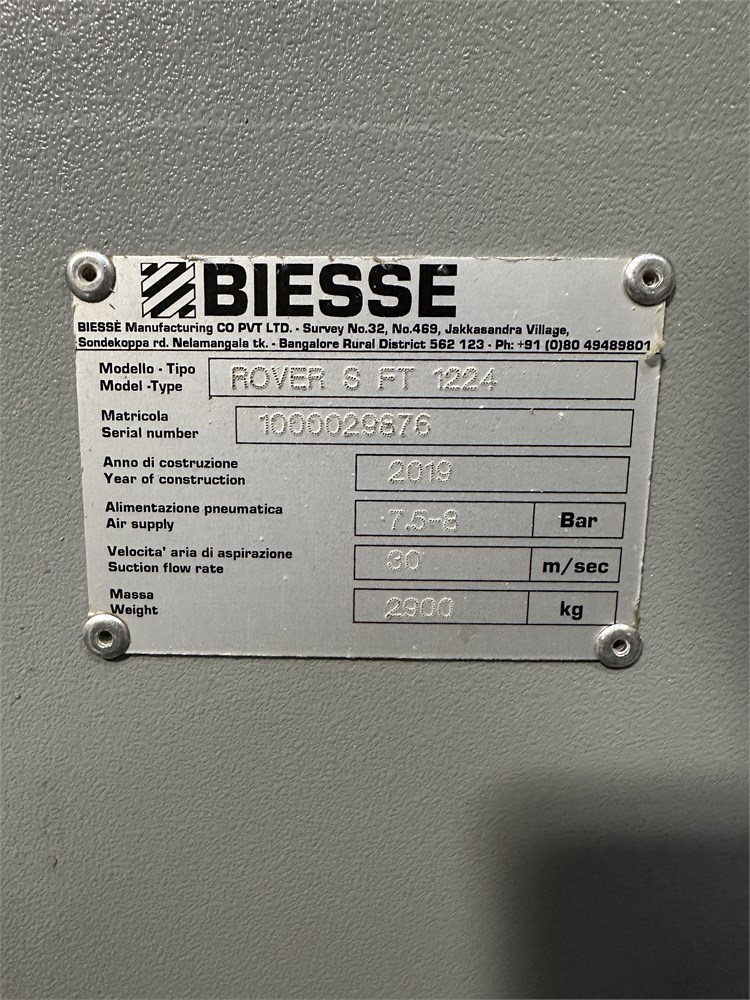

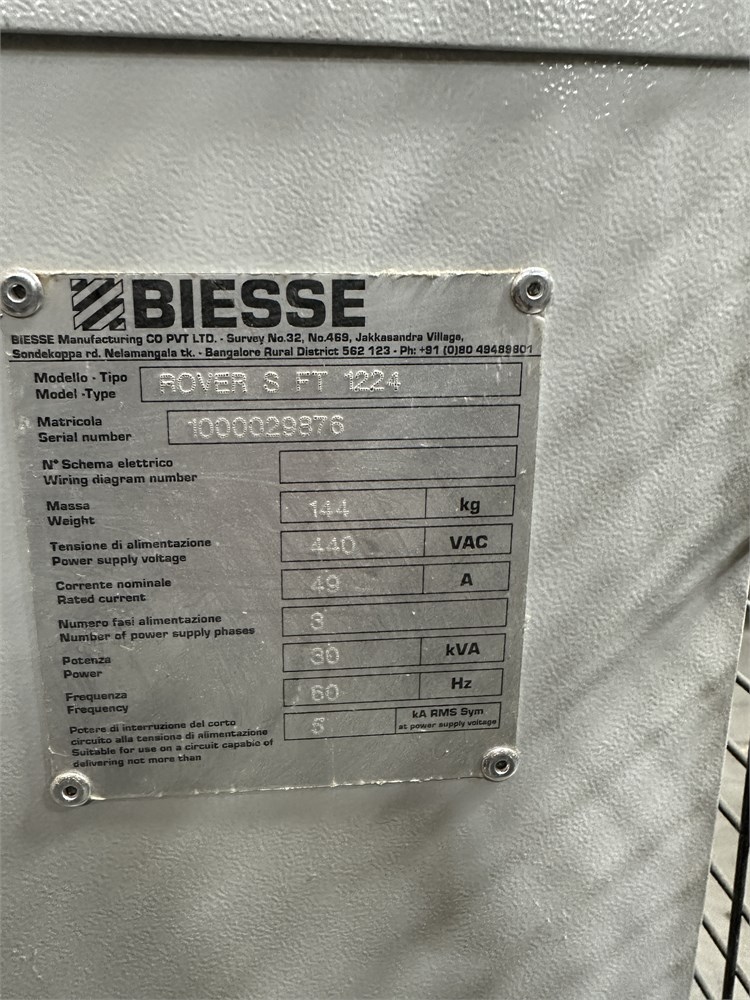

Make
Biesse
-
Model
Rover S FT 1224
-
Serial Number
1000029876
-
Year
2019
-
Phase
3 PHASE
-
Voltage
208-230/460
-
Buyer Inspection Period
By appointment only, contact Juan Fabian, 209-704-4305, [email protected]
-
Load Out Period
March 23 - 31, 2026 (By Appointment Only)
-
Estimated Dimensions
55' L x 15' W x 9' H (as setup in photos, shipping dimensions TBD)
-
Estimated Weight
20,000 Lbs
-
Seller Comment
A rigger is required. Buyer's Responsibility for Break-down, loading and removal. By appointment ONLY!
-
Load Fee
-
Lot Notes
-
page views
17

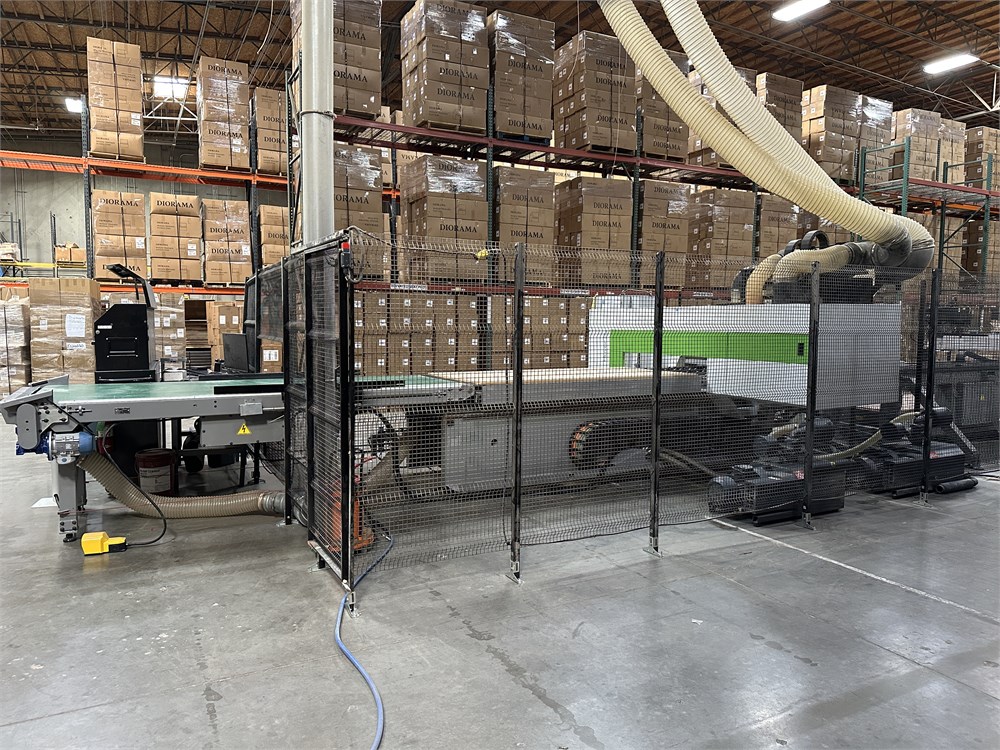

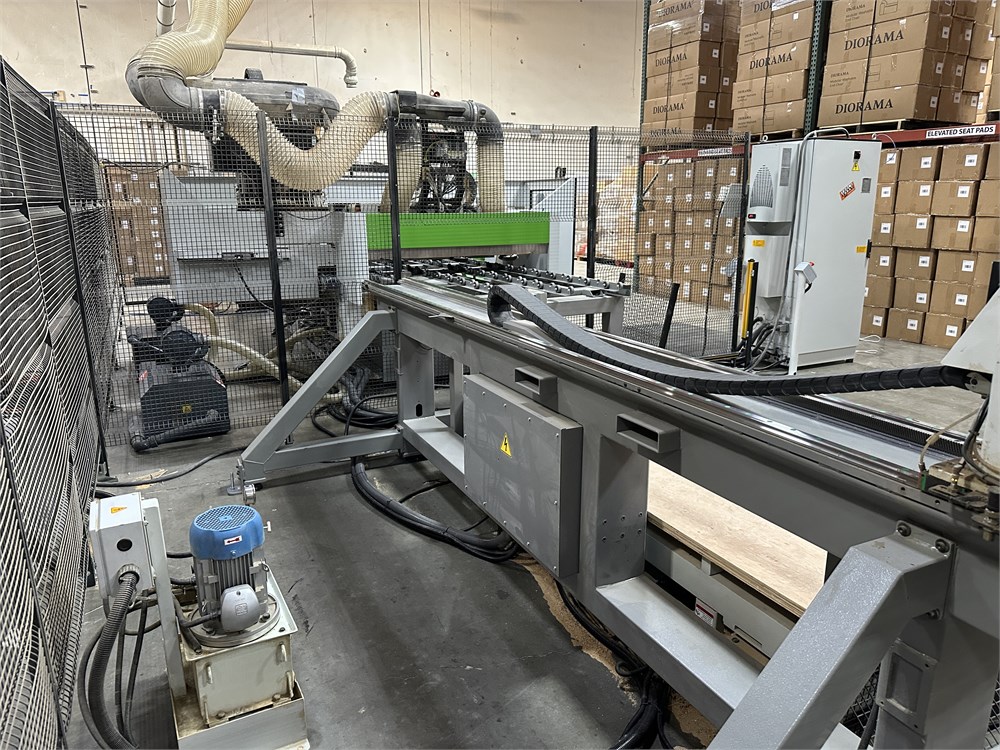

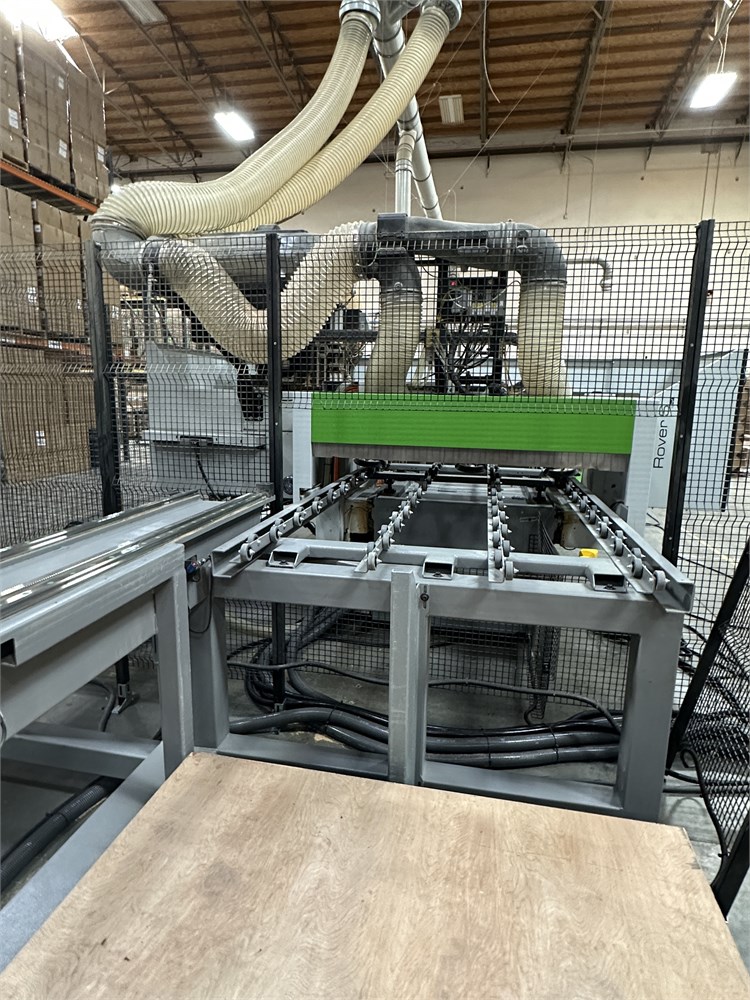

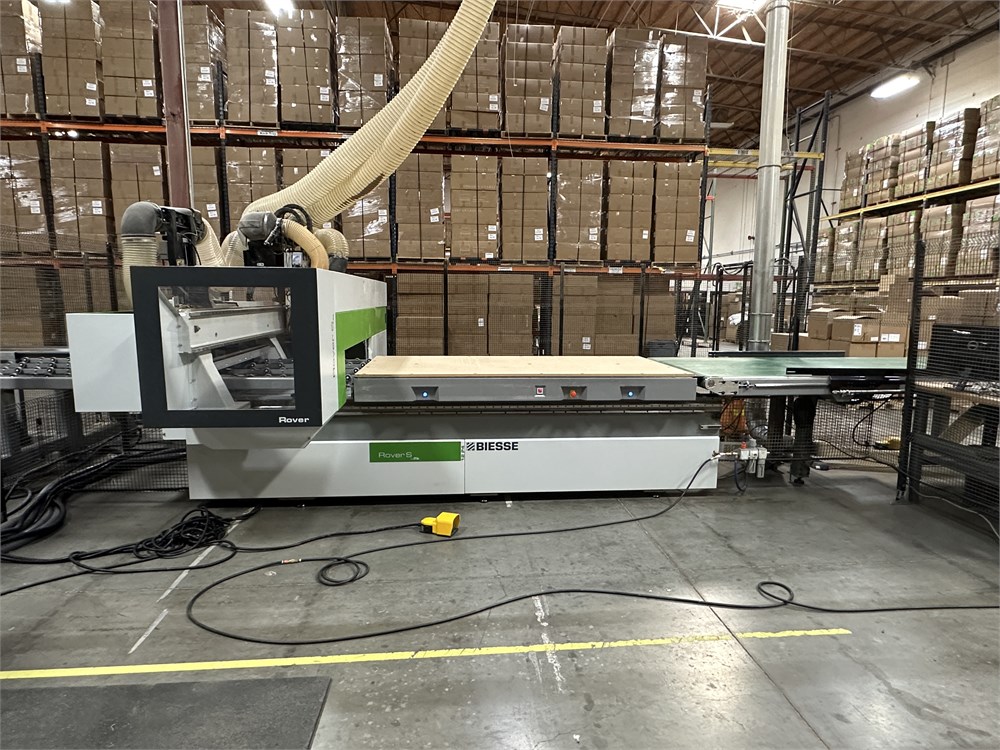

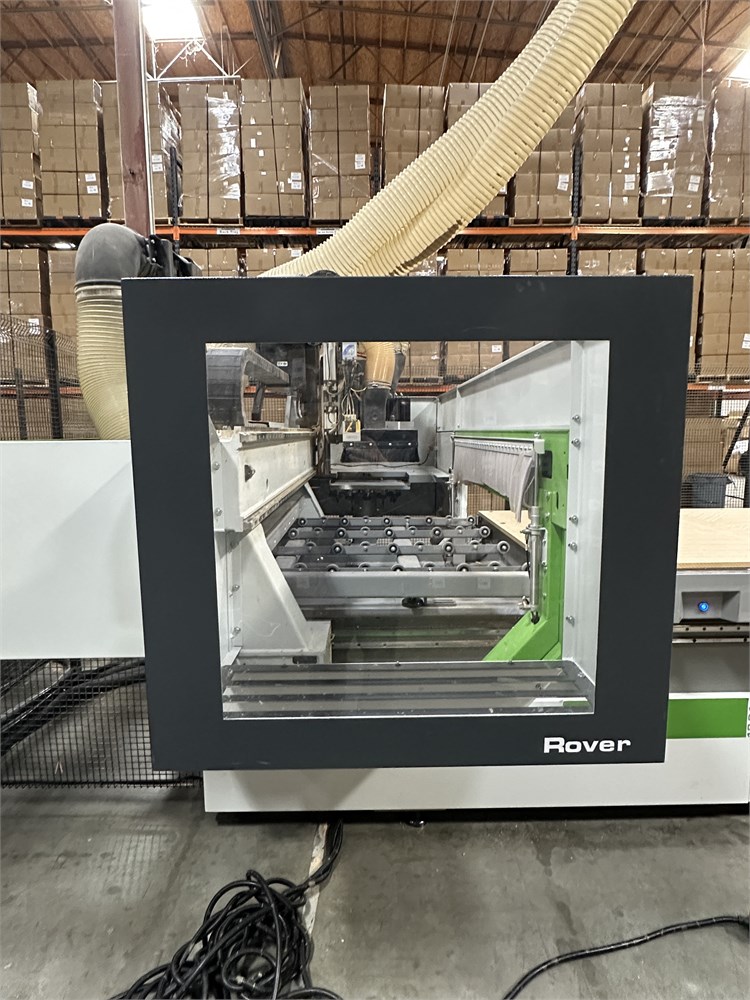

Biesse "Rover S FT 1224" CNC Router Cell
See video of machine in operation

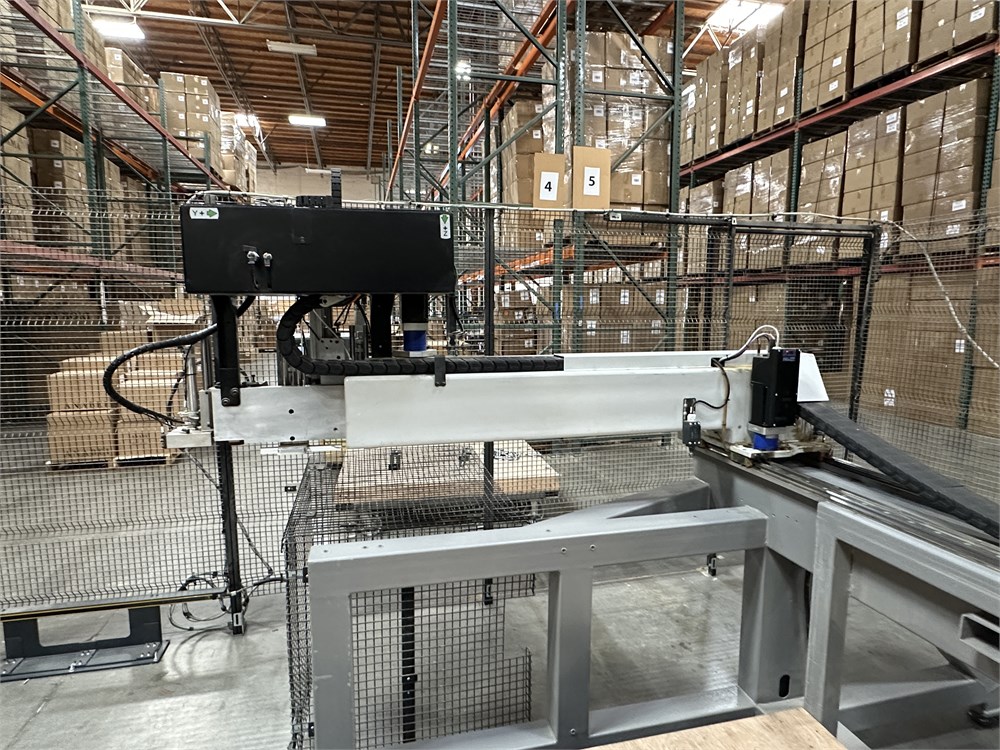

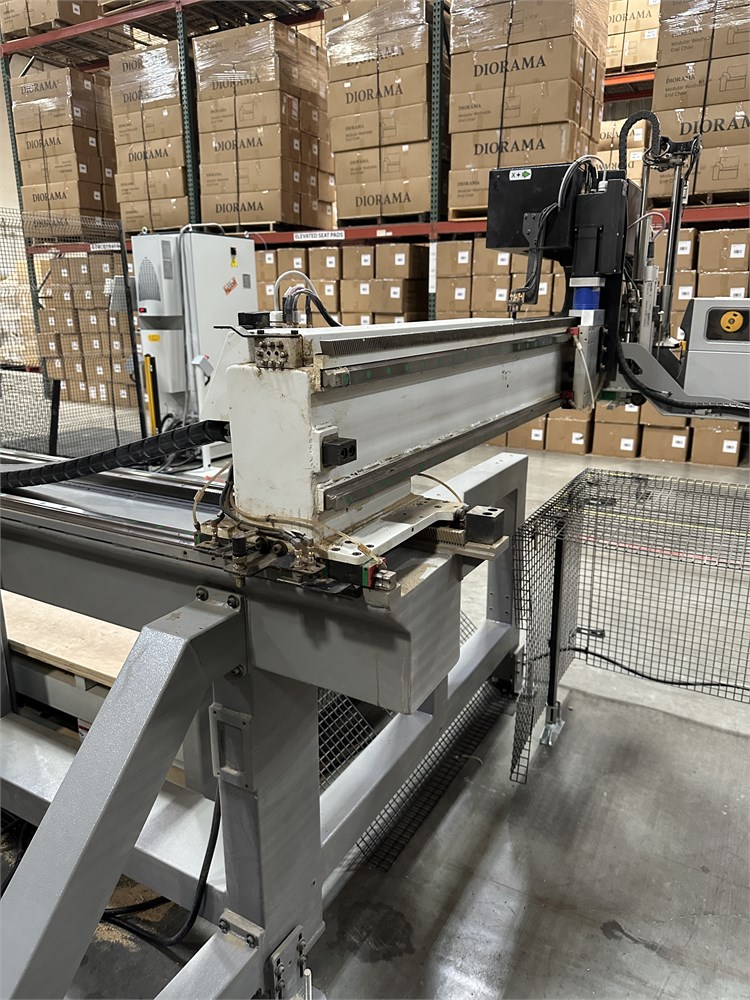

Loading System

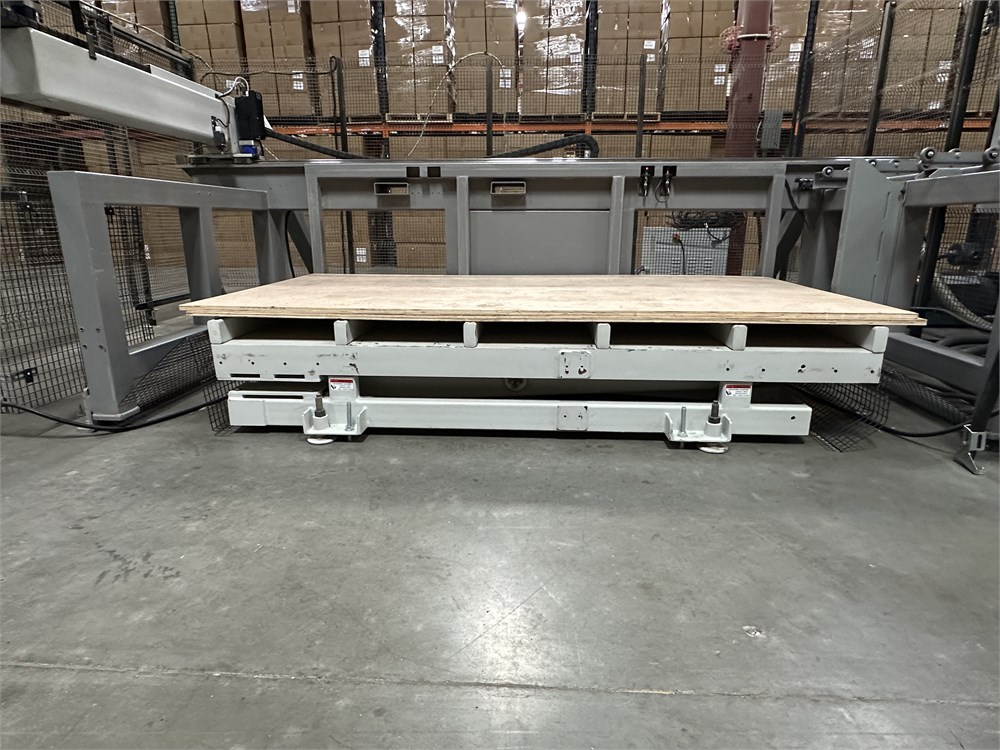

- Scissor lift, 53" x 89"

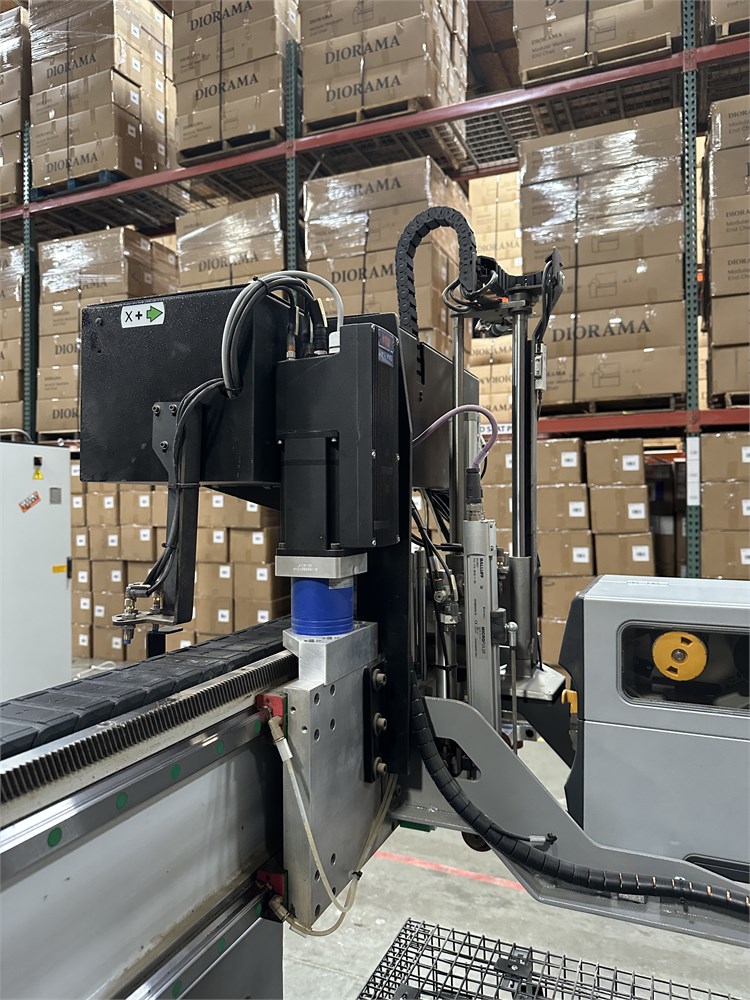

- Vacuum cup positioning

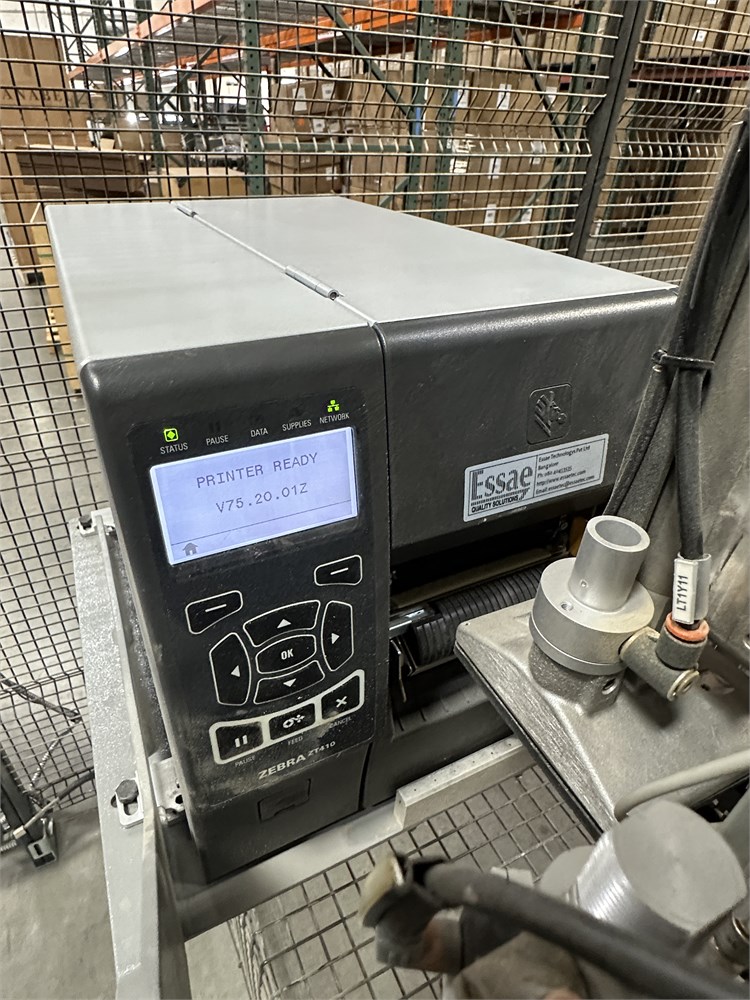

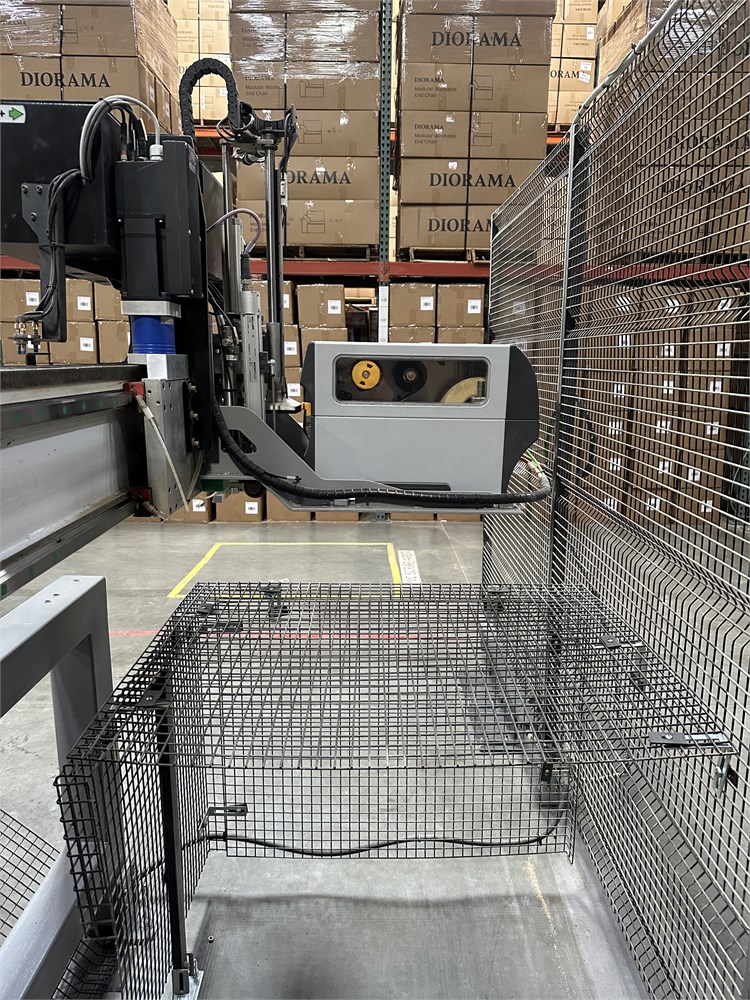

- Integrated labeling system
CNC
"X" Axis 97", "Y" axis 49", "Z" axis stroke is 14.8" (378 mm), max. material thickness 6.7" (170 mm).
"X" Axis 279 FPM (85 MPM), "Y" axis 197 FPM (60 MPM), "Z" axis 65.6 FPM (20 MPM)

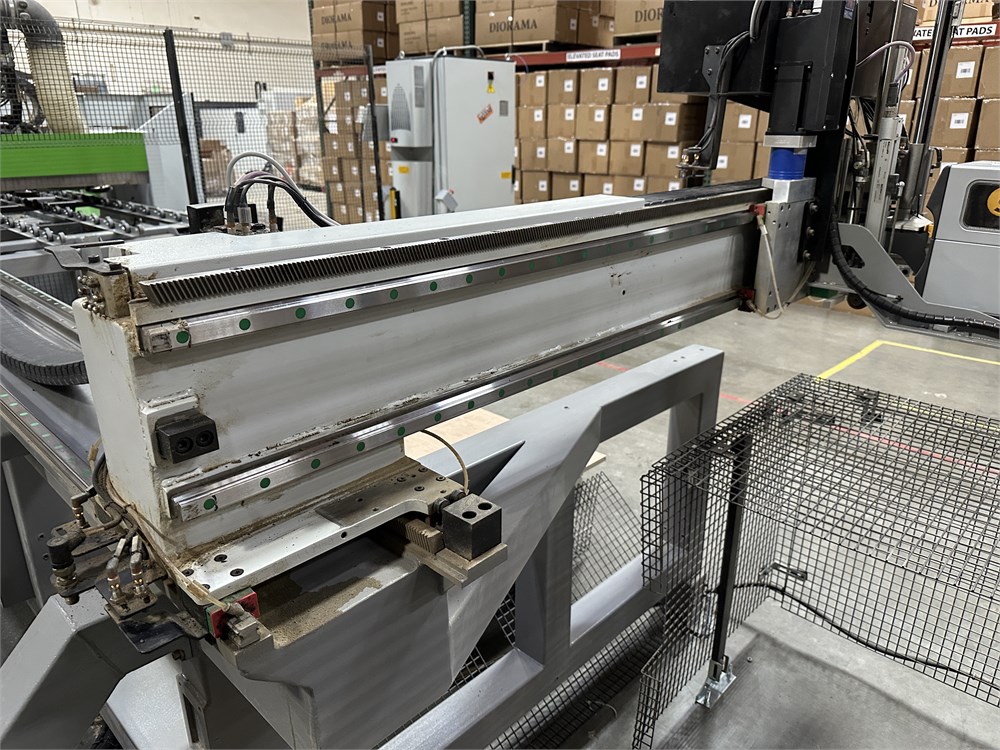

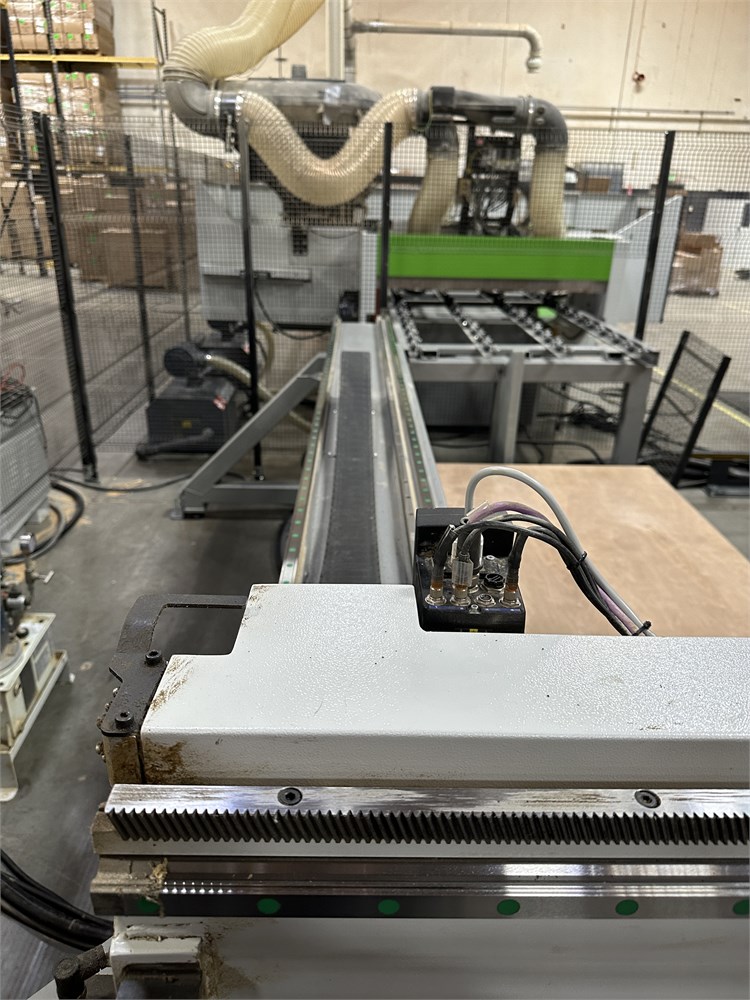

"X" & "Y" Axes use a precision rack & pinion system, "Z" axis uses precision ball screws

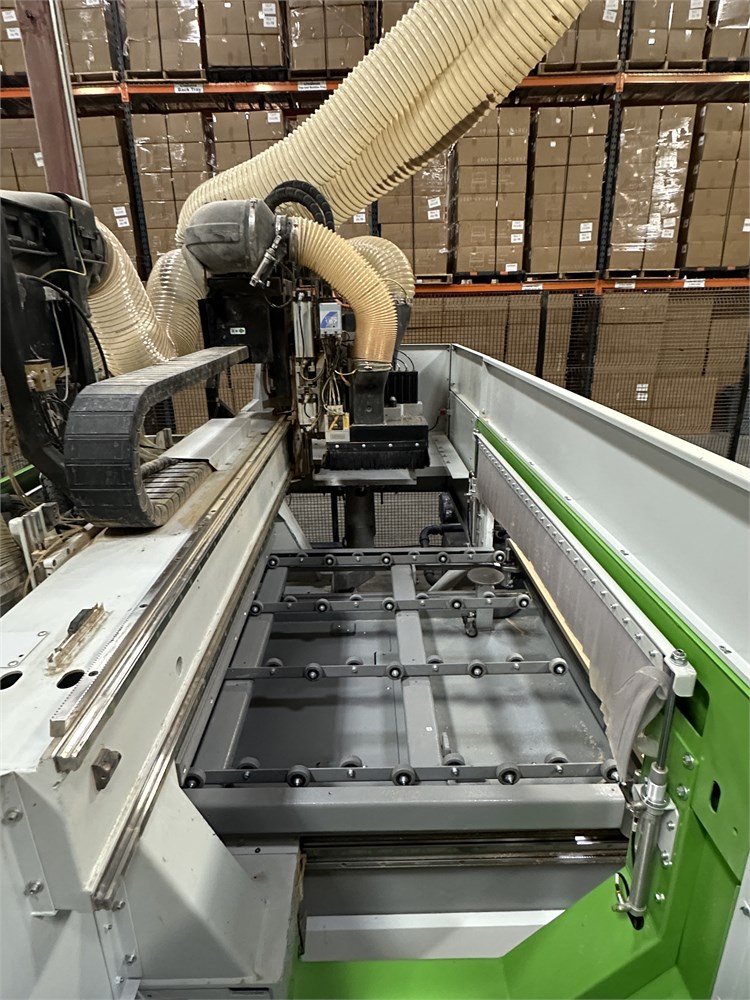

4' x 8' "Matrix" grid phenolic surface for "Nested Base Manufacturing with pneumatic reference stops
Front loading flow from left to right

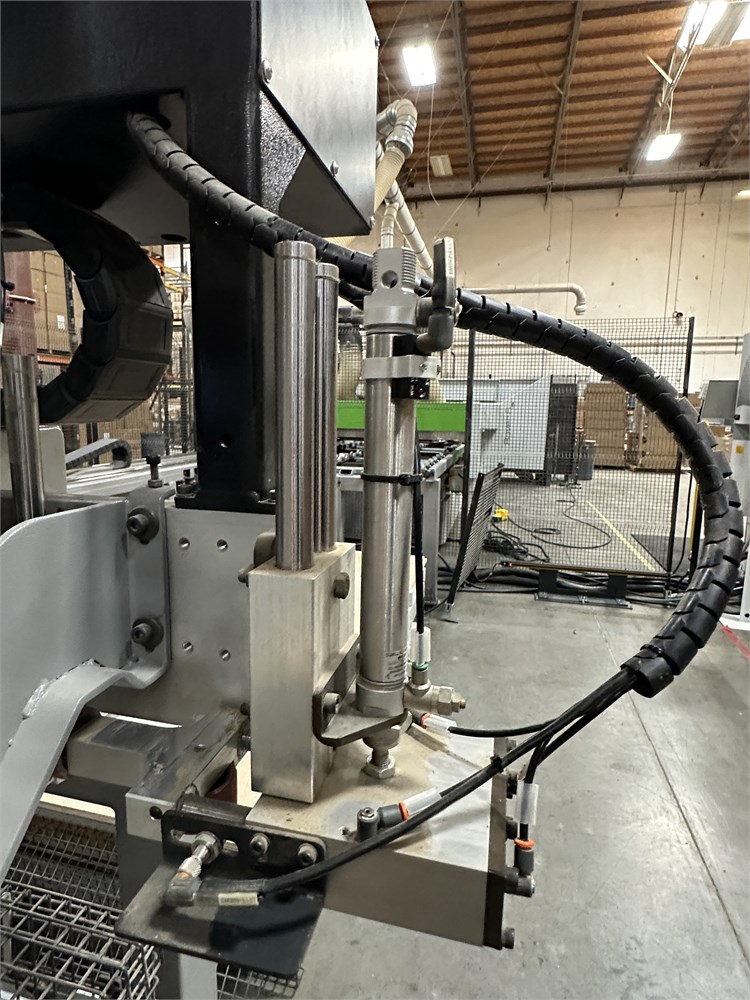

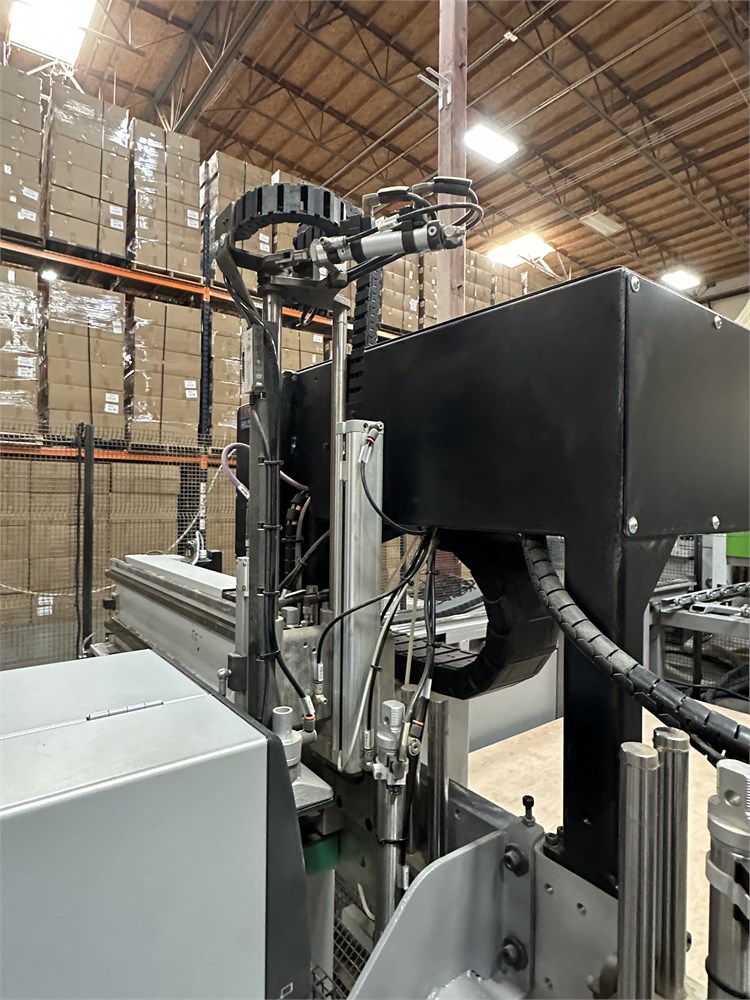

Vacuum loading device with (4) vacuum cups

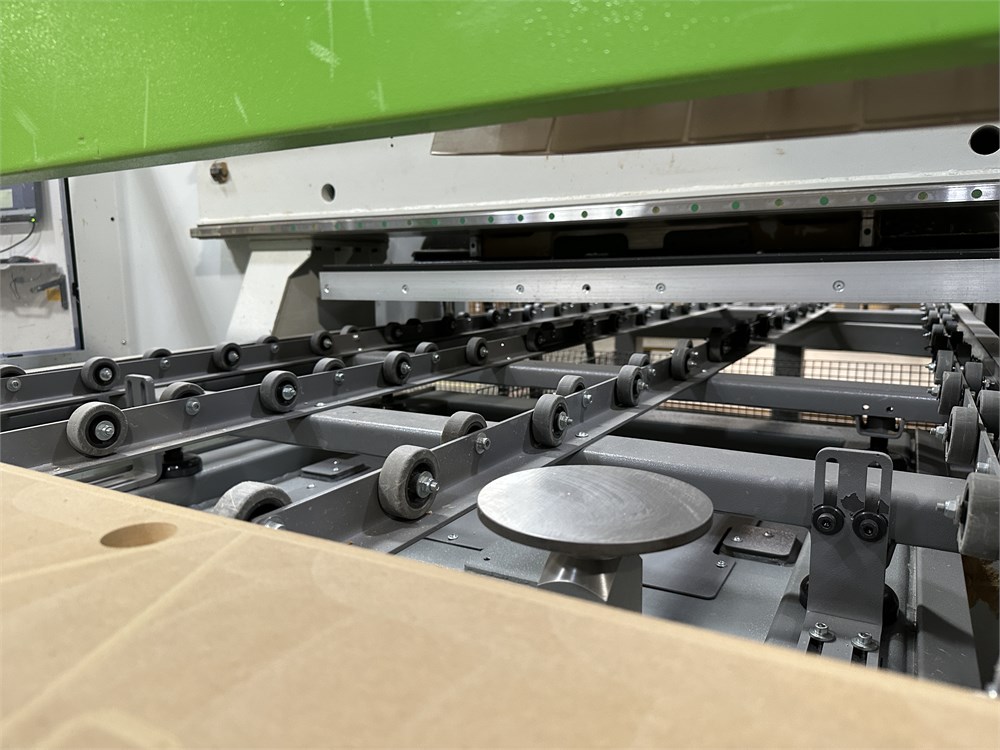

Pusher/rake unloading device with integrated dust collection

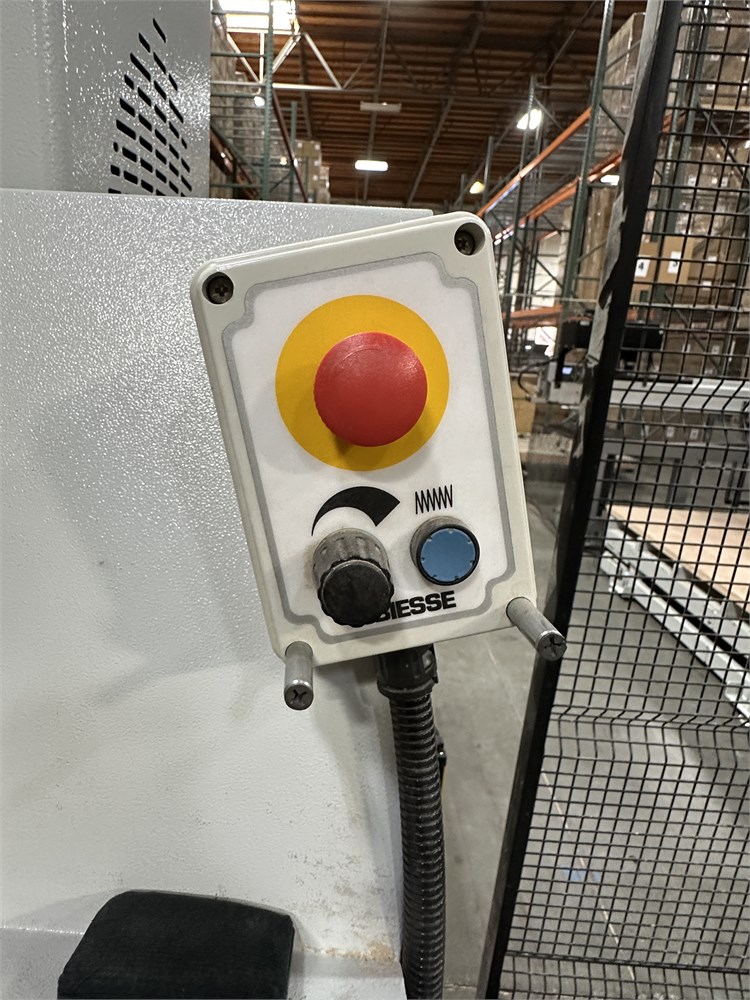

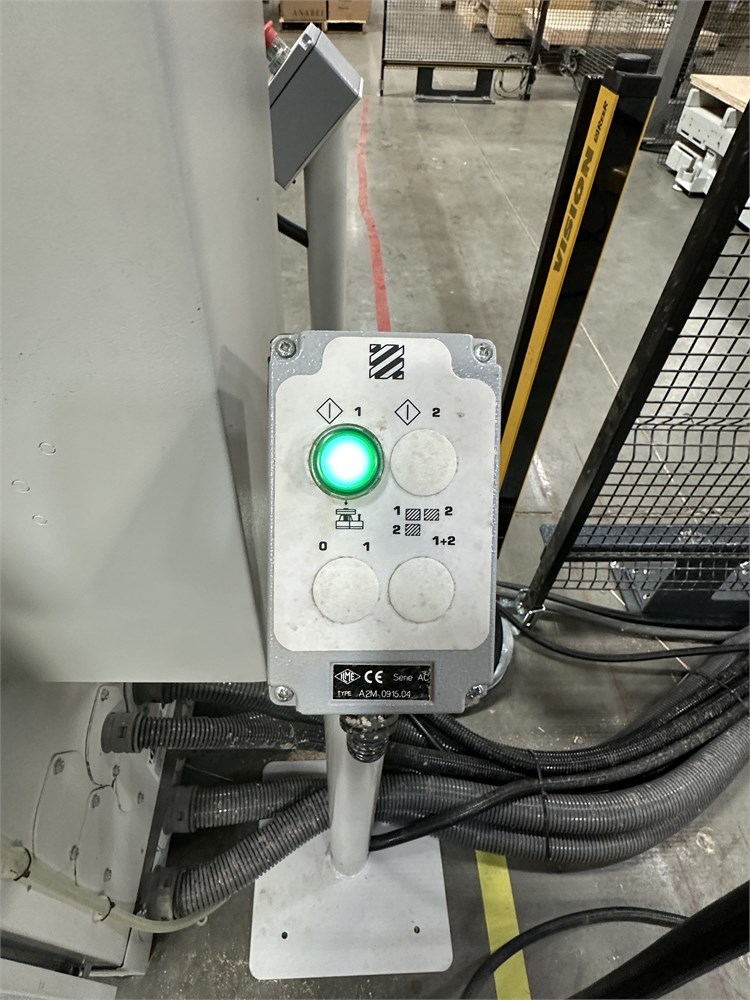

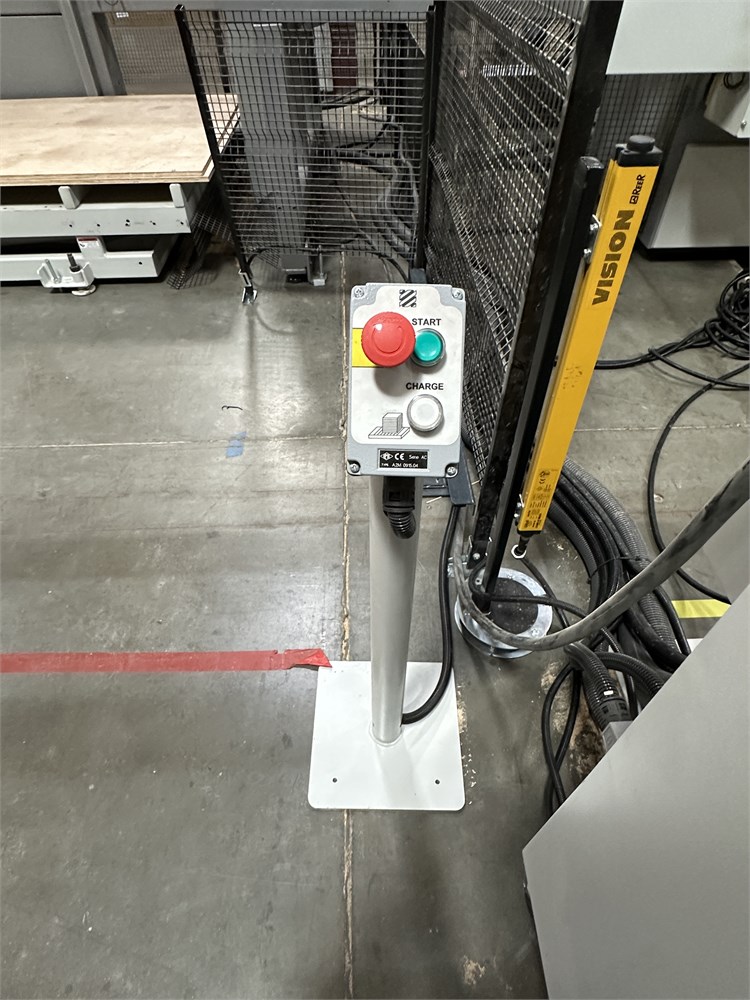

Foot pedal control

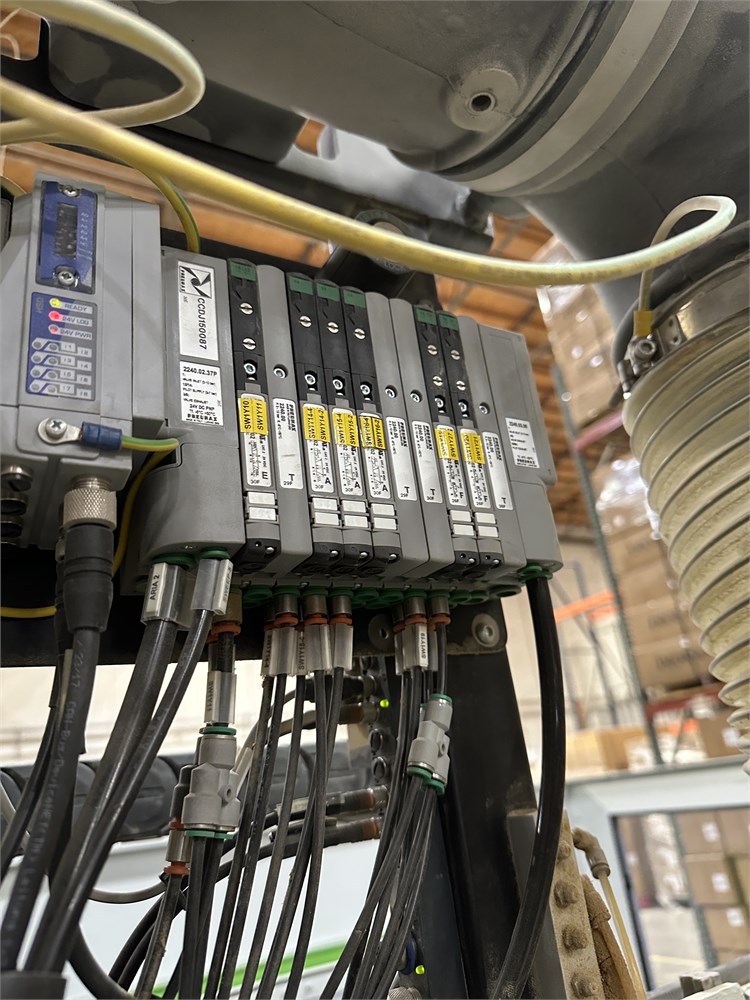

Pneumatic dust collection gates
Centralized lubrication system

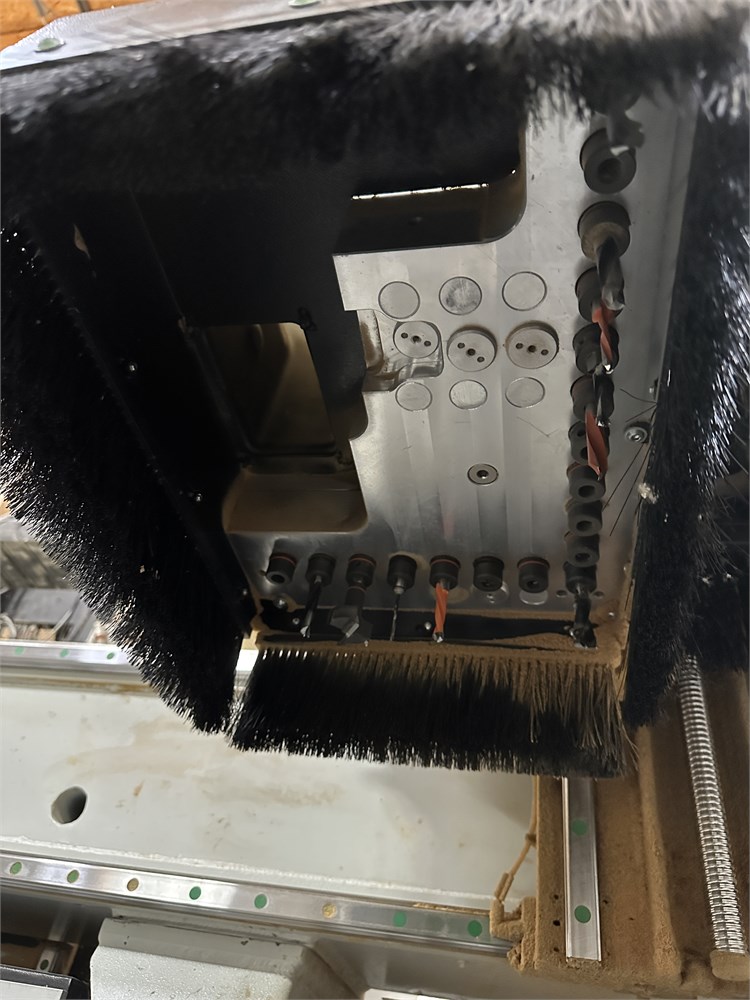

Drill unit
- (18) independent vertical spindles
- 2.5 HP motor, variable speed up to 6,000 RPM

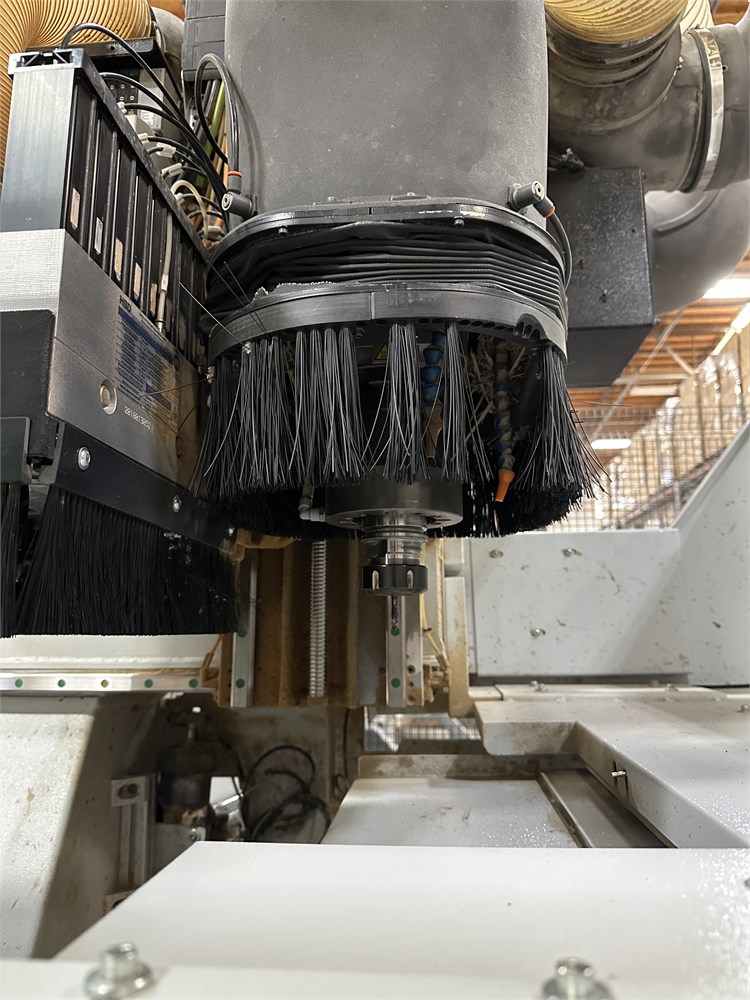

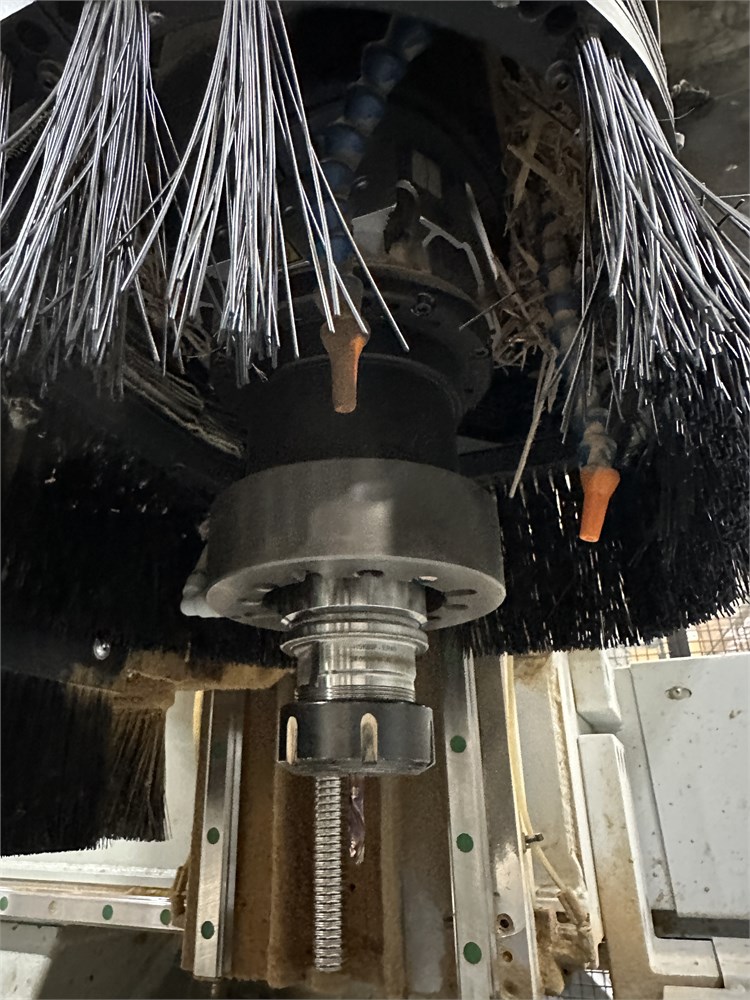

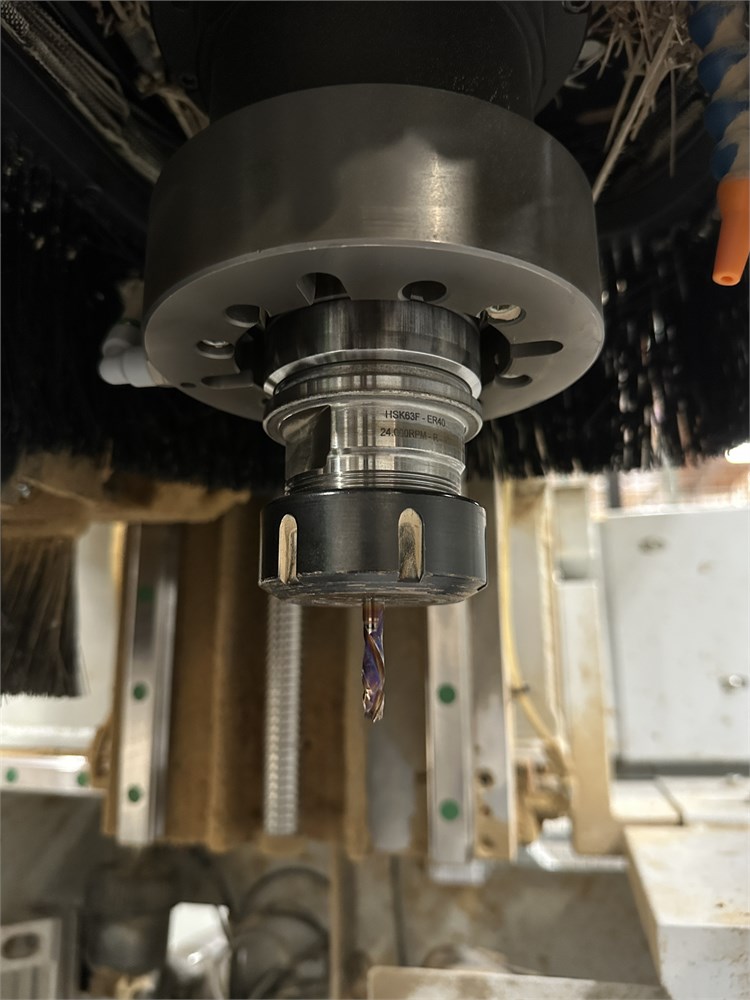

Router
- 18 HP
- Variable RPM
- CW/CCW spindle rotation
- HSK, quick-change
- Liquid-cooled

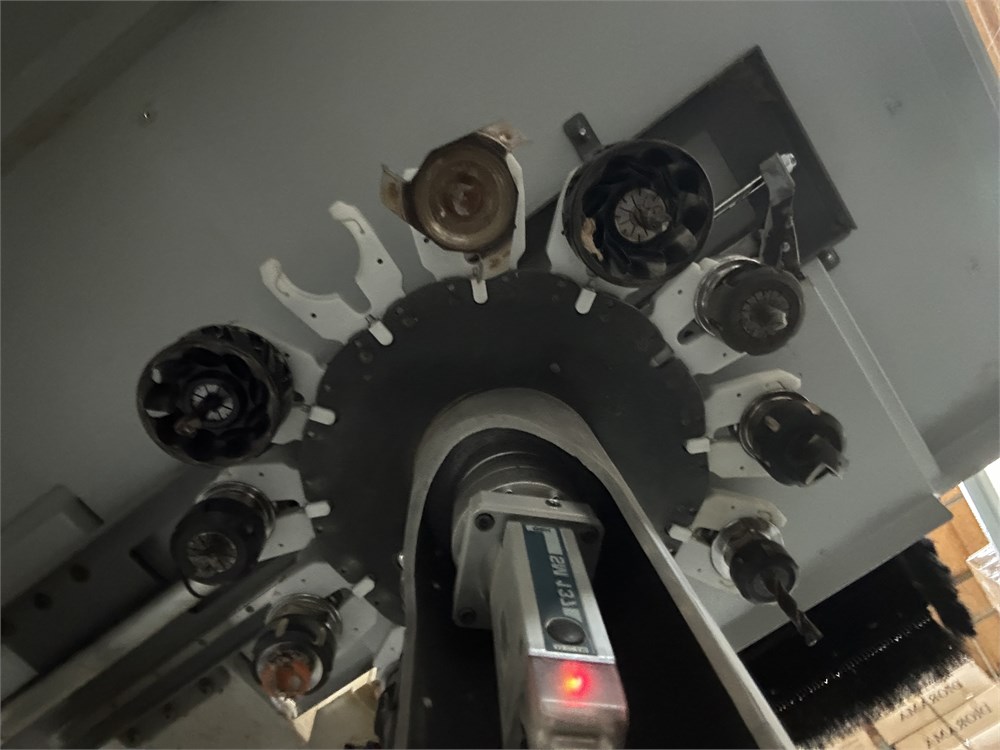

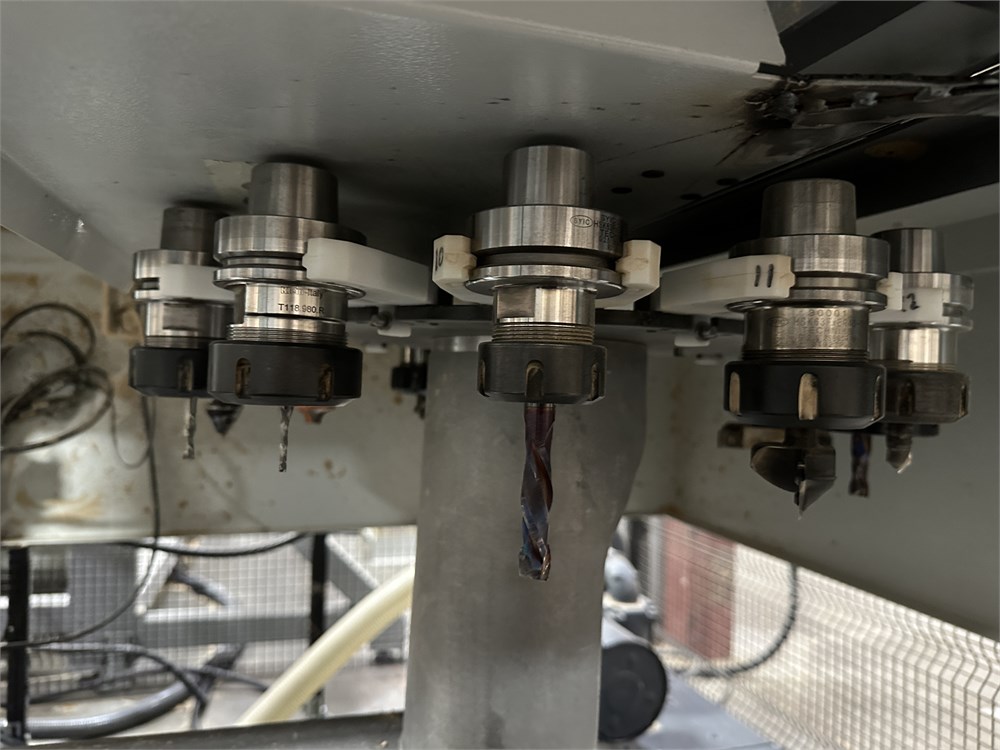

(12) position rotary tool changer
Tool length measuring device

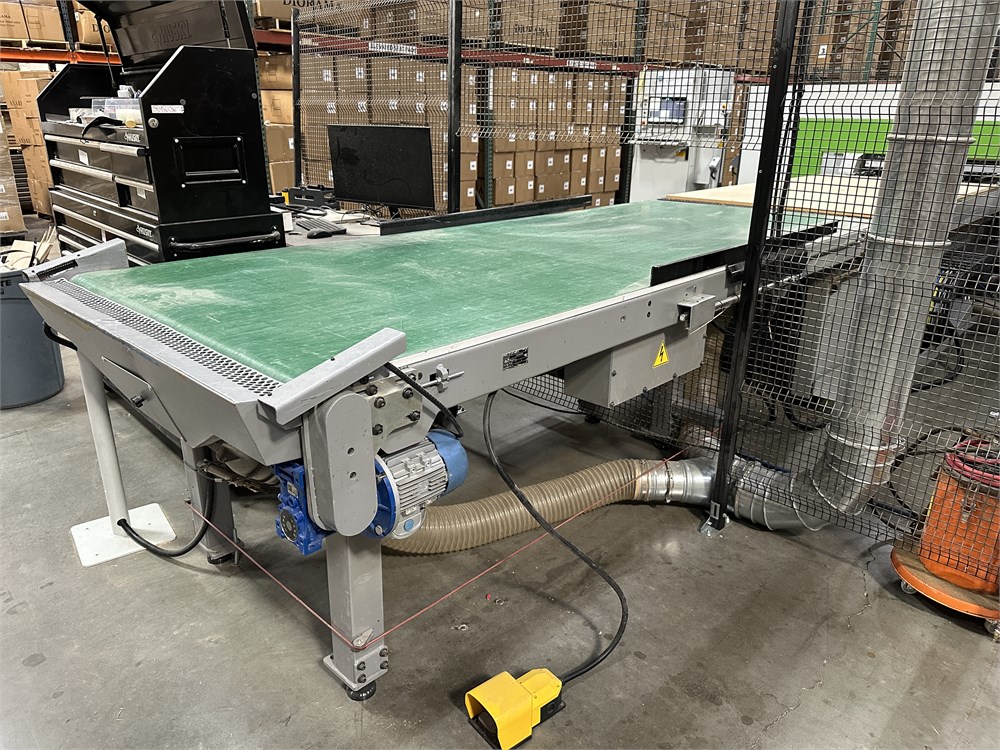

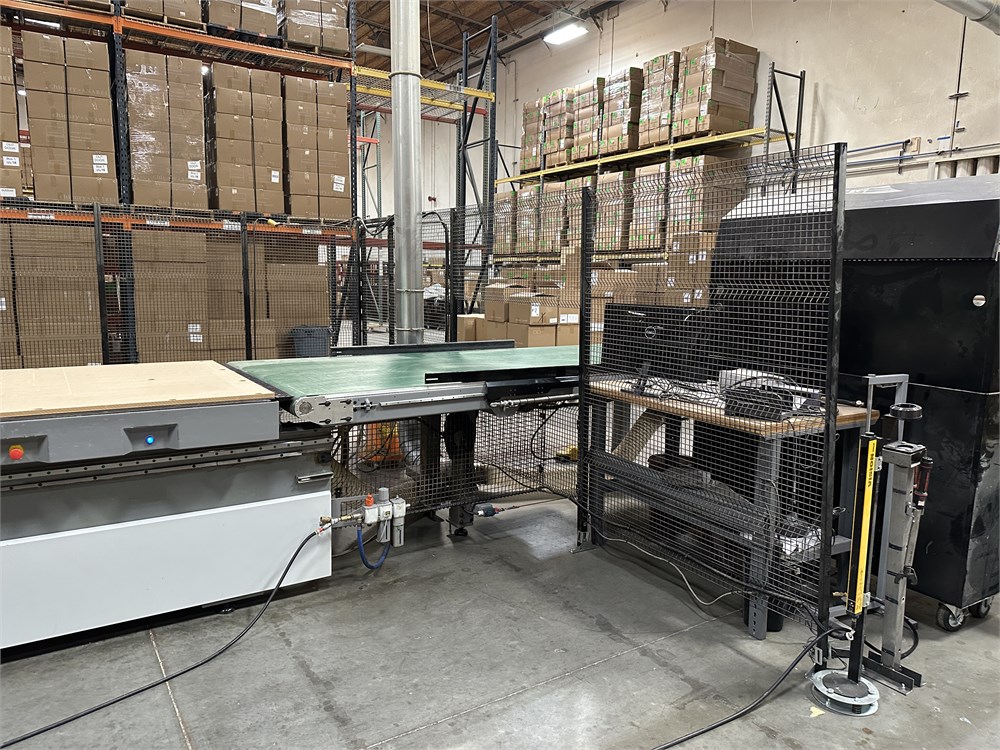

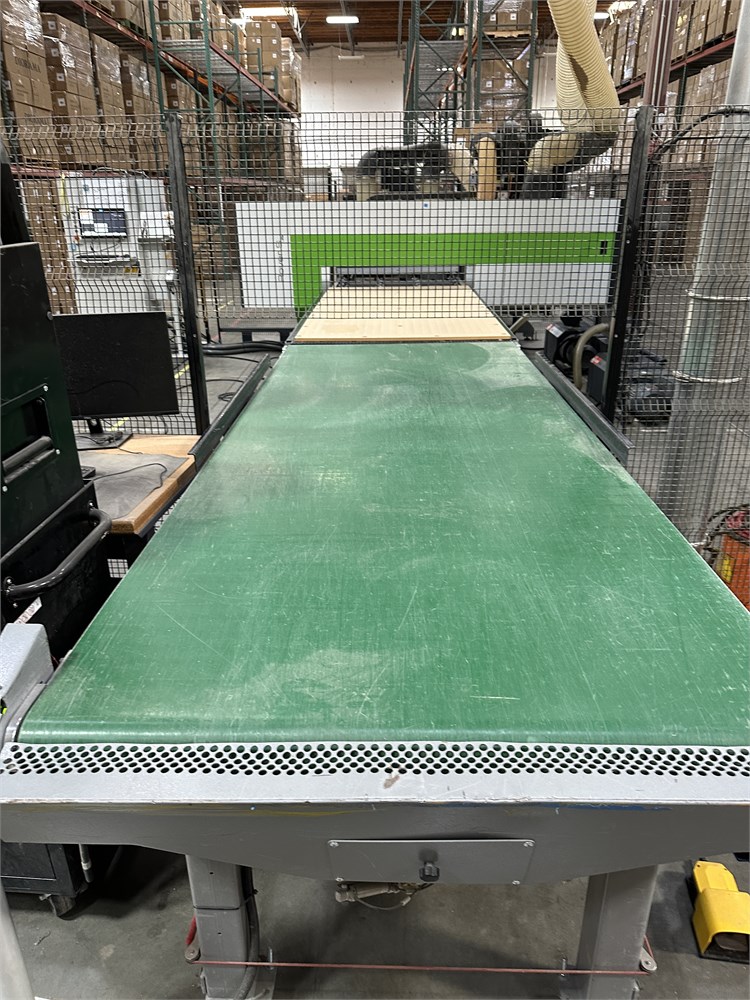

Unloading System

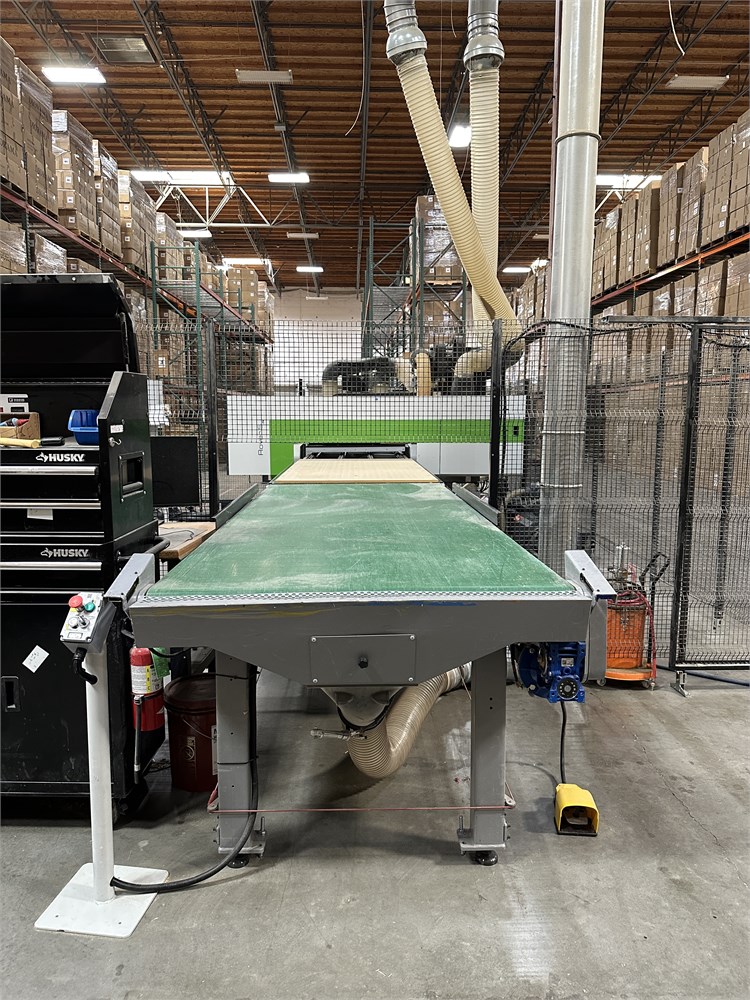

- Outfeed conveyor, 50" x 126"
- Photo eye to start/stop conveyor movement
- Foot pedal control
- Bottom-mounted dust plenum on infeed and outfeed of conveyor

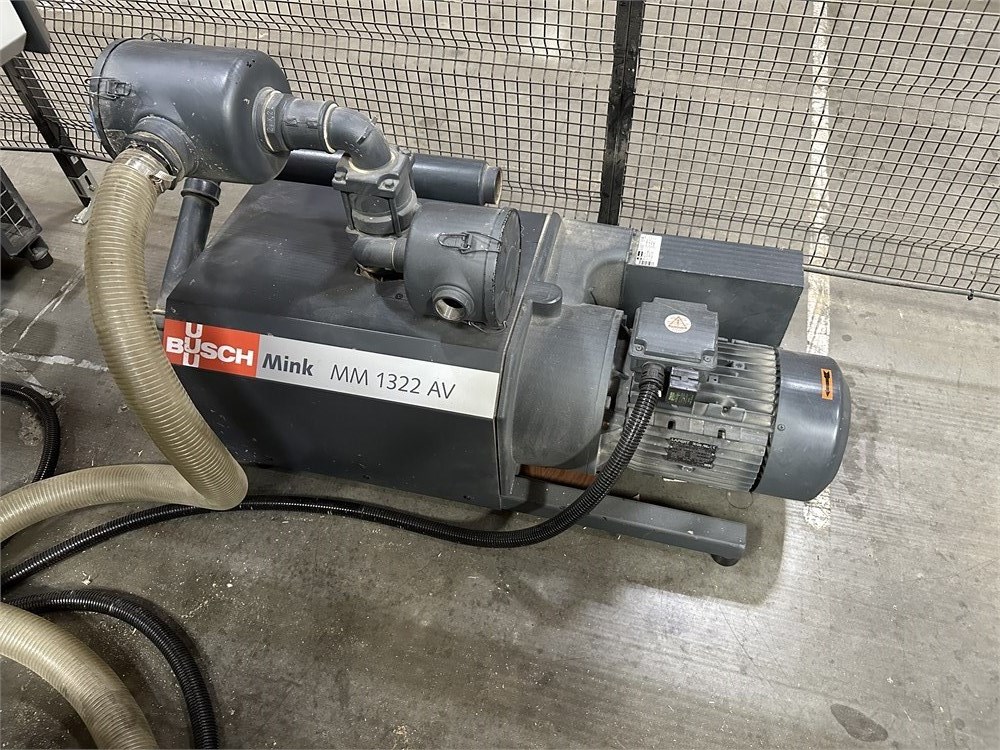

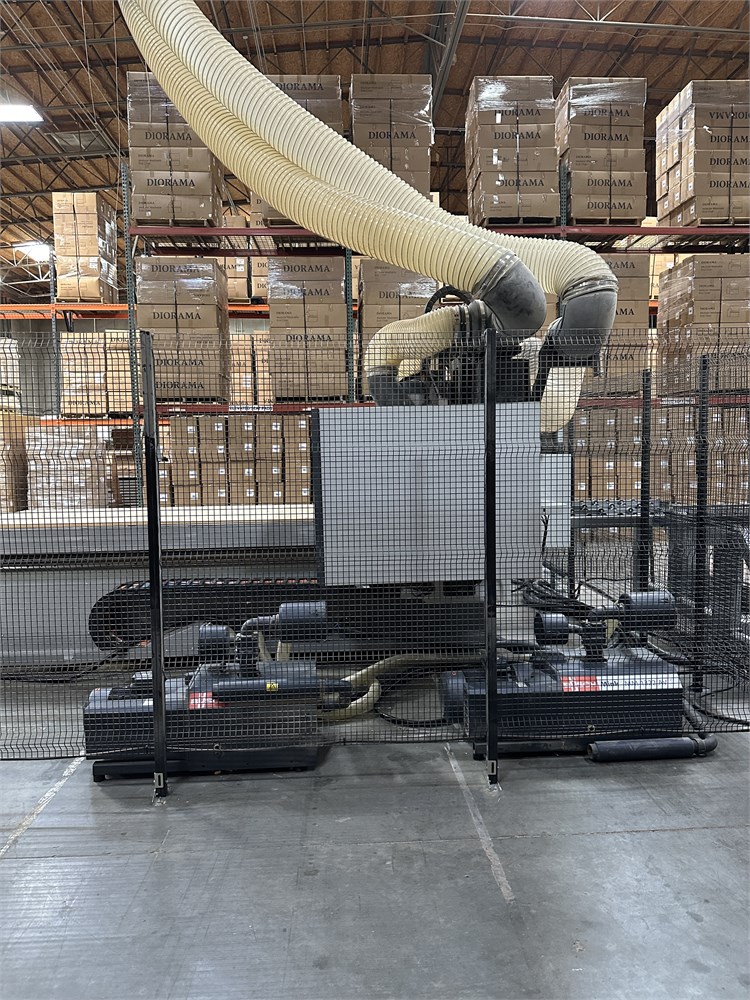

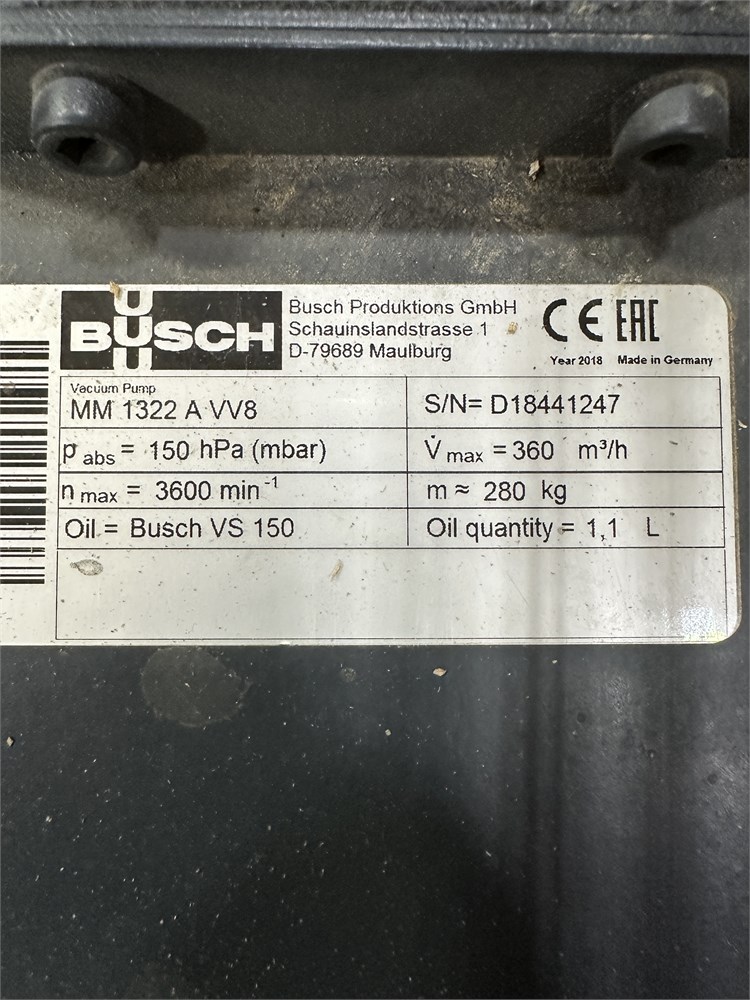

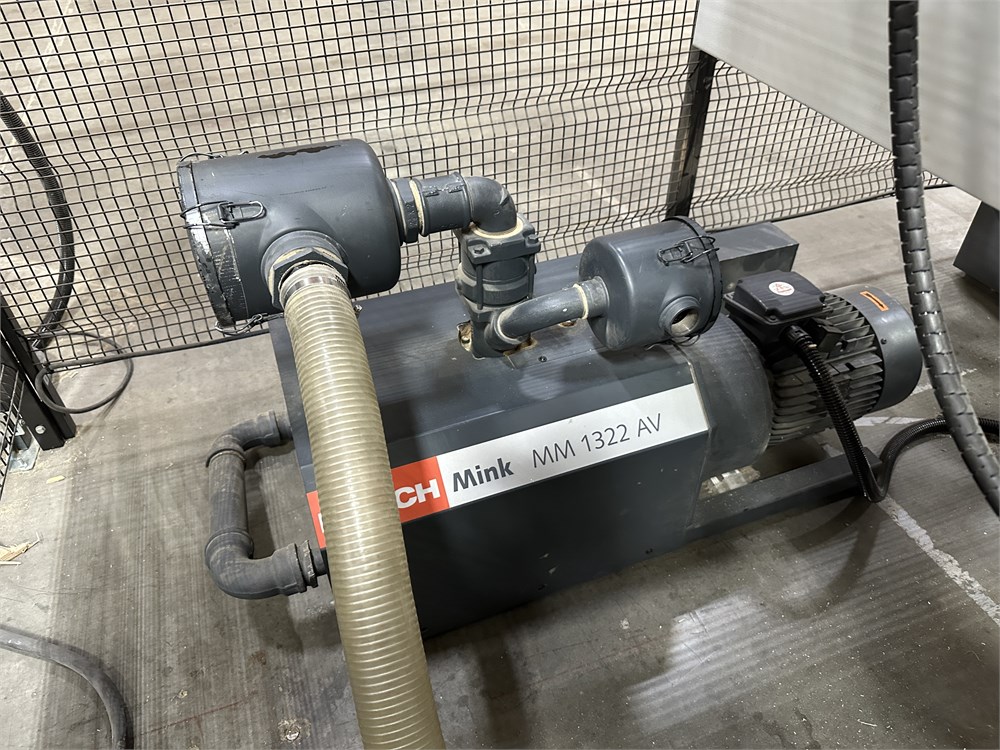

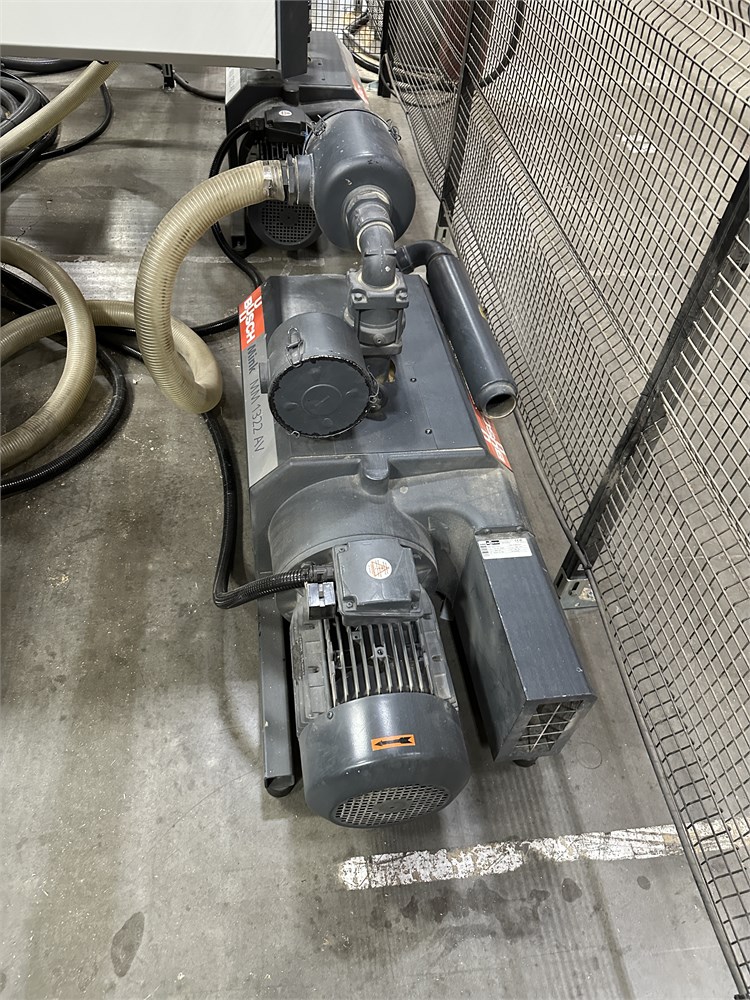

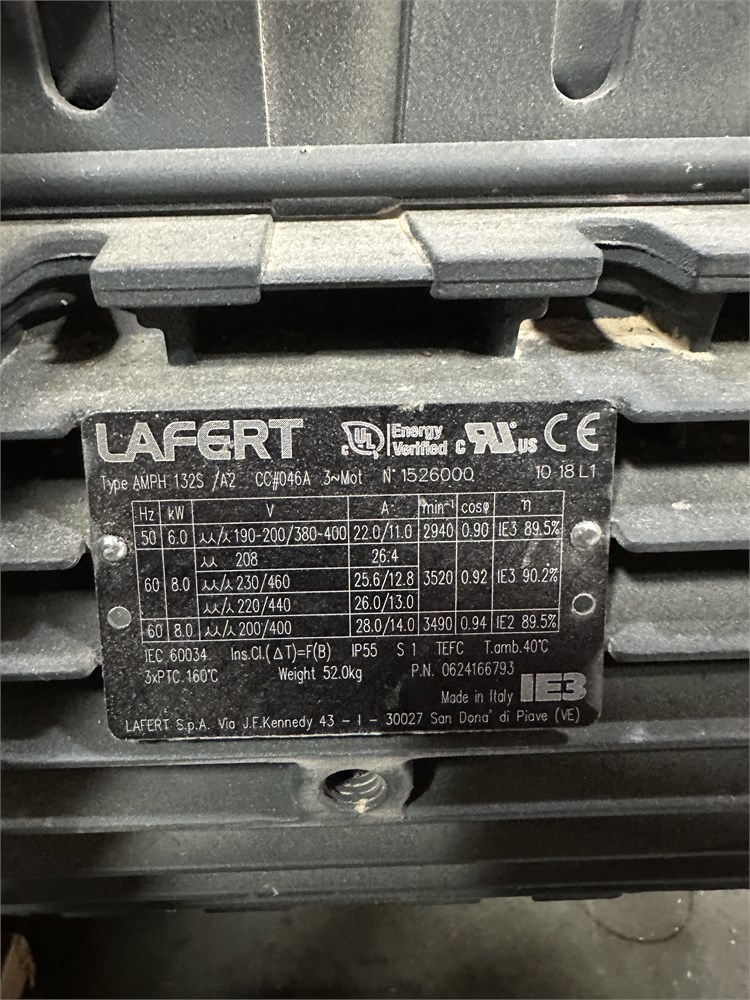

Two (2) Bush "MM-1322-A-VV8" vacuum pumps, 36" L x 18" W x 36" H (each)
- 10.7 HP each, 360 m/hr. capacity (each)
Front photo safety barrier

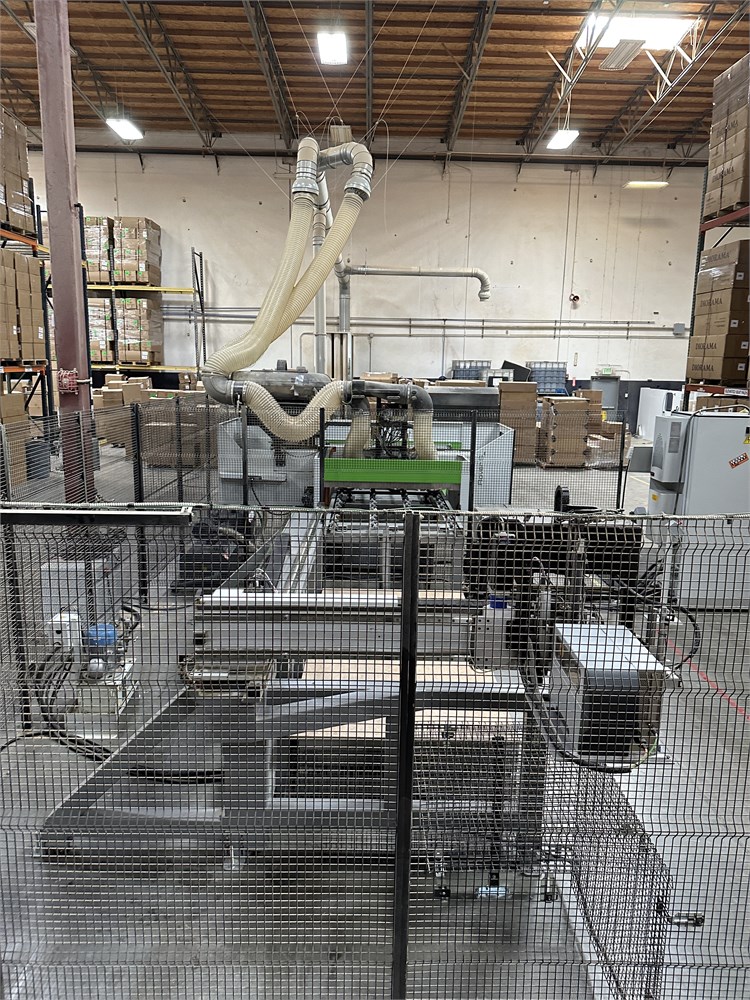

Perimeter fencing with safety interlocked doors

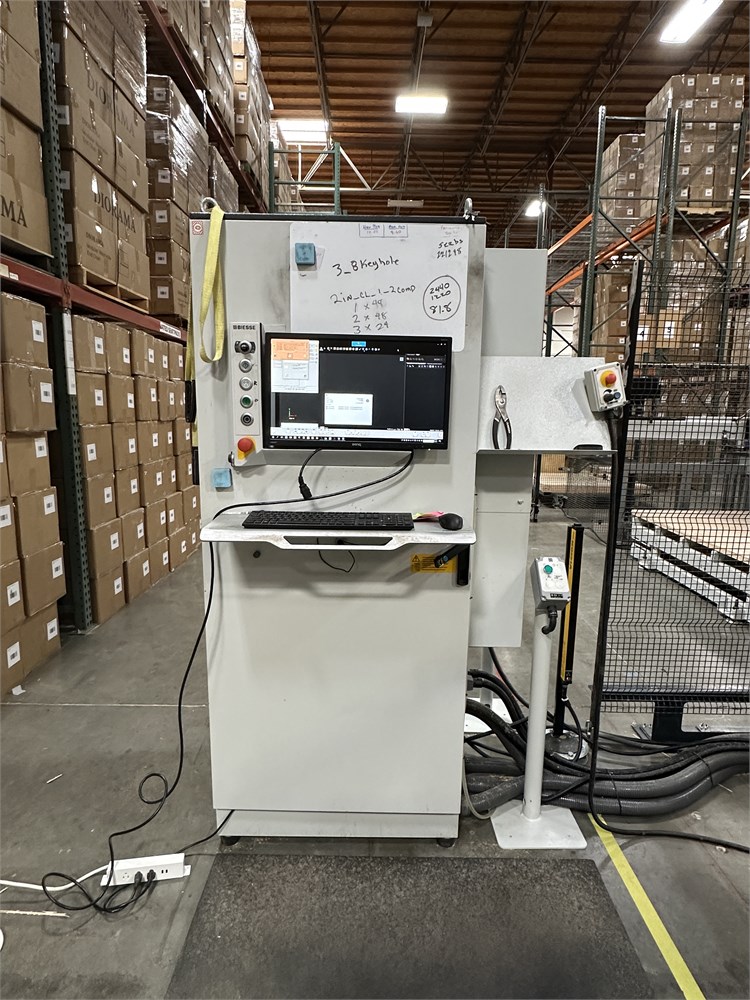

Control console, 36" L x 24" W x 72" H
- PC control with standard keyboard and mouse
- Remote control pendant
- Windows operating system
- Air conditioned

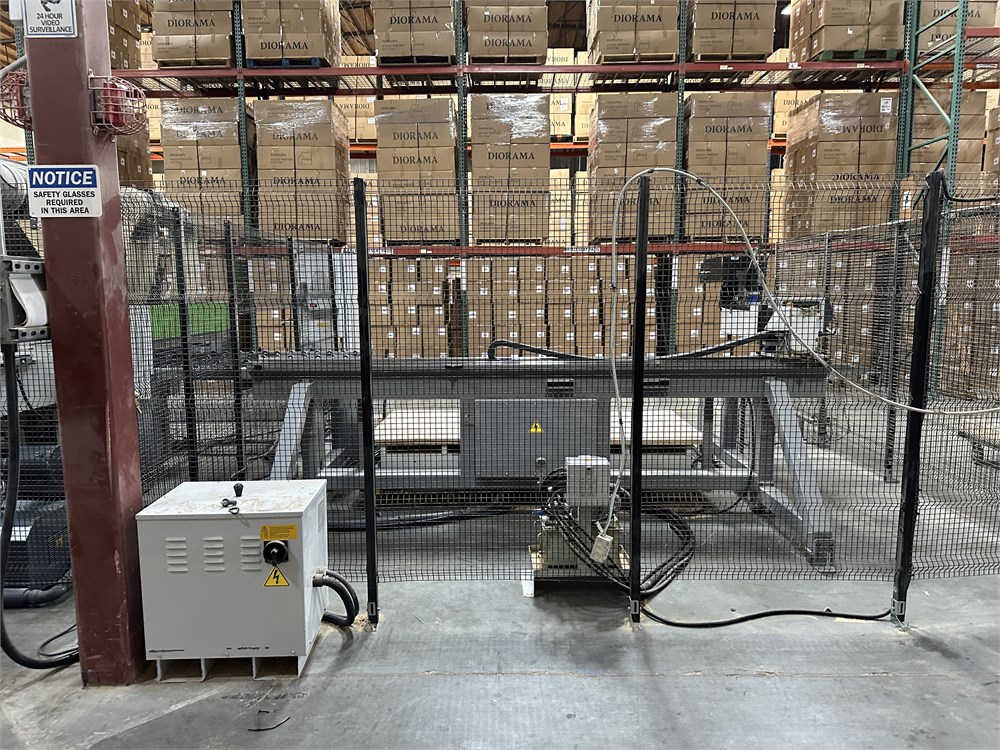

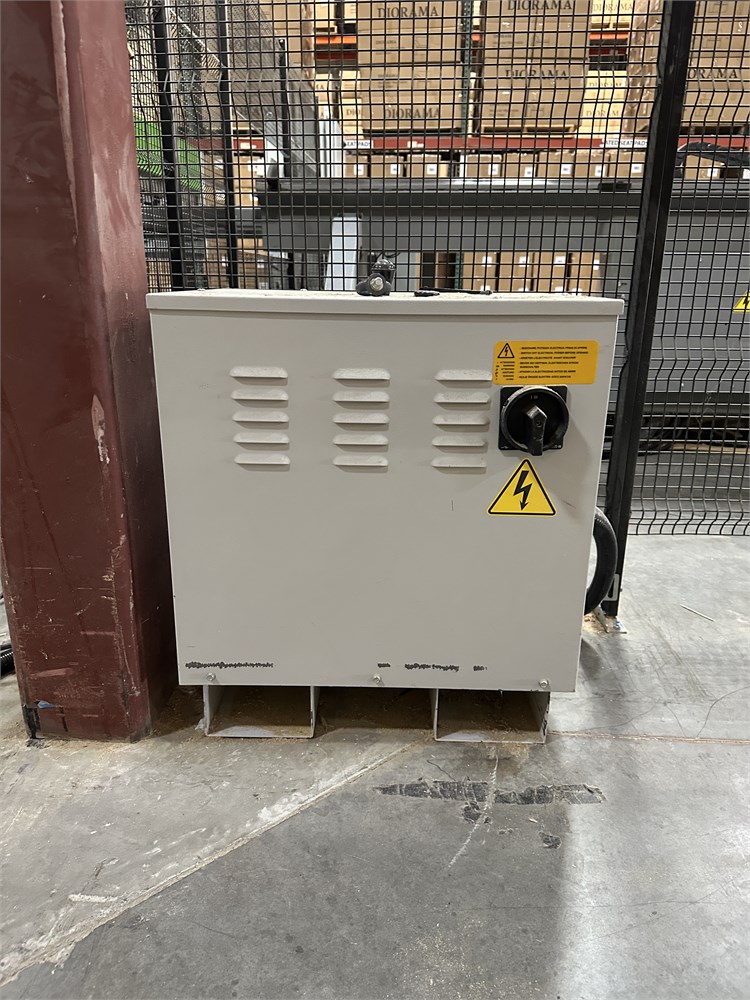

External electrical transformer, 28" L x 18" W x 24" H
Tool holders, tooling and ducting NOT included
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
