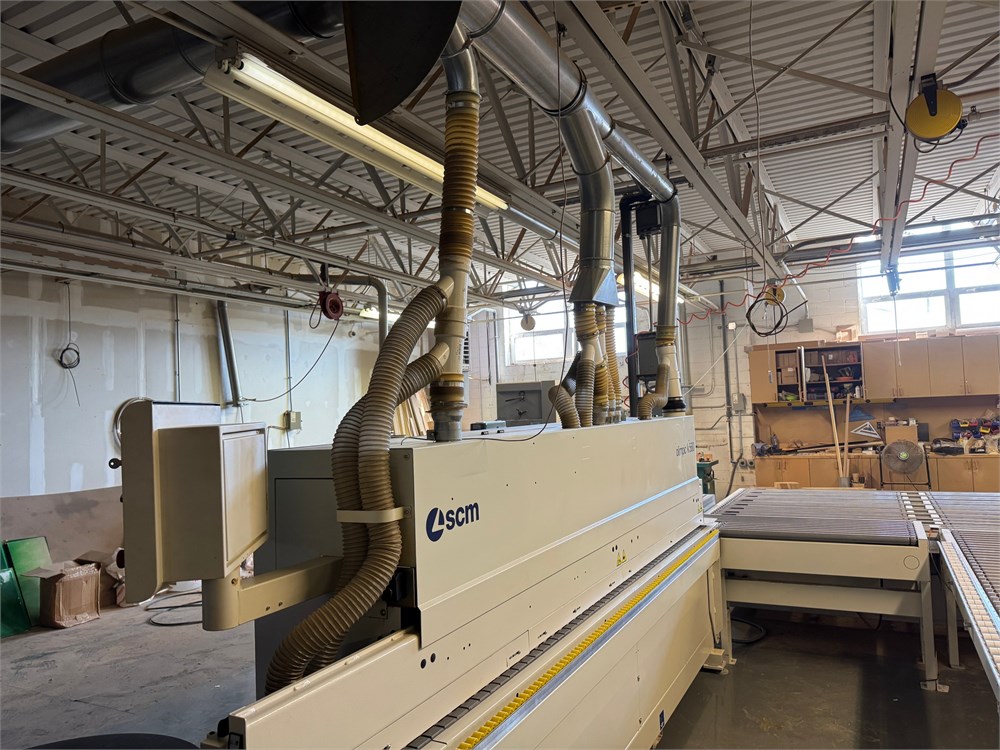

SCMI "Olimpic K 560" Edgebander - Pre-mill & Corner Rounding
Active
Complete Woodworking Factory Auction - Branchburg, NJ
Branchburg, NJ
- Starting Bid : $2,000.00 USD ( ) No Reserve
- 0 Bid(s)
JAG Finishing is Selling all of their assets in their Branchburg, NJ Location. ( Active #78570847 )
Complete facility with high end Woodworking machinery. Brands include: Homag, Holzma, Andreau, SCMI, DMC, Fanum, Sarmax, Kuper, Centauro, Yale, Altendorf, Grizzly, Castle & more!
-
Pick Up Location
34 Columbia Road, Branchburg, NJ 08876
-
Make
SCMI
-
Model
"Olimpic K 560"
-

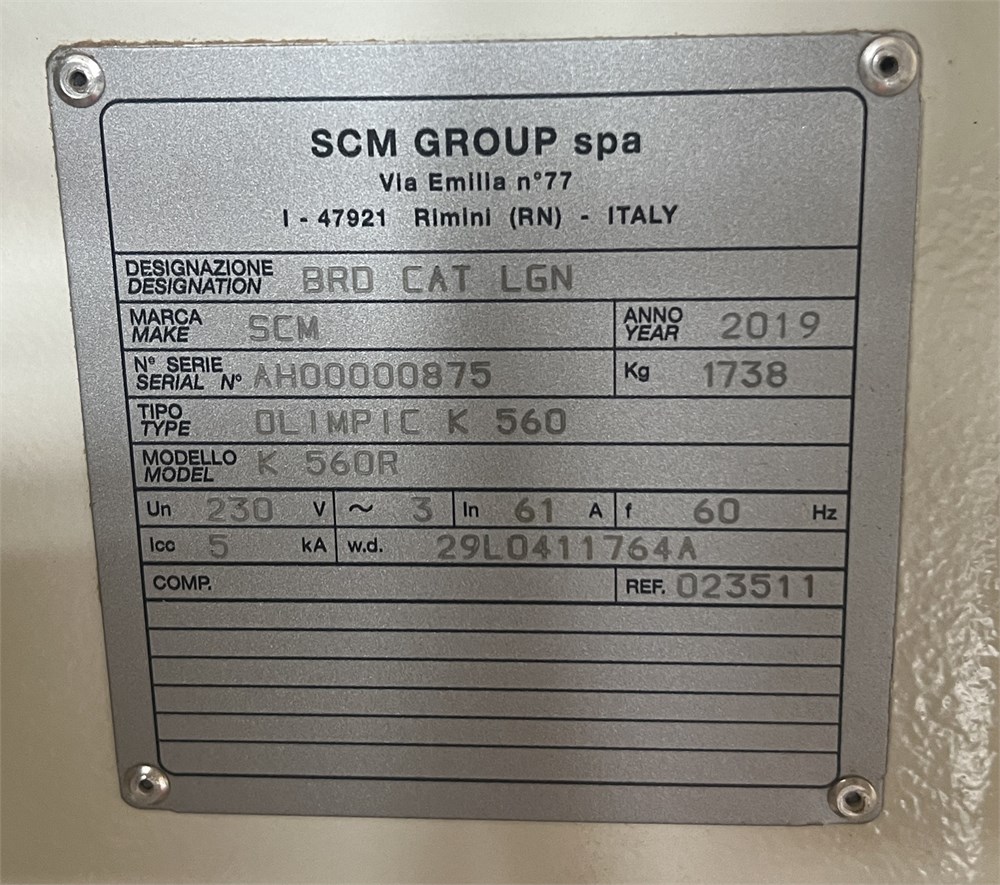

Serial Number
AH00000875
-
Year
2019
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
TBD
-
Load Out Period
March 30 - Apric 8, 2026 8AM to 3PM and by Appoiuntment Only.
-
Estimated Dimensions
4' x 17' x 6'
-
Estimated Weight
3,900 Lbs
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.
-
Load Fee
495.00
-
Lot Notes
-
page views
33

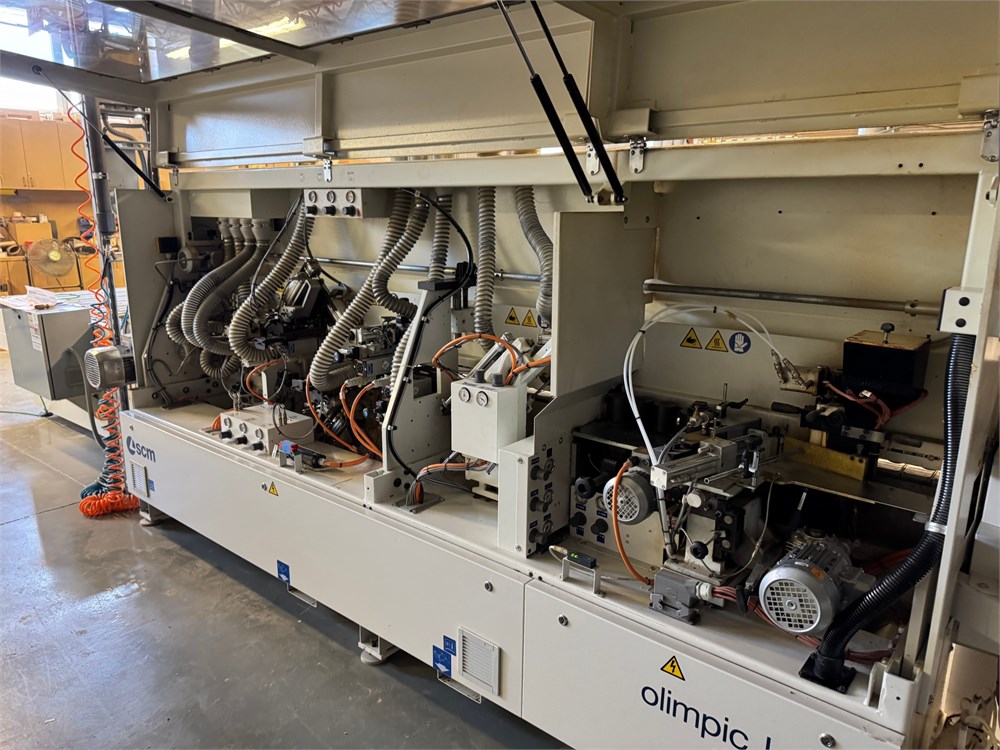

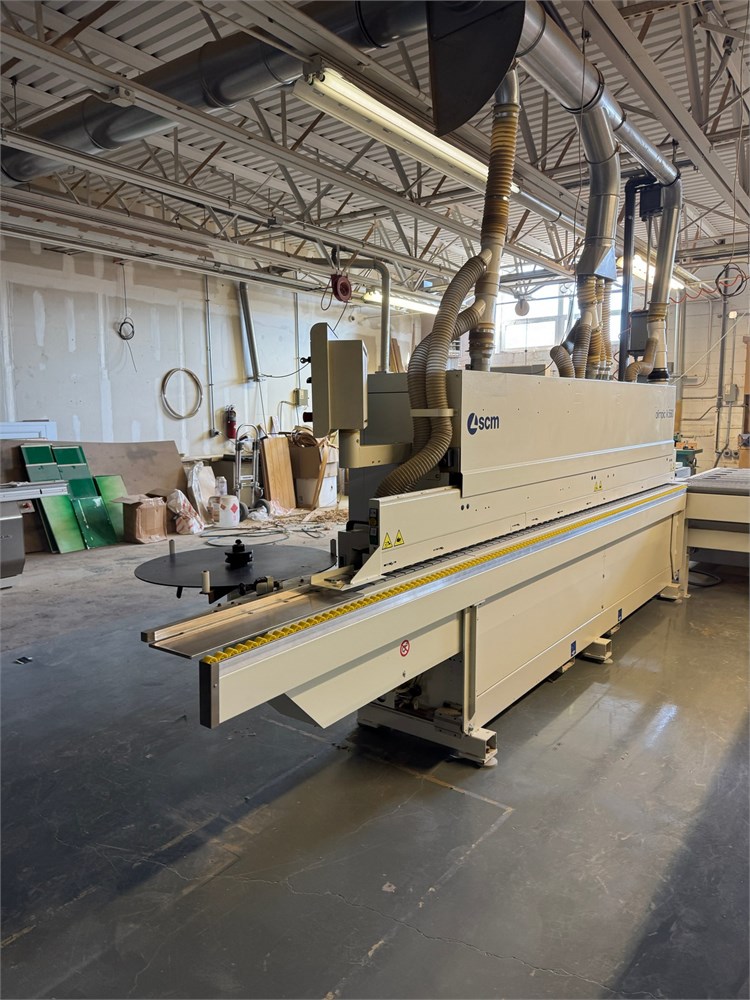

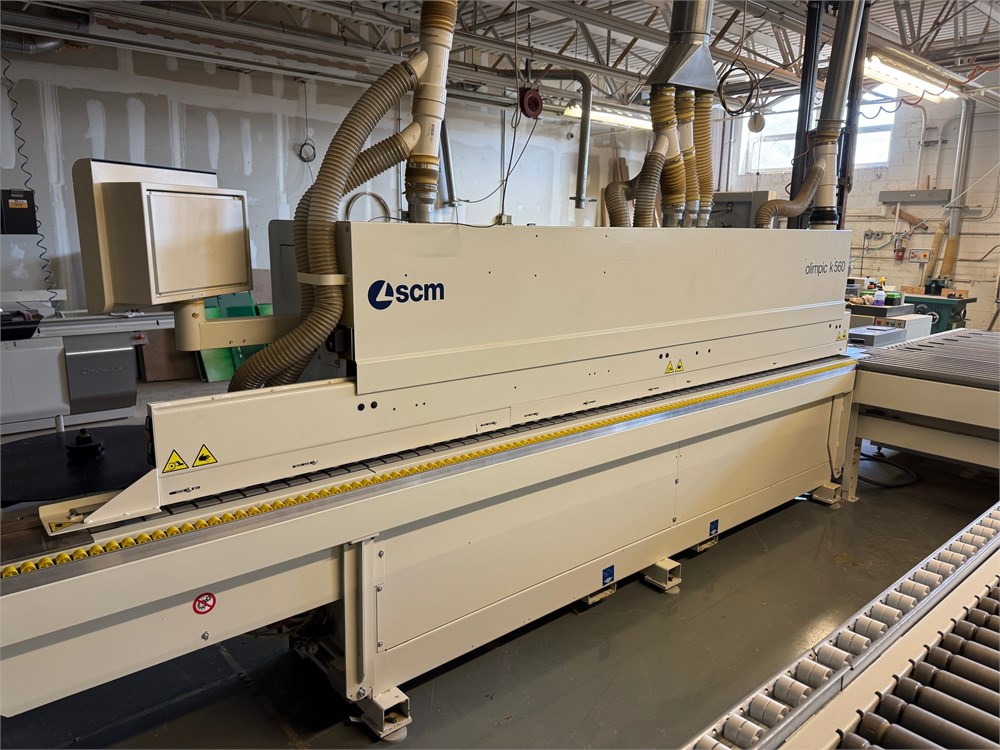

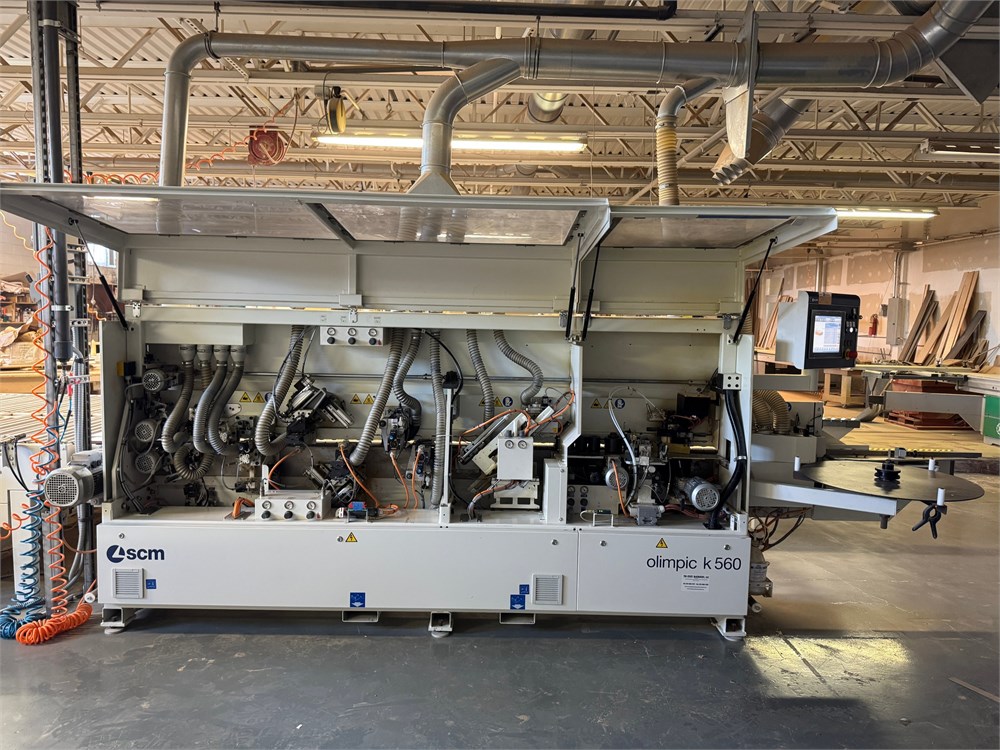

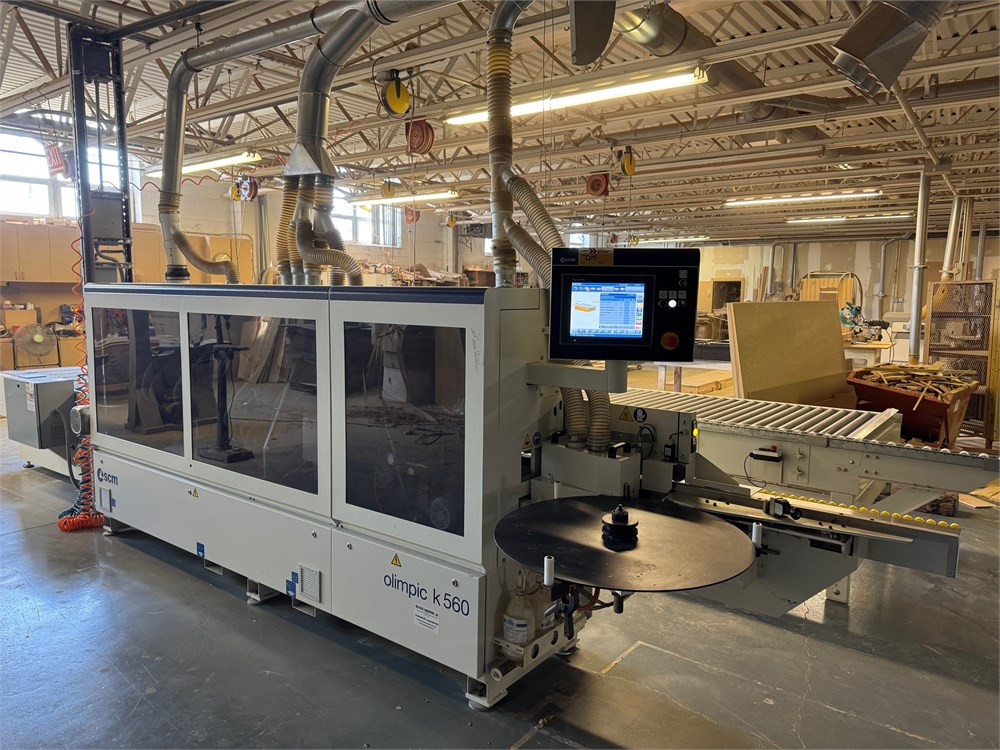

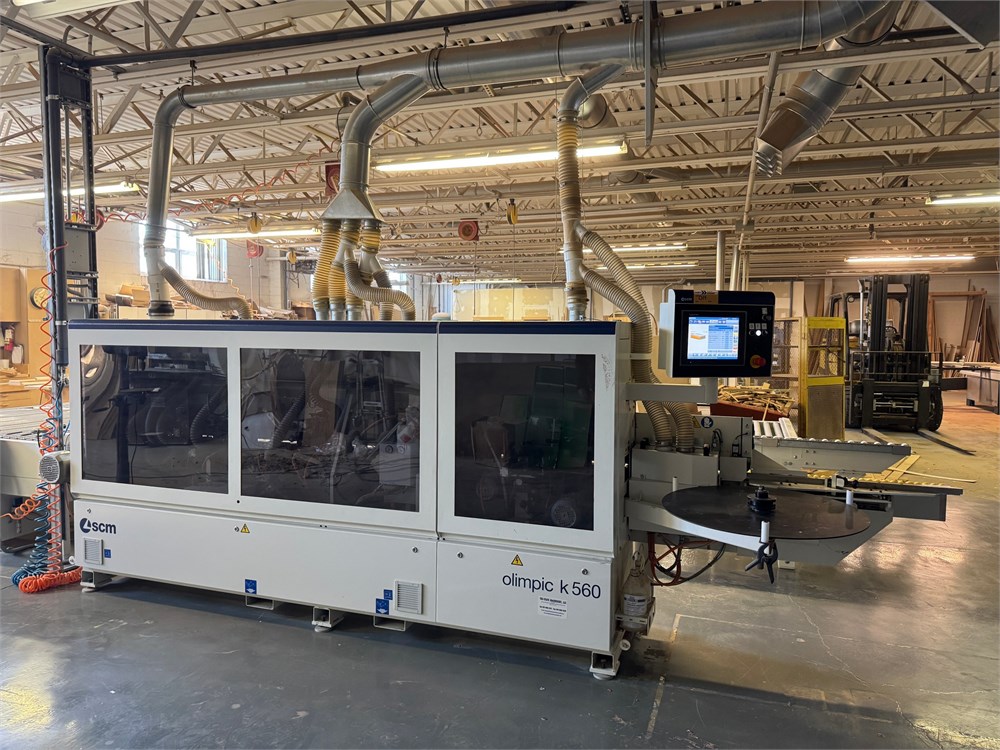

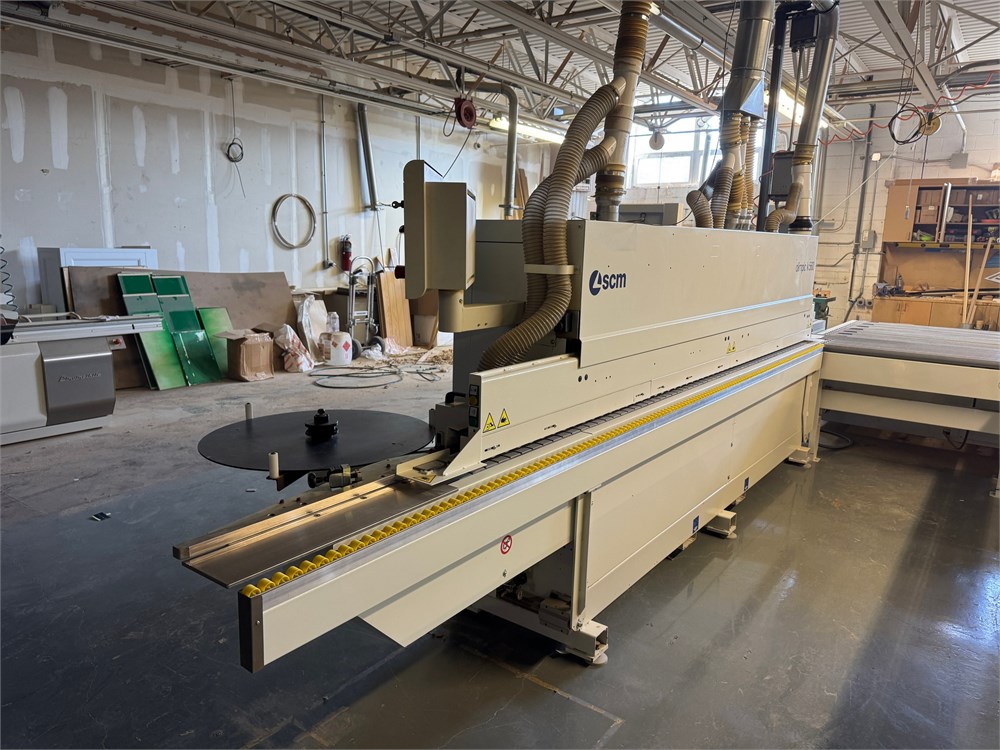

SCMI "Olimpic K 560" Edgebander - Pre-mill & Corner Rounding
Edge Capacity, 0.4 to 6 mm (0.016 to 0.25")for strip feeding.
Min. Panel width 60 mm(2.375"); Min Panel length 140 mm(5.5"). Min./max. Panel thickness 8 -54 mm (0.375" - 2.125"); Minimum distance between panels600 mm (24").

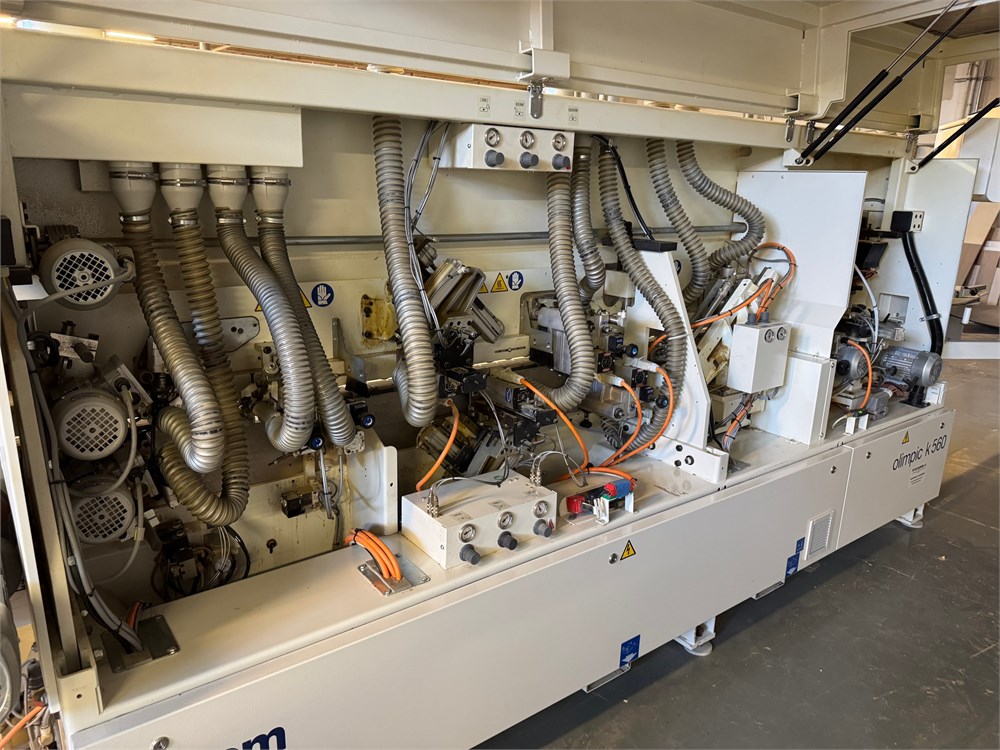

Pre-milling station:(2) 2.0 HP (1.5 kW) motors, to rectify/clean panels already sized.
Adjustable In-feed Fence: Manually pre-set with digital indicator, pneumatic in/out positioning.

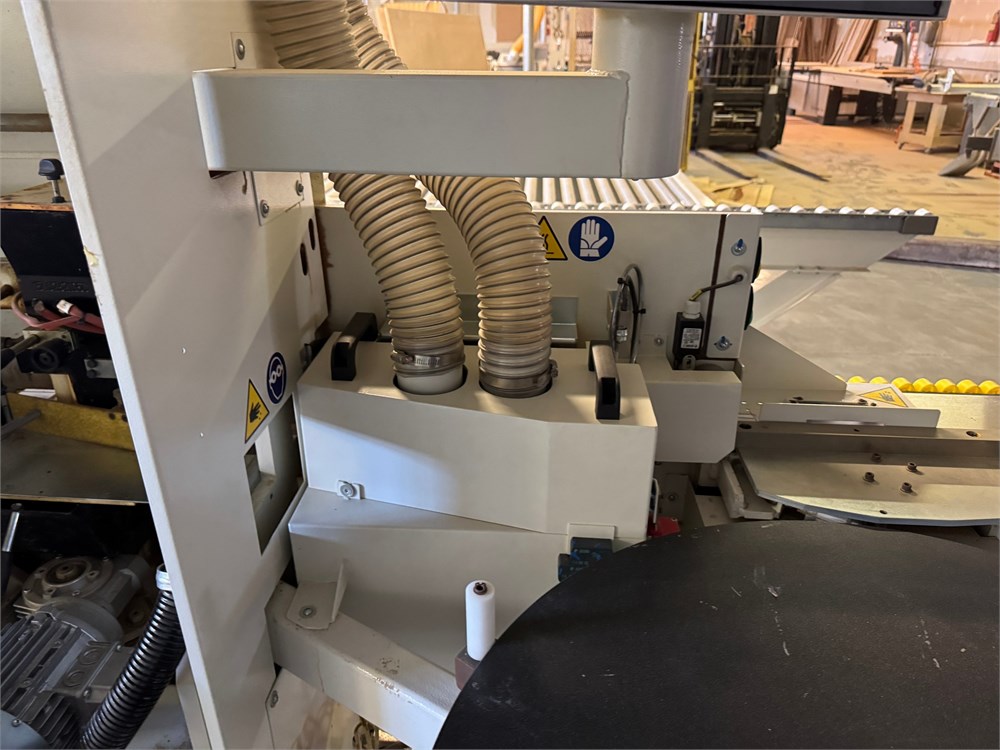

Automatic Strip & Coil Feed Magazine: For straight edges and 3 mm guillotine for coils.
Gluing Station: For EVA (Hot Melt) with Quick change/disconnect Teflon glue pot for fastglue tanks changeif needed.Heat-up time approx. 10 Min.
Pressure Section: Manual digital positioning;Teflon coatedpneumatic driven roller &(2) spring loaded idle rollers.

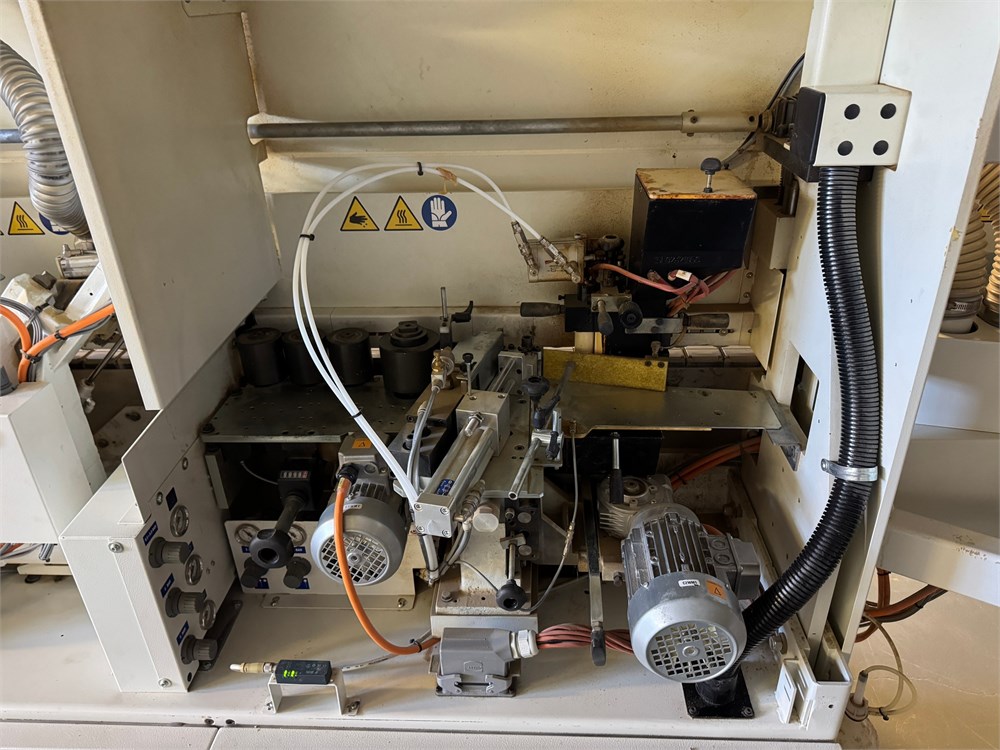

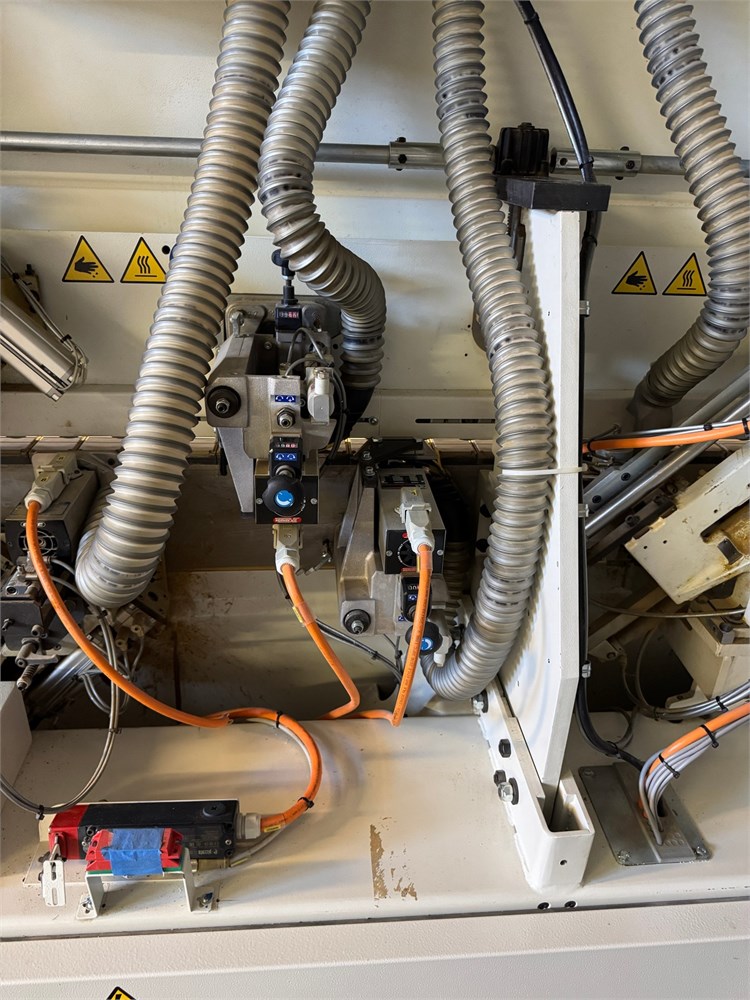

End Trimming Station:Front & rear 2 x 0.5 HP, 12,000RPMmotors mounted on THK guides, swivels 0° - 15° for straight & angle cutting.

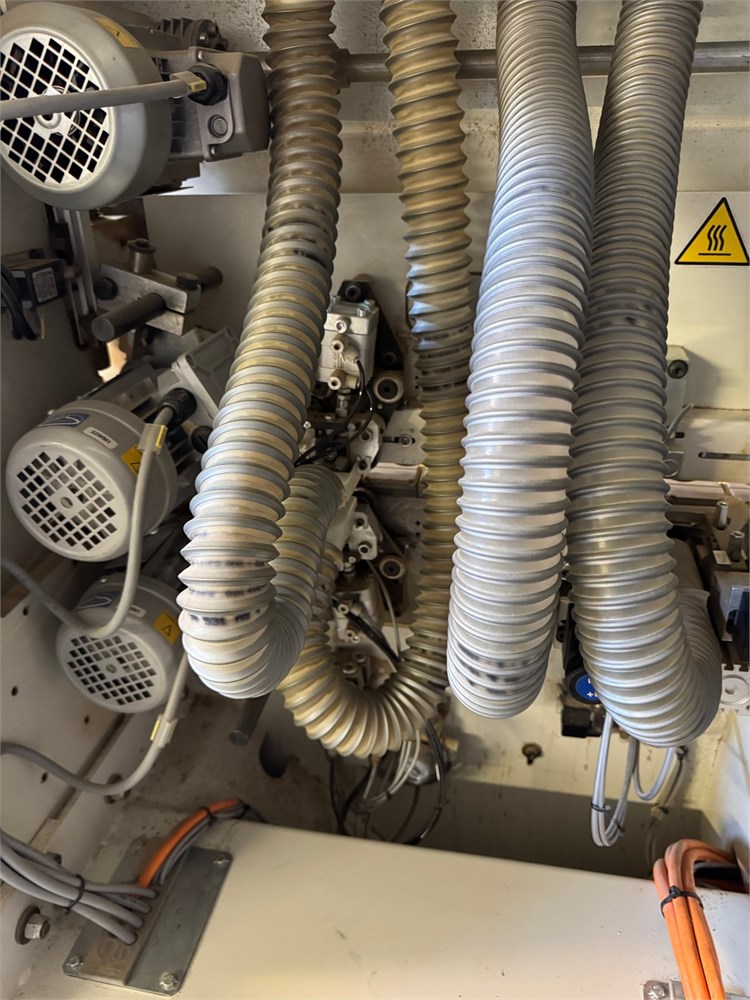

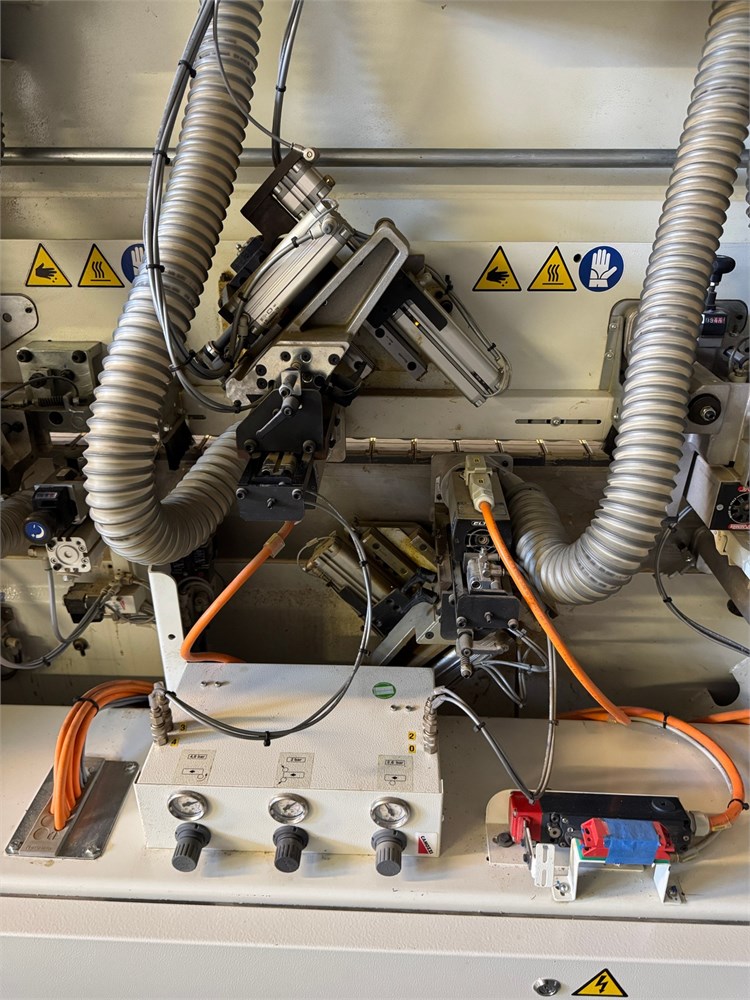

Top & Bottom Trimming Unit: 2 x0.7 HP - 12.000 RPM motors, capable of tilting &pneumatic positioning for (3) settings,flush/bevel/radius trimming for quick setup.

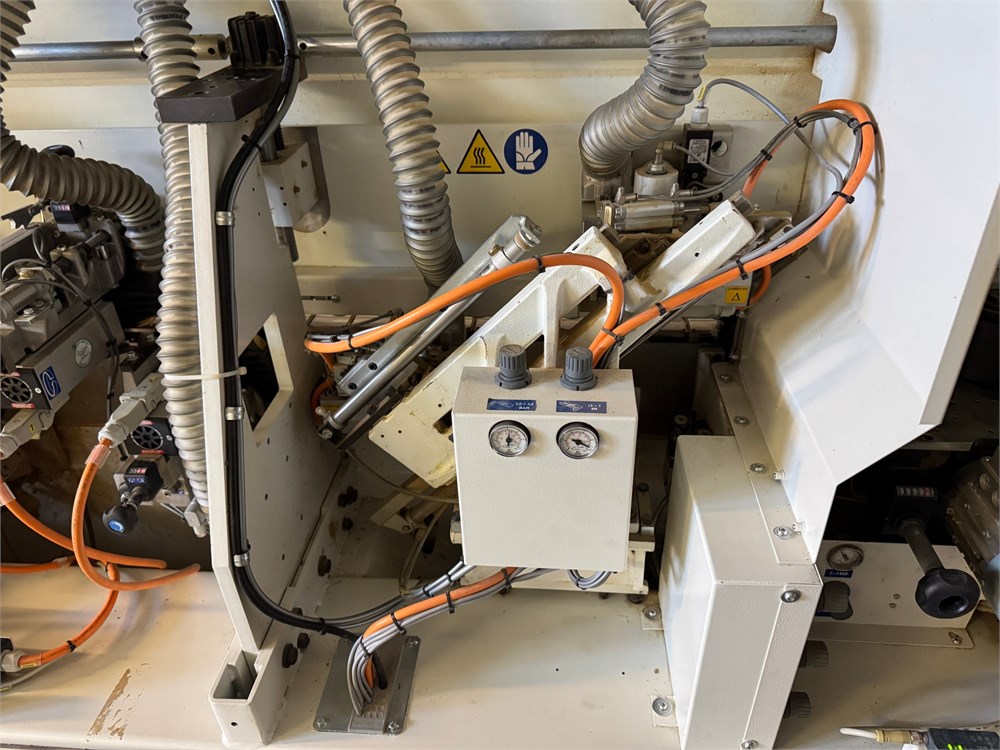

Corner Rounding Unit" Round 2M": corner rounding unit with (2) 0.80 HP independent motors that slide on THK guides.
Top & Bottom Profile Scraping Unit with digital indicators. Large dia. copy wheels for max. accuracy and pneumatic in/out positioning.
Glue scraping Unit: Eliminates any excess glue.
Buffing Unit: Top/bottom, 2 x 0.25 HP - 2,800 RPM motors, tilting up to 12°.

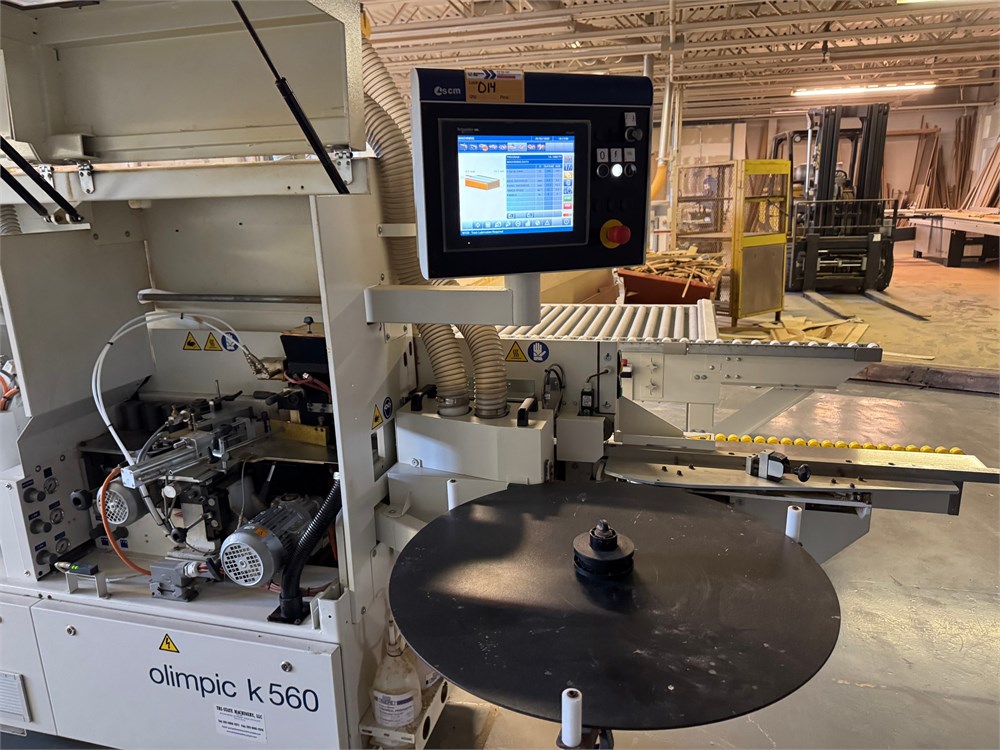

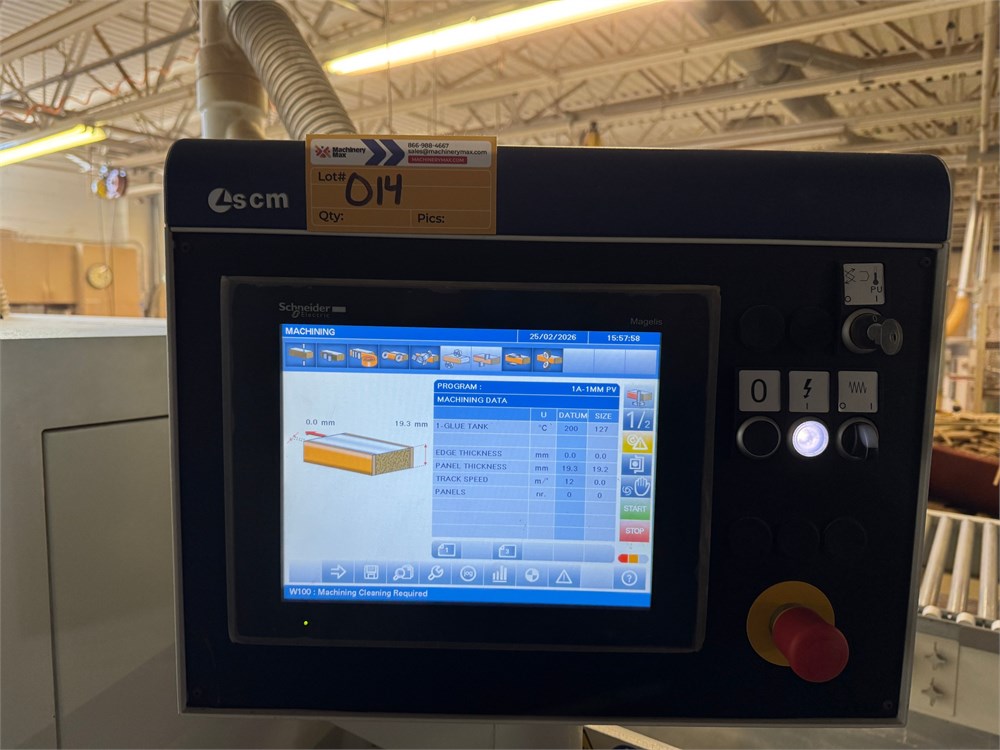

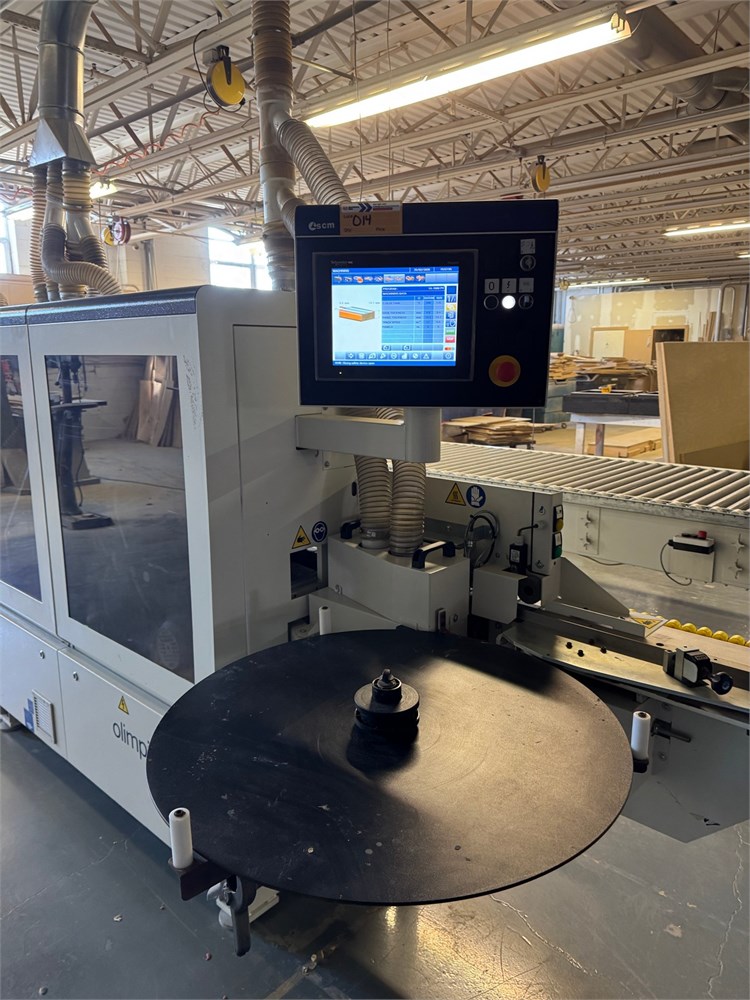

"Magelis" Controller with 12" touchscreen display
2-Speedfeed-speed of 40 & 60 FPM (12 & 18 MPM); 1 x 2.5 HP feed drive motor;

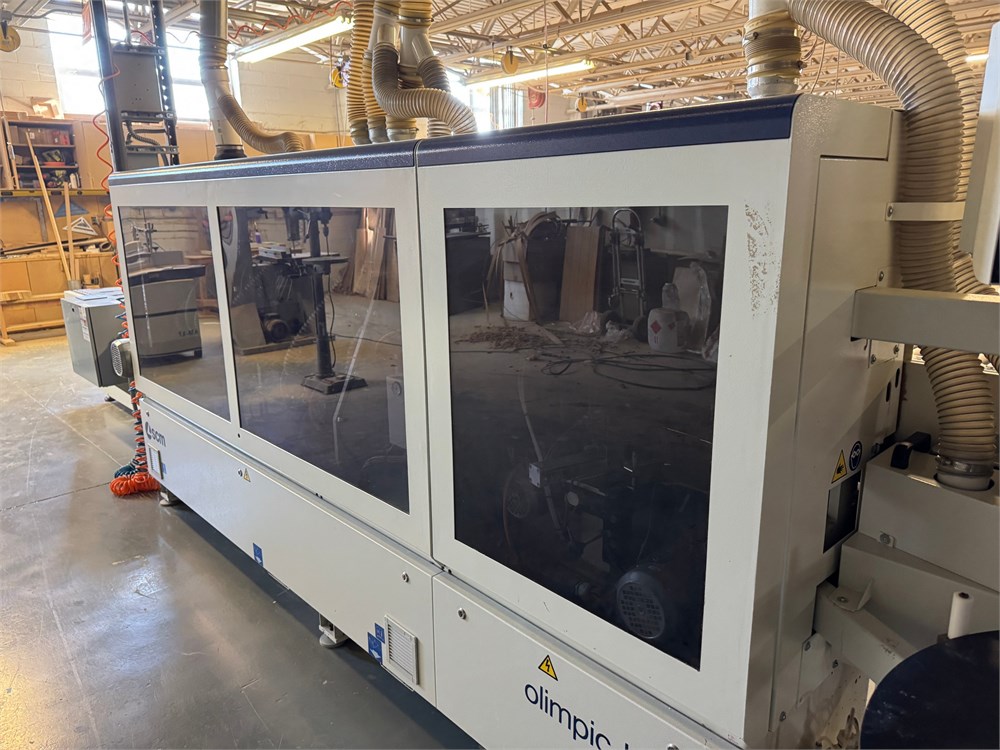

Full sound enclosure cover and outboard panel support.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
