Homag "Vantage 12L" CNC Machining Center
Active
Woodworking Machinery Auction - Alpharetta, GA
Alpharetta, GA
- Starting Bid : $1,000.00 USD ( ) No Reserve
- 0 Bid(s)
Woodworking Machinery Auction - Alpharetta, GA ( Active #78588403 )
Custom cabinet shop in Atlanta, GA area is auctioning a Homag "Vantage 12L" CNC Machining Center and Brandt "KDF 440 AT" edgebander no longer needed for continuing operations.
-
Pick Up Location
1075 Nine N. Dr. Suite 200 Alpharetta, GA 30004
-

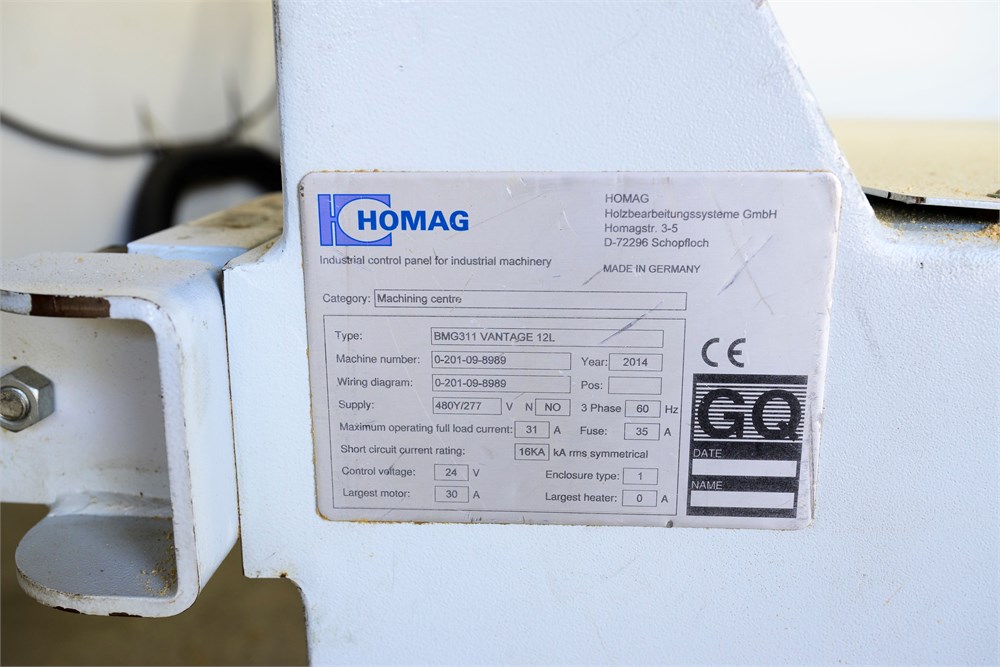

Make
Homag
-
Model
BMG 311 Vantage 12L
-
Serial Number
0-201-09-8989
-
Year
2014
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment only, contact Juan Fabian, 209-704-4305, [email protected]
-
Load Out Period
March 23 - 26, 2026 (By Appointment Only)
-
Estimated Dimensions
25' L x 17' W x 9' H (as setup in photos, shipping dimensions TBD)
-
Estimated Weight
10,000 Lbs
-
Seller Comment
A rigger is required. Buyer's Responsibility for Break-down, loading and removal. By appointment ONLY!
-
Load Fee
-
Lot Notes
-
page views
27

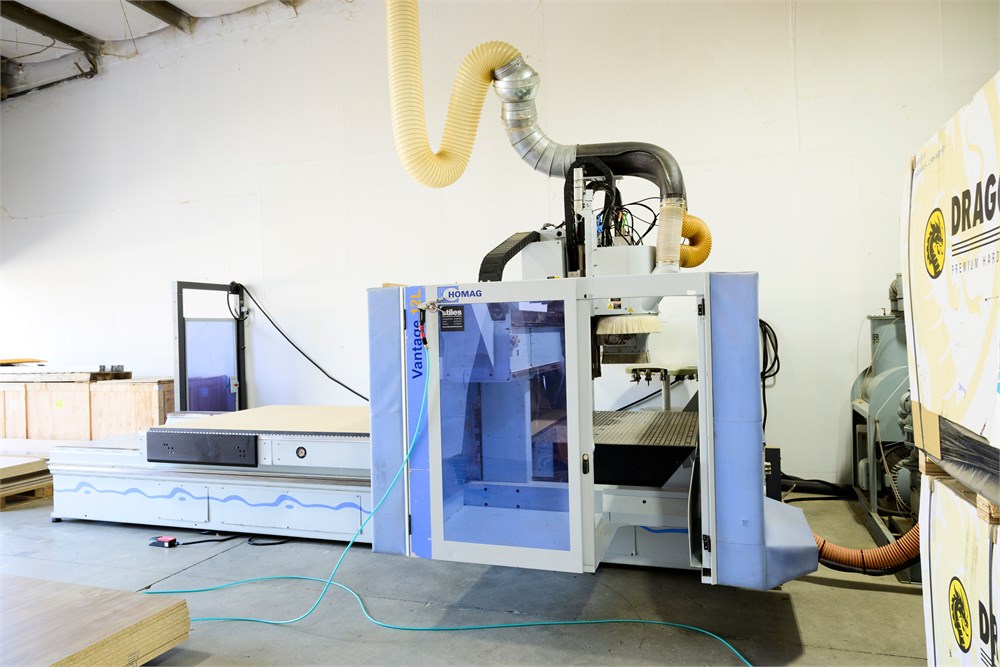

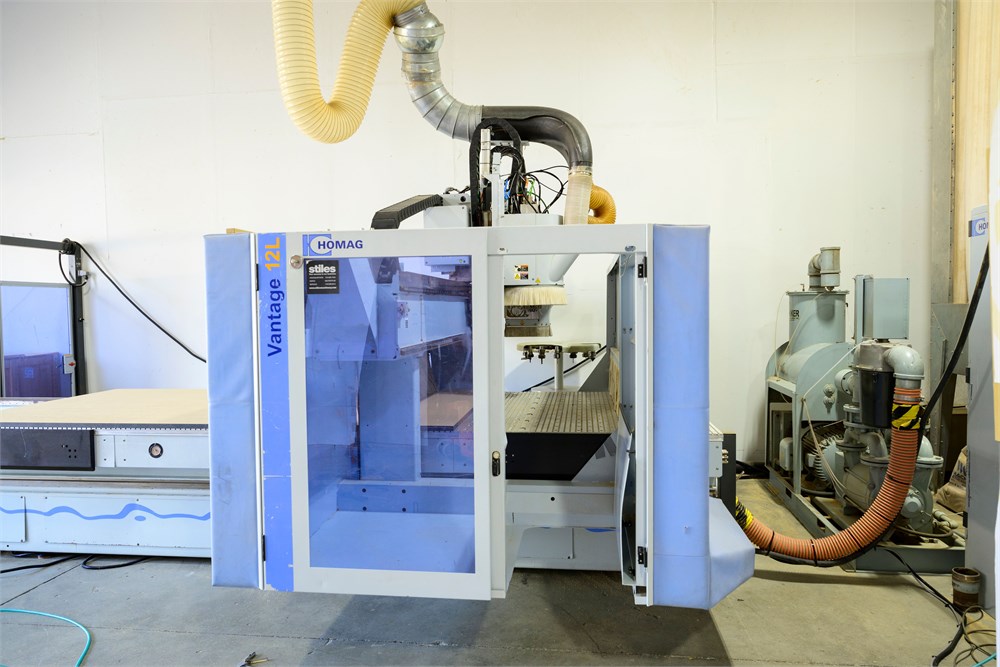

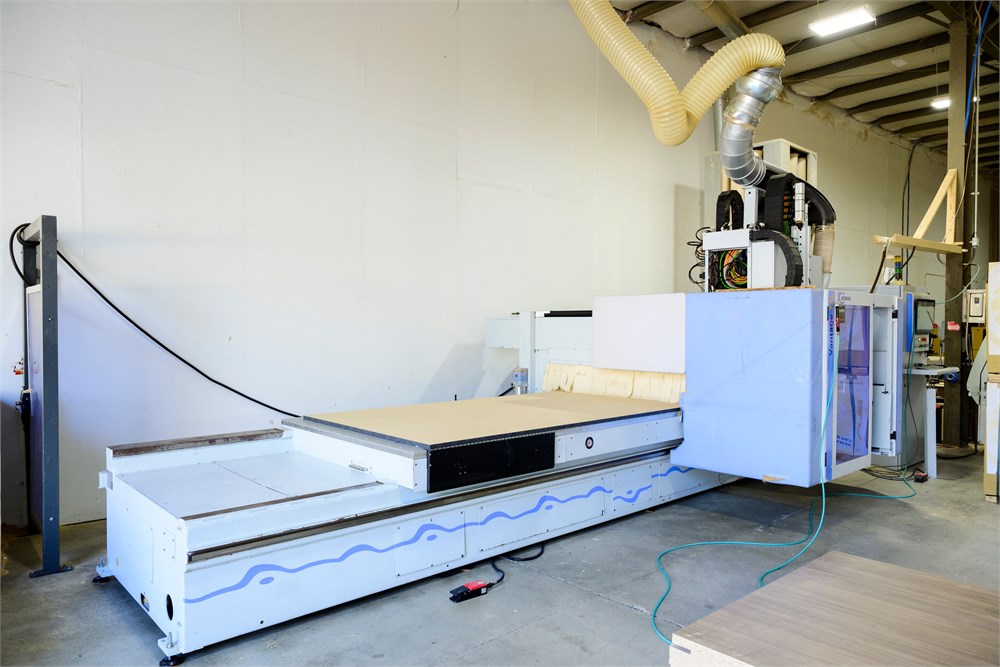

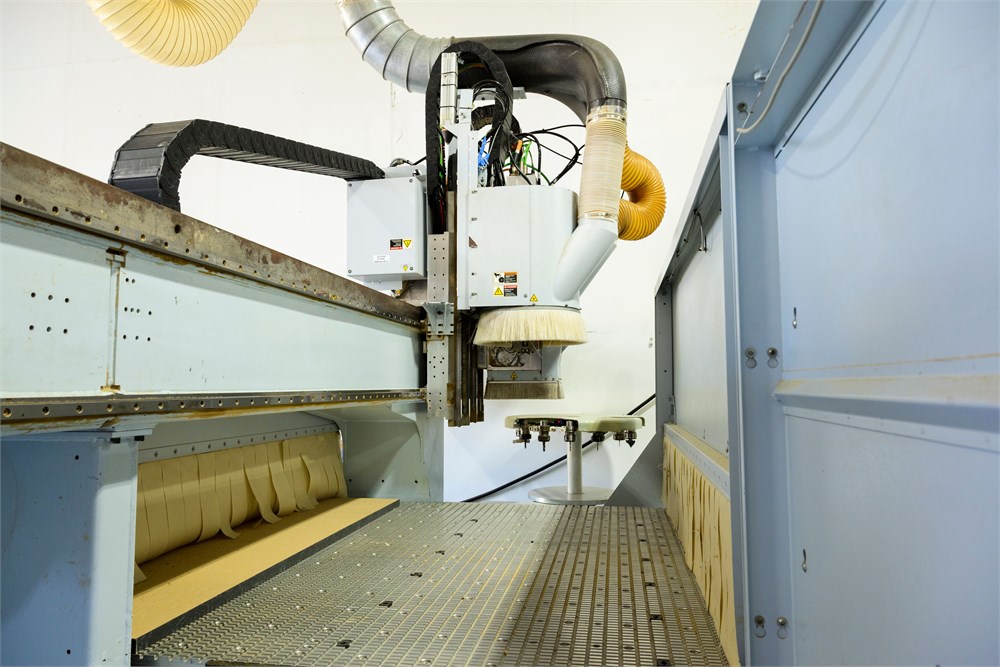

Homag "Vantage 12L" CNC Machining Center
Fixed table, moving gantry

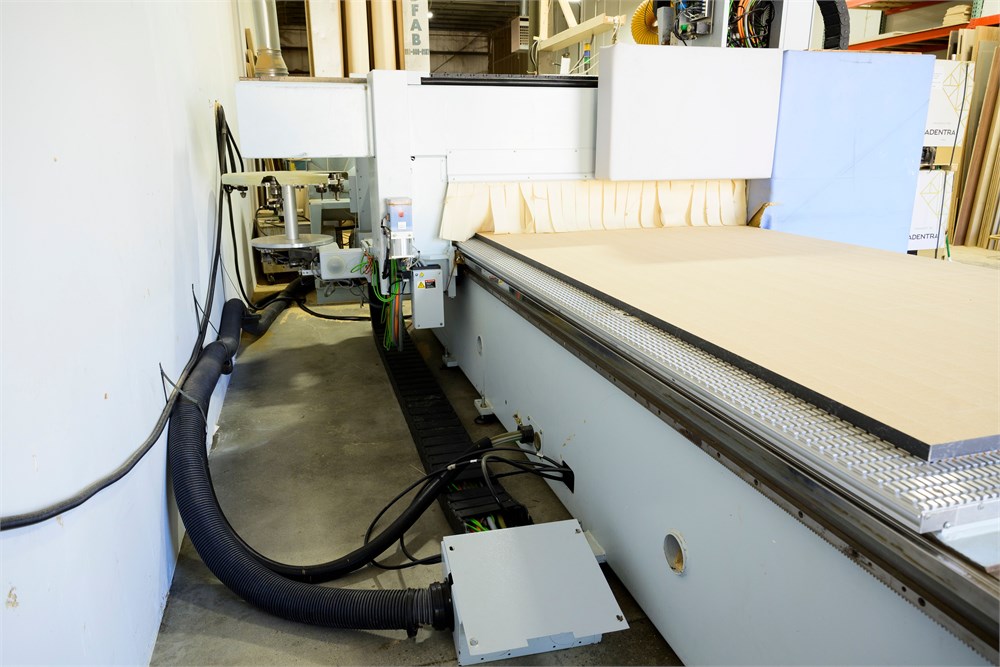

Aluminum router table
60" x 144" working area
Gridded
Pneumatic reference stops
Vacuum gauges

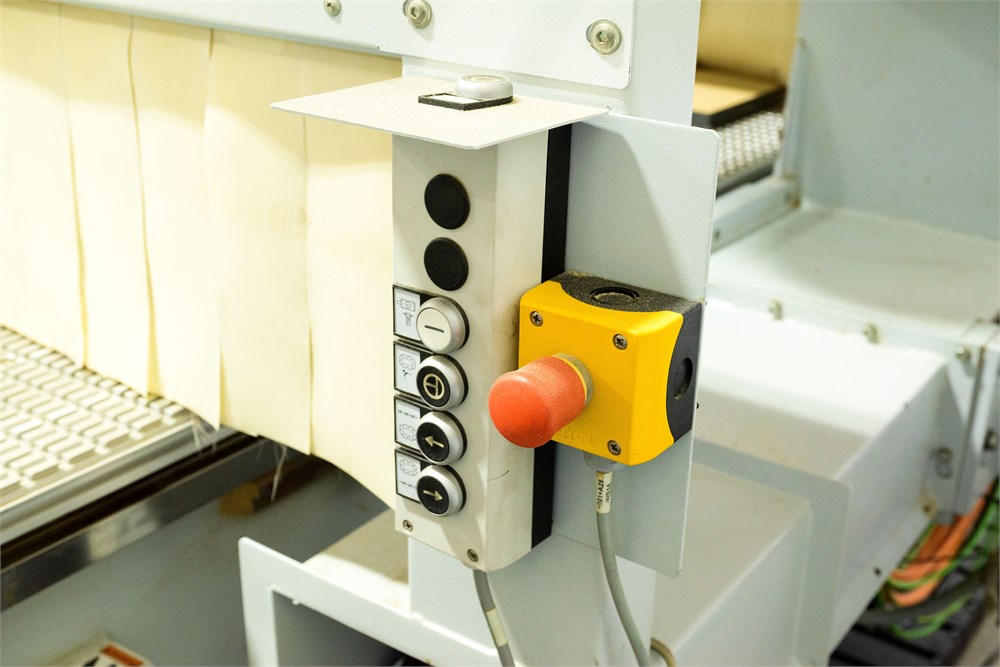

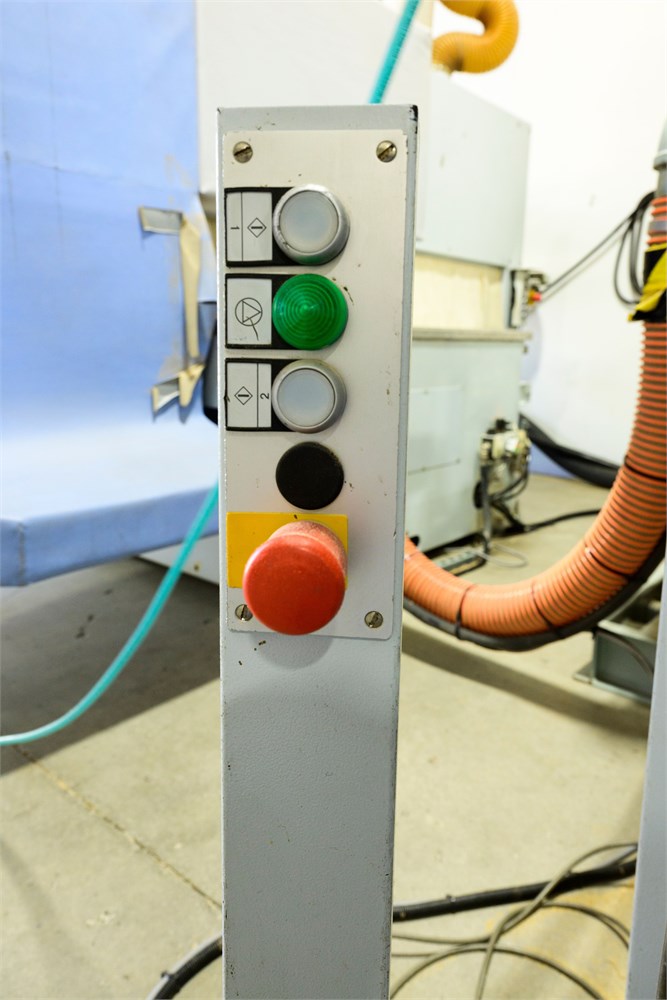

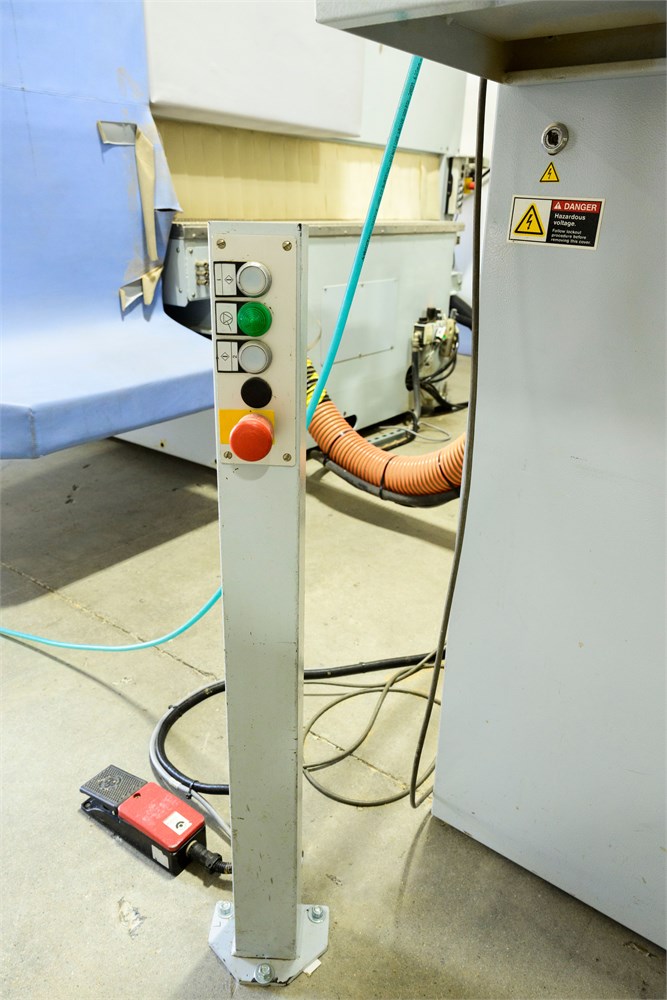

Foot pedal control

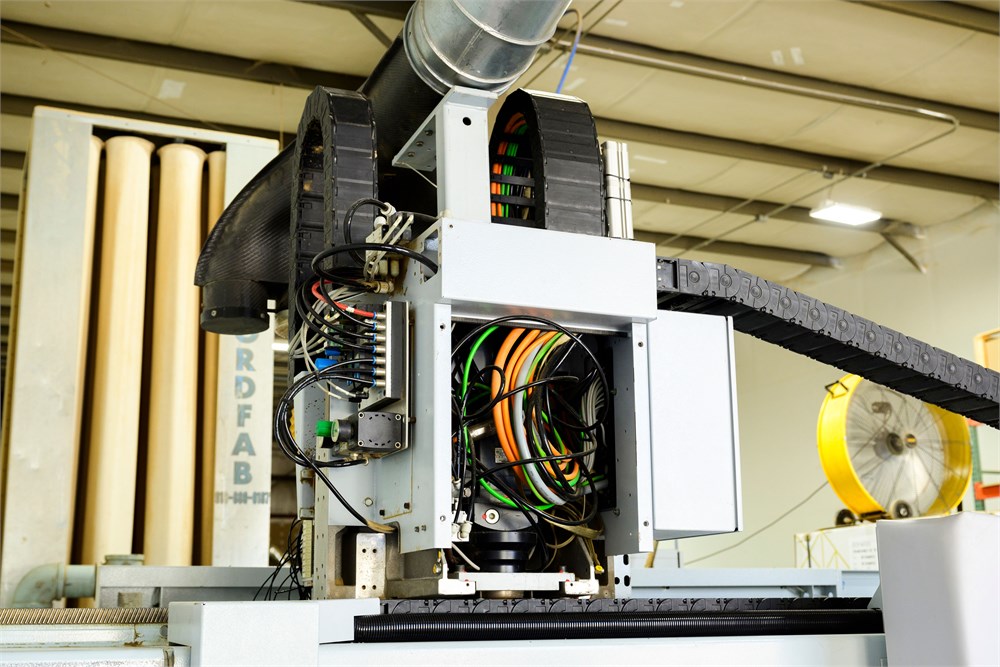

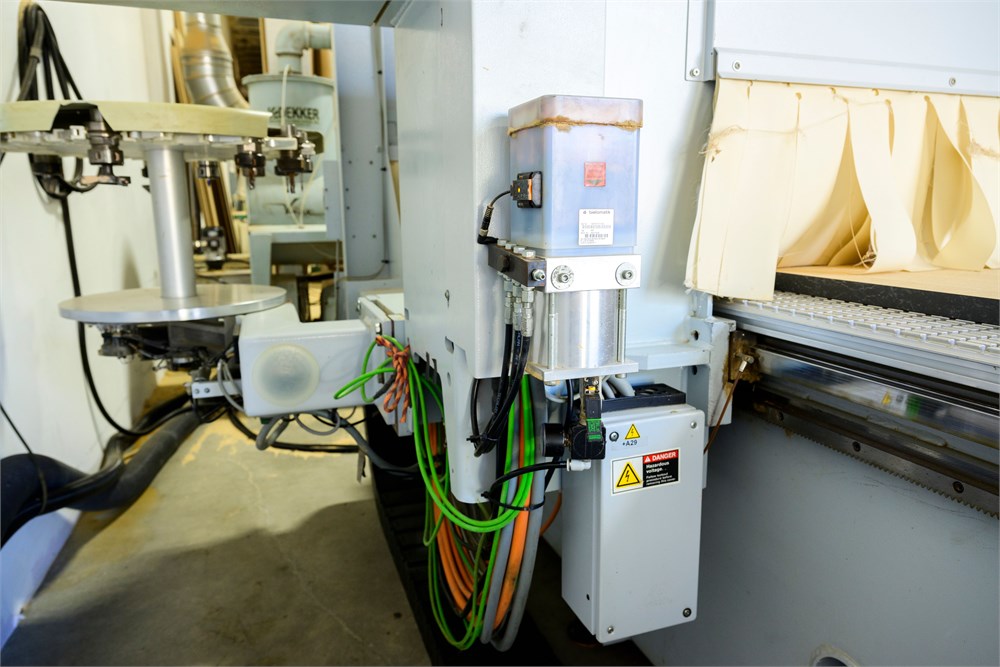

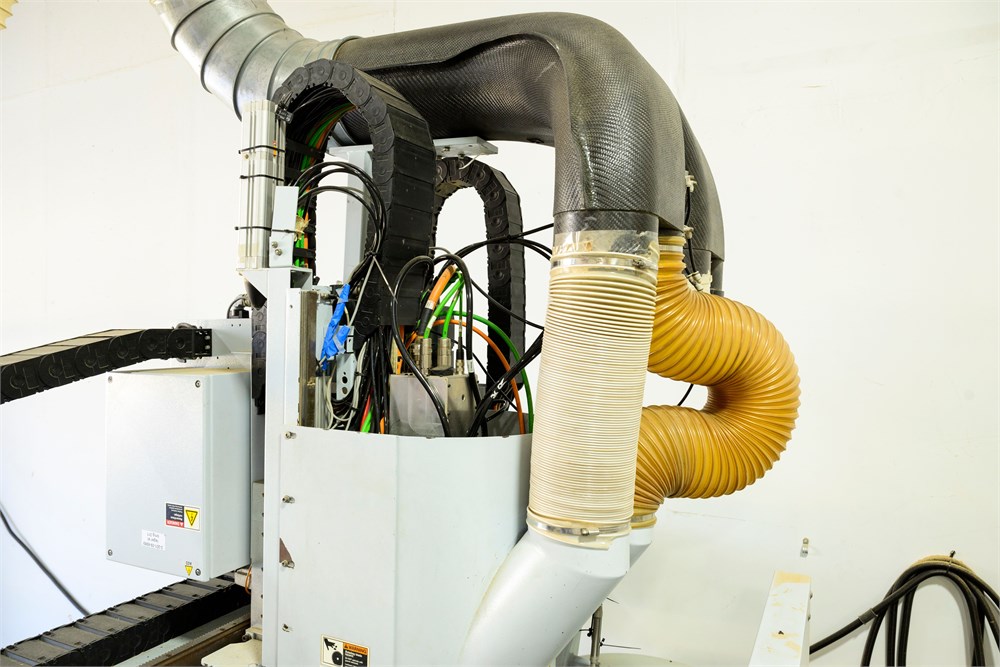

Router
- 16 HP
- HSK, quick-change
- Liquid-cooled
- Variable speed (1,000 - 24,000 RPM)
- RH or LH rotation
- NC Controlled C-axis with 360 degree processing

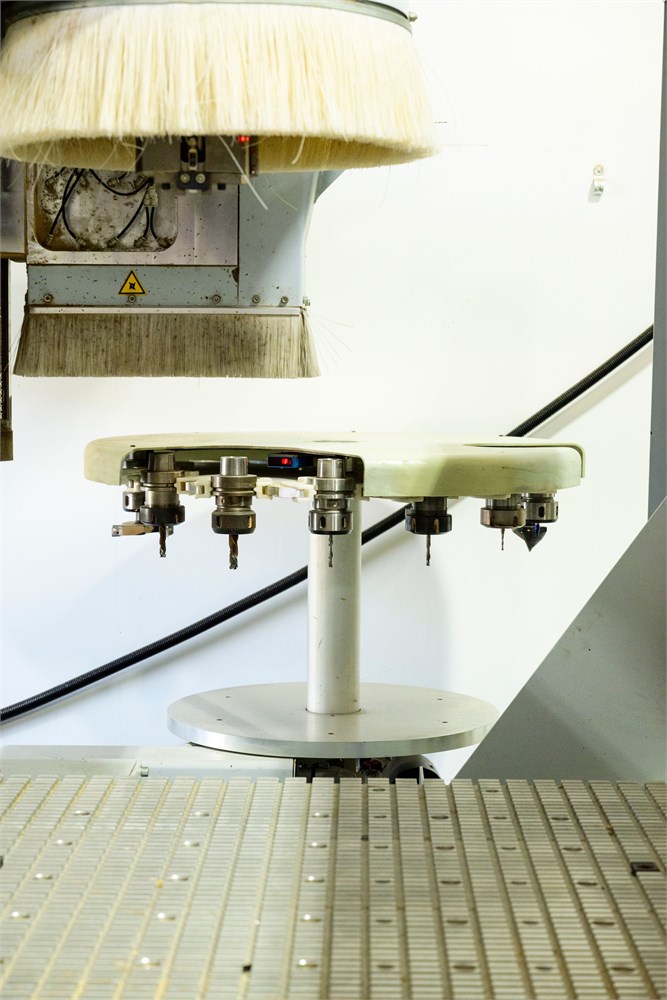

14-position rotary tool changer

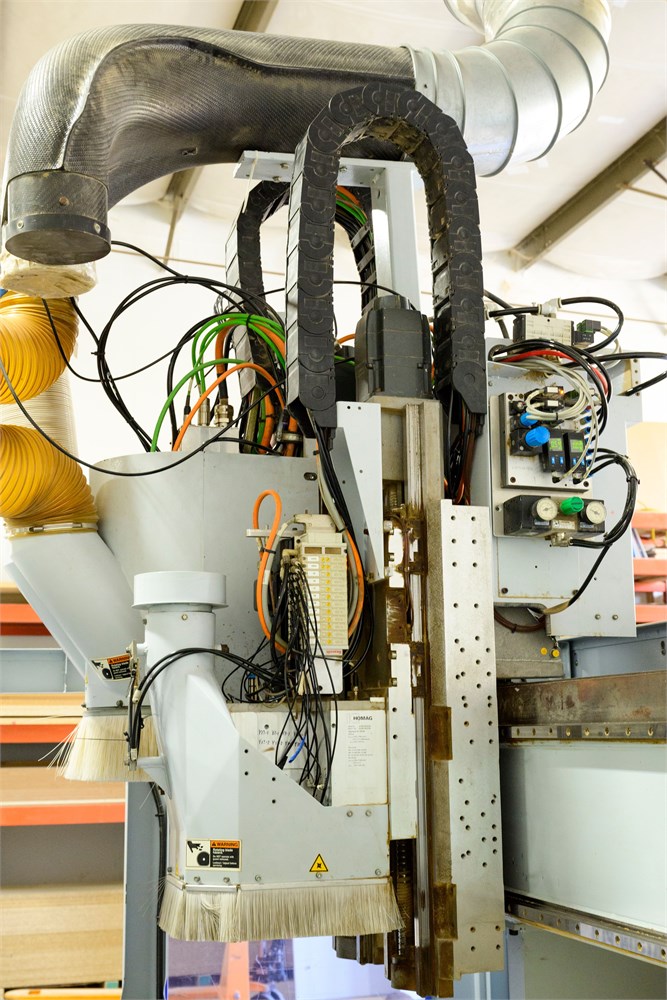

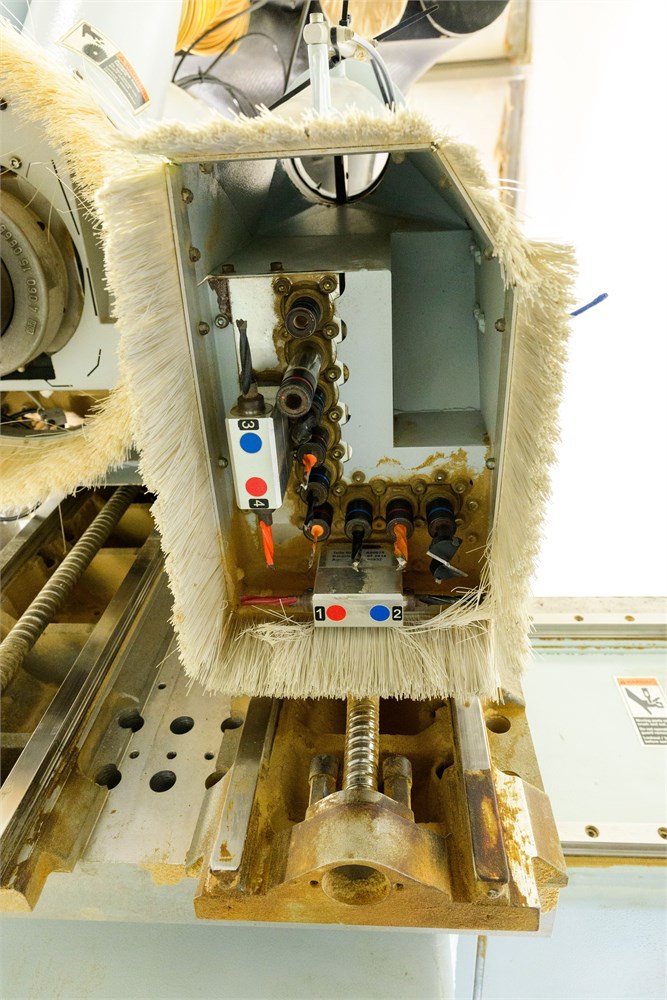

Boring unit
- (9) vertical spindles
- (1) double outlet horizontal spindle in x axis
- (1) double outlet horizontal spindle in y axis
Pneumatic dust blast gates
Centralized lubrication system
Sound enclosure

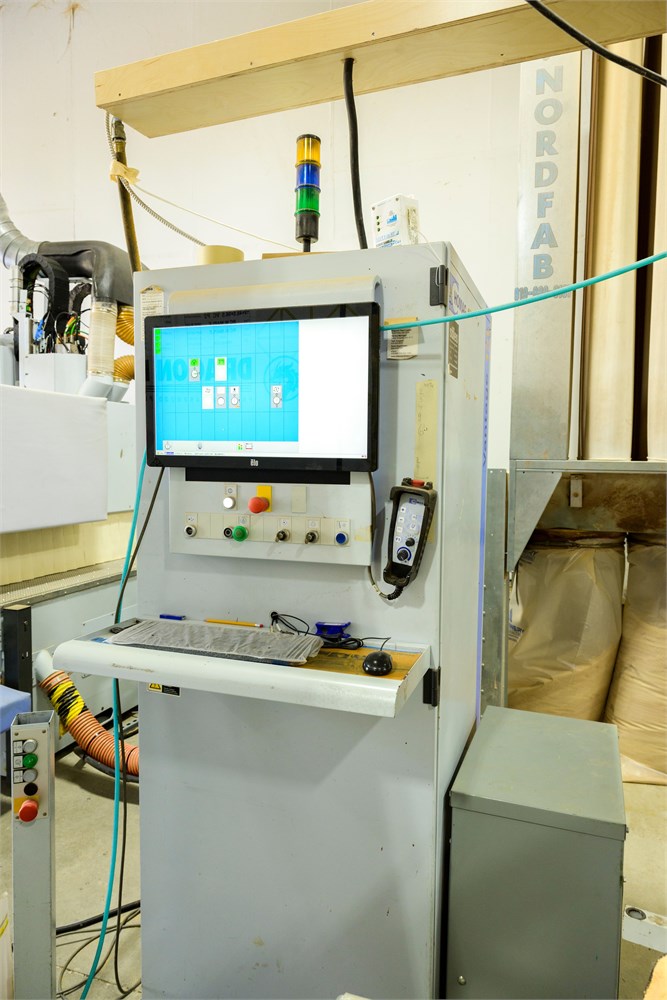

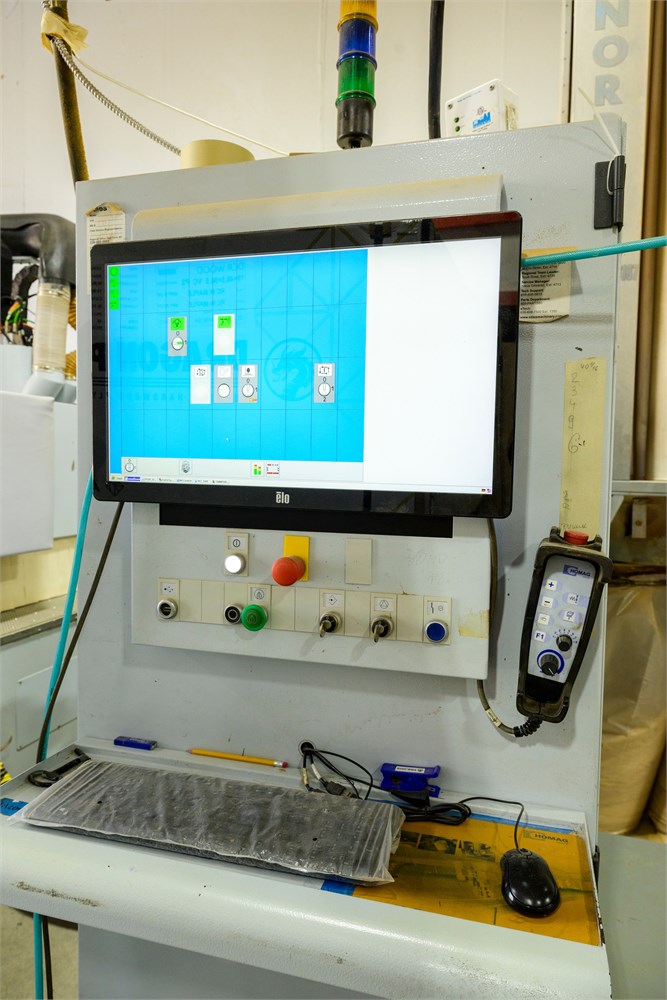

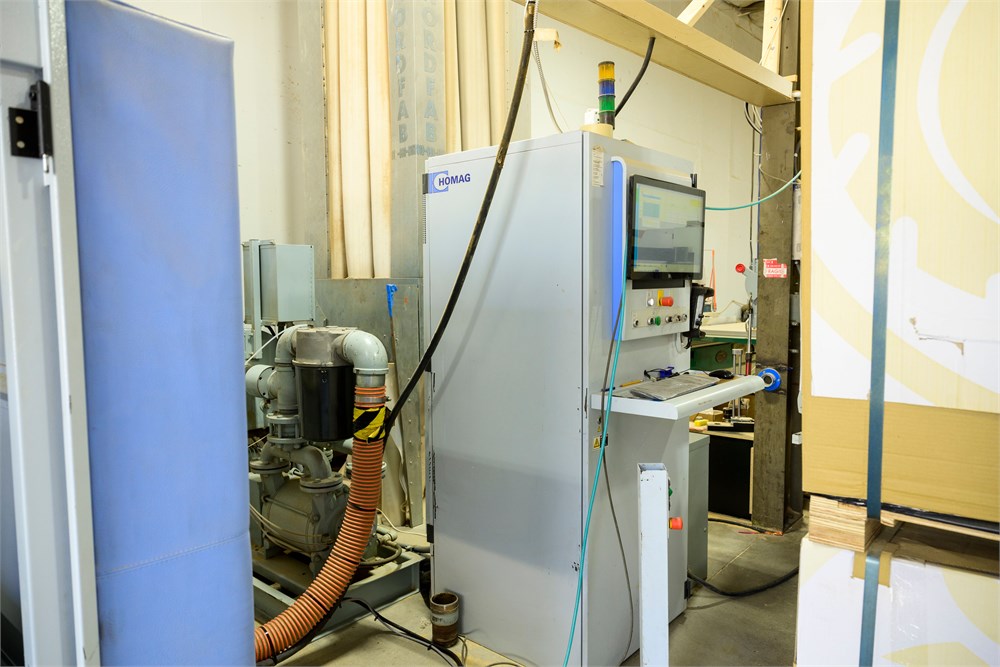

PC control with "Homatic PC Power Control" running Windows and WoodWOP. 17" Color graphic monitor, keyboard for data entry, CD disk drive, EtherNET interface for LAN connection to office PC, RS-232 serial interface; contained in a separate free-standing, air-conditioned control cabinet; remote control pendant.

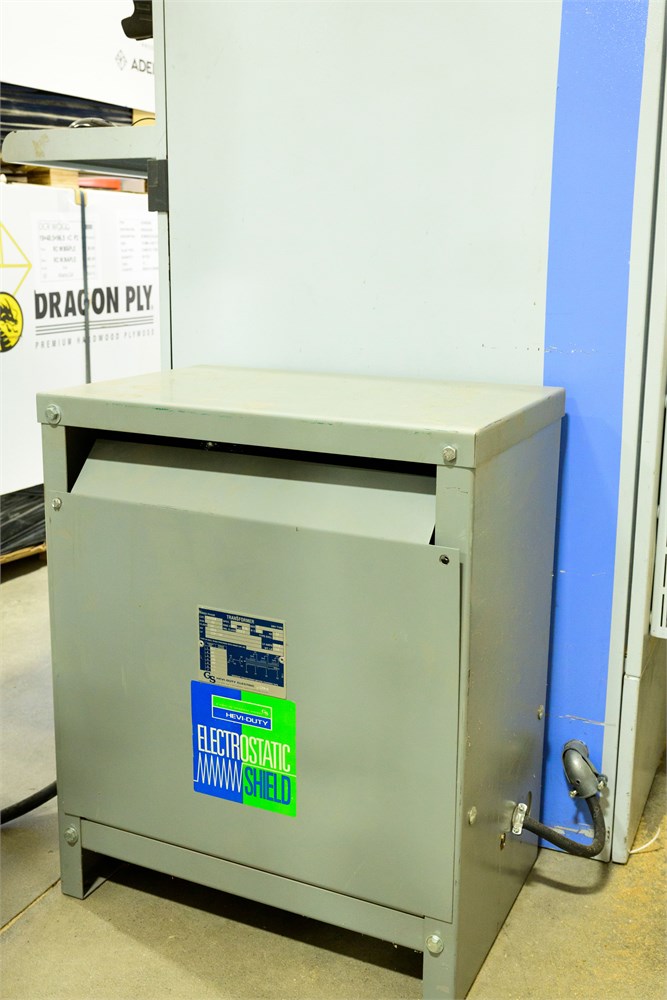

External electrical transformer

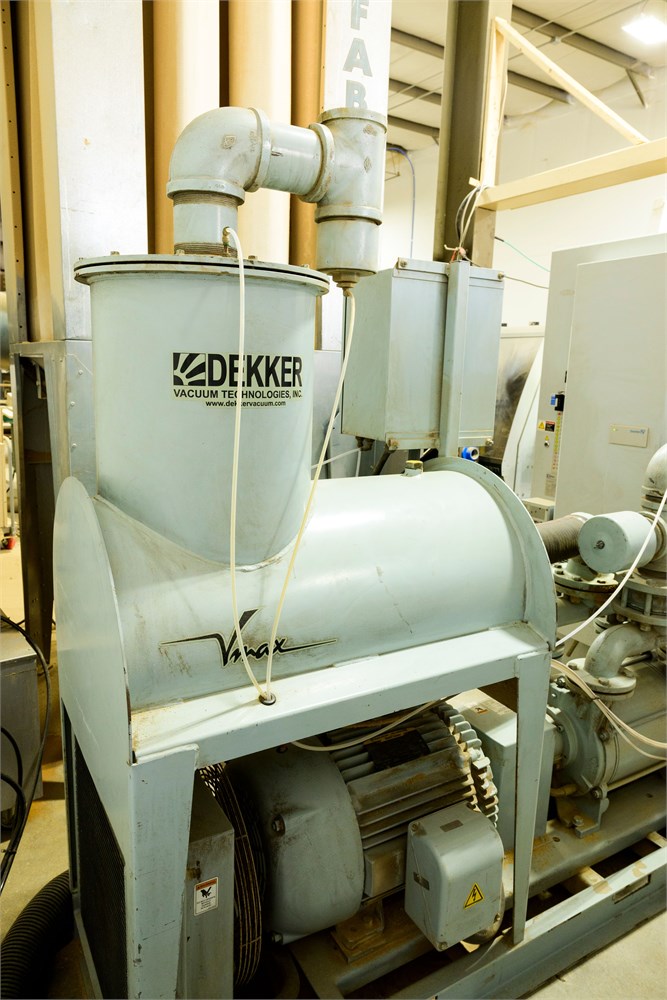

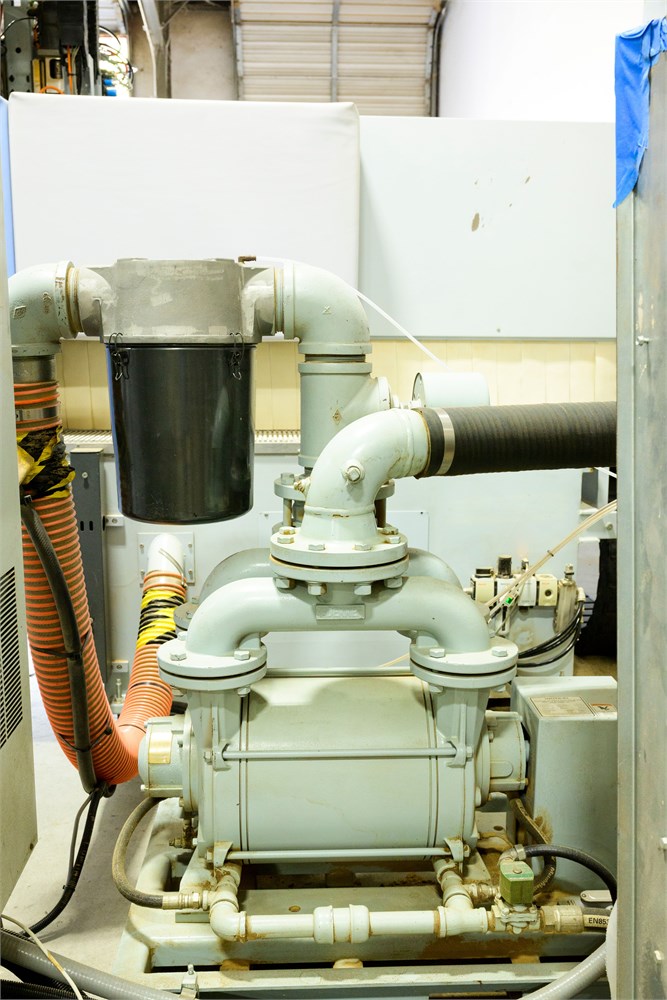

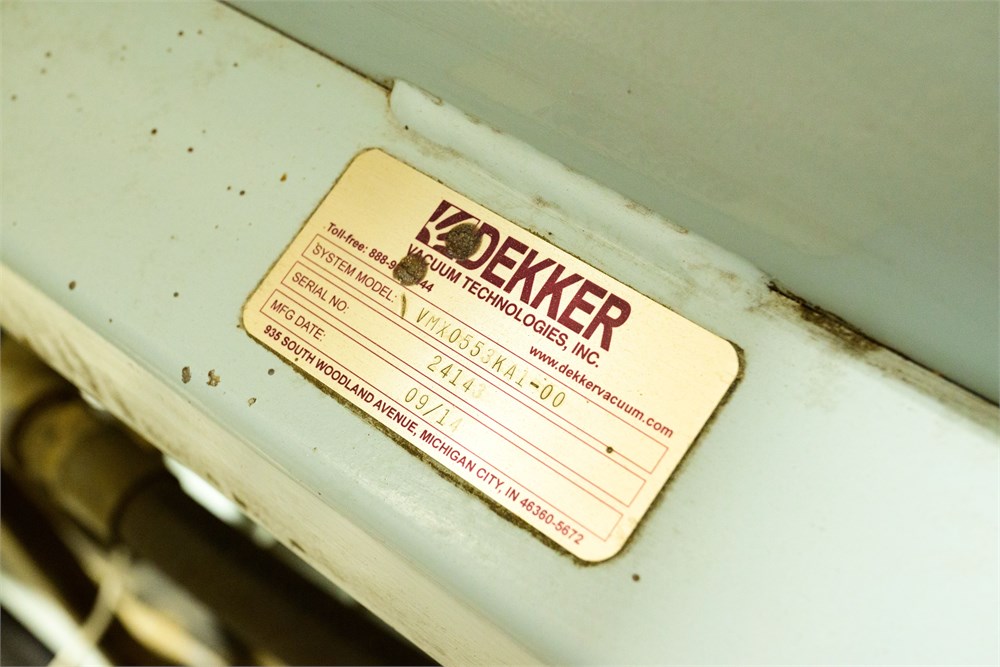

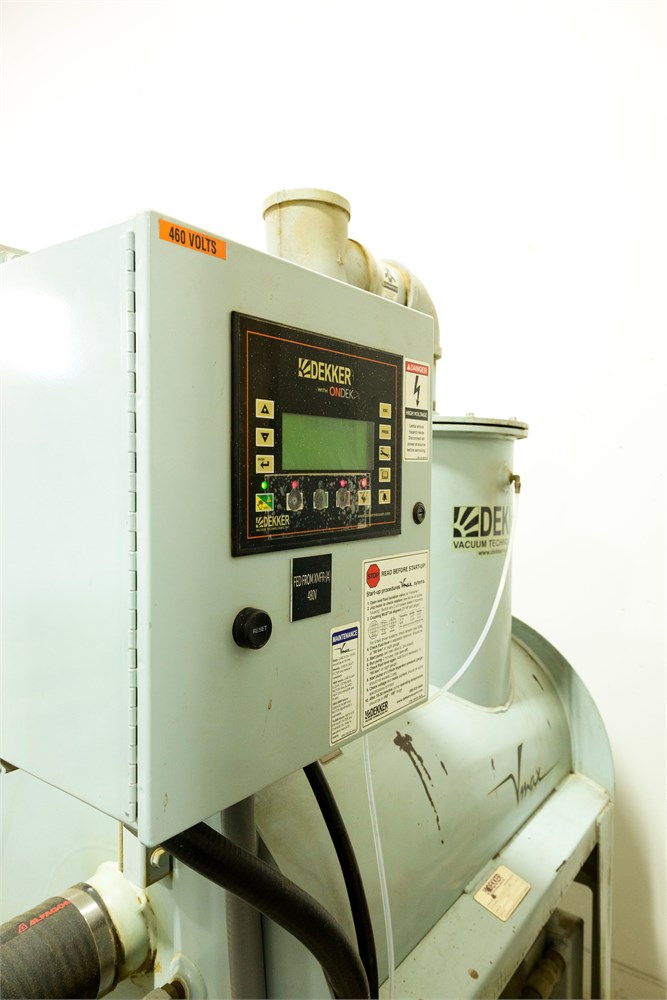

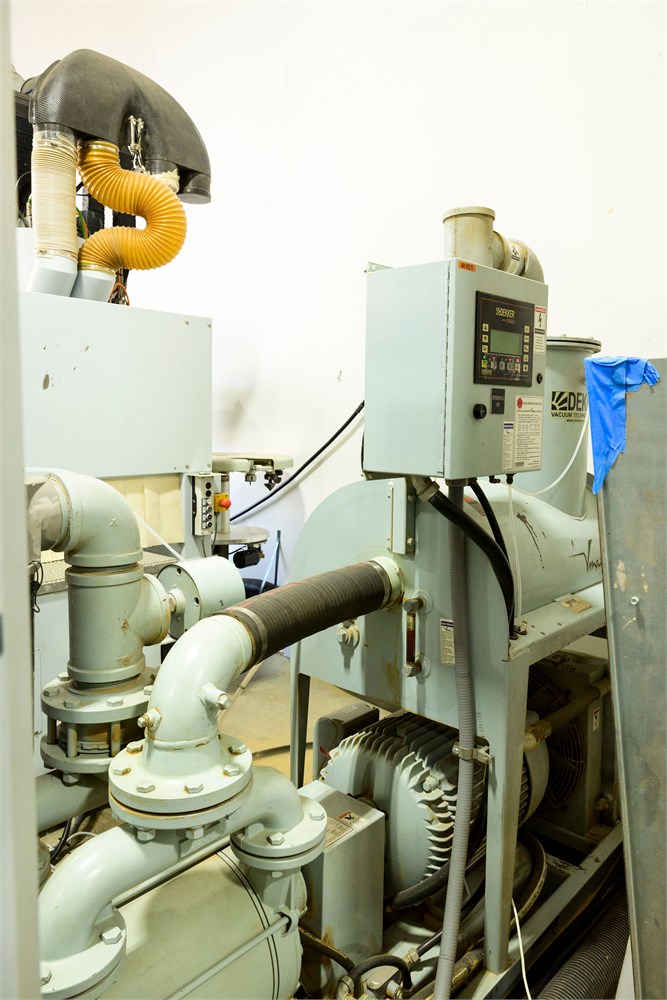

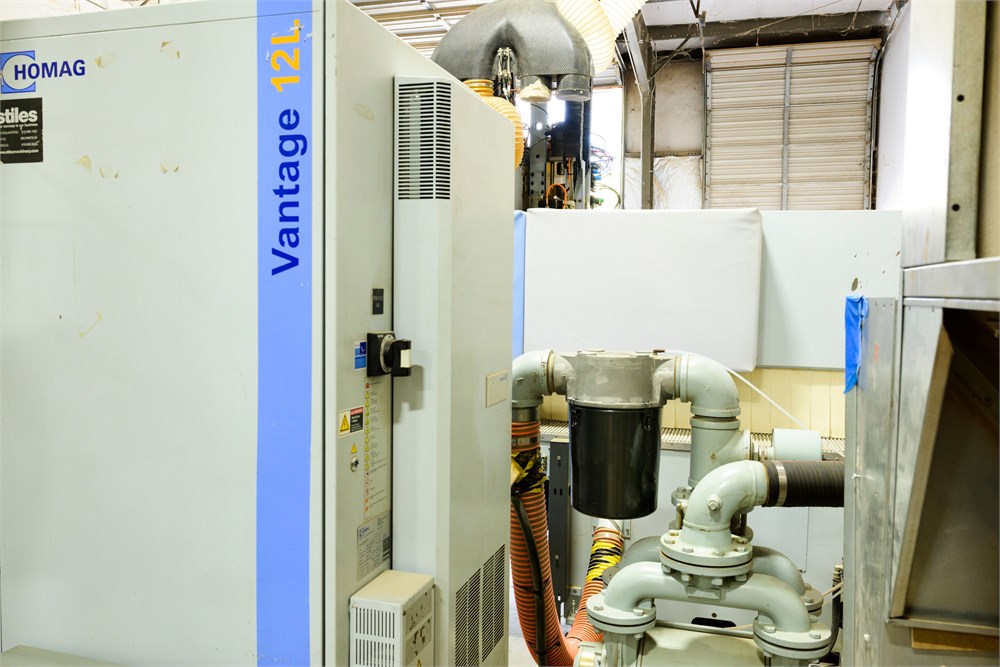

Dekker "VMX0553KA1-00" Vacuum Pump
- Year: 2014
- SN: 24143
- Oil-sealed, liquid-ring compact motor-mounted vacuum pump system
- 40HP
- Touch screen controller
- 550 CFM
- Maximum 29" Hg
Tooling, tool holders and ducting not included
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
