Brandt "KDF 650 C" Edgebander - Pre-mill & Corner Rounding
Active
Complete shop auction - Online Only
Charlottesville, VA
- Starting Bid : $1,000.00 USD ( ) No Reserve
- 0 Bid(s)
Cavanaugh Cabinets Complete Online Auction Event - Charlottesville, VA ( Active #78378095 )
Cavanaugh Cabinets Complete Online Auction Event - Charlottesville, VA. After 45cyears of successful and renowned business operations the owner has decided to retire. This is a complete sale of all assets in the facility. Highlights include: C.R. Onsrud CNC Router, Brandt Edgebander, Holzma Beam Saw, Gannomat Dowel Inserter, Weinig S4S, Butfering Wide Belt Sander, Silver SLR Saw and much more. 150 plus lots available.
-
Pick Up Location
1329 High Street, Charlottesville, VA 22902
-

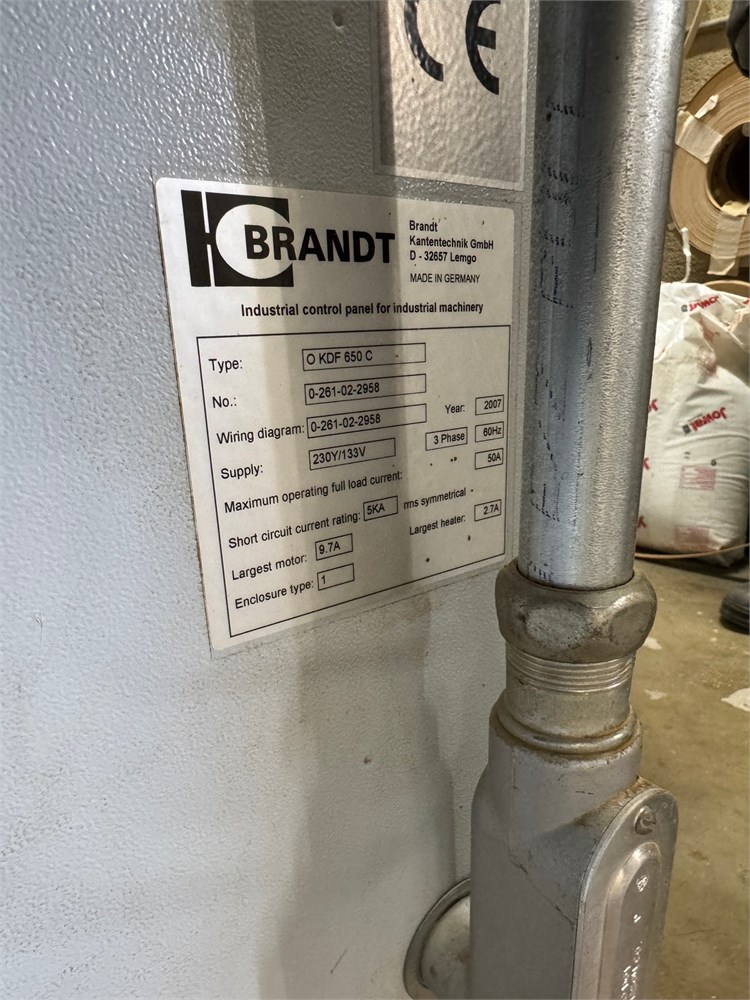

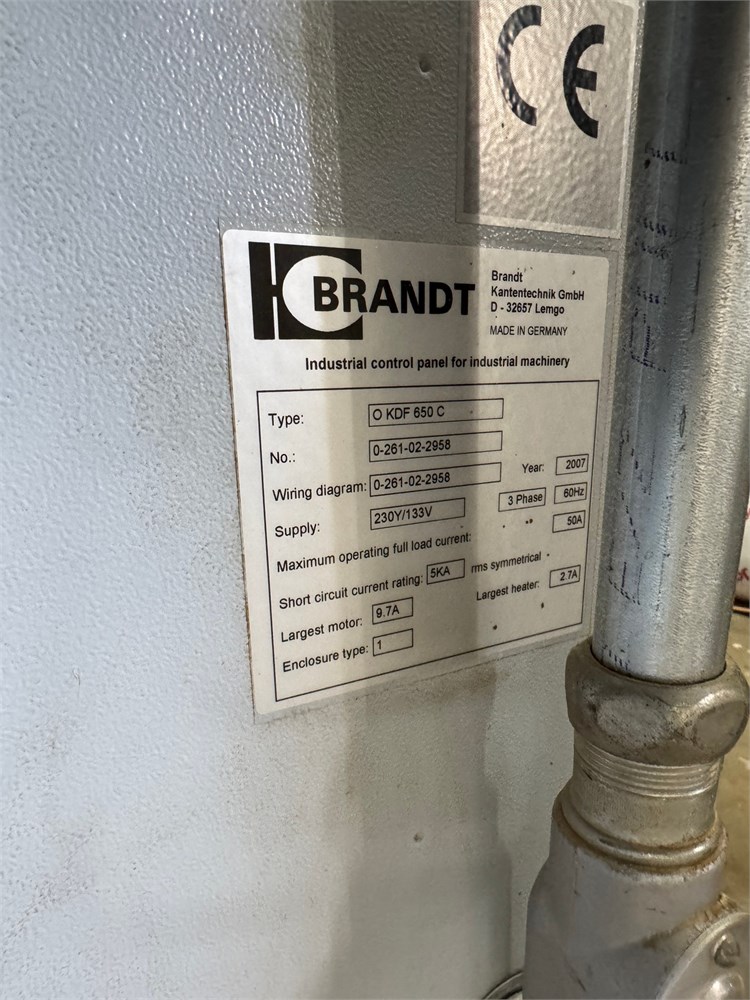

Make
Brandt
-
Model
"KDF 650 C"
-
Serial Number
0-261-02-2958
-
Year
2007
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
By appointment. Please contact: Eric Beach - [email protected] - 704-608-9830 (text preferred)
-
Load Out Period
March 16-18, 2026
-
Estimated Dimensions
19'L x 3'W x 6'H
-
Estimated Weight
5,000 Lbs
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.
-
Load Fee
350.00
-
Lot Notes
See Video
-
page views
54

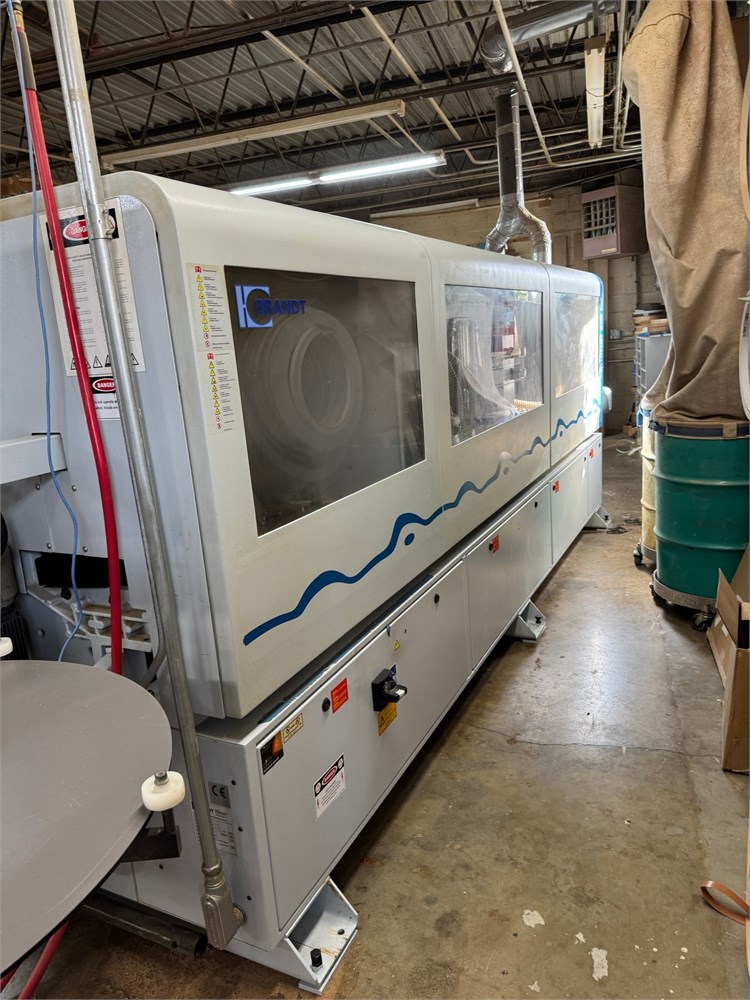

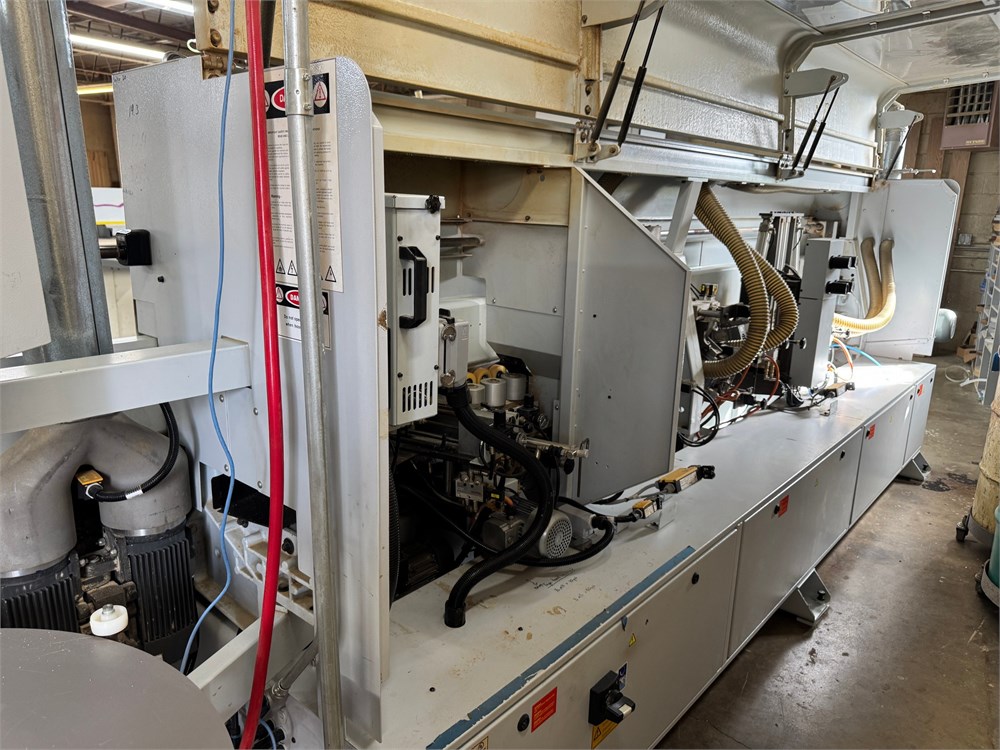

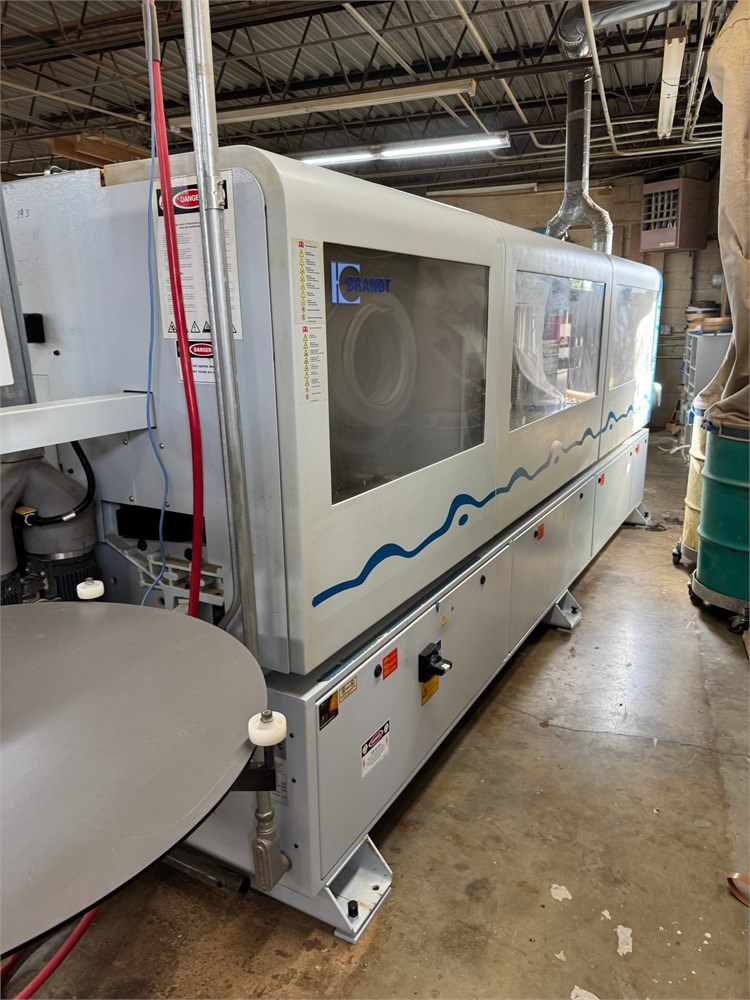

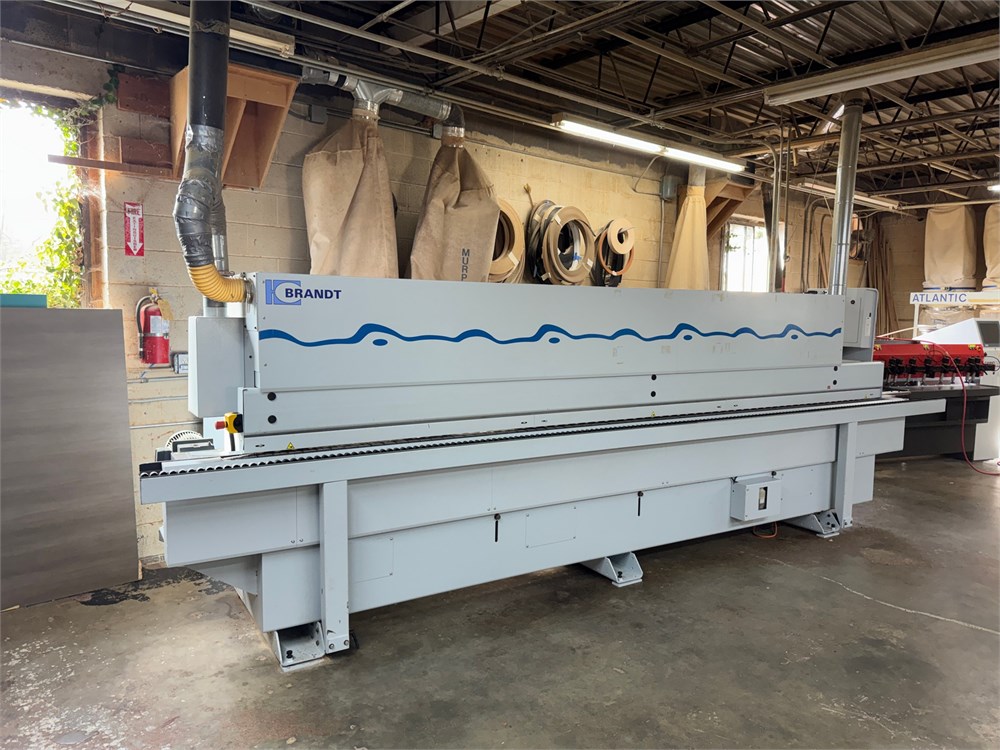

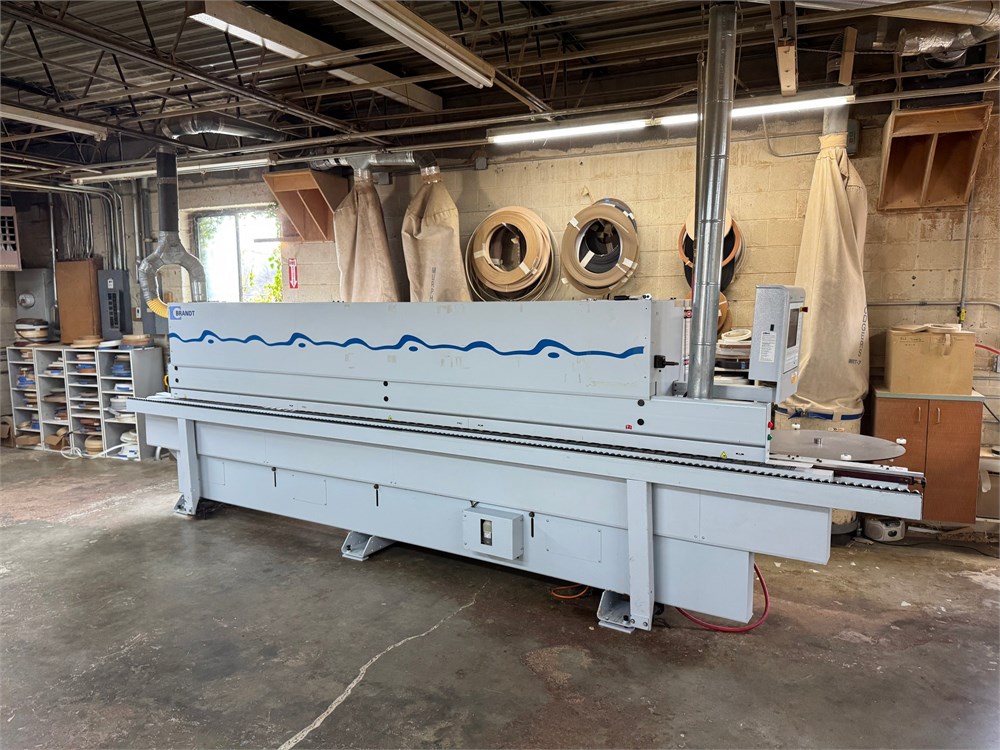

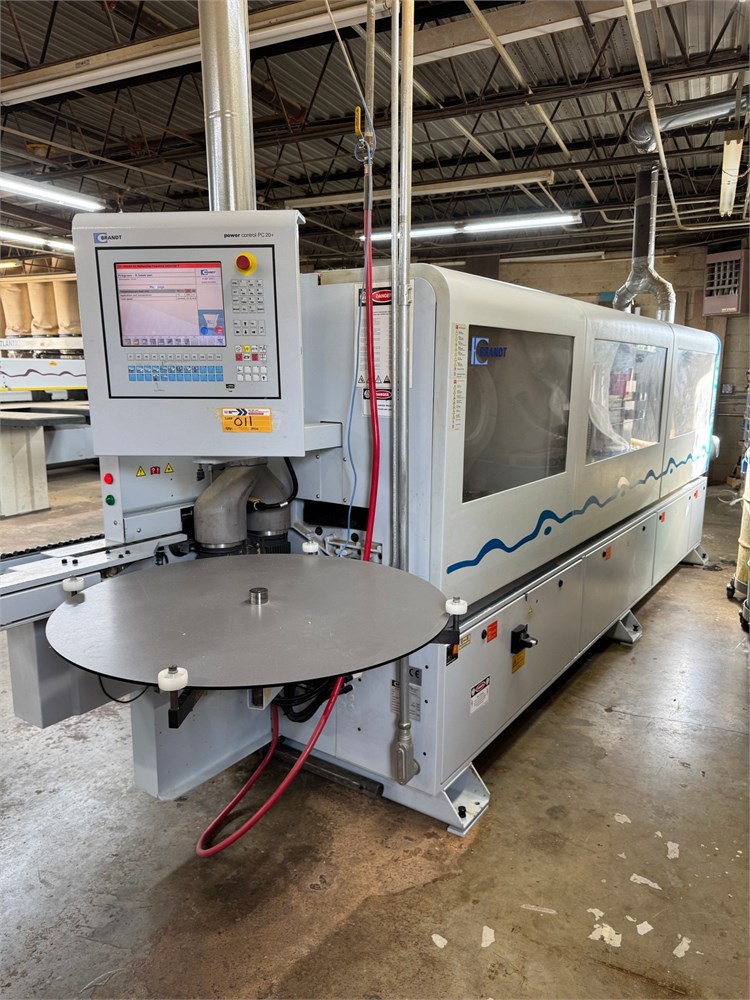

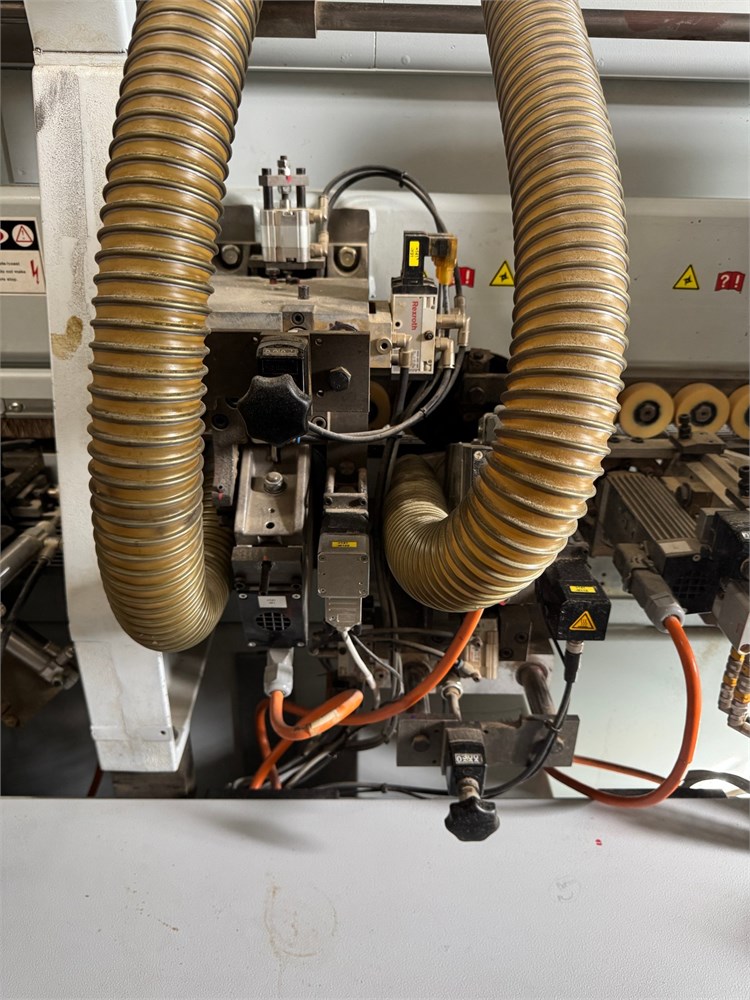

Brandt "KDF 650 C" Edgebander - Pre-mill & Corner Rounding
• Edge & Workpiece Capacity:
0.4 - 12 mm (0.016 - 1/2") edge; 8 - 60 mm (5/16 - 2-3/8") panel thickness; 160 mm (6-3/8") min. panel length and 70 mm (2-3/4") min. panel width.
Motorized Panel thickness adjustment.

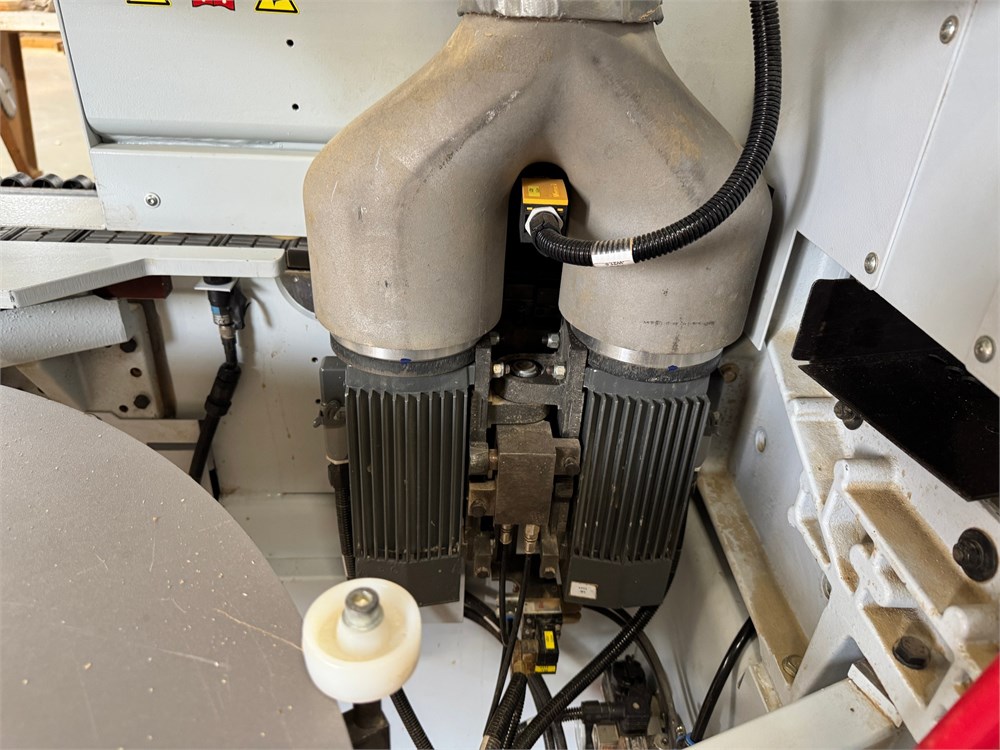

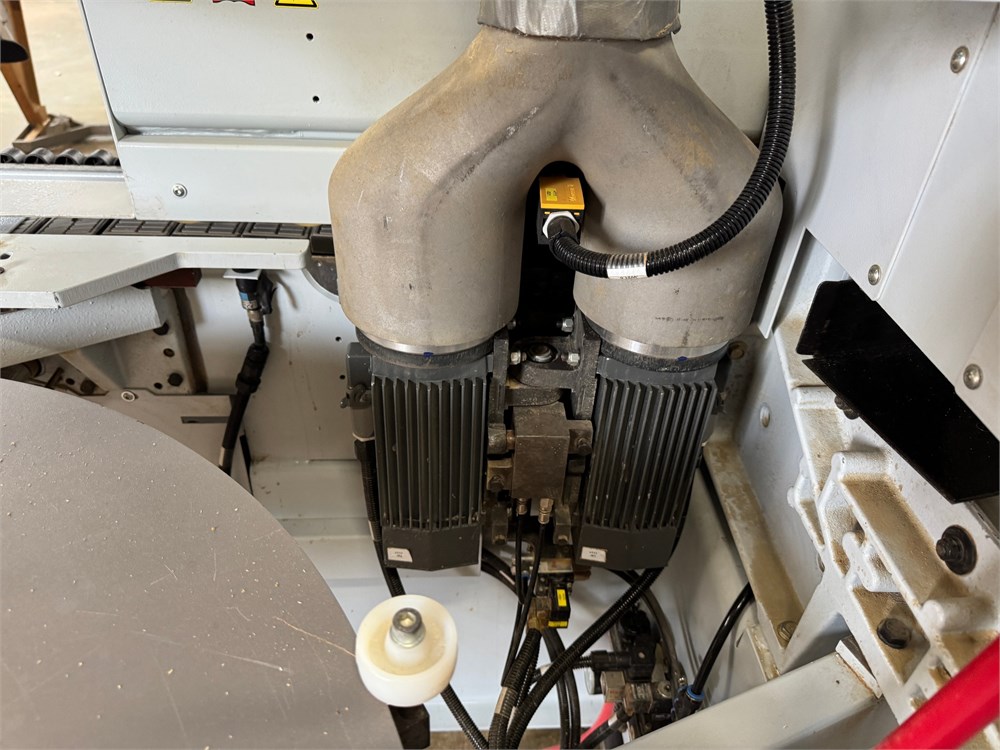

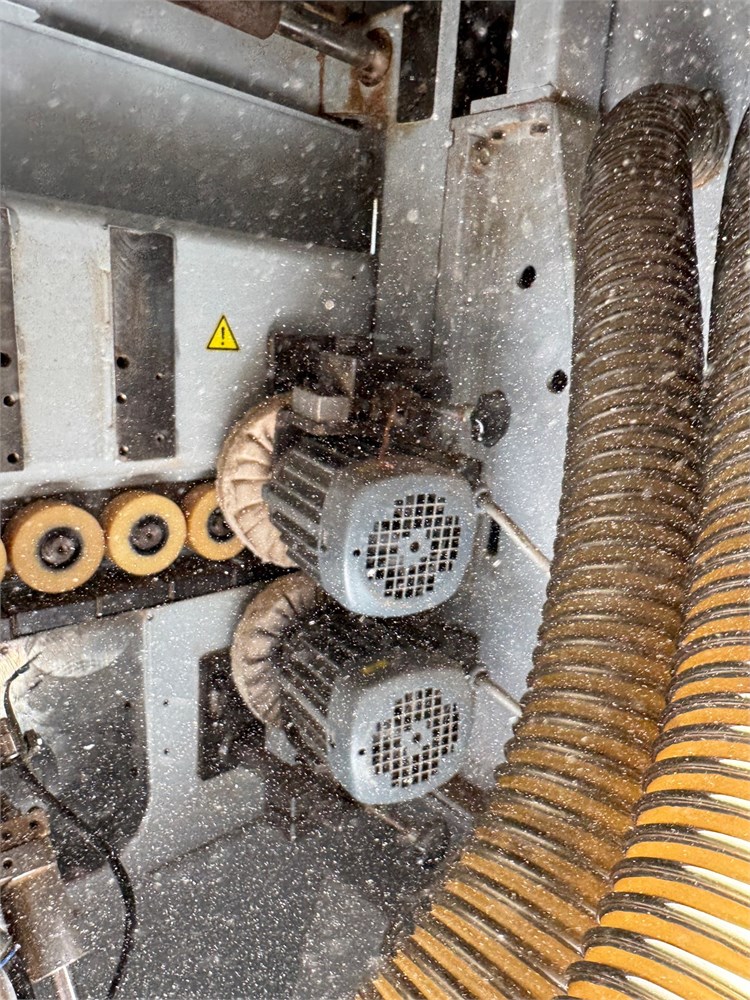

Pre-Milling Station, (2) motors @ 2.25 kW (3.0 HP), 12.000 RPM, LH & RH rotation w/pneumatic jump control for chip-free and clean panel edges.
Automatic Edge Magazine, for strip & coil stock, strips 0.4 mm - 12 mm (0.016 - 0,5"), coils up to 3 mm PVC and "HD" guillotine.

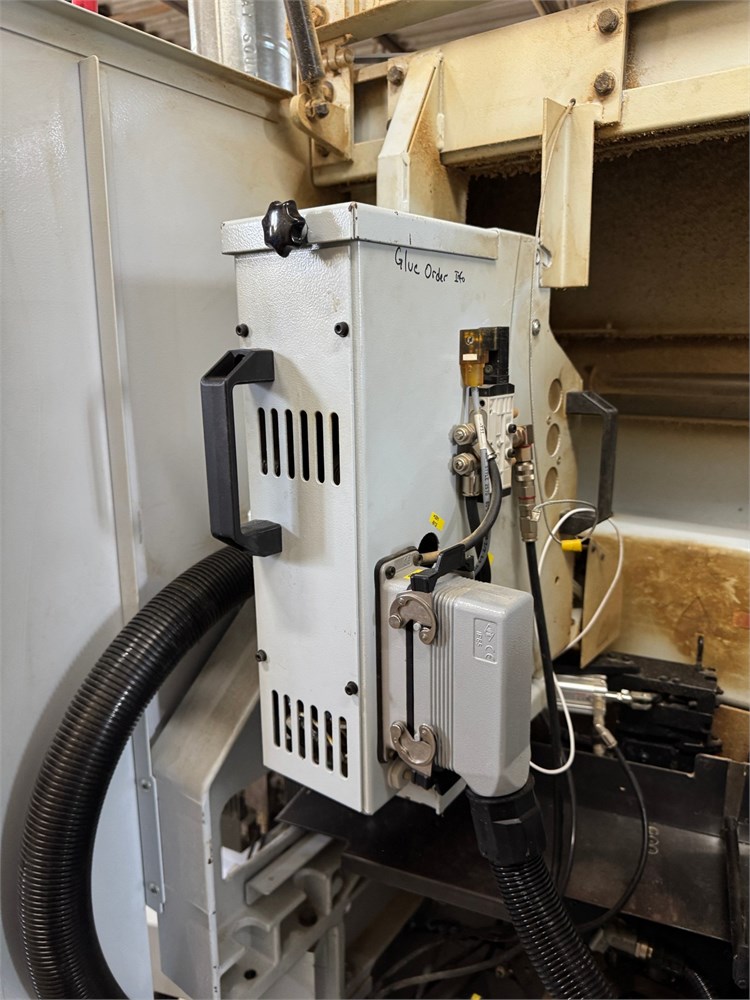

"Quick Change" Glue Tank for maintenance & glue color change.

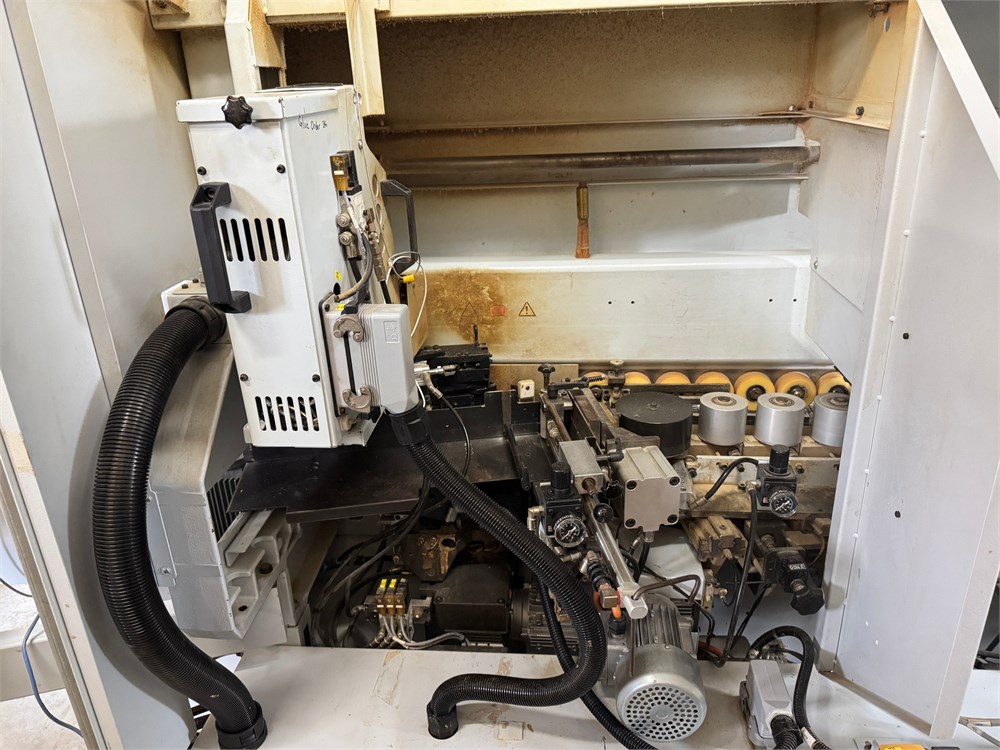

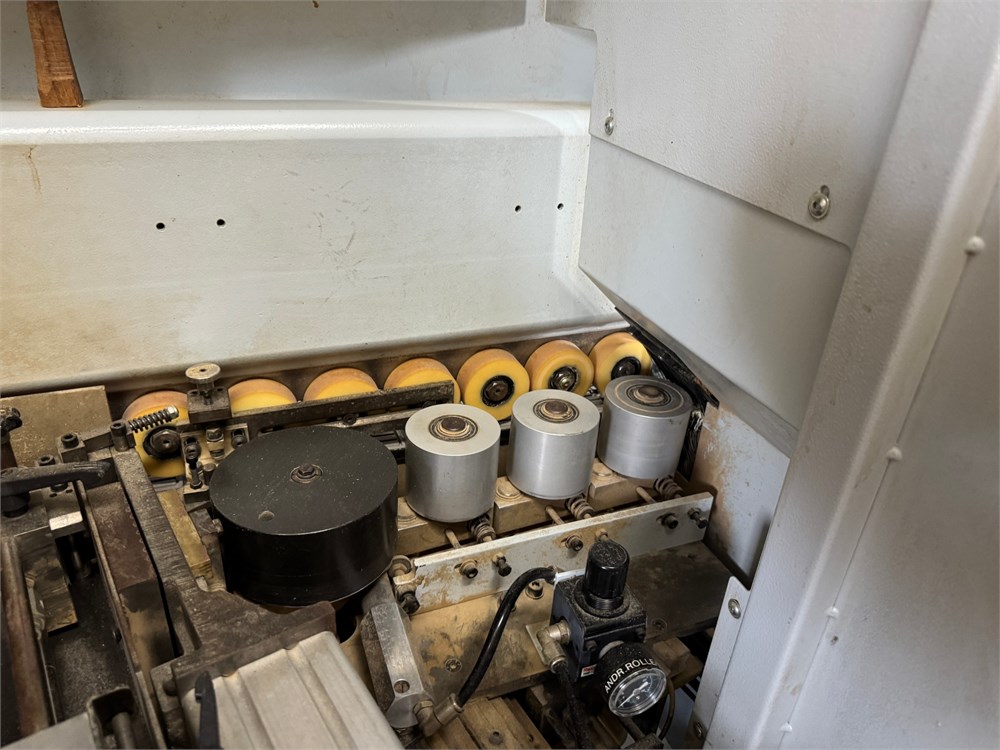

Pressure Section, 1st. roller driven plus (3) idle rollers, timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover.
Feed Speed, variable 8 - 18 MPM. (26 - 59 FPM), 14 MPM (46 FPM) when using contour trimming.

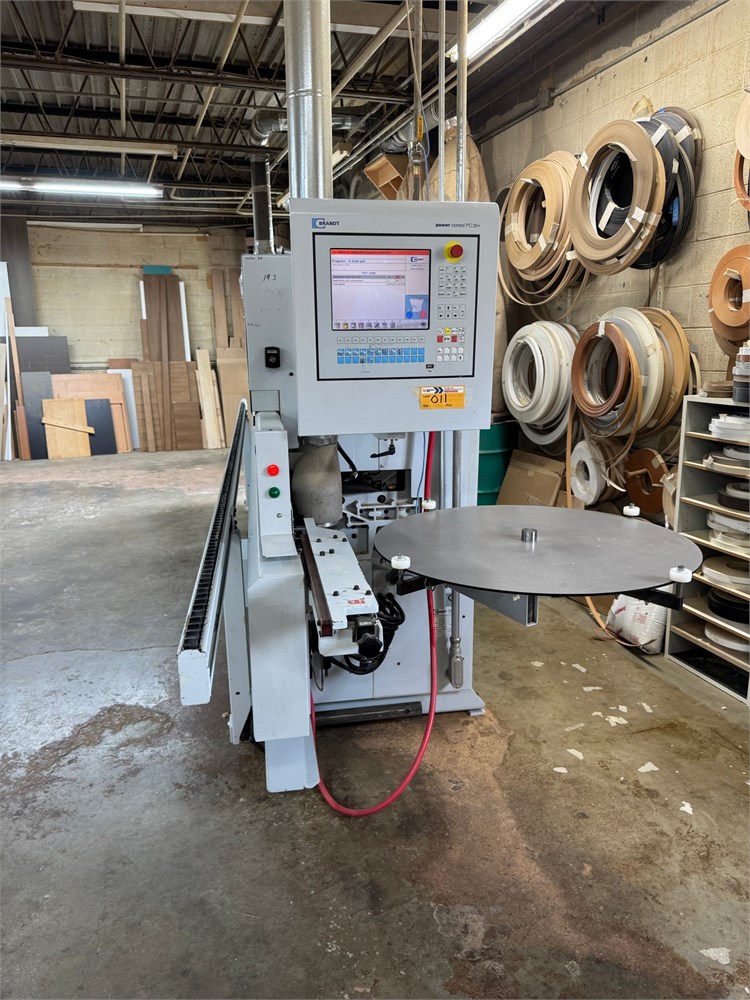

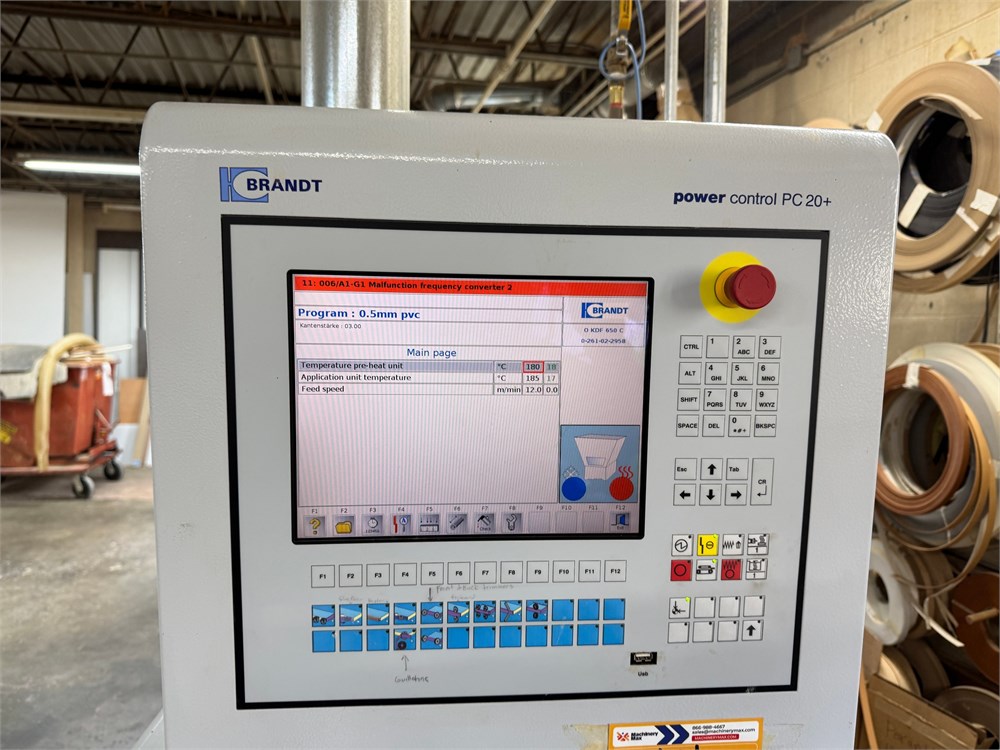

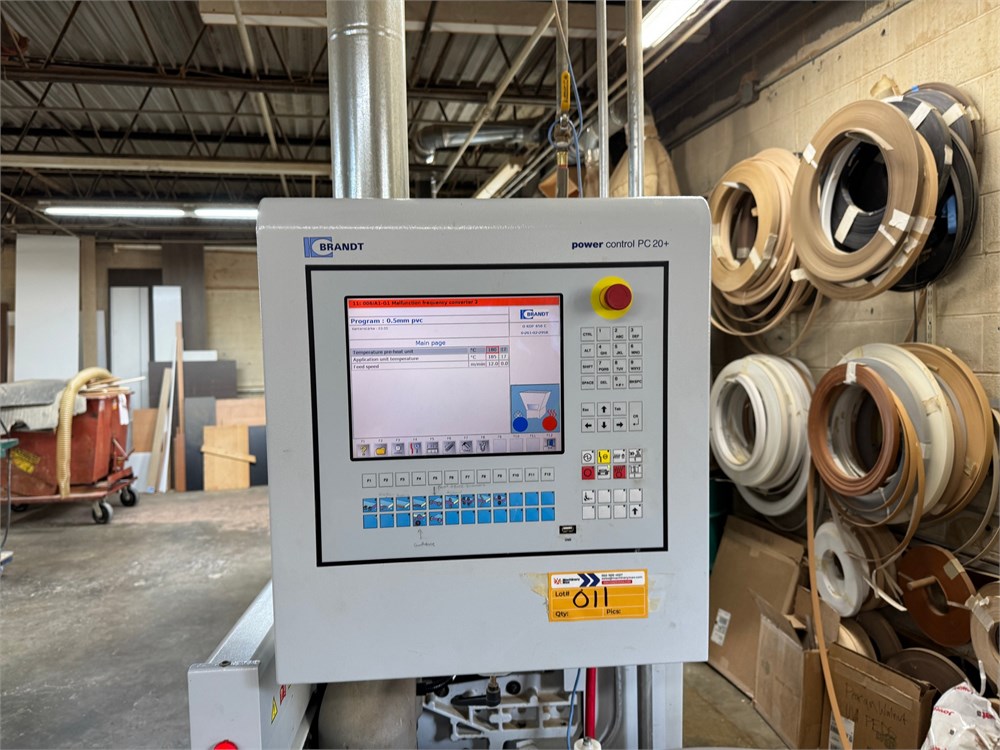

BRANDT "PC-20+" Program Control (Industrial PC) 600 MHz, Memory: 256 MB Ram, 1 GB Flash Card Drive, Operator control panel w/12" color active TFT display screen, soft keypad & internal modem for remote diagnostic link.
End Trimming: (2) Motor @ 0.35 kW (1/2 HP) 12,000 RPM, automatic chamfer from control panel 0°- 15°.

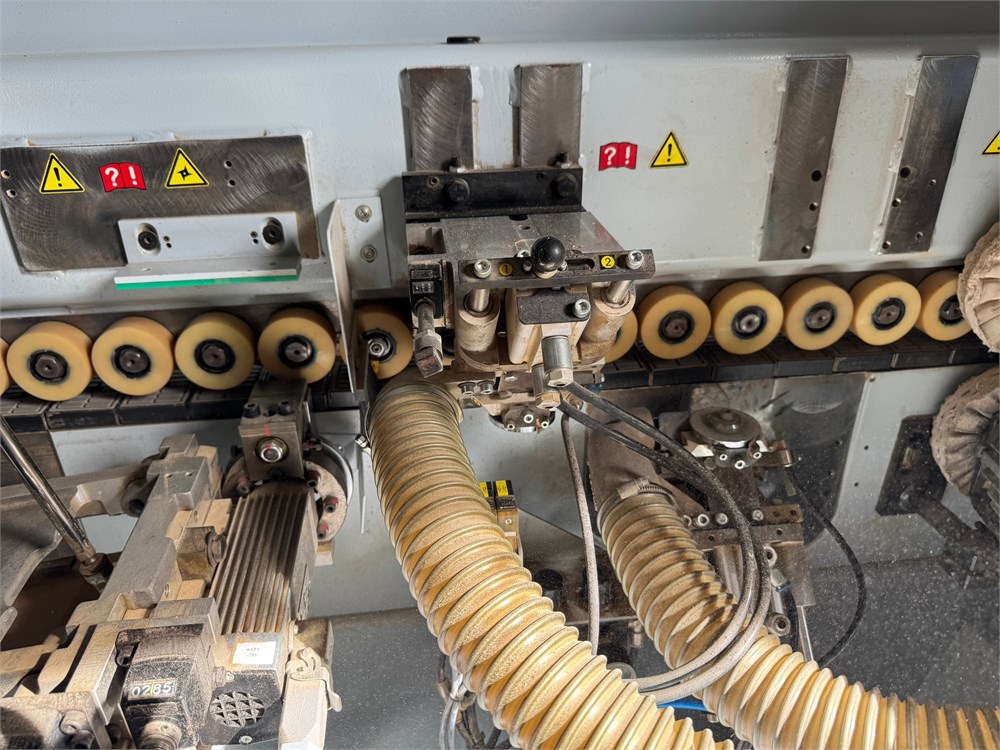

Flush/Bevel-Fine/Radius Trimming Unit: NC Controlled Top/bottom (2) motors, 0.55 kW (3/4 HP) 12,000 RPM, auto tilt postioning 0° - 25°, with combination flush/radius/chamfer cutterheads.

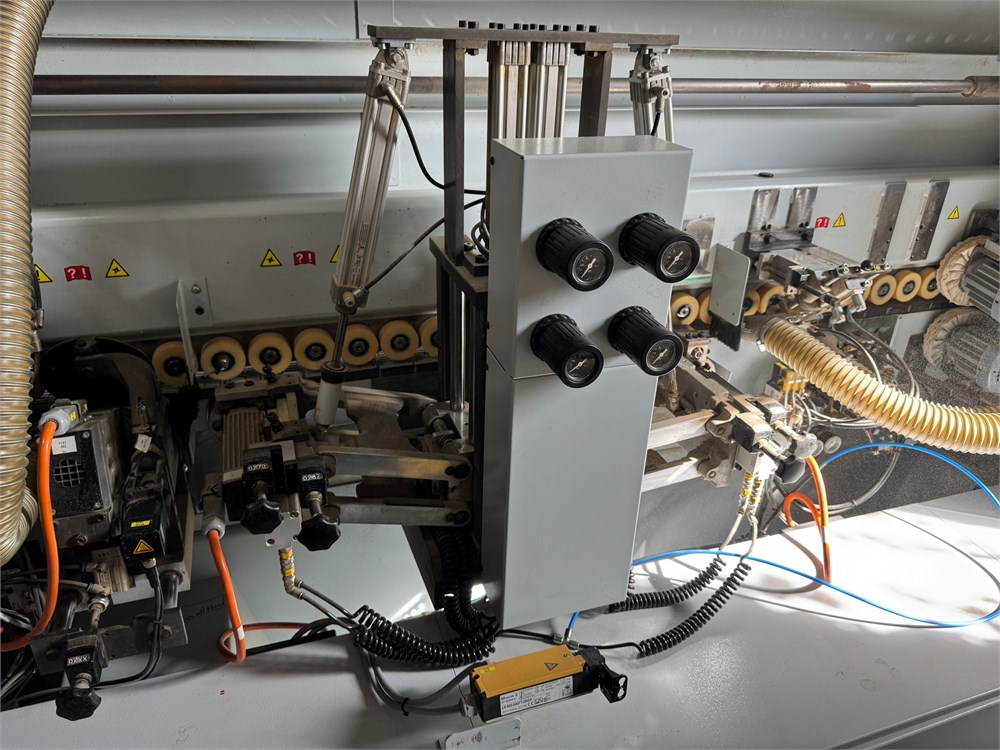

Multi Functioning Trimming (Corner Rounding) Unit: (2) Motor 0.4 kW (1/2 HP) 12,000 RPM for top/bottom linear edges and leading & trailing edges of panels.
Scraping (PVC): Top/bottom with pneumatic indexing control, PVC scrape collection box.
Buffing Unit: Top/bottom (2) motors, 0.10 kW (0.125 HP) 2,800 RPM.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
