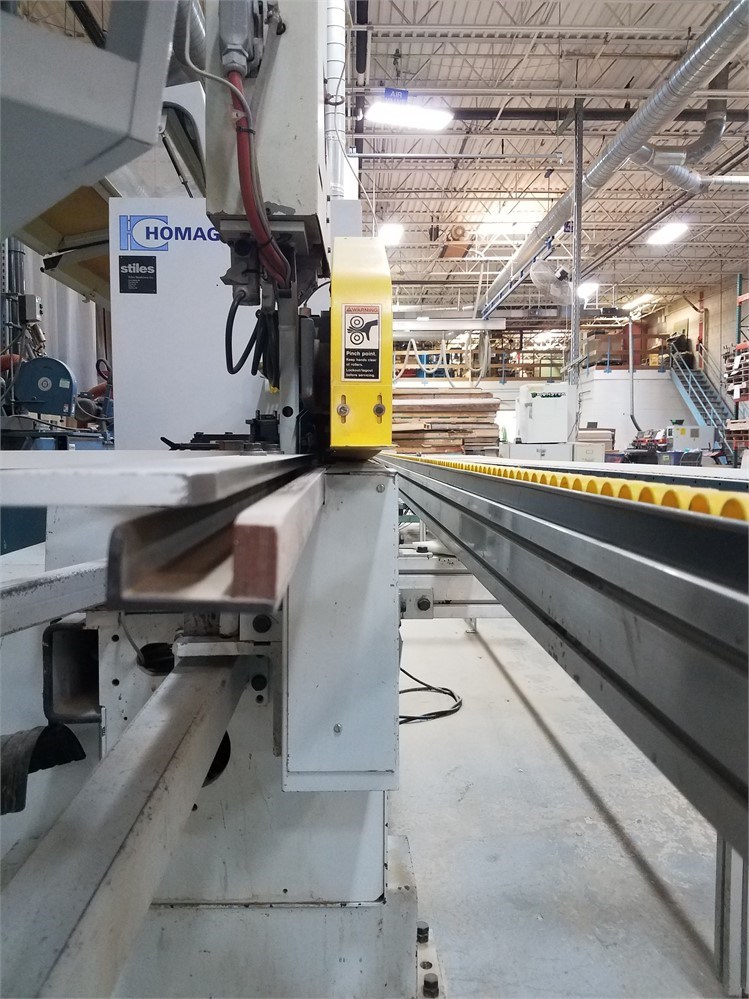

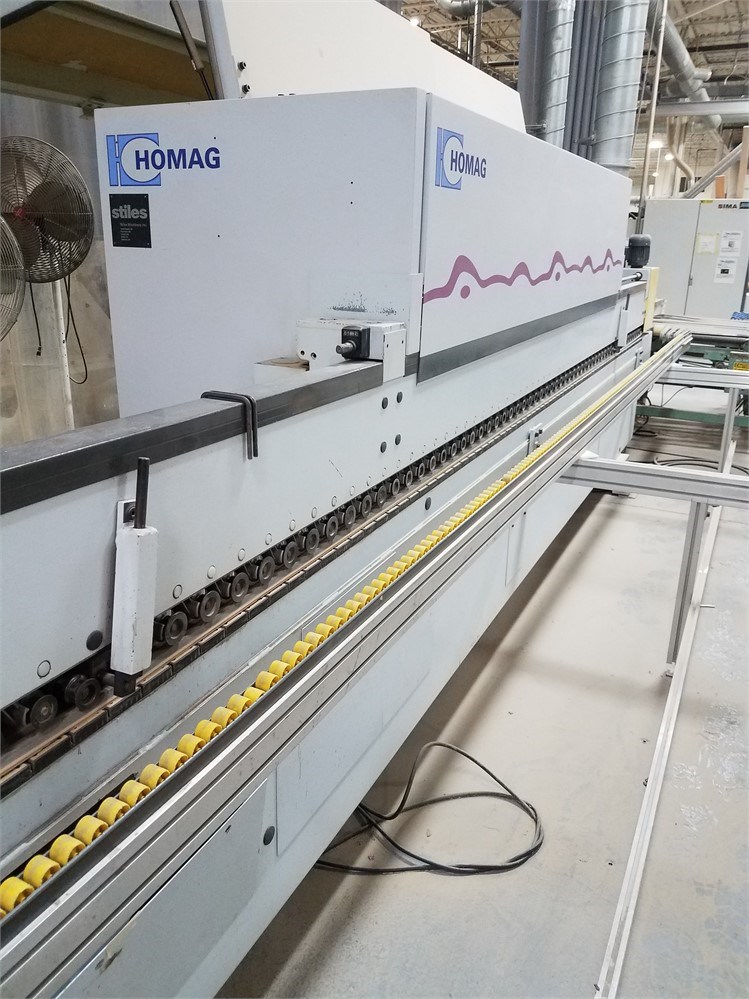

Homag "SE-9500" Edgebander
Active

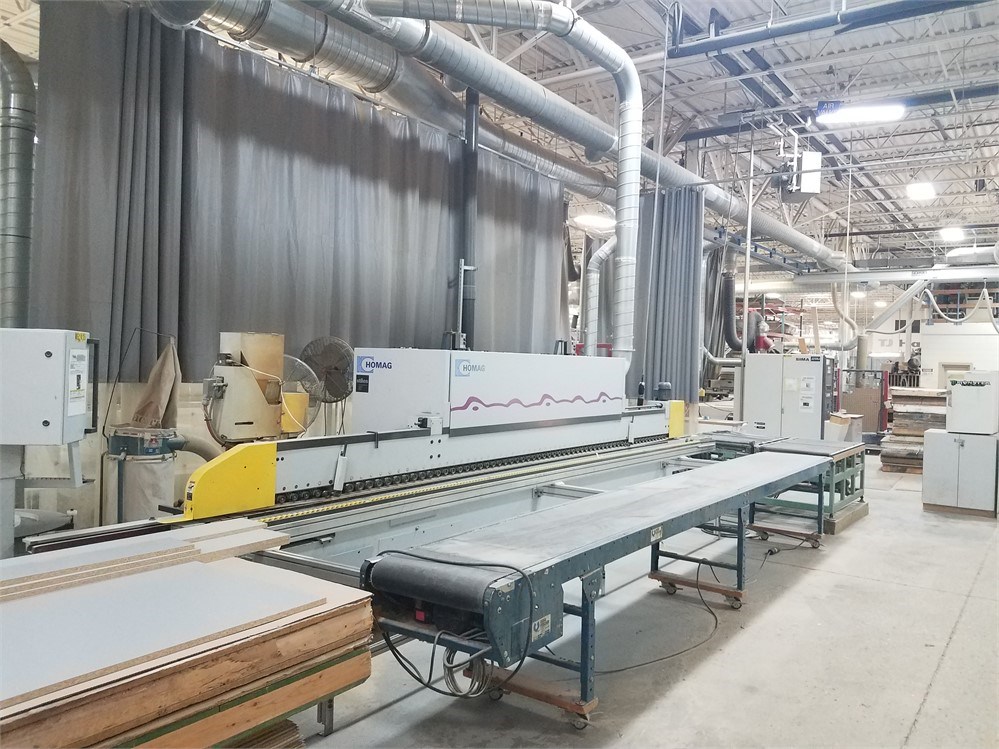

Homag Edgebander and Doucet Return Conveyor - Houston, TX
Houston, TX
- Starting Bid : $250.00 USD ( ) No Reserve
- 0 Bid(s)
Homag Edgebander and Doucet Return Conveyor - Houston, TX ( Active #78256863 )
Woodworking company in Houston, TX area is upgrading their equipment and auctioning their Homag edgebander and Doucet return conveyor.
-
Pick Up Location
730 Genoa Red Bluff Rd. Houston, TX, 77034
-

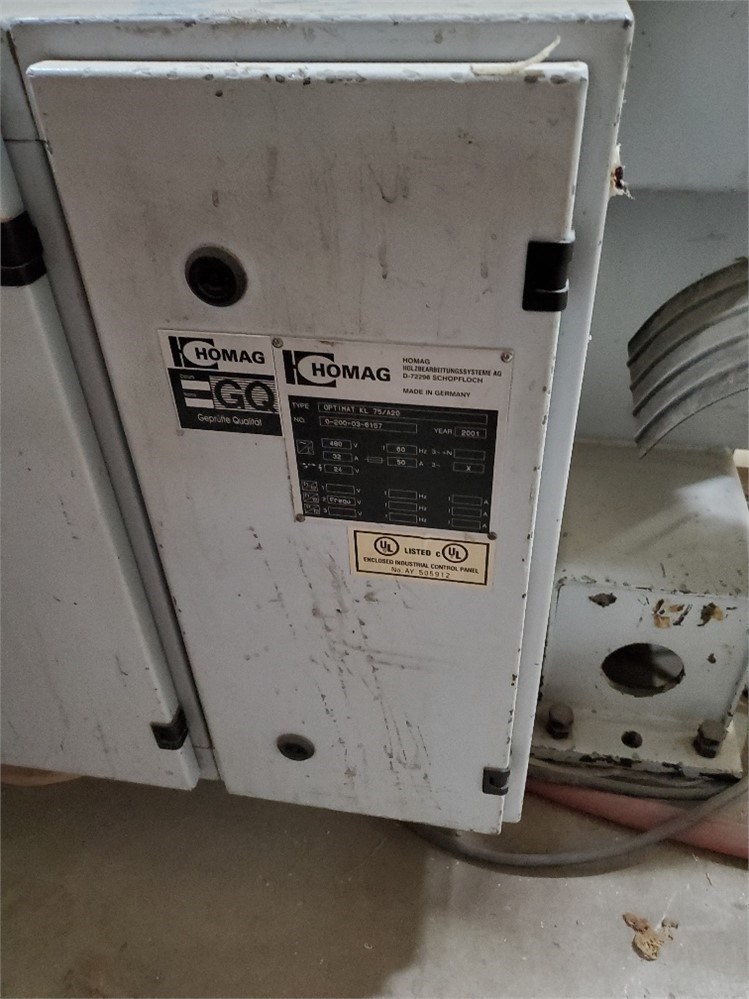

Make
Homag
-
Model
SE-9500 (Optimat KL 75/A20)
-
Serial Number
0-200-03-0157
-
Year
2001
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
March 2 - March 13, 2026 (By Appointment)
-
Estimated Dimensions
See photos
-
Estimated Weight
See photos
-
Seller Comment
This lot requires a rigger, see home page for details.
-
Load Fee
-
Lot Notes
-
page views
32

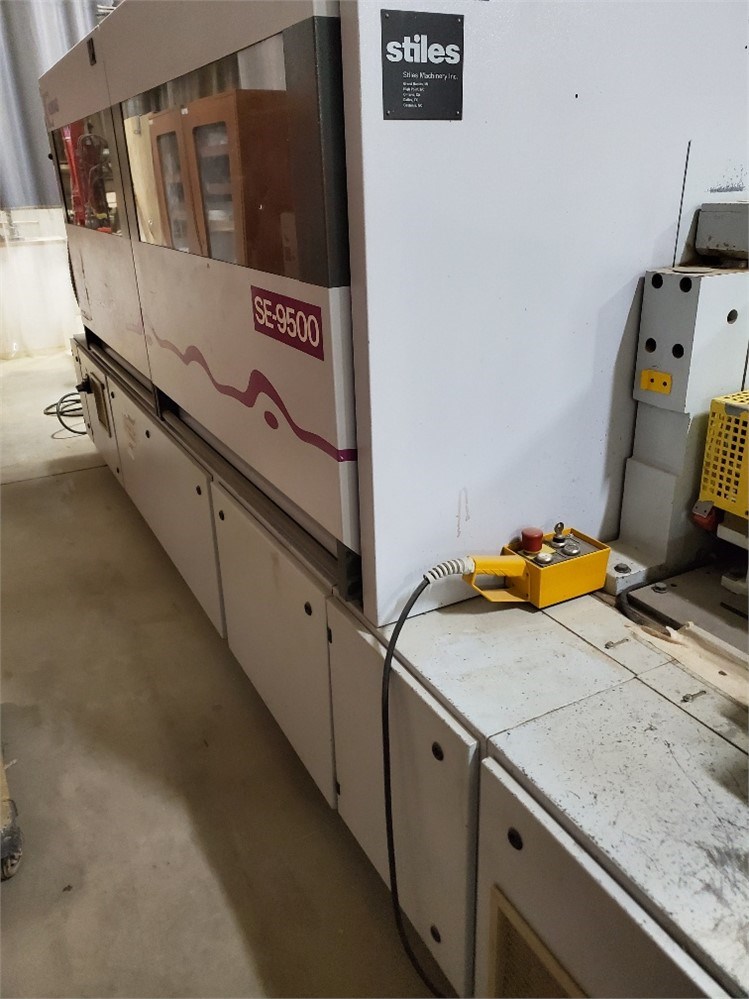

Homag "SE-9500" Edgebander
See video of machine in operation
- Minimum panel width w/ thickness 22 mm (7/8″), 55 mm (2-5/32″)
- w/ thickness 60 mm (2-3/8″), 100 mm (3-15/16″)
- Panel overhang, 30 mm (1-1/8″)
- Minimum panel thickness, 12 mm (15/32″)
- Maximum panel thickness, 60 mm (2-3/8″)
- Edge thickness for strips 0.4 mm to 20 mm (0.16″ to 25/32″)
- For coils 0.3 mm to 3 mm (0.12″ to 1/8″)
- Variable feed speed, 18 m/min to 24 m/min (59 FPM to 78 FPM)

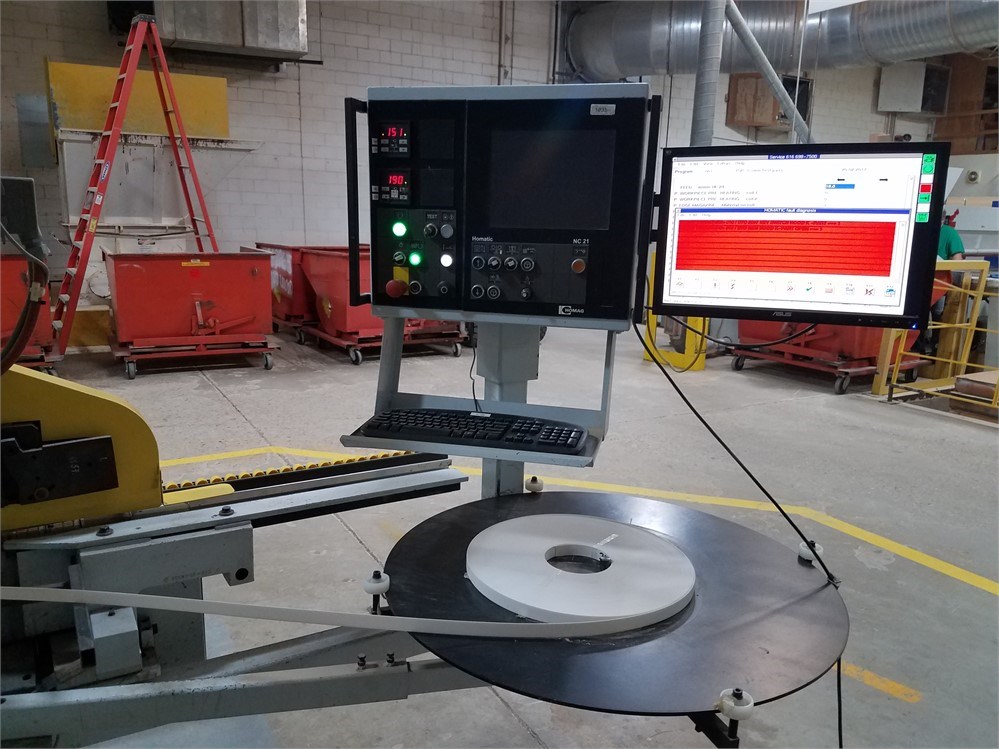

Homatic NC-21Controller
Color monitor and standard keyboard
Original monitor not working, secondary monitor installed

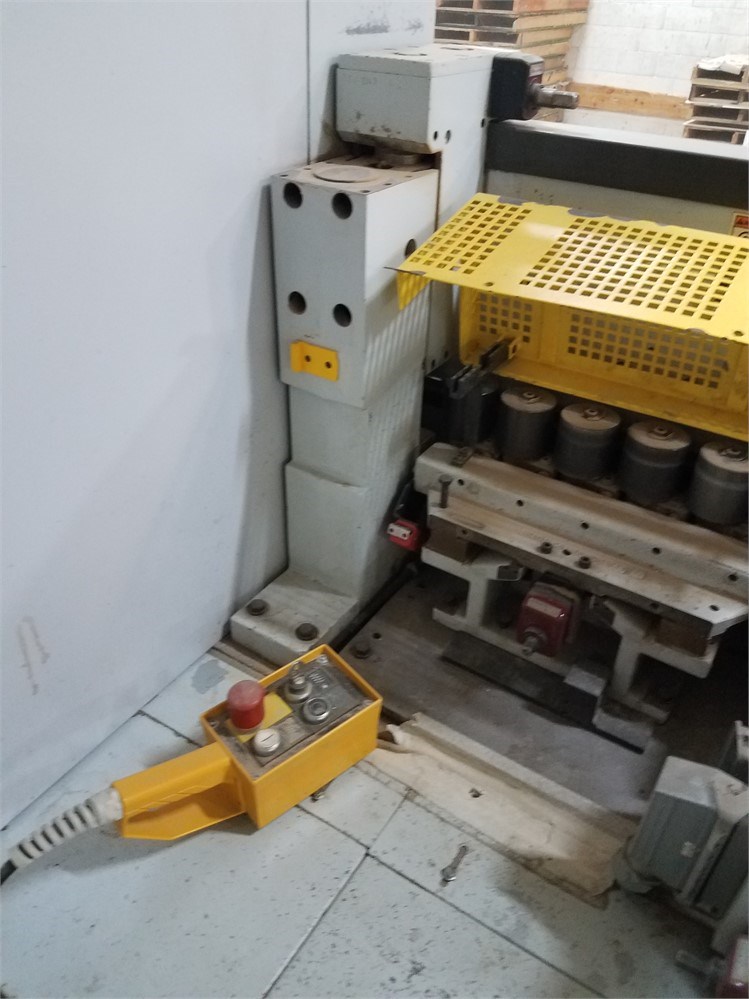

Remote control pendant
Top pressure belt
Bottom feed track

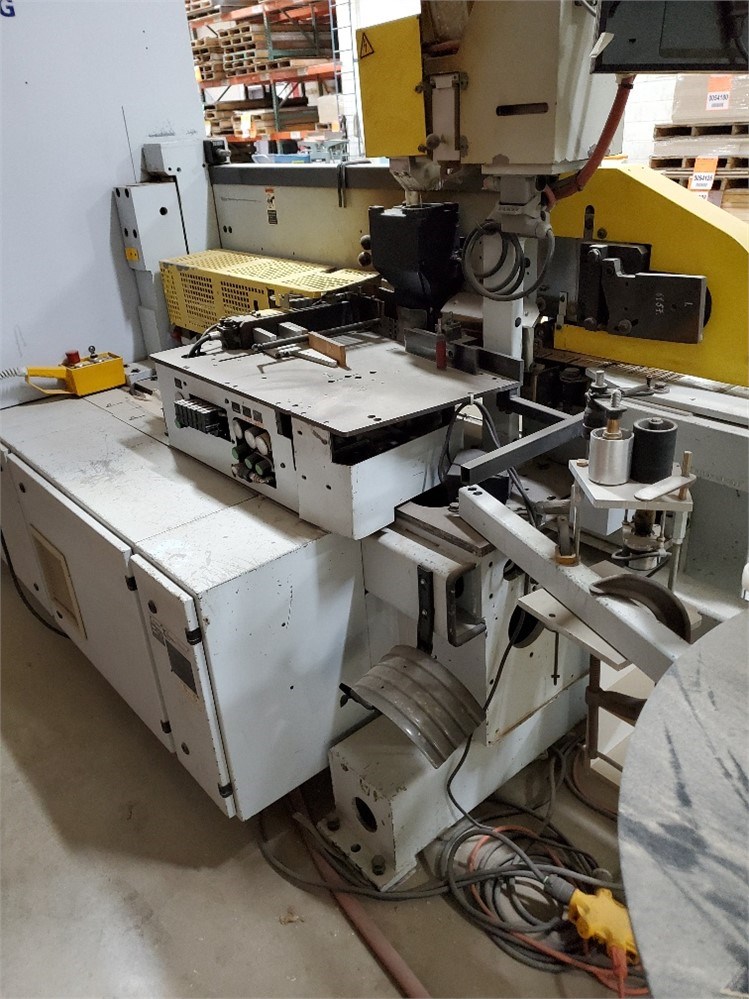

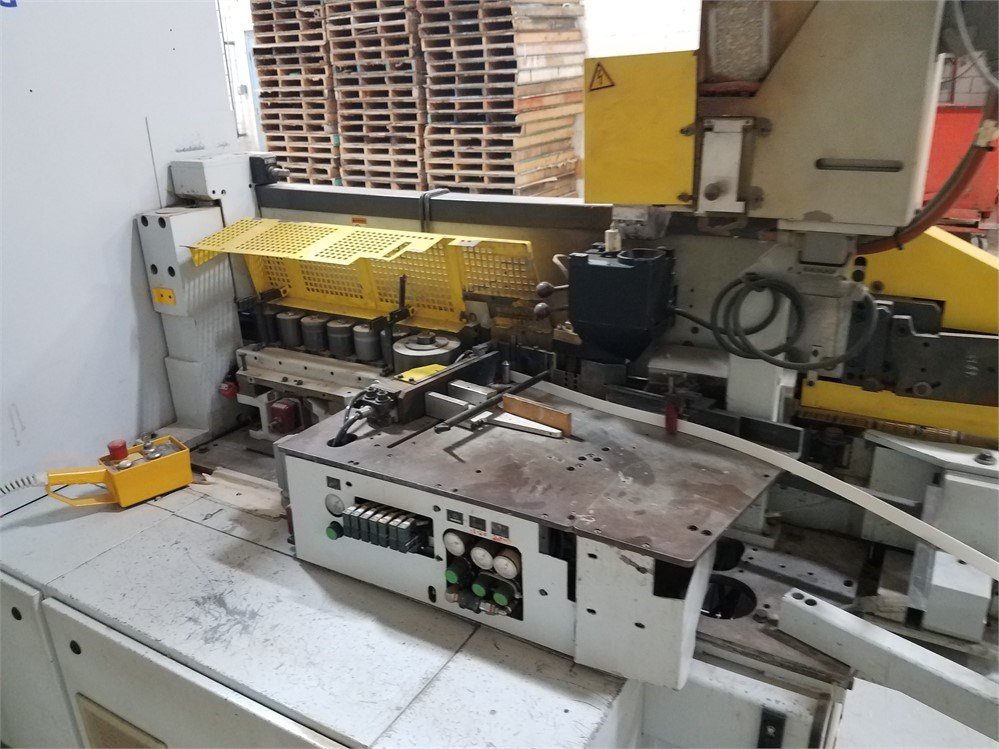

Edgebanding infeed table
Guillotine
Glue pot with roller
Premelt hopper
Pressure roller station
One (1) driven roller
Six (6) idle rollers

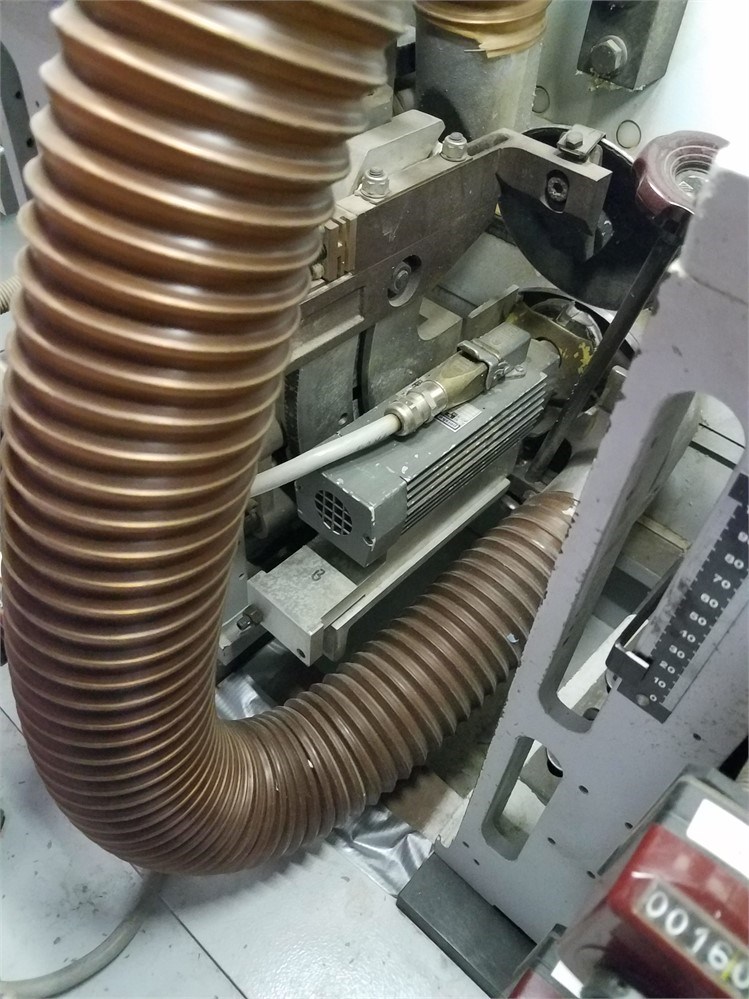

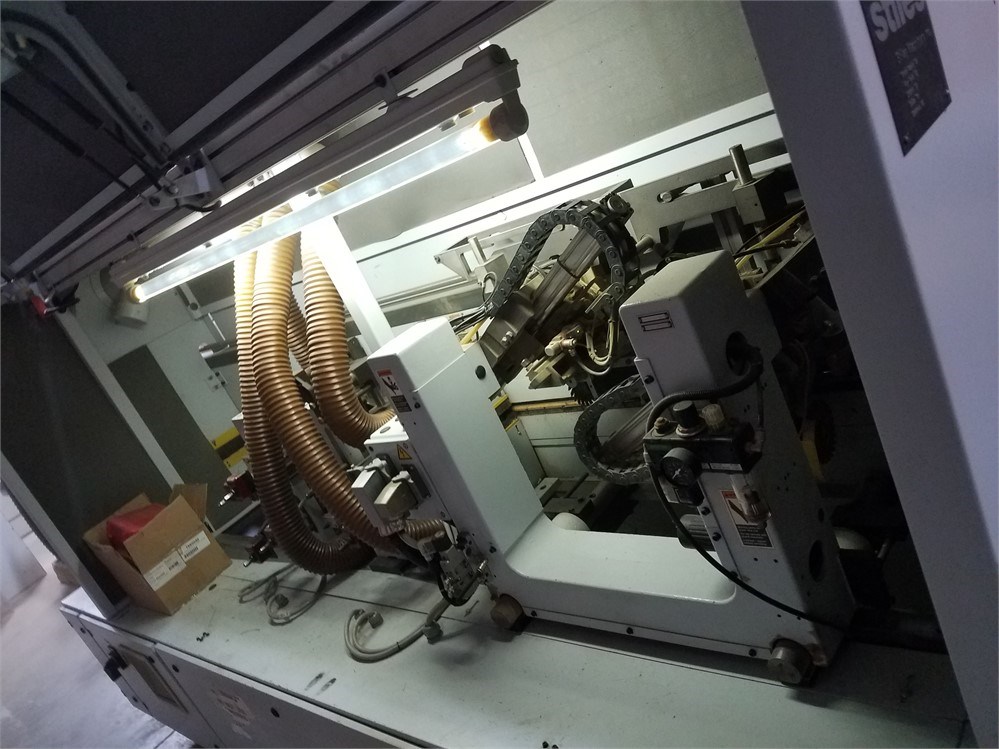

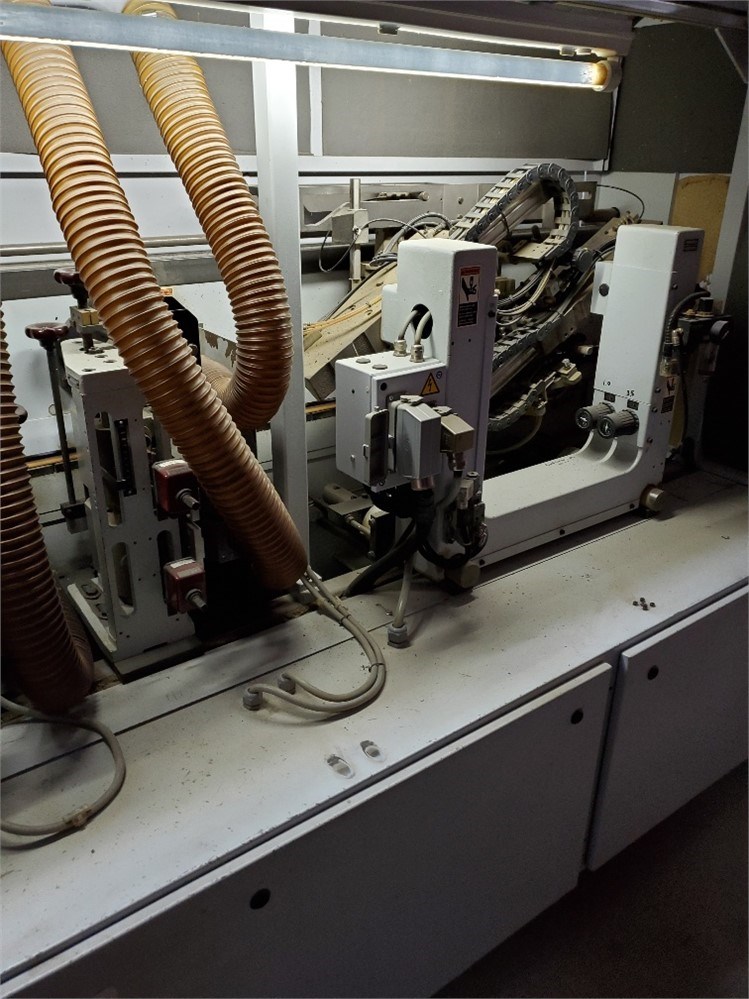

Two (2) motor end trimming station

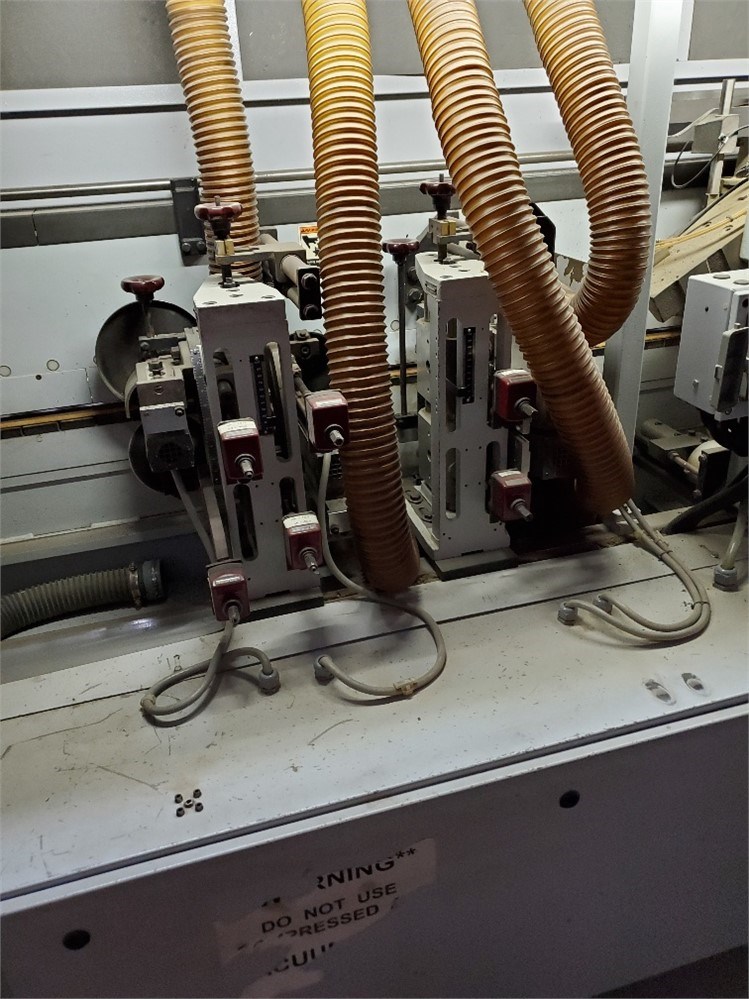

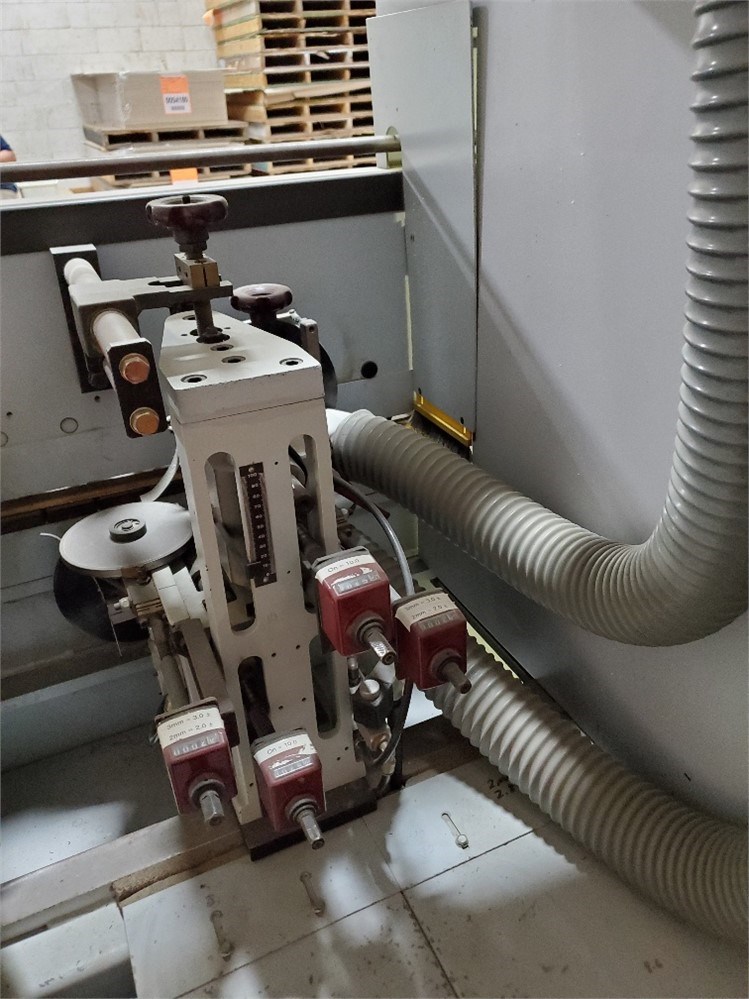

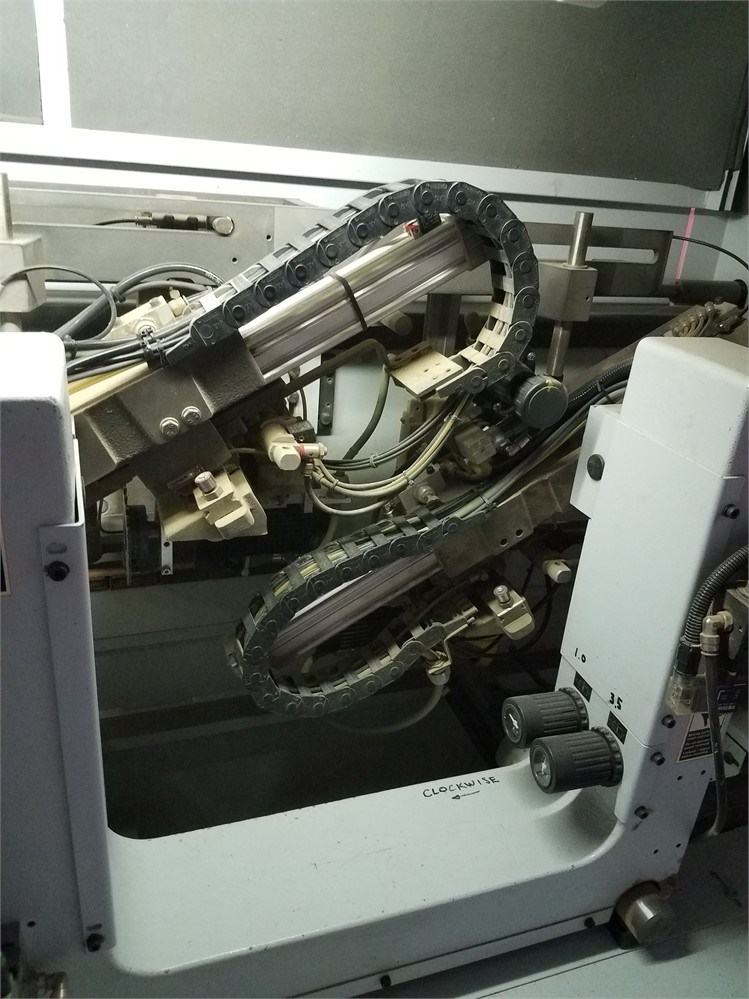

Top/bottom trimming station
Top/bottom profile scrapping station

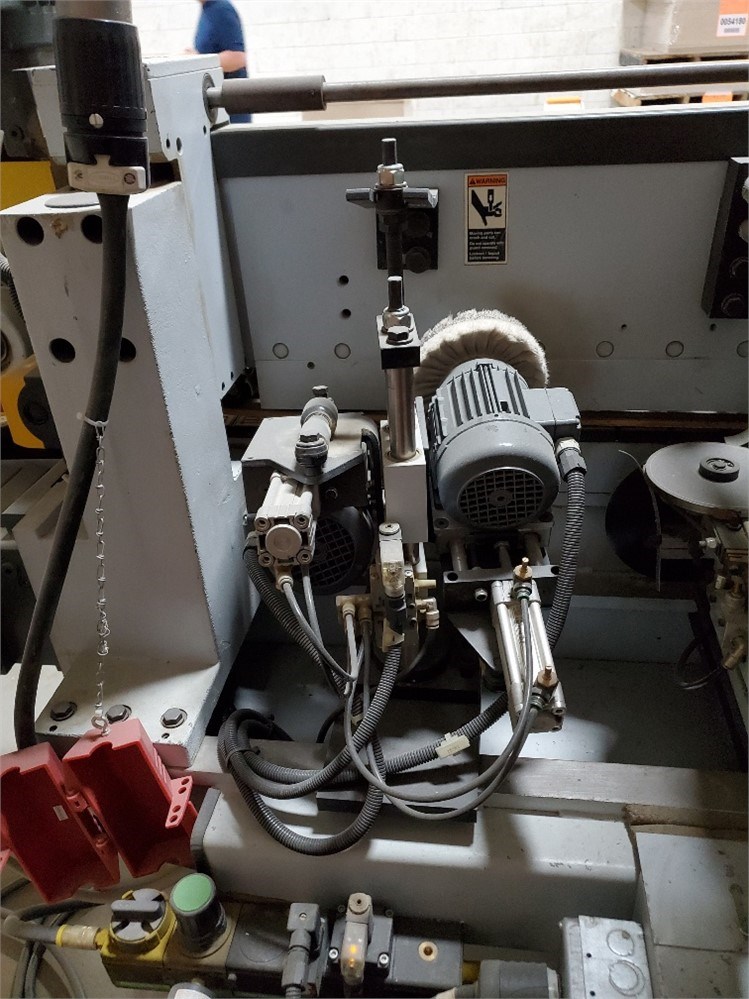

Top/bottom buffing station
Tiltable
Oscillating
Lighted sound enclosure
Outboard panel support
Conveyors NOT included, offered in lot 002
Dust pipe NOT included
Photos are from original auction in 2021
Seller indicates the machine needs parts and/or service to operate. See notes below from Stiles technician.
- No Control Panel Power
- Controller Display not working properly because cards are missing from BAB40
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
