Gannomat "Express" Double Head Hinge Boring & Insertion Machine
Active
Wood Matrix Complete Plant Auction - Alvarado, TX
Alvarado, TX
- Current Price : $500.00 USD ( ) No Reserve
- 1 Bid(s)
- High Bidder: d****v
Wood Matrix Complete Plant Auction - Alvarado, TX ( Active #77712452 )
Wood Matrix in the Dallas, TX area has ceased operations and is liquidating all assets. Lots to be added over the next week. Late model machinery including Weinig, Holz-Her, Cantek, Martin, Cefla, Gannomat, Thermwood and more!
-
Pick Up Location
4308 Longhorn Dr. Alvarado, TX 76009
-

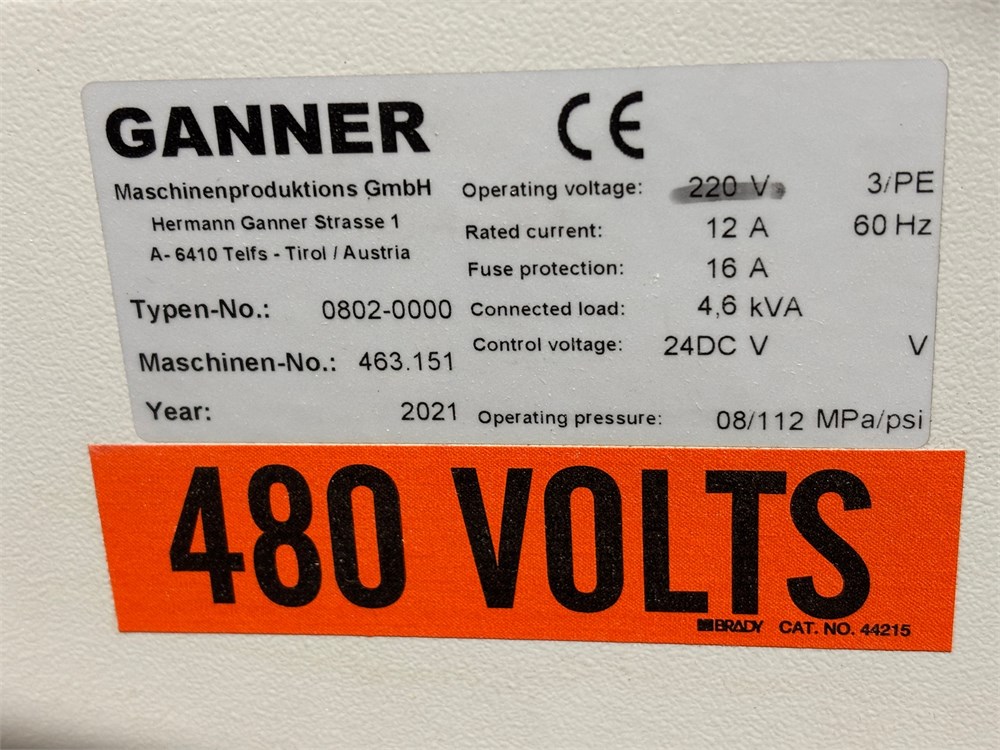

Make
Gannomat
-
Model
Express/ 0802-0000
-
Serial Number
463.151
-
Year
2021
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
February 18 - February 28, 2026 (no exceptions, seller vacating premises, by appointment only)
-
Estimated Dimensions
80"x42"x60"
-
Estimated Weight
1,000Lbs
-
Seller Comment
Non Negotiable Load fee includes loading onto buyers flat bed truck
-
Load Fee
250.00
-
Lot Notes
-
page views
26

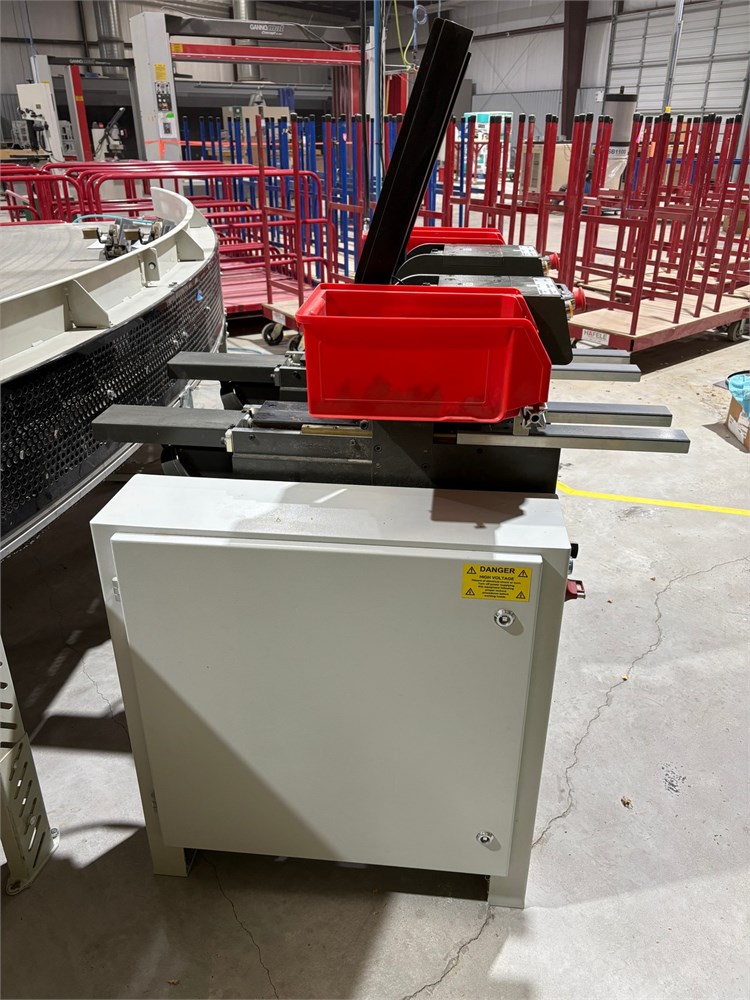

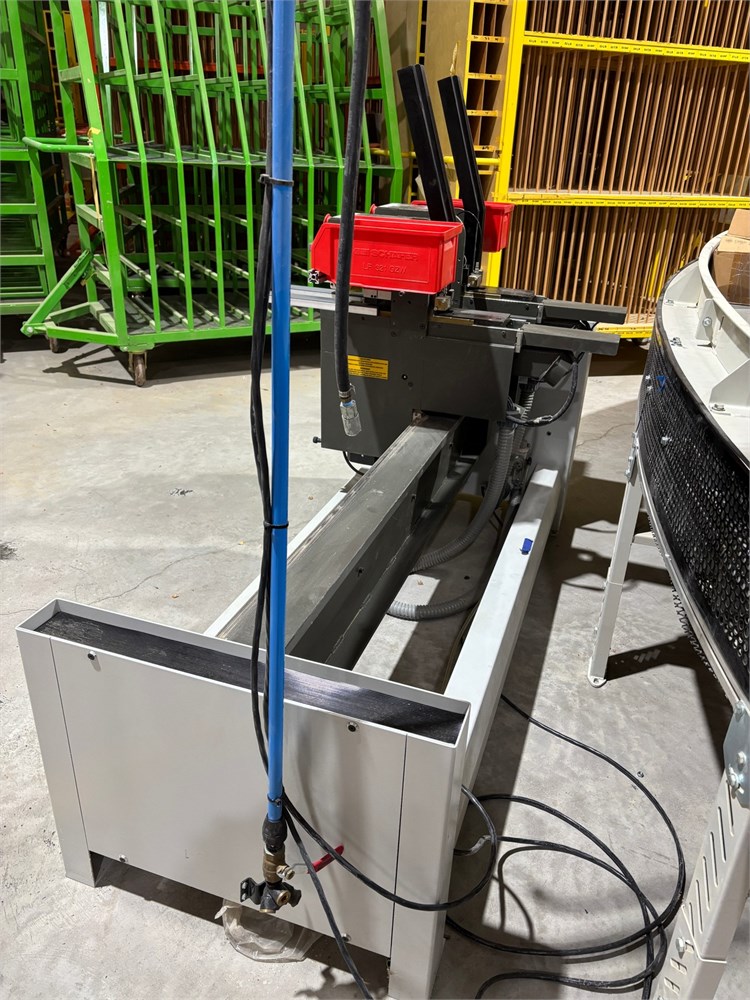

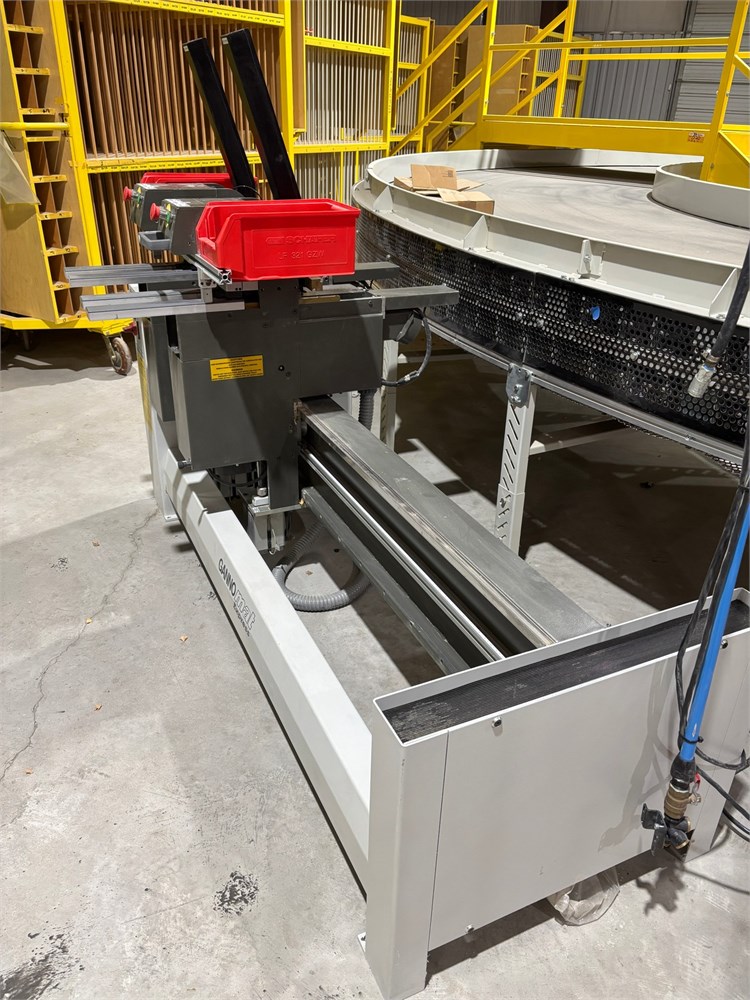

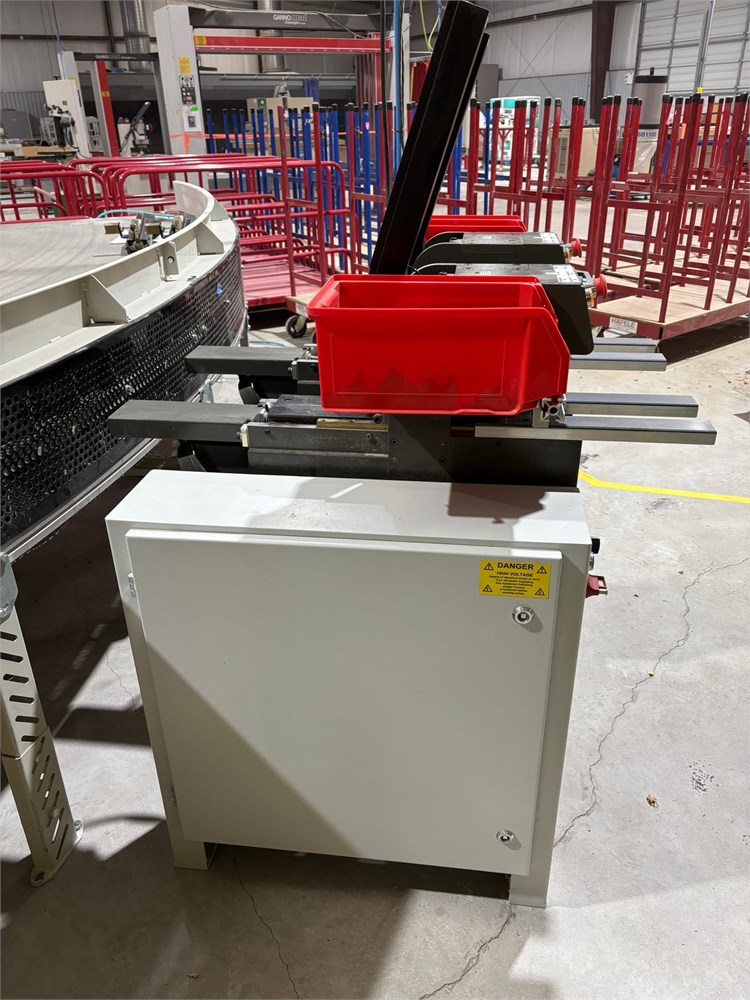

Gannomat "Express" Double Head Hinge Boring & Insertion Machine
2-Headed Automatic Drilling and Hinge Inserting Machine. The left drilling and inserting station is fixed.
The right drilling and inserting station is easy movable in length direction on profile bearing guides with pneumatic locking and can be controlled by scale and 3 program - stops.
Working width between the stations: min: 180 mm (4.6"); max: 1,550 mm (61")
(2) Adjustable Drilling heads with (4) spindles located along the X-axis located on linear bearing guide ways.
Travel Speed max. 246 FPM (75 MPM); Cycle time for drilling & insertion are approx (4) Sec.
Spindle speed 3,400 RPM with a 10 mm shank dia.; magazine hopper holds approx. (35) KD fittings.
Side stops & boring depth settings by mechanical digital counters.
Drilling and inserting station movable with pneumatic locking.
Drill head, magazine, inserting die incl. 1 Exhaust device, Ø 100 mm, 2 HP (1,5 kW) motor
4-Spindle-drill head (pitch according to hinge model)
(2) Mechanical digital counter for precise and fast adjustment.
Requires 90 PSI of compressed air and equipped with 3.9" dia. dust exhaust outlet.
The information provided in this lot was gathered from literature, internet & physical inspection. It is thought to be accurate; but not guaranteed. Bidders are urged to use the open house or private inspection periods to inspect and verify.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
