Edge thickness min./max. 0.4 - 3 mm (0.02 - 0.12"), coiled material, optional with flush cutters  max. 6 mm (0.24"); Panel thickness 6 - 60 mm (0.236 - 2.362"), work piece width min. of 65 mm (2.559"); work piece length min. 160 mm (6.299"); Feed speed 10 MPM (33 FPM).

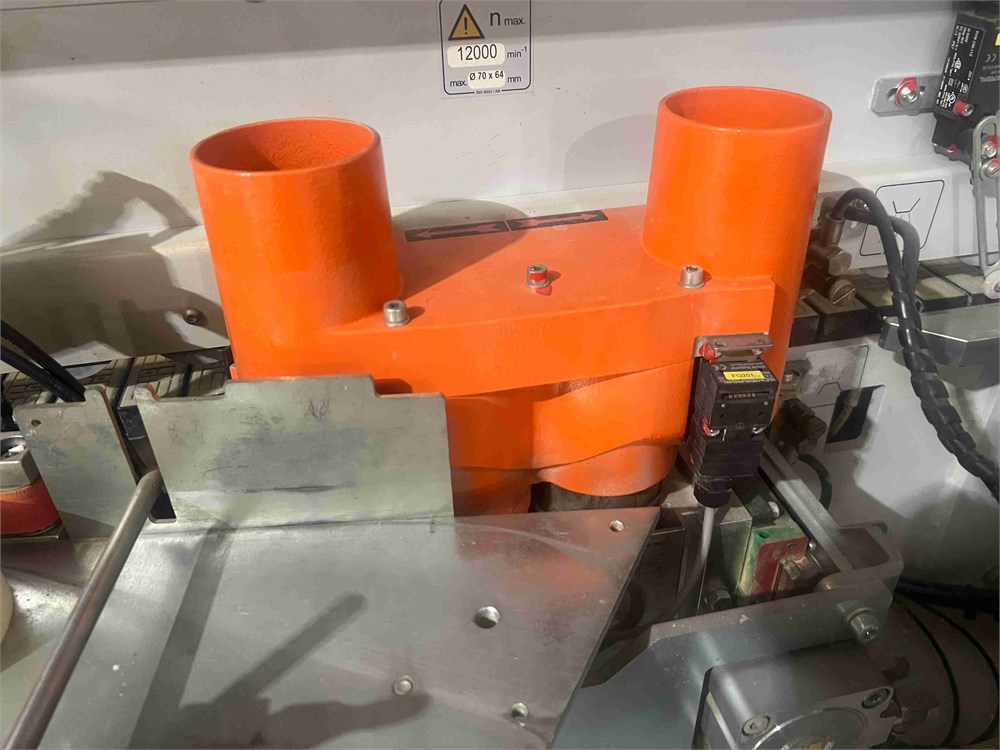

Pre-Milling Station "1801": 2 x 1.2 KW (1.6 HP) - 12,000 RPM motors; Diamond cutter-heads with ProLock quick clamping system. Quick-Lock adjustable in-feed fence with digital indicator.

Edge Magazine "1903": for coil and strip processing, utilizing motion detector to ensure accurate, trouble-free positioning of edge material; exclusive "Tractor-Belt feed System", edge guide equipped with automatic guillotine lock-out for safety, 3° approach angle allows easy feeding of solid wood edges.

Pressure Section "1912-3": with (1) large driven (synchronized with feed-speed) roller and (2) cantered idle rollers, adjustable by hand wheel and scale.

End Trimming Unit "1918P": Front & rear 2 x 0.45 KW (0.6 HP) - 9,000 RPM motor each, uni-point swivel-axis for no re-indexing when changing from flush to bevel end trim (0° - 10° bevel),"PCS" programmable pneumatic change-over from flush to bevel.

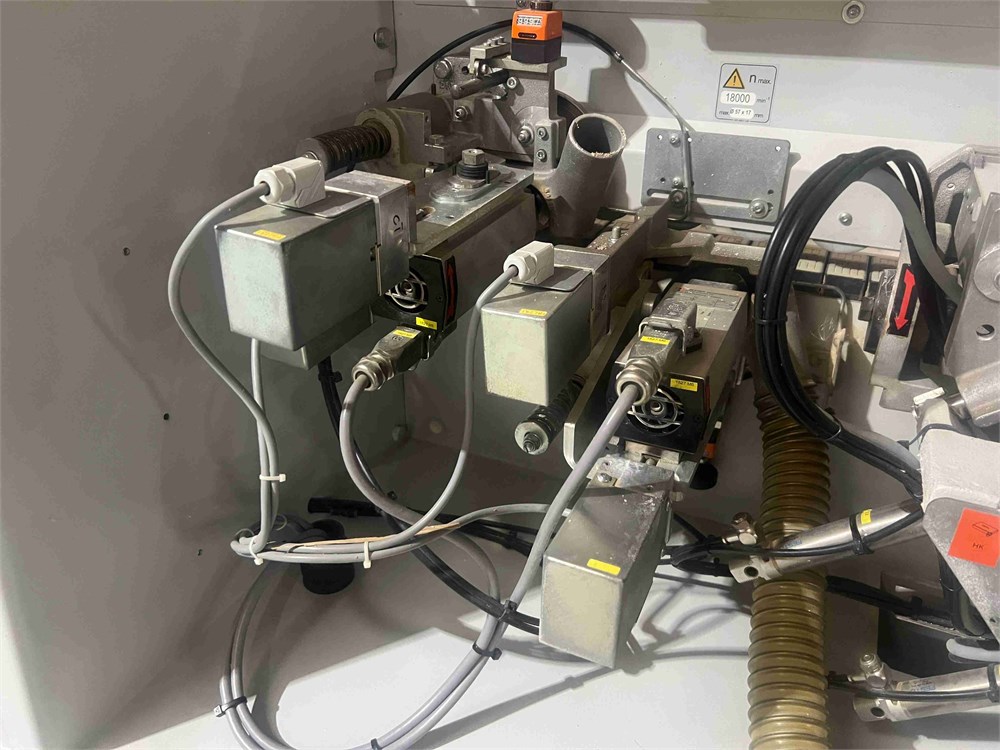

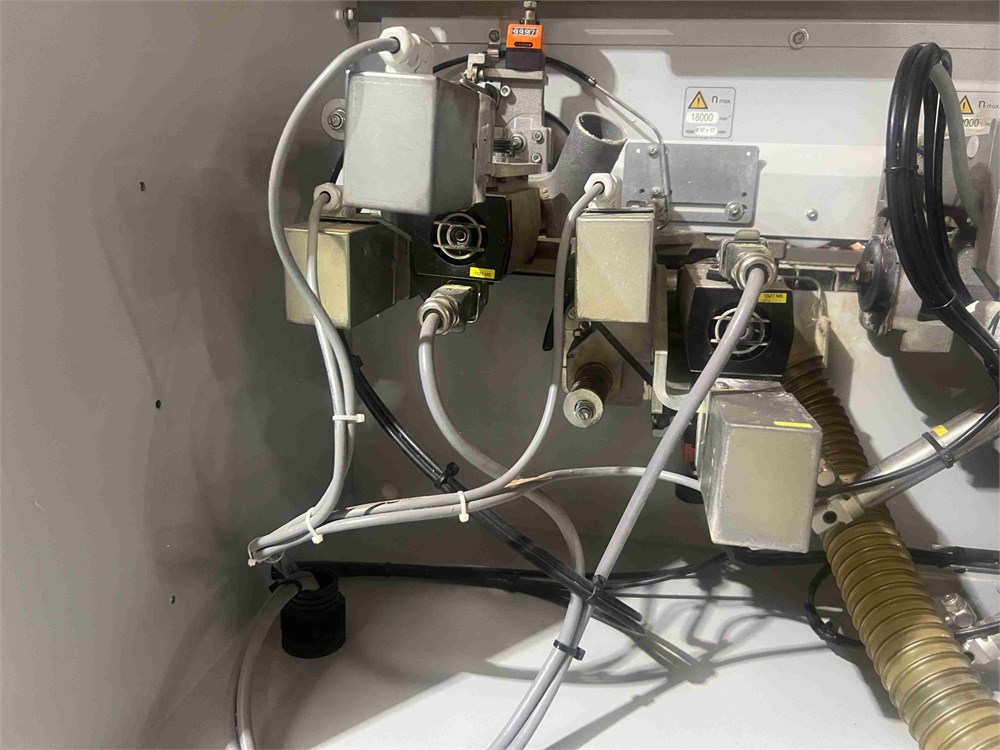

Flush/Bevel/Radius Combination Trimming Unit "1827 MOT4": Flush 6 mm, radius 3 mm trimming, servo controlled, 2 @ servo motors (1) for horizontal copy wheel & (1) for tool spindle position) programmable top & bottom unit 2 x 0.65 KW (0.88 HP) - 12,000 RPM each motor. Uni-Point design with no second adjustment, pneumatic, programmable tilt action for changing the degree of bevel, digital counters for vertical copy wheel position and pneumatic air cylinder for in/out pre-positioning of trimming motor.

Corner Rounding Unit "1832": (1) Motor 0.22 KW (0.30 HP) - 9000 RPM for up to 3 mm edge thickness and work-piece thickness min./max. 12 - 60 mm (0.473 - 2.362"), max. feed speed 10 MPM (33 FMP).

Glue Scraping Unit, Flat surface, top/bottom, ball bearing guided and pneumatic controlled. Reversible - replaceable knife inserts and blow-off nozzles.  External collection box.

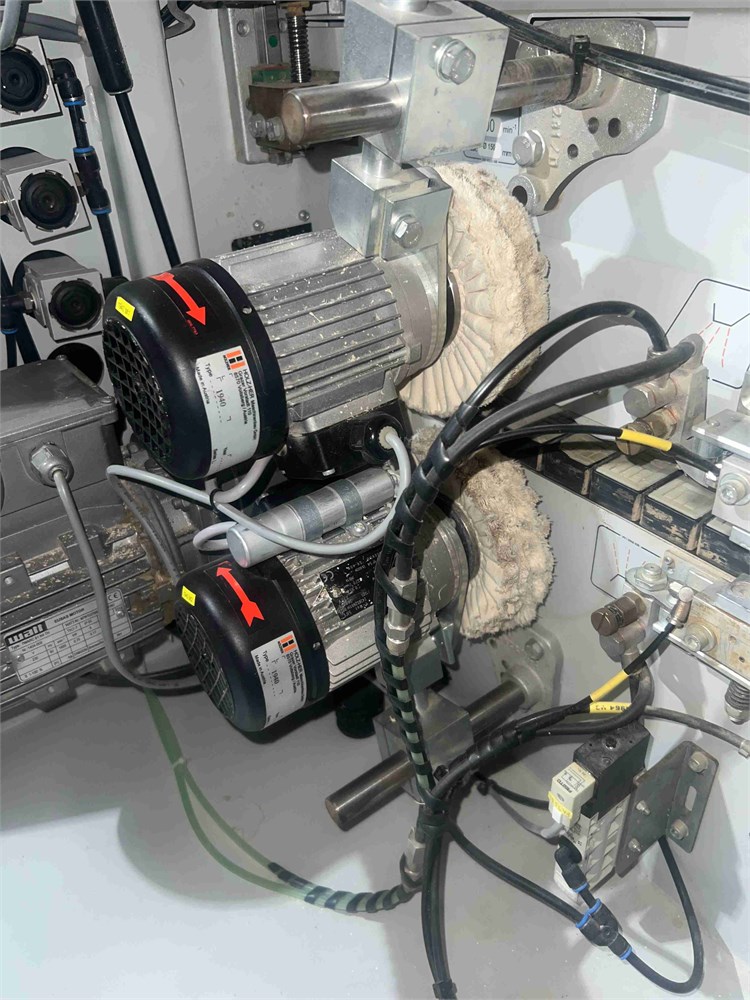

Buffing Station "1940": Top & bottom, 2 x 0.09 KW (0.25 HP) buffing motors with 150 mm ( 6.0") cloth buffing wheel diameter, adjusts in any direction (vertical tilt is 0° - 5°, horizontal swivel is 0° - 20°); 1,440 RPM wheel rotation.

Sound enclosure

Outboard roller support

PCC 221 Power-PC, Windows like interphase with large program storage capacity. Up to (10) individual users with password protection. USB connection and Ethernet network connections.

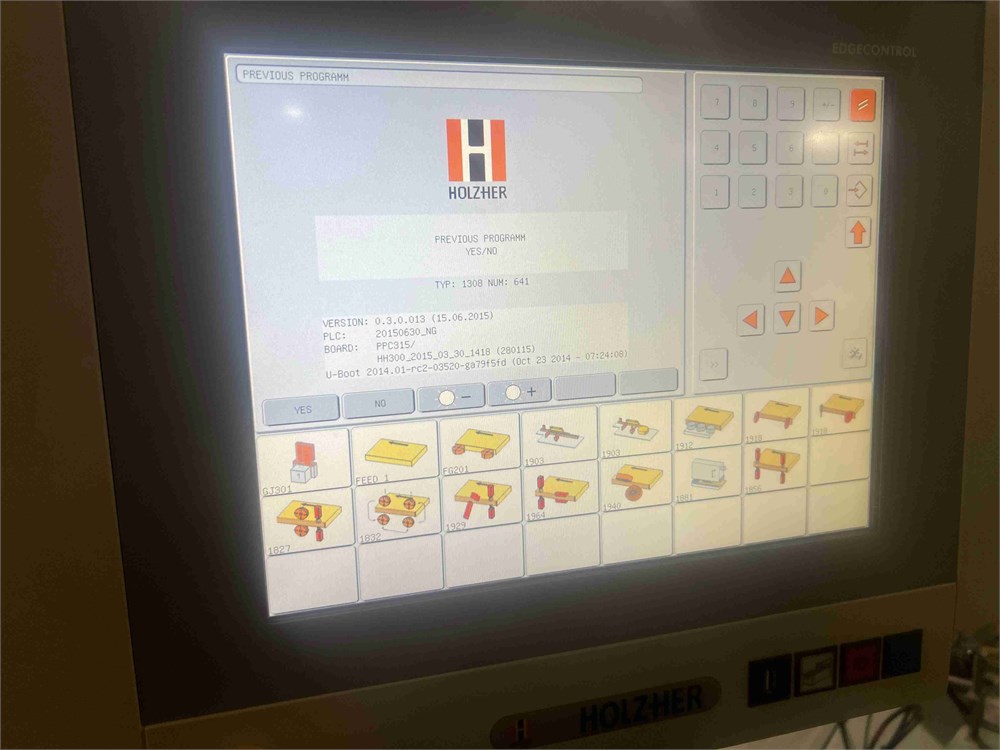

Flat Screen 8.4" VGA Color, dust-proof soft key input panel surface, programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters which can be programmed; Edgebander can be operated manually when required, without the necessity to write a program.
