Holz-Her "ProMaster 7017K" CNC Machining Center
Ended
Wood Matrix Complete Plant Auction - Alvarado, TX
Alvarado, TX
- Winning Bid : $26,750.00 USD Sold
- 105 Bid(s)
- High Bidder: g****a
Wood Matrix Complete Plant Auction - Alvarado, TX ( Closed #77712452 )
Wood Matrix in the Dallas, TX area has ceased operations and is liquidating all assets. Late model machinery including Weinig, Holz-Her, Cantek, Martin, Cefla, Gannomat, Thermwood and more!
-
Pick Up Location
4308 Longhorn Dr. Alvarado, TX 76009
-
Make
Holz-Her
-
Model
ProMaster 7017K
-
Serial Number
210/1-806
-
Year
2018
-
Phase
3 PHASE
-
Voltage
230/460
-
Buyer Inspection Period
February 13, 2026 (9 am - 3 pm, no appointment required). On-site contact is Eric Beach, [email protected], 704-608-9830
-
Load Out Period
February 19 - February 26, 2026 (no exceptions, seller vacating premises, by appointment only)
-
Estimated Dimensions
23'x13'x8'
-
Estimated Weight
8,000 Lbs
-
Seller Comment
A rigger is required. Buyer's Responsibility for Break-down, loading and removal. By appointment ONLY!
-
Load Fee
-
Lot Notes

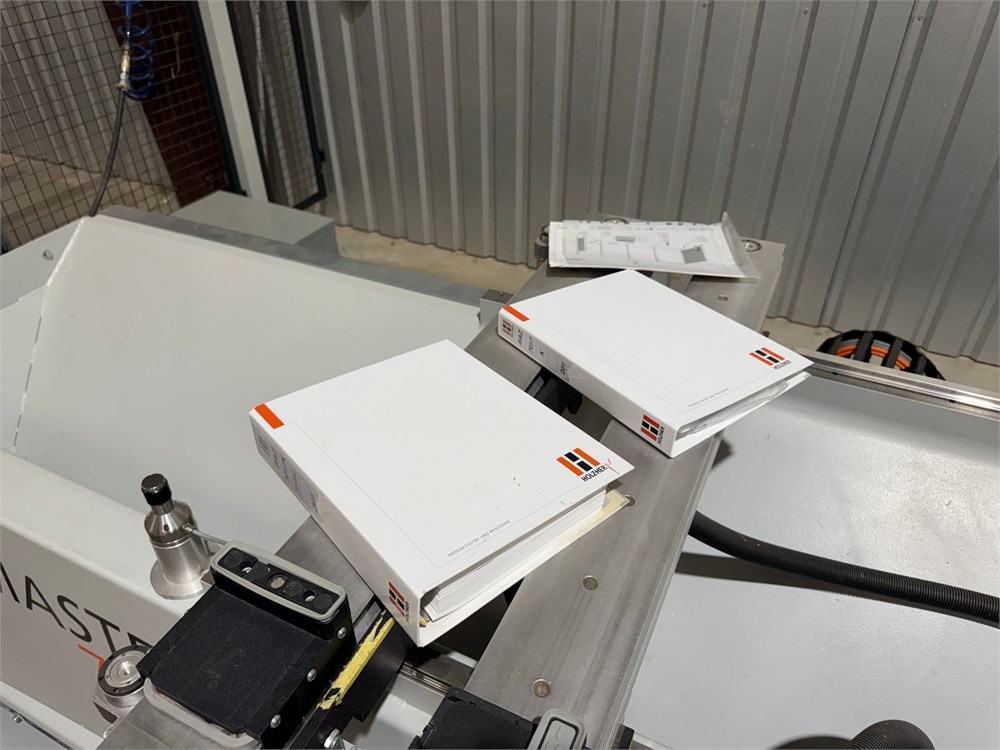

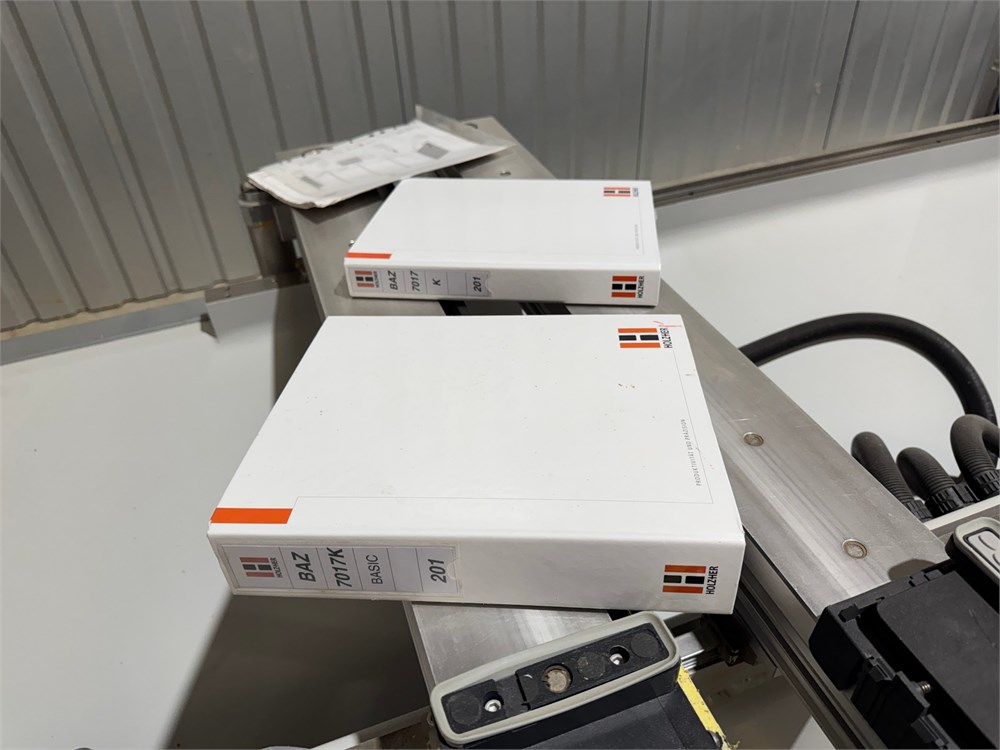

Vacuum pump & Manual IS included
-
page views
1569
Holz-Her "ProMaster 7017K" CNC Machining Center
Working Capacity "X" Axis is 125" (3,175 mm), "Y" axis is 49" (1,245 mm), "Z" axis stroke is 12.6" (320 mm);
Max. programmable speed for "X" & "Y" axis is 328 FPM (100 MPM), "Z" axis 85 FPM (26 MPM);
"X" axis travel on high precision prismatic STAR guides & ground helical rack, "Y" & "Z" axis travel via hardened ground ball screw.
(6) Support rails, adjustable vacuum pods, laser positioning system for quick positioning of pods and with value input from controller according to part size and machining required.
(2) Independent working areas with double boring stop unit and equipped with pneumatic pin stops, pin stops locate in the rear of the machine & pin stops locate in the front of the machine. Stops can be fitted with "quick fit" mushroom clamps for clamping of small or awkward shaped parts.
(12) Independent vertical boring spindles, inverter controlled variable spindle speed up to 4,400 RPM, max. tool dia. 35 mm, spindle stroke: 70 mm
(4) Horizontal spindles provide horizontal boring capabilities on all four edges of the panel, (1+1) in "X" axis & (1+1) in the "Y" axis;
(1) Grooving saw fixed in the X-axis
(1) 12 HP (9 kW) Vertically mounted liquid cooled HSK 63F electrospindle router, inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 - 24,000 RPM.
Ride along 12-position tool changer, max tool dia. 85 mm (if fully loaded) or 200 mm (with free spaces).
PC frontend with "SIEMENS SINUMERIK 810 D" + Windows operating system; 15" color monitor
100 m³/Hr vacuum pump, Remote control for Start/Stop of working cycle, speed control and reset function.
Emergency stop rope & pressure sensitive safety mats that will instantly place machine in "pause cycle" when stepped on; sound absorbing protective head enclosure with debris curtain around bottom edge.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
