Holz-her "Triathlon 1487" Edgebander
Active
Holz-Her "Triathlon 1487" Edgebander - Erie, CO
Erie, CO
- Starting Bid : $500.00 USD ( ) No Reserve
- 0 Bid(s)
Holz-Her "Triathlon 1487" Edgebander - Erie, CO ( Active #77551759 )
A high-end cabinet maker in the greater Denver, CO area is auctioning a Holz-Her "Triathlon 1487" edgebander no longer required for continuing operations. Please call me directly with any questions.
-
Pick Up Location
405 Young Ct. Erie, CO 80516
-
Make
Holz-Her
-
Model
Triathlon 1487
-

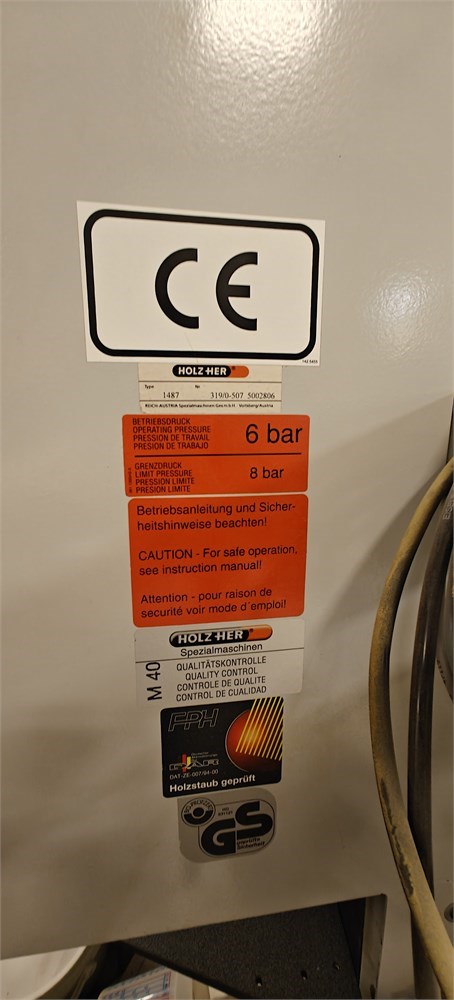

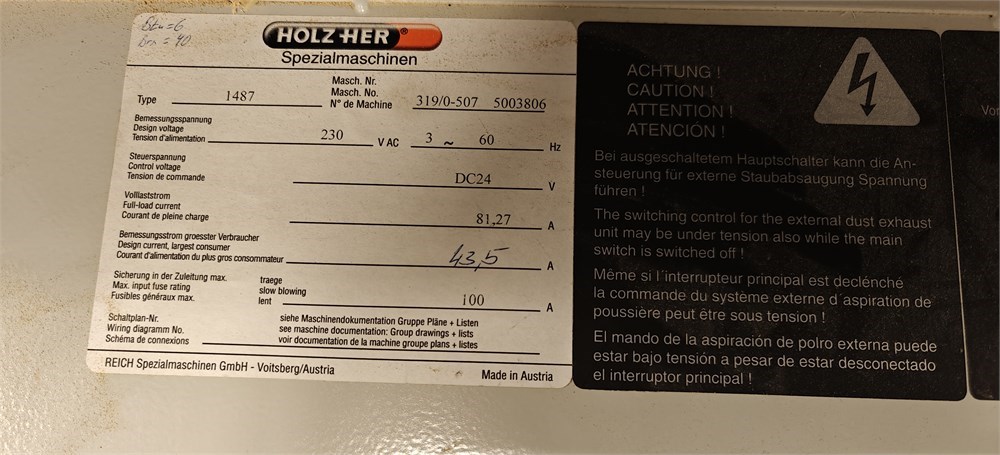

Serial Number
319/0-507 5003806
-
Year
2005
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
By appointment only, contact Thomas Aronson - [email protected] - 941-699-8717
-
Load Out Period
January 28 - 29, 2026 (By Appointment Only)
-
Estimated Dimensions
315" L x 60" W x 90" H
-
Estimated Weight
9,000 Pounds
-
Seller Comment
A Rigger is Required for load out. See homepage for details.
-
Load Fee
-
Lot Notes
-
page views
53
Holz-her "Triathlon 1487" Edgebander
SEE VIDEO OF MACHINE
3 mm PVC cap., 2-3/8" max. panel thickness and 7" min. panel length.
Variable feed speed from 26 - 67 FPM, panel overhang beyond chain 35 mm (1.38")
Automatic track pad lubrication.
Controller
Edgebanding infeed table

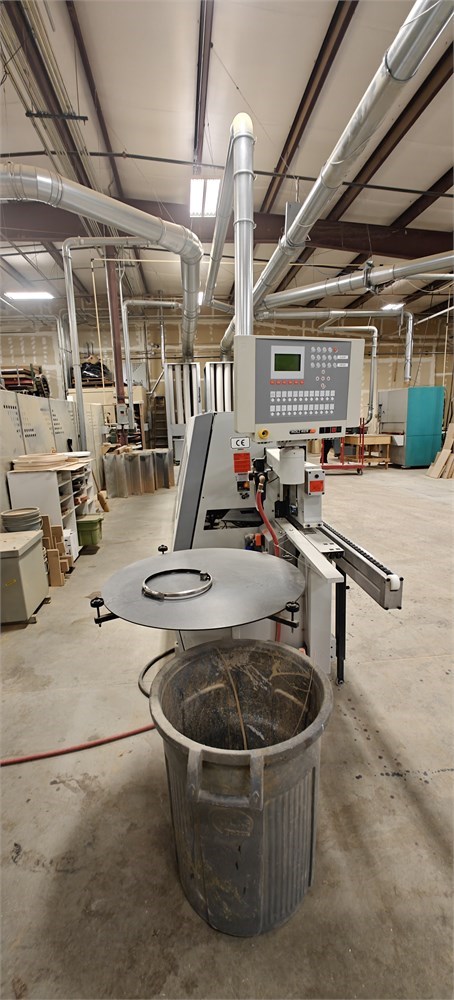

Automatic magazine for coil, strip & solid edgebanding with motorized axis, model "1901.3" (miniscule 3° approach angle for lumber banding) w/TRACTOR-BELT feed system.
Granular glue hopper system with applicator nozzle & "quick melt" feature
Pressure section with (3) large dia. rollers, each w/motorized plunge & pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed.

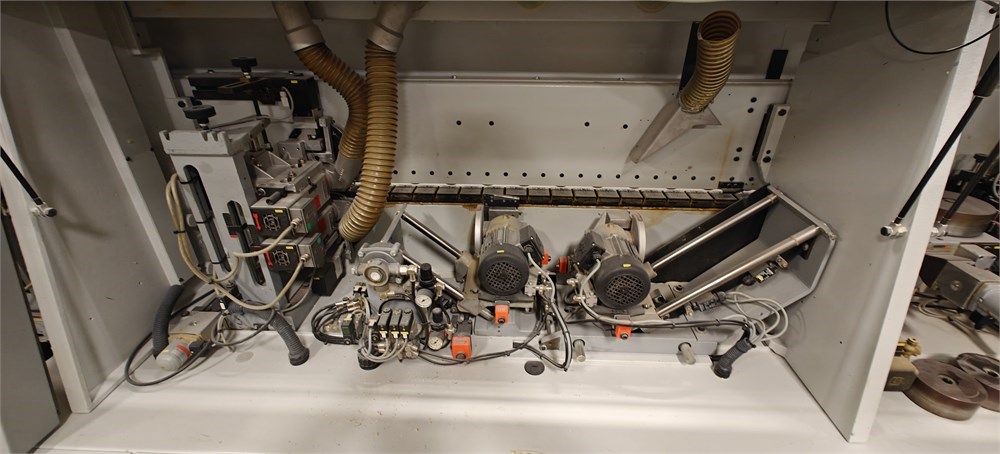

"1916.1" Double motor (1 HP - 12,000 RPM ea.) end trim units with "Uni-Point" swivel system, "quick change" from flush to 0° - 15° bevel from operator panel
"1962M" Top & bottom flush trim unit (2.6 HP motors), w/motorized 5-axis adjustment from control panel, & SIKO digital readouts.
"1906" Top & bottom fine trim unit w/motorized fine trim (1.5 HP motors), bevels 0° - 45°, SIKO digital readouts.
Shaper/ Grooving Station
"1927" Scraper Unit for finishing 3 mm PVC for radius range from 2 - 5 mm, vertical & horizontal tracing wheels, pneumatic in-and-out of knives, and SIKO readouts for easy setup.
Top and Bottom Flat Scraper Unit
"1851" Jump buffing unit for cleaning & polishing of panel (two 0.25 HP - 3,600 RPM motors), tilts 0° - 5°

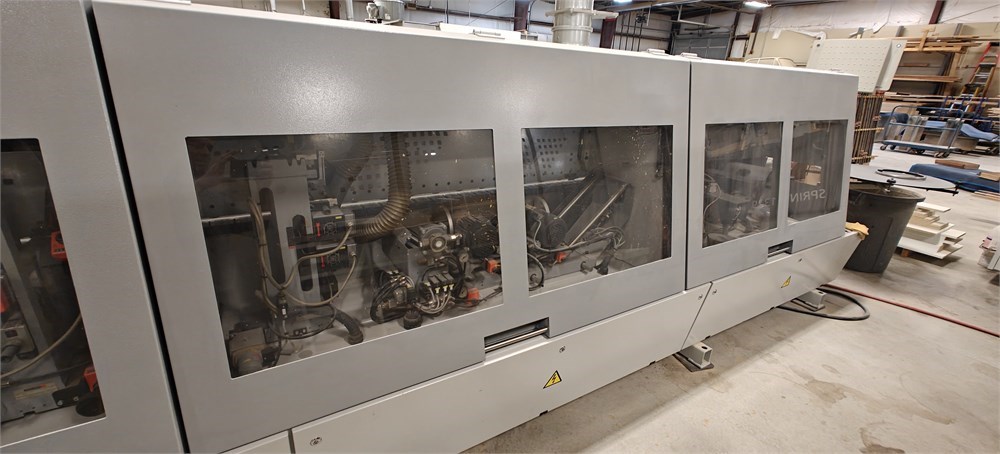

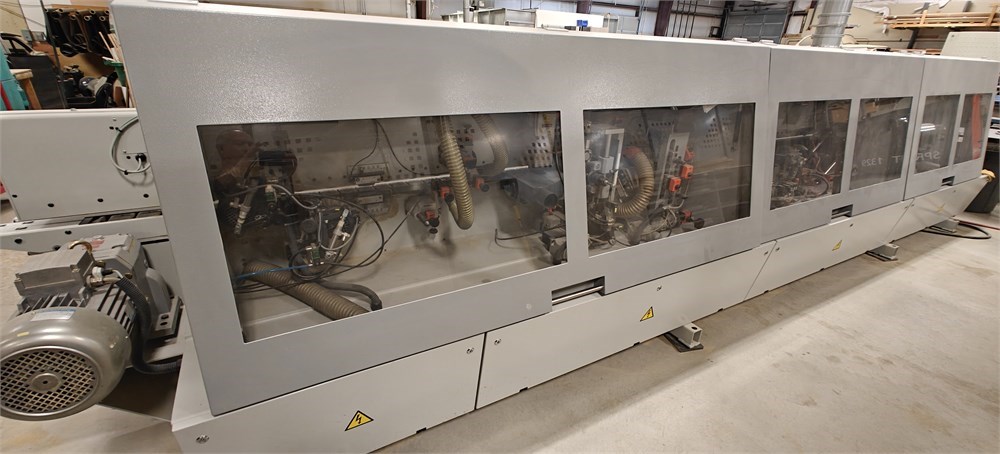

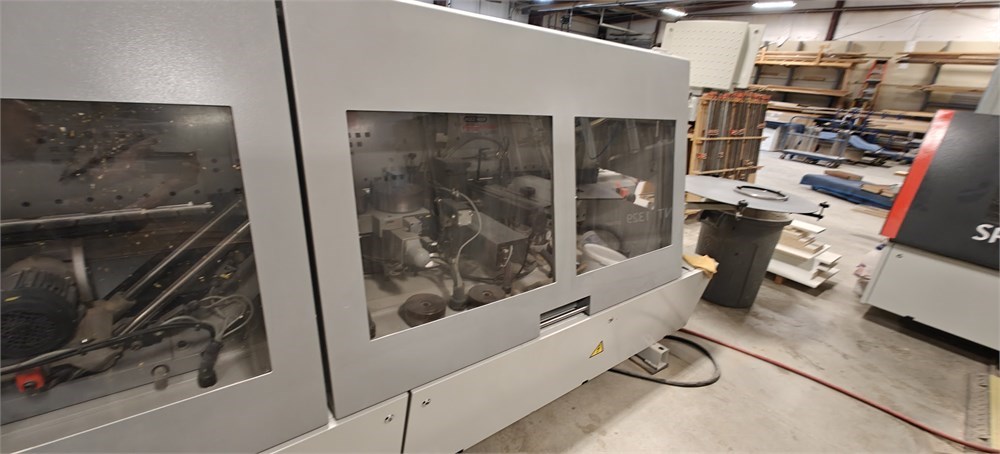

Sound enclosure
Outboard roller support
Manuals
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
