Homag "Vantech 510" Flat Table CNC with Load & Unload
Active
Located in Charlotte, NC - Still in use!
Charlotte, NC
- Starting Bid : $5,000.00 USD ( ) No Reserve
- 0 Bid(s)
Weeke "Vantech 510" CNC Machining Center - Load & Unload Cell - Charlotte, NC ( Active #77513530 )
Atlantic Caseworks is replacing this CNC with a new one. This machine is still in operation and is simply being replaced.
-
Pick Up Location
4700 Rozzelles Ferry Rd. Charlotte, NC 28216
-

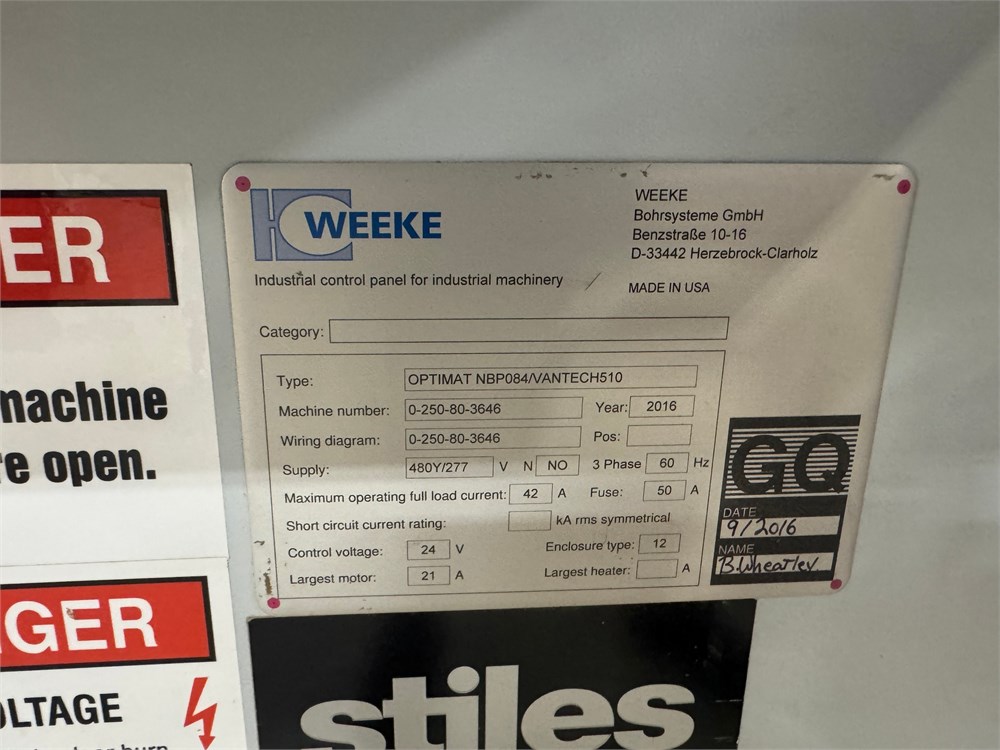

Make
Homag
-
Model
Optimat NB084/Vantech 510
-
Serial Number
0250-80-3646
-
Year
2016
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment only, contact Eric Beach, [email protected], 704-608-9830
-
Load Out Period
This will be a specific load-out as follows: The machine will be decommissioned and prepared for loading by Stiles Machinery on January 26 & 27, 2026. Pedowitz Movers will be loading the machine. A truck will need to be on-site for pick-up on January 28, 2026 and scheduled with seller. The total fee for this is $5,300 to the winning bidder. This is non-negotiable.
-
Estimated Dimensions
CNC -96" x 190" x 96", Infeed 67" x 178" x 37", Outfeed 76" x 168" x 65"H
-
Estimated Weight
10,000 Lbs
-
Seller Comment
This will be a specific short time window load-out as follows: The machine will be decomissioned and prepared for loading by Stiles Machinery on January 26 & 27, 2026. Pedowitz Movers will be loading the machine. A truck will need to be on-site for pick-up on January 28, 2026 and scheduled with seller. The total fee for this is $5,300 to the winning bidder.
-
Load Fee
5300.00
-
Lot Notes
Stiles Machinery will be prepping the machine & Pedowitz Machinery Movers Will be loading it!
-
page views
191

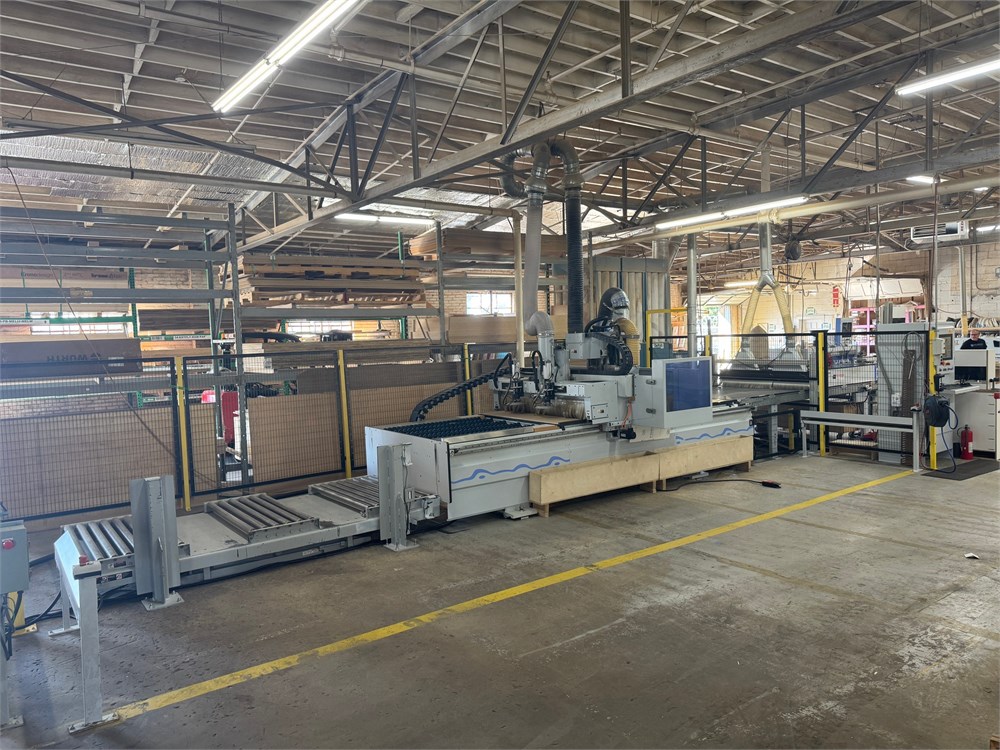

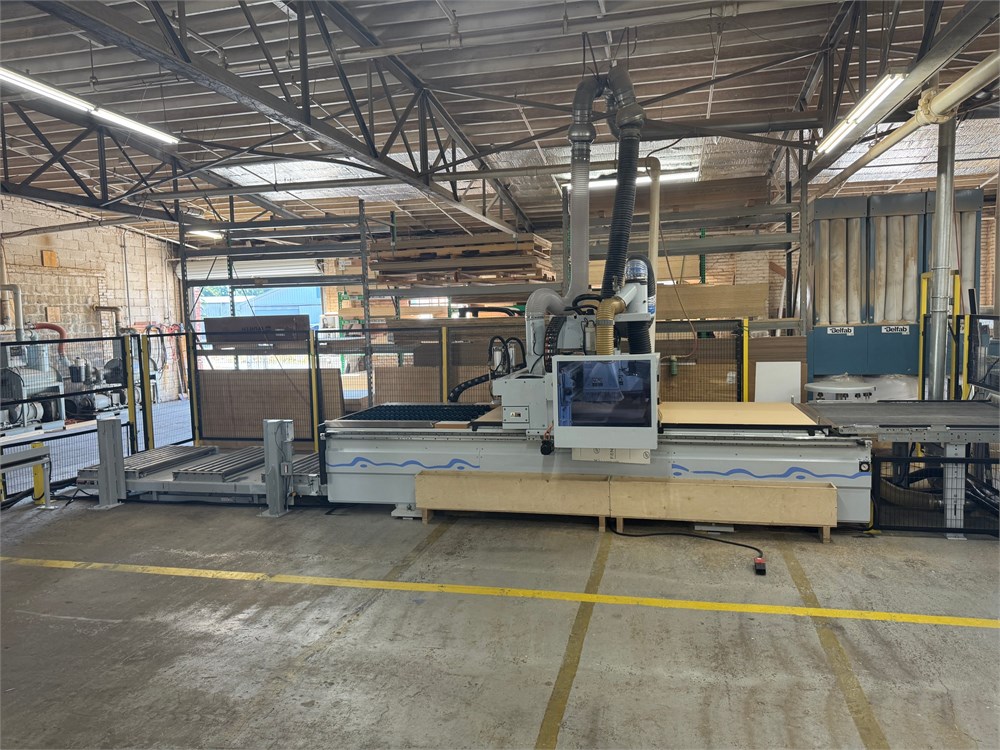

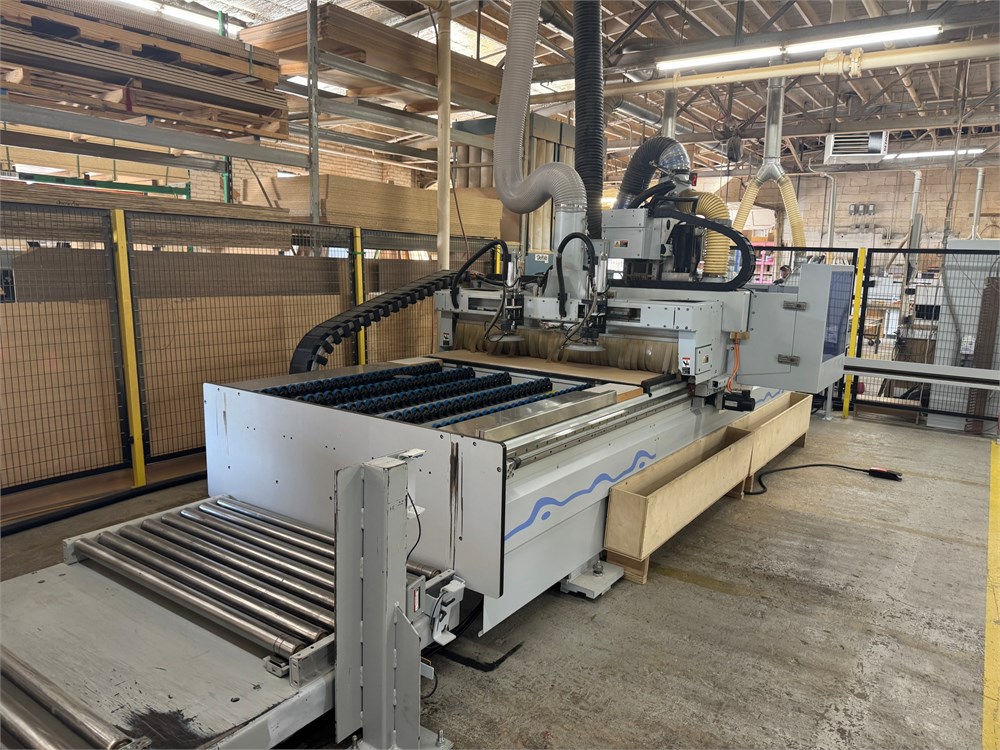

Homag "Vantech 510" Flat Table CNC with Load & Unload
See video of machine

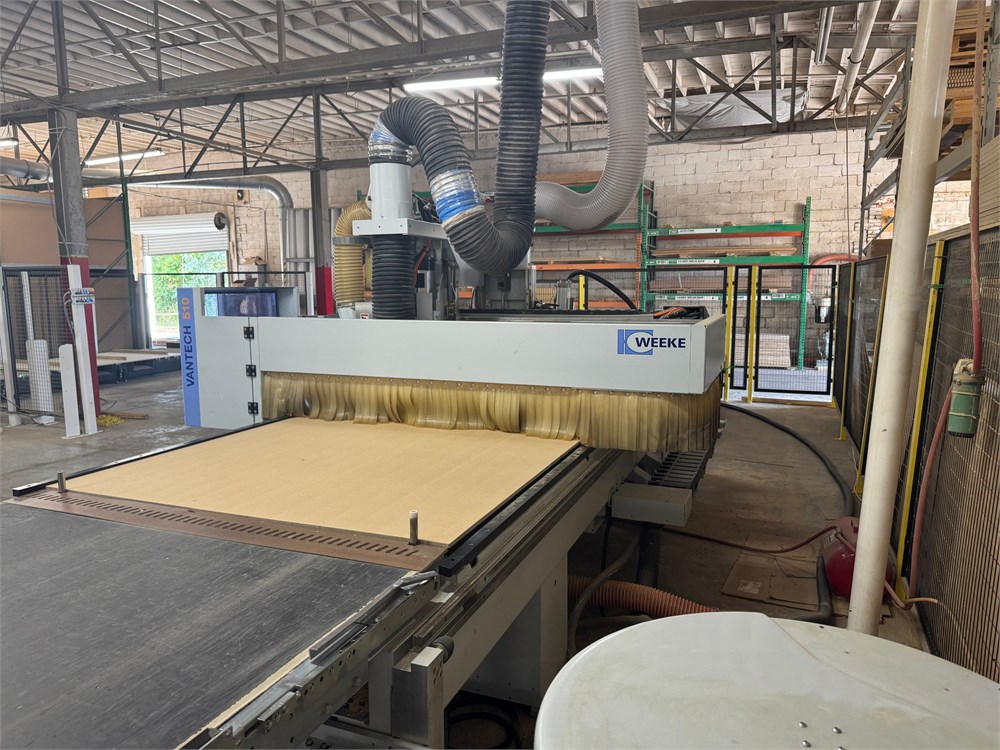

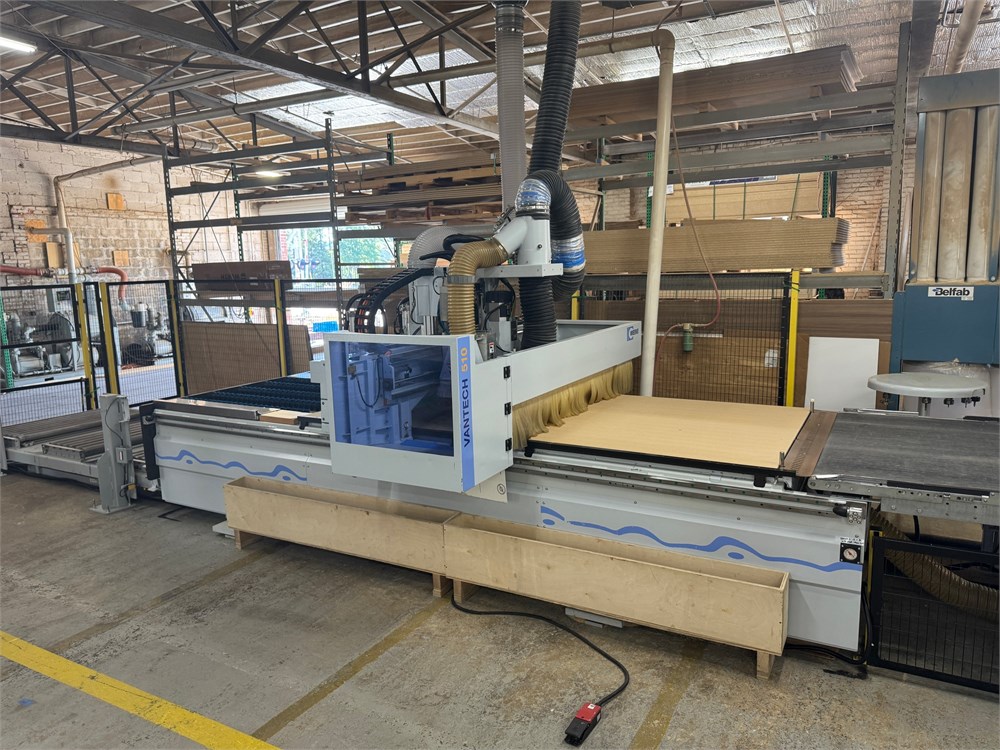

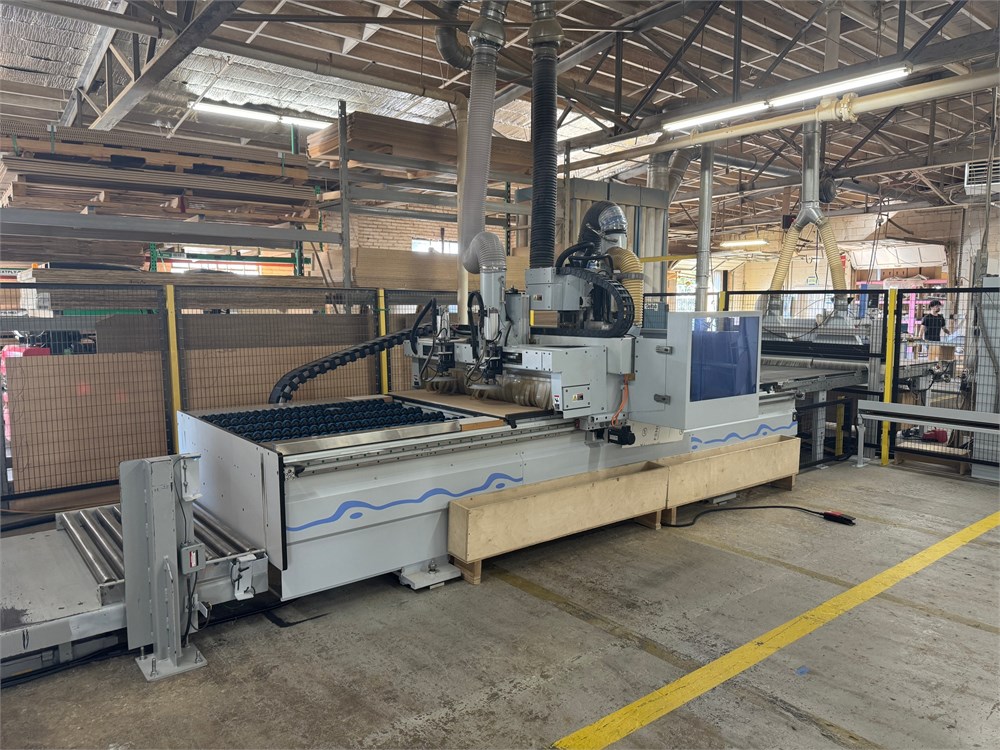

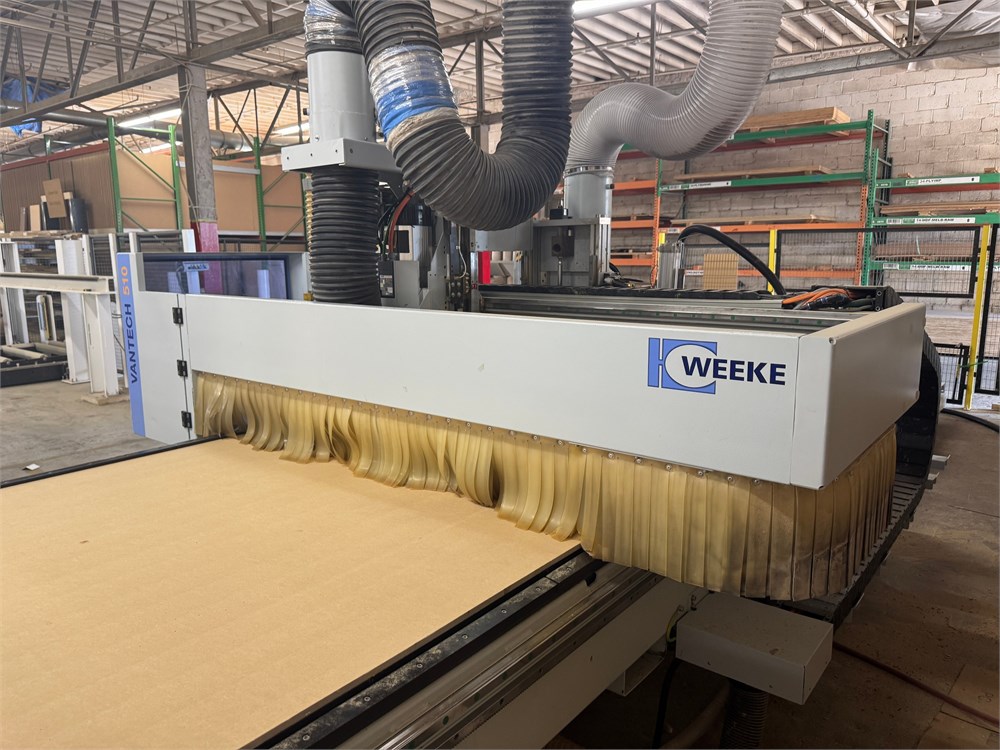

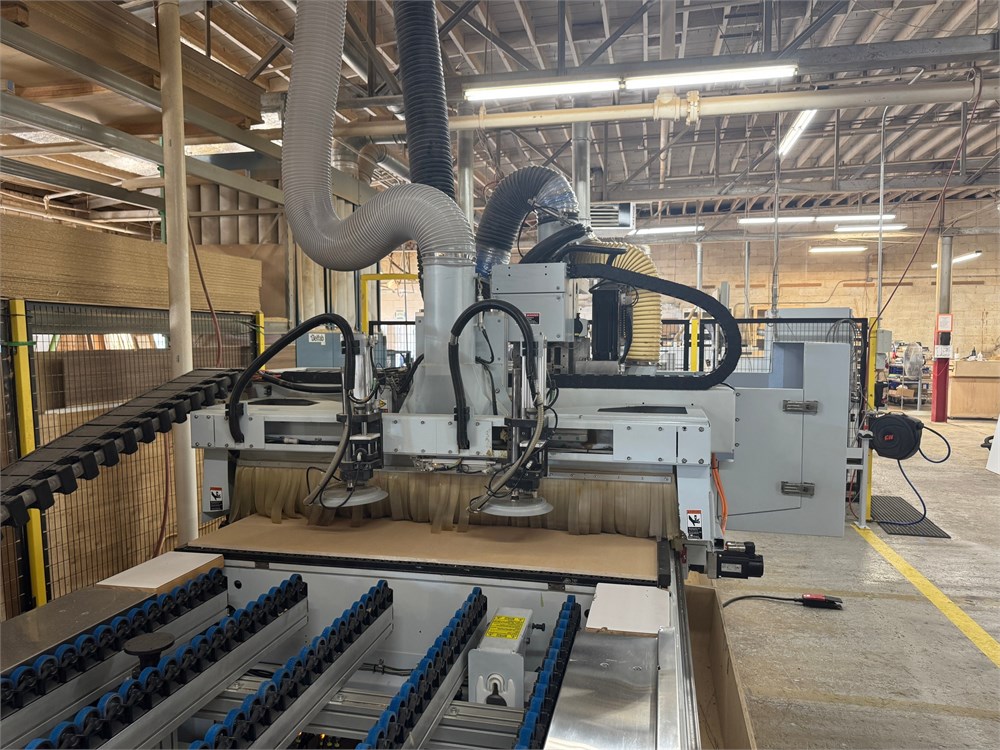

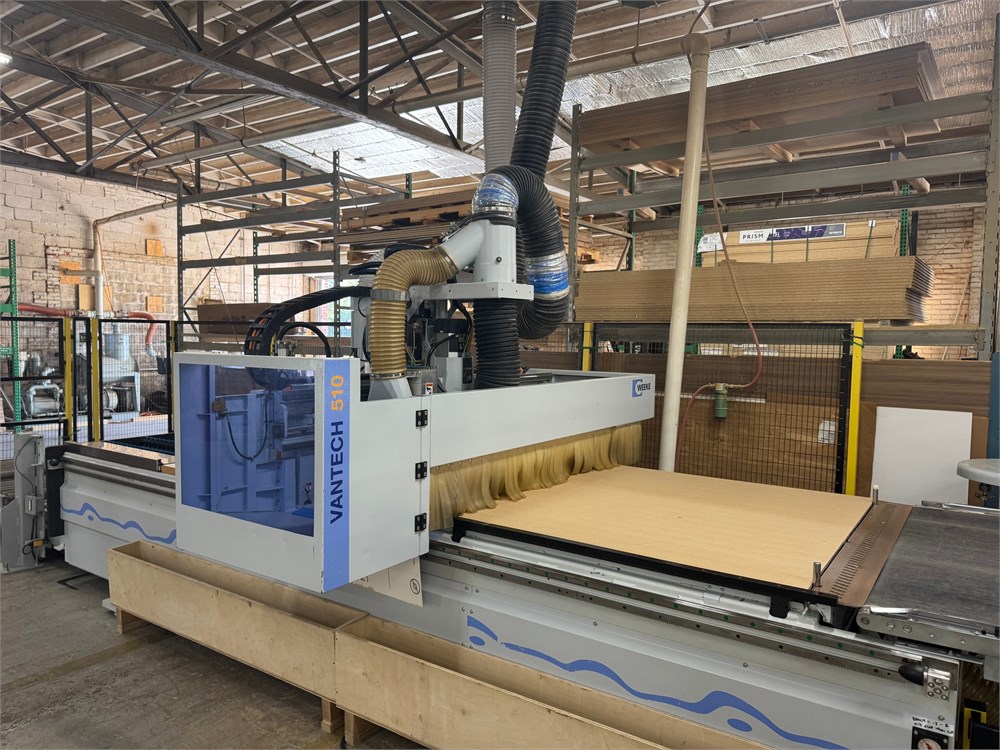

5' x 10' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.
"X" Axis is 122" (3,100 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).
"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

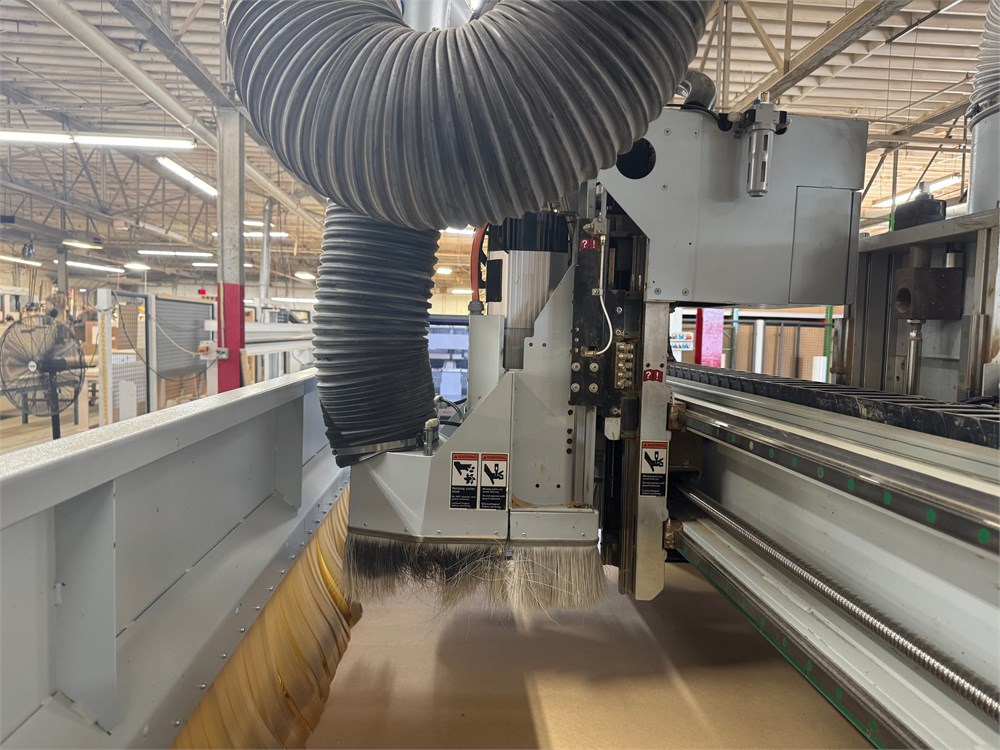

The head travels via AC brushless drives & THK linear motion guides on all axes.
S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins.

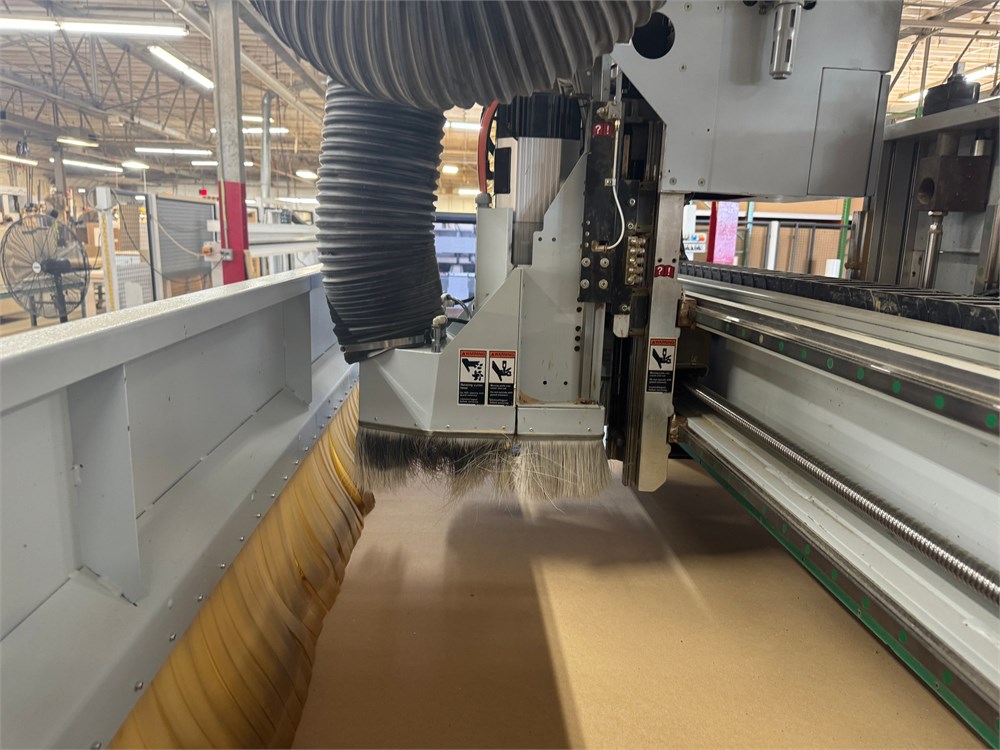

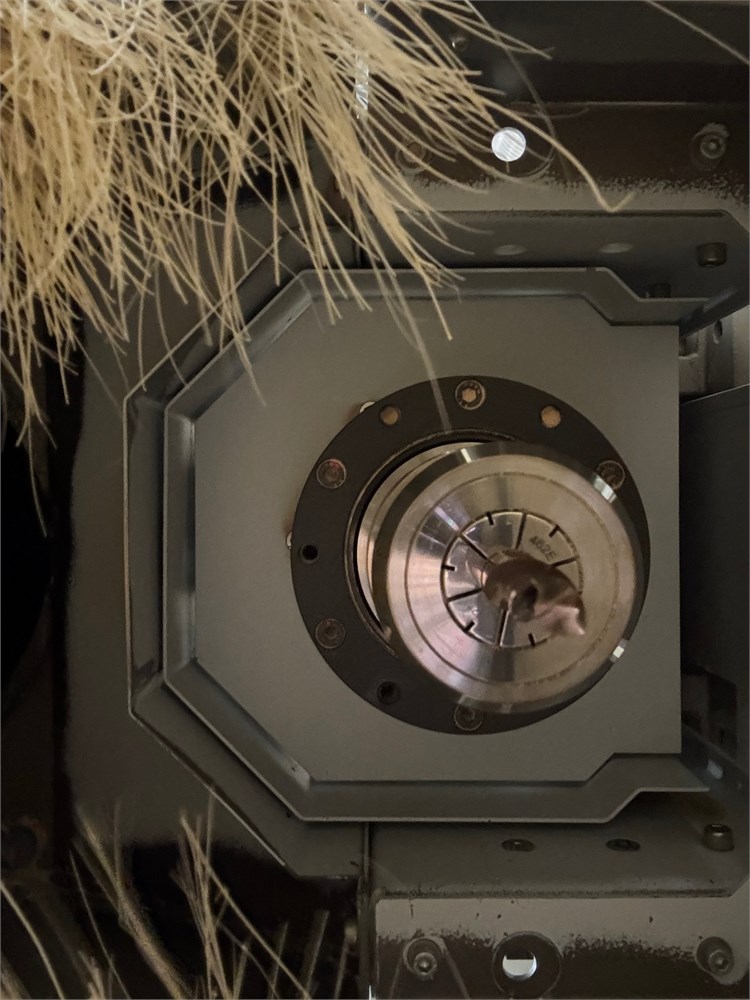

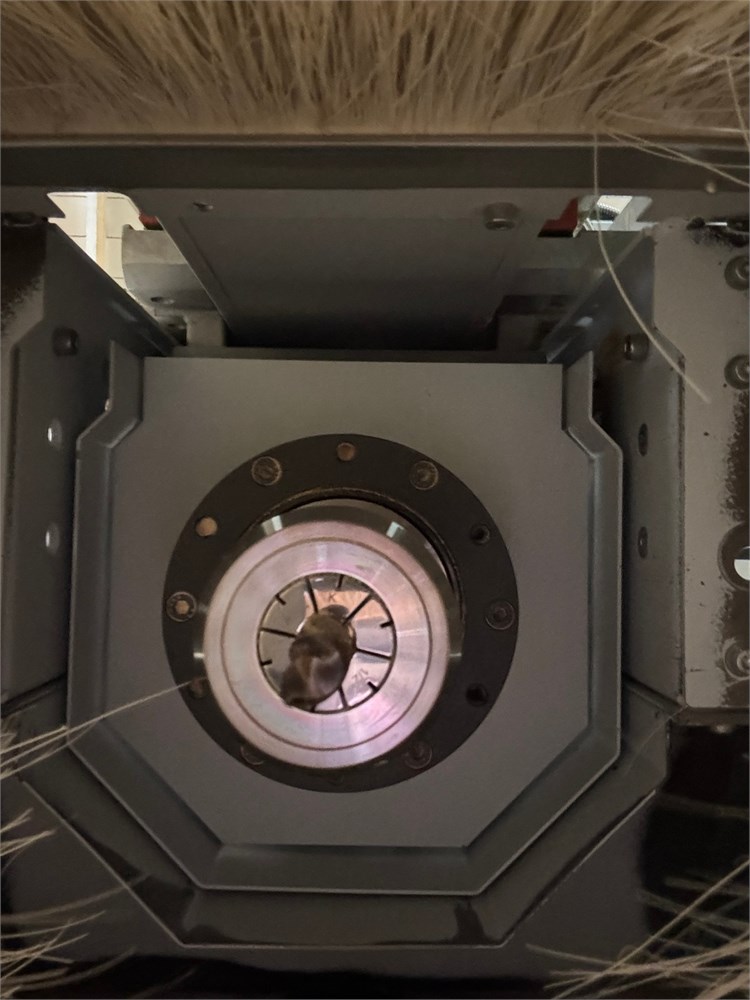

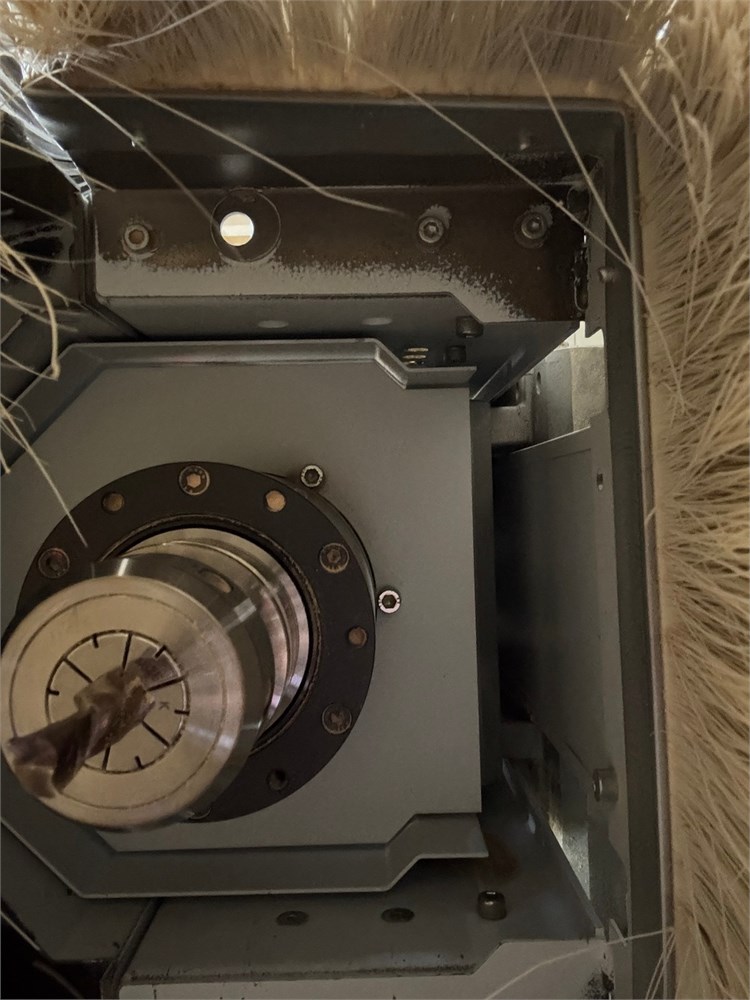

(1) 12 HP (9 kW) High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.

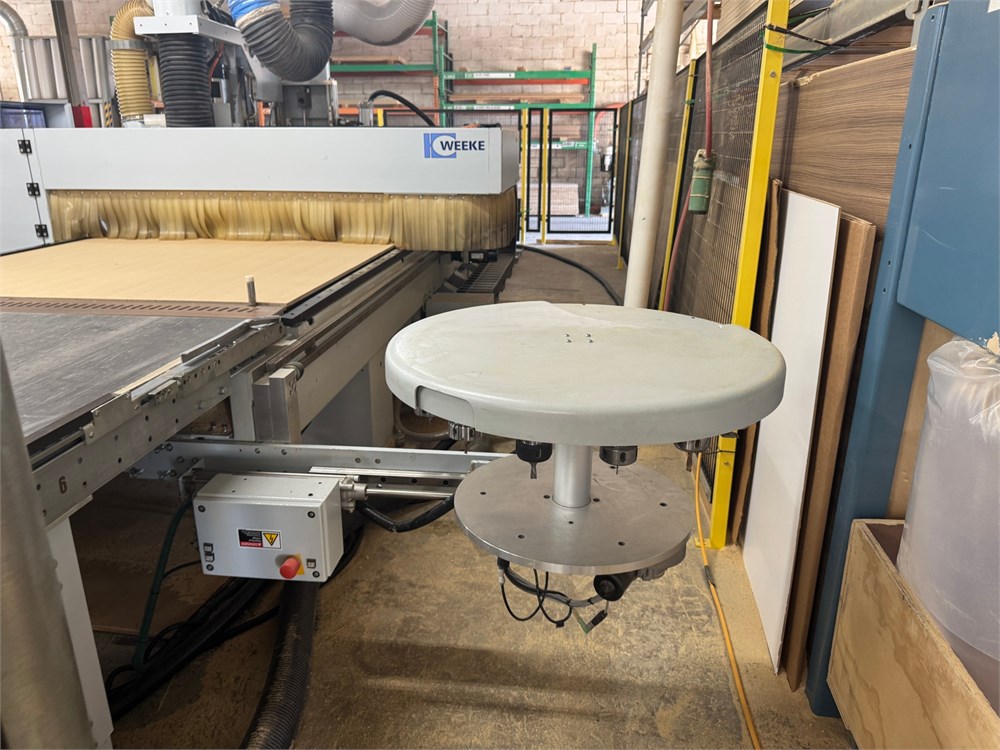

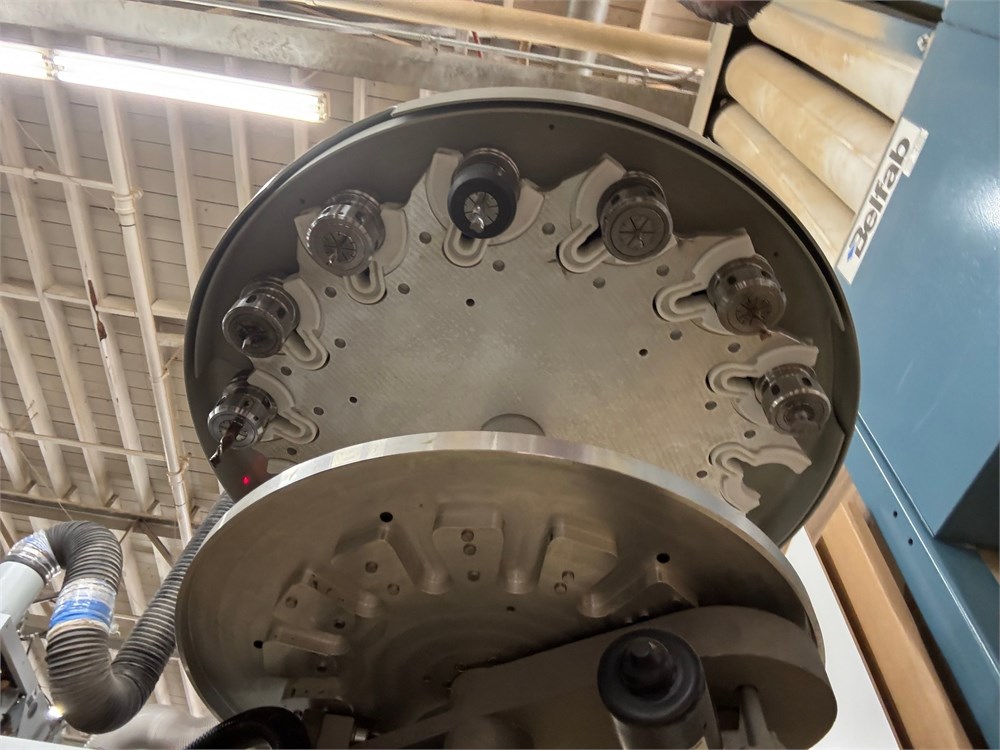

(1) 14-Position auto tool changer rack carousel

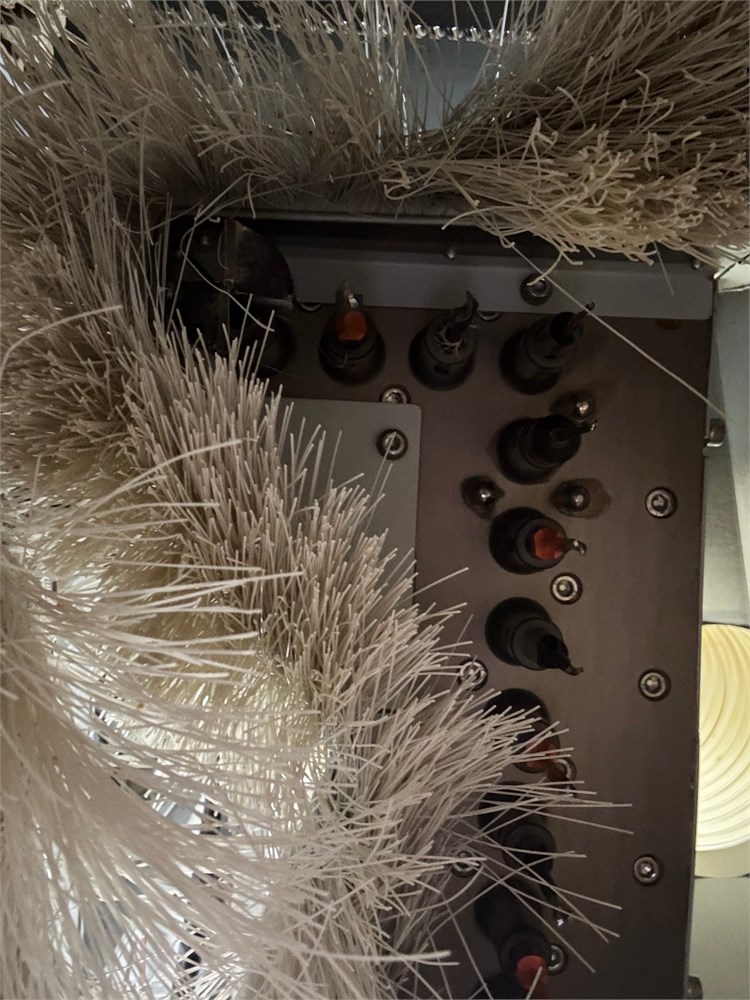

Boring unit with 3.6 HP (2.7 kW) motor, (11) Independent vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM.

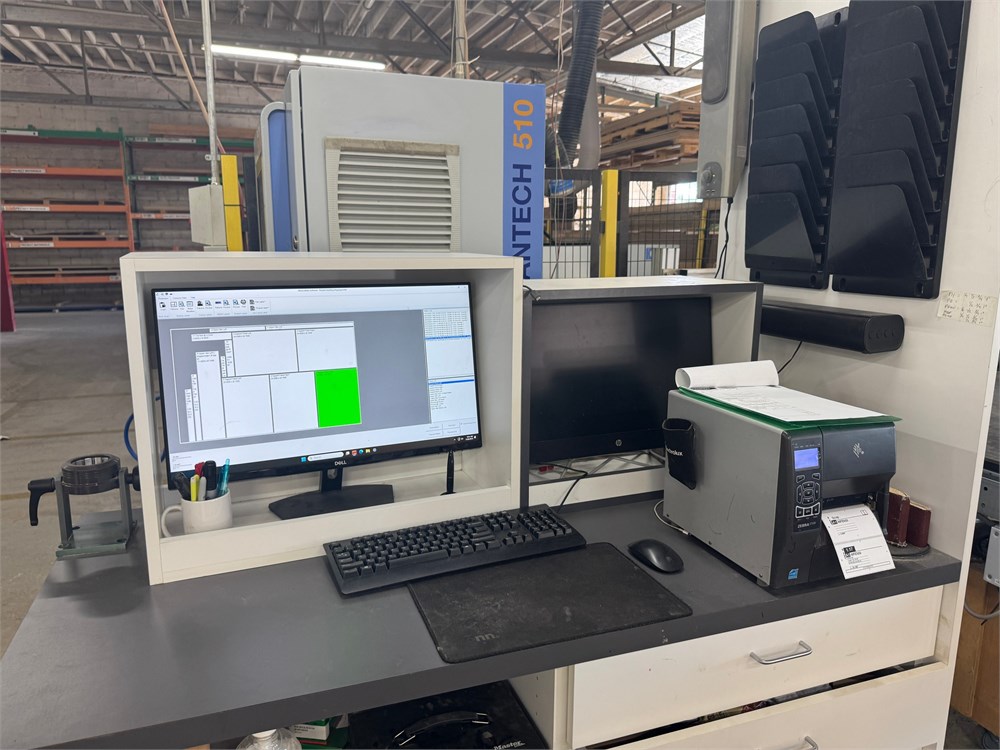

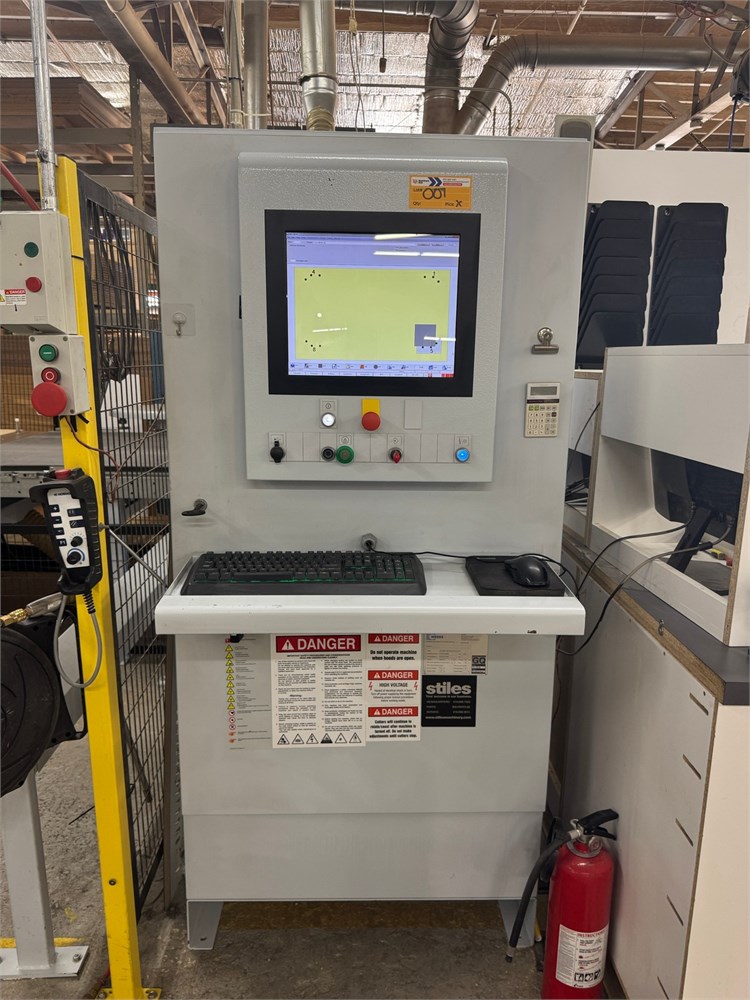

PC Front-End with WEEKE "PC 85T" + Windows "XP" + WoodWOP 5.0 operating system.
17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.
"BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; the controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either the LH or RH side of the machine.

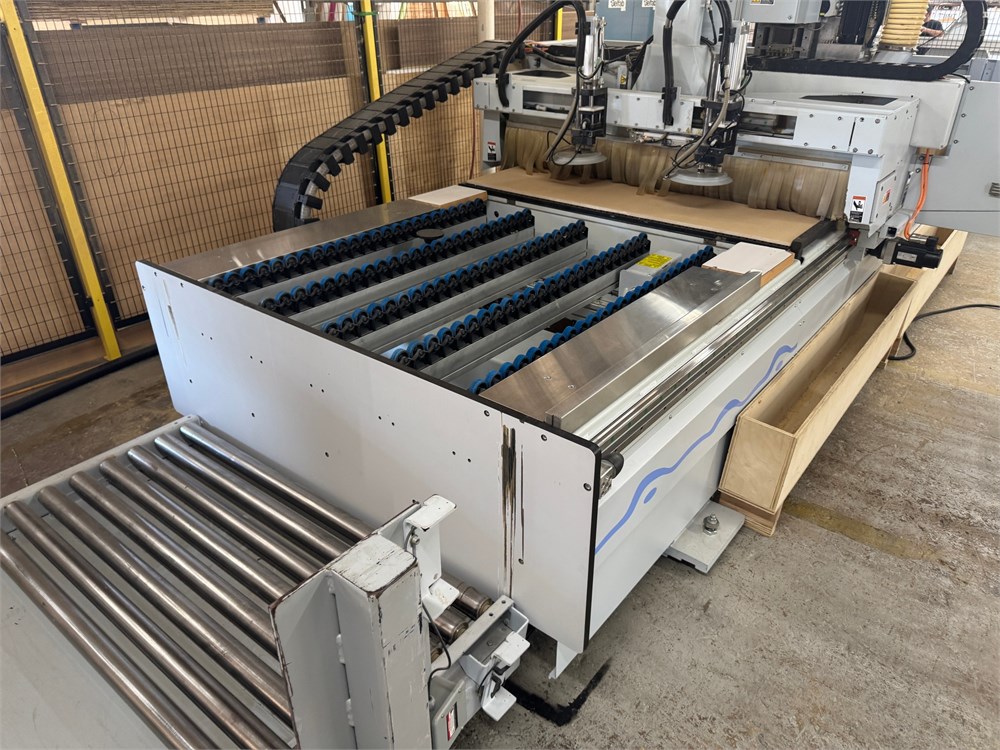

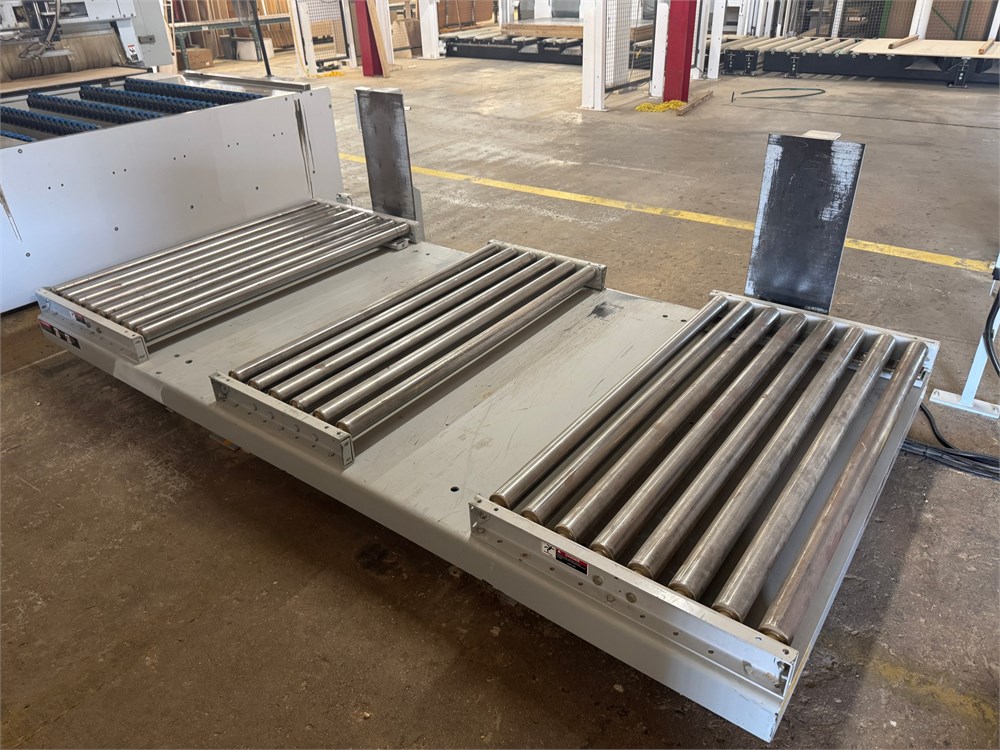

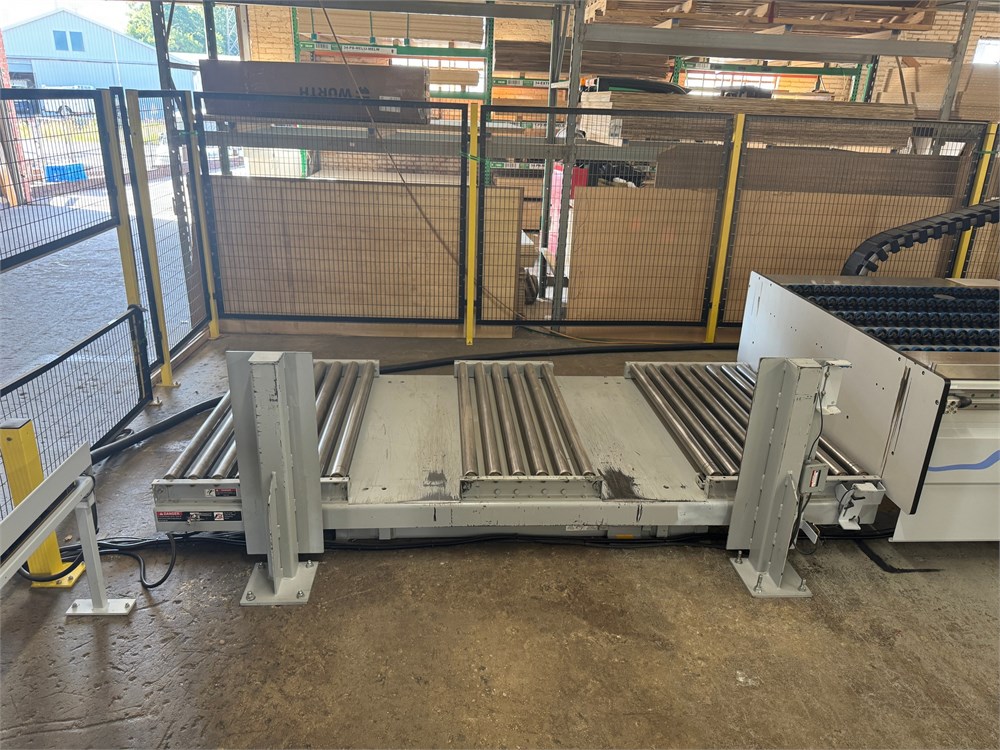

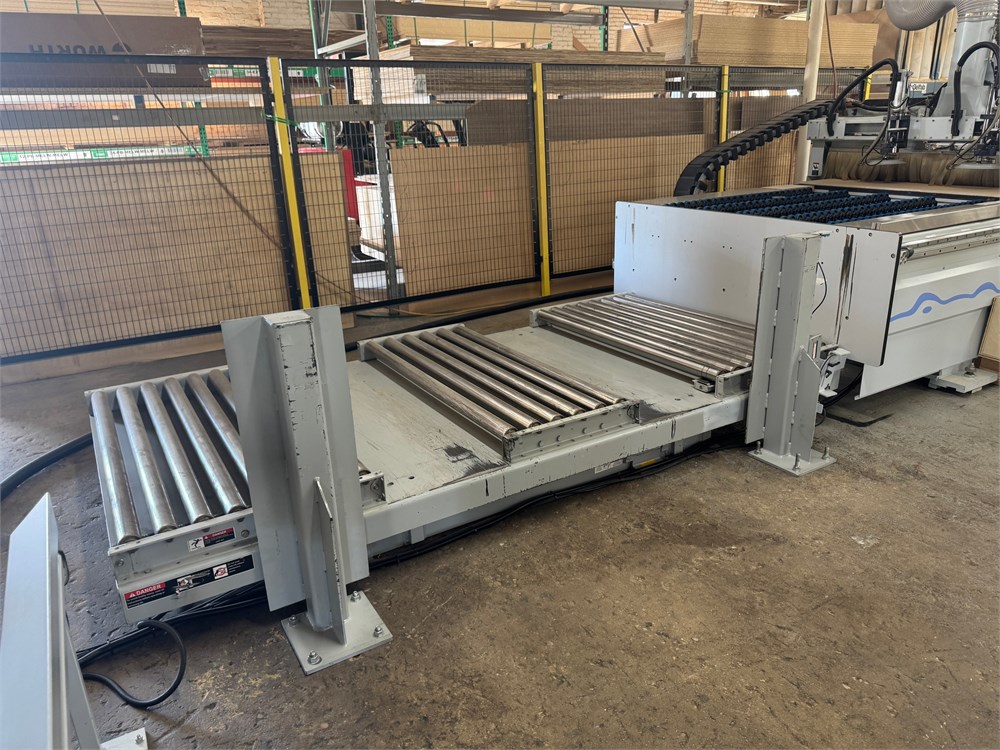

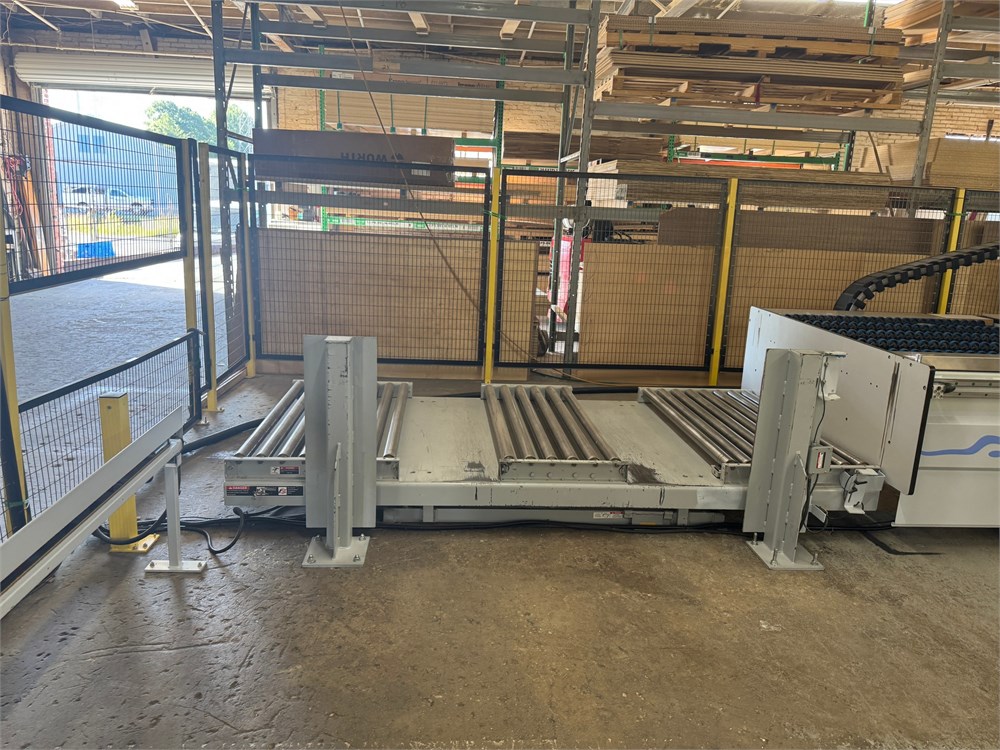

Powered Infeed Roller Conveyor 67" x 178" x 37

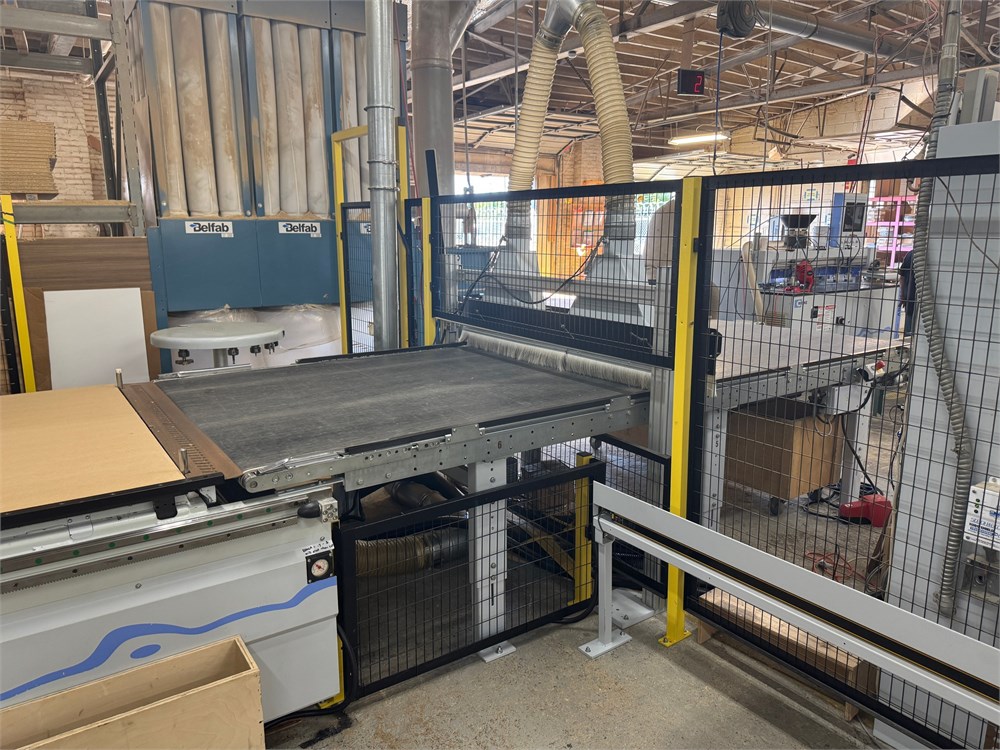

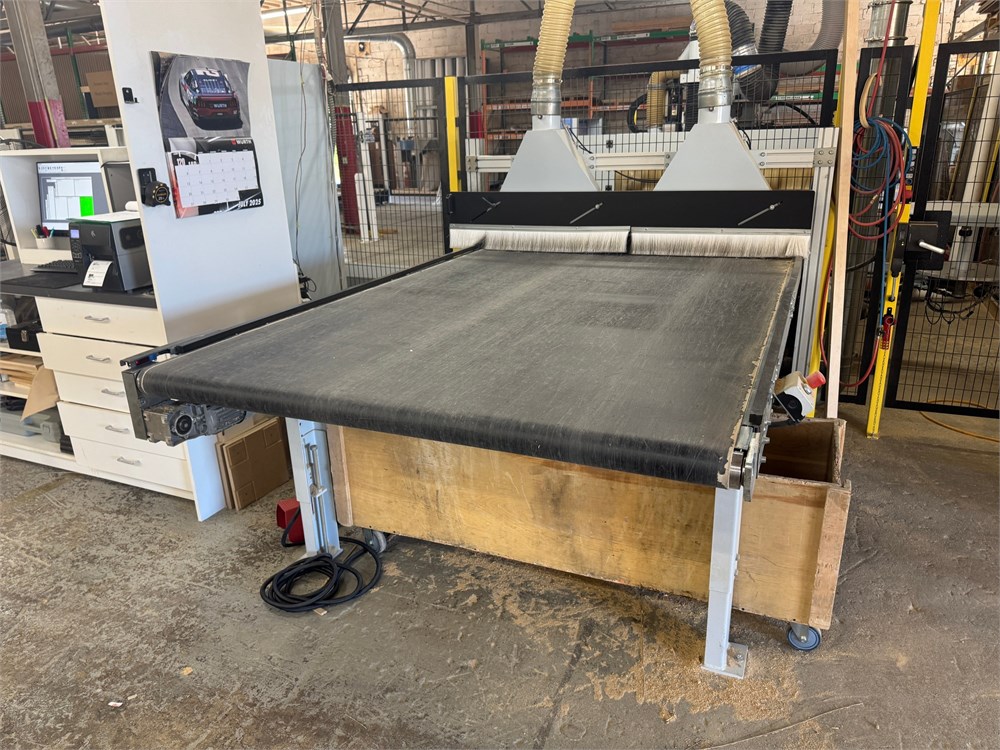

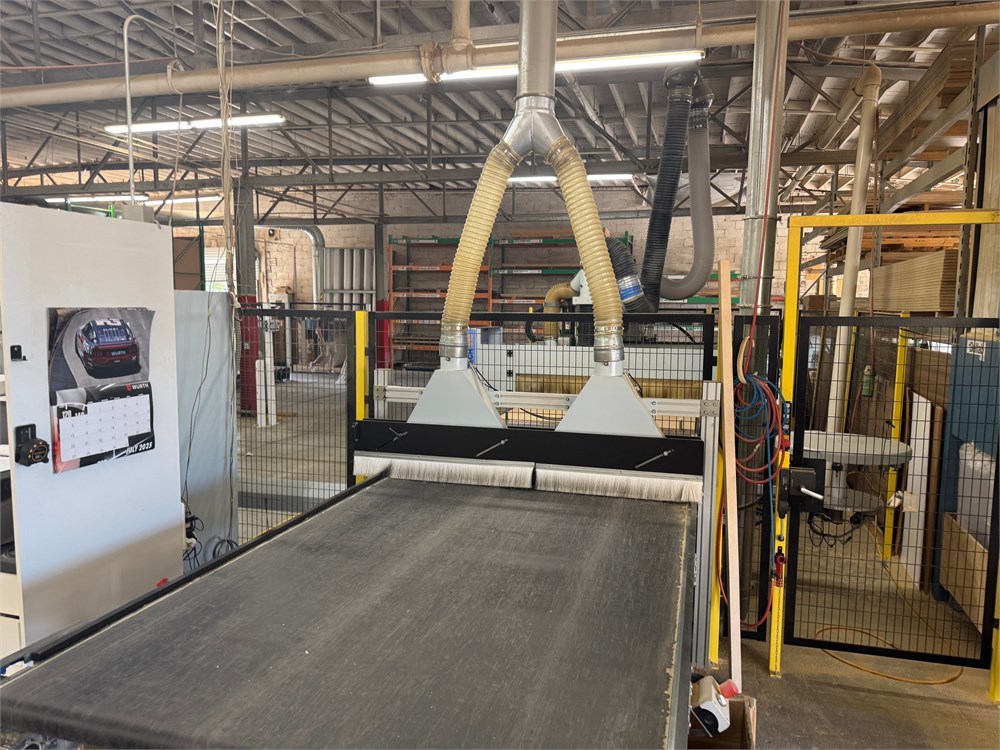

Powered Outfeed Belt Conveyor 76" x 168" x 65"H
Vacuum Pump NOT included. See Lots 002 & 003.
This will be a specific load-out as follows: The machine will be decommissioned and prepared for loading by Stiles Machinery on January 26 & 27, 2026. Pedowitz Movers will be loading the machine. A truck will need to be on-site for pick-up on January 28, 2026 and scheduled with seller. The total fee for this is $5,300 to the winning bidder. This is non-negotiable.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
