Weeke Optimat "BHP008/Vantech 512" Flat table CNC
Active
Woodworking Complete Cabinet Shop Closure - Boca Raton, FL
Boca Raton, FL
- Starting Bid : $3,000.00 USD ( ) No Reserve
- 0 Bid(s)
Cabinet Designers, Inc. Complete Shop Closure - Boca Raton, FL ( Active #76915594 )
Cabinet Designers, Inc in the greater Orlando, FL area is closing shop and liudiating all assets. Machinery includes Weeke "VANTECH 512" CNC Router, Altendorf "F45" Sliding Table Saw, Martin "T 72A" Sliding Table Saw, Gorbel "Jumbo ERG" Jib Crane and Vacuum Lifter, Nederman "S-1000" Dust Collector and Much More! Please call me directly with any questions.
-
Pick Up Location
1121 Holland Dr. Ste. 17 Boca Raton, FL 33487
-

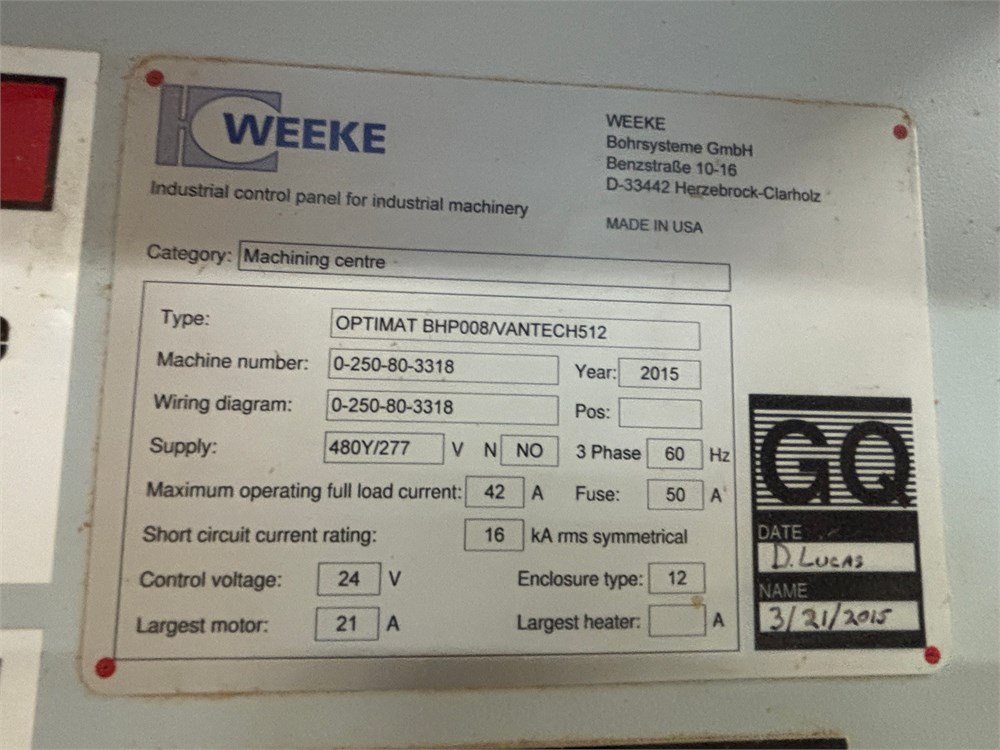

Make
Weeke
-
Model
Optimat BHP008/Vantech 512
-
Serial Number
0-250-80-3318
-
Year
2015
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
November 26th - December 17th, 2025 By appointment only
-
Load Out Period
December 17th- December 23rd, 2025 By appointment only
-
Estimated Dimensions
216" L x 81" W x 96" H
-
Estimated Weight
7,000 lbs
-
Seller Comment
Buyer responsible for prep, loading, and shipping or hiring a rigger to do so.
-
Load Fee
-
Lot Notes
-
page views
14
Weeke Optimat "BHP008/Vantech 512" Flat table CNC

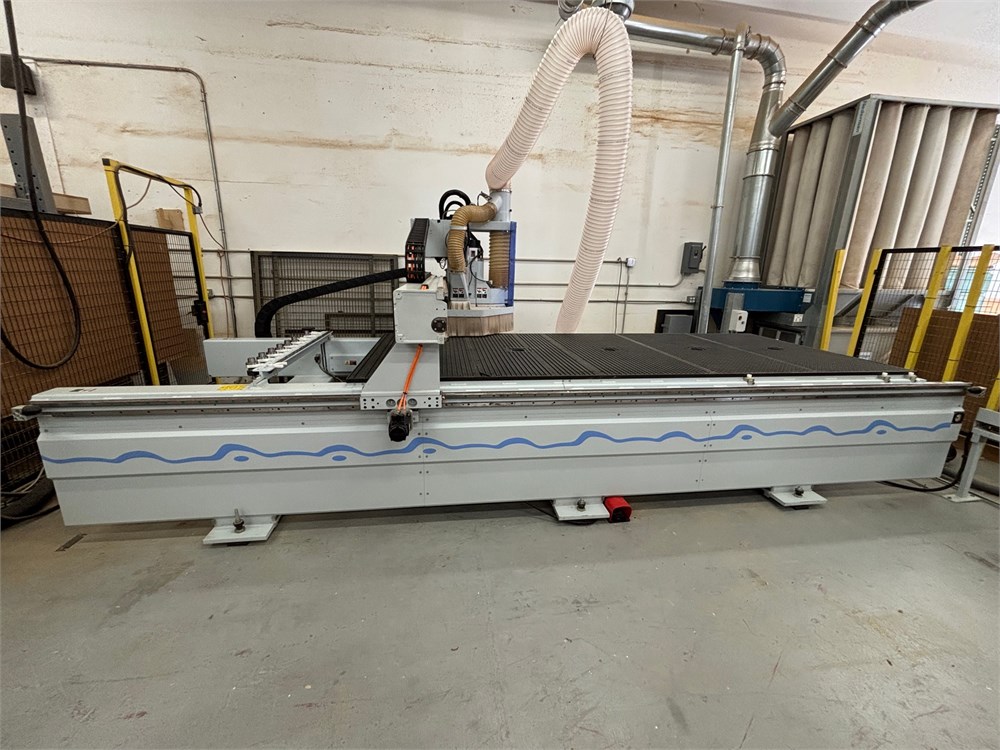

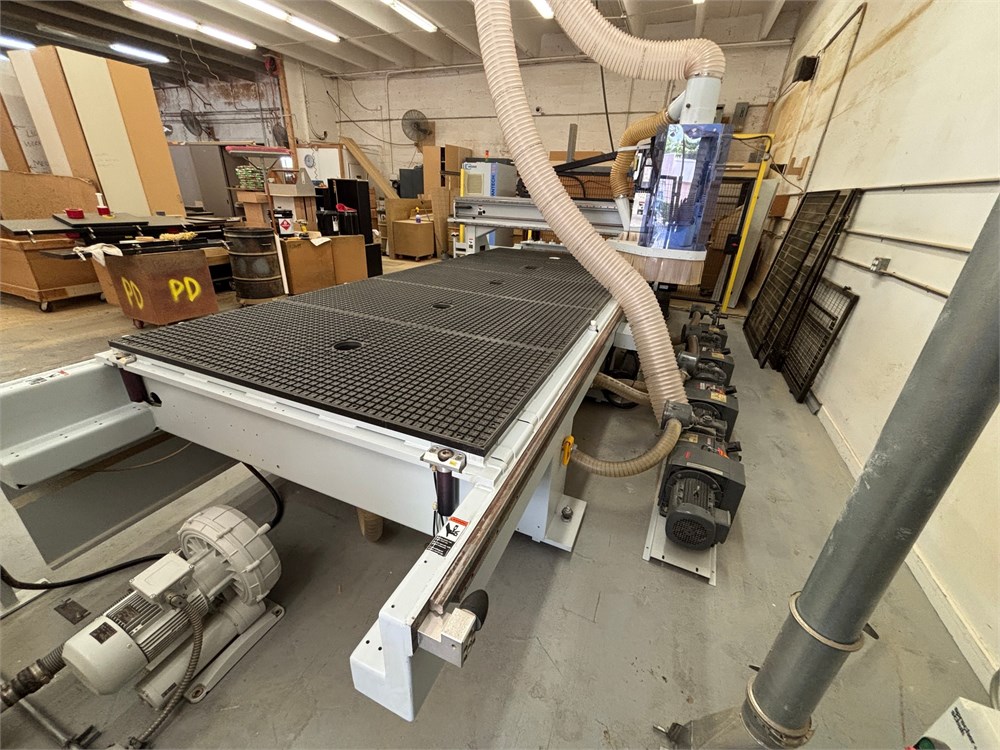

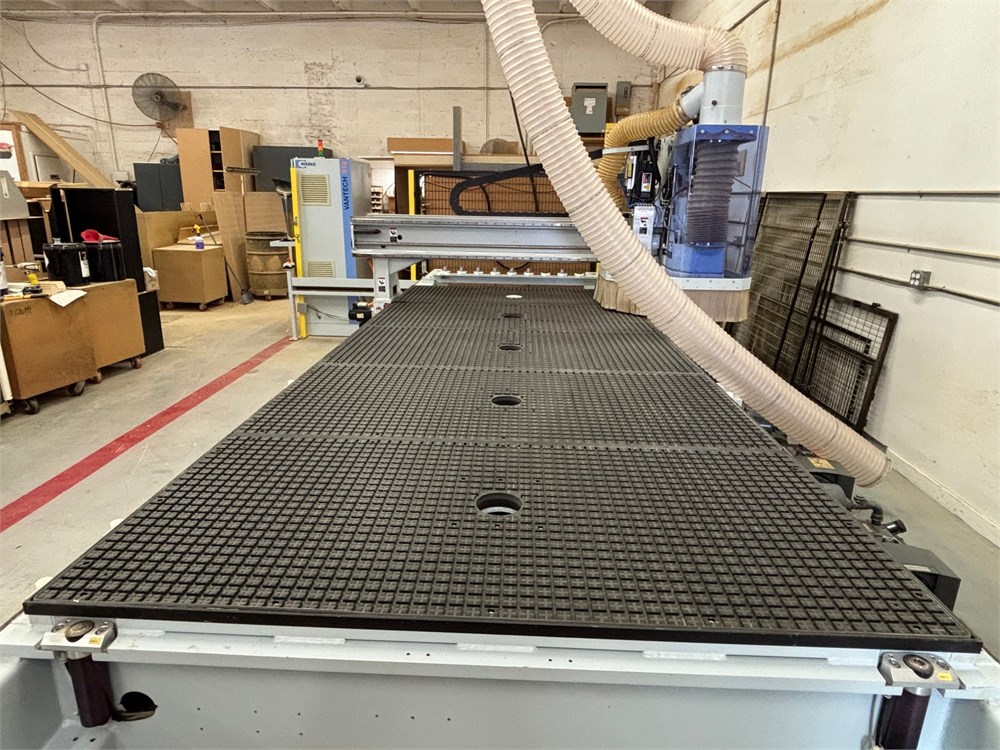

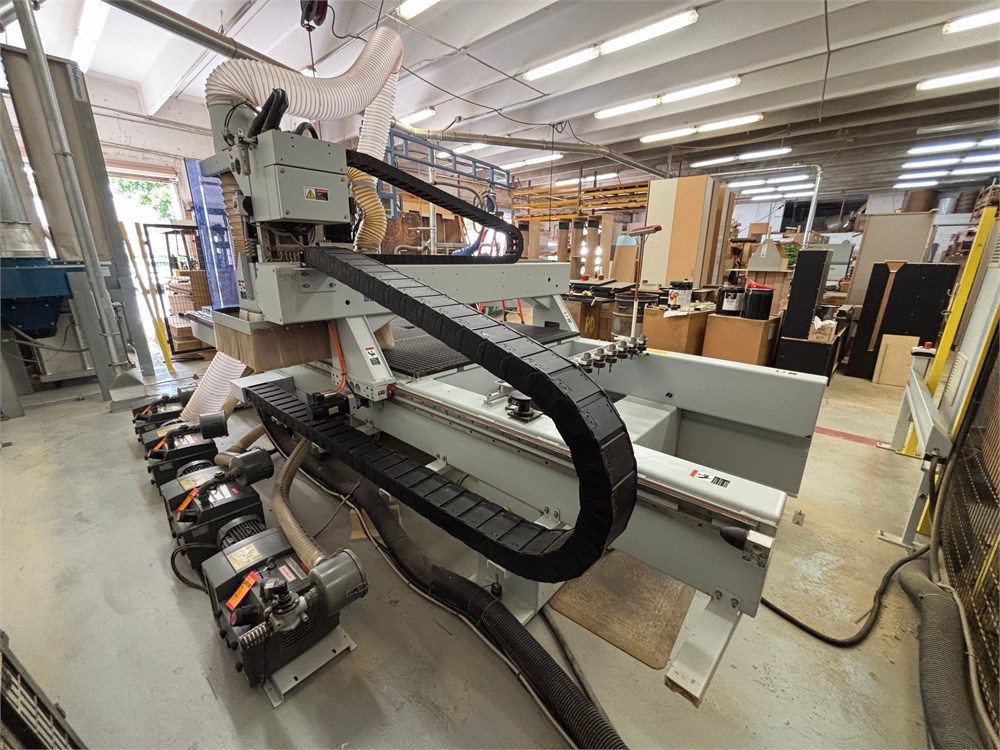

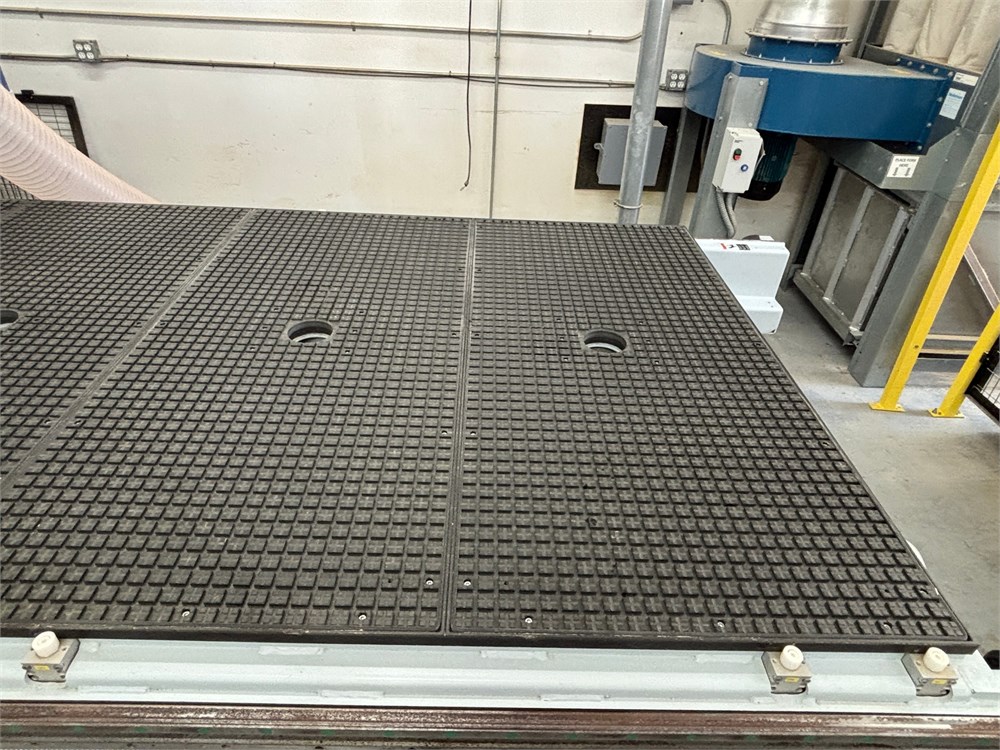

5' x 12' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.
Pneumatic reference stops
Foot pedal control
Vacuum gauge
"X" Axis is 145" (3,100 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).
"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

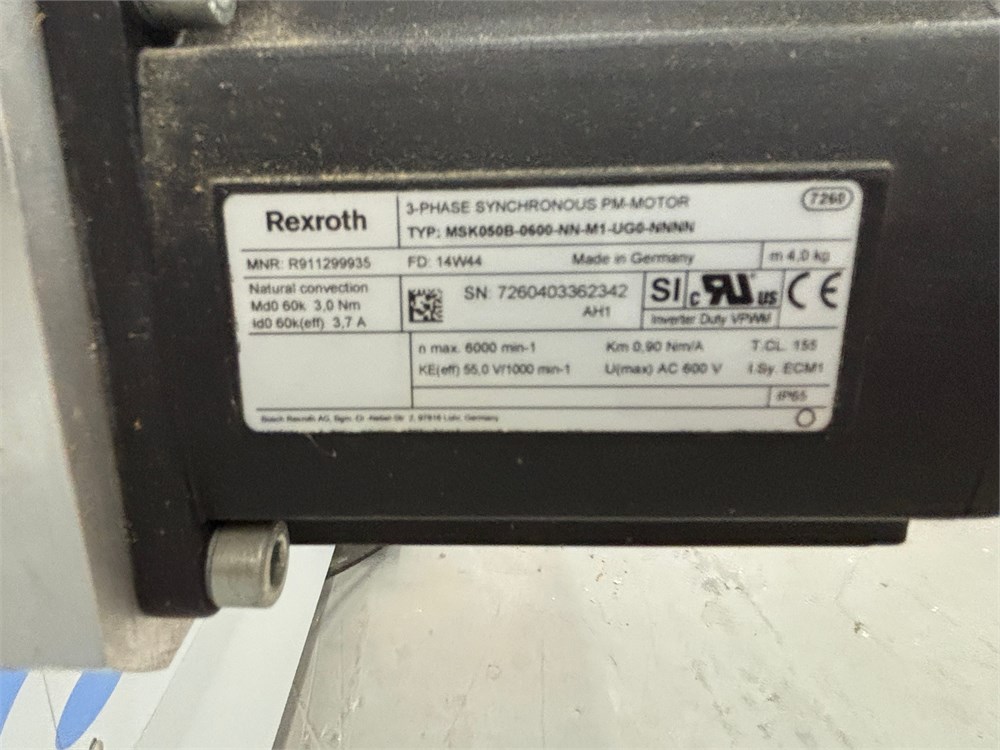

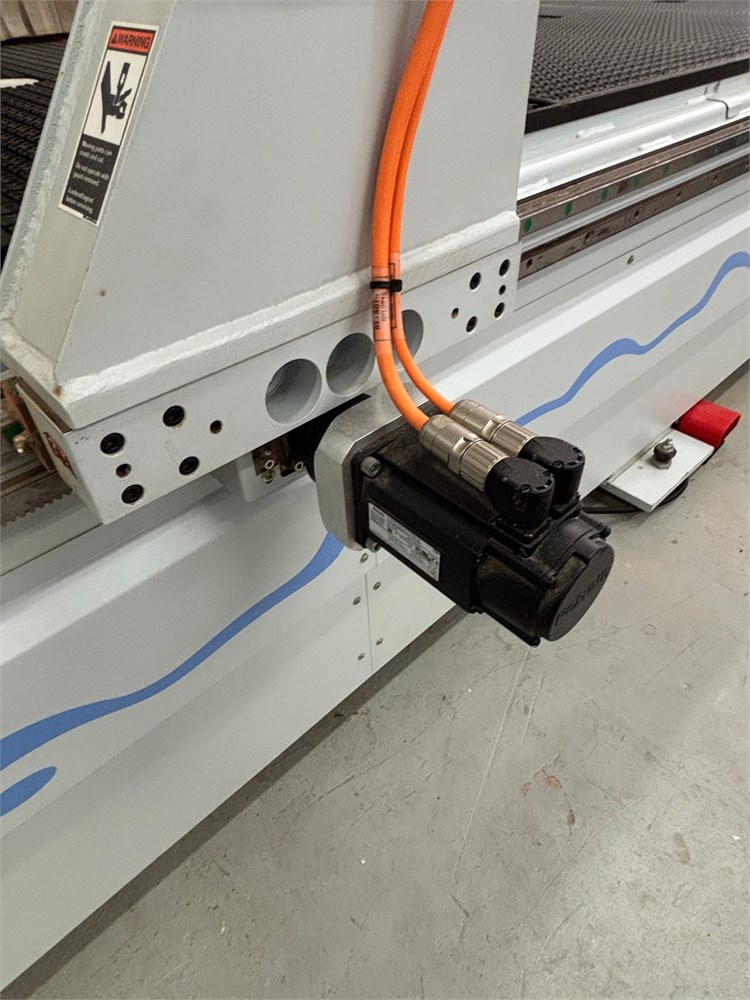

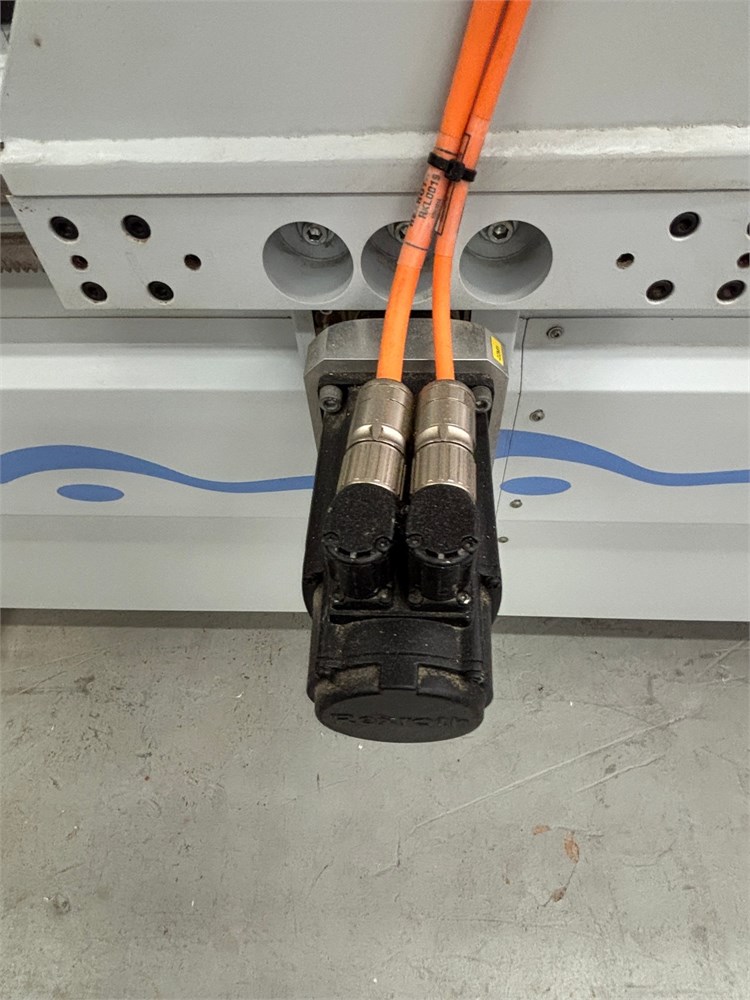

The head travels via AC brushless drives & THK linear motion guides on all axes.

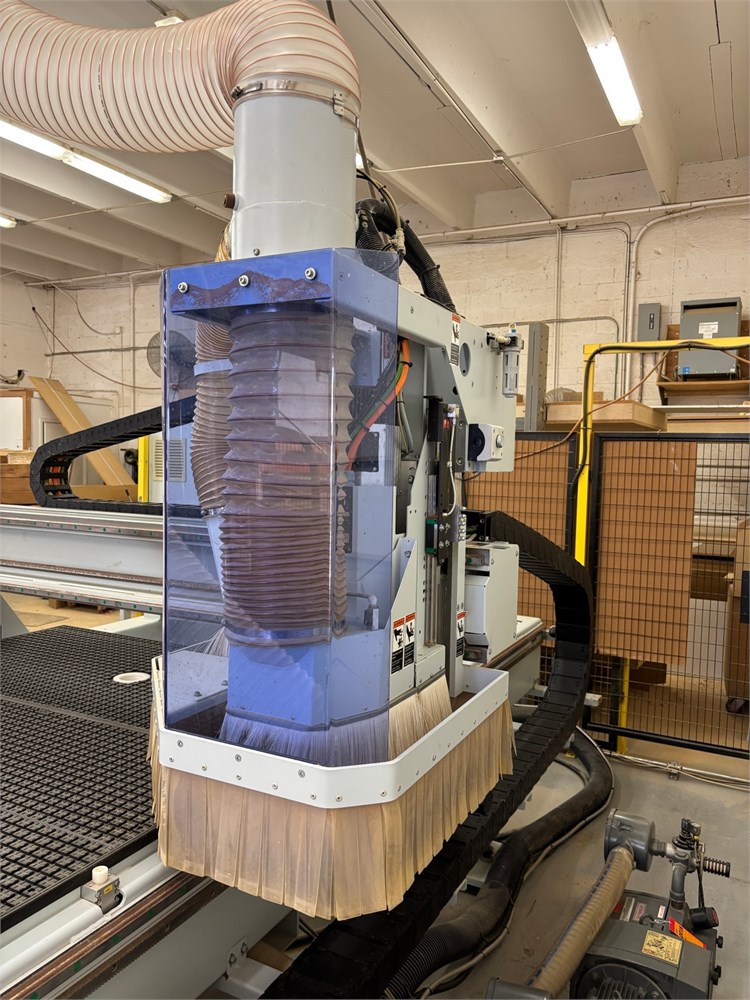

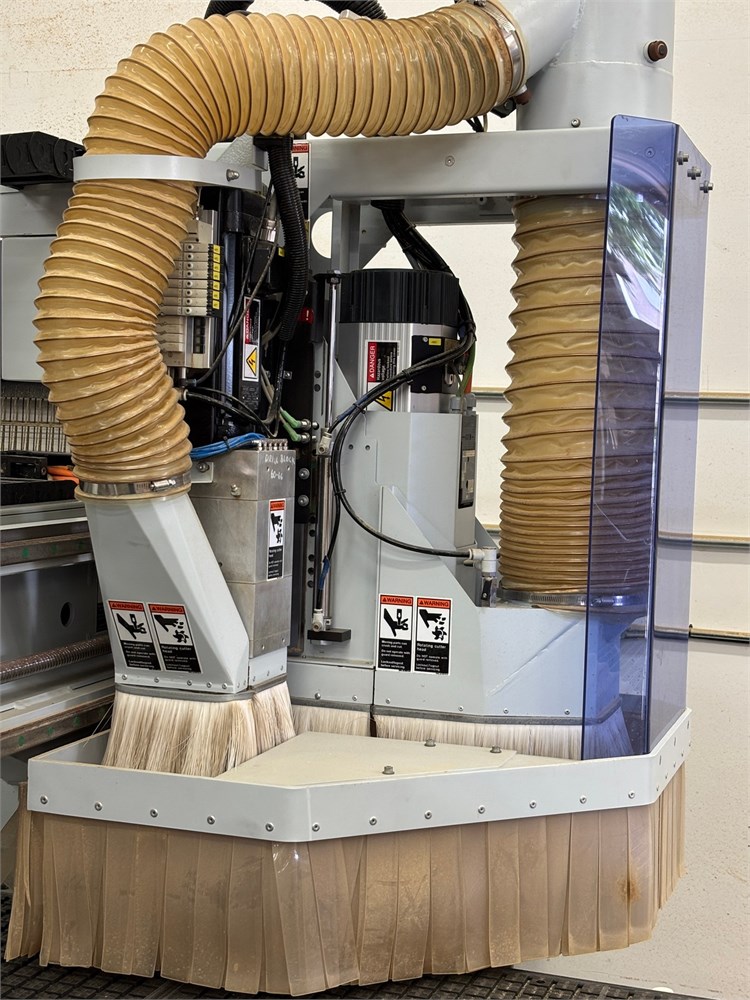

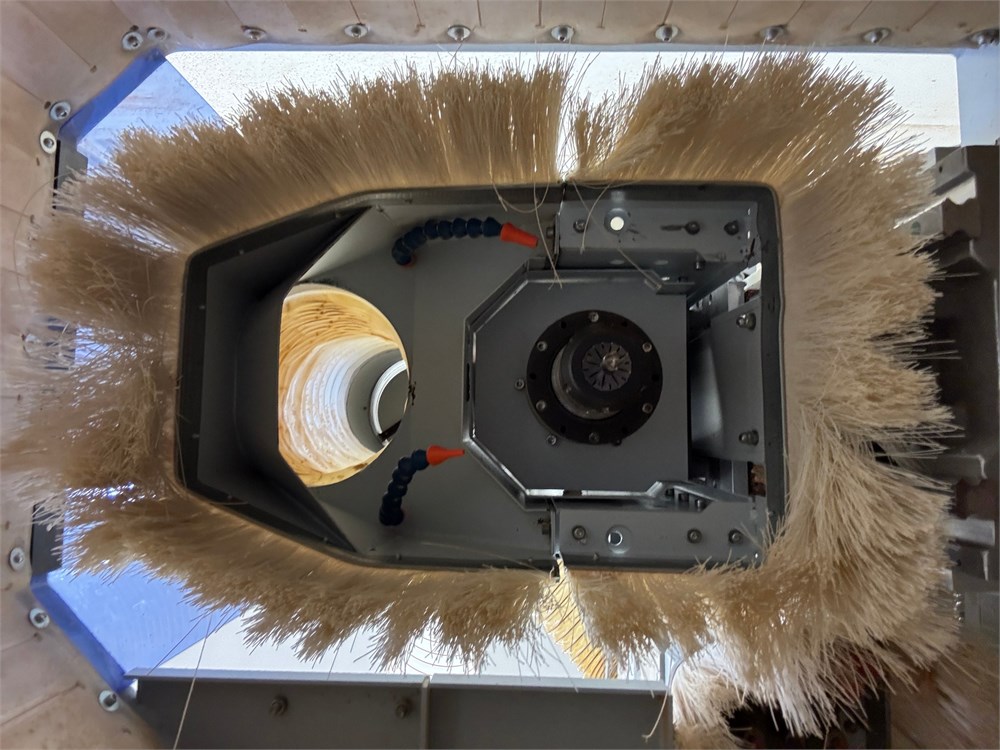

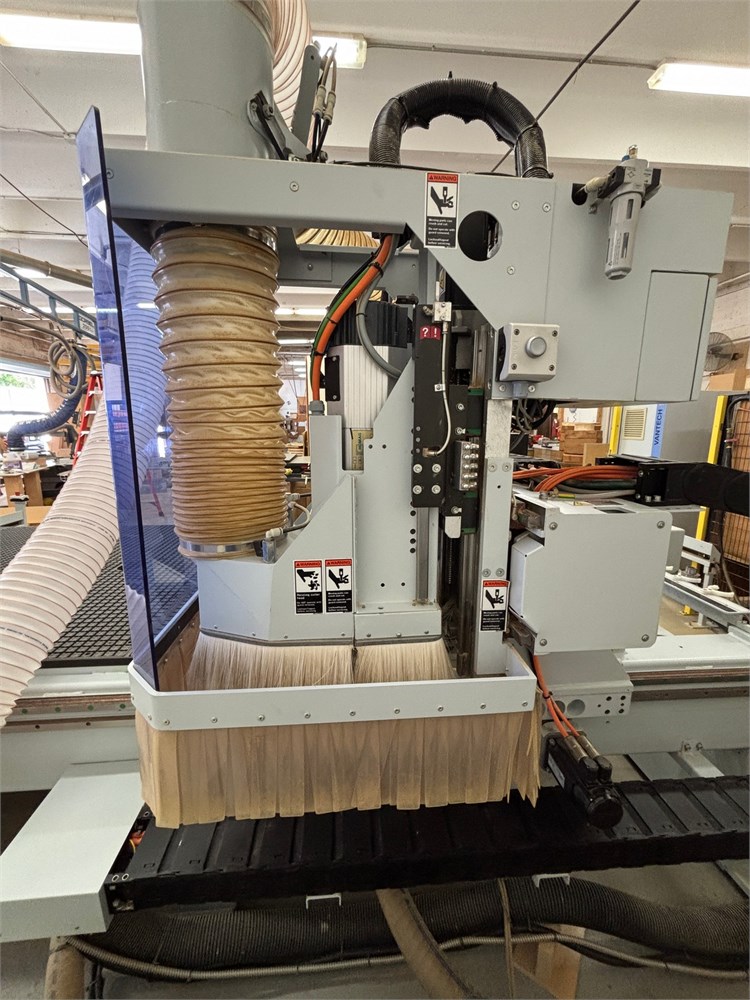

(1) 12 HP High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.
(1) 10-Position ATC rack located at LH end of machine.
Tool length measuring device
Boring unit with 3.6 HP motor, (7) Independent vertical spindles programmable variable speed from 1,500 - 7,500 RPM.
Sound enclosure

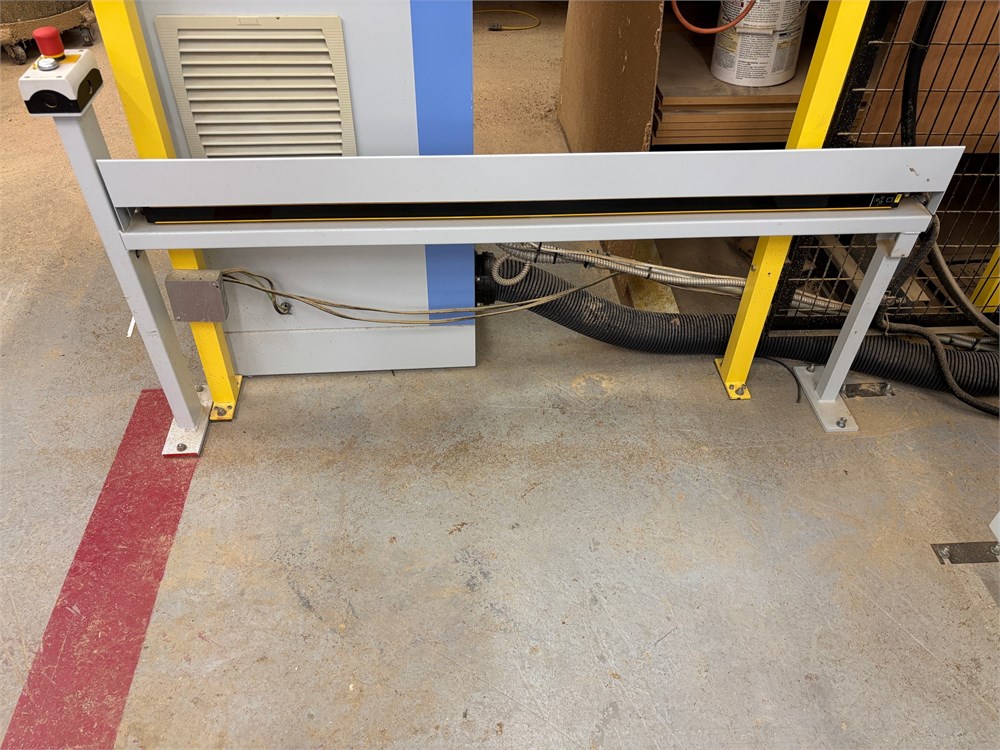

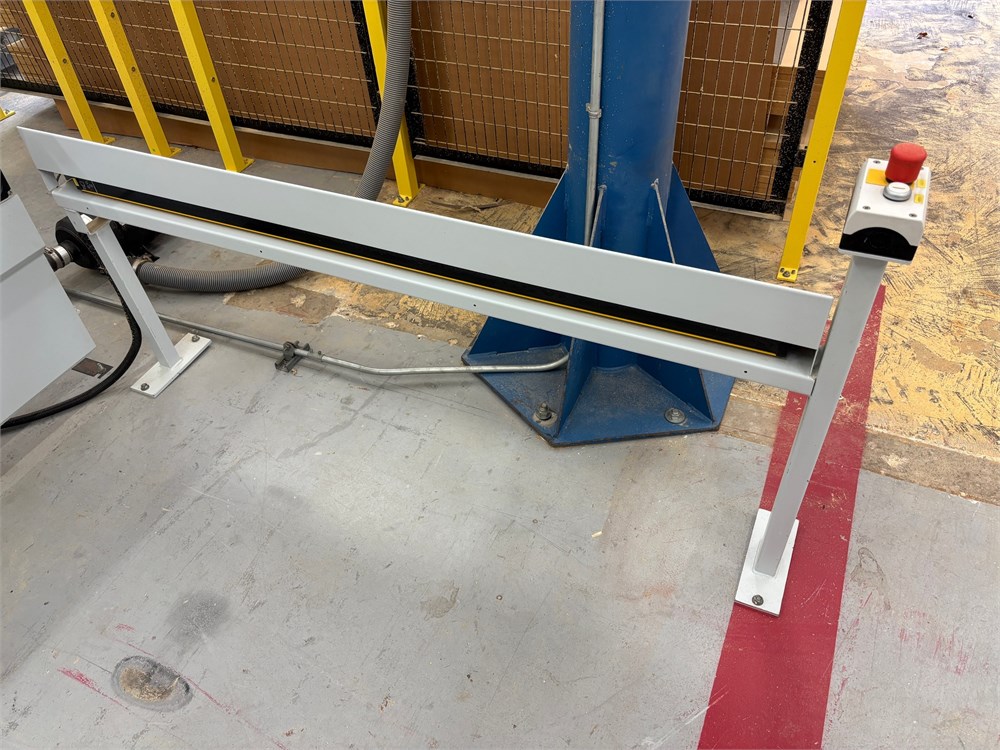

Front safety light barrier

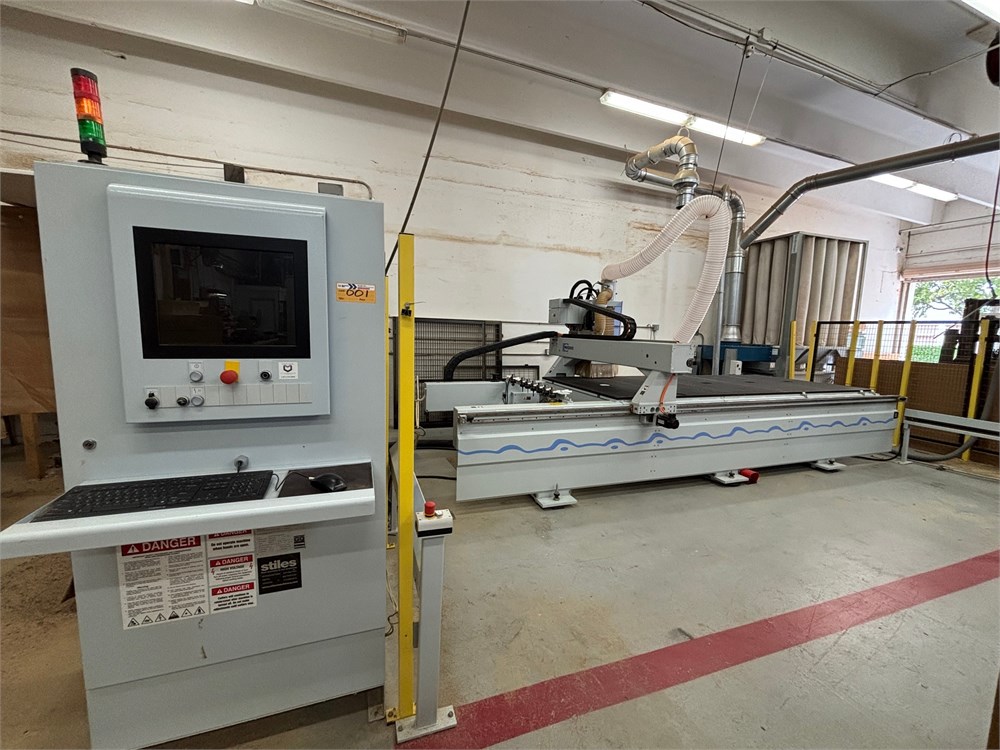

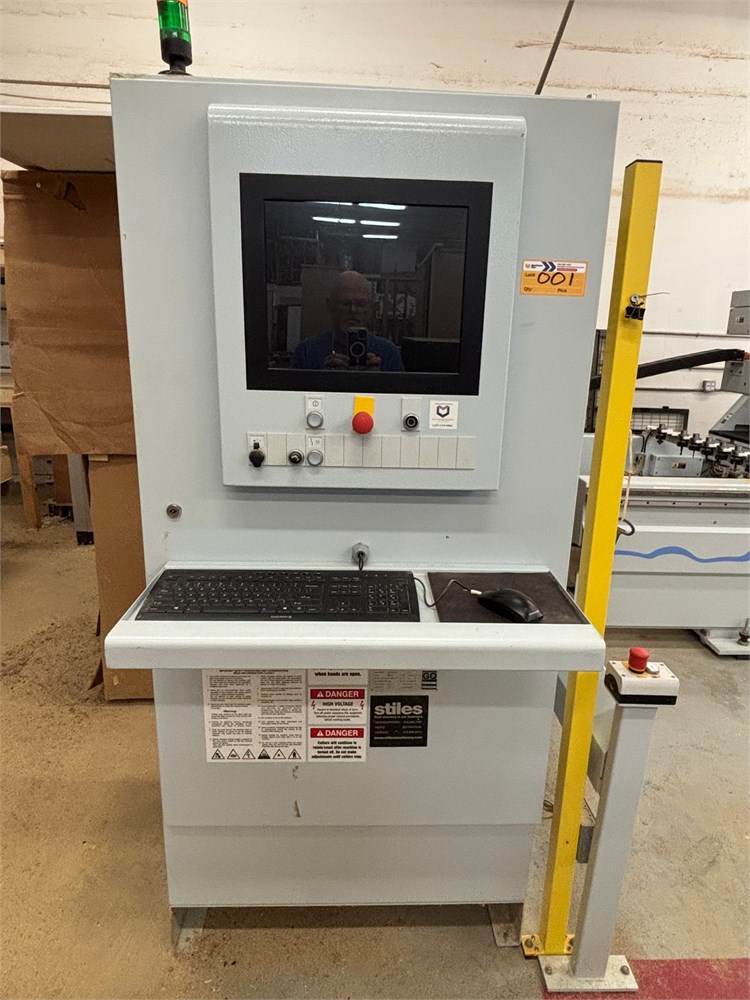

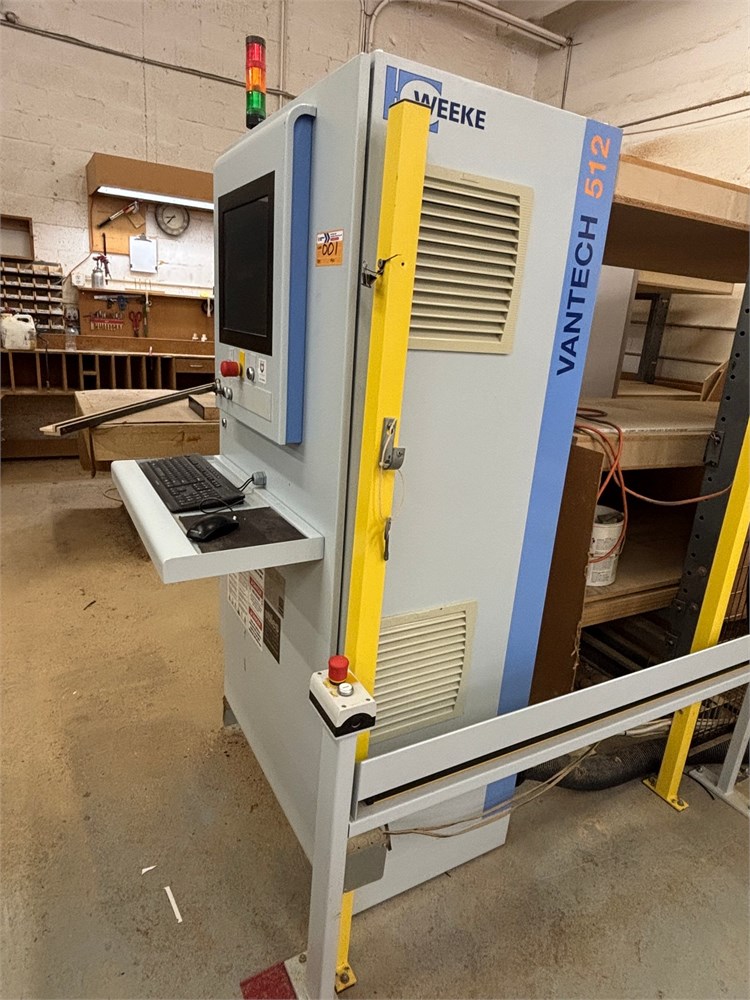

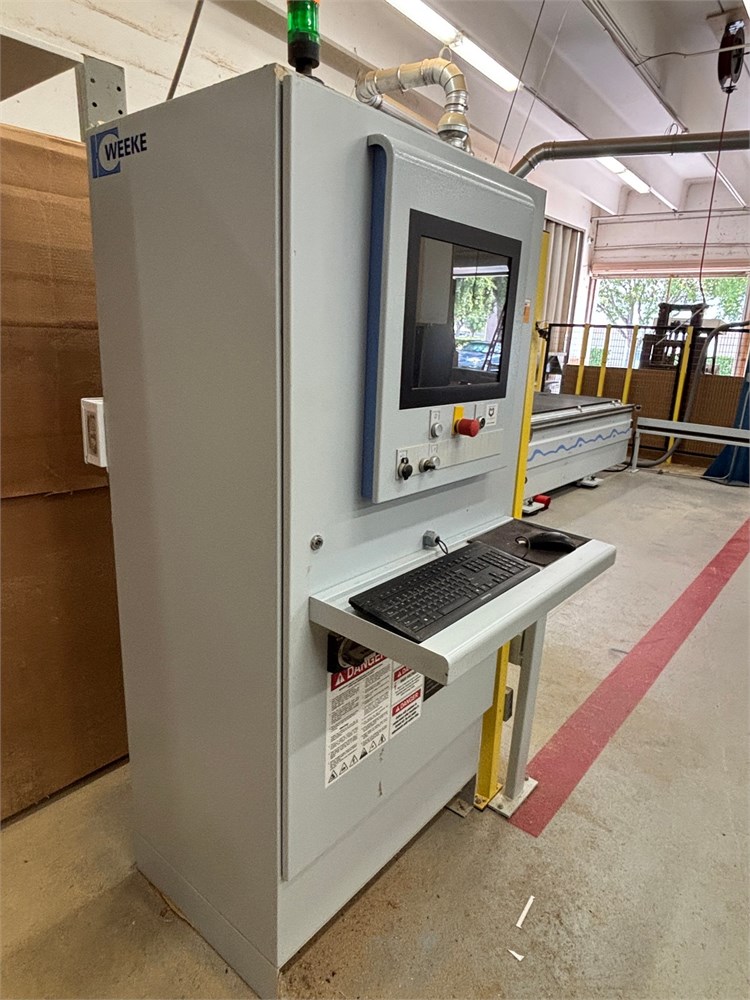

Control cabinet
PC Front-End with WEEKE "PC 85T" + Windows "XP" + WoodWOP 5.0 operating system.
17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.
"BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; the controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either the LH or RH side of the machine.

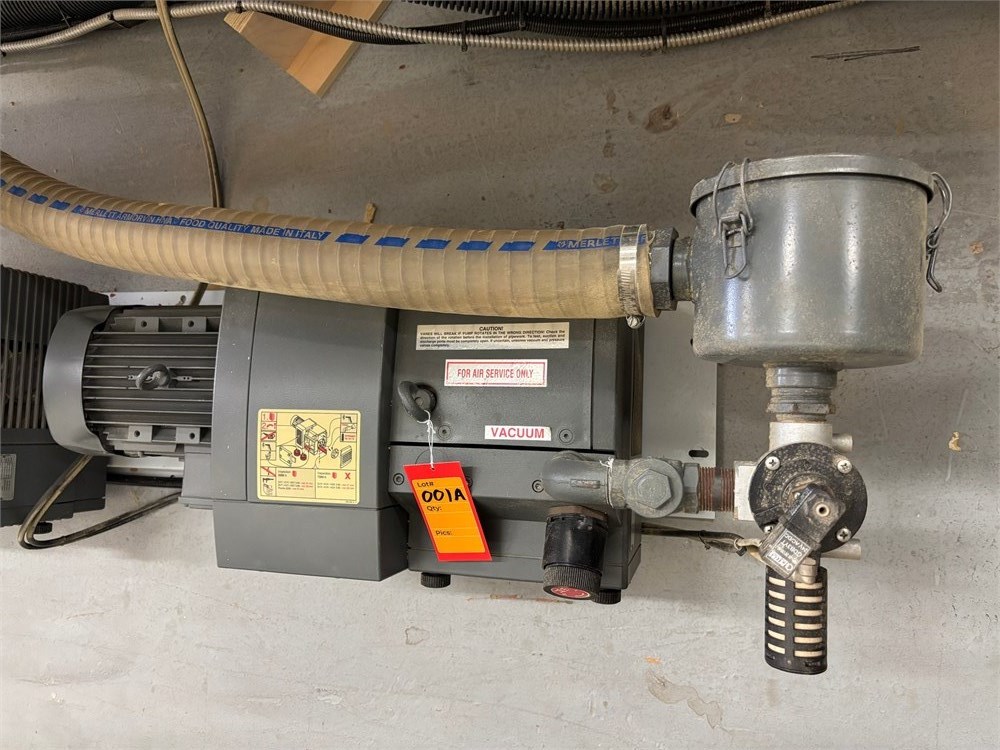

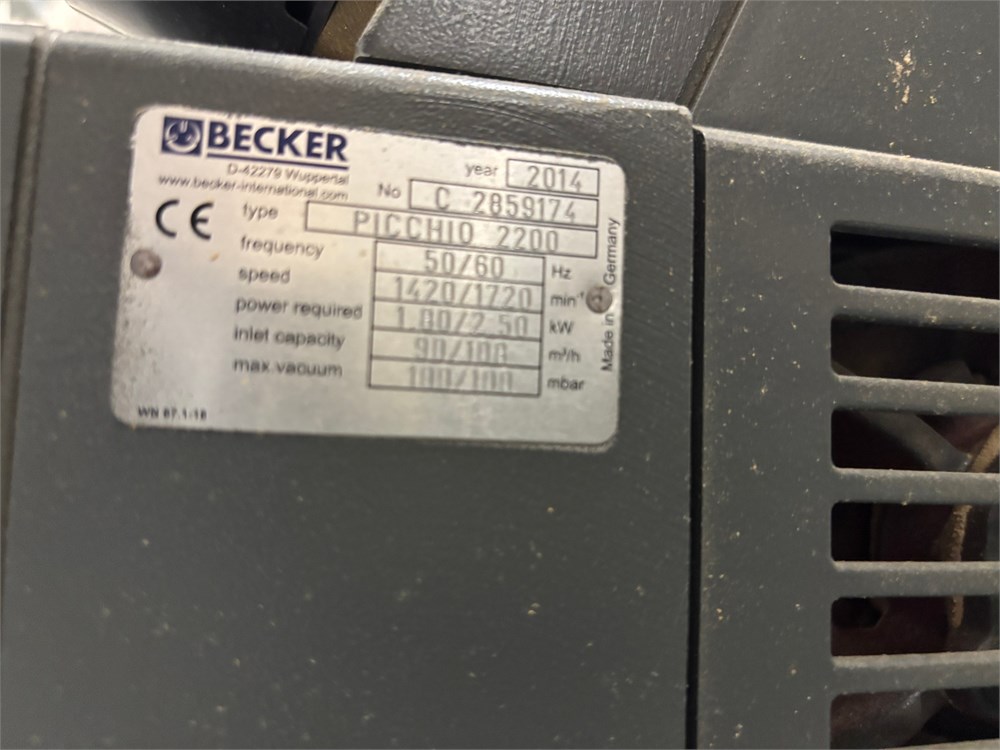

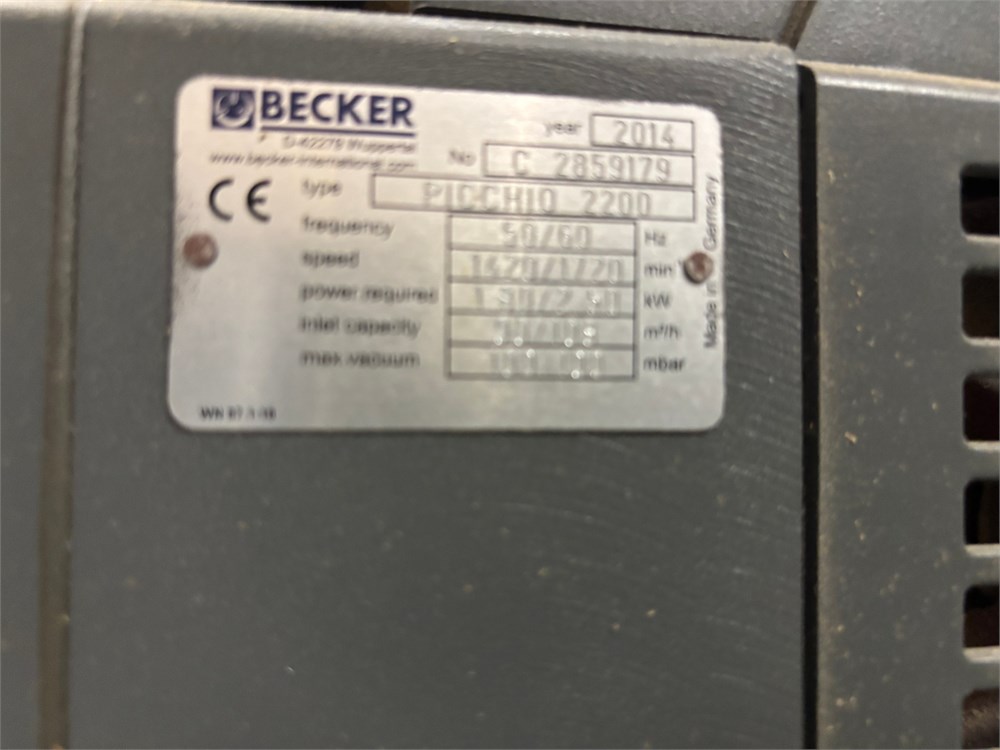

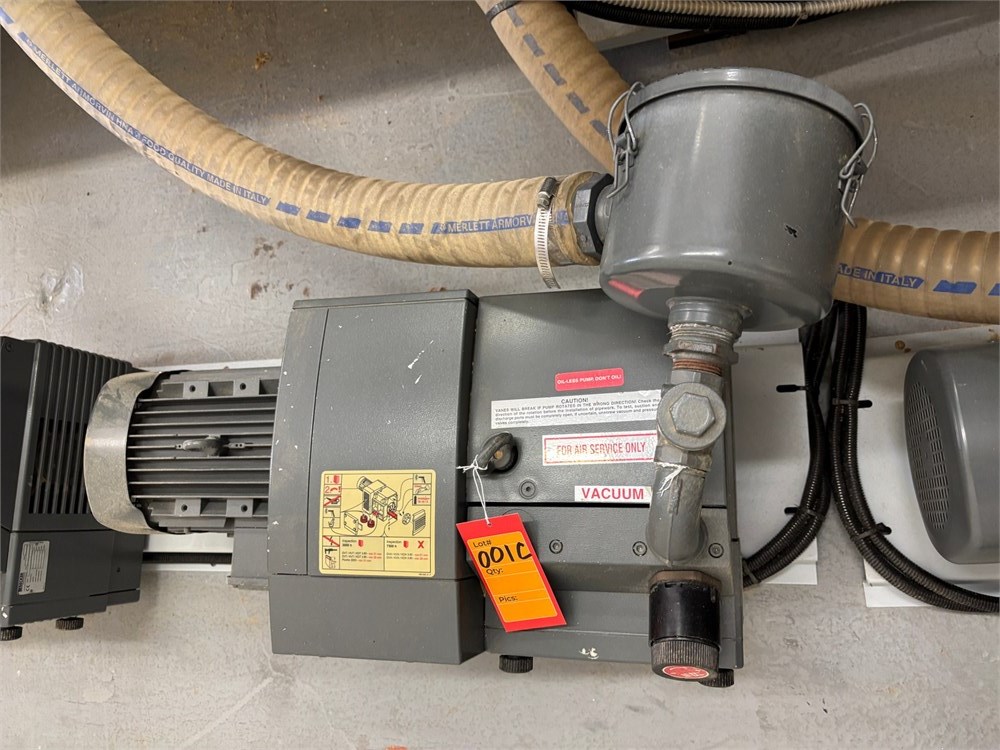

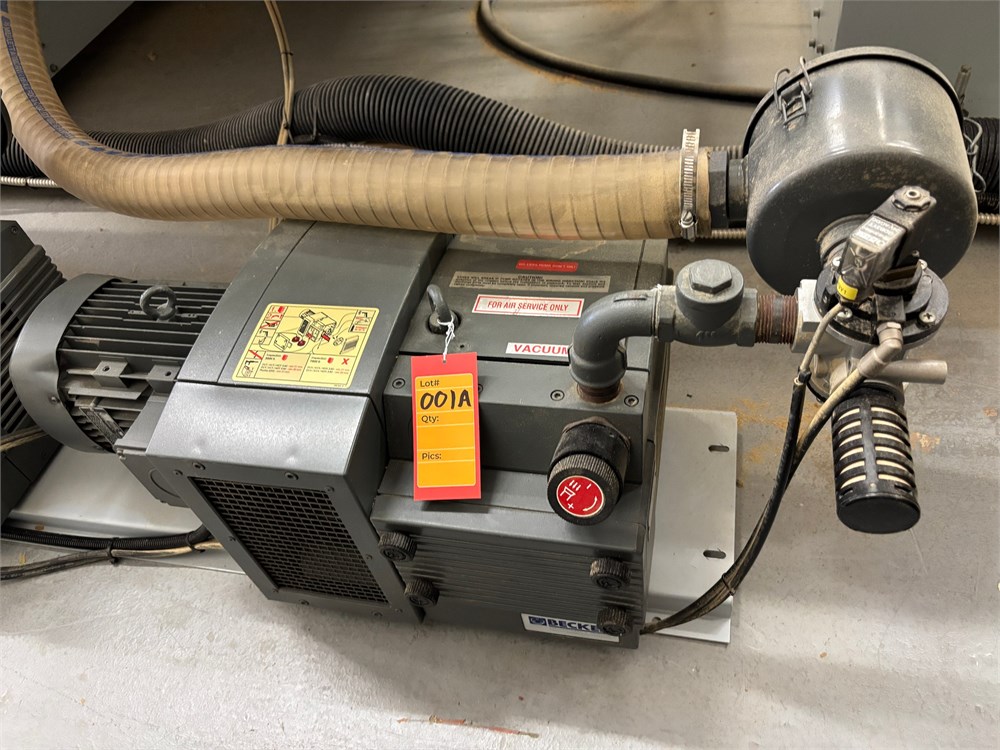

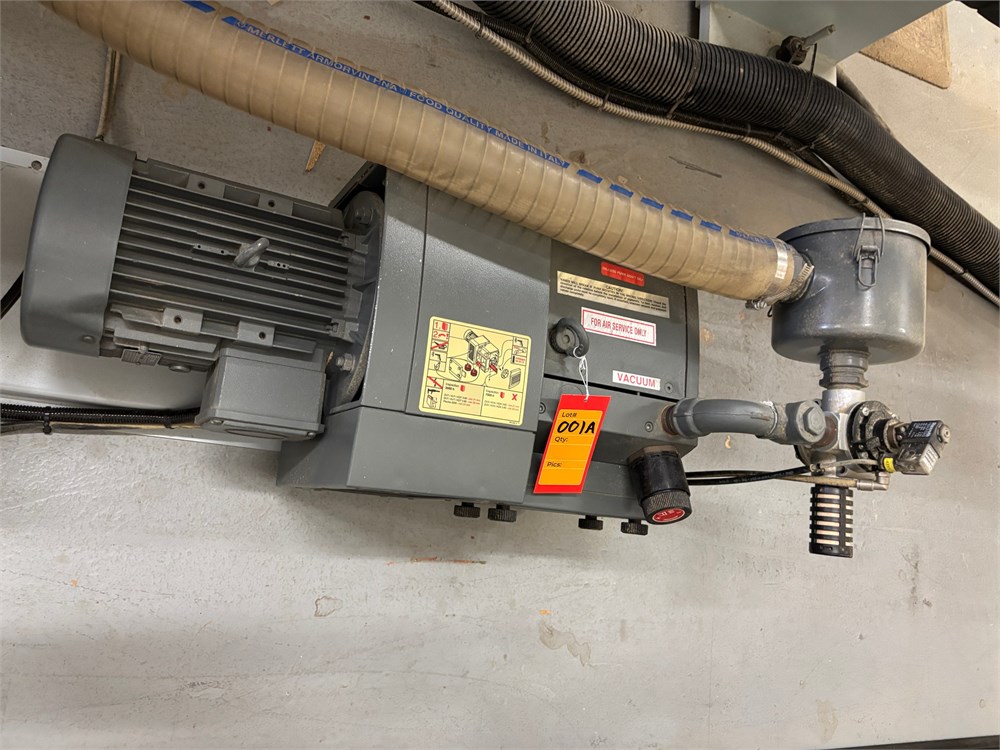

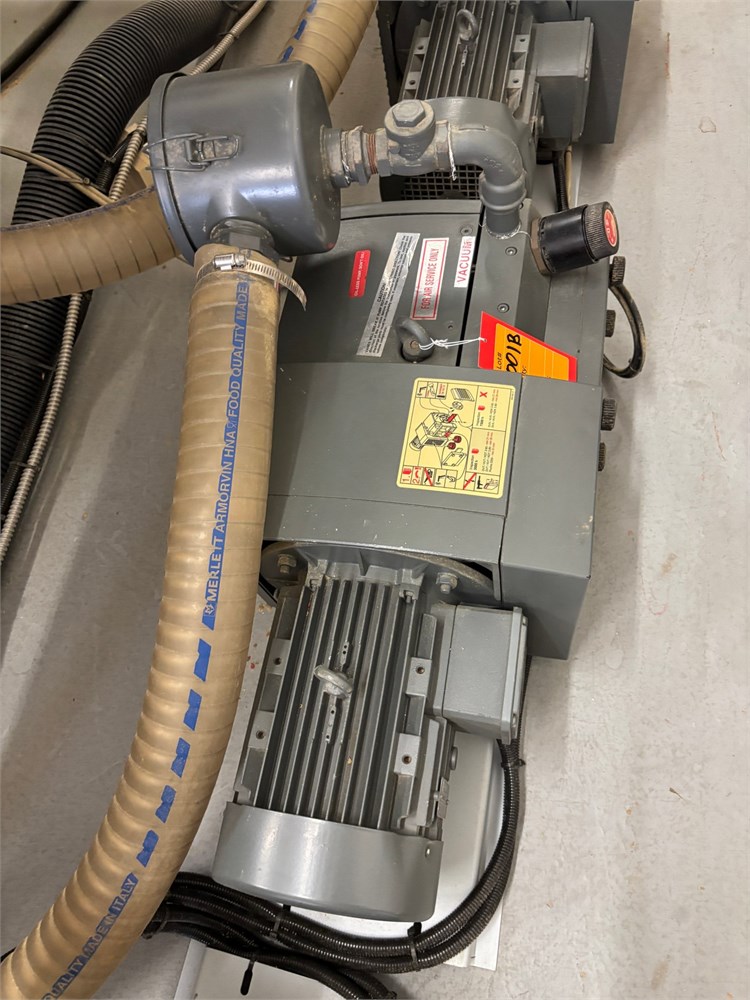

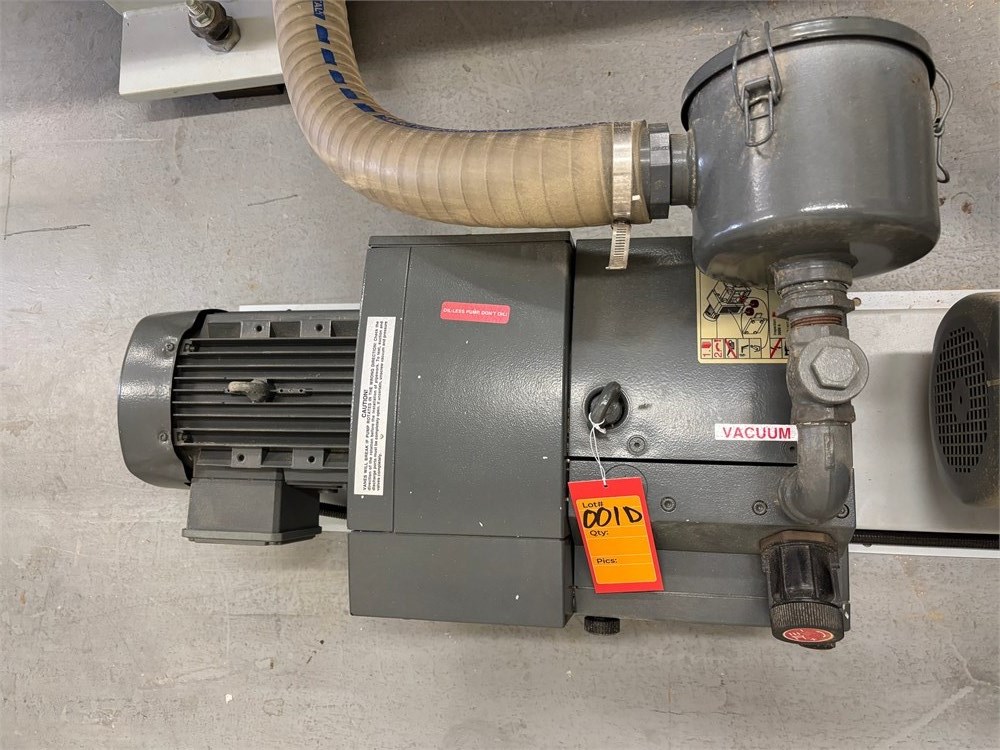

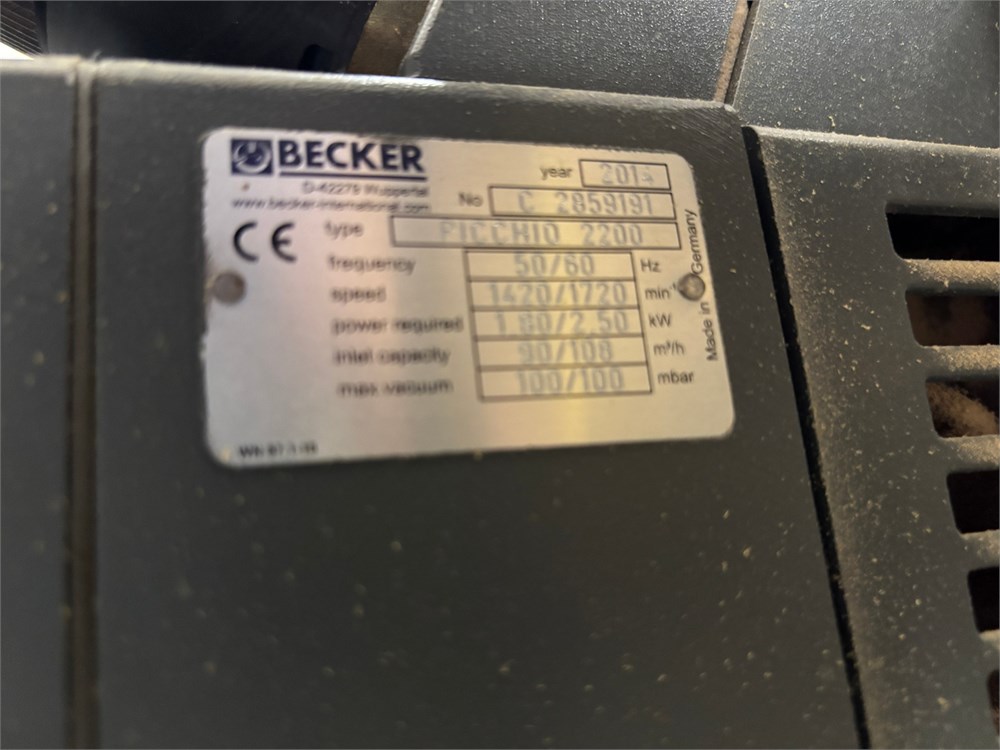

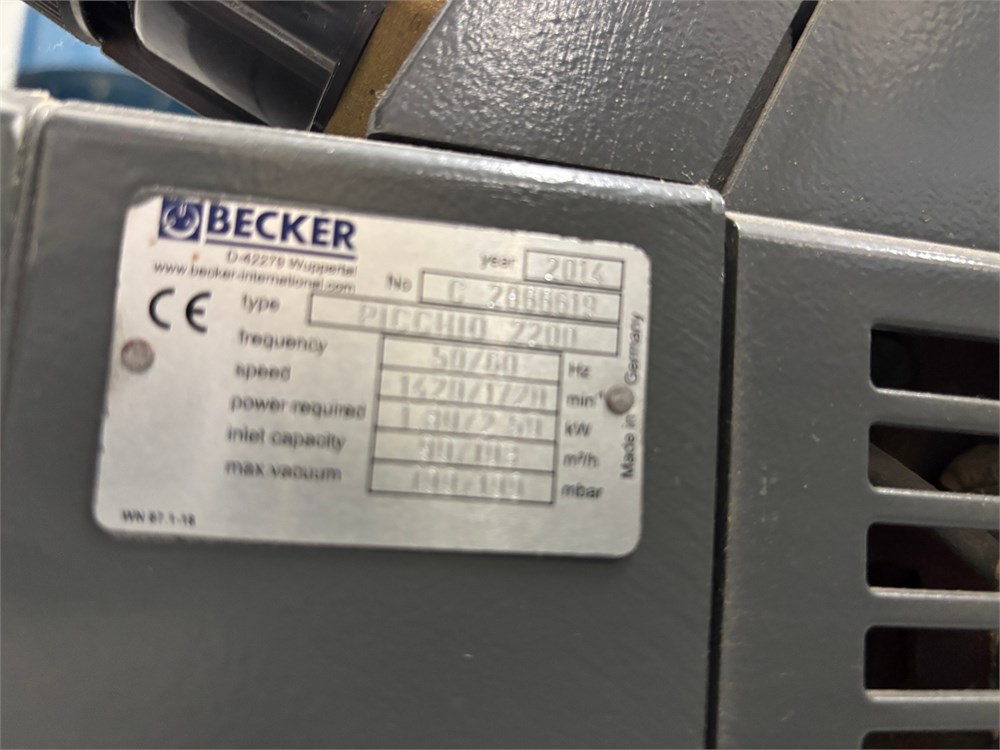

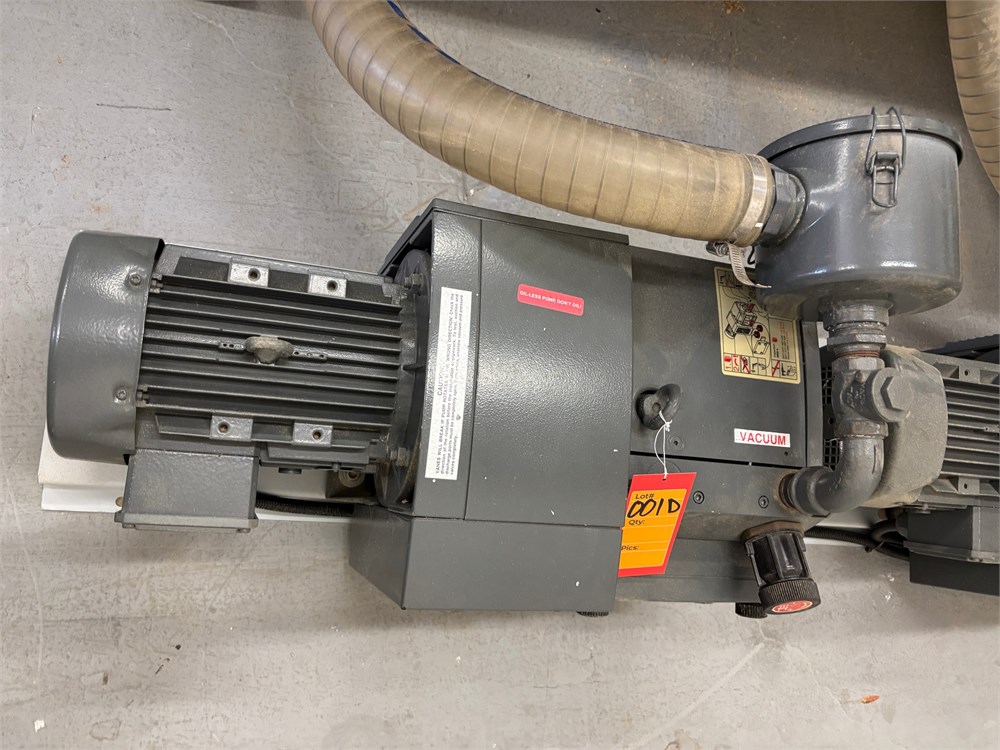

Four (4) Becker "Picchio 2200" vacuum pumps
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
