103" Max Rip

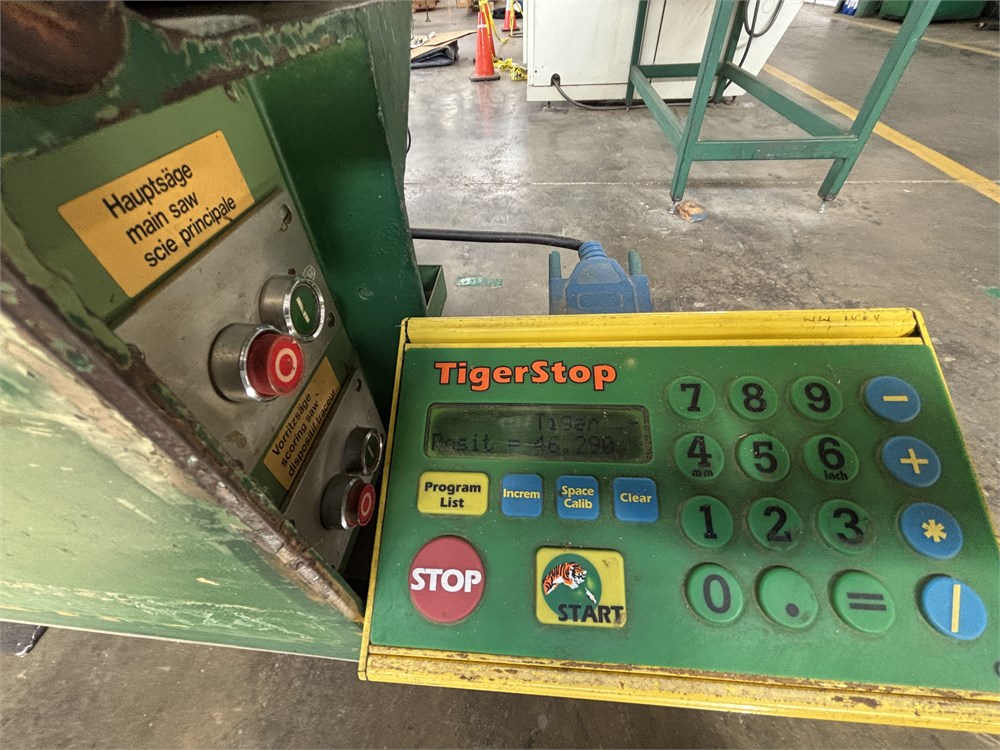

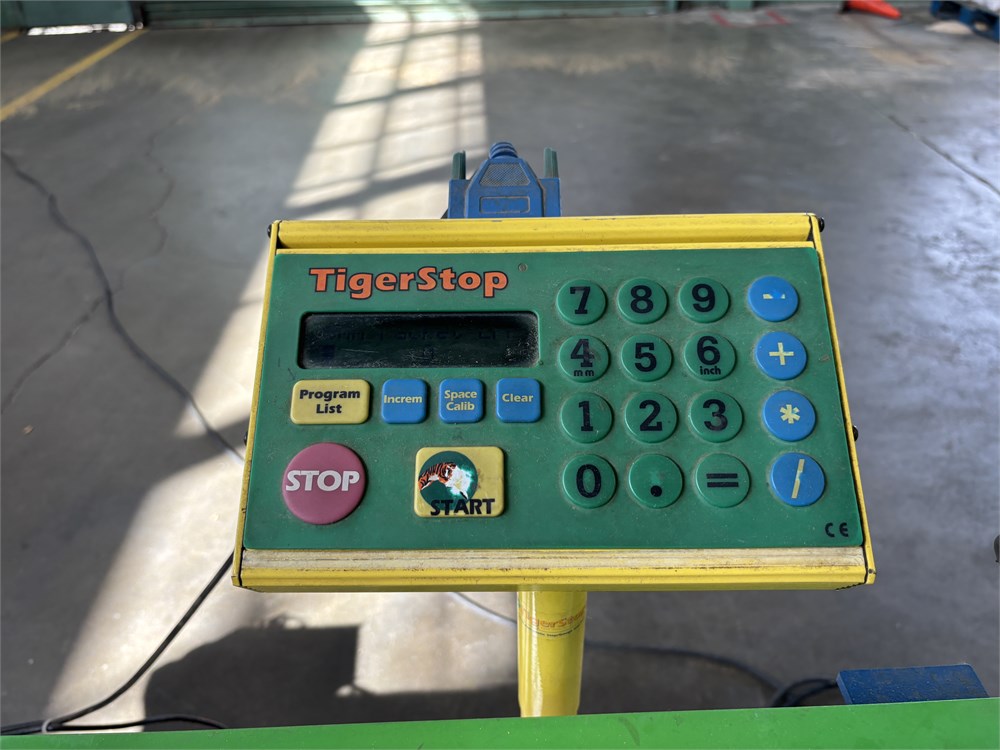

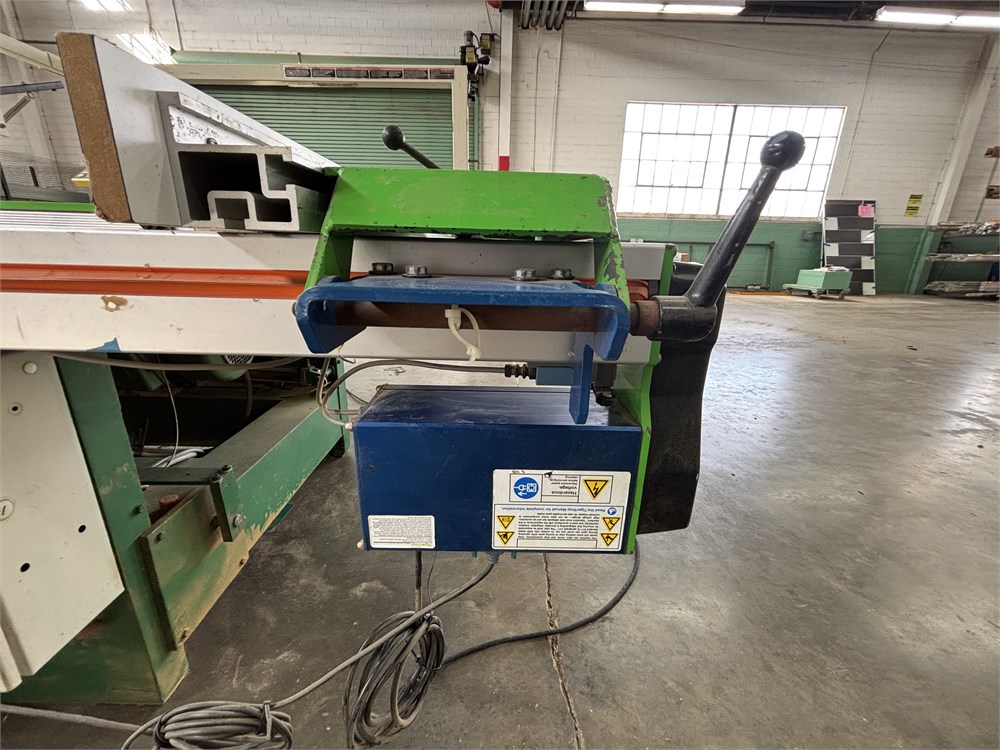

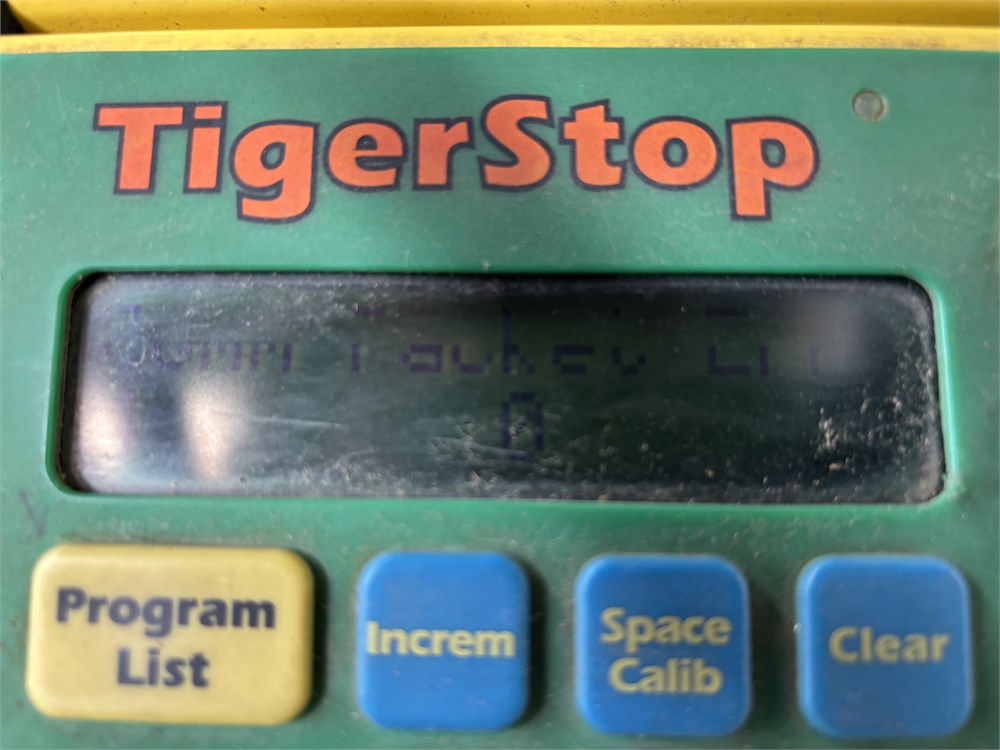

(2) Tiger Stops

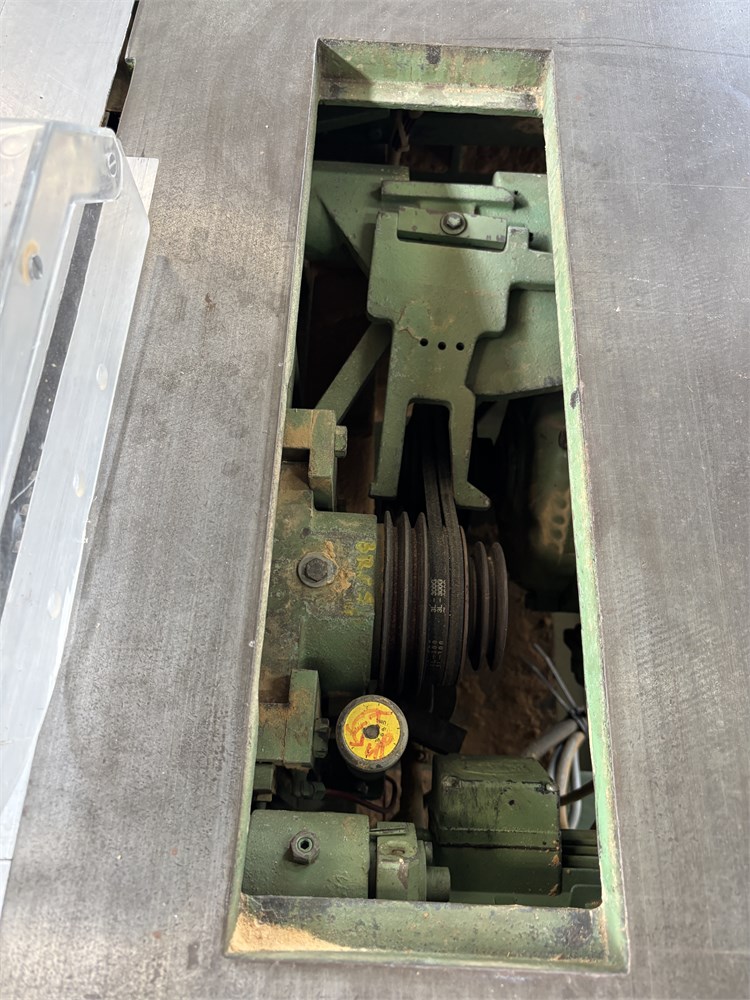

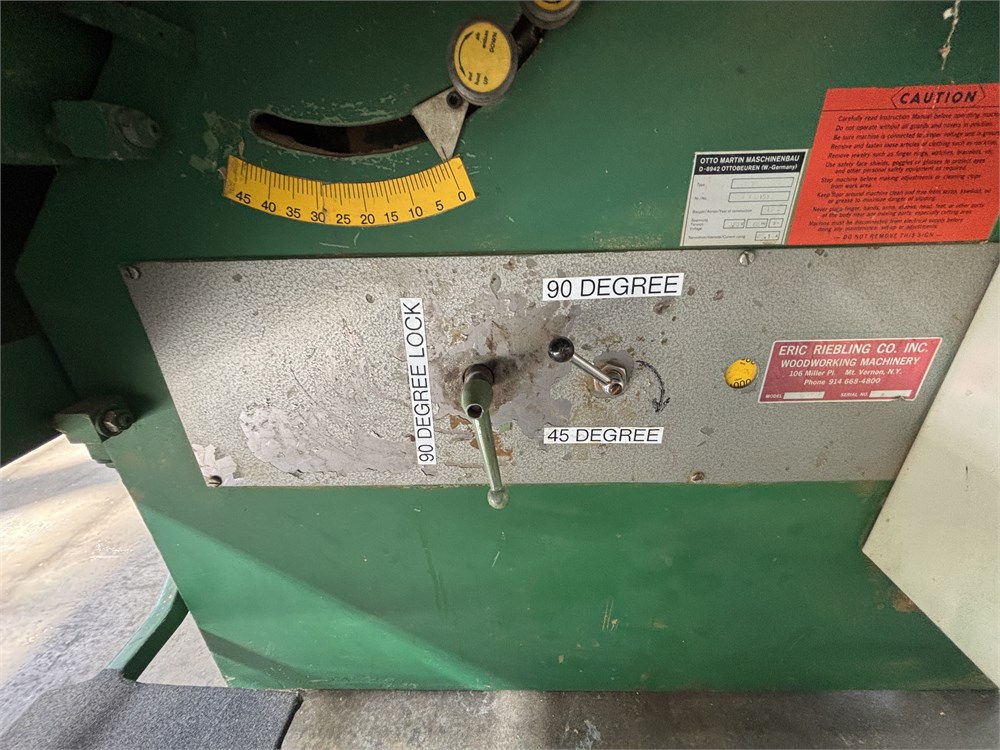

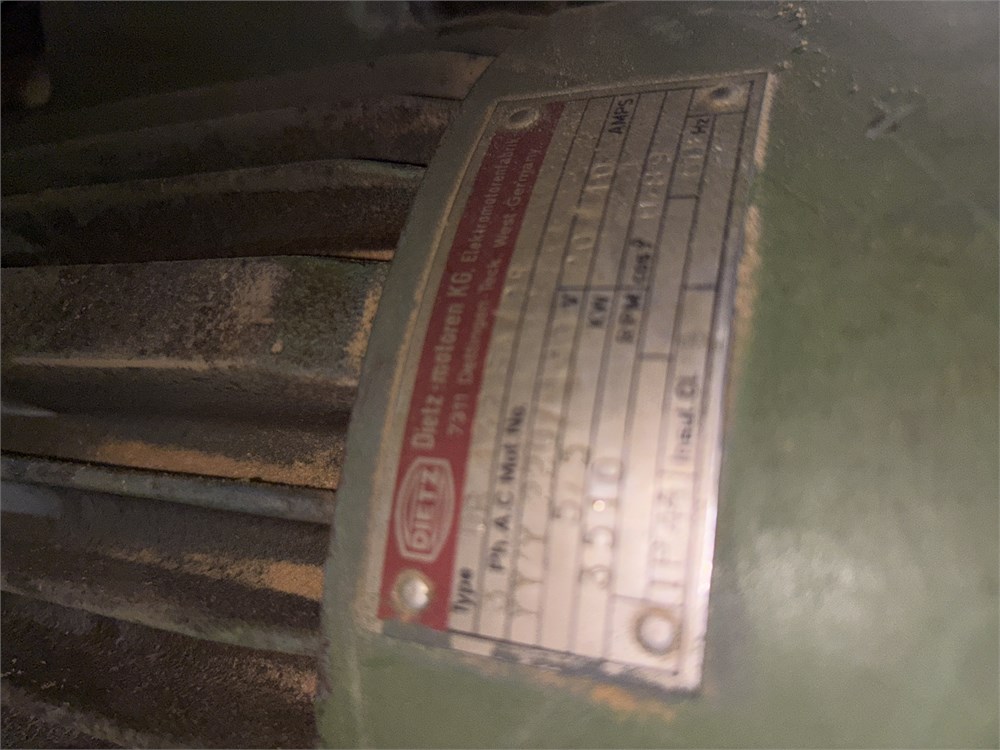

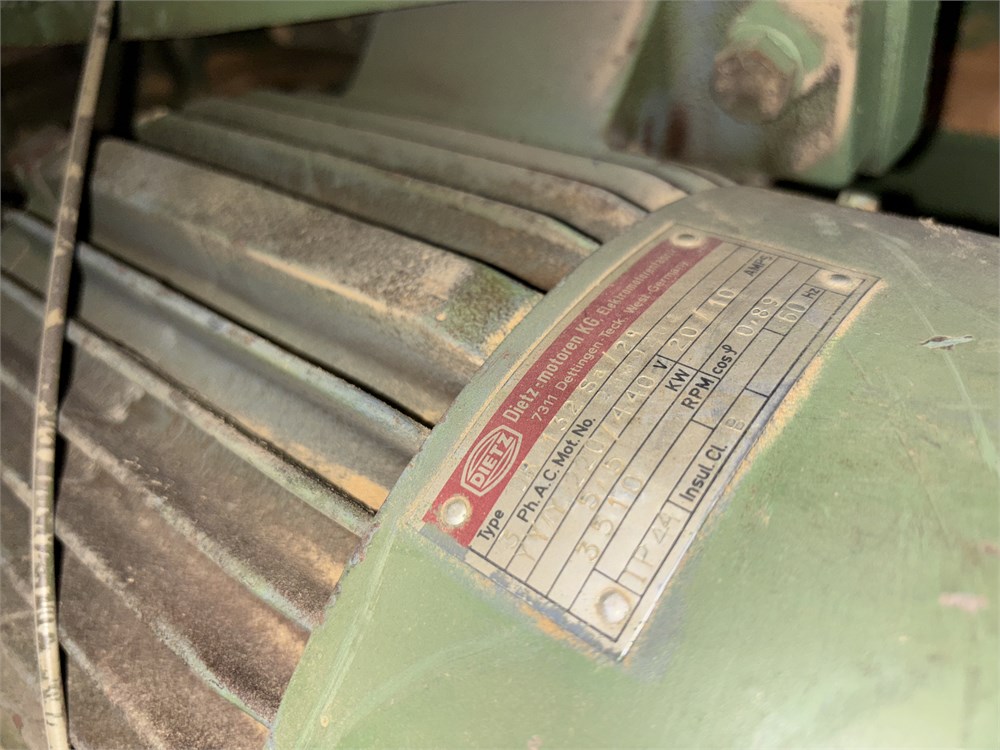

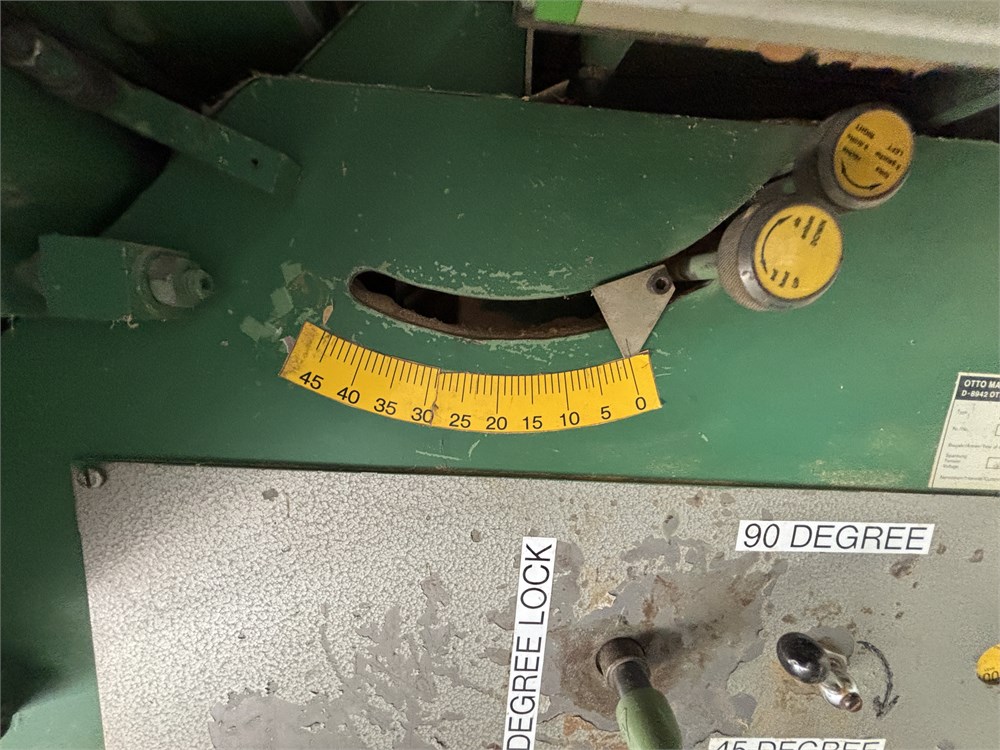

8' Cutting cap., 2-position table locking mechanism, large cast iron machine table, 7.5 HP tilting saw arbor, variable blade speeds via step-pulley, with tilting from 0° - 45.5°.

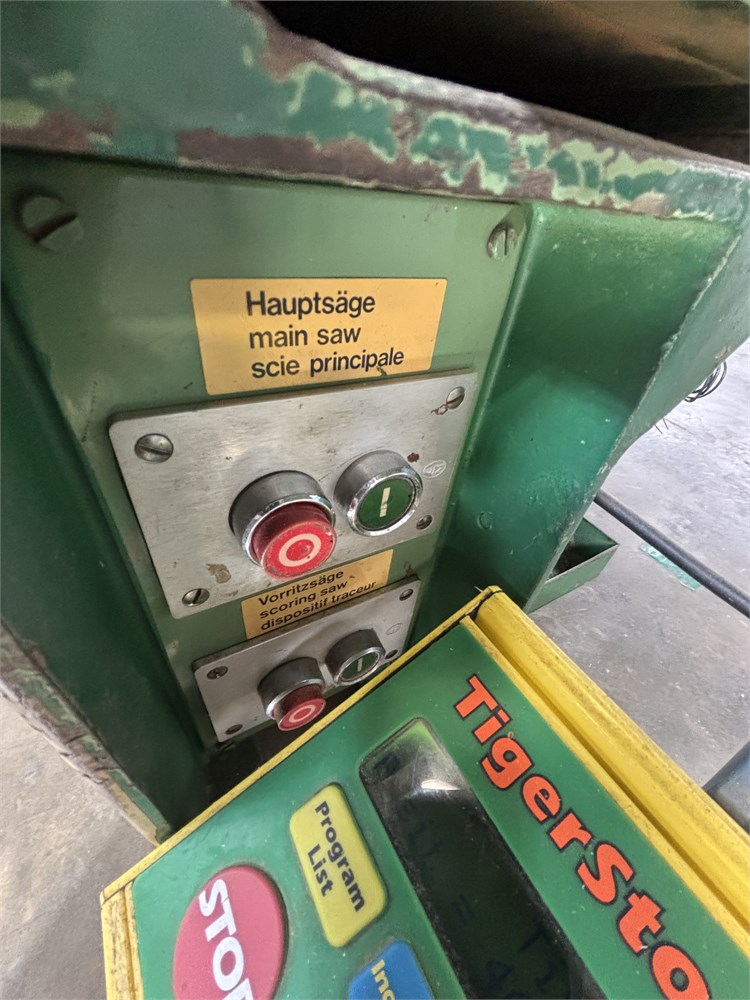

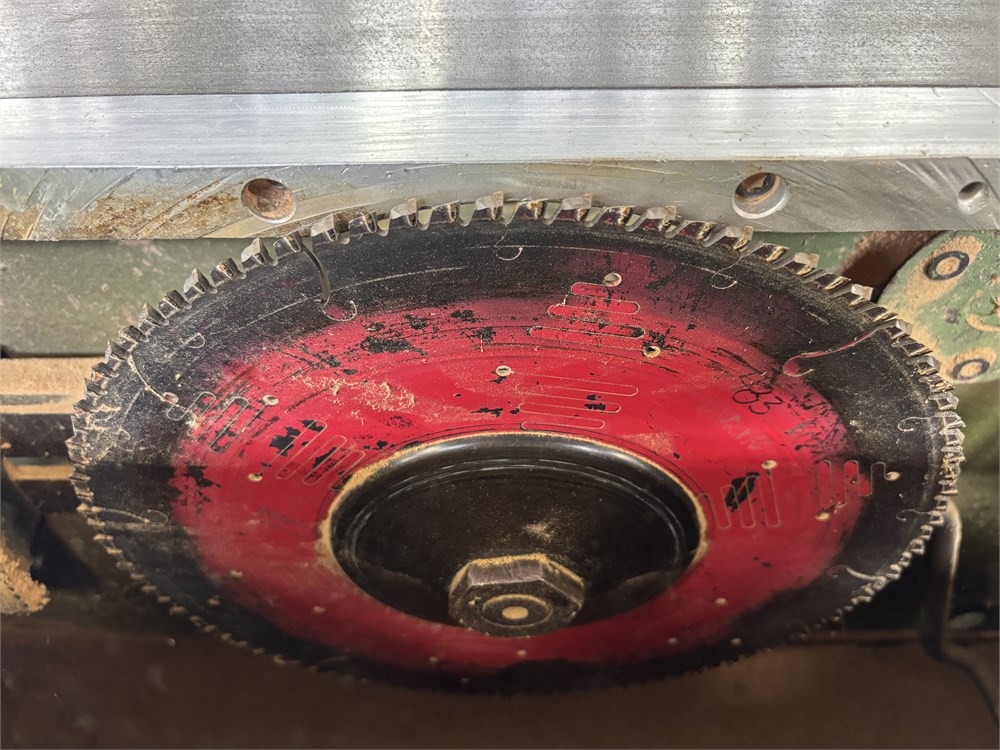

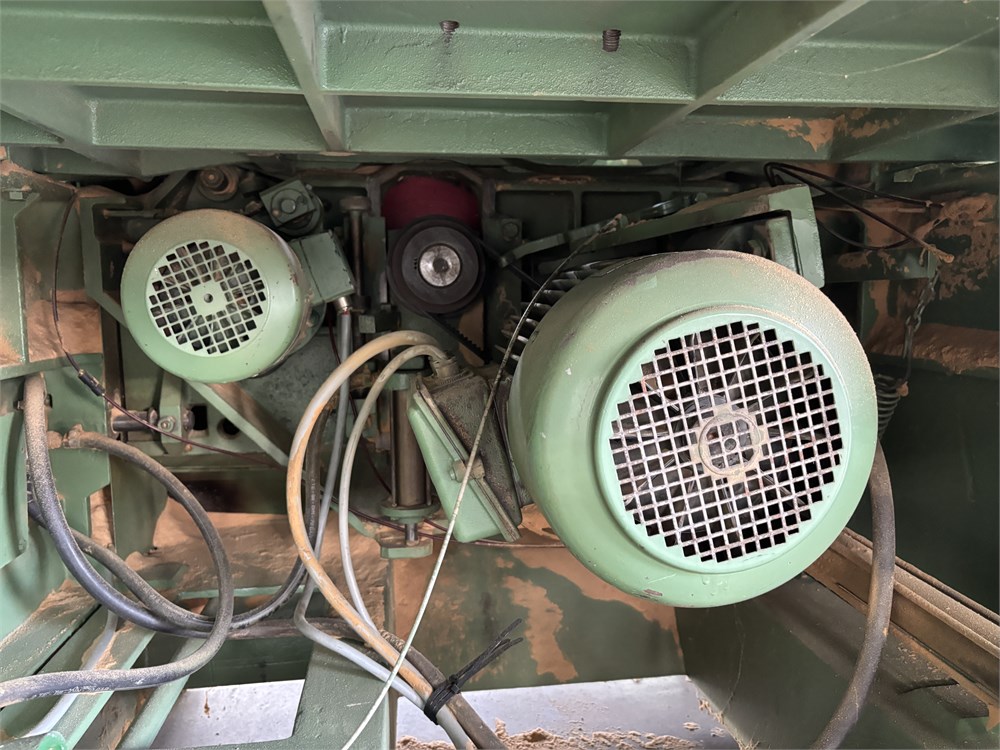

0.75 HP Scoring motor drives blade at 9,400 RPM; max. cutting height 5-11/16", main blade with foot brake.

Hydraulic saw blade height & tilt adjustment by foot pedal control; cutting width between saw blade and rip fence 49".

**SPECS. AS PROVIDED VIA MANUFACTURER WEBSITE, PLEASE DO OWN DUE DILIGENCE AS TO EXACT SPECS. OF THIS MACHINE:

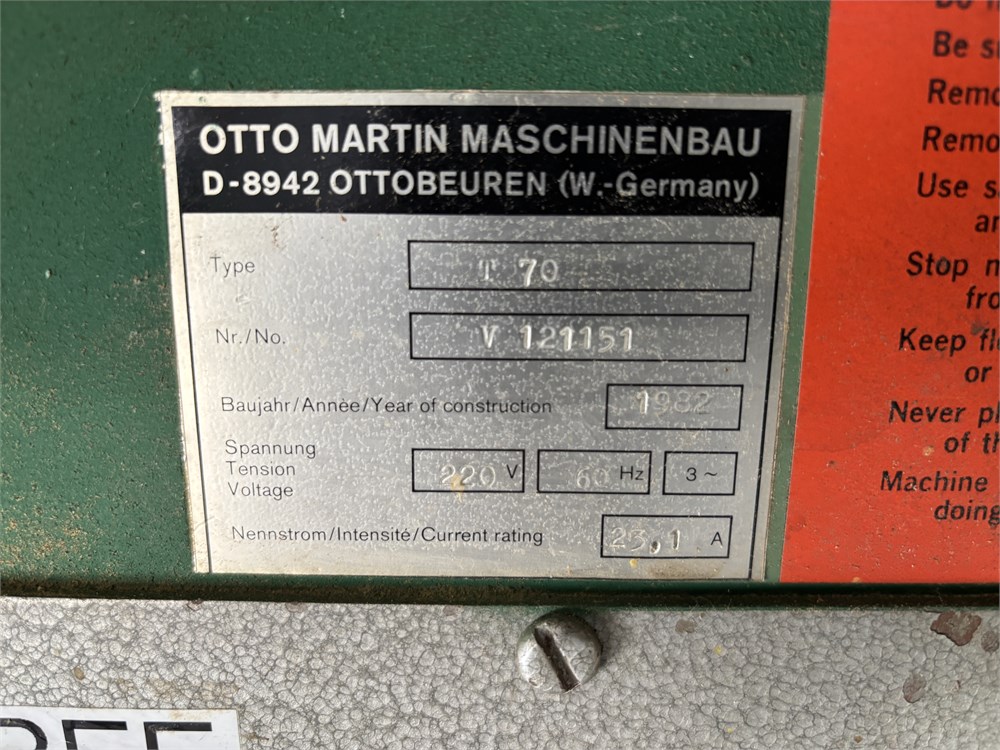

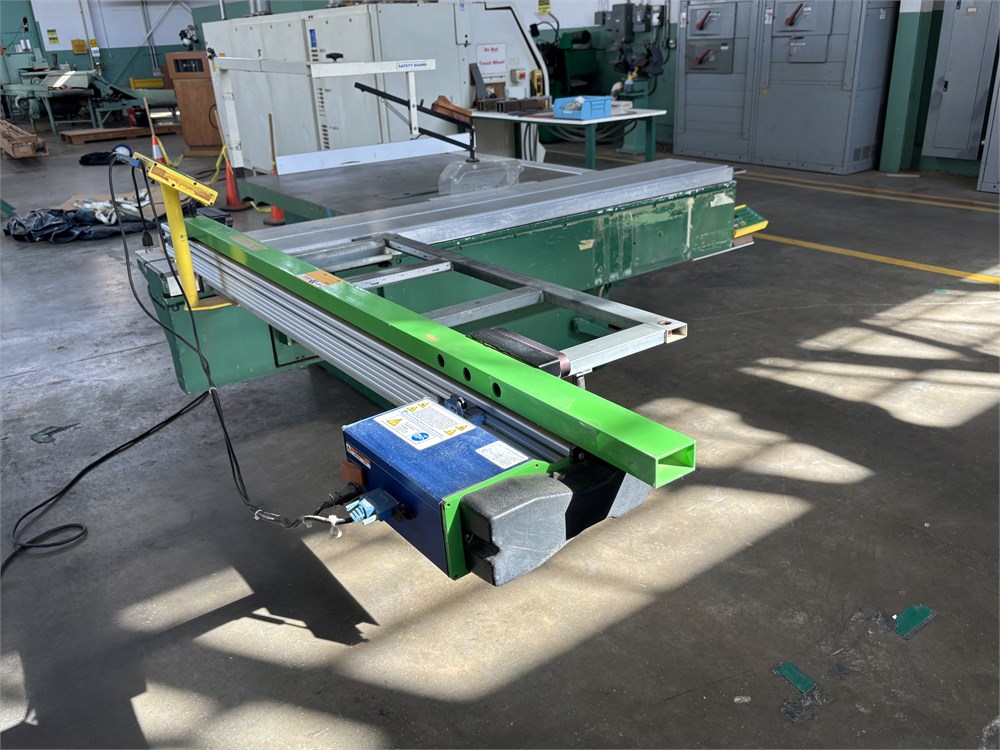

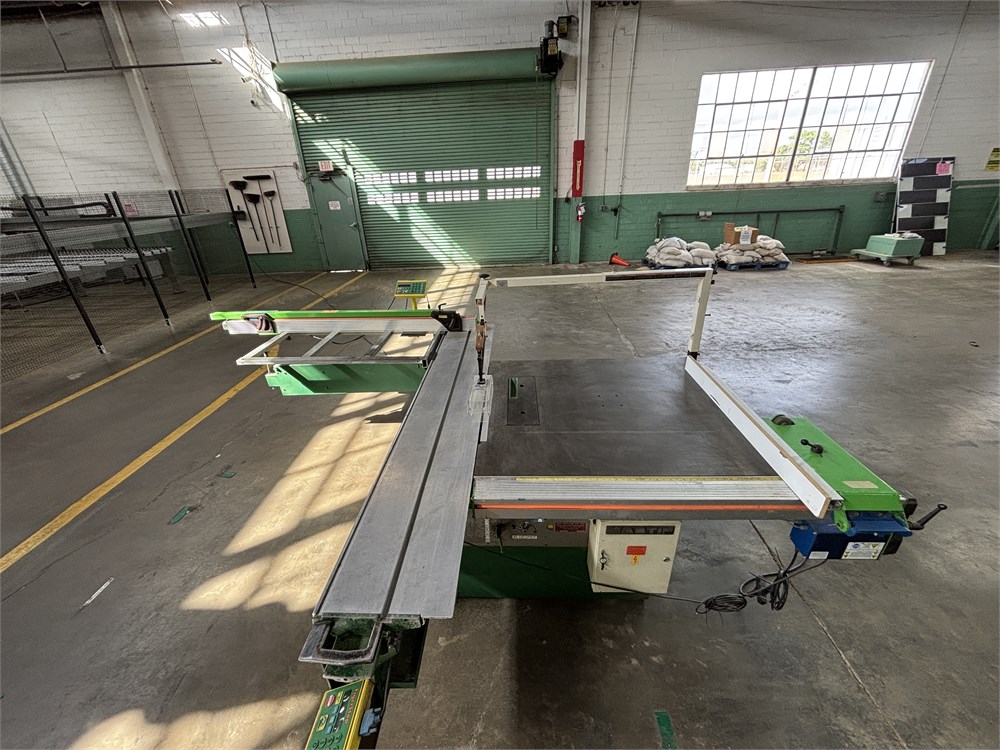

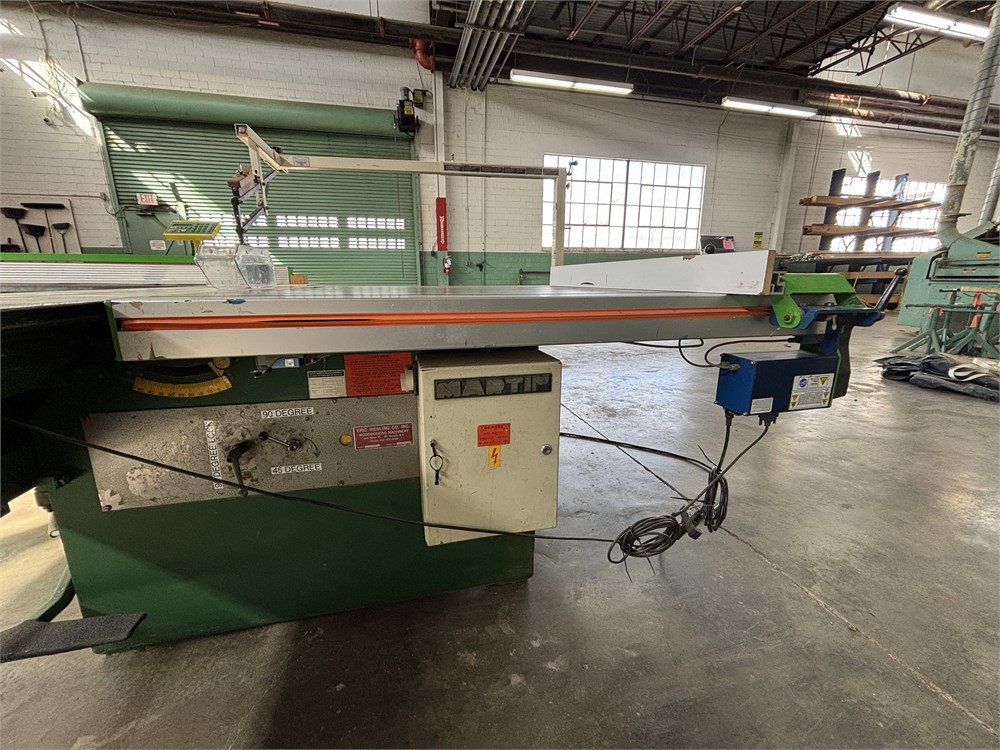

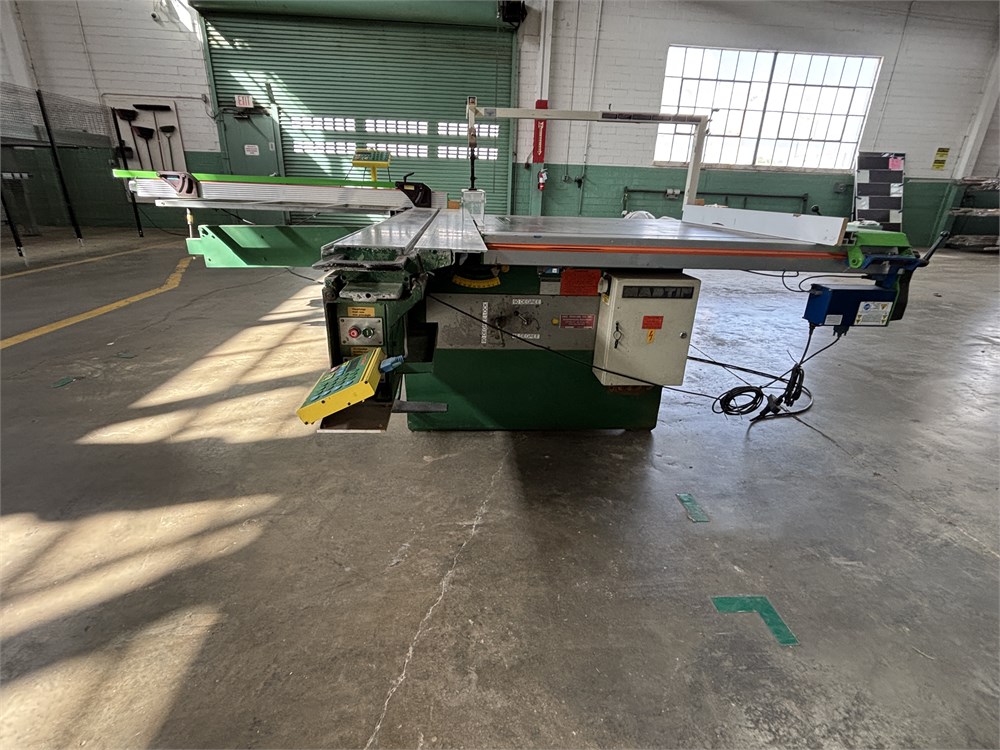

T70 Sliding Table Saw

Like any Martin, the T70 is built for maximum performance inside and out. The sturdy mechanical design is complemented perfectly by the unique user-friendliness of the sophisticated 10.4“ touchscreen controller. The reason for this is that we not only set standards in technology but also in operation: You are appropriately guided through all the operating and work processes – even individually customized if desired.

Electrically adjustable 2-axis and 3-axis scoring saw

The 2-axis system is completely user-friendly. Full integration into the touchscreen controller facilitates the input of all necessary settings. The left/right positioning of the scoring saw in relation to the right shoulder of the main blade and the scoring height is adjusted automatically. The kerf width is adjusted with stacked shims. If you combine the 2-axis scoring saw with the T7022 ScribeMaster saw blade system, the kerf width can be adjusted in a matter of seconds. With inserted scoring saw blades you can use main saw blades of up to 400 mm in diameter. If you remove the scoring saw blades and the flange you can easily work with saw blades of up to 550 mm in diameter. The patent-pending MARTIN 3-axis scoring saw system is fully integrated into the controller and facilitates the input of all necessary settings. The fully integrated scoring saw is linked to the touchscreen’s tool menu, allowing the automatic positioning of the scoring saw width to match every main saw blade that has previously been entered into the controller. The system needs to be calibrated only once. Time-consuming sample cuts are avoided almost completely. Thanks to a quick clamping system the scoring unit of the 3-axis scoring saw can be completely removed or changed within seconds. This is important, especially if you want to use saw blades in excess of 400 mm in diameter.

Solid machine frame

The T70’s solid and heavy machine frame that is reinforced with a concrete composite is unique and in the woodworking machinery industry only to be found on MARTIN machines with this technical perfection. Otto Martin invented this method of construction in the 1920s and had it registered as a patent back then. Today, after 90 years of continual improvement, MARTIN still uses this simple and effective type of frame construction. The combination of steel and concrete create a high-quality machine frame that is unparalleled when it comes to sturdiness, absorbing capacity and torsion resistance. This design has been proven to have up to six times the vibration dampening properties than that of a traditional cast-iron or welded.

Easy to operate

To enter a new value for a particular axis into the controller, just touch the respective number field. The screen immediately changes its input mode, enabling you to enter new numerical values. The numeric keypad not only indicates the minimum and maximum allowable input values that the machine will take but also memorizes the last five input values for rapid recall. The integrated calculator can also be used if necessary. On the „HOME“ page, rapid access icons can be created and unused icons can be deleted. This way you can keep track of the current machine values. For the precision calculation of your cuts and quick tool change, you can store up to 100 different saw blades in the tool menu. A saw blade that has been stored once is immediately available and fully integrated into the controller. This way the 3-axis scoring unit automatically adjusts to the kerf of the main saw blade. Time-consuming test cuts can be omitted almost completely and you can concentrate on the task at hand.

VacuSlide workpiece clamping system

VacuSlide is an efficient and intelligent clamping system for panel material made of wood, plastic or non-ferrous metals. It offers excellent performance especially if thin and/or delicate materials have to be clamped or bevel, as well as mitre cuts, have to be made. Workpieces up to 110 mm wide can be securely clamped. Preselection is not necessary. VacuSlide is activated or deactivated via radio remote control. Delivery includes vacuum generator, remote control,  reverse flow filter as well as low-pressure warning device. Cannot be used in combination with the motorized sliding table or when the rip fence is set via hand wheel.
