Weeke "BHP Vantage 36L" CNC Machining Center - Flat Table Active

Brochsteins Custom architectural woodwork & furniture - Houston, TX

Houston, TX 77025


Days

Hours

Min

Sec

Lot Closes:

12/11/2025 10:15:00 AM PT
393 Watching
Add to Watchlist

Minimum Bid:

$2,500.00 USD

Number of Bids:

0

Current Bid:

$2,500.00 USD ( ) No Reserve
Your Maximum Bid Is $0.00 USD
$USD
Quick Bid $2,500.00 USD
Or
Or
  • Starting Bid : $2,500.00 USD ( ) No Reserve
  • 0 Bid(s)
Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
0.00% Sales Tax

Brochsteins Custom Architectural Woodwork & Furniture, Day 1- Houston, TX ( Active #76325787 )

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    11530 S Main St, Houston, TX 77025

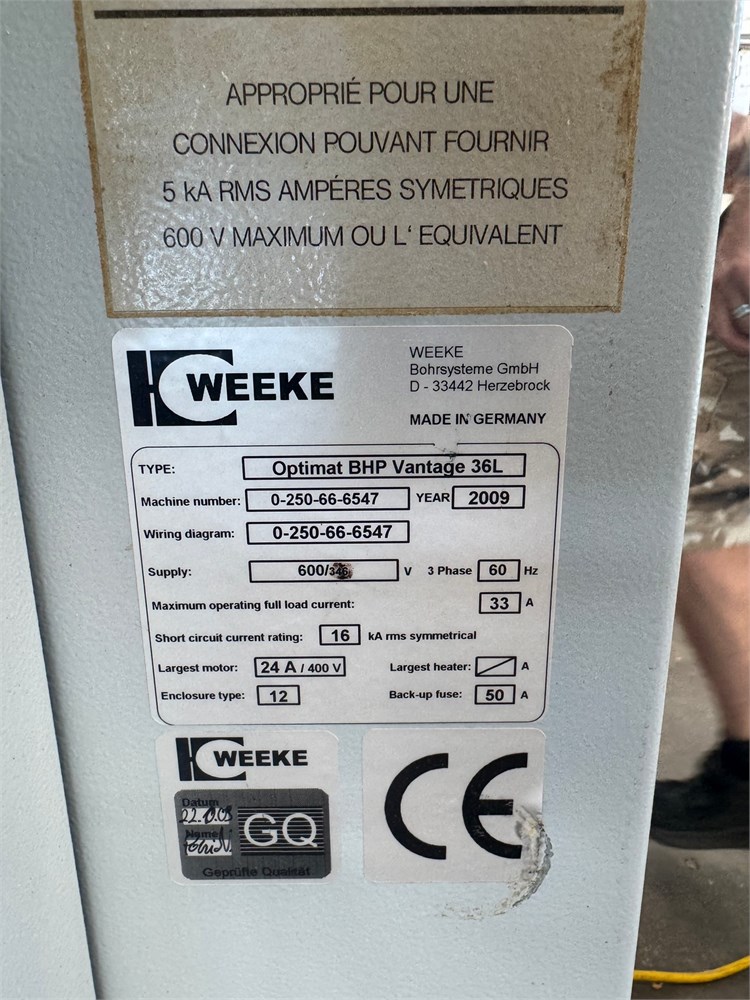

  • Make

    Weeke

  • Model

    "BHP Vantage 36L"

  • Serial Number

    0-250-66-6547

  • Year

    2009

  • Phase

    3 PHASE

  • Voltage

    600VOLT

  • Buyer Inspection Period

    TBD

  • Load Out Period

    TBD

  • Estimated Dimensions

    19'L x 8-1/2' x 7'H

  • Estimated Weight

    6,000 Lbs

  • Seller Comment

    A rigger is required. Buyer's Responsibility for Break-down, loading and removal. By appointment ONLY!

  • Load Fee

  • Lot Notes

    Vacuum pump NOT included...please see lot# 005

  • page views

    19

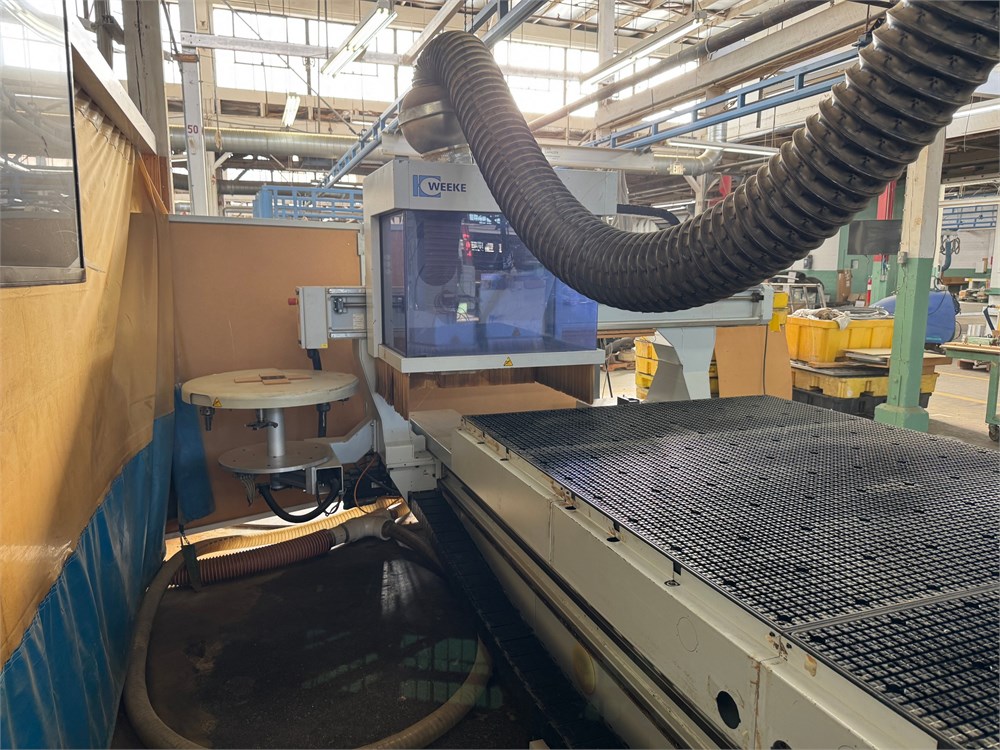

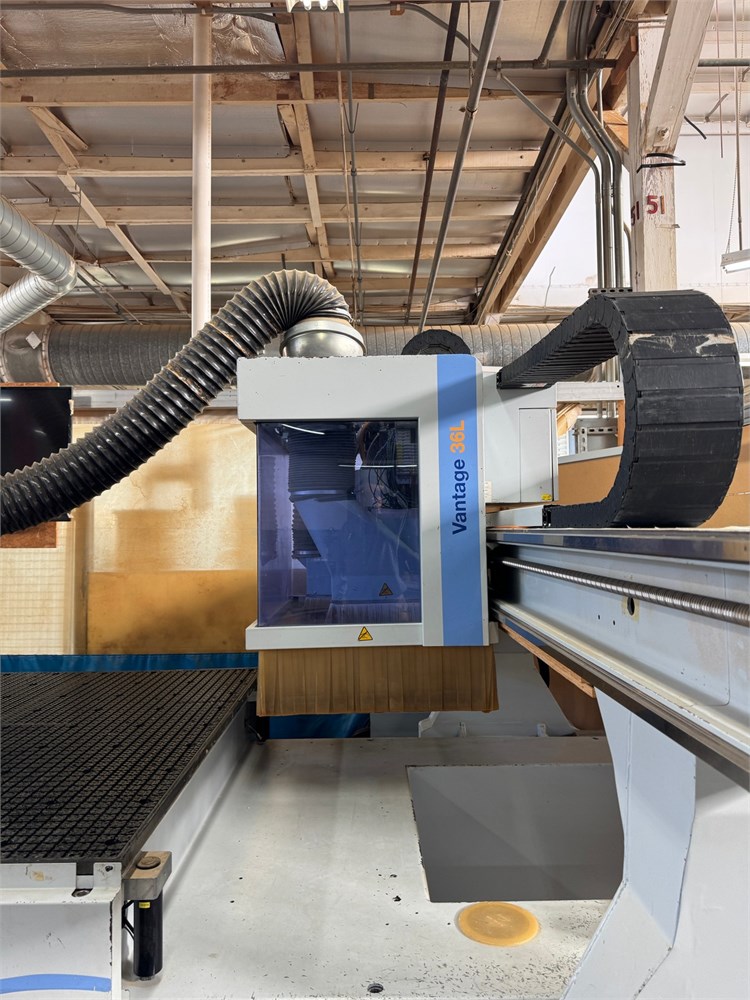

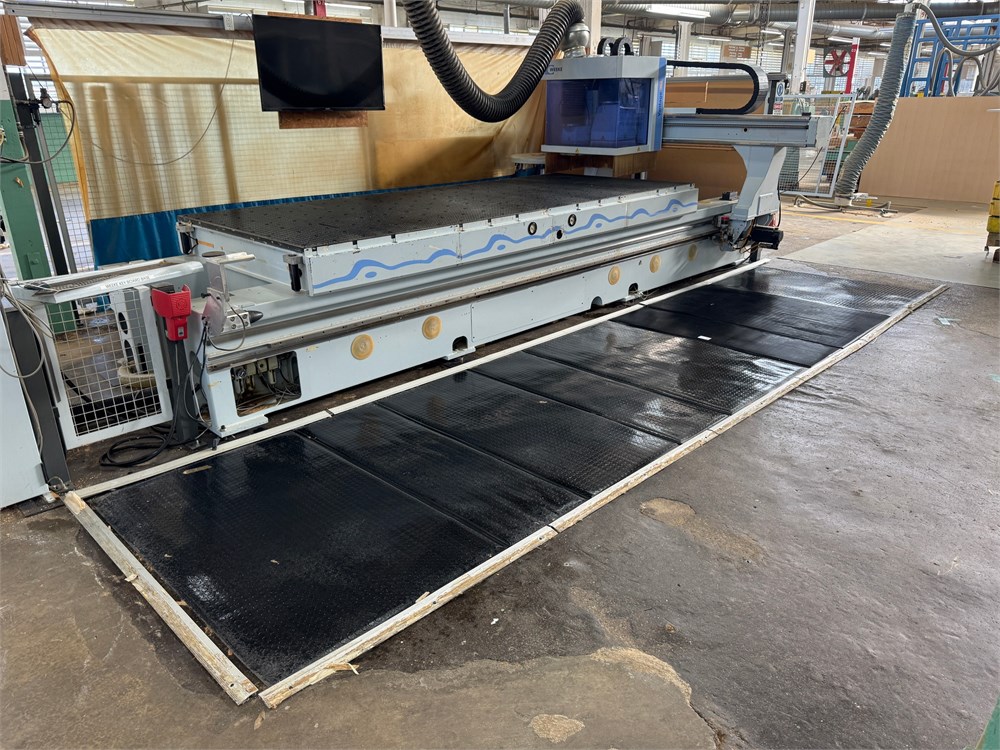

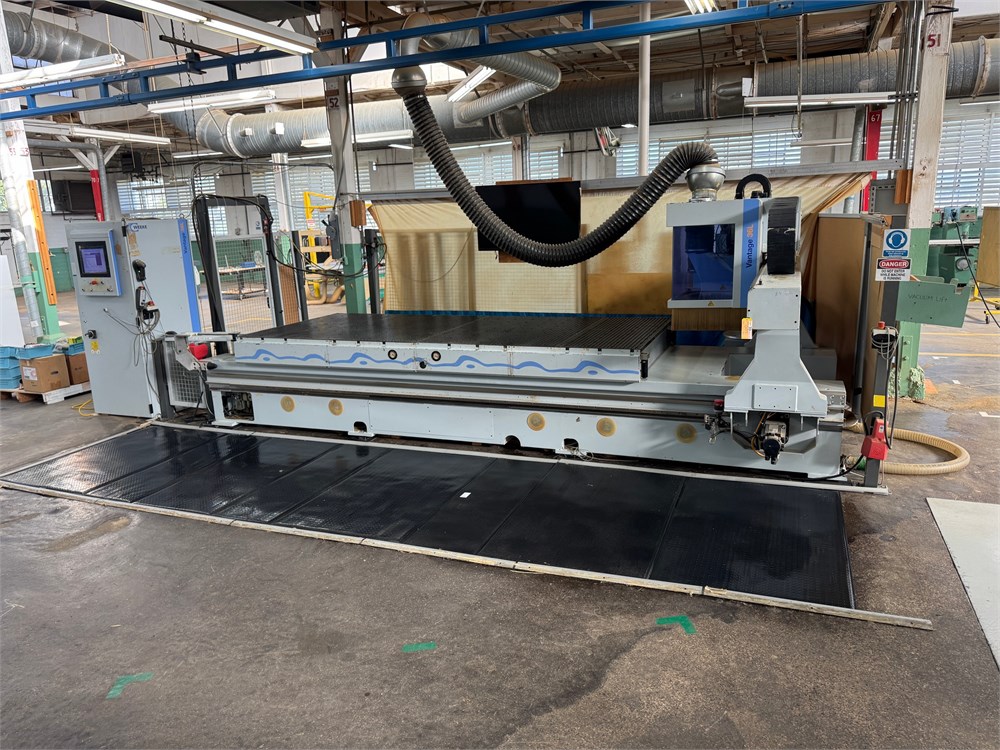

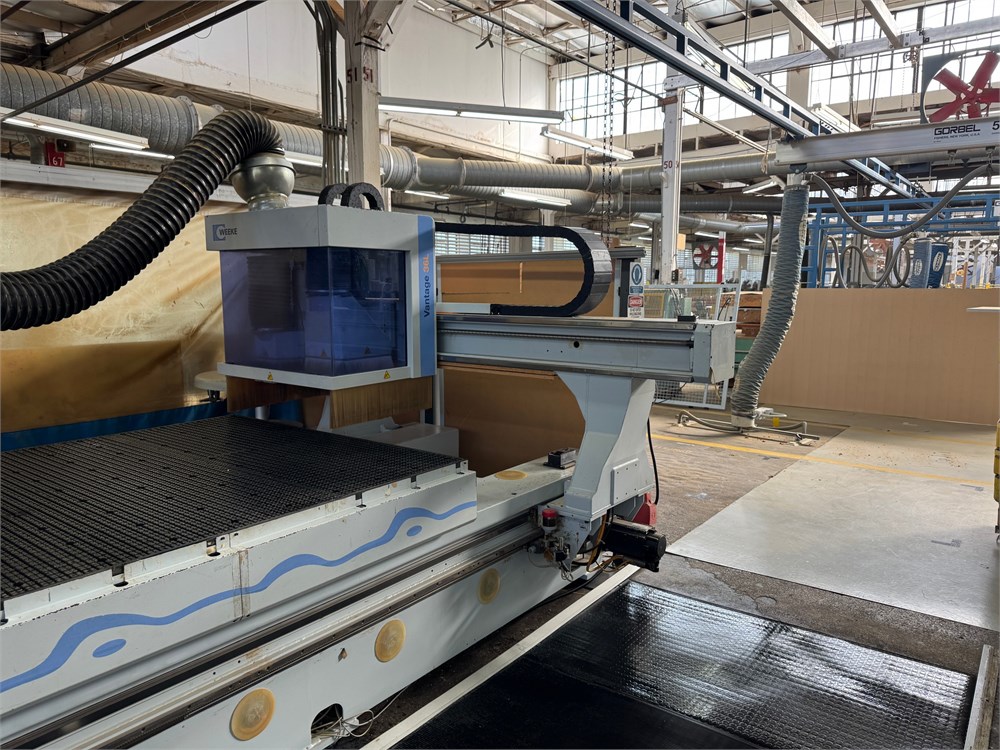

Weeke "BHP Vantage 36L" CNC Machining Center - Flat Table

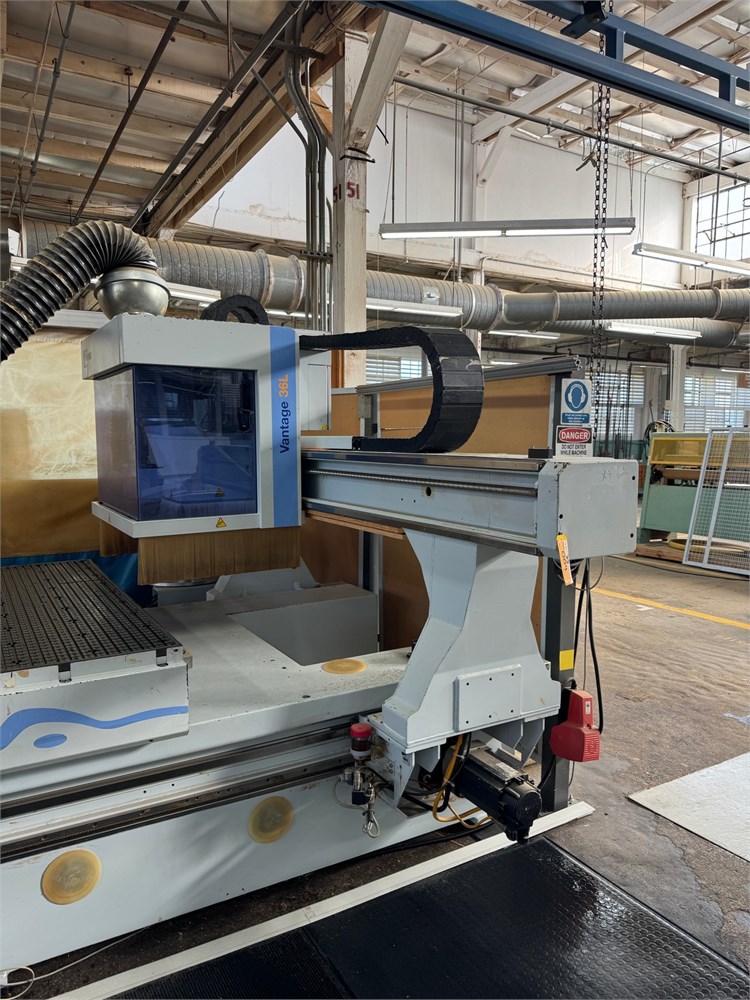

5' x 12' Bridge style gantry machine; working area cap. - X-Axis is 3,700 mm (145.7"), Y-axis is 1,550 mm (61"); Z-axis stroke of 185 mm (7.3"); max. material thickness is 3.9" (100 mm).

The head travels on THK linear motion guides on all axes; positioning speed in X- & Y-axis is 345 FPM (105 MPM); Z-axis is 66 FPM (20 MPM).

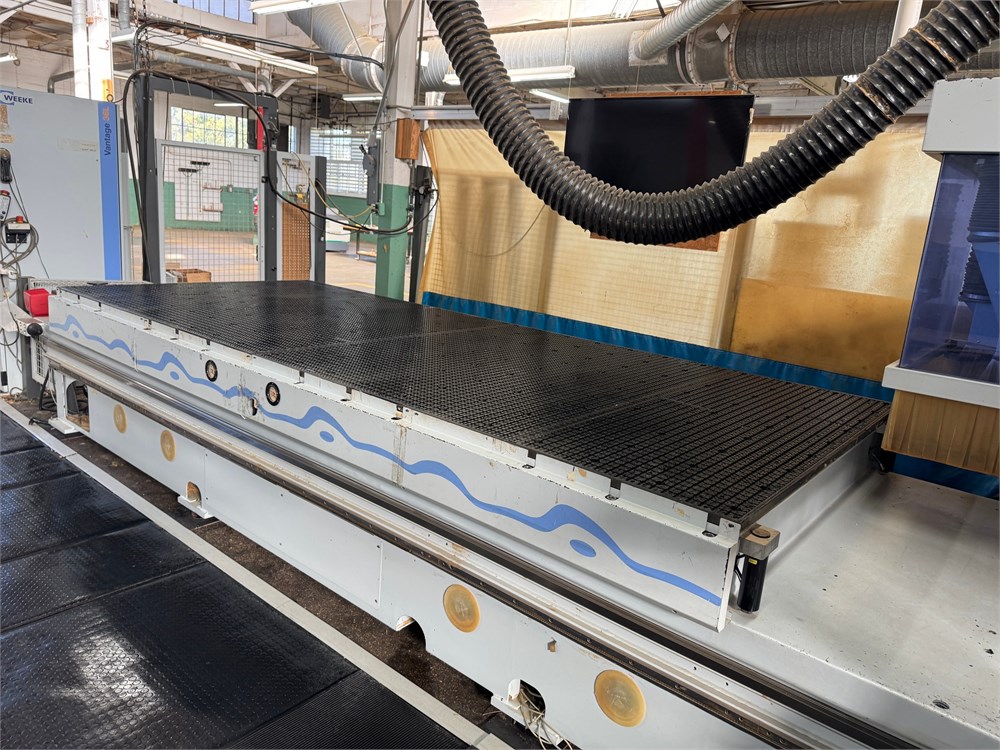

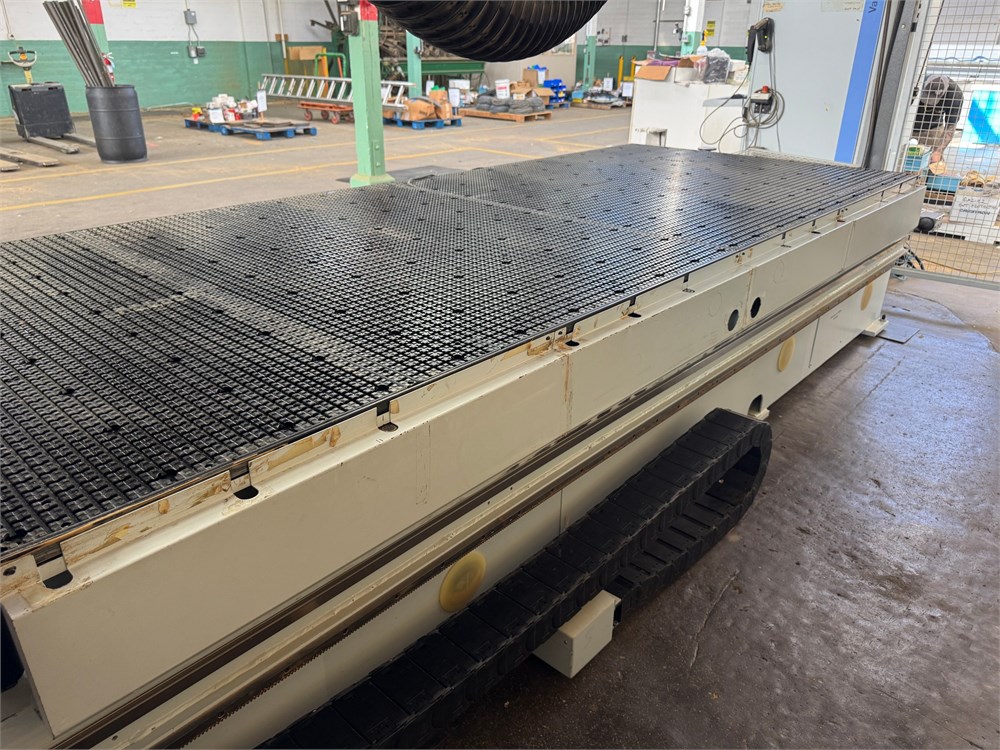

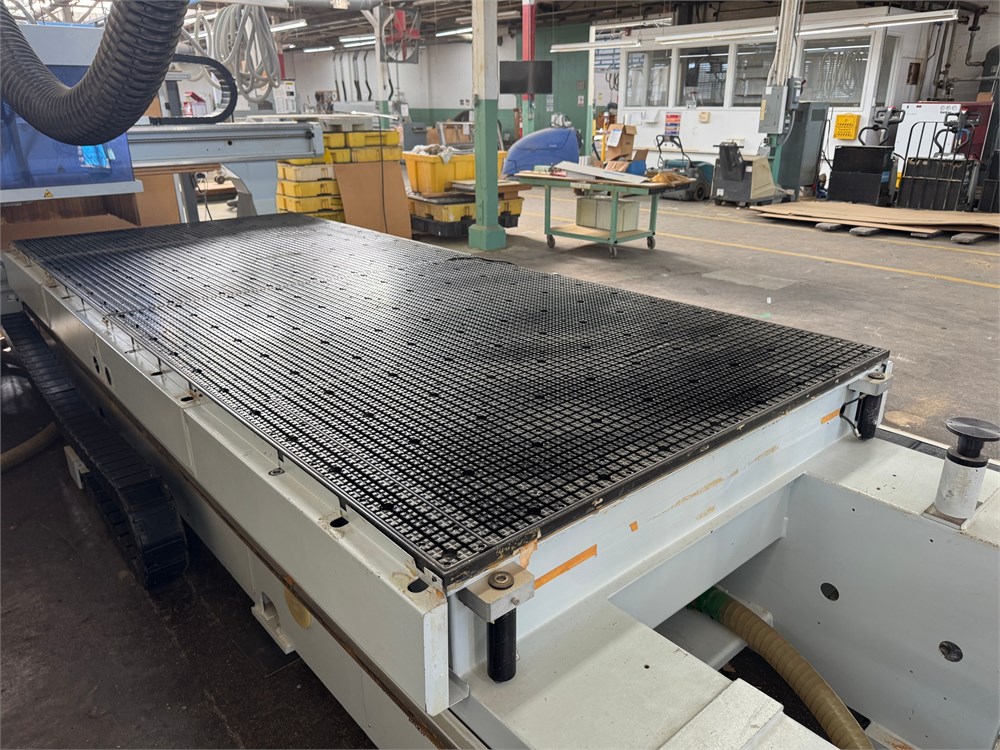

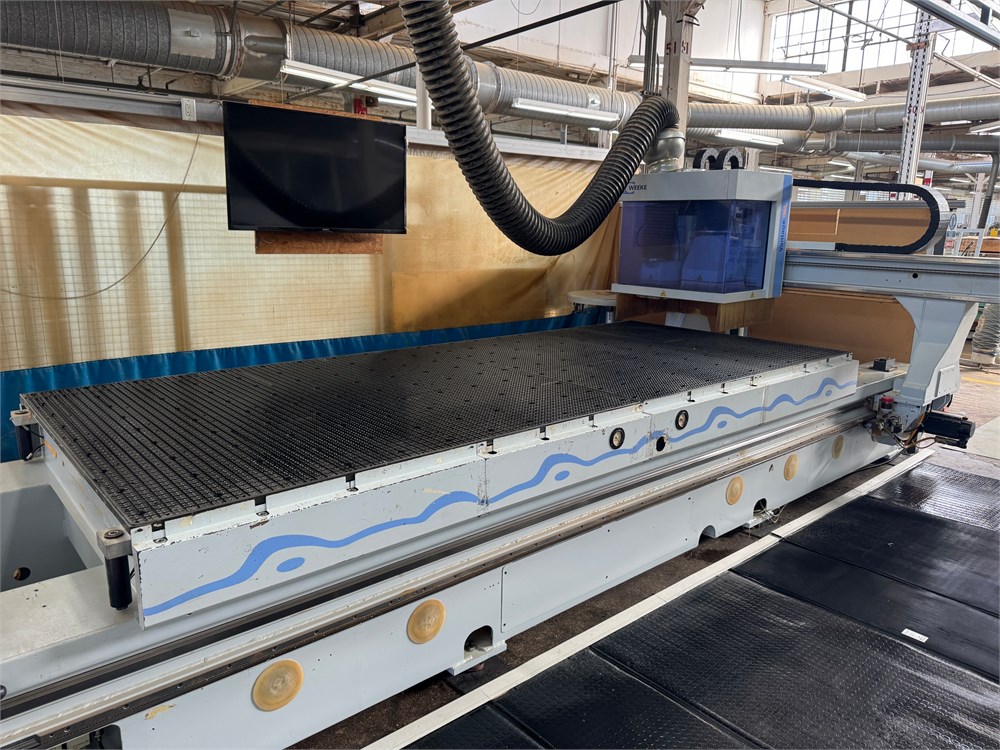

User-Friendly MATRIX grooved Phenolic vacuum table: The working field can be accessed with all processing units without restriction; (16) pneumatically lowerable workpiece stops, including electrical surveillance of lower cylinder position.

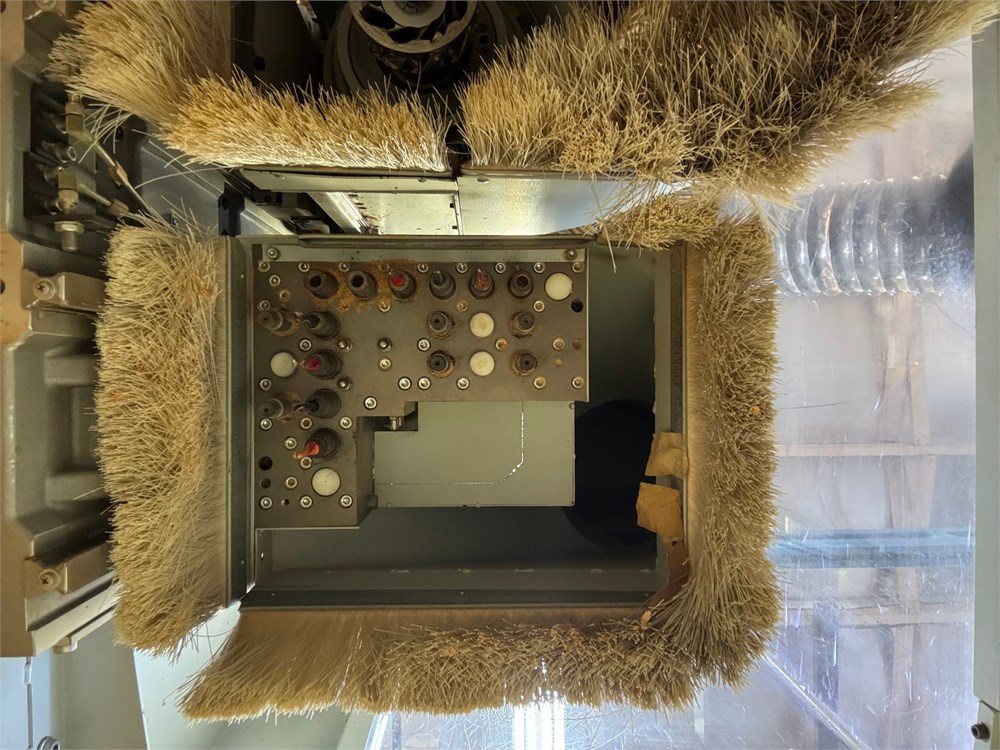

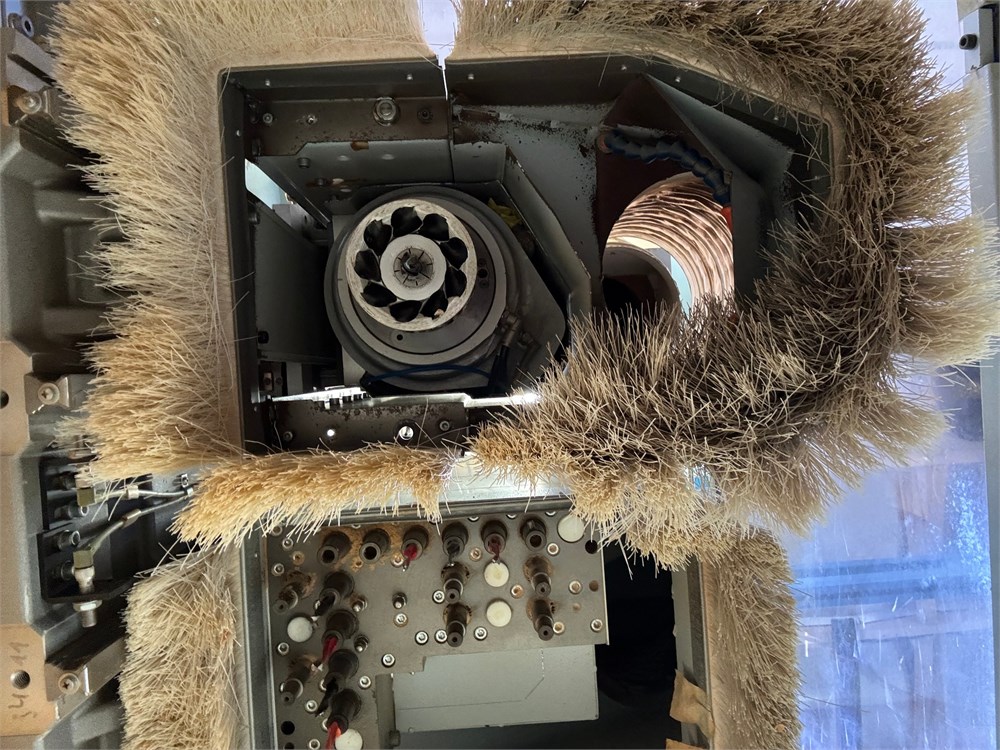

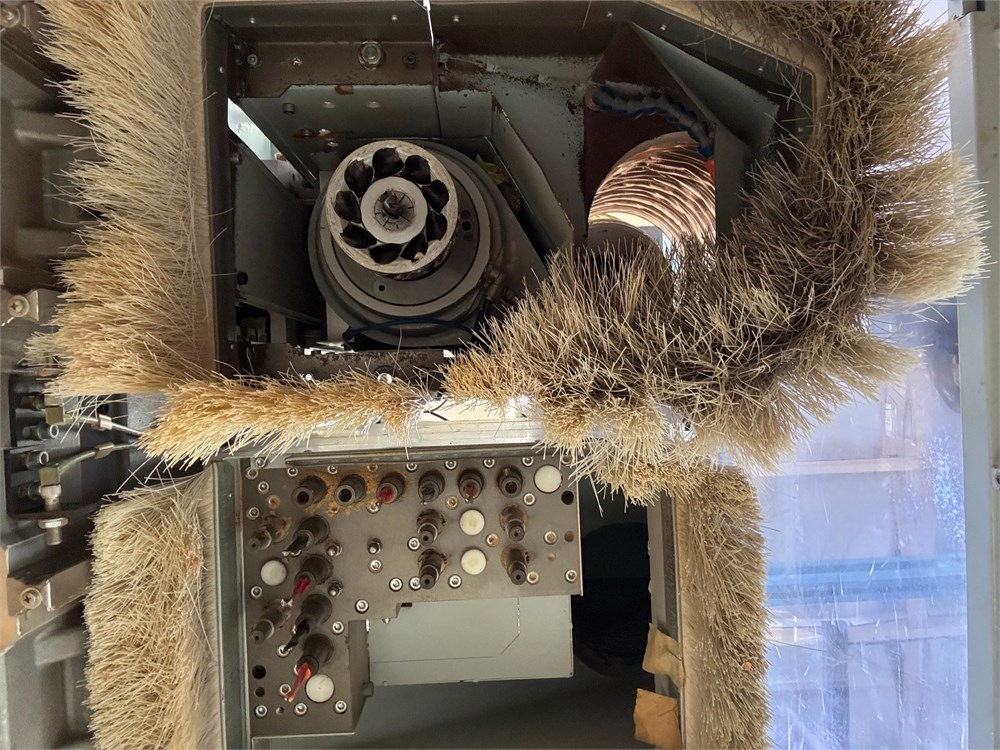

Boring unit with: 3.6 HP (2.7 kW) Motor, programmable variable speed from 1,500 - 7,500 RPM; (10) independent vertical spindles;

(1) 12 HP (9 kW) High speed constant duty, variable speed electro spindle Router, HSK F 63 adaptor;

NC controlled C-axis for 360° horizontal processing; programmable from 1,250 - 24,000 RPM, RH or LH rotation (not verified)

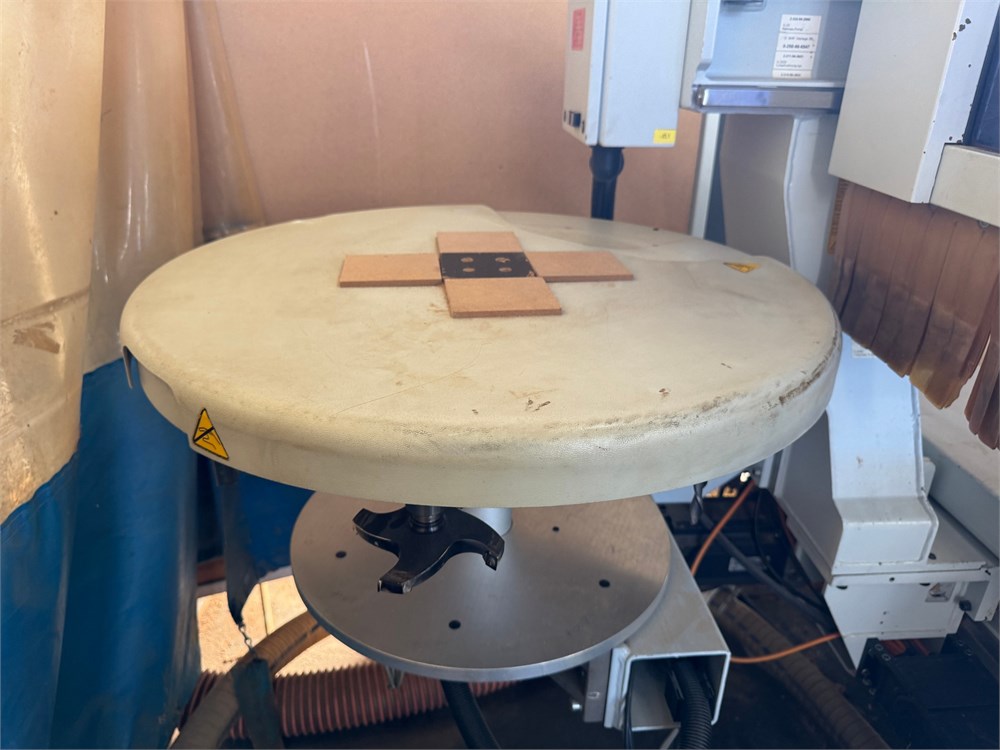

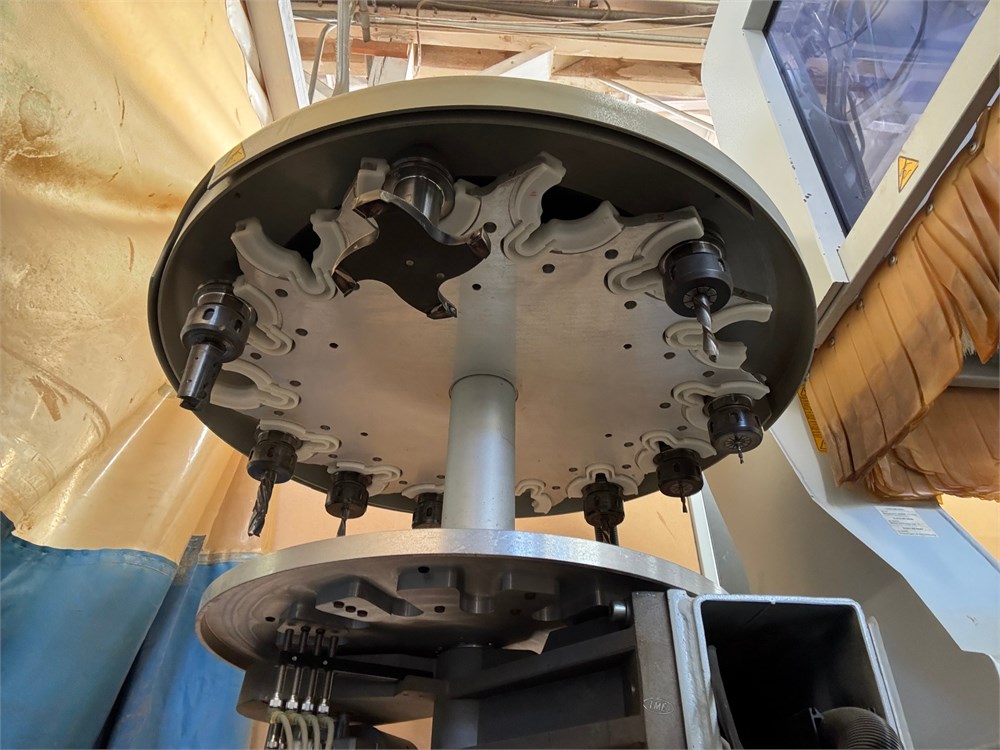

(1) 14-Position ATC plate located on the machine head for "on the fly" ATC.

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
