Biesse "Rover B 1938" CNC Router
Ended
Biesse "Rover B 1938" CNC Router - Upland, CA
Upland, CA
- Winning Bid : $2,700.00 USD Sold
- 13 Bid(s)
- High Bidder: m****h
Biesse "Rover B 1938" CNC Router - Upland, CA ( Closed #76396038 )
A collaborative design and build fabrication shop in the greater Los Angeles, CA area is auctioning a Biesse "Rover B 1938" CNC Router no longer required for continuing operations. Please call me directly with any questions.
-
Pick Up Location
319 McArthur Way, Suite 3 Upland, CA 91786
-
Make
Biesse
-
Model
Rover B 1938
-

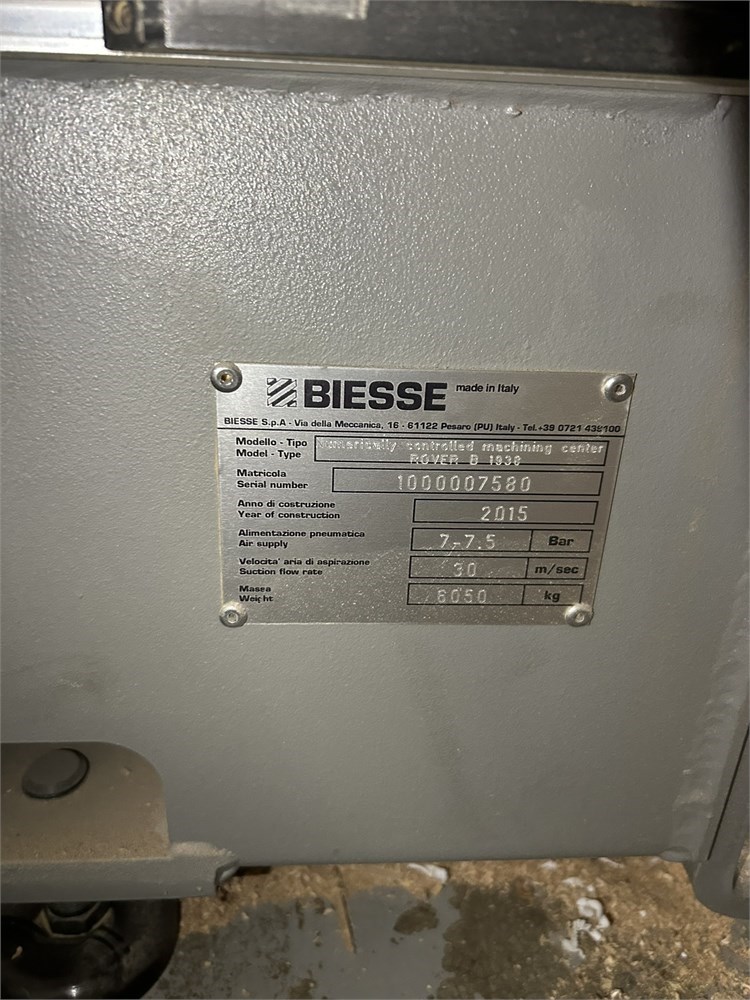

Serial Number
1000007580
-
Year
2015
-
Phase
3 PHASE
-
Voltage
208-230/460
-
Buyer Inspection Period
By appointment only, contact Thomas Aronson - [email protected] - 941-699-8717
-
Load Out Period
November 26- December 12, 2025 (by appointment only)
-
Estimated Dimensions
252" L x 116" W x 96" H
-
Estimated Weight
13,500 Pounds
-
Seller Comment
This lot requires a rigger, see home page for details.
-
Load Fee
-
Lot Notes
-
page views
1292

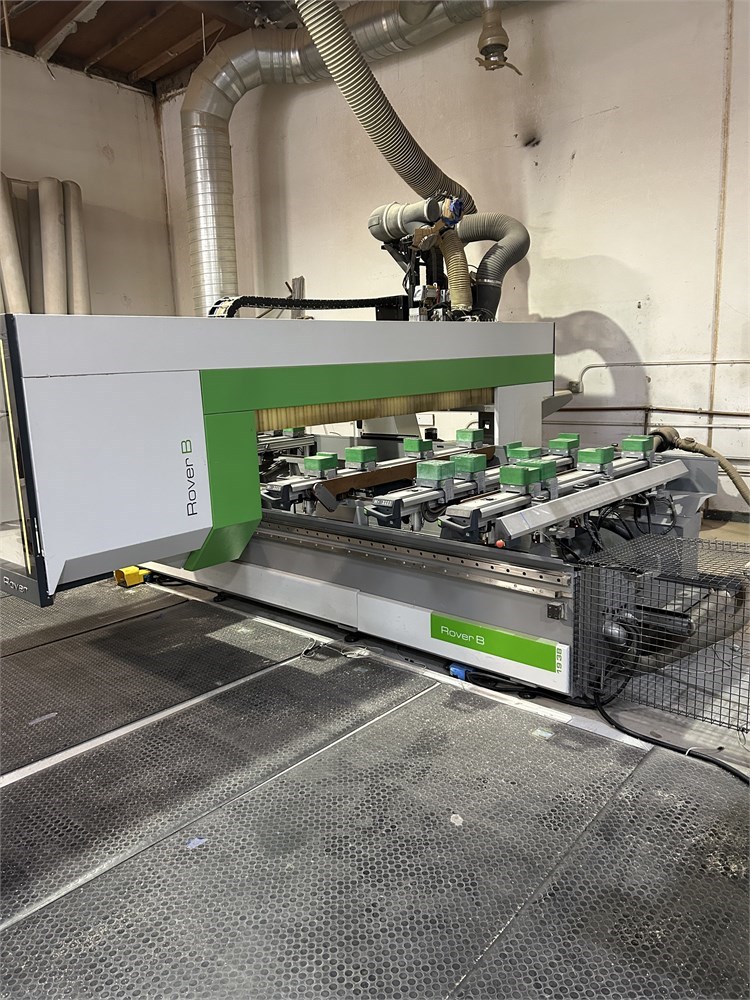

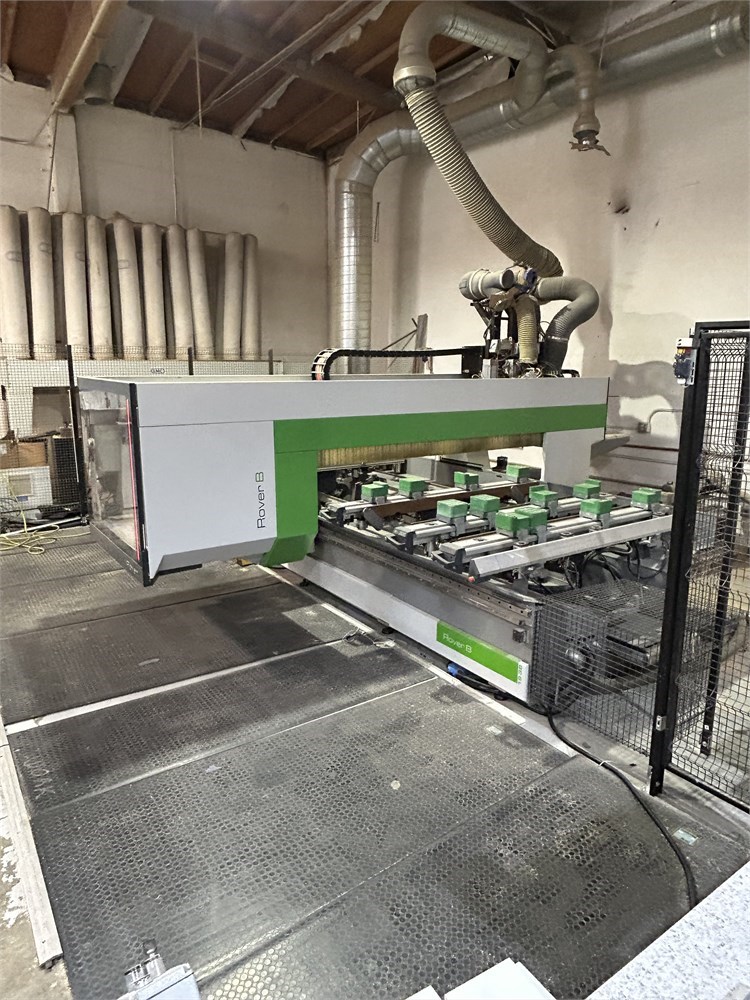

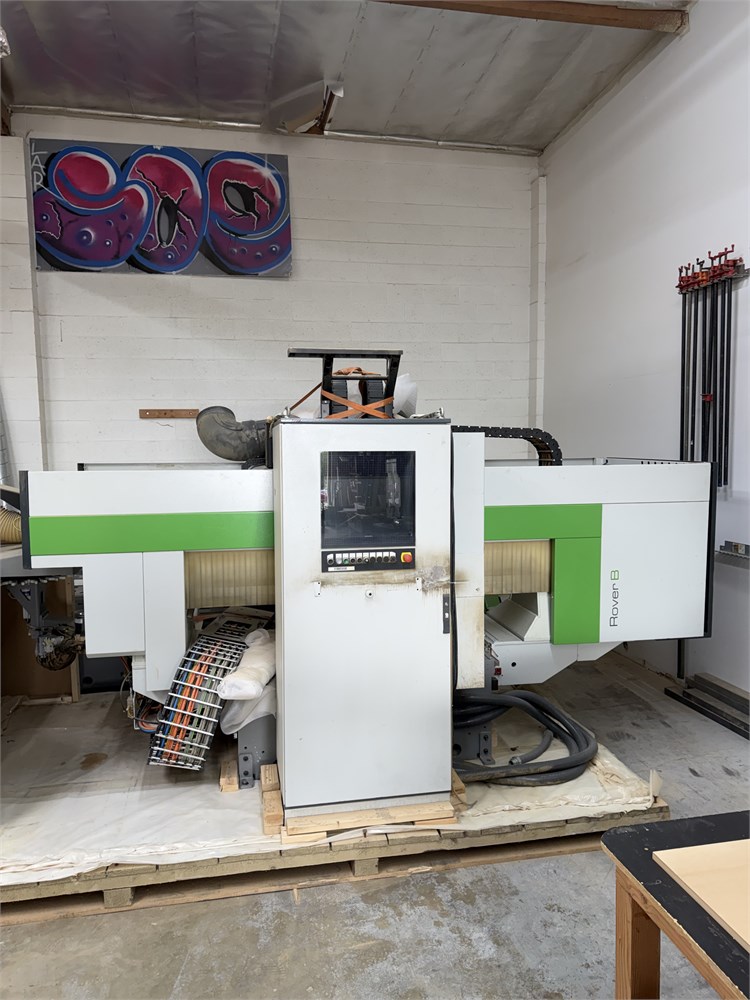

Biesse "Rover B 1938" CNC Router
See video of machine in operation
1,930 mm/76" x 3,855 mm/151" work area
Z= 200 mm/7.8" with H=74 mm vacuum cups; Z= 245 mm/9.6" with 1-1=29 mm vacuum cups

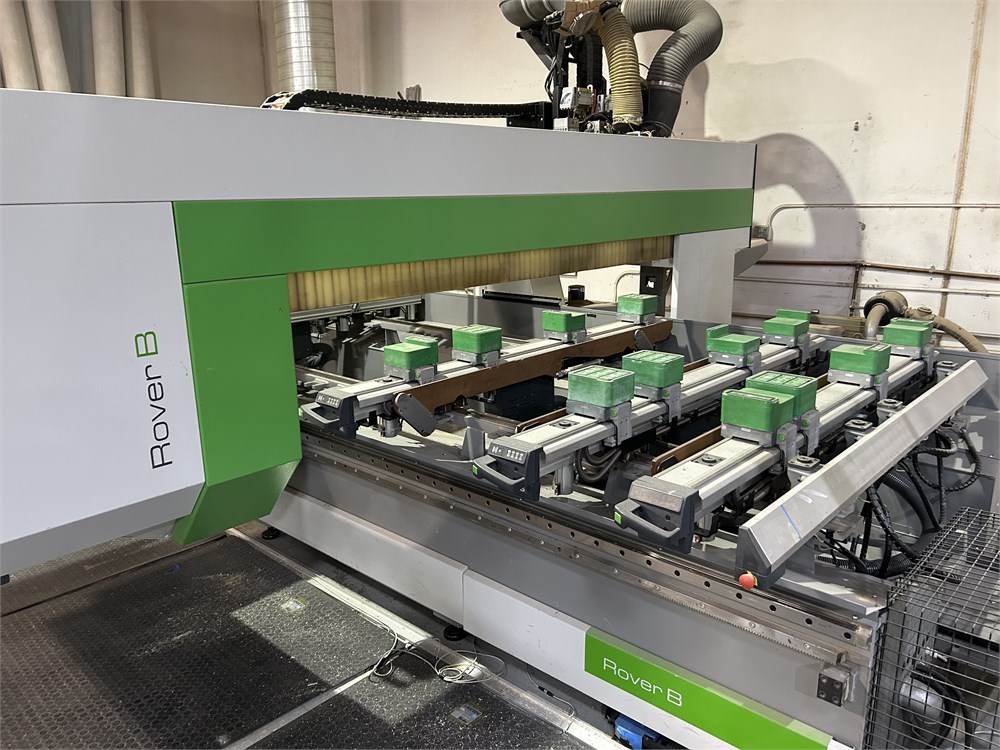

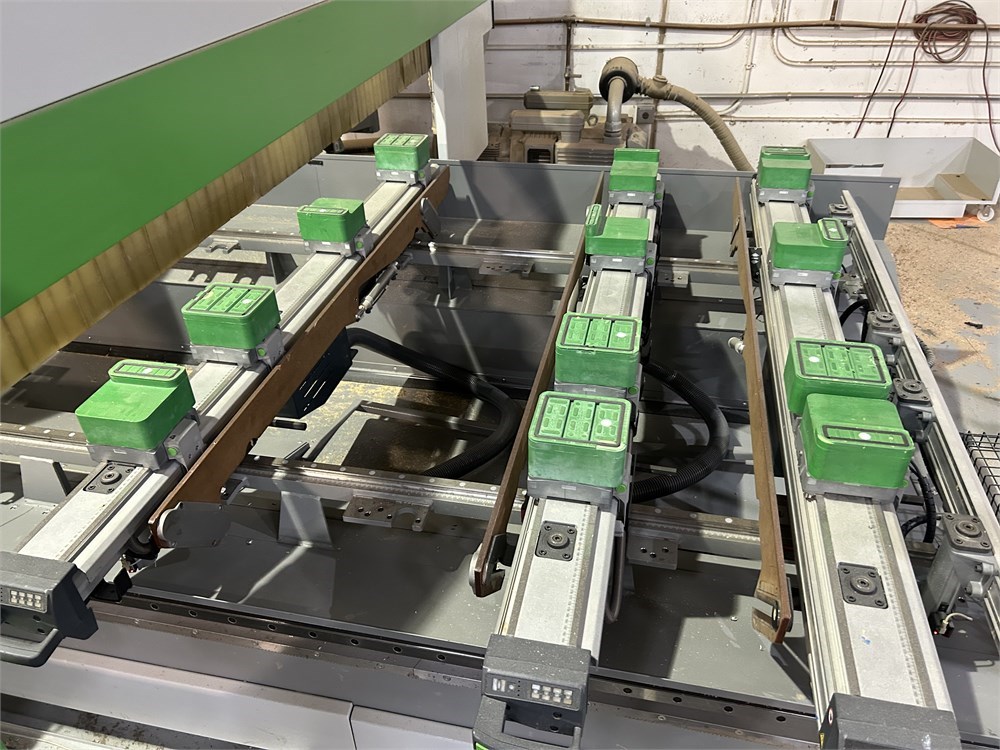

ATS (Advanced Table Setting) with six (6) panel supports with vacuum cups, reference stops and panel lifting rails
Scrap conveyor mounted under panel supports
BH30 2L boring unit with automatic lubrication
- 20 vertical independent spindles with a pitch of 32mm (9 spindles along X axis and 1 1 spindles along Y axis)
- 4 horizontal independent spindles with double outlet with a pitch of 32mm (2 oriented along X axis and 2 oriented along Y axis)
- 2 sawblades with diameter 120mm for grooves along X and Y axis (maximum cutting depth 25mm)
- 2.3 HP motor
- Variable RPM
Router
- 17.7 HP
- Ceramic bearings
- HSK, quick-change
- Variable RPM up to 24,000
- CW/CCW spindle rotation
- Air blow-off nozzles
- Pre-arranged to add c-axis (contact Biesse for details and pricing)

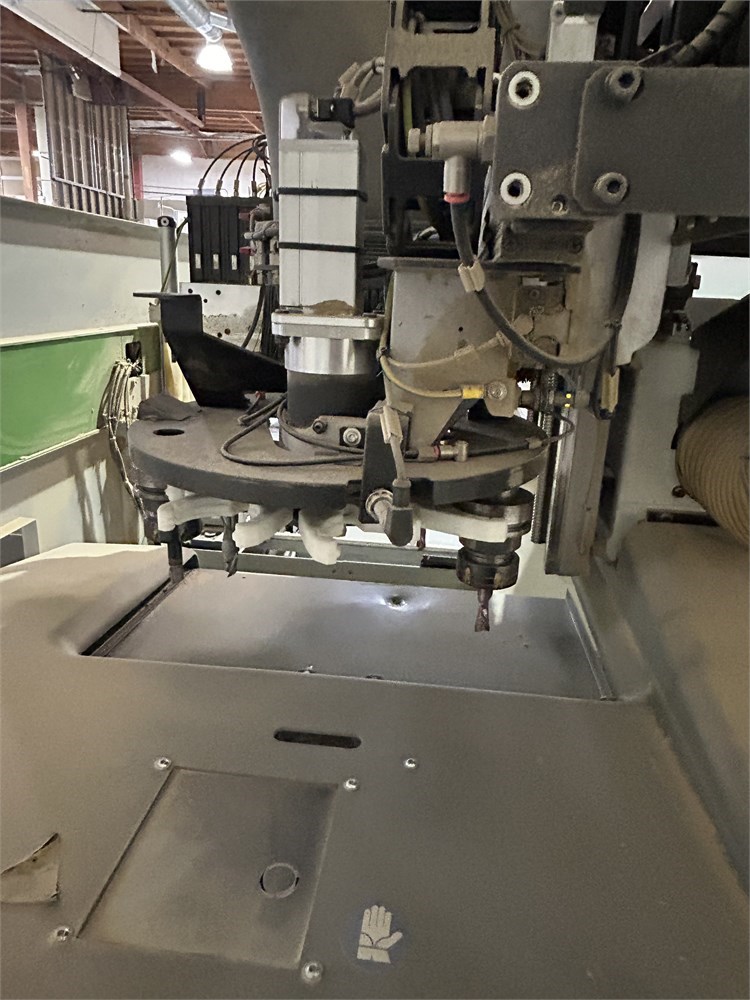

Eight (8) position rotary tool changer on machine head (tool changes can occur while boring)
Sixteen (16) position linear tool changer on x-axis carriage
Foot pedal operation
Sound enclosure
Front safety mats
Side safety fencing

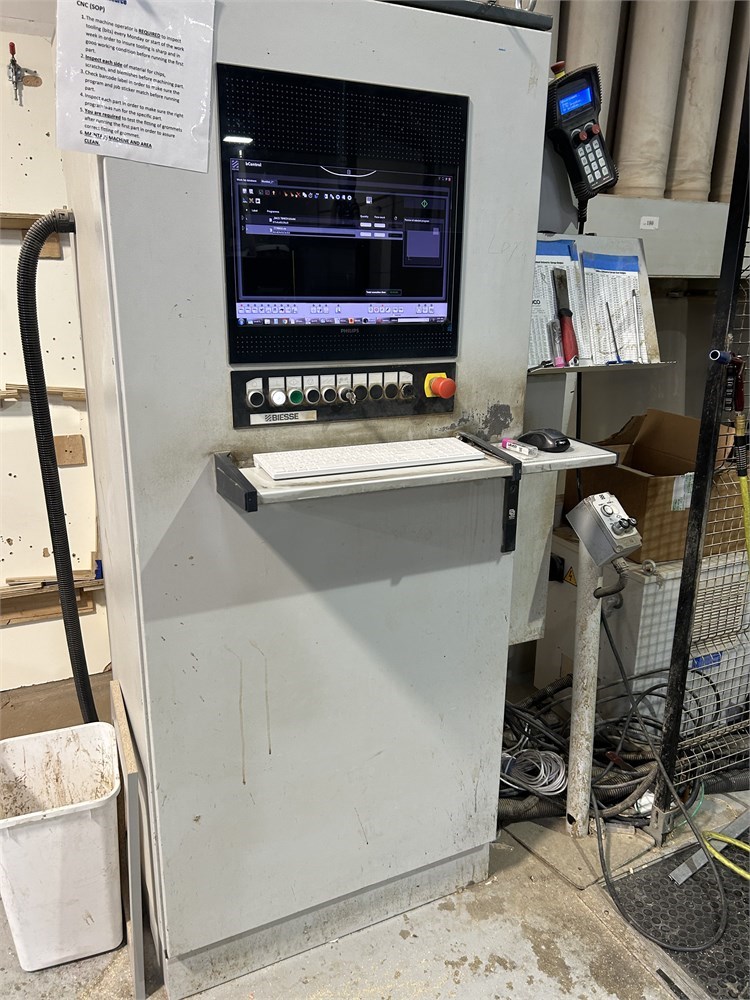

Control console
-
PC-based control system BH660 with standard keyboard and mouse
-
Thanks to the new Biesse technology WRT (Windows Real Time), which increases the performances of Windows XP by making it work in real time, the machine is controlled directly by the PC, and any other hardware component becomes unnecessary.
-
Since the software that controls the machine runs directly on a personal computer and not on a dedicated hardware device, the system architecture is greatly simplified, grants greater performance and reliability
- Air-conditioning
Remote control pendant
250 m3/h rotary claw vacuum pump; 300 m3/hr.
External electrical transformer

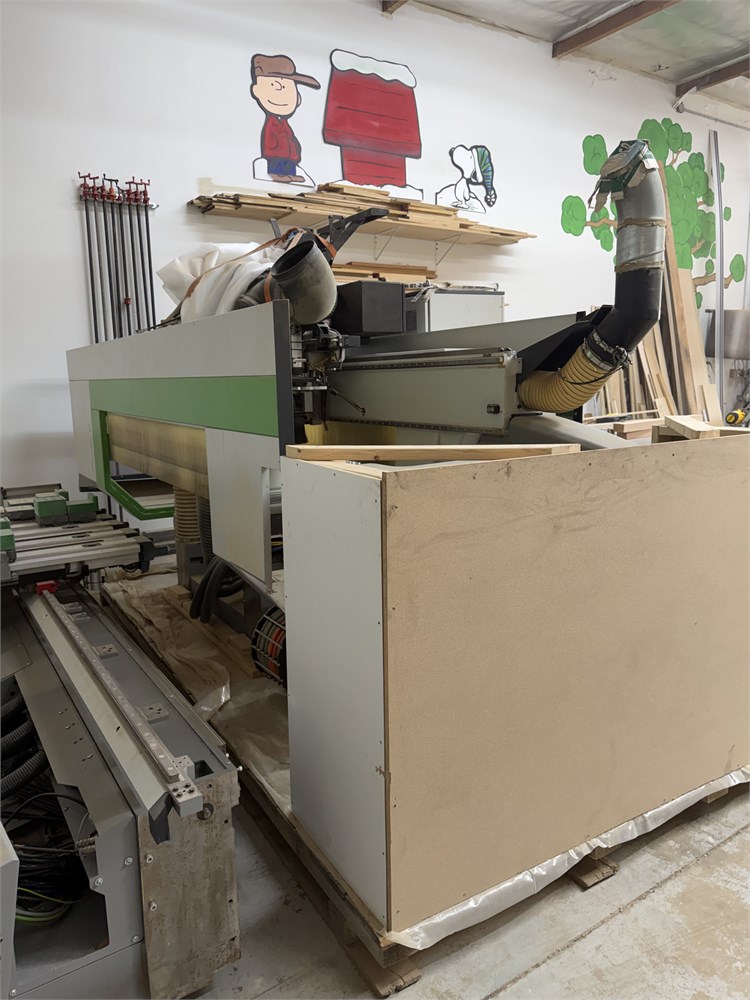

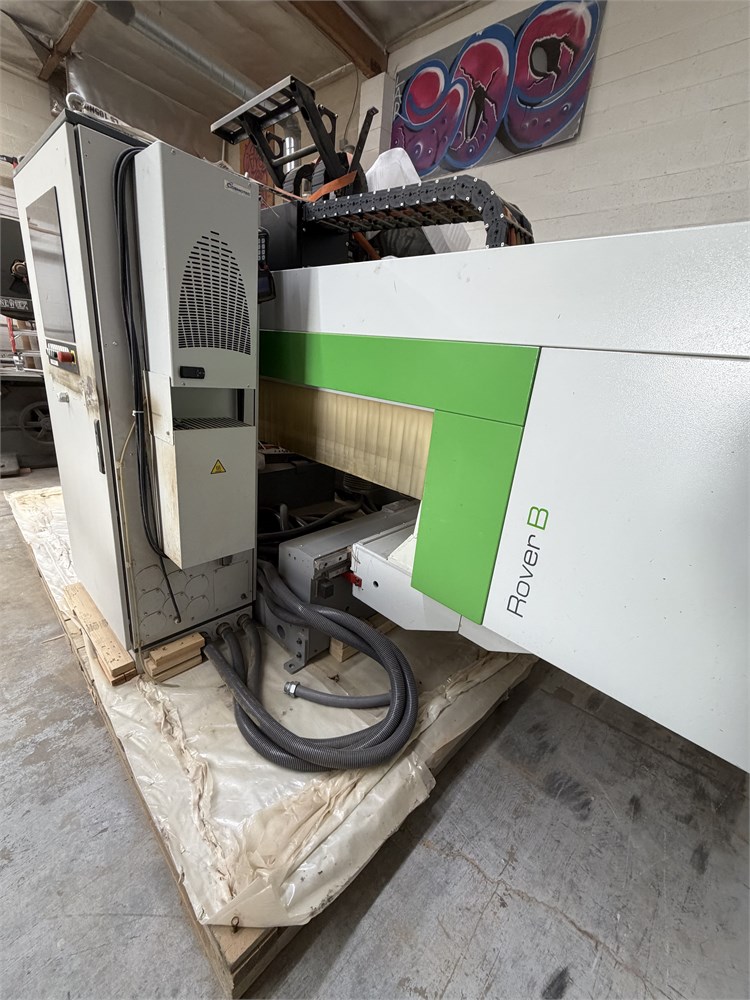

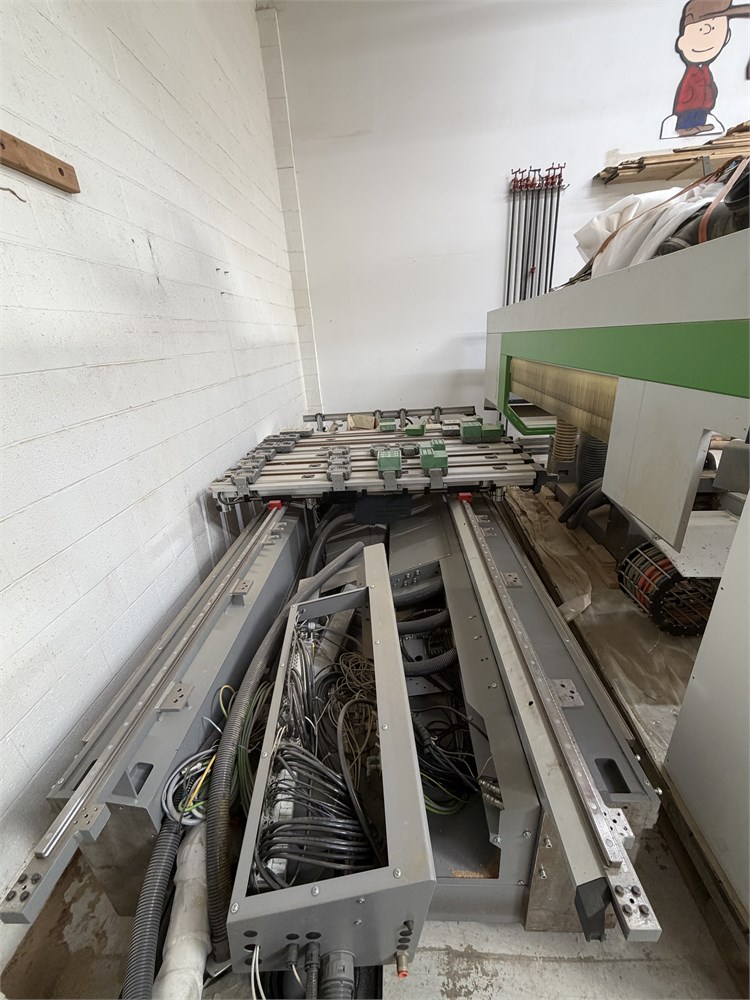

Machine has been dismantled and prepared for shipping
.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
