Biesse "Roxyl 5.5" Edgebander W/ PreMill
Active
RCS Innovations Complete Shop Closure - Milwaukee, WI
Milwaukee, WI
- Starting Bid : $3,000.00 USD ( ) No Reserve
- 0 Bid(s)
RCS Innovations Complete Shop Closure - Milwaukee, WI ( Active #76078693 )
RCS Innovations a fully integrated custom display fixtures and digital solutions company is closing it's doors and liquidating all assets. Late model Biesse machinery! Over 500 lots!
-
Pick Up Location
7075 W. Parkland Ct., Milwaukee, WI 53223
-
Make
Biesse
-
Model
Roxyl 5.5
-

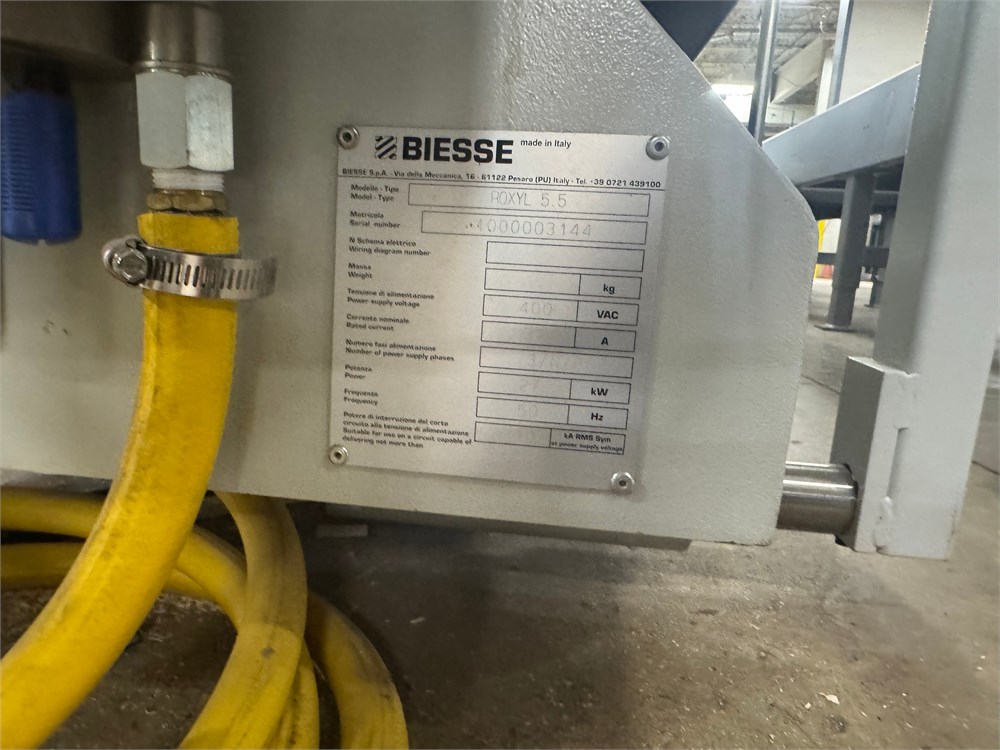

Serial Number
1000003144
-
Year
2015
-
Phase
3 PHASE
-
Voltage
208-230/460
-
Buyer Inspection Period
Tuesday December 2nd 8AM - 3:30PM...No appt. needed.
-
Load Out Period
December 8- December 18, 2025 (by appointment only)
-
Estimated Dimensions
24x4x6
-
Estimated Weight
6,000 Lbs
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.
-
Load Fee
0.00
-
Lot Notes
-
page views
338

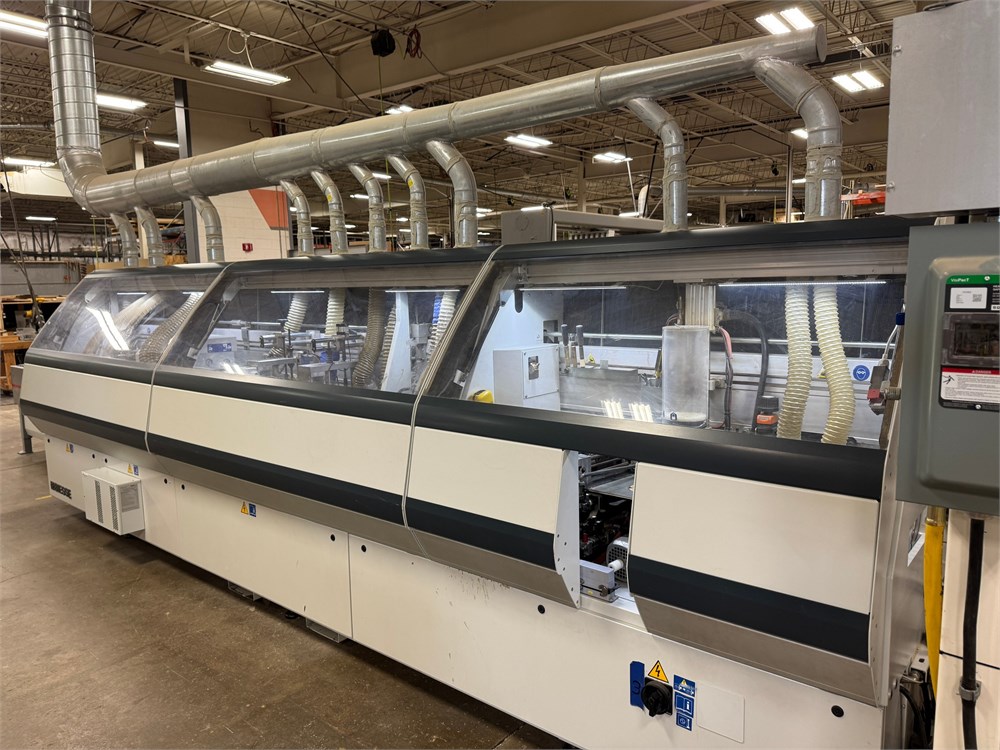

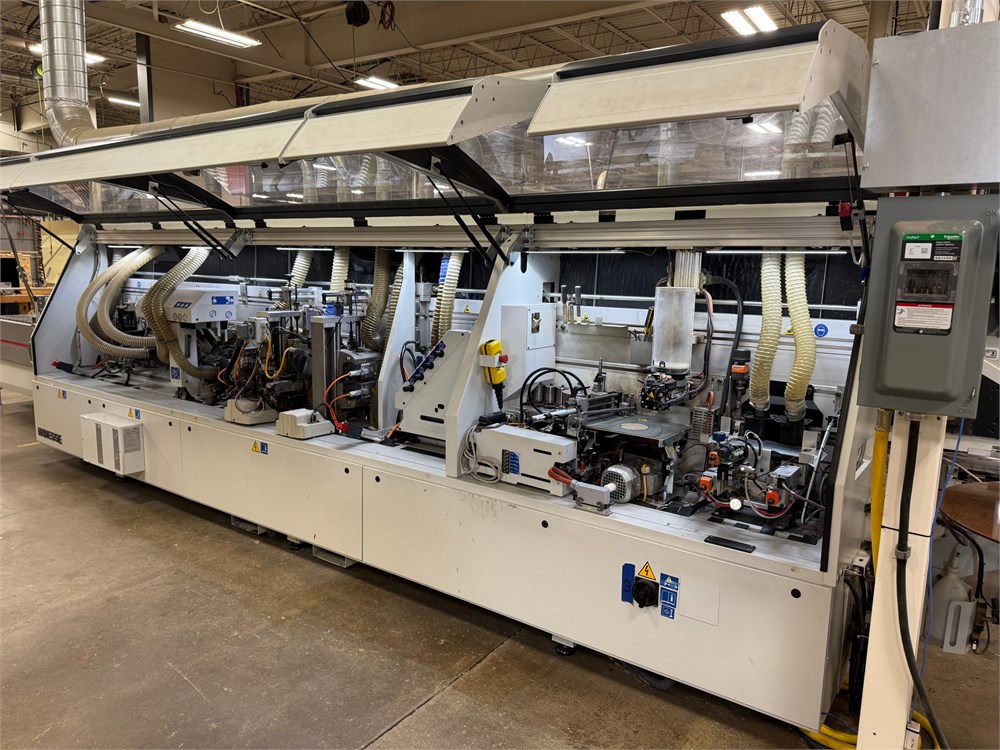

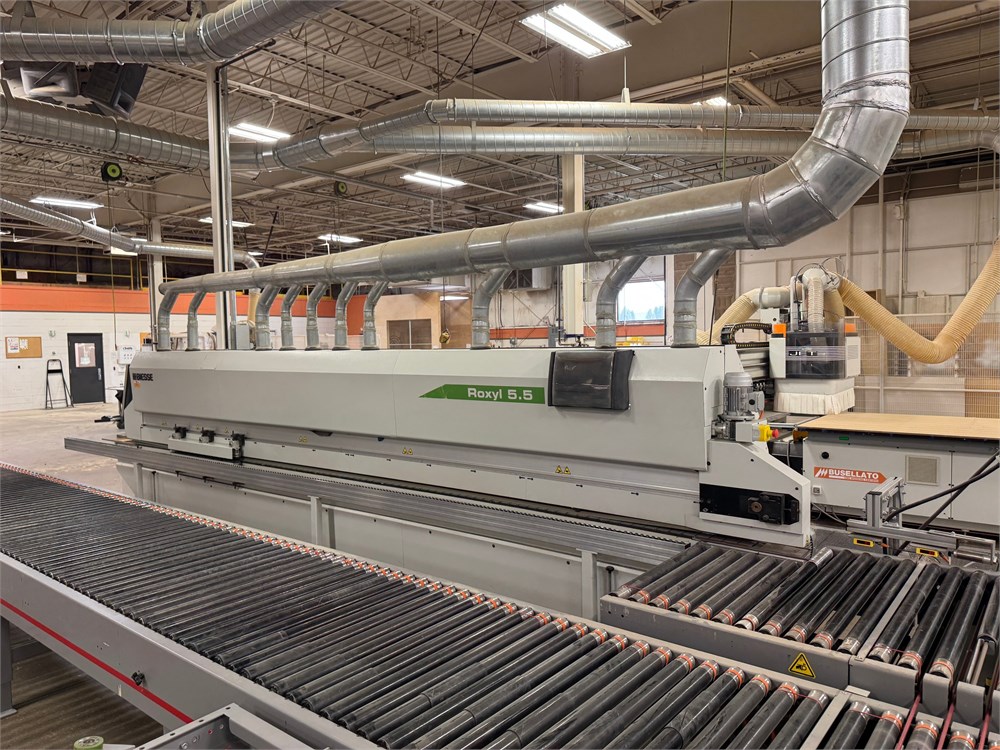

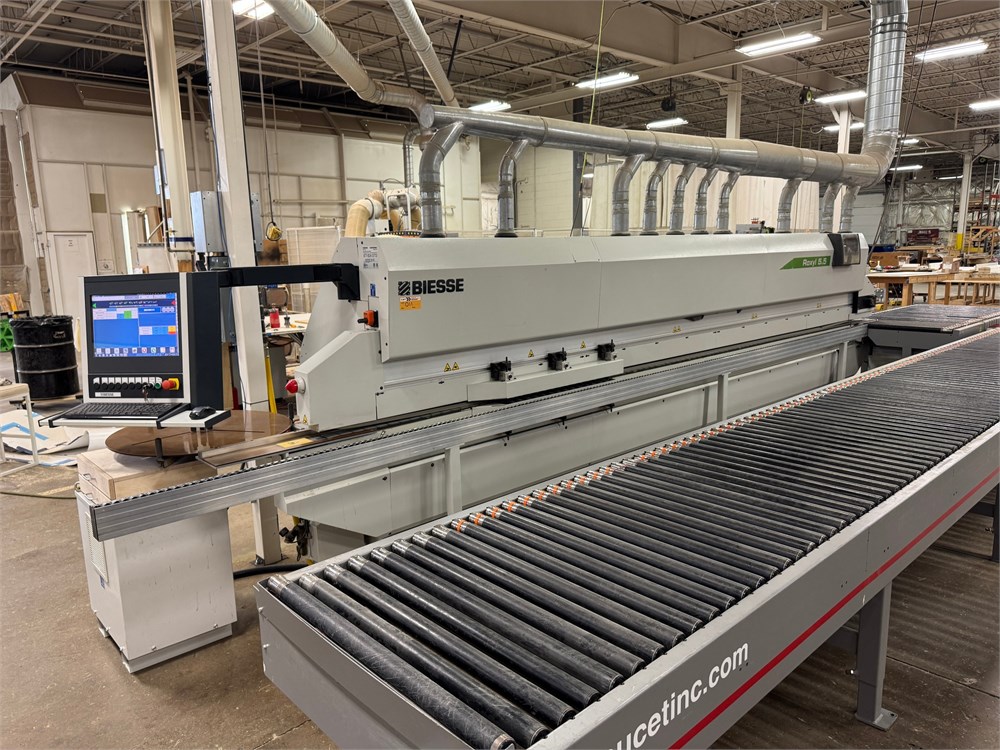

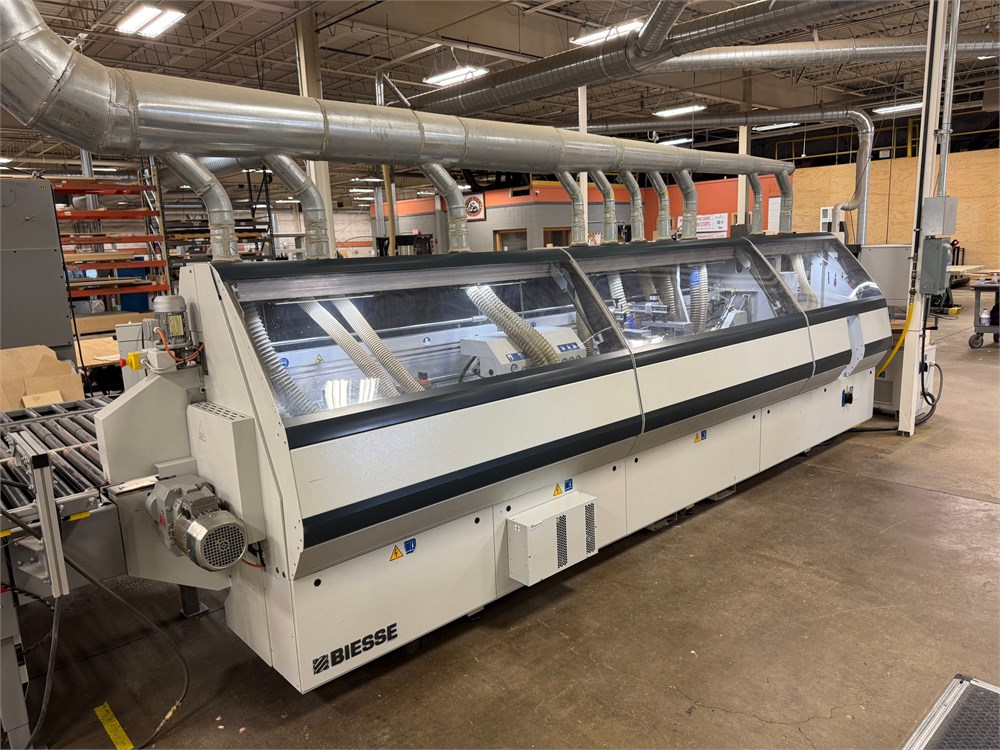

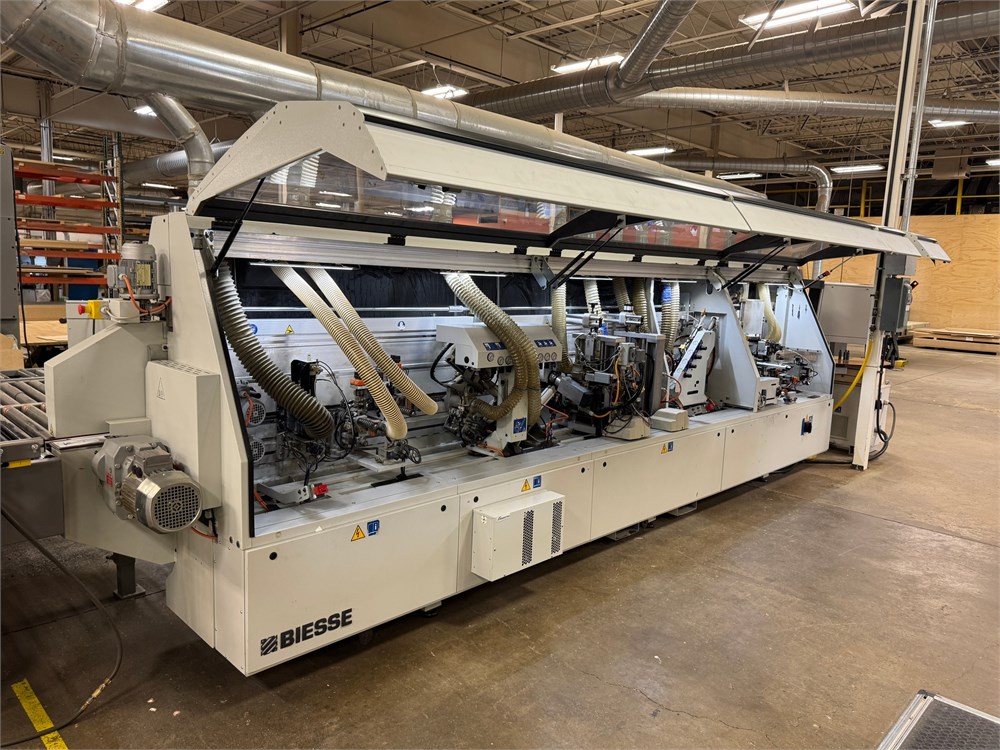

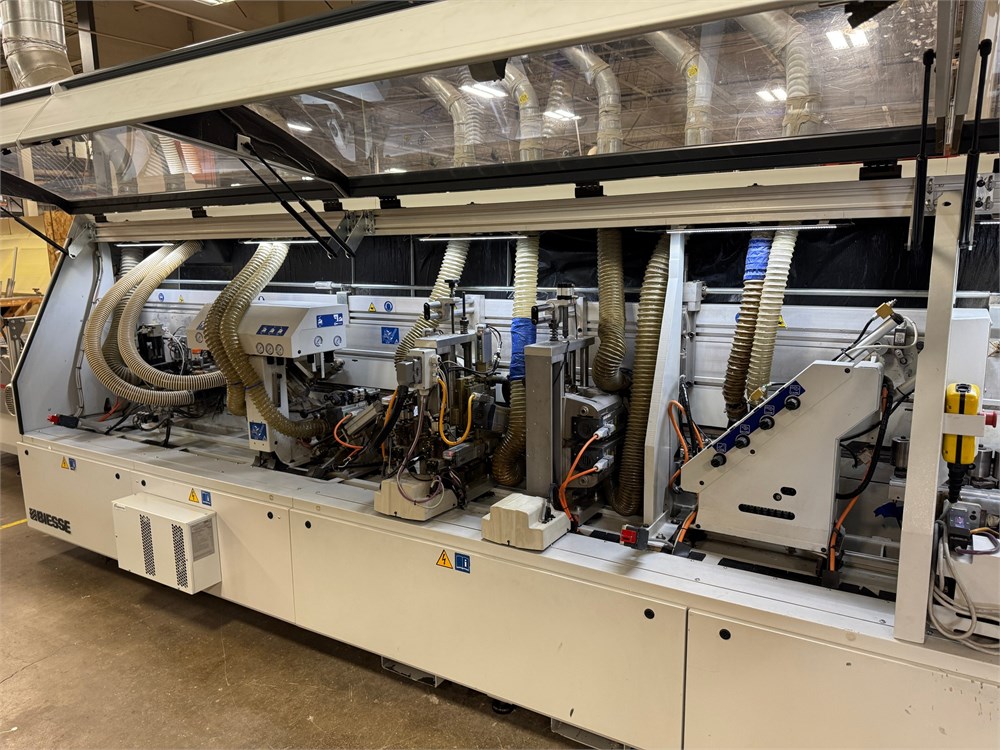

Biesse "Roxyl 5.5" Edgebander W/ PreMill
Edge thickness for strips min./max. 0.4 - 22 mm (0.02" - 0.87"), coiled material from 0.4 - 3 mm (0.02 - 0.12"); panel thickness from 10 - 60 mm (0.39 - 2.36"), work piece width min. of 85 mm (3.34"); work piece length min. 140 mm (5.51"); feed speeds 10 - 14 - 18 - 20 MPM (33 - 46 - 59 - 65 FPM).
"Roxyl-Matic" Automated machine setup, MS/Windows XP Operating System, floppy drive, and 4 GB HD; USB port, keyboard, and mouse interface.

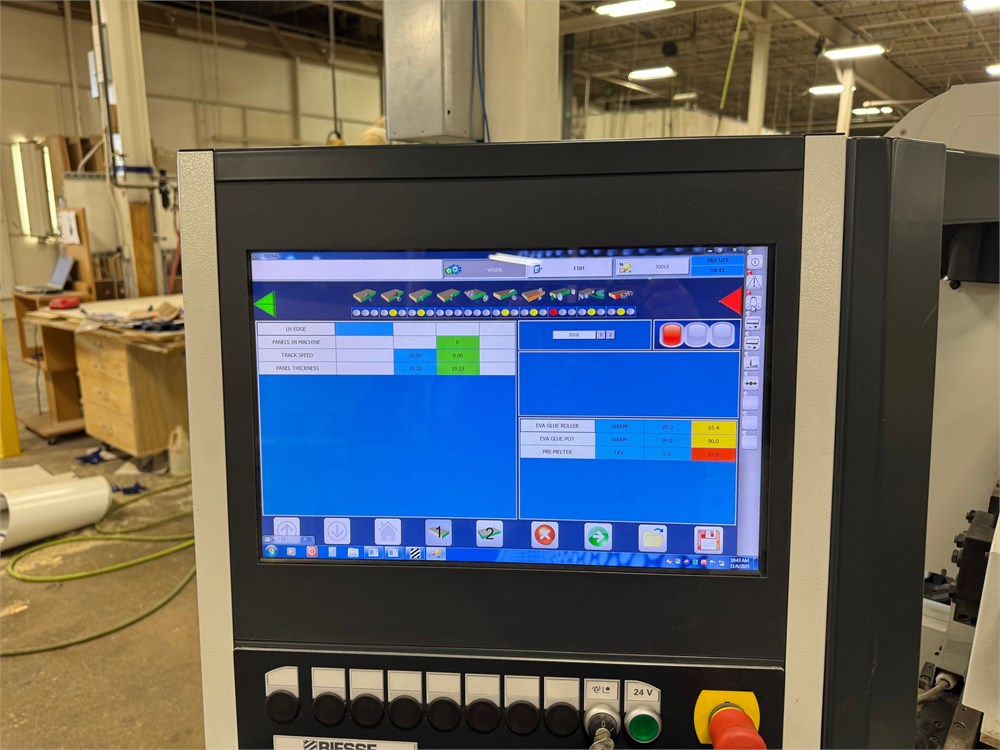

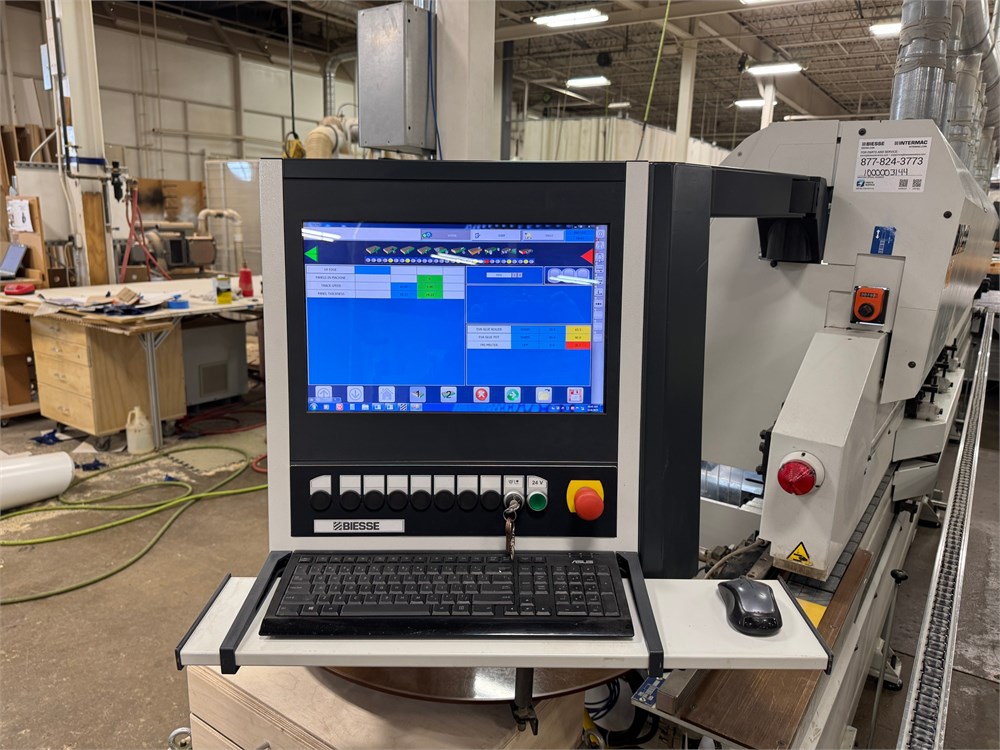

Flat Screen (17") with color graphics interface: Programs can be easily created and recalled at will; Graphic interface makes programming easy, icon of each unit may be brought up on the screen to show the operator the status of the unit and the parameters, which can be programmed; Edgebander may be operated manually when required, without necessity to write a program.
Pre-Milling Station "FL-502": (2) LH & RH Rotating NC controlled spindles with automatic center positioning.
Infrared Heating Lamp: Preheating workp iece edge to ensure best possible surface adhesion quality of edge banding material.
Edge Magazine: Automatic for processing coiled and strip edge banding material.
Pressure Section: Servo controlled programmable pressure section with (1) large driven roller and (4) idle rollers.

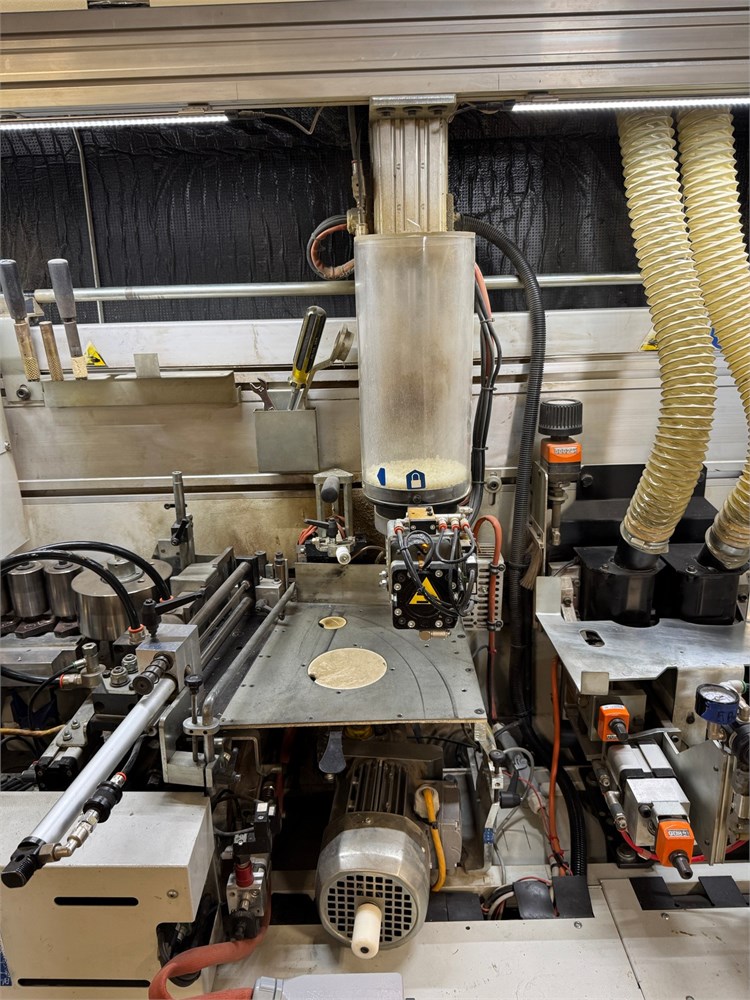

EVA (Hot Melt) "QM-705": Quick pre-melting granulate with glue roller applicator to cover conventional edge banding material.
End Trimming Unit "IN-801": Front & rear trimming motors, uni-point swivel 0° - 15° bevel, programmable pneumatic change-over from flush to bevel.
Rough/Flush Trimming Unit "RS-701": Top/Bottom pre- or flush trimming motors.
Flush/Bevel/Radius Combination Trimming Unit "RF-400": Servo controlled, (2) Servo motors (one for horizontal tool position, one for tool up/down position); using combination bevel/radius/flush insert knives; pre-postioning of motors by pneumatic air cylinders.
Corner Rounding Unit "CR-202": (2) Motors for front/back corner and upper & lower edge profiling.
Profile Scraping Unit "RBK-503": Top/Bottom 2-axis NC programmable knife postioning (i.e. 2 - 3 mm radius) for PVC edges.
Glue Scraping Unit "RCC-701": Flat, top/bottom, digital positioning indicators, pneumatic controlled for in/out position.
Buffing Station "SP-501": Top & Bottom buffing motors with 150 mm ( 6") cloth buffing wheel diameter; adjusts in multiple directions.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
