Biesse "Elix K3" Drill and Dowel Machine (2021)
Active
RCS Innovations Complete Shop Closure - Milwaukee, WI
Milwaukee, WI
- Current Price : $8,300.00 USD ( ) No Reserve
- 24 Bid(s)
- High Bidder: a****n
RCS Innovations Complete Shop Closure - Milwaukee, WI ( Active #76078693 )
RCS Innovations a fully integrated custom display fixtures and digital solutions company is closing it's doors and liquidating all assets. Late model Biesse machinery! Over 500 lots!
-
Pick Up Location
7075 W. Parkland Ct., Milwaukee, WI 53223
-
Make
Biesse
-
Model
Elix K3
-
Serial Number
100047504
-
Year
2021
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
Tuesday December 2nd 8AM - 3:30PM...No appt. needed.
-
Load Out Period
December 8- December 18, 2025 (by appointment only)
-
Estimated Dimensions
9' x 5' x 7'
-
Estimated Weight
2,500 Lbs
-
Seller Comment
Non Negotiable Load Fee includes loading onto buyers flat bed truck
-
Load Fee
495
-
Lot Notes
-
page views
590

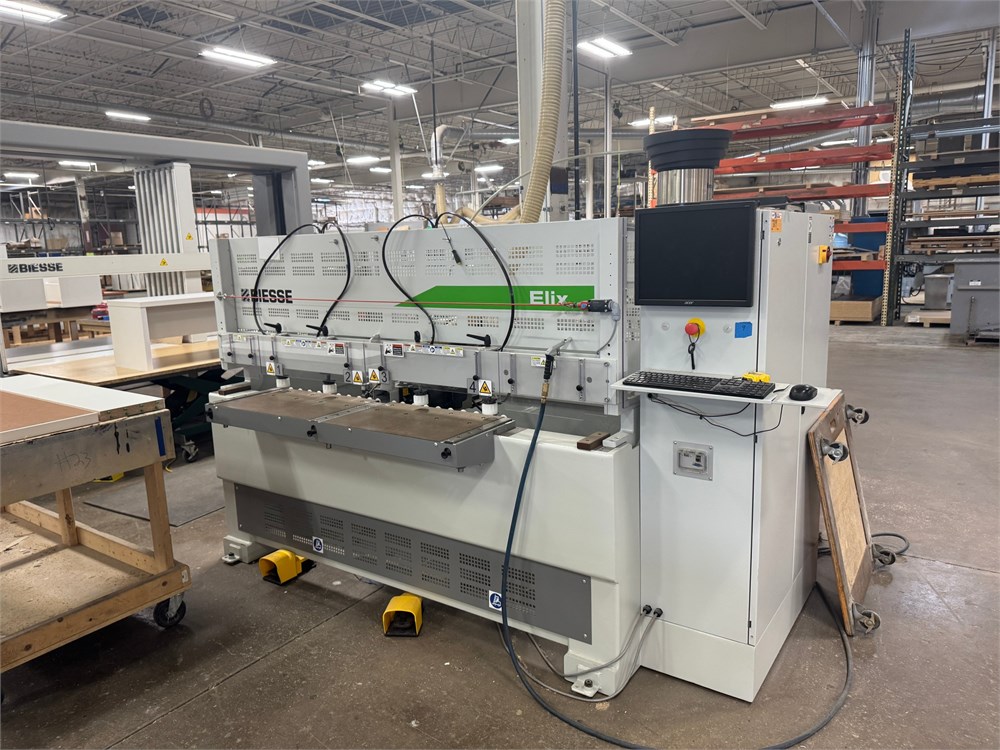

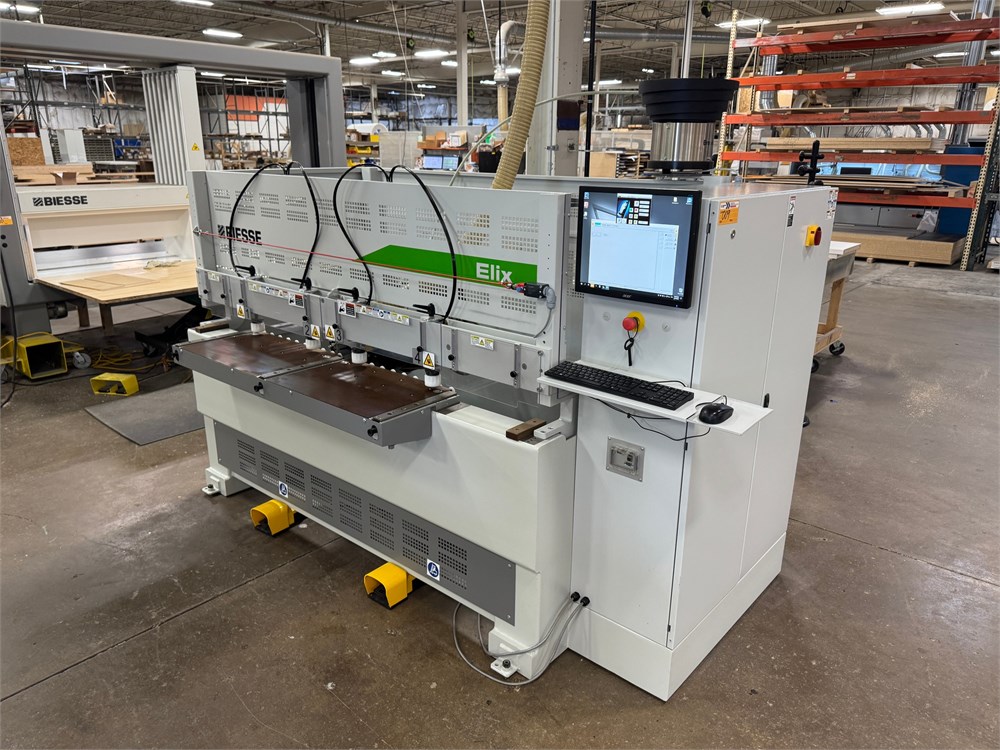

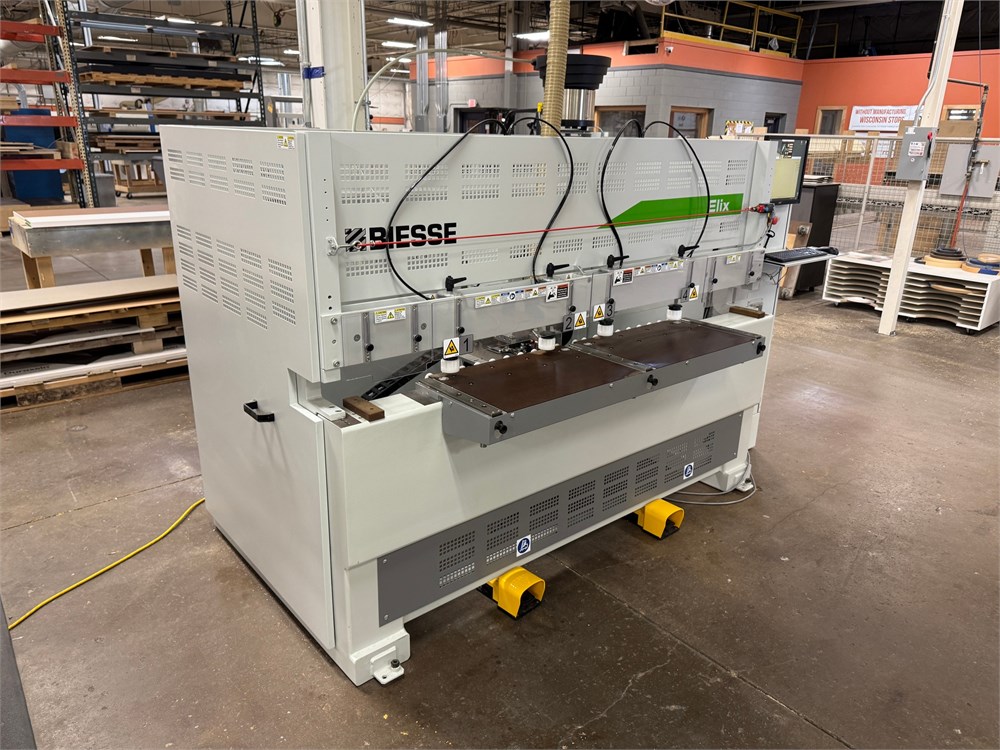

Biesse "Elix K3" Drill and Dowel Machine (2021)

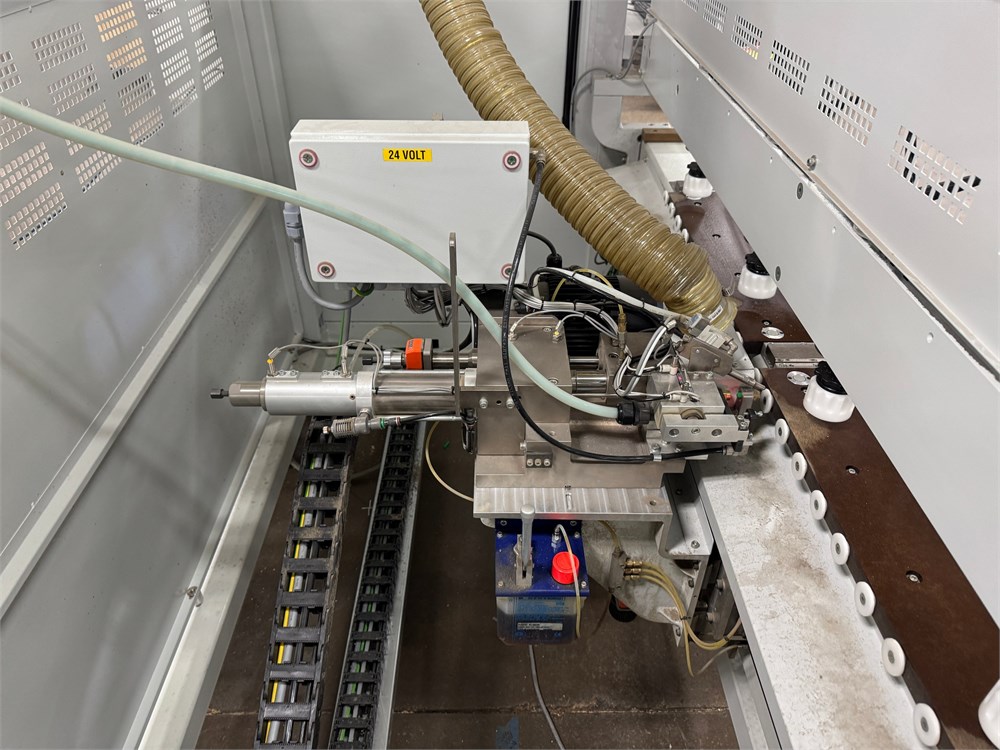

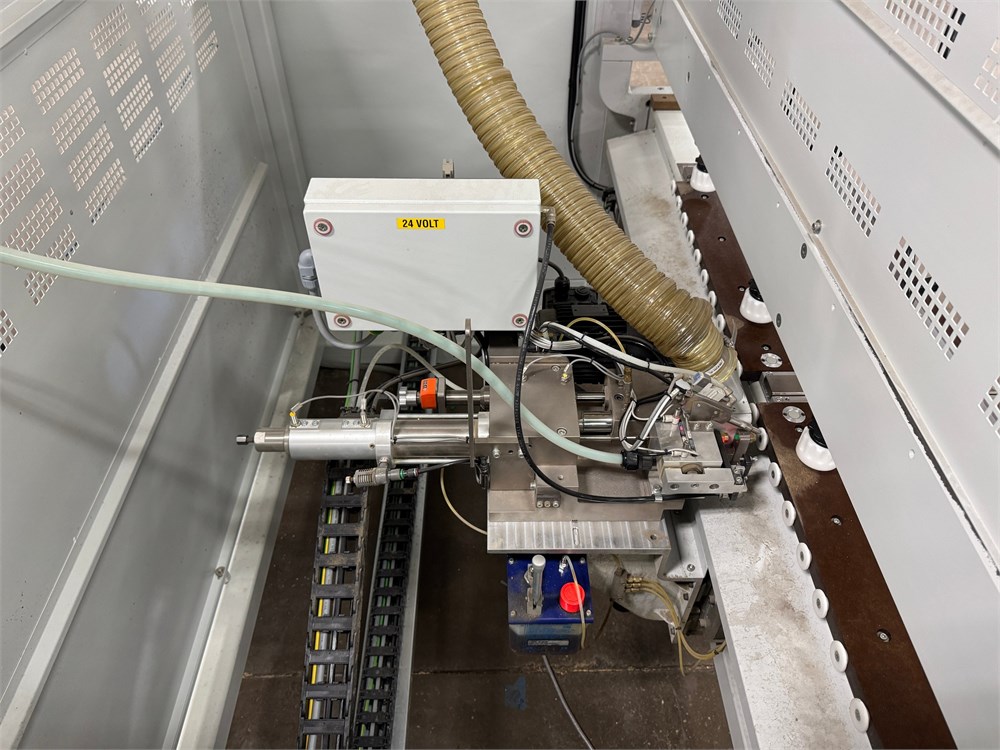

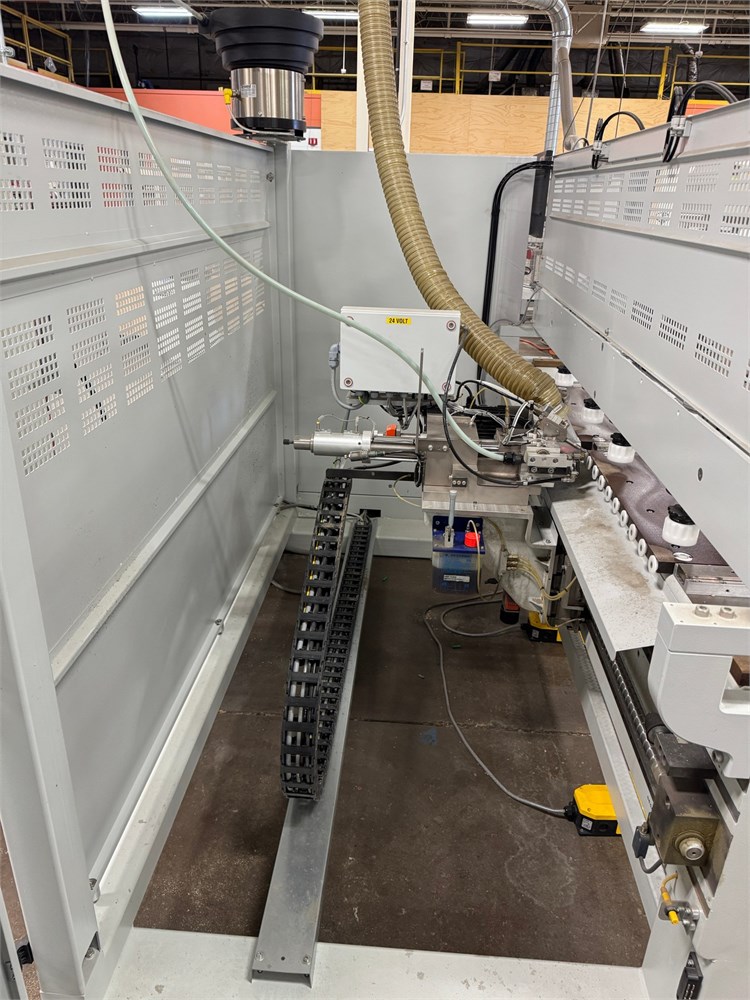

Single-spindle for drilling, dowel insertion unit, and glue injecting unit installed on a carriage moving in the "X" axis.
The position for drilling & dowel insertion is provided through simple programs through the NC control or third party software.

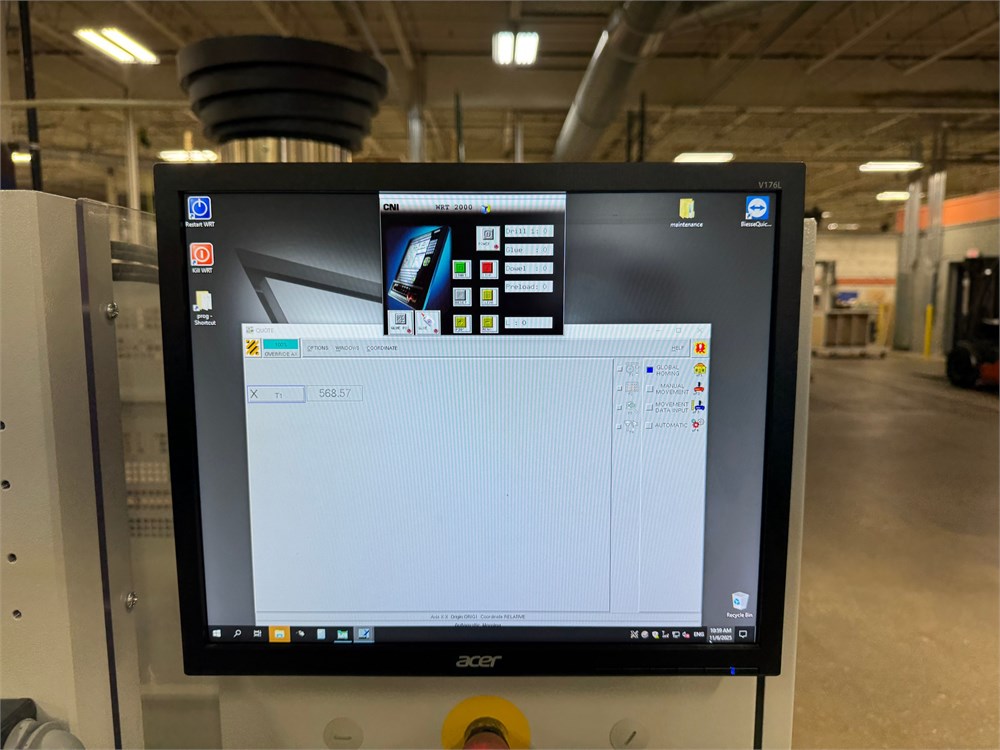

The Numerical Control interface is intuitive, user-friendly, and very easy to use.
Max. parts length is 1,300 mm (51”); min. parts length is 120 mm (4.7”); parts thickness is 10 - 40 mm (0.4” to 1.5”).
"X" & "Y" axis positioning speed is 40 MPM (131 FPM), "Z" axis has manual adjustment with a max stroke of 40 mm (1.57").
The working units travel on precision machine ground ball screws powered by brushless AC Servo motors.

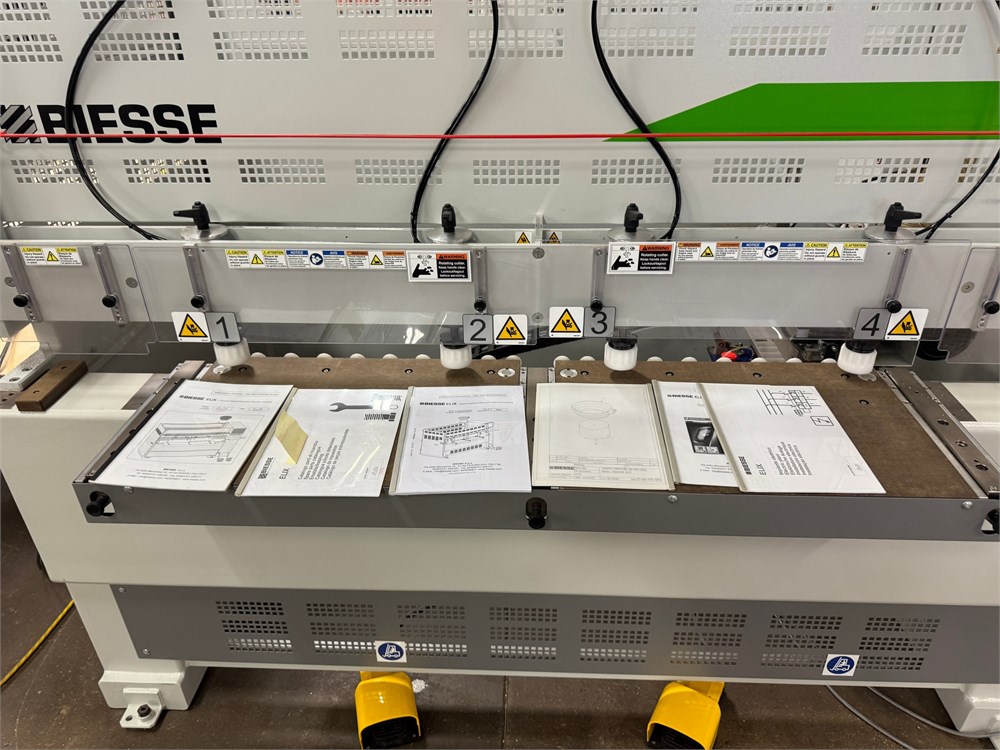

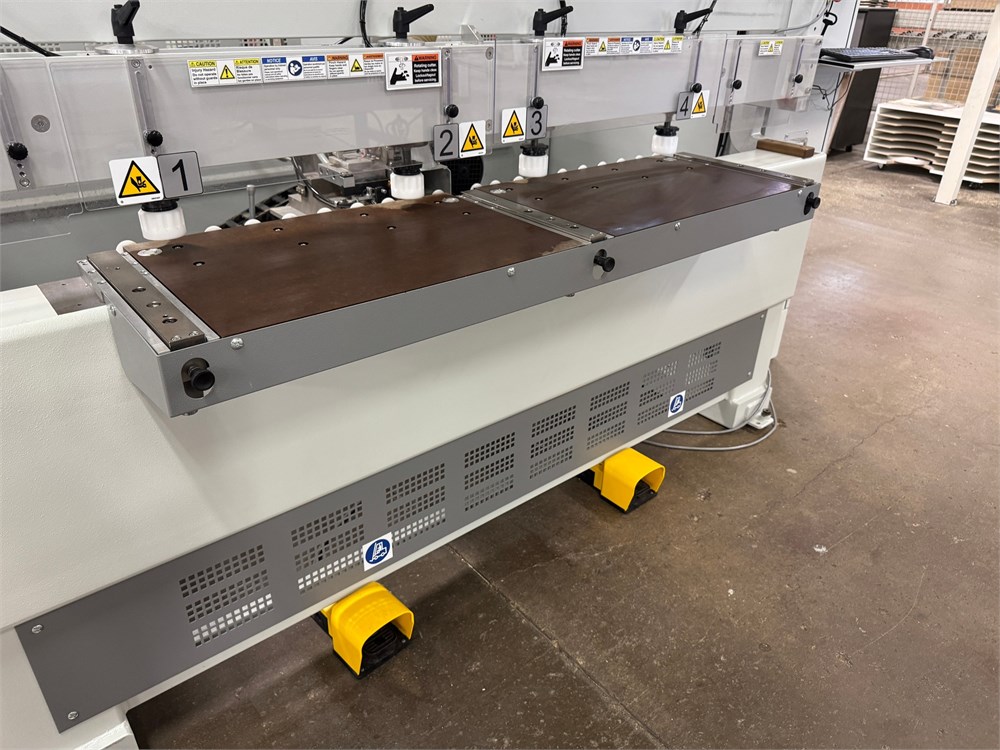

Working Zones ... (4) with center fence position in up mode,(2) large work zones in down position,
(4) hold-down cylinders.
The drilling unit is a high-speed unit with a 6,000 RPM spindle & Max. drill bit dia. is 12 mm (0.47");
Max. drilling depth of 30 mm (1.25") with manual adjustment of depth with digital indicator.
Dowel pre-positioning ensures high repeatability of inserting dowels for each hole;
Standard dowel dimensions, 8 x 30 mm, max. dowel projection 14 mm (0.551").

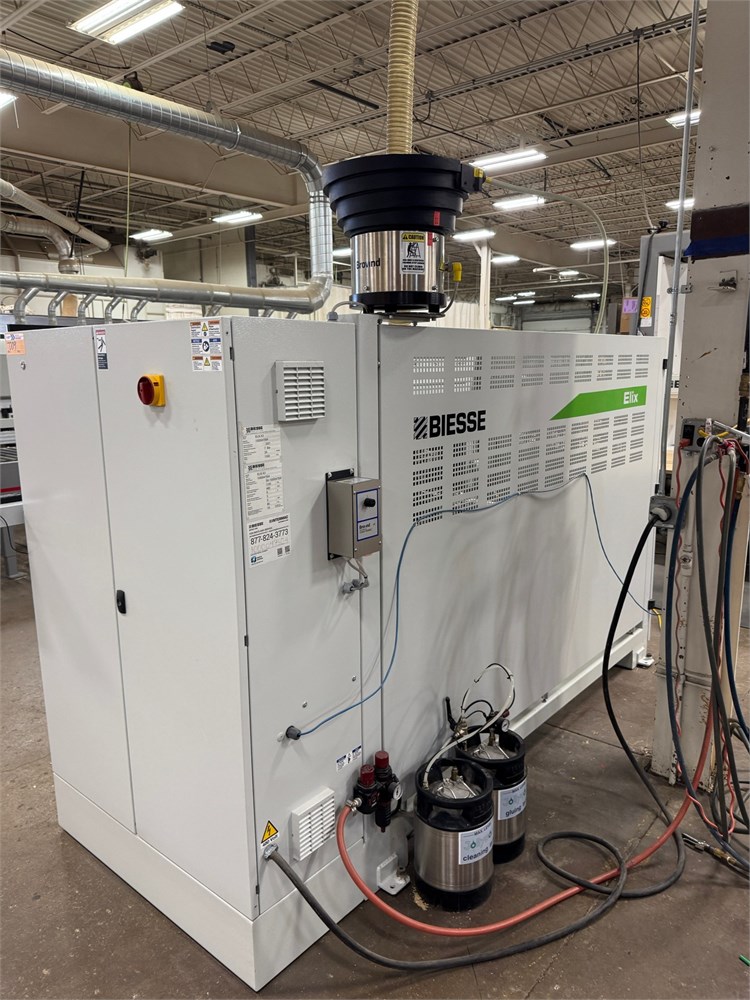

The glue tank holds up to 8 liters (3.1 gallons) of glue; the max. glue density is 900 CPS.
The glue inserting unit has a flow sensor and electronic adjustment of the amount of glue.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
