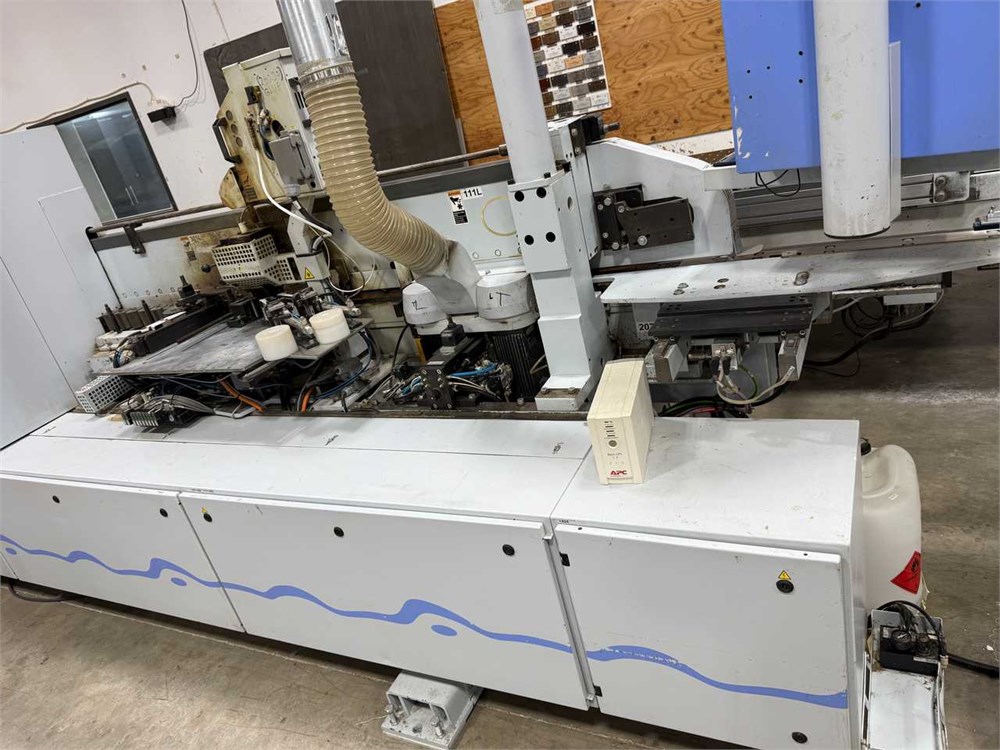

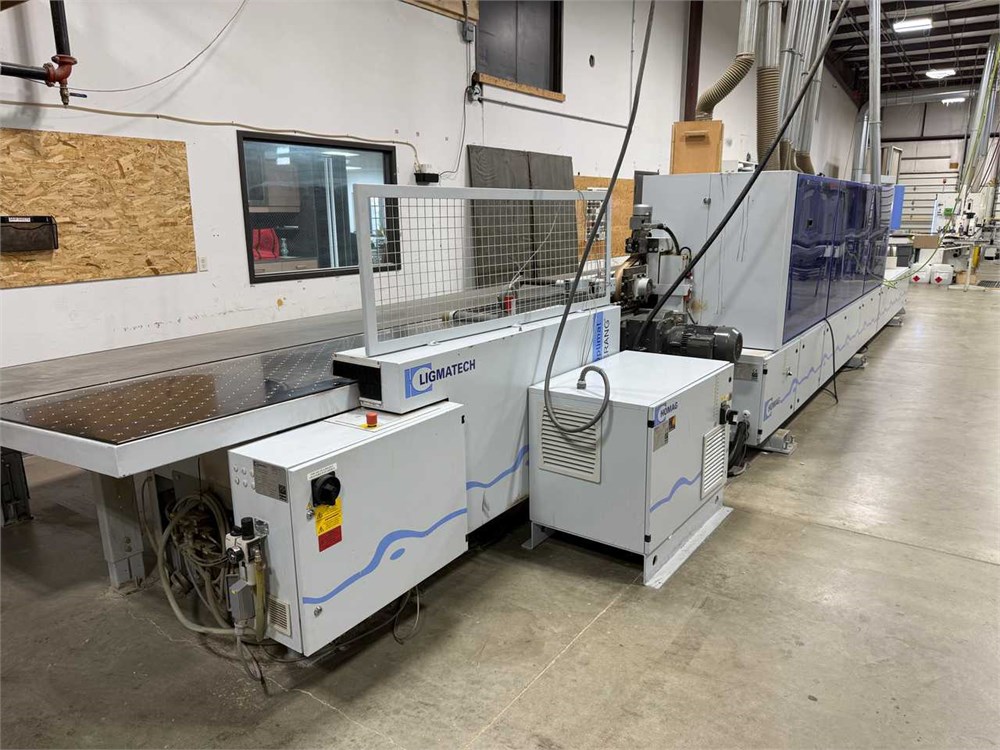

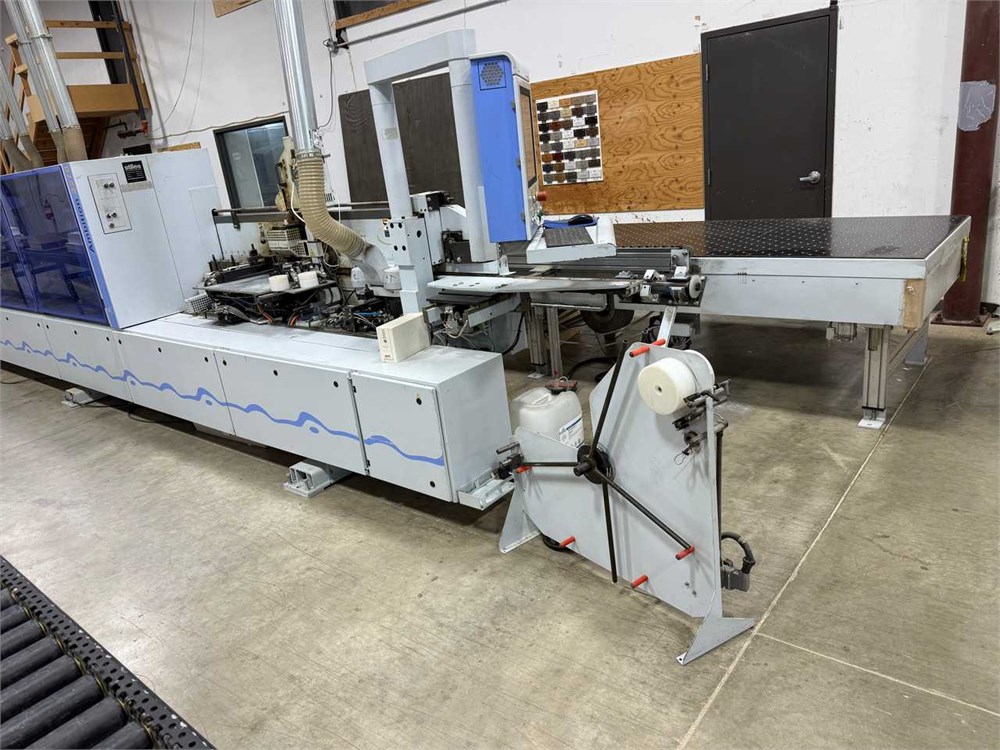

Homag "KAL-210/Ambition 2270" Edgebander
Ended
Homag "KAL-210/Ambition 2270" Edgebander - Bristol, IN
Bristol, IN
- Winning Bid : $9,150.00 USD Sold
- 44 Bid(s)
- High Bidder: J****z
Homag "KAL-210/Ambition 2270" Edgebander - Bristol, IN ( Closed #75759511 )
Cabinet manufacturer in Northern Indiana is auctioning a Homag edgebander no longer required for continuing operations. Please contact me for more information or to schedule an inspection
-
Pick Up Location
502 Kesco Dr. Bristol, IN 46507
-
Make
Homag
-
Model

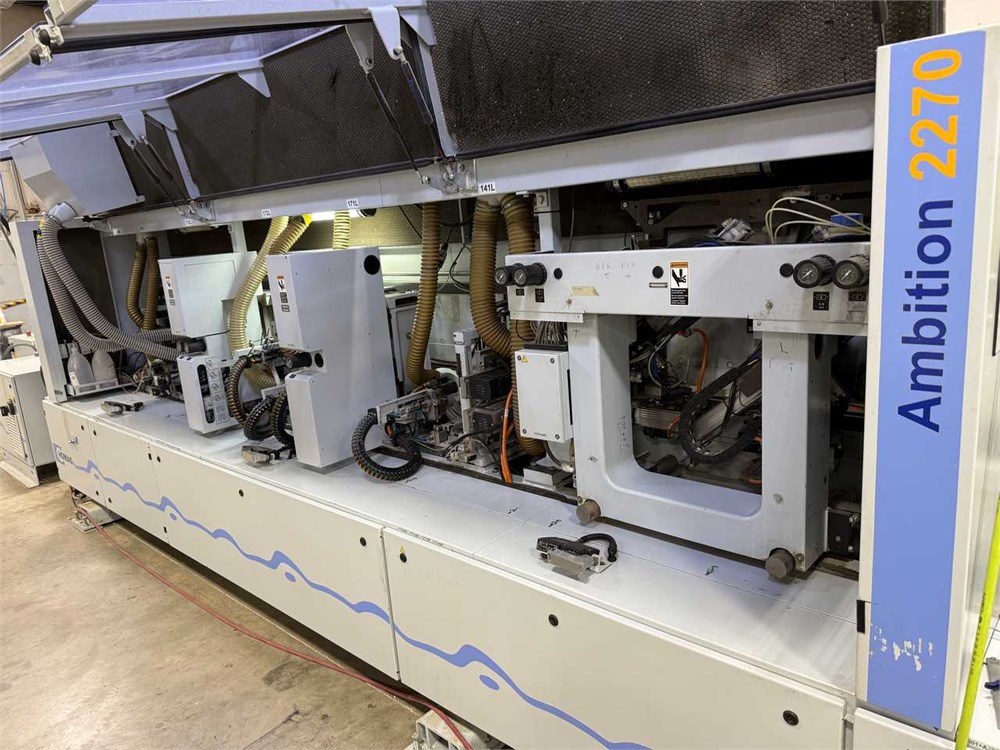

KAL-210/Ambition 2270
-

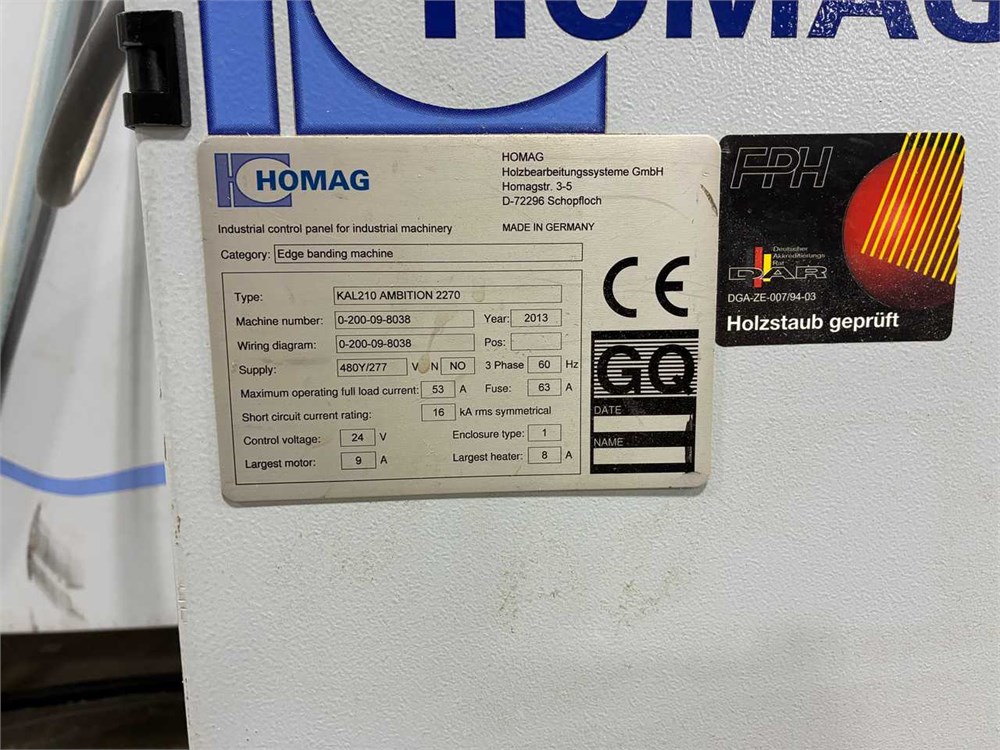

Serial Number
0-200-09-8038
-
Year
2013
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
November 17 - November 21, 2025 (by appointment only)
-
Estimated Dimensions
348" L x 38" W x 84" H
-
Estimated Weight
10,000 Pounds
-
Seller Comment
This lot requires a rigger, see home page for details.
-
Load Fee
-
Lot Notes
-
page views
652

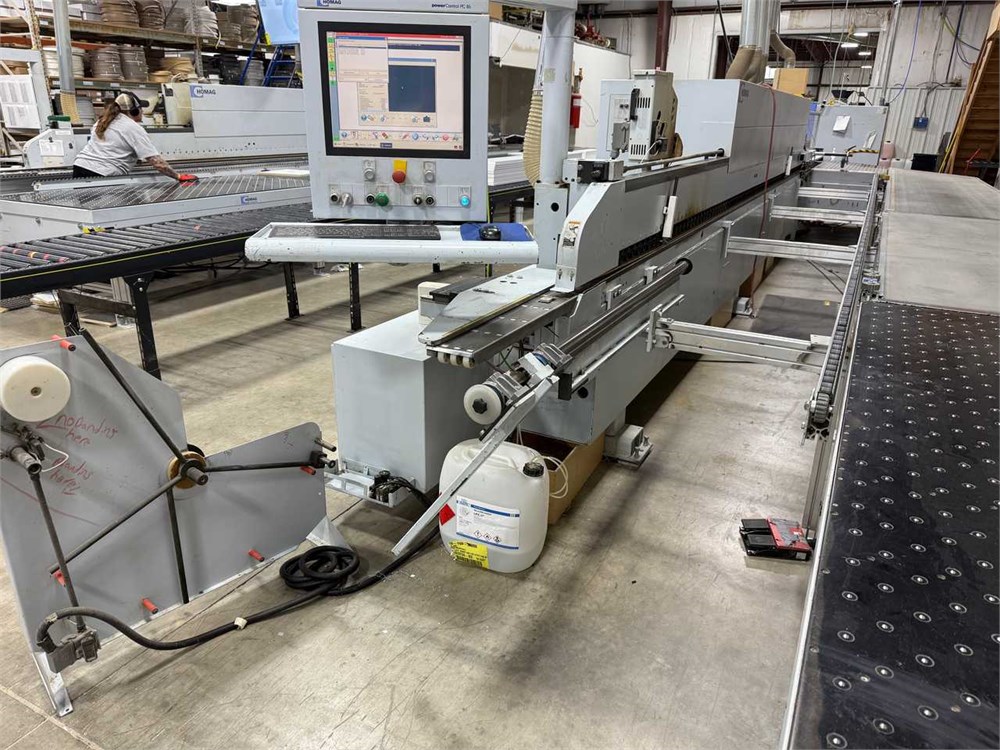

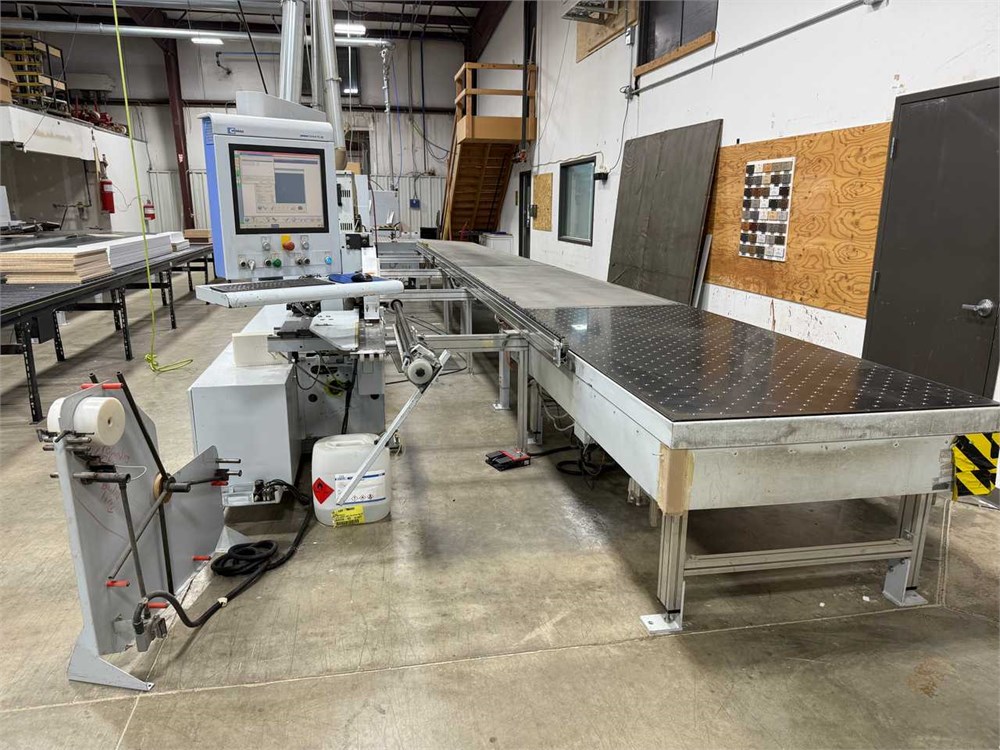

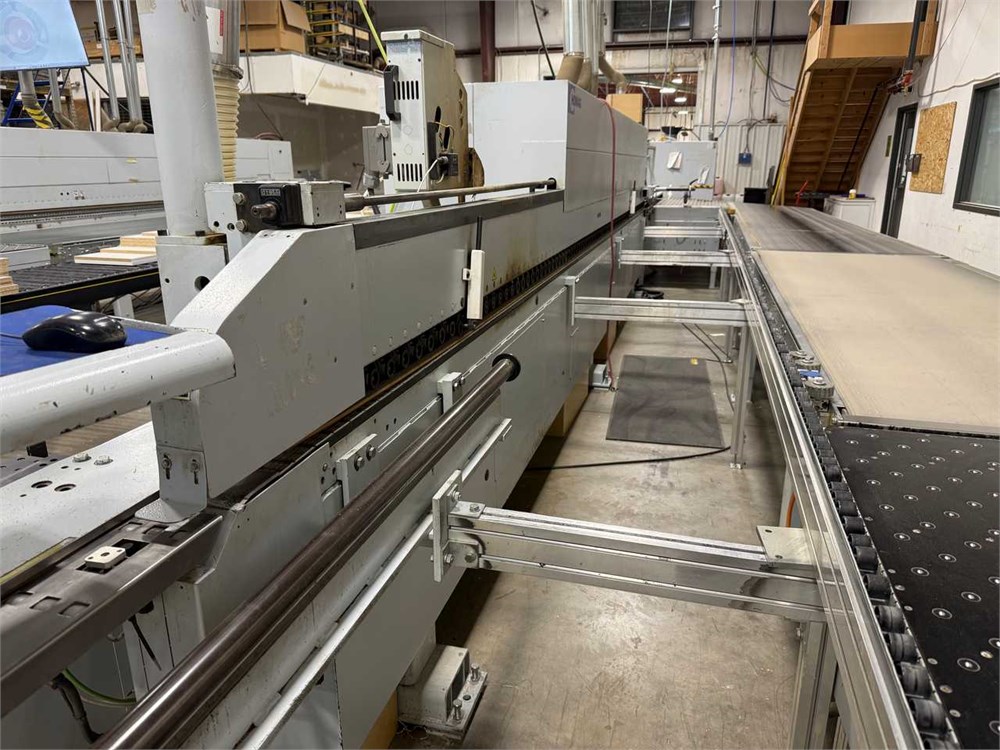

Homag "KAL-210/Ambition 2270" Edgebander
See video of machine in operation
Working Capacity
Coiled stock min/max edge thickness 0.3 - 3 mm (0.016. - 0.118")
Strip material min/max edge thickness 0.4 - 20 mm (0.16 - 0.787")
Panel stock min/max thickness 12 - 60 mm (0.472" - 2.375")
Panel Over-Hang 30 mm (1.18")
Variable feed speed
Motorized top beam positioning

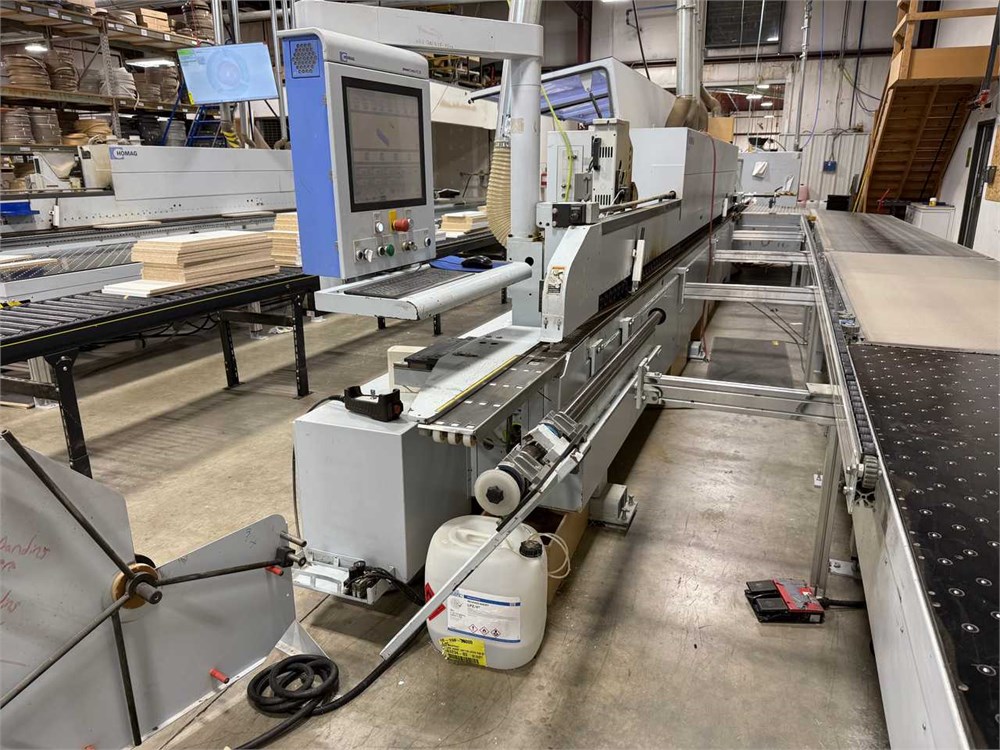

Controller (Power Control PC 85)
Color screen
Standard keyboard and mouse
Remote control pendant

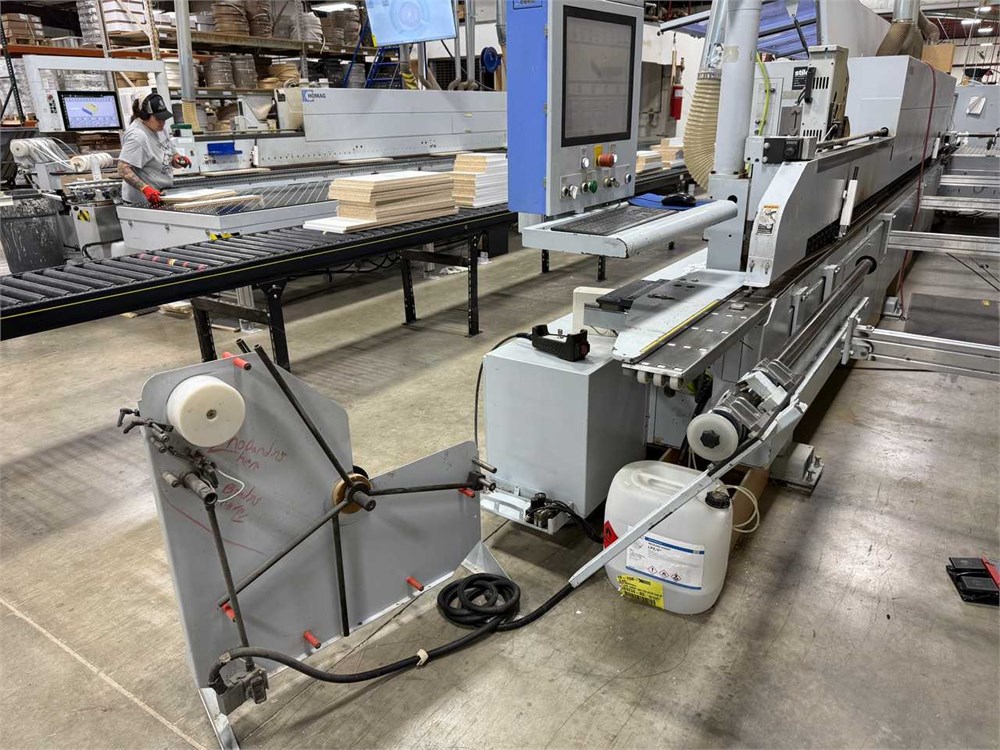

Multi-Purpose Magazine: A multi-purpose two (2) coil magazine expands capability by running coiled material, strips and solid wood bands. Magazine height adjustment allows for greater usage of varying panel heights by raising and lowering the magazine table, allowing the operator to center the panel on the edgebanding.
Infeed fence
Top pressure belt

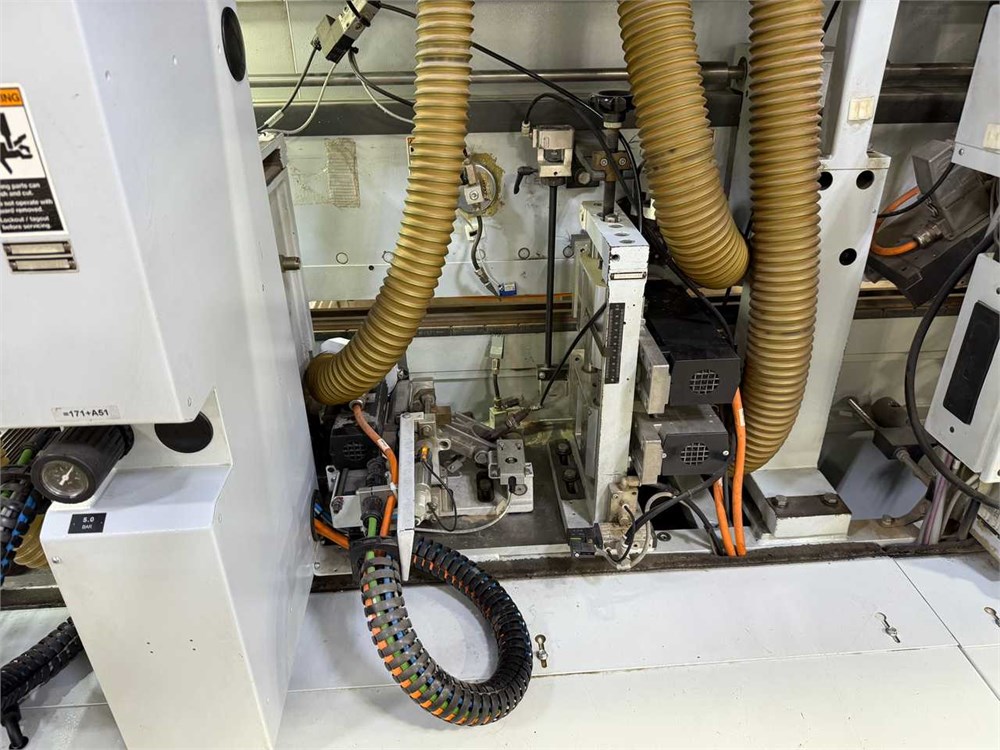

Two (2) motor premilling station
4 HP motors operating at 12,000 RPM
Panel Pre-Heater: Pre-heating the panel brings the panel to an appropriate temperature for better adhesion. This is especially beneficial in cooler temperatures. Quartz lamp for heating substrate edge before glue application improved edge quality and optimum bonding.
Guillotine

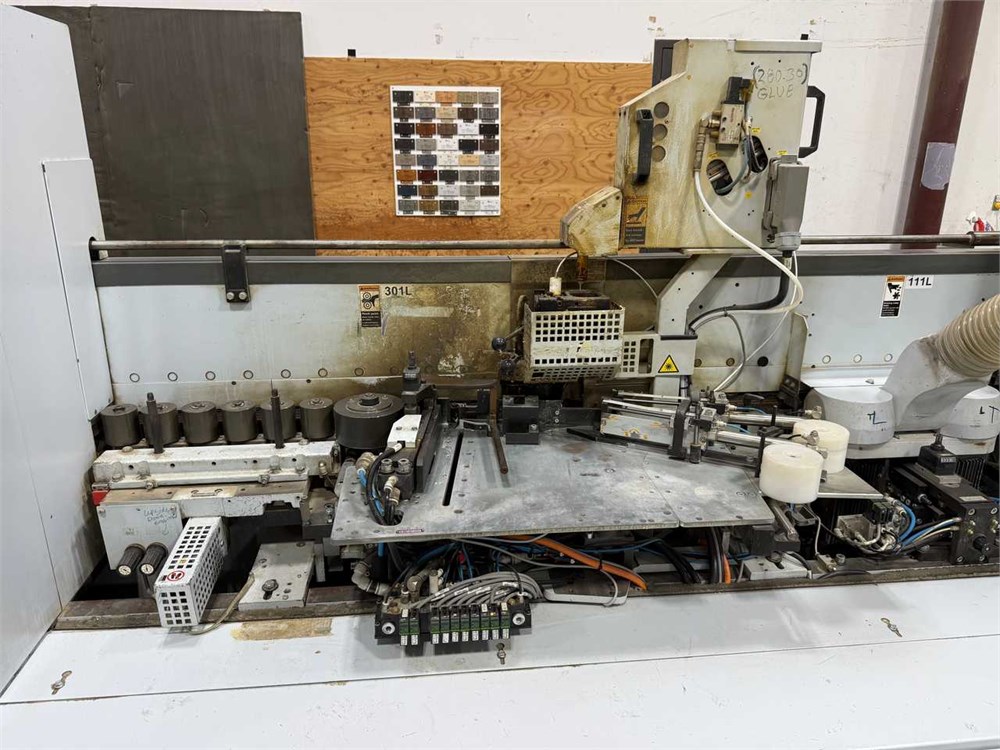

Gluing station
Pre-melt hopper
Glue pot with application roller
Pressure station
Servo controlled with seven (7) pressure rollers
One (1) large 160 mm dia. driven
Six (6) 70 mm dia. idle rollers
Pneumatic pressure control depending on edgebanding material used

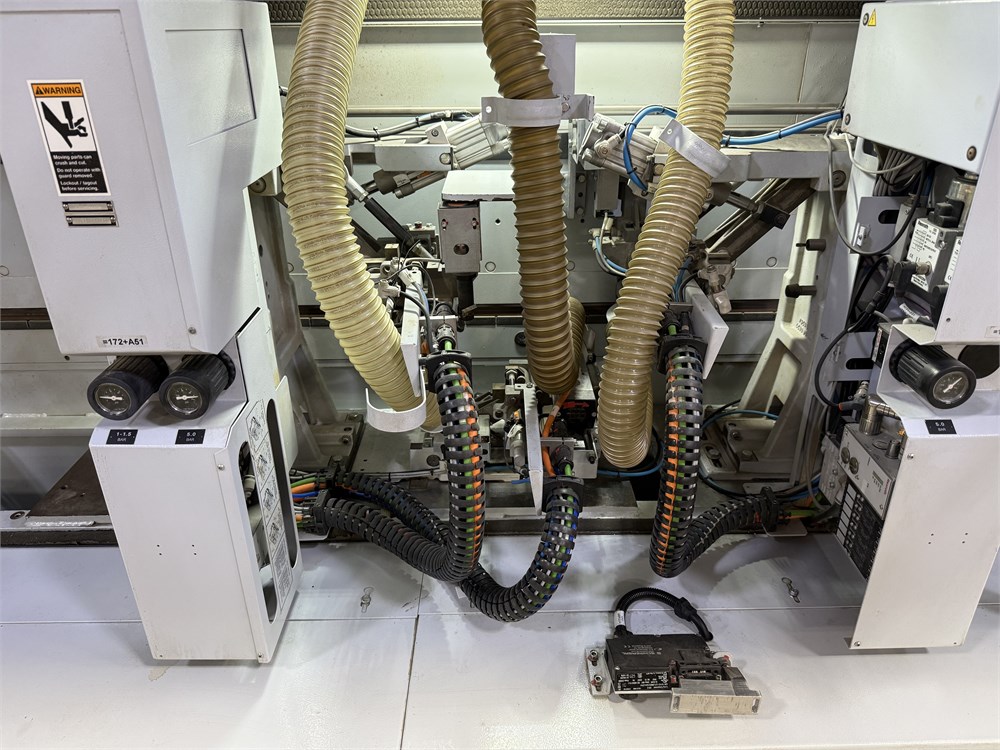

Two (2) motor end trimming station
1 HP motors operating at 12,000 RPM
Automatic pneumatic adjusting from chamfer 30° to straight cut

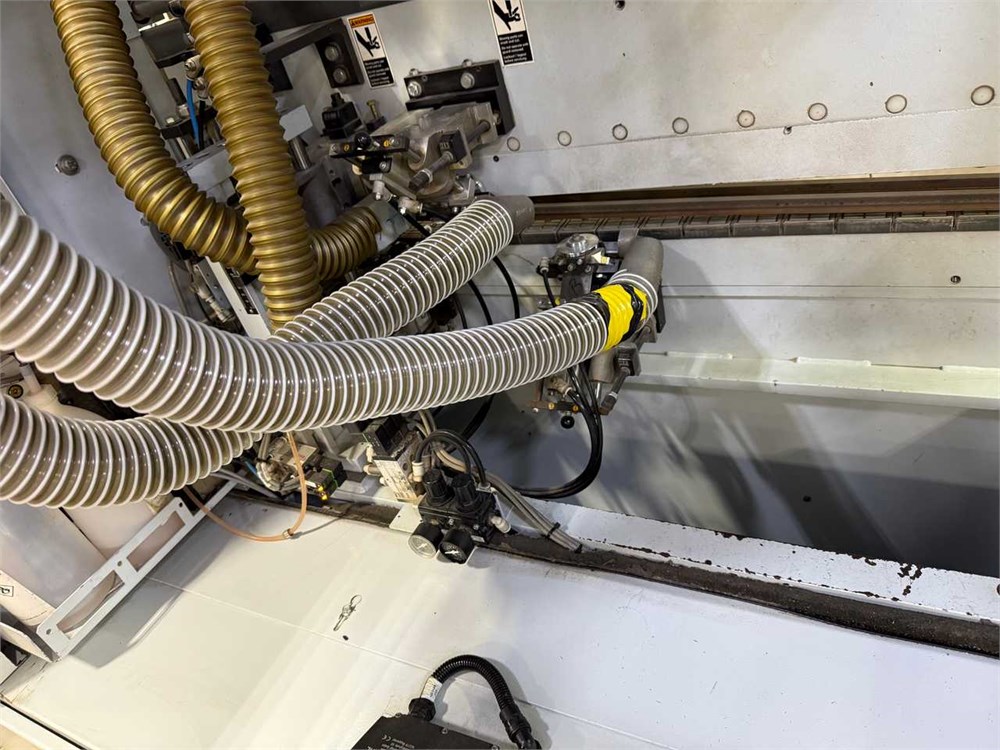

Top/bottom flush trimming station
0.75 HP motors operating at 12,000 RPM
Electronic speed control
Braking Control
Pneumatic adjustment
Height adjustment with the top pressure-beam and tilting range +/- 1°

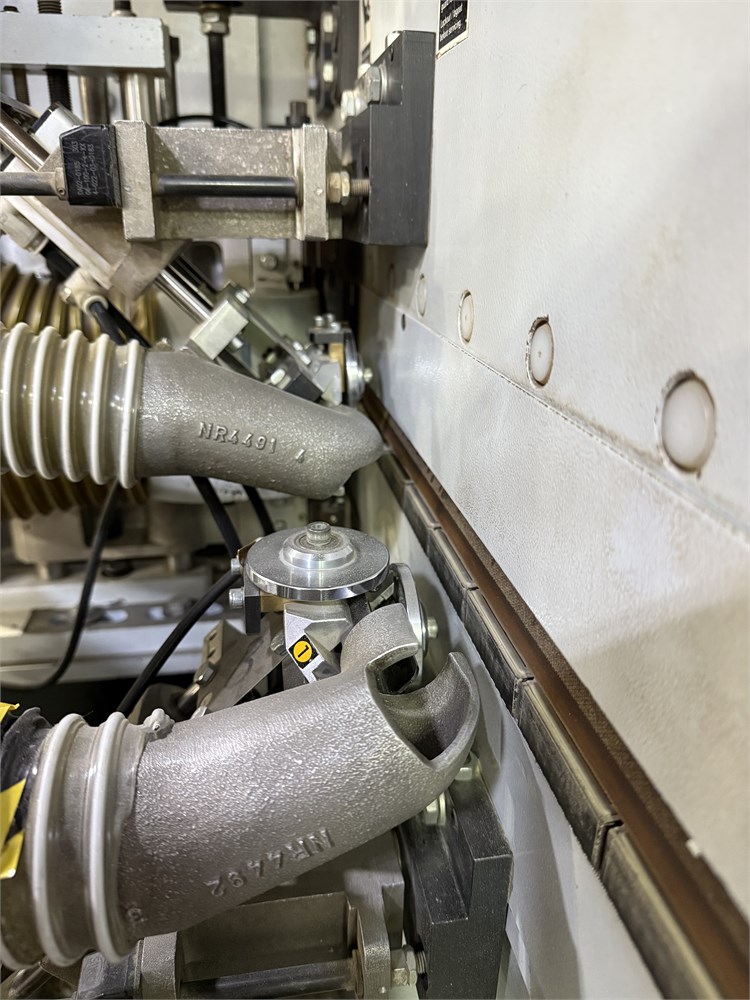

Four (4) motor corner rounding station
0.6 HP motors operating at 12,000 RPM
Top/bottom profile scraping station with collection box
Top/bottom flat scraping station

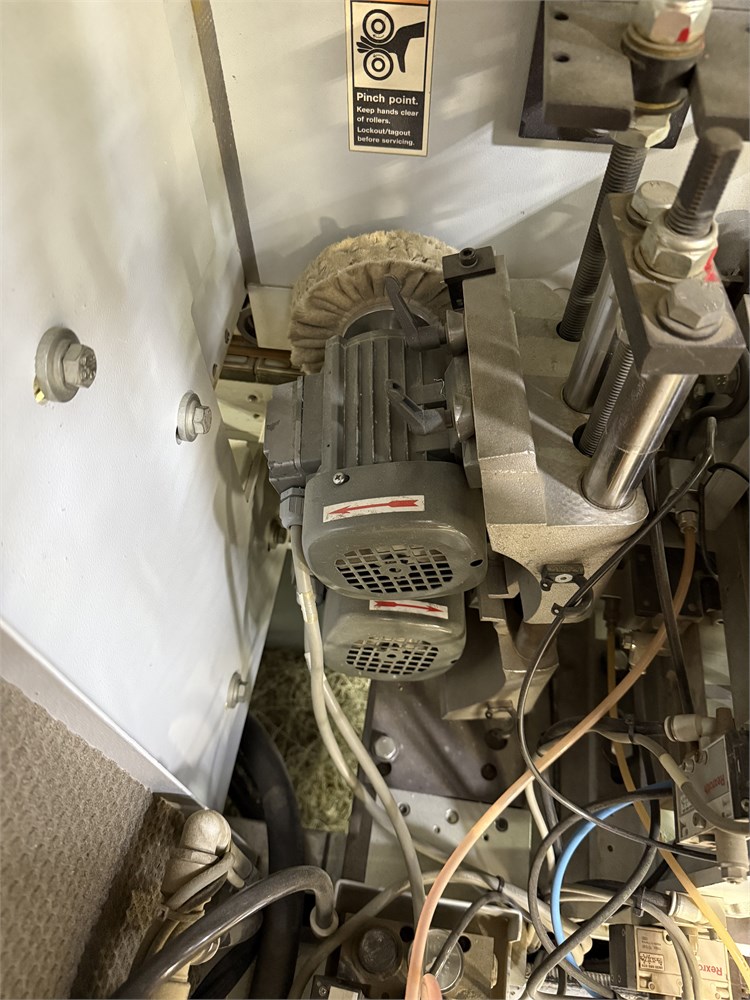

Top/bottom buffing station

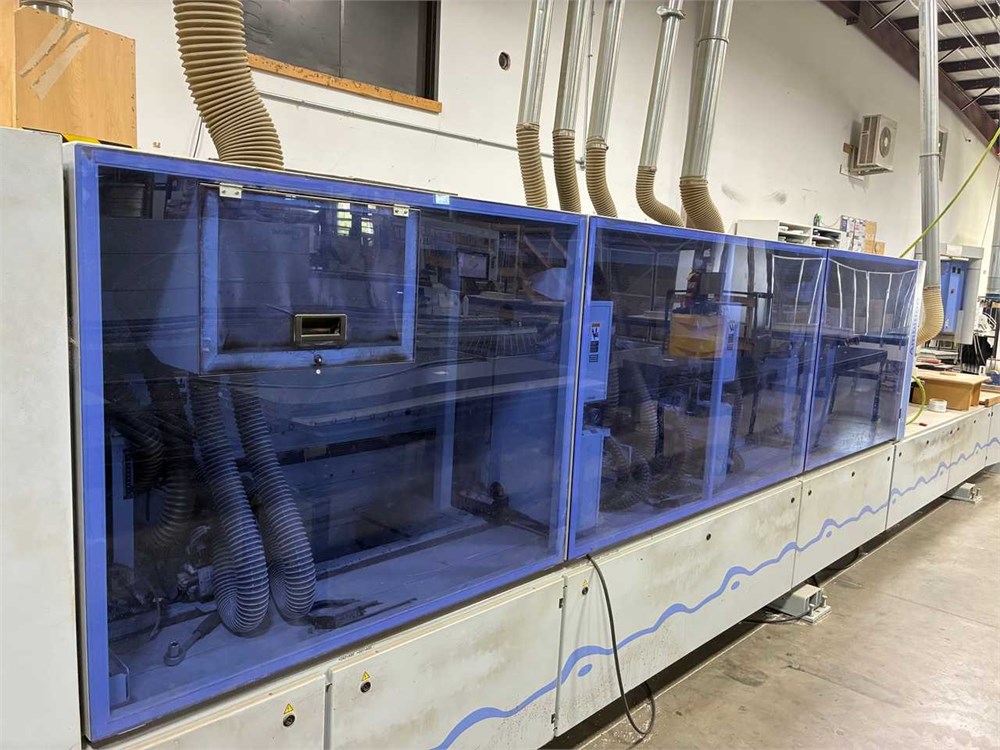

Lighted sound enclosure
Outboard roller support

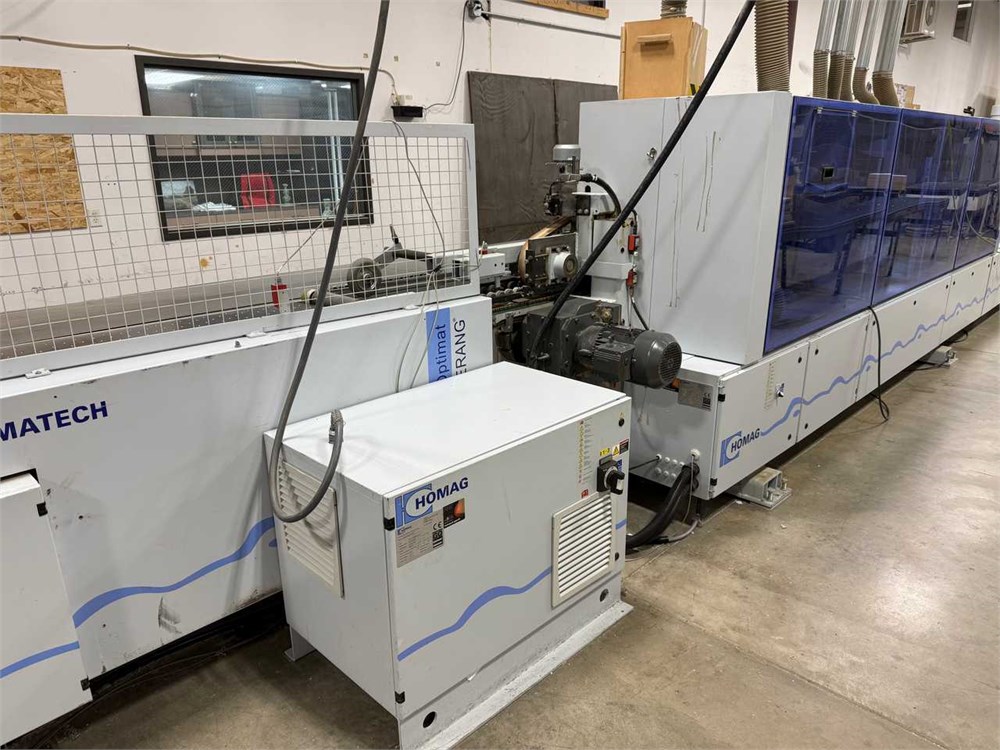

External electrical transformer
Return conveyor and dust collection ducting NOT included
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
