MultiCam "Series 5000" CNC Router Ended

MultiCam "Series 5000" CNC Router - Haslet, TX

Haslet, TX

  • Winning Bid : $6,200.00 USD Sold Reserve Price Met
  • 32 Bid(s)
  • High Bidder: a****r
Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.

MultiCam "Series 5000" CNC Router - Haslet, TX ( Closed #75673717 )

Residential cabinet manufacturer in the Dallas/Ft. Worth, TX area is auctioning their Multicam CNC no longer required for continuing operations.

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    2653 Blue Mound Rd. W., Suite 100A Haslet, TX 76052

  • Make

    MultiCam

  • Model

    Series 5000

  • Serial Number

  • Year

    2014

  • Phase

    3 PHASE

  • Voltage

    208

  • Buyer Inspection Period

    By appointment only, contact Jack Ragan, [email protected], 503-806-4611

  • Load Out Period

    November 17, 2025 (one day load out only as rigger will be on site loading in new machine)

  • Estimated Dimensions

    156" L x 102" W x 84" H

  • Estimated Weight

    6,000 Pounds

  • Seller Comment

    Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.

  • Load Fee

    250.00

  • Lot Notes

  • page views

    624

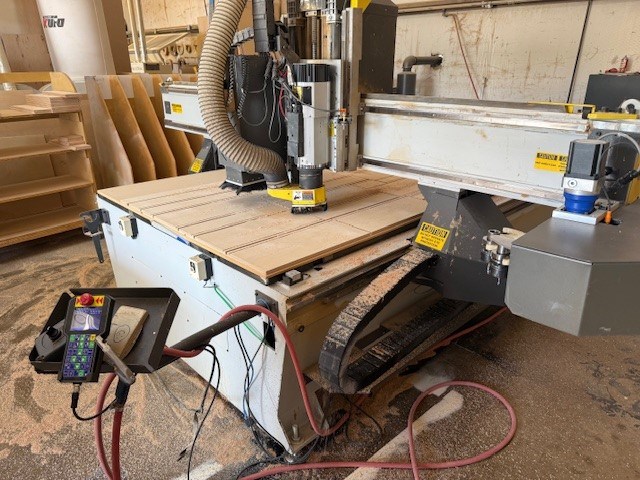

MultiCam "Series 5000" CNC Router

Made in USA

See video of machine in operation

60" x 146" working area; moving gantry machine in a front-to-back configuration with a multi-zone vacuum table

X and Y-axis movement by rack and pinion gantry drive with brushless servo motors using integrated 25 mm linear roller bearing rack system; 8" z-axis travel via lead screw drive; gantry has 16"clearance

Router - replaced one year ago

  • 10 HP
  • HSK, quick-change
  • CW/CCW spindle rotation
  • Variable RPM

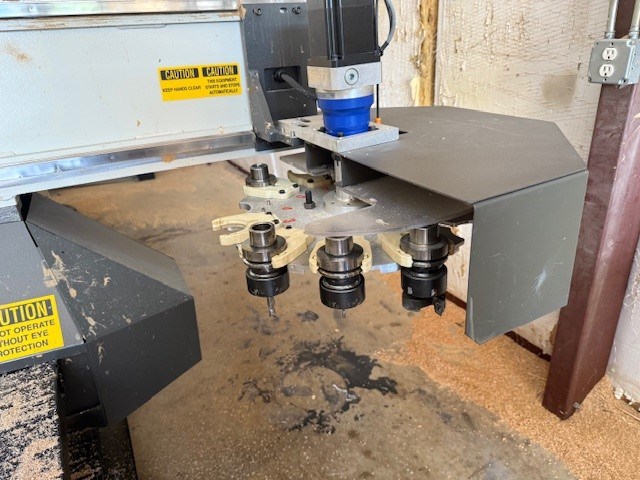

Eight (8) position rotary tool changer - has new motor but gear box is making a noise and seller is changing tools by hand.  Tool changer may need parts and/or service to operate.

1,200 IPM maximum cutting speed

2,400 IPM maximum rapid traverse rate on X and Y axes

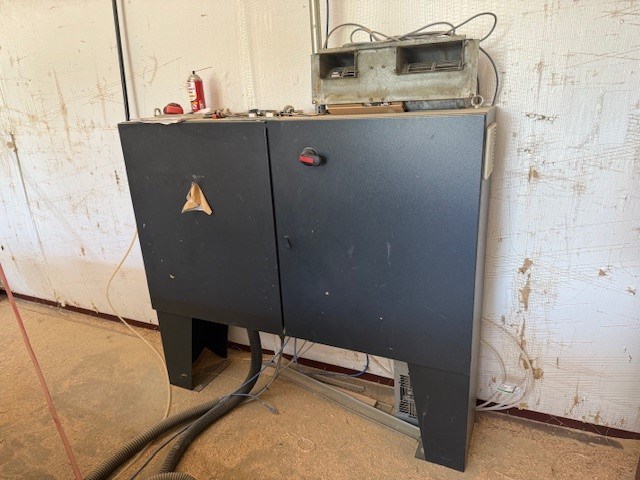

Control cabinet

Handheld controller

Vacuum pump NOT included, offered in lot 002

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
