SCM "CPC Action P" Case Clamp (2021)
Active
Late Model SCM Machinery - Livermore, Ca
Livermore, Ca
- Starting Bid : $1,000.00 USD ( ) No Reserve
- 0 Bid(s)
Late Model SCM Machinery - Livermore, Ca ( Active #75609653 )
2021 Omal HBD 1300 OF Drill and Dowel machine, and 2021 Action P Case Clamp. Assets no longer required.
-
Pick Up Location
6764 Preston Ave Suite B, Livermore, CA 94551
-

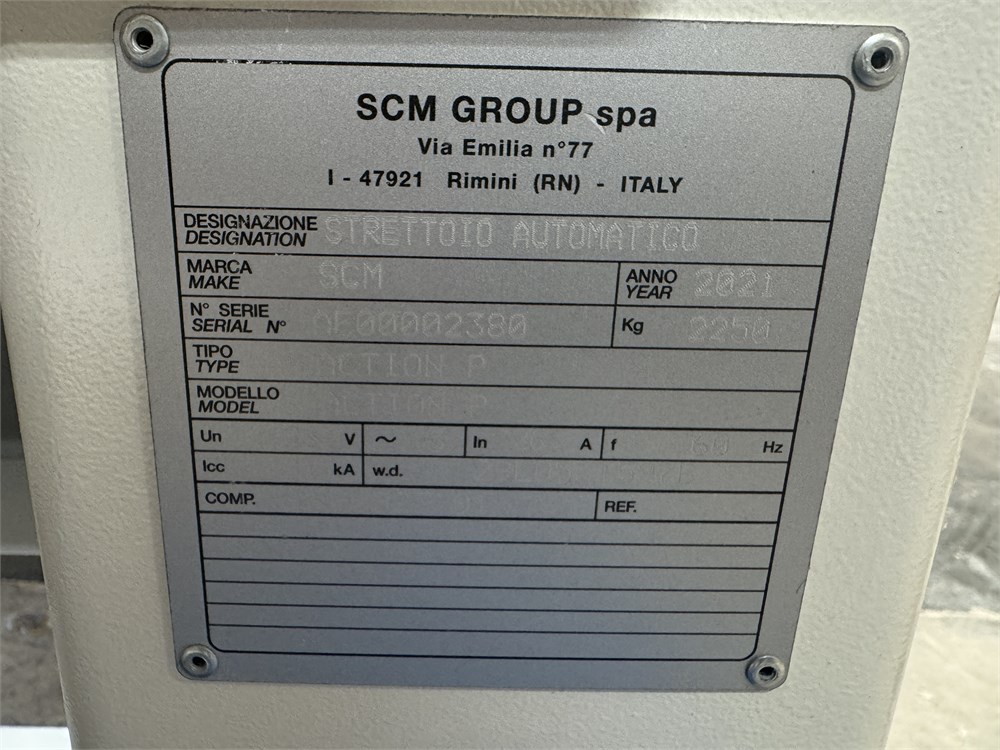

Make
SCM
-
Model
Action P
-
Serial Number
ae00002380
-
Year
2021
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
By appt Only contact Sabrina 209-839-7707 [email protected]
-
Load Out Period
November 3-7
-
Estimated Dimensions
156" L x 53" W x 92" H
-
Estimated Weight
5100 lbs
-
Seller Comment
-
Load Fee
-
Lot Notes
-
page views
17

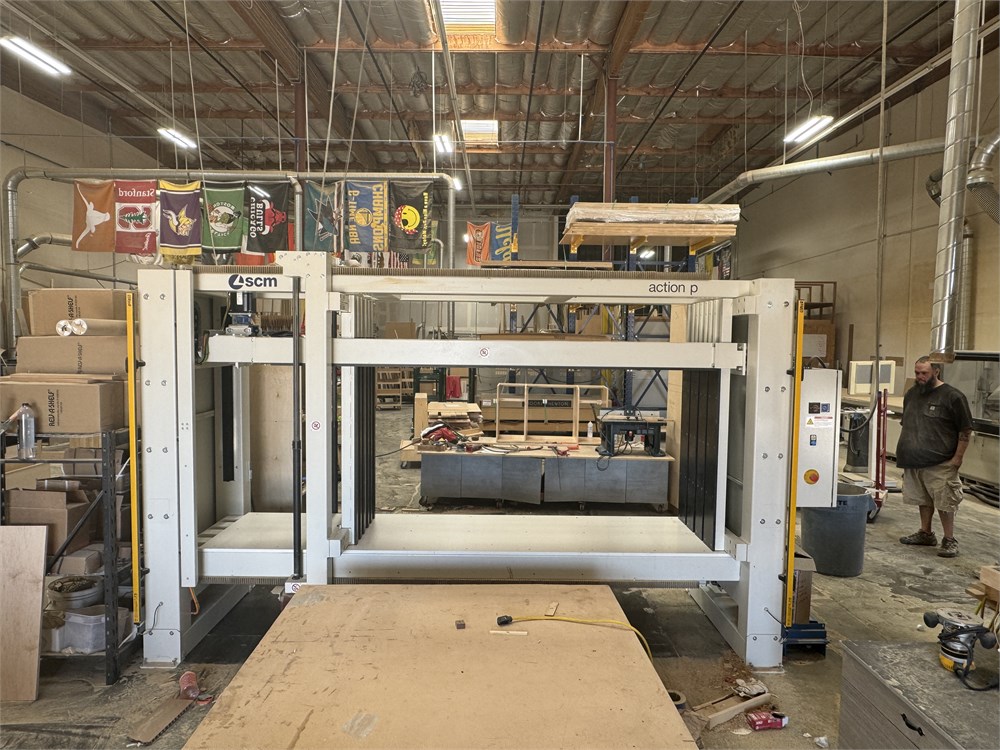

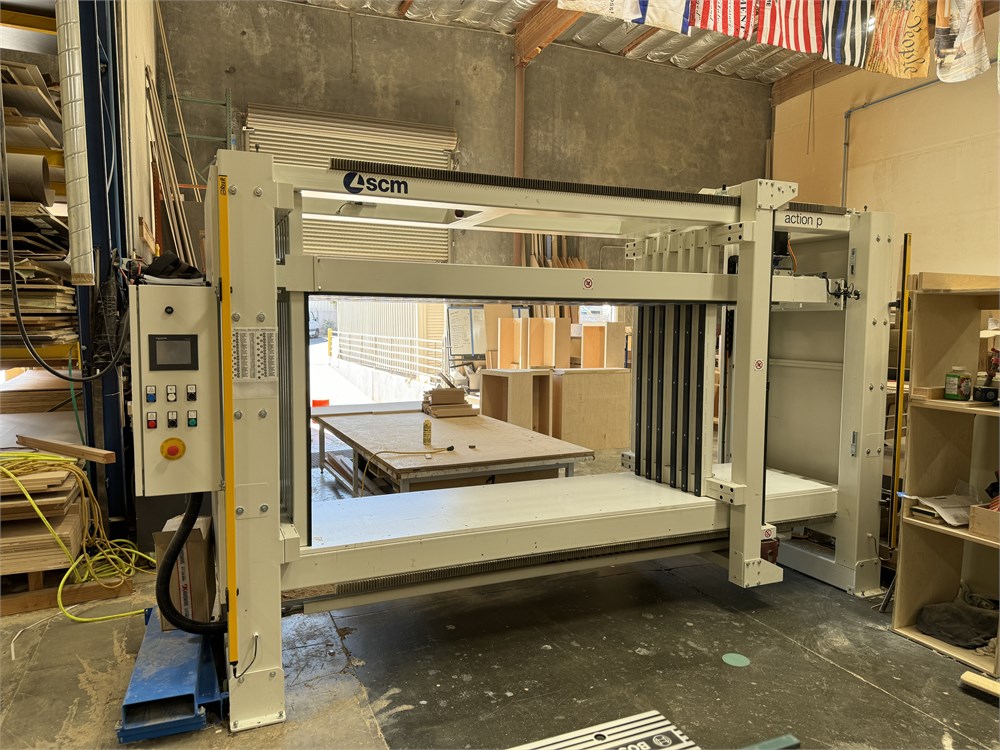

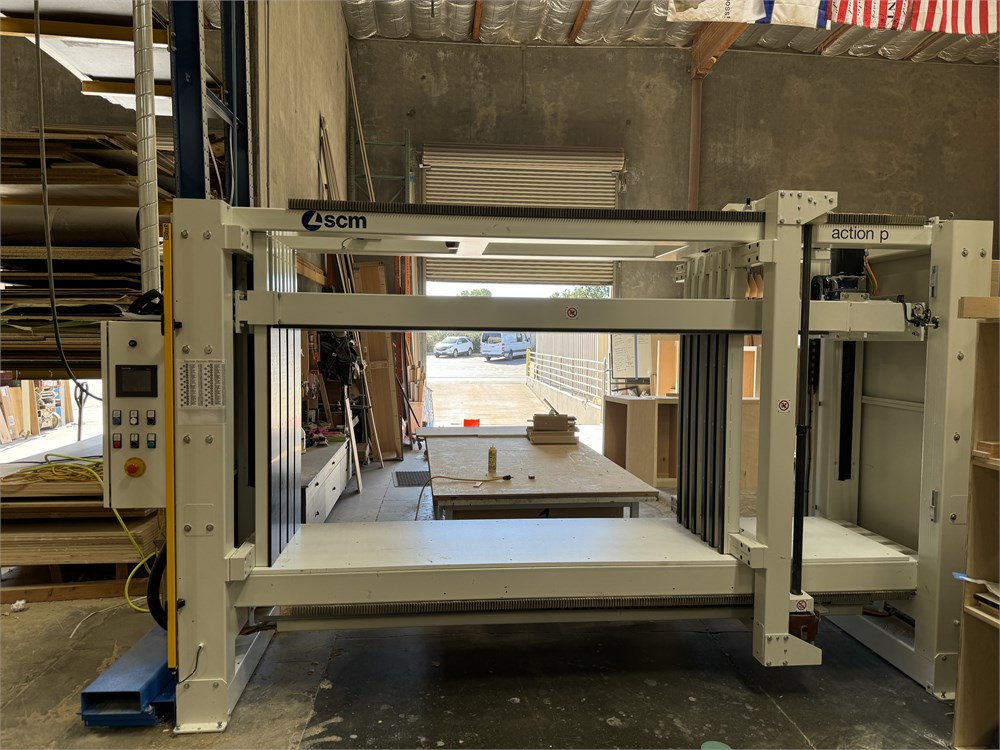

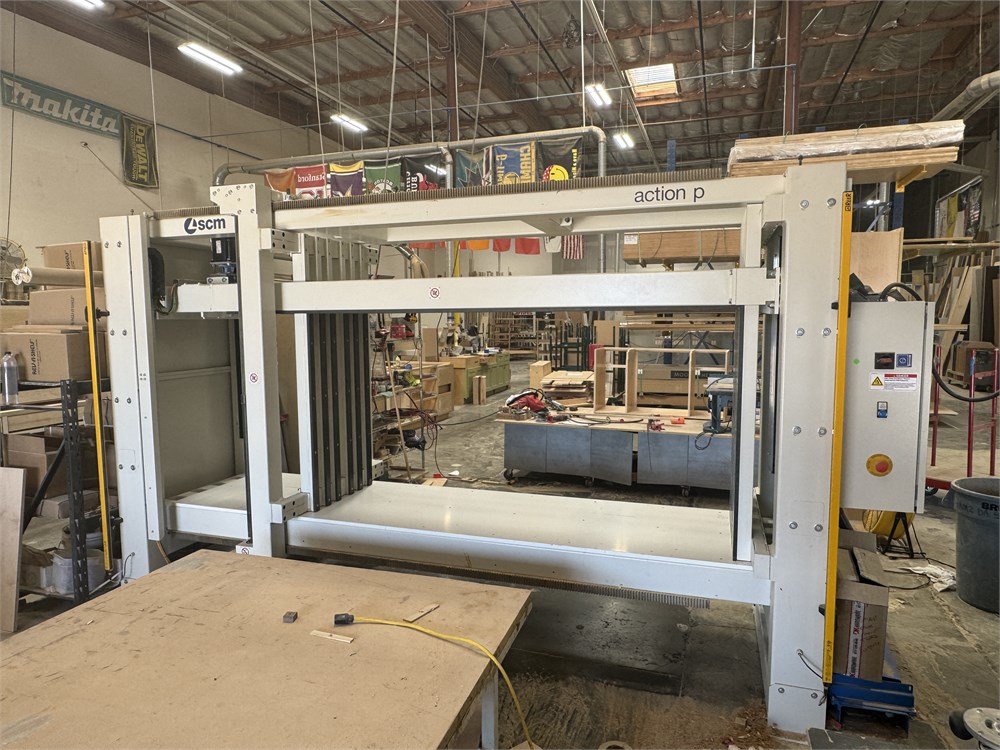

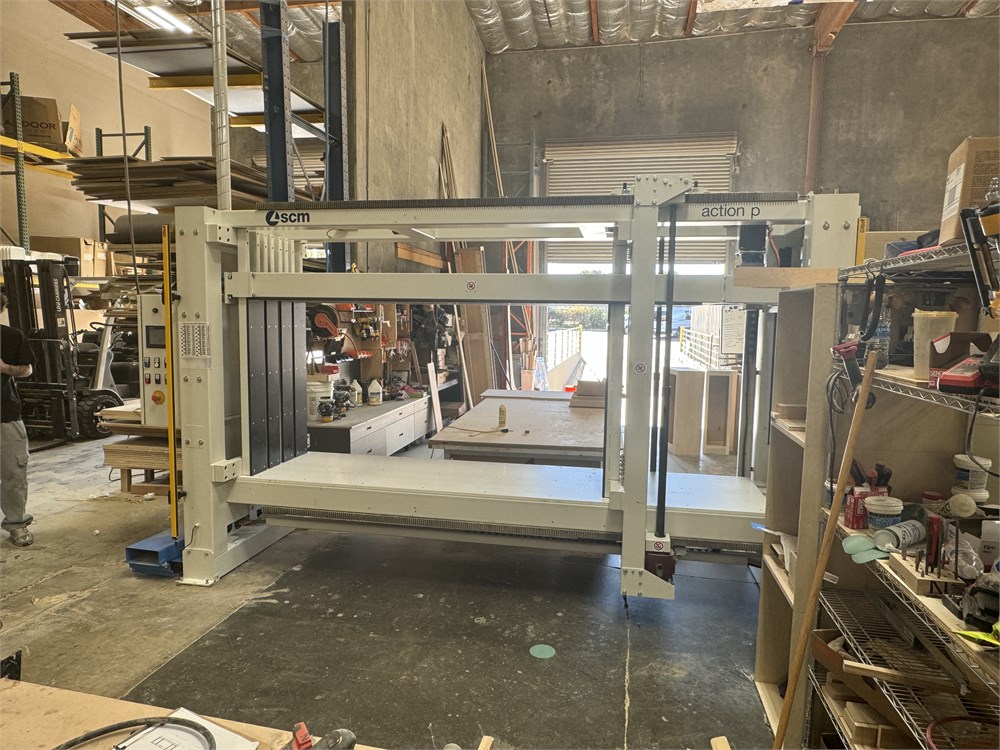

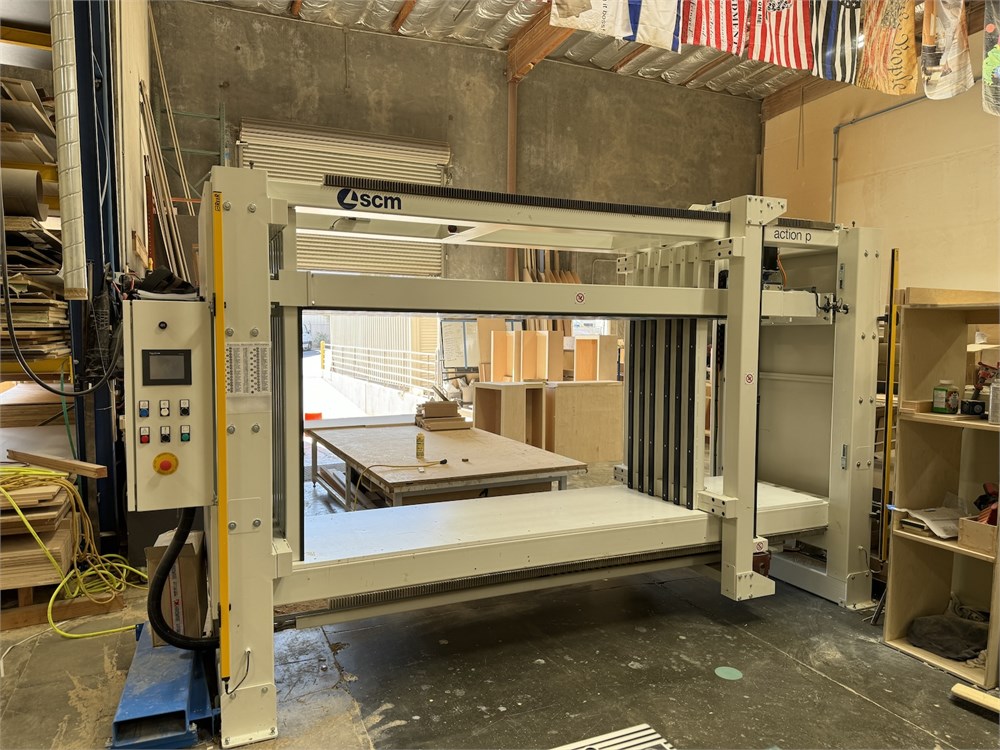

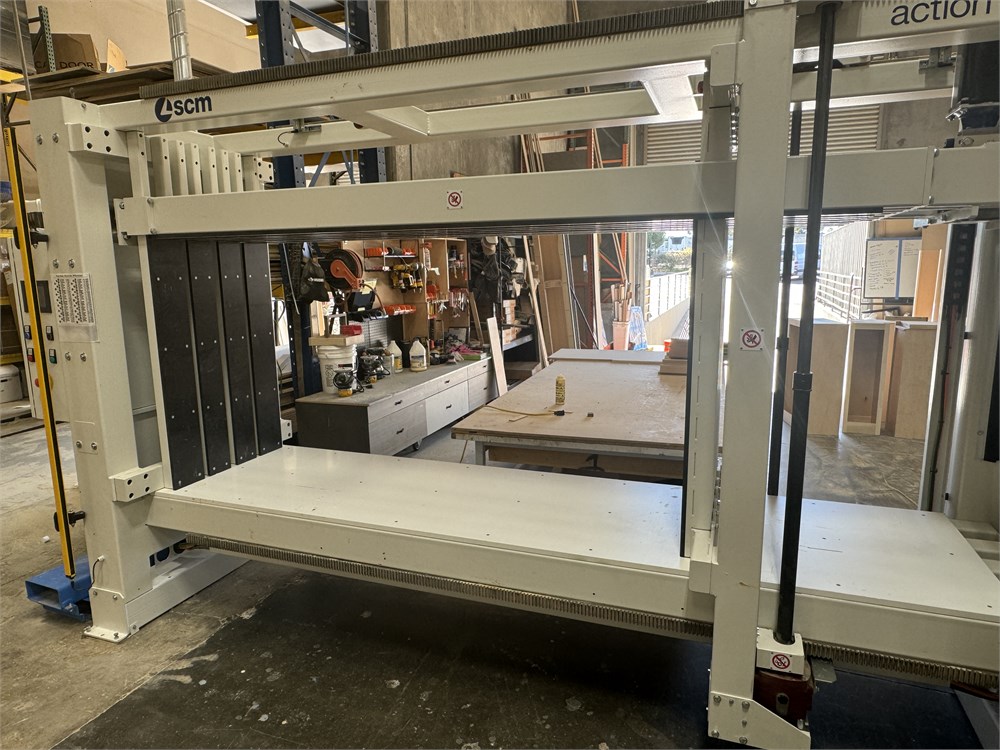

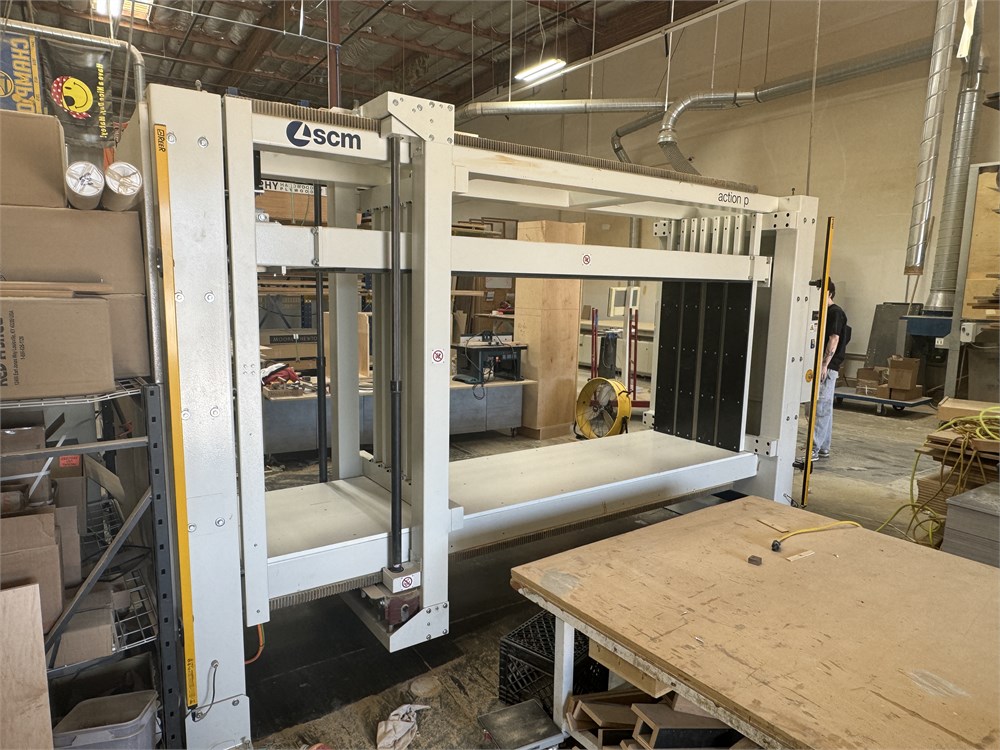

(2021) SCM "CPC Action P" Case Clamp
ACTION P2500 is a front loading electric clamp with reinforced framework of thick steel protected by epoxy priming and polyurethane two-component paint
- The clamp is capable of obtaining extremely strong operating pressures that guarantee closing of boxes with up to 5 dowels per shelf (each side) and multiple shelves.

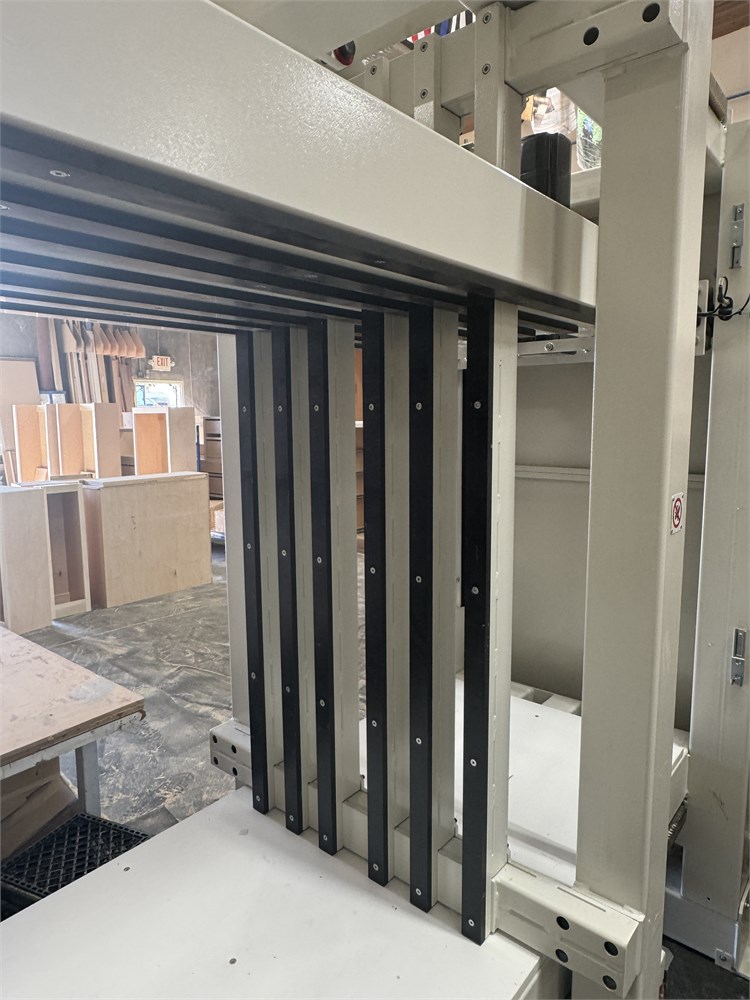

- (6) Interlocking horizontal bars with (7) Vertical bars for closing the clamp

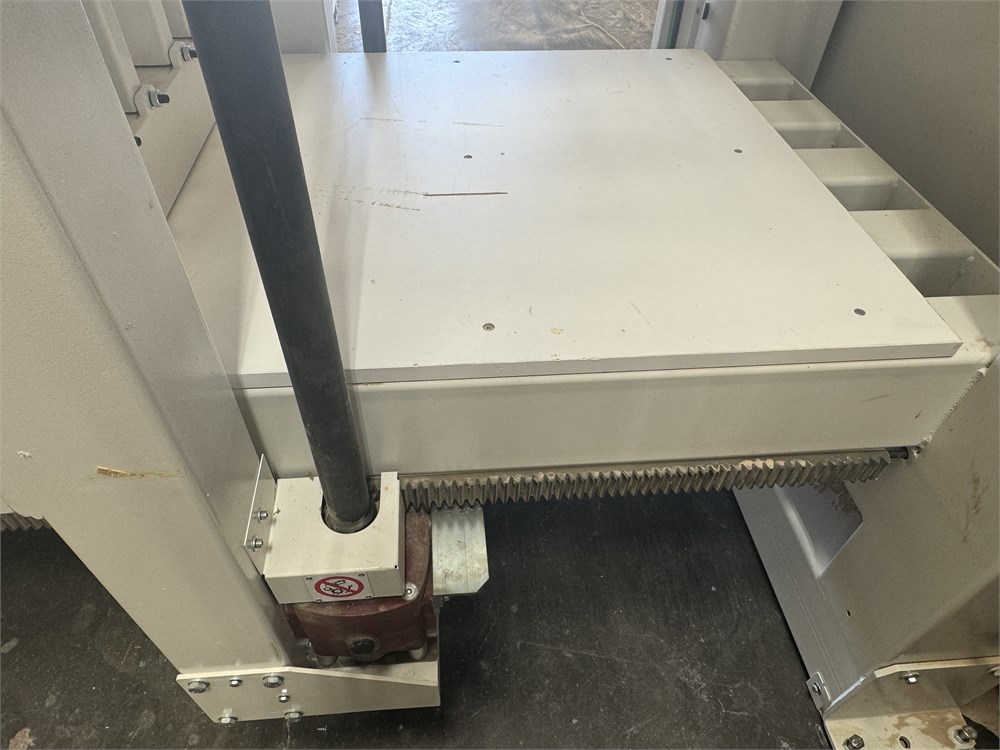

- Rack and pinion guides at all (4) corners of the top platen and side pressor keep the all sides square

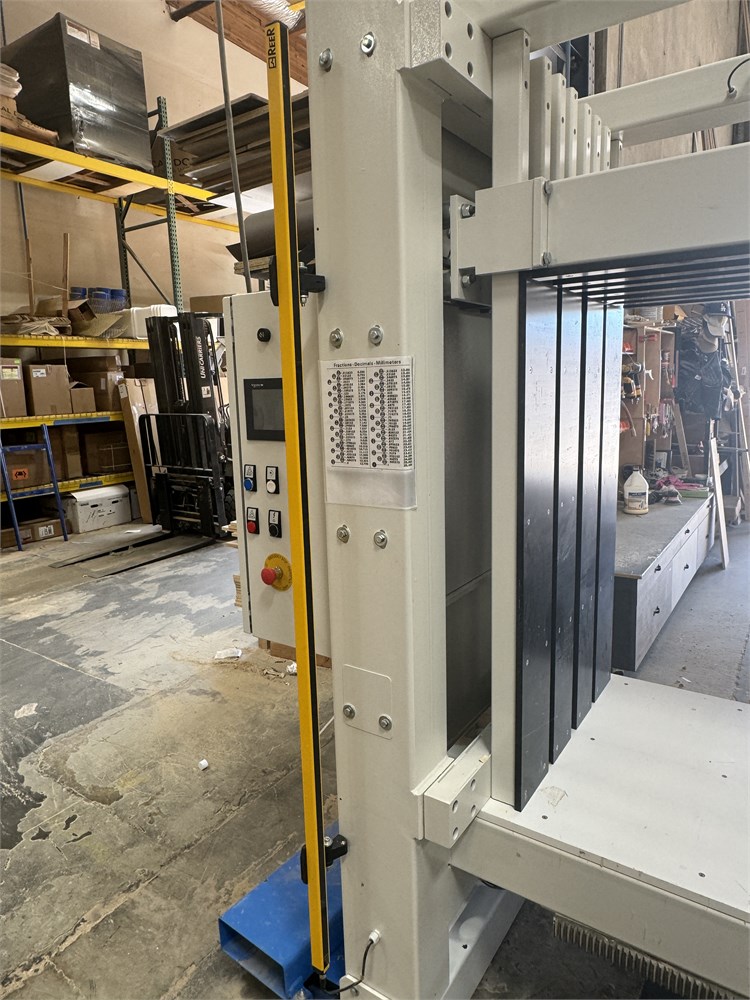

- Machine is supplied with front and rear photo cell barriers
- Sizes of box can be input for efficient cycle control when running repetitive box closings
- The vertical and horizontal pressure is adjustable according to the type of furniture to be assembled
- Production capacity of up to 200 cases per shift
- Possibility to sequence different furniture pieces without manual intervention
- Pressure supplied by infinitely adjustable brushless electro-motors

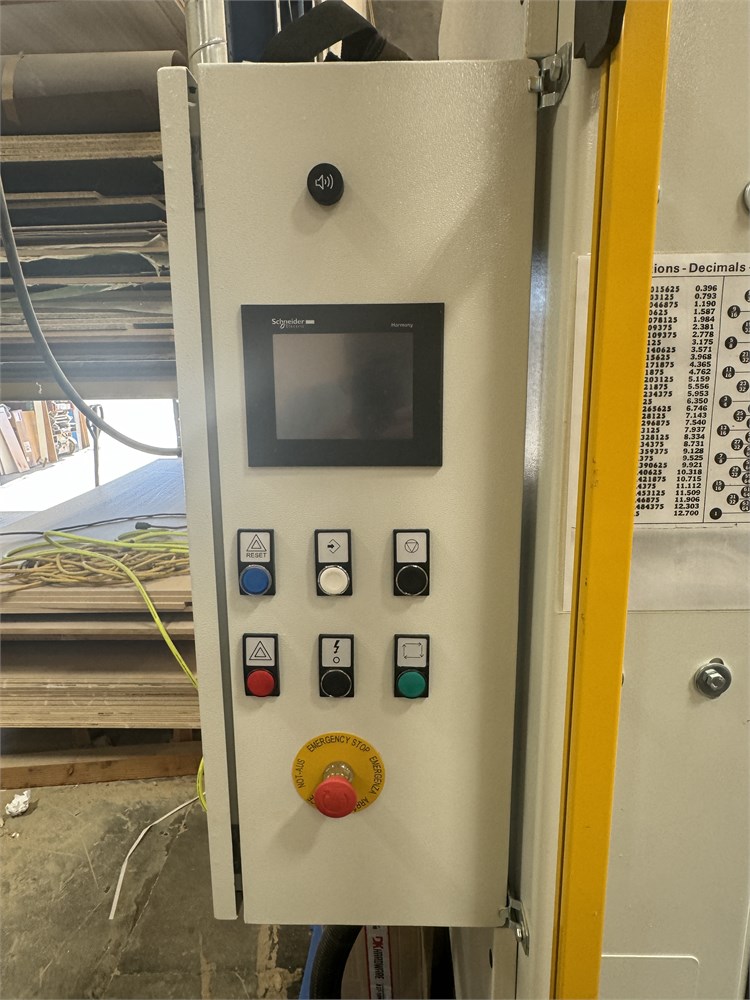

- Color touchscreen utilizes presets for different clamp pressures
- Maximum box width: 98.4" (7.8" minimum)
- Maximum box height: 49.2" (8.7" minimum)
- Maximum box depth: 31.5" (4" minimum)
- Total installed power: 6 kW
- Worktable height: 24"
- 5.7" Touchscreen panel with software by CPC in order to program cycles
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
