Omal "HBD 1300 OF" CNC Drill and Dowel Machine (2021) Active

Late Model SCM Machinery - Livermore, Ca

Livermore, Ca


Days

Hours

Min

Sec

Lot Closes:

10/31/2025 10:00:00 AM PT
81 Watching
Add to Watchlist

Minimum Bid:

$1,000.00 USD

Number of Bids:

0

Current Bid:

$1,000.00 USD ( ) No Reserve
Your Maximum Bid Is $0.00 USD
$USD
Quick Bid $1,000.00 USD
Or
Or
  • Starting Bid : $1,000.00 USD ( ) No Reserve
  • 0 Bid(s)
Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
0.00% Sales Tax

Late Model SCM Machinery - Livermore, Ca ( Active #75609653 )

2021 Omal HBD 1300 OF Drill and Dowel machine, and 2021 Action P Case Clamp. Assets no longer required.

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    6764 Preston Ave Suite B, Livermore, CA 94551

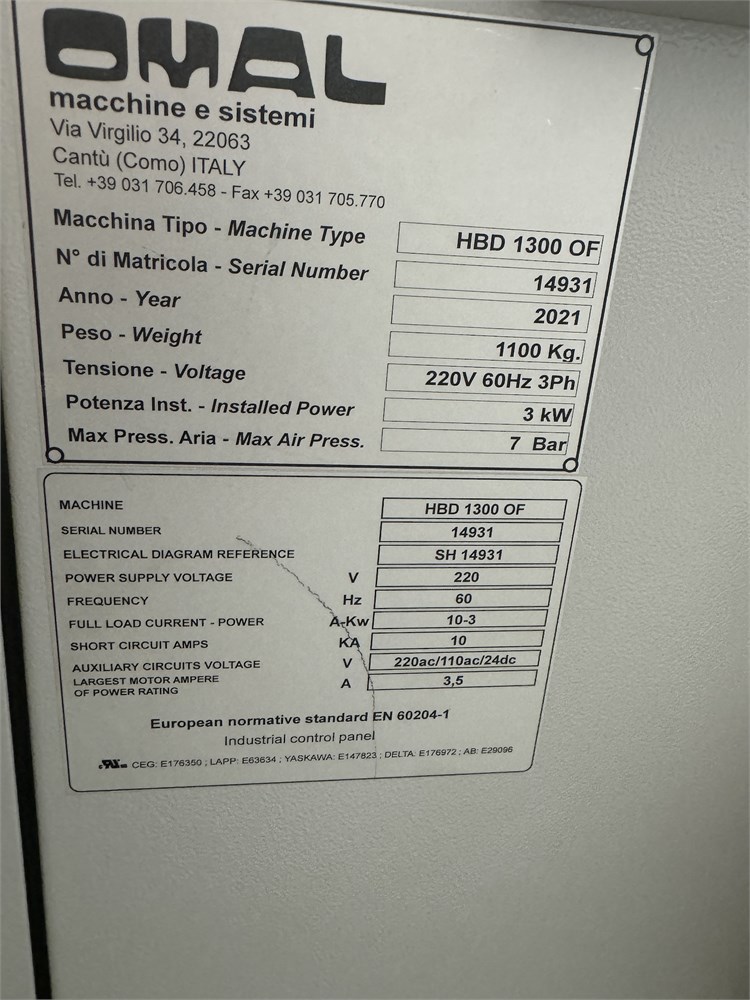

  • Make

    Omal

  • Model

    HBD 1300 OF

  • Serial Number

    14931

  • Year

    2021

  • Phase

    3 PHASE

  • Voltage

    220 VOLT

  • Buyer Inspection Period

    By appt Only contact Sabrina 209-839-7707 [email protected]

  • Load Out Period

    November 3-7

  • Estimated Dimensions

    120" L x 60" W x 80" H

  • Estimated Weight

    4000 lbs

  • Seller Comment

  • Load Fee

  • Lot Notes

  • page views

    23

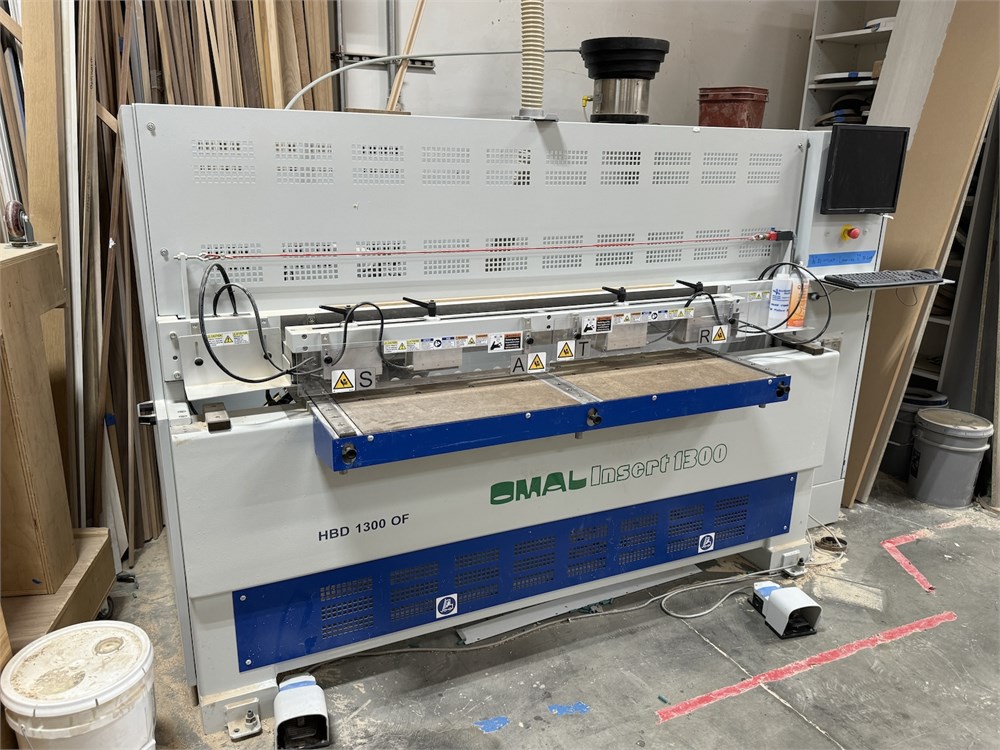

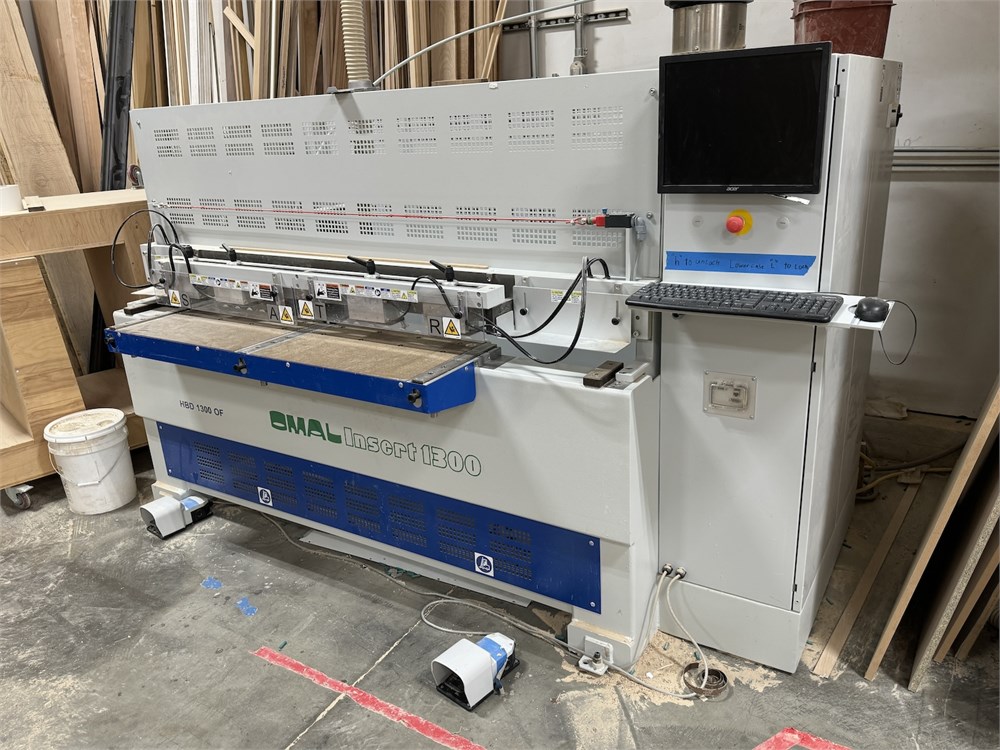

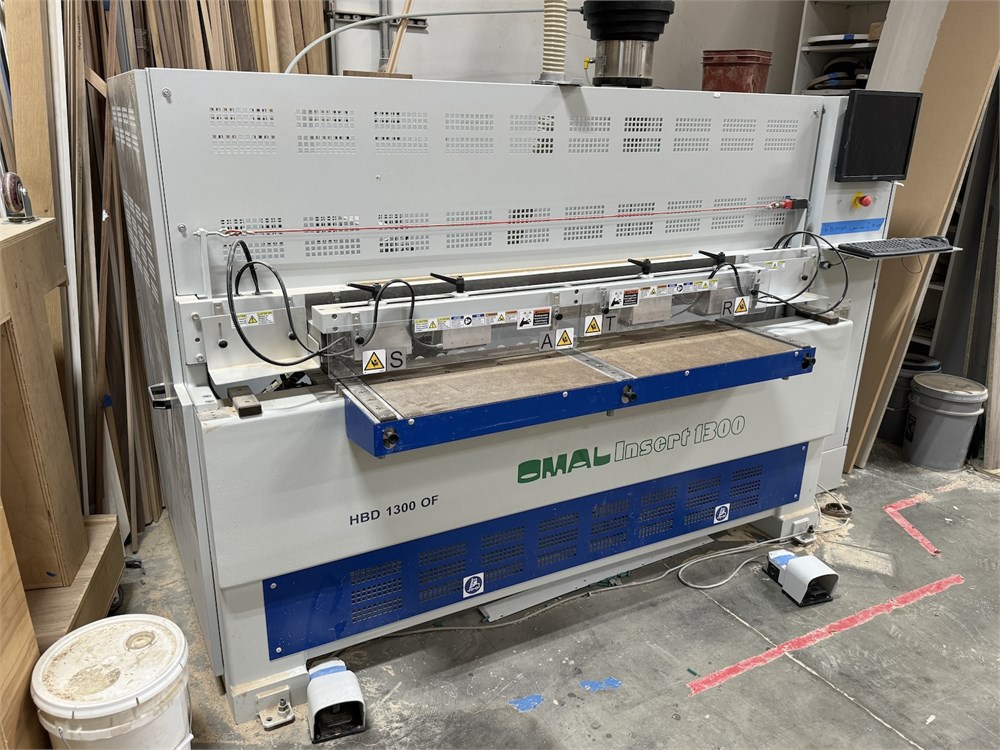

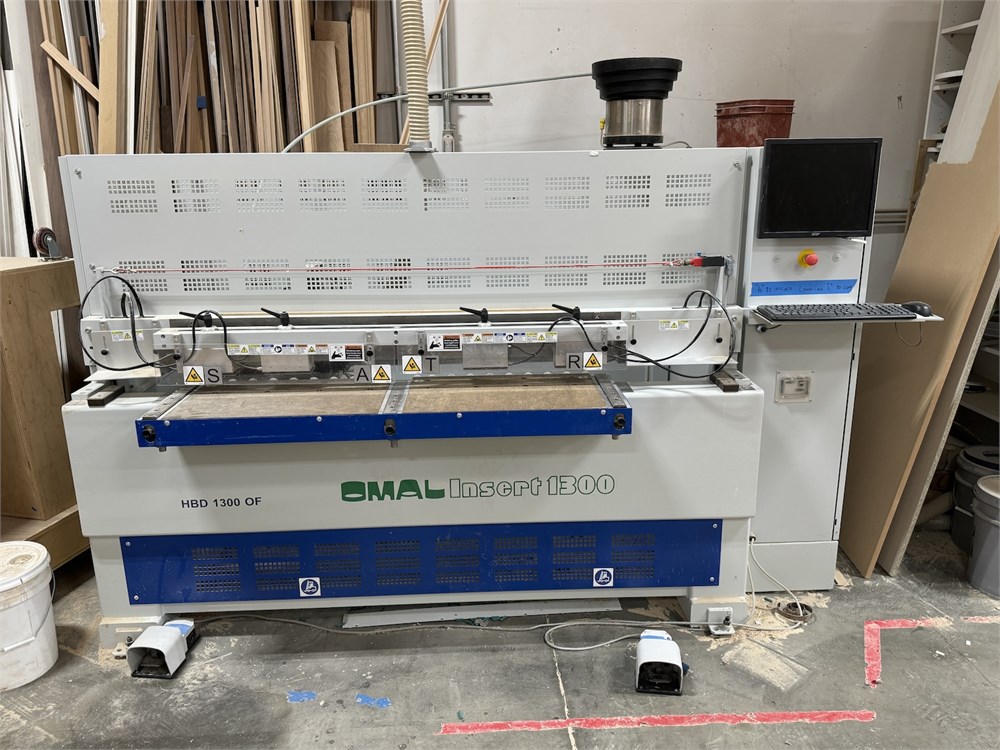

Omal "HBD 1300 OF" CNC Drill and Dowel Machine

NC Controlled automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc. at random spacing. with Laser measuring.

X-axis work area,1300 mm (51").  Y-axis, (depth) max. 40 mm (1.57"), Z-axis (thickness manual setting) max. 40 mm (1.57") - positioning speed 164 FPM (50 MPM).

Width LASER sensor to automatically measure width of panel and calculate number of dowels based on a template file.  Template file can be modified from the list. (Laser tolerance subject to edge integrity, straight edge +/- 0.2mm)

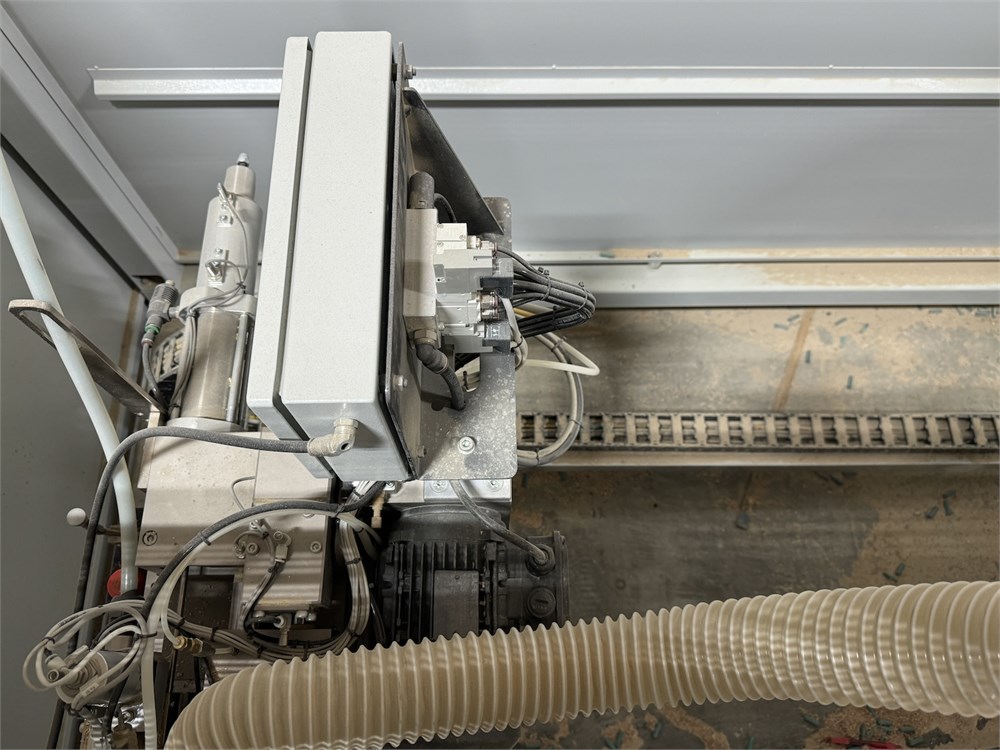

PC Controller with Windows operating system, flat screen color monitor, industrial keyboard, mouse, 40GIG hard drive; USB port; bar code scanner; (4) working zones, retractable center fence, useful for processing smaller parts like drawers, stretchers etc. One (1) 1-HP NC controlled horizontal drilling unit, gluing and (1) dowel insertion unit.

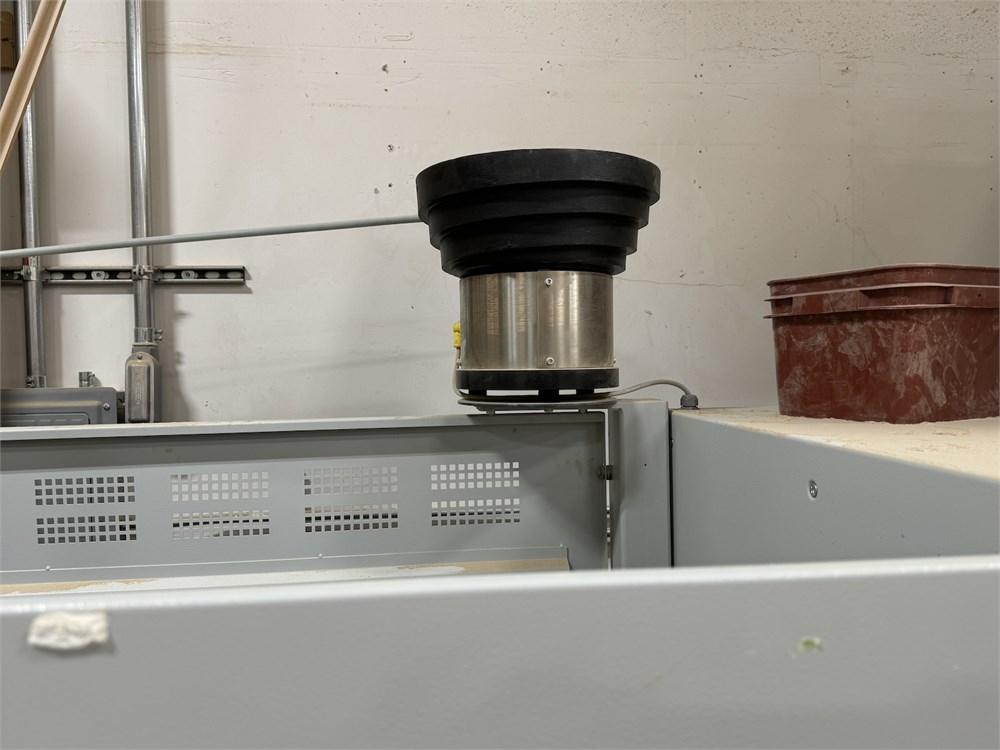

(1) 8-Liter cap. high pressure glue tank, (1) 8-liter cap. water tank (for cleaning), (1) Vibratory Dowel Hopper, (4) pneumatic hold-down clamps.

Left, center and right reference stops

Foot pedal control

Centralized lubrication system

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
