Vitap "Eclipse" Contour Edgebander
Preview
Vitap "Eclipse" Contour Edgebander - Sauk Rapids, MN
Sauk Rapids, MN
Starts In remaining
Vitap "Eclipse" Contour Edgebander - Sauk Rapids, MN ( Preview #75161540 )
Machinery manufacturer/distributor in Minnesota is auctioning a Vitap contour edgebander from their warehouse inventory. See video of machine in operation and call with any questions.
-
Pick Up Location
315 Industrial Blvd. Sauk Rapids, MN 56379
-
Make
Vitap
-
Model
Eclipse
-

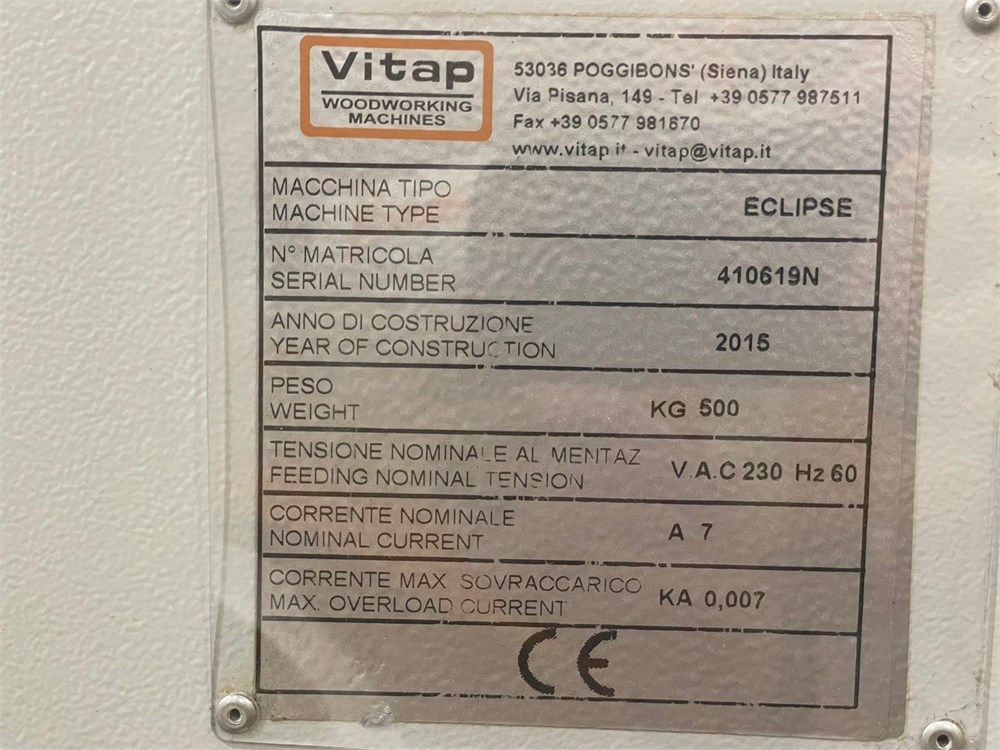

Serial Number
410619N
-
Year
2015
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
By appointment only, contact Eric Beach, [email protected], 704-608-9830
-
Load Out Period
October 10 - October 17, 2025 (by appointment only)
-
Estimated Dimensions
96" L x 60" W x 72" H
-
Estimated Weight
1,500 Pounds
-
Seller Comment
Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
-
Load Fee
150.00
-
Lot Notes
-
page views
14

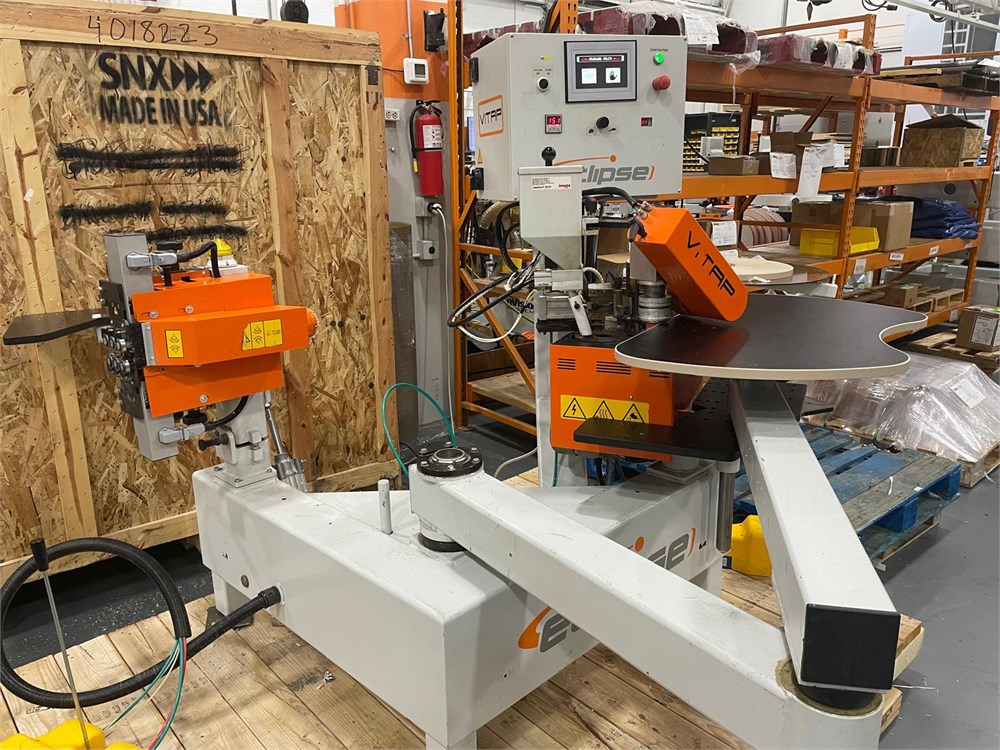

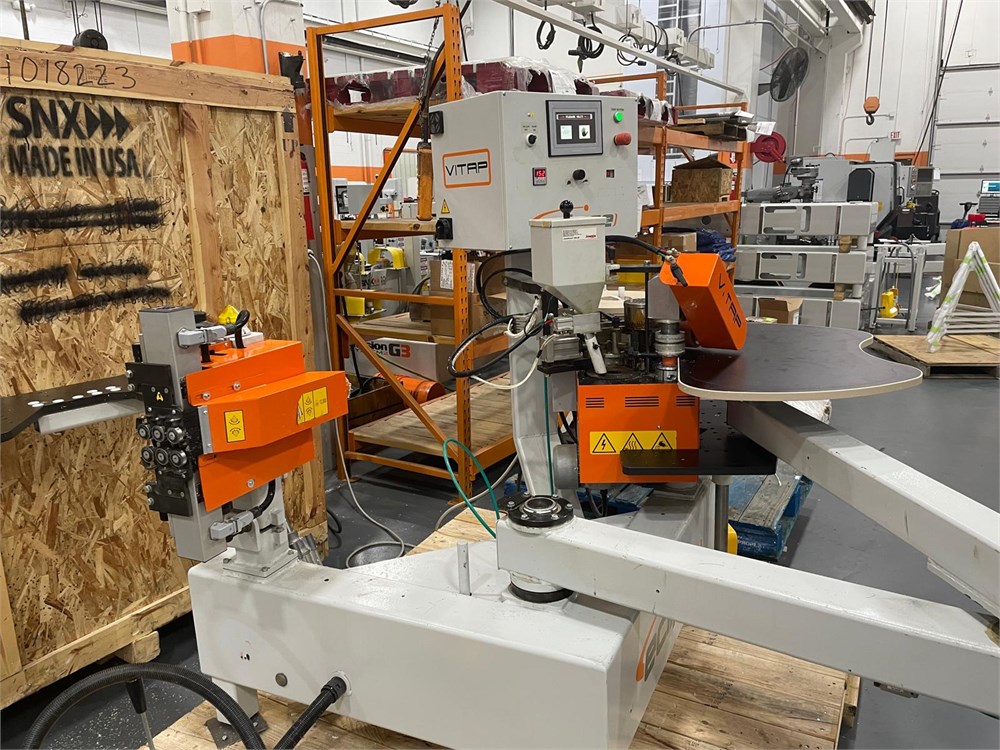

Vitap "Eclipse" Contour Edgebander
See video of machine in operation
On pallet, ready for shipping
Edgebanding infeed table

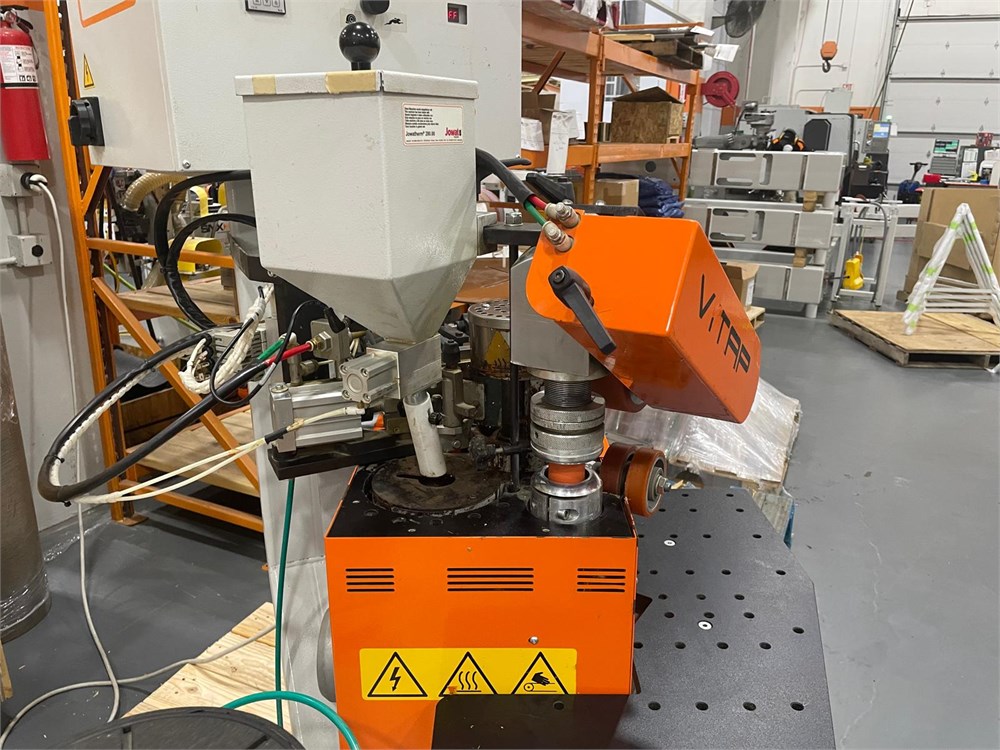

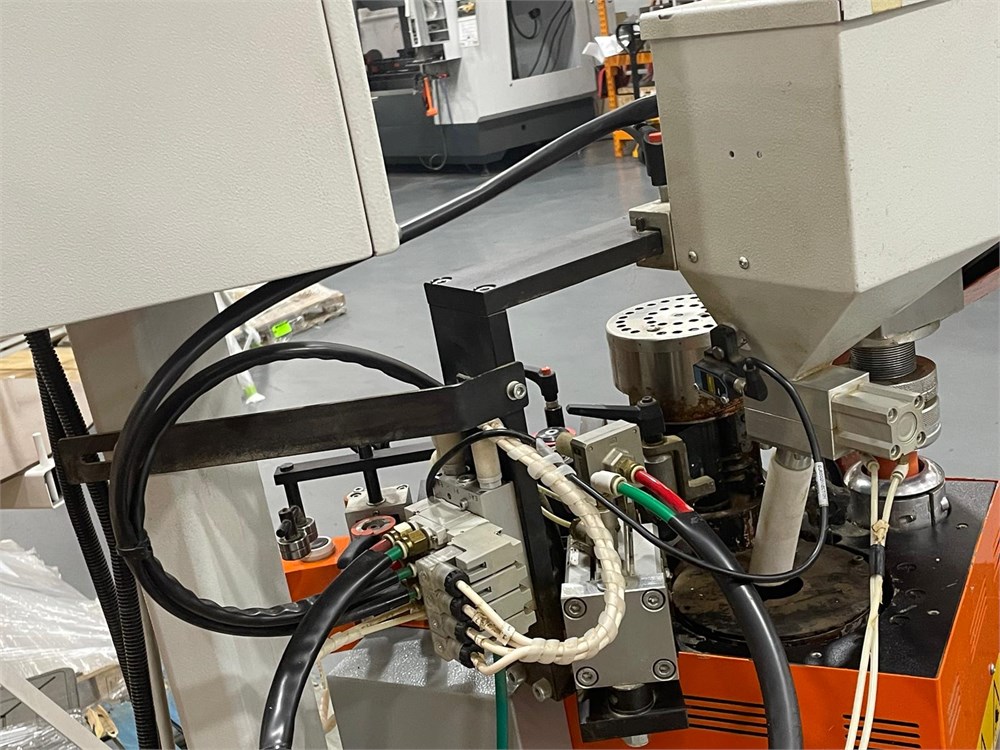

Glue pot with pre-melt hopper and application roller

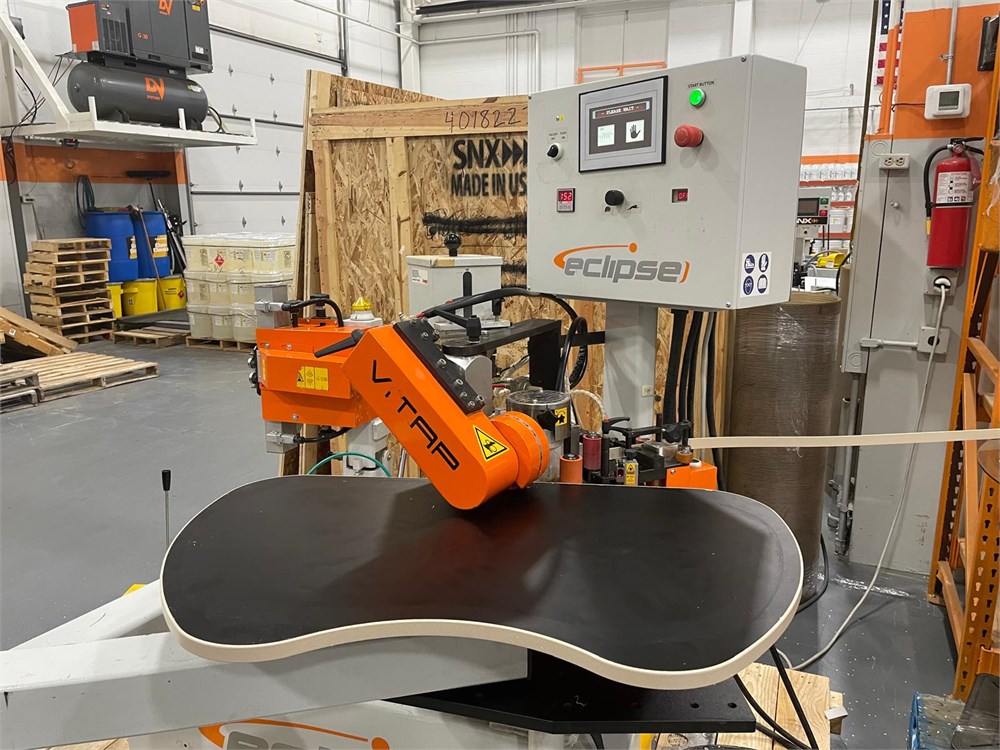

Touch-screen controller
Foot pedal operation

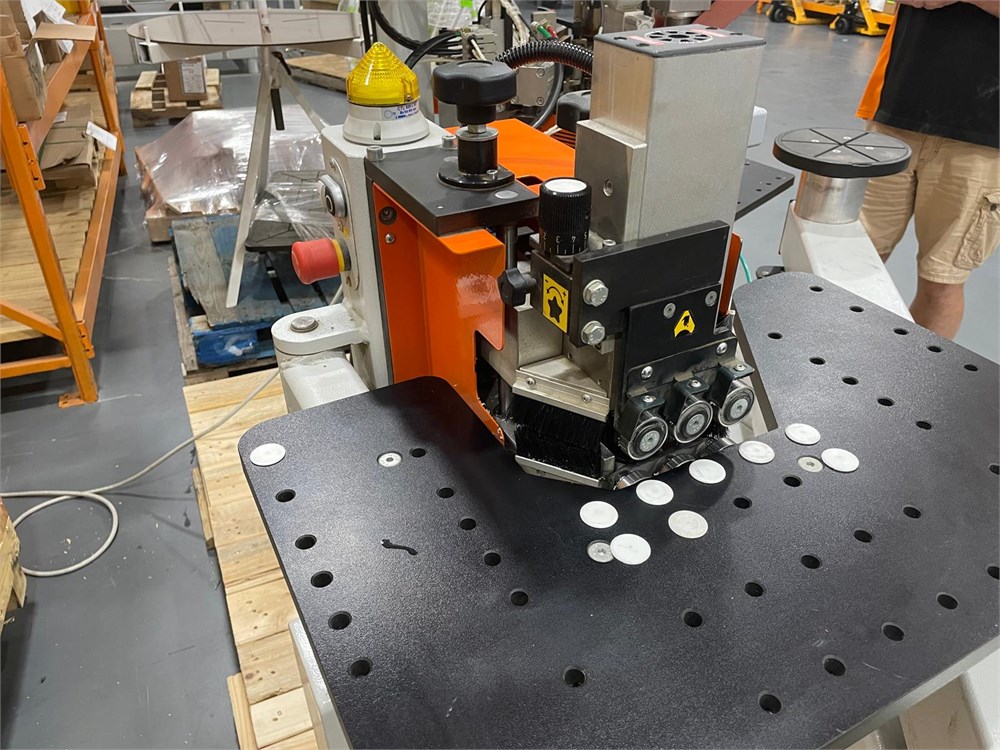

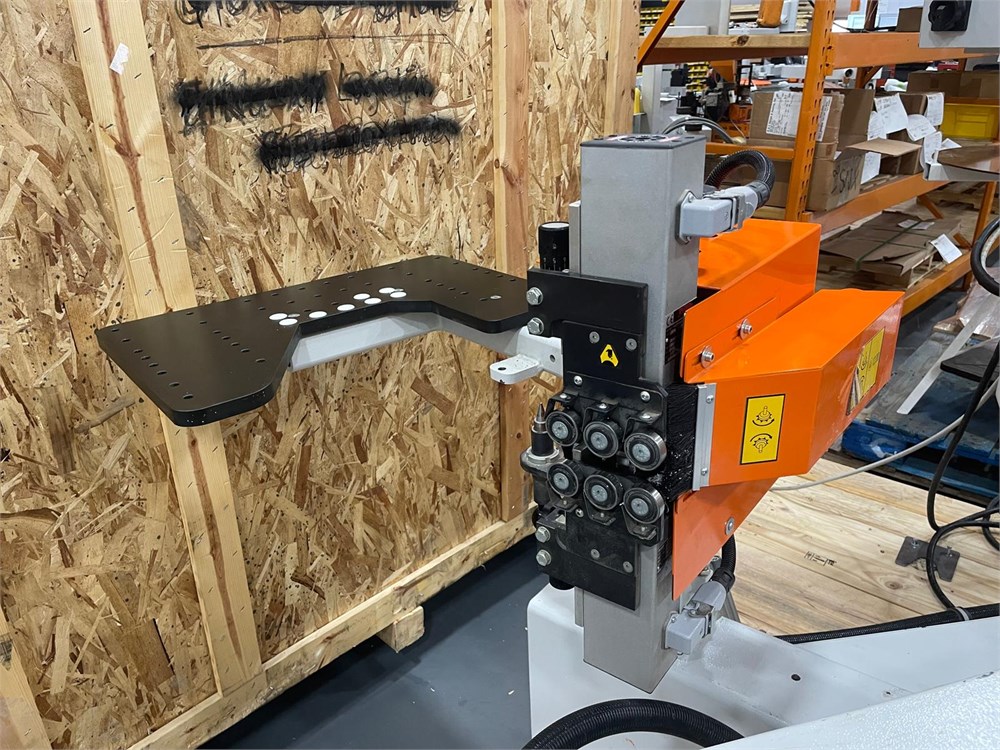

Two (2) rollers to copy the shape of the piece, utilizes heating elements with electronic temperature control via thermo regulator, glue application amount is adjusted via a knob, set up of the glue temperature.
Manual feeder of the panel, raise-able working table for small panels, electronic counter for cutting off of the tape, on/off automatic feeder of the panel, on/off trimming unit,

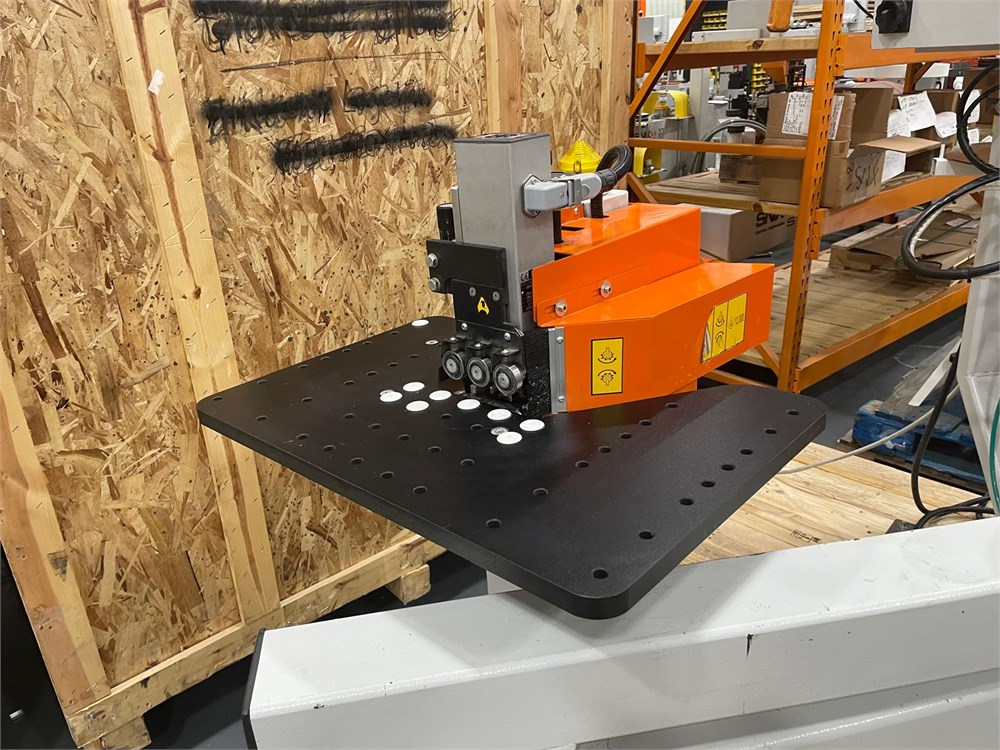

2 brazed cutters R=3 bevel =15° D=69 (MIN. 60) Z=6, raise-able working table for small panels, turning table unit for large panels, holding arm with vacuum table to hold the big panels for edging and trimming.
Inside minimum radius - 250 mm (as a general rule – application dependent), 16 – 60 mm panel with 1 mm edge tape, 16 – 40 mm panel with 2 mm edge tape, 16 – 30 mm panel with 3 mm edge tape, with I mm edge tape – the minimum outside radius is 30 mm (as a general rule), with 2 mm edge tape – the minimum outside radius is 50 mm (as a general rule), with 3 mm edge tape – the minimum outside radius is 80 mm (as a general rule), height of the tape = 18 mm minimum to 64 mm maximum
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
