Weeke "Optimat BHP008/Vantech 510" Flat Table CNC
Ended
Weeke CNC, Dust Collectors, Spray Booth and Shaper - Round Rock, TX
Round Rock, TX
- Winning Bid : $14,500.00 USD Sold
- 87 Bid(s)
- High Bidder: C****1
Weeke CNC, Dust Collectors, Spray Booth and Shaper - Round Rock, TX ( Closed #74994317 )
Woodworking shop in Round Rock, TX is offering machinery no longer required for continuing operations.
-
Pick Up Location
1500 W Industrial Blvd Round Rock, TX 78681
-

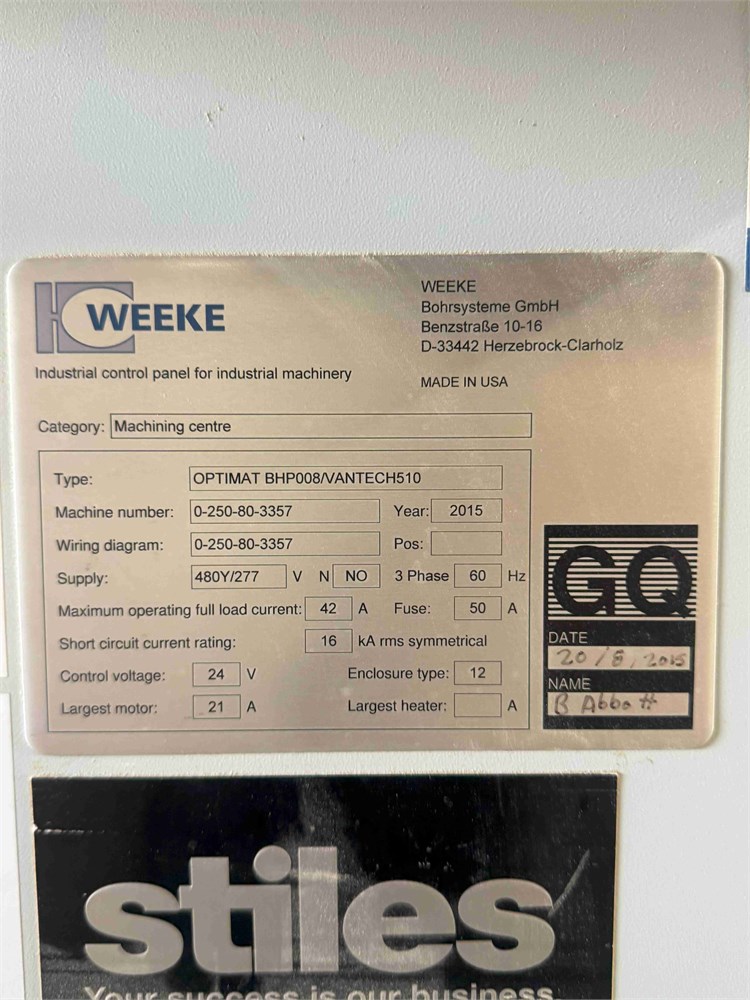

Make
Weeke
-
Model
Optimat BHP008/Vantech 510
-
Serial Number
0-250-80-3357
-
Year
2015
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment only, contact Thomas Aronson - [email protected] - 941-699-8717
-
Load Out Period
October 1 - October 15, 2025 (by appointment)
-
Estimated Dimensions
See photos and description
-
Estimated Weight
8,000 pounds
-
Seller Comment
Buyer responsible for prep, loading, and shipping or hiring a rigger to do so.
-
Load Fee
-
Lot Notes
-
page views
1227
Weeke "Optimat BHP008/Vantech 510" Flat Table CNC

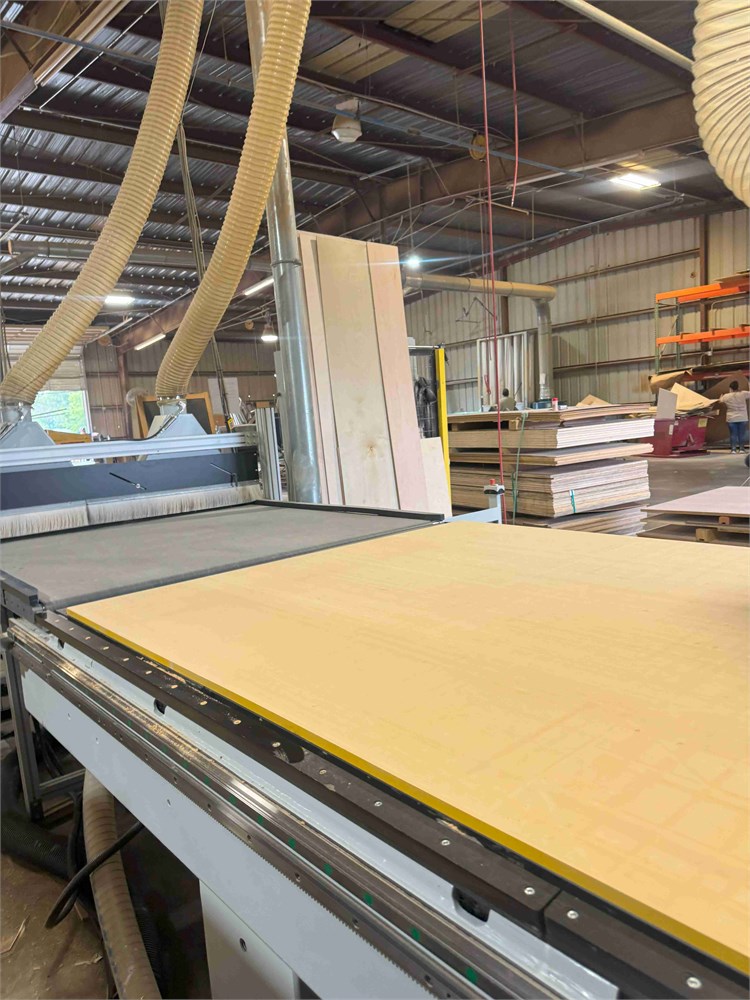

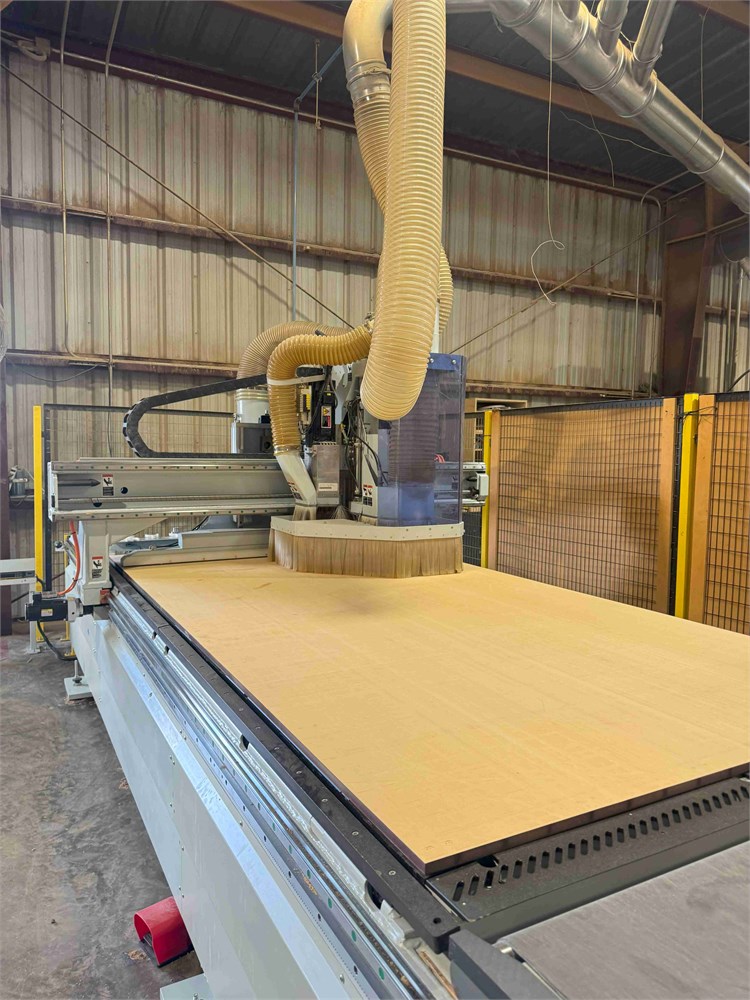

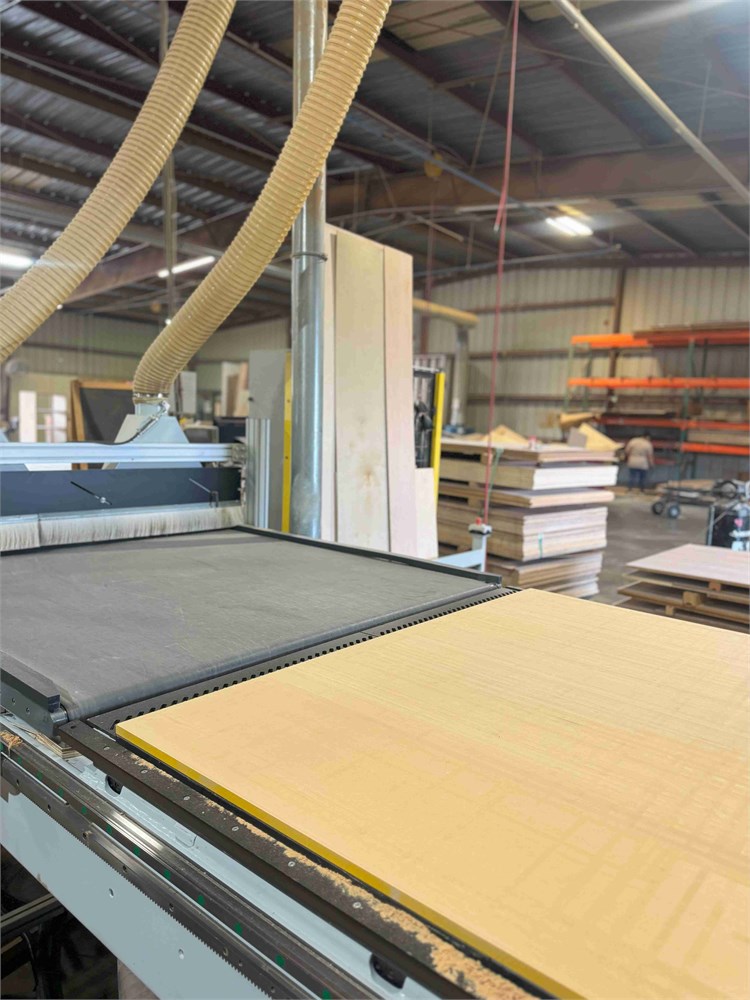

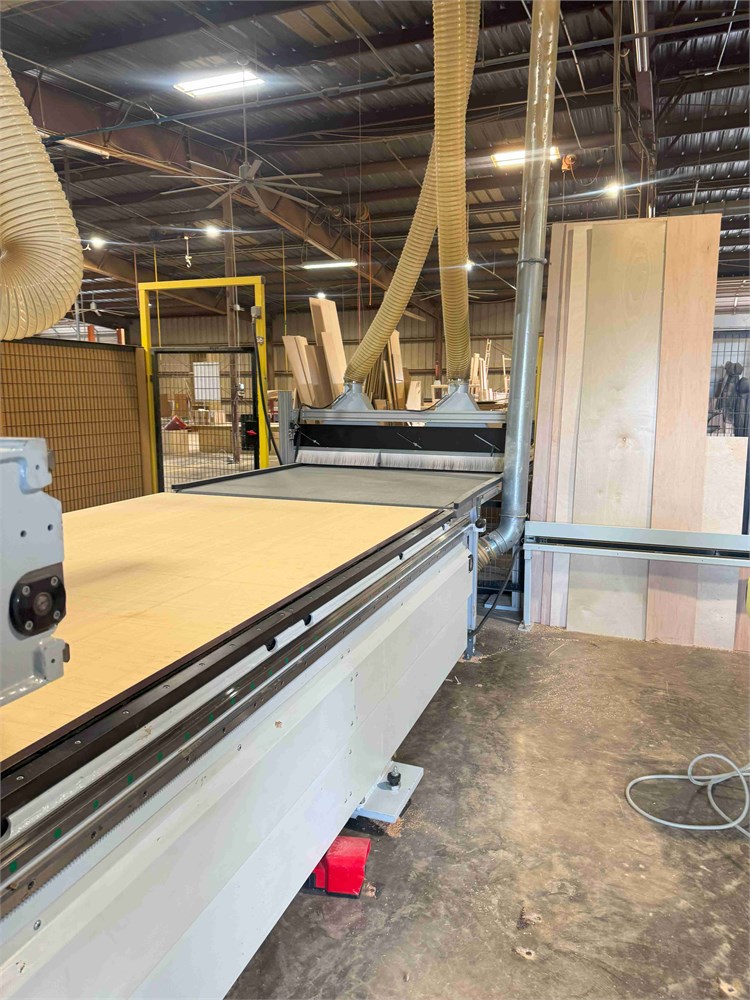

5' x 10' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.
"X" Axis is 122" (3,100 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).
"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

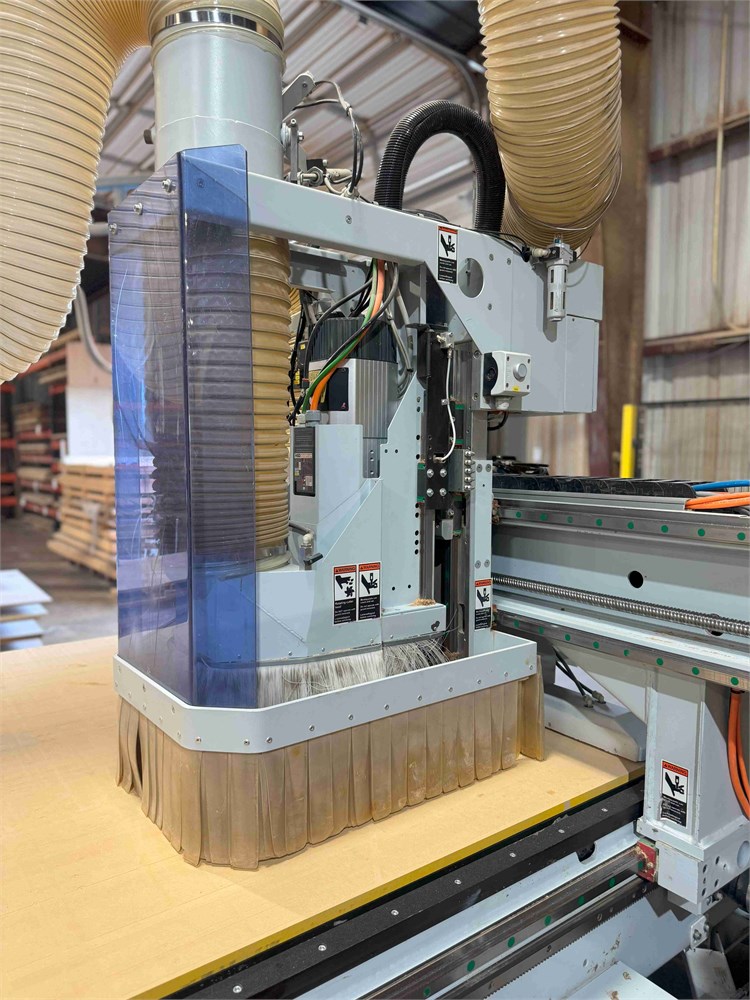

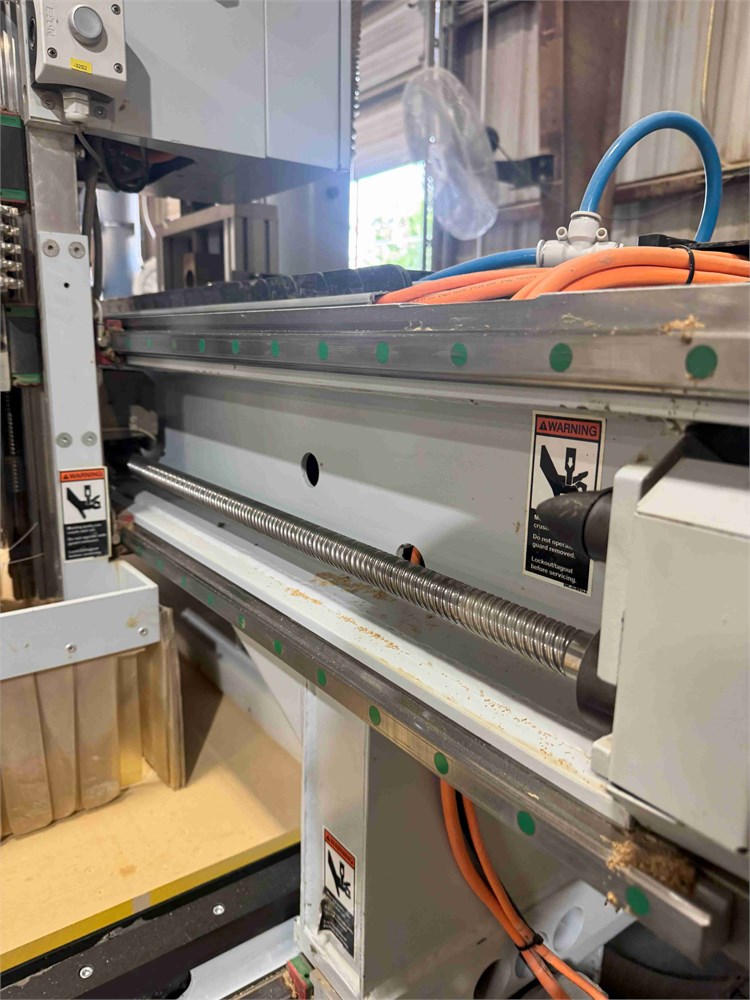

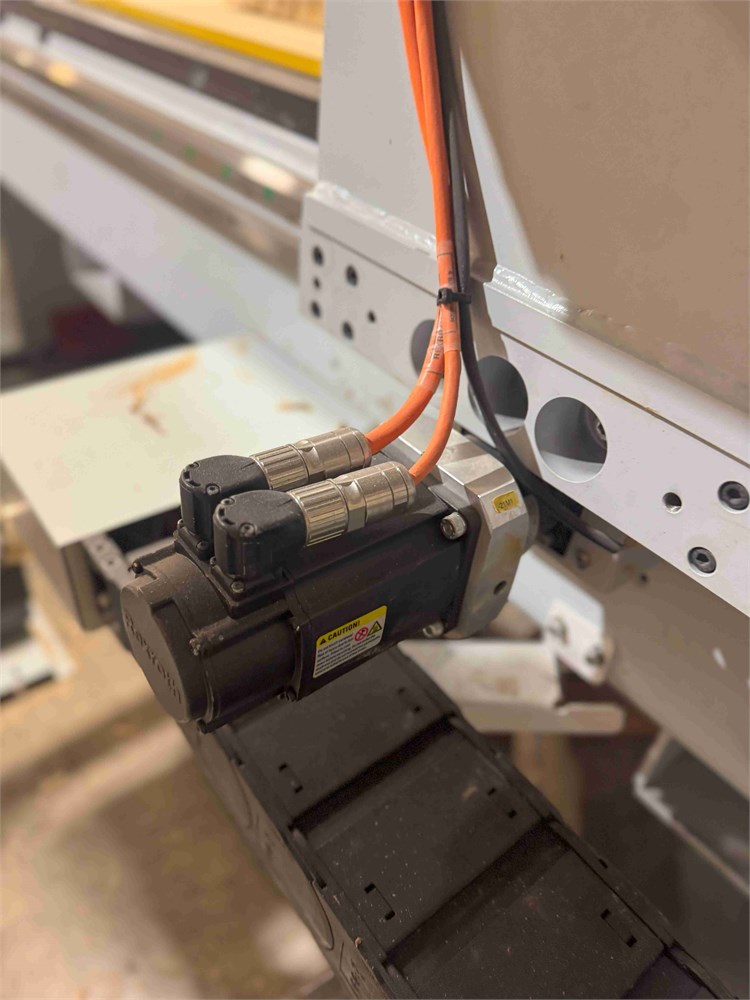

The head travels via AC brushless drives & THK linear motion guides on all axes.

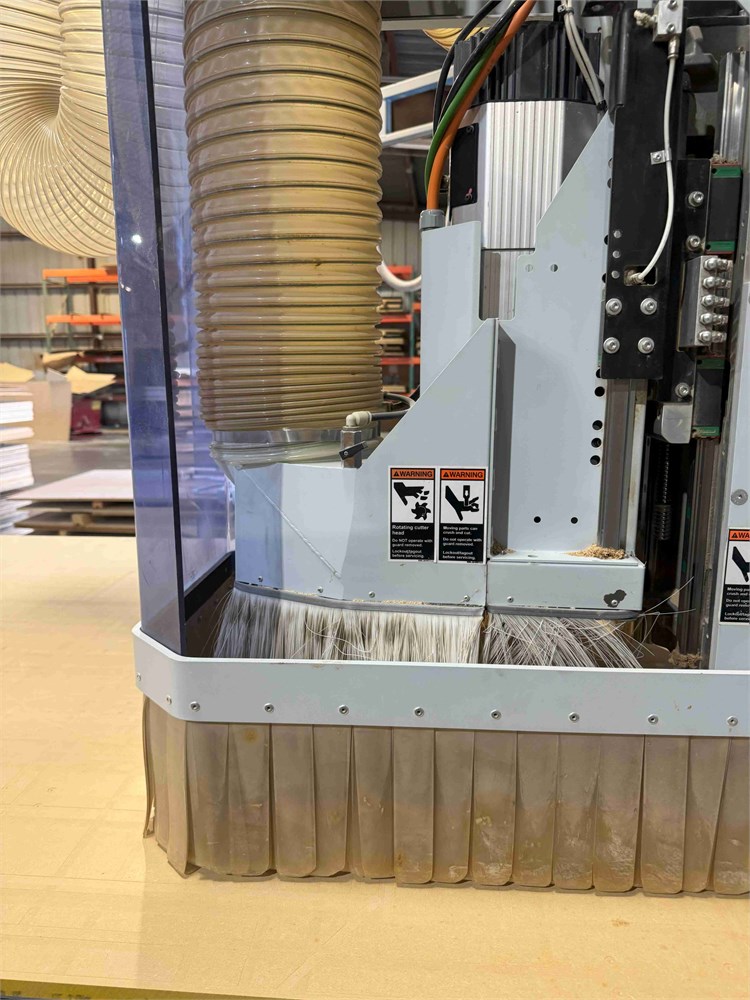

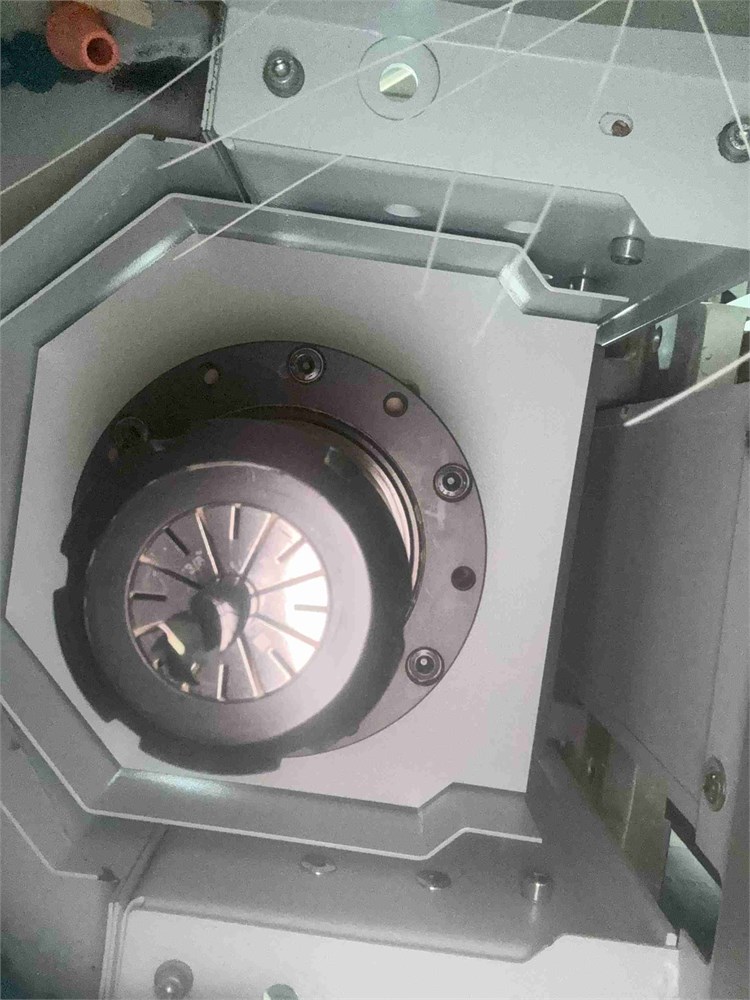

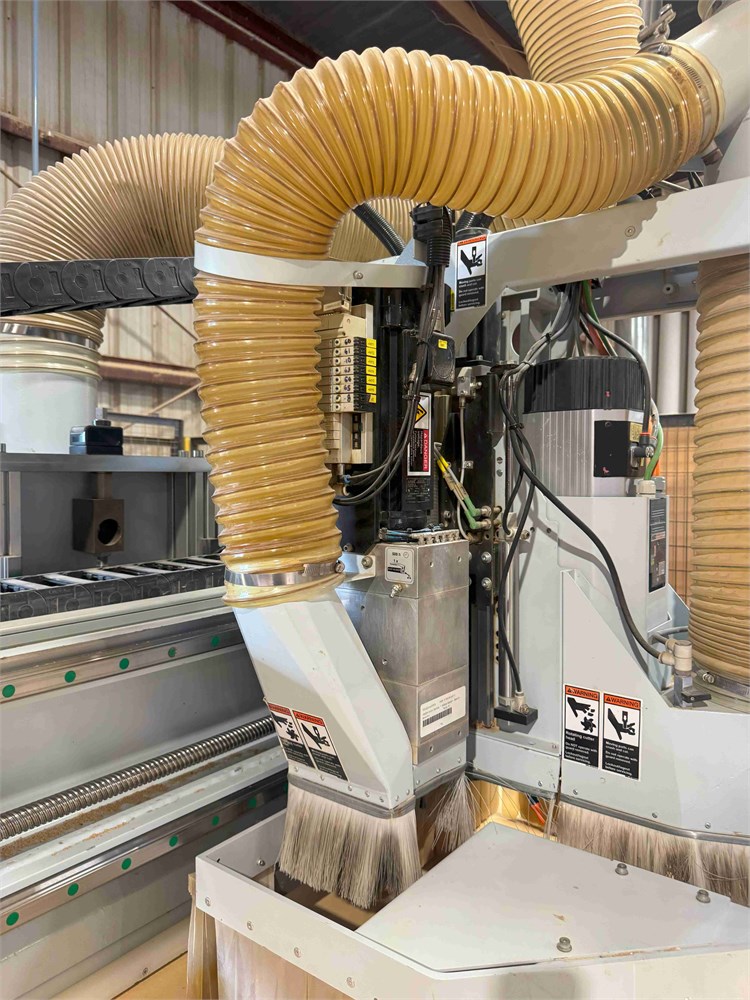

(1) 12 HP (9 kW) High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.
10-Position tool changer rack

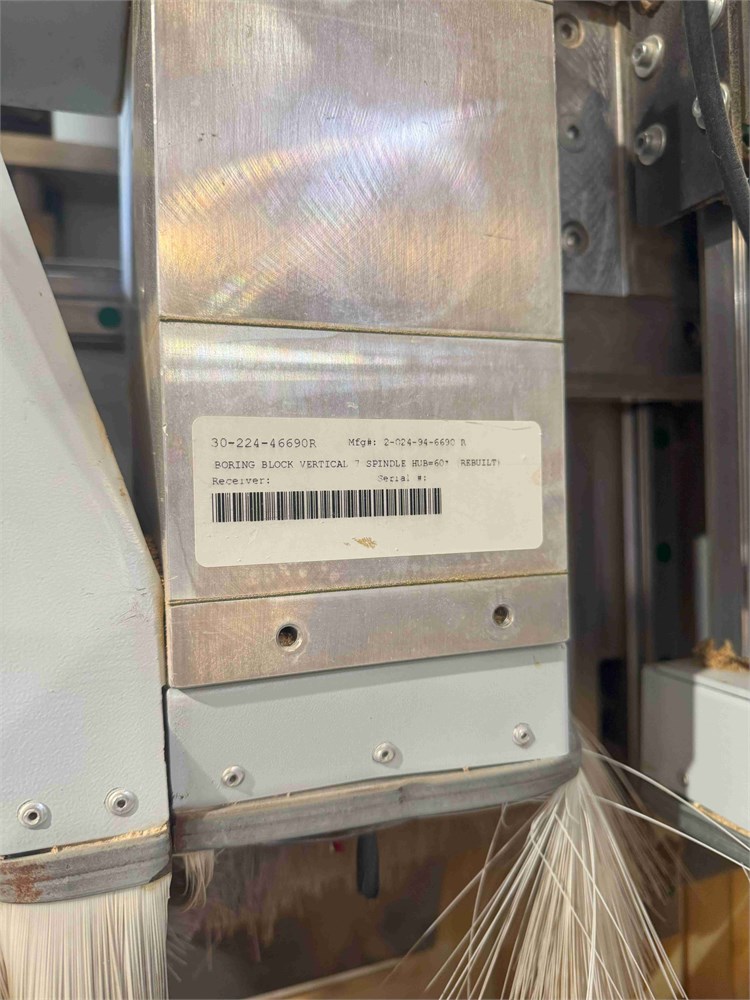

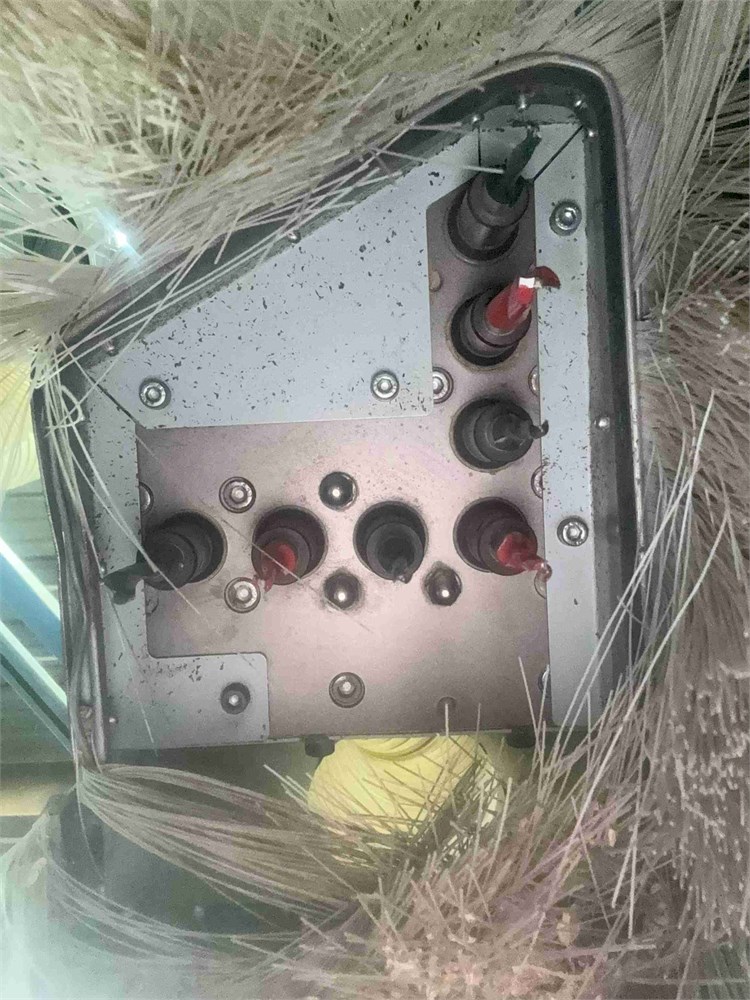

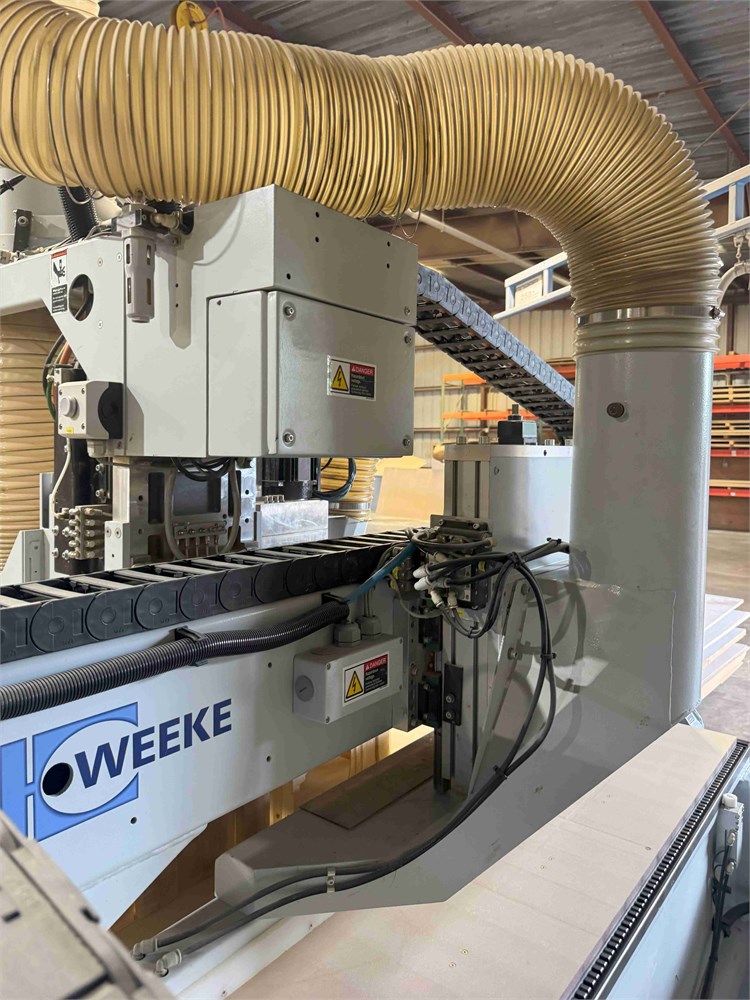

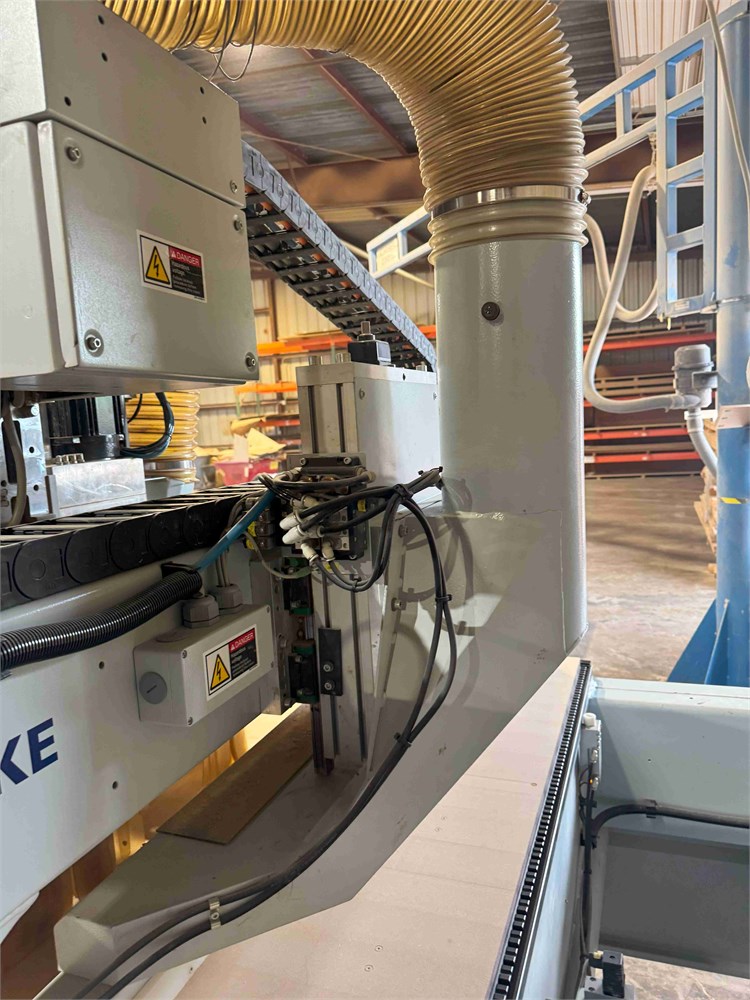

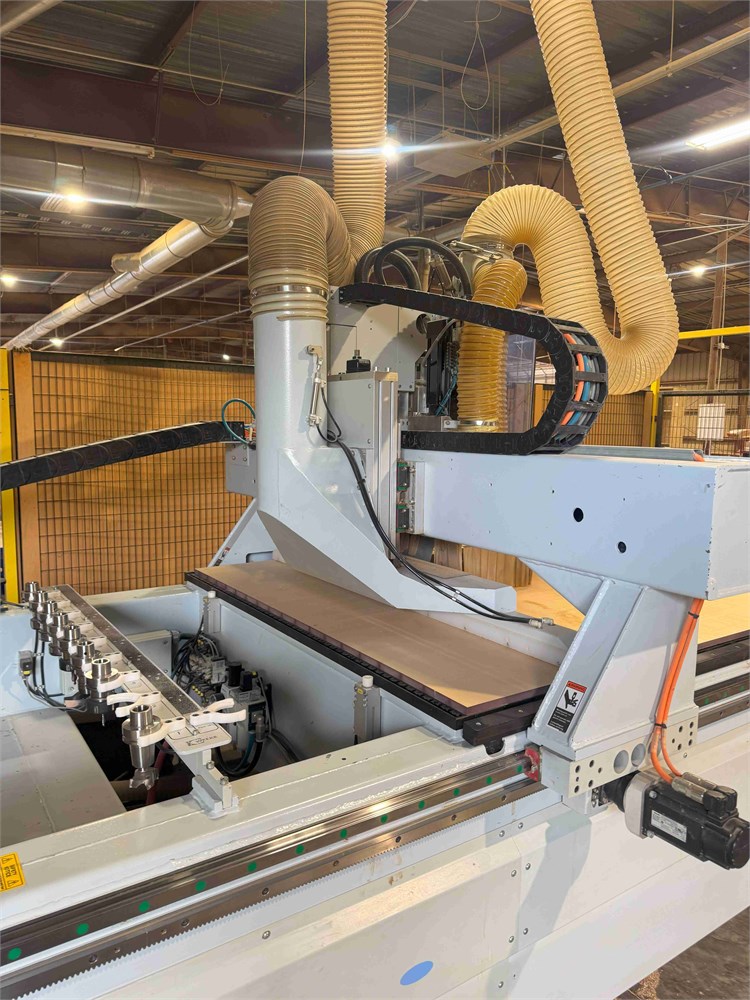

Boring unit with 3.6 HP (2.7 kW) motor, (7) Independent vertical spindles programmable variable speed from 1,500 - 7,500 RPM.
Sound enclosure
Front photo light barrier
Safety fencing with interlocked access door
Panel unloading/rake device with integrated dust collection
Bottom-mounted dust plenum between machine and outfeed conveyor
Top-mounted dust plenum mounted over outfeed conveyor

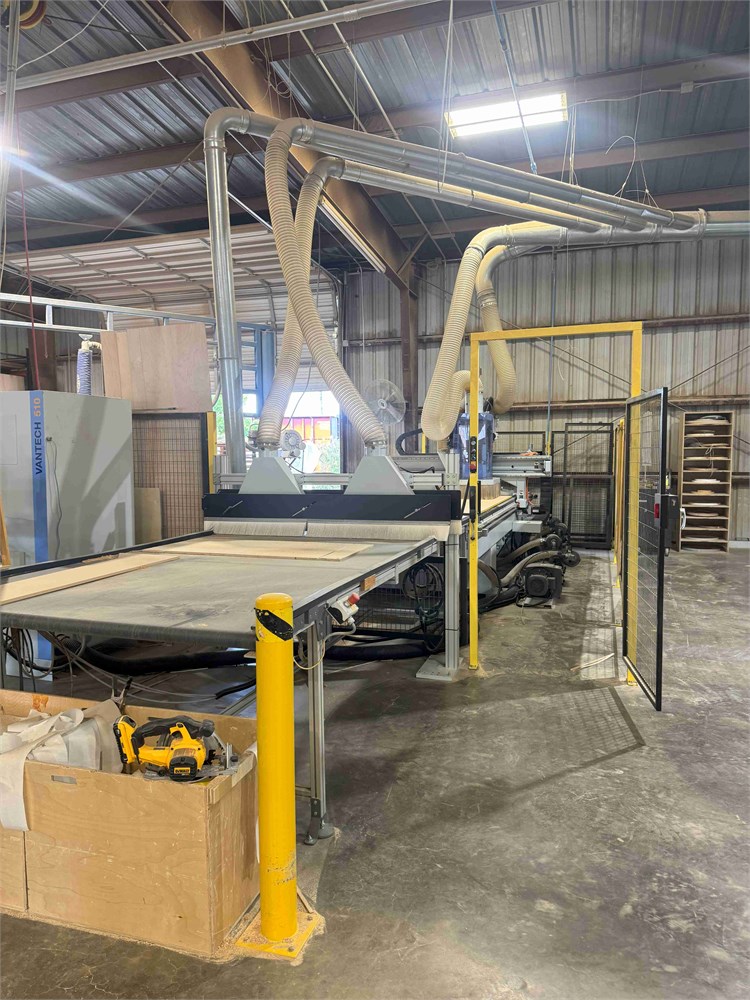

Powered Outfeed Belt Conveyor 76" x 168" x 65"H
Foot pedal control

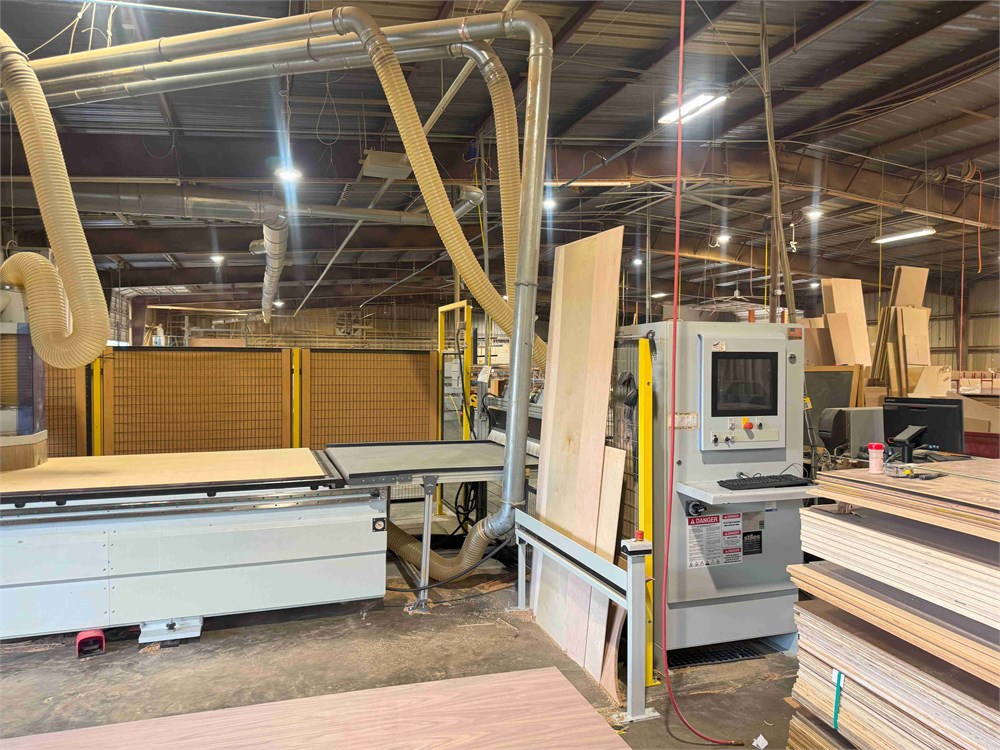

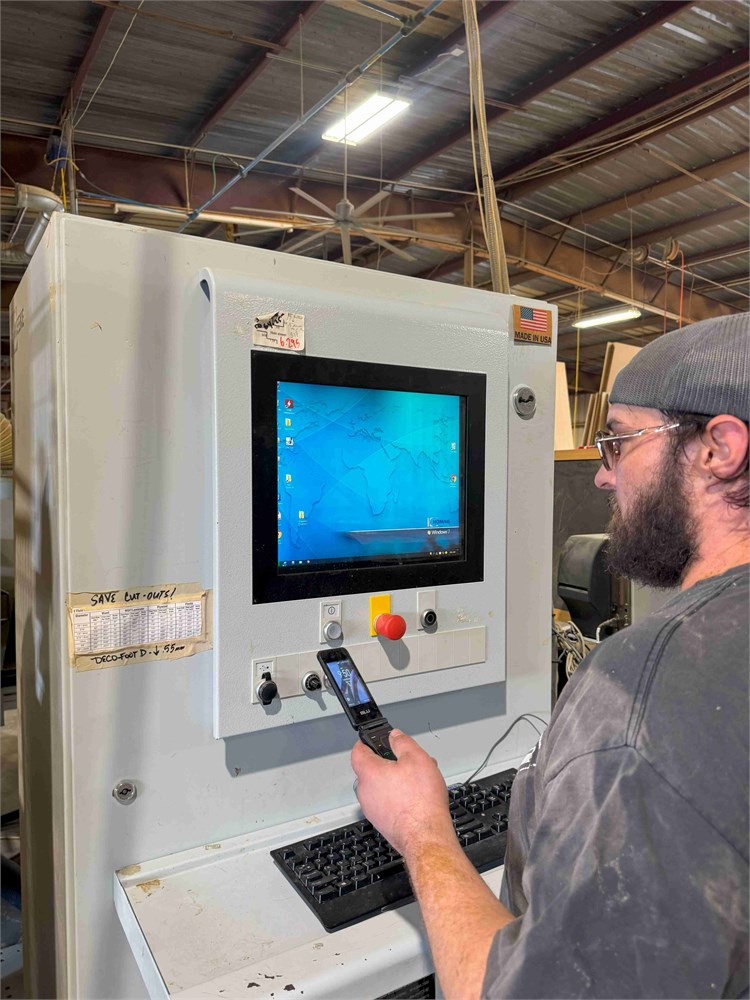

PC Front-End with WEEKE "PC 85T"
17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.
"BECKHOFF" Programmable logic control for (3/4) axes, linear, circular & helical interpolation; the controller is contained in a separate free-standing, dust-free control cabinet that can be placed at either the LH or RH side of the machine.

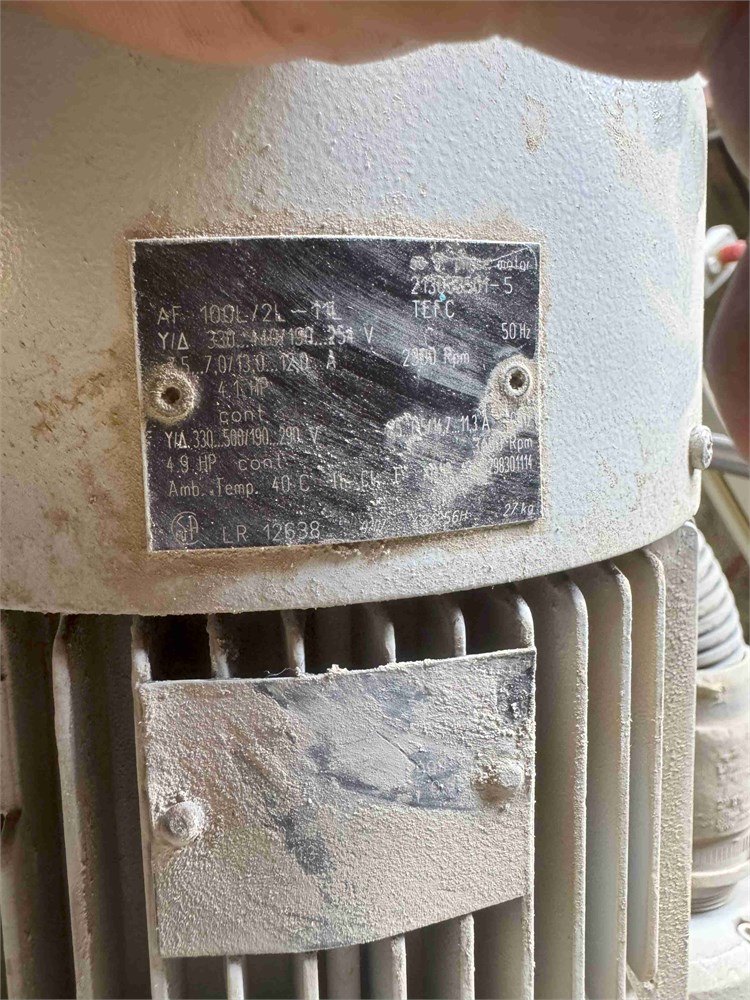

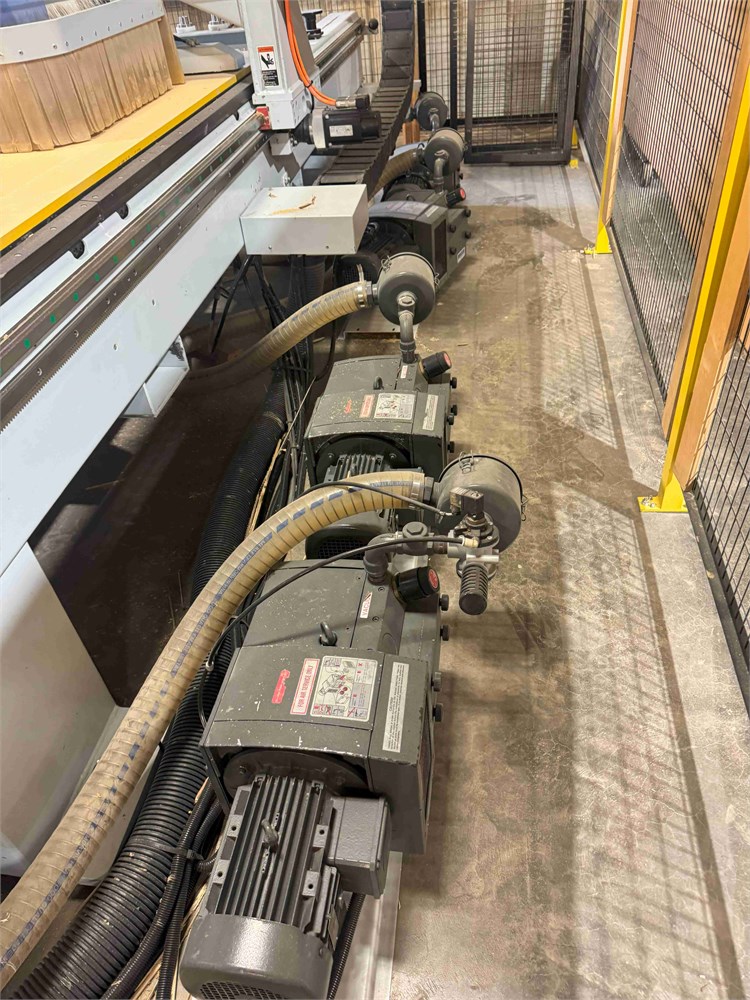

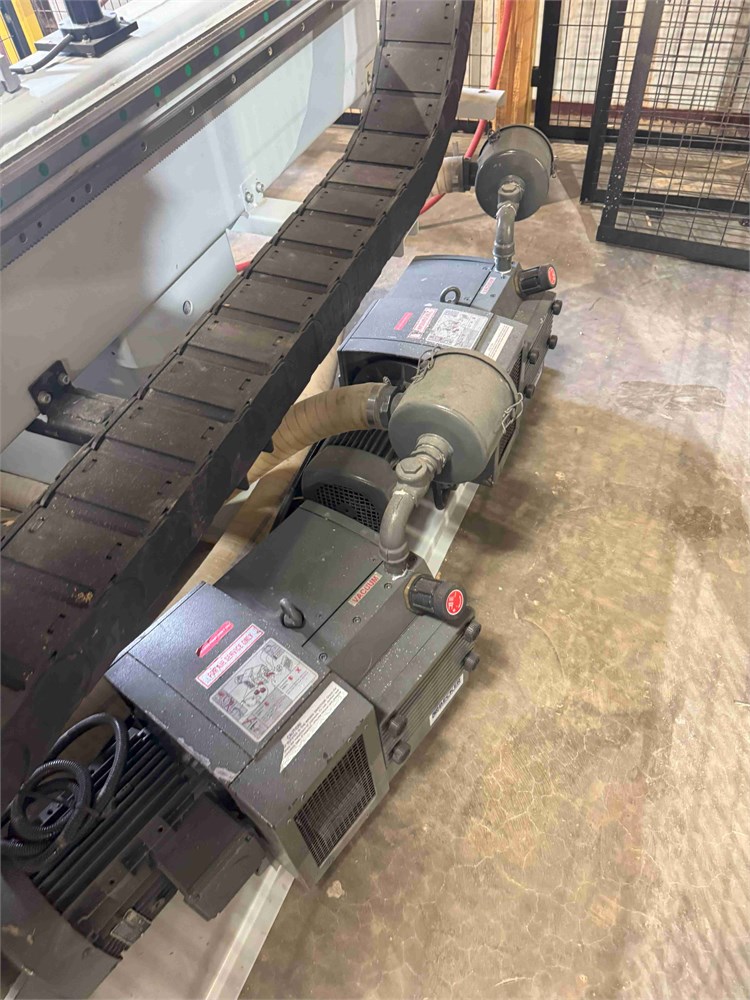

(4) Vacuum pumps included
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
