Homag "Centateq N-300" CNC with Unload Table
Ended
Complete Shop Liquidation - Eugene, OR
Eugene, OR
- Winning Bid : $47,250.00 USD Sold
- 140 Bid(s)
- High Bidder: m****y
Complete Shop Liquidation - Eugene, OR ( Closed #74895289 )
Commercial cabinet shop is closing and offering some GREAT machinery for auction. Homag CNC with unload table, IMA edgebander, wide belt sander, vacuum lifts, Selco beam saw, racks, tools, & finishing equipment.
-
Pick Up Location
91 S. Danebo Ave. Eugene, OR 97402
-
Make
Homag
-
Model
Centateq N-300
-

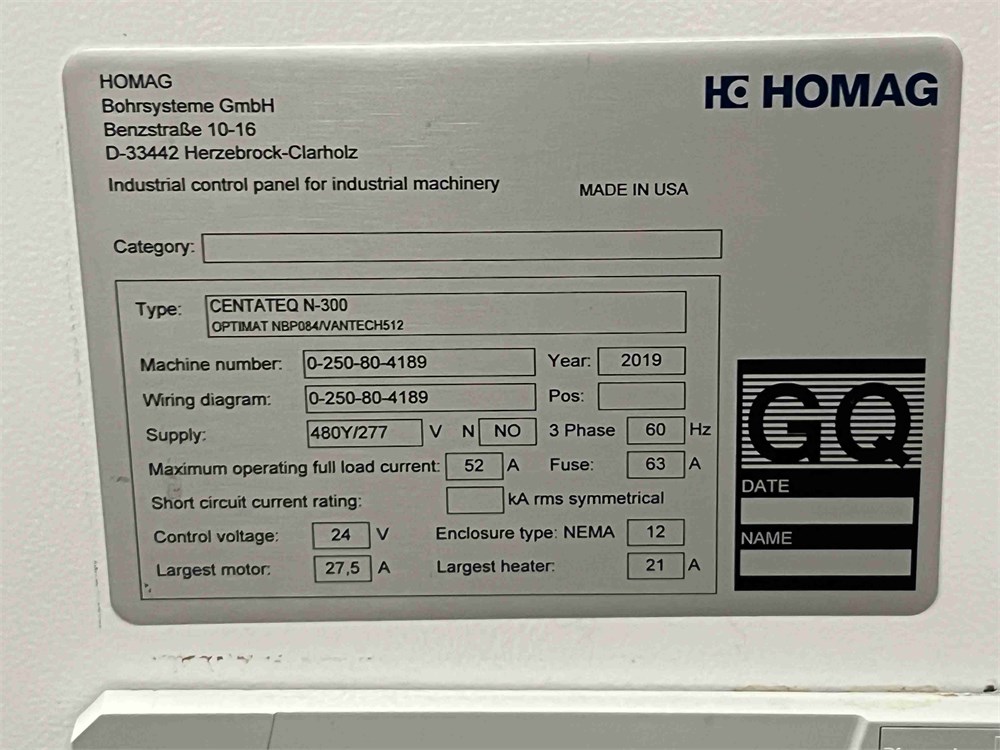

Serial Number
0-250-80-4189
-
Year
2019
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
Friday Sept 26, 2025 (9:00am - 3:00pm), contact Jack Ragan @ 503-806-4611. [email protected] for more information
-
Load Out Period
Monday October 6 - Thursday October 9, 2025 8:00am - 3:00pm (by appointment, text Mike Arnott @ 913-333-8396
-
Estimated Dimensions
34' x 15' x 8' total foot print - machine is 18' x 9' x 8'
-
Estimated Weight
10,000 pounds
-
Seller Comment
Buyer responsible for prep, loading, and shipping or hiring a rigger to do so.
-
Load Fee
0.00
-
Lot Notes
See Video!
-
page views
2672
Homag "Centateq N-300" CNC with Unload Table
See video of machine

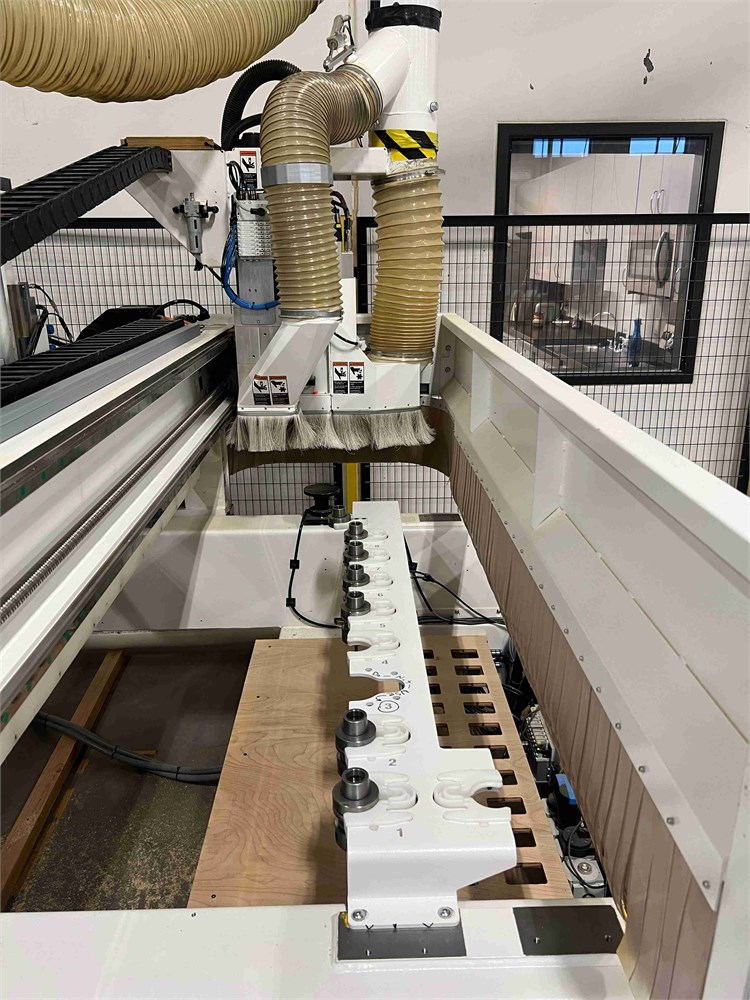

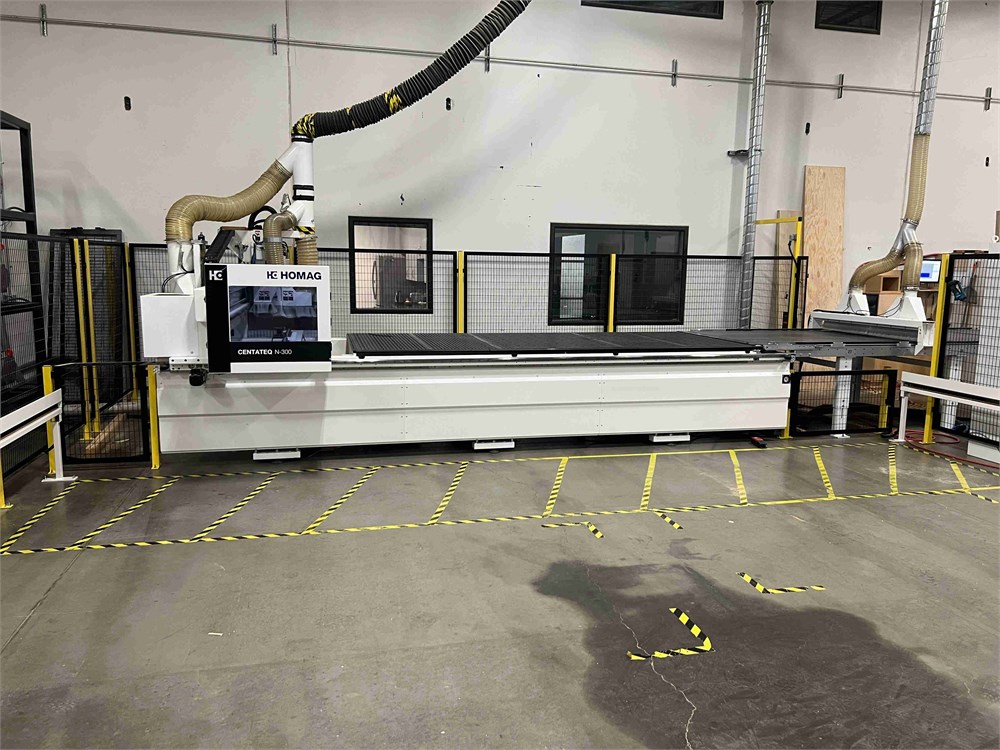

5' x 12' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.
"X" Axis is 145" (3,683 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).
"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);
The head travels via AC brushless drives & THK linear motion guides on all axes.

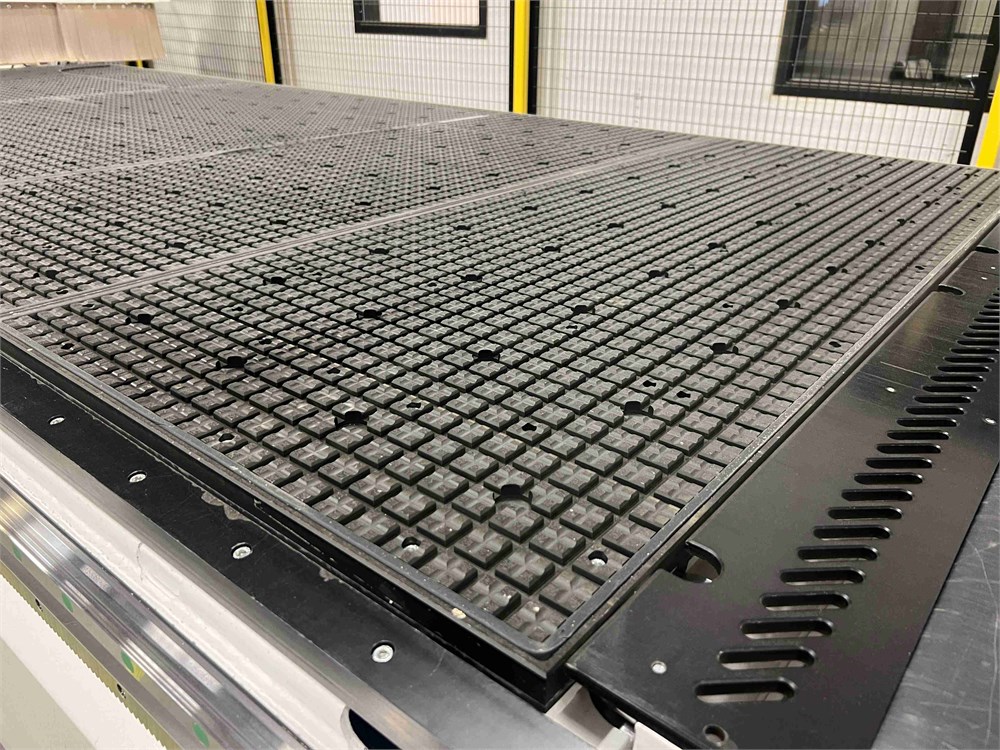

S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins.

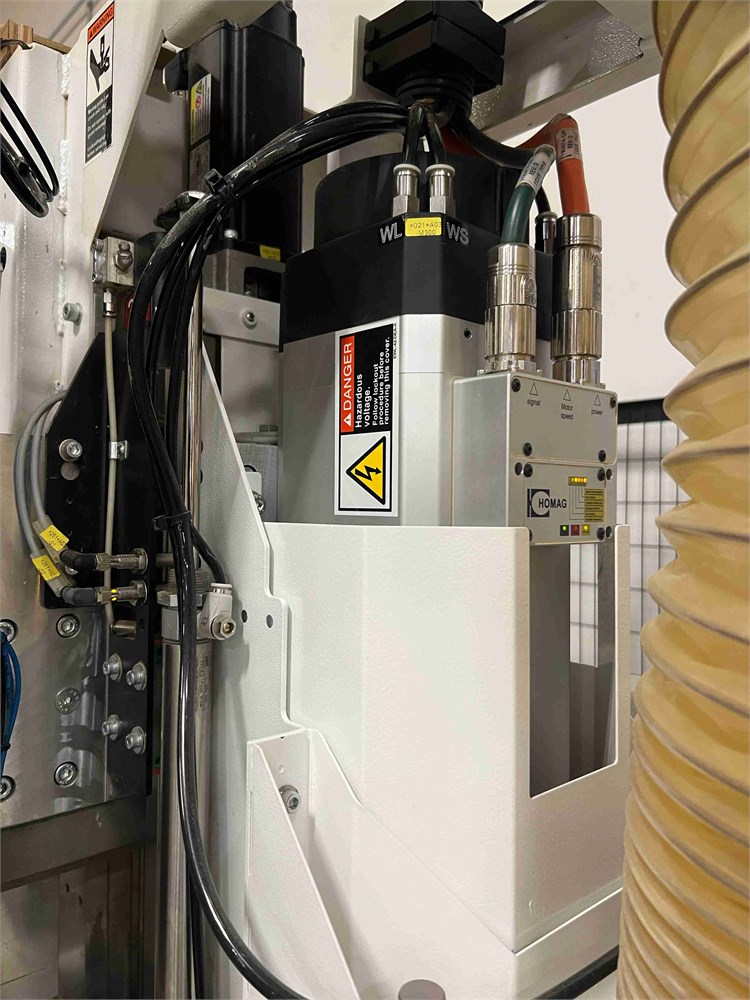

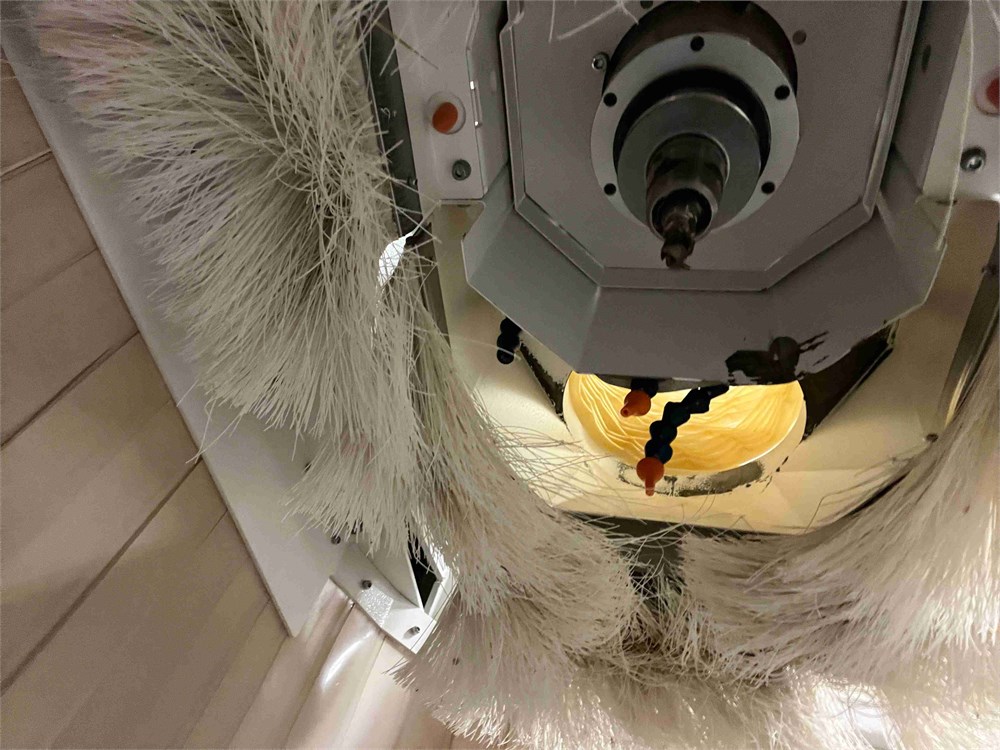

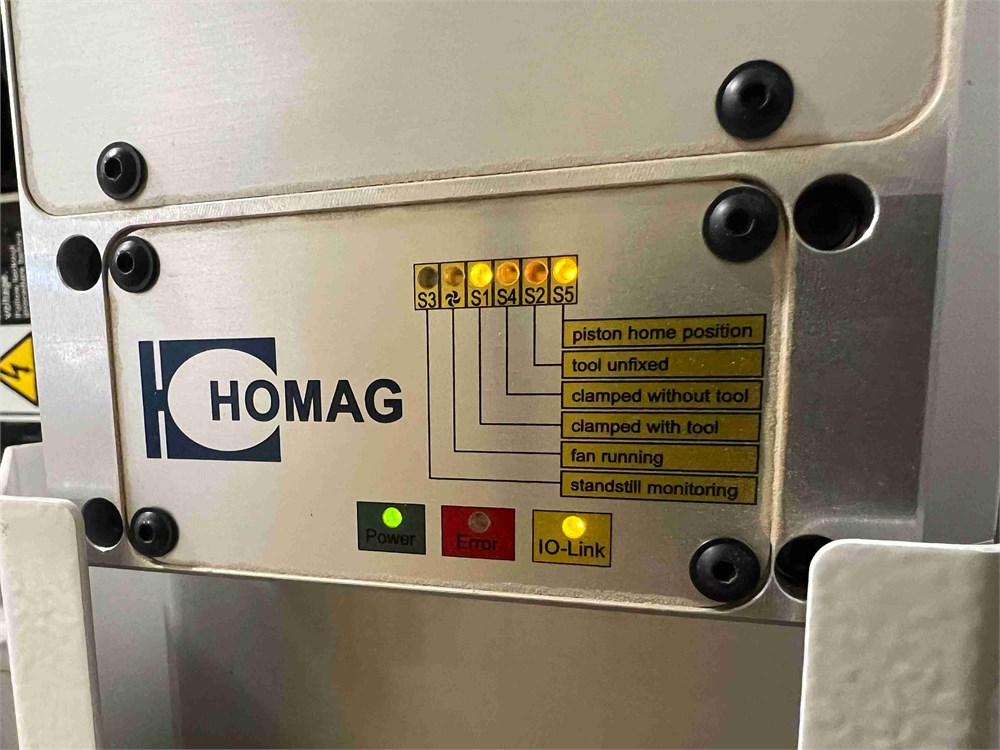

(1) 16 HP High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.
9-Position Tool Changer for HSK tooling

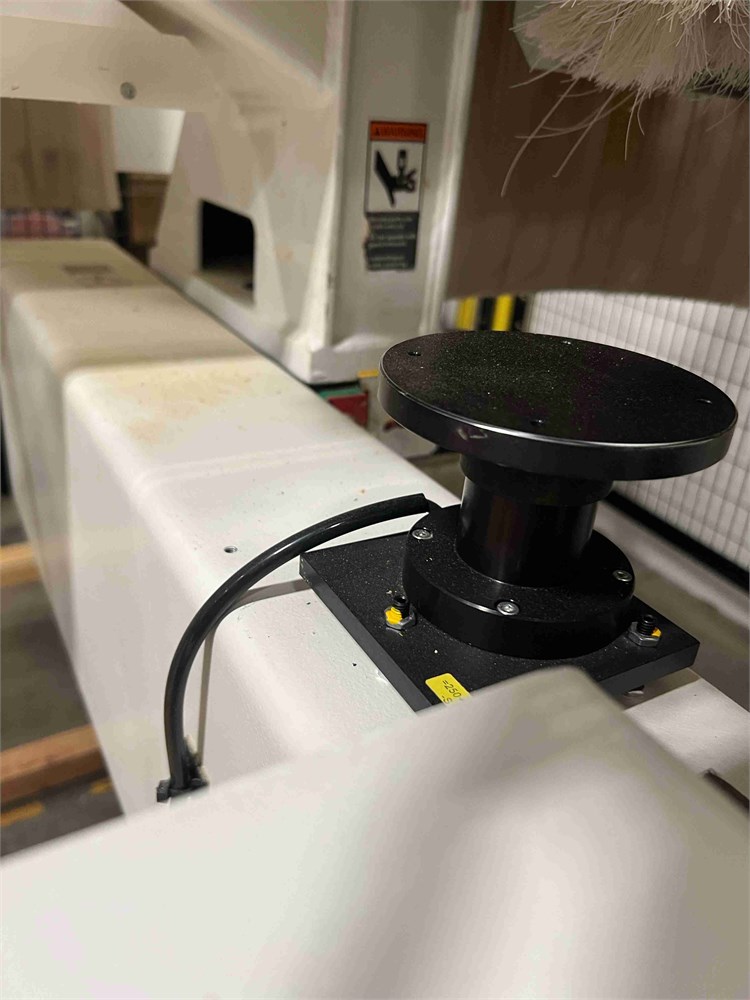

Tool length measuring device

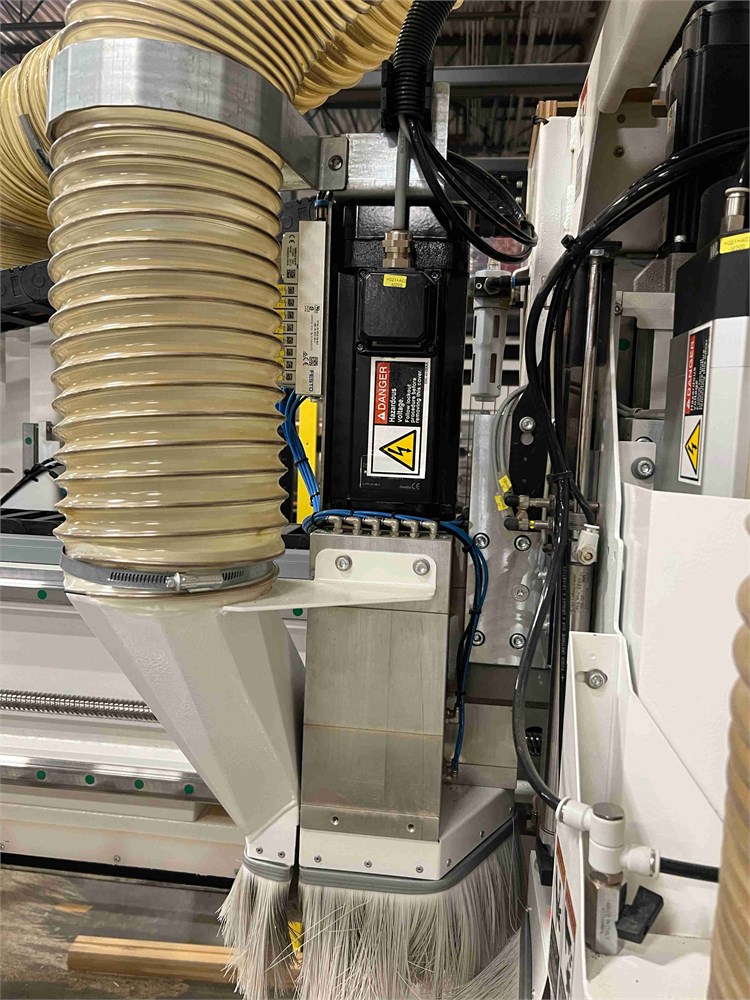

Boring unit with 3.6 HP motor, (12) Independent vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM.

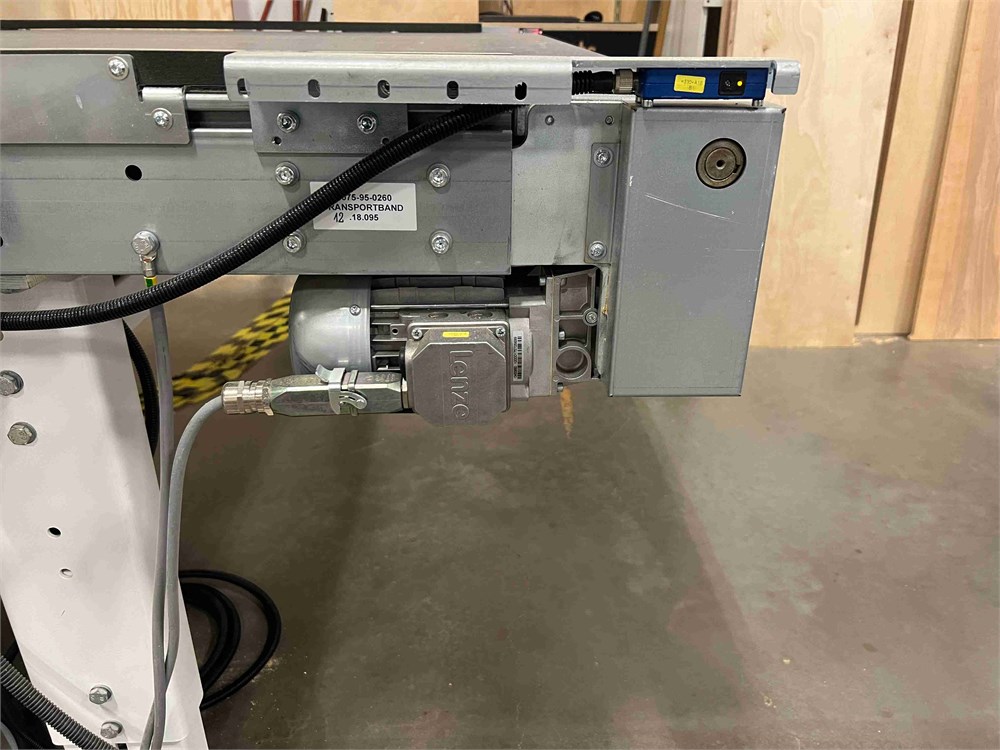

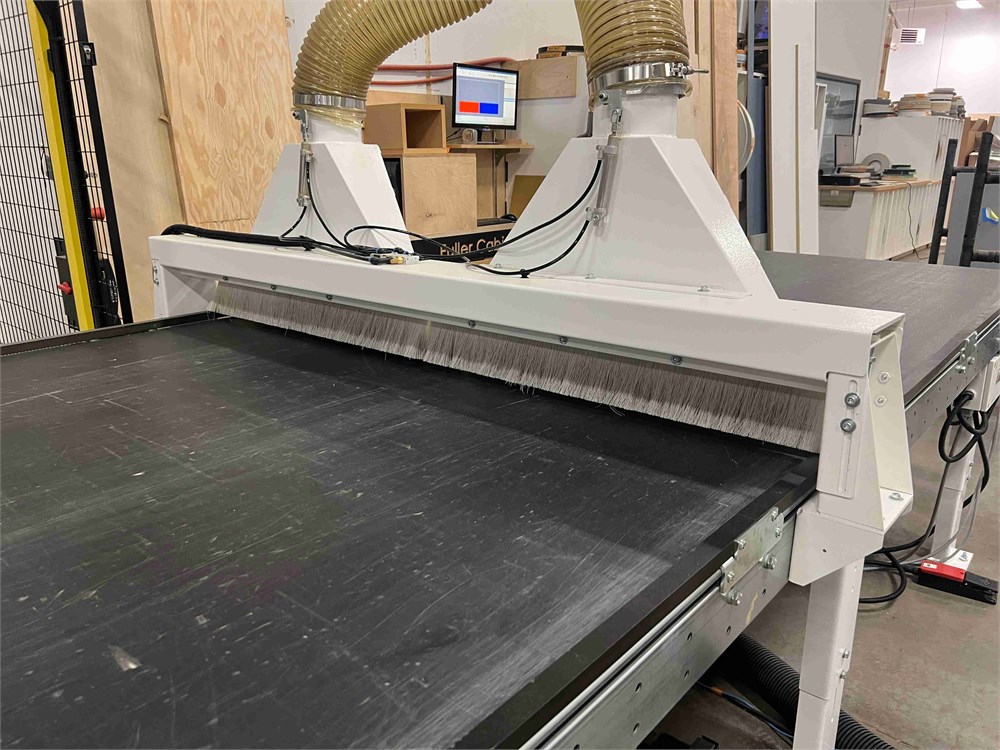

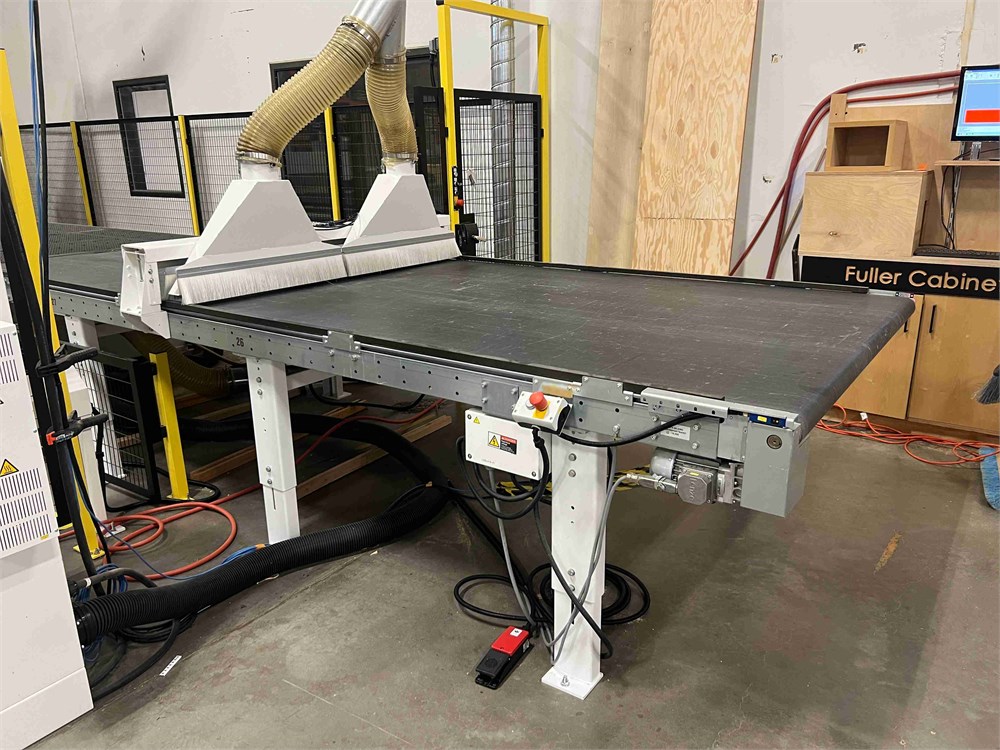

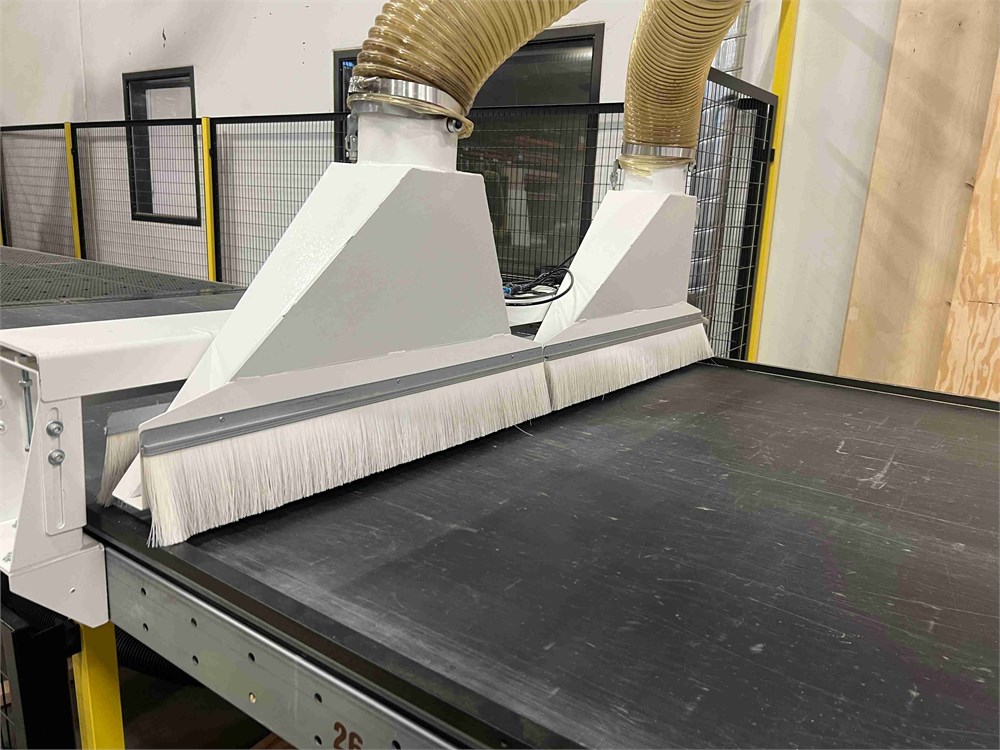

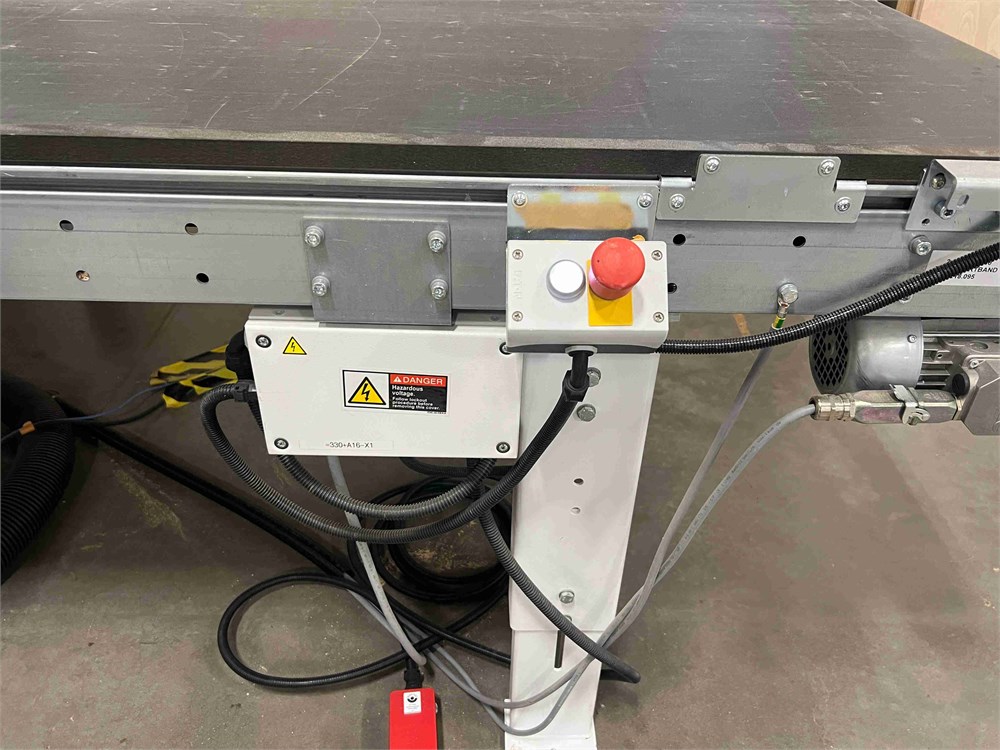

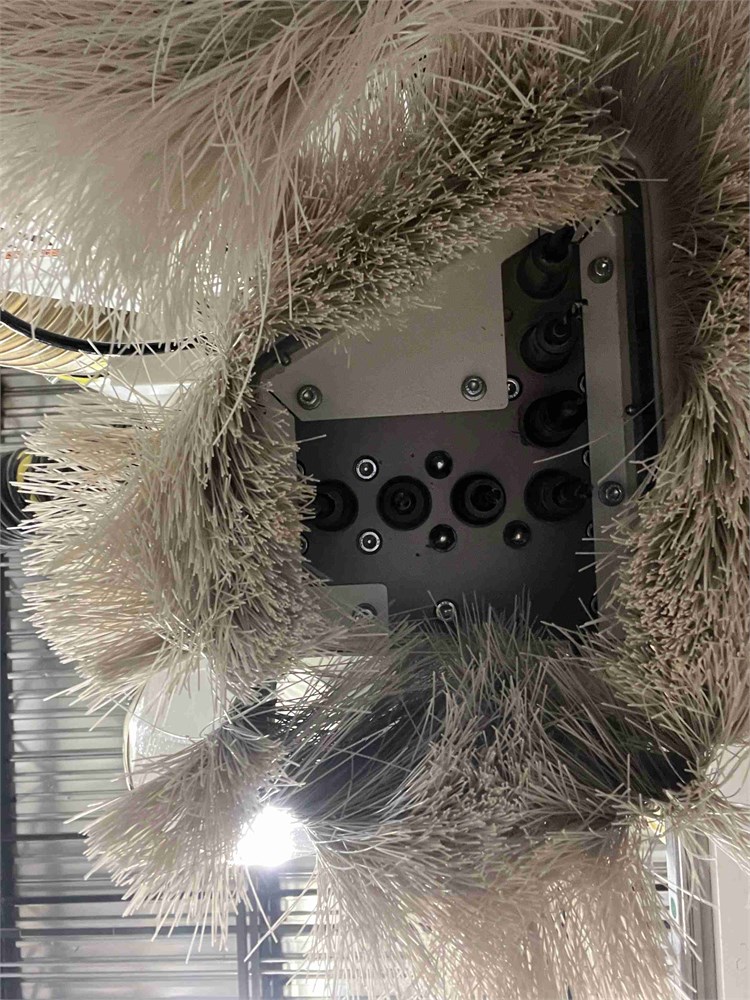

Rake off-feed system with 61" x 160" powered belt conveyor; bottom-mounted dust plenum; top-mounted dust extraction
Foot pedal operation
Front photo barrier

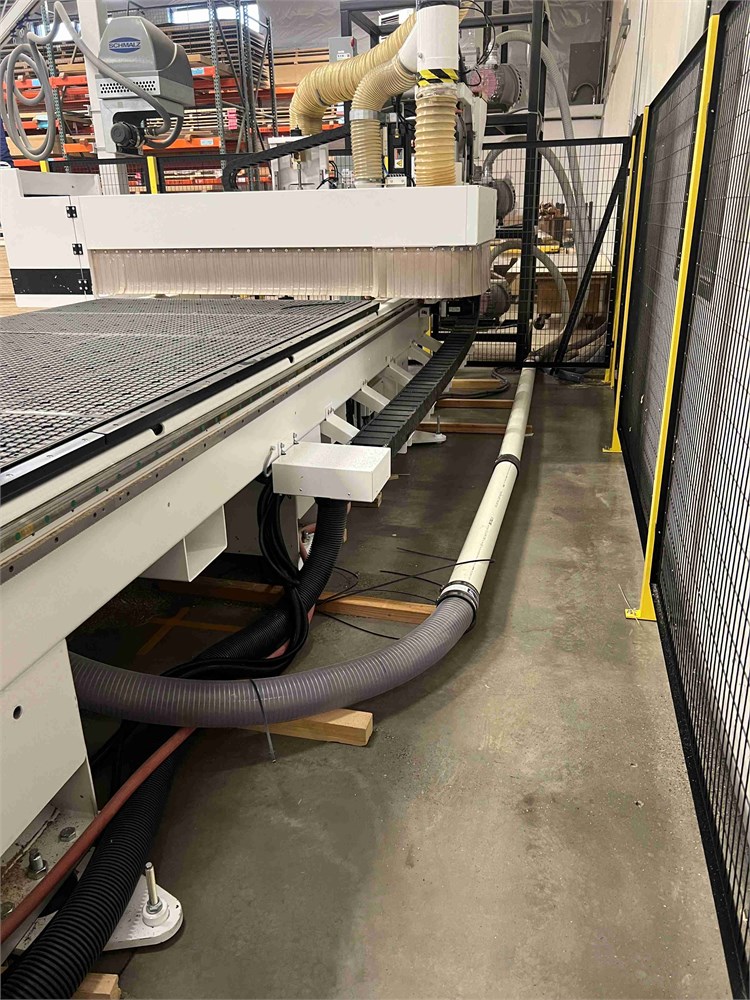

Safety fencing with interlocked access door

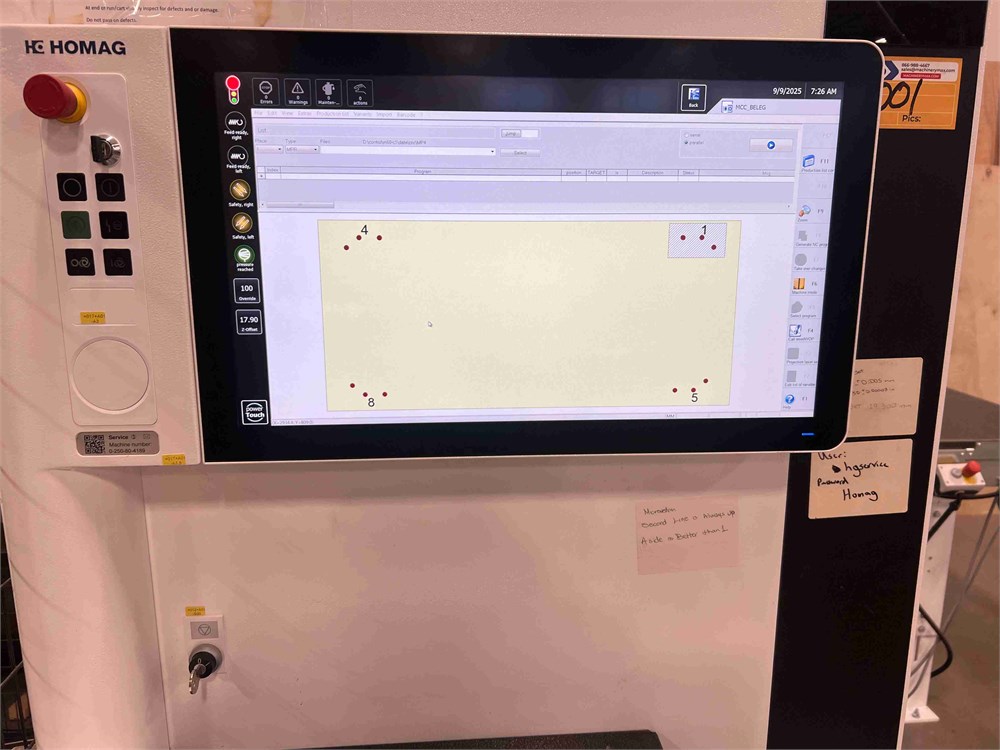

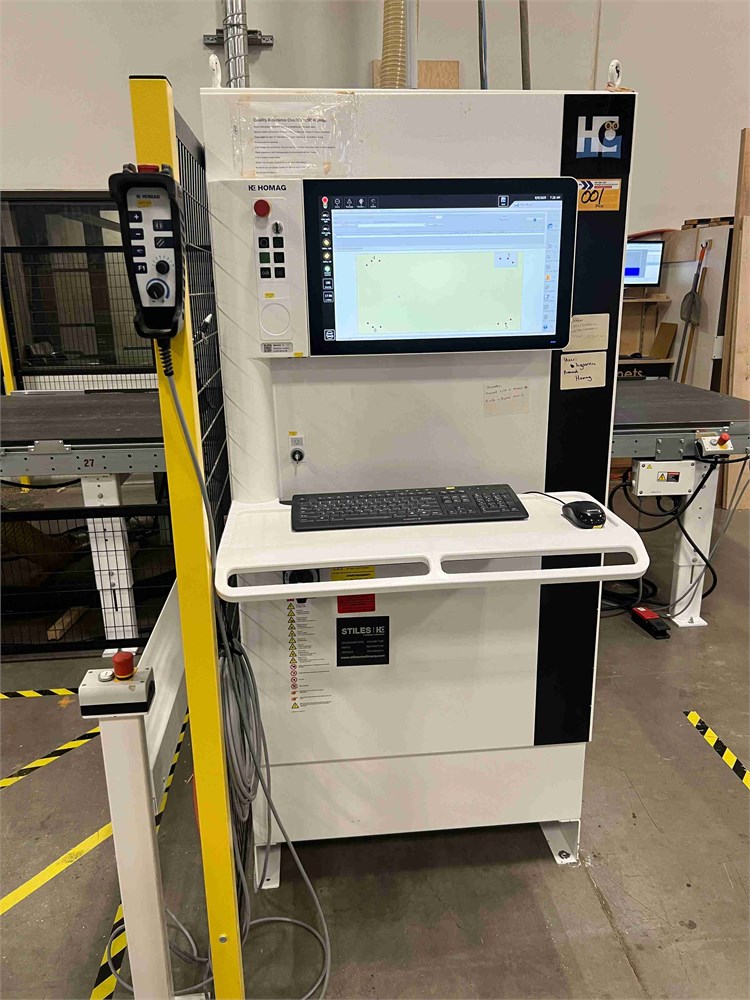

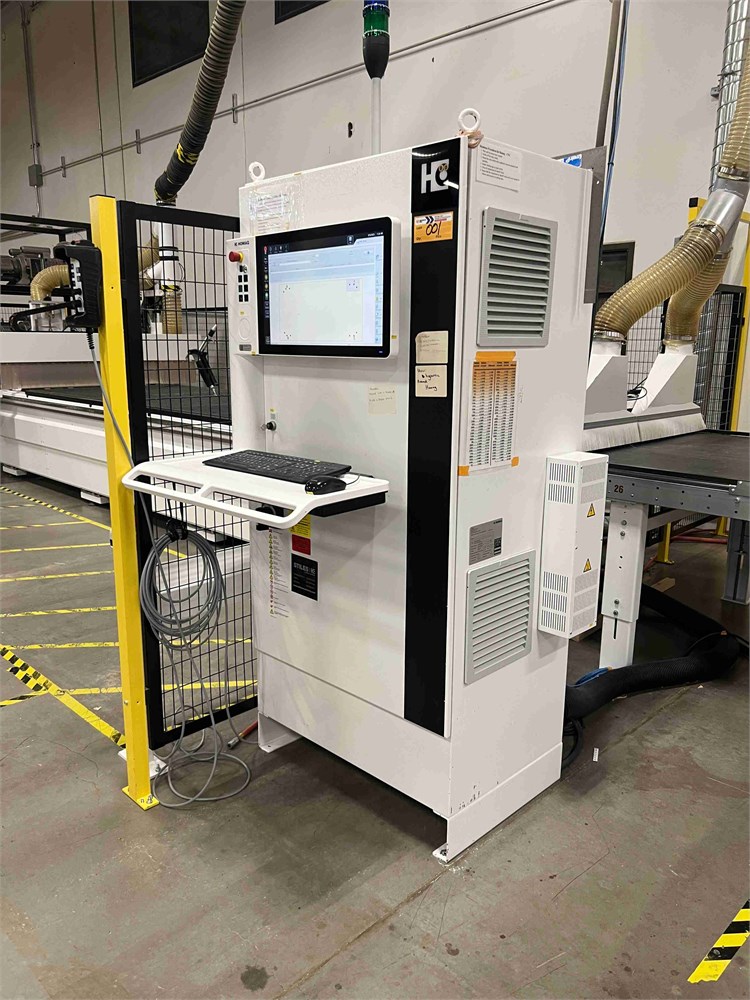

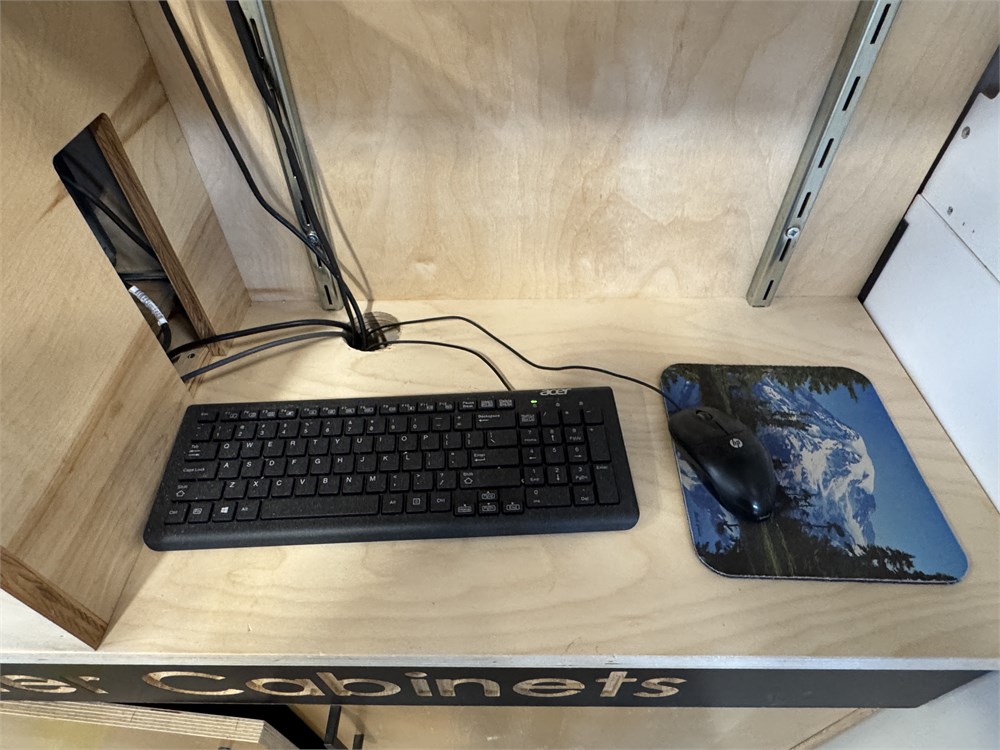

17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.

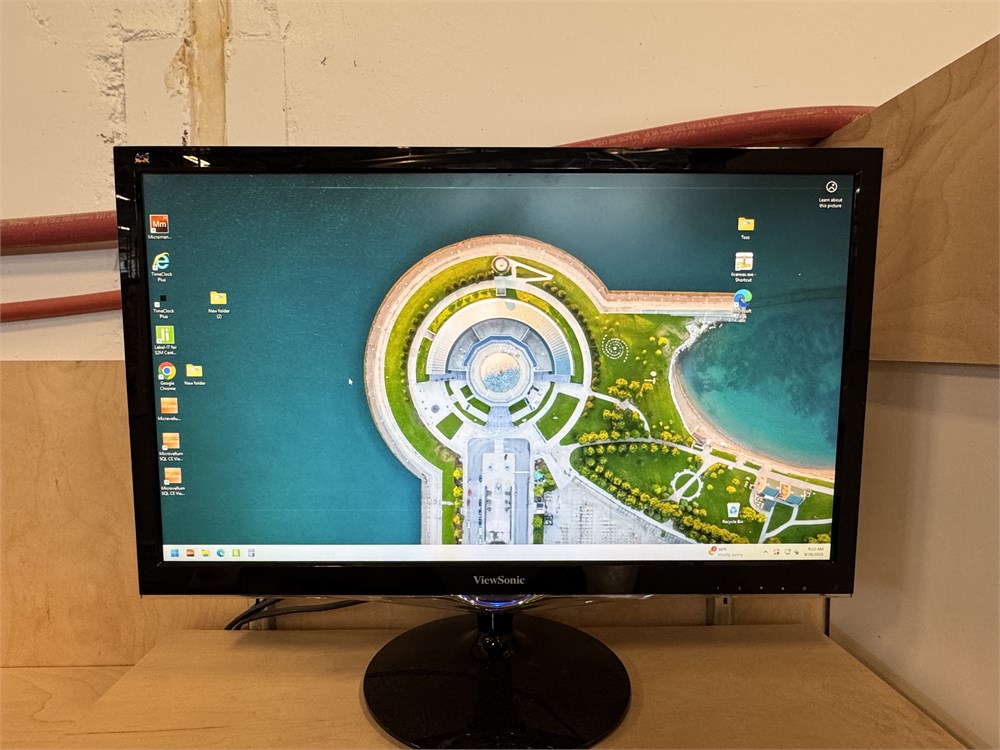

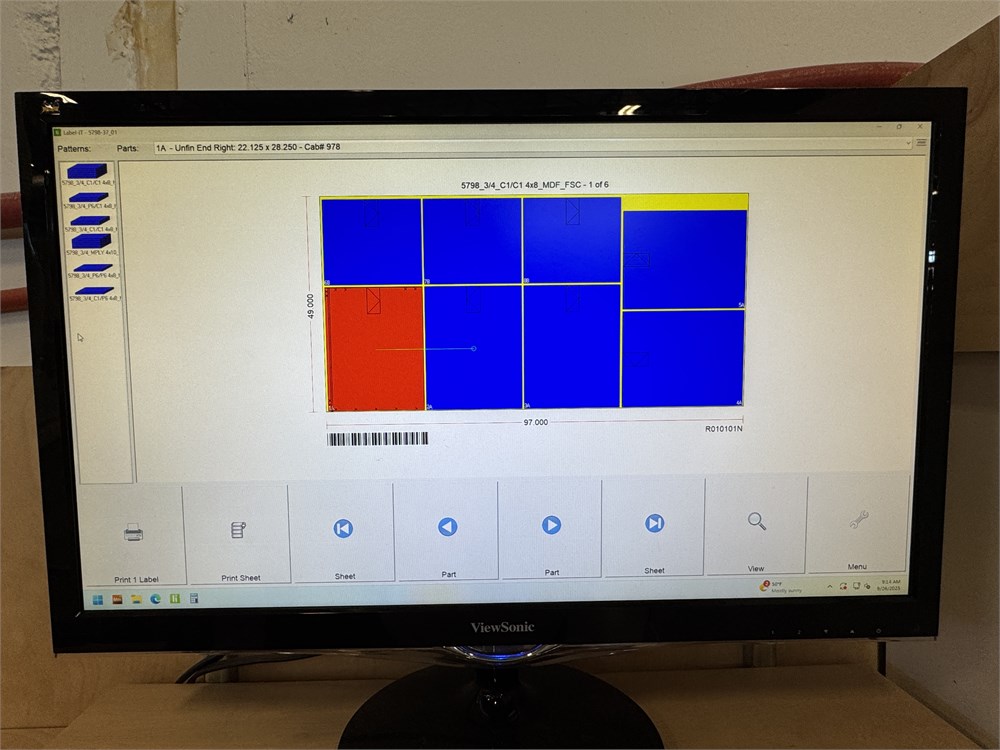

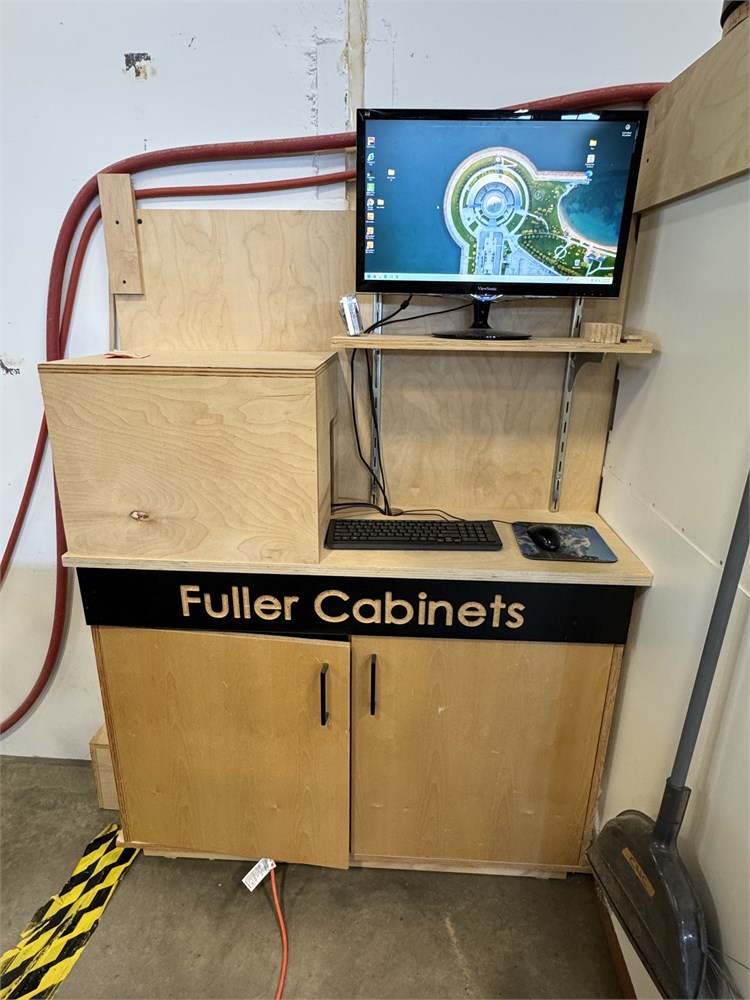

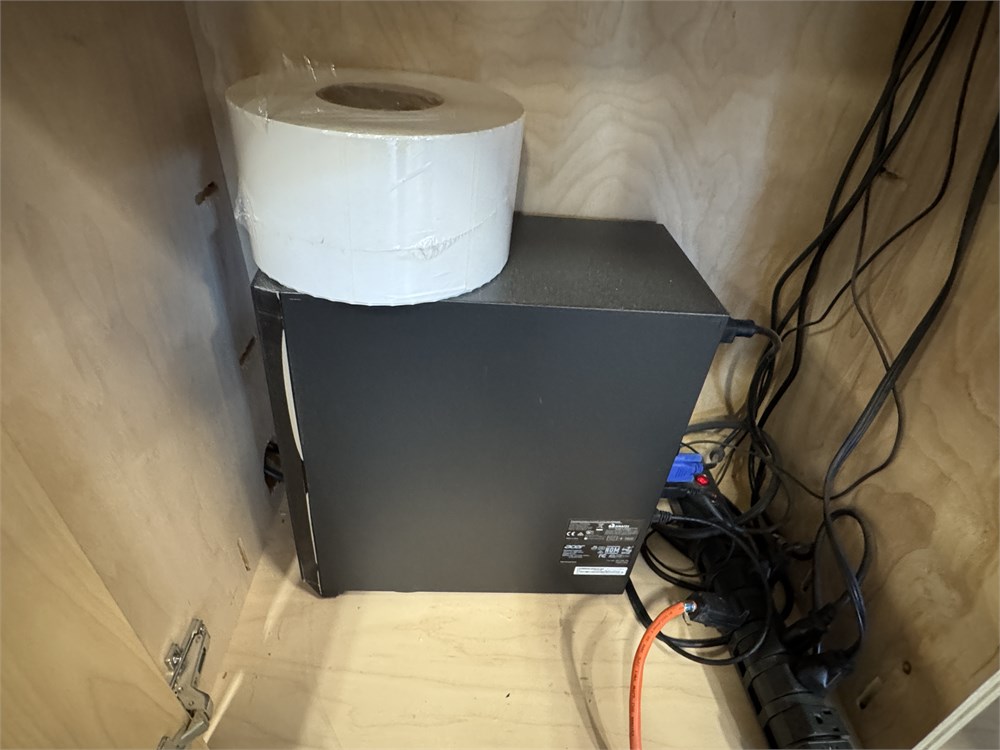

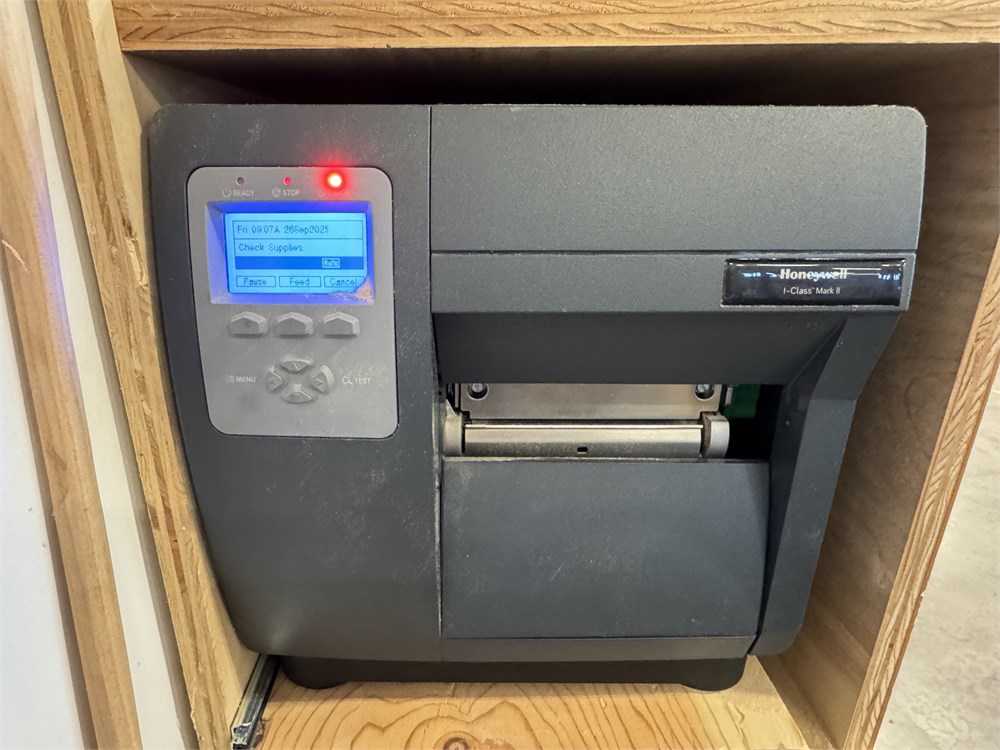

Bar code printing station with PC, monitor and printer

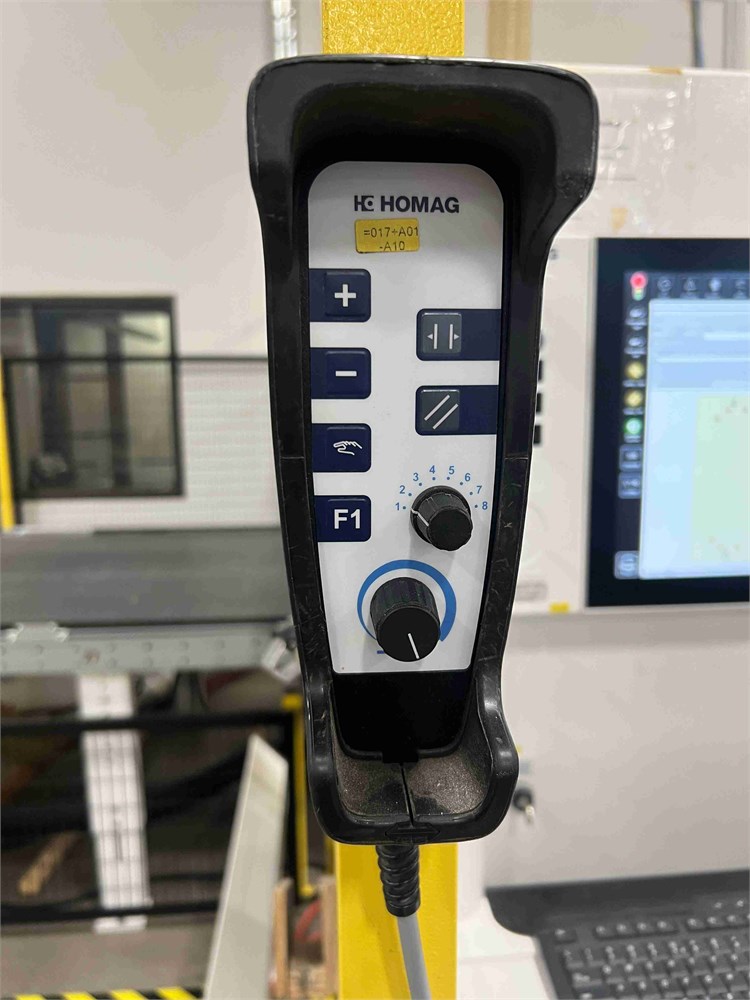

Remote control pendant
Manuals
Vacuum pumps not included. Offered in lots 002 A, B, C
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
