Homag "Centateq N-300" CNC (2023) Only 1100 hours - Chatham, ON Active

7544 West Lewis Line Dover Center, ON Canada

Chatham, Ontario Canada


Days

Hours

Min

Sec

Lot Closes:

9/30/2025 9:30:00 AM PT
1 Watching
Add to Watchlist

Minimum Bid:

$5,000.00 CAD

Number of Bids:

0

Current Bid:

$5,000.00 CAD ( $3,623.19 USD ) No Reserve
Your Maximum Bid Is $0.00 CAD
$CAD
Quick Bid $5,000.00 CAD
Or
Or
  • Starting Bid : $5,000.00 CAD ( $3,623.19 USD ) No Reserve
  • 0 Bid(s)
Documents
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
13.00% Sales Tax

Homag Centateq (2023) - Chatham, Ontario Canada ( Active #74870805 )

GROUND LEVEL LOADING

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    7544 West Lewis Line Dover Center, ON Canada

  • Make

    Homag

  • Model

    Centateq N-300

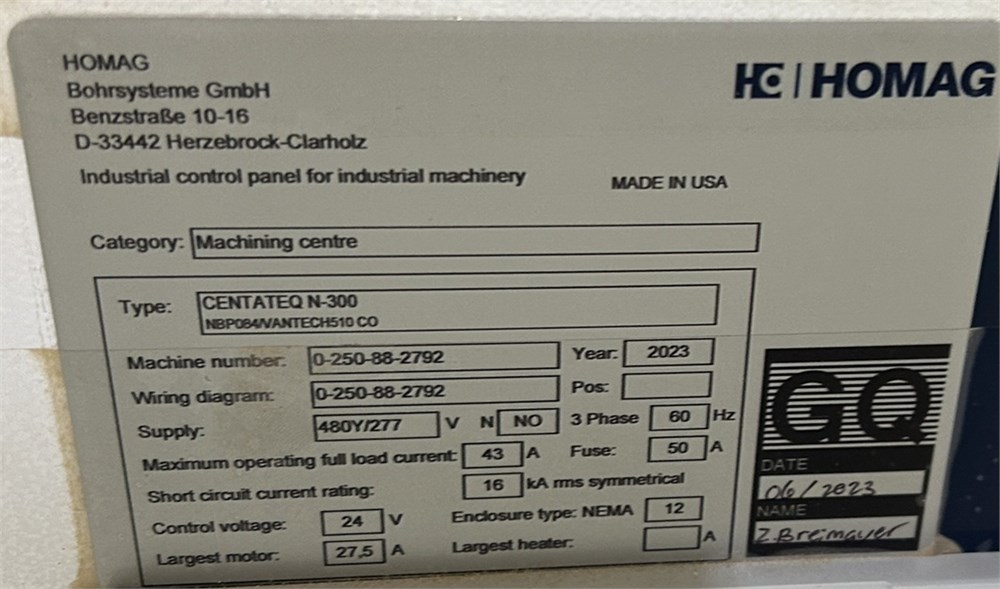

  • Serial Number

    250-88-2792

  • Year

    2023

  • Phase

    3 PHASE

  • Voltage

    480 VOLT

  • Buyer Inspection Period

    Monday Sept 29 2025 (10:30 am - 1:30pm)

  • Load Out Period

    Oct 6-7 2025 Two Days Only

  • Estimated Dimensions

    20' L x 8'W x 7'H

  • Estimated Weight

    7500 lbs

  • Seller Comment

  • Load Fee

  • Lot Notes

  • page views

    24

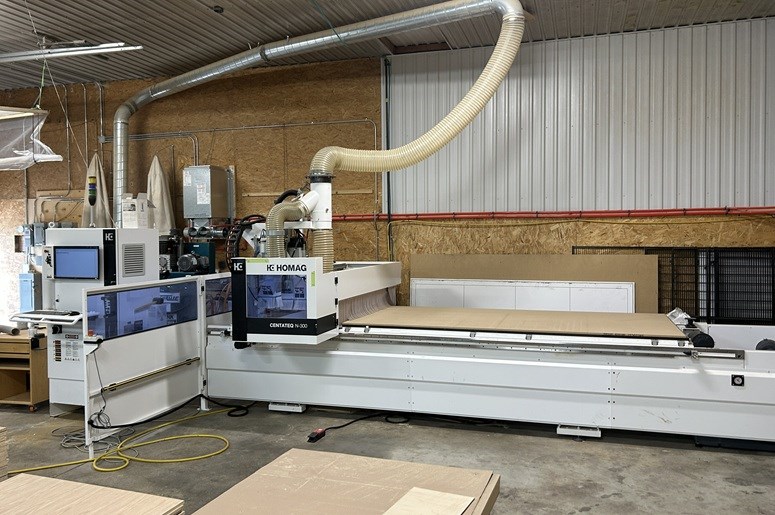

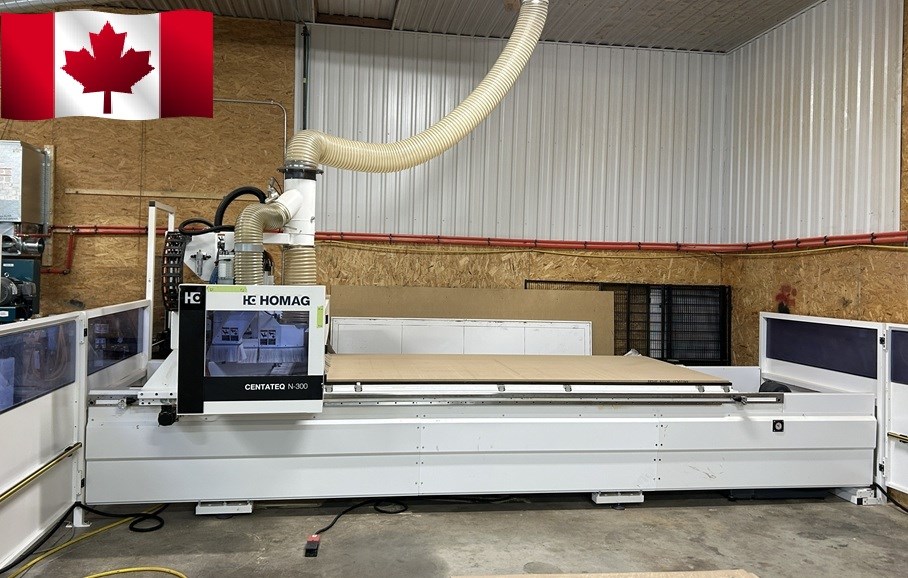

Homag Centateq N-300

SEE VIDEO

PLEASE SEE THE TWO ATTACHED PDF FILES OF THE ORIGINAL QUOTE

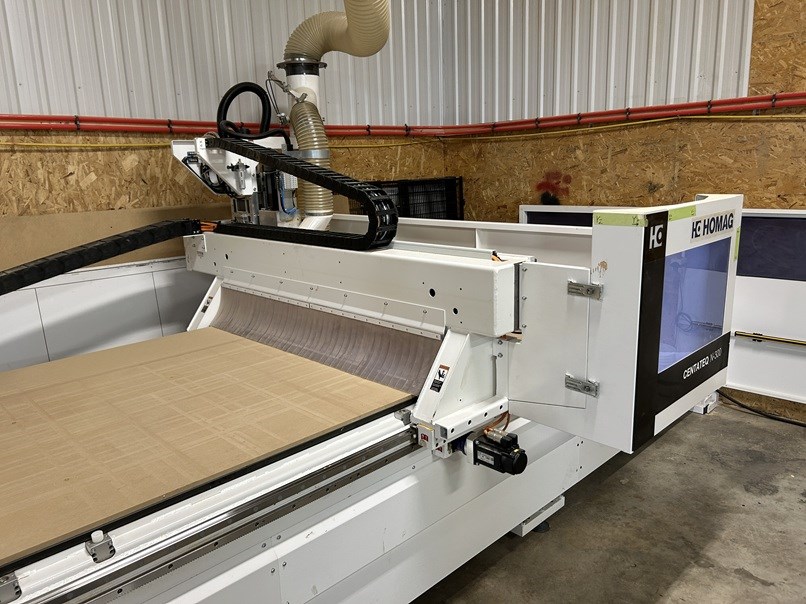

5' x 10' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table.

"X" Axis is 145" (3,683 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).

"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

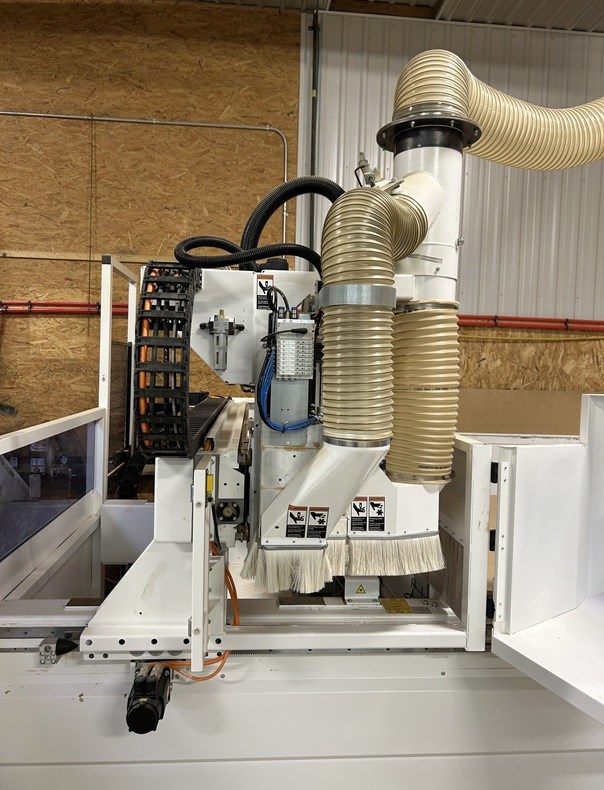

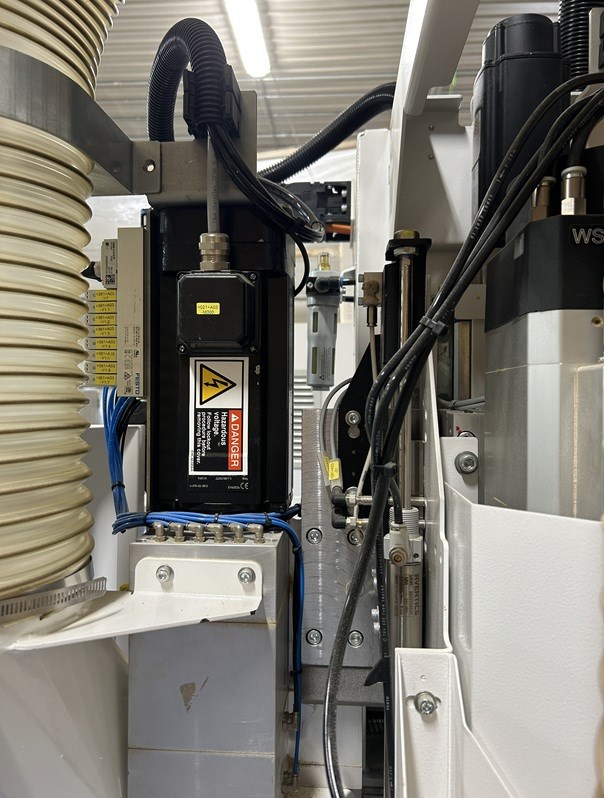

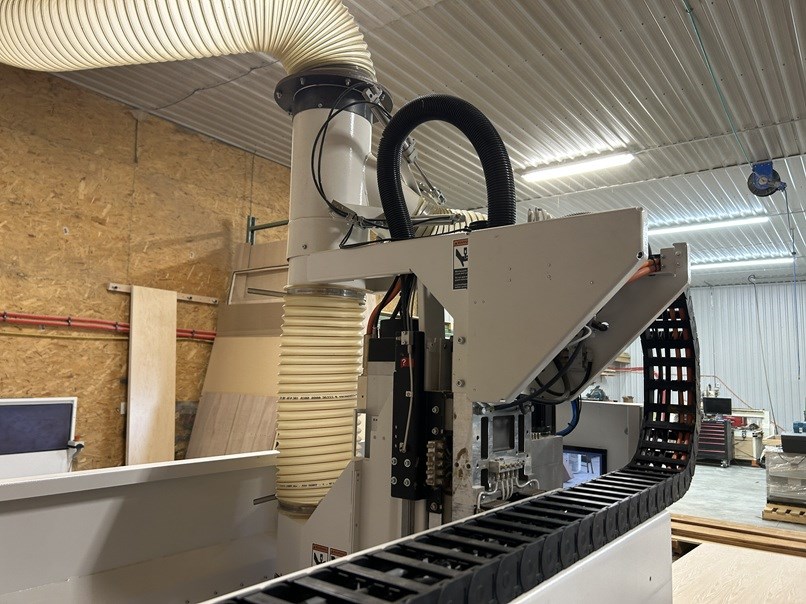

The head travels via AC brushless drives & THK linear motion guides on all axes.

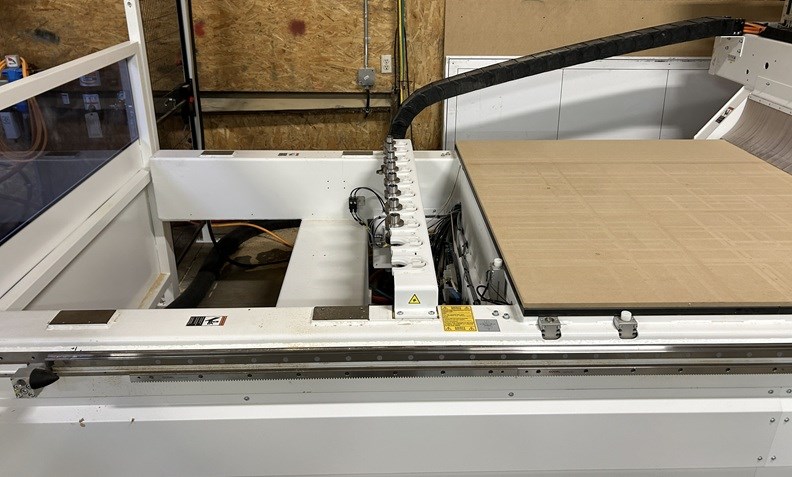

S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins.

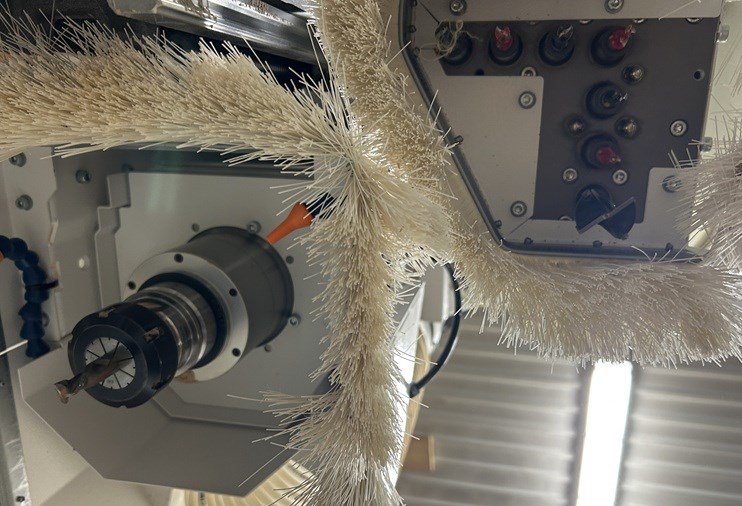

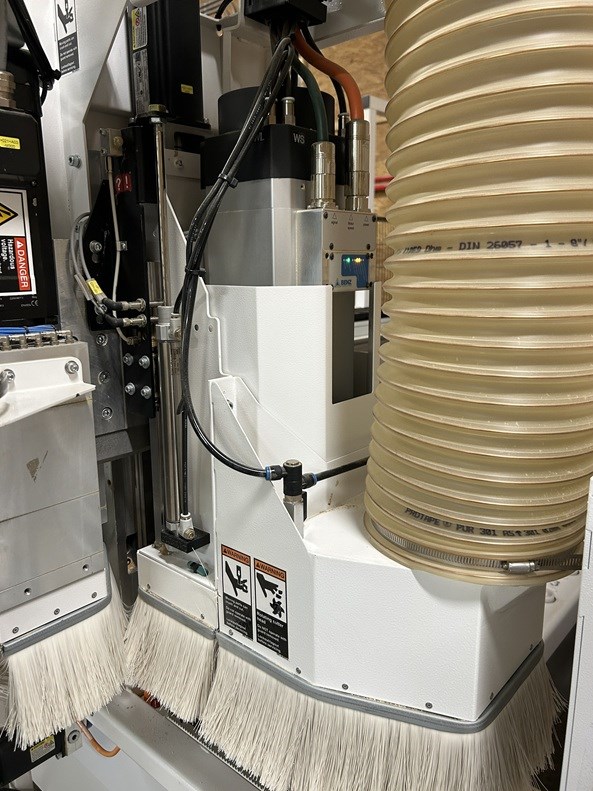

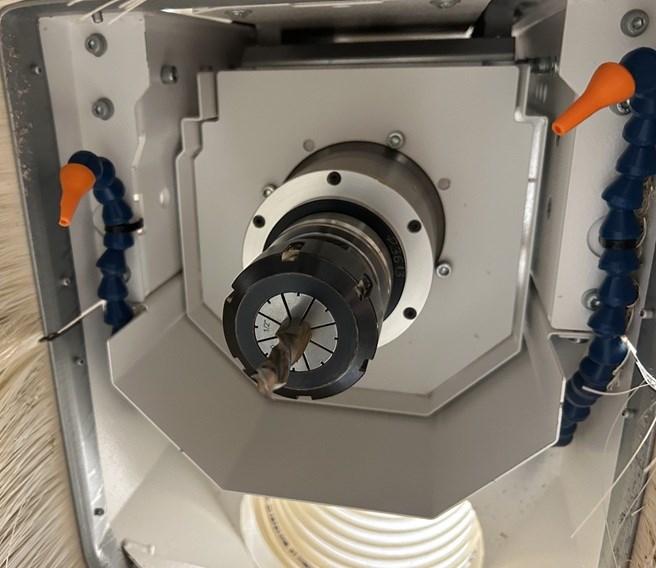

(1) 10 Kw (16 HP) High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.

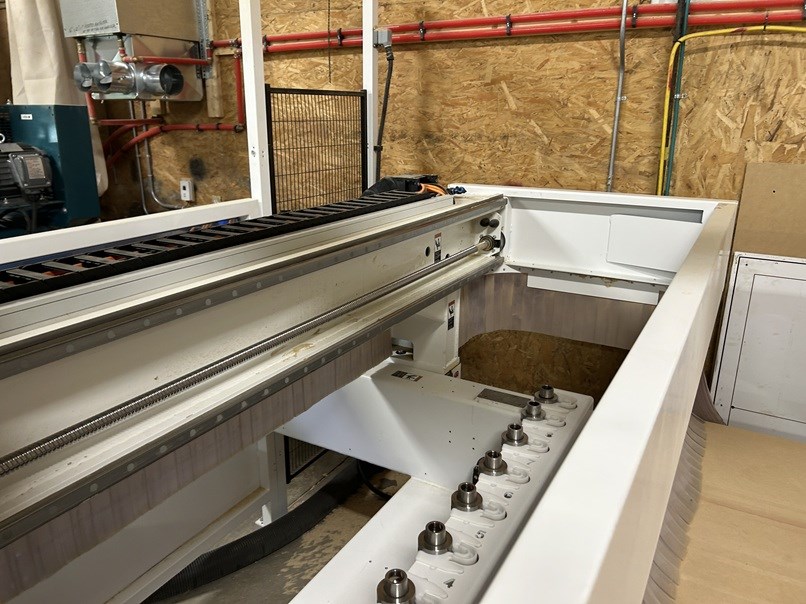

8 + 2 Tool Rack at end of machine & touch-off pad.

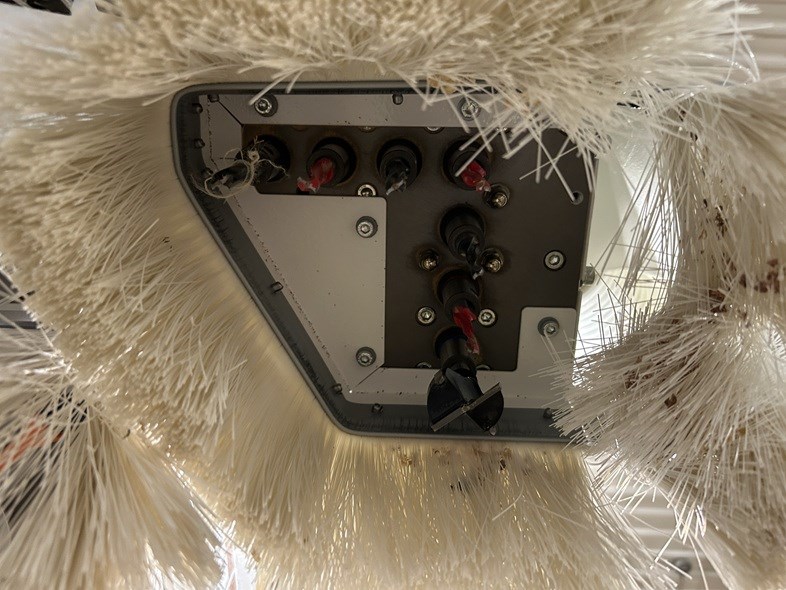

Boring unit with 3.6 HP (2.7 kW) motor, (7) Independent vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM.

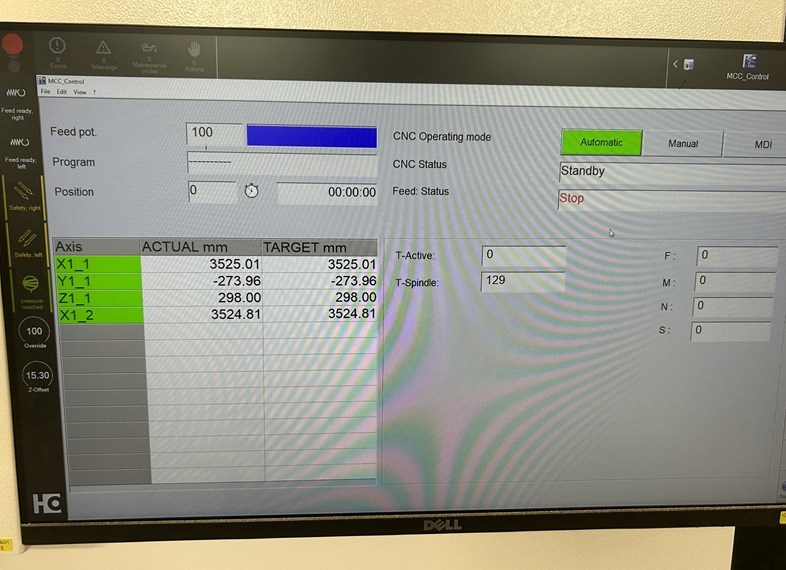

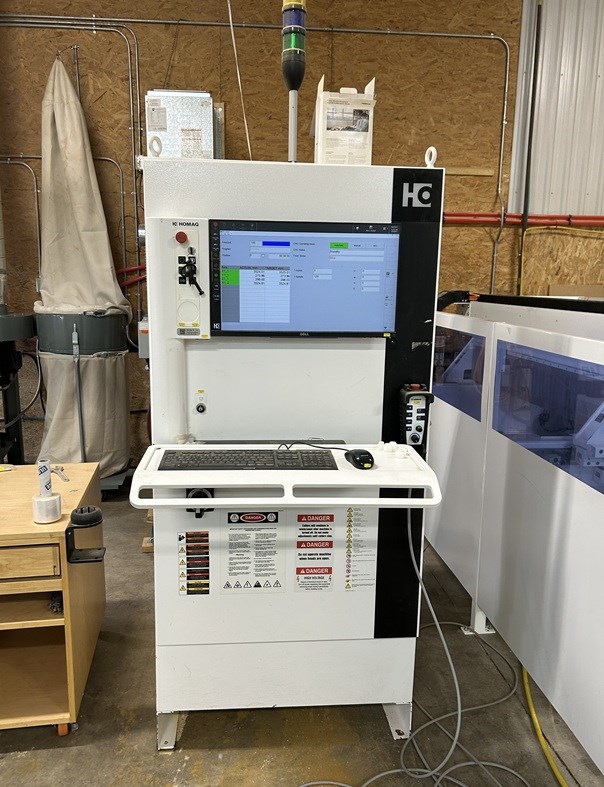

17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.

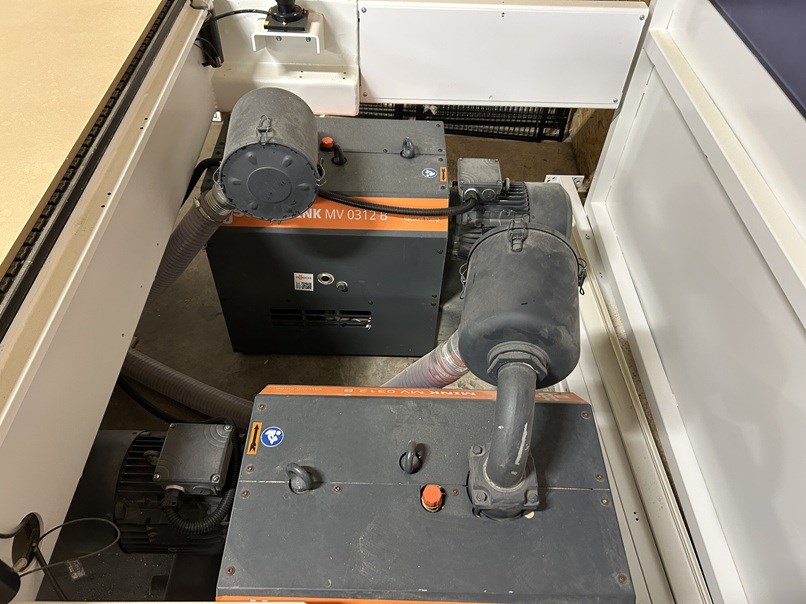

(2) Busch vacuum Pumps

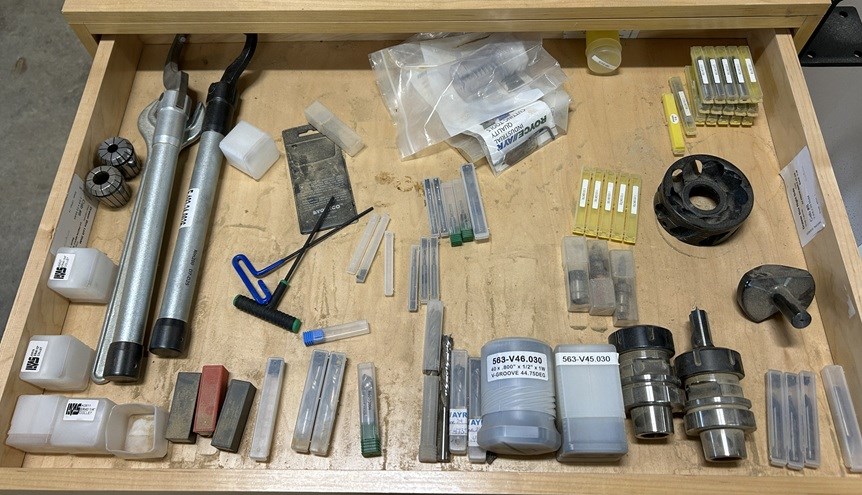

c/w Manuals & All Tooling

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
