Weeke "Optimat BP140" CNC Machining Center - Idaho Falls, ID ( Active #74891320 )

A storage solution manufacturing compnay in Idaho Falls, ID is auctioning a Weeke "BP140" Pod and Rail CNC no longer required for continuing operations.

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    3449 East 1850 N. Idaho Falls, ID, 83401

  • Make

    Weeke

  • Model

    BP 140

  • Serial Number

    0-250-18-0748

  • Year

    2001

  • Phase

    3 PHASE

  • Voltage

    230/460

  • Buyer Inspection Period

    By appointment only, contact Thomas Aronson [email protected] 941-699-8717

  • Load Out Period

    September 24-25th, 2025 (By Appointment Only)

  • Estimated Dimensions

    253" L x 153" W x 94" H

  • Estimated Weight

    8,000 lbs

  • Seller Comment

    A Rigger is required for load out. See Homepage for details

  • Load Fee

  • Lot Notes

  • page views

    13

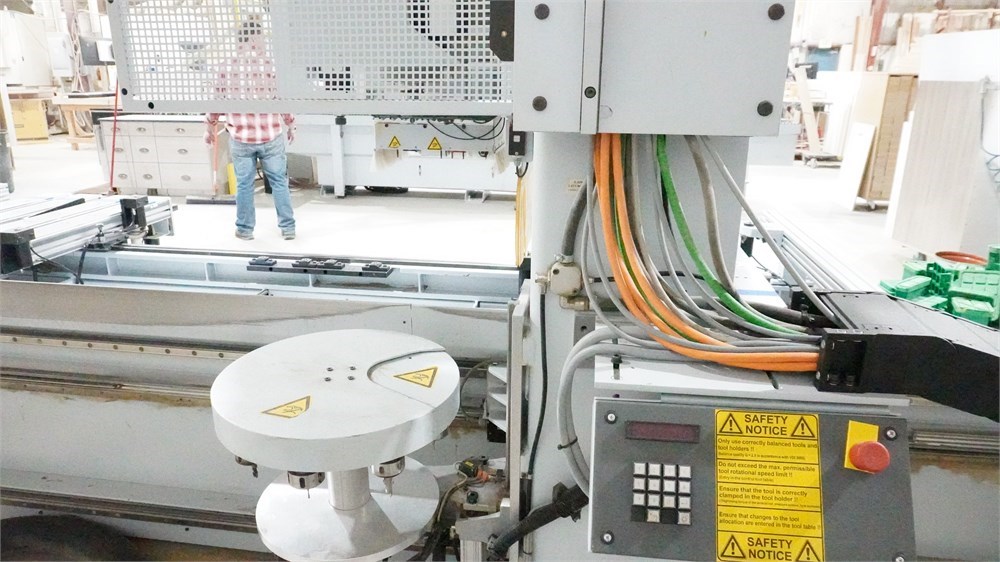

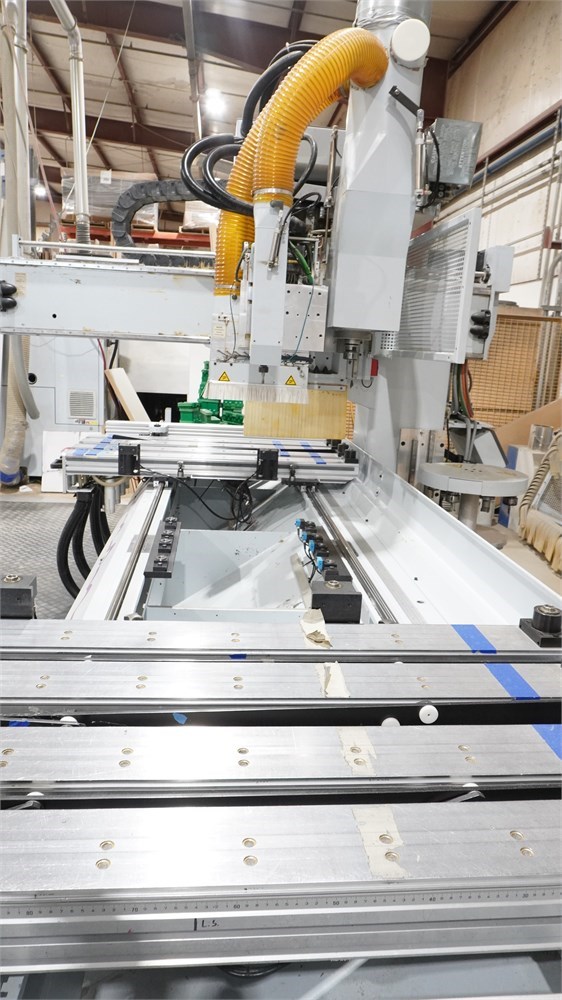

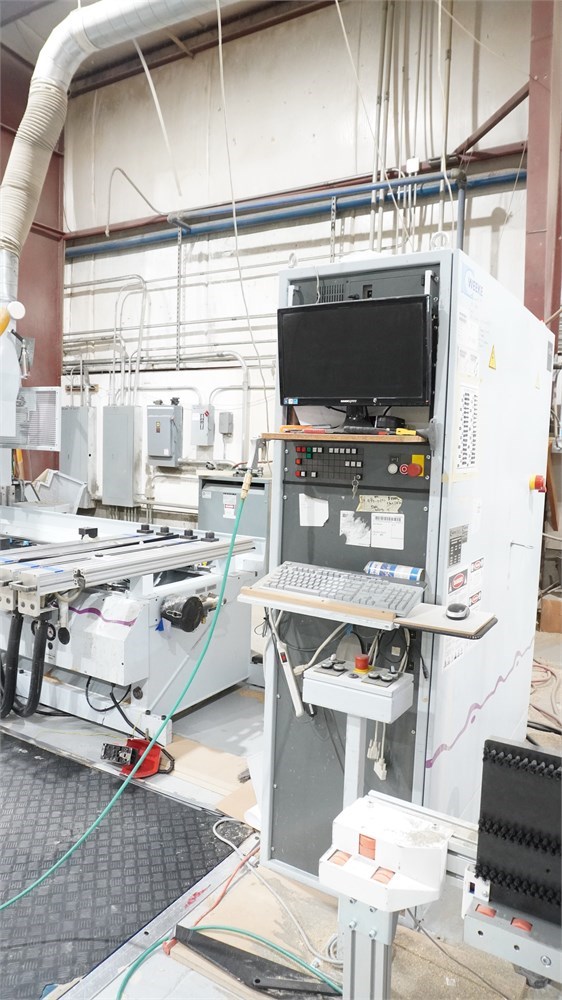

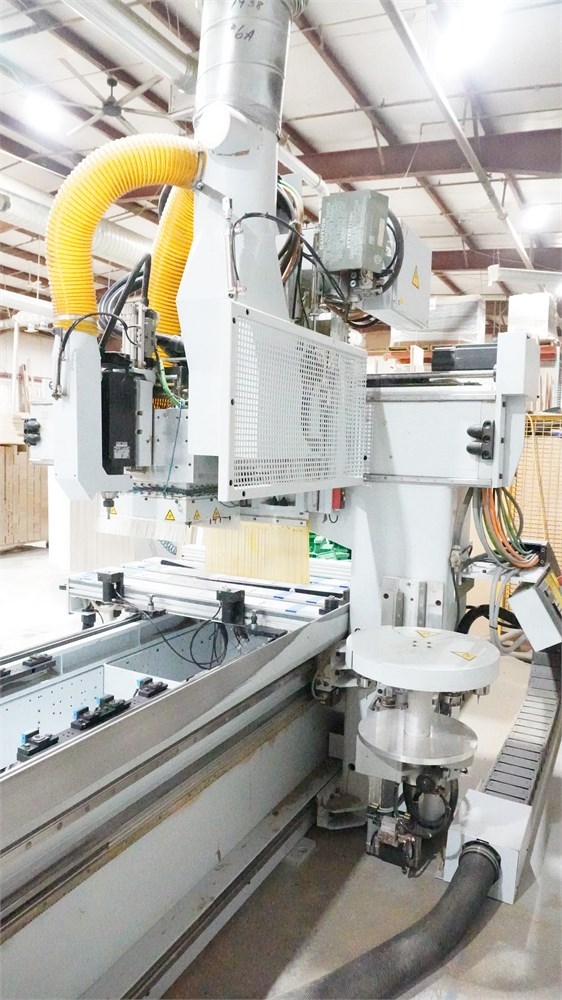

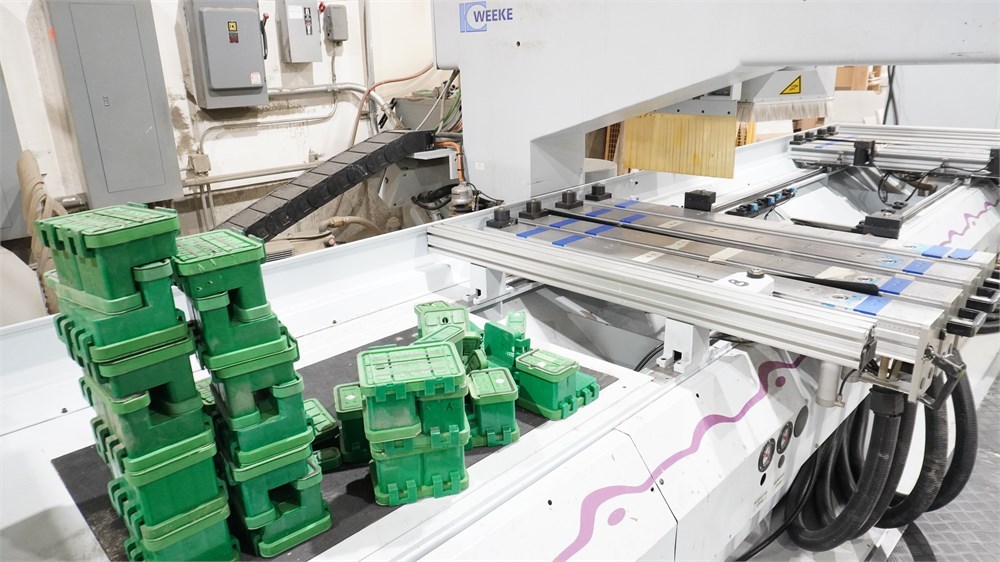

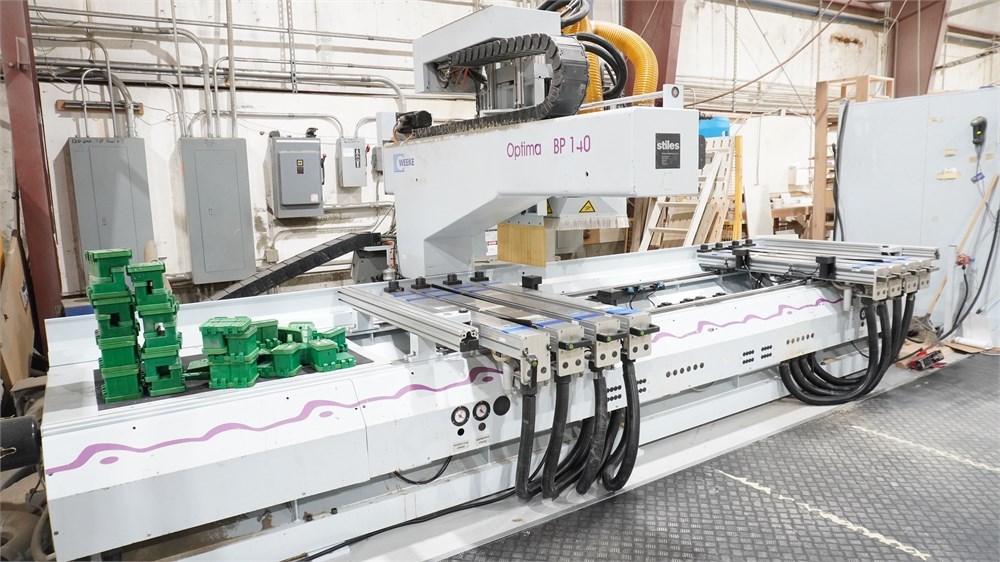

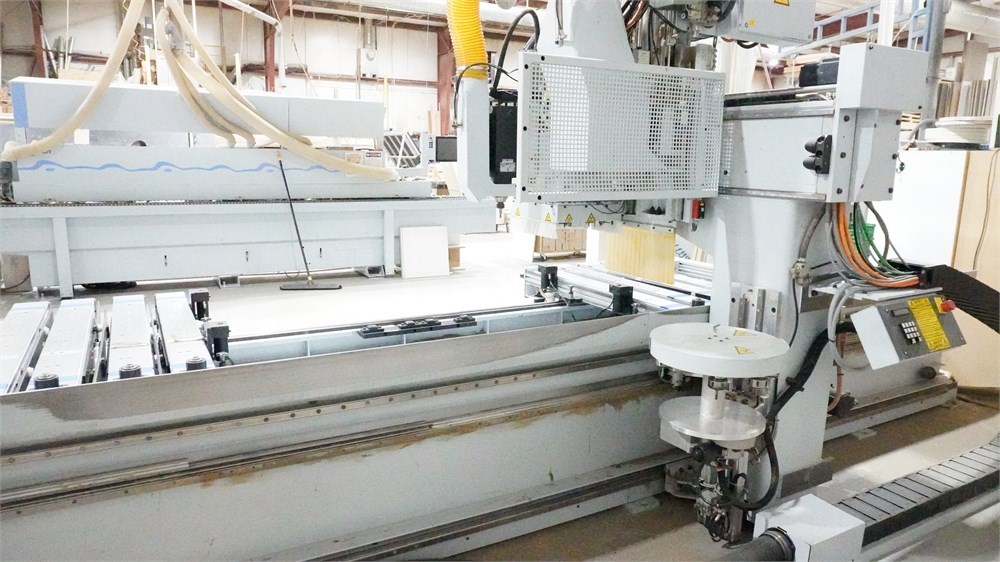

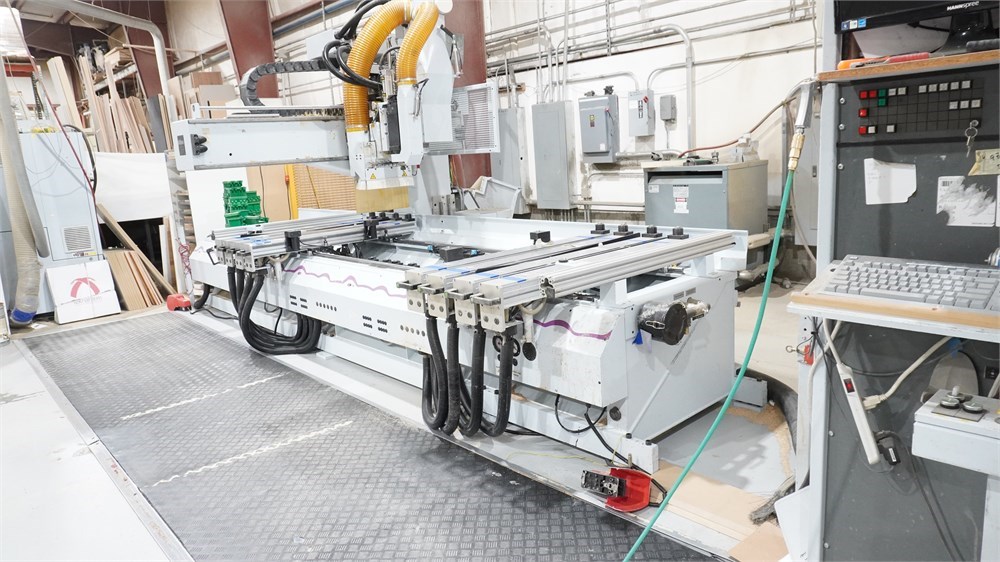

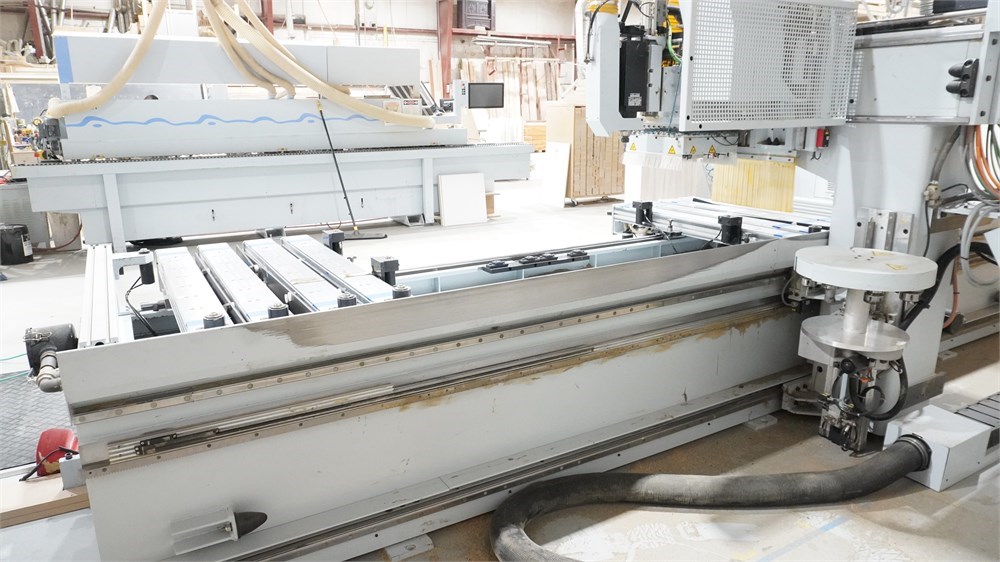

Weeke "Optimat BP140" CNC Machining Center

SEE VIDEO OF MACHINE UPDATED 6/3/2024!

Number of vertical drilling spindles: 21
2 HPVertical drilling spindle power
Number of horizontal drilling spindles: 6
2 HP Horizontal drilling power
2 HP X-axis grooving saw power
Saw blade diameter required: 100 mm
10 HP ATC router spindle power (power constant from 9,000 rpm to 18,000 rpm

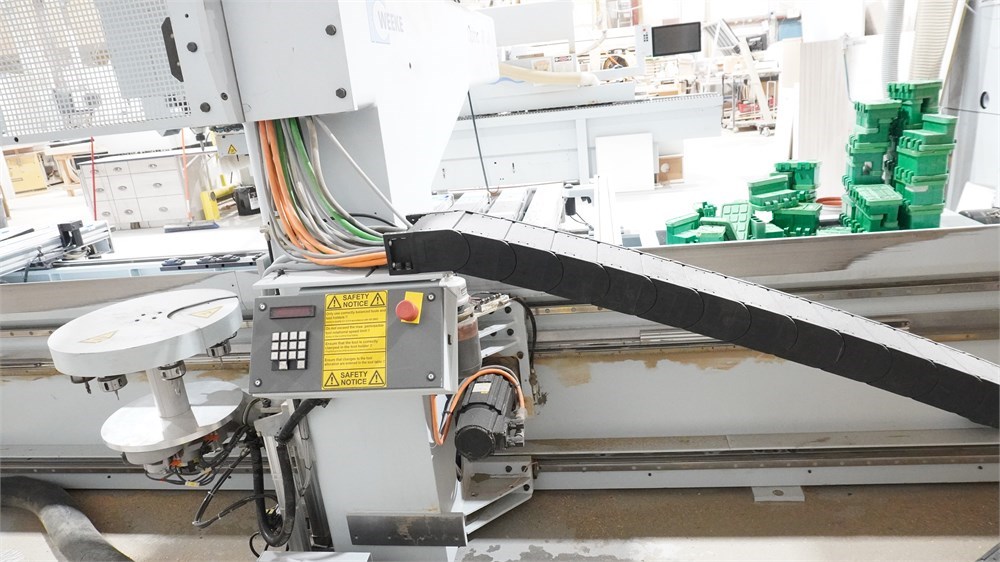

Tool magazine capacity: 8 tools
Uses a HSK63 tool holder
HSK aggregates supplied: one combination grooving saw / horizontal routing aggregate
6.7 HPAuxiliary router motor
ETP tool holder with ½” collet: one each

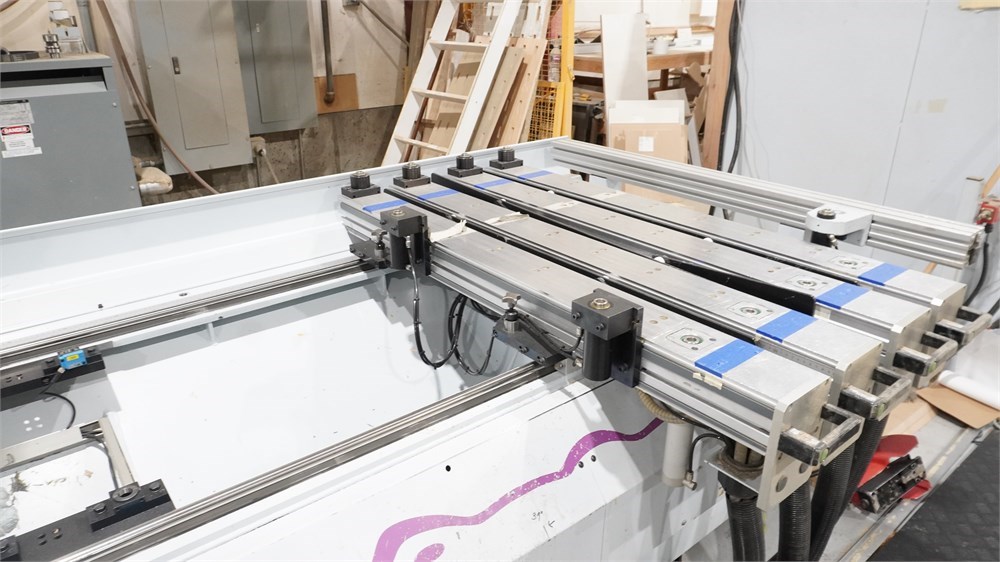

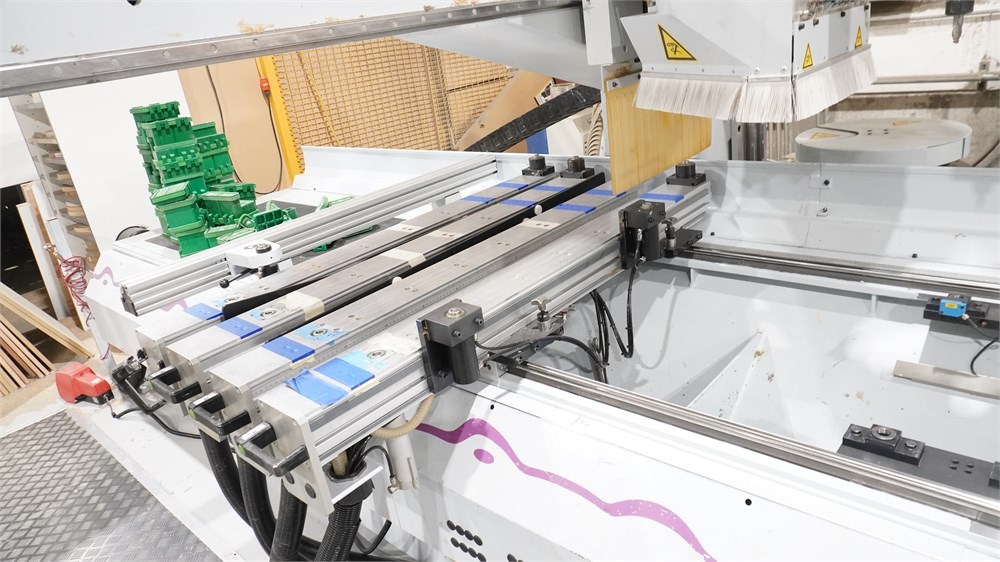

Number of panel support benches: 8
Number of panel feeding rails: 8
Working length: 3250 mm
Working width – support bench width: 1300 mm
Maximum panel thickness: 100 mm
Machine weight: 5200 kg
Maximum drilling depth through holes: 38 mm
Axis stroke/positioning speed
X-Axis: 3455 mm/80 M/min.
Y-Axis: 1685 mm/60 M/min.
Z-Axis: 260 mm/20 M/min.

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
