Homag "KAL 210/7/A20/S2" Edgebander
Active
Homag Edgebander and Ligmatech Return Conveyor - West Valley City, UT
West Valley City, UT
- Starting Bid : $500.00 USD ( ) No Reserve
- 0 Bid(s)
Homag Edgebander and Ligmatech Return Conveyor - West Valley City, UT ( Active #74711317 )
Granite Mill and Fixture in West Valley City, UT is auctioning machines no longer required for continuing operations. Homag Optimat Kal 210 Edgebander, Ligmatech ZHR 01 Return Conveyor are both available.
-
Pick Up Location
2580 Decker Lake Blvd., Suite 900 West Valley City, UT 84119
-

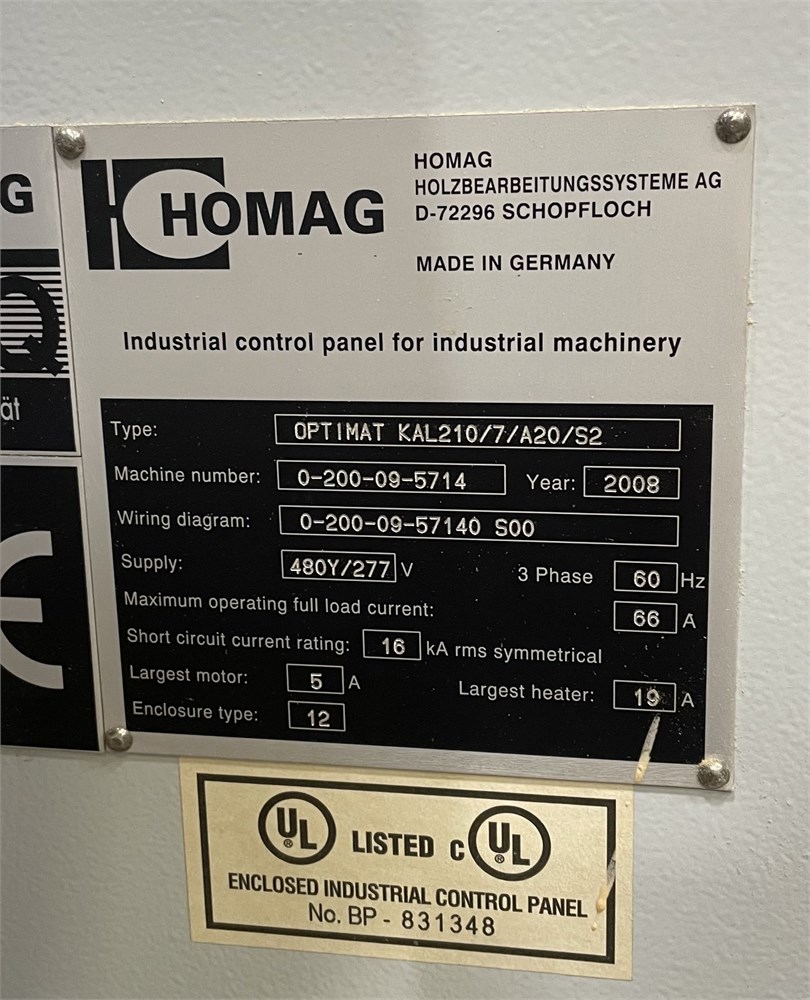

Make
Homag
-
Model
KAL 210/7/A20/S2
-
Serial Number
0-200-09-5714
-
Year
2008
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
September 22 - 26, 2025 (By Appointment Only)
-
Estimated Dimensions
336" L x68" W x 48" H
-
Estimated Weight
9,000 Pounds
-
Seller Comment
This lot requires a rigger, see home page for details.
-
Load Fee
-
Lot Notes
-
page views
17

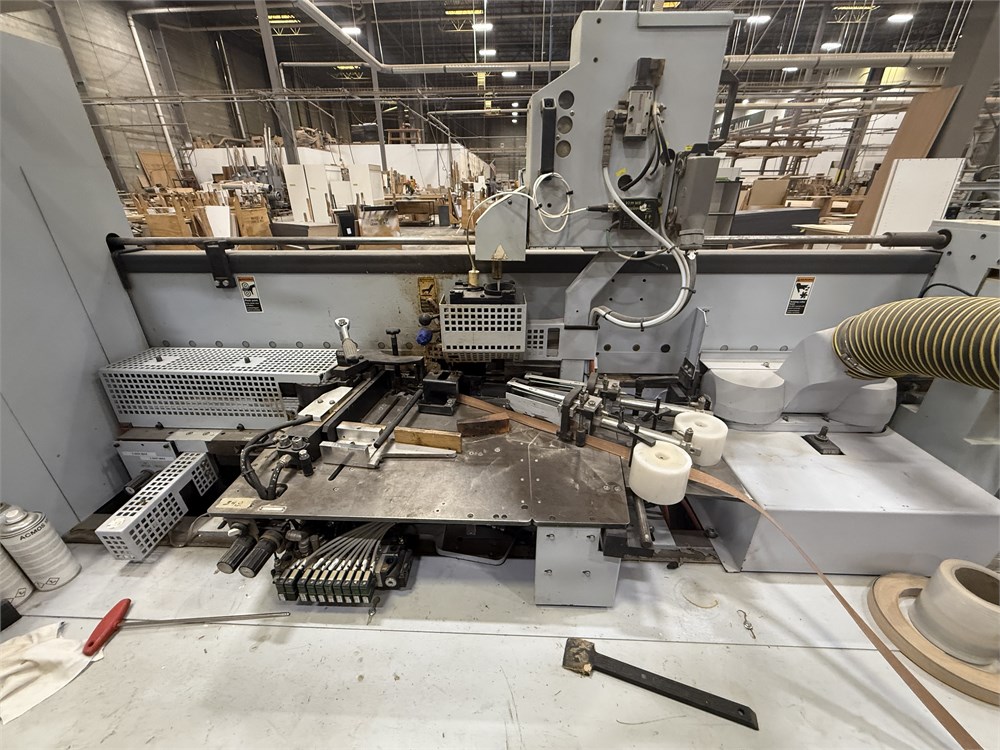

Homag "KAL 210/7/A20/S2" Edgebander
See several videos of machine
Working Capacity
Coiled stock min/max edge thickness 0.3 - 3 mm (0.016. - 0.118")
Strip material min/max edge thickness 0.4 - 20 mm (0.16 - 0.787")
Panel thickness 12 - 60 mm (0.472" - 2.375")
Minimum panel width 60 mm (2.4")
Panel Over-Hang 30 mm (1.18")
Variable feed speed, 59 FPM - 82 FPM
Motorized top beam positioning
Top beam belt hold down
Homag PC22 controller with Windows operating system

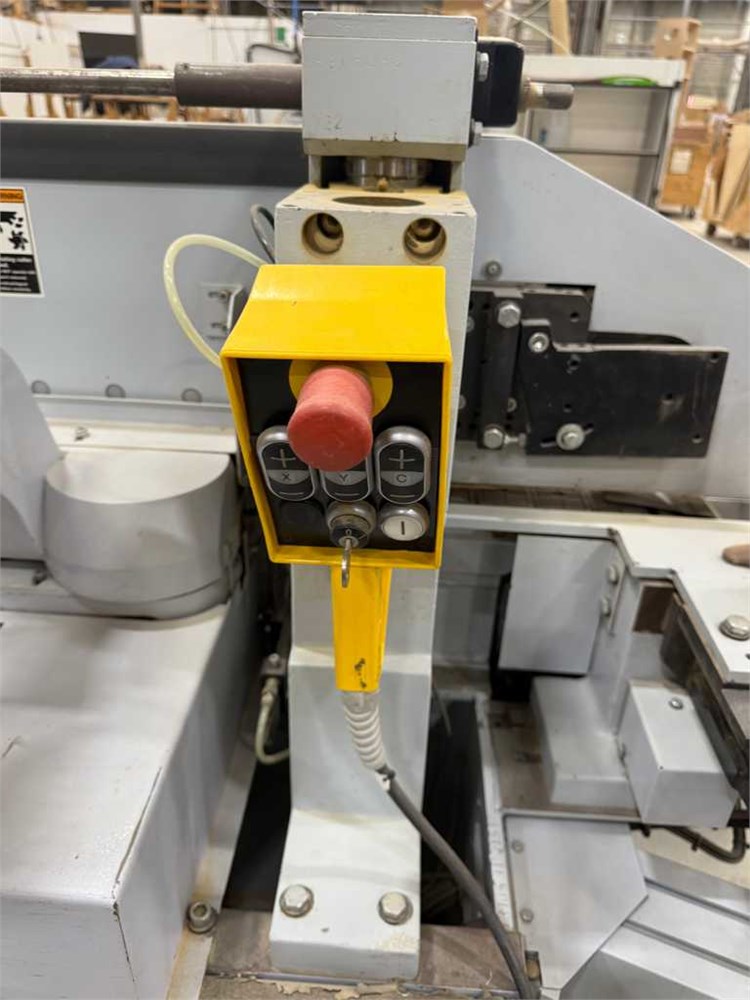

Remote control pendant

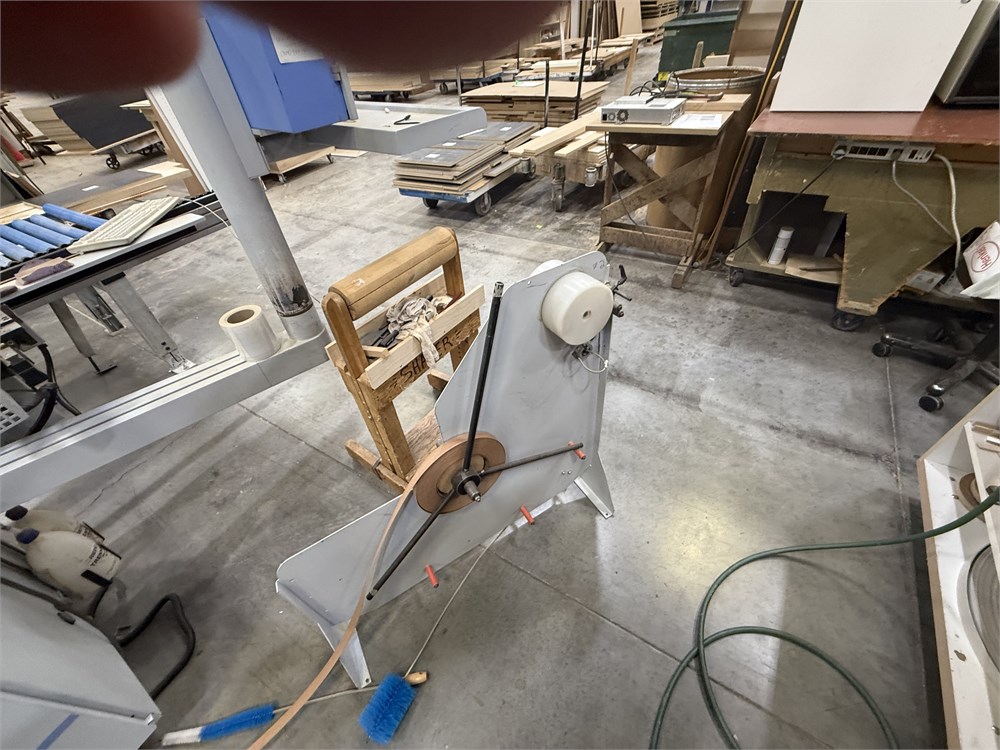

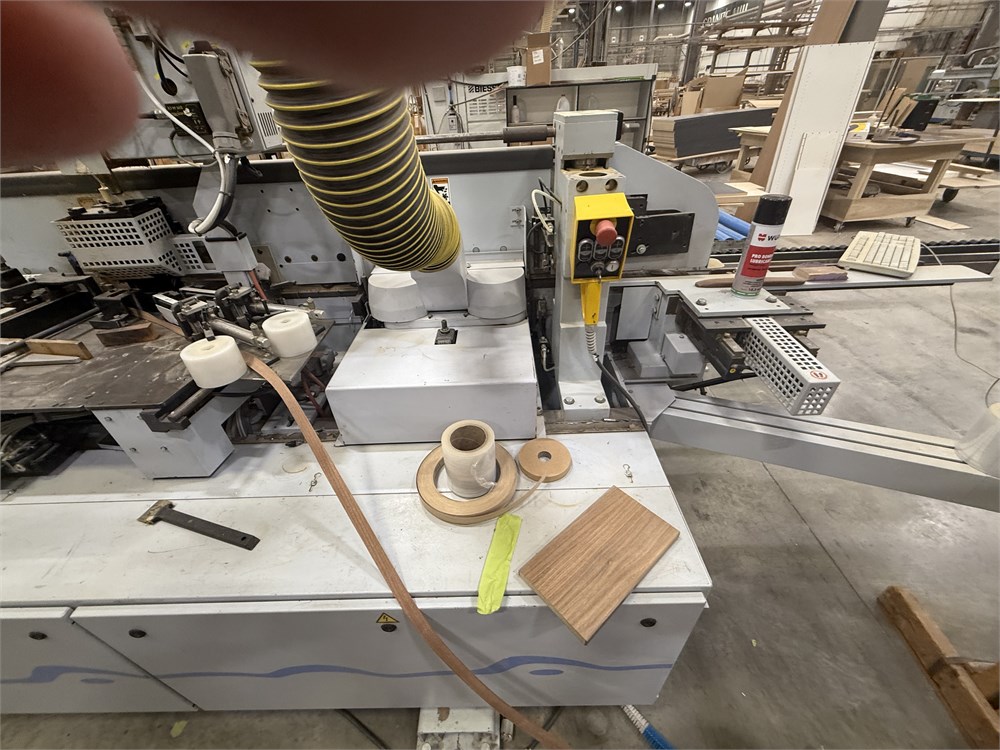

Two (2) coil edgebanding magazine
Infeed fence

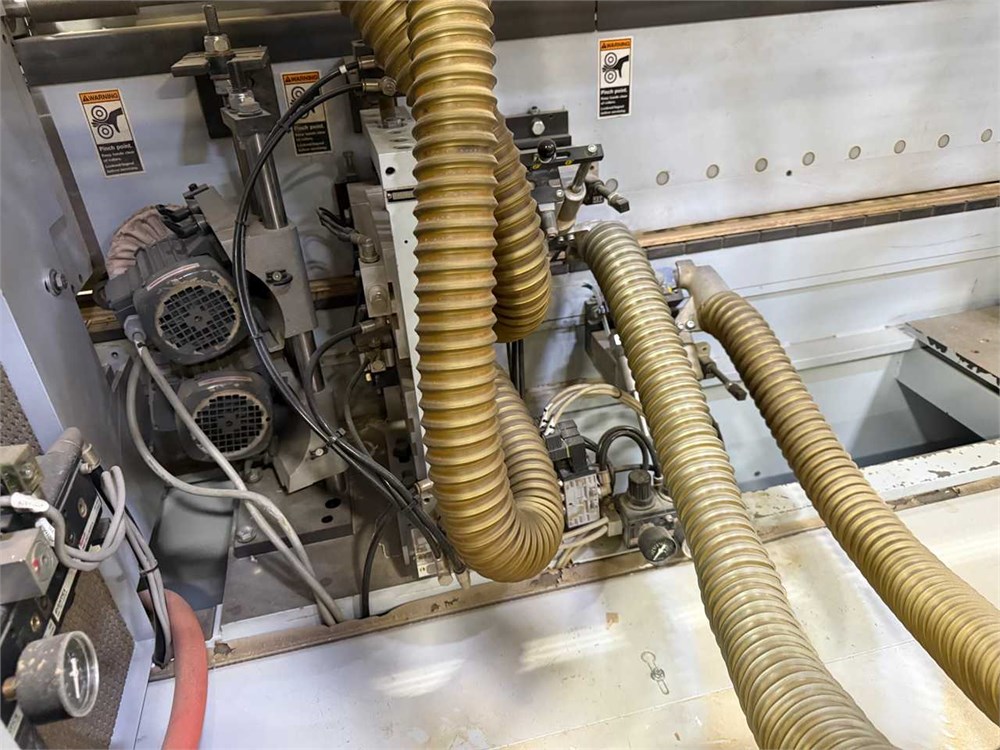

Two (2) motor premilling unit, 4 HP, 9000 RPM
Anti-adhesive spray unit
Panel edge heating lamp
Gluing unit with pre melt hopper and application roller
Pressure unit with one (1) driven and six (6) idle rollers
Two (2) motor end trimming station
1 HP motors operating at 12,000 RPM
Automatic pneumatic adjusting from chamfer 30° to straight cut

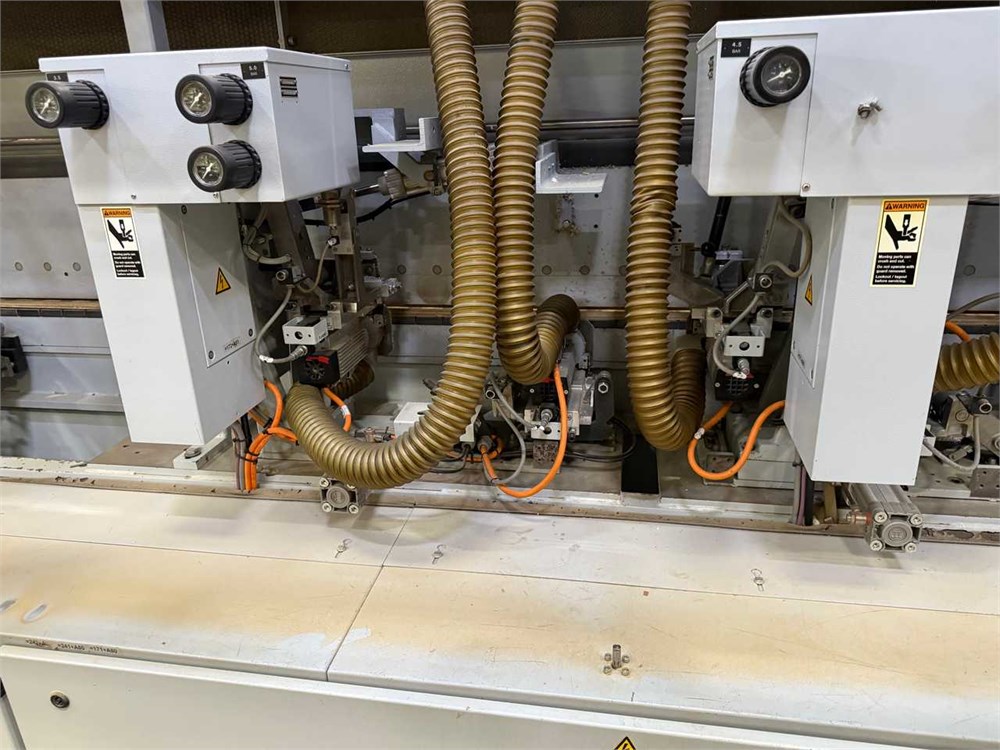

Top/bottom flush trimming station
0.75 HP motors operating at 12,000 RPM
Electronic speed control
Braking Control
Pneumatic adjustment
Height adjustment with the top pressure-beam and tilting range +/- 1°
Four (4) motor corner rounding station
0.6 HP motors operating at 12,000 RPM
Open position
Top/bottom profile scraping station
Top/bottom flat scraping station
Top/bottom buffing station
Lighted sound enclosure

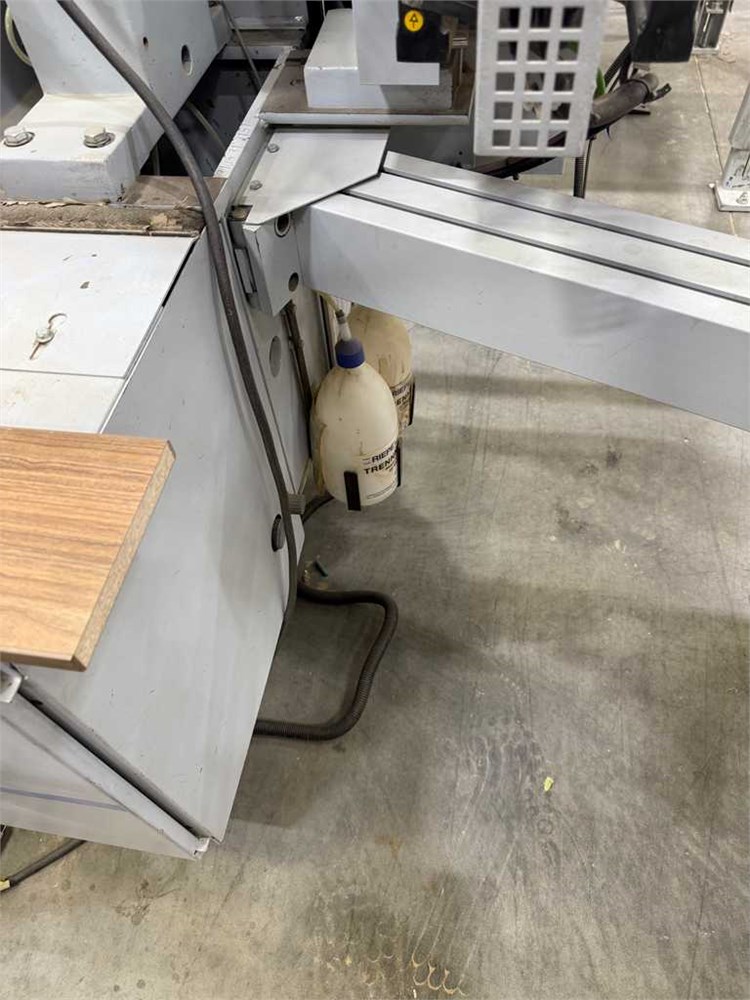

Outboard roller support
Return conveyor NOT included, offered in lot 002
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
