Busellato "Jet Star" 4' X 8' CNC Machining Center
Preview
Complete Woodworking Shop Auction - Oakland, CA.
Oakland, CA
Starts In remaining
Complete Woodworking Shop Auction - Oakland, CA. ( Preview #74452820 )
After decades of business East Bay Fixtures has decided to shut down and auction off all assists.
-
Pick Up Location
941 Aileen St. Oakland, CA 94608
-

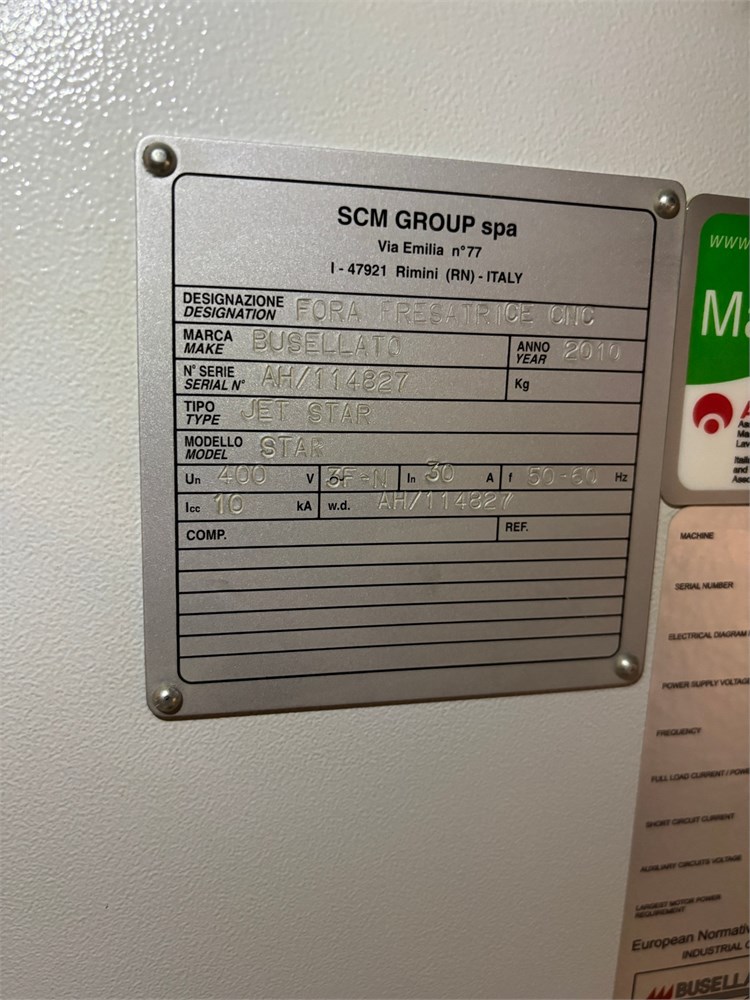

Make
Busallato
-
Model
"Jet Star"
-

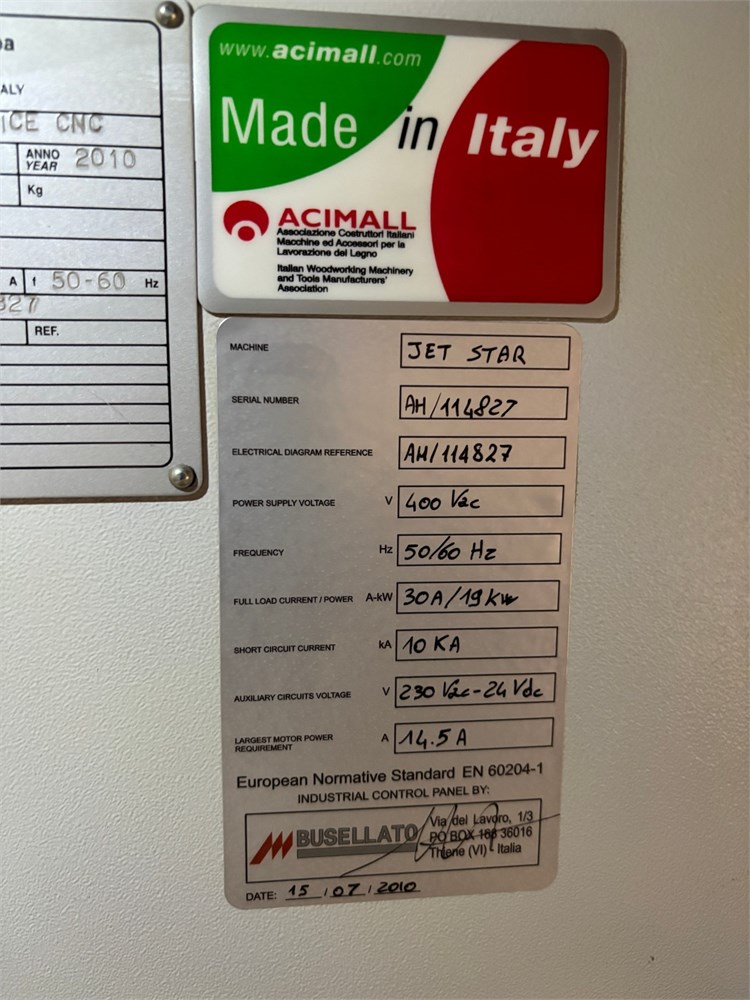

Serial Number
AH /114827
-
Year
2010
-
Phase
3 PHASE
-
Voltage
400
-
Buyer Inspection Period
Sept 9th between 9am - 3pm Juan Fabian 209 -704 - 4305
-
Load Out Period
Sept 15th - 19th 2025 ( By Appointment Only )
-
Estimated Dimensions
14' x 8' x 7.5' + 4' x 8' Extension table
-
Estimated Weight
6000 lbs
-
Seller Comment
Buyer responsible for prep, loading, and shipping or hiring a rigger to do so.
-
Load Fee
-
Lot Notes
-
page views
21

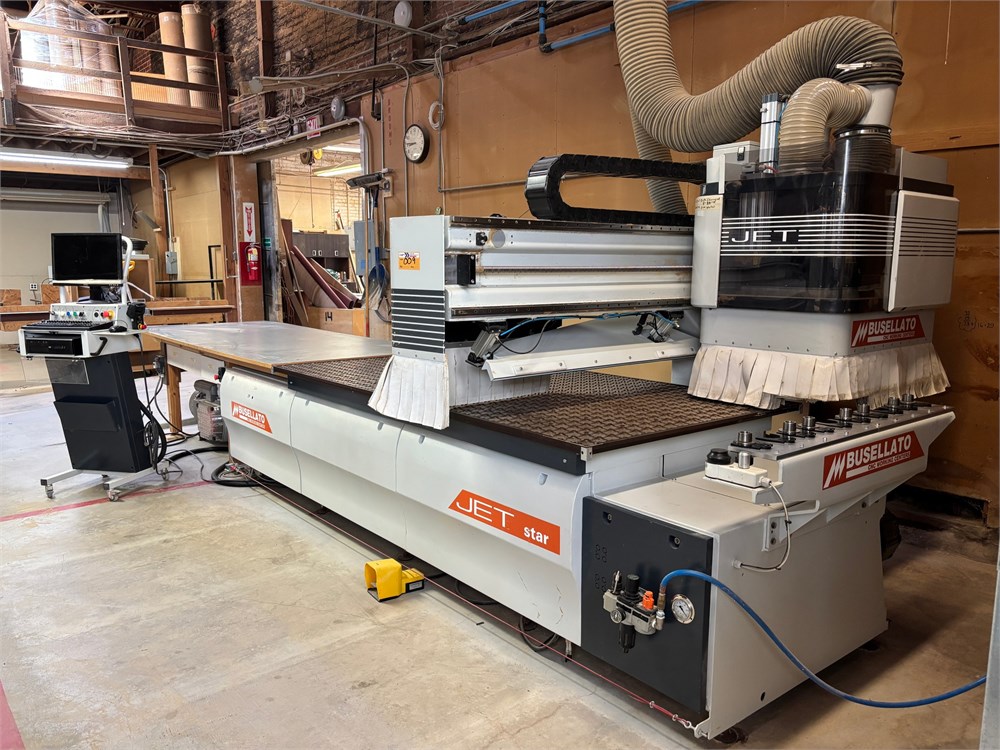

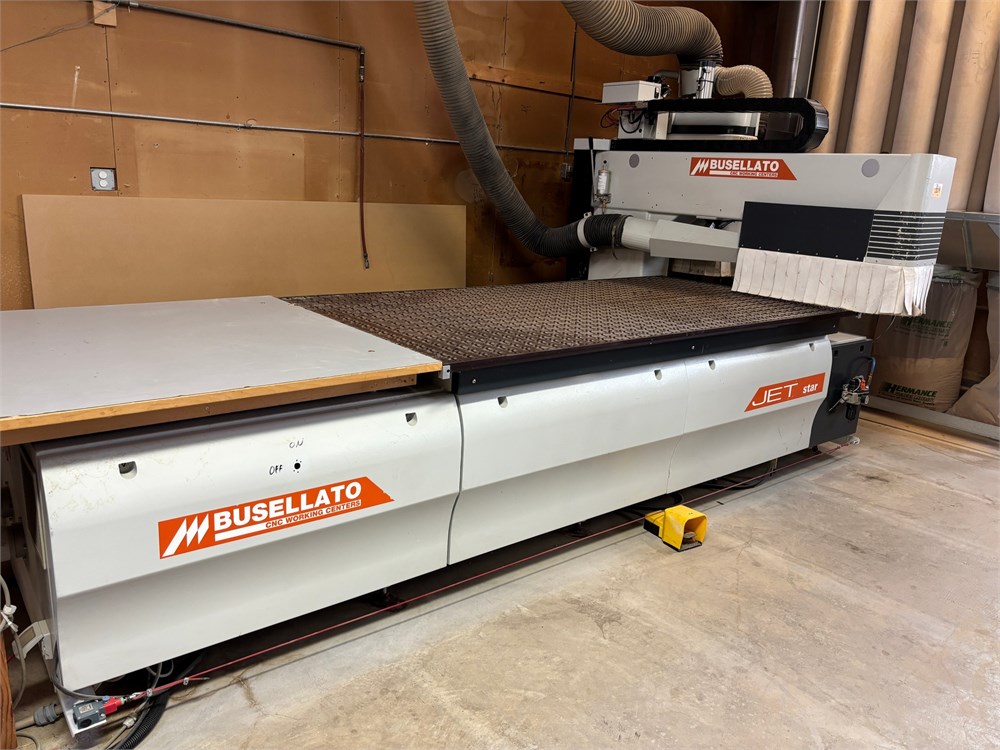

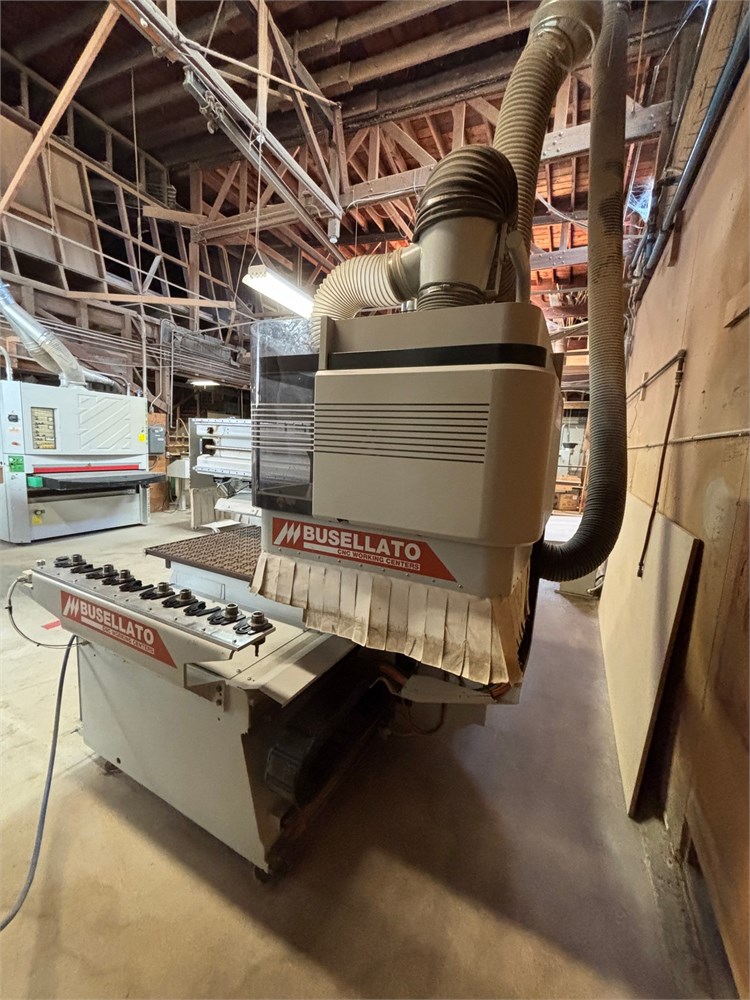

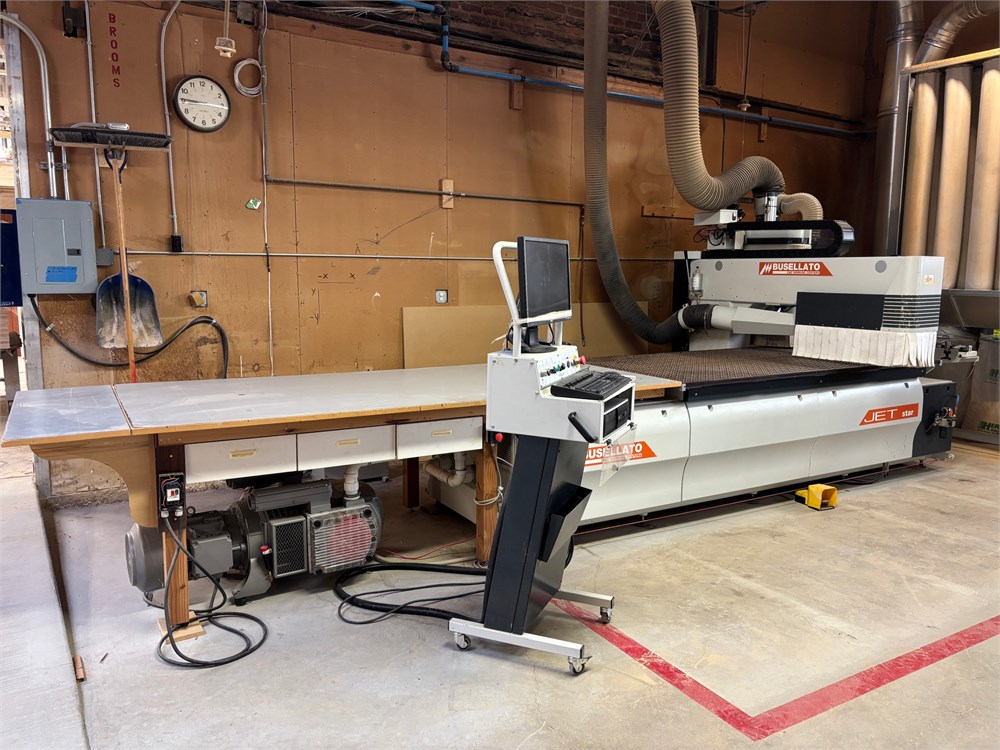

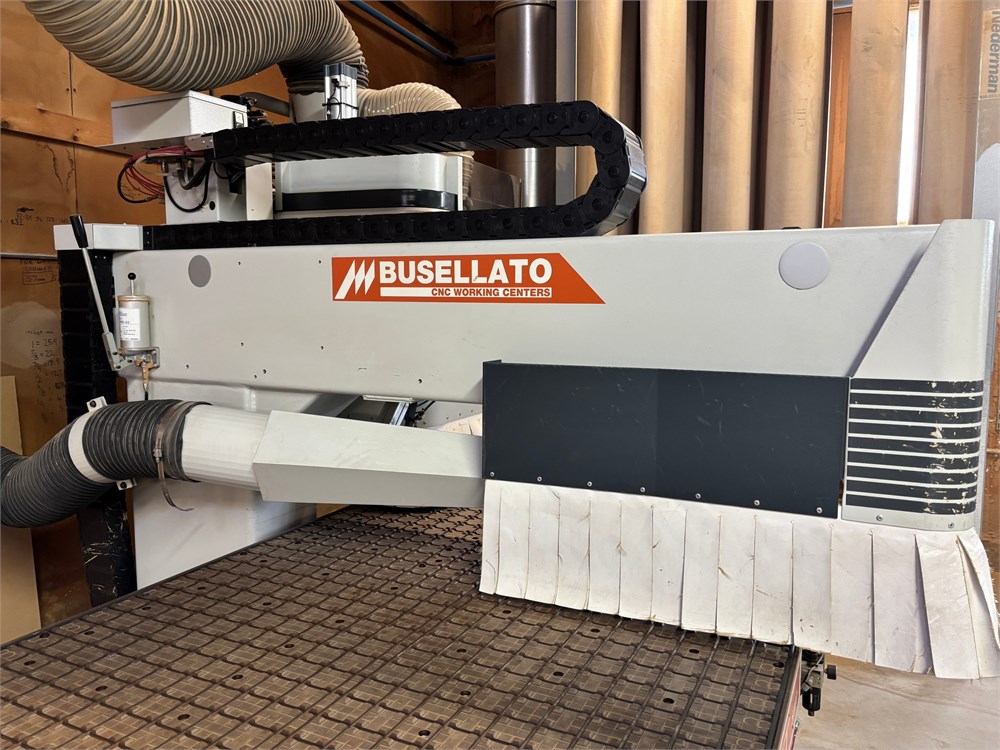

Busellato "Jet Star" 4' X 8' CNC Machining Center

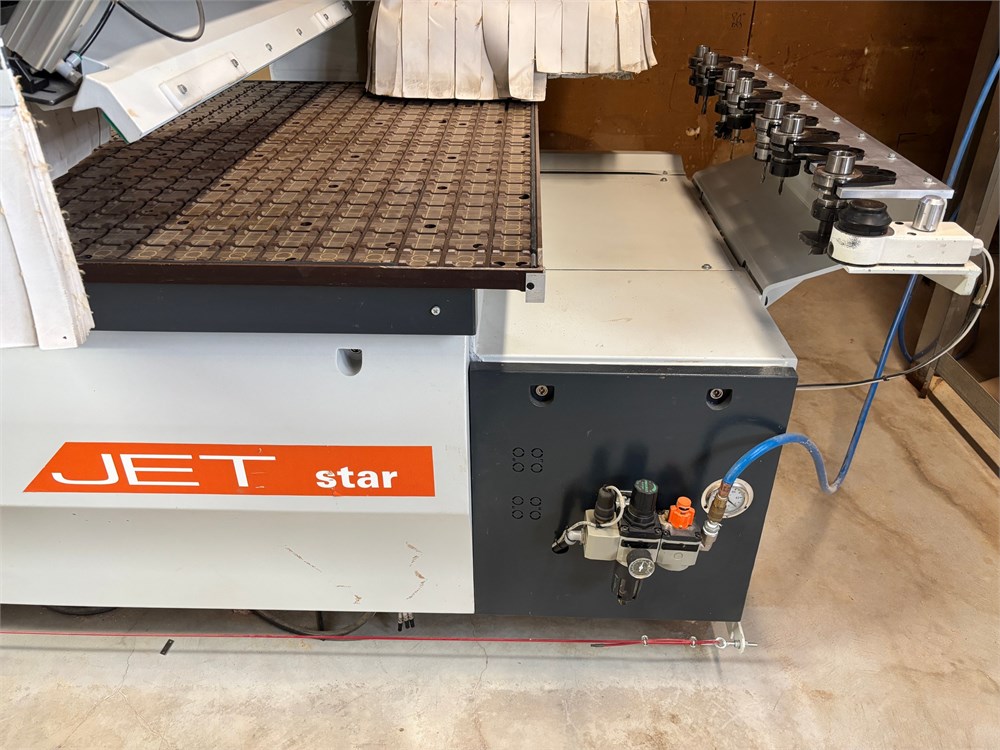

4' x 8' "Matrix" grid Flat Table design with "RAKE" system for "Nested Base" manufacturing.
"X" Axis is 100" (2,549 mm), "Y" axis is 49.2" (1,250 mm), "Z" axis stroke is 8.1" (205 mm); max. material thickness is 5-1/2" (140 mm).
"X" & "Y" Axis is 328 FPM (100 MPM), "Z" axis is 112 FPM (34 MPM).

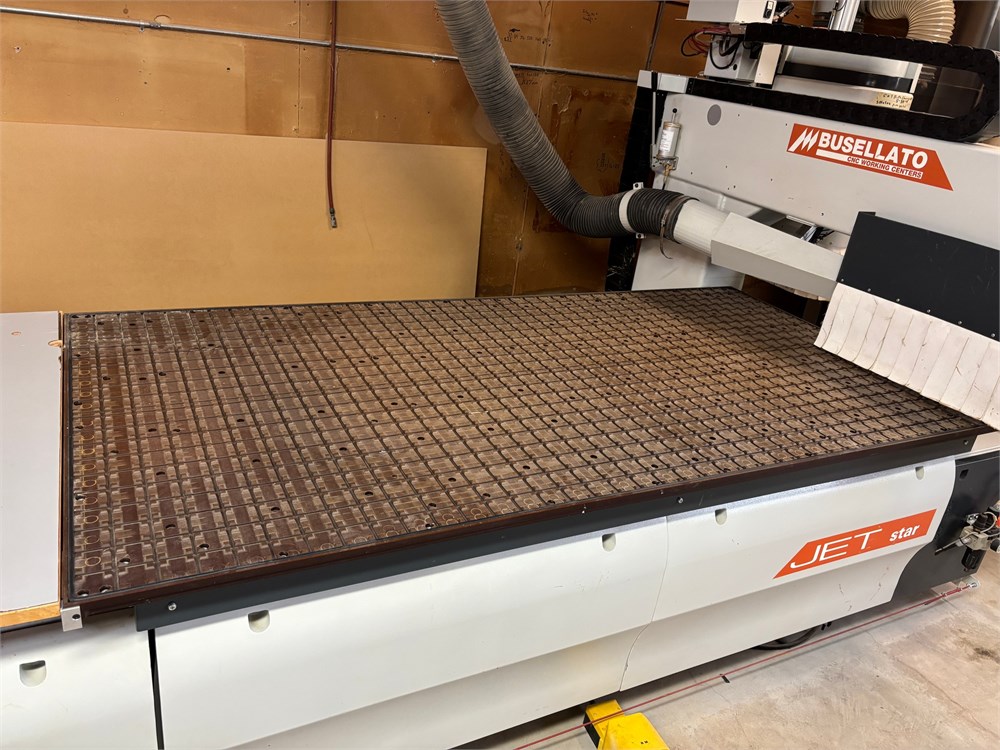

Phenolic "Matrix" grid table with "RAKE" sweeping system for automatic loading/unloading with a complete cycle time of under (30) Seconds.
(2) Independent working areas with locating stop pins on the front; rear LH & RH sides for positioning parts on the worktable; prepared for (optional) elevated pods that allow profile & horizontal machining.

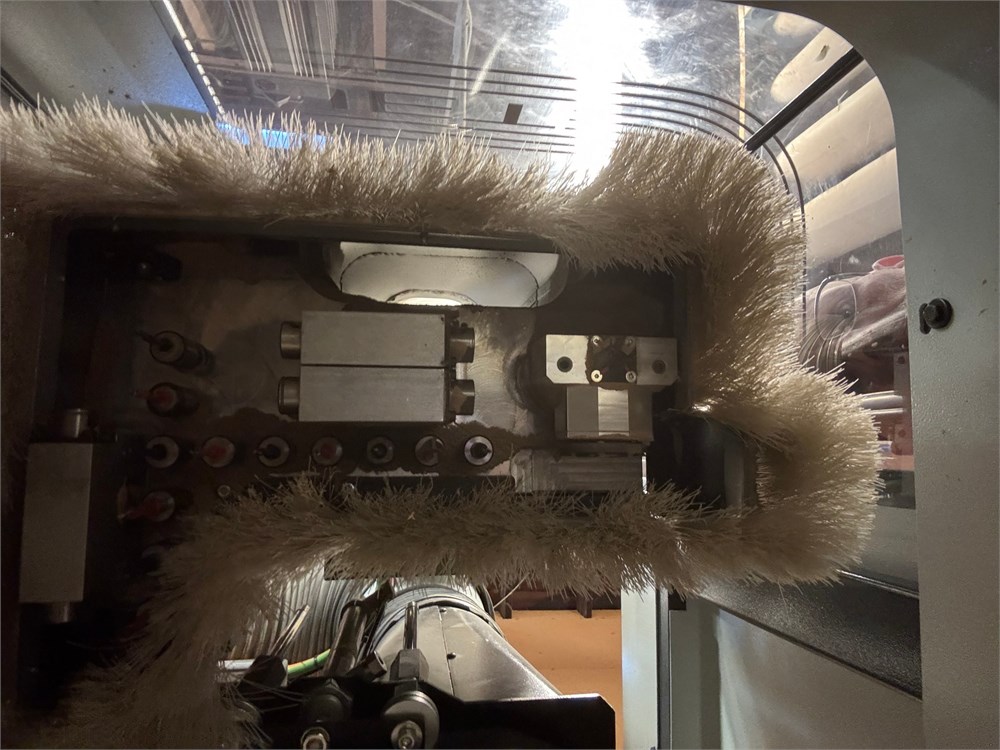

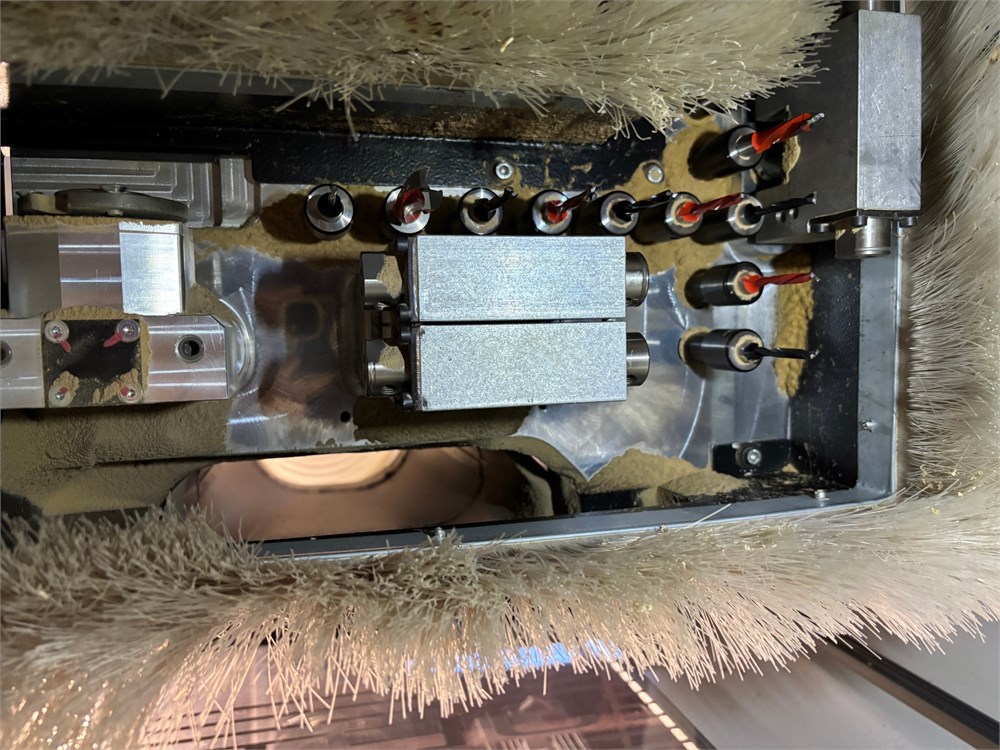

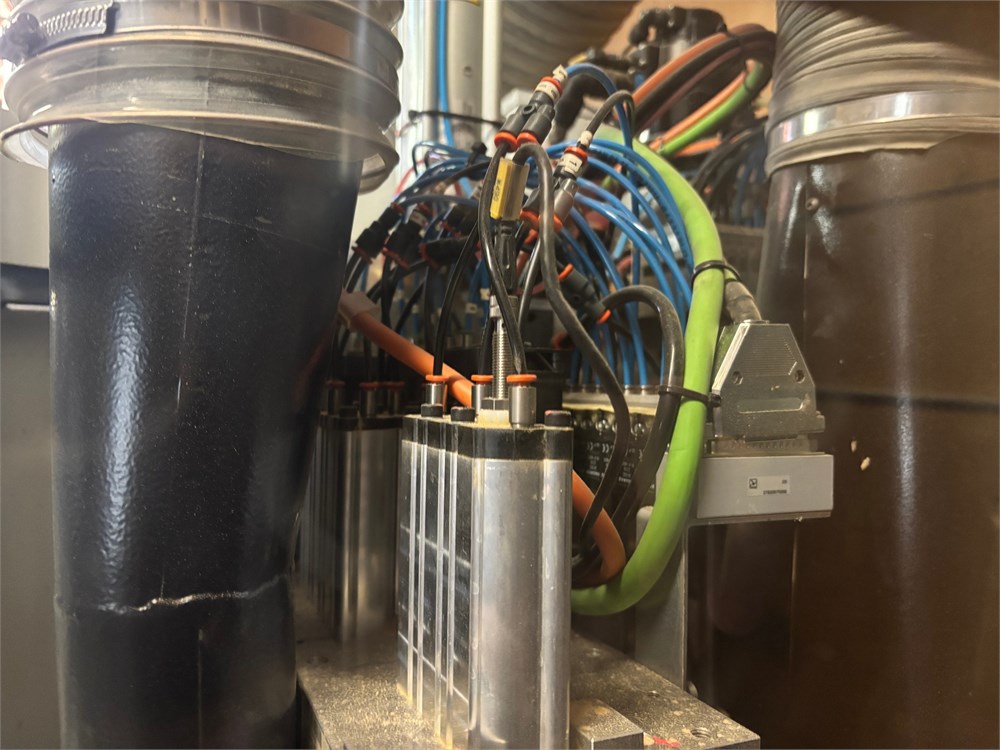

(12) Independent vertical spindles, (6) spindles in "X" axis & (6) spindles in "Y" axis; (4) horizontal spindles with (1 + 1) in "X" axis & (1 + 1) in the "Y"; 4.2 HP (3.2 kW) - 4,000 RPM motor.

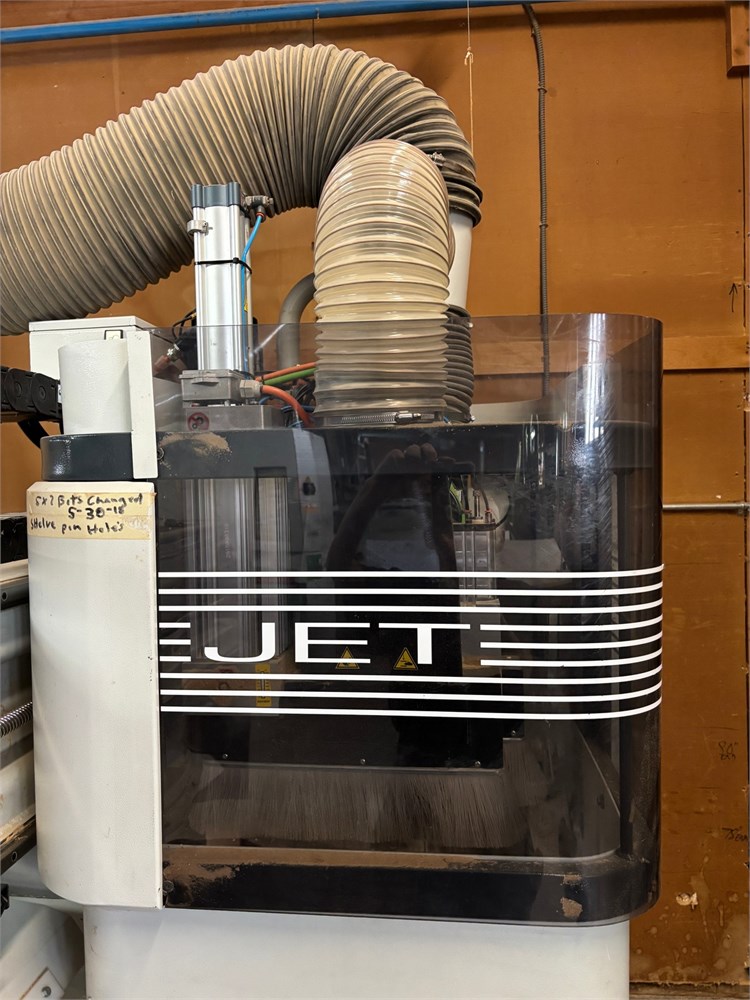

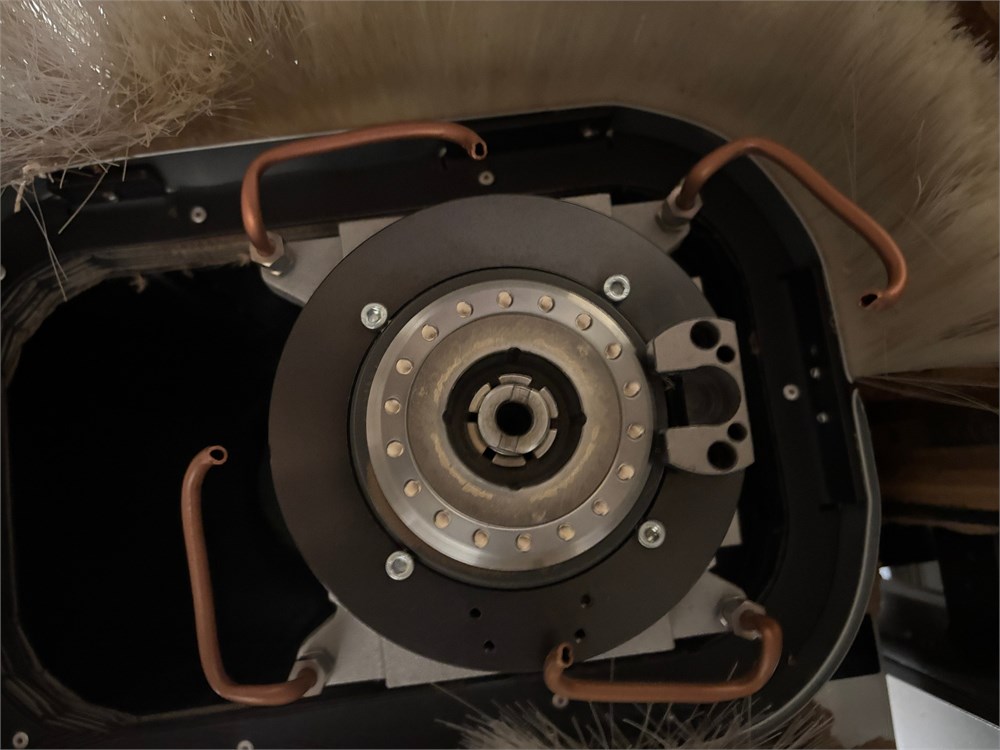

(1) 10 HP (7.5 kW) Vertically mounted electro-spindle router with HSK F63 adaptor; aggregate ready, inverter driven 1,000 - 24,000 RPM with max. torque at 12,000 RPM.

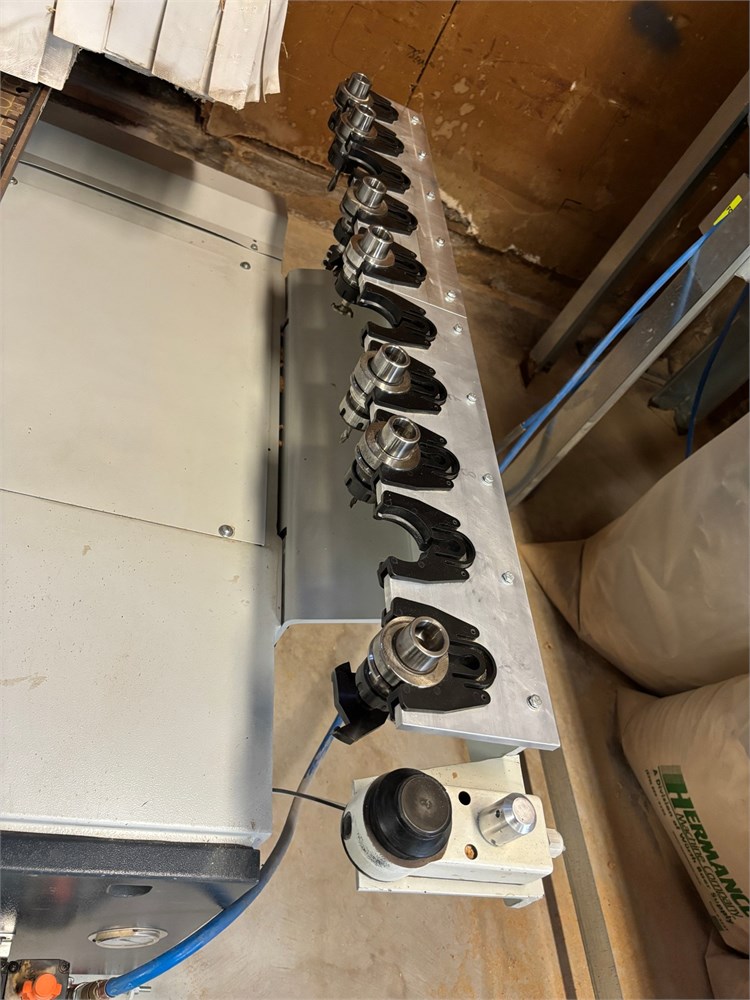

(1) 10-Position Automatic Tool Changer rack mounted on the back side of the machine.
The information provided in this lot was gathered from literature, internet & physical inspection. It is thought to be accurate; but not guaranteed. Bidders are urged to use the open house or private inspection periods to inspect and verify.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
