Homag "MPH 450" Case Clamp
Ended
Late Model Homag Machinery Auction Donna, TX
Donna, TX
- Winning Bid : $11,750.00 USD Sold
- 46 Bid(s)
- High Bidder: j****5
Late Model Homag Machinery Auction Donna, TX ( Closed #74452893 )
Shop in Donna, TX is offering these well kept late model machines they no longer need for production.
-
Pick Up Location
940 W I-2 Frontage Rd. Donna, TX 78537
-
Make
Homag
-
Model
MPH 450/25/09
-
Serial Number
0-306-22-0379
-
Year
2017
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
September 4th - September 18th, 2025 By appointment only
-
Load Out Period
September 18th - September 25th, 2025 By appointment only
-
Estimated Dimensions
156" x 26" x 92"
-
Estimated Weight
5000 pounds
-
Seller Comment
Buyer responsible for prep, loading, and shipping or hiring a rigger to do so.
-
Load Fee
-
Lot Notes
-
page views
719

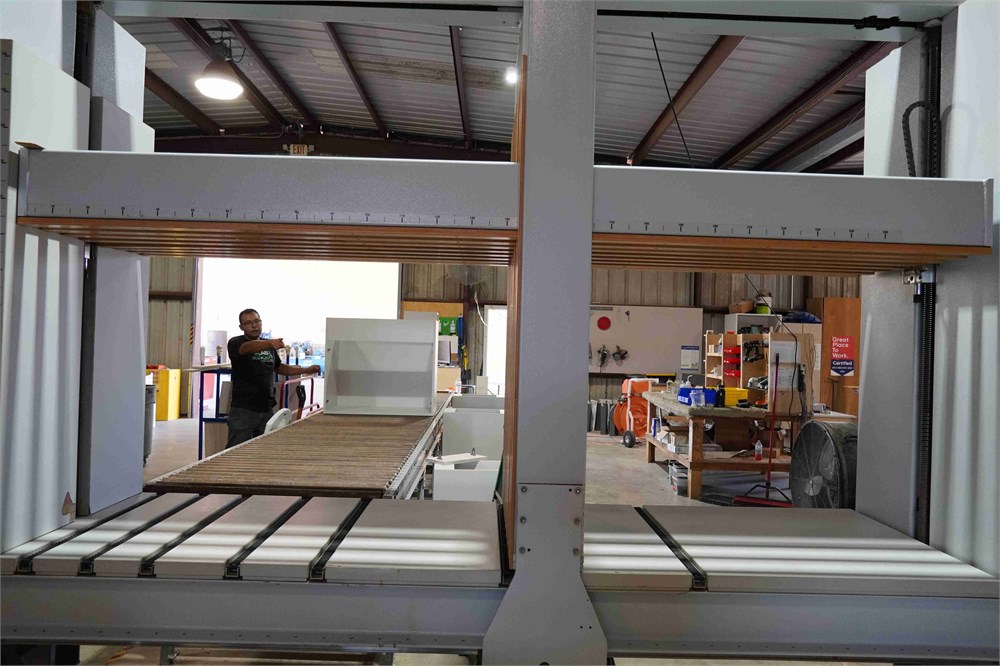

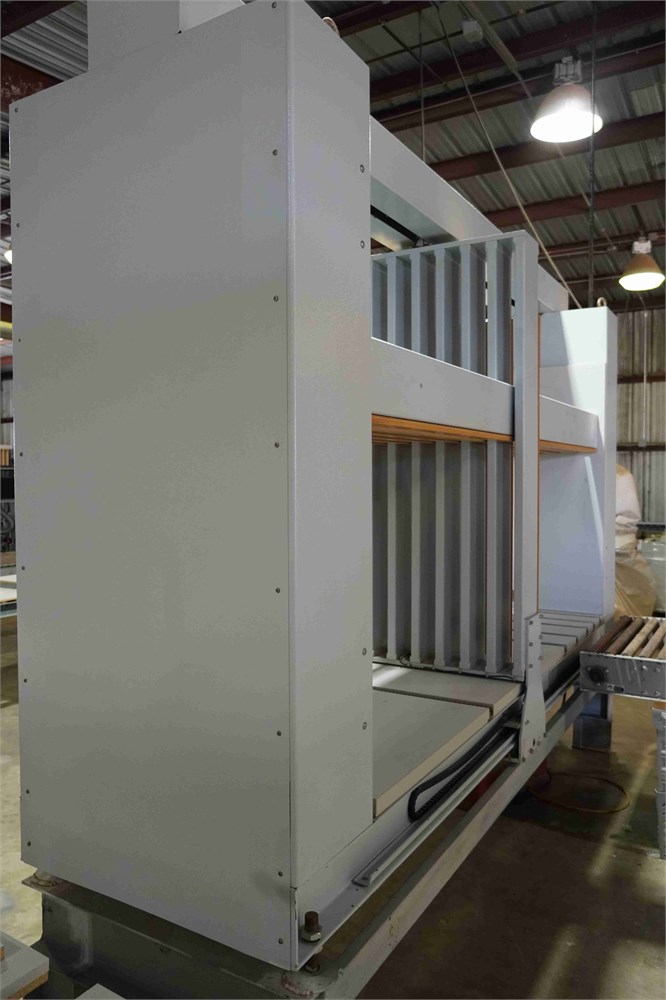

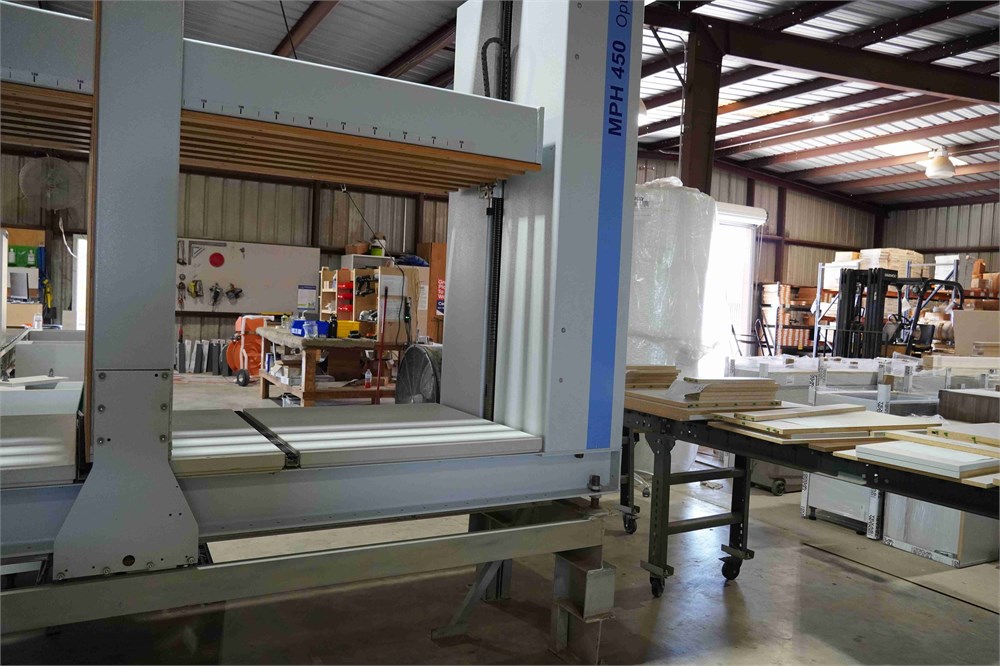

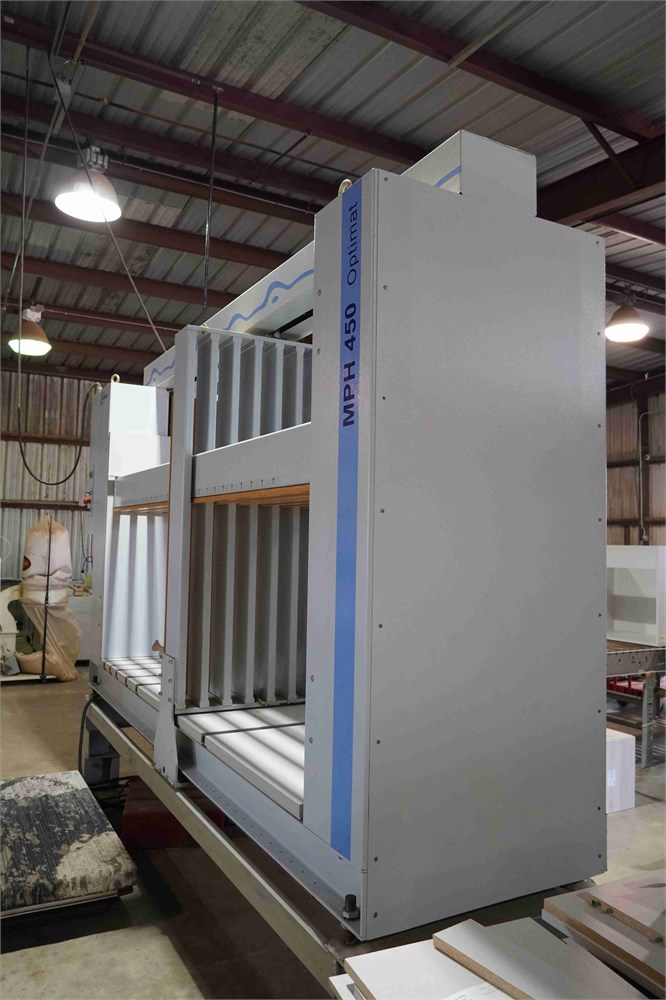

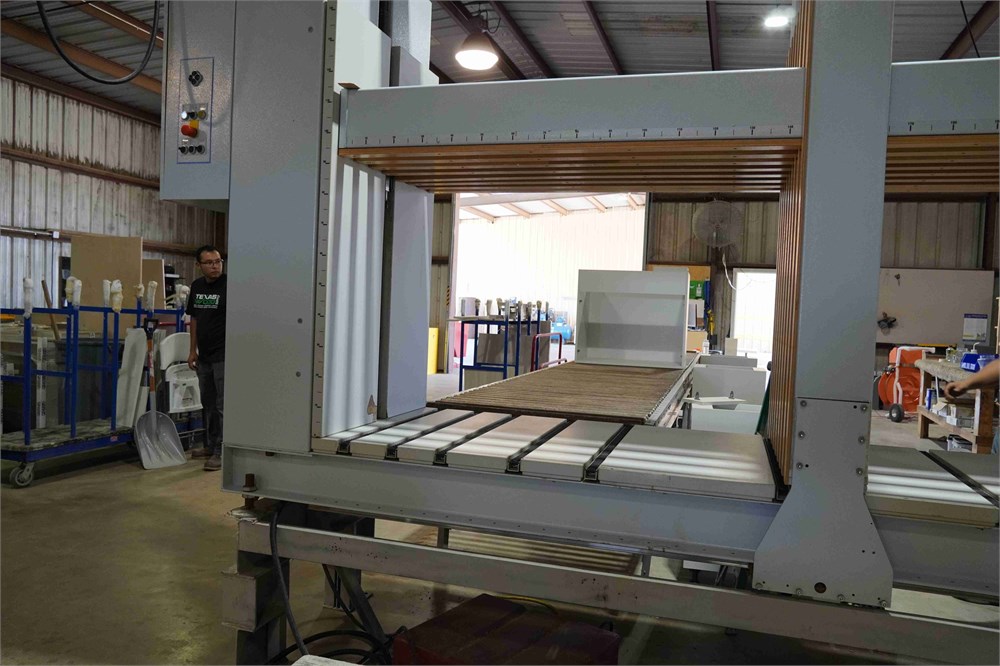

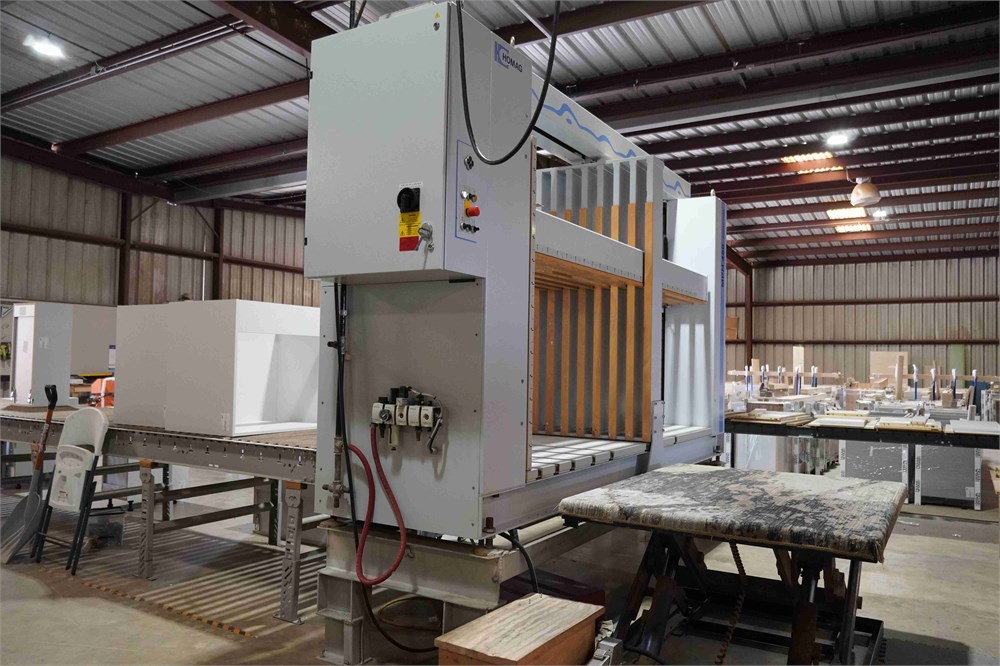

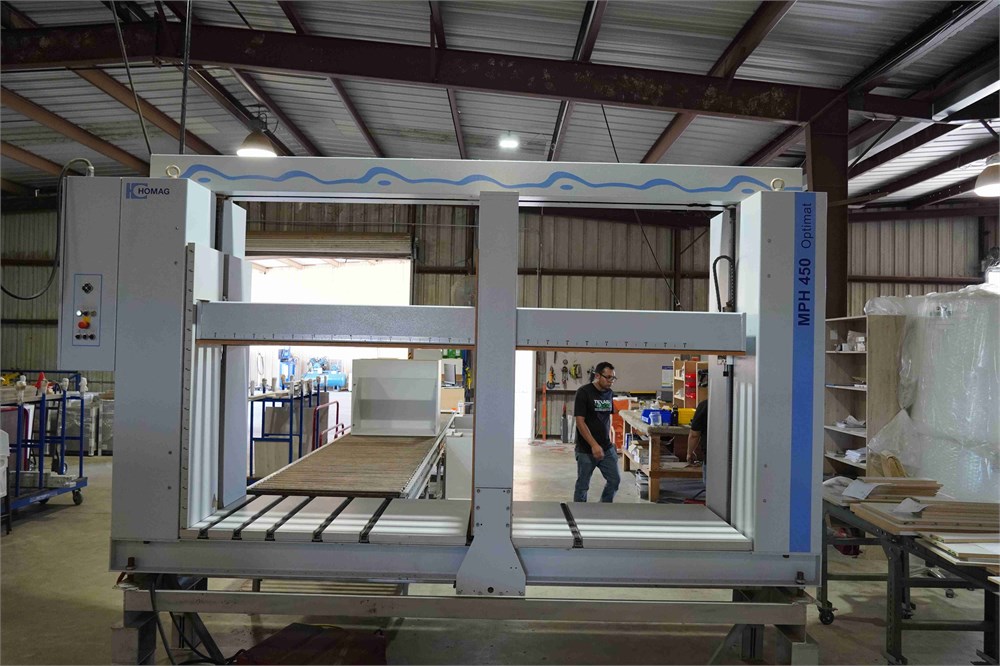

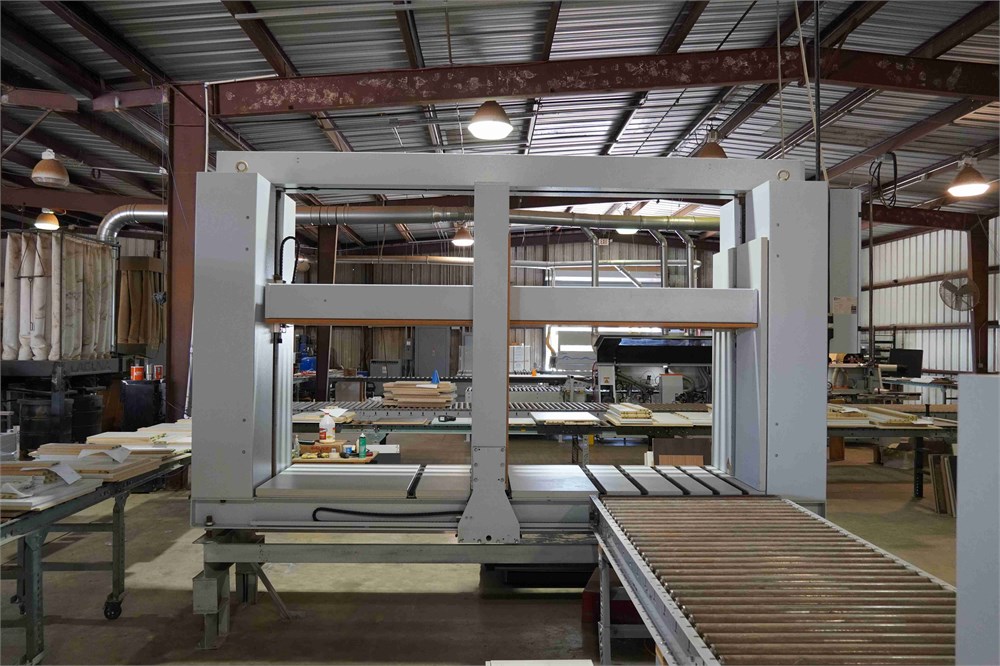

Homag "MPH 450" Case Clamp
(1) Horizontal & (1) vertical interlocked pressure beam, each with electric push button control; 8-beam surface area eliminates need for pressure pads.
9.8" - 98.4" (250 - 2,500 mm) Length; 9.8" - 27.5" (250 - 700 mm) depth, 5.9" - 55" (150 - 1,400 mm) height.

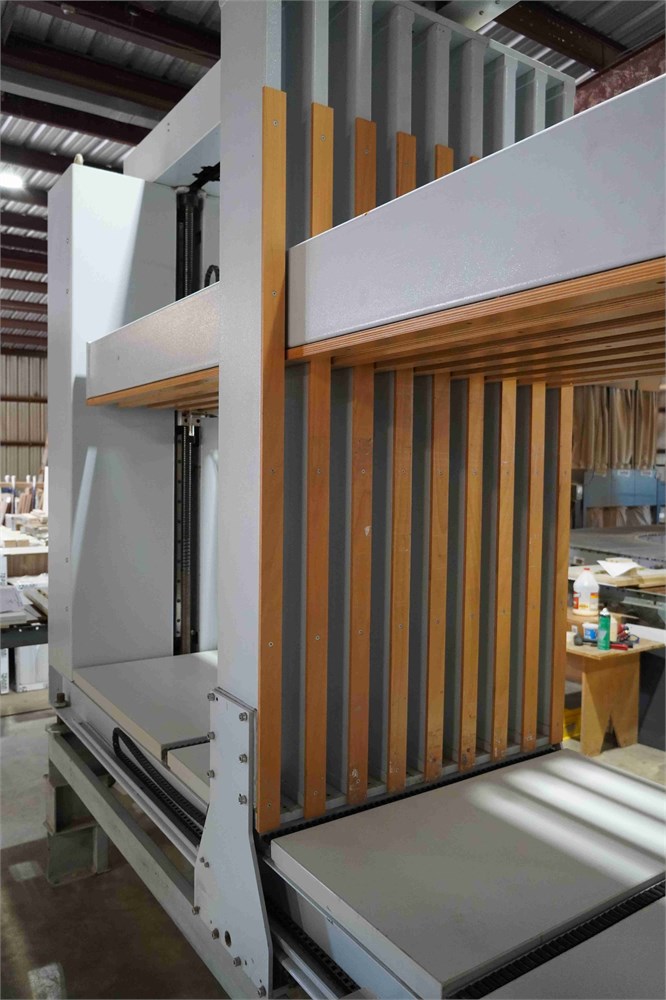

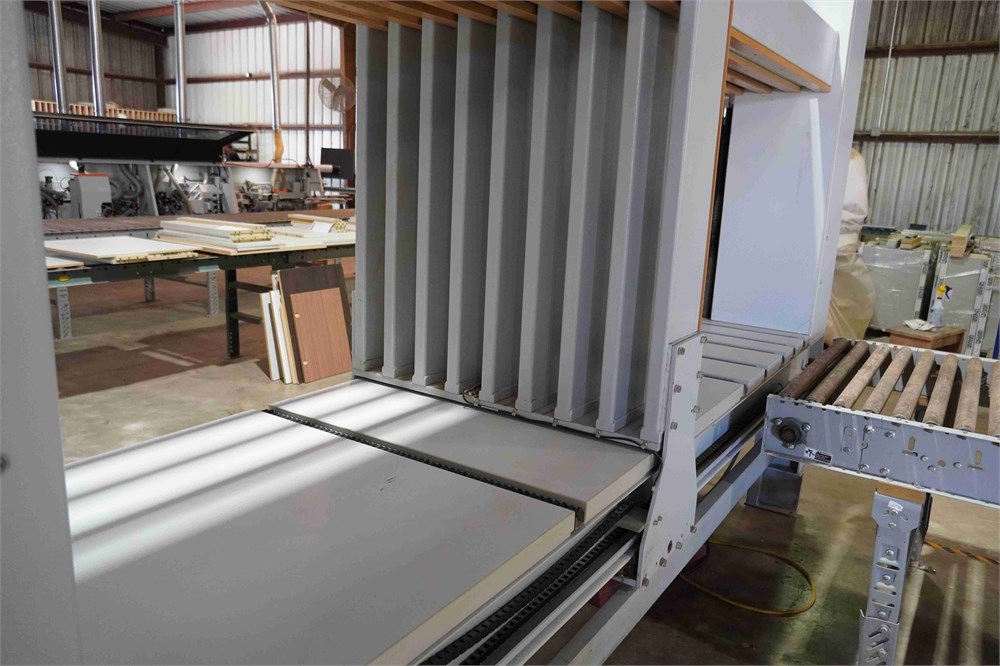

Motorized horizontal & vertical beams can position simultaneously or individually during setup, vertical & horizontal interlocking pressure walls, each with (8) individual beams move parallel & square to the clamp frame.

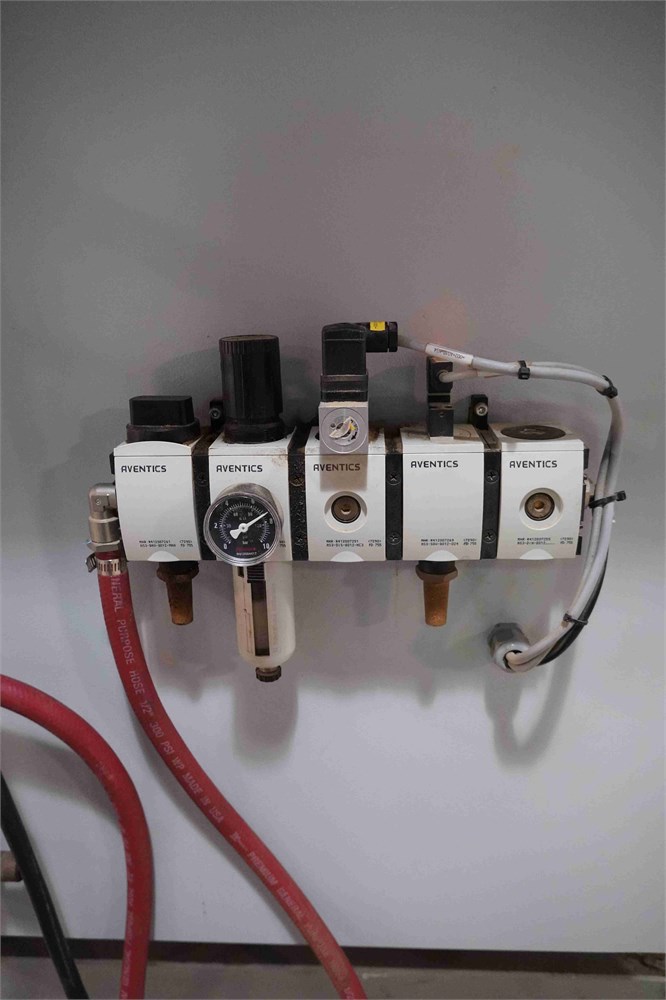

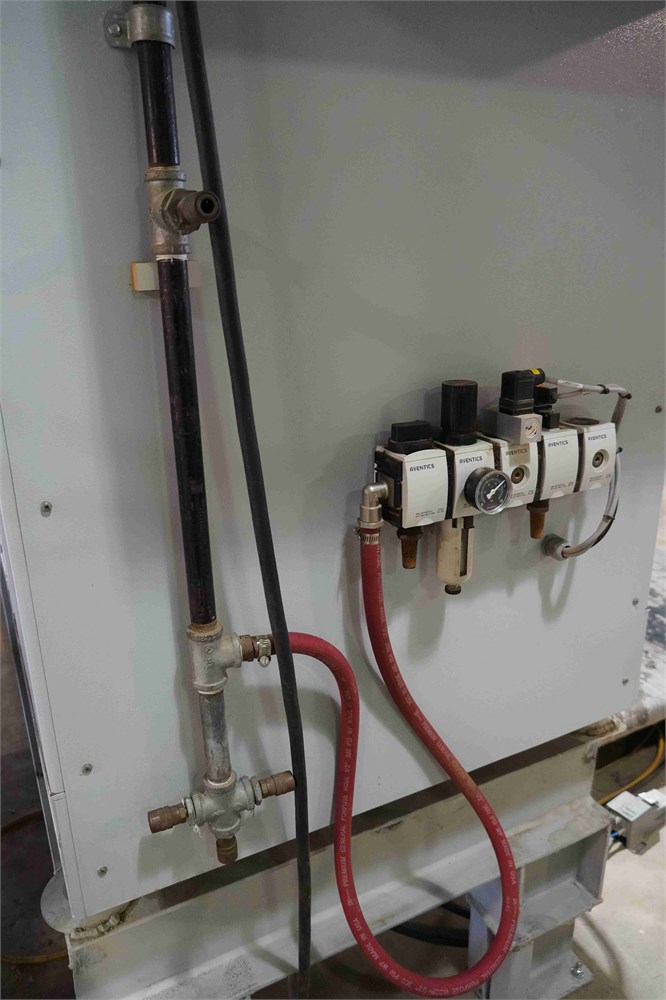

(2) Selectable clamping speeds of approx. 5 FPM (1.5 MPM) or 10 FPM (3 MPM) and adjustable pneumatic pressure regulator clutch system stops the beams at preset pressure resistance.

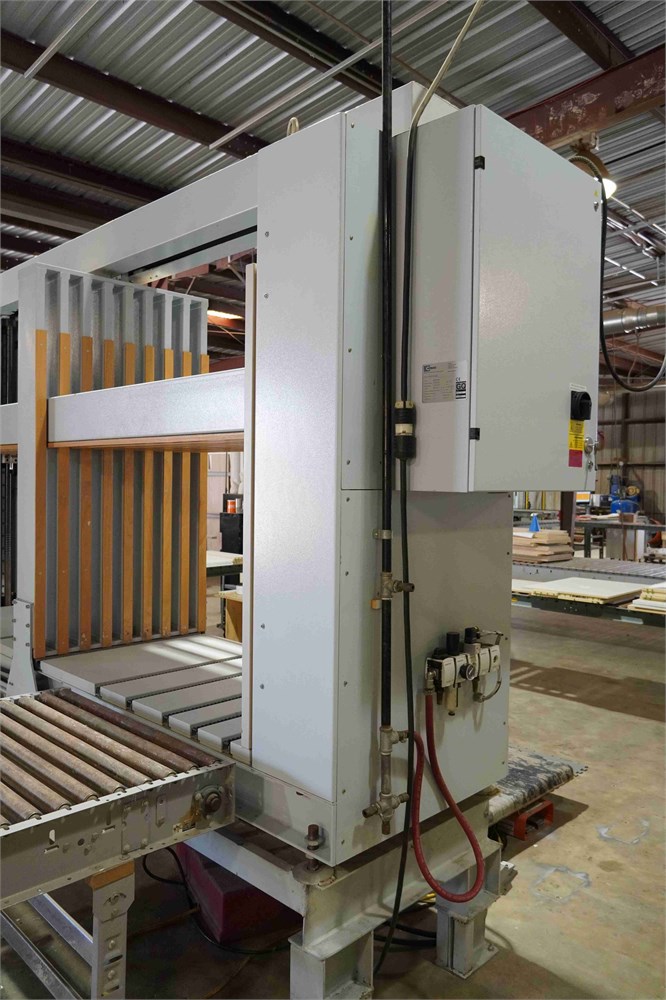

Manual switch setting; adjustable dwell timer opens clamp automatically; operator control panel built into left side of clamp; virtually a "plug-in-play" machine.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
