Homag "Edgeteq S-300" Edgebander (2023) Active

Homag "Edgeteq S-300" Edgebander (2023) - Nampa, ID

Nampa, ID


Days

Hours

Min

Sec

Lot Closes:

9/11/2025 9:00:00 AM PT
260 Watching

Minimum Bid:

$5,000.00 USD

Number of Bids:

0

Current Bid:

$5,000.00 USD ( ) No Reserve
Your Maximum Bid Is $0.00 USD
$USD
Or
Or
  • Starting Bid : $5,000.00 USD ( ) No Reserve
  • 0 Bid(s)
Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
0.00% Sales Tax

Homag "Edgeteq S-300" Edgebander (2023) - Nampa, ID ( Active #74453043 )

On behalf of secured creditor, MachineryMax is auctioning a 2023 Homag edgebander located in the Boise, ID area. The machine is being stored in rigger's secure warehouse.

  • Pick Up Location

    2116 Northland Dr. Nampa, ID 83687

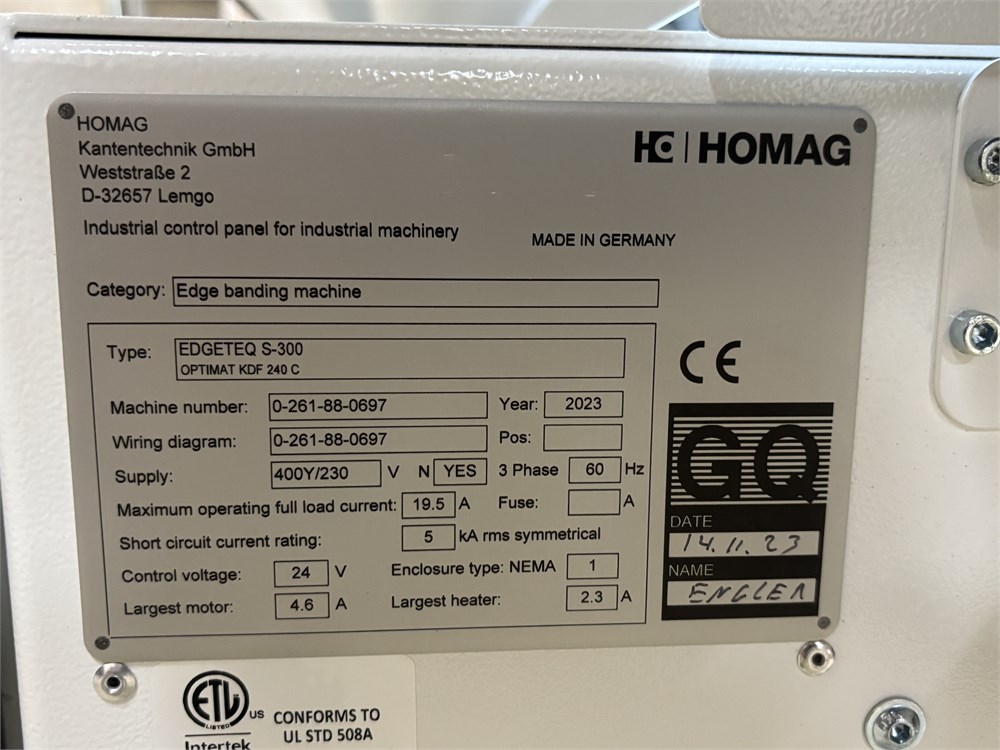

  • Make

    Homag

  • Model

    Edgeteq S-300 (Optimat KDF 240 C)

  • Serial Number

    0-261-88-0697

  • Year

    2023

  • Phase

    3 PHASE

  • Voltage

    208-230/460

  • Buyer Inspection Period

    By appointment only, contact Jack Ragan, [email protected], 503-806-4611

  • Load Out Period

    September 15 - September 26, 2025 (by appointment)

  • Estimated Dimensions

    192" L x 36" W x 66" H

  • Estimated Weight

    5,000 Pounds

  • Seller Comment

    Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.

  • Load Fee

    250.00

  • Lot Notes

  • page views

    26

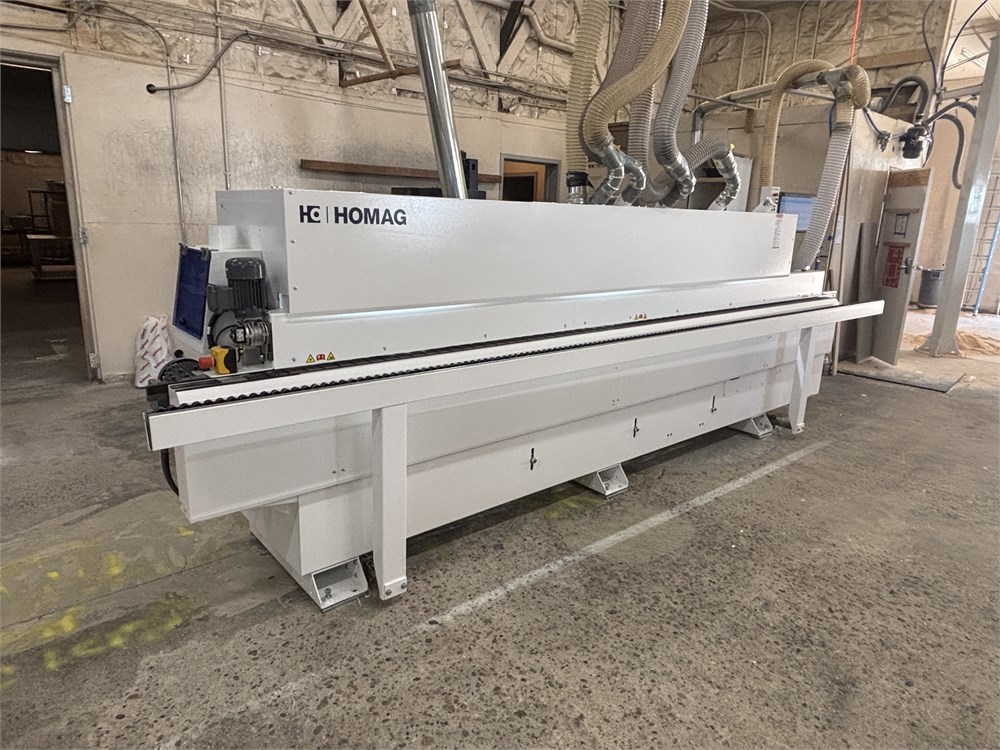

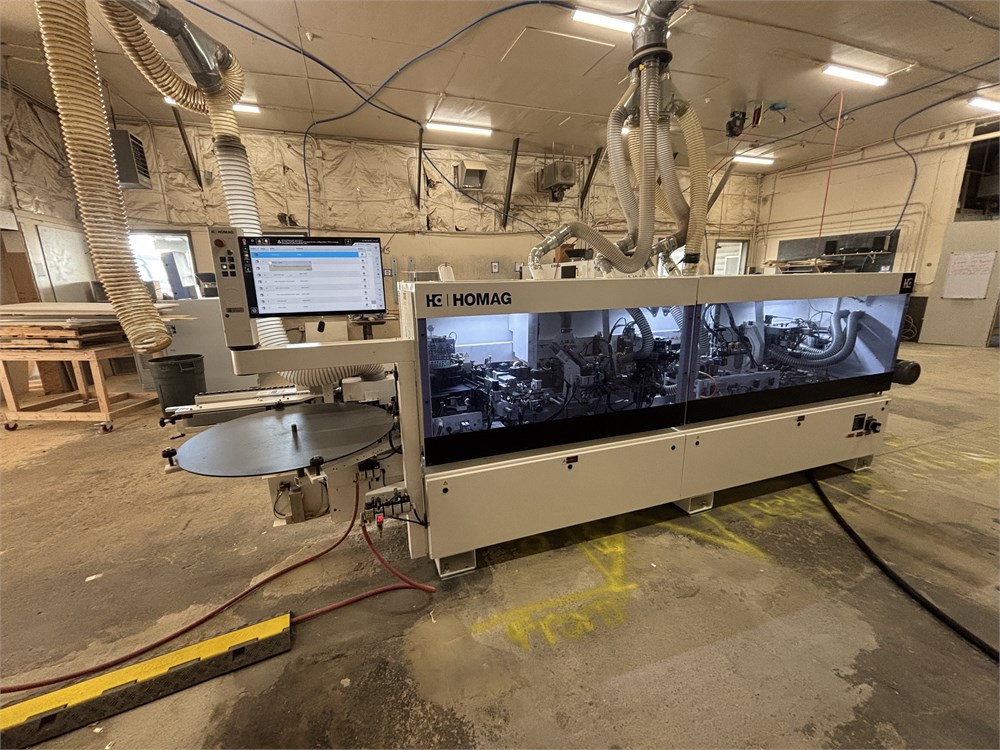

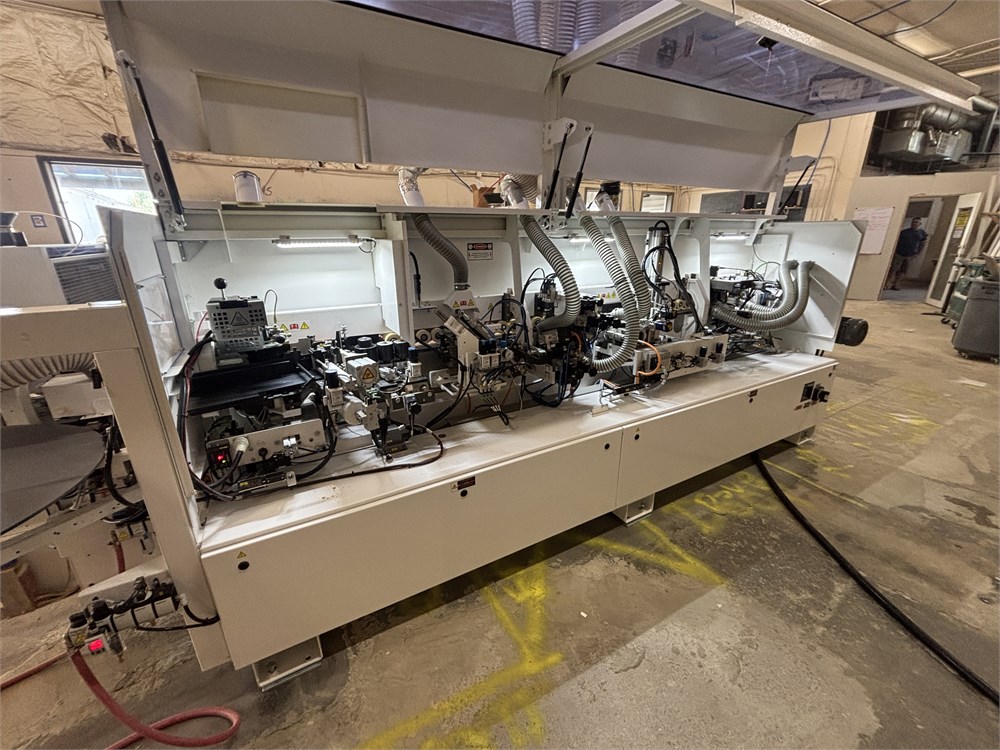

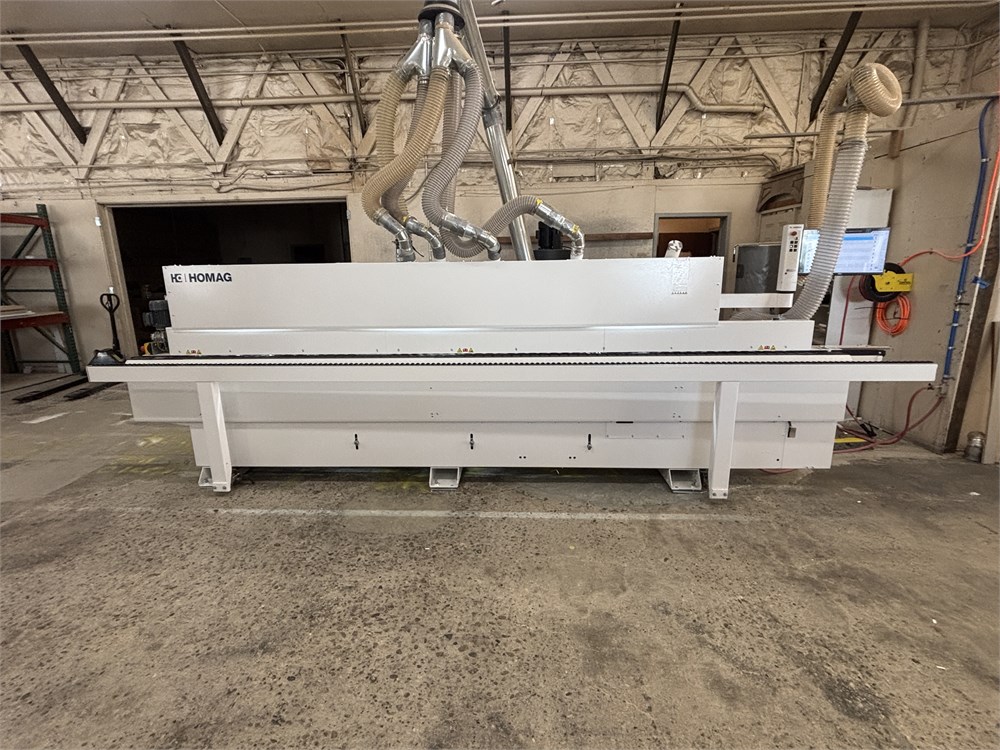

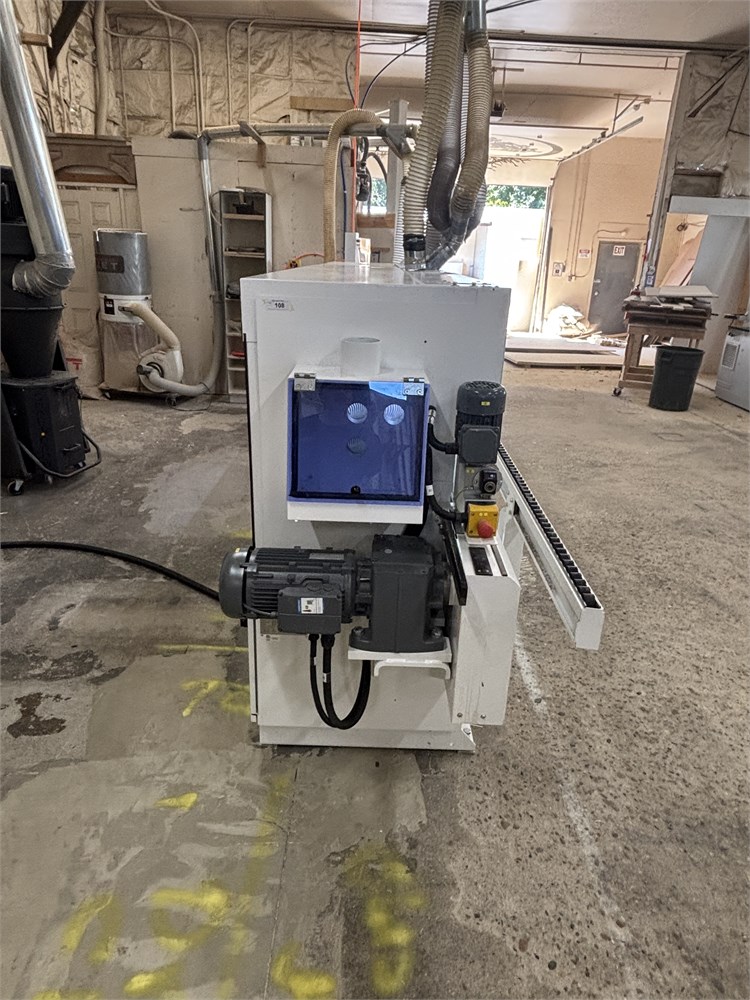

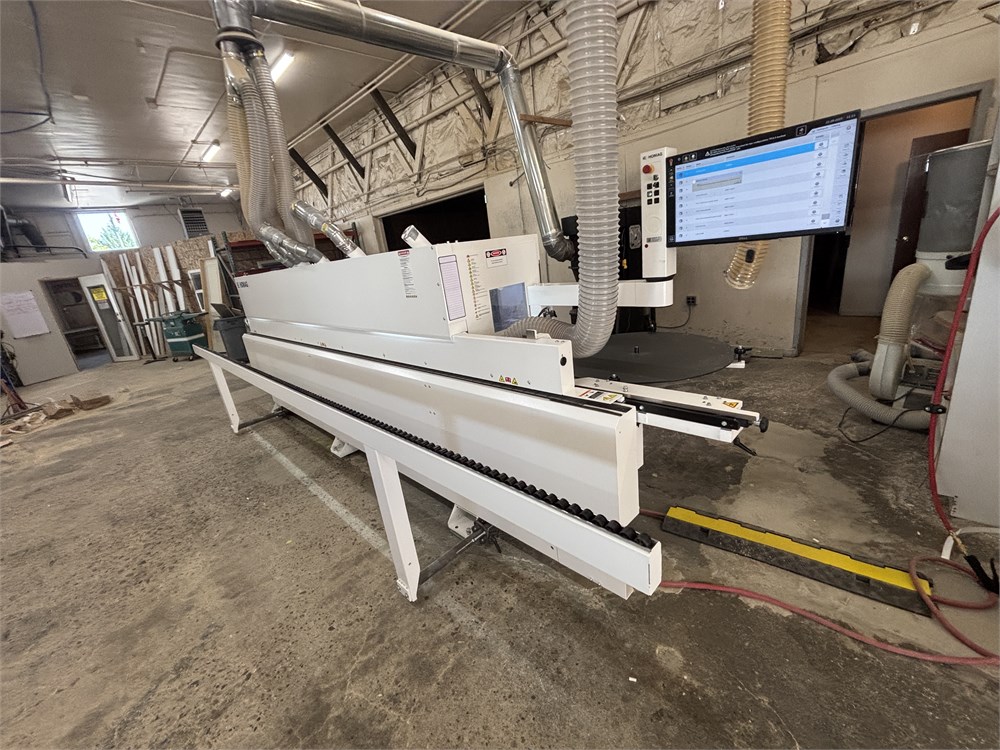

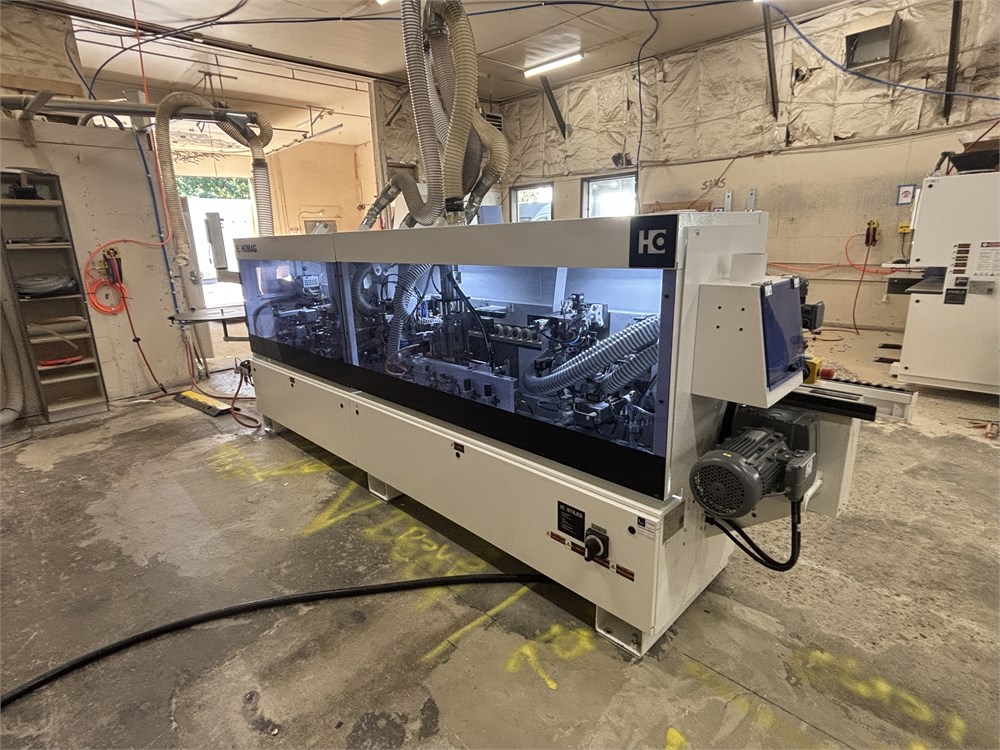

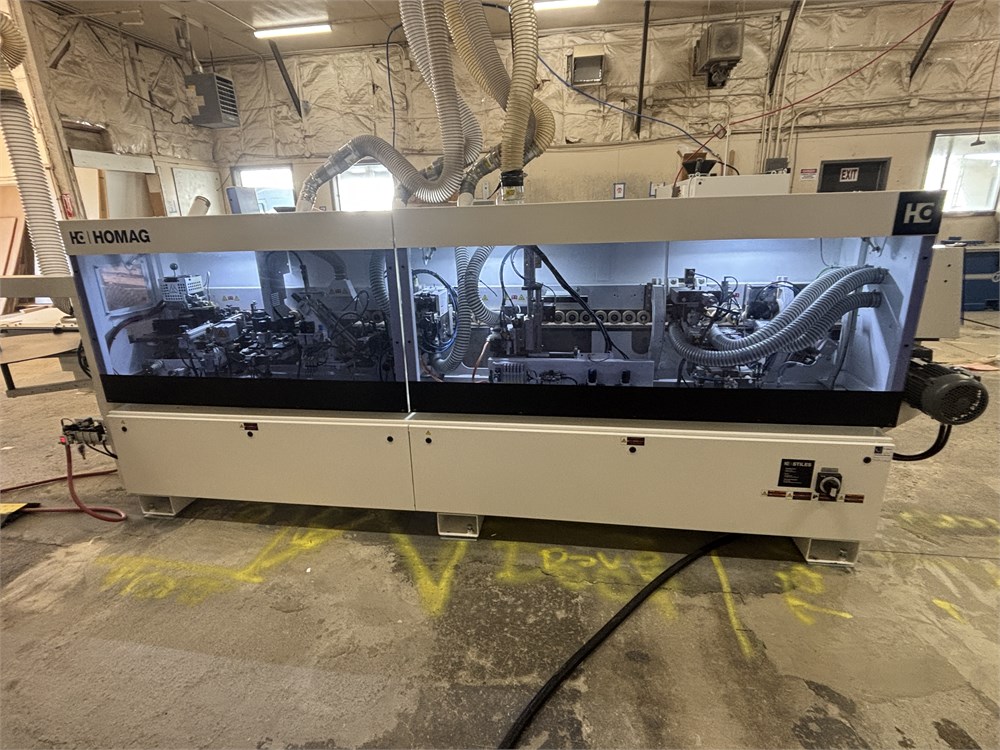

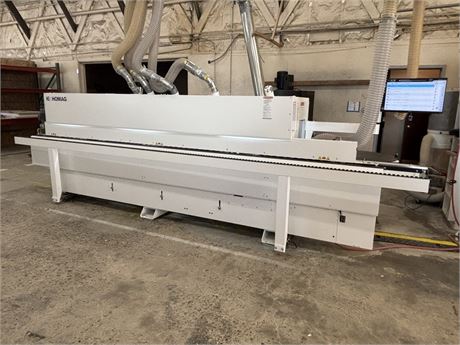

Homag "Edgeteq S-300" Edgebander (2023)

0.3 mm - 3 mm coiled edgebanding thickness

0.4 mm - 8 mm solid strip edgebanding thickness

8 mm - 60 mm panel thickness

160 mm minimum panel length

70 mm minimum panel width

26 FPM - 46 FPM feed speed

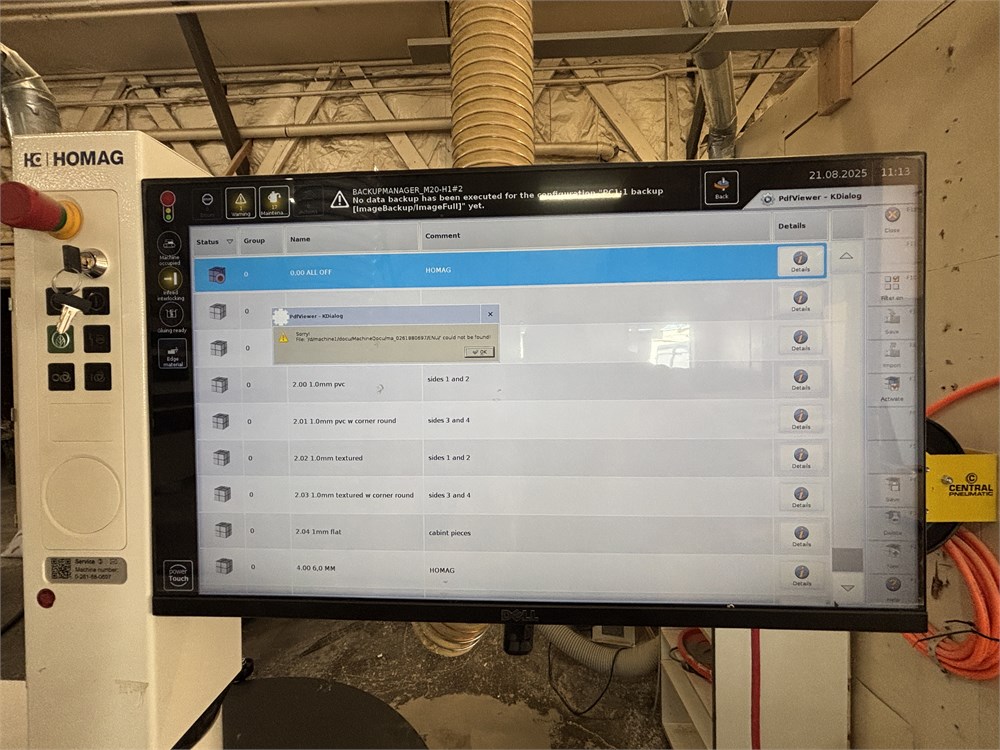

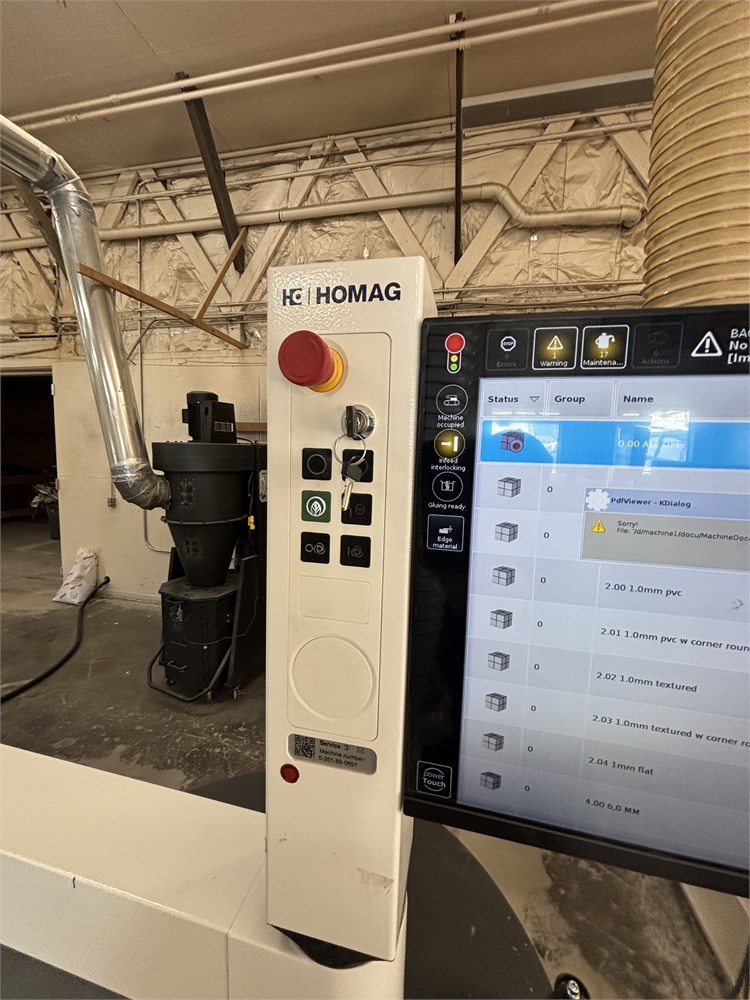

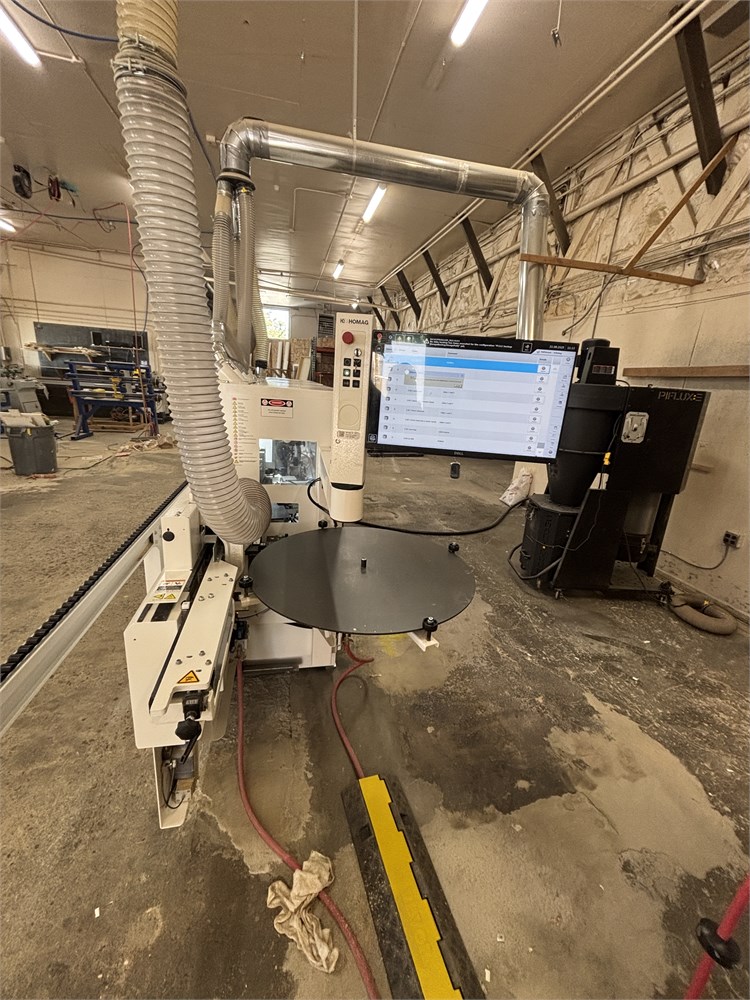

Homag's powerTouch controller

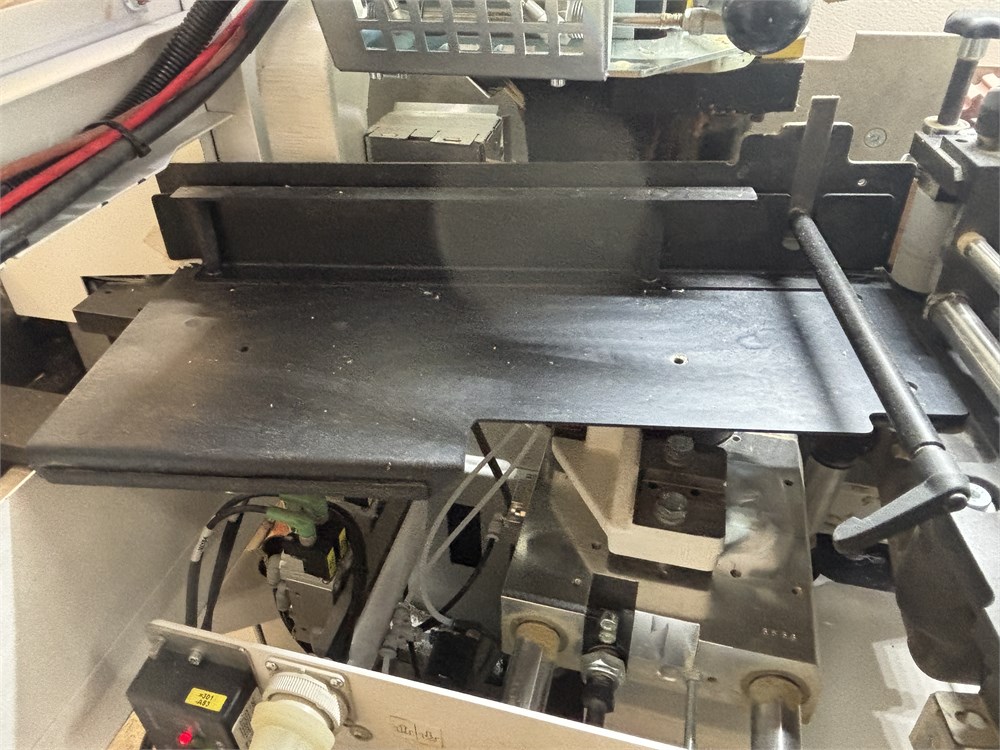

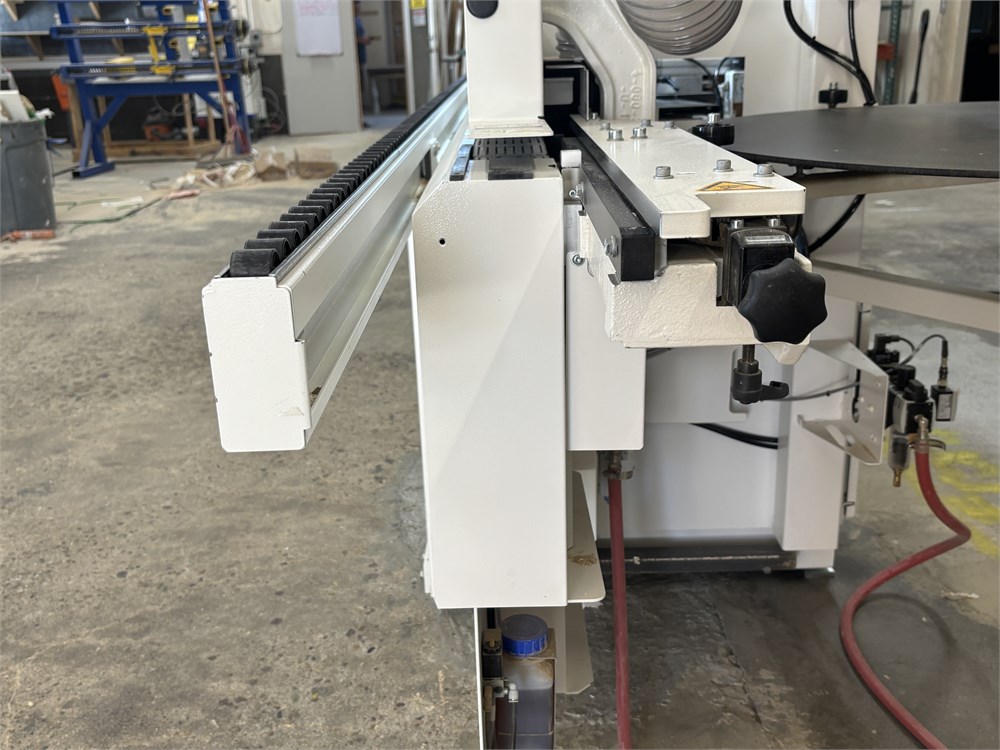

Edgebanding infeed table

Infeed fence

Two (2) motor premilling station, 3 HP/12,000 RPM (each)

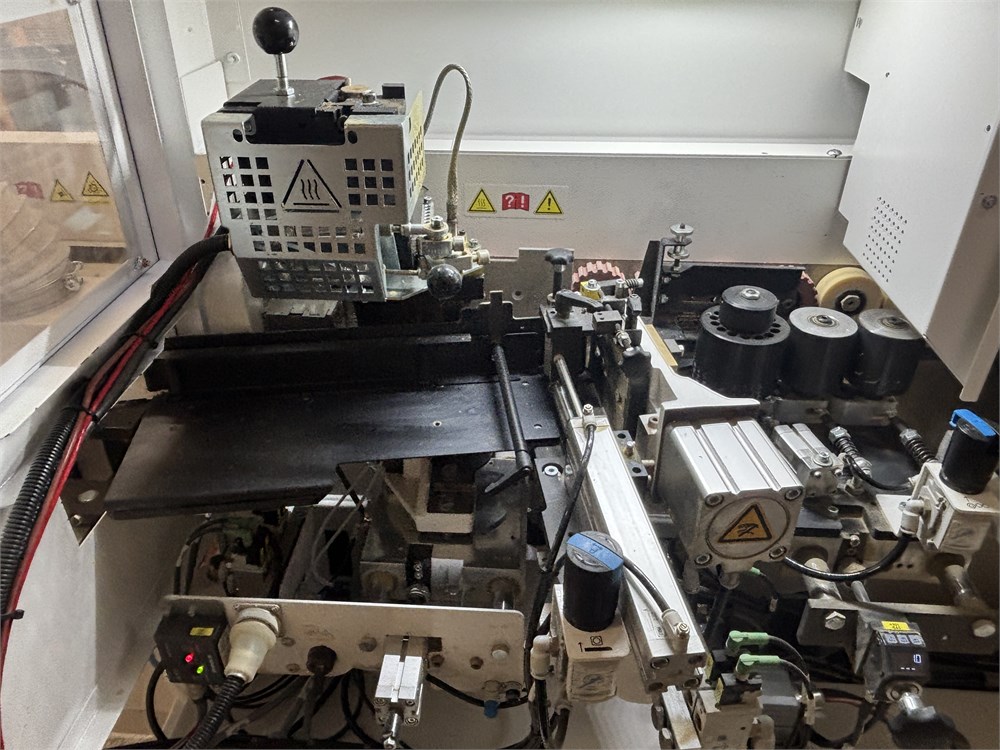

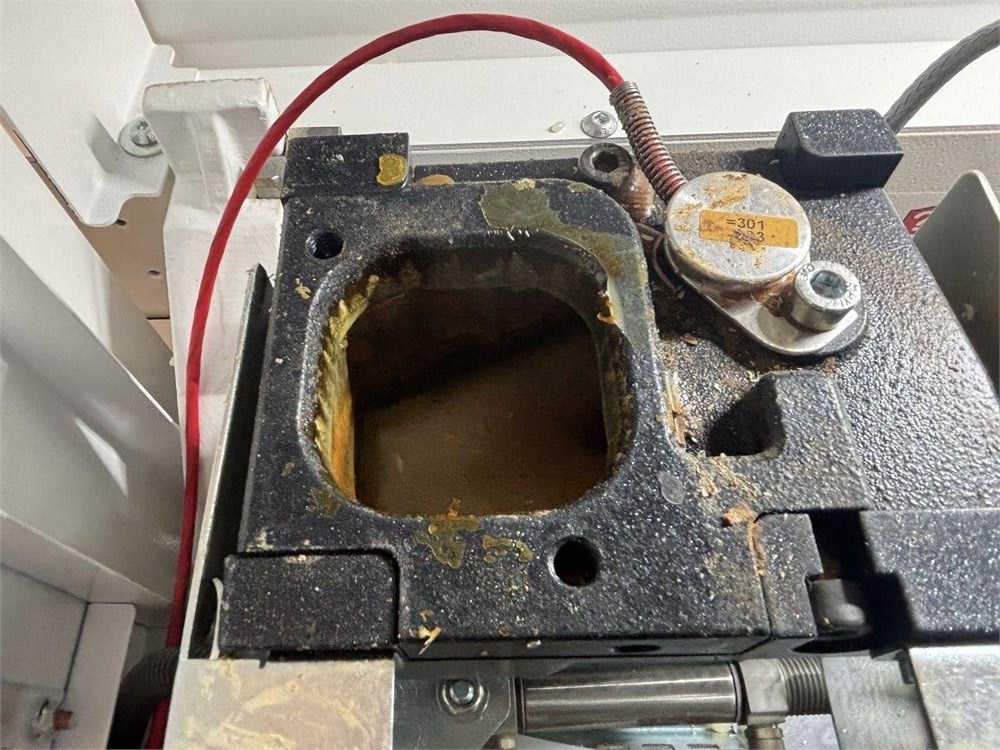

Glue station with pot and application roller

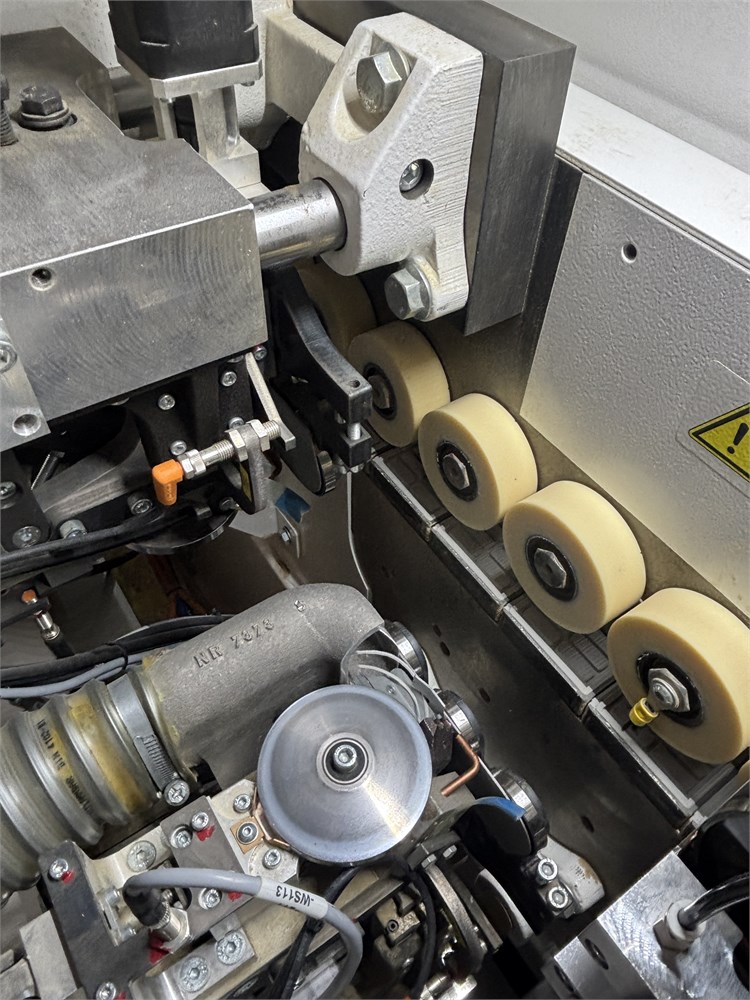

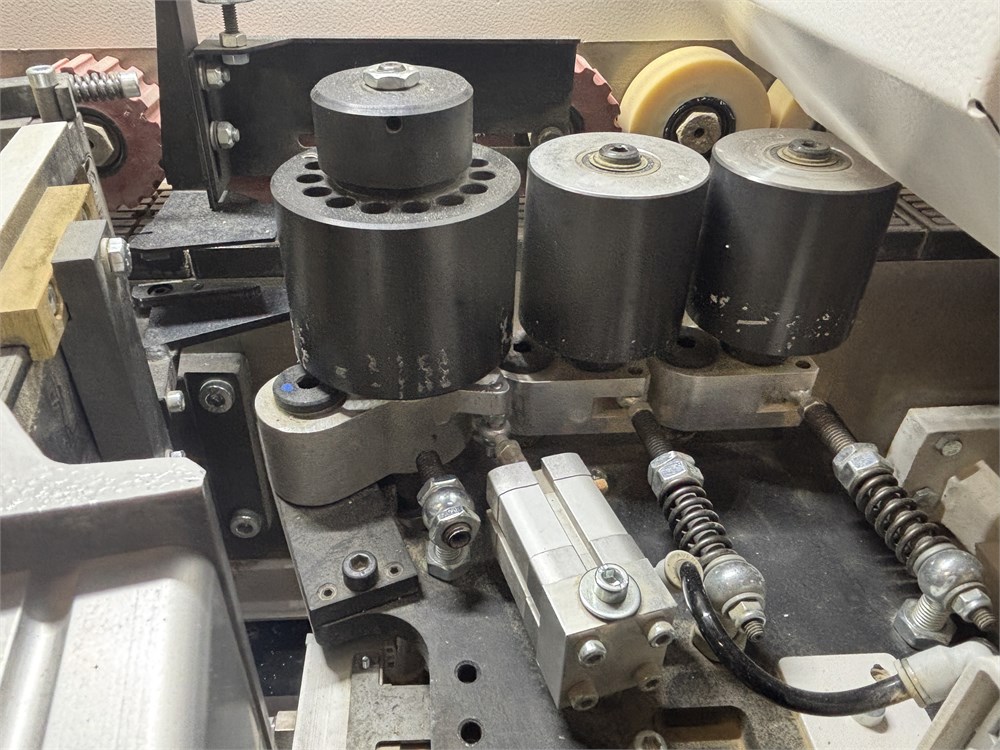

Pressure station with one (1) driven roller and two (2) idle rollers

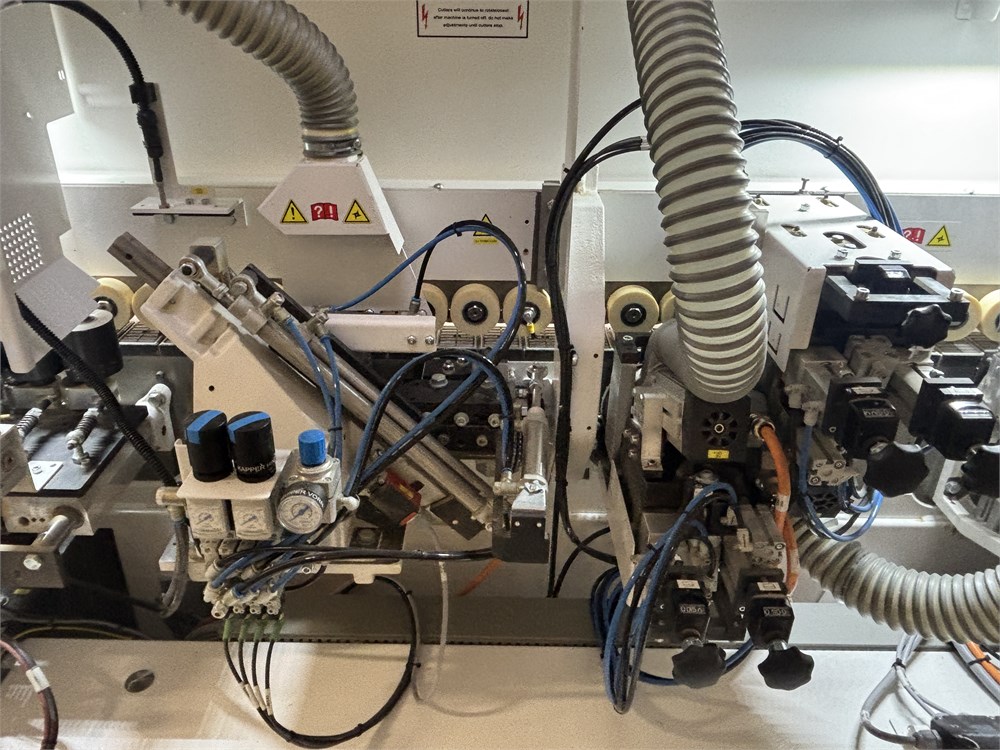

Two (2) motor end trimming station, 0.5 HP/12,000 RPM (each); automatic chamfer from control panel 0°- 15°

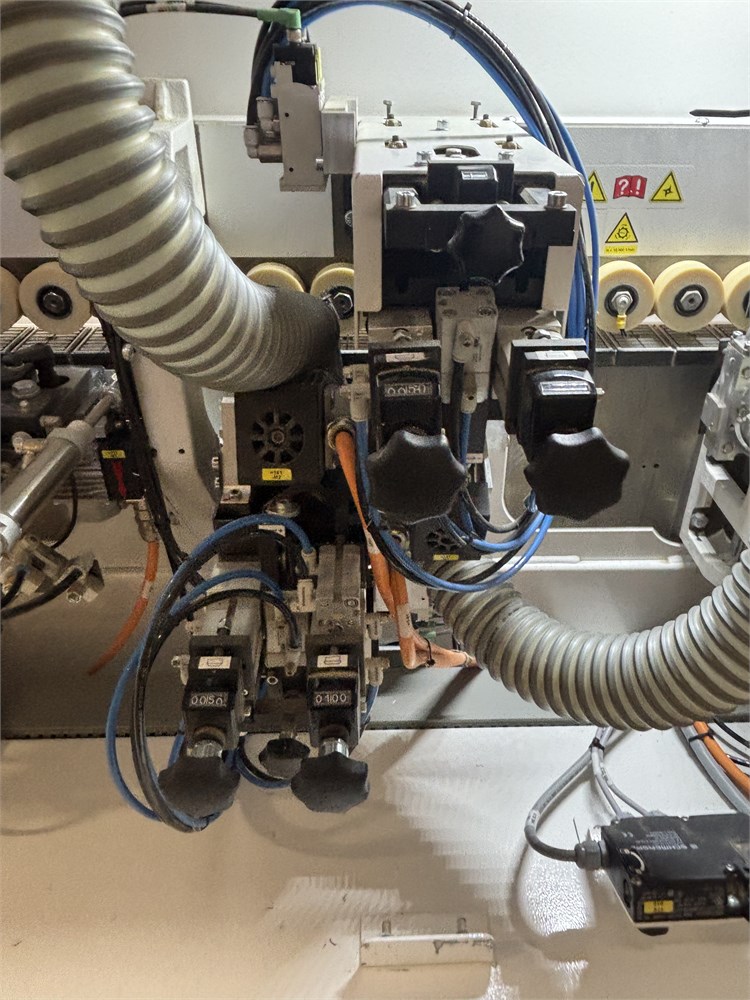

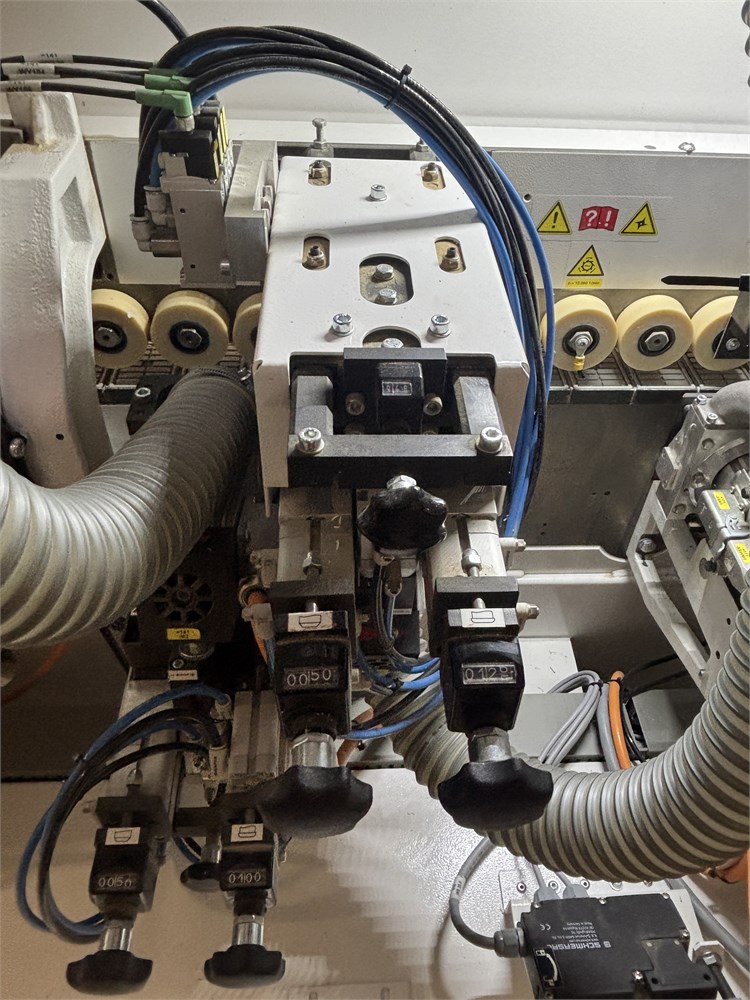

Top/bottom trimming station, 0.75 HP/12,000 RPM (each); auto tilt positioning 0° - 25°; Horizontal and vertical tracing wheels, equipped with brushless multi-axis servo motors for positioning of work-unit and horizontal copy wheels for quick changeover.

One (1) motor corner rounding station, 0.5 HP/12,000 RPM

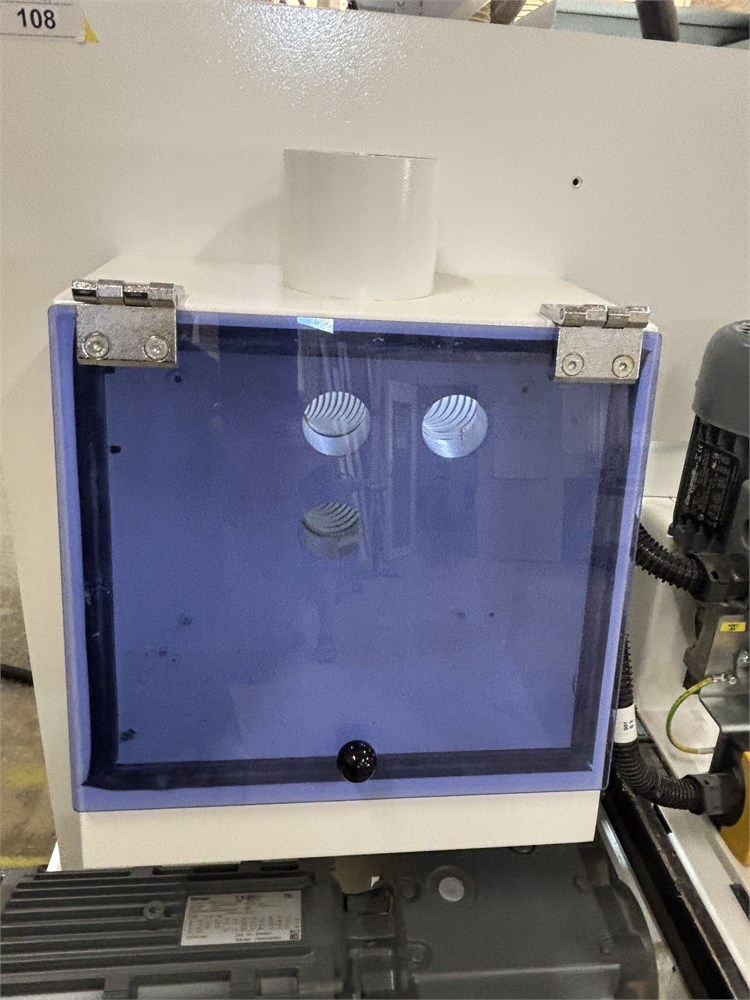

Top/bottom profile scraping station with external collection box

Top/bottom flat scraping station

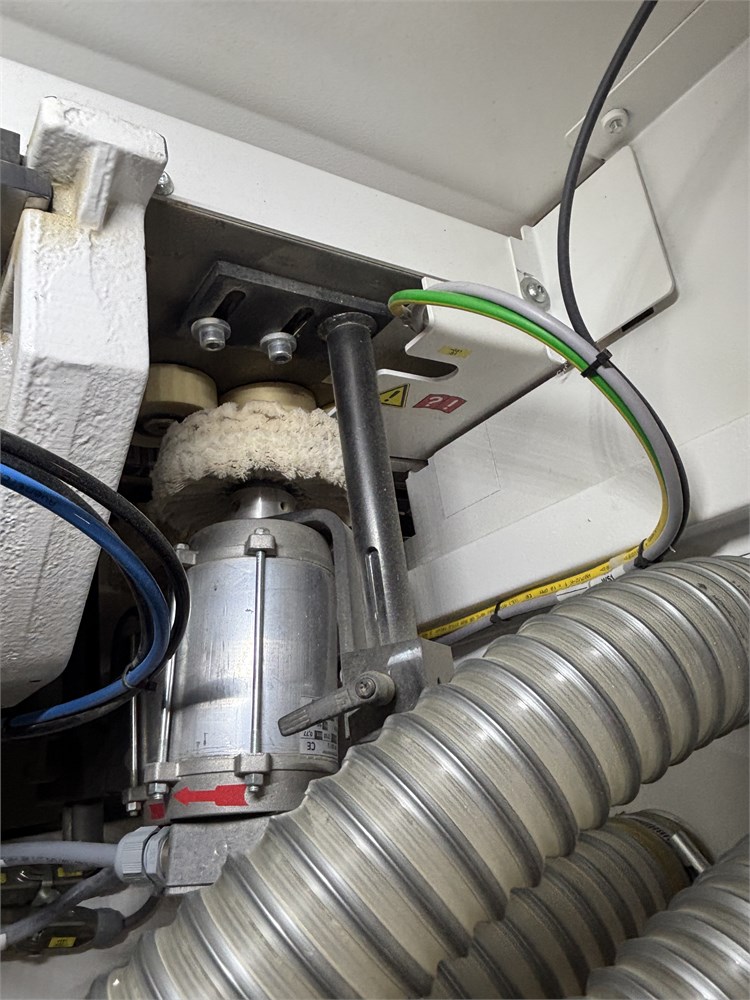

Top/bottom buffing station, 0.125 HP/2,800 RPM (each)

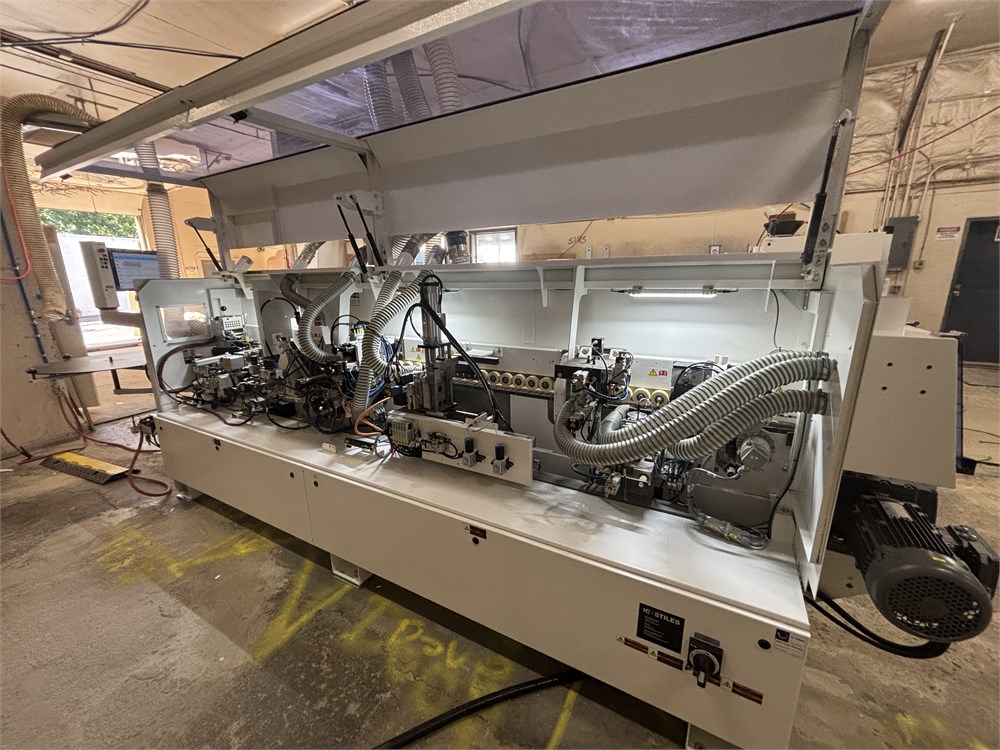

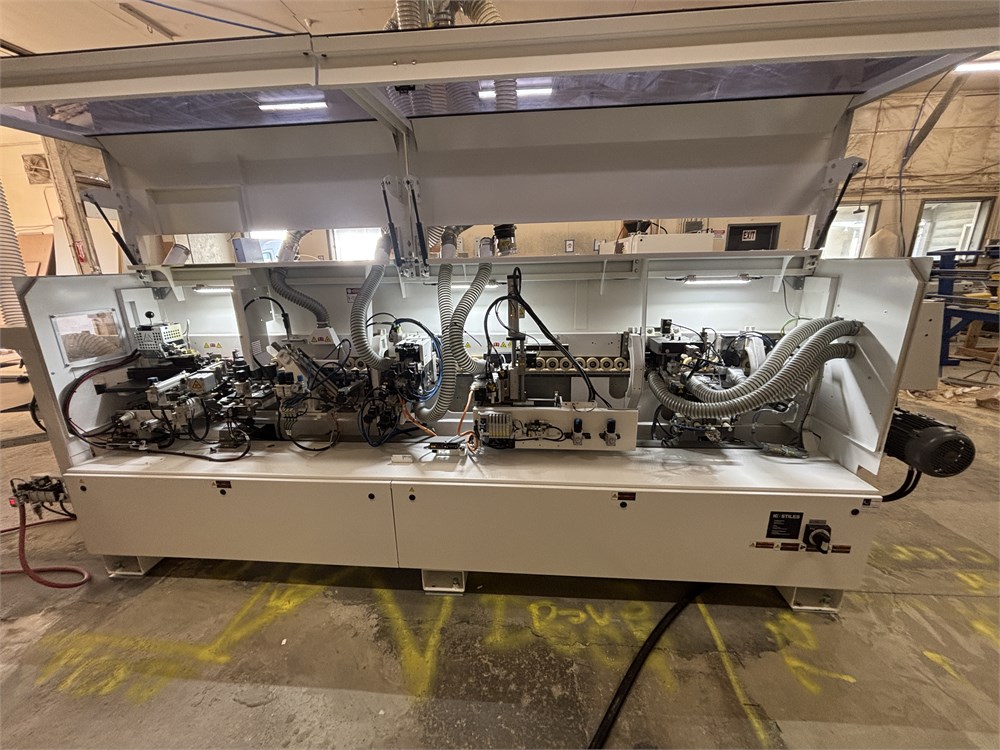

Lighted sound enclosure

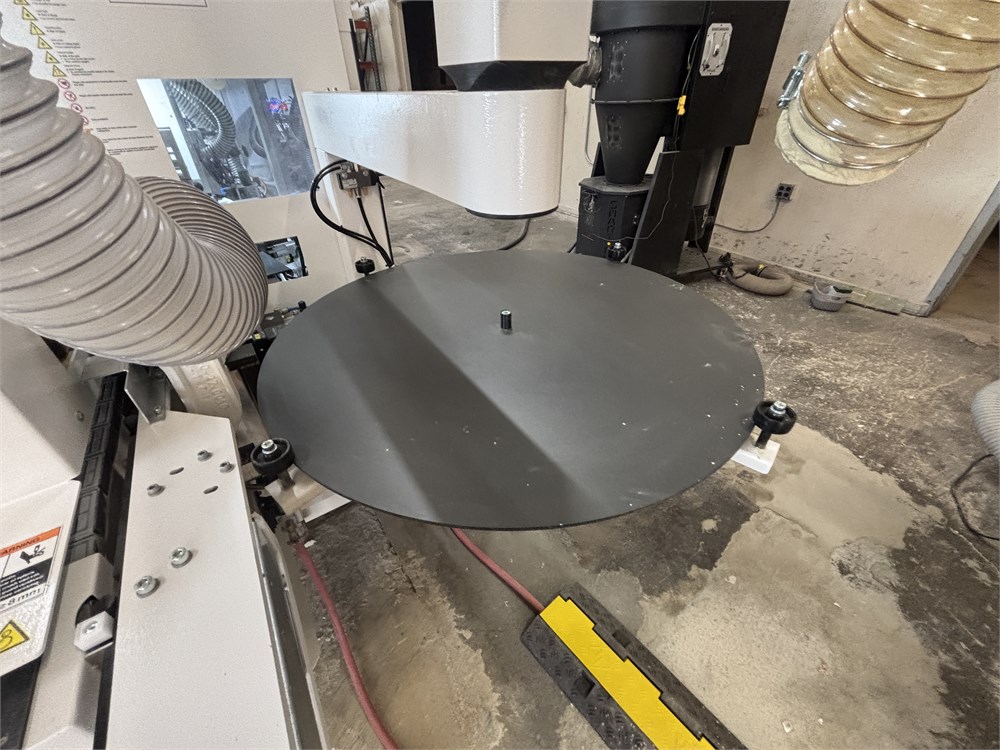

Outboard roller support

Motorized top beam positioning

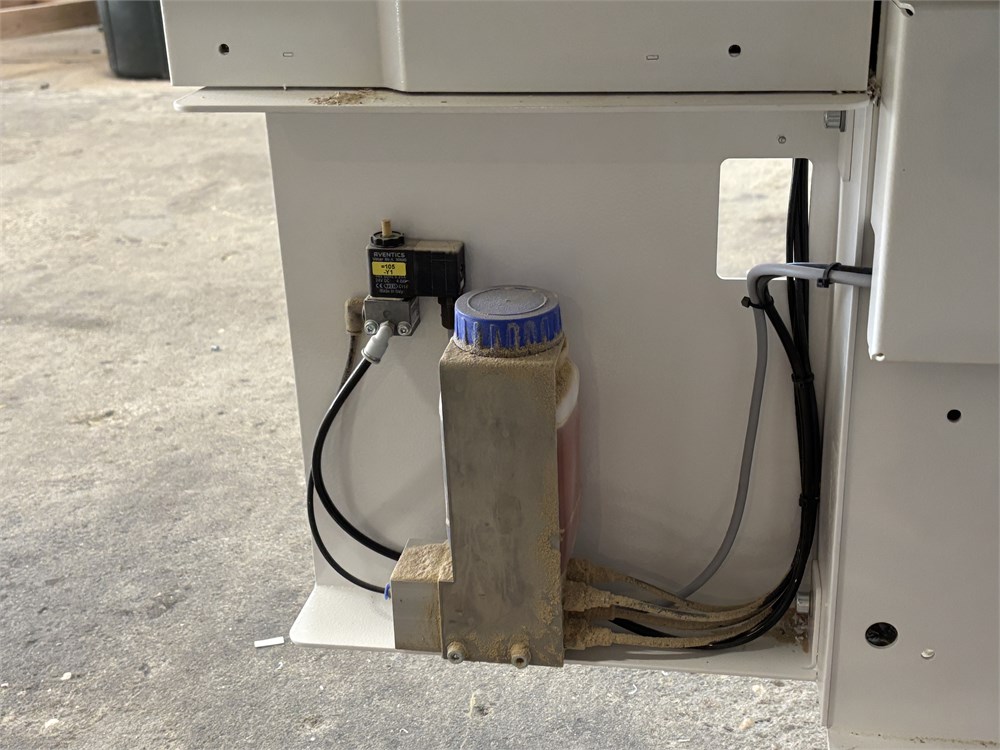

Centralized lubrication system

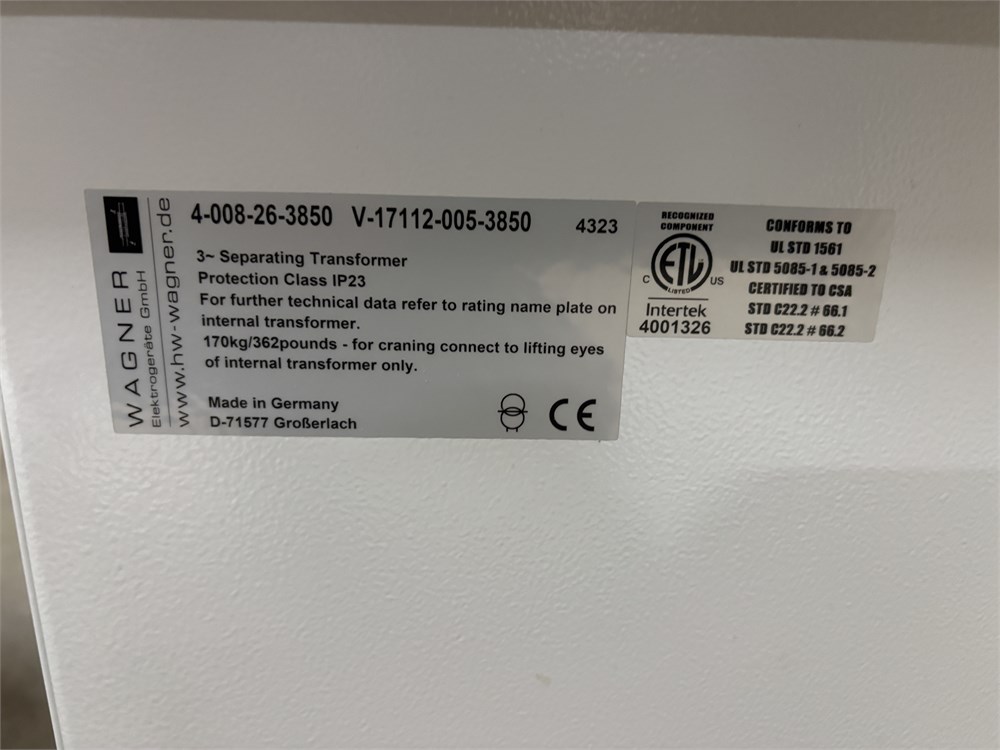

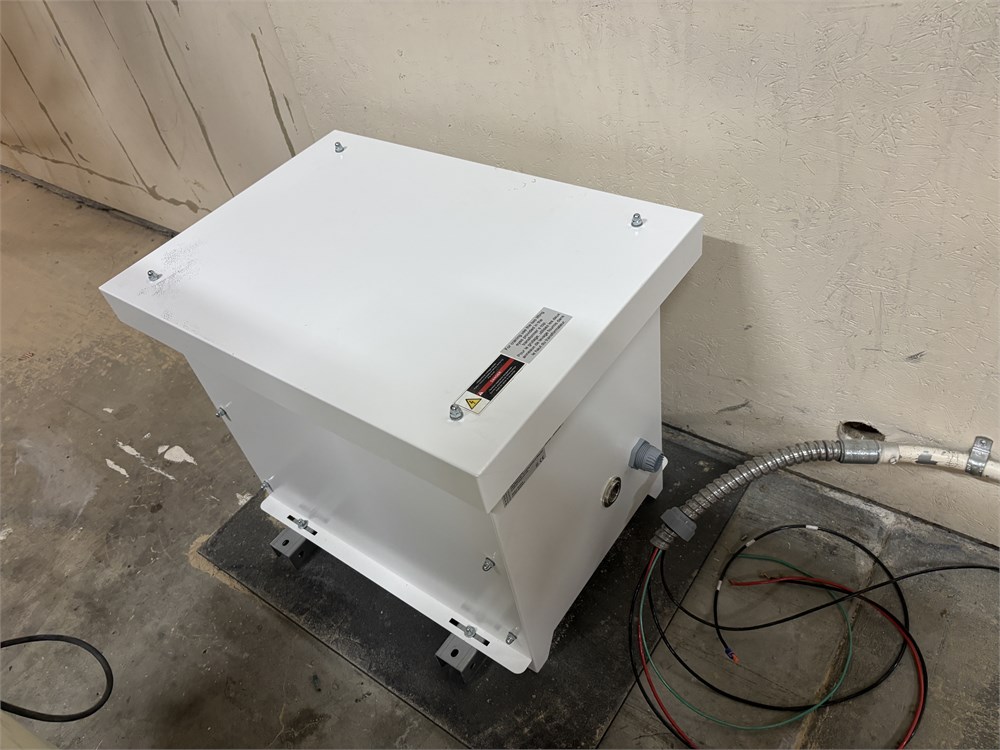

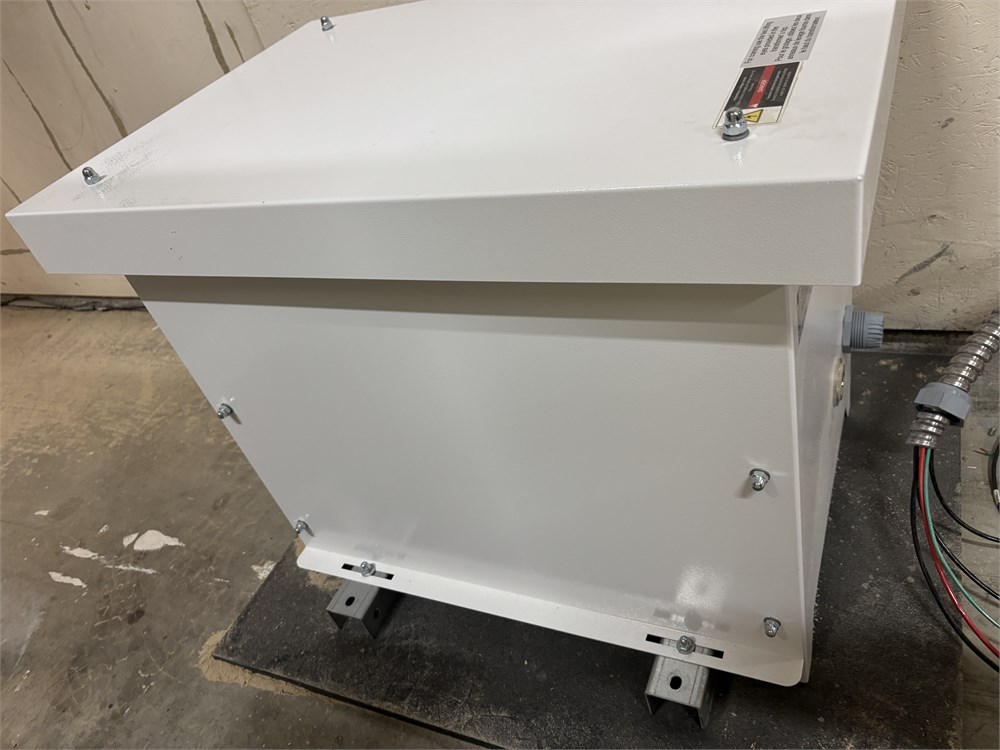

External electrical transformer

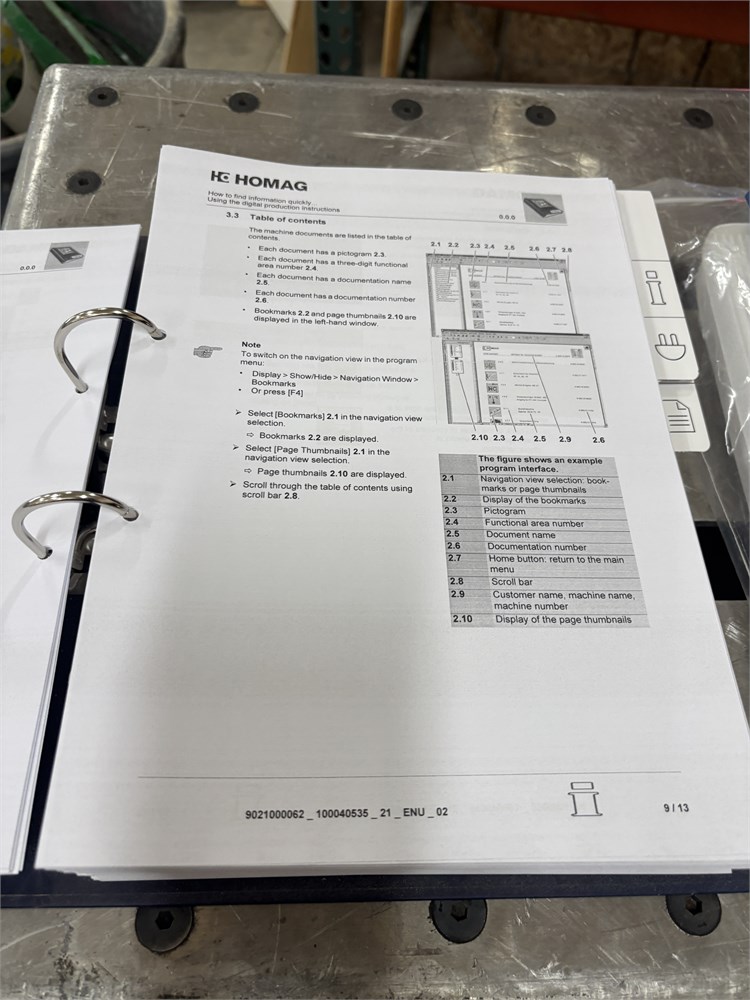

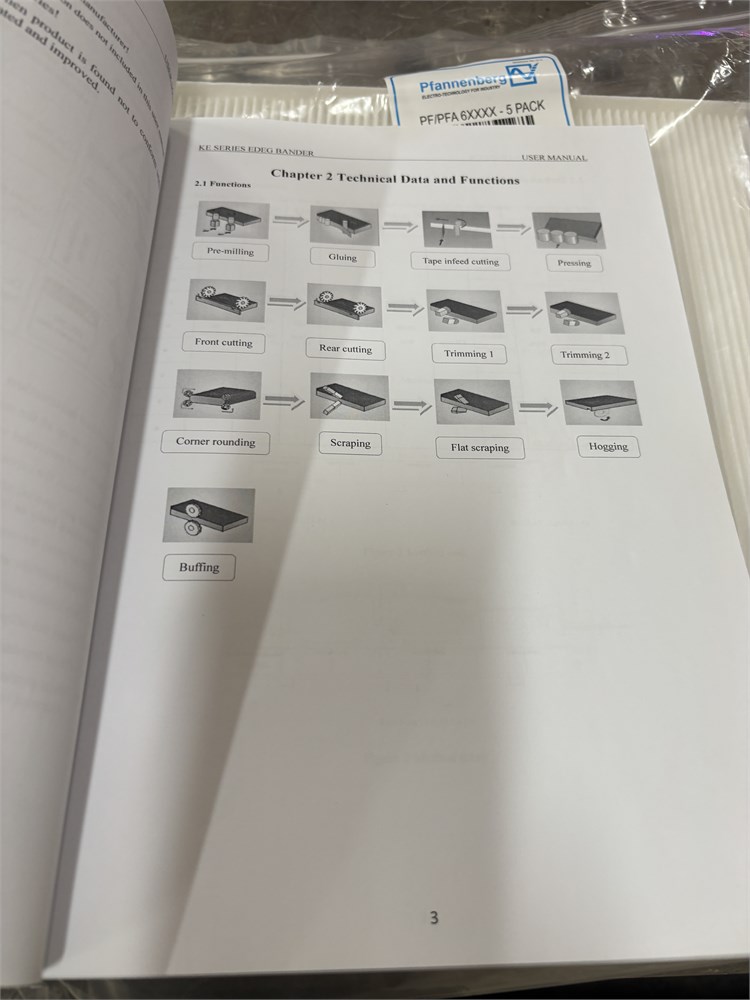

Manuals

Dust pipe NOT included

The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
