Vollmer "CHD 350" Sharpening Machine
Preview
DAY 3 of a 3-Day Sale!
Tiffin, OH
Starts In remaining
Dorel Home Furnishings - Ameriwood - Day 3 ( Preview #73610576 )
Complete Facility is closing and ALL assets being offered. There is over 900 lots being offered in this online sale. Located in Tiffin, OH the facility is 550,000 SQ'. Don't miss out on this rare opportunity!
-
Pick Up Location
458 2nd Ave, Tiffin, OH 44883
-

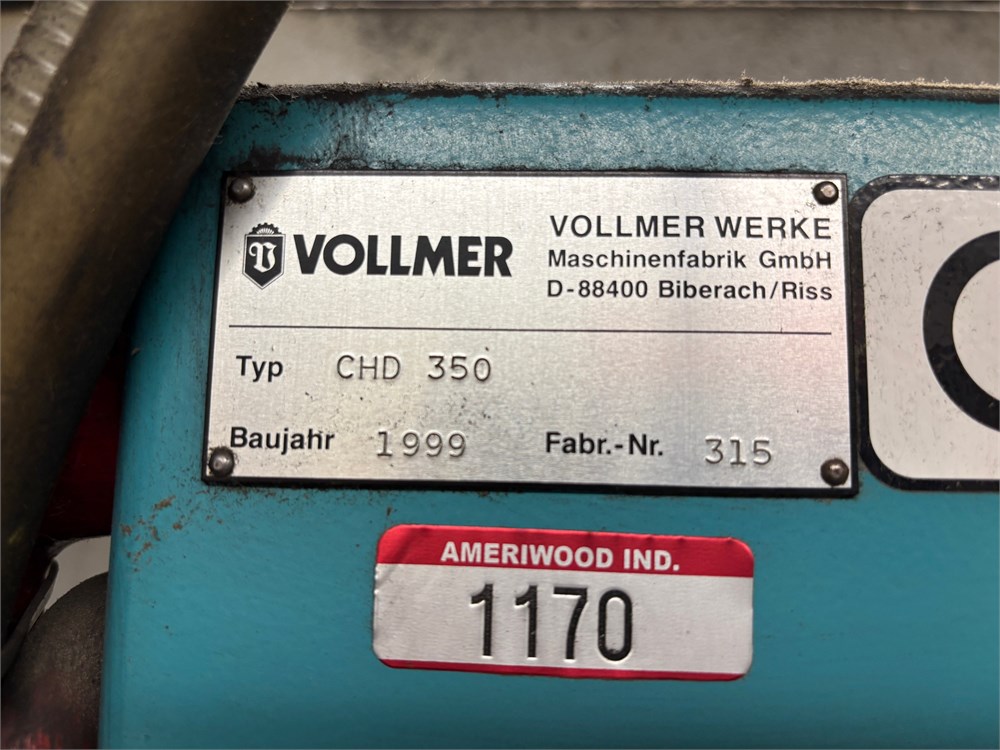

Make
Vollmer
-
Model
"CHD 350"
-
Serial Number
315
-
Year
1999
-
Phase
3 PHASE
-
Voltage
230/460
-
Buyer Inspection Period
TBD
-
Load Out Period
TBD
-
Estimated Dimensions
108" x 62" x 82"H
-
Estimated Weight
3000 lbs
-
Seller Comment
Buyer responsible for prep, loading, and shipping or hiring a rigger to do so.
-
Load Fee
-
Lot Notes
-
page views
0

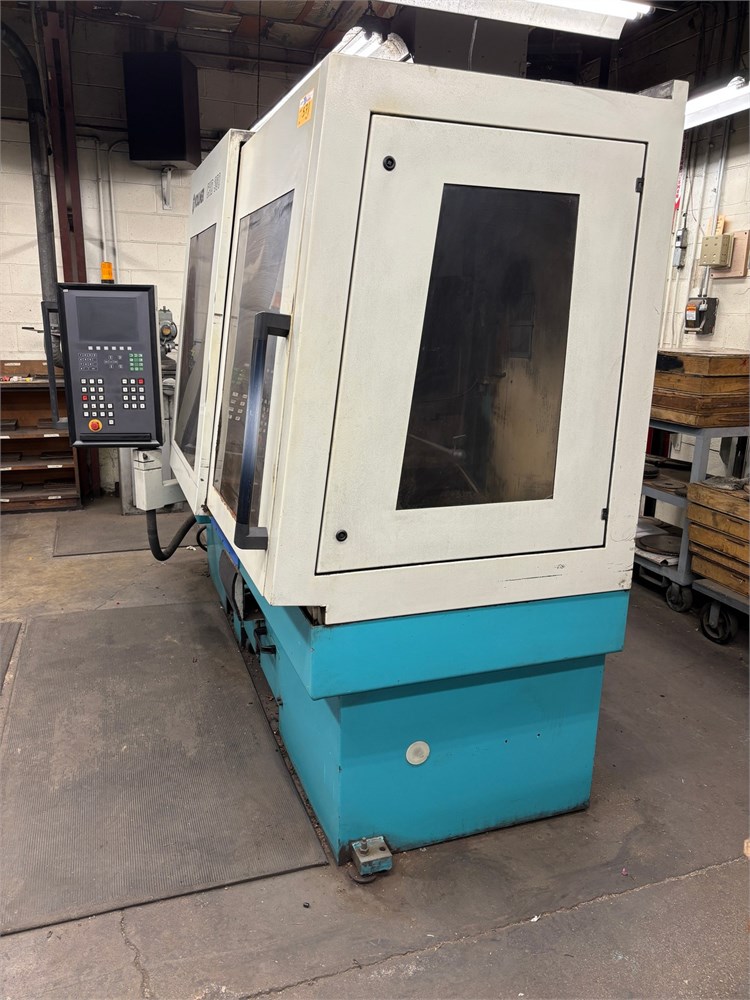

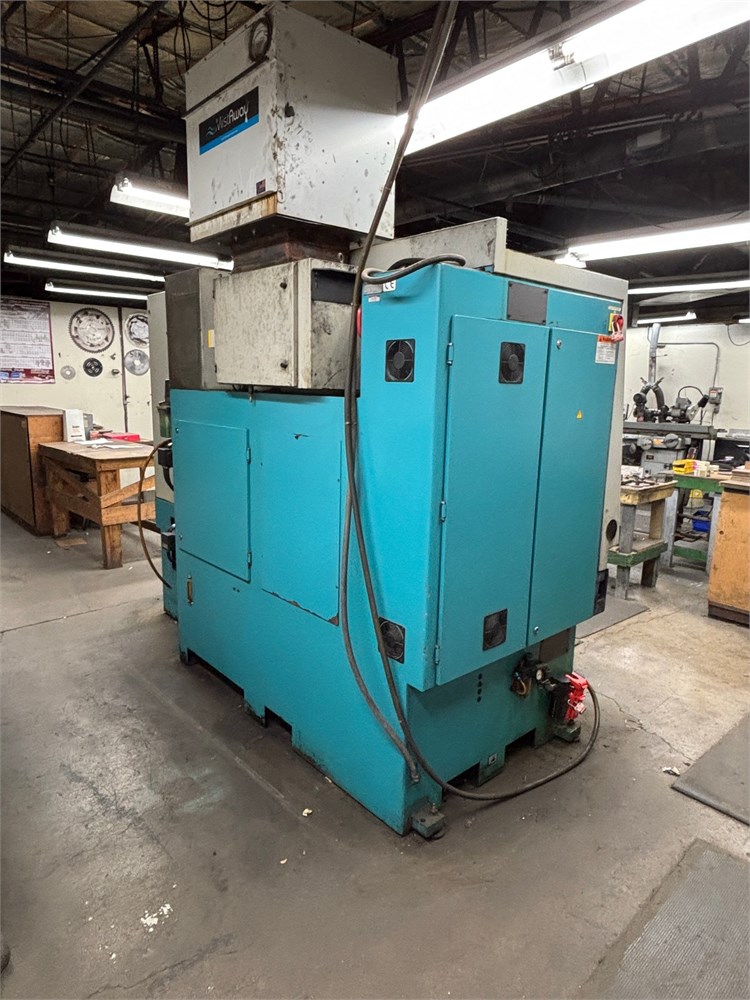

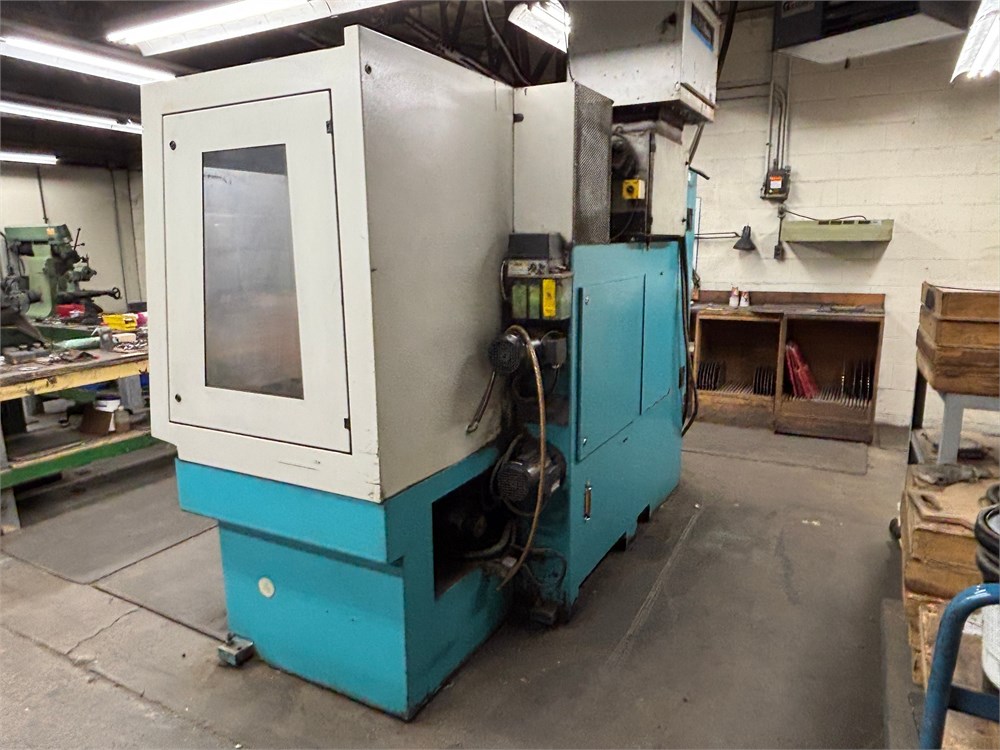

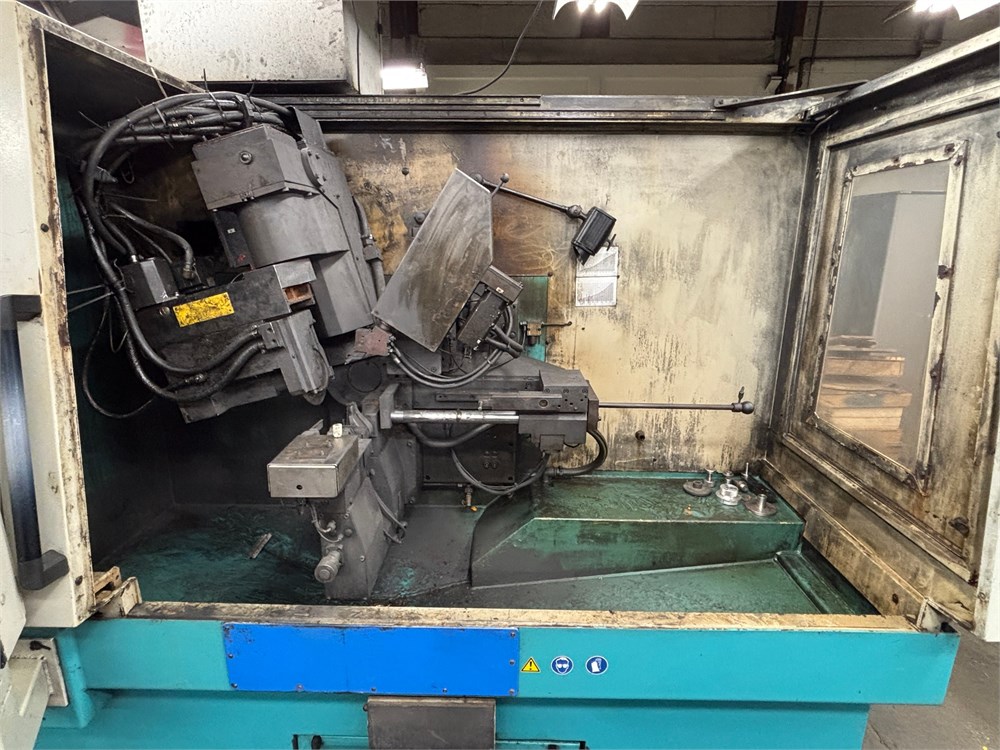

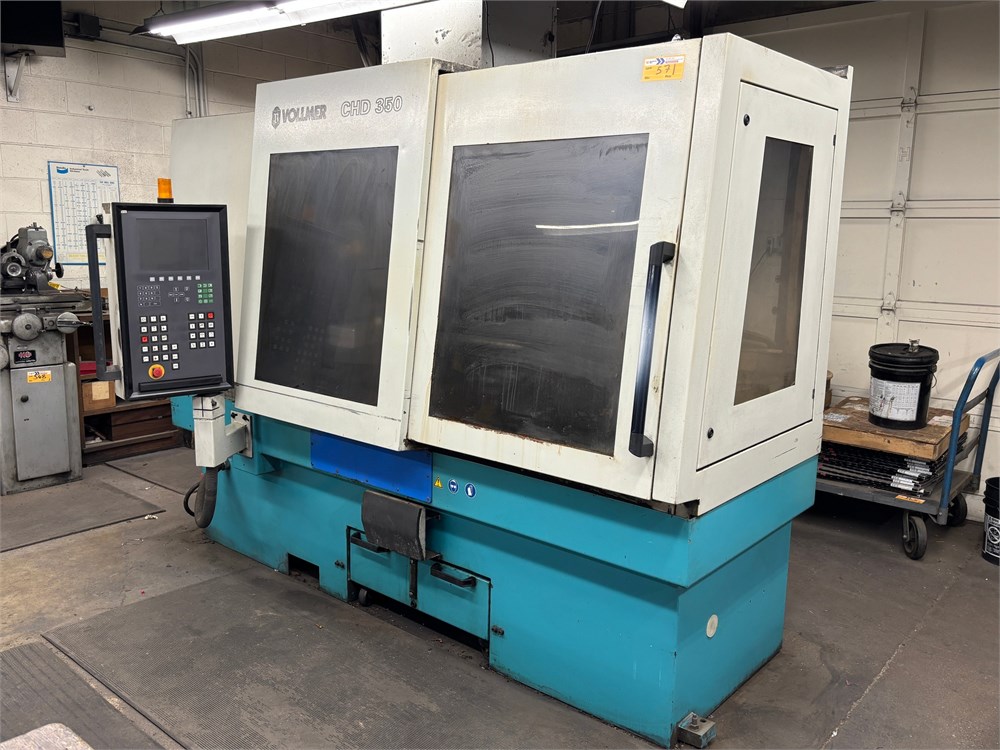

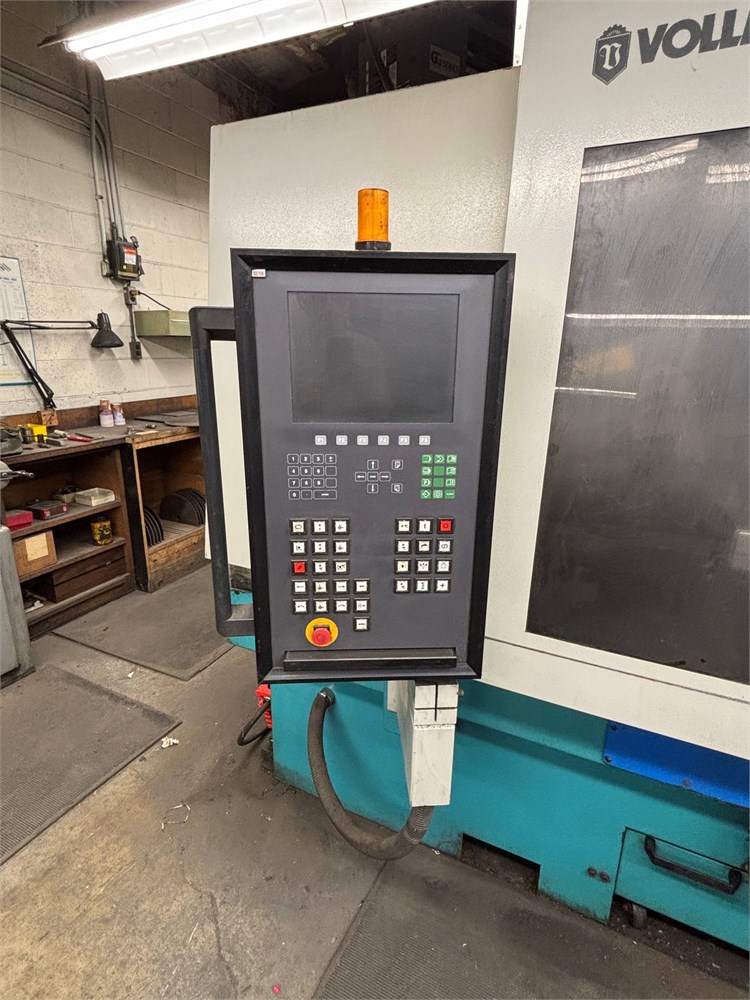

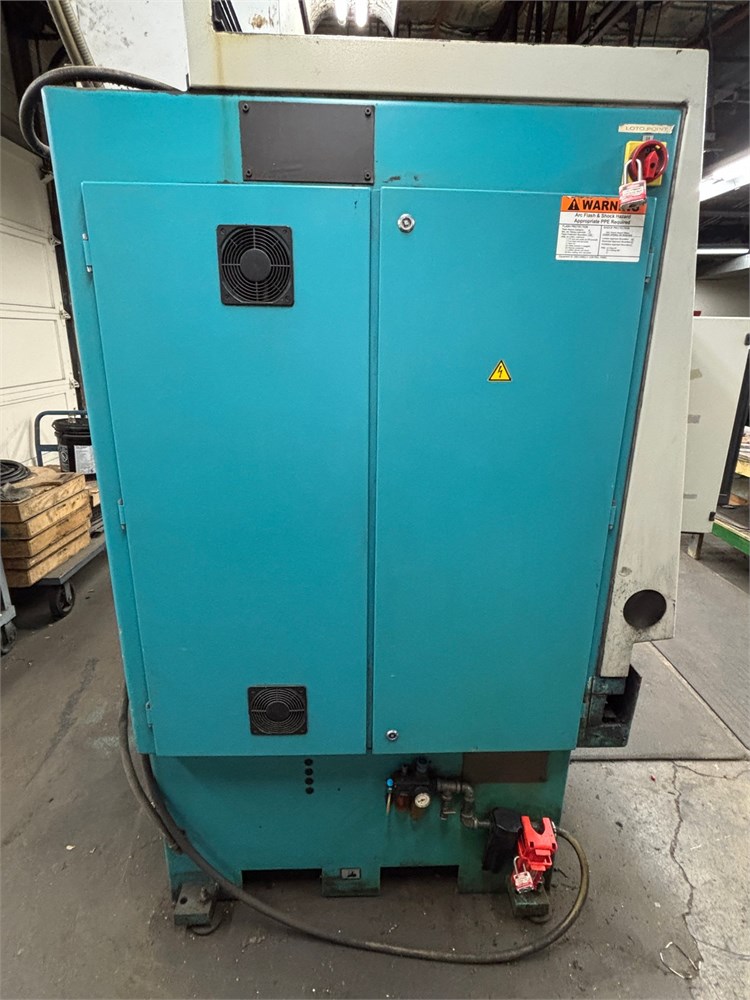

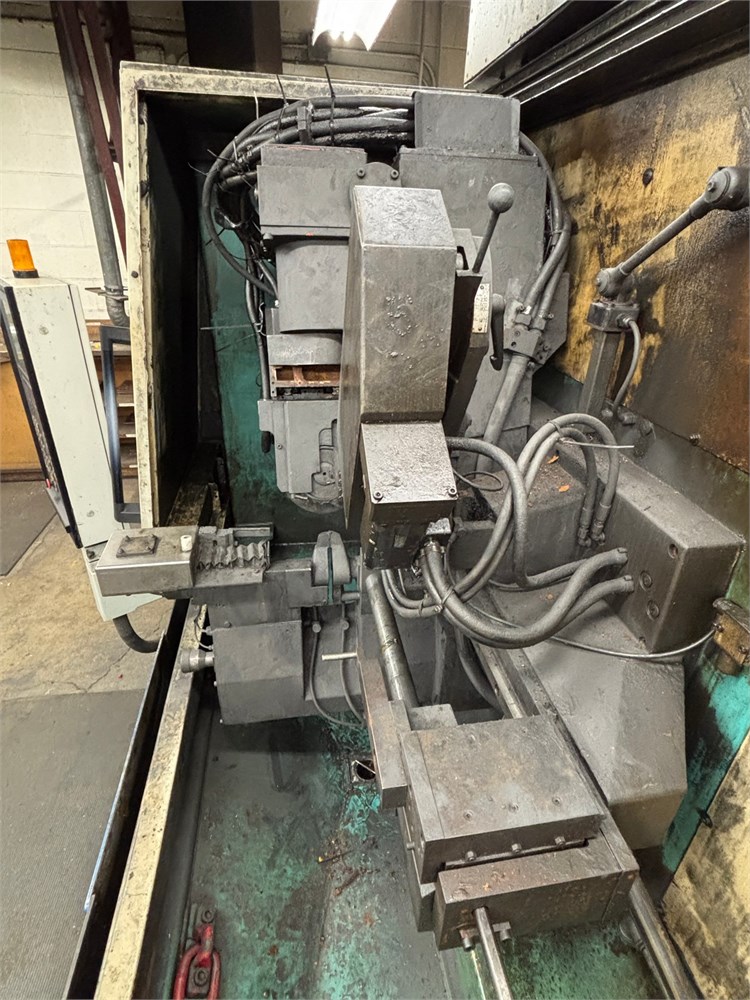

Vollmer "CHD 350" Sharpening Machine
- Machine Type: Sharpening machine for carbide-tipped blades.
- Maximum Saw Blade Diameter: 1300 mm.
- Minimum Saw Blade Diameter: 80 mm.
- Bore Diameter: 10 mm to 220 mm.
- Blade Thickness: Up to 12 mm.
- Tooth Pitch: 6 mm to 120 mm.
- Tooth Geometries: All common tooth shapes, including flat, alternate, and trapezoidal.
- Grinding Angles:
- Bevel angle on the tooth face: up to 30°.
- Bevel angle on the back of the tooth: up to 50°.
- Clearance angle: 6° to 45°.
- Rake angle: -20° to +40°.
- Grinding Path: Up to 30 mm.
- Grinding Speed: Up to 20 teeth per minute.
- Automatic Grinding: Capable of grinding the tooth face and back in one cycle.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
