Heian "NC-531PF-FB1-1631" HD CNC Router Active

DAY 1 of a 4-Day Sale

Tiffin, OH


Days

Hours

Min

Sec

Lot Closes:

9/23/2025 9:20:00 AM PT
371 Watching
Add to Watchlist

Minimum Bid:

$500.00 USD

Number of Bids:

0

Current Bid:

$500.00 USD ( ) No Reserve
Your Maximum Bid Is $0.00 USD
$USD
Quick Bid $500.00 USD
Or
Or
  • Starting Bid : $500.00 USD ( ) No Reserve
  • 0 Bid(s)
Documents
No documents available
Bidding Info
This auction uses Proxy Bidding.
Bids placed within the final 5 minutes will extend the auction closing time by 5 minutes.
Additional Fees
Additional Fees will be applied to the final price:
15.00% Buyer's Premium
7.25% Sales Tax

Dorel Home Furnishings - Ameriwood - Day 1 ( Active #73252952 )

Day 1 Features large selection of Woodworking machines including: Weinig Unit 23E Moulder, Holzma HPP350 Beam Saw, Harlan Creative Automation Laminating Line, 6 Forklifts, 200HP Torit Dust Collector, Edgebanders, CNC Routers, Creative Automation Angular Beam Saw, Roller Conveyors, Pallet Racing, plus much more!

VIEW EVENT
Image 1

Description & Information
Image 2

Bid History
Image 3

Value Added Services
Image 4

Terms & Conditions

  • Pick Up Location

    458 2nd. Ave. Tiffin, OH 44883

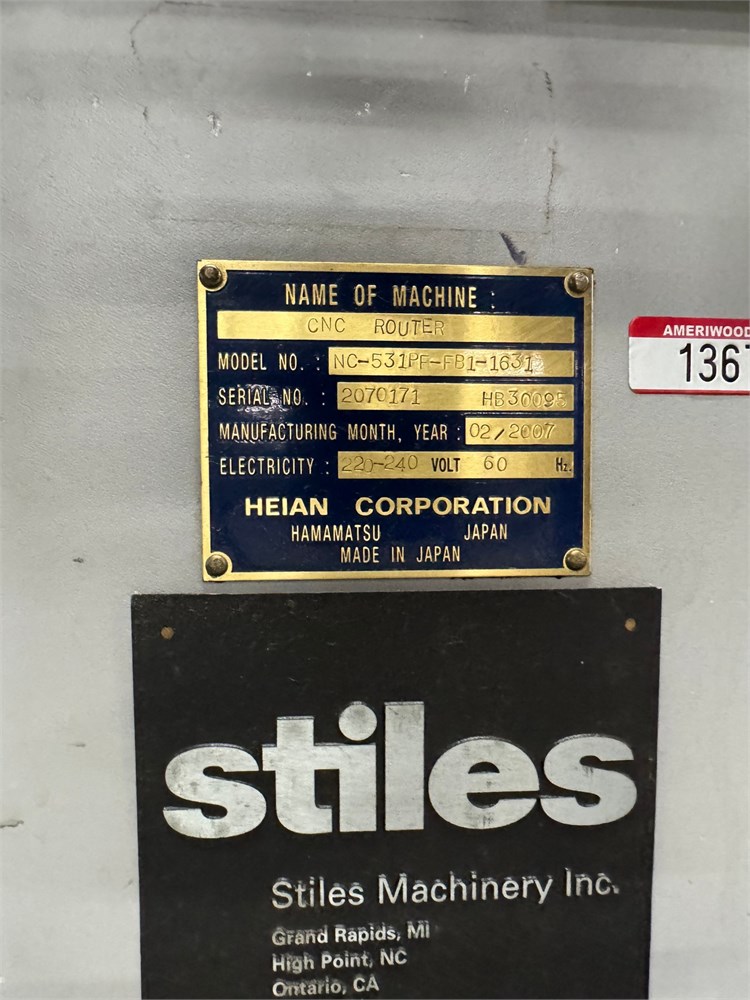

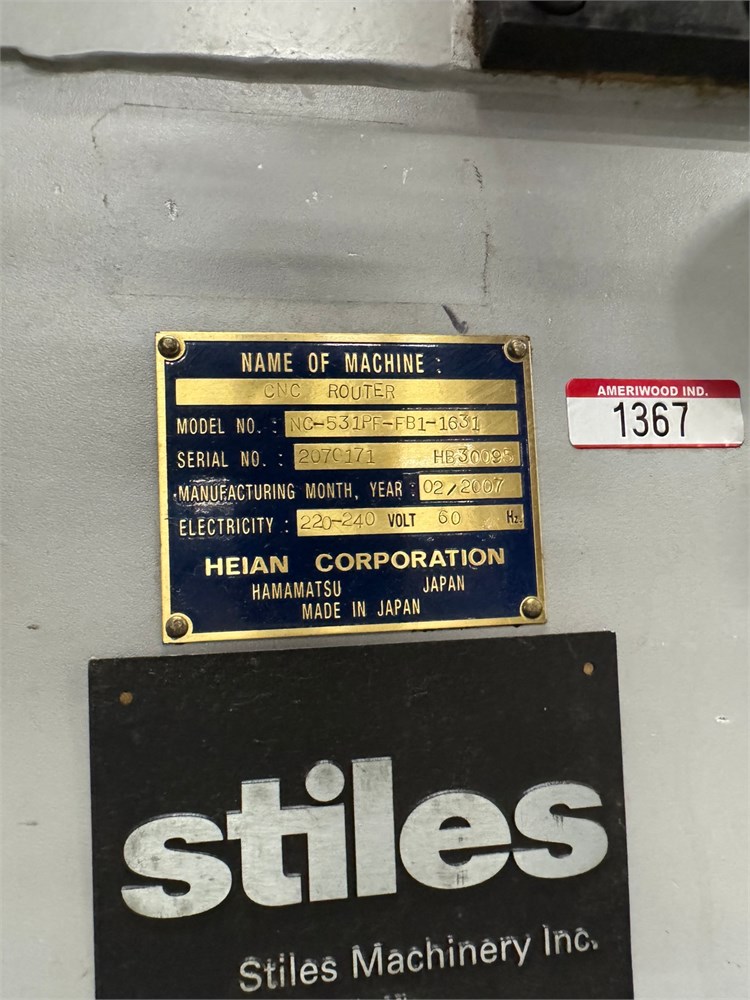

  • Make

    Heian

  • Model

    NC-531PF-FB1-1631

  • Serial Number

    2070171HB30098

  • Year

    2007

  • Phase

    3 PHASE

  • Voltage

    230 VOLT

  • Buyer Inspection Period

    September 16, 2025 8AM - 4PM & September 17, 2025 7AM - 11AM

  • Load Out Period

    September 25 - October 9, 2025 By Appointment ONLY!

  • Estimated Dimensions

    224" x 270" x 102"

  • Estimated Weight

    15,000#

  • Seller Comment

    Rigger Required - Please contact Local Rigger

  • Load Fee

    0.00

  • Lot Notes

  • page views

    364

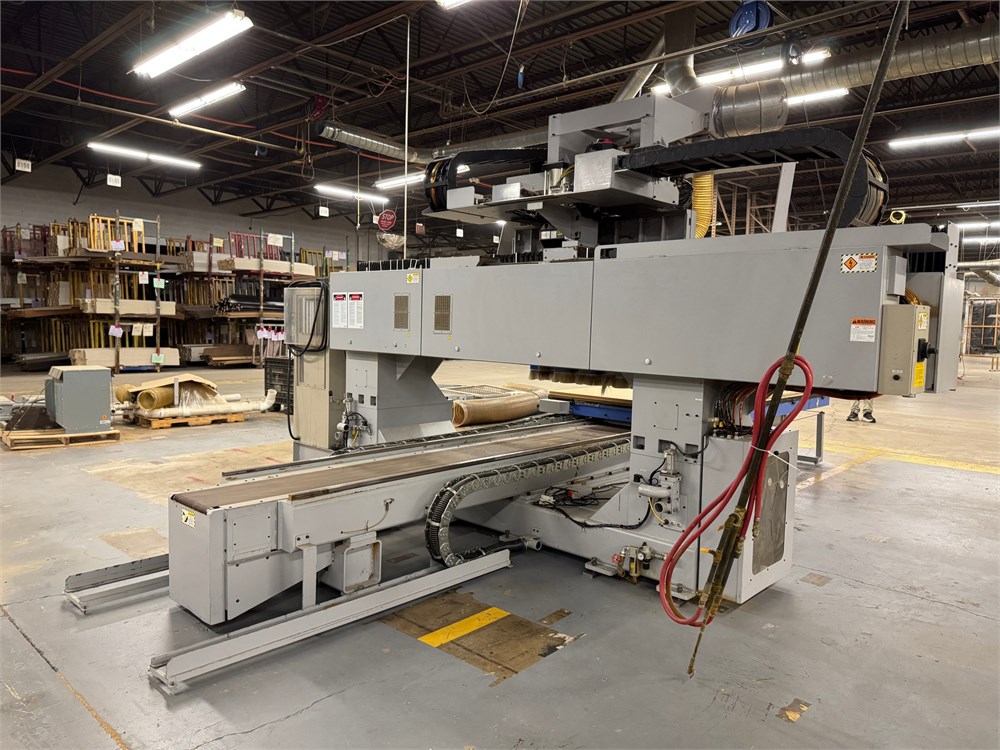

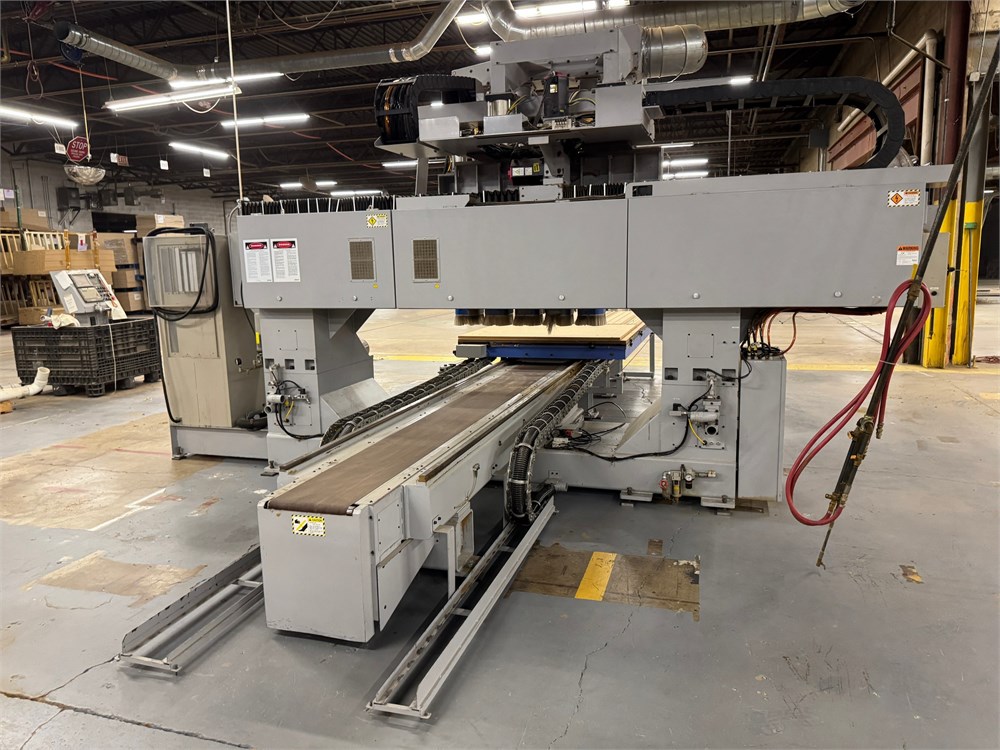

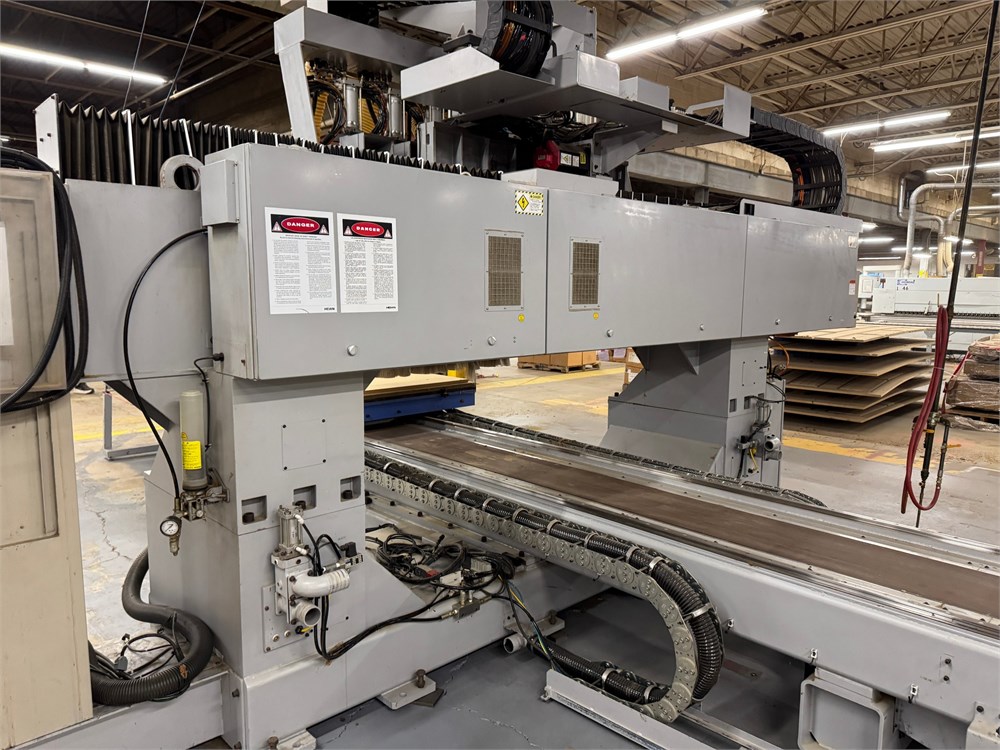

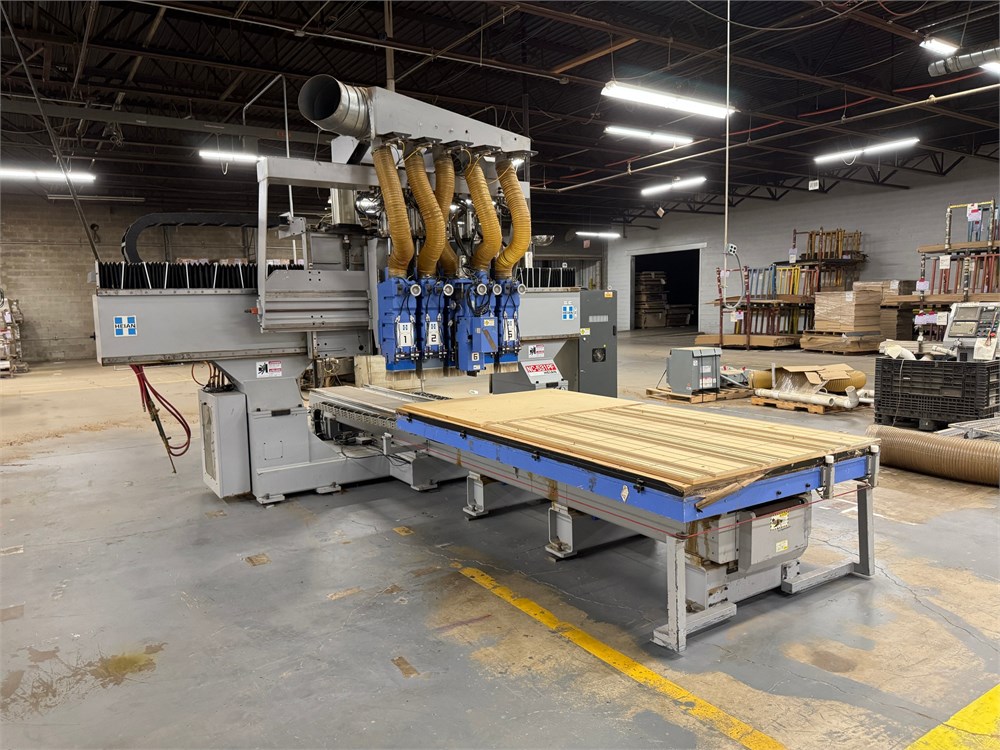

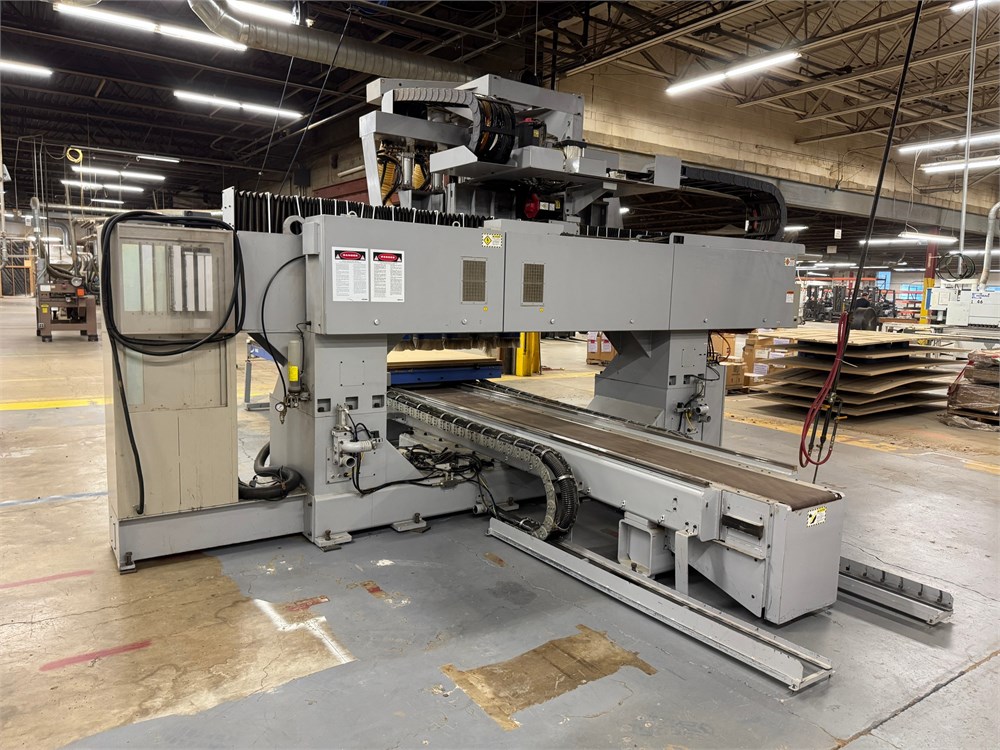

Heian "NC-531PF-FB1-1631" HD CNC Router

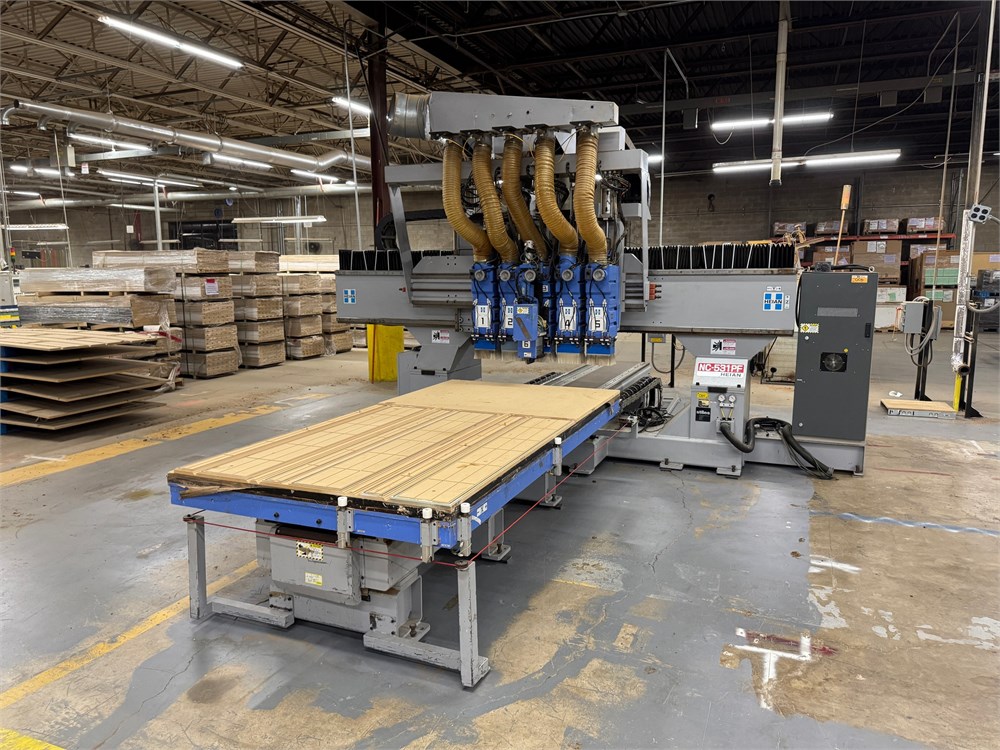

Single 122" x 64" tables in a front to back configuration with an Extra Heavy Duty center supported bridge for high production, independent table operation.

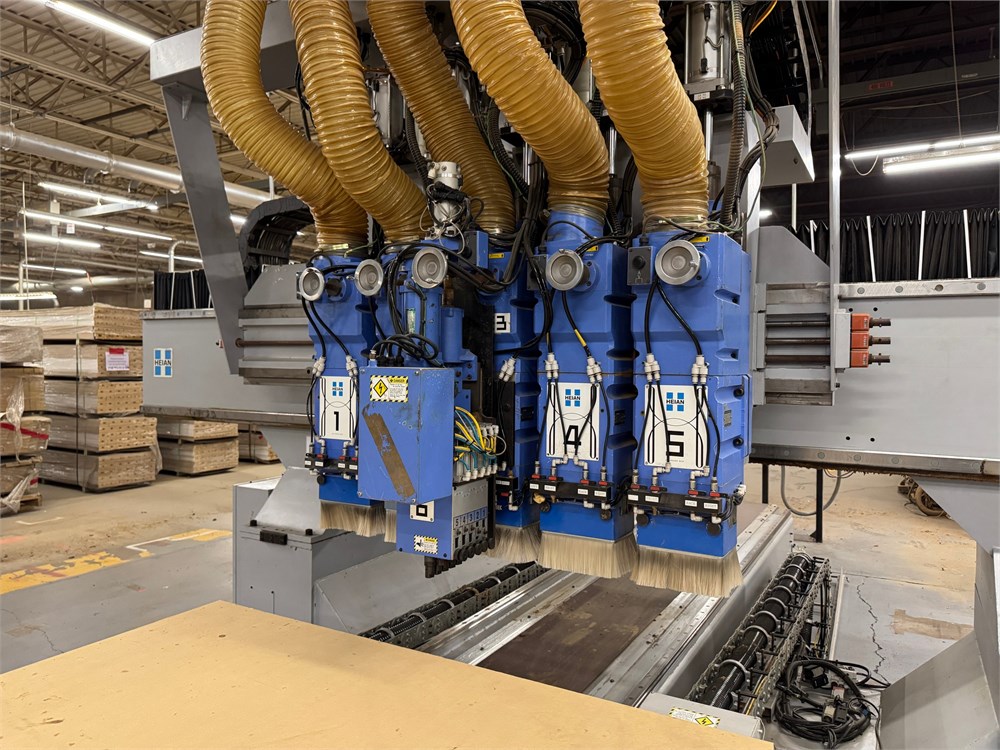

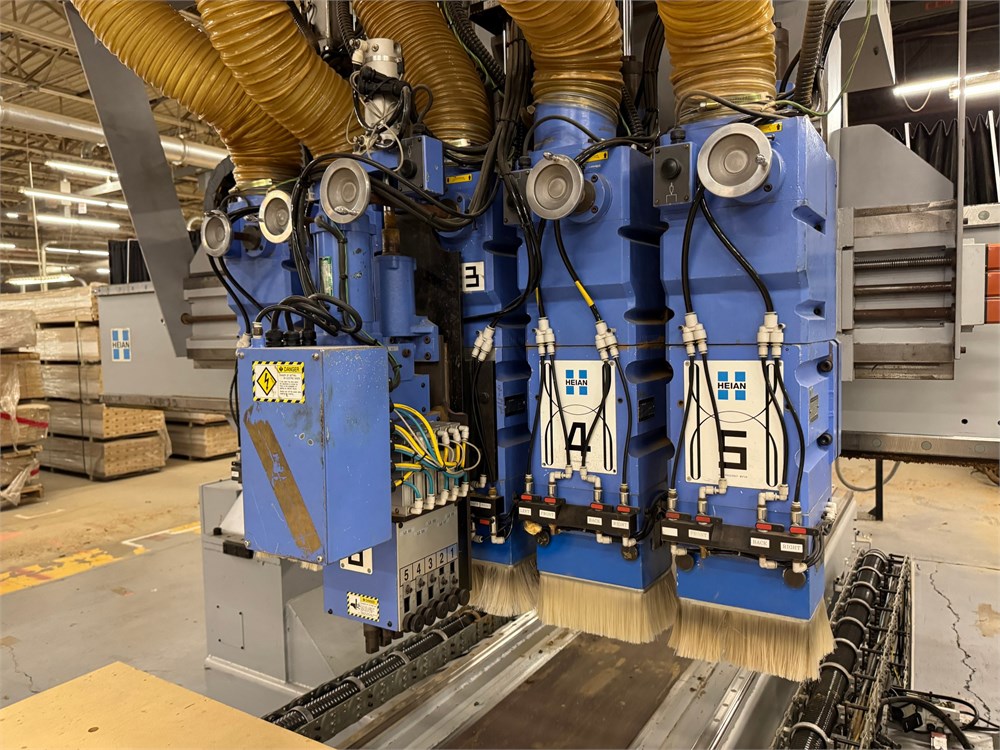

Spindle #1 8.8 kw spindle, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.

Spindle #2 8.8 kw spindle, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.

Spindle #3 8.8 kw spindle, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.

Spindle #4 8.8 kw spindles with, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.

Spindle #5 8.8 kw spindles with, spindle speed of 23,800 RPM, mounted on a pneumatically actuated cast iron slide for reduced vibration.

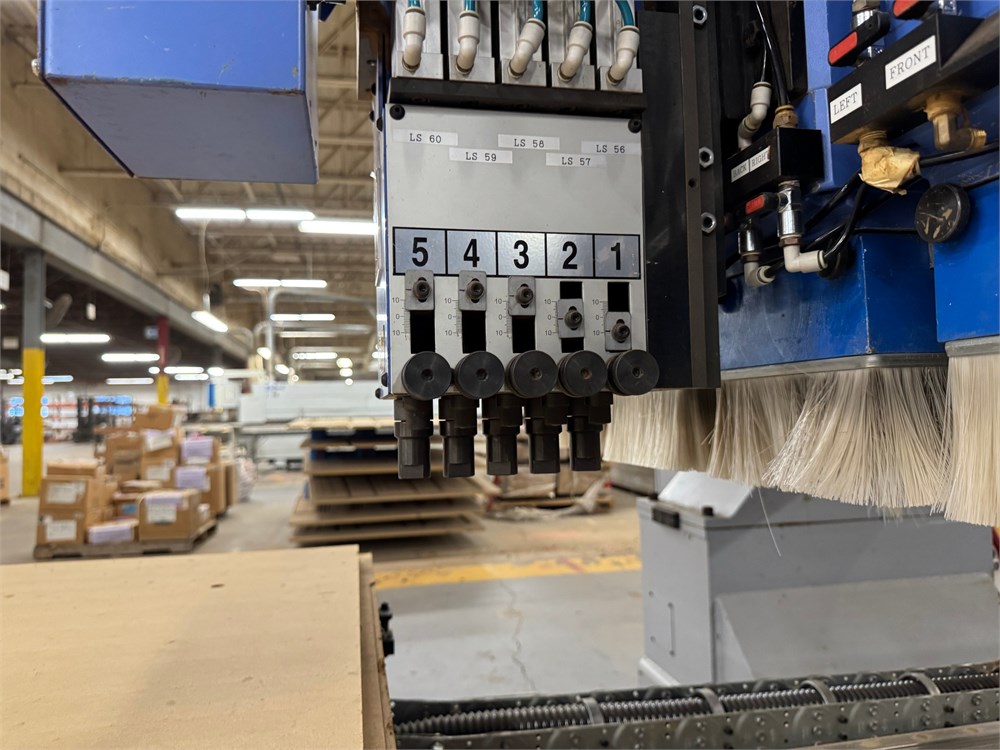

#6 Piggy-back vertical boring with 5-spindles vertical in the X-axis

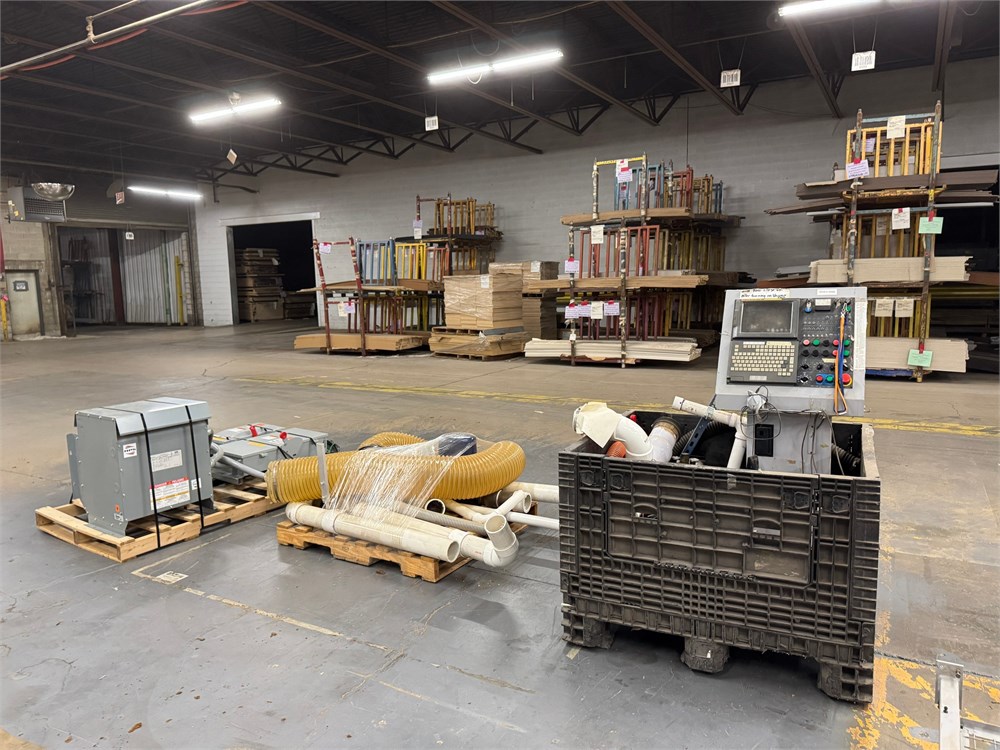

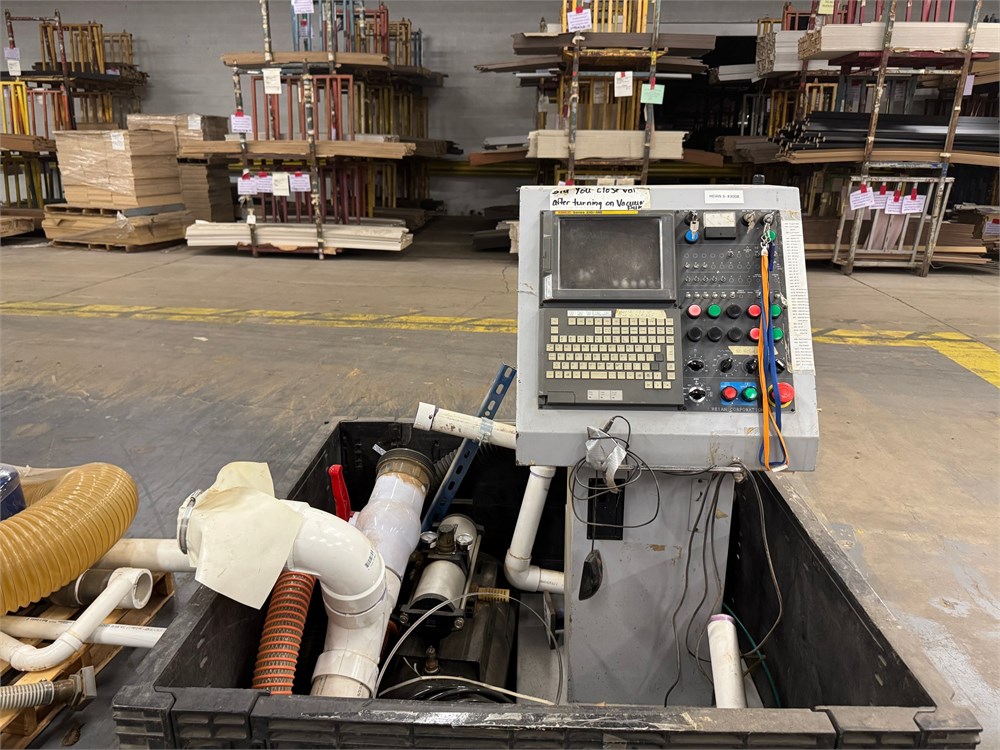

Fanuc 210i - MB Controller.

15" W Powered scrap conveyor exiting to the rear.

FANUC Brushless AC Servo motors with matching Servo amplifiers drive precision ground ball screws for axis motion, all axes ride on precision ground rectangular ways with tank type bearing; ballnut & way bearings are serviced by an automatic lubrication system.







The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.

The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
