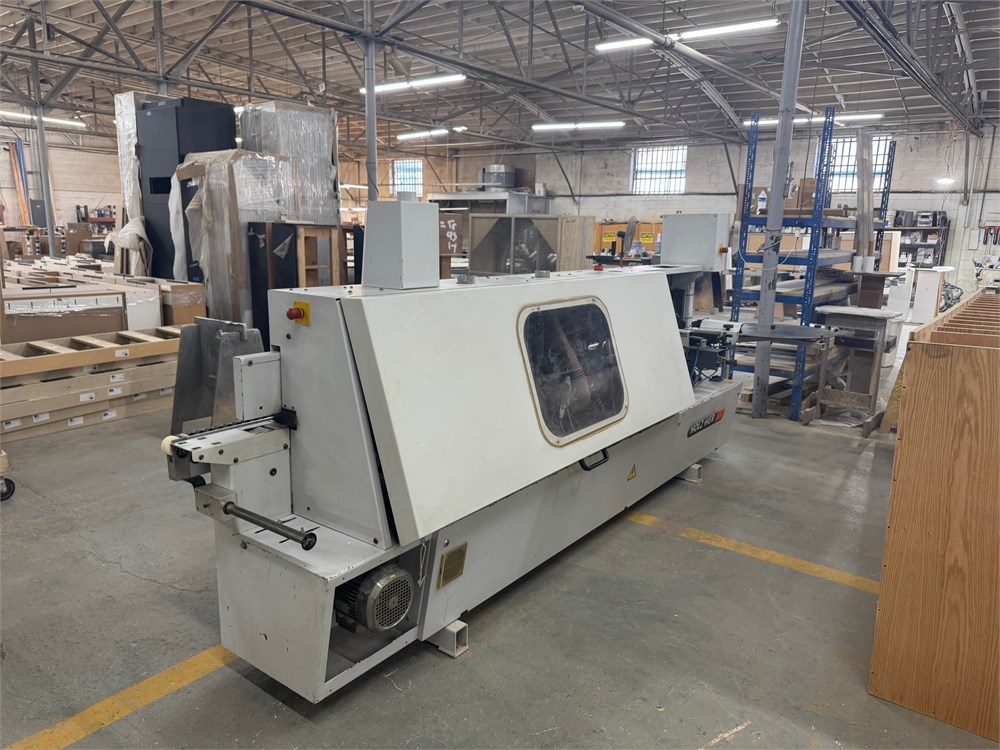

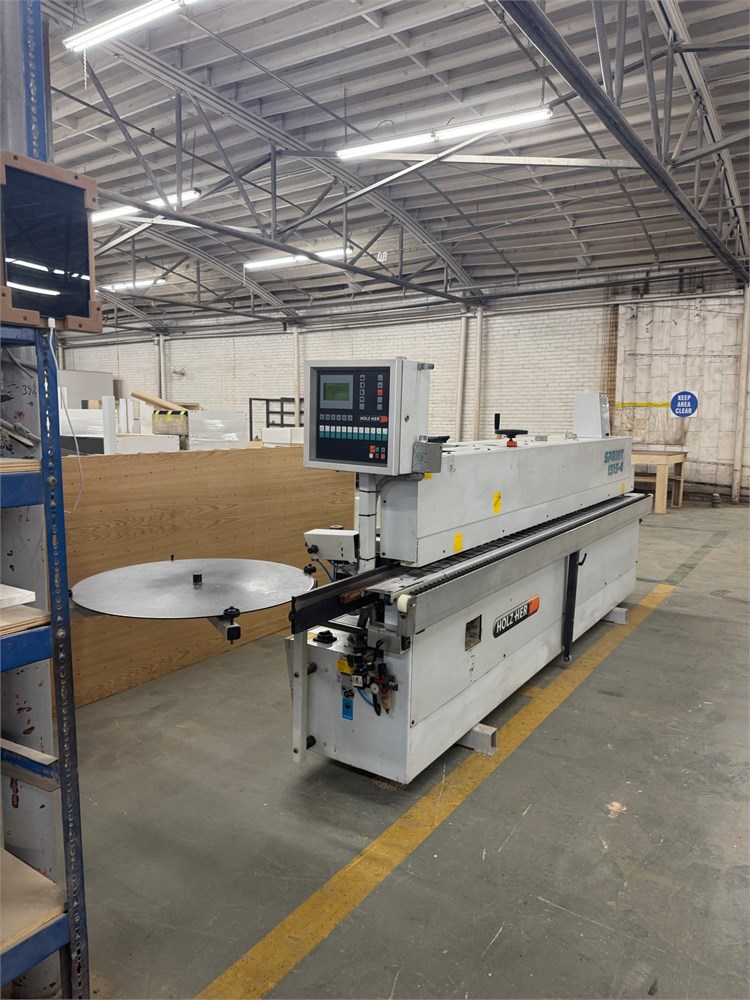

Holz-Her "Sprint 1315-4" Edgebander
Ended
Located in Charlotte, NC - Still in use!
Charlotte, NC
- Winning Bid : $4,100.00 USD Sold
- 26 Bid(s)
- High Bidder: M****g
Holz-Her "Sprint 1315-4" Edgebander - Charlotte, NC ( Closed #73819243 )
Atlantic Caseworks is replacing their Edgebander with a new one. This machine is still in operation and is simply being replaced.
-
Pick Up Location
4700 Rozzelles Ferry Rd, Charlotte, NC 28216
-
Make
Holz-Her
-
Model
"Sprint 1315-4"
-

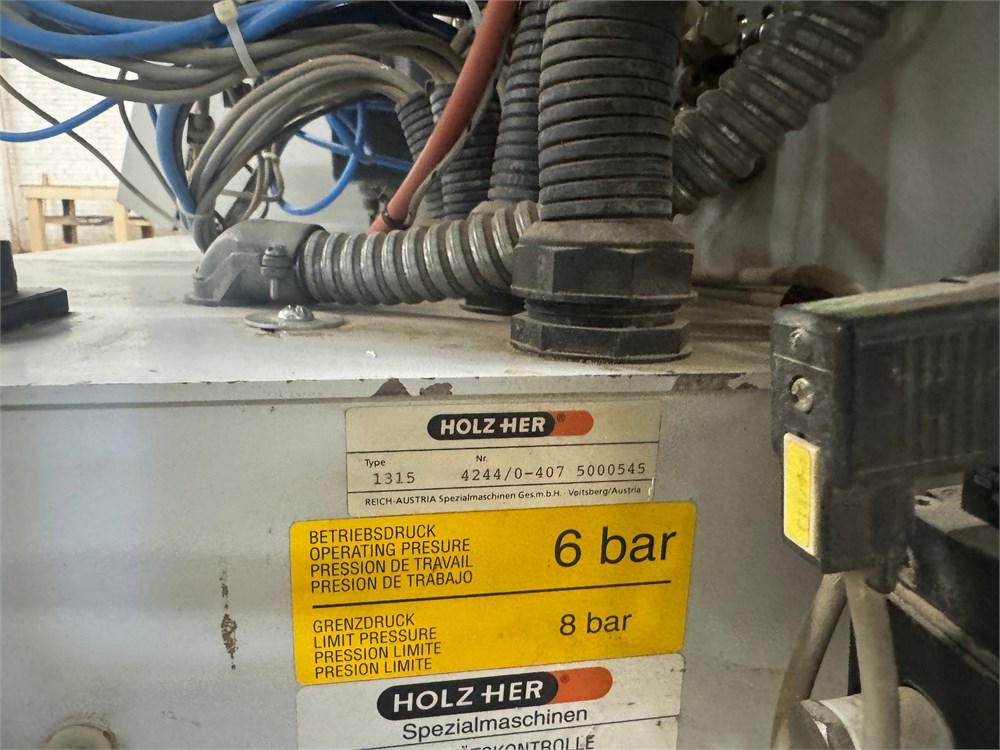

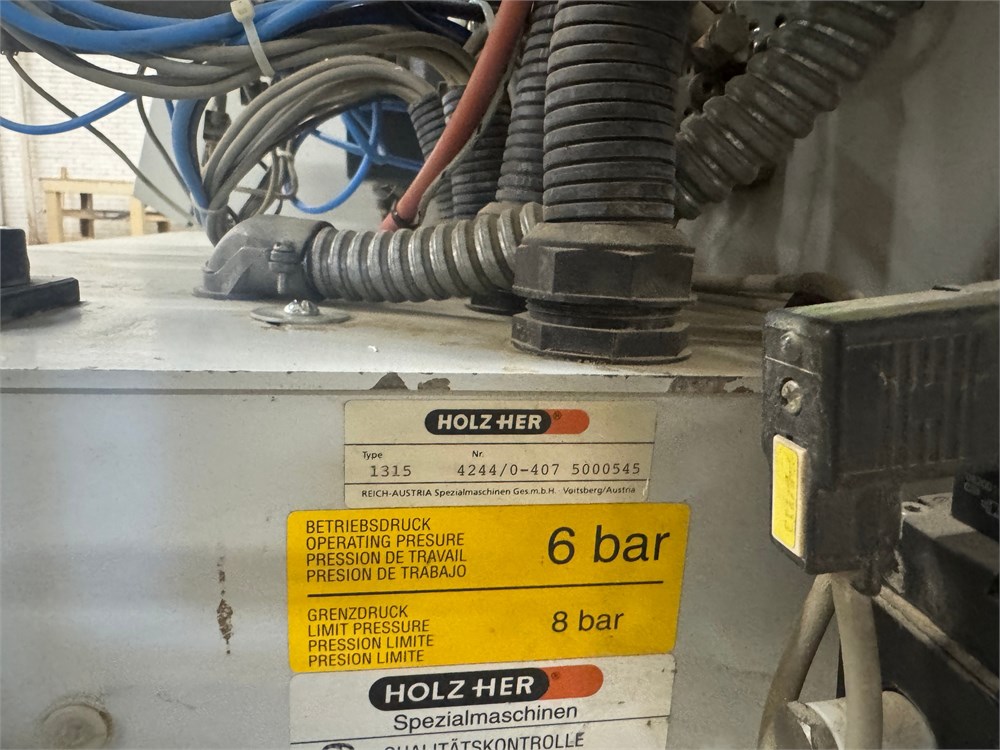

Serial Number
4244/0-407 5000545
-
Year
-
Phase
3 PHASE
-
Voltage
220 VOLT
-
Buyer Inspection Period
By appointment. Please contact: Eric Beach - [email protected] - 704-608-9830 (text preferred)
-
Load Out Period
August 20 - August 29, 2025 (by appointment ONLY)
-
Estimated Dimensions
192" L x 48" W x 70" H
-
Estimated Weight
2,600 Lbs
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.
-
Load Fee
500
-
Lot Notes
-
page views
645

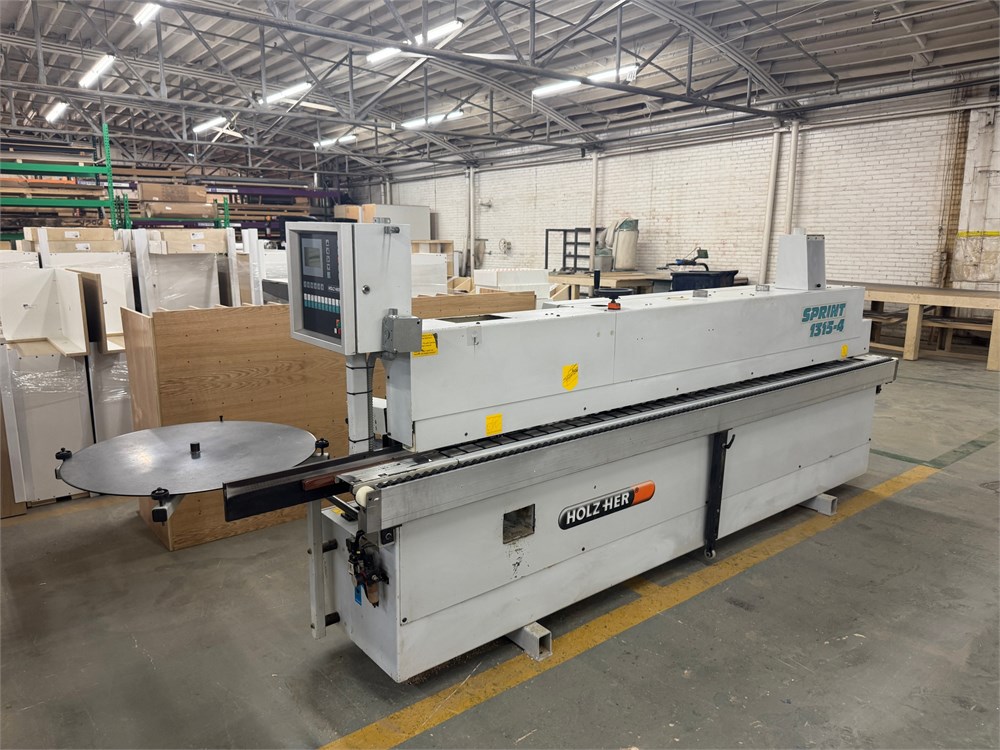

Holz-her "Sprint 1315-4" Edgebander
Max. 5/16" (8 mm) solid wood banding & 3 mm PVC cap., 1-3/4" max. panel thickness and 5-1/2" min. panel length.

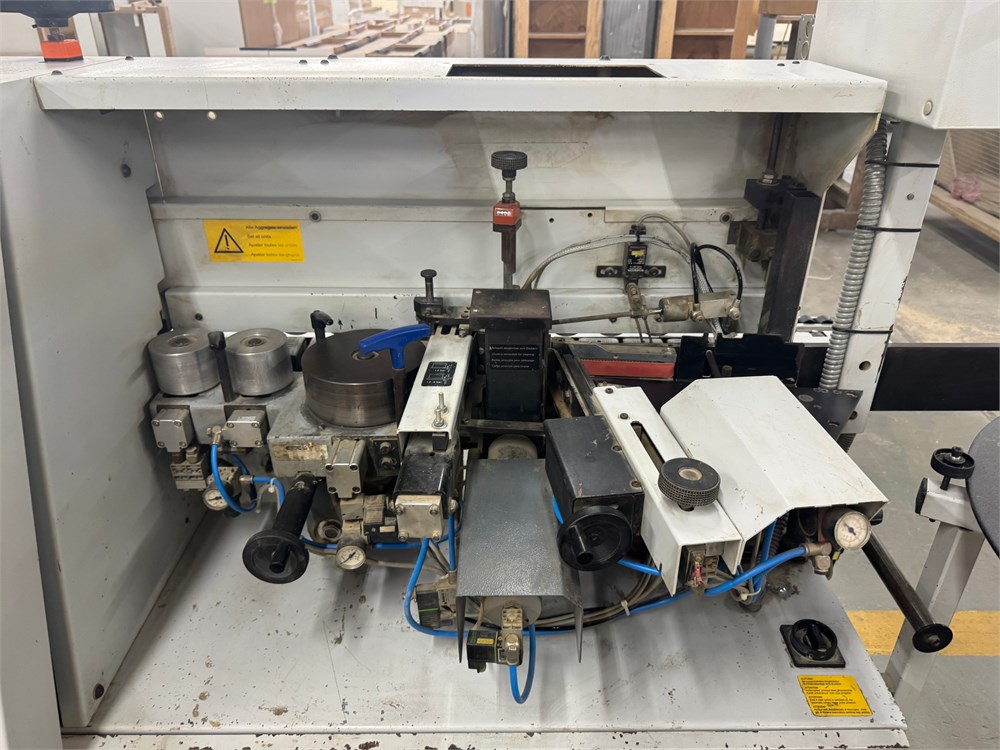

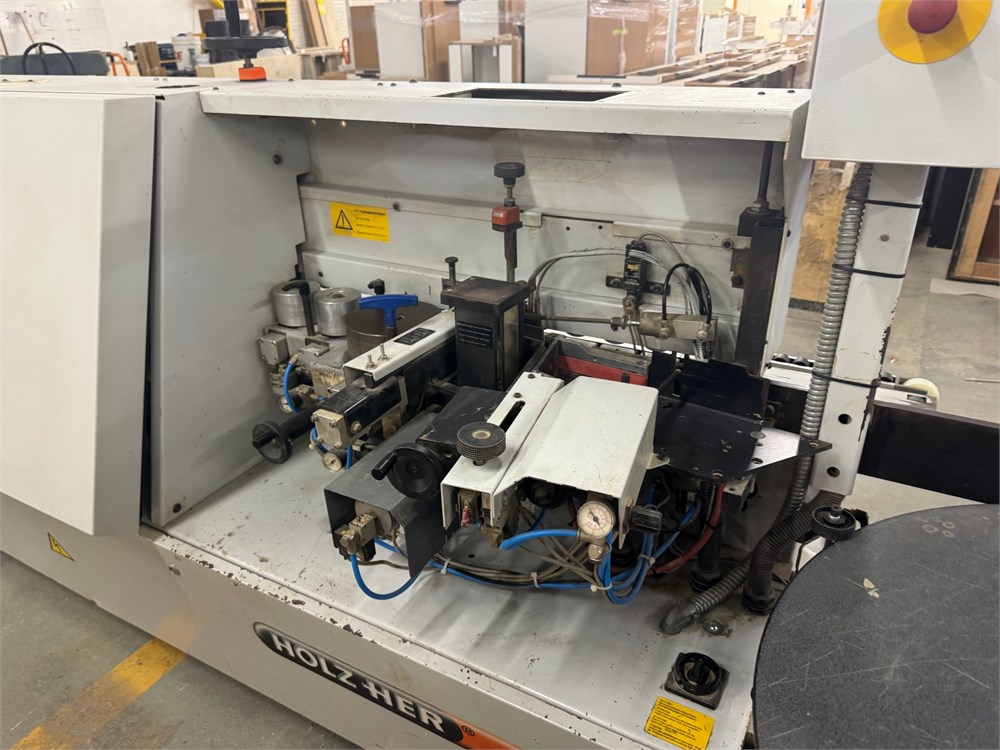

Cartridge glue system w/cartridge hopper & "quick melt" feature, automatic magazine for coil, strip & solid edgebanding; HD guillotine for 3 mm PVC, glue applicator nozzle.

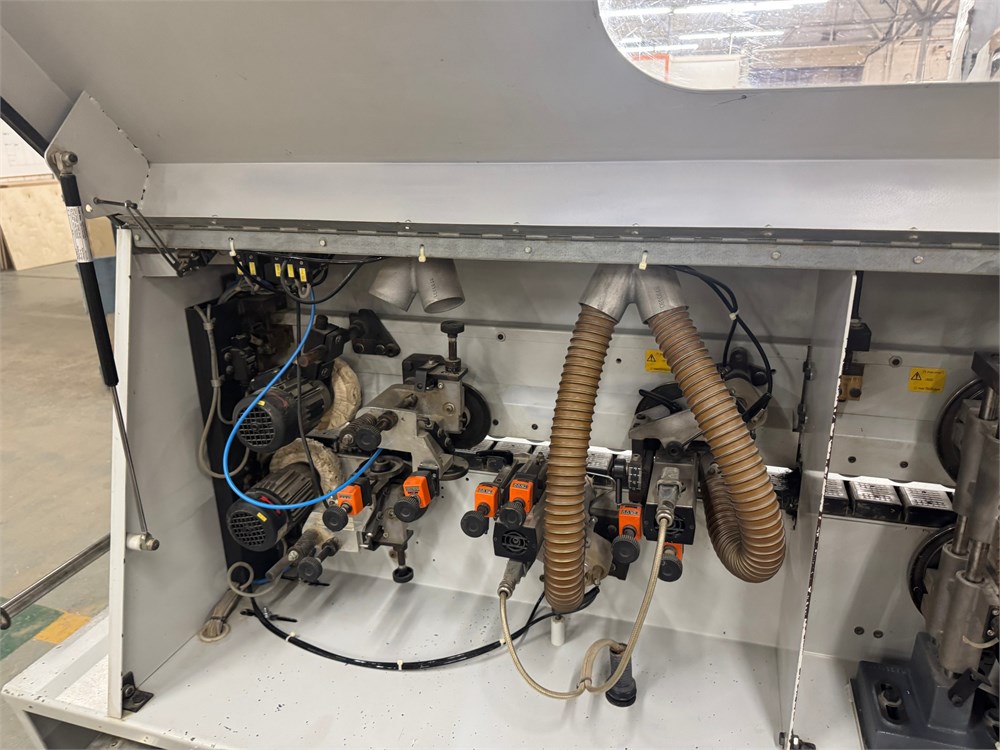

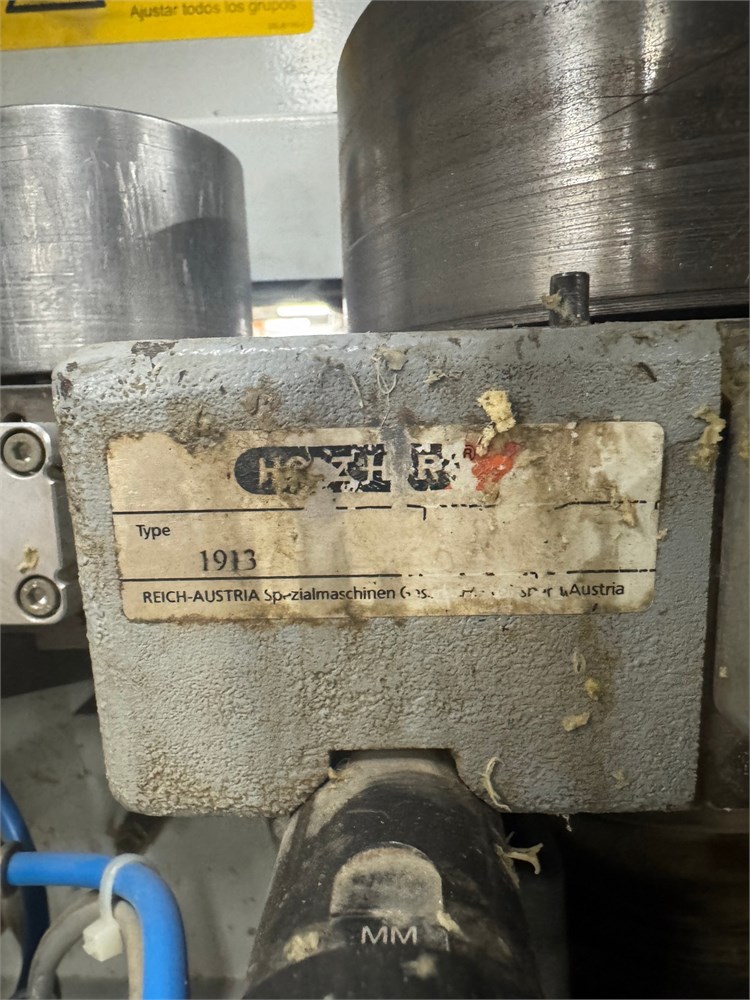

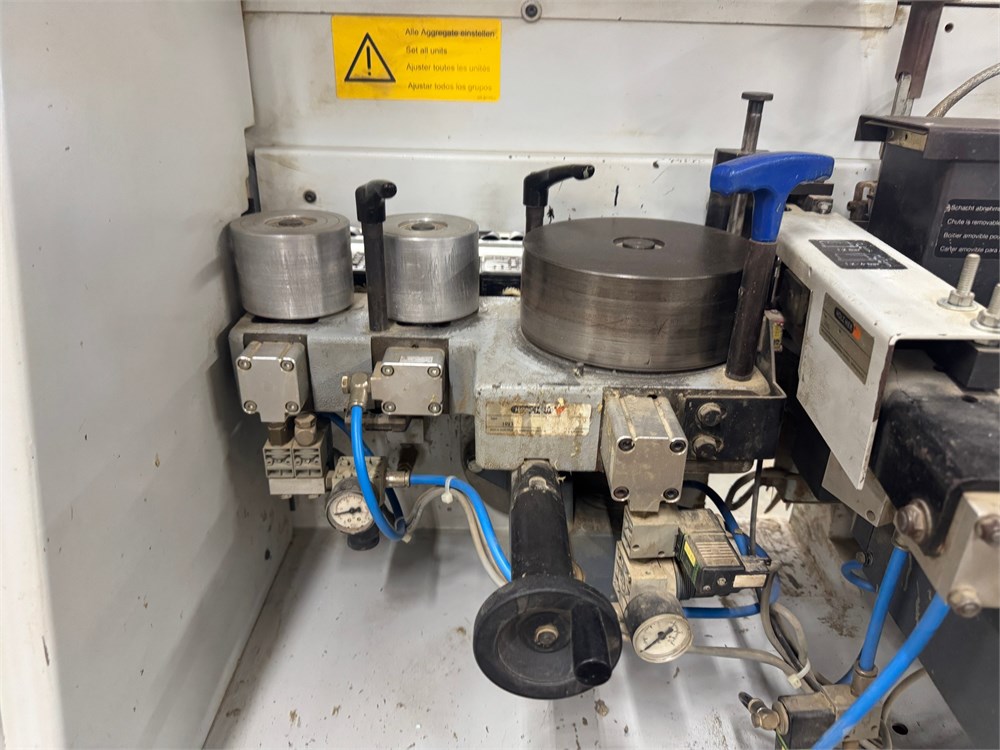

Pressure section (1913) with (1) large dia. drive roller & (2) idle rollers, each w/individual pneumatic plunge & pressure control, powered 1st roller with electronic speed control synchronized with chain feed speed.

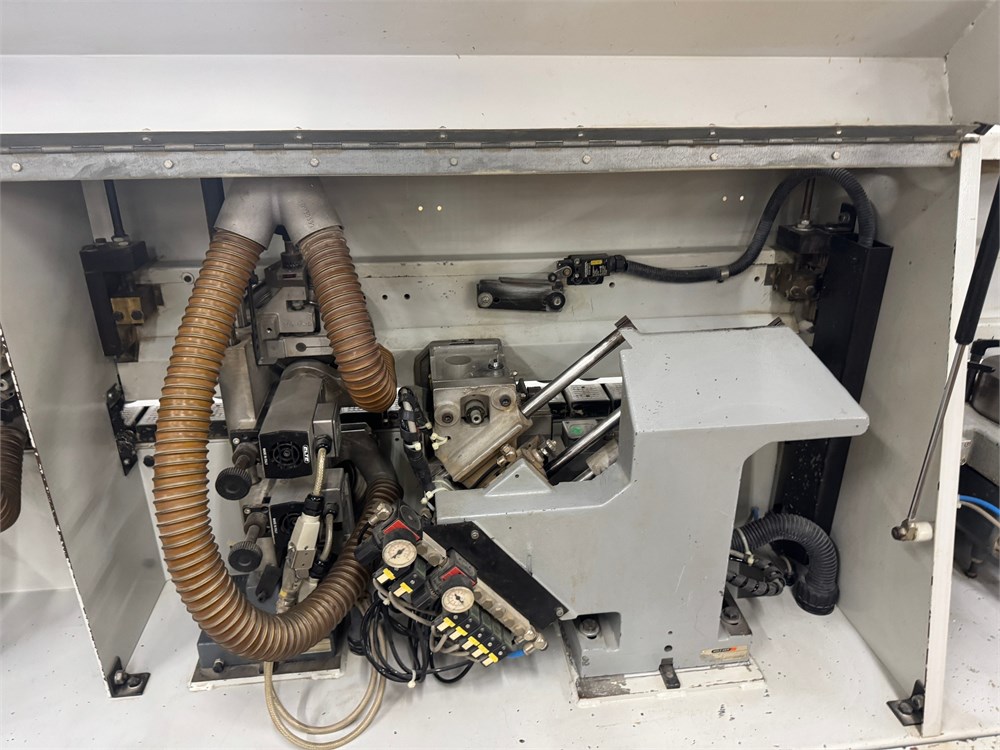

Double motor end trim "1918" (0.5 HP - 18,000 RPM motor ea. 300 Cy HF motors), adjustable 0° - 10° for chamfer cuts electro-pneumatically.

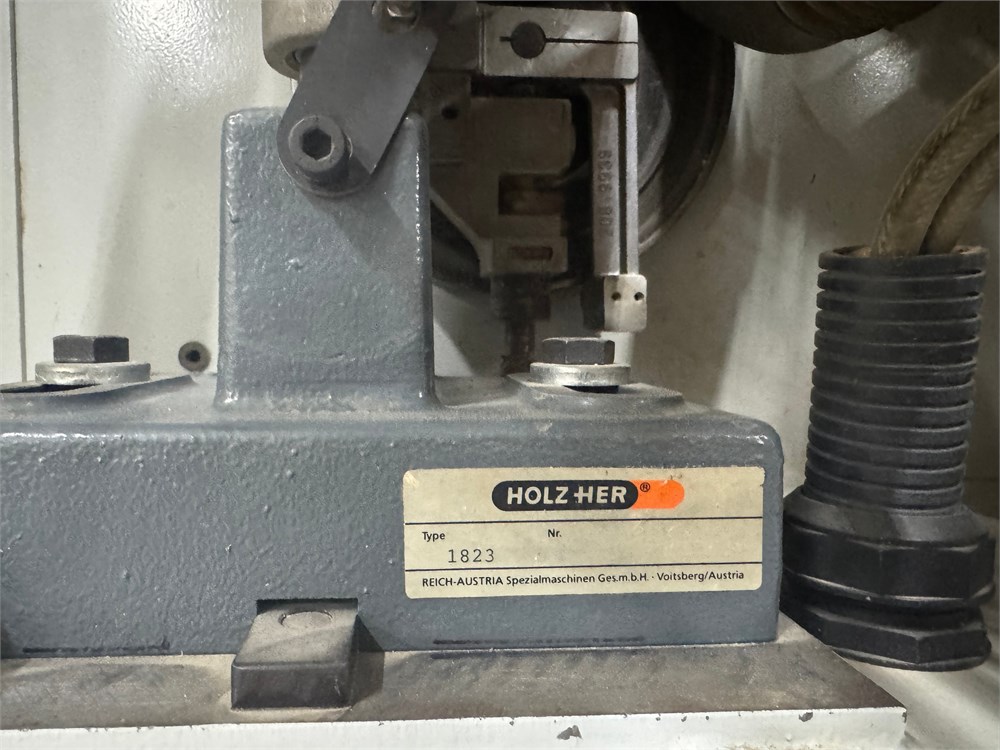

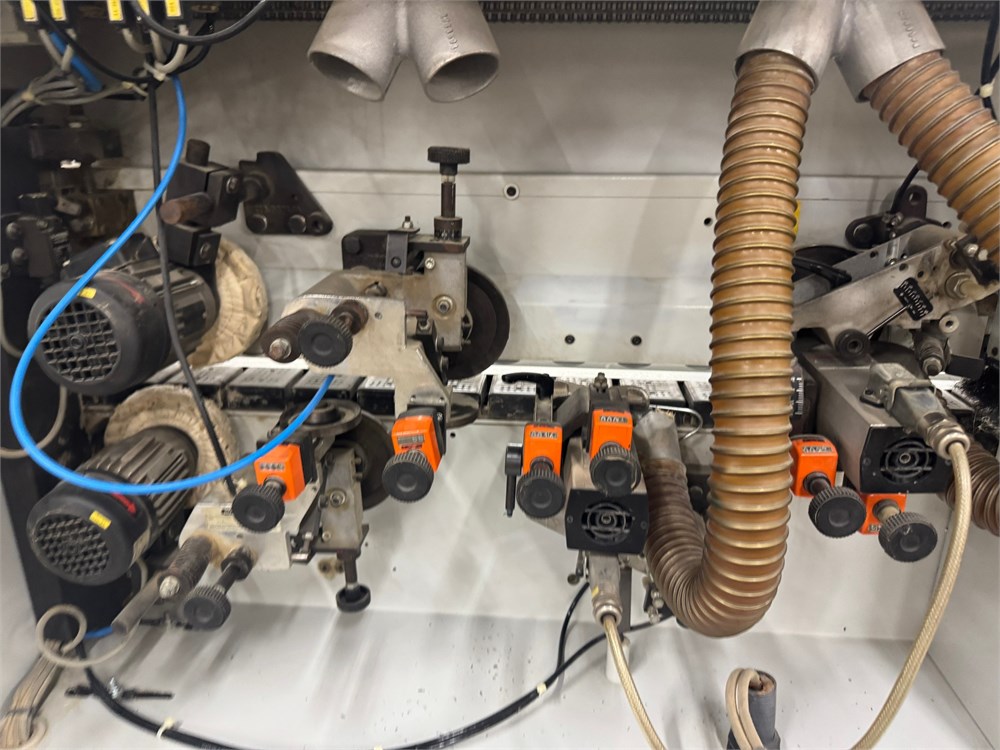

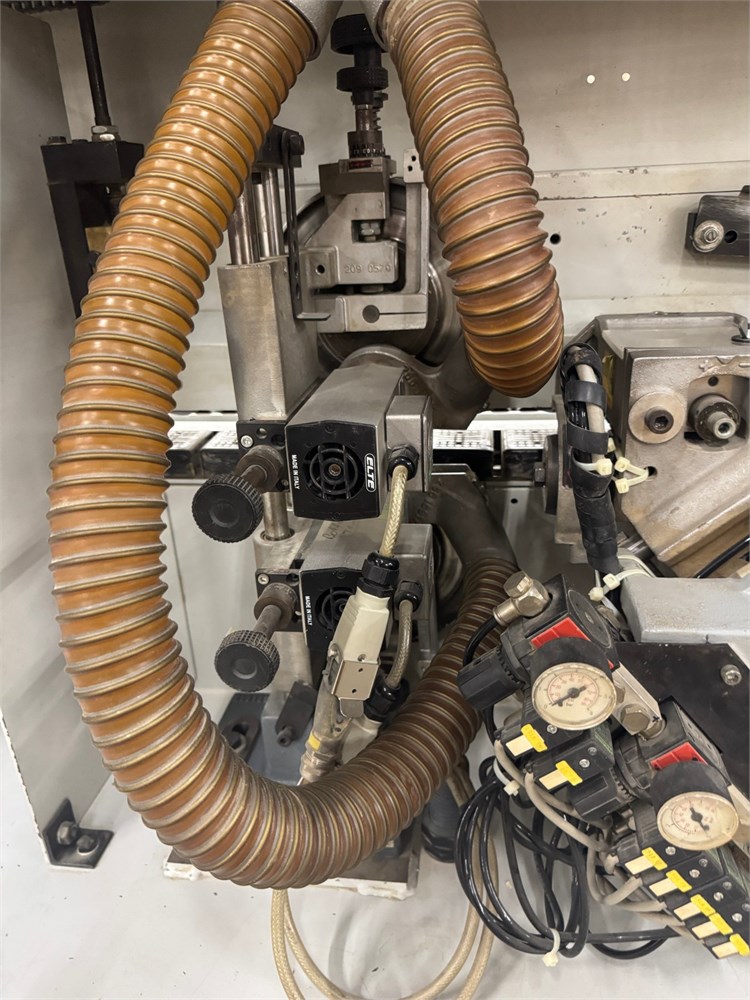

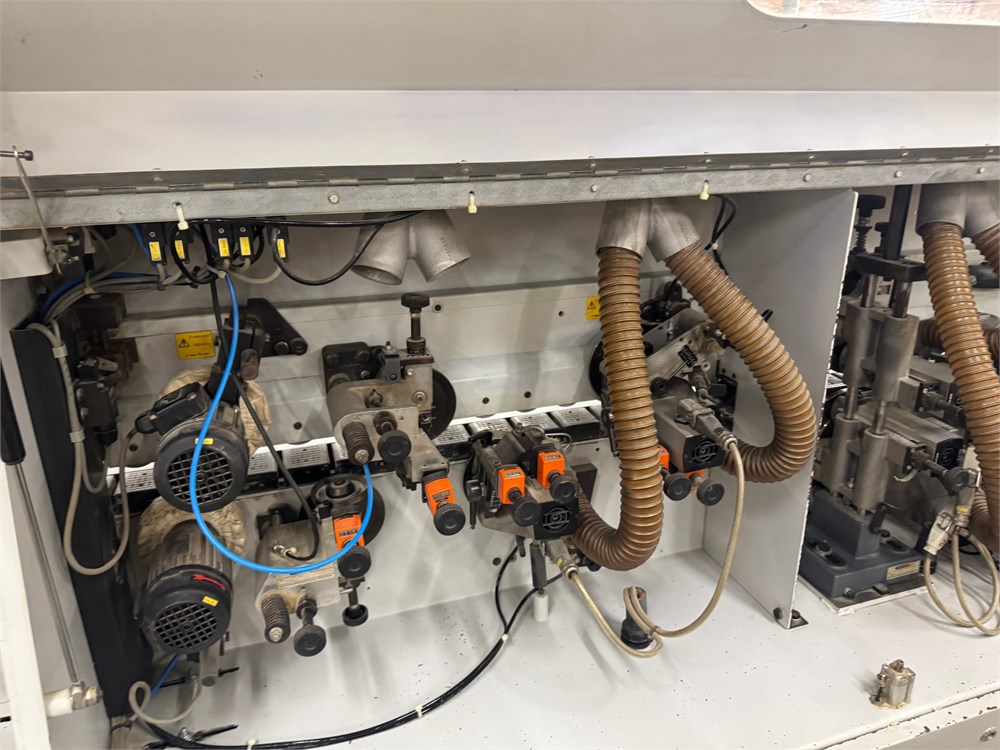

Top & bottom flush fine & radius trim unit "1823" (0.8 HP - 300 Cy HF motors 18,000 RPM Motor ea.), bevels 0° - 15°, SIKO digital readouts.

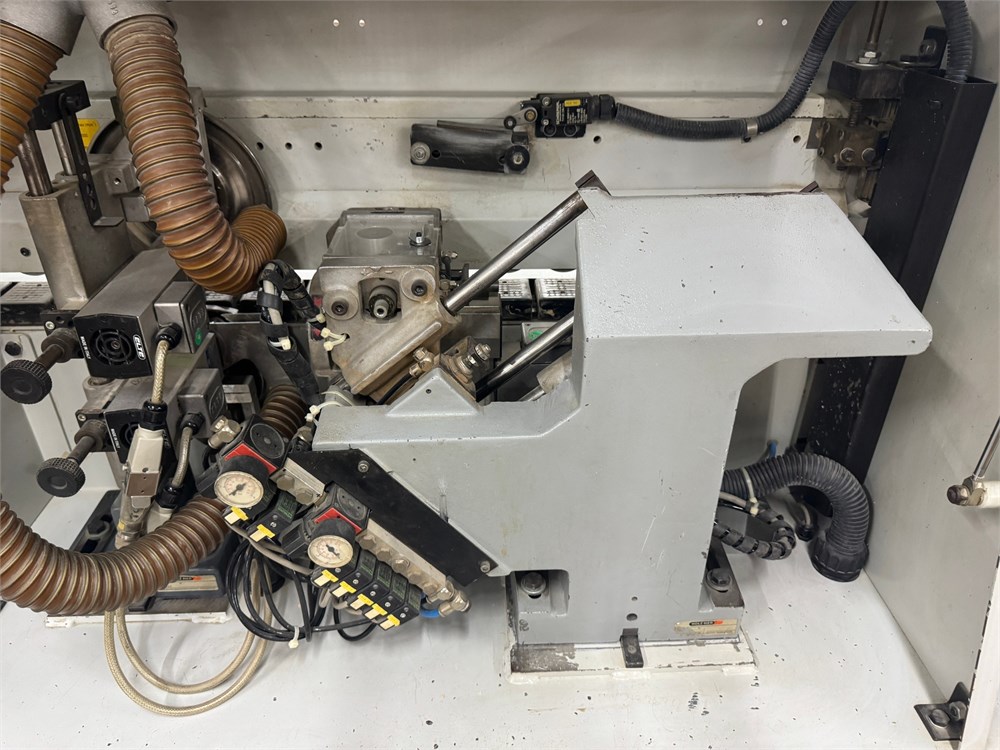

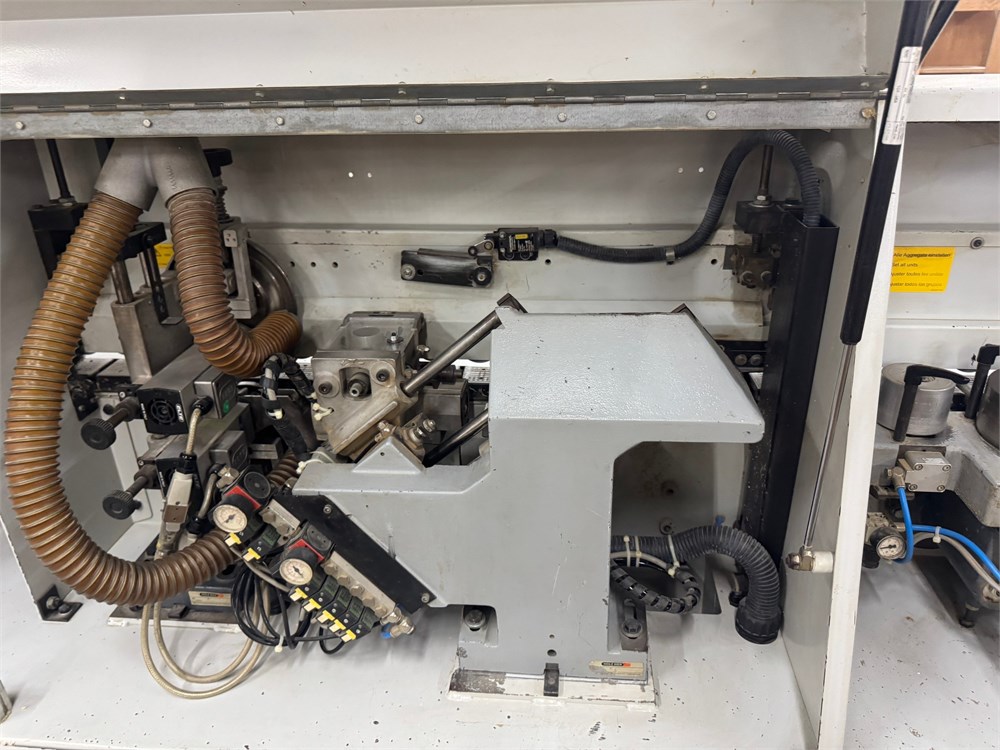

Corner rounding unit for leading & trailing edge.
"1929" Top & bottom profile scraper for thick PVC.

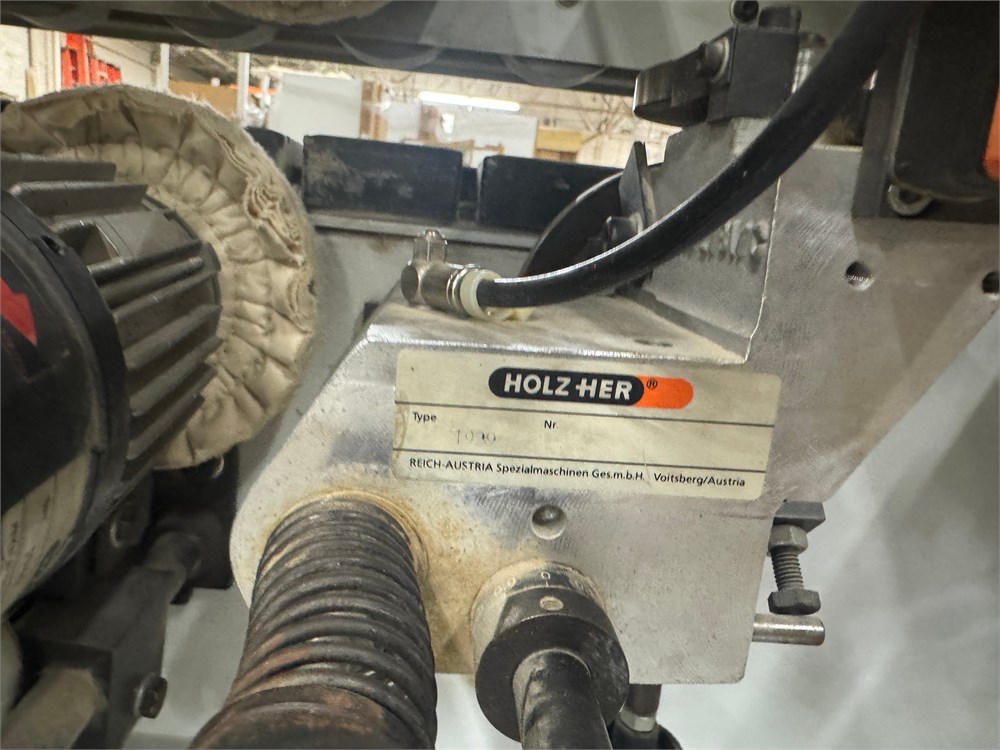

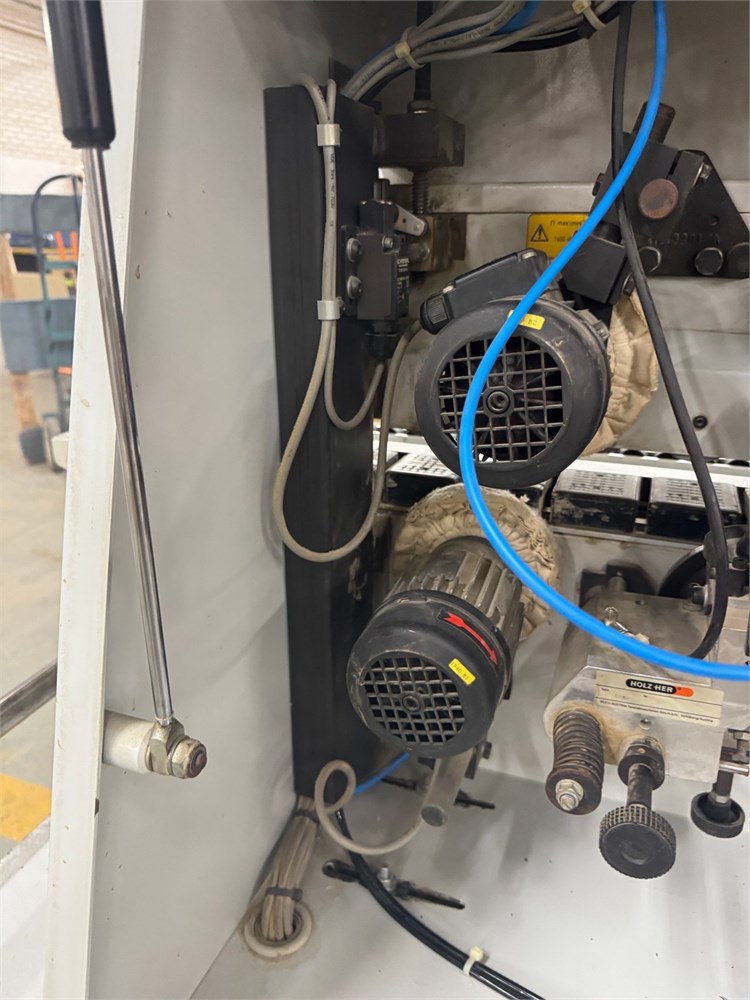

Top & bottom buffing unit "1315" (0.25 HP - 2,600 RPM ea.),tilts 0° - 5°.
Two feed speed 8/16 MPM (26 & 52 FPM), panel overhang beyond chain 35 mm (1.38").

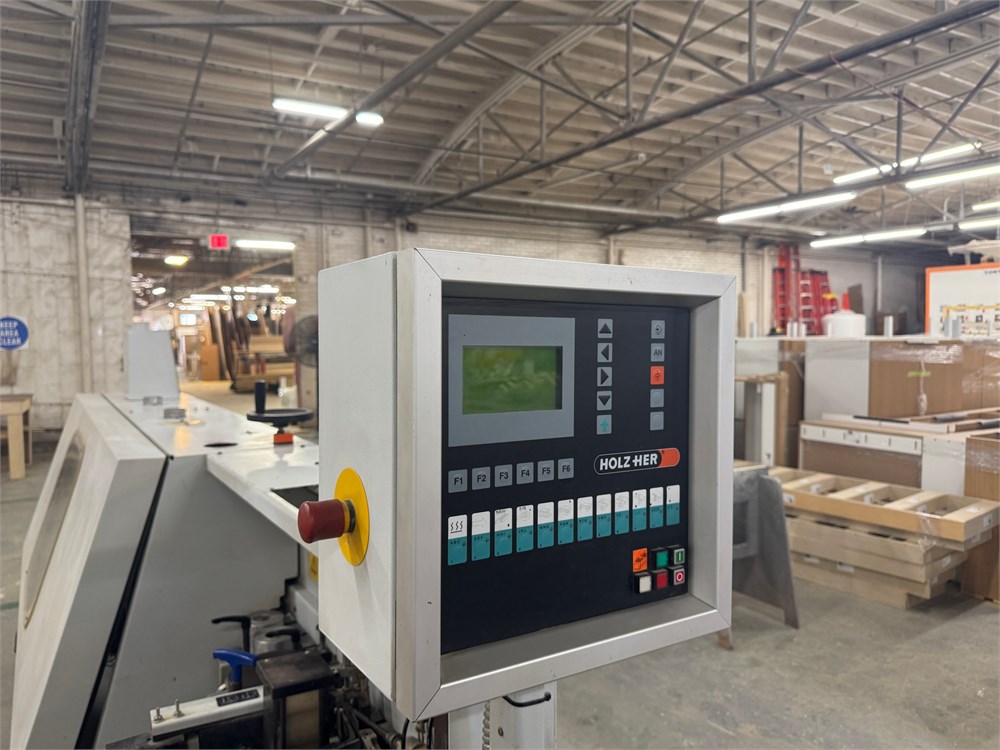

Operator Touch Screen Monitor Microprocessor for line control & glue temperature, 10 KVA frequency changer, outboard panel support, and sound enclosure w/interior lights over enclosed workstations of the machine & used tooling on the stations.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
