Weeke "Vantech 512 BHP 008" CNC Machining Center - Load/Unload
Active
Weeke "Vantech 512 BHP 008" CNC Machining Center - Load/Unload - Danville, VA
Danville, VA
- Starting Bid : $5,000.00 USD ( ) No Reserve
- 0 Bid(s)
Weeke "Vantech 512 BHP 008" CNC Machining Center - Load/Unload - Danville, VA ( Active #73381228 )
Upholstered furniture manufacturer in Southern Virginia is auctioning a Weeke CNC Router load/unload cell no longer required for continuing operations.
-
Pick Up Location
745 Kentuck Rd. Danville, VA 24540
-

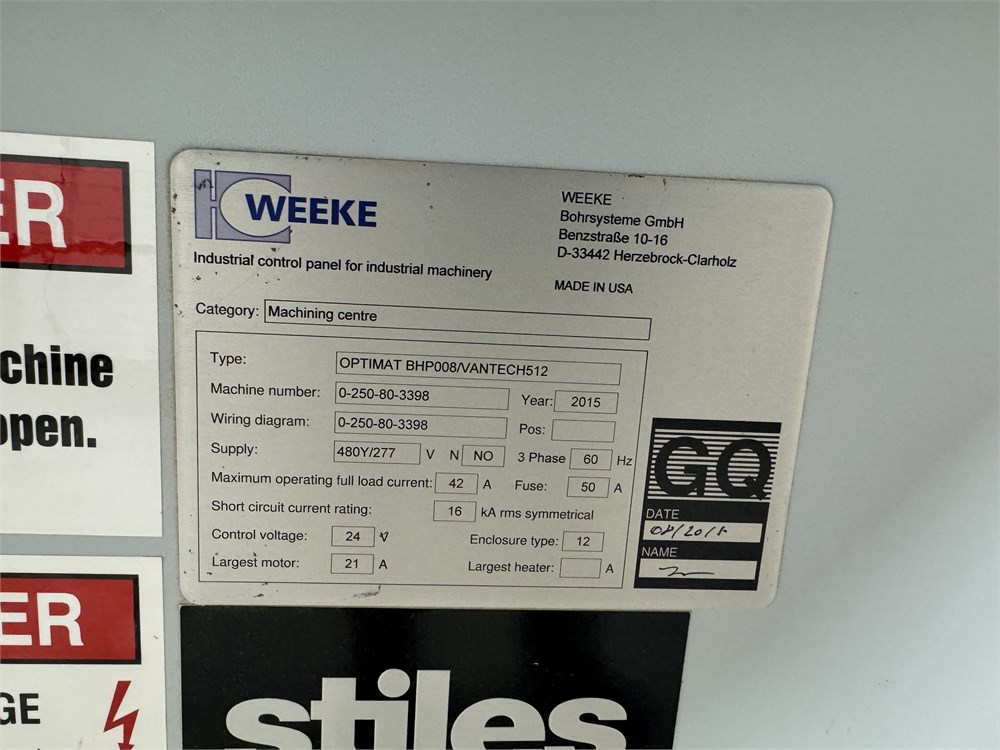

Make
Weeke
-
Model
Vantech 512 BHP 008
-
Serial Number
0-250-80-3398
-
Year
2015
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
August 13 - August 22, 2025 (by appointment)
-
Estimated Dimensions
40' L x 17' W x 8' H (as setup for production)
-
Estimated Weight
20,000 Pounds
-
Seller Comment
Buyer responsible for disassembly, packing and load out or hiring a rigger to do so.
-
Load Fee
-
Lot Notes
-
page views
28

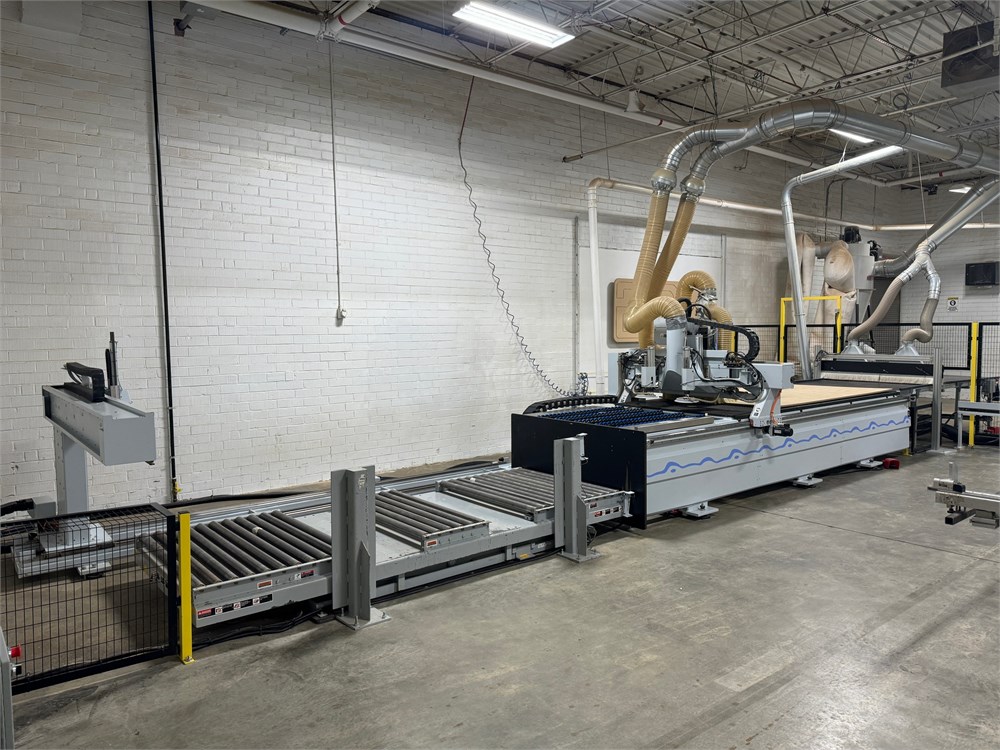

Weeke "Vantech 512 BHP 008" CNC Machining Center - Load/Unload

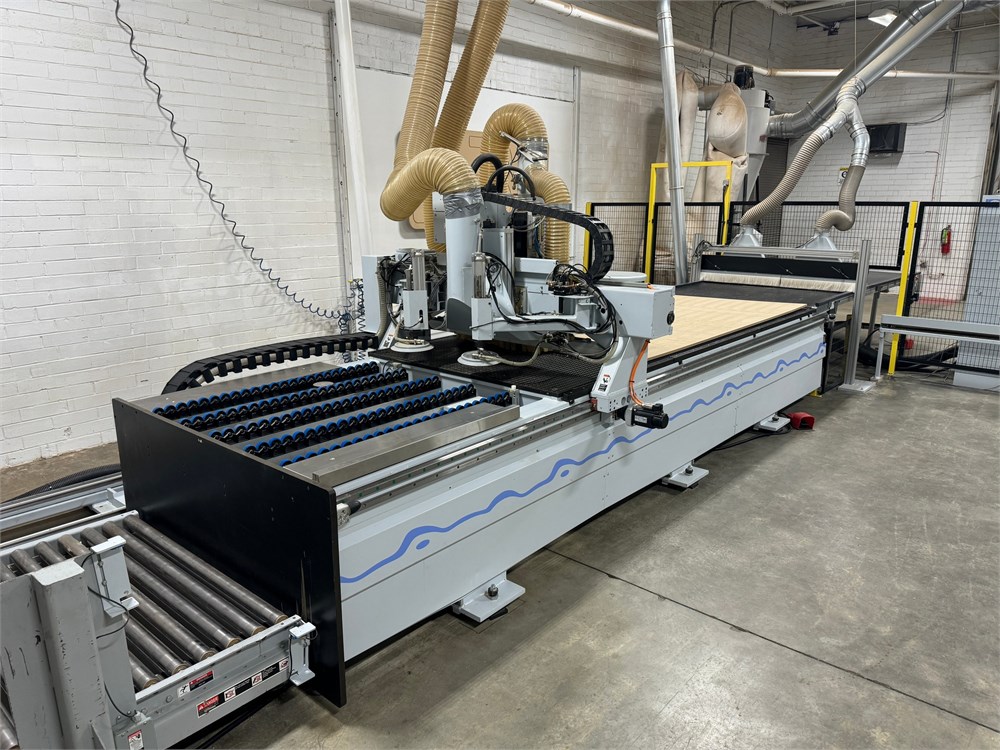

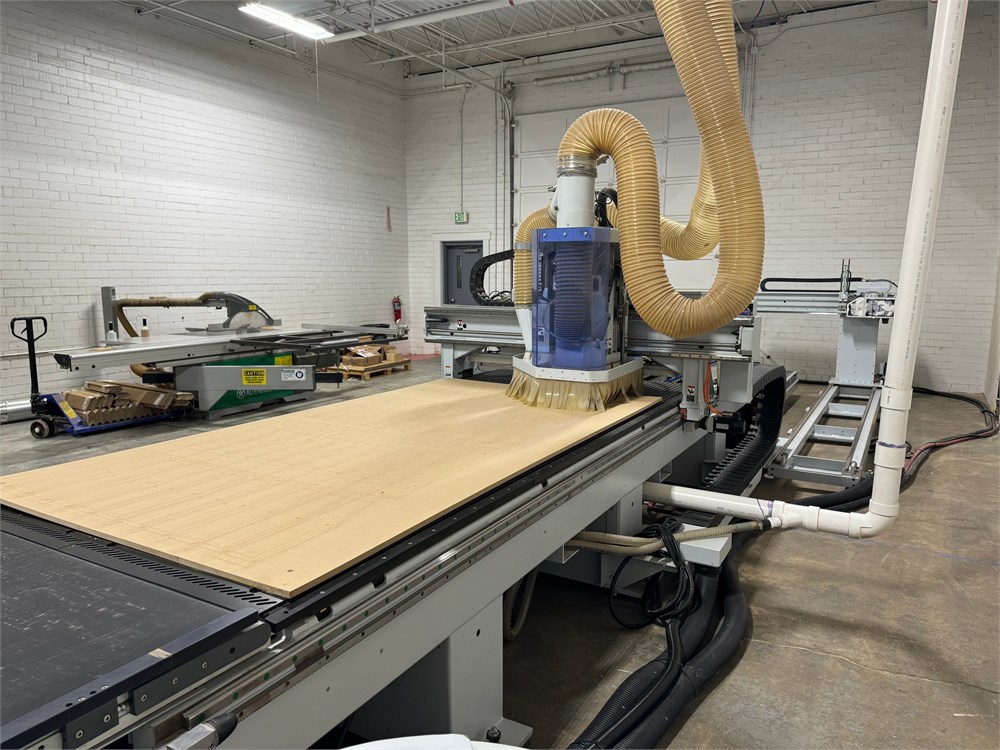

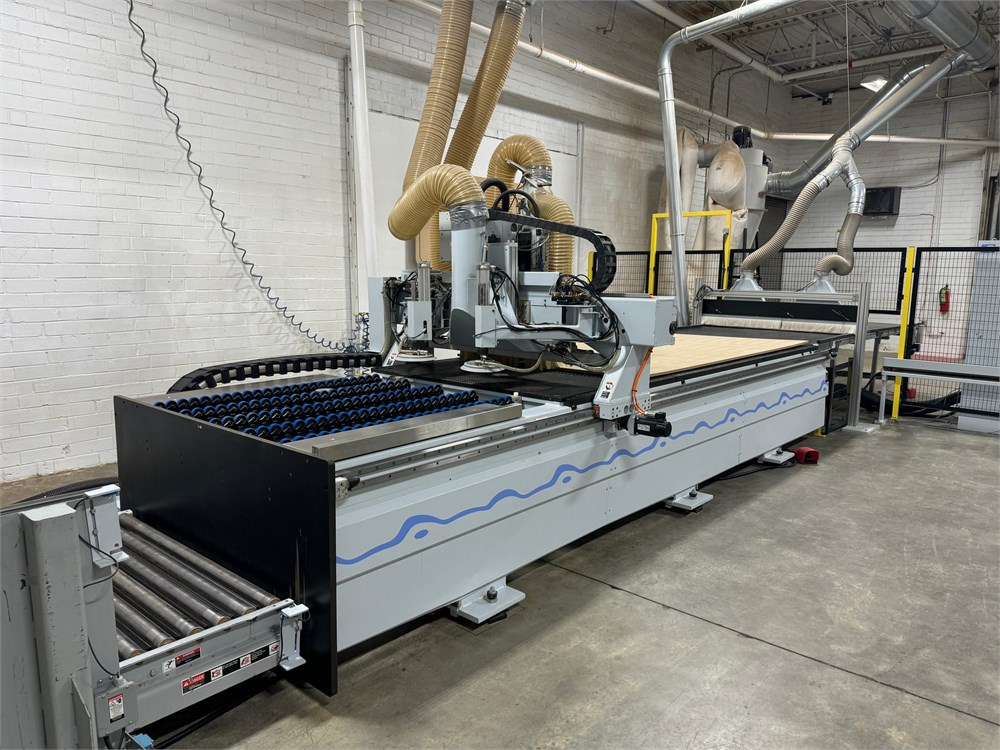

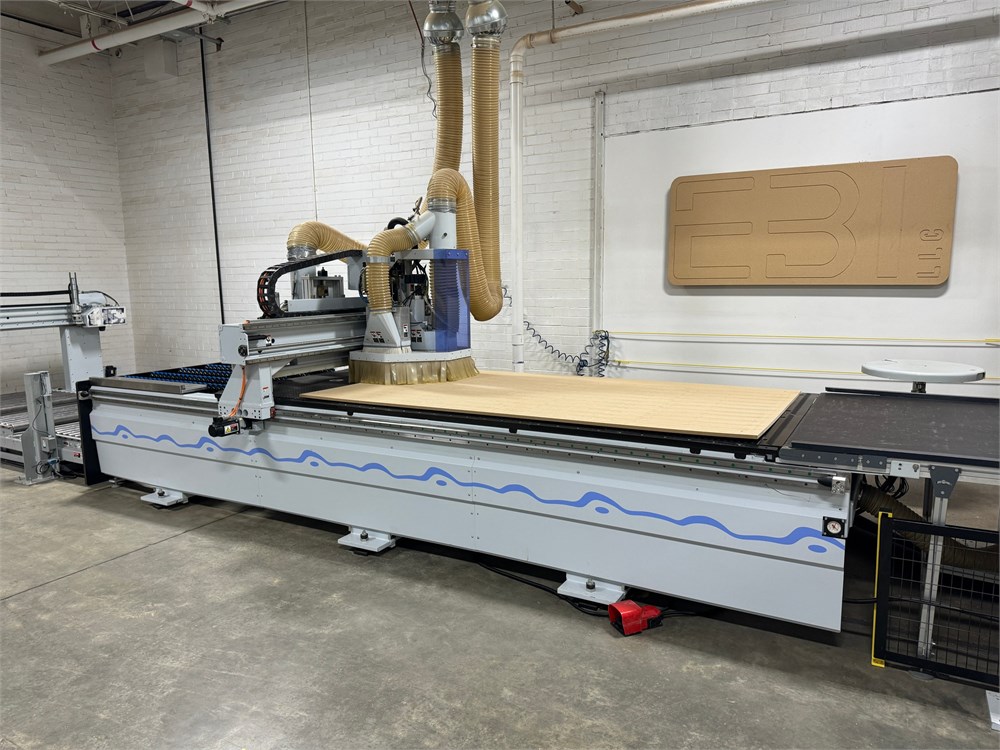

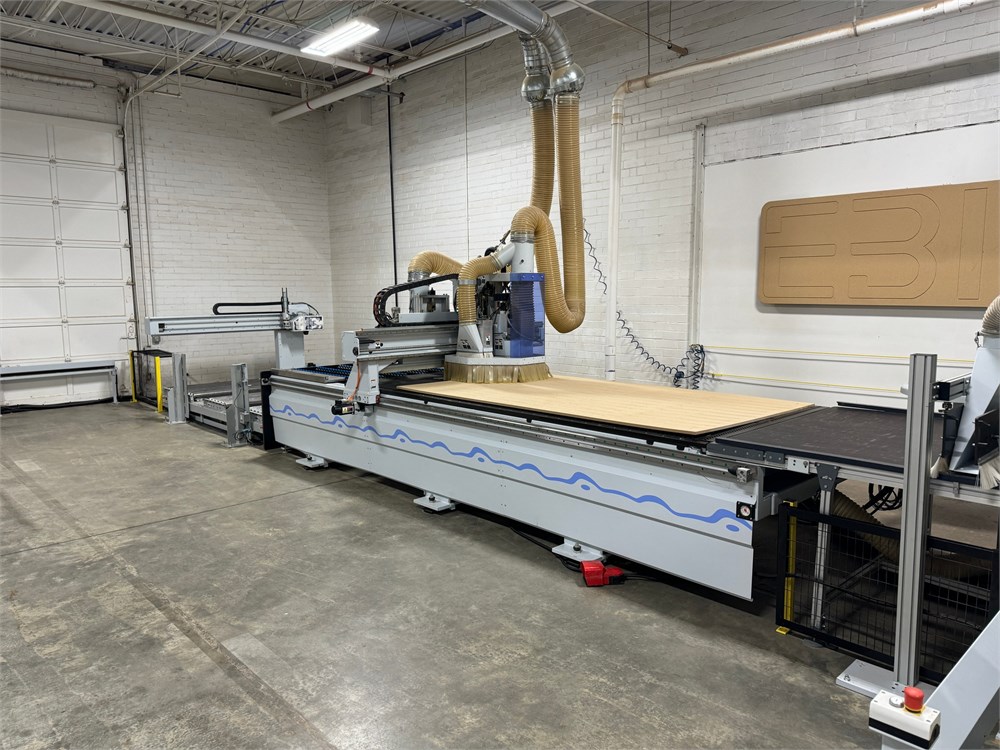

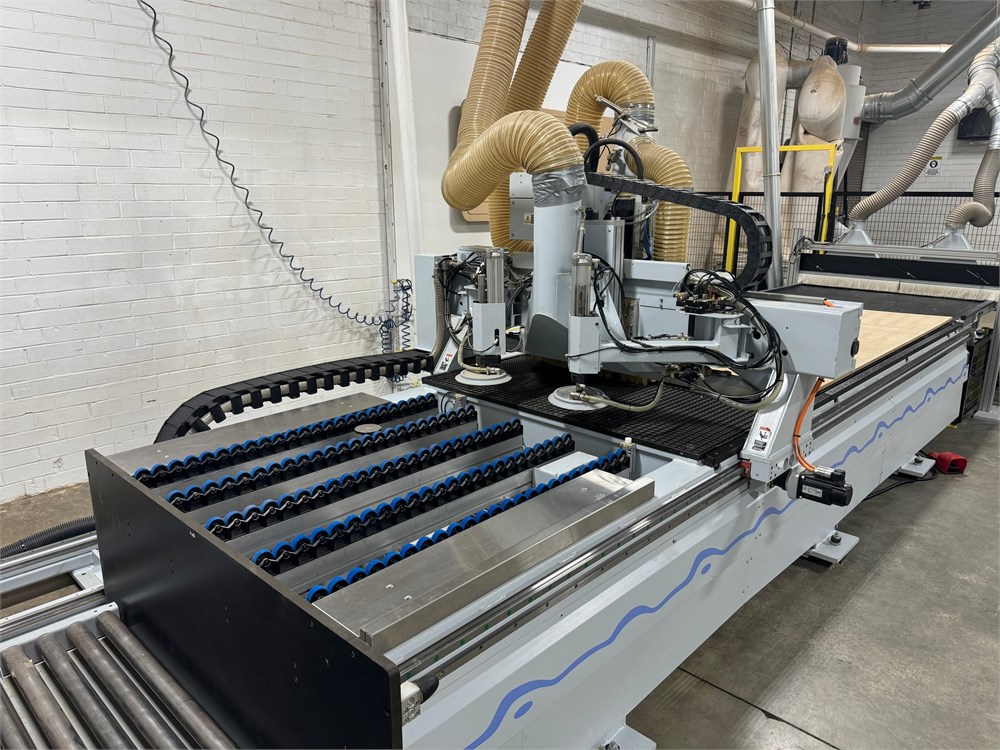

5' x 12' Flat Table "Bridge Gantry" machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table; pneumatic reference stops
"X" Axis is 145" (3,683 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 9.6" (243.8 mm), max. material thickness of 3.9" (99 mm).
"X" Axis is 236 FPM (72 MPM), "Y" axis is 203 FPM (62 MPM), "Z" axis 82 FPM (25 MPM);

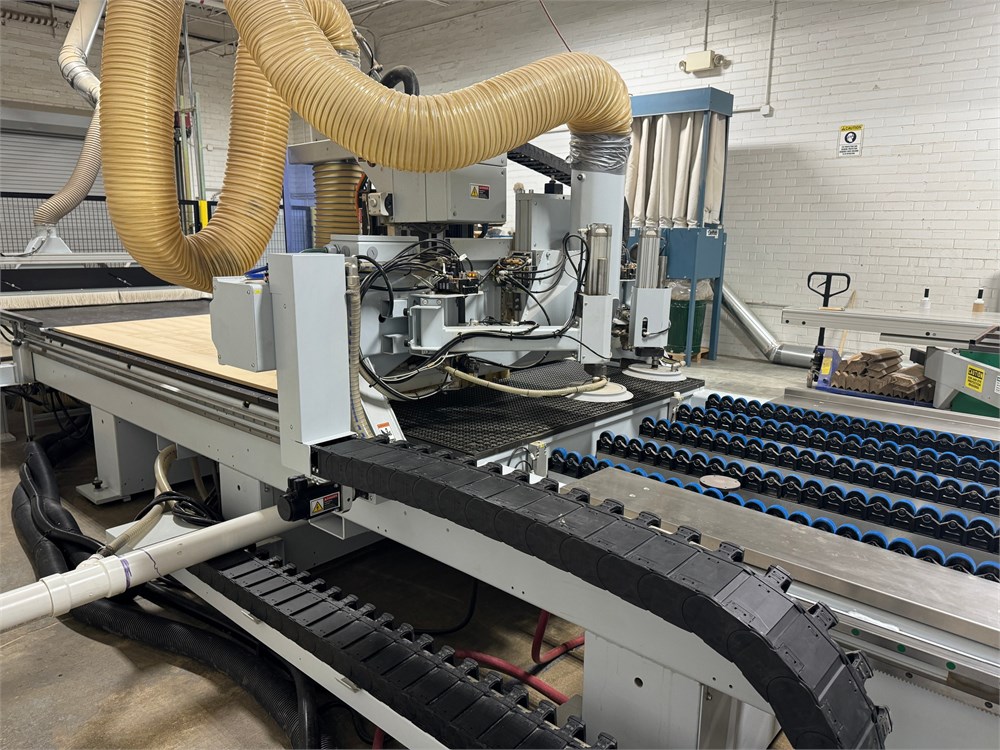

The head travels via AC brushless drives & THK linear motion guides on all axes.
S/C Tech MATRIX grooved phenolic vacuum table for easy vacuum pod placement; pneumatic locator/positioning pins.

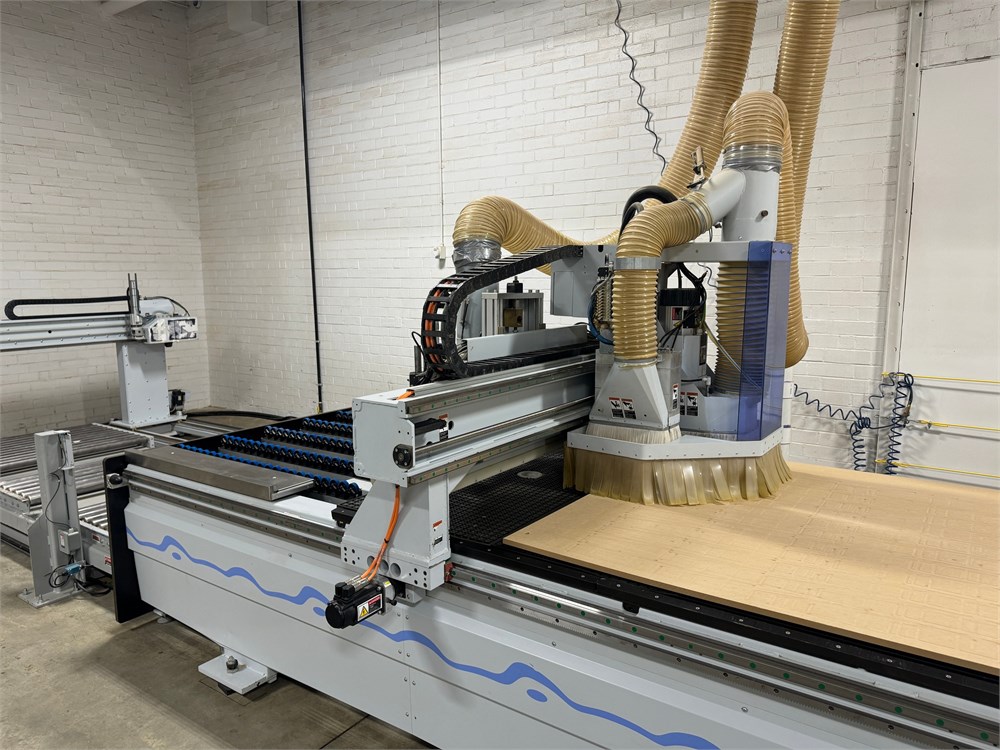

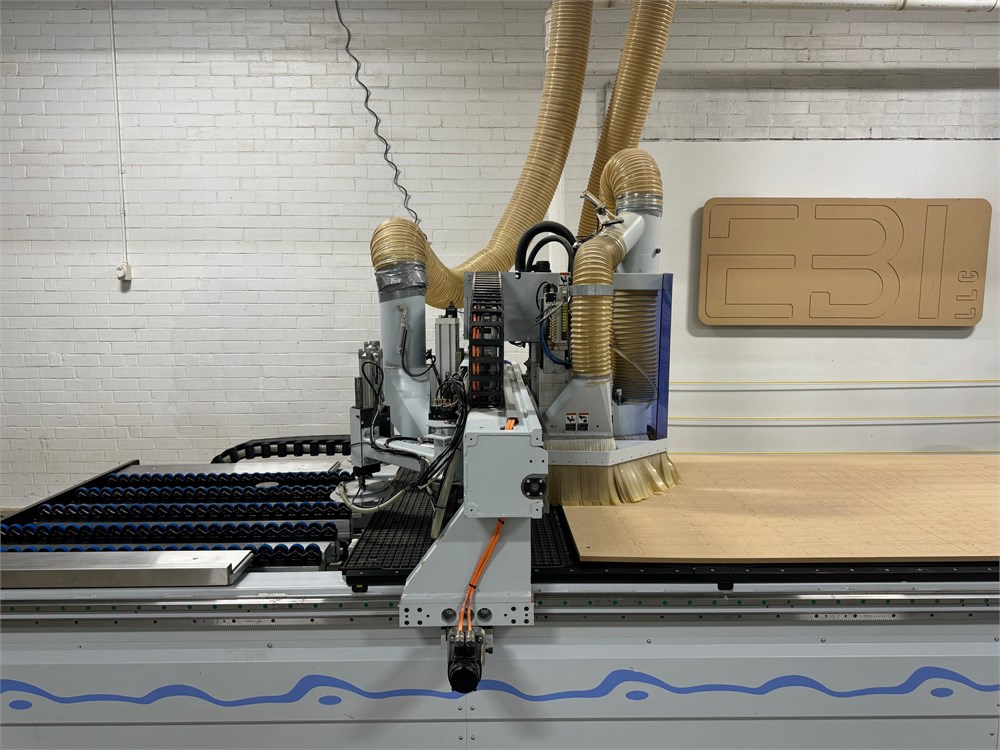

(1) 16 HP High speed electro-spindle router with "HSK F 63" adaptor; constant duty, variable speed from 1,250 - 24,000 RPM, RH or LH rotation.
(1) 14-Position Rotary ATC located at the end of machine.
Boring unit with 3.6 HP motor, (12) Independent vertical spindles with "Quick Change" drill bit holders; programmable variable speed from 1,500 - 7,500 RPM.
Head sound enclosure
Foot pedal operation

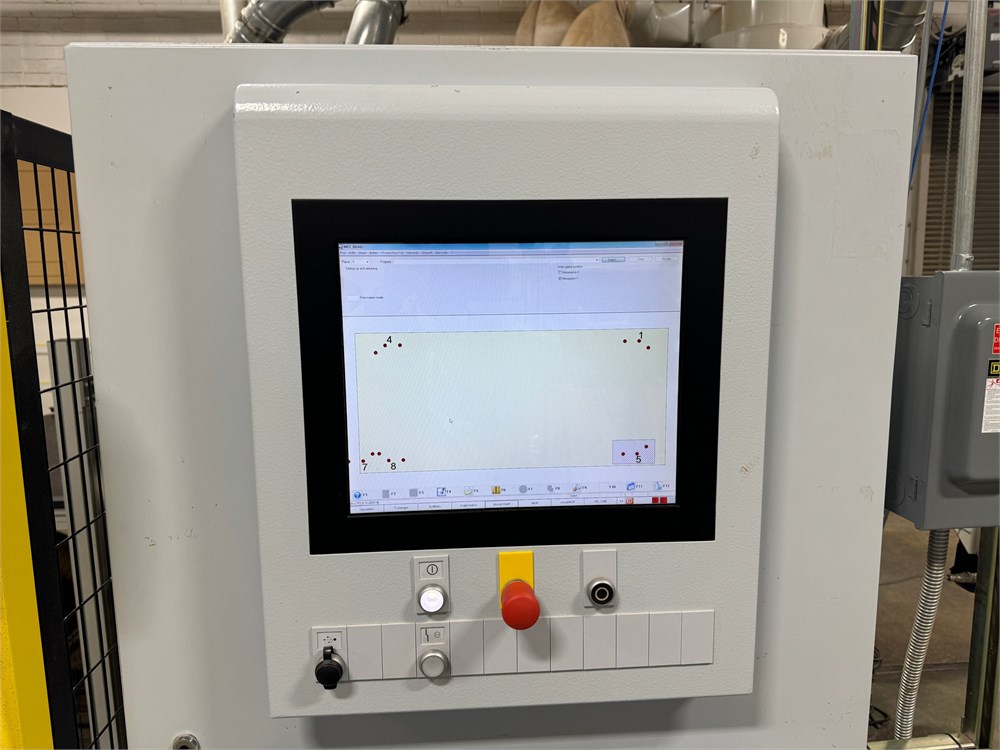

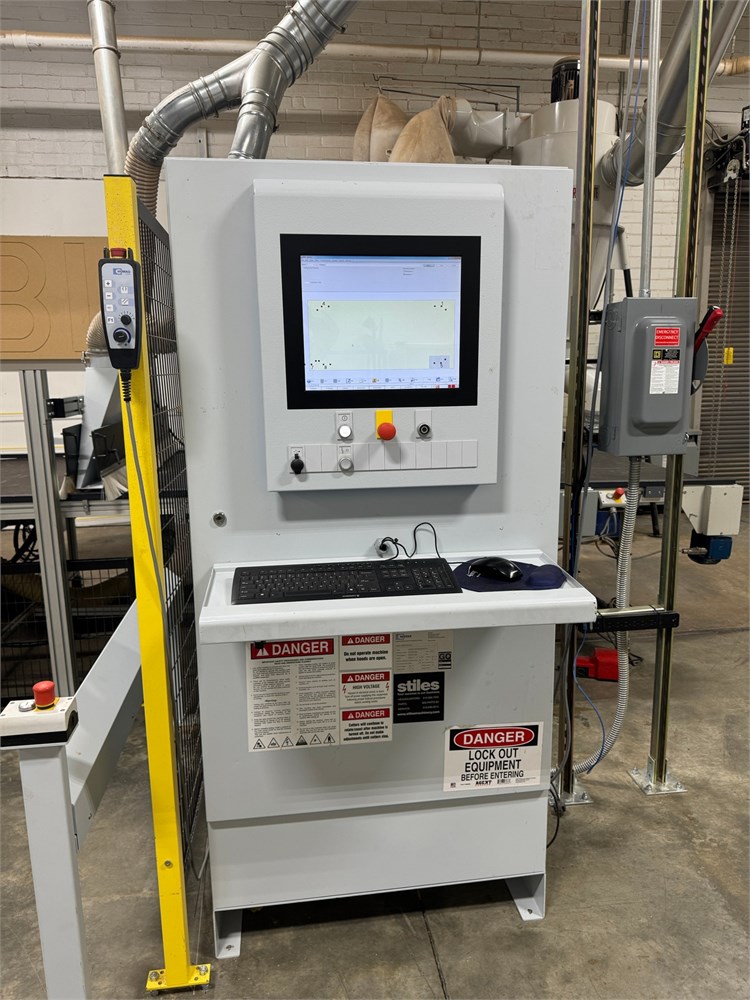

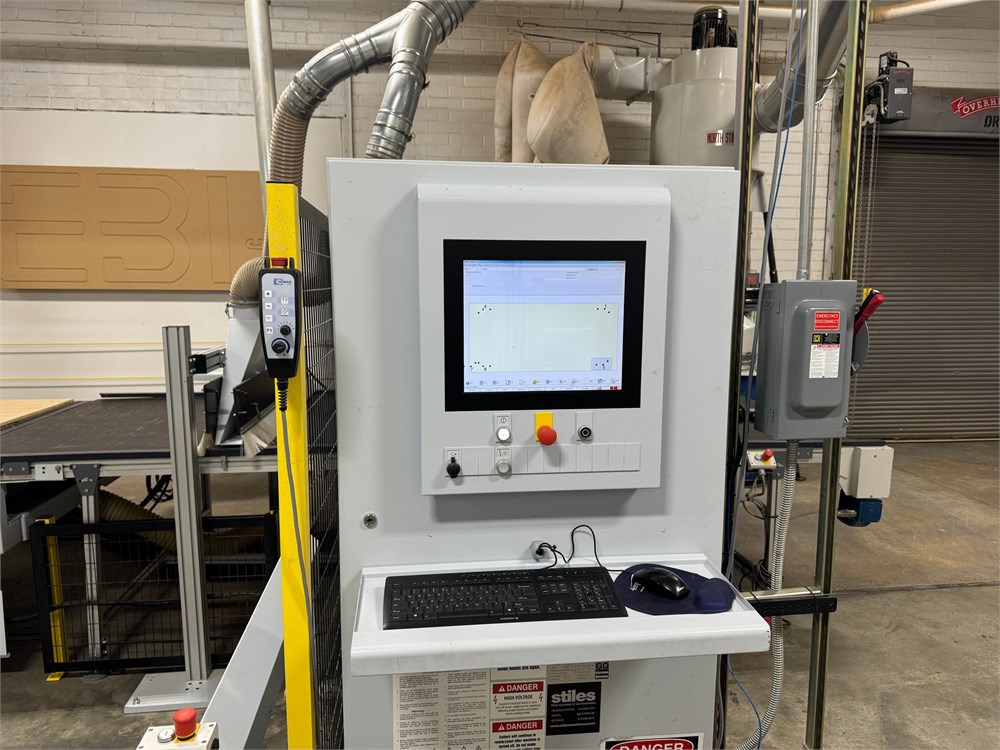

17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports.

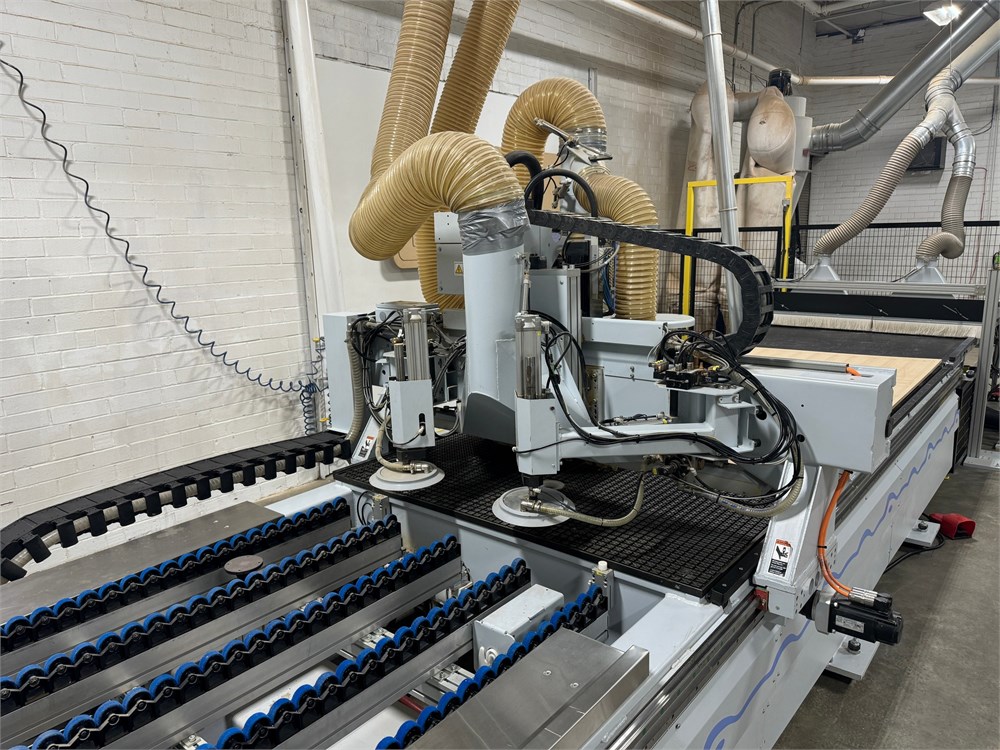

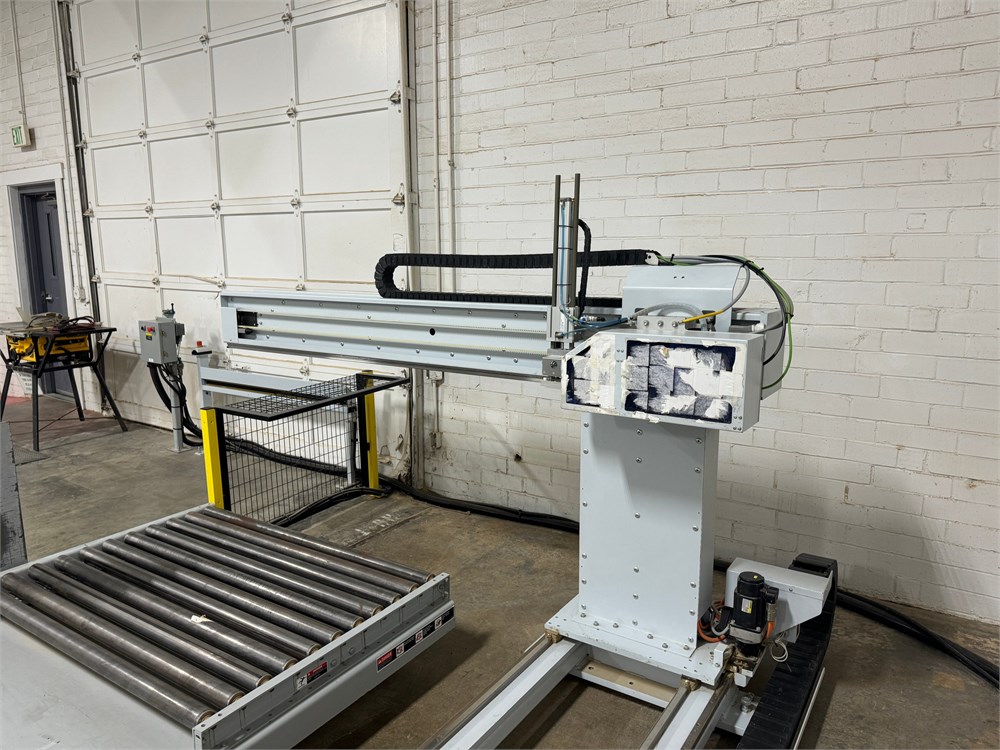

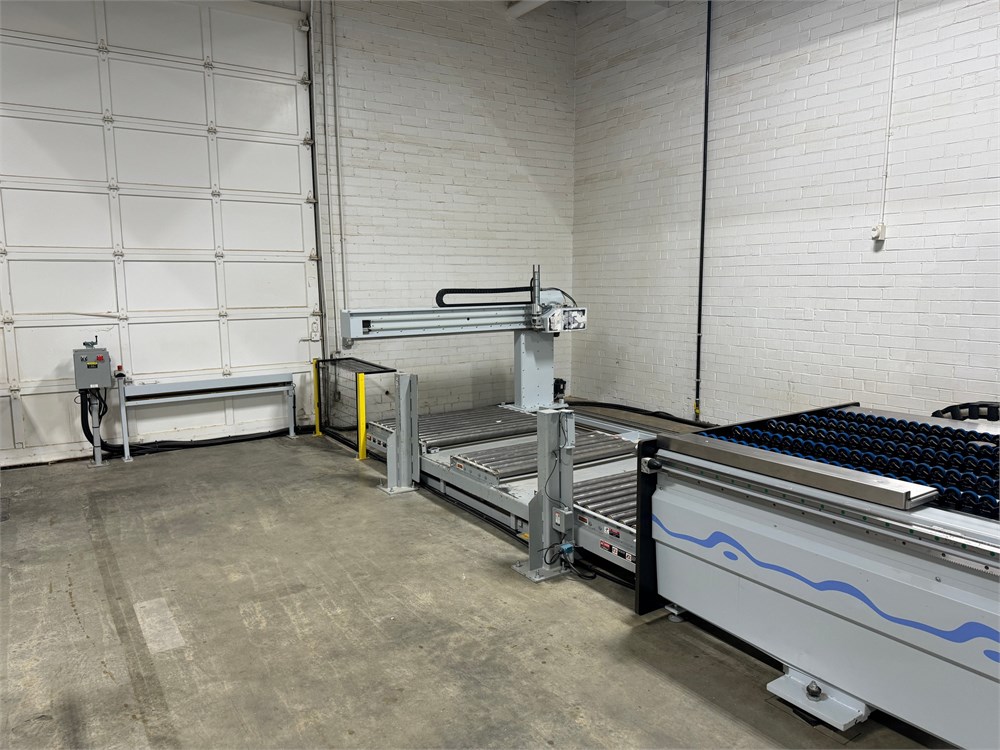

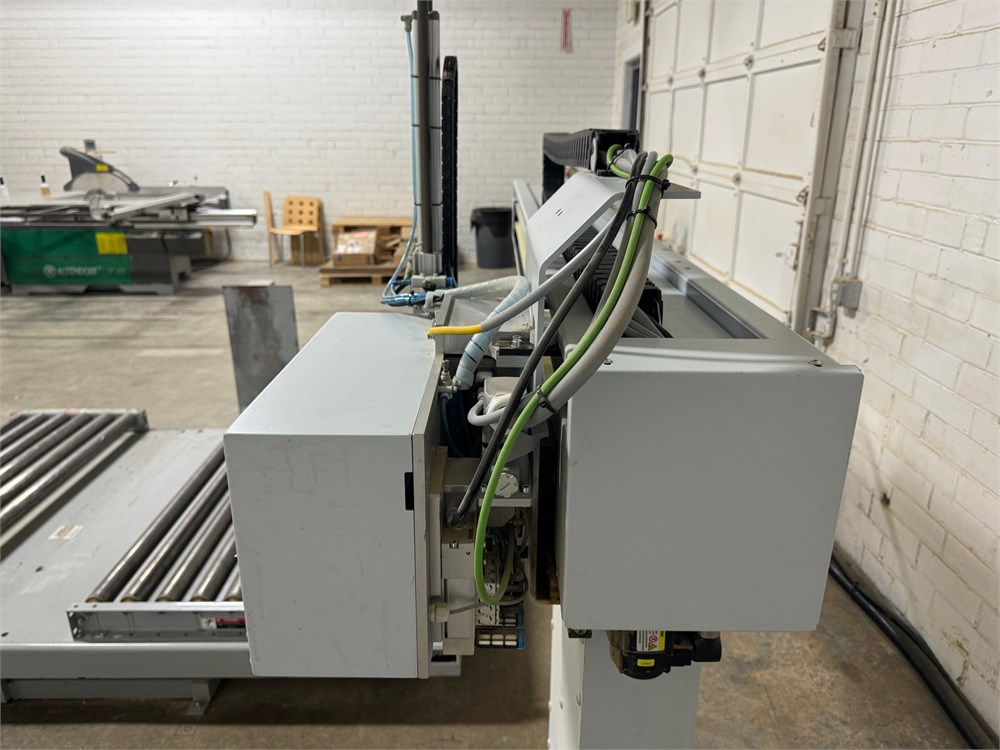

(2) Vacuum pods for load/unload, 52" roller top on infeed side of machine.
Ink-jet printer on track to allow for on-the-fly labeling.

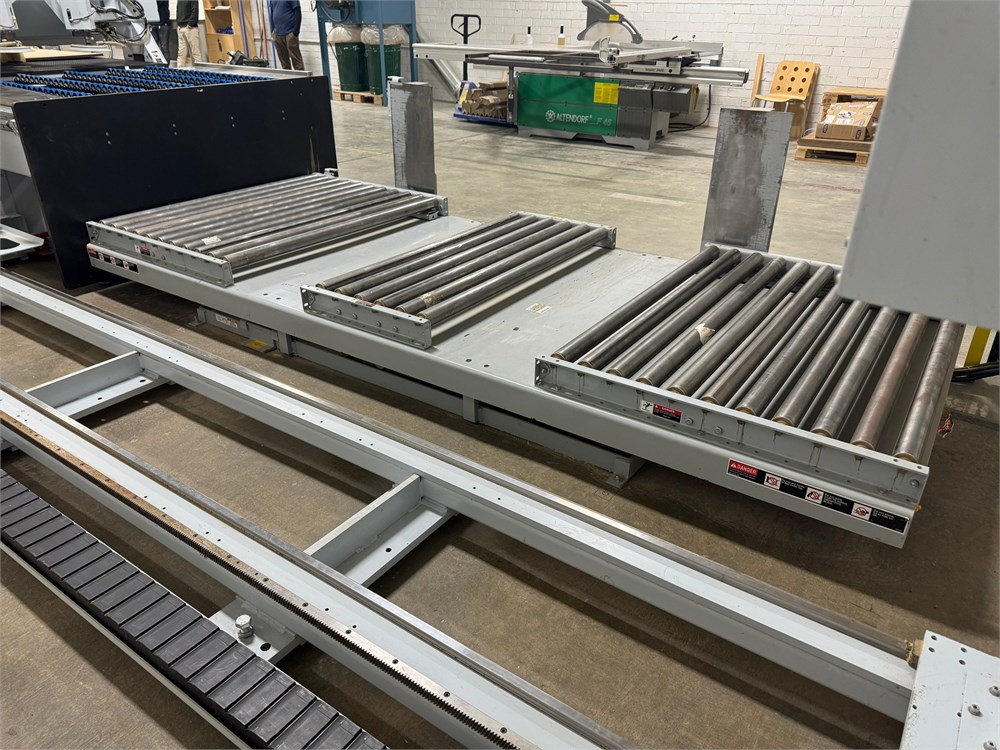

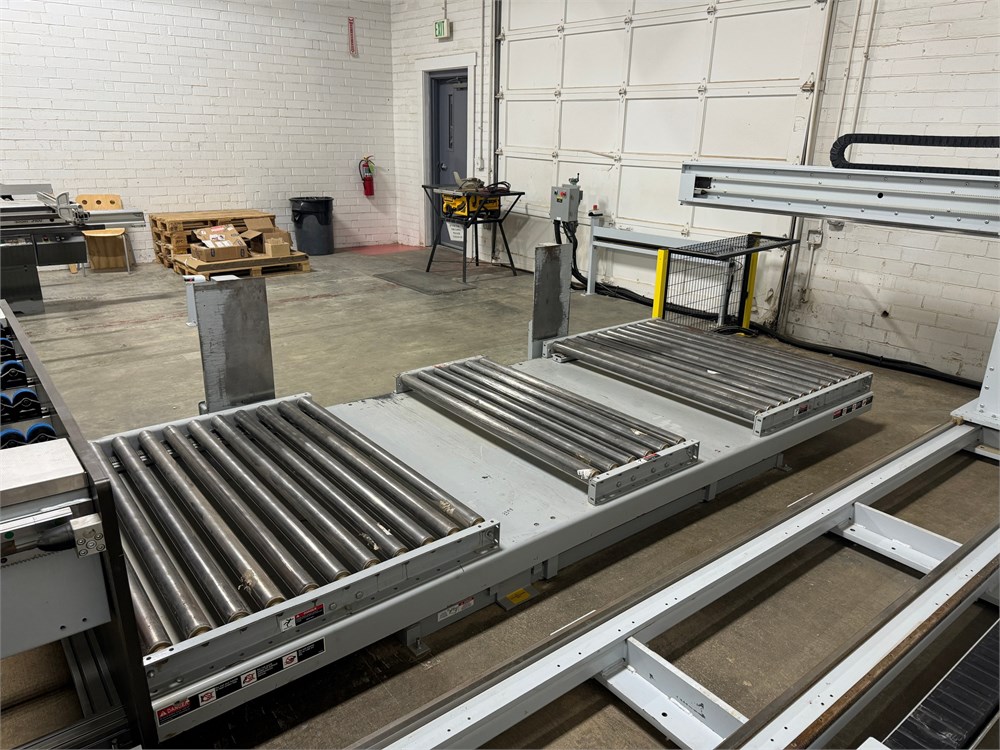

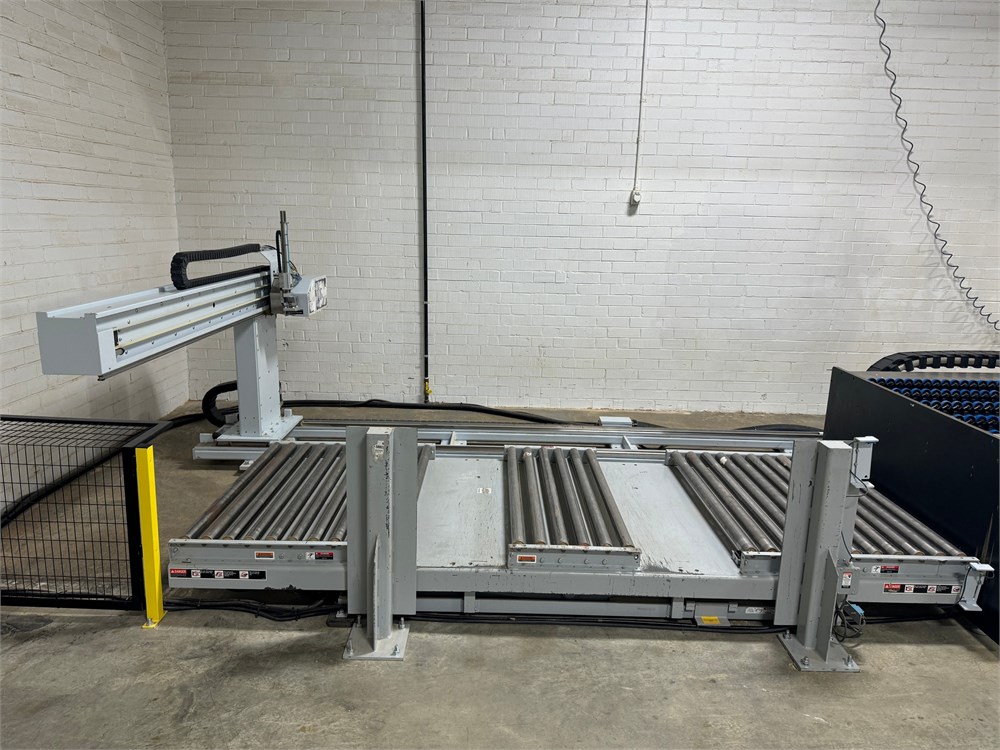

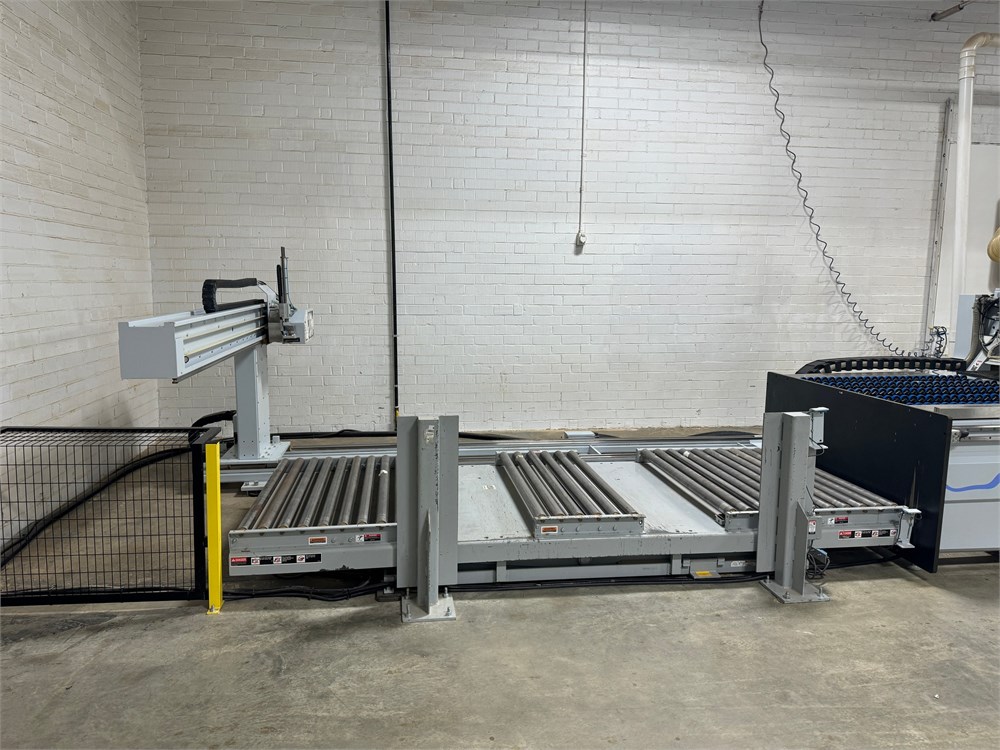

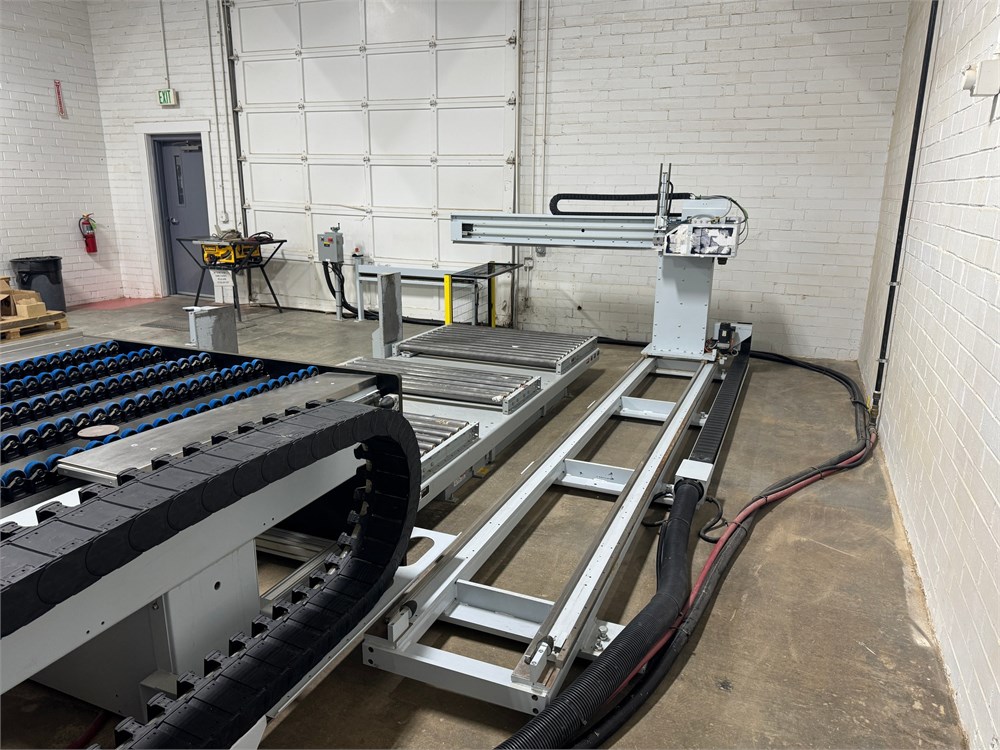

Infeed scissor lift, 60" x 144" roller top, fork lift cut-outs, (2) alignment posts, 21" max bunk height as configured (could be increased if lift is pit mounted).

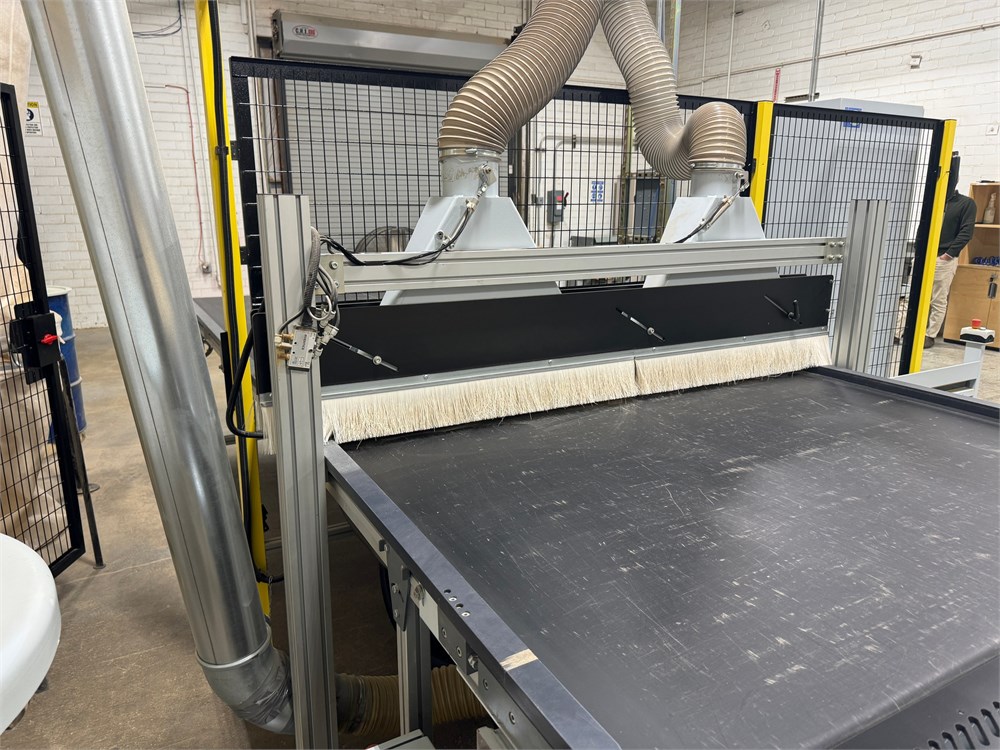

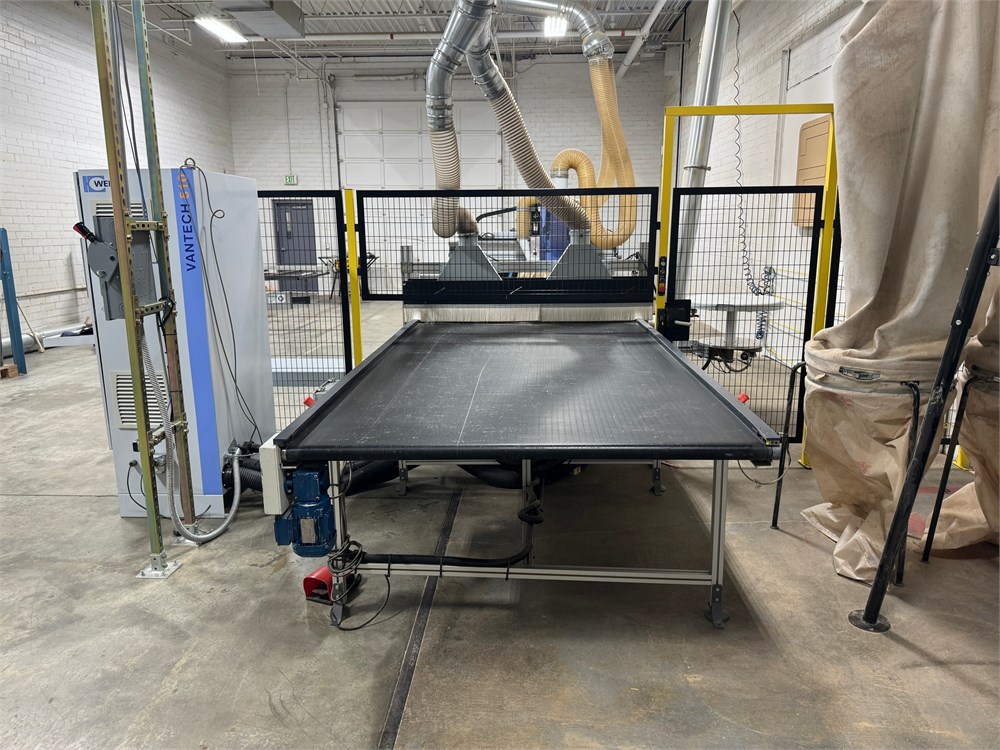

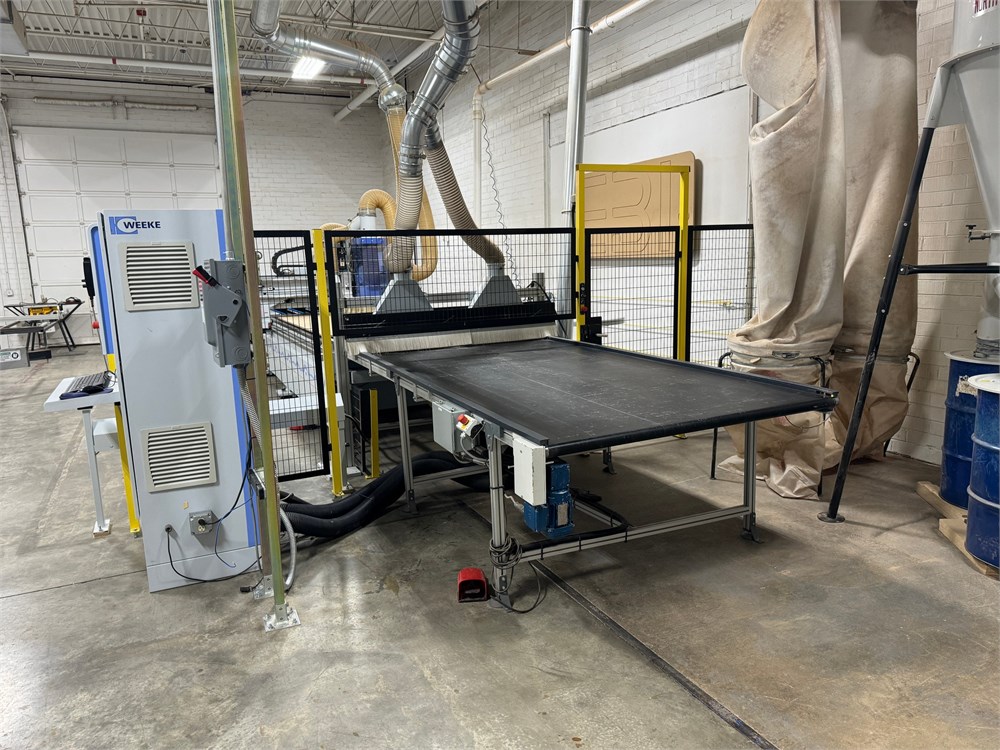

61-1/2" x 162" Powered out-feed belt, top & bottom dust extraction.
Front photo safety eyes

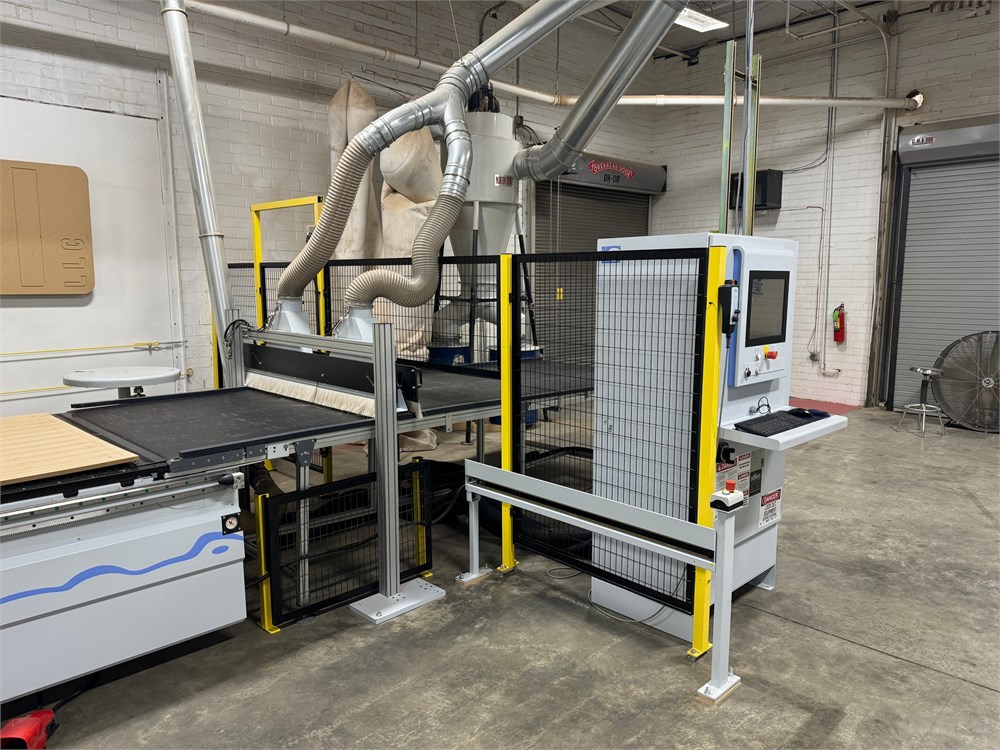

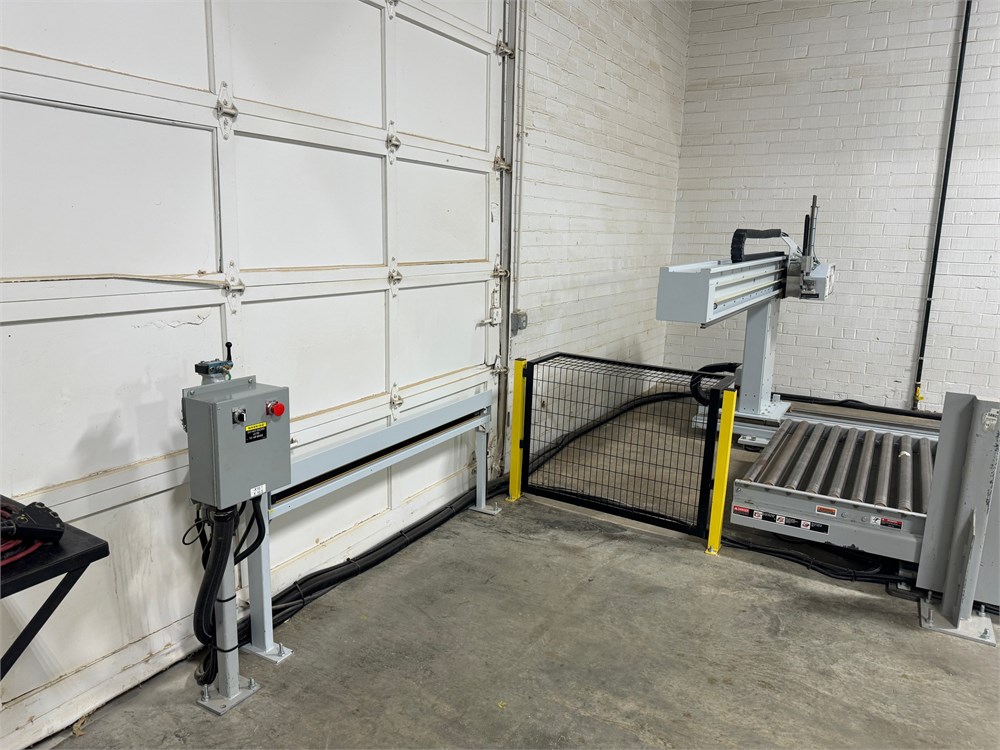

Safety fencing with interlocked access door
Vacuum pump(s), dust collectors, dust pipe and flex hose NOT included, offered in separate lots
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
