Weeke BHX 055 Vertical Machining Center
Active
Weeke BHX 055 Vertical Machining Center Auction - Port St. Lucie, FL
Port St. Lucie, FL
- Starting Bid : $2,500.00 USD ( ) No Reserve
- 0 Bid(s)

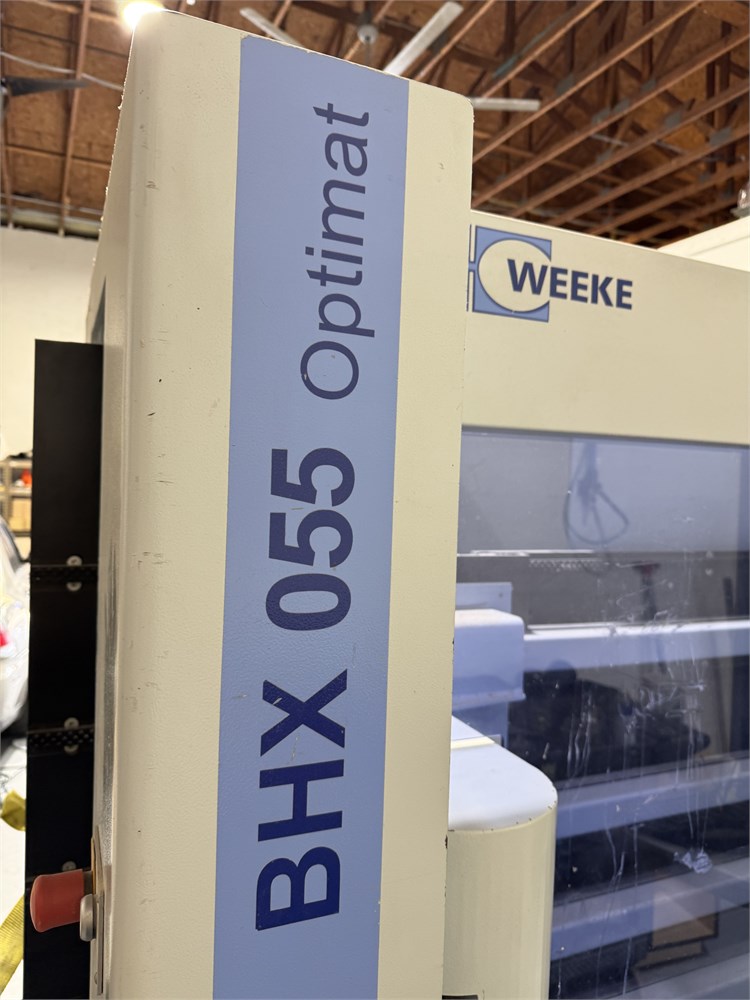

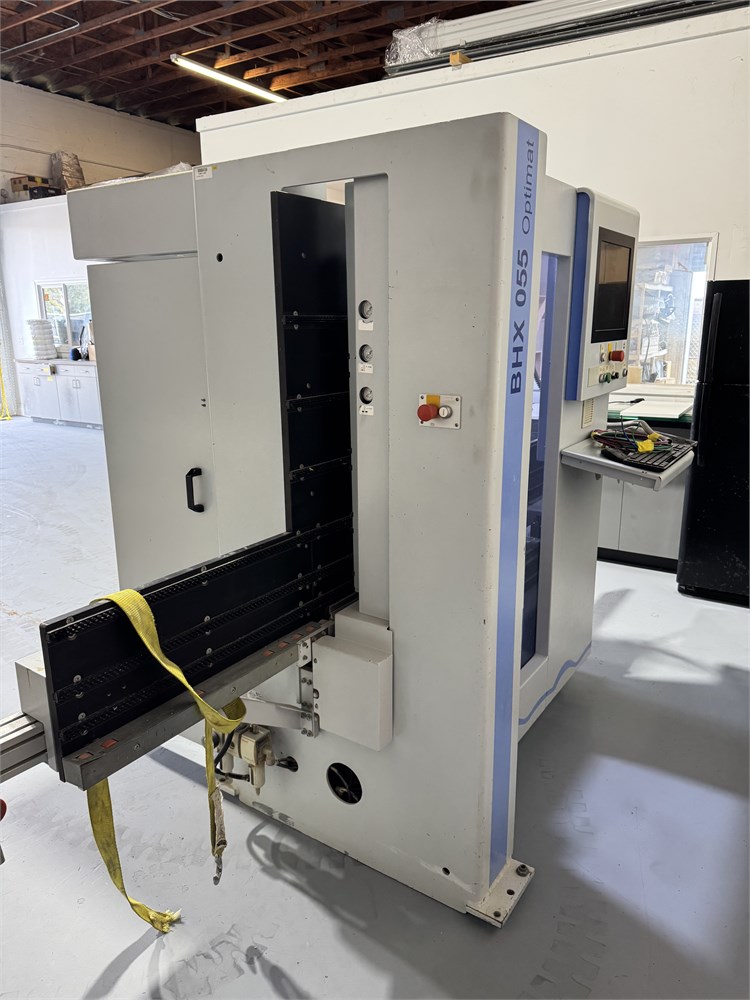

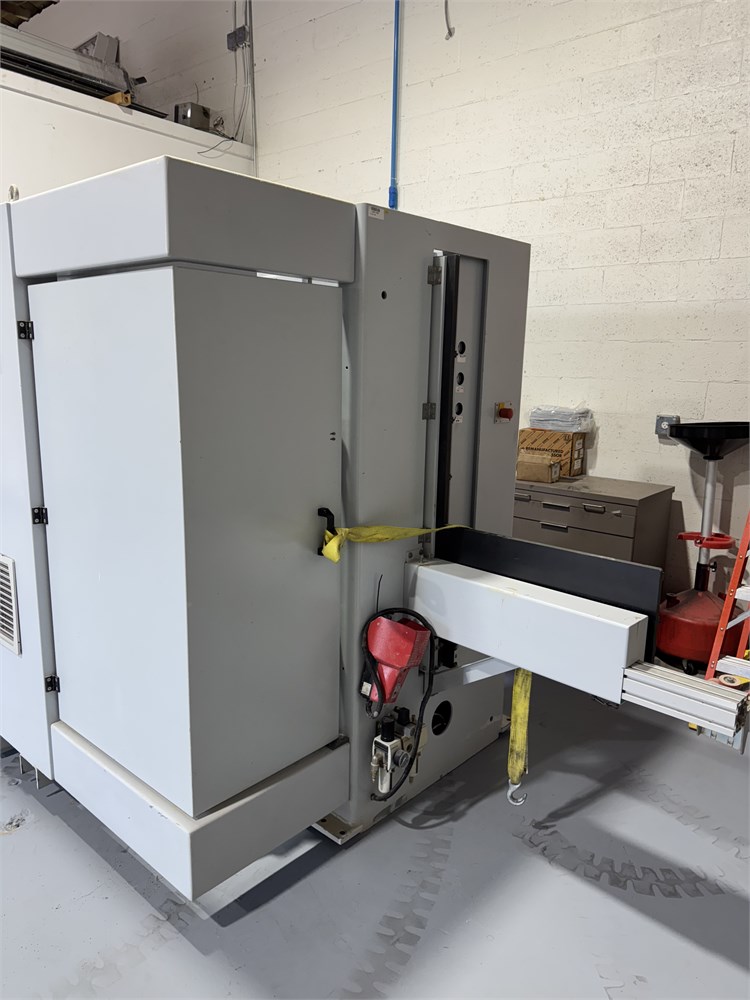

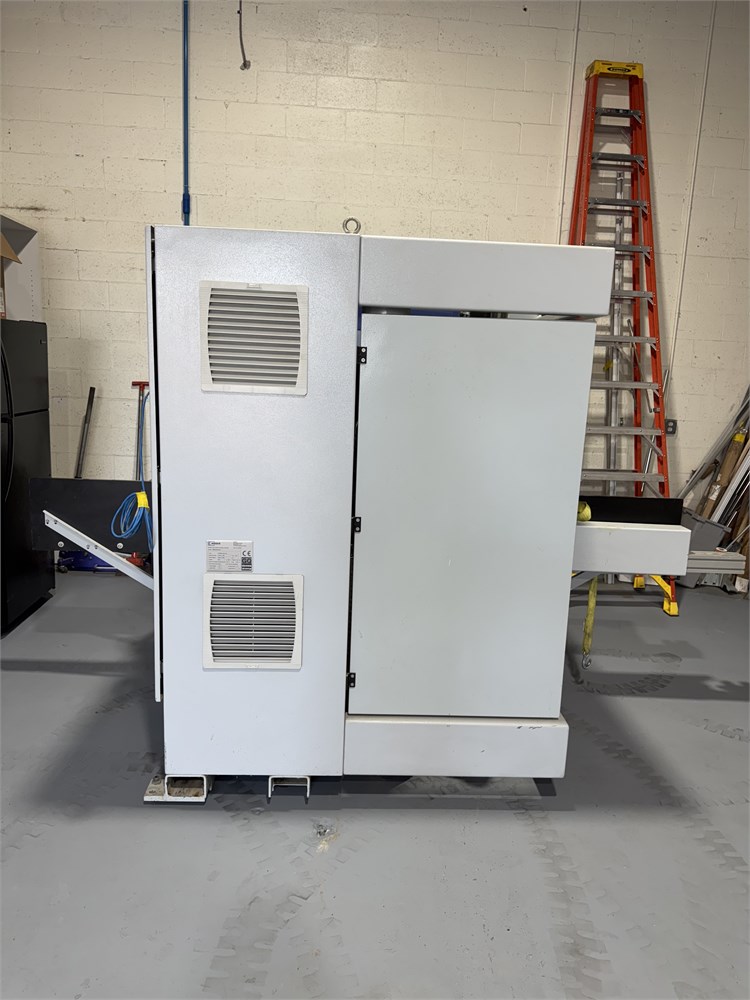

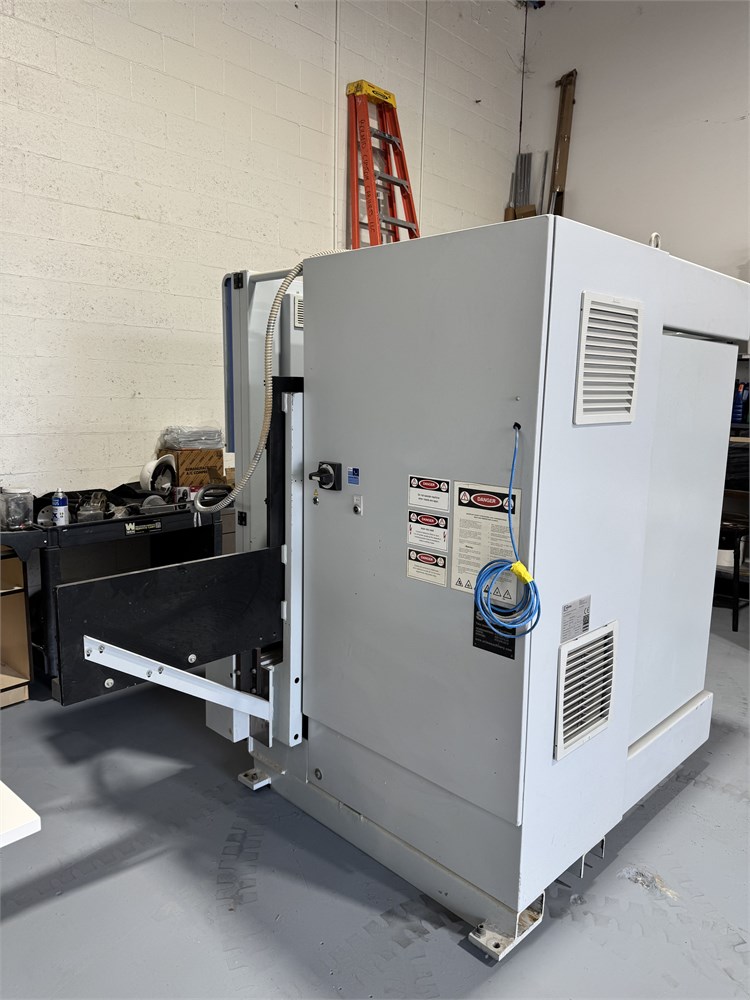

Weeke "BHX 055" Vertical Machining Center - Port St. Lucie, FL ( Active #73364771 )
A cabinet maker in the greater West Palm Beach, FL area is auctioning a Weeke "BHX 055" Vertical Machining Center no longer required for continuing operations. Please call me with any questions.
-
Pick Up Location
1952 SW Hayworth Ave. Port St. Lucie, FL 34953
-
Make
Weeke
-
Model
BHX 055
-

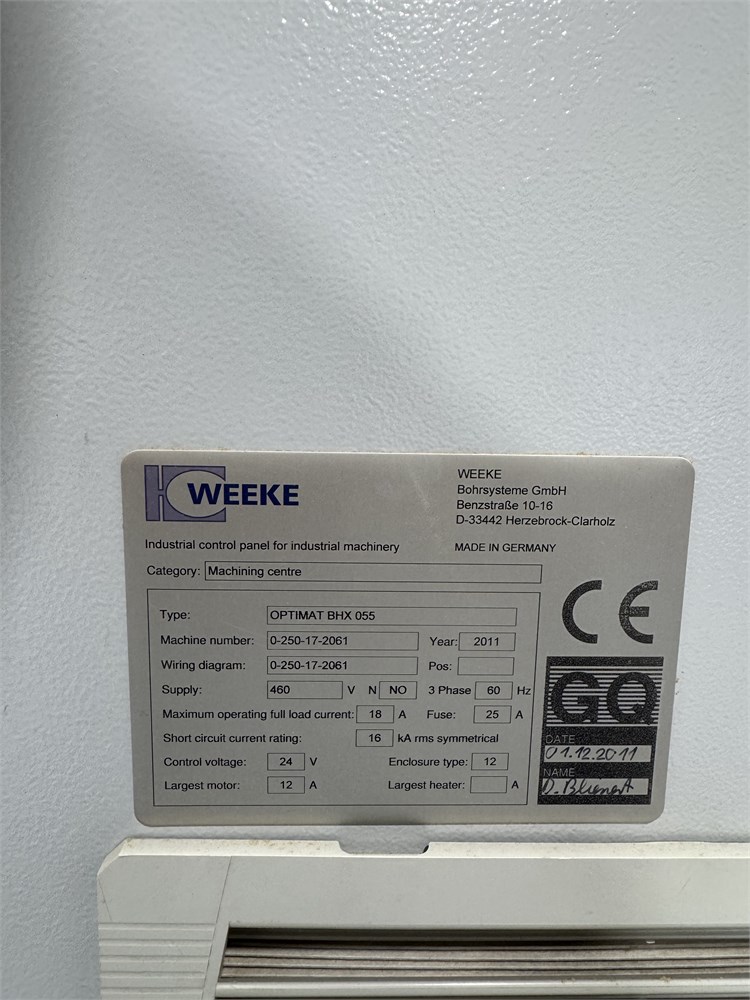

Serial Number
0-250-17-2061
-
Year
2011
-
Phase
3 PHASE
-
Voltage
460 VOLT
-
Buyer Inspection Period
July 25th - August 7th, 2025 By appointment only
-
Load Out Period
August 7th, August 14th, 2025 By appointment only
-
Estimated Dimensions
120" L x 72" W x 84" H
-
Estimated Weight
4,500 Pounds
-
Seller Comment
Seller can load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost
-
Load Fee
300.00
-
Lot Notes
-
page views
27
Weeke BHX 055 Vertical Machining Center
Flexible "Vertical" Machining Center that uses less than 5 meter² of valuable floor space in addition to an innovative panel handling system.
Maximum workable part size for "X" axis is 120" (3,050 mm), "Y" axis 33.4" (850 mm), and max. part thickness 2.4" (60 mm).
Minimum worktable part size for "X" axis is 7.8" (200 mm), "Y" axis 2.7" (70 mm), min. part thickness of .47" (12 mm). Automatic infeed & outfeed from the LH or RH side.
The BHX 055 can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety, providing an unmatched working capacity.

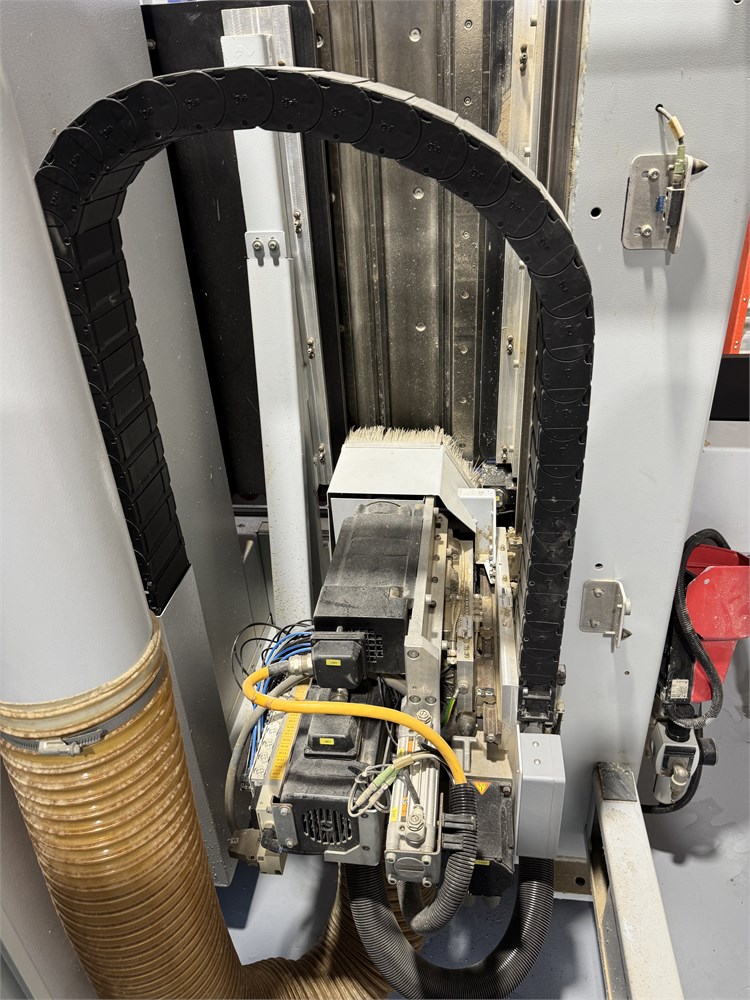

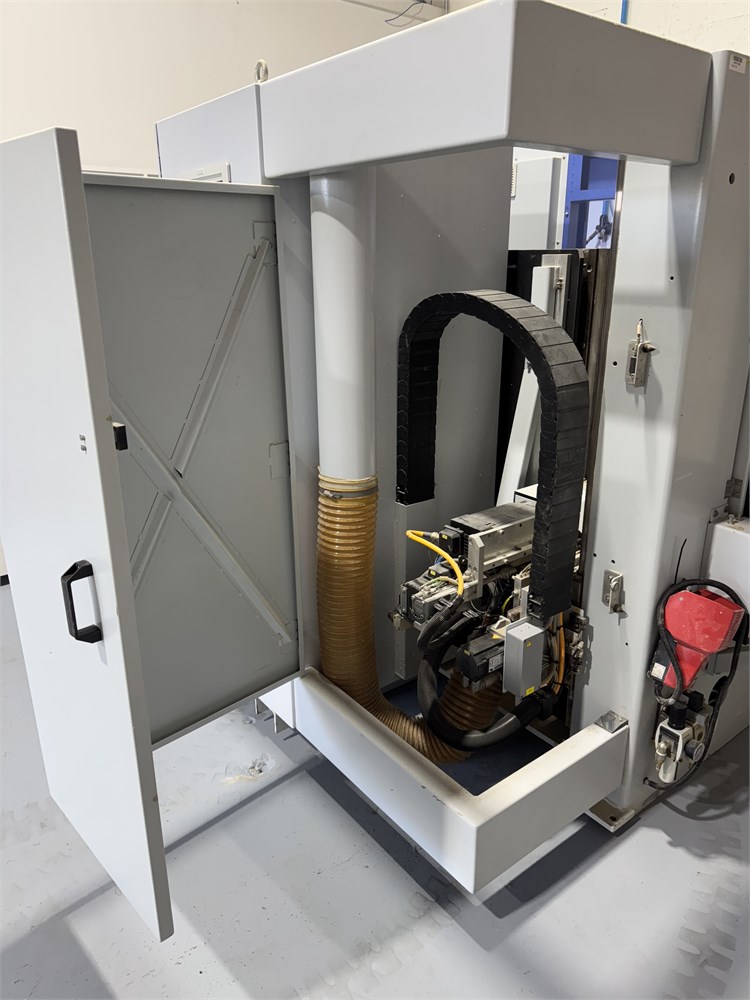

(1) 3 HP, variable speed from 1,500 - 7,500 RPM motor, (13) independent spindles with (8) spindles in "X" axis & (5) spindles in "Y" axis.
(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis;
Boring block has "QUICK CHANGE" vertical spindle system,

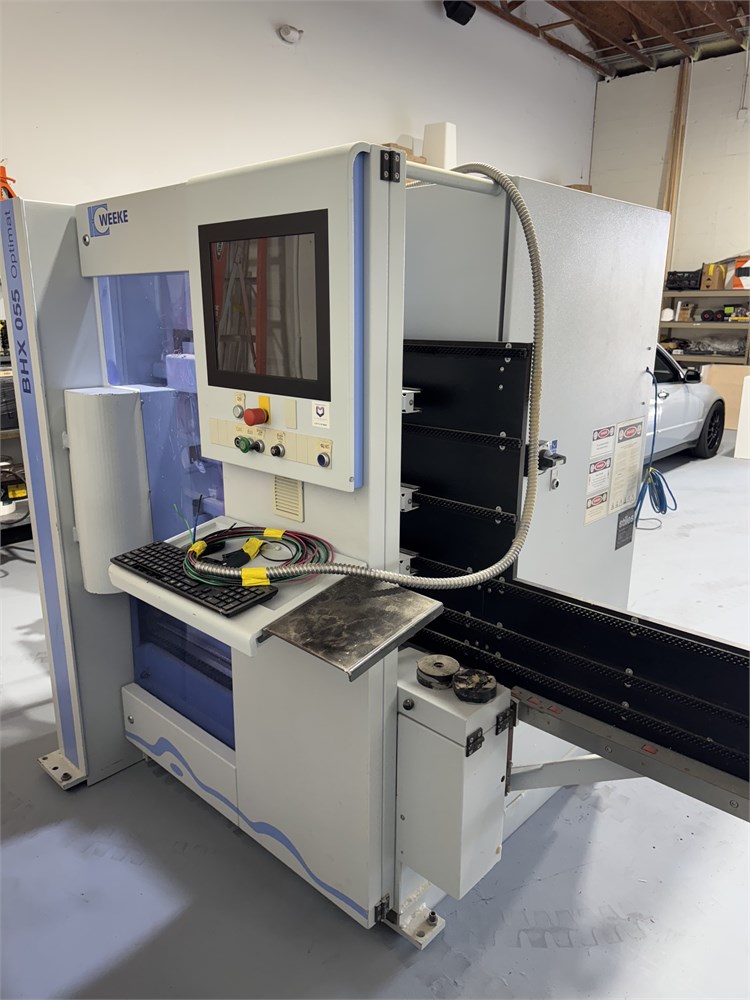

Weeke "POWER CONTROL PC 85" + Windows + WoodWOP 6.0 operating system; "IntelCore 2 DUO" Processor;
17" TFT Monitor; international keyboard, soft-touch keypad & industrial mouse; RS-232 Serial ports, USB ports; (1) 1.44 MB floppy disk drive, (1) CD RW drive, moden, Ethernet connection.
Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible.
Pneumatic part clamping devices; sound enclosure and complete set of safety devices.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
