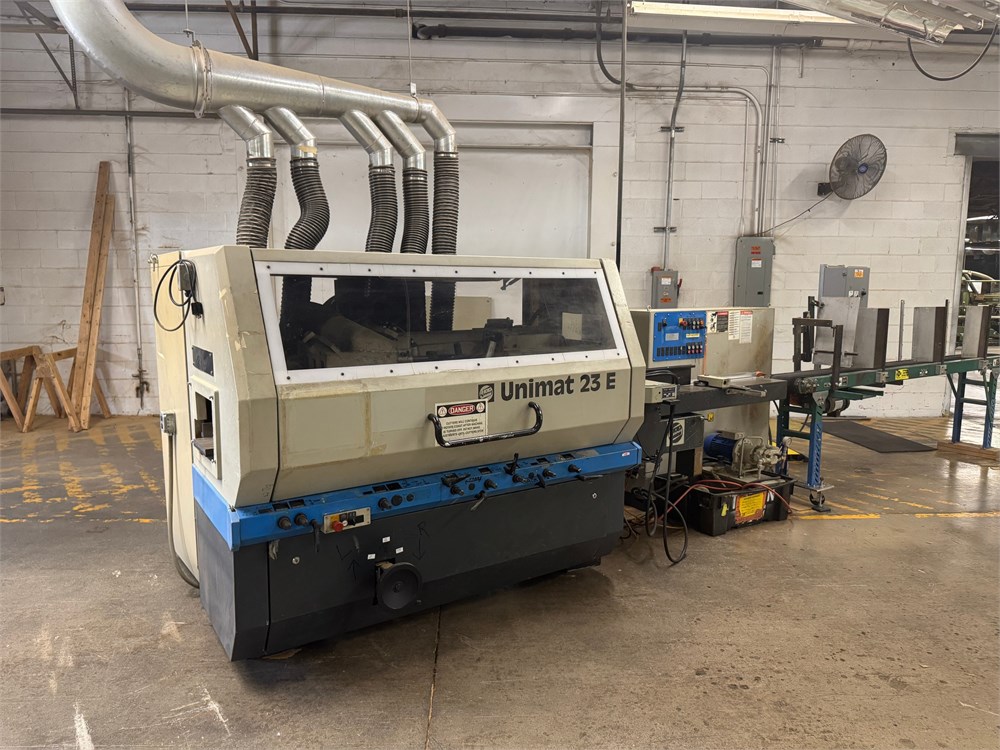

Weinig "Unimat 23 E" Moulder - 5-Head & Feeder
Ended
DAY 1 of a 4-Day Sale
Tiffin, OH
- Winning Bid : $7,150.00 USD Sold
- 52 Bid(s)
- High Bidder: l****m
Dorel Home Furnishings - Ameriwood - Day 1 ( Closed #73252952 )
Day 1 Features large selection of Woodworking machines including: Weinig Unit 23E Moulder, Holzma HPP350 Beam Saw, Harlan Creative Automation Laminating Line, 6 Forklifts, 200HP Torit Dust Collector, Edgebanders, CNC Routers, Creative Automation Angular Beam Saw, Roller Conveyors, Pallet Racing, plus much more!
-
Pick Up Location
458 2nd. Ave. Tiffin, OH 44883
-

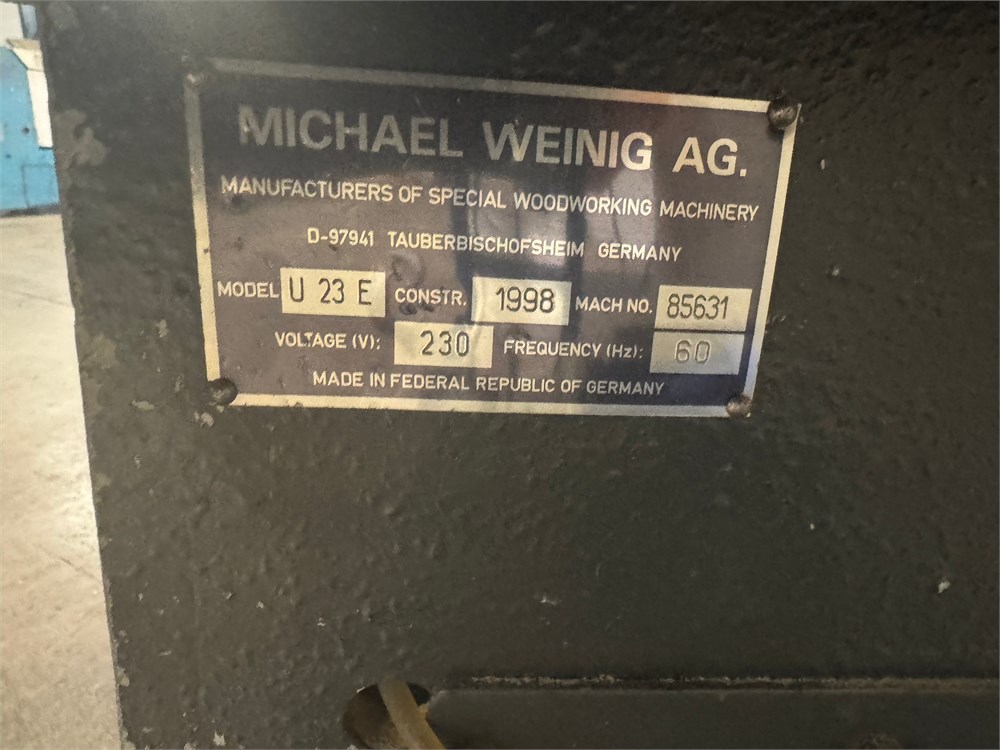

Make
Weinig
-
Model
"Unimat 23 E"
-
Serial Number
85631
-
Year
1998
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
September 16, 2025 8AM - 4PM & September 17, 2025 7AM - 11AM
-
Load Out Period
September 25 - October 9, 2025 By Appointment ONLY!
-
Estimated Dimensions
13'L x 7'D x 6'H
-
Estimated Weight
5,500 Lbs
-
Seller Comment
A rigger is required. Buyer's Responsibility for Break-down, loading and removal. By appointment ONLY!
-
Load Fee
0.00
-
Lot Notes

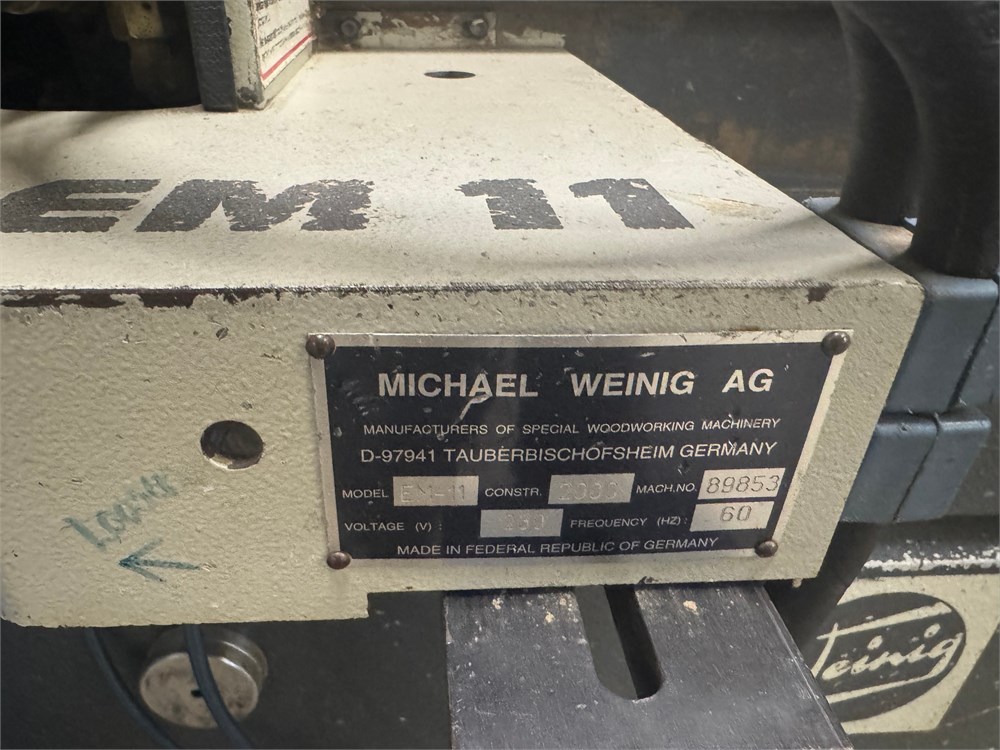

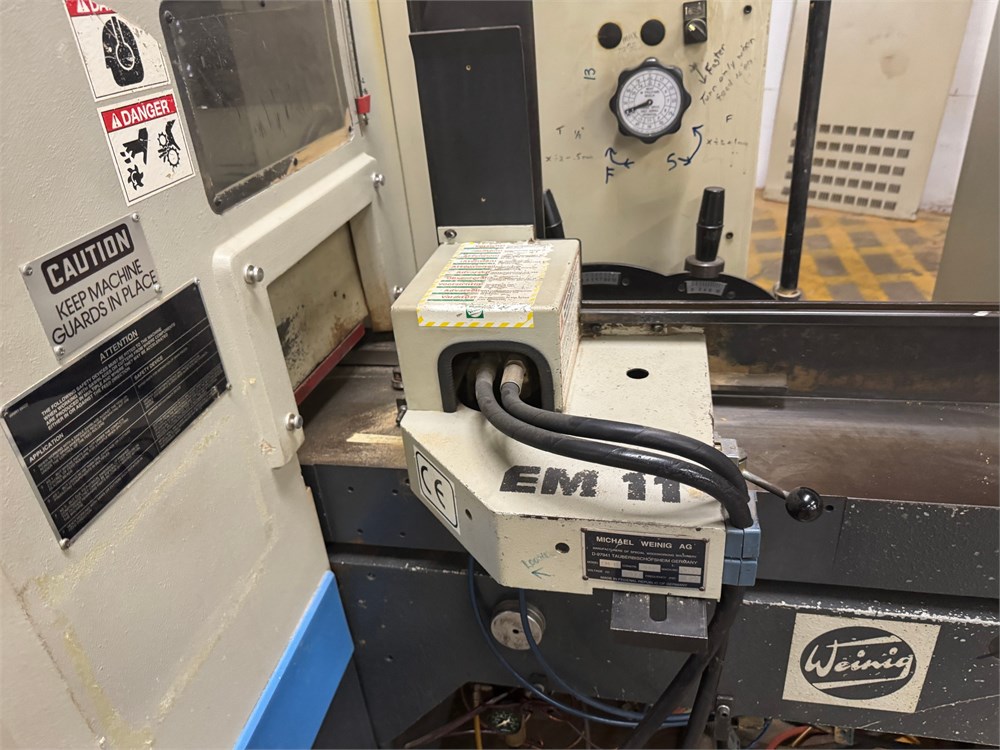

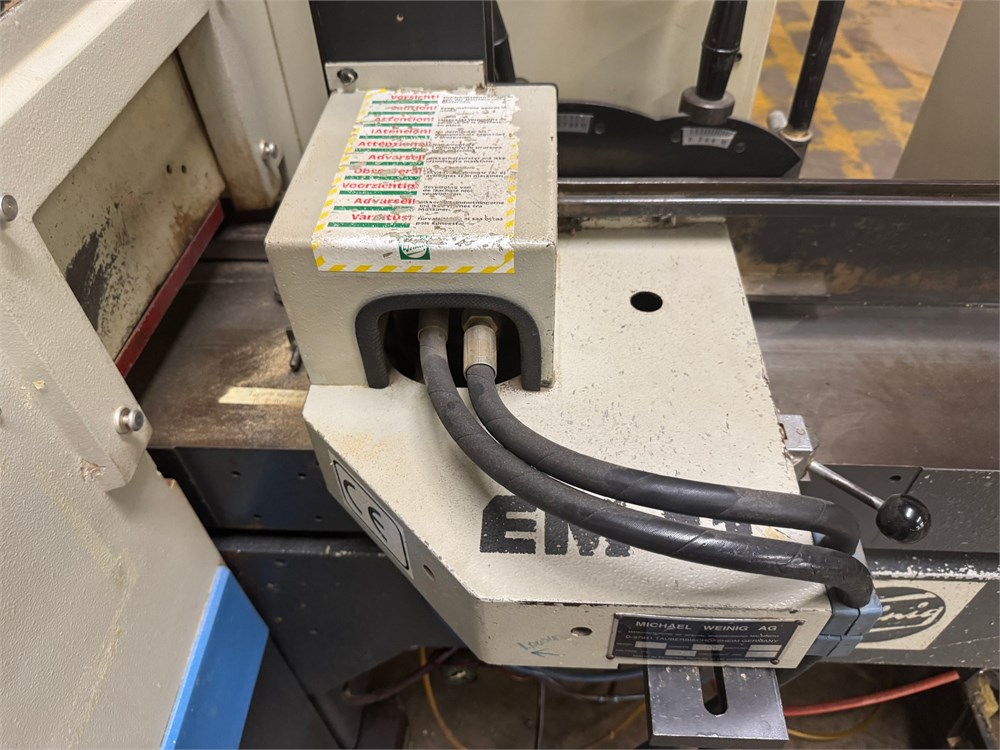

EM-11 Feeder is included! Powered Belt conveyor is NOT!
-
page views
1725

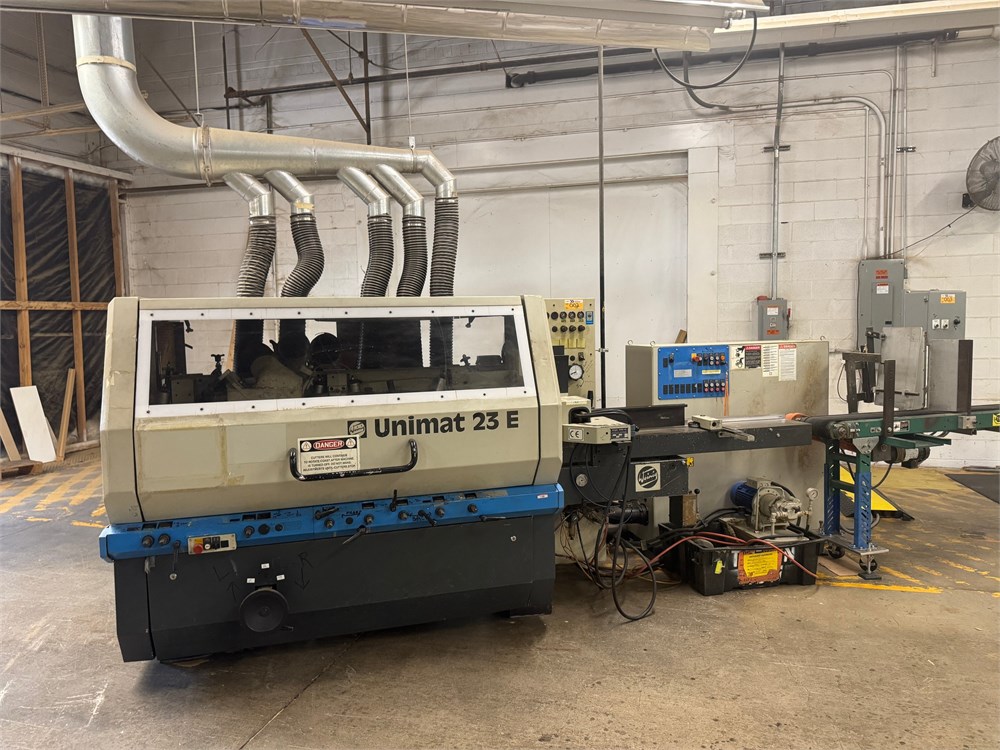

Weinig "Unimat 23 E" Moulder - 5-Head & Feeder

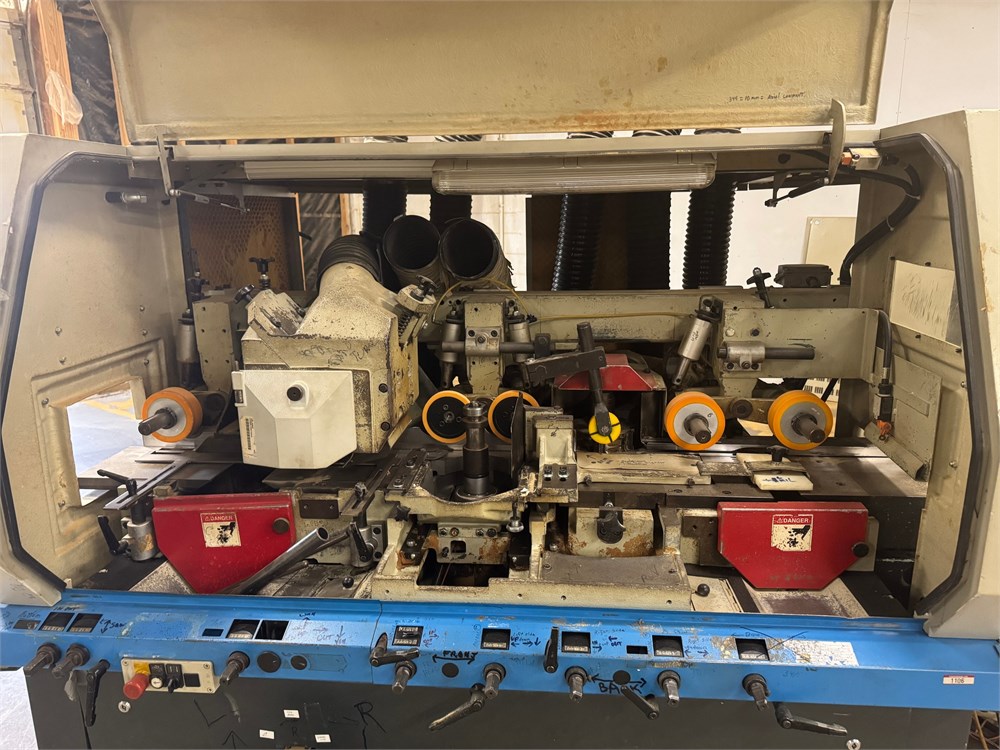

(5) Heads, (B-R-L-T-B), working capacity 9-1/16" x 6" profiling.
Bottom 15 HP, right & left by 20 HP, top 15 HP and bottom 15 HP motor. (motor size is typical but not verified).

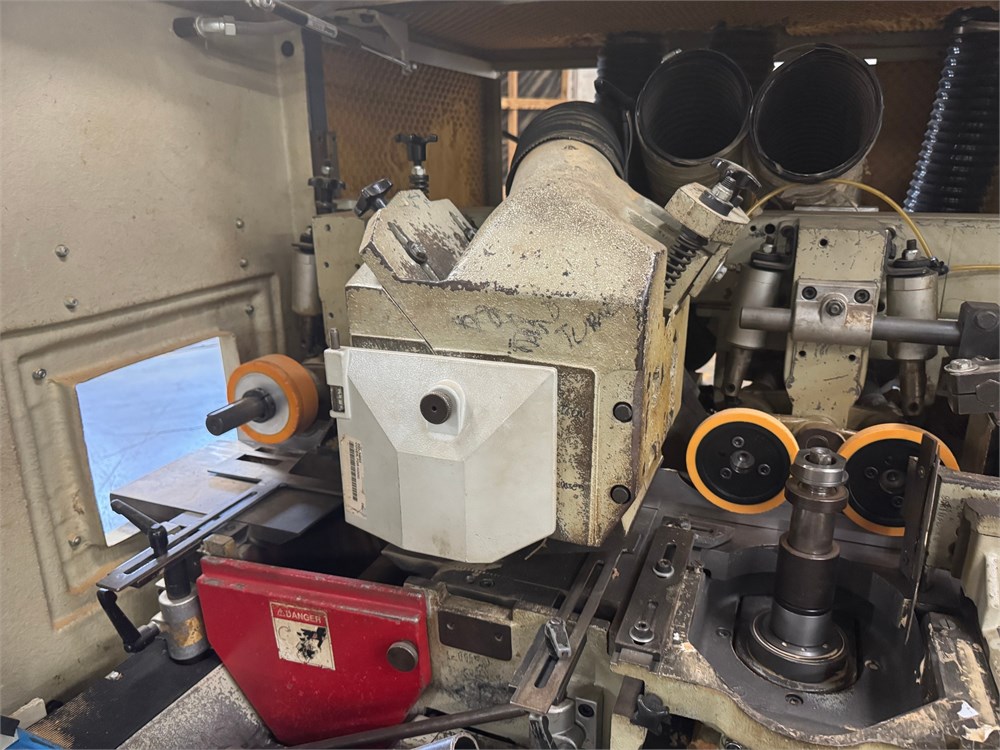

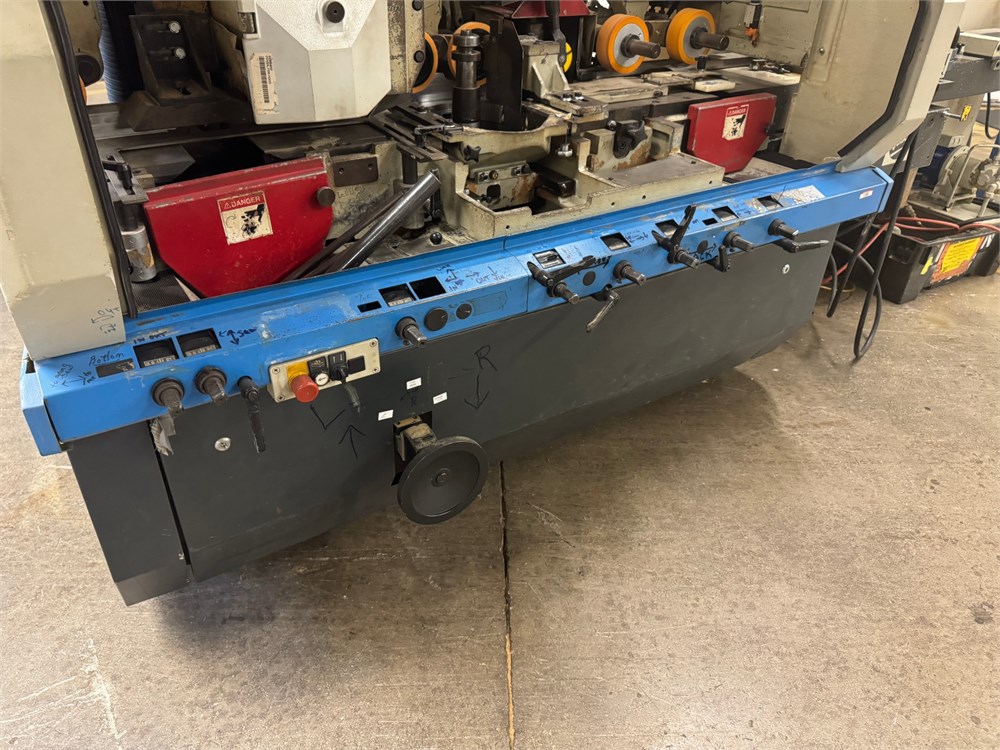

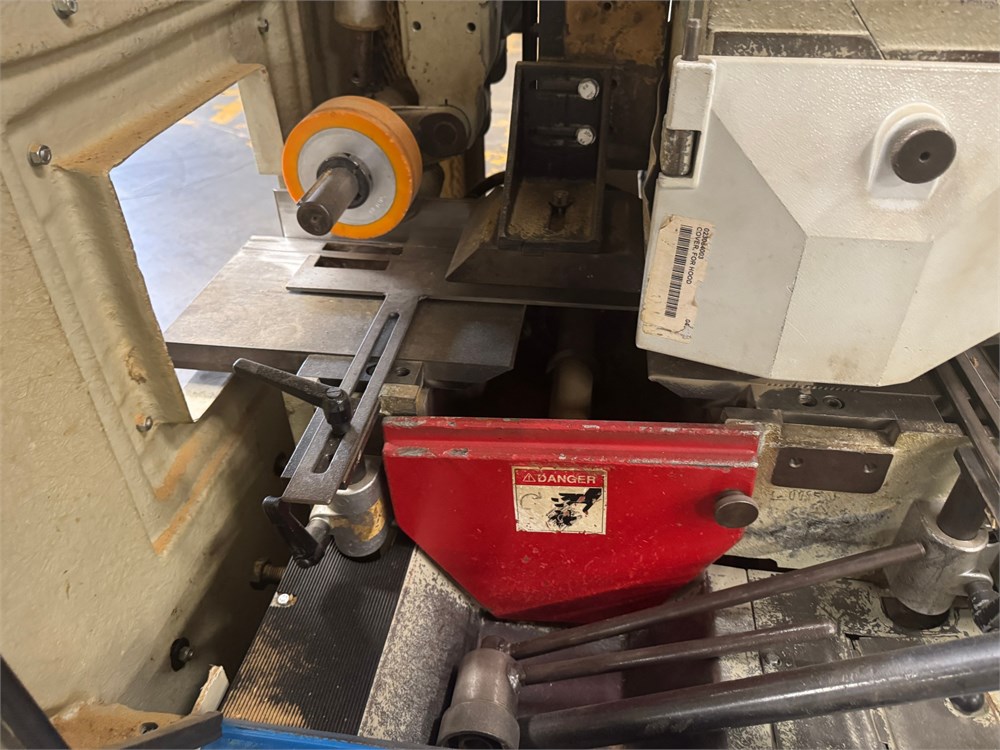

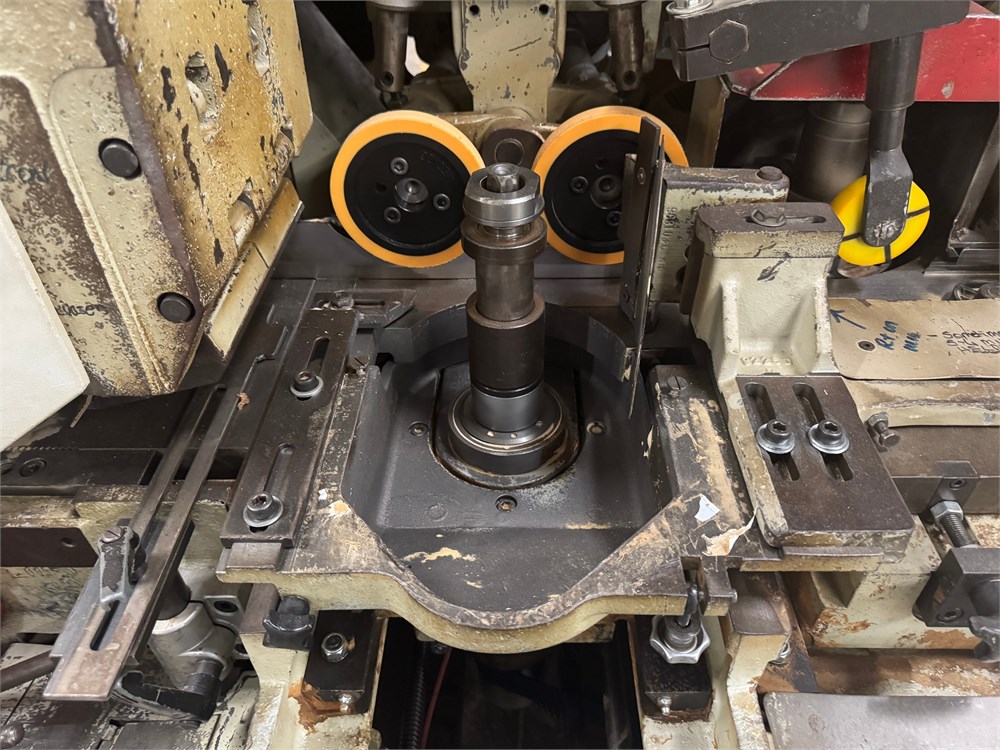

Spindle dia. 1-13/16 with cutterhead speed of 6,000 RPM; mechanical digital readouts on spindle adjustments for both axis, radial adjustment only on 1st bottom head.

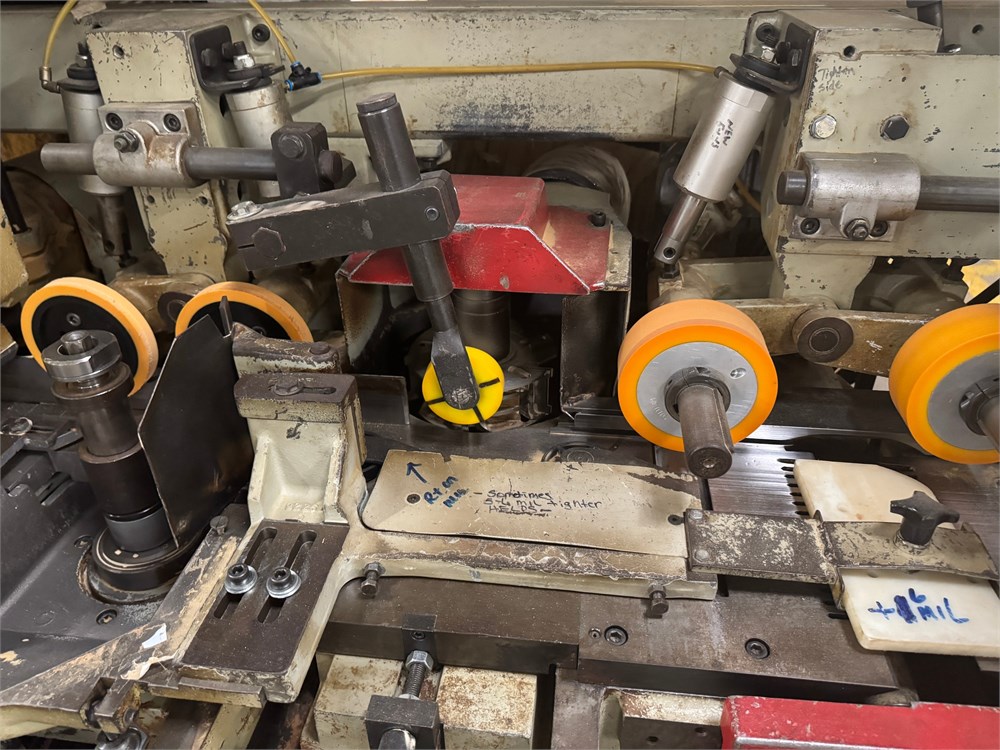

Motorized feed beam adjustment with independent adjustment of top heads, receding chip breakers on left and top heads.
Tool cutting circles of 8-7/8", table plates adjustable to the cutting circle on vertical spindles with axial adjustment of 3-1/8" for multiple profiles.

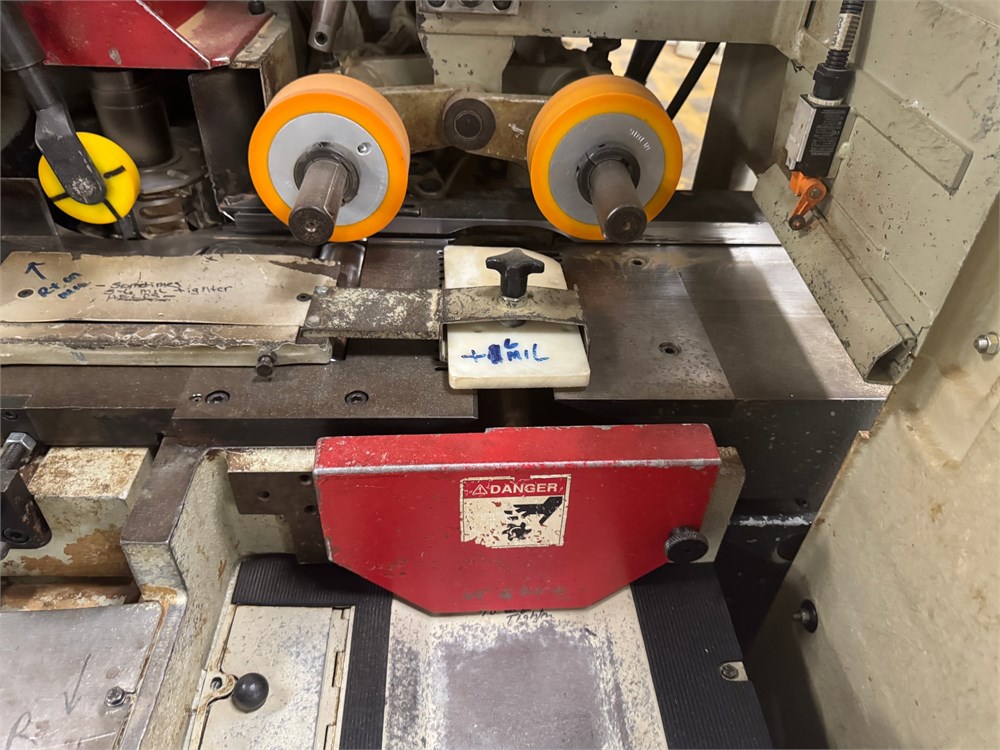

Feed motor10 HP, variable speed from 18 - 118 FPM, overhead feed wheels with pneumatic pressure; (2) powered rollers in machine table.

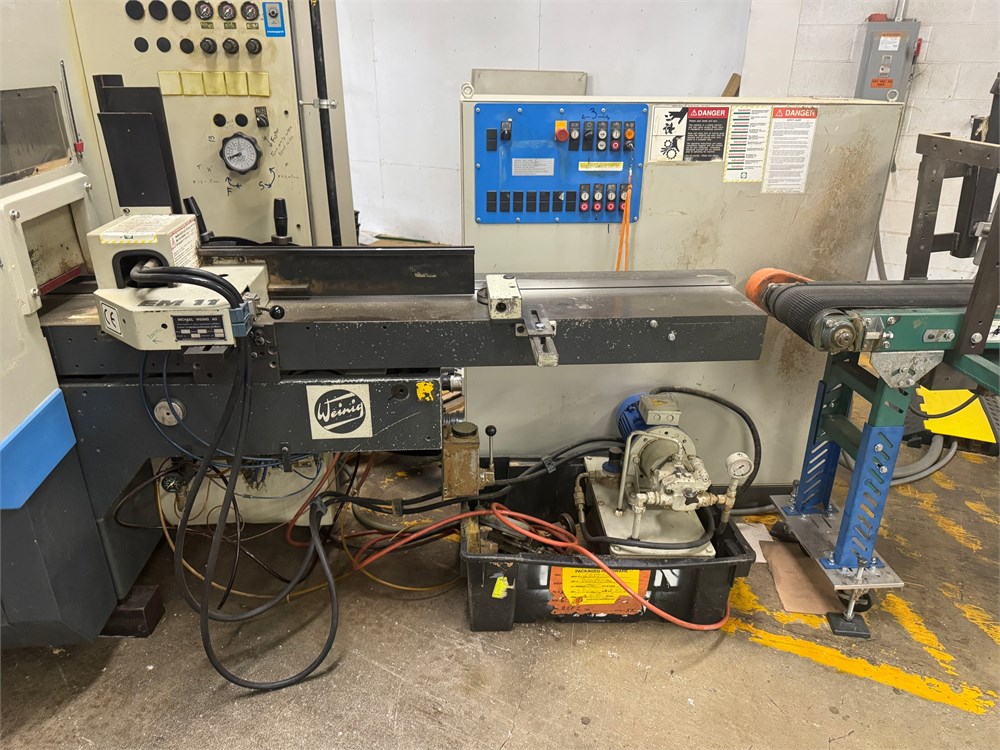

Infeed straightening table is 2 M (6-1/2') with adjustable fence & adjustable outfeed table; side pressure roller mounted to infeed table.

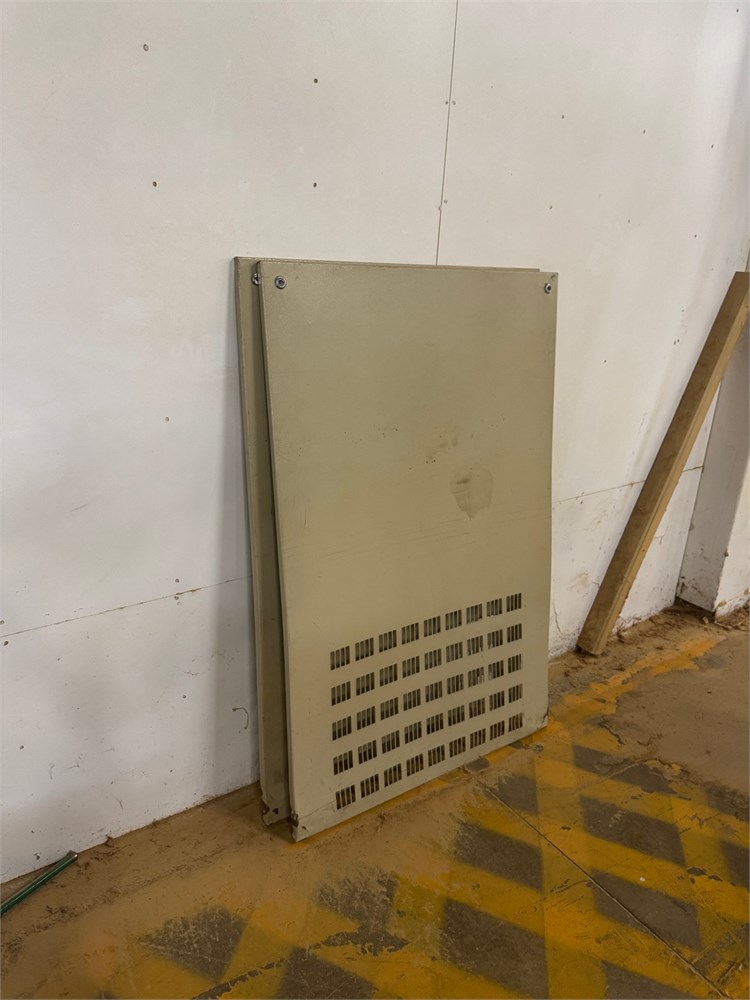

Central lubrication, full sound/safety enclosure and manual bed lubrication pump.
EM-11 Feeder is included! Powered Belt conveyor is NOT!
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
