Omnitech “Selexx/PAL” CNC Router
Active
Woodworking Machinery Auction - Monroe, GA
Monroe, GA
- Starting Bid : $1,000.00 USD ( ) No Reserve
- 0 Bid(s)
Woodworking Machinery Auction - Monroe, GA ( Active #73120565 )
Contour Wood and Cabinets in Monroe, GA is auctioning several machines that are no longer required for continuing operations. Machinery includes Boarke planer/sander, two Brandt edgebanders and Jet dust collector.
-
Pick Up Location
1111 Stewart Rd. Monroe, GA 30655
-

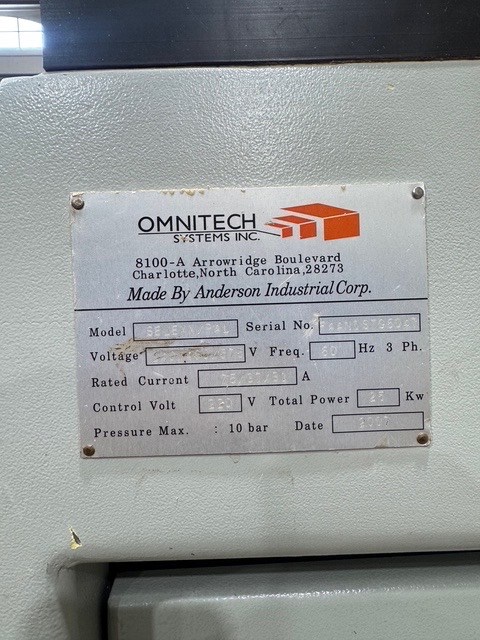

Make
Omnitech
-
Model
Selexx/PAL
-
Serial Number
FAANCST96047
-
Year
2007
-
Phase
3 PHASE
-
Voltage
208-230/460
-
Buyer Inspection Period
By appointment only, contact Sabrina Correa, [email protected], 209-839-7707
-
Load Out Period
July 22 -25, 2025 (By Appointment Only)
-
Estimated Dimensions
170”x96”x96”H
-
Estimated Weight
10,000 Lbs
-
Seller Comment
Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
-
Load Fee
1200.00
-
Lot Notes
-
page views
12

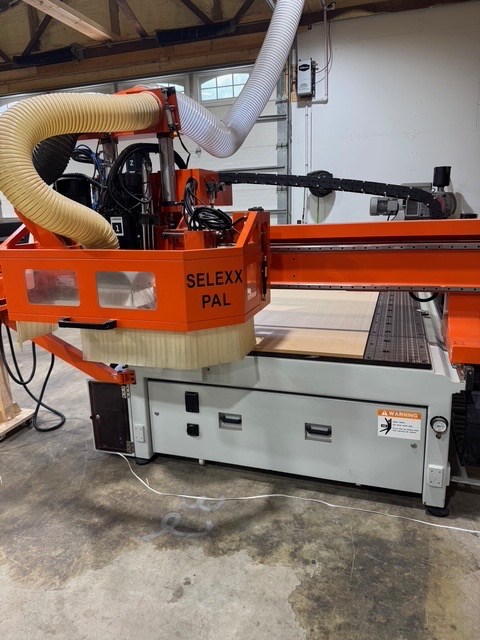

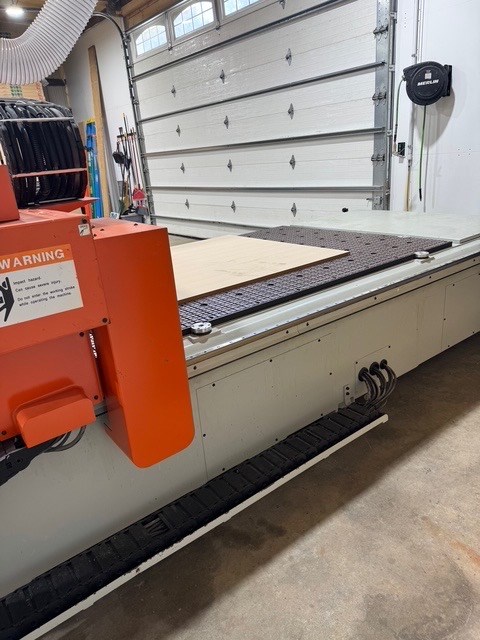

ANDI "Selexx/PAL" CNC Router - Flat Table Vacuum Table: 5' x 10', Cast Iron Plenum w/ Extra Hard Phenolic Top.
Y-Axis Stroke: 127.2", X-Axis Stroke: 70.4", Z-Axis Stroke: 10", X & Y Axes Feed Speed: 50 m/min, Z-
Axis Feed Speed: 10 m/Min

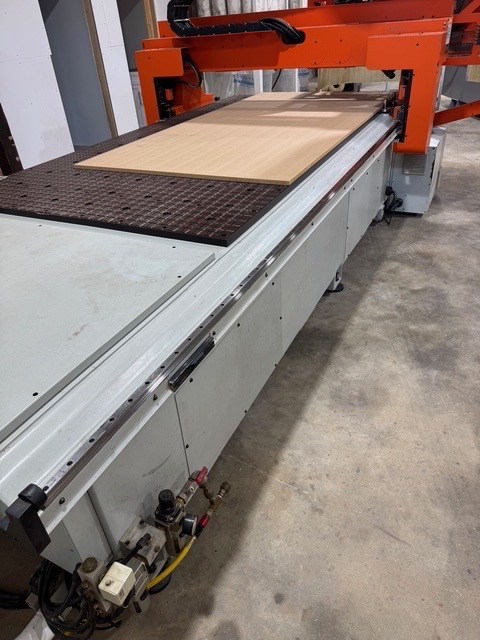

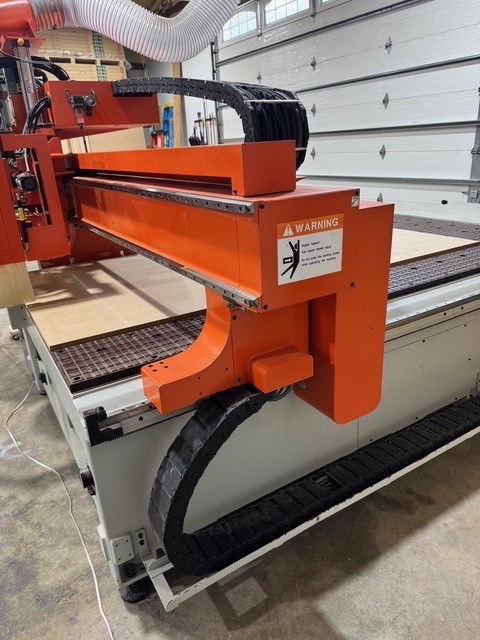

The Y-axis movement is via an industrial grade, induction hardened, helical rack and pinion system with zero backlash characteristics Hardened, precision ground ball screws with anti backlash ball nuts are provided for movements of the X and Z axis

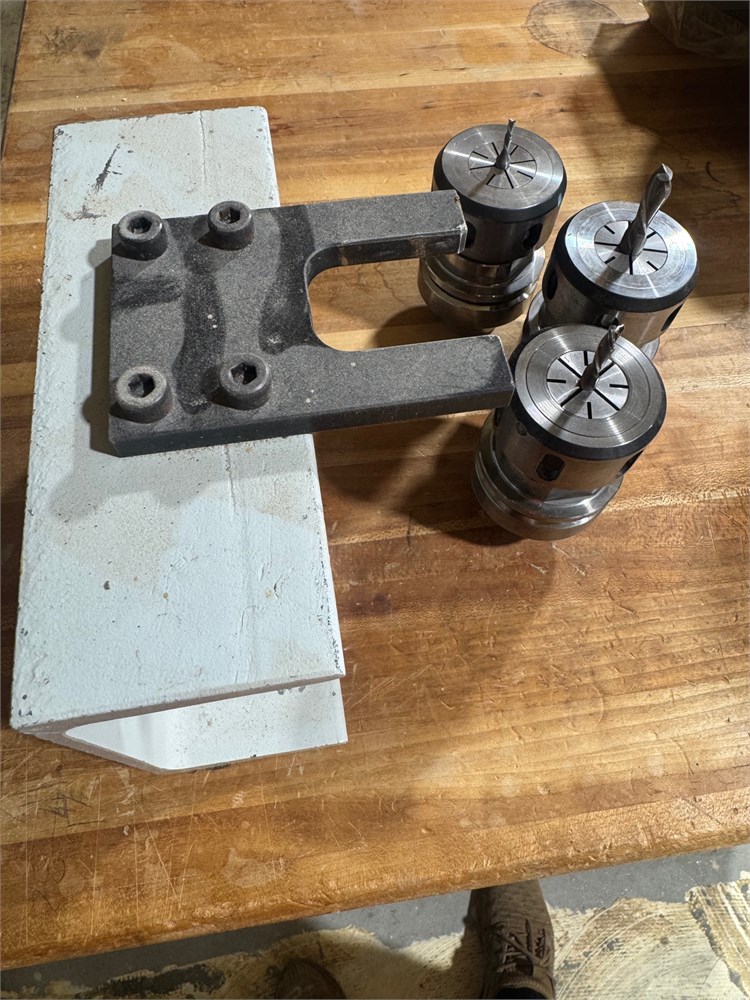

Router Spindle: 10 HP, Automatic 8-position ride along rotary tool changer, Accepts HSK 63F Tool Holders (Eight Included w/ Machine), Variable Spindle Speed from 1,000 - 24,000 RPM
Nine-Spindle Boring Block "L" Shape 5 X 5, Drill Shank 10 mm Diameter, Drill Spindle Spacing 32 mm, 2 HP Boring Head Motor

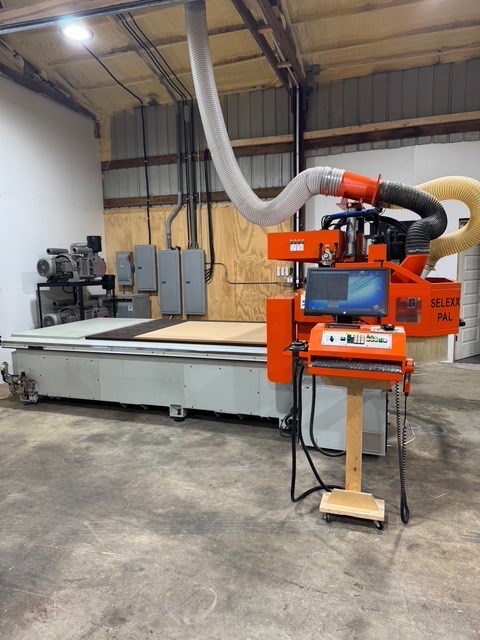

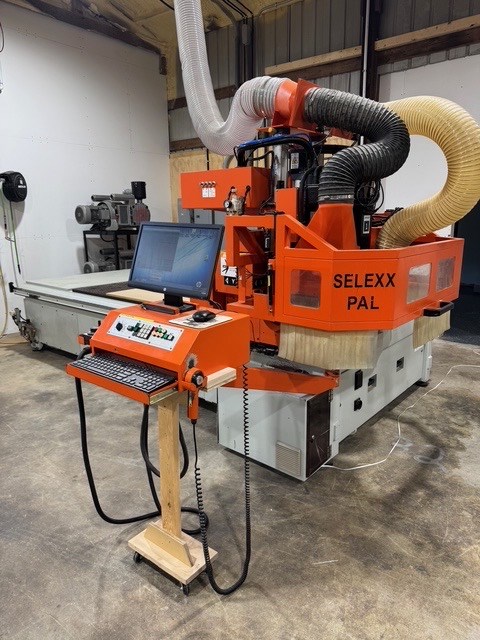

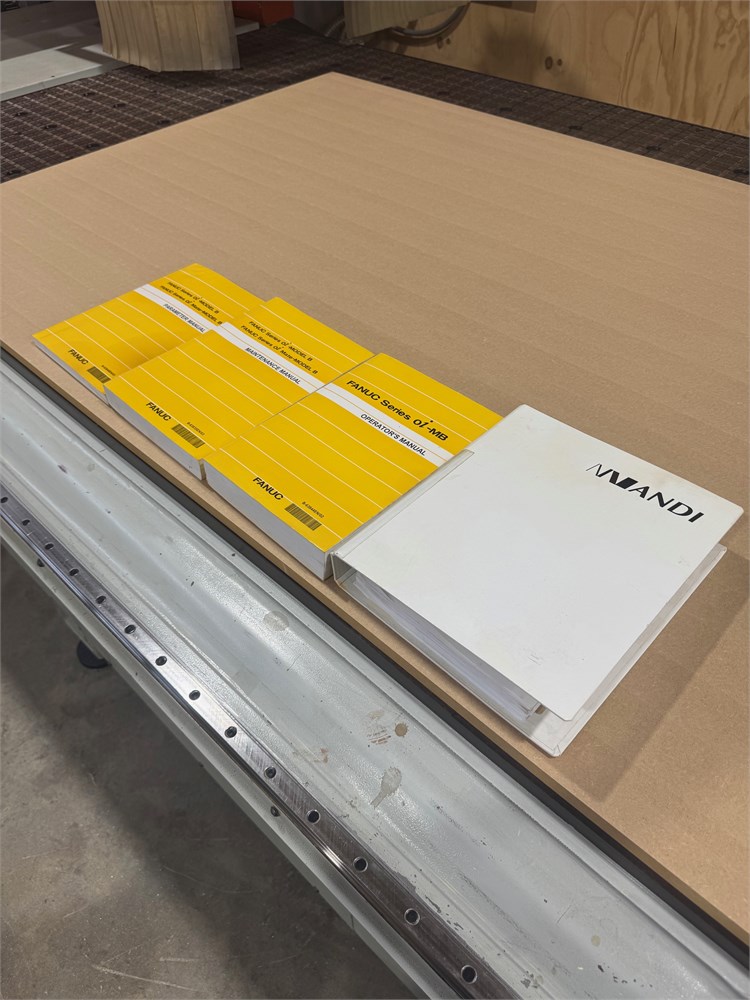

PC based CNC Control, manuals as pictured
Flex Hose & (1) Ball joint included
Lifting Brackets, Zebra Printer & set-up stand included
Vacuum pumps NOT included
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
