Weeke "BHC 350" CNC Router
Active
Weeke CNC Router and Doucet Return Conveyor - Peoria and Phoenix, AZ
Peoria, AZ
- Starting Bid : $1,000.00 USD ( ) No Reserve
- 0 Bid(s)
Weeke CNC Router and Doucet Return Conveyor - Peoria and Phoenix, AZ ( Active #72960699 )
Residential cabinet manufacturer in the Phoenix, AZ metro area is auctioning two machines no longer required for continuing operations.
-
Pick Up Location
7733 W. Olive Ave. Peoria, AZ 85345 for lot 002; 4932 W. Pasadena Ave. Glendale, AZ 85301 for lot 001
-

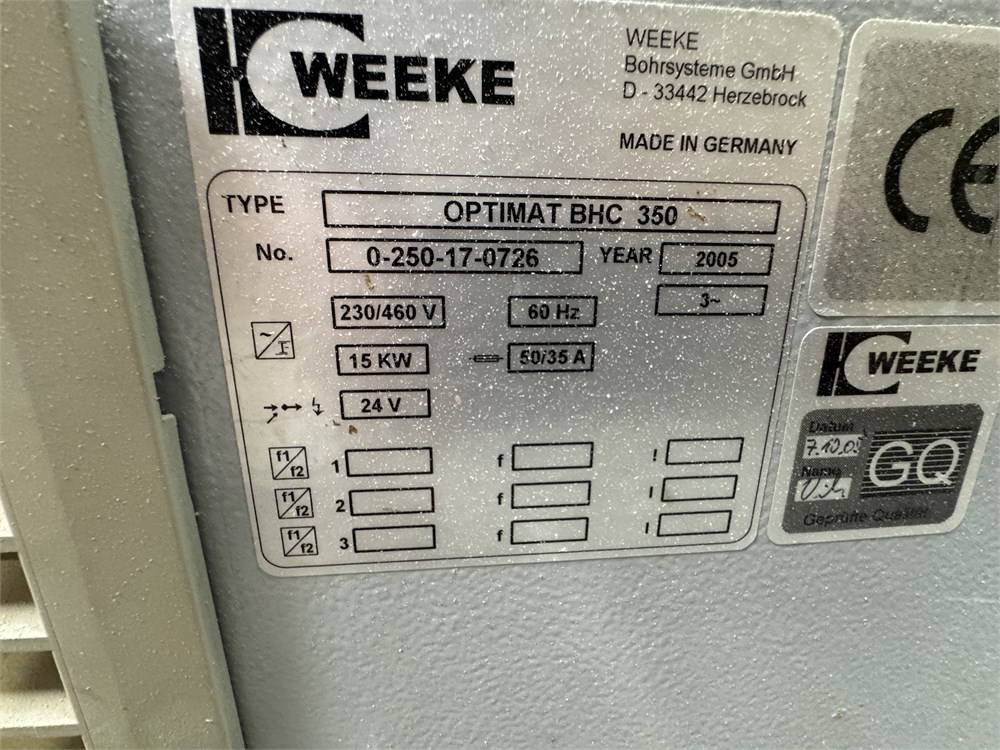

Make
Weeke
-
Model
BHC 350
-
Serial Number
0-250-17-0726
-
Year
2005
-
Phase
3 PHASE
-
Voltage
230/460
-
Buyer Inspection Period
By appointment only, contact Jack Ragan, [email protected], 503-806-4611
-
Load Out Period
July 10 - July 18, 2025 (by appointment)
-
Estimated Dimensions
25' L x 15' W x 8' H (as setup in photos, shipping dimensions TBD)
-
Estimated Weight
7,000 Pounds
-
Seller Comment
Seller will disconnect and load onto buyer's flatbed truck/trailer for non-negotiable loading fee. Palletizing, crating or other services may be available at an additional cost.
-
Load Fee
5000.00
-
Lot Notes
-
page views
29

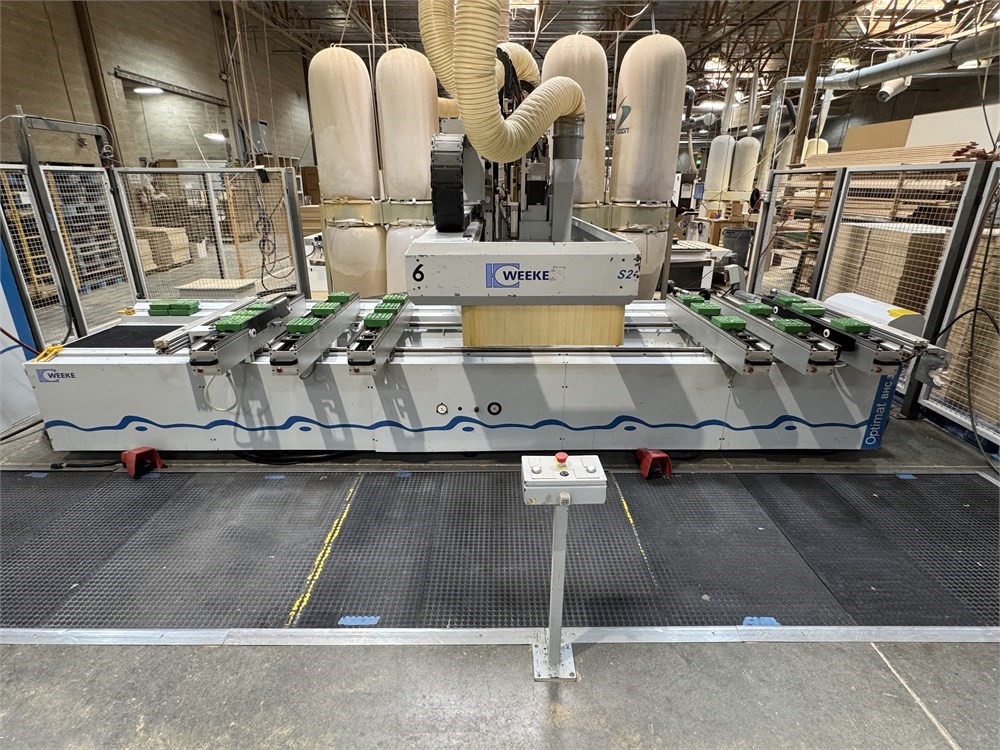

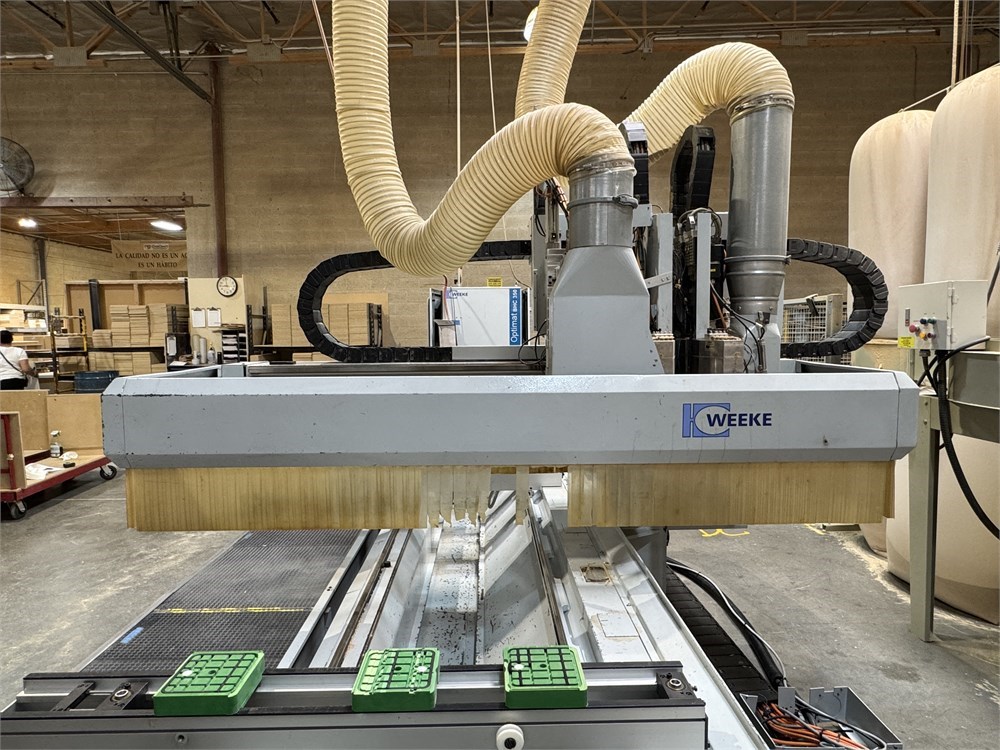

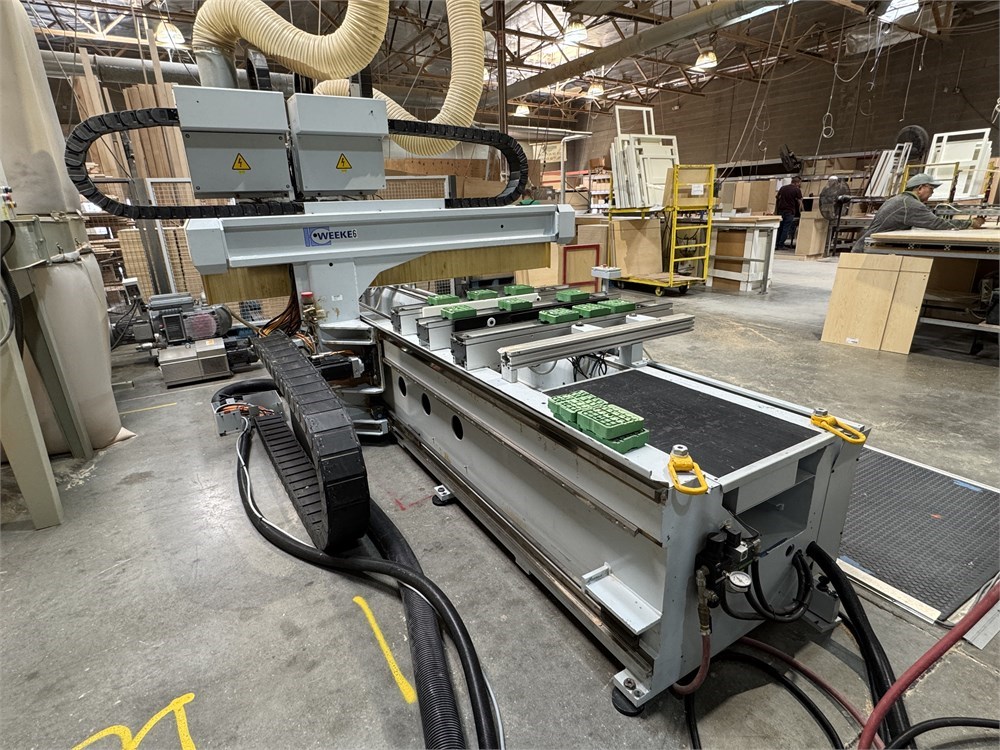

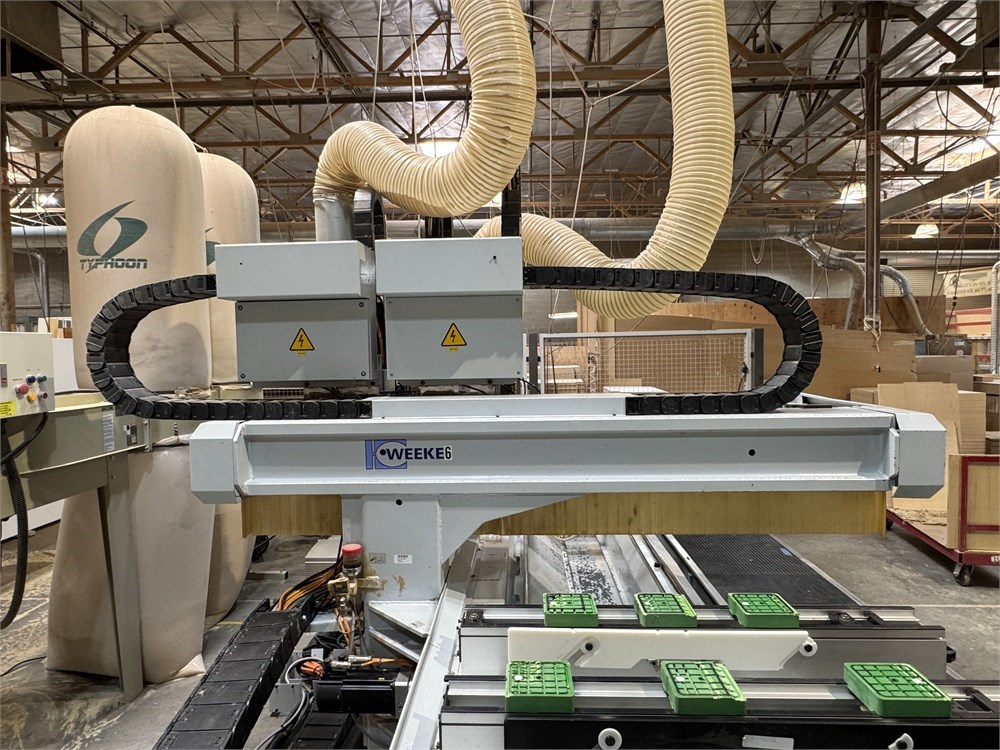

Weeke "BHC 350" CNC Router
49" x 147" approximate work area
Max. Panel Thickness: 3.2″
X-axis Stroke/Positioning Speed: 4310 mm/ 60 M/min
Y-axis Stroke/Positioning Speed: 1675 mm/ 50 M/ min
Z-Axis Stroke/Positioning Speed: 135 mm/ 20 M/ min

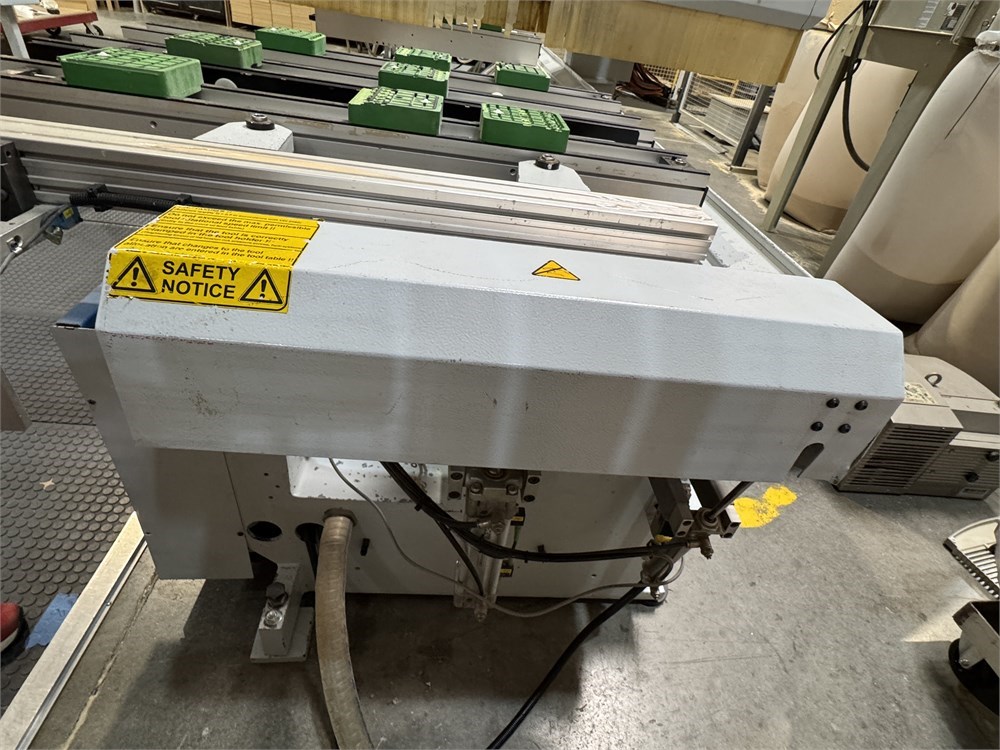

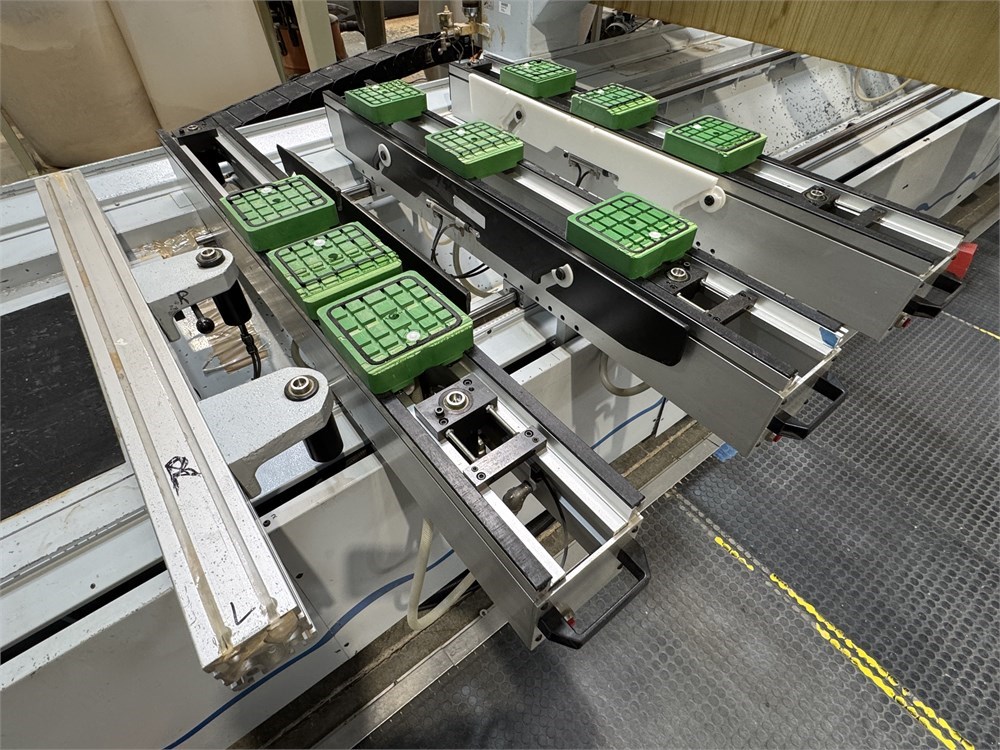

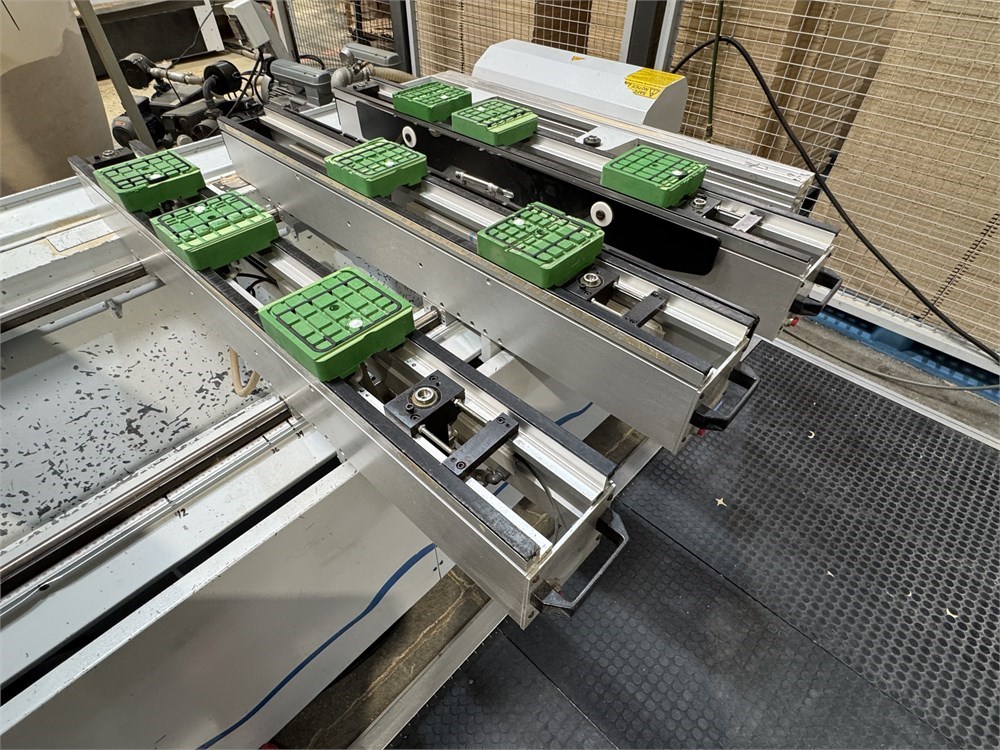

Six (6) panel supports with pneumatic reference stops
Assorted vacuum cups
Panel lifting rails
Foot pedal operation

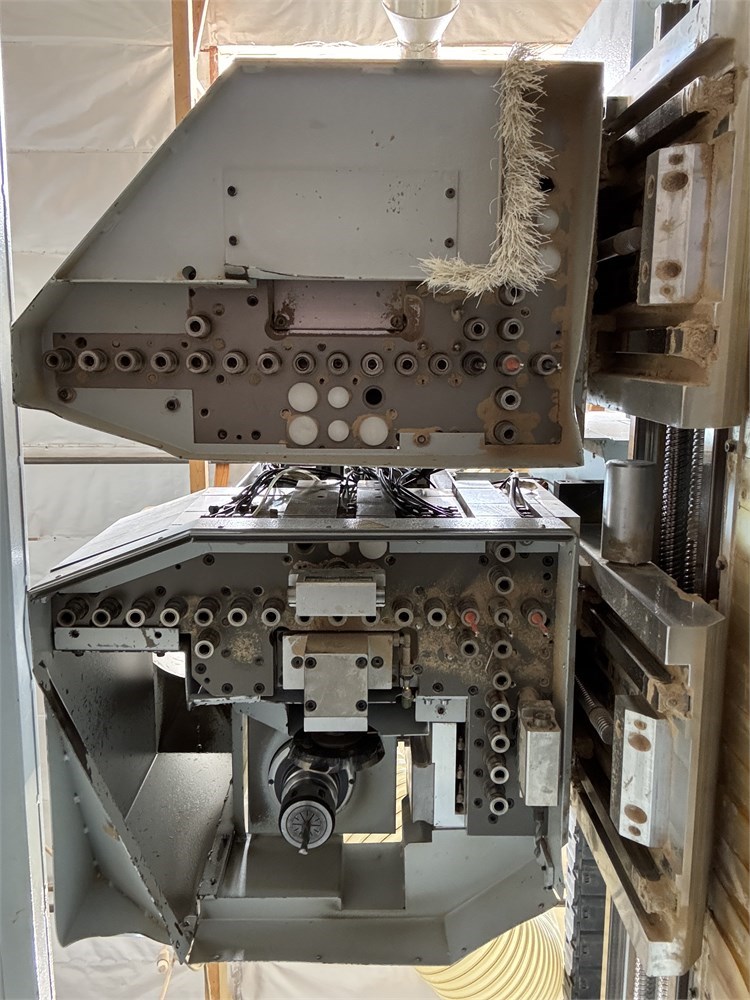

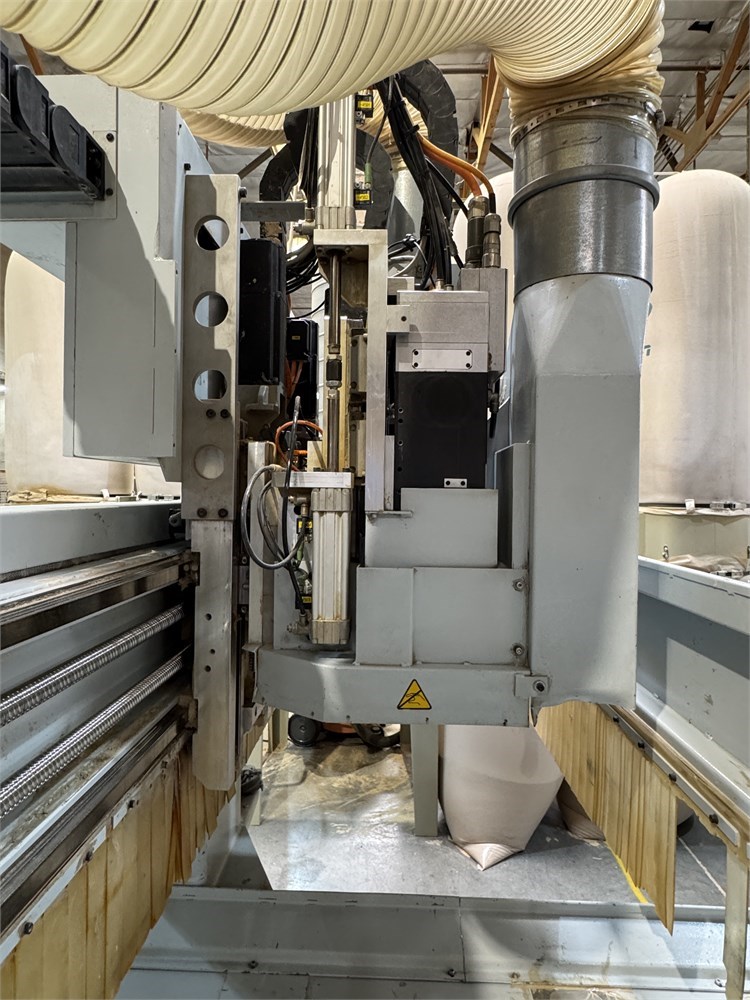

Two (2) machining heads each with independent Y axis control

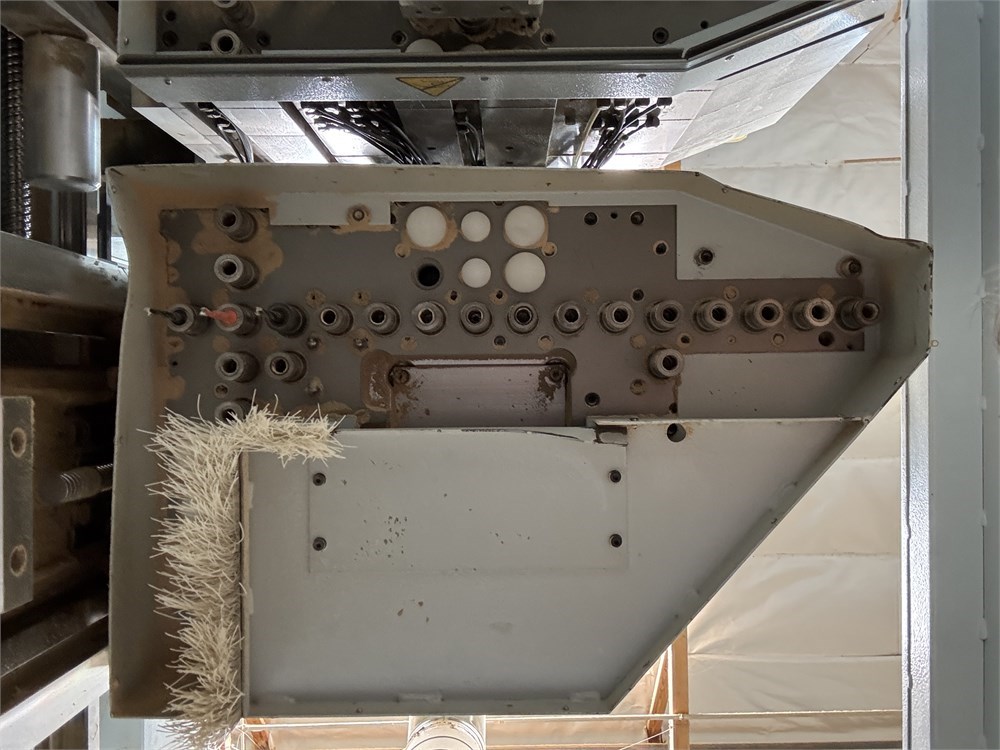

- Head one - vertical (25 spindles) and horizontal drilling (2 in x and 2 in y), grooving saw and router (HSK, quick-change)
- Head two - vertical drilling (25 spindles)
- 2 HP drill motors
- 8 HP router motor

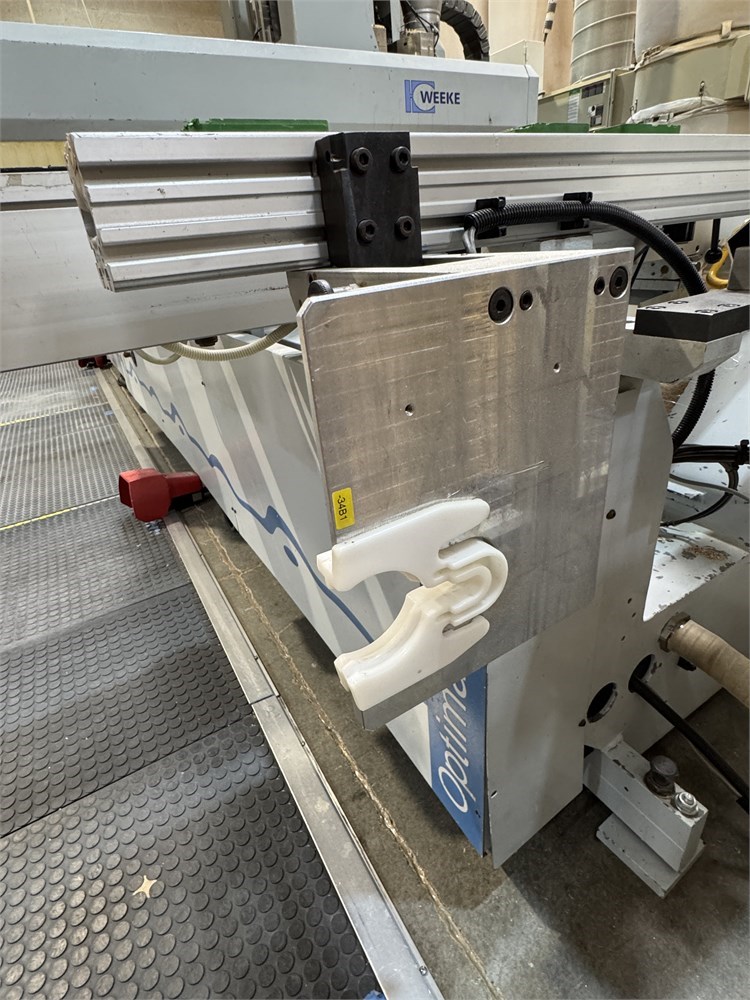

RH side-mounted tool changer
Front-mounted tool change position for large tools or aggregates
Front safety mats
Safety fencing

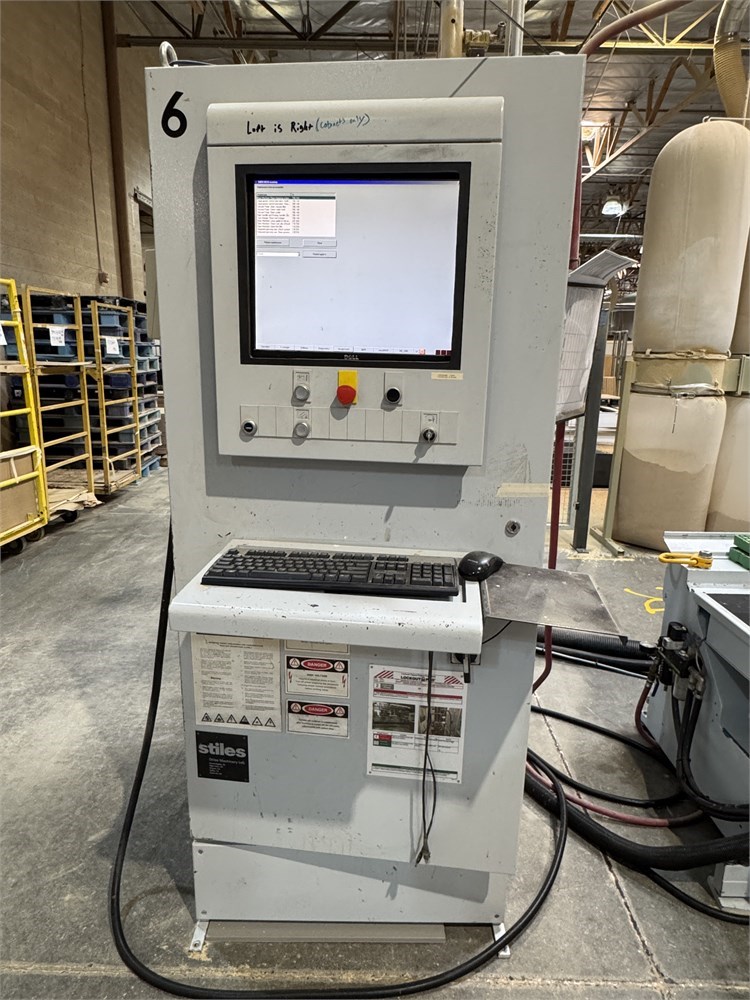

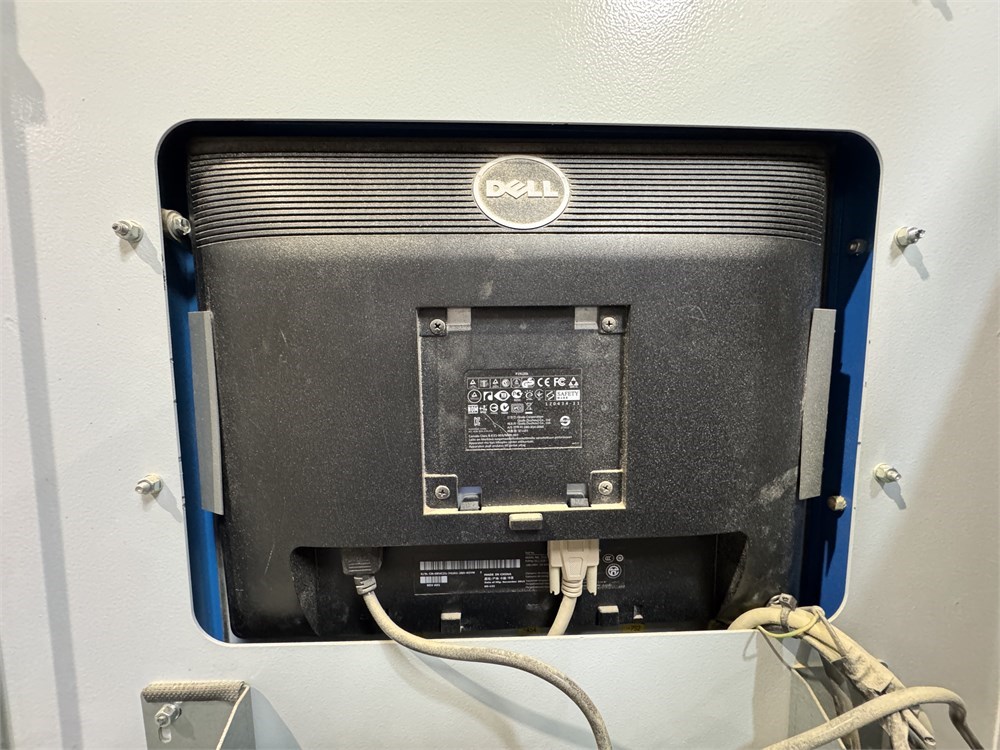

Control console

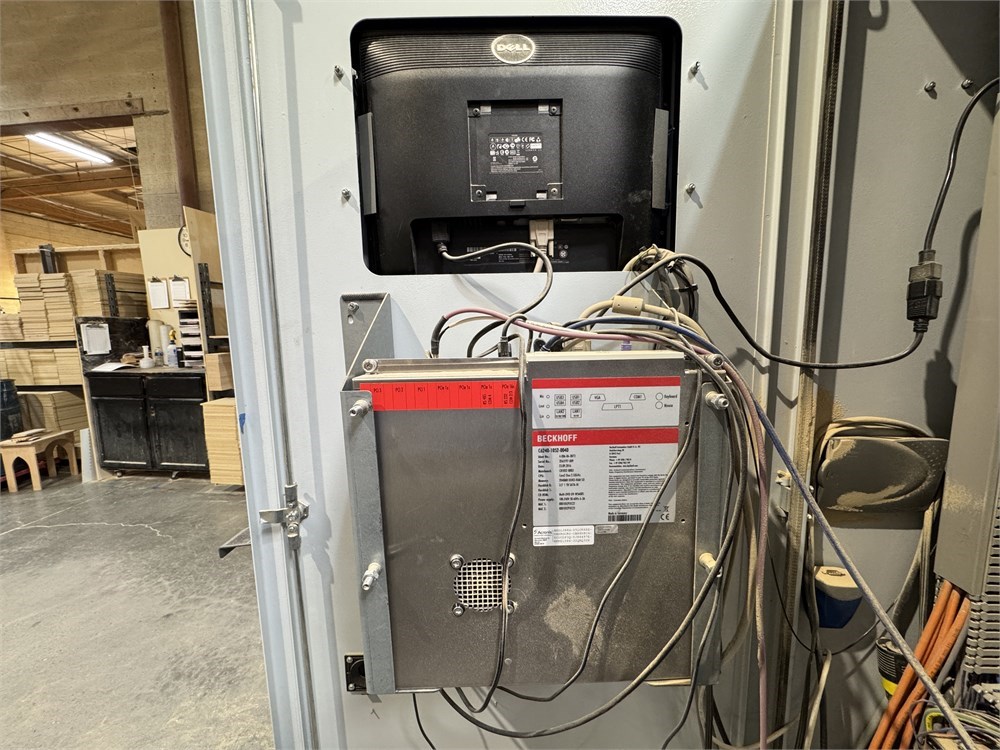

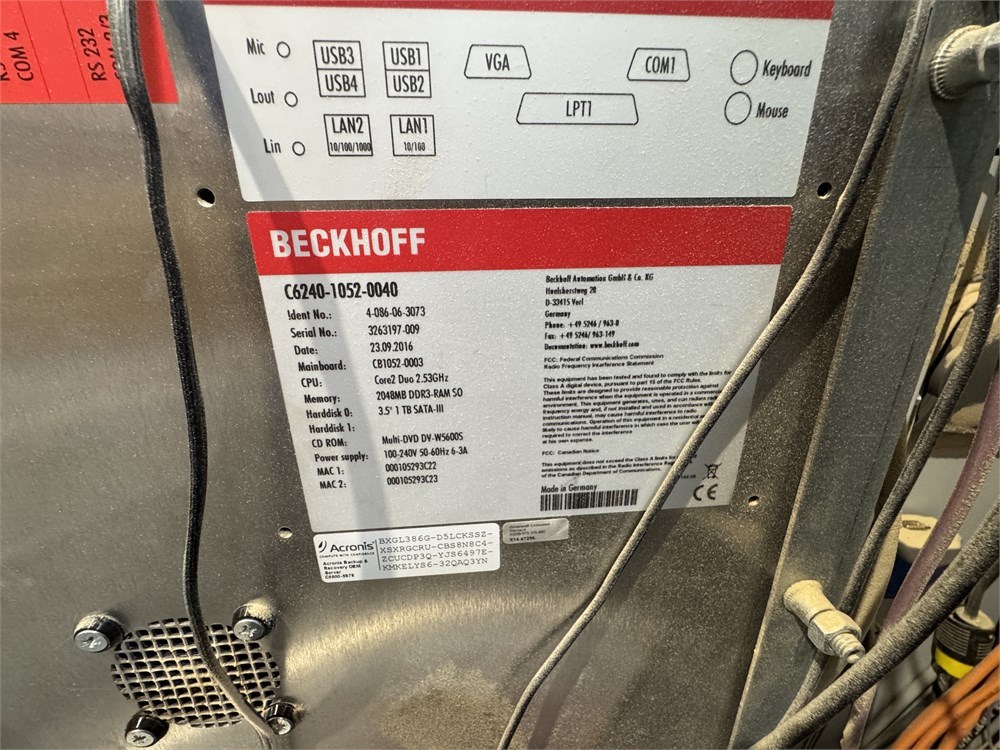

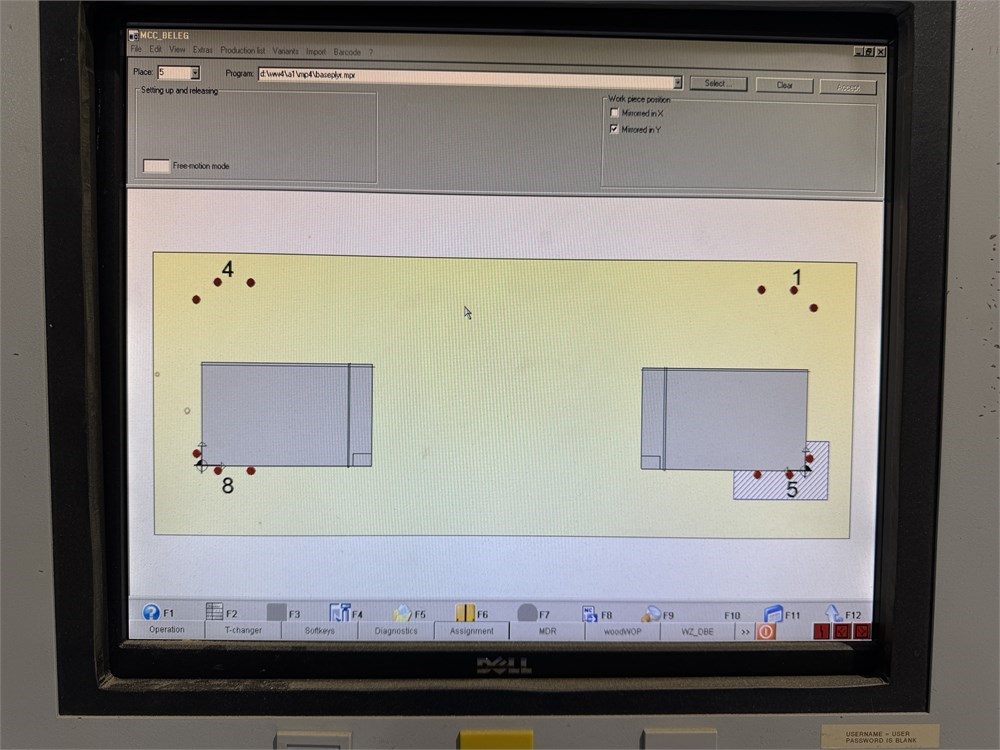

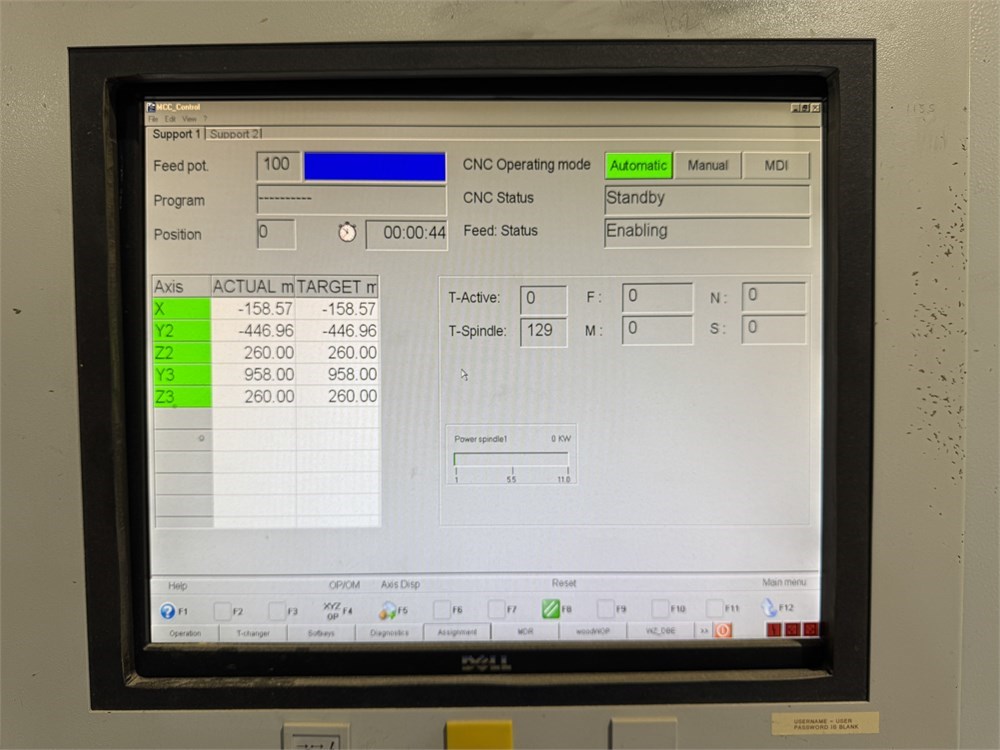

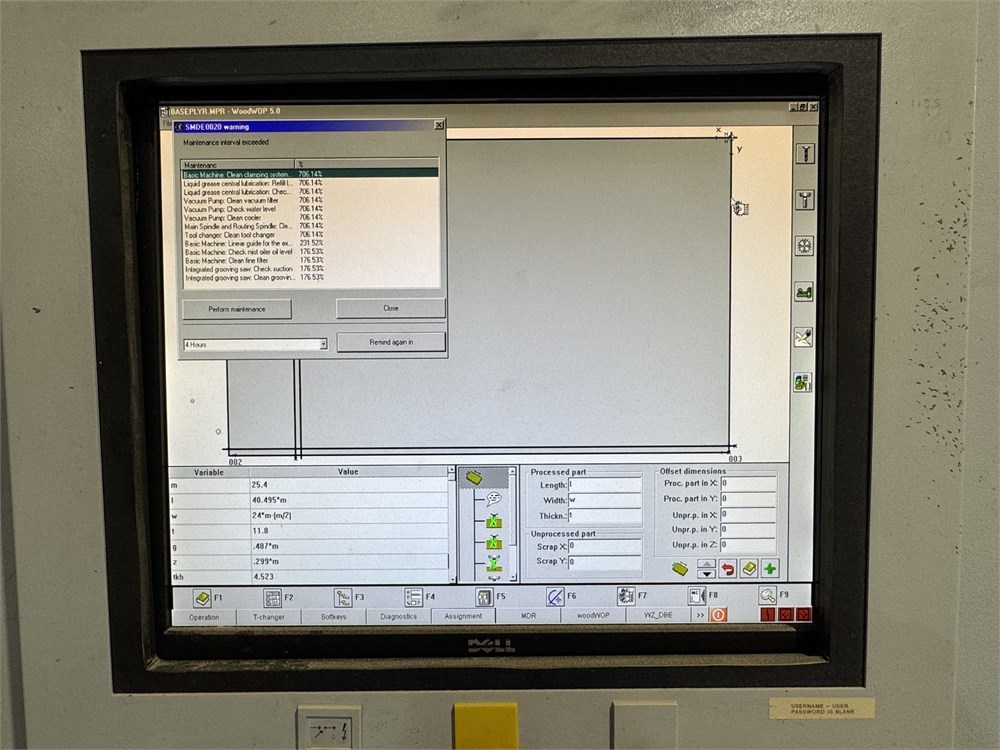

- PC operating in Windows
- Standard keyboard and mouse
This machine has been dismantled and stored at rigger's secure warehouse.
Vacuum pumps NOT included
Tooling and tool holders NOT included
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
