Technical Specifications:
* Working width: 43"
* Number of heads available: 2
* Motor HP
- First sanding group: 24
- Second sanding group: 18
- Feed motor: 1
* Maximum work piece thickness: 6.25"
* Minimum work piece length: 12.5"
* Abrasive belt size: 43" x 85"
* Compressed air requirements: 5 CFM @ 80 PSI
* Dust outlets: 2 outlets @ 6.25"
* Exhaust requirements: 125 amps @ 230 volts
* Power requirements: 125 amps @ 230 volts, wired 230 / 460
* Approximate machine weight: 4,550 lbs.

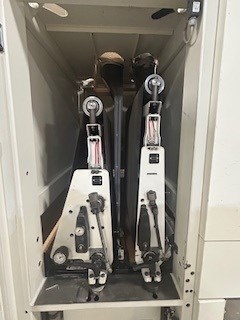

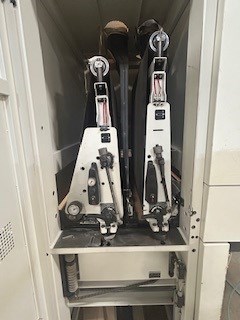

Working Unit Specifications:

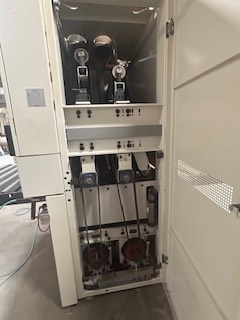

* First sanding group 150mm (6in) grooved steel calibrating roller
- 24 hp main motor @ 60 hz main motor sanding at 18 meters per minute
* Second sanding group combination head with 140mm (5.5 in) 45 shore grooved rubber finishing roller and finishing platen
- 18 hp @ 60 hz main motor sanding at 18 meters per minute
- Two 2 in. pad inserts for sanding platen, (1 solid wood, 1 soft wood and veneer)

Machine Standard Features

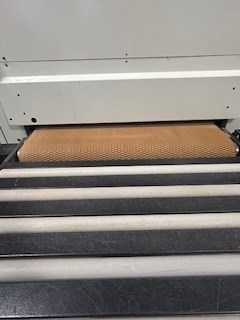

* Rubber coated pressing rollers before and after working unit
* .8 hp variable speed feed unit with electronic adjustment. Feed speeds from 3 - 66 feet per minute
* Y-Delta two-stage reduced voltage starter on main motor
* Automatic table positioning device

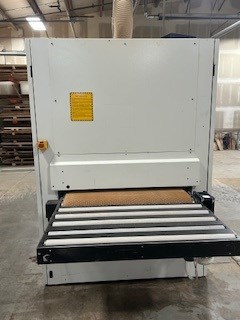

* In-feed / out-feed extended tables for easier part feeding
* Adjustable sanding drum and pad position for micro precision adjustment

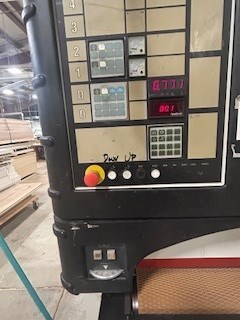

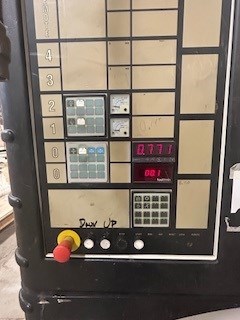

* Electronic digital thickness readout of work table position
* Powered table lifting by means of 4 heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
* Accurate and reliable electronic tracking of abrasive belt and air jet cleaning device
* Pneumatic belt tensioning with center fulcrum to compenstate for tapering of abrasive belt
* Front and rear emergency stop buttons
* Automatic emergency stop of machine for:
- sanding belt breaking, tensioning, overtracking
- opening of the access door to the operating groups
- absence of compressed air
- overload on main motors
