Weinig "Opticut S 90" Optimizing Crosscut Saw (2022)
Ended
Prepared for shipment for Buyer's convenience!
Statesville, NC
- Winning Bid : $61,000.00 USD Sold
- 171 Bid(s)
- High Bidder: n****e
Weinig "Opticut S 90" Optimizing Crosscut Saw (2022) ( Closed #72811356 )
Weinig "Opticut S 90" Optimizing Crosscut Saw (2022) Prepared for shipment for Buyer's convenience!
-
Pick Up Location
246 Barkley Rd. Statesville, NC
-

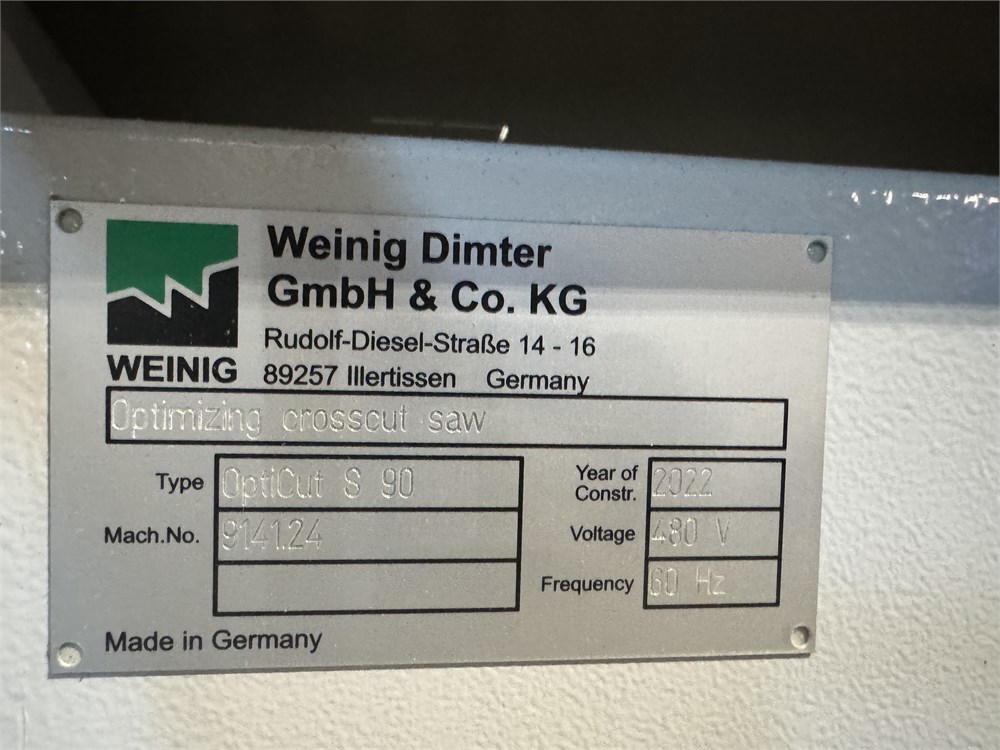

Make
Weinig
-
Model
"Opticut S 90"
-
Serial Number
914124
-
Year
2022
-
Phase
3 PHASE
-
Voltage
480 VOLT
-
Buyer Inspection Period
By appointment. Please contact: Eric Beach - [email protected] - 704-608-9830 (text preferred)
-
Load Out Period
June 20 - July 3, 2025
-
Estimated Dimensions

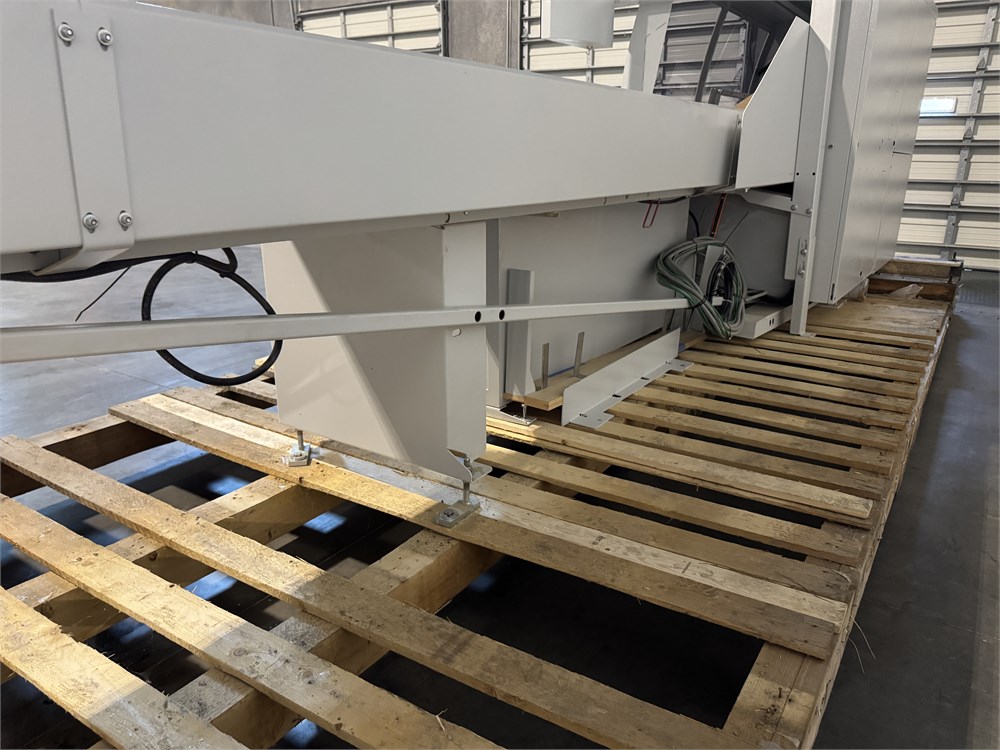

Skid #1 - 8'W x 30'L x 7'H Skid #2 8' x 32' x 4'
-
Estimated Weight
6,000 Lbs
-
Seller Comment
A non-negotionable loading fee has been established. This includes loading onto a flat bed trailer.
-
Load Fee
995.00
-
Lot Notes
-
page views
1766

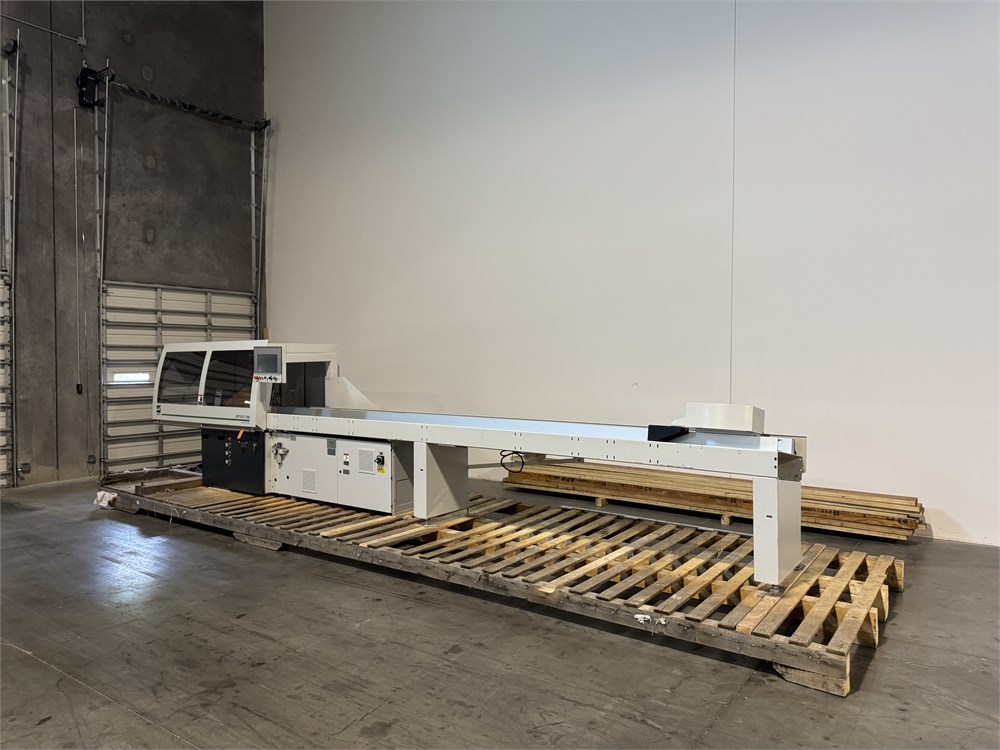

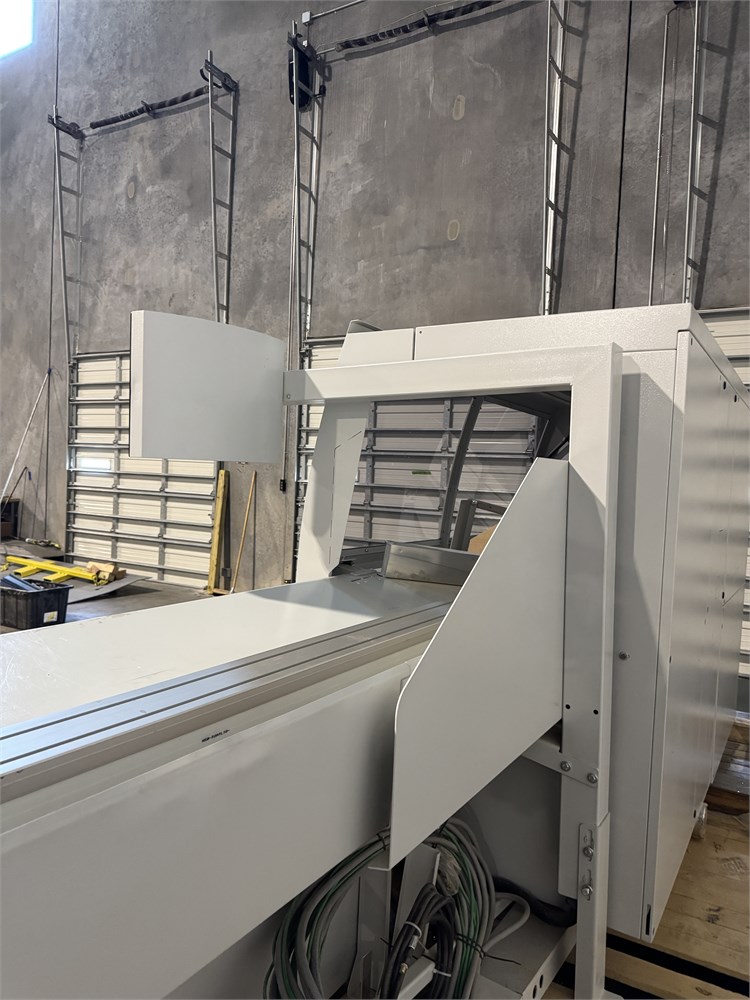

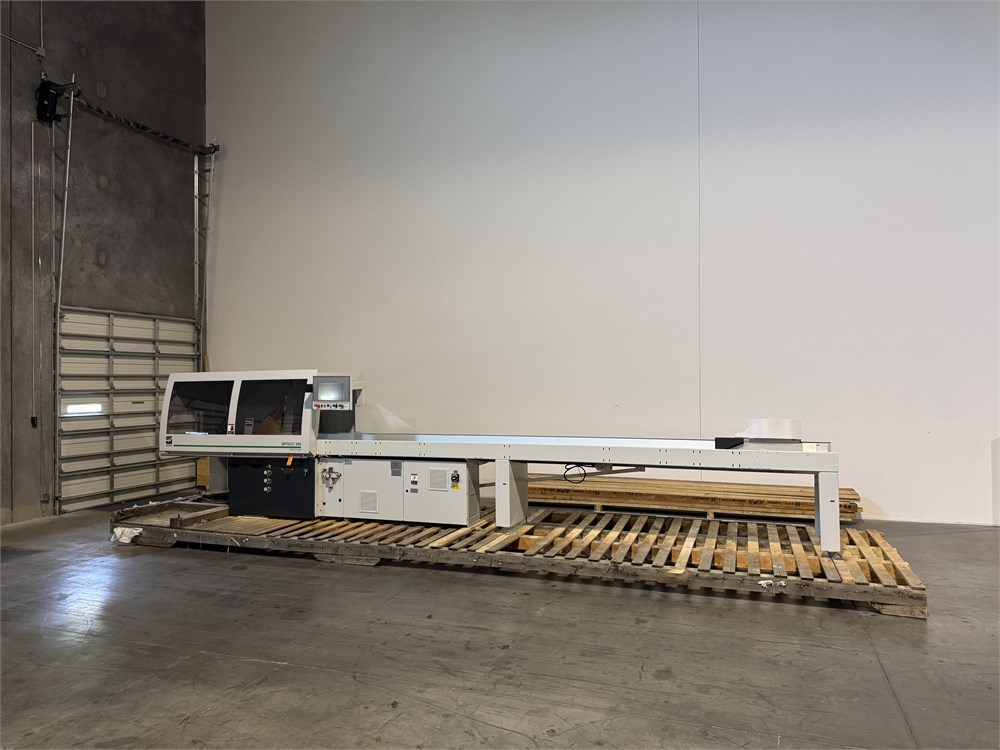

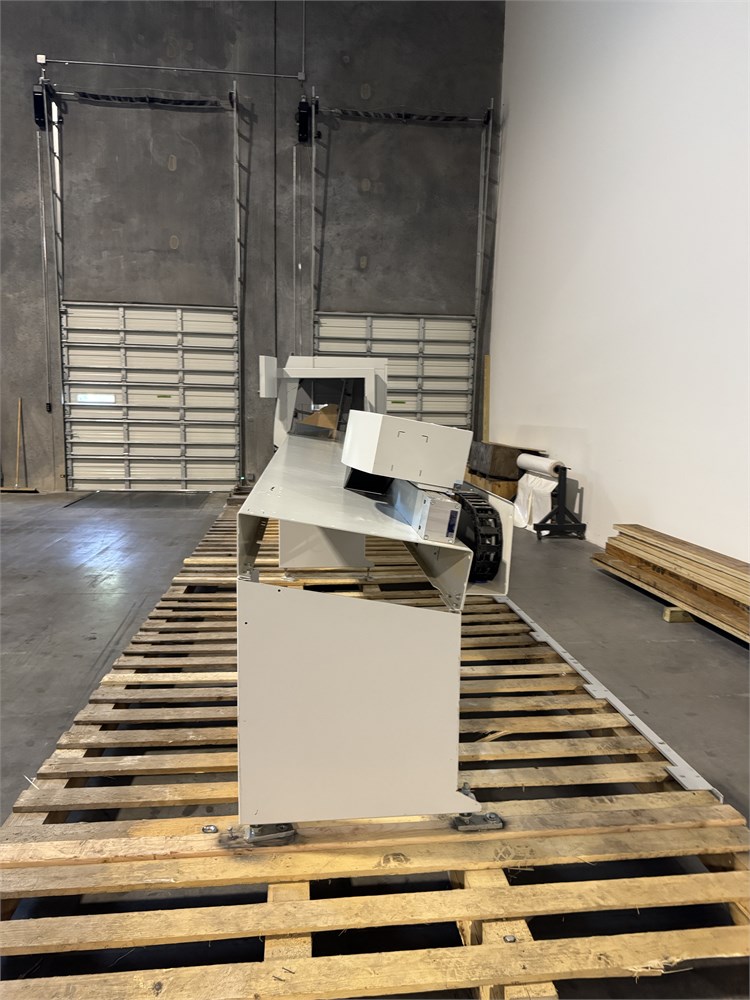

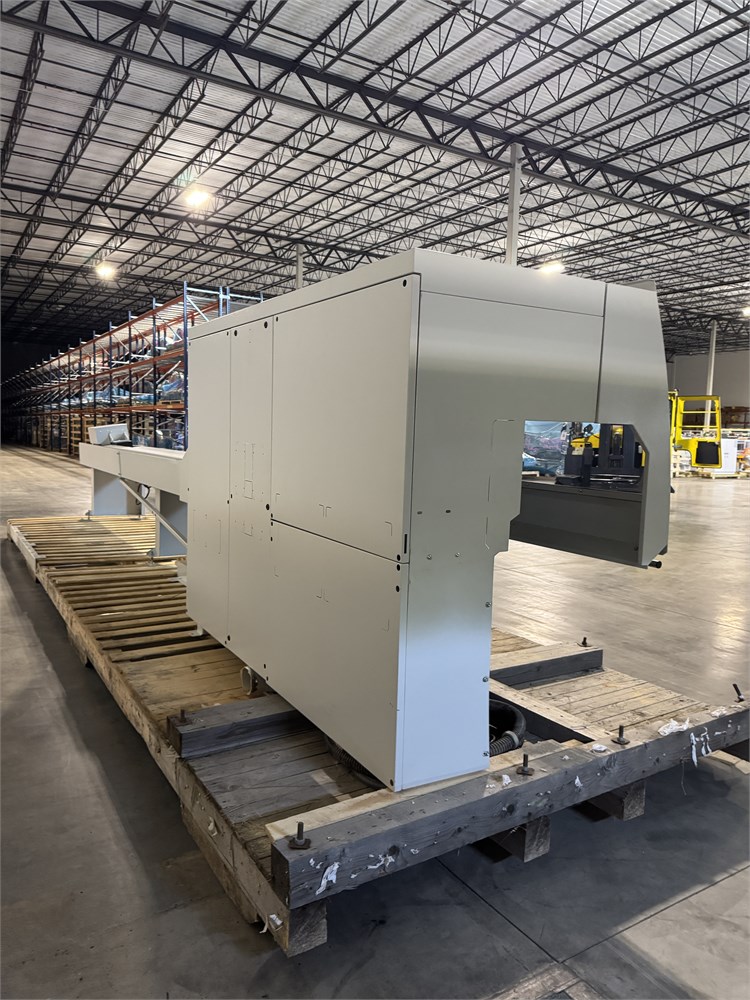

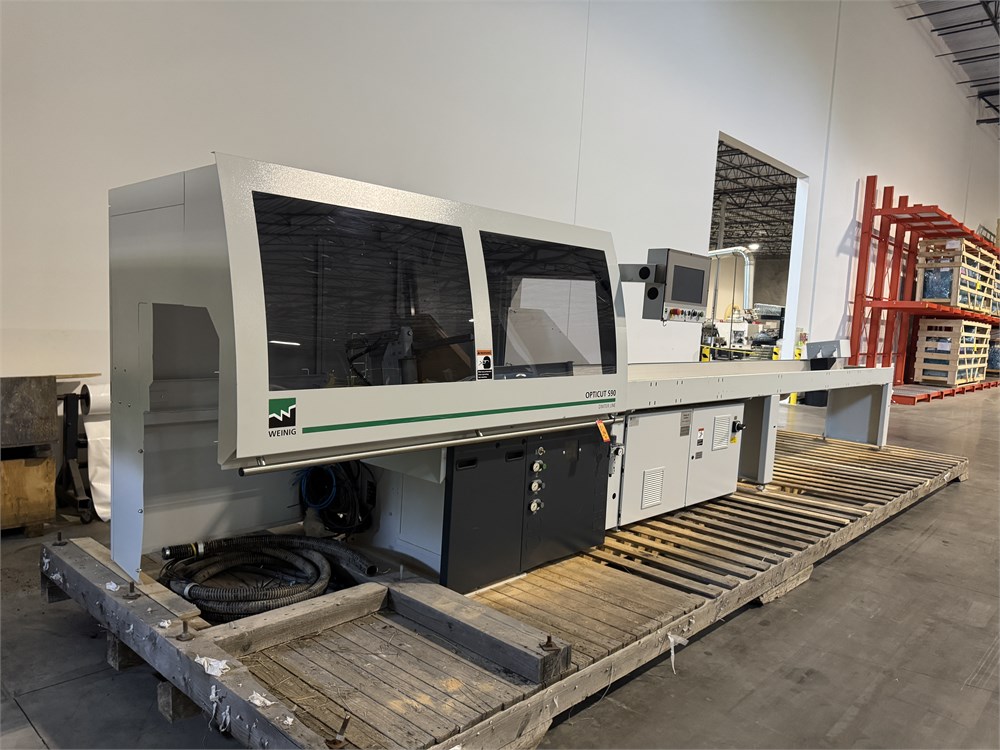

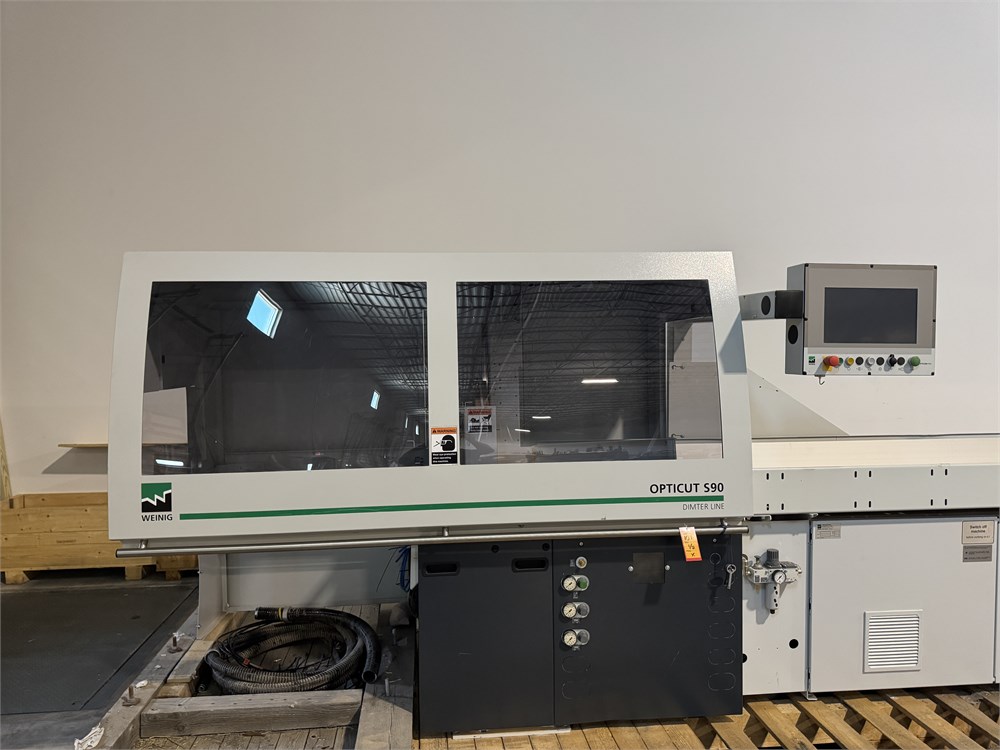

Weinig "Opticut S 90" Optimizing Crosscut Saw (2022)
3/8" - 4" Thickness cap.
3/4" - 11-3/4" Width cap.
177" Max ingoing length
10 HP Arbor motor driving 20-1/2" dia. blade with 30 mm bore at 2,900 RPM.
Precision, Servo controlled pusher bar motor, 196 FPM max., travels full length of board, reading crayon marks for cut to length, optimization & defecting marks.
Pusher arm automatically positions itself after measuring the board and precisely feeds the board into the saw with positioning accuracy of +/- 0.004".
Waste gate for discharge of waste items from saw cuts.

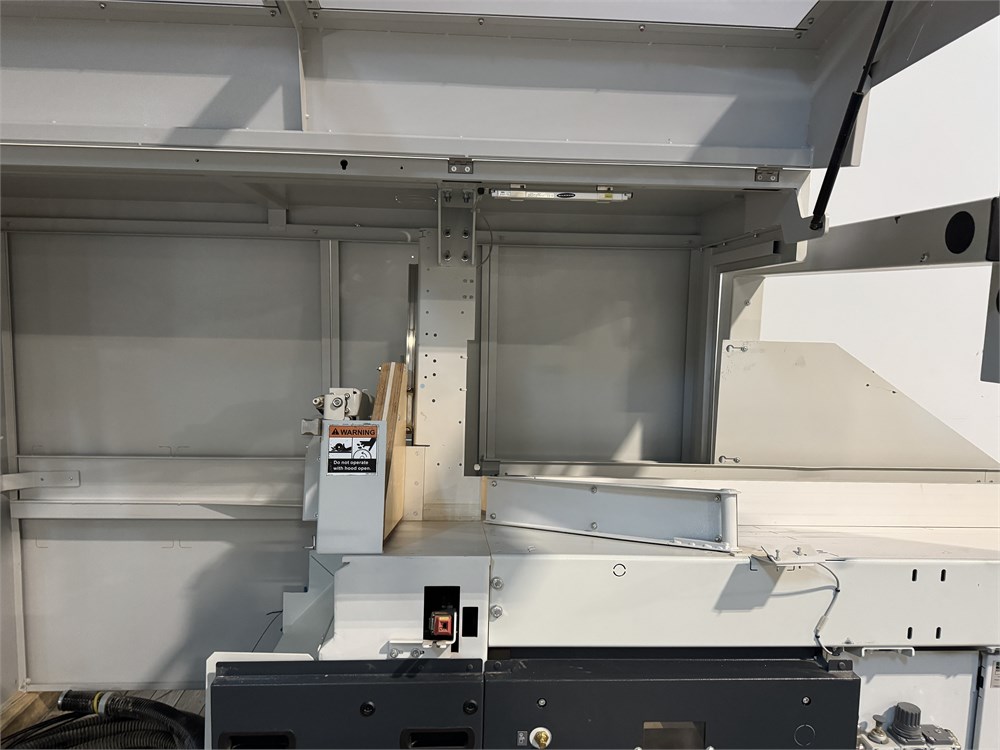

Saw uses (2) pneumatically operated side hold-over rolls before-and-after the saw blade.

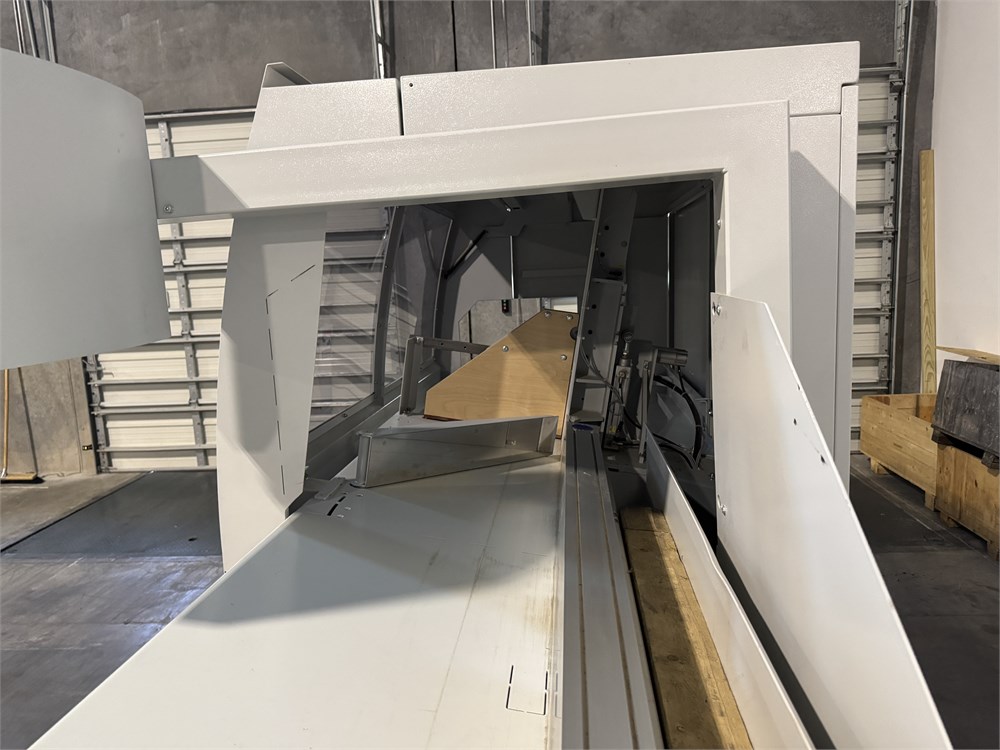

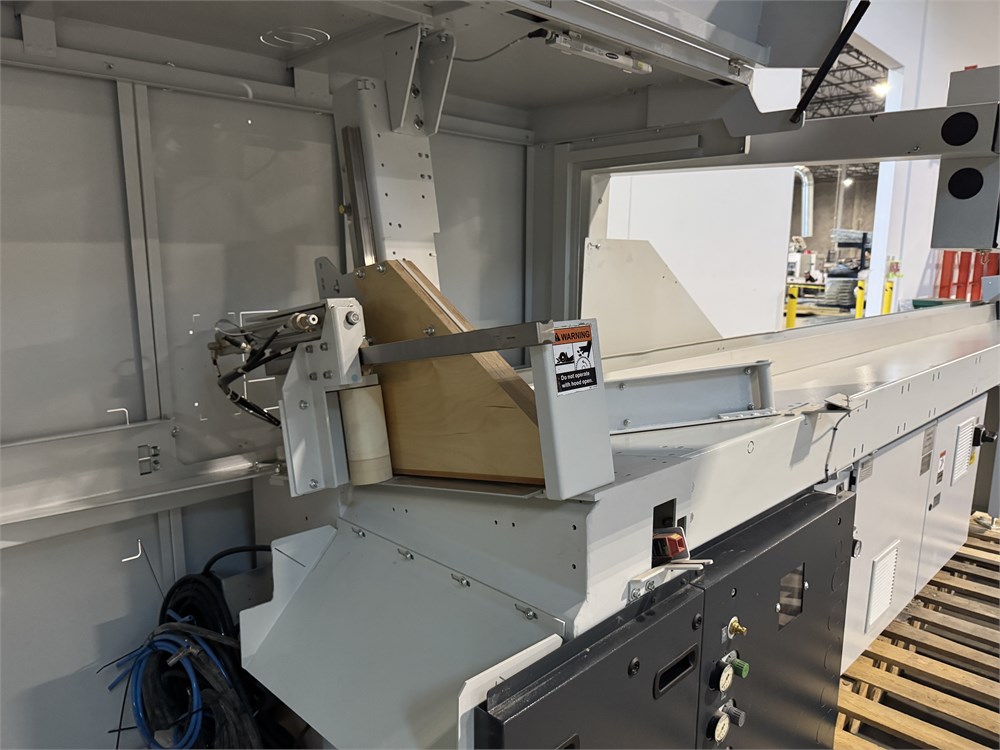

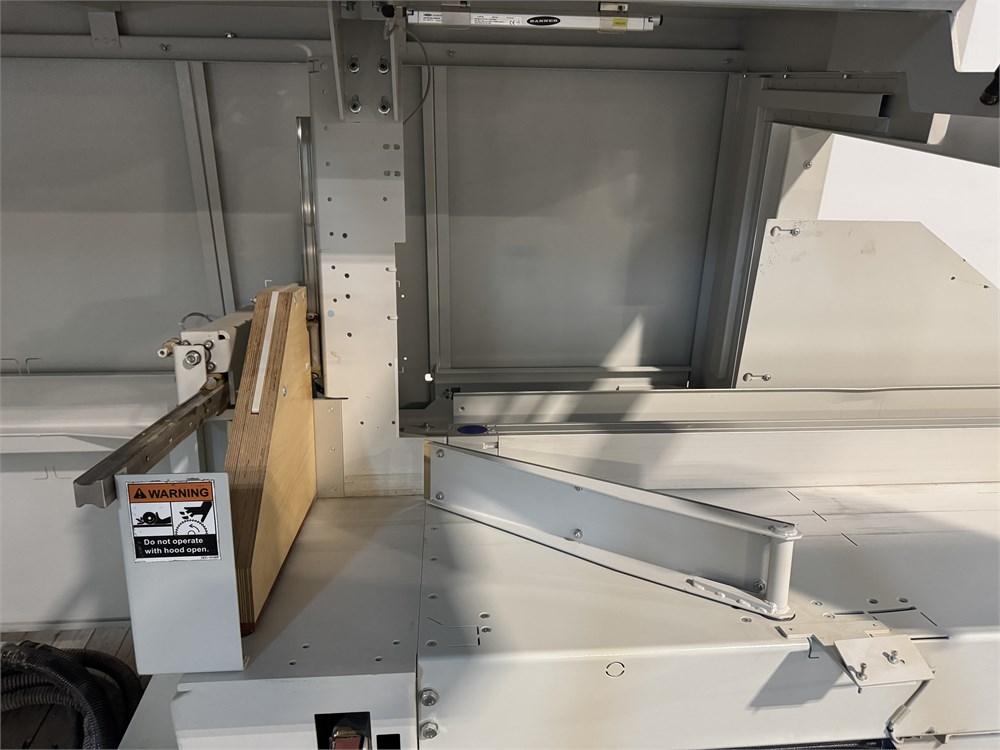

Computer controlled hold-down shoe ensures stock is securely held in position during cut; hold-down, hold-over devices, and precision Servo controlled pusher arm provide square, accurate, and high-quality cuts - even on large cross-sections.

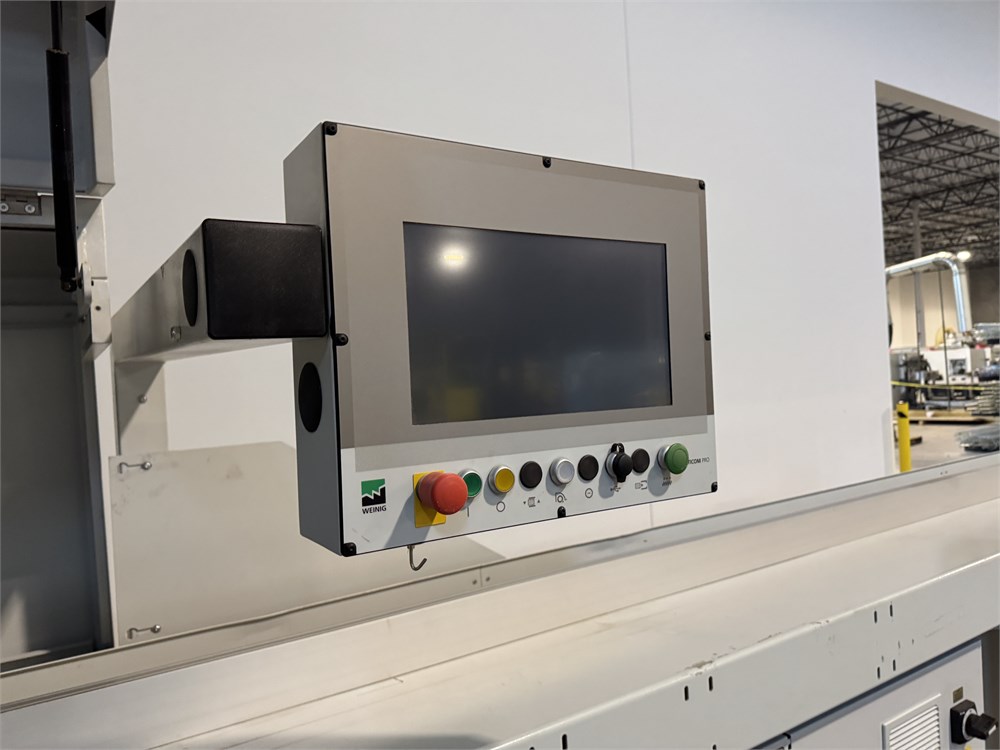

Programmable controls for cutlists, optimizing for yield and defecting capability.

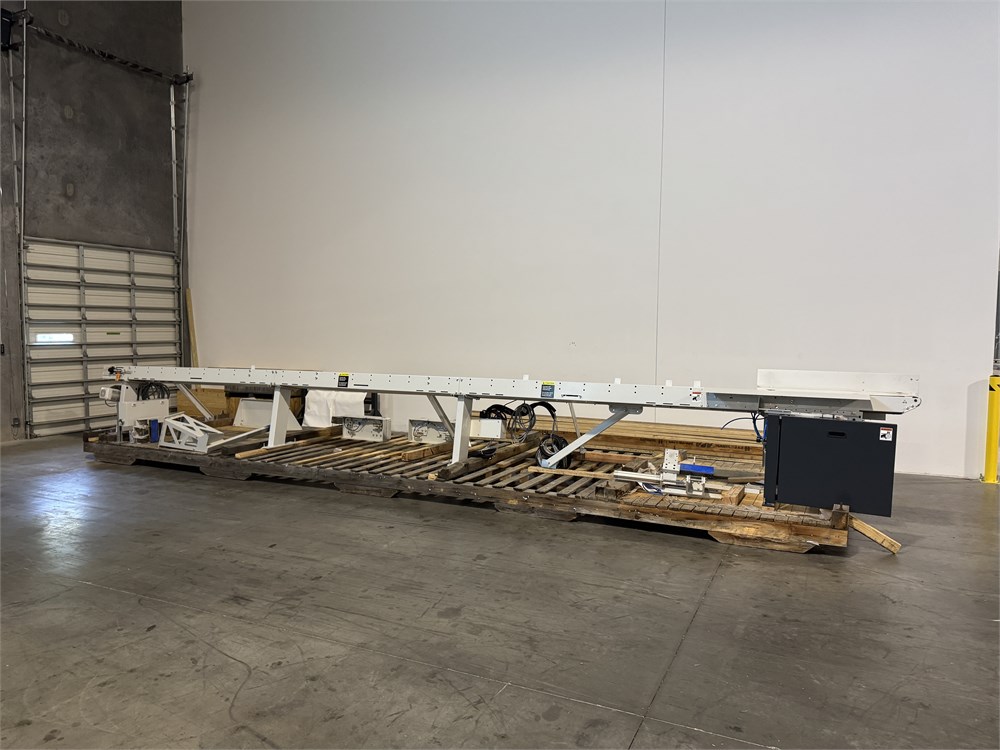

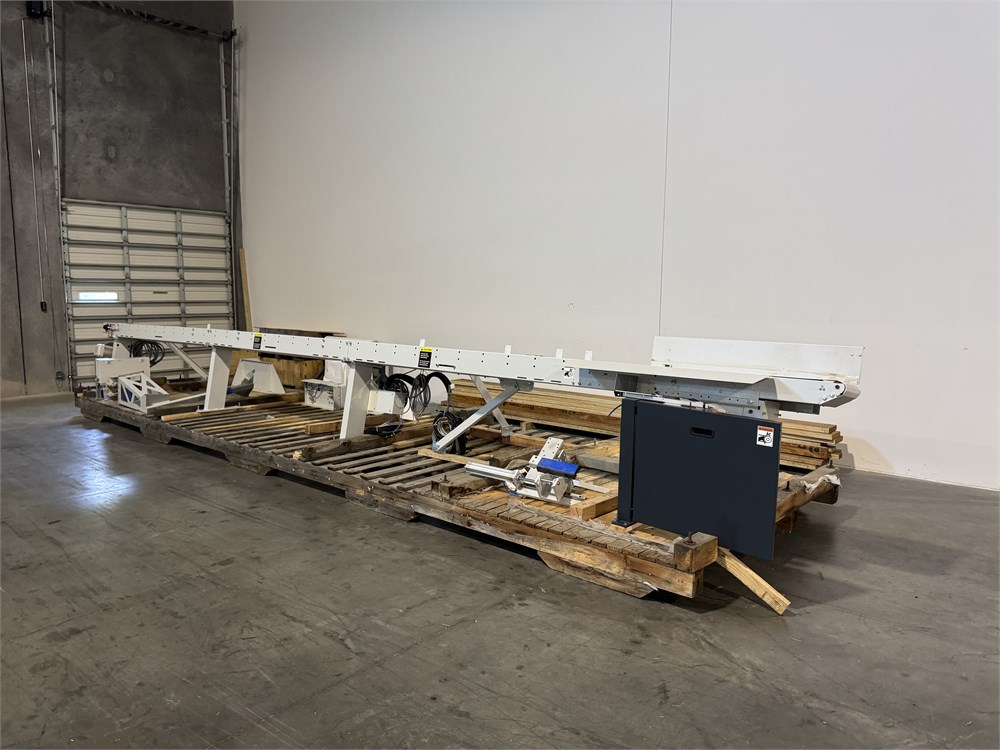

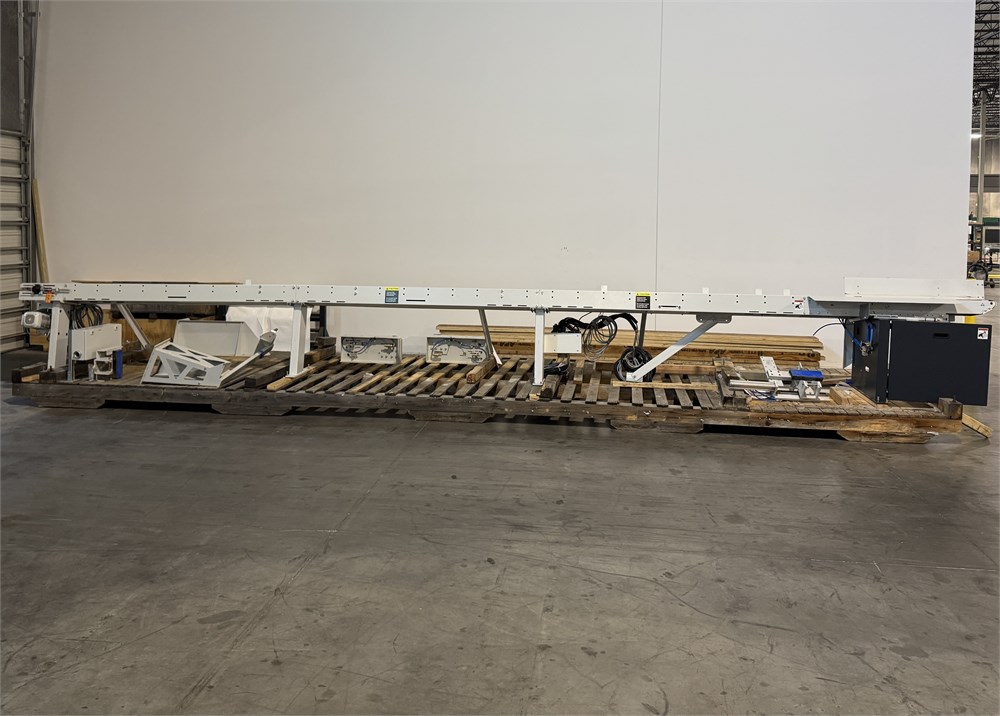

Out feed sortline with 2 HP motor driving a 10" wide x 30' long belt with (2) pneumatically controlled mechanical ejectors; encoder permits accurate sorts according to width, length or grade.
End of belt can also be used in an additional sort for long fixed length parts, finger joint blocks, or long waste.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
