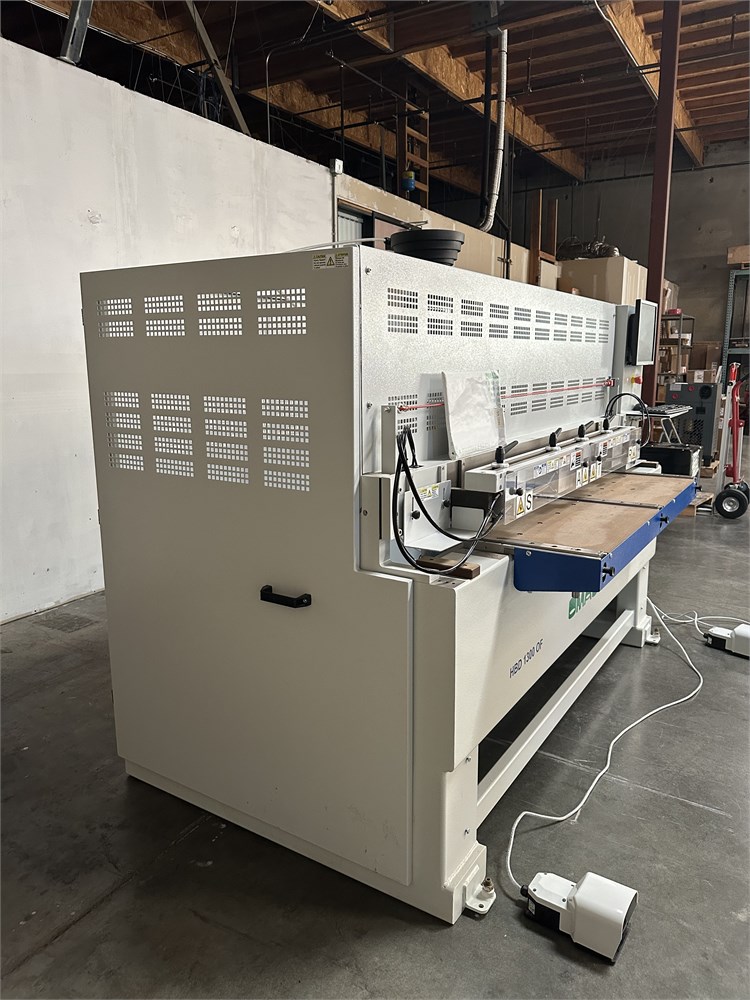

Omal "HBD 1300 OF" CNC Drill and Dowel machine (2019)
Ended
Woodworking Machinery Warehouse Auction - Tracy, CA
Tracy, CA
- Winning Bid : $18,700.00 USD Sold
- 66 Bid(s)
- High Bidder: j****i
Woodworking Machinery Warehouse Auction - Tracy, CA ( Closed #72802701 )
All Assets Moved to Tracy CA warehouse for the convenience of buyers. Auction items include 2019 Omal HBD-1300 OF CNC Drill and Dowel, 2016 HolzHer 1308XL, 2016 Homag Brandt KDN 110 Edgebander, 2024 Demo Circle T Notcher machine, 2013 SCM SI400 Nova Sliding Table Saw, and much more. Over 20 Lot Items Up for Auction.
-
Pick Up Location
2203 N. MacArthur Drive, Tracy CA 95376
-
Make
SCM Group
-
Model
Omal HBD-1300OF
-

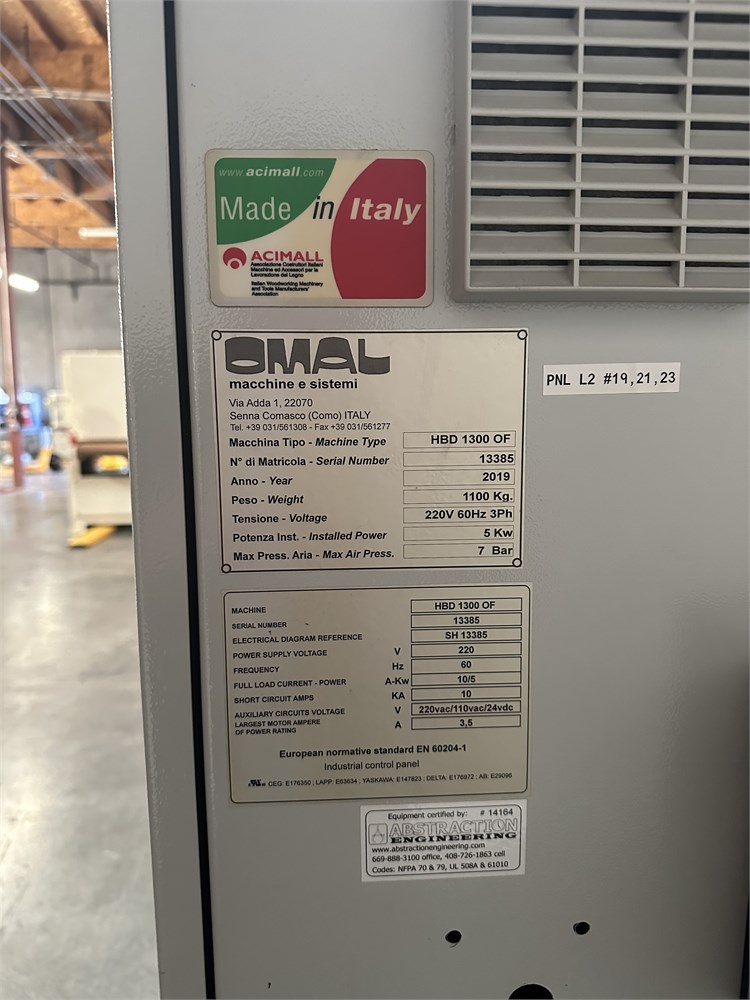

Serial Number
OMAL 13385
-
Year
2019
-
Phase
3 PHASE
-
Voltage
230 VOLT
-
Buyer Inspection Period
By appointment only, contact Kirk Gass, [email protected], 925-250-8248
-
Load Out Period
June 18th thru 23rd, By Appt. Only
-
Estimated Dimensions
108" L x 60" W x 80" H
-
Estimated Weight
Approximately 2500 lbs.
-
Seller Comment
-
Load Fee
395.00
-
Lot Notes
-
page views
2661

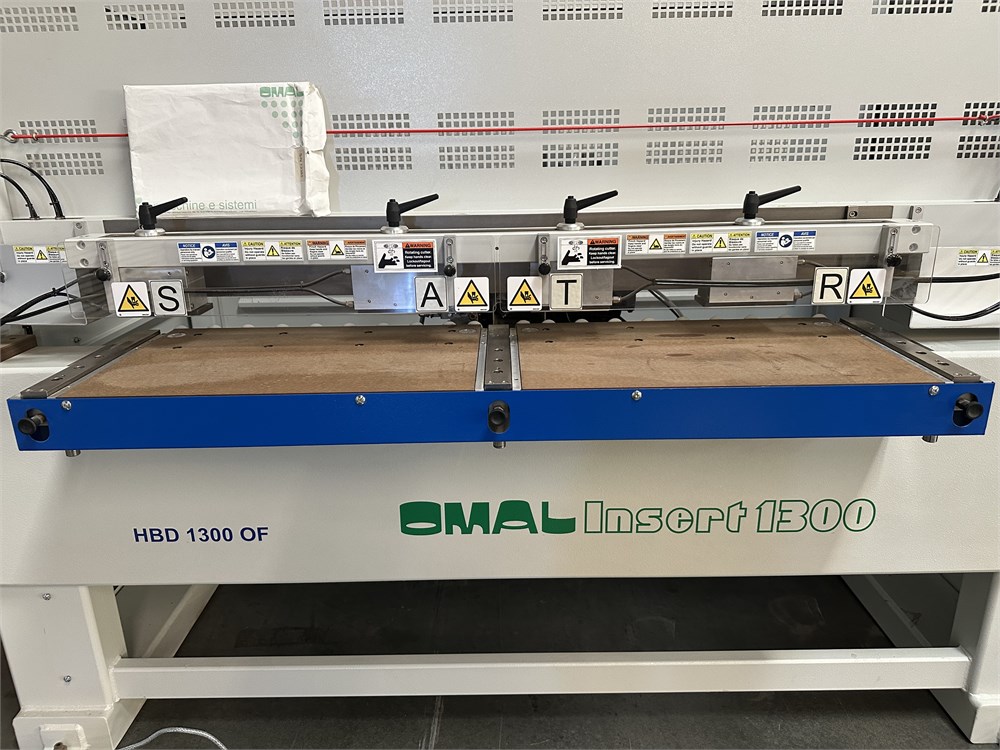

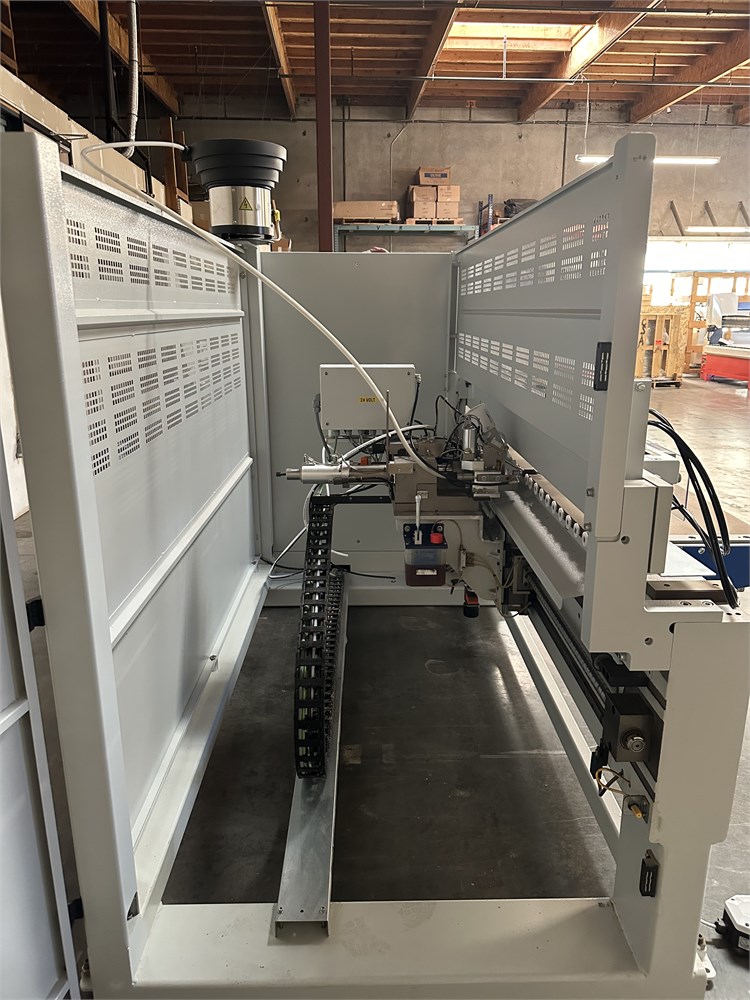

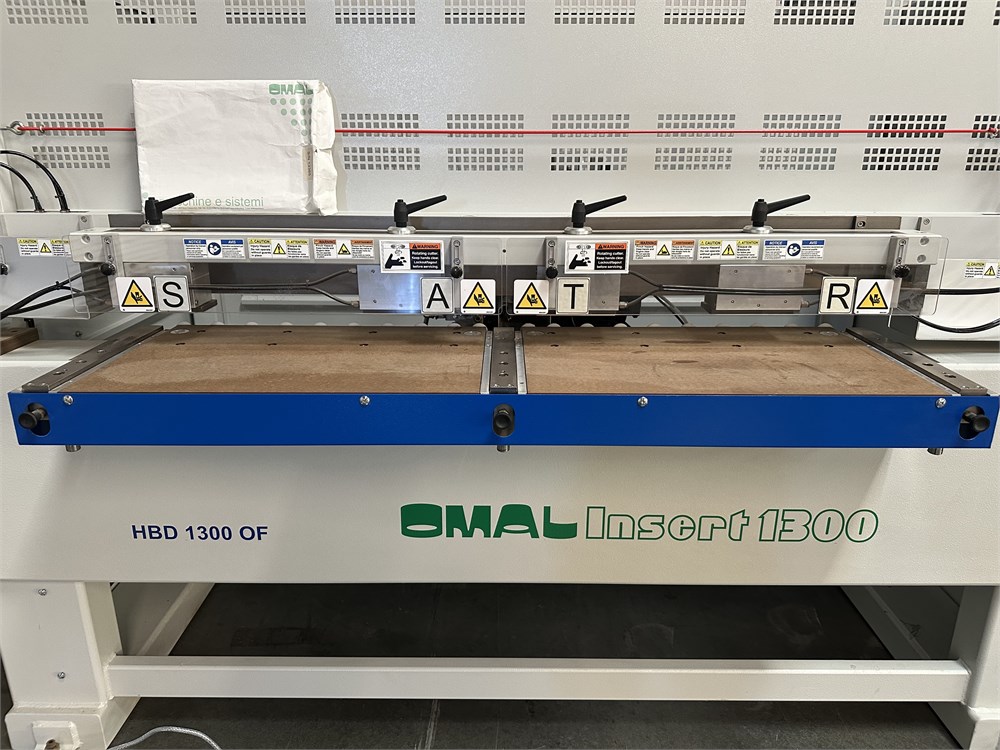

(2019) Omal "HBD 1300 OF" CNC Drill and Dowel machine
NC Controlled automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc. at random spacing. with Laser measuring.
X-axis work area,1300 mm (51"). Y-axis, (depth) max. 40 mm (1.57"), Z-axis (thickness manual setting) max. 40 mm (1.57") - positioning speed 164 FPM (50 MPM).
Width LASER sensor to automatically measure width of panel and calculate number of dowels based on a template file. Template file can be modified from the list. (Laser tolerance subject to edge integrity, straight edge +/- 0.2mm)

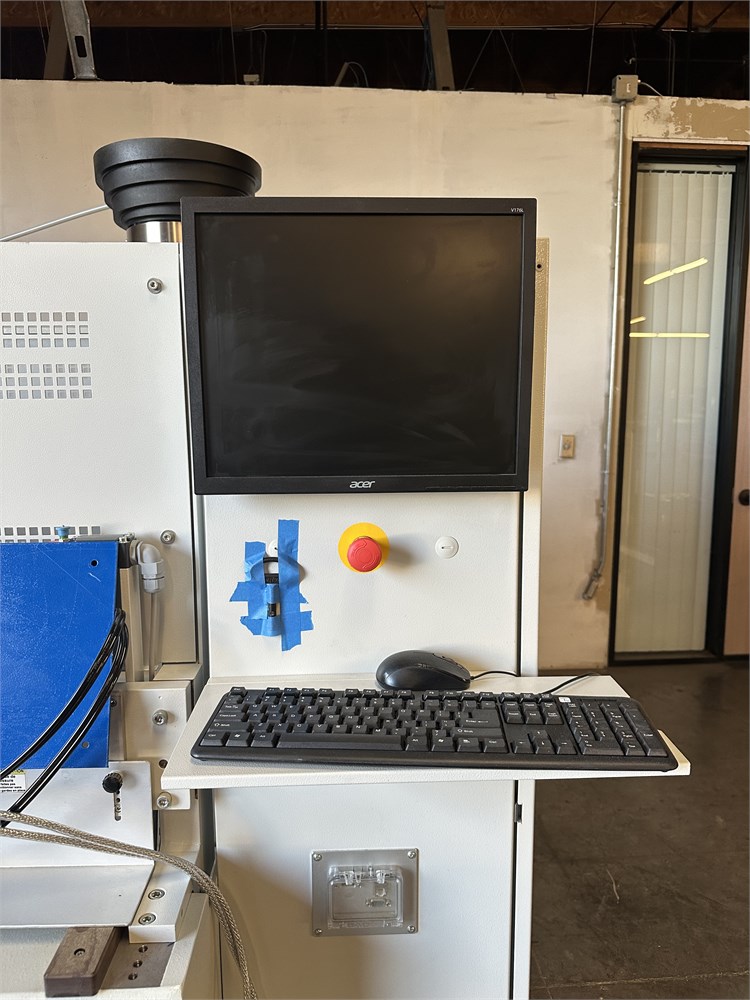

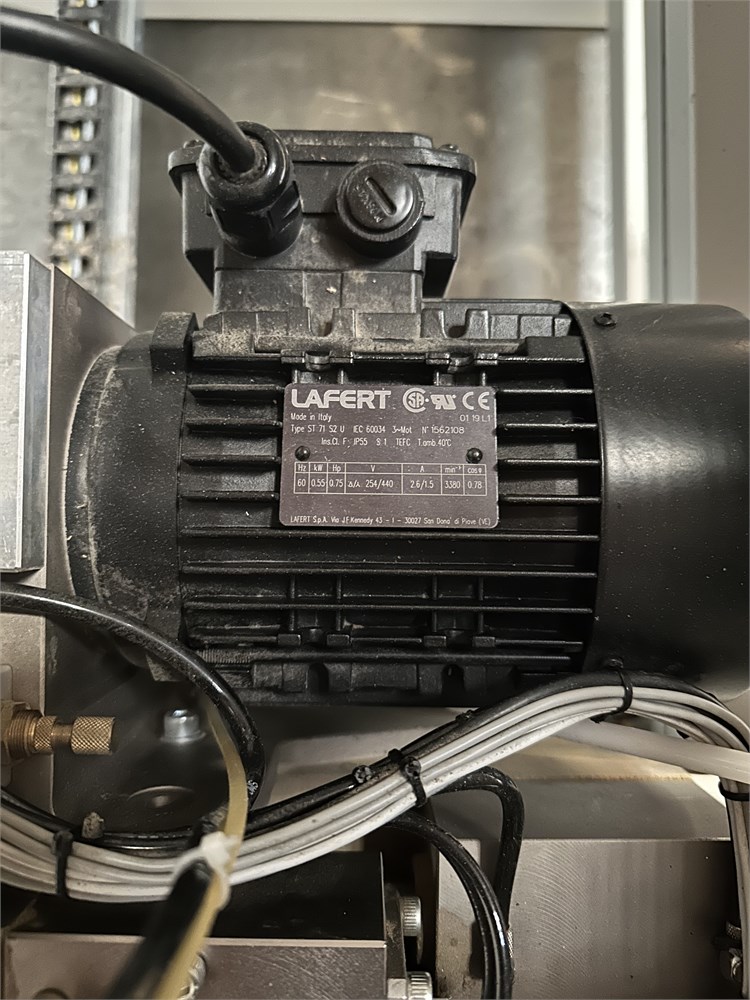

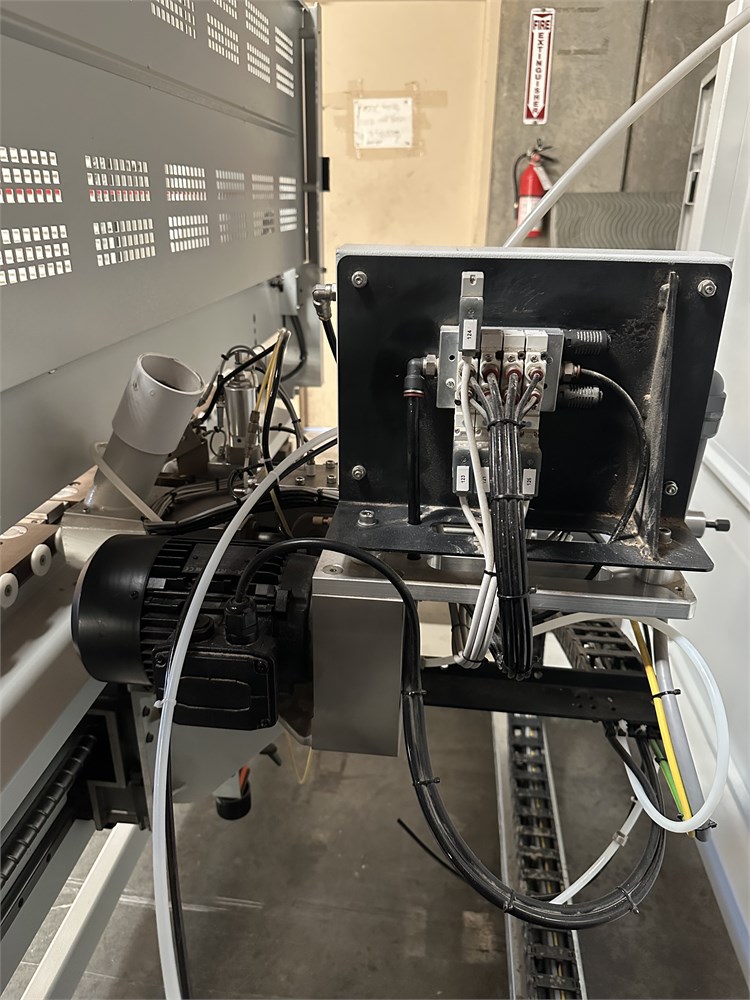

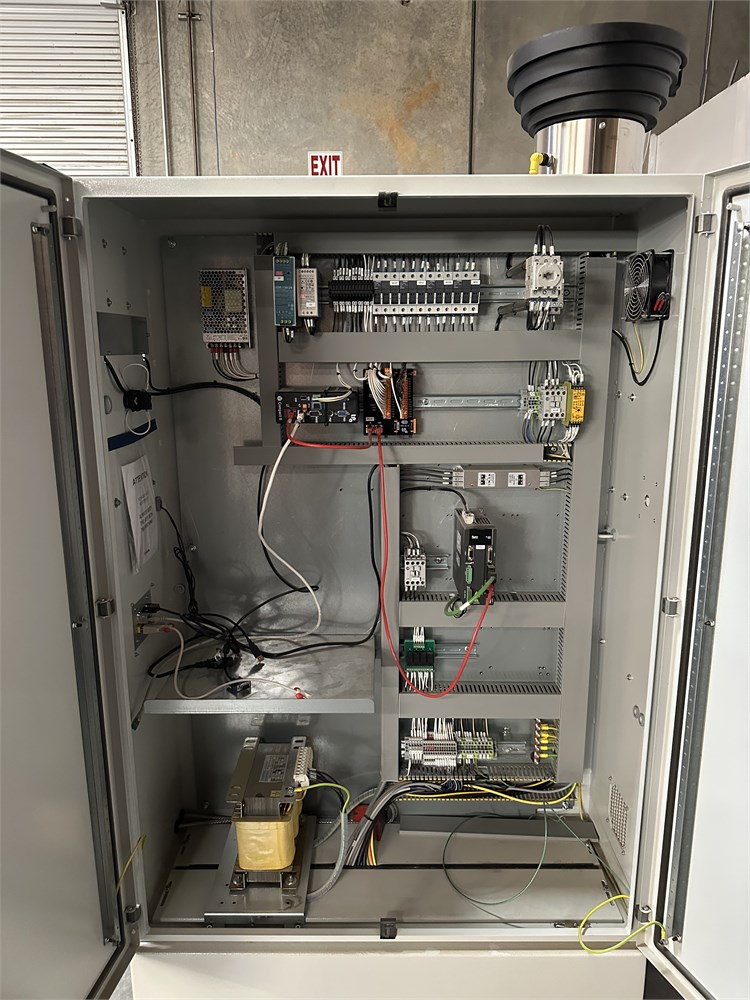

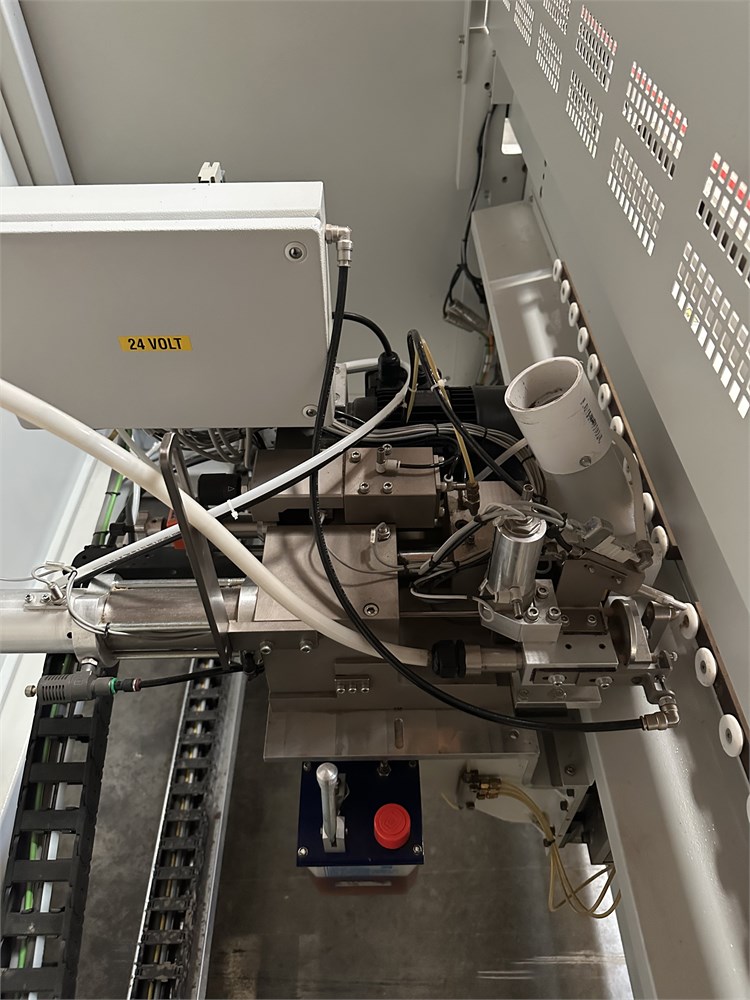

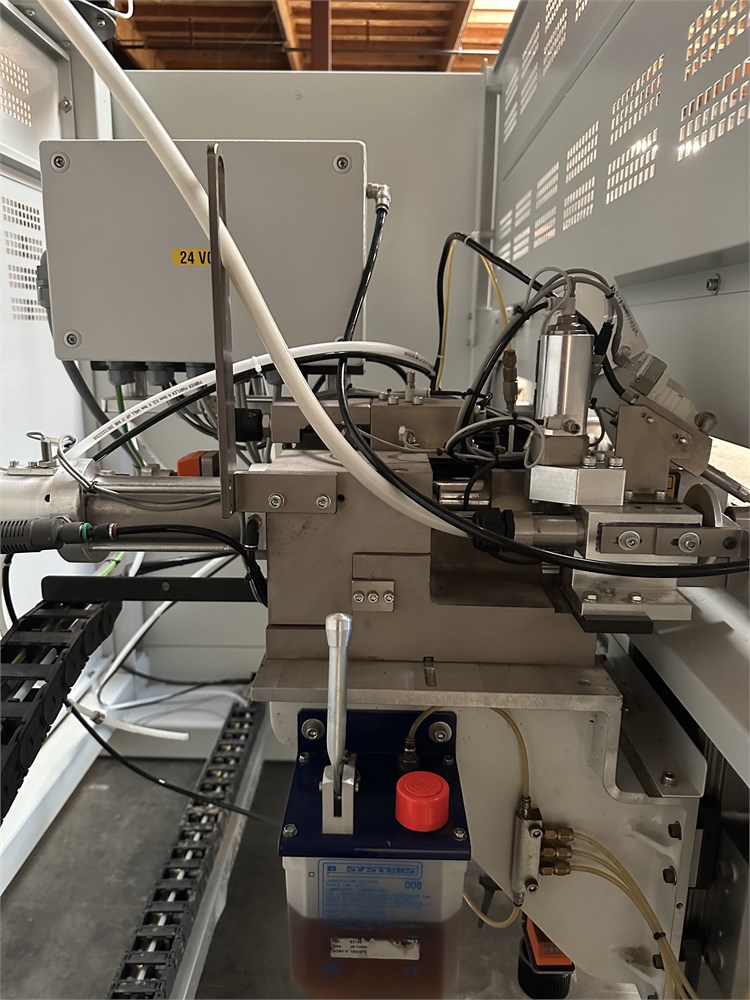

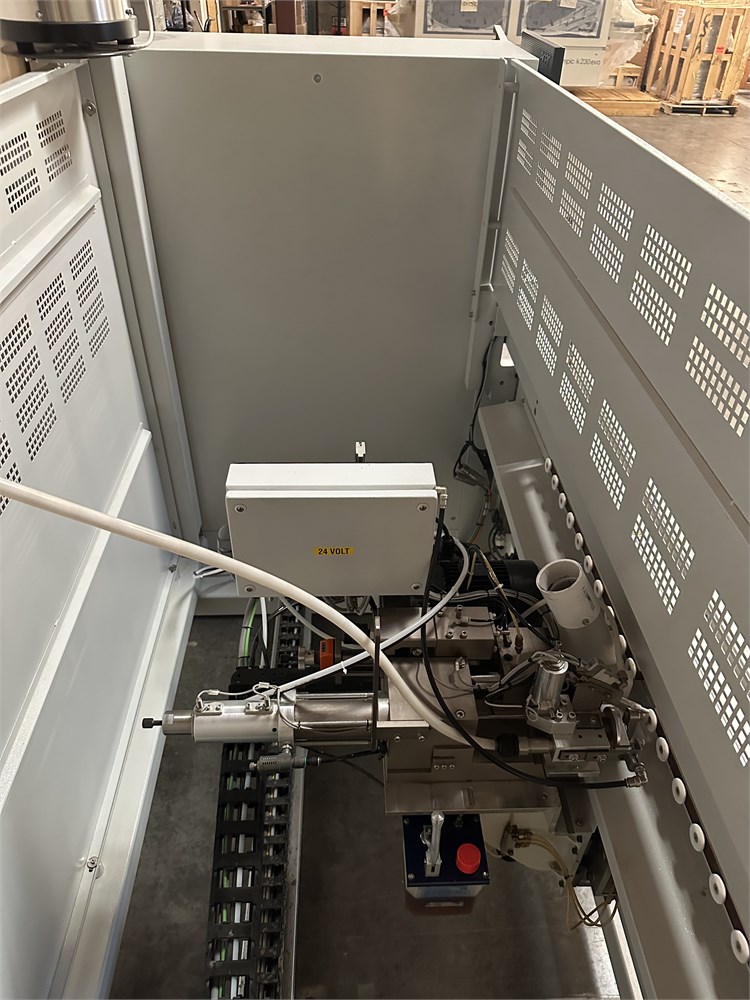

PC Controller with Windows operating system, flat screen color monitor, industrial keyboard, mouse, 40GIG hard drive; USB port; bar code scanner; (4) working zones, retractable center fence, useful for processing smaller parts like drawers, stretchers etc. One (1) 1-HP NC controlled horizontal drilling unit, gluing and (1) dowel insertion unit.

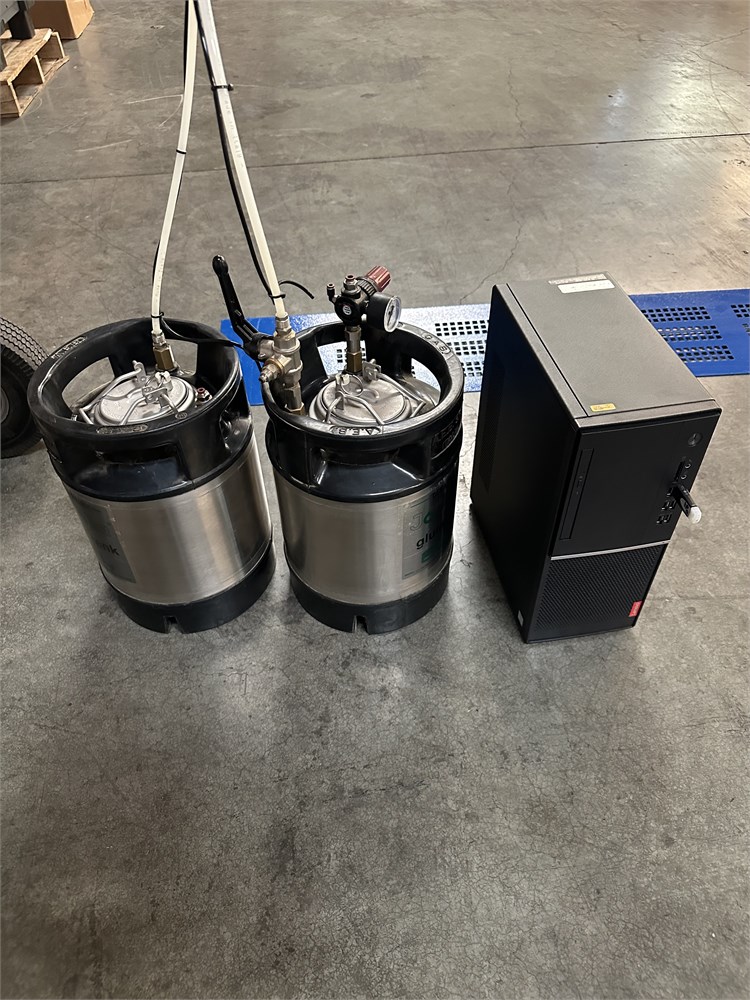

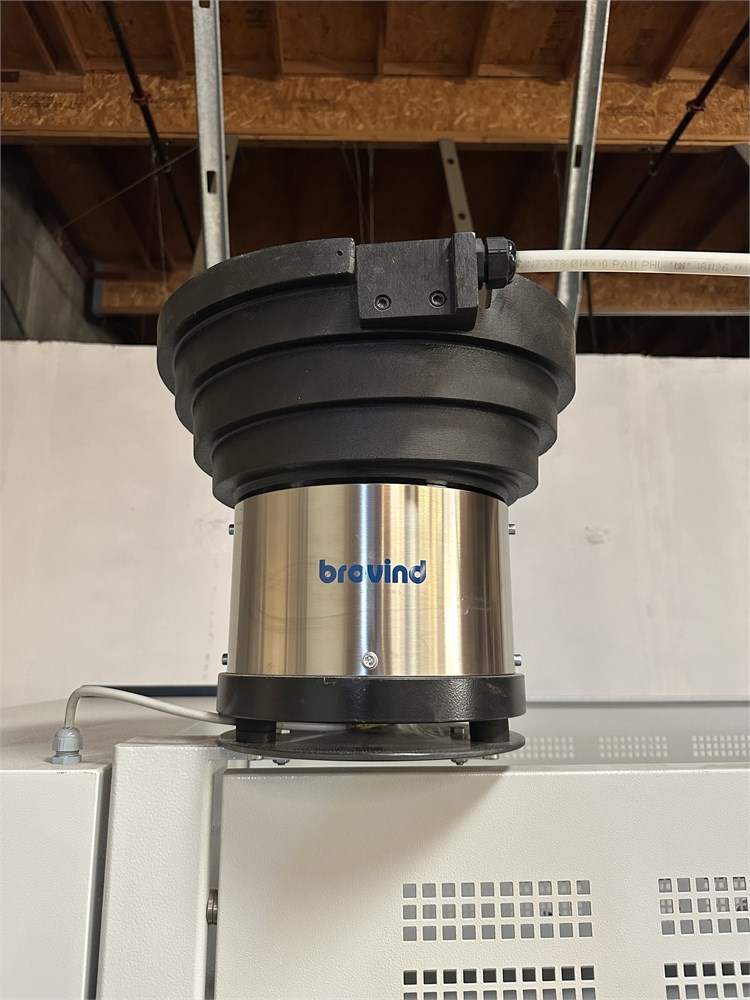

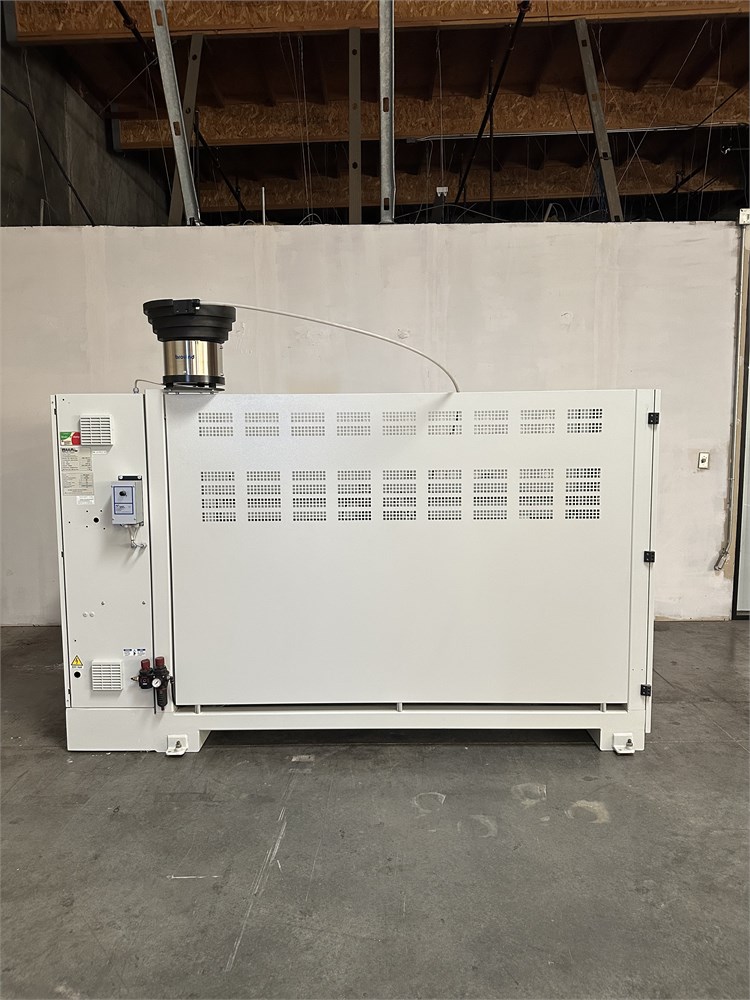

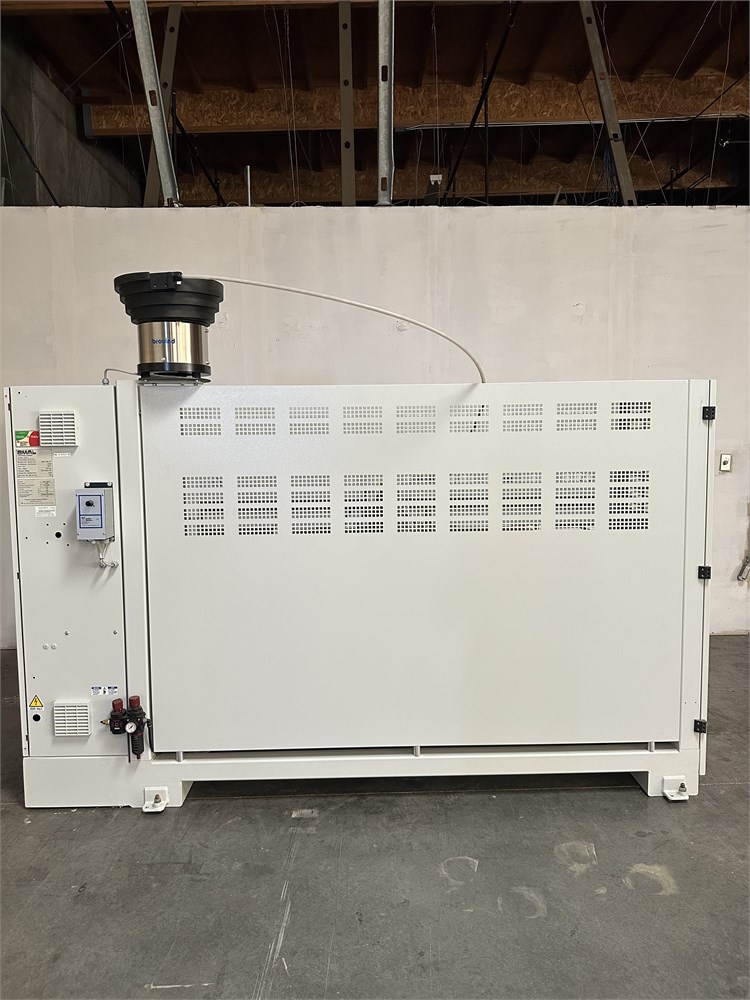

(1) 8-Liter cap. high pressure glue tank, (1) 8-liter cap. water tank (for cleaning), (1) Vibratory Dowel Hopper, (4) pneumatic hold-down clamps.
The listed specifications & information were taken from the manufacturer’s published information, internet research, or seller’s description.
The specifications & information are assumed to be correct; however, in no way, guaranteed. Bidders are encouraged to inspect the machine, call with questions, or contact the manufacturer for more information.
